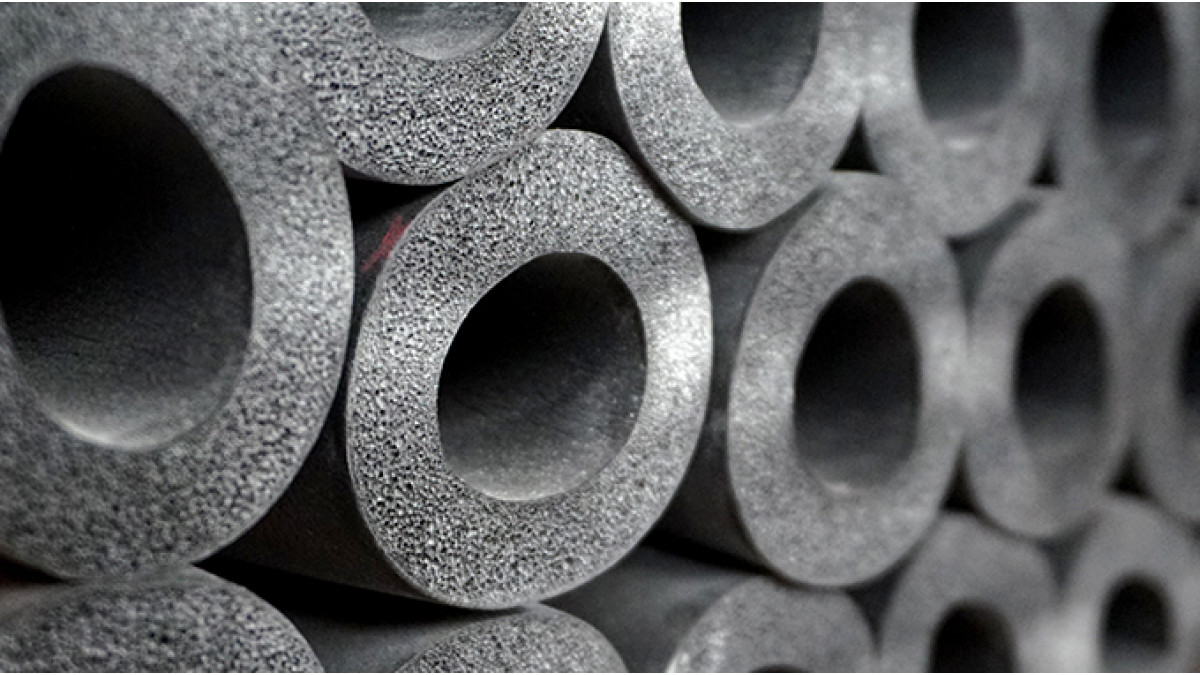

Improve Energy Efficiency with Thermal Pipe Lagging

Selecting the correct insulation product for a building's specific requirements can reduce heat loss or gain by more than 80%.

Allproof Industries supplies a wide range of pipe lagging to prevent thermal heat loss through plumbing services. These products offer a wide range of attributes, from UV resistance to operating temperatures ranging from -57°C to +150°C. All insulation products supplied by Allproof meet NZ requirements for performance and fire ratings.

The insulation range supplied by Allproof also boasts compliance and green star approval from the Green Building Council with low VOC on the majority of its range. The remaining products have zero ozone depleting potential, with no CFCs being used in the manufacturing process. The result is that Allproof supplies high quality insulation products with low impact on the environment.

Allproof can supply projects with the correct insulation product by providing a wealth of information such as K & R values and operating ranges to ensure the project meets the highest energy efficient level possible.

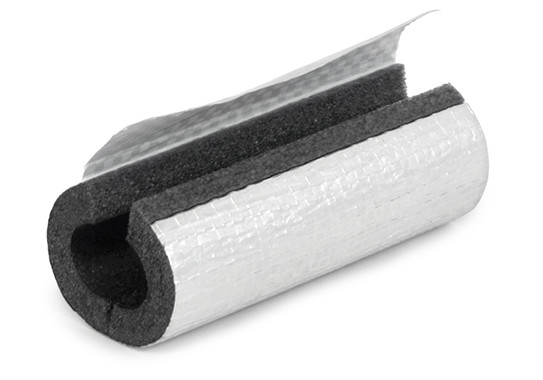

4-Zero Thermal Pipe Insulation

Allproof Industries

View Product

Allproof 4-Zero pipe insulation has been developed to meet the demanding standards of commercial hot and cold water reticulating systems. With excellent thermal insulation performance, 4-Zero provides the energy retention properties required by current building specifications.

Homestar / Green Star

Pre-Consumer Recycled Content

Applications include:

Hospitals and Aged care Facilities
Hotel and Entertainment
Commercial Buildings - Offices etc
Public Service Facilities and Buildings
Shopping Centre Complexes
Multi Level Unit Housing

NZBC B2.3.1 (b) Thermotec Acoustic lagging meets the 15 year performance requirement.

NZBC C3.4 Thermotec acoustic lagging has been tested in accordance with ISO 5660.1 – 2015 with a Product Group Number Classification of 3.

NZBC G6.2: When selected and installed correctly Thermotec acoustic lagging systems provide the ability to create a fully compliant solution for acoustic pipe lagging of plumbing and ventilation systems.

Specifically, to safeguard people from illness or loss of amenity as a result of noise being transmitted from other occupancies or common spaces, to the habitable spaces of household units.

NZBC F2.3.1 Thermotec Acoustic lagging does not present a health hazard to people.

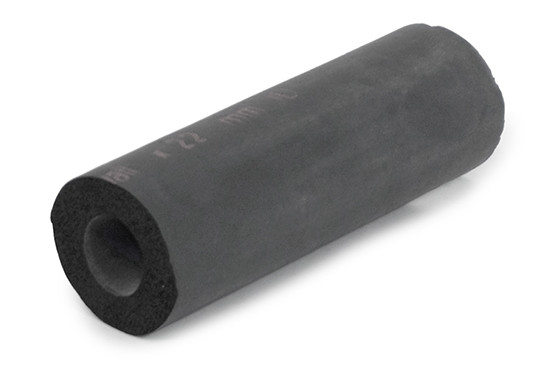

E-Flex Solar

Allproof Industries

View Product

Allproof again leads the way with solar and outdoor lagging.

Thermotec acoustic lagging may require the addition of other building elements such as plasterboard to achieve the appropriate acoustic rating required by local authorities.

NZBC B2.3.1 (b) Thermotec Acoustic lagging meets the 15 year performance requirement.

NZBC C3.4 Thermotec acoustic lagging has been tested in accordance with ISO 5660.1 – 2015 with a Product Group Number Classification of 3.

Specifically, to safeguard people from illness or loss of amenity as a result of noise being transmitted from other occupancies or common spaces, to the habitable spaces of household units.

NZBC F2.3.1 Thermotec Acoustic lagging does not present a health hazard to people.

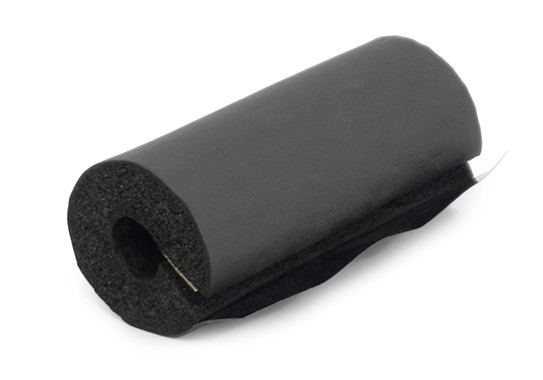

ISOPipe SSR Pre Slit Pipe Lagging

Allproof Industries

View Product

For retrofit thermal pipe insulation installations, it makes sense to utilise the slit and seal thermal pipe lagging.

ISOPipe SSR is the ideal solution to retrofit situations.

NZBC B2.3.1 (b) ISOPIPE thermal insulation meets the 15 year performance requirement.

NZBC C3.4 ISOPIPE thermal insulation has been tested in accordance with ISO 5660.1 – 2015 with a Product Group Number Classification of 1.

NZBC F2.3.1 : ISOPIPE thermal insulation does not present a health hazard to people.

NZBC H1.2 & H1.3.4: ISOPIPE systems are designed to provide energy efficiency to pipework systems when providing hot water to and from sanitary fixtures and appliances.

NZBC H1/VM3: Part 7. Pipework Insulation, Clause 7.1.1.1 – When selected and installed correctly ISOPIPE thermal insulation provides a system that will limit energy loss through pipework

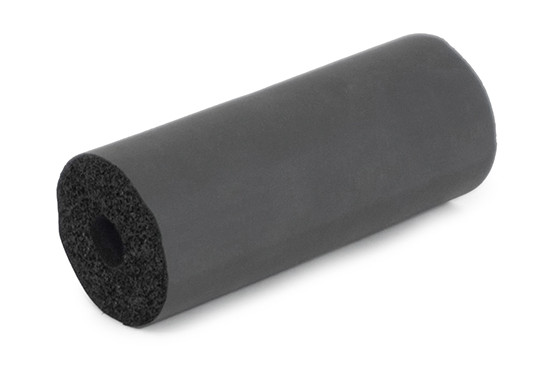

ISOPipe

Allproof Industries

View Product

ISOPIPE Closed Cell Elastomeric Insulation is the ideal solution for the insulation of hot or cold application, dual-temperature systems. ISOPIPE offers the most effective insulation for pipes at the lowest initial cost, thus maximizing the saving of energy.

Allproof ISOPipe is the ideal solution for the insulation of hot or cold application, dual-temperature systems.

NZBC B2.3.1 (b) ISOPIPE thermal insulation meets the 15 year performance requirement.

NZBC C3.4 ISOPIPE thermal insulation has been tested in accordance with ISO 5660.1 – 2015 with a Product Group Number Classification of 1.

NZBC F2.3.1 : ISOPIPE thermal insulation does not present a health hazard to people.

NZBC H1.2 & H1.3.4: ISOPIPE systems are designed to provide energy efficiency to pipework systems when providing hot water to and from sanitary fixtures and appliances.

NZBC H1/VM3: Part 7. Pipework Insulation, Clause 7.1.1.1 – When selected and installed correctly ISOPIPE thermal insulation provides a system that will limit energy loss through pipework

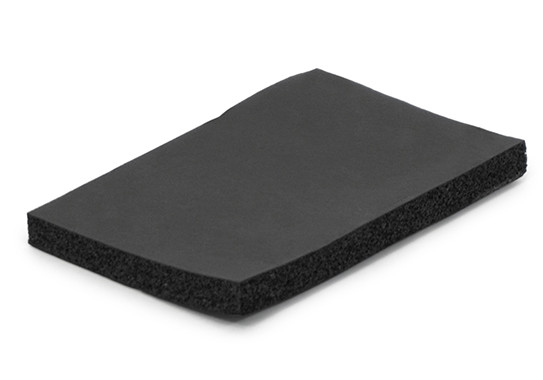

ISORoll

Allproof Industries

View Product

Closed-cell elastomeric foam thermal insulation in flat sheets Excellent flexibility allows shaping and formation around larger pipe sizes and objects such as ducts, bore pipes and boilers Ideal for large pipe sizes Lengths of up to 14 meters High temp material Suitable for stainless steel pipe ISOPIPE has zero ozone depleting potential, with no CFCs being used in the product, or the manufacturing process.

Ideal for large pipe sizes.

NZBC B2.3.1 (b) ISOPIPE thermal insulation meets the 15 year performance requirement.

NZBC C3.4 ISOPIPE thermal insulation has been tested in accordance with ISO 5660.1 – 2015 with a Product Group Number Classification of 1.

NZBC F2.3.1 : ISOPIPE thermal insulation does not present a health hazard to people.

NZBC H1.2 & H1.3.4: ISOPIPE systems are designed to provide energy efficiency to pipework systems when providing hot water to and from sanitary fixtures and appliances.

NZBC H1/VM3: Part 7. Pipework Insulation, Clause 7.1.1.1 – When selected and installed correctly ISOPIPE thermal insulation provides a system that will limit energy loss through pipework
