ISORoll
Description

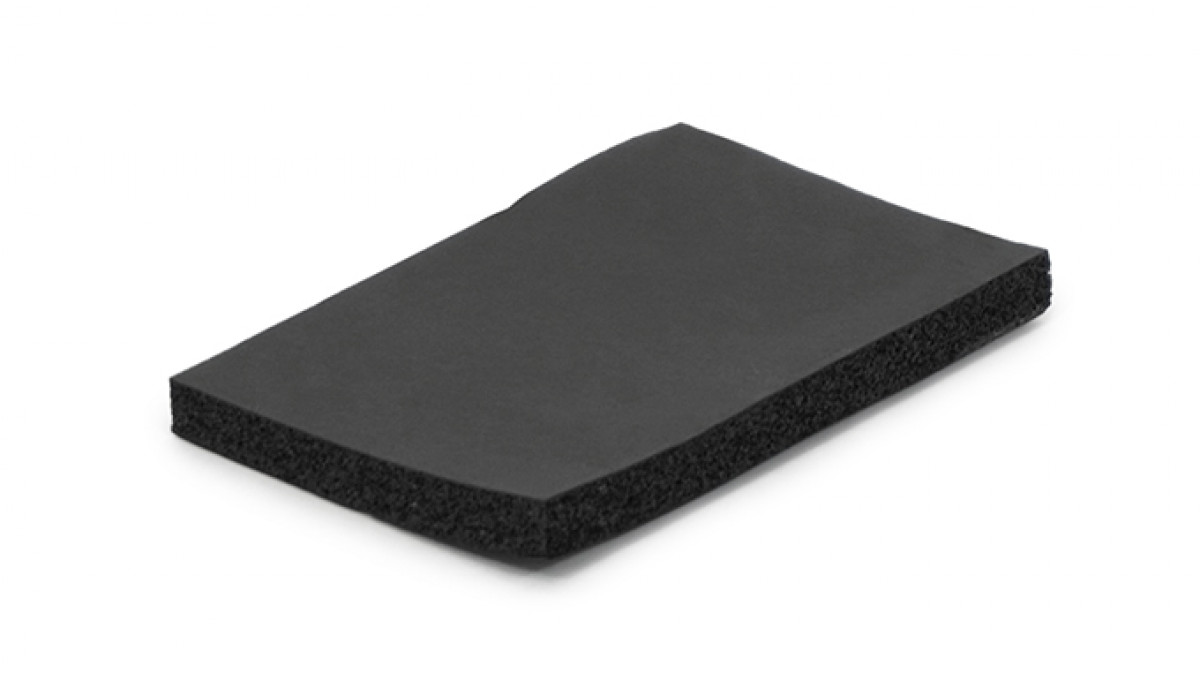

    • Closed-cell elastomeric foam thermal insulation in flat sheets
    • Excellent flexibility allows shaping and formation around larger pipe sizes and objects such as ducts, bore pipes and boilers
    • Ideal for large pipe sizes
    • Lengths of up to 14 meters
    • High temp material
    • Suitable for stainless steel pipe

ISOPIPE has zero ozone depleting potential, with no CFCs being used in the product, or the manufacturing process. ISOPIPE products are tested accordingly to globally approved standards.

ISOPIPE products have certified fungal protection and antimicrobial characteristics. Another great development for Allproof’s thermal pipe insulation range.

Allproof ISO pipe is non-combustible and has excellent fire resistant properties. To verify this it has been independently tested to ISO5660 for a group classification in accordance with NZBC verification method C/VM2 Appendix A. Classification Group Number 1.

Key Features
  • Excellent flexibility allows shaping and formation around larger pipe sizes and objects such as ducts, bore pipes and boilers
  • Ideal for large pipe sizes
  • Lengths of up to 14 meters
  • Available with self-adhesive or high temp material
Scope of Use

Ideal for large pipe sizes.

Limitations on Use

ISOPIPE thermal lagging is designed for its thermal properties, while it will have other properties such as acoustic, it is not applicable to other building requirements.

Statement of Building Code Compliance

NZBC B2.3.1 (b) ISOPIPE thermal insulation meets the 15 year performance requirement.

NZBC C3.4 ISOPIPE thermal insulation has been tested in accordance with ISO 5660.1 – 2015 with a Product Group Number Classification of 1.

NZBC F2.3.1 : ISOPIPE thermal insulation does not present a health hazard to people.

NZBC H1.2 & H1.3.4: ISOPIPE systems are designed to provide energy efficiency to pipework systems when providing hot water to and from sanitary fixtures and appliances.

NZBC H1/VM3: Part 7. Pipework Insulation, Clause 7.1.1.1 – When selected and installed correctly ISOPIPE thermal insulation provides a system that will limit energy loss through pipework

Other Performance Attributes

ISOPIPE products are tested accordingly to globally approved standards ASTM G21-09 and ASTM E2180-07. Testing to ASTM G21-09 showed no visible signs of fungal growth and testing to ASTM E2180-07 showed no bacterial growth.

ISOPIPE products have certified fungal protection and antimicrobial characteristics.

Documents
Product Warranty

0820

Brochure: Pipe Insulation
