Trimrib® Roofing and Cladding
Roofing Industries
All products

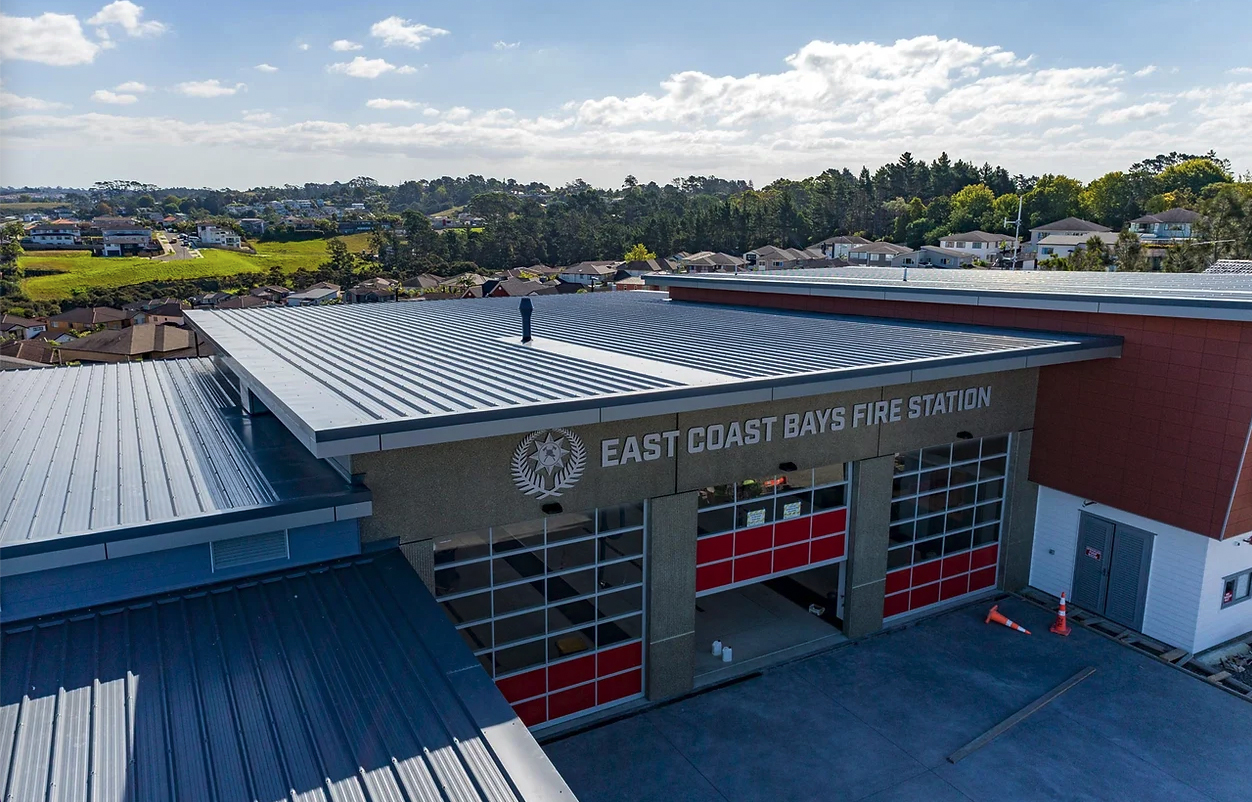

ed trimrib

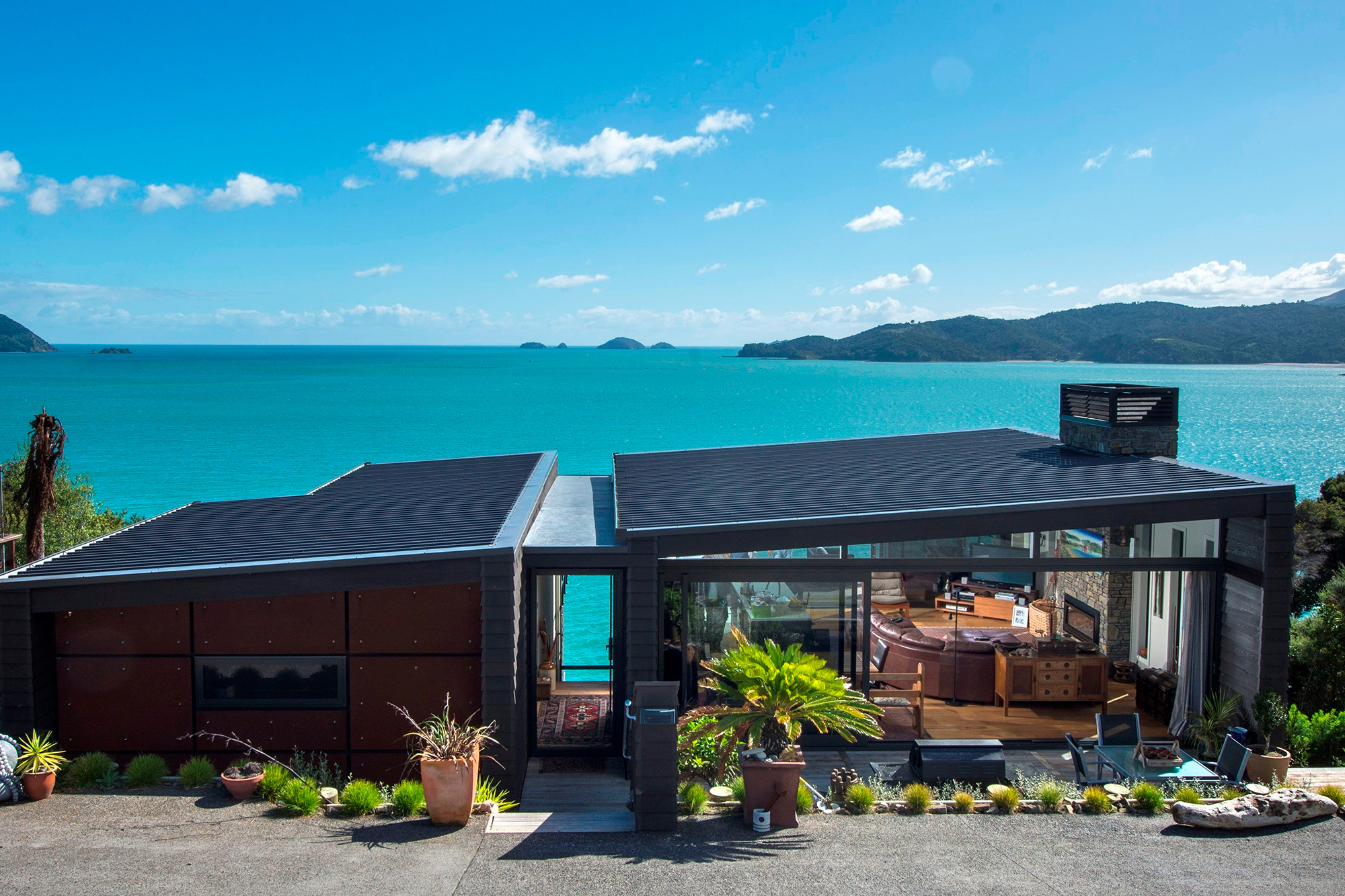

Roofing residential edit
Description

Utilising the very latest in rollforming technology, Trimrib® is manufactured as either Trimrib (S) single swage, Trimrib (TS) Twin swage and Trimrib (V) which incorporates two “V” swages between the ribs.

Key Features
  • Each profile is aesthetically pleasing, having been designed with modern building style in mind, and creates contrasts of light and shade in straight lines.
  • Trimrib® enables rapid water shedding from the roof with a low minimum pitch requirement of 3 degrees, and when coupled with or without one of the pre-painted surface finishes, Trimrib ensures the completed project provides purpose and visual appeal.
  • Trimrib V provides a point of difference over other trapezoidal profiles plus the wide range of Trimrib profile shapes offers flexibility in matching most existing 5 rib type products used in the market
  • Available in a wide range of metal substrates and surface finishes including galvanised, Zincalume, ZAM, Aluminium, Stainless Steel, Colorcote and Colorsteel (.40mm BMT and .55mm BMT) or aluminium .70mm BMT and .90mm BMT.
Categories
Metal Cladding Metal Roofing
Ranges
Trapezoidal
Scope of Use
  • Residential roofing and cladding
  • Rural and lifestyle roofing and cladding
  • Industrial and commercial Roofing and cladding
  • Drape/spring curving
  • Crimp curving
  • Fencing

Metal Roof and Wall Cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice.
Limitations on Use
  • Minimum roof pitch 3°
Statement of Building Code Compliance

Trimrib® will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Trimrib performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

Documents
Profile Technical Summary

2015

pdf
Tekton Report — E2 Compliance: Trimrib

2021

pdf
Product Brochure: Trimrib

September 2017

pdf
Selection Guide: Trimrib

2012

pdf
Brochure: Roofing with Style

2024

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
Brochure: Re-Roof
pdf
Brochure: EZI-FLO Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Project Type
Full Sets
Roofing Details
Wall Cladding Details
Wall Cladding Reverse Run Details
Clear filters

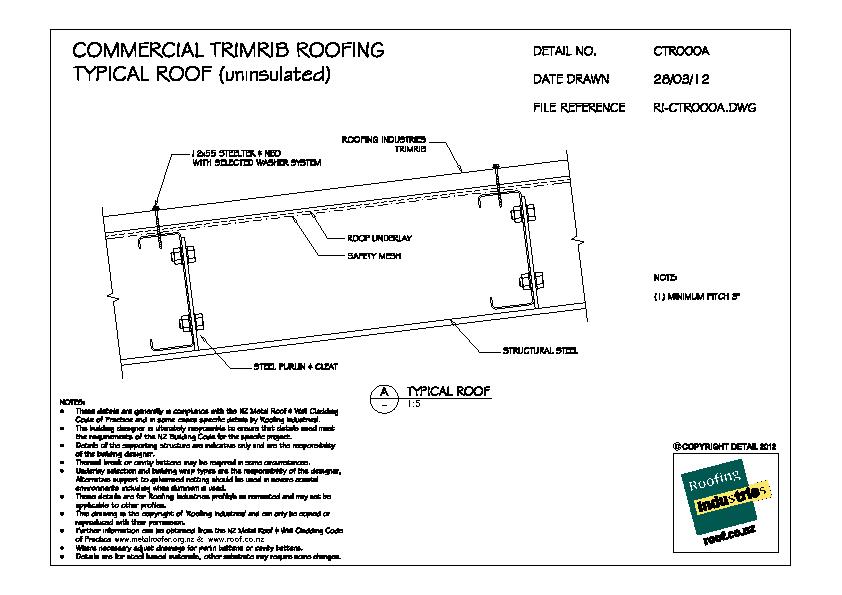

Com. Trimrib Typical Roof (Uninsulated)

RI-CT-R000A

dwg
pdf

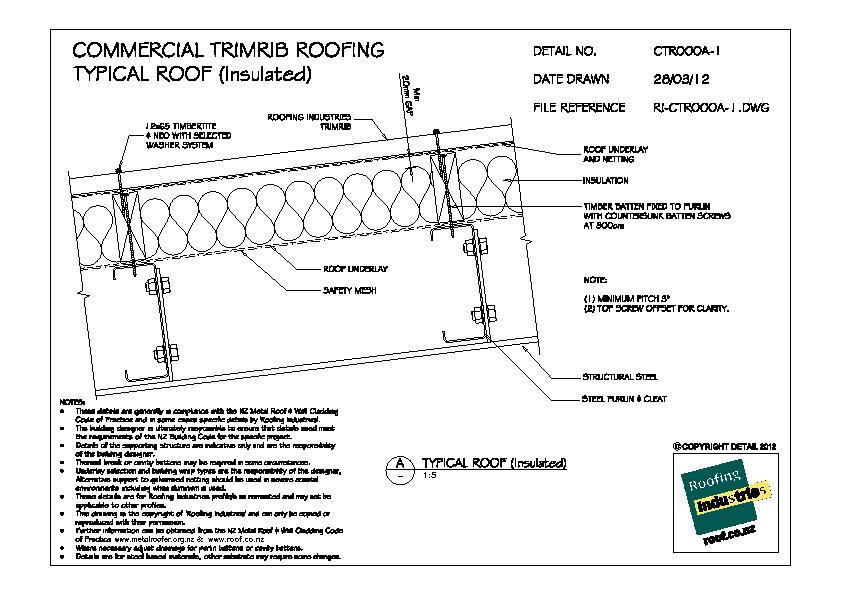

Com. Trimrib Typical Roof (Insulated)

RI-CT-R000A-1

dwg
pdf

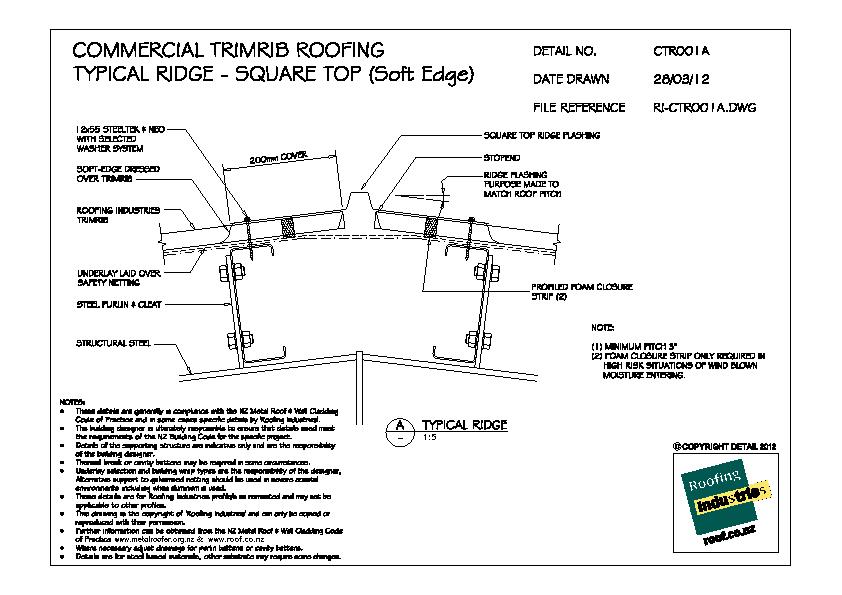

Com. Trimrib Typical Ridge Square Top (Soft Edge)

RI-CT-R001A

dwg
pdf
Com. Trimrib Typical Ridge Round Top (Soft Edge)

RI-CT-R001B

dwg
pdf

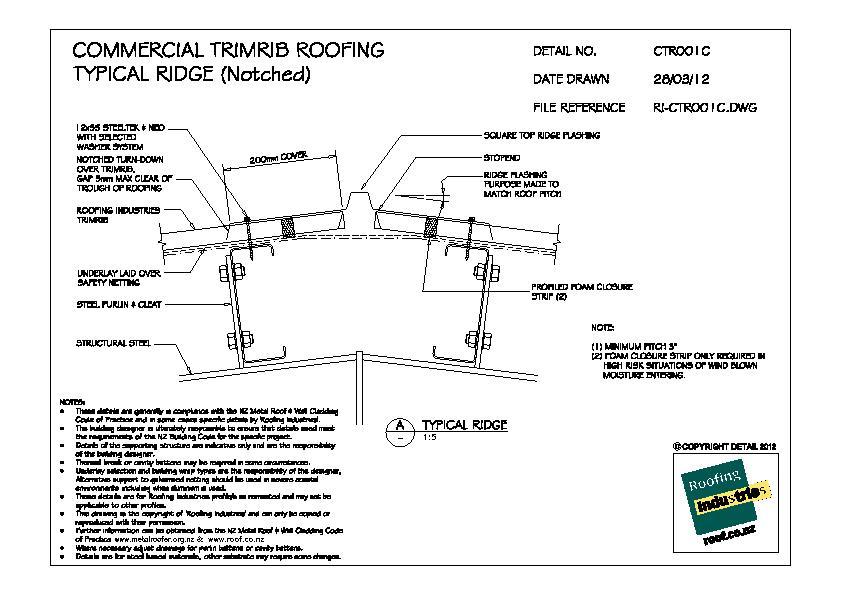

Com. Trimrib Typical Ridge (Notched)

RI-CT-R001C

dwg
pdf

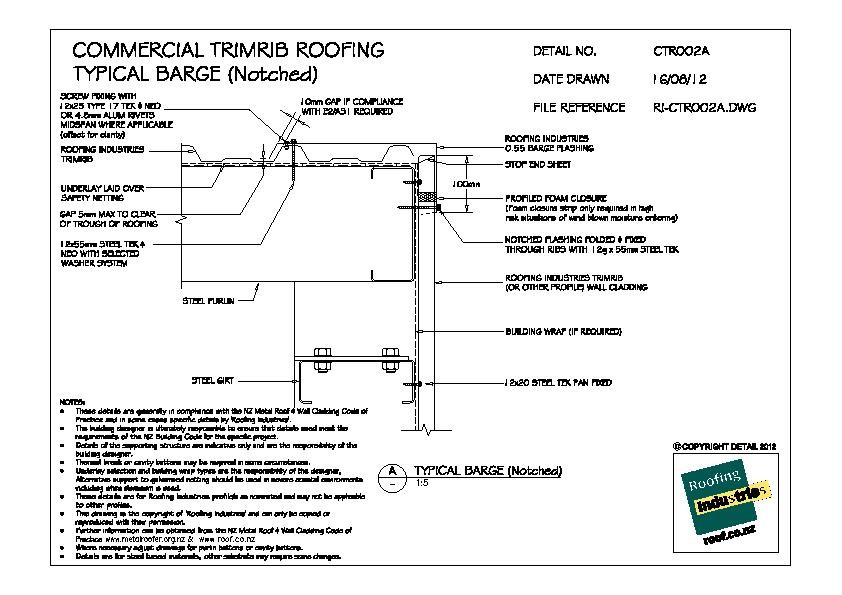

Com. Trimrib Typical Barge (Notched)

RI-CT-R002A

dwg
pdf

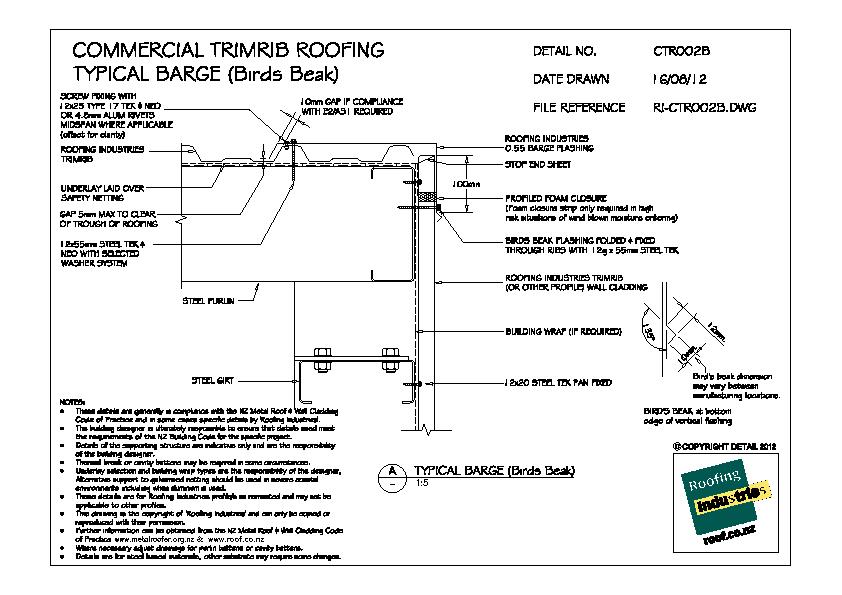

Com. Trimrib Typical Barge (Bird's Beak)

RI-CT-R002B

dwg
pdf

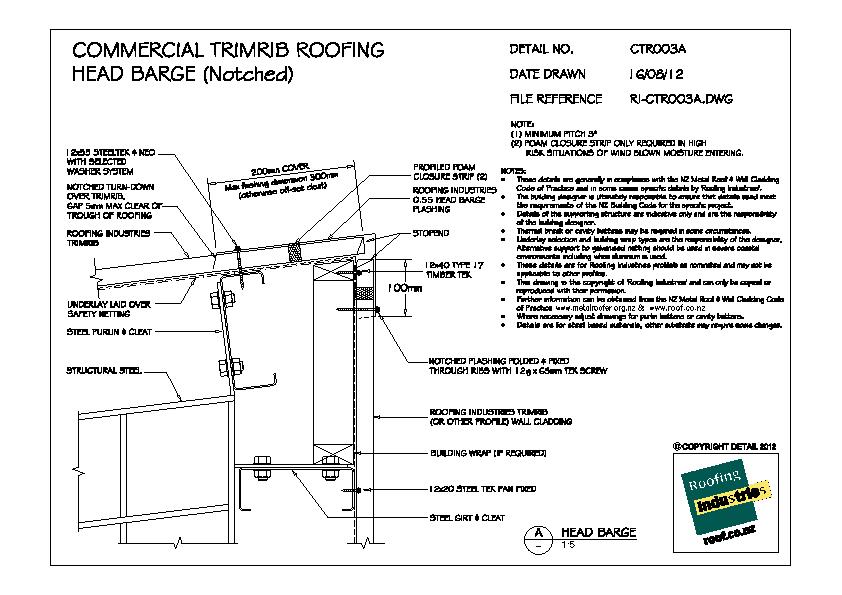

Com. Trimrib Head Barge (Notched)

RI-CT-R003A

dwg
pdf

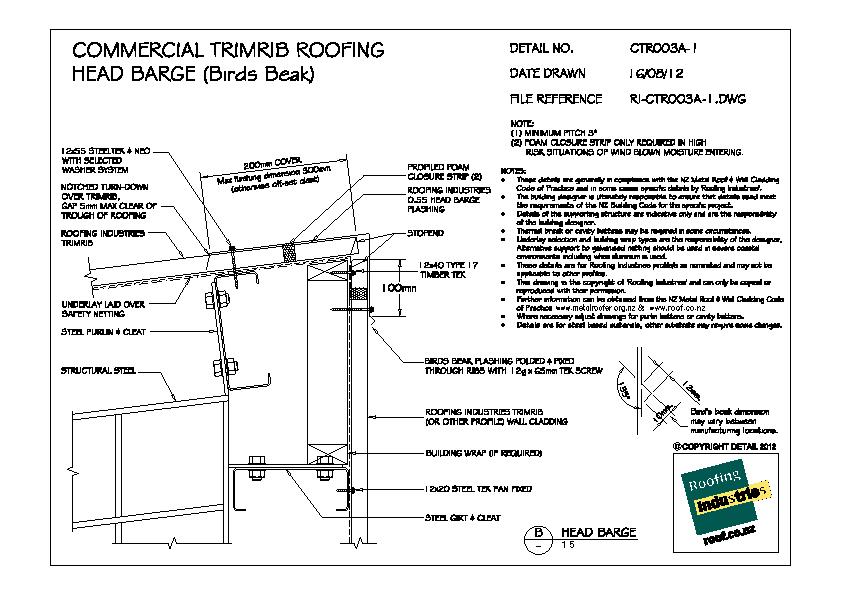

Com. Trimrib Head Barge (Bird's Beak)

RI-CT-R003A-1

dwg
pdf

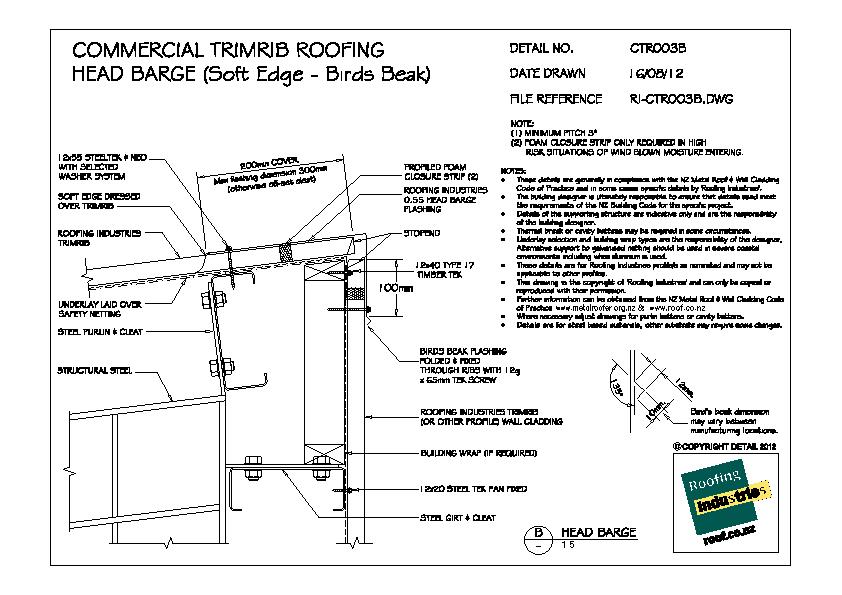

Com. Trimrib Head Barge (Soft Edge — Bird's Beak)

RI-CT-R003B

dwg
pdf

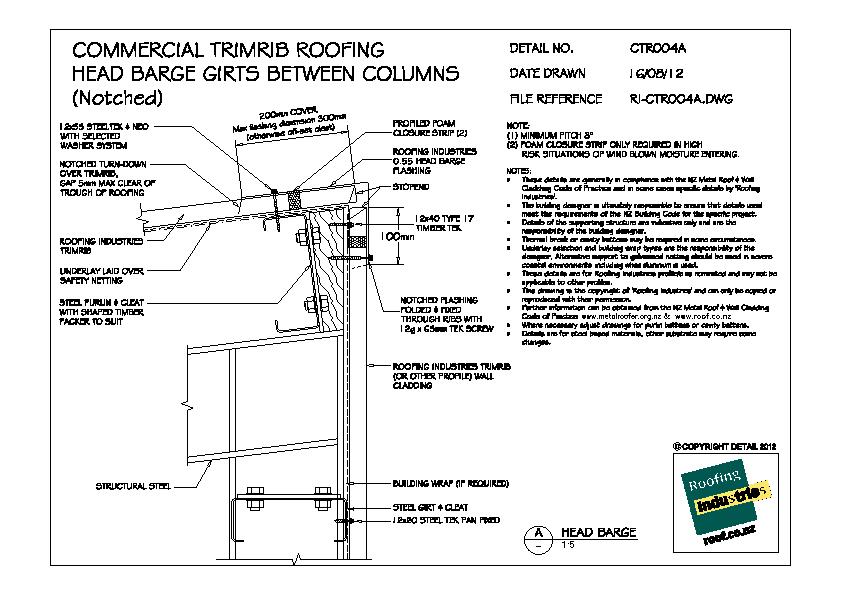

Com. Trimrib Head Barge Girts Between Columns (Notched)

Ri-CT-R004A

dwg
pdf

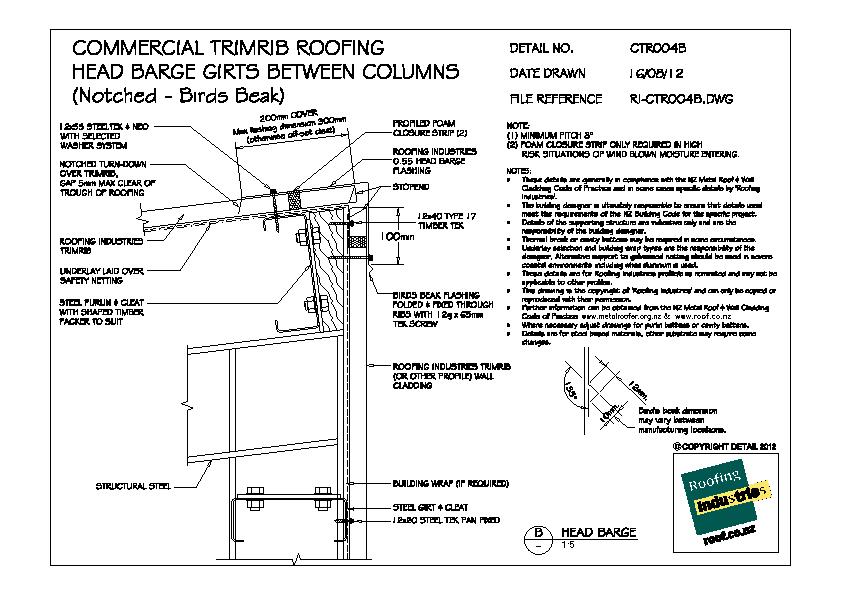

Com. Trimrib Head Barge Girts Between Columns (Notched — Bird's Beak)

RI-CT-R004B

dwg
pdf

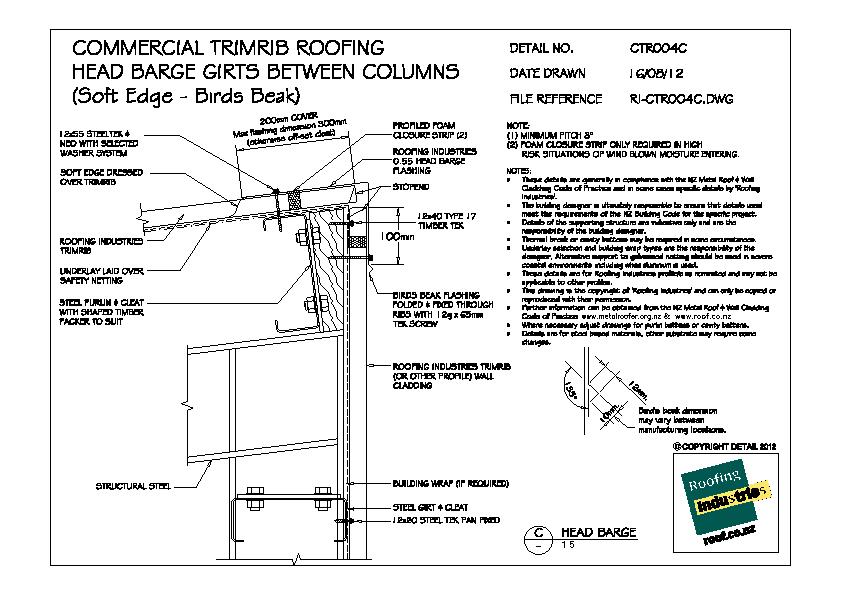

Com. Trimrib Head Barge Girts Between Columns (Soft Edge — Bird's Beak)

RI-CT-R004C

dwg
pdf

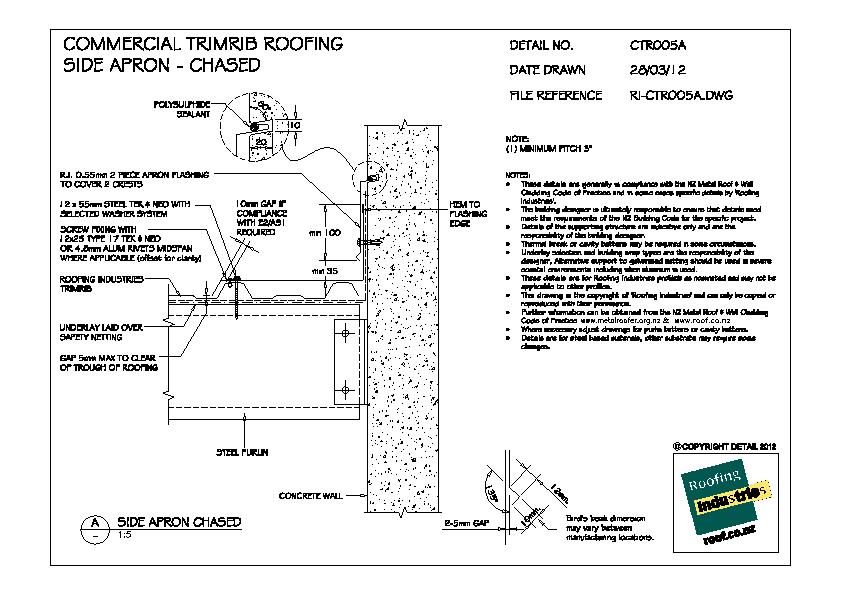

Com. Trimrib Side Apron — Chased

RI-CT-R005A

dwg
pdf

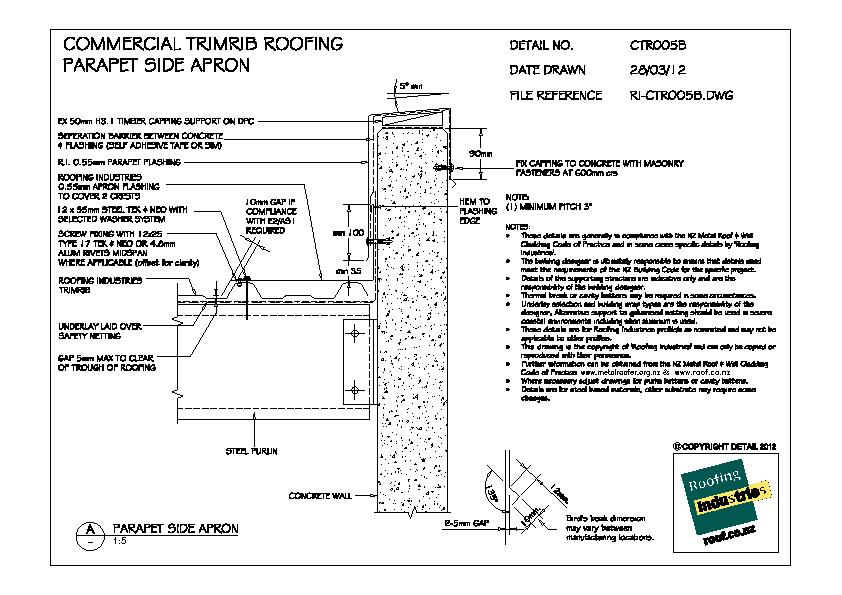

Com. Trimrib Parapet Side Apron

RI-CT-R005B

dwg
pdf

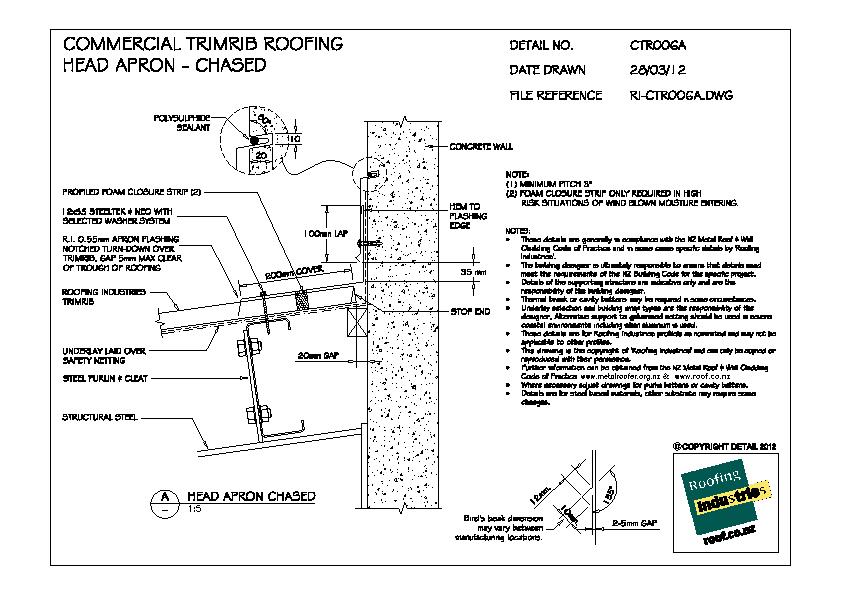

Com. Trimrib Head Apron — Chased

RI-CT-R006A

dwg
pdf

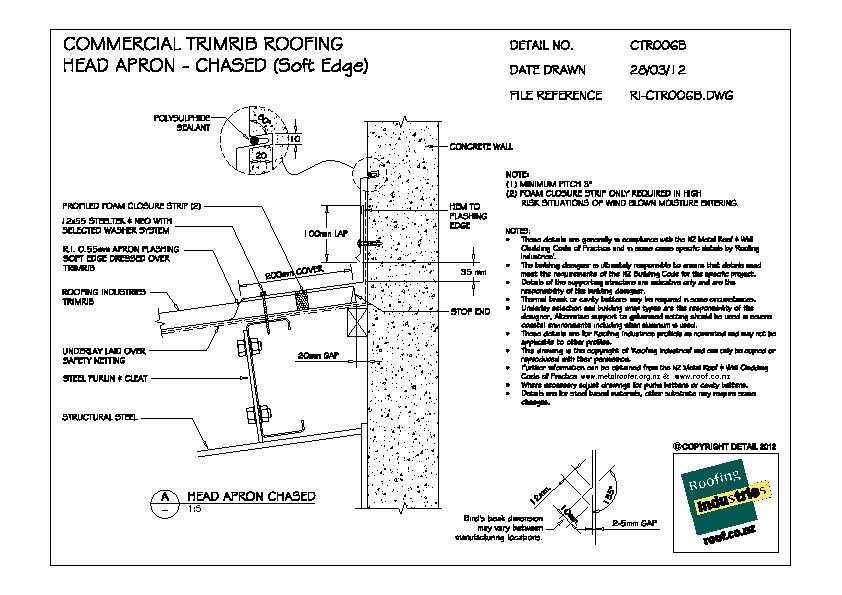

Com. Trimrib Head Apron — Chased (Soft Edge)

RI-CT-R006B

dwg
pdf

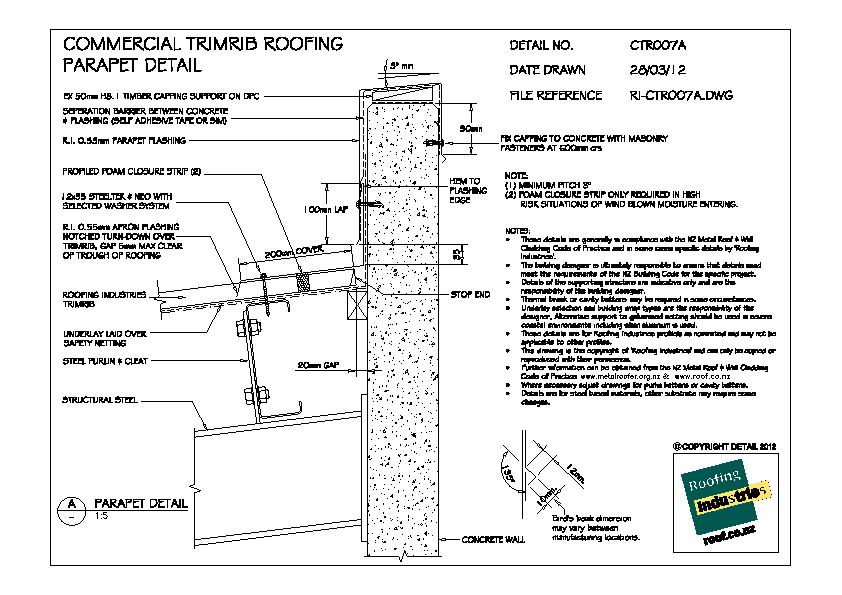

Com. Trimrib Parapet Detail

RI-CT-R007A

dwg
pdf

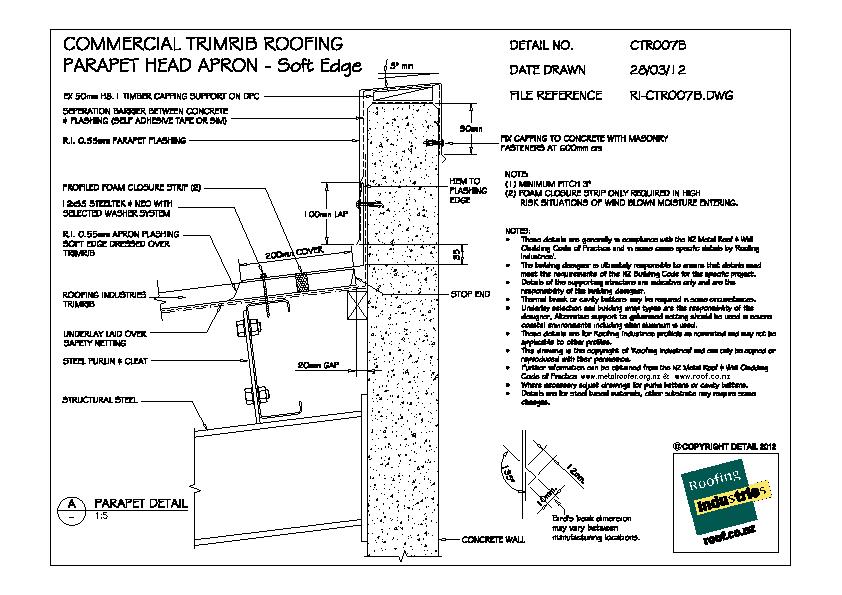

Com. Trimrib Parapet Head Apron — Soft Edge

RI-CT-R007B

dwg
pdf

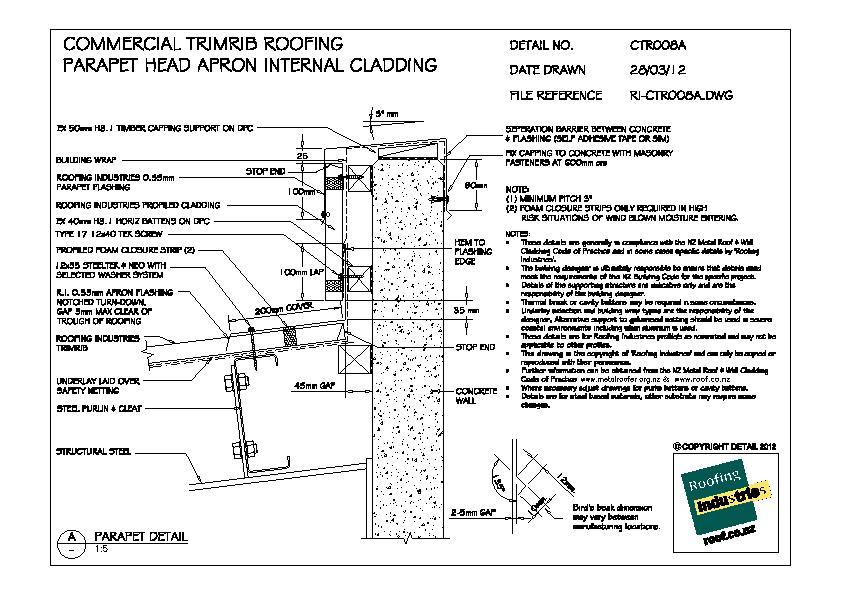

Com. Trimrib Parapet Head Apron Internal Cladding

RI-CT-R008A

dwg
pdf

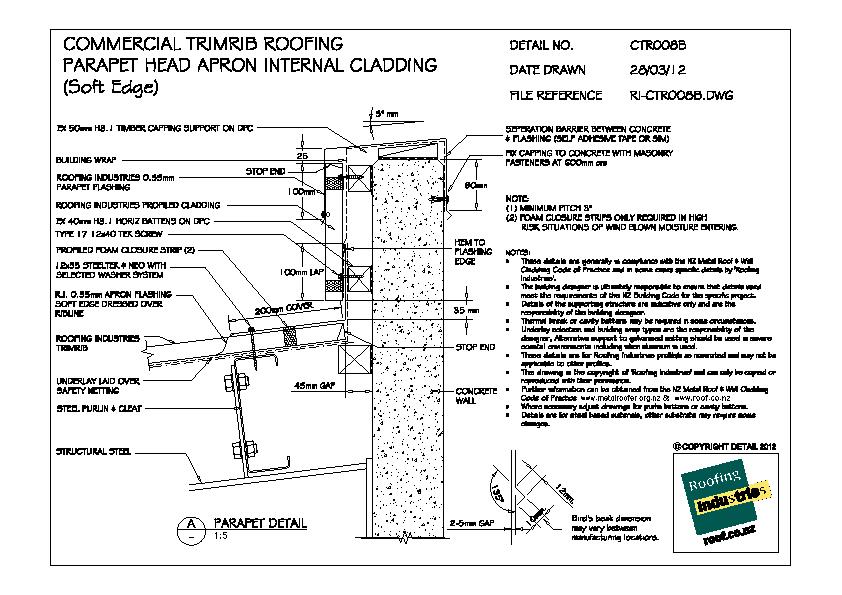

Com. Trimrib Parapet Head Apron Internal Cladding (Soft Edge)

RI-CT-R008B

dwg
pdf

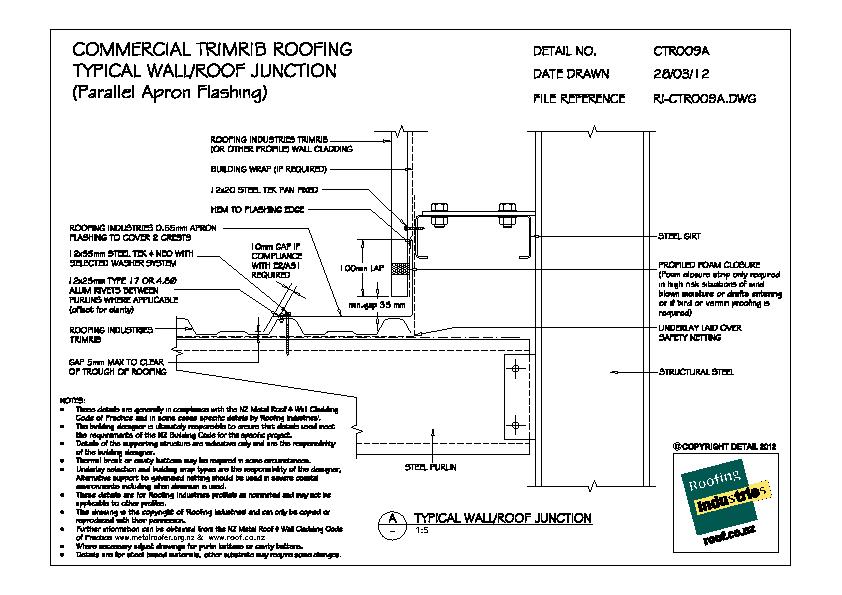

Com. Trimrib Typical Wall/Roof Junction (Parallel Apron Flashing)

RI-CT-R009A

dwg
pdf
Com. Trimrib Typical Wall/Roof Junction (At Head of Roof)

RI-CT-R010A

dwg
pdf

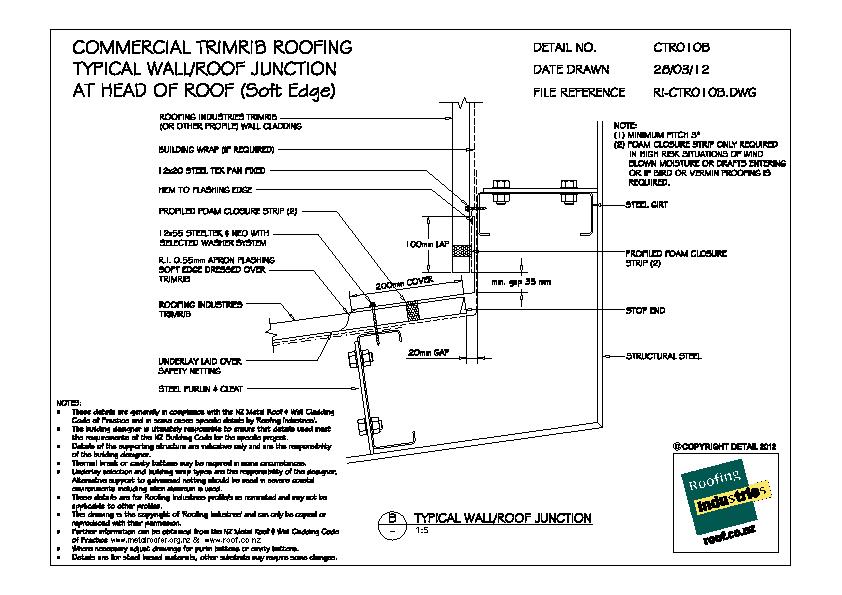

Com. Trimrib Typical Wall/Roof Junction At Head of Roof (Soft Edge)

RI-CT-R010B

dwg
pdf

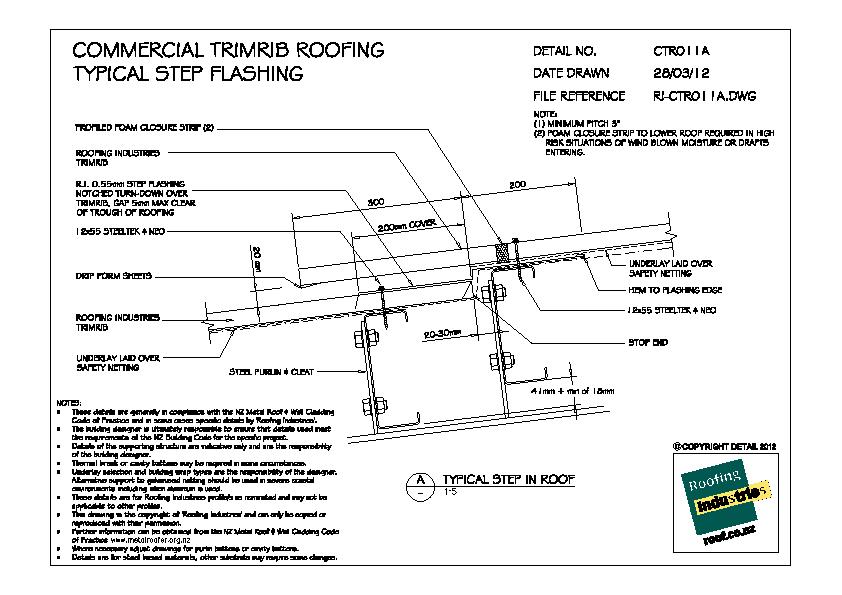

Com Trimrib Typical Step Flashing

RI-CT-R011A

dwg
pdf

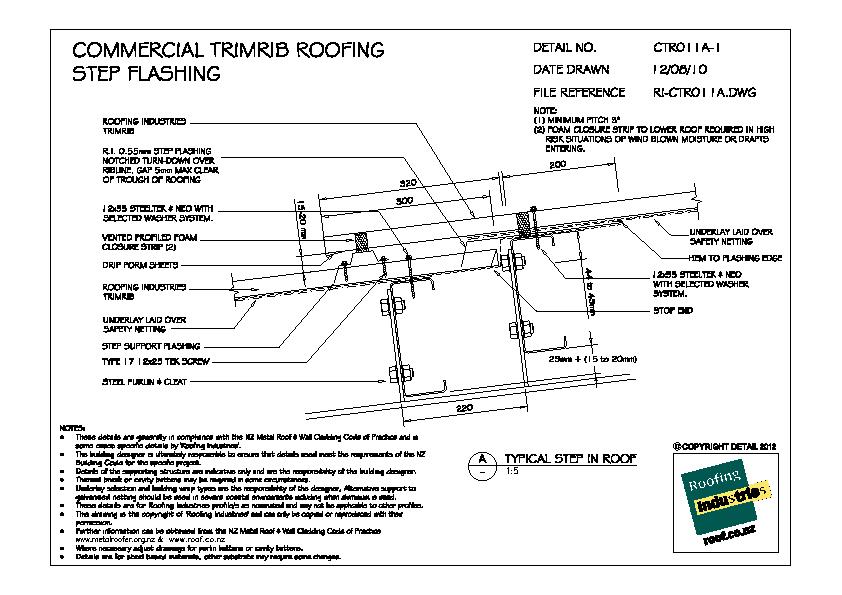

Com. Trimrib Step Flashing

RI-CT-R011A-1

dwg
pdf

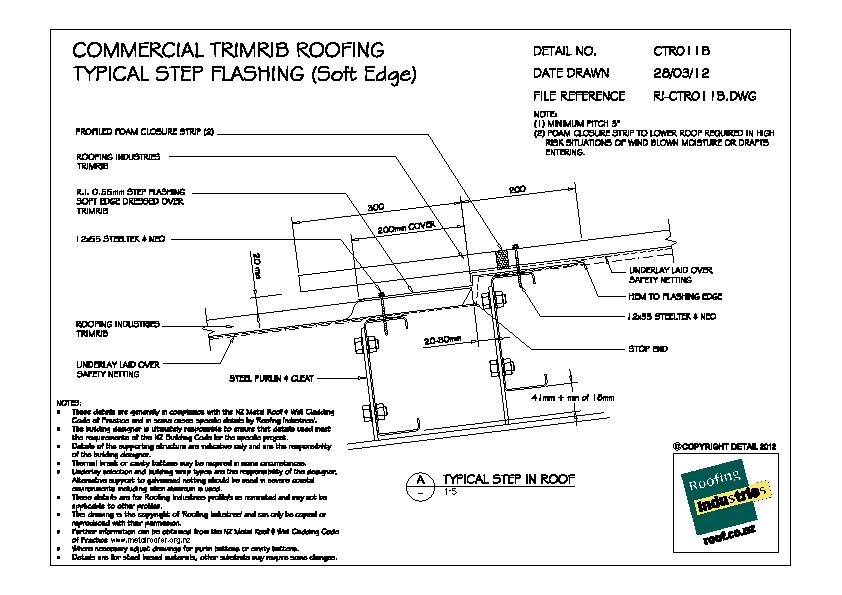

Com. Trimrib Typical Step Flashing (Soft Edge)

RI-CT-R011B

dwg
pdf
Com. Trimrib Box Gutter Detail

RI-CT-R012A

dwg
pdf

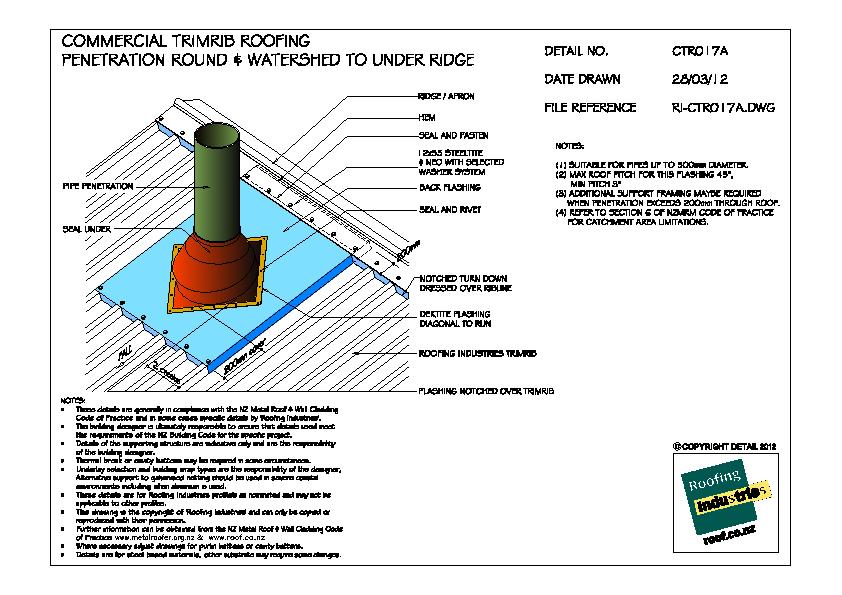

Com. Trimrib Penetration Round & Watershed to Under Ridge

RI-CT-R017A

dwg
pdf

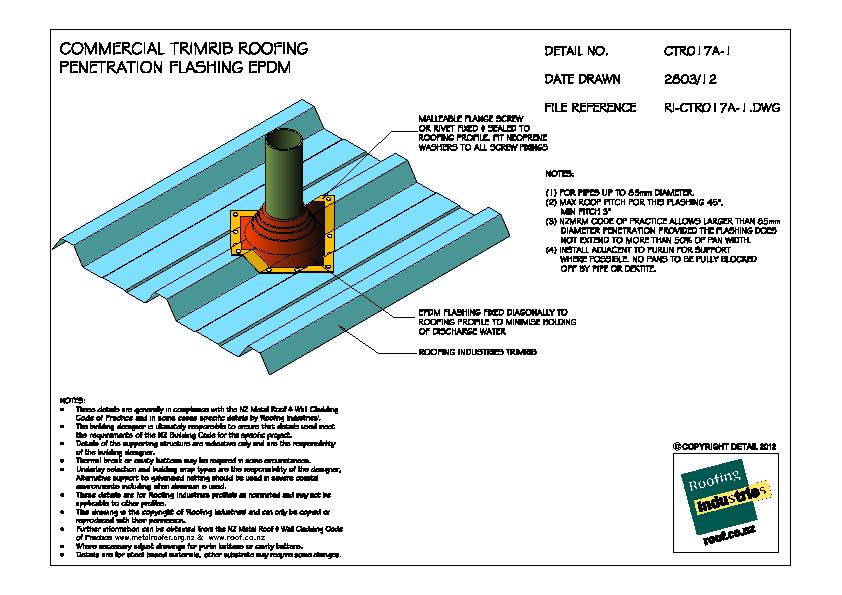

Com. Trimrib Penetration Flashing EPDM

RI-CT-R017A-1

dwg
pdf
Com. Trimrib Penetration Round & Watershed to Under Ridge (Soft Edge)

RI-CT-R017B

dwg
pdf

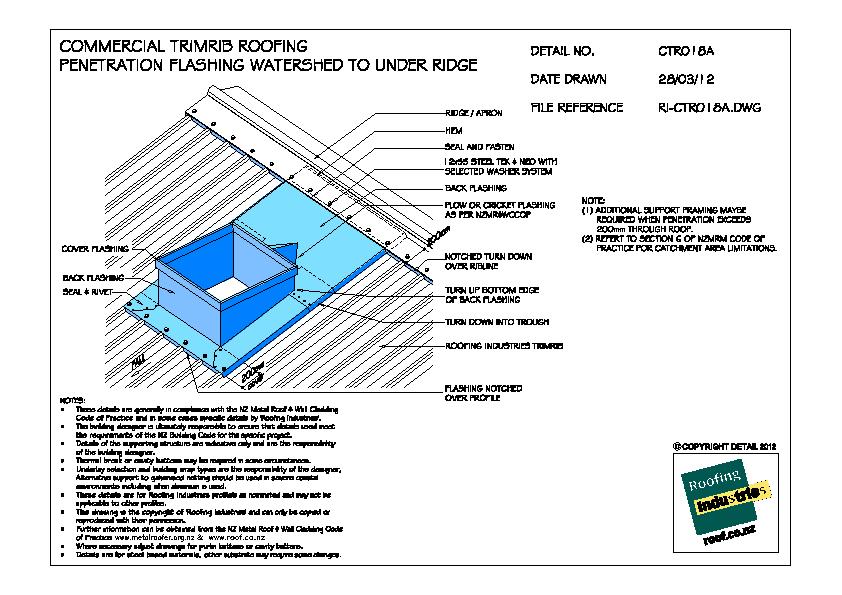

Com. Trimrib Penetration Flashing Watershed to Under Ridge

RI-CT-R018A

dwg
pdf
Com Trimrib Penetration Flashing Watershed to Under Ridge (Soft Edge)

RI-CT-R018B

dwg
pdf

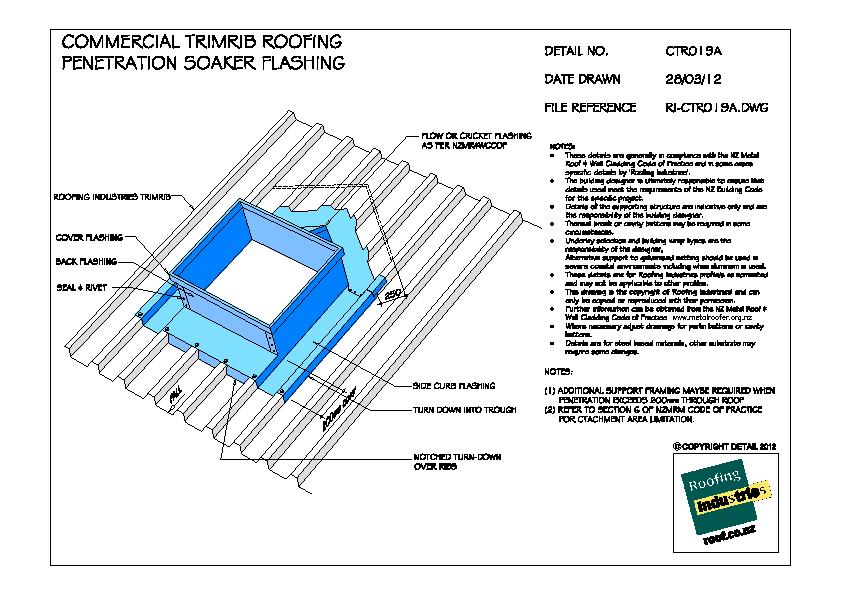

Com. Trimrib Penetration Soaker Flashing

RI-CT-R019A

dwg
pdf

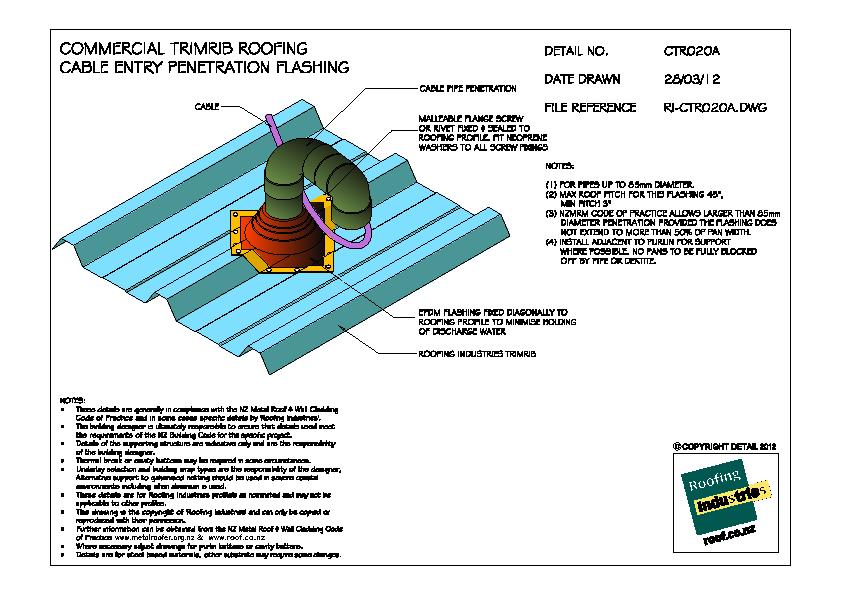

Com. Trimrib Cable Entry Penetration Flashing

RI-CT-R020A

dwg
pdf

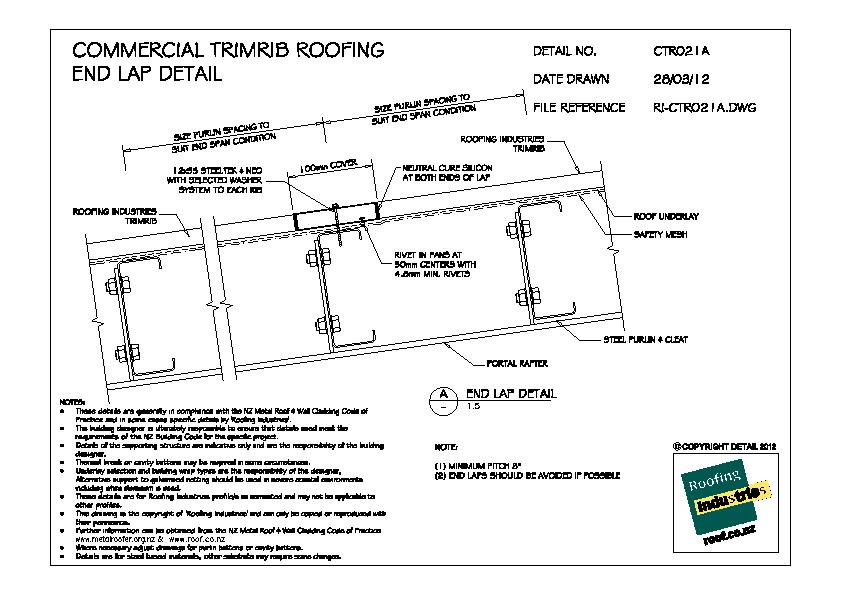

Com. Trimrib End Lap Detail

RI-CT-R021A

dwg
pdf

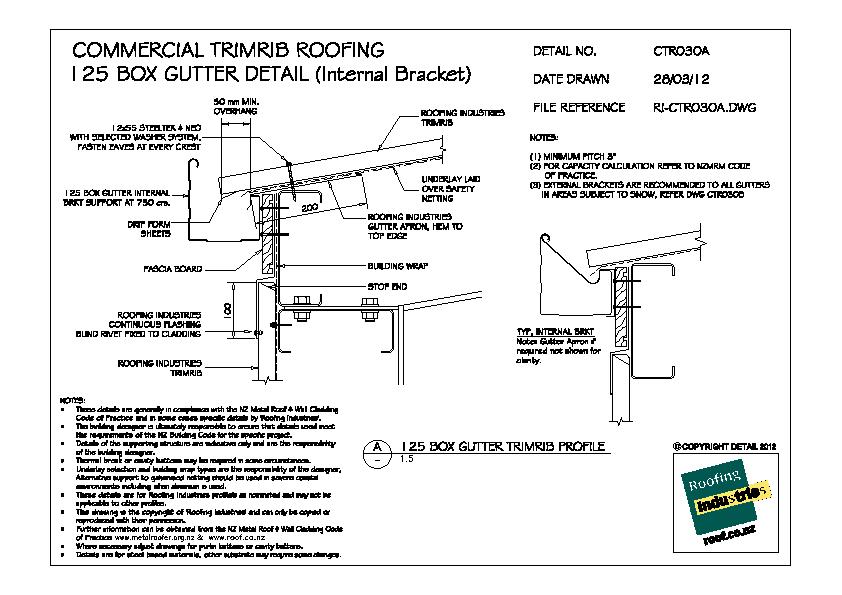

Com. Trimrib 125 Box Gutter Detail (Internal Bracket)

RI-CT-R030A

dwg
pdf

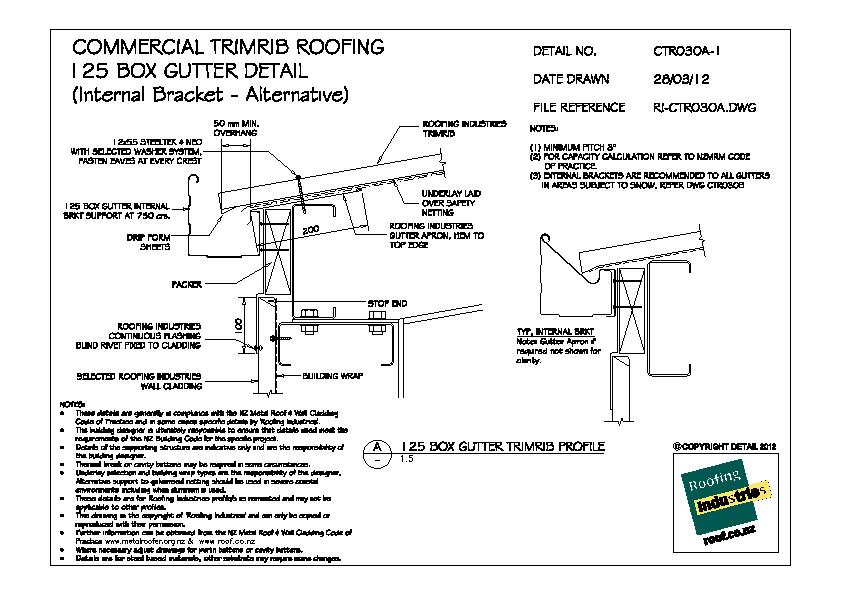

Com. Trimrib 125 Box Gutter Detail (Internal Bracket Alternative)

RI-CT-R030A-1

dwg
pdf

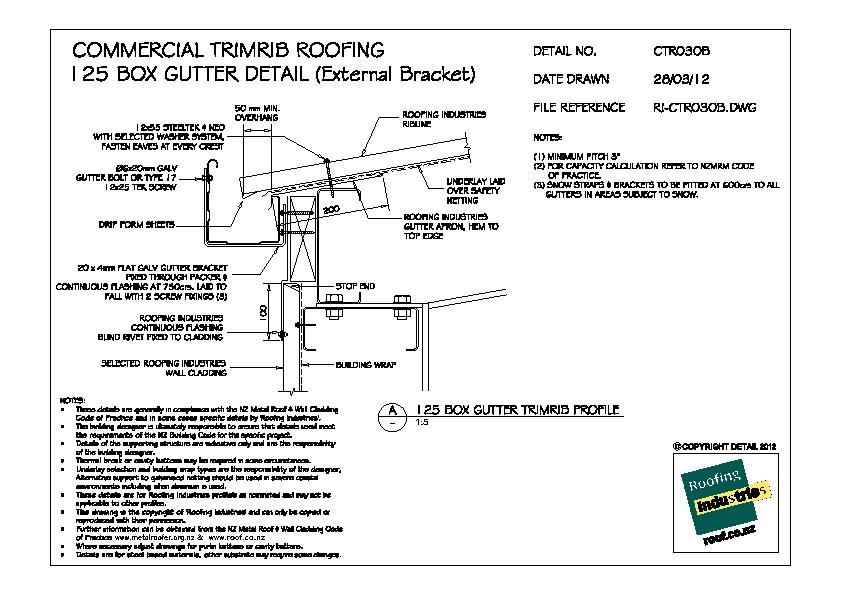

Com. Trimrib 125 Box Gutter Detail (External Bracket)

RI-CT-R030B

dwg
pdf

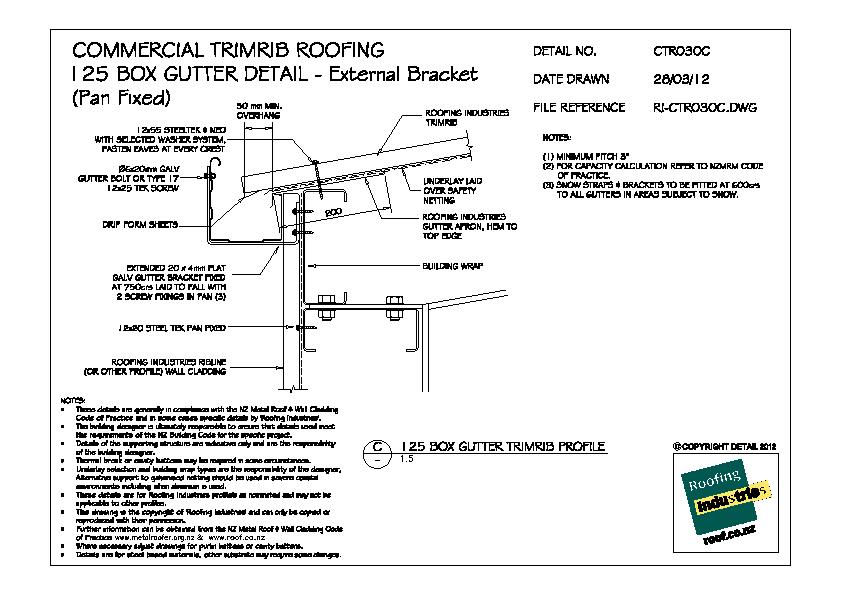

Com. Trimrib 125 Box Gutter Detail (External Bracket Pan Fixed)

RI-CT-R030C

dwg
pdf

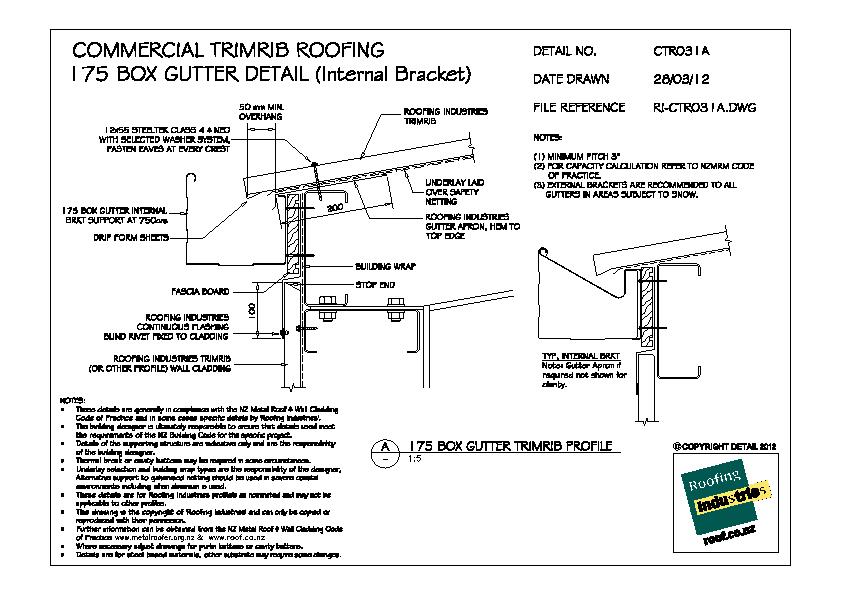

Com. Trimrib 175 Box Gutter Detail (Internal Bracket)

RI-CT-R031A

dwg
pdf

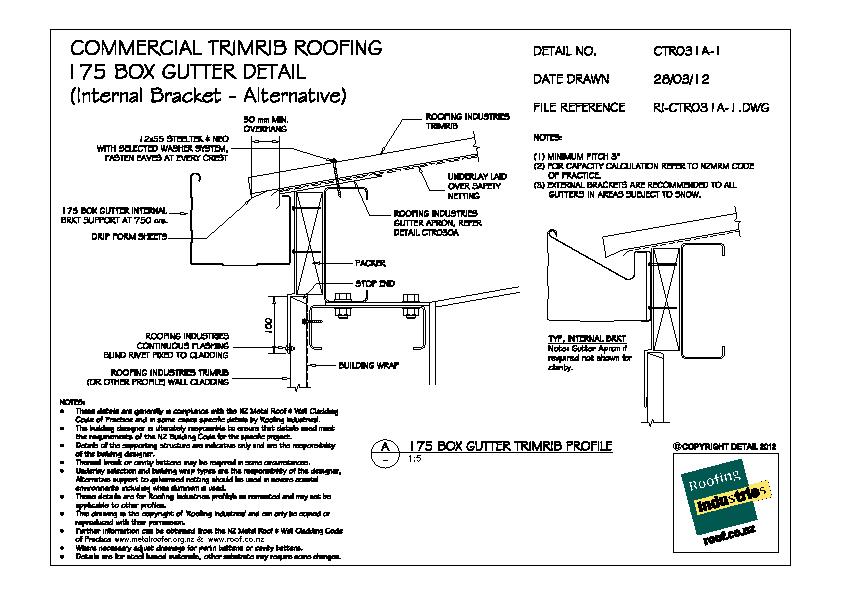

Com. Trimrib 175 Box Gutter Detail (Internal Bracket Alternative)

RI-CT-R031A-1

dwg
pdf

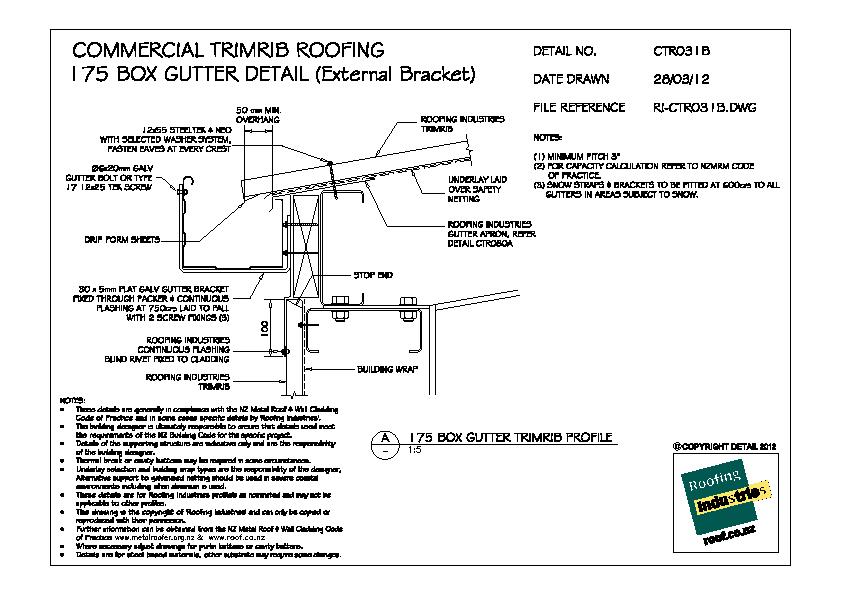

Com. Trimrib 175 Box Gutter Detail (External Bracket)

RI-CT-R031B

dwg
pdf

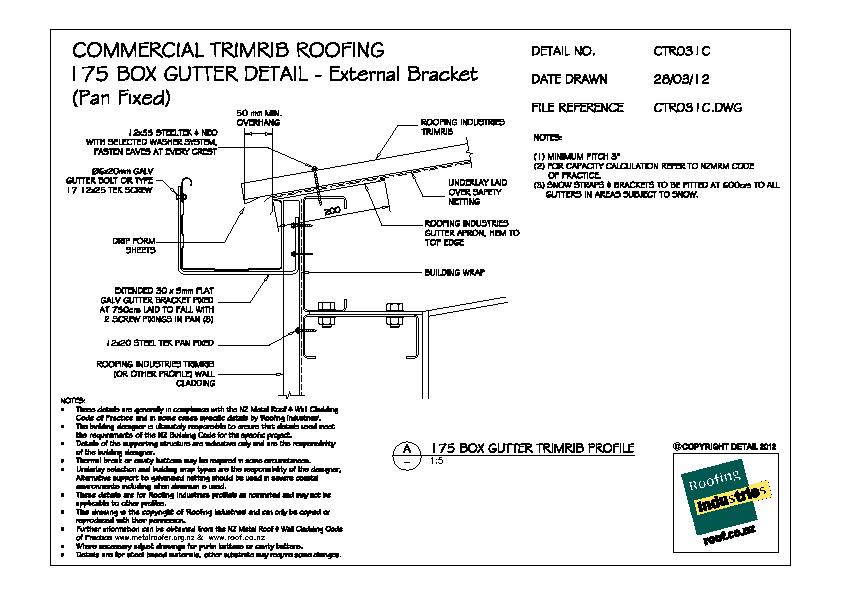

Com. Trimrib 175 Box Gutter Detail (External Bracket Pan Fixed)

RI-CT-R031C

dwg
pdf
Com. Trimrib Eaves Gutter — 300 Fixed Gutter

RI-CT-R032B

dwg
pdf

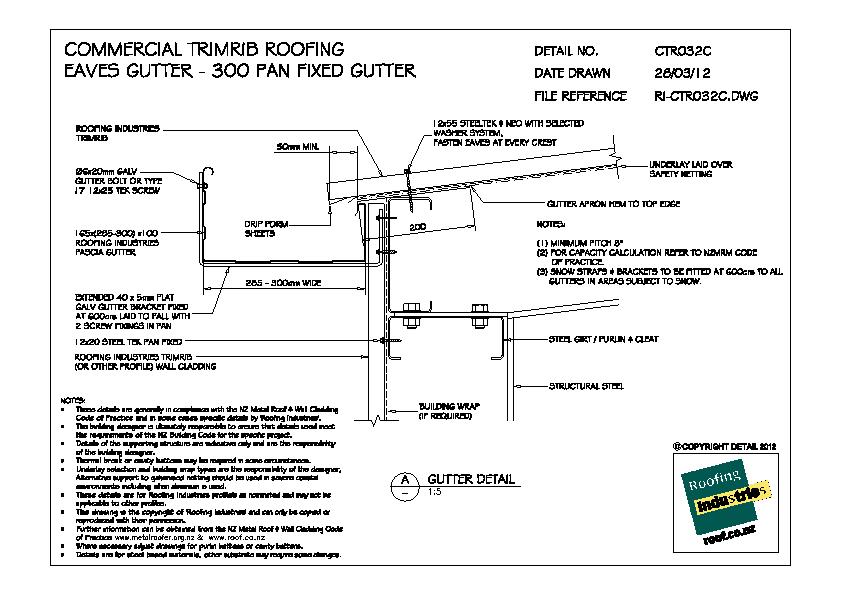

Com. Trimrib Eaves Gutter — 300 Pan Fixed Gutter

RI-CT-R032C

dwg
pdf

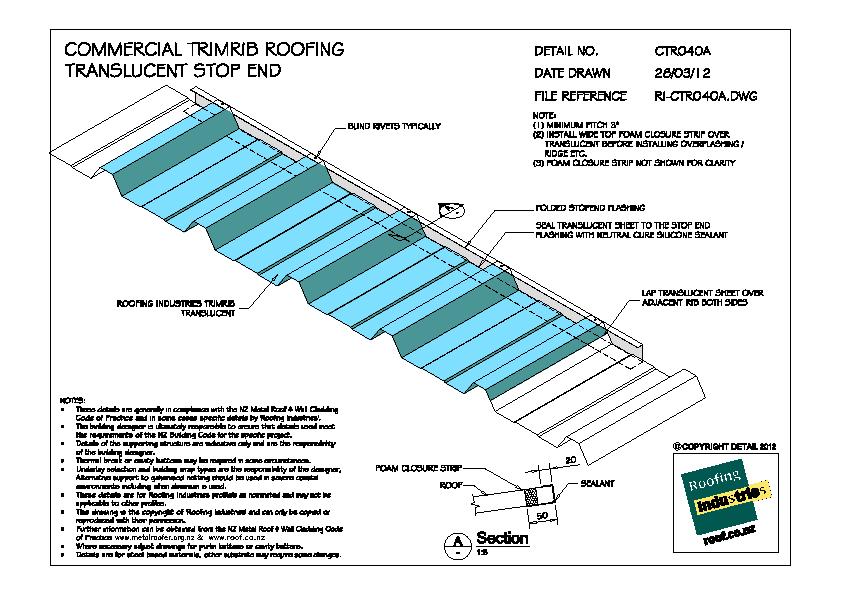

Com. Trimrib Translucent Stop End

RI-CT-R040A

dwg
pdf

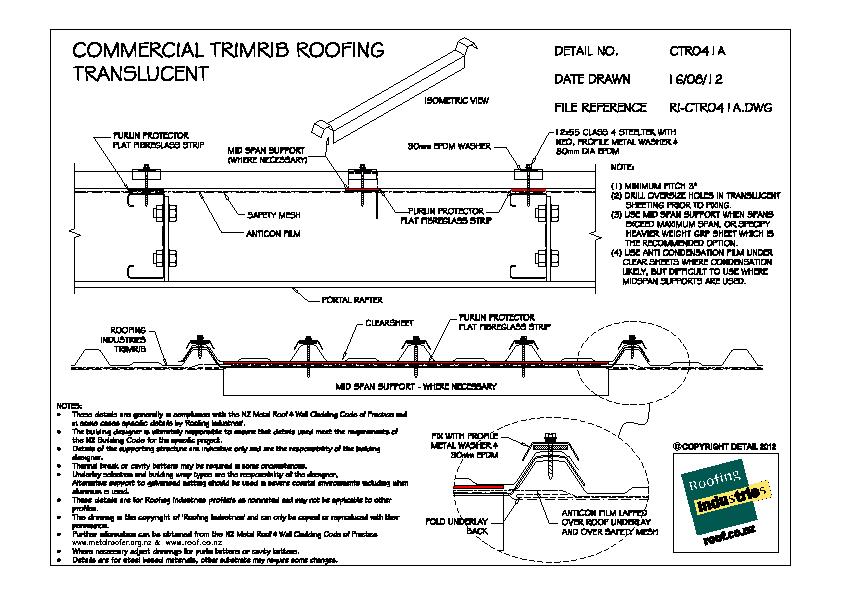

Com. Trimrib Translucent

RI-CT-R041A

dwg
pdf

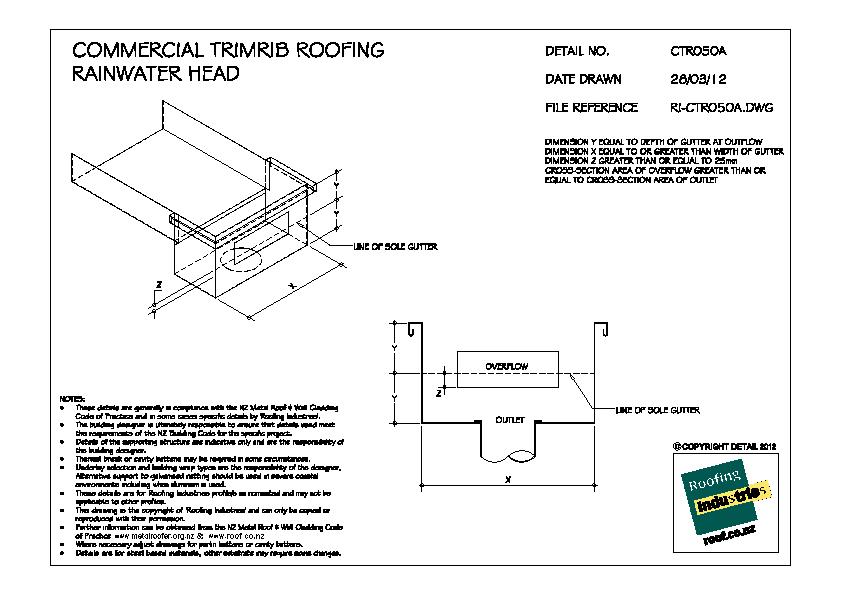

Com. Trimrib Rainwater Head

RI-CT-R050A

dwg
pdf

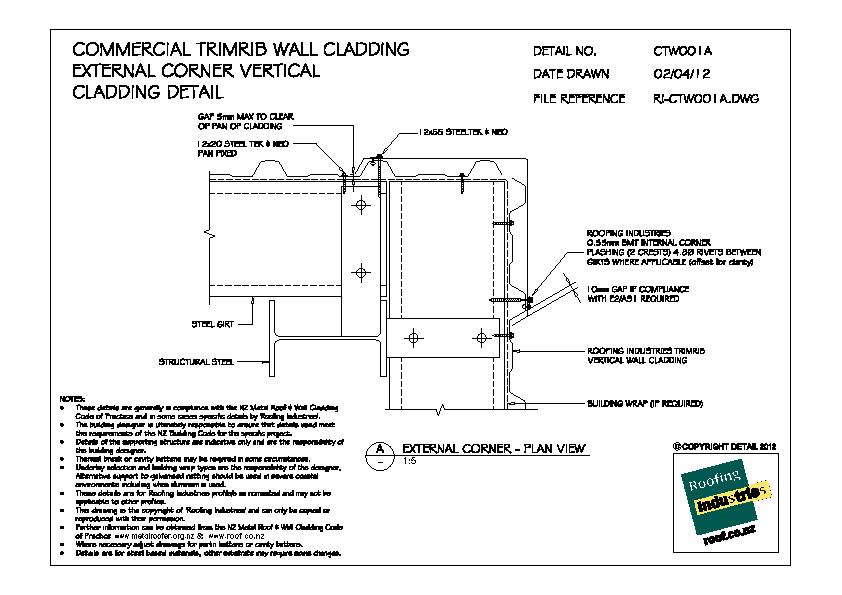

Com. Trimrib External Corner Vertical Cladding Detail

RI-CT-W001A

dwg
pdf

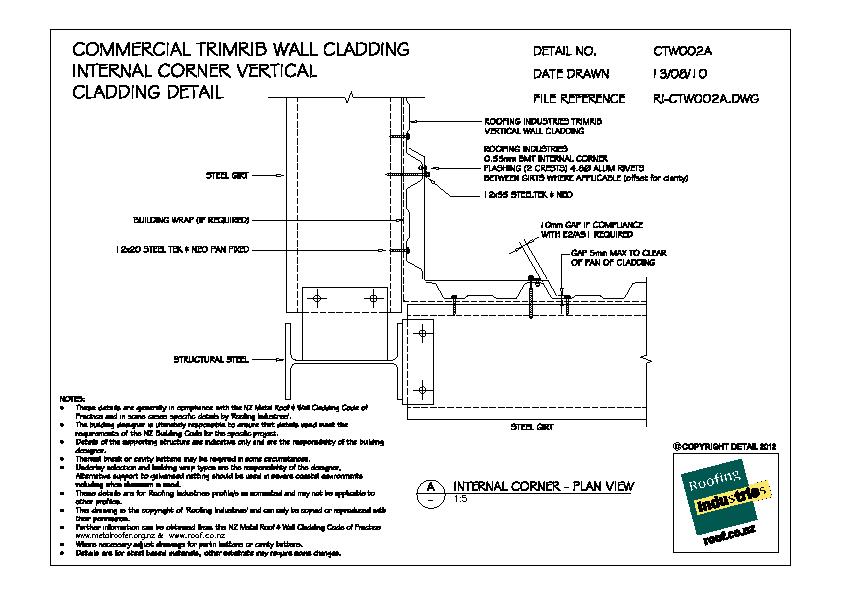

Com. Trimrib Internal Corner Vertical Cladding Detail

RI-CT-W002A

dwg
pdf

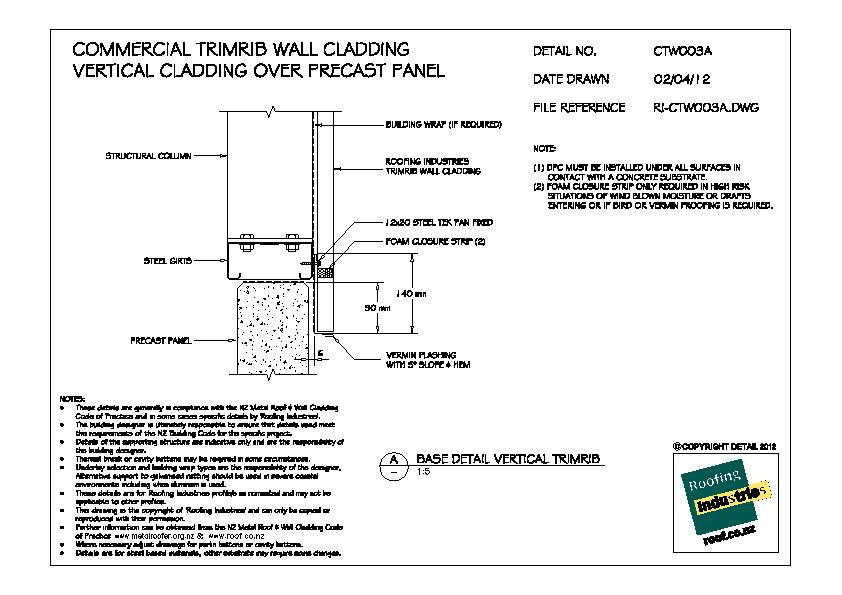

Com. Trimrib Vertical Cladding Over Precast Panel

Ri-CT-W003A

dwg
pdf

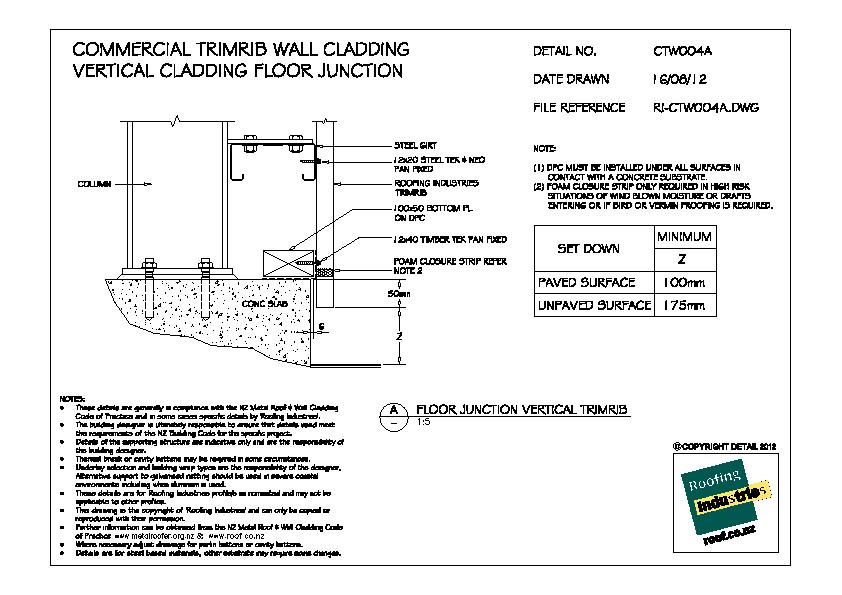

Com. Trimrib Vertical Cladding Floor Junction

RI-CT-W004A

dwg
pdf

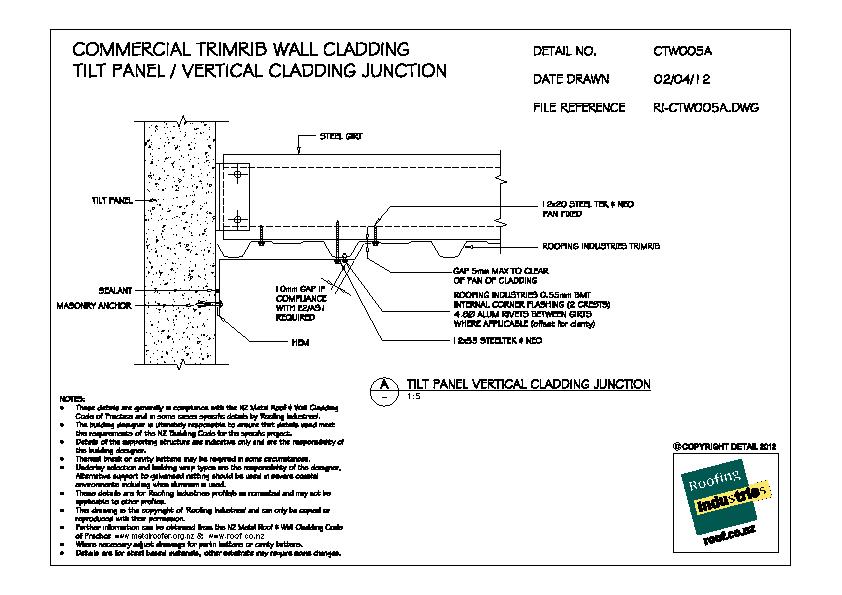

Com. Trimrib Tilt Panel Vertical Cladding Junction

RI-CT-W005A

dwg
pdf

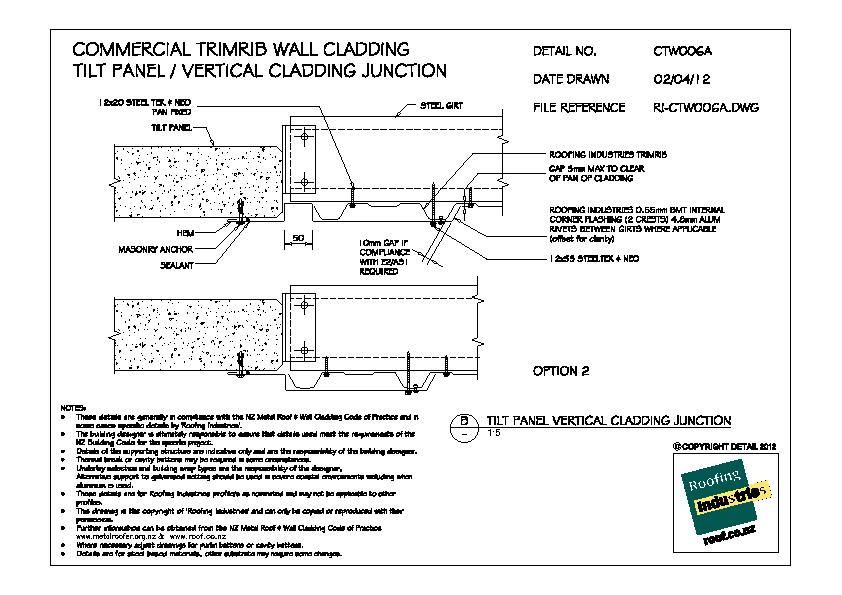

Com. Trimrib Tilt Panel Vertical Cladding Junction (2)

RI-CT-W006A

dwg
pdf

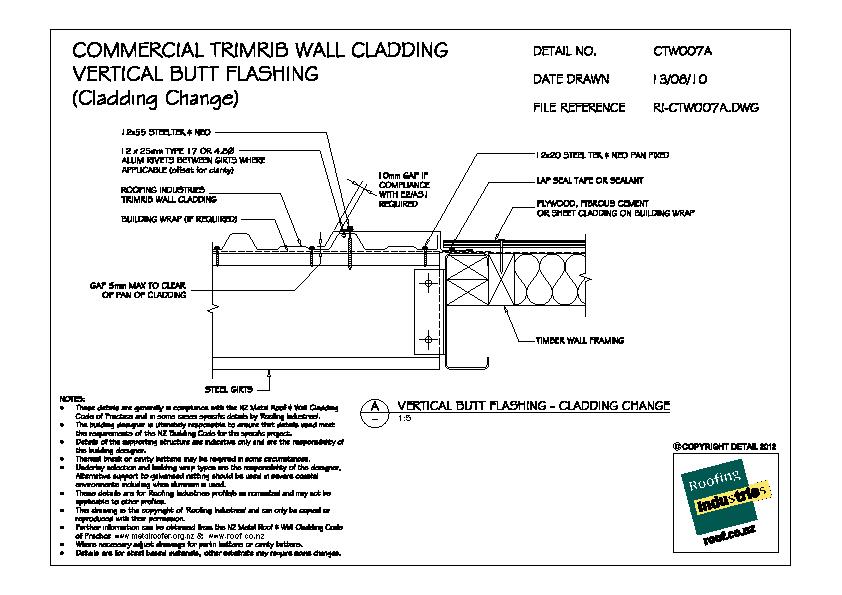

Com. Trimrib Vertical Butt Flashing (Cladding Change)

RI-CT-W007A

dwg
pdf

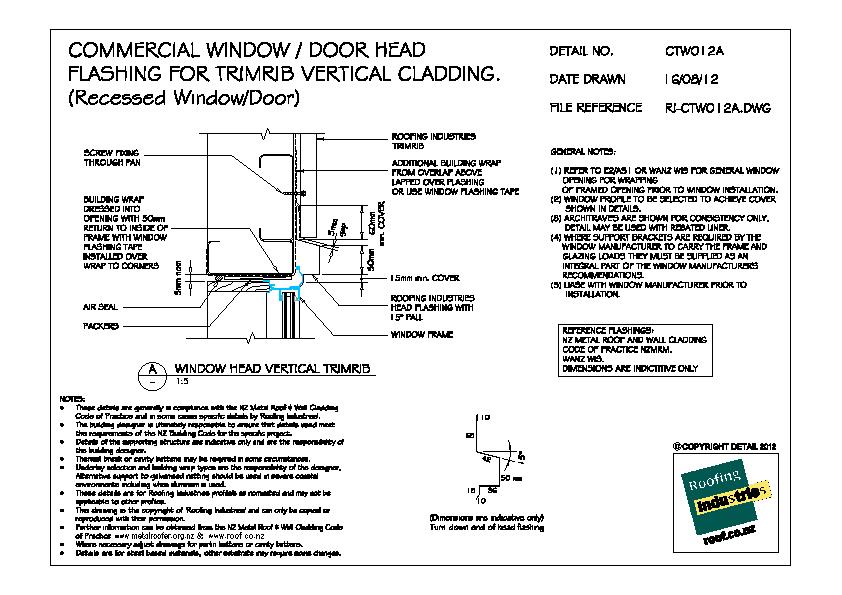

Com. Trimrib Window/Door Head Flashing Vertical Cladding (Recessed Window/Door)

RI-CT-W012A

dwg
pdf

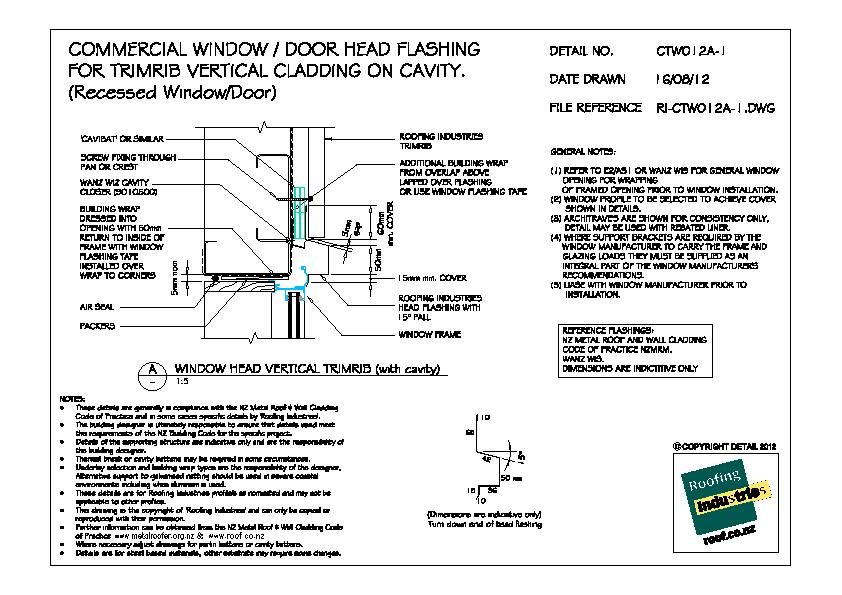

Com. Trimrib Window/Door Head Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CT-W012A-1

dwg
pdf

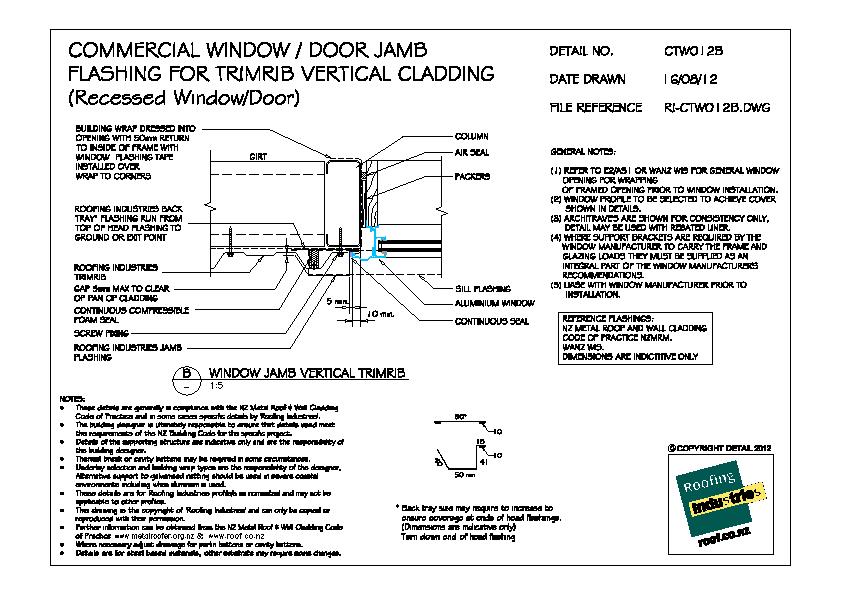

Com. Trimrib Window/Door Head Flashing Vertical Cladding (Recessed Window/Door)

RI-CT-W012B

dwg
pdf

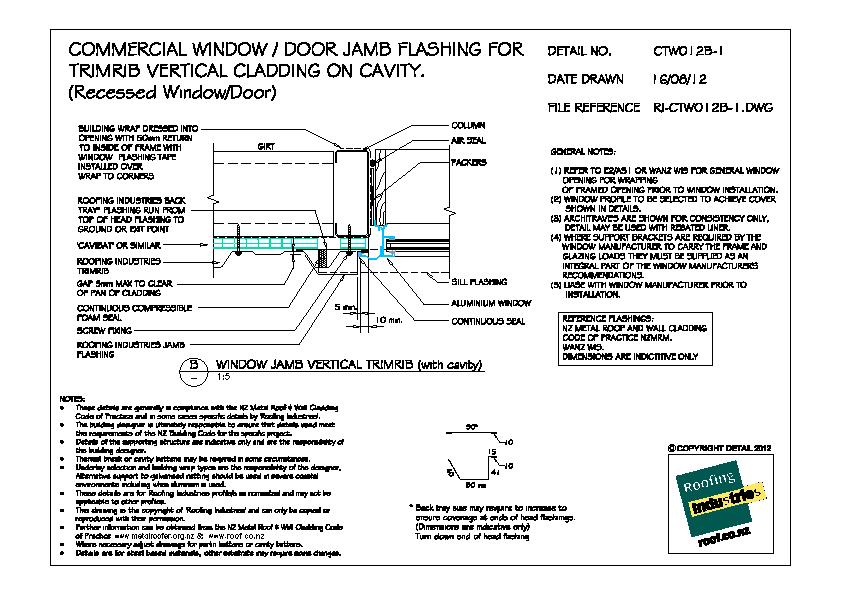

Com. Trimrib Window/Door Jamb Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CT-W012B-1

dwg
pdf

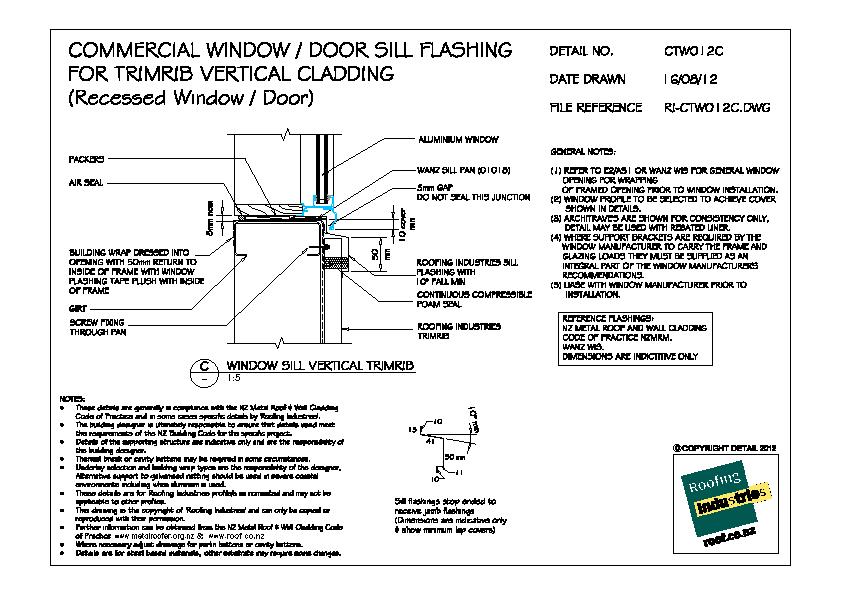

Com. Trimrib Window/Door Sill Flashing Vertical Cladding (Recessed Window/Door)

RI-CT-W012C

dwg
pdf

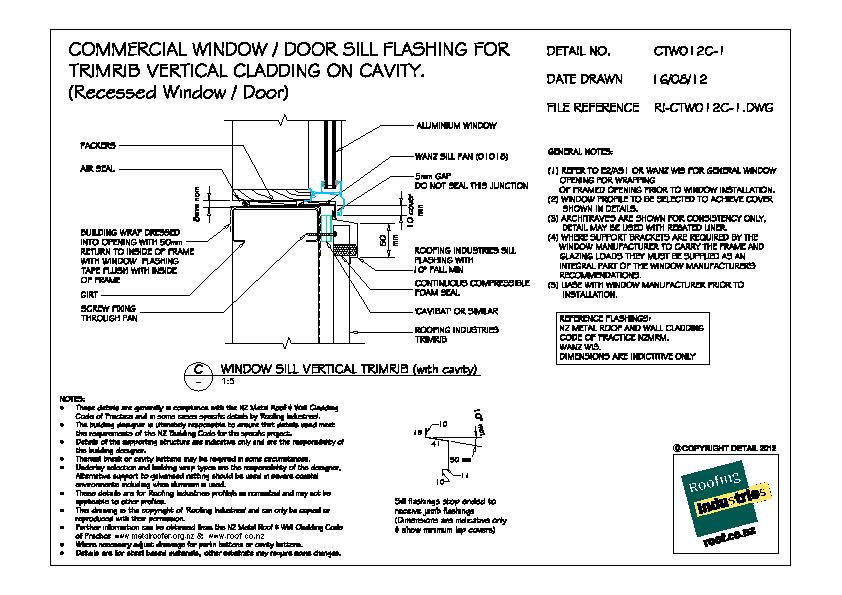

Com. Trimrib Window/Door Sill Flashing Vertical Cladding on Cavity (Recessed Window/Door)

RI-CT-W012C-1

dwg
pdf

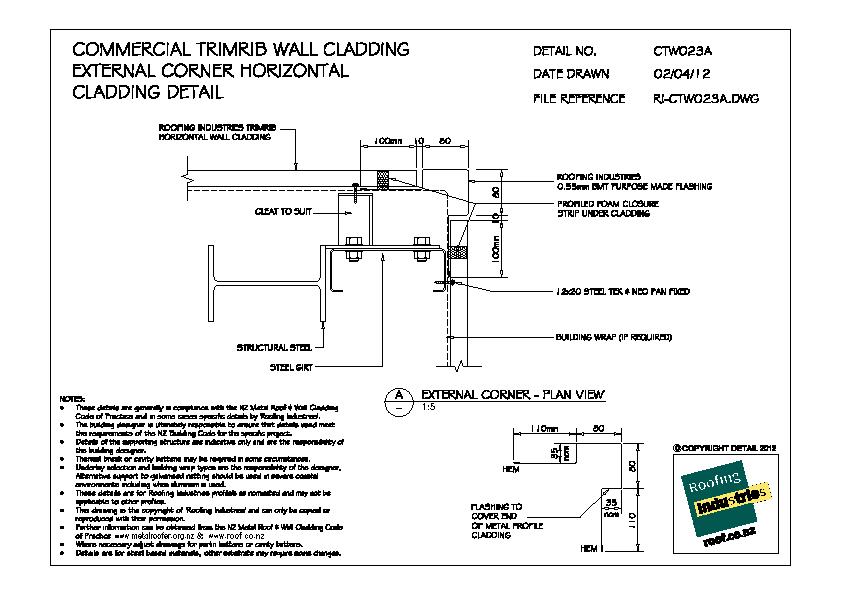

Com. Trimrib Wall Cladding External Corner Horizontal Cladding Detail

RI-CT-W023A

dwg
pdf

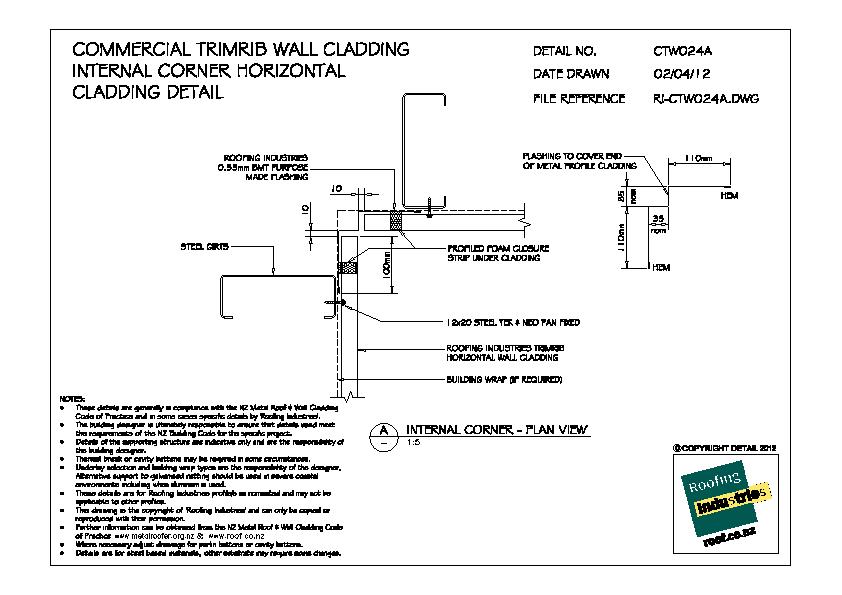

Com. Trimrib Wall Cladding Internal Corner Horizontal Cladding Detail

RI-CT-W024A

dwg
pdf
Com. Trimrib Horizontal Cladding Base

RI-CT-W025A

dwg
pdf

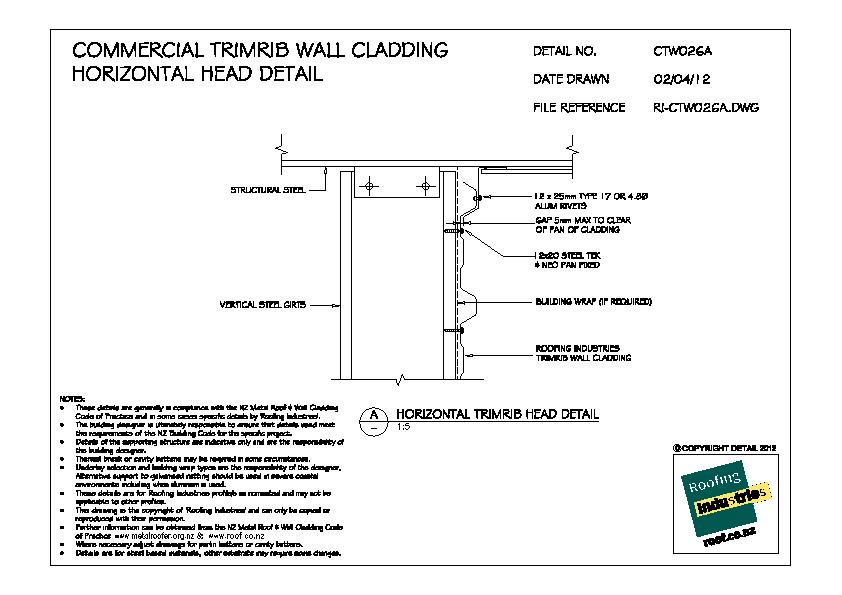

Com. Trimrib Horizontal Cladding Head Detail

RI-CT-W026A

dwg
pdf

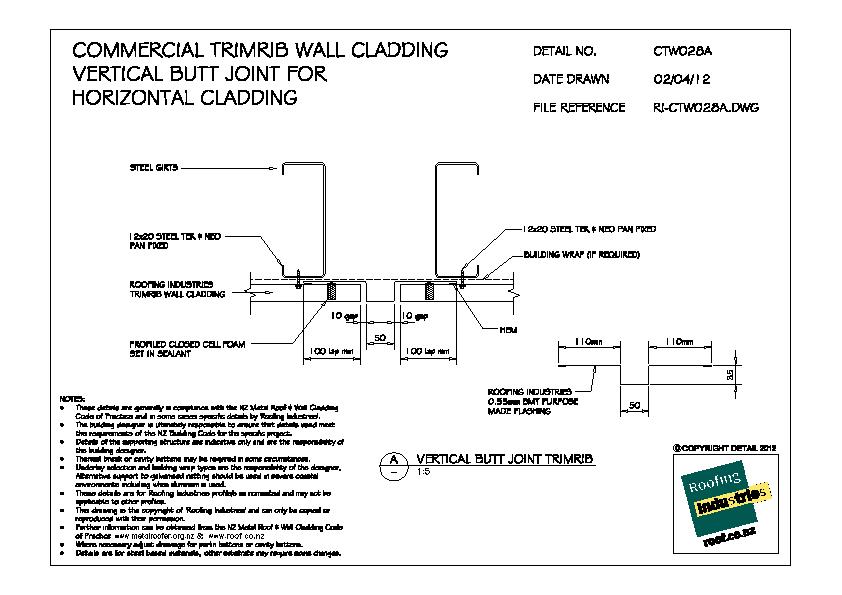

Com. Trimrib Vertical Butt Joint for Horizontal Cladding

RI-CT-W028A

dwg
pdf

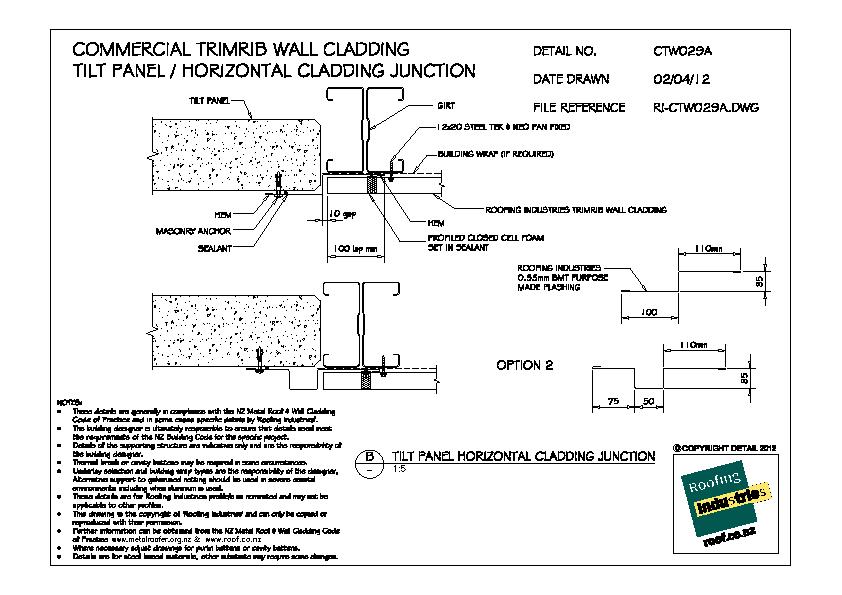

Com. Trimrib Tilt Panel / Horizontal Cladding Junction

RI-CT-W029A

dwg
pdf

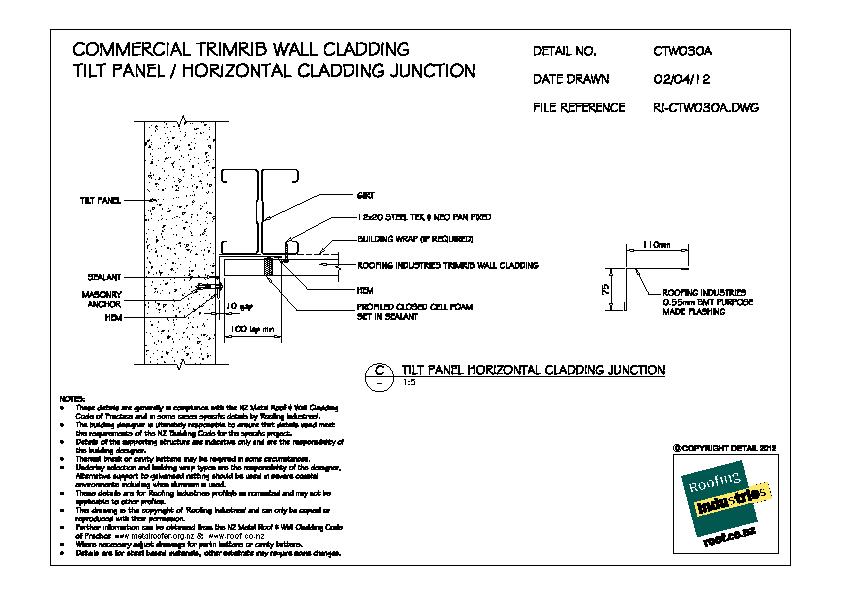

Com. Trimrib Tilt Panel / Horizontal Cladding Junction (2)

RI-CT-W030A

dwg
pdf

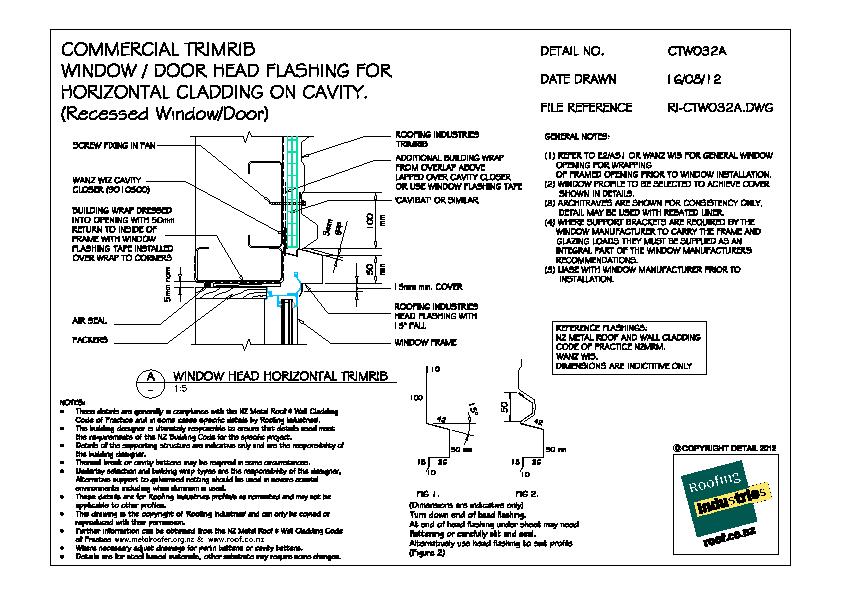

Com. Trimrib Window/Door Head Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CT-W032A

dwg
pdf
Com. Trimrib Window/Door Head Flashing for Horizontal Cladding on Cavity (Recessed Window/Door) (2)

RI-CT-W032B

dwg
pdf

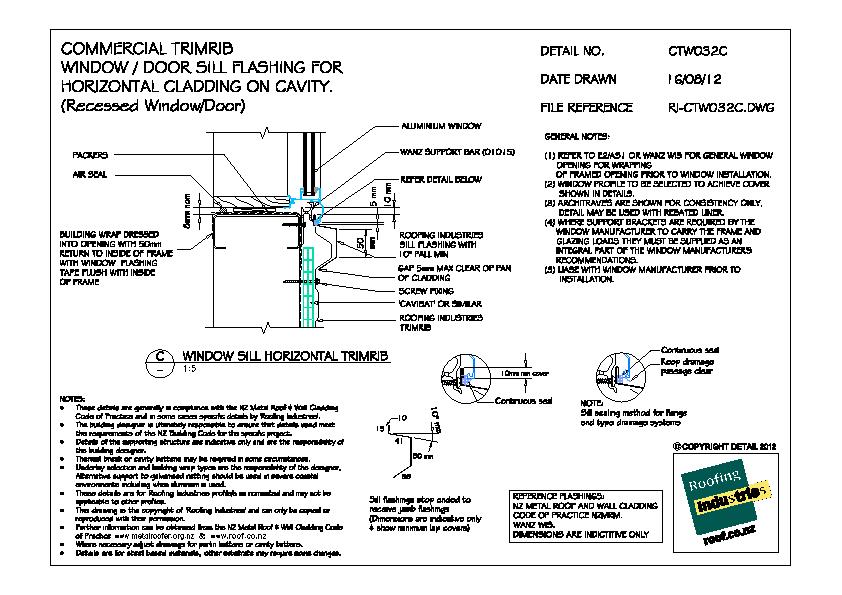

Com. Trimrib Tilt Panel / Horizontal Cladding Junction (3)

RI-CT-W032C

dwg
pdf

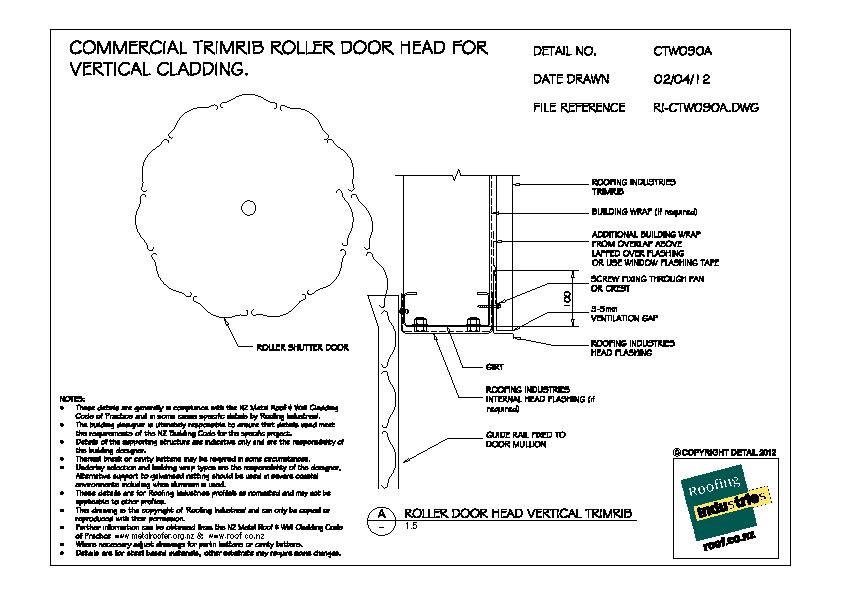

Com. Trimrib Roller Door Head for Vertical Cladding

RI-CT-W090A

dwg
pdf

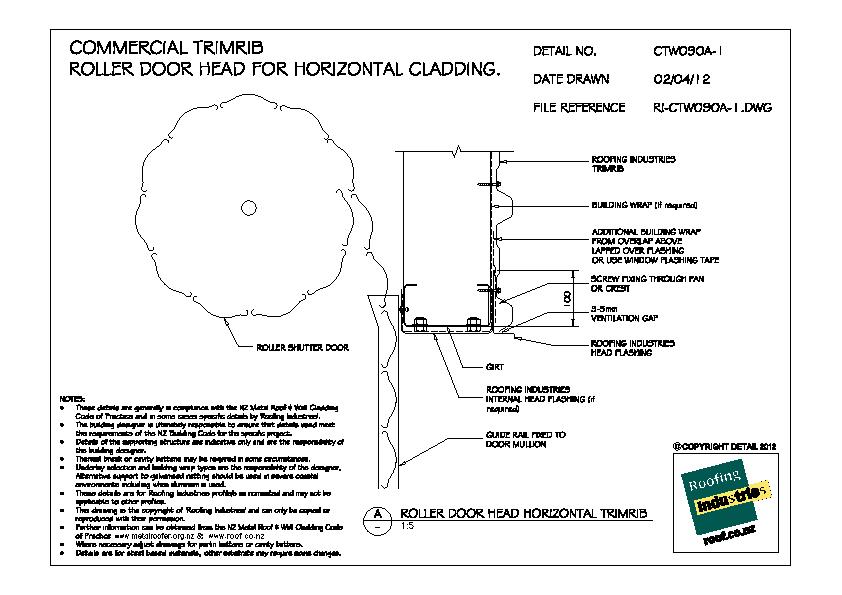

Com. Trimrib Roller Door Head for Horizontal Cladding

RI-CT-W090A-1

dwg
pdf

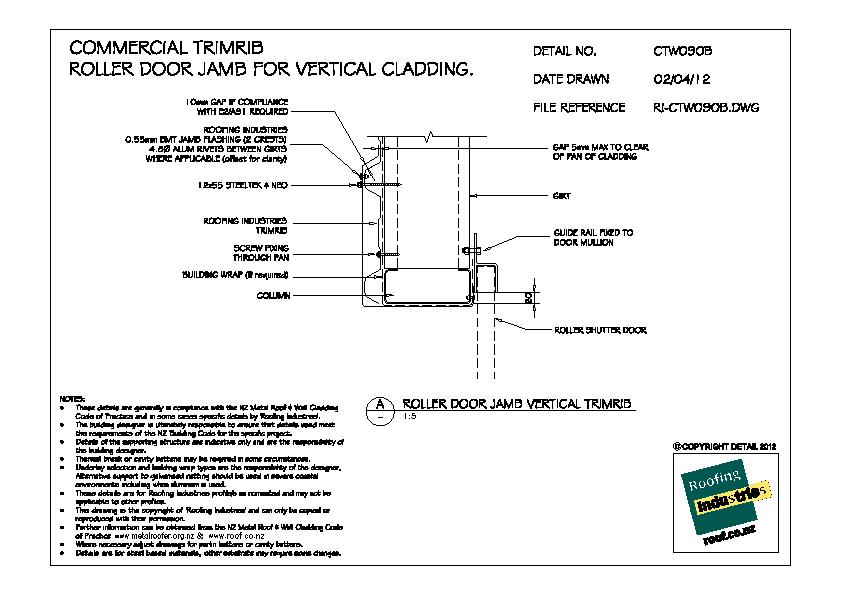

Com. Trimrib Roller Door Jamb for Vertical Cladding

RI-CT-W090B

dwg
pdf

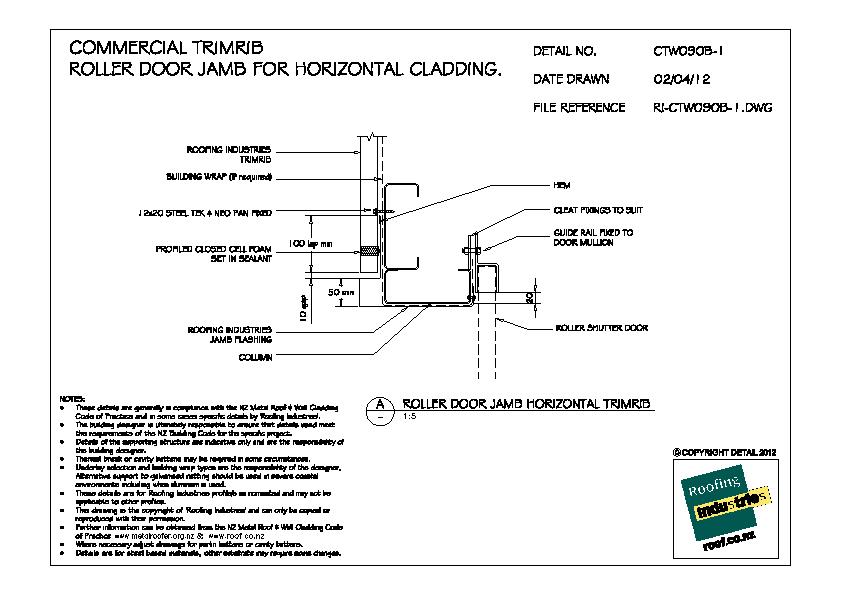

Com. Trimrib Roller Door Jamb for Horizontal Cladding

RI-CT-W090B-1

dwg
pdf

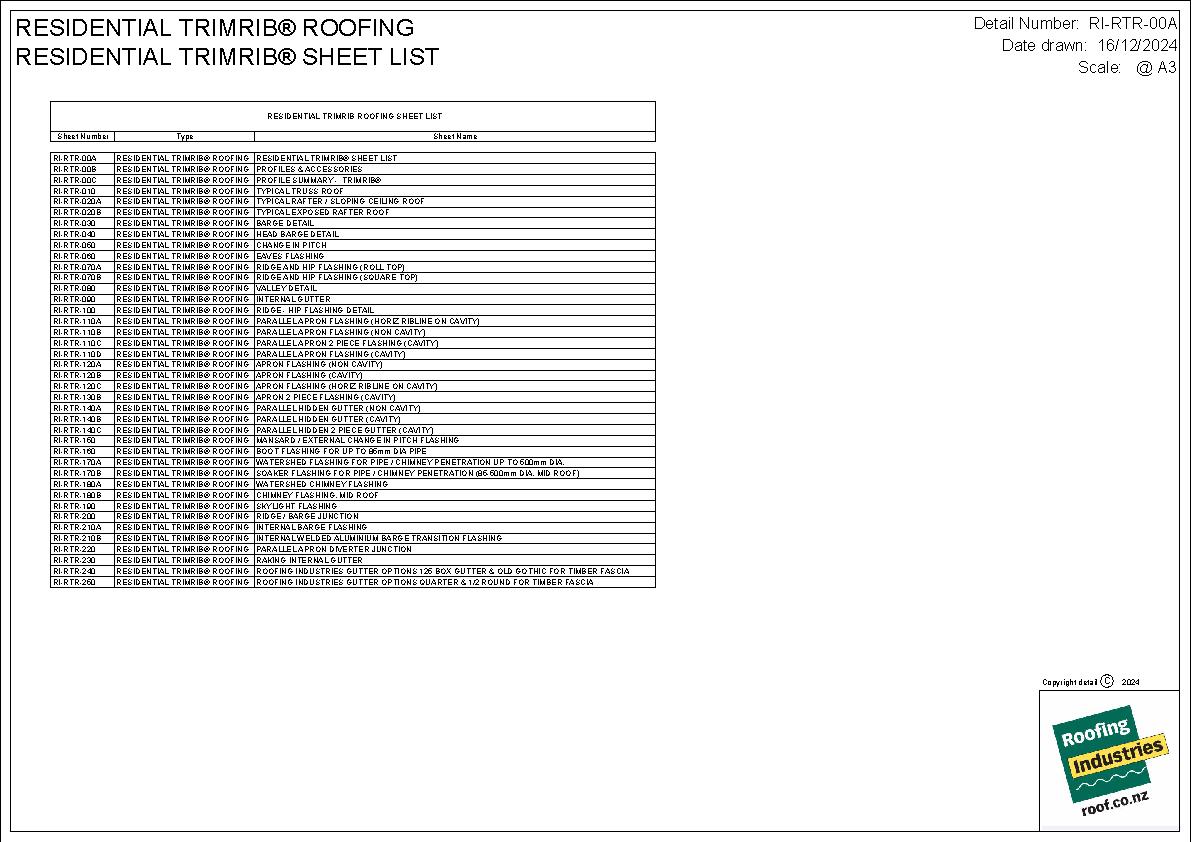

RESIDENTIAL TRIMRIB ROOFING 16 12 2024 pdf
Residential Trimrib Full Set Roofing

RI-RTR

2025

pdf
zip
RI RTR 00A RESIDENTIAL TRIMRIB SHEET LIST pdf
Residential Trimrib Sheet List

RI-RTR-00A

2025

dwg
pdf
RI RTR 00B PROFILES ACCESSORIES pdf

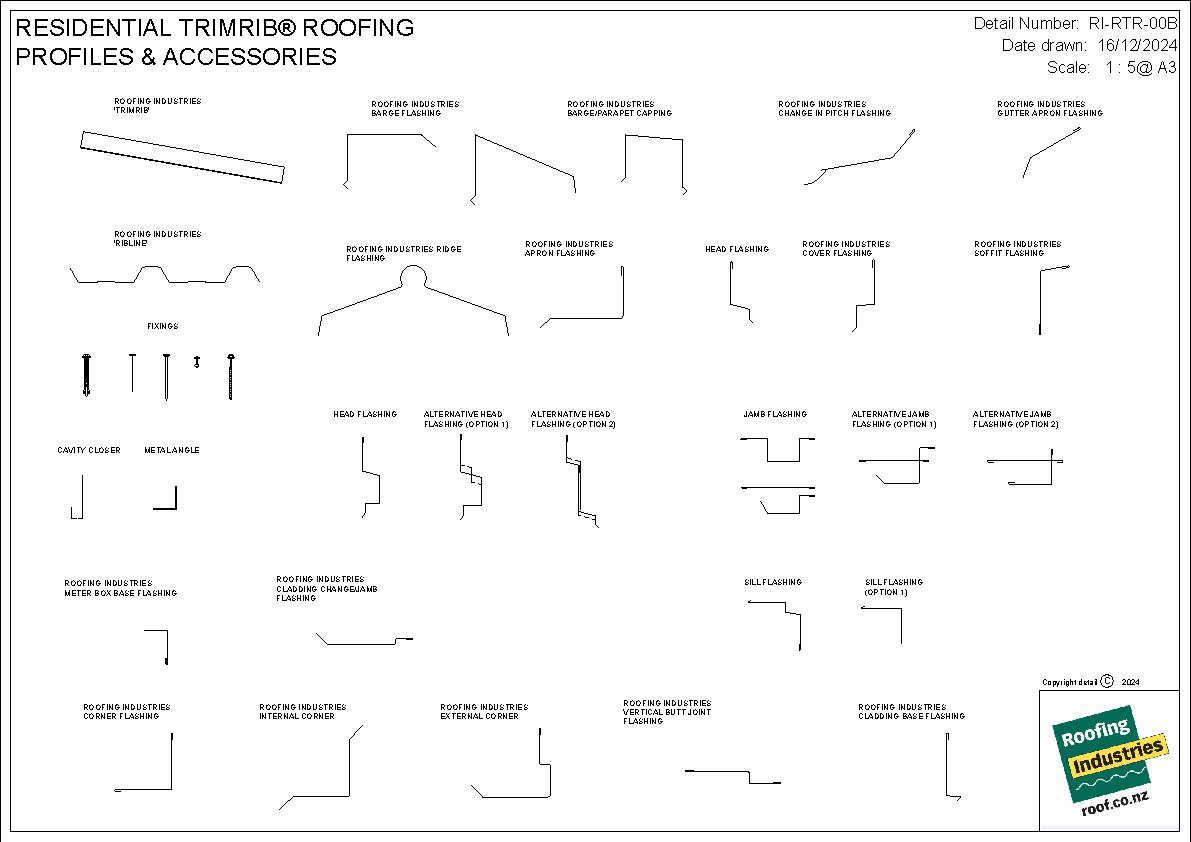

Residential Trimrib Profiles & Accessories

RI-RTR-00B

2025

dwg
pdf
RI RTR 00C PROFILE SUMMARY TRIMRIB pdf
Residential Trimrib Profile Summary

RI-RTR-00C

2025

dwg
pdf
RI RTR 010 TYPICAL TRUSS ROOF pdf
Residential Trimrib Typical Truss Roof

RI-RTR-010

2025

dwg
pdf
RI RTR 020A TYPICAL RAFTER SLOPING CEILING ROOF pdf
Residential Trimrib Typical Rafter Sloping Ceiling Roof

RI-RTR-020A

2025

dwg
pdf
RI RTR 020B TYPICAL EXPOSED RAFTER ROOF pdf
Residential Trimrib Typical Exposed Rafter Roof

RI-RTR-020B

2025

dwg
pdf
RI RTR 030 BARGE DETAIL pdf
Residential Trimrib Barge Detail

RI-RTR-030

2025

dwg
pdf
RI RTR 040 HEAD BARGE DETAIL pdf
Residential Trimrib Head Barge Detail

RI-RTR-040

2025

dwg
pdf
RI RTR 050 CHANGE IN PITCH pdf
Residential Trimrib Change in Pitch

RI-RTR-050

2025

dwg
pdf
RI RTR 060 EAVES FLASHING pdf
Residential Trimrib Eaves Flashing

RI-RTR-060

2025

dwg
pdf
RI RTR 070A RIDGE AND HIP FLASHING ROLL TOP pdf
Residential Trimrib Ridge & Hip Flashing (Roll Top)

RI-RTR-070A

2025

dwg
pdf
RI RTR 070B RIDGE AND HIP FLASHING SQUARE TOP pdf
Residential Trimrib Ridge & Hip Flashing (Square Top)

RI-RTR-070B

2025

dwg
pdf
RI RTR 080 VALLEY DETAIL pdf
Residential Trimrib Valley Detail

RI-RTR-080

2025

dwg
pdf
RI RTR 090 INTERNAL GUTTER pdf
Residential Trimrib Internal Gutter

RI-RTR-090

2025

dwg
pdf
RI RTR 100 RIDGE HIP FLASHING DETAIL pdf
Residential Trimrib Ridge Hip Flashing Detail

RI-RTR-100

2025

dwg
pdf
RI RTR 110A PARALLEL APRON FLASHING HORIZ RIBLINE ON CAVITY pdf
Residential Trimrib Parallel Apron Flashing (Horizontal Ribline on Cavity)

RI-RTR-110A

2025

dwg
pdf
RI RTR 110B PARALLEL APRON FLASHING NON CAVITY pdf
Residential Trimrib Parallel Apron Flashing (Non Cavity)

RI-RTR-110B

2025

dwg
pdf
RI RTR 110C PARALLEL APRON 2 PIECE FLASHING CAVITY pdf
Residential Trimrib Parallel Apron 2 Piece Flashing (Cavity)

RI-RTR-110C

2025

dwg
pdf
RI RTR 110D PARALLEL APRON FLASHING CAVITY pdf
Residential Trimrib Parallel Apron Flashing (Cavity)

RI-RTR-110D

2025

dwg
pdf
RI RTR 120A APRON FLASHING NON CAVITY pdf
Residential Trimrib Apron Flashing (Non Cavity)

RI-RTR-120A

2025

dwg
pdf
RI RTR 120B APRON FLASHING CAVITY pdf
Residential Trimrib Apron Flashing (Cavity)

RI-RTR-120B

2025

dwg
pdf
RI RTR 120C APRON FLASHING HORIZ RIBLINE ON CAVITY pdf
Residential Trimrib Apron Flashing (Horizontal Ribline on Cavity)

RI-RTR-120C

2025

dwg
pdf

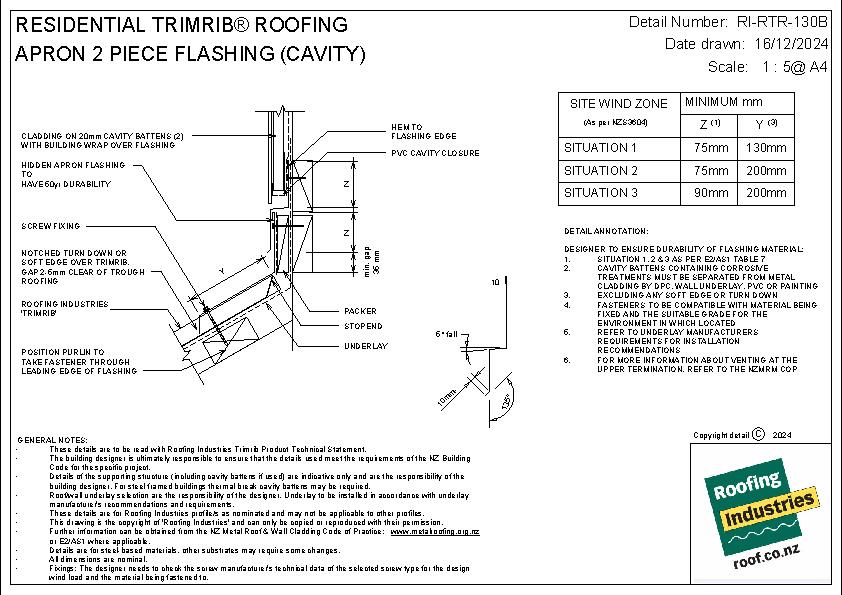

RI RTR 130B APRON 2 PIECE FLASHING CAVITY pdf
Residential Trimrib Apron 2 Piece Flashing (Cavity)

RI-RTR-130B

2025

dwg
pdf
RI RTR 140A PARALLEL HIDDEN GUTTER NON CAVITY pdf
Residential Trimrib Parallel Hidden Gutter (Non Cavity)

RI-RTR-140A

2025

dwg
pdf
RI RTR 140B PARALLEL HIDDEN GUTTER CAVITY pdf
Residential Trimrib Parallel Hidden Gutter (Cavity)

RI-RTR-140B

2025

dwg
pdf

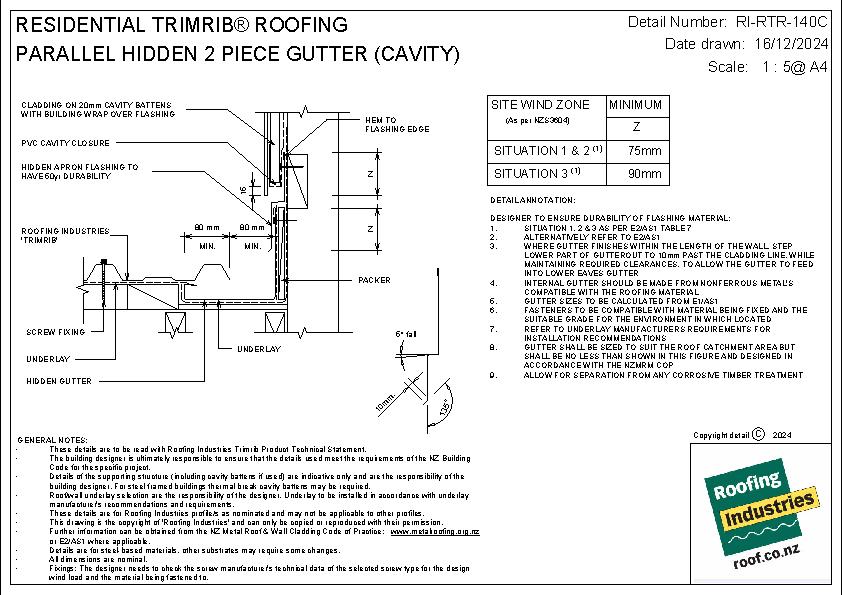

RI RTR 140C PARALLEL HIDDEN 2 PIECE GUTTER CAVITY pdf
Residential Trimrib Parallel Hidden 2 Piece Gutter (Cavity)

RI-RTR-140C

2025

dwg
pdf
RI RTR 150 MANSARD EXTERNAL CHANGE IN PITCH FLASHING pdf
Residential Trimrib Mansard External Change in Pitch Flashing

RI-RTR-150

2025

dwg
pdf
RI RTR 160 BOOT FLASHING FOR UP TO 85mm DIA PIPE pdf
Residential Trimrib Boot Flashing for up to 85mm Dia Pipe

RI-RTR-160

2025

dwg
pdf
RI RTR 170A WATERSHED FLASHING FOR PIPE CHIMNEY PENETRATION UP TO 500mm DIA pdf
Residential Trimrib Watershed Flashing for Pipe Chimney Penetration up to 500mm Dia

RI-RTR-170A

2025

dwg
pdf
RI RTR 170B SOAKER FLASHING FOR PIPE CHIMNEY PENETRATION 85 500mm DIA MID ROOF pdf
Residential Trimrib Soaker Flashing for Pipe Chimney Penetration 85-500mm Dia (Mid-roof)

RI-RTR-170B

2025

dwg
pdf
RI RTR 180A WATERSHED CHIMNEY FLASHING pdf
Residential Trimrib Watershed Chimney Flashing

RI-RTR-180A

2025

dwg
pdf
RI RTR 180B CHIMNEY FLASHING MID ROOF pdf
Residential Trimrib Chimney Flashing (Mid-roof)

RI-RTR-180B

2025

dwg
pdf
RI RTR 200 RIDGE BARGE JUNCTION pdf
Residential Trimrib Ridge Barge Junction

RI-RTR-200

2025

dwg
pdf
RI RTR 210A INTERNAL BARGE FLASHING pdf
Residential Trimrib Internal Barge Flashing

RI-RTR-210A

2025

dwg
pdf
RI RTR 210B INTERNAL WELDED ALUMINIUM BARGE TRANSITION FLASHING pdf
Residential Trimrib Internal Welded Aluminium Barge Transition Flashing

RI-RTR-210B

2025

dwg
pdf
RI RTR 220 PARALLEL APRON DIVERTER JUNCTION pdf
Residential Trimrib Parallel Apron Diverter Junction

RI-RTR-220

2025

dwg
pdf
RI RTR 230 RAKING INTERNAL GUTTER pdf
Residential Trimrib Raking Internal Gutter

RI-RTR-230

2025

dwg
pdf
RI RTR 240 ROOFING INDUSTRIES GUTTER OPTIONS 125 BOX GUTTER OLD GOTHIC FOR TIMBER FASCIA pdf
Residential Trimrib Gutter Options 125 Box Gutter & Old Gothic for Timber Fascia

RI-RTR-240

2025

dwg
pdf
RI RTR 250 ROOFING INDUSTRIES GUTTER OPTIONS QUARTER 1 2 ROUND FOR TIMBER FASCIA pdf
Residential Trimrib Gutter Options Quarter & 1/2 Round for Timber Fascia

RI-RTR-250

2050

dwg
pdf

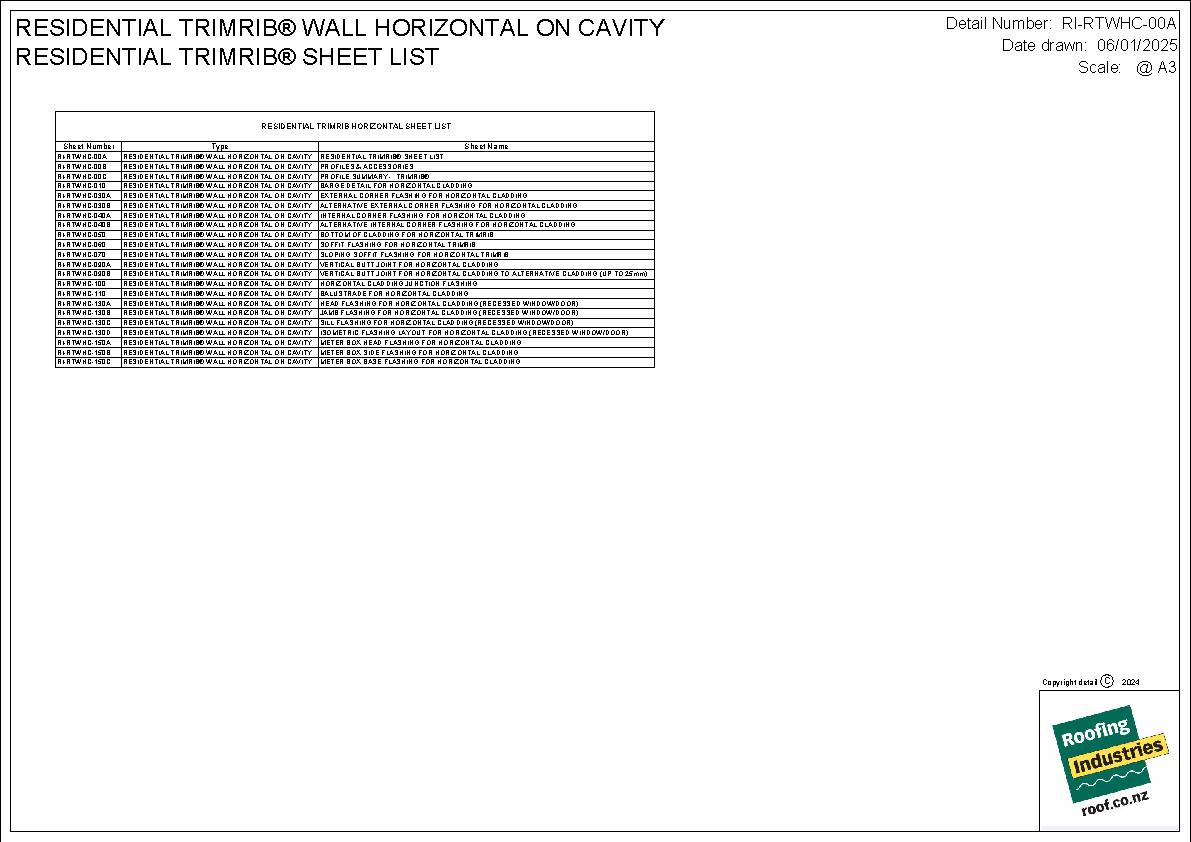

RESIDENTIAL TRIMRIB WALL HORIZONTAL 06 01 2024 pdf
Residential Trimrib Full Set Wall Horizontal

RI-RTWHC

2025

pdf
zip
RI RTWHC 00A RESIDENTIAL TRIMRIB SHEET LIST pdf
Residential Trimrib Sheet List

RI-RTWHC-00A

2025

dwg
pdf
RI RTWHC 00B PROFILES ACCESSORIES pdf
Residential Trimrib Profiles & Accessories

RI-RTWHC-00B

2025

dwg
pdf
RI RTWHC 00C PROFILE SUMMARY TRIMRIB pdf
Residential Trimrib Profile Summary

RI-RTWHC-00C

2025

dwg
pdf
RI RTWHC 010 BARGE DETAIL FOR HORIZONTAL CLADDING pdf
Residential Trimrib Barge Detail for Horizontal Cladding

RI-RTWHC-010

2025

dwg
pdf
RI RTWHC 030A EXTERNAL CORNER FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib External Corner Flashing for Horizontal Cladding

RI-RTWHC-030A

2025

dwg
pdf
RI RTWHC 030B ALTERNATIVE EXTERNAL CORNER FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib Alternative External Corner Flashing for Horizontal Cladding

RI-RTWHC-030B

2025

dwg
pdf
RI RTWHC 040A INTERNAL CORNER FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib Internal Corner Flashing for Horizontal Cladding

RI-RTWHC-040A

2025

dwg
pdf
RI RTWHC 040B ALTERNATIVE INTERNAL CORNER FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib Alternative Internal Corner Flashing for Horizontal Cladding

RI-RTWHC-040B

2025

dwg
pdf
RI RTWHC 050 BOTTOM OF CLADDING FOR HORIZONTAL TRIMRIB pdf
Residential Trimrib Bottom of Cladding for Horizontal Trimrib

RI-RTWHC-050

2025

dwg
pdf

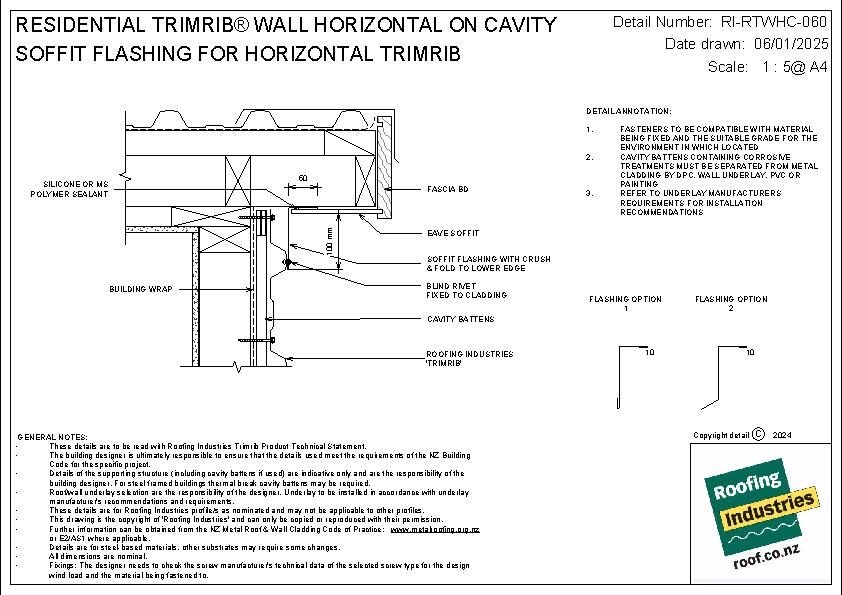

RI RTWHC 060 SOFFIT FLASHING FOR HORIZONTAL TRIMRIB pdf
Residential Trimrib Soffit Flashing for Horizontal Trimrib

RI-RTWHC-060

2025

dwg
pdf
RI RTWHC 070 SLOPING SOFFIT FLASHING FOR HORIZONTAL TRIMRIB pdf
Residential Trimrib Sloping Soffit Flashing for Horizontal Trimrib

RI-RTWHC-070

2025

dwg
pdf
RI RTWHC 090A VERTICAL BUTT JOINT FOR HORIZONTAL CLADDING pdf
Residential Trimrib Vertical Butt Joint for Horizontal Cladding

RI-RTWHC-090A

2025

dwg
pdf
RI RTWHC 090B VERTICAL BUTT JOINT FOR HORIZONTAL CLADDING TO ALTERNATIVE CLADDING UP TO 25mm pdf
Residential Trimrib Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25mm)

RI-RTWHC-090B

2025

dwg
pdf
RI RTWHC 100 HORIZONTAL CLADDING JUNCTION FLASHING pdf
Residential Trimrib Horizontal Cladding Junction Flashing

RI-RTWHC-100

2025

dwg
pdf
RI RTWHC 110 BALUSTRADE FOR HORIZONTAL CLADDING pdf
Residential Trimrib Balustrade for Horizontal Cladding

RI-RTWHC-110

2025

dwg
pdf
RI RTWHC 130A HEAD FLASHING FOR HORIZONTAL CLADDING RECESSED WINDOW DOOR pdf
Residential Trimrib Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTWHC-130A

2025

dwg
pdf
RI RTWHC 130B JAMB FLASHING FOR HORIZONTAL CLADDING RECESSED WINDOW DOOR pdf
Residential Trimrib Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTWHC-130B

2025

dwg
pdf
RI RTWHC 130C SILL FLASHING FOR HORIZONTAL CLADDING RECESSED WINDOW DOOR pdf
Residential Trimrib Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RTWHC-130C

2025

dwg
pdf
RI RTWHC 130D ISOMETRIC FLASHING LAYOUT FOR HORIZONTAL CLADDING RECESSED WINDOW DOOR pdf
Residential Trimrib Isometric Flashing Layout for Horizontal Cladding (Recessed Window/Door)

RI-RTWHC-130D

2025

dwg
pdf
RI RTWHC 150A METER BOX HEAD FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib Meter Box Head Flashing for Horizontal Cladding

RI-RTWHC-150A

2025

dwg
pdf
RI RTWHC 150B METER BOX SIDE FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib Meter Box Side Flashing for Horizontal Cladding

RI-RTWHC-150B

2025

dwg
pdf
RI RTWHC 150C METER BOX BASE FLASHING FOR HORIZONTAL CLADDING pdf
Residential Trimrib Meter Box Base Flashing for Horizontal Cladding

RI-RTWHC-150C

2025

dwg
pdf
RESIDENTIAL TRIMRIB WALL VERTICAL 17 02 2025 pdf
Residential Trimrib Full Set Wall Vertical

RI-RTWVC

2025

pdf
zip

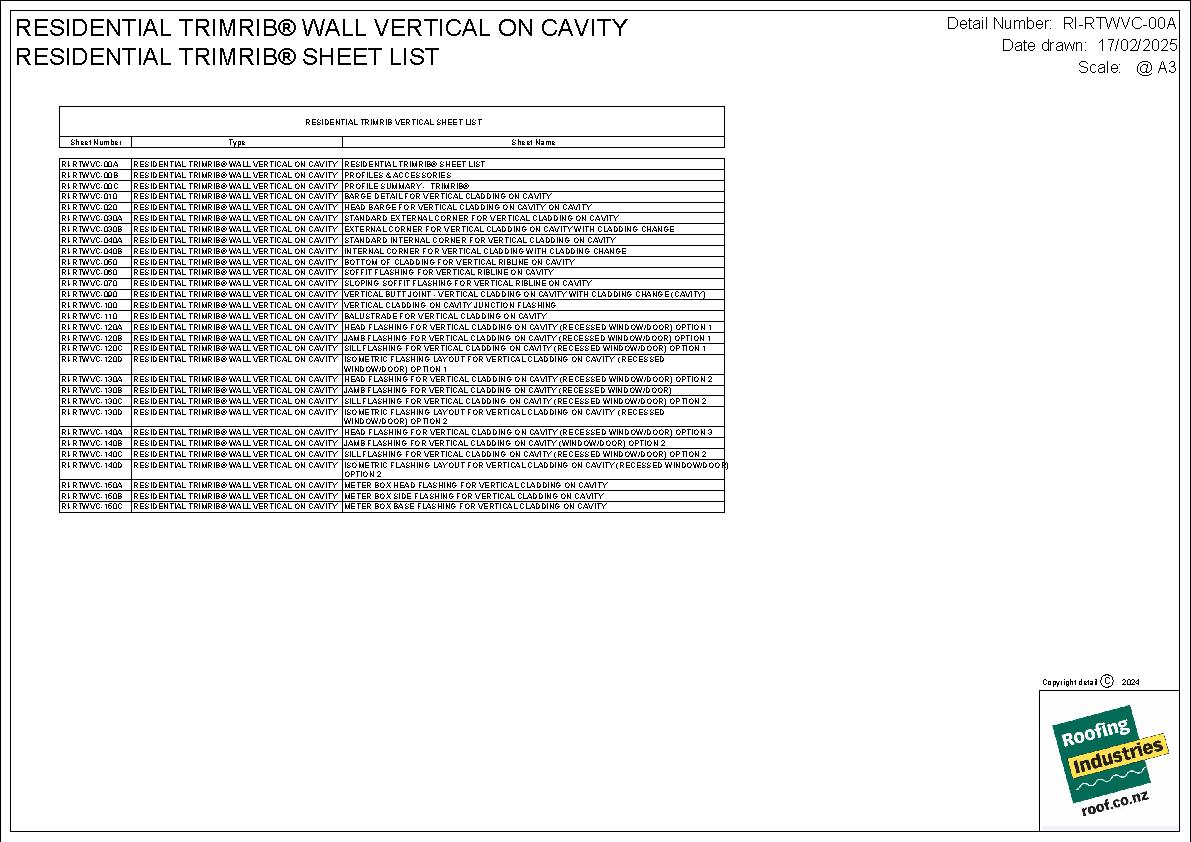

RI RTWVC 00A RESIDENTIAL TRIMRIB SHEET LIST pdf
Residential Trimrib Sheet List

RI-RTWVC-00A

2025

dwg
pdf
RI RTWVC 00B PROFILES ACCESSORIES pdf
Residential Trimrib Profiles & Accessories

RI-RTWVC-00B

2025

dwg
pdf
RI RTWVC 00C PROFILE SUMMARY TRIMRIB pdf
Residential Trimrib Profile Summary

RI-RTWVC-00C

dwg
pdf
RI RTWVC 010 BARGE DETAIL FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Barge Detail for Vertical Cladding on Cavity

RI-RTWVC-010

2025

dwg
pdf
RI RTWVC 020 HEAD BARGE FOR VERTICAL CLADDING ON CAVITY ON CAVITY pdf
Residential Trimrib Head Barge Detail for Vertical Cladding on Cavity on Cavity

RI-RTWVC-020

2025

dwg
pdf
RI RTWVC 030A STANDARD EXTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Standard External Corner for Vertical Cladding on Cavity

RI-RTWVC-030A

2025

dwg
pdf
RI RTWVC 030B EXTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY WITH CLADDING CHANGE pdf
Residential Trimrib External Corner for Vertical Cladding on Cavity with Cladding Change

RI-RTWVC-030B

2025

dwg
pdf
RI RTWVC 040A STANDARD INTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Standard Internal Corner for Vertical Cladding on Cavity

RI-RTWVC-040A

2025

dwg
pdf
RI RTWVC 040B INTERNAL CORNER FOR VERTICAL CLADDING WITH CLADDING CHANGE pdf
Residential Trimrib Internal Corner for Vertical Cladding on Cavity with Cladding Change

RI-RTWVC-040B

2025

dwg
pdf
RI RTWVC 050 BOTTOM OF CLADDING FOR VERTICAL RIBLINE ON CAVITY pdf
Residential Trimrib Bottom of Cladding for Vertical Ribline on Cavity

RI-RTWVC-050

2025

dwg
pdf
RI RTWVC 060 SOFFIT FLASHING FOR VERTICAL RIBLINE ON CAVITY pdf
Residential Trimrib Soffit Flashing for Vertical Ribline on Cavity

RI-RTWVC-060

2025

dwg
pdf

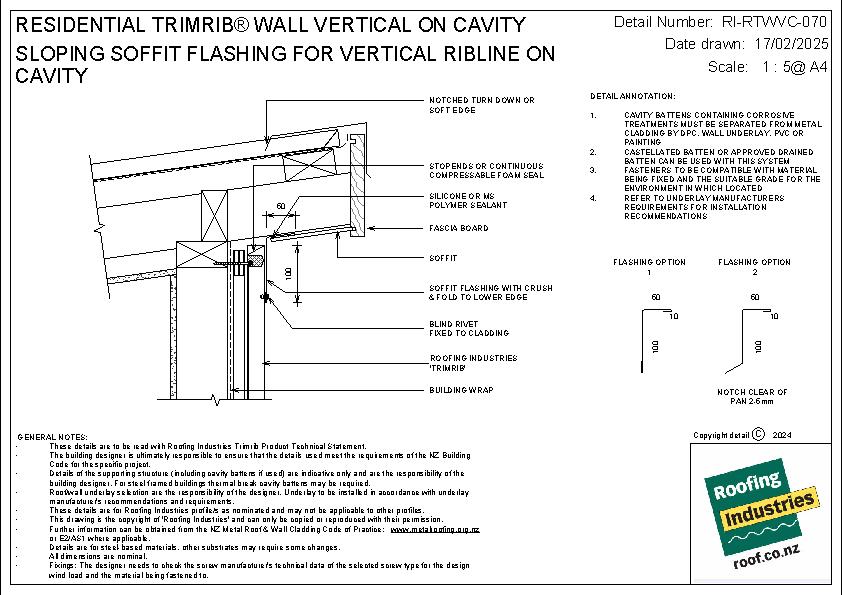

RI RTWVC 070 SLOPING SOFFIT FLASHING FOR VERTICAL RIBLINE ON CAVITY pdf
Residential Trimrib Sloping Soffit Flashing for Vertical Ribline on Cavity

RI-RTWVC-070

2025

dwg
pdf
RI RTWVC 090 VERTICAL BUTT JOINT VERTICAL CLADDING ON CAVITY WITH CLADDING CHANGE CAVITY pdf
Residential Trimrib Vertical Butt Joint for Vertical Cladding on Cavity with Cladding Change

RI-RTWVC-090

2025

dwg
pdf
RI RTWVC 100 VERTICAL CLADDING ON CAVITY JUNCTION FLASHING pdf
Residential Trimrib Vertical Cladding on Cavity Junction Flashing

RI-RTWVC-100

2025

dwg
pdf
RI RTWVC 110 BALUSTRADE FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Balustrade for Vertical Cladding on Cavity

RI-RTWVC-110

2025

dwg
pdf
RI RTWVC 120A HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf
Residential Trimrib Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 1

RI-RTWVC-120A

2025

dwg
pdf
RI RTWVC 120B JAMB FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf
Residential Trimrib Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 1

RI-RTWVC-120B

2025

dwg
pdf
RI RTWVC 120C SILL FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf
Residential Trimrib Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 1

RI-RTWVC-120C

2025

dwg
pdf
RI RTWVC 120D ISOMETRIC FLASHING LAYOUT FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf
Residential Trimrib Isometric Flashing Layout for Vertical Cladding on Cavity (Recessed Window/Door) Option 1

RI-RTWVC-120D

2025

dwg
pdf
RI RTWVC 130A HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf
Residential Trimrib Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 2

RI-RTWVC-130A

2025

dwg
pdf

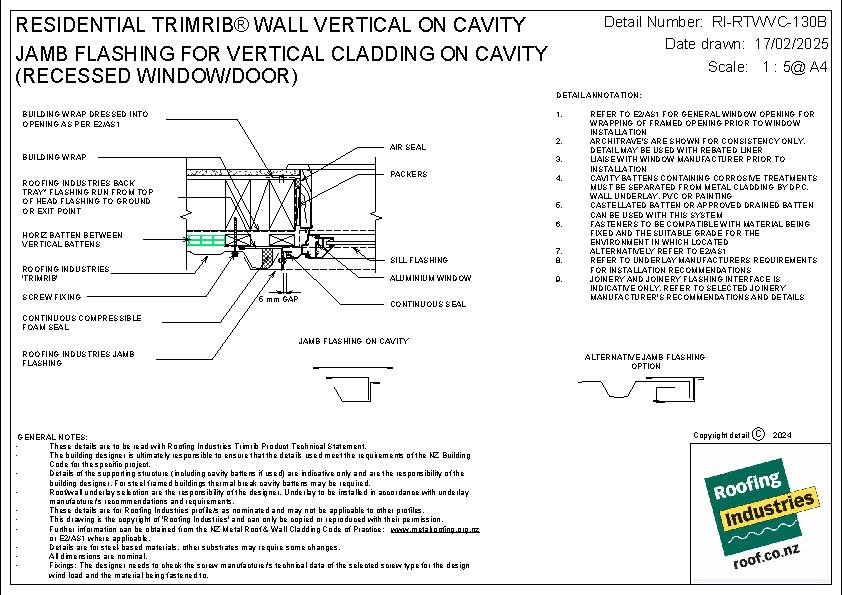

RI RTWVC 130B JAMB FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR pdf
Residential Trimrib Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 2

RI-RTWVC-130B

2025

dwg
pdf
RI RTWVC 130C SILL FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf
Residential Trimrib Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 2

RI-RTWVC-130C

2025

dwg
pdf
RI RTWVC 130D ISOMETRIC FLASHING LAYOUT FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf
Residential Trimrib Isometric Flashing Layout for Vertical Cladding on Cavity (Recessed Window/Door) Option 2

RI-RTWVC-130D

2025

dwg
pdf
RI RTWVC 140A HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 3 pdf
Residential Trimrib Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 3

RI-RTWVC-140A

2025

dwg
pdf
RI RTWVC 140B JAMB FLASHING FOR VERTICAL CLADDING ON CAVITY WINDOW DOOR OPTION 2 pdf
Residential Trimrib Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 3

RI-RTWVC-140B

2025

dwg
pdf
RI RTWVC 140C SILL FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf
Residential Trimrib Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door) Option 3

RI-RTWVC-140C

2025

dwg
pdf
RI RTWVC 140D ISOMETRIC FLASHING LAYOUT FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf
Residential Trimrib Isometric Flashing Layout for Vertical Cladding on Cavity (Recessed Window/Door) Option 3

RI-RTWVC-140D

2025

dwg
pdf
RI RTWVC 150A METER BOX HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RTWVC-150A

2025

dwg
pdf
RI RTWVC 150B METER BOX SIDE FLASHING FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RTWVC-150B

2025

dwg
pdf
RI RTWVC 150C METER BOX BASE FLASHING FOR VERTICAL CLADDING ON CAVITY pdf
Residential Trimrib Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RTWVC-150C

2025

dwg
pdf
BIM
View full
RI RTR 00B PROFILES ACCESSORIES pdf
Residential Trimrib Details Revit

RI-RT

2025

rvt

Roofing Industries is a 100% New Zealand owned and operated metal roof and cladding manufacturing business.

Product Enquiries

News from Roofing Industries

Forty Years of Roof Design Expertise is Just a Phone Call Away
Forty Years of Roof Design Expertise is Just a Phone Call Away
Roofing Industries
March 2025 Product News
High Performance Roofing and Cladding for a 28m-High Logistics Facility
High Performance Roofing and Cladding for a 28m-High Logistics Facility
Roofing Industries
July 2024 Case Studies
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control NEW
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control
Roofing Industries
November 2023 New Products
View all news

Popular Products from Roofing Industries

Corrugate Roofing and Cladding
Corrugate Roofing and Cladding
Roofing Industries
Eurostyle® spanlok® Roofing and Cladding
Eurostyle® spanlok® Roofing and Cladding
Roofing Industries
True Oak® Corrugate Roofing and Cladding
True Oak® Corrugate Roofing and Cladding
Roofing Industries

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
