Corrugate Roofing and Cladding
Roofing Industries
All products
Corrugate cladding comm edit
Description

Corrugate remains an ageless icon, and as a cost competitive and trend setting roofing and cladding material continues to gain in popularity. Corrugate offers a stylish alternative to today’s building designers and home owners alike, allowing creative flair and individuality during the design process.

Key Features
  • Product flexibility coupled with a small amount of imagination will ensure a distinct point of difference to other homes and buildings in the vicinity.
  • Corrugate is available in both standard and wide cover widths although the extra wide cover 995mm
  • Corrugate is subject to minimum order quantity
Categories
Metal Cladding Metal Roofing
Ranges
Corrugates
Scope of Use
  • Residential roofing & cladding
  • Rural and lifestyle roofing & cladding
  • Commercial roofing & cladding
  • Drape/spring curving
  • Bull nosing
  • Horizontal cladding
  • Ceilings and linings
  • Whisperclad acoustic ceiling linings
  • Fencing

Roofing Industries Corrugate will meet the risk score in E2/AS1 13 - 20 for vertically fixed and also horizontally on a cavity. Over 20 will require specific design.

Metal Roof and Wall Cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice.
Limitations on Use
  • Minimum roof pitch 8°
Statement of Building Code Compliance

Roofing Industries Corrugate will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Corrugate performs satisfactorily in the environment it is to be installed, meeting the requirements of The New Zealand Building Code.

Documents
Profile Technical Summary

2012

pdf
Tekton Report — E2 Compliance: Corrugate

2021

pdf
Product Brochure: Roofing Industries Corrugate

August 2018

pdf
Selection Guide: Corrugate

2012

pdf
Brochure: Roofing with Style

2024

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
Brochure: Re-Roof
pdf
Brochure: EZI-FLO Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Project Type
Roofing Details
Wall Cladding Details
Clear filters

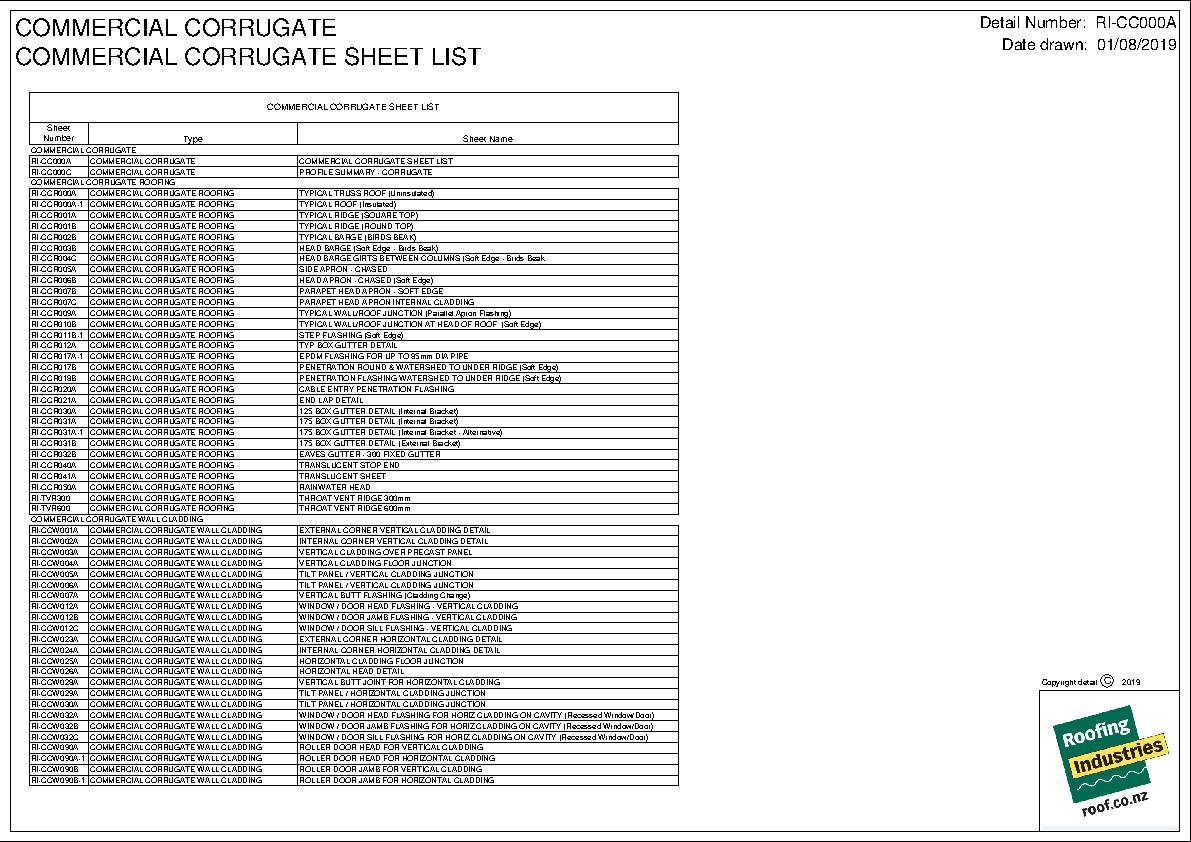

Com. Corrugate Corrugate Sheet List

RI-CC-000A

pdf

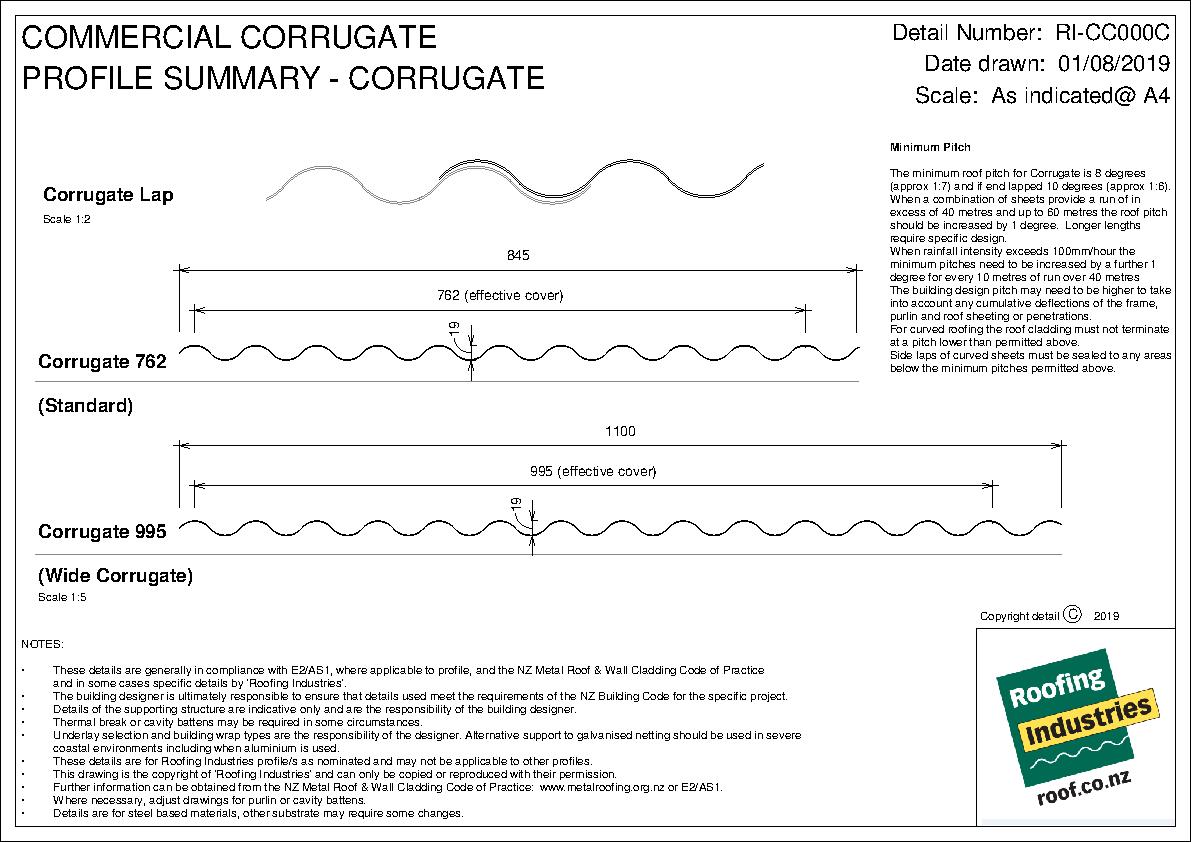

Com. Corrugate Profile Summary

RI-CC-000C

pdf

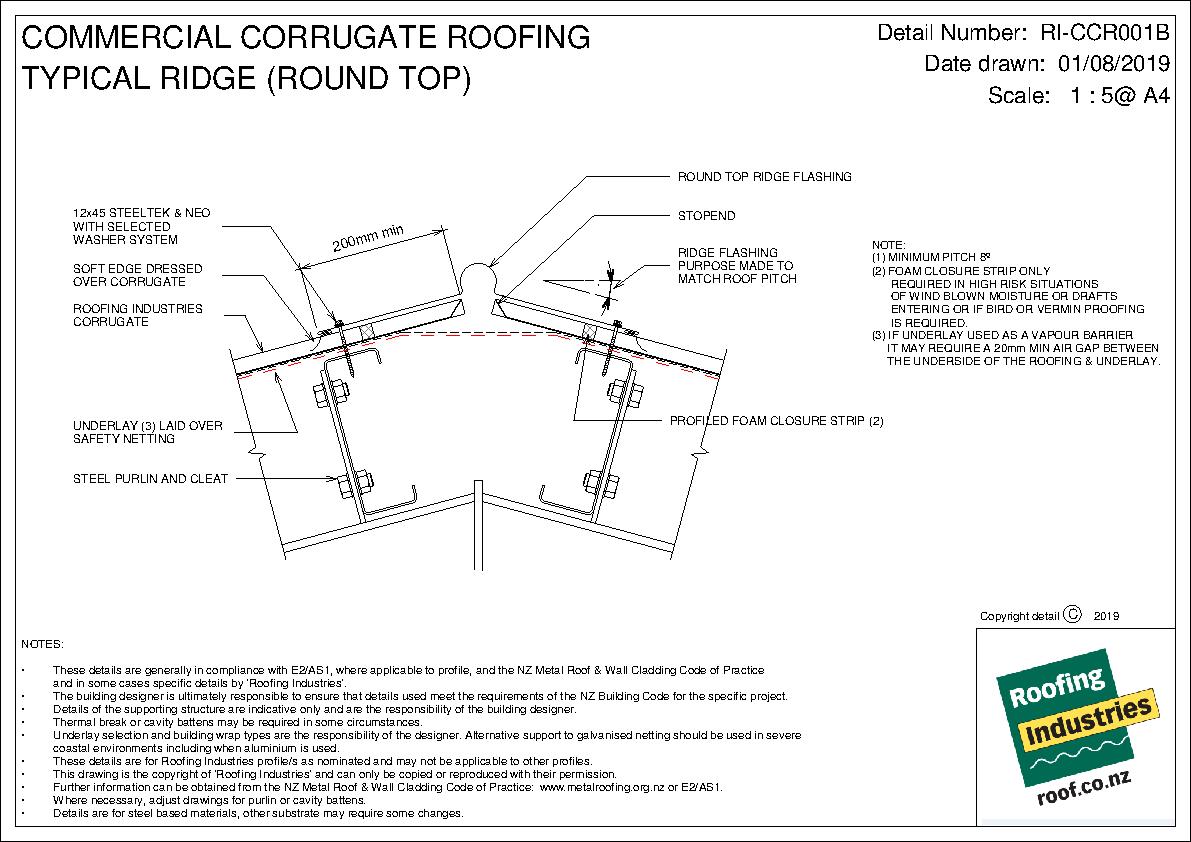

Com. Corrugate Typical Ridge (Round Top)

RI-CC-001B

pdf

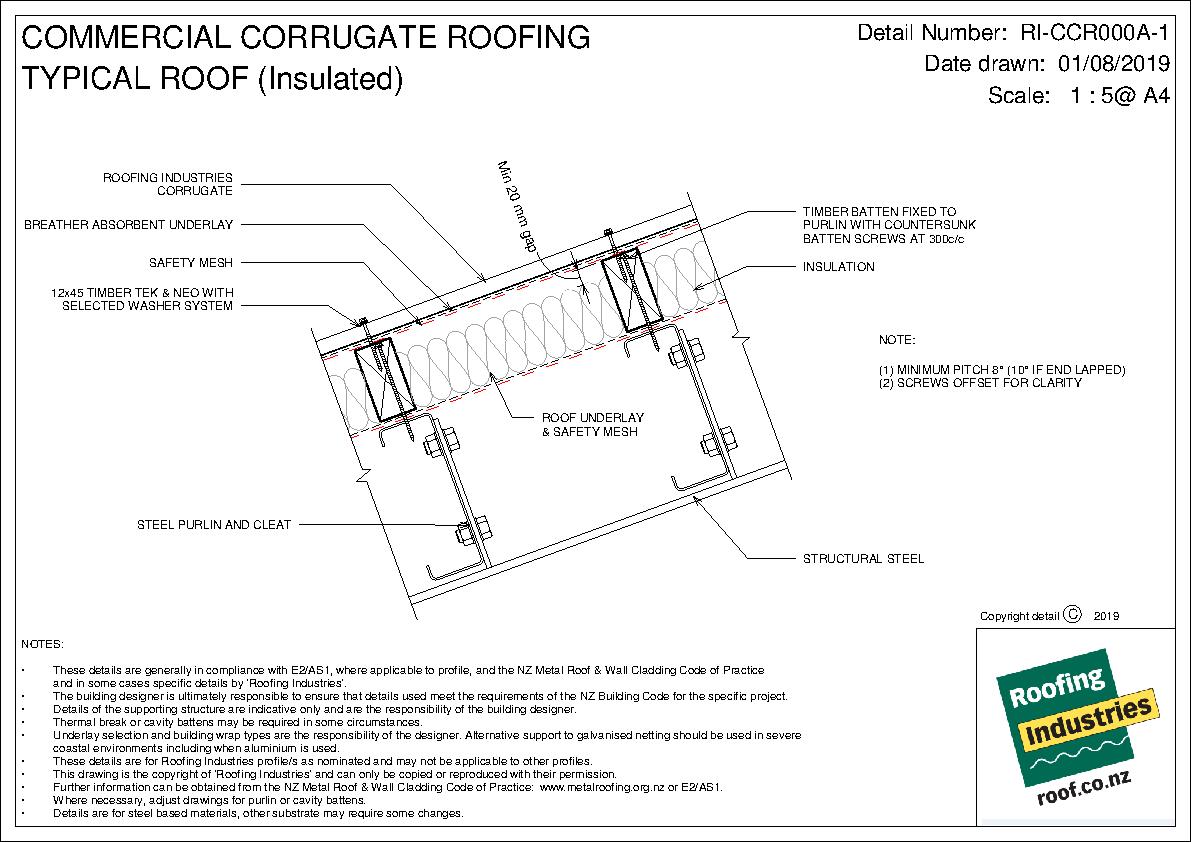

Com. Corrugate Typical Truss Roof (Insulated)

RI-CC-R000A-1

pdf

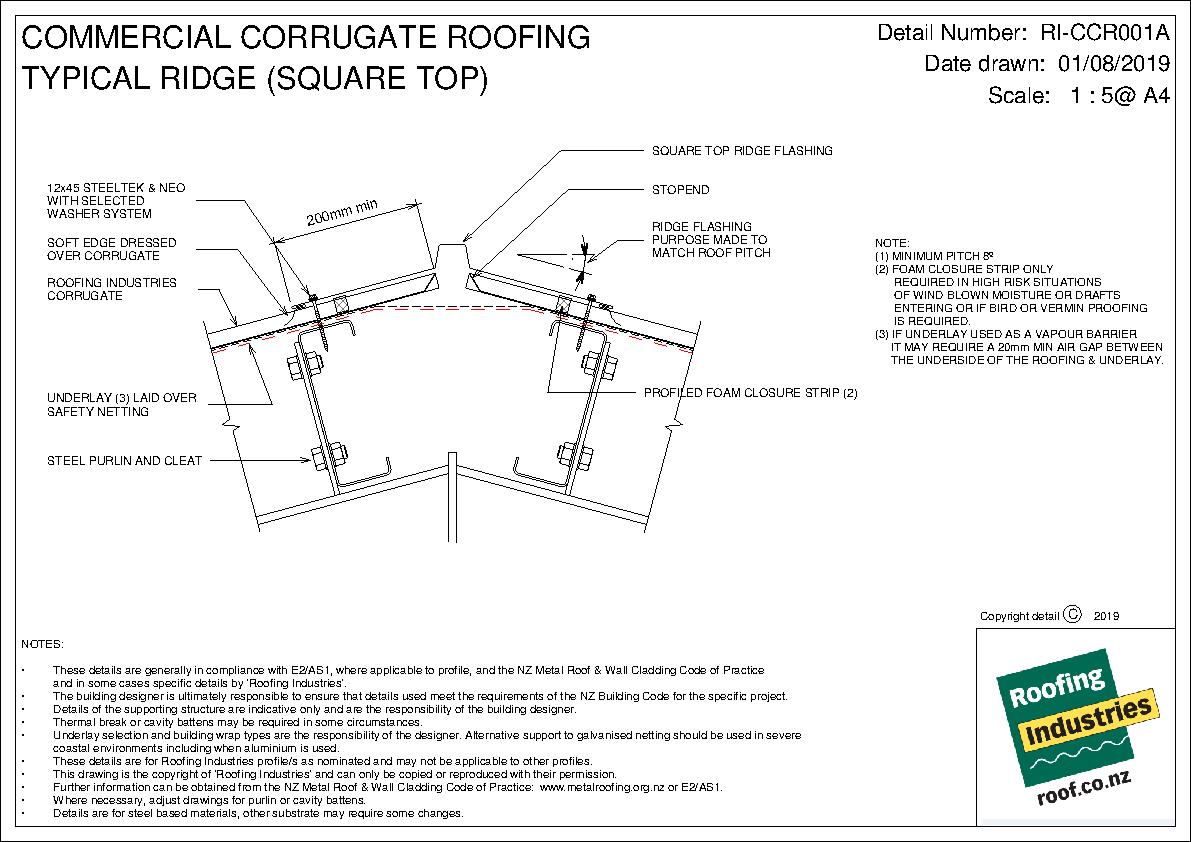

Com. Corrugate Typical Ridge (Square Top)

RI-CC-R001A

pdf

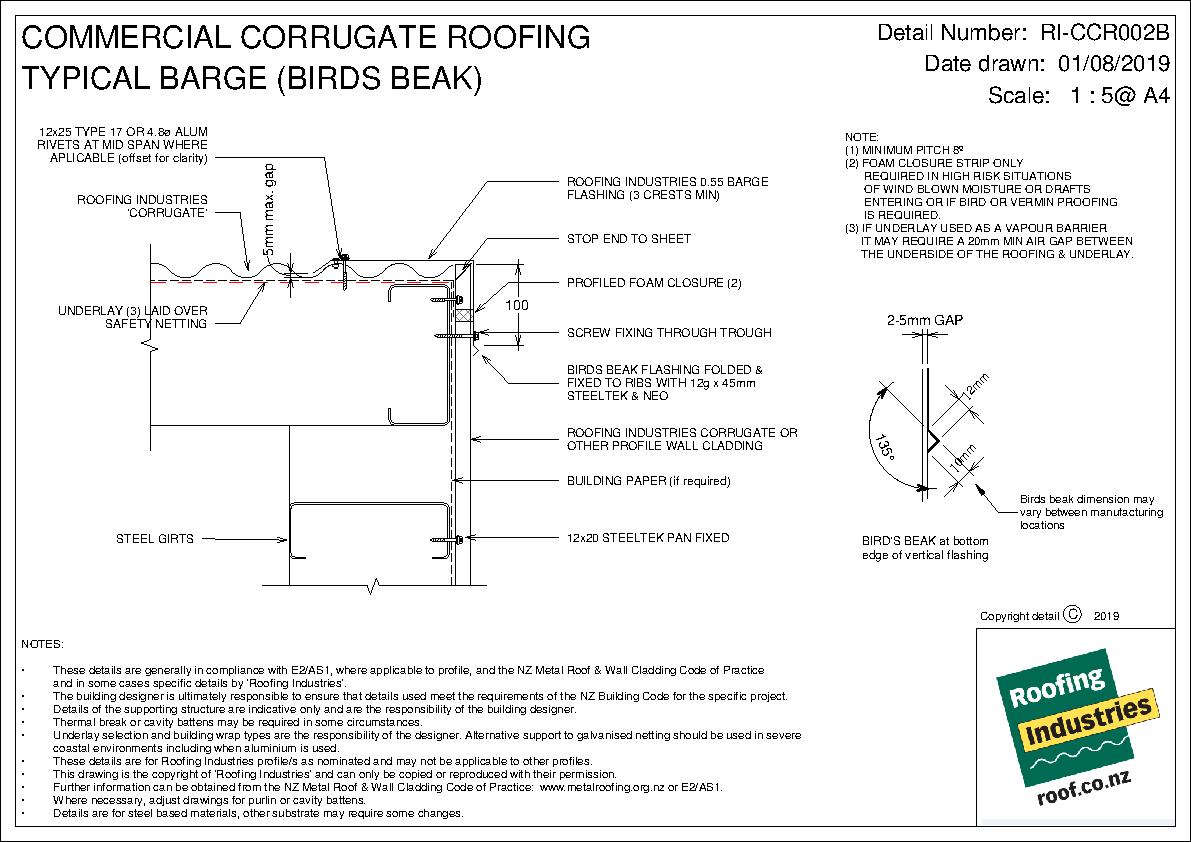

Com. Corrugate Typical Barge (Bird's Beak)

RI-CC-R002B

pdf

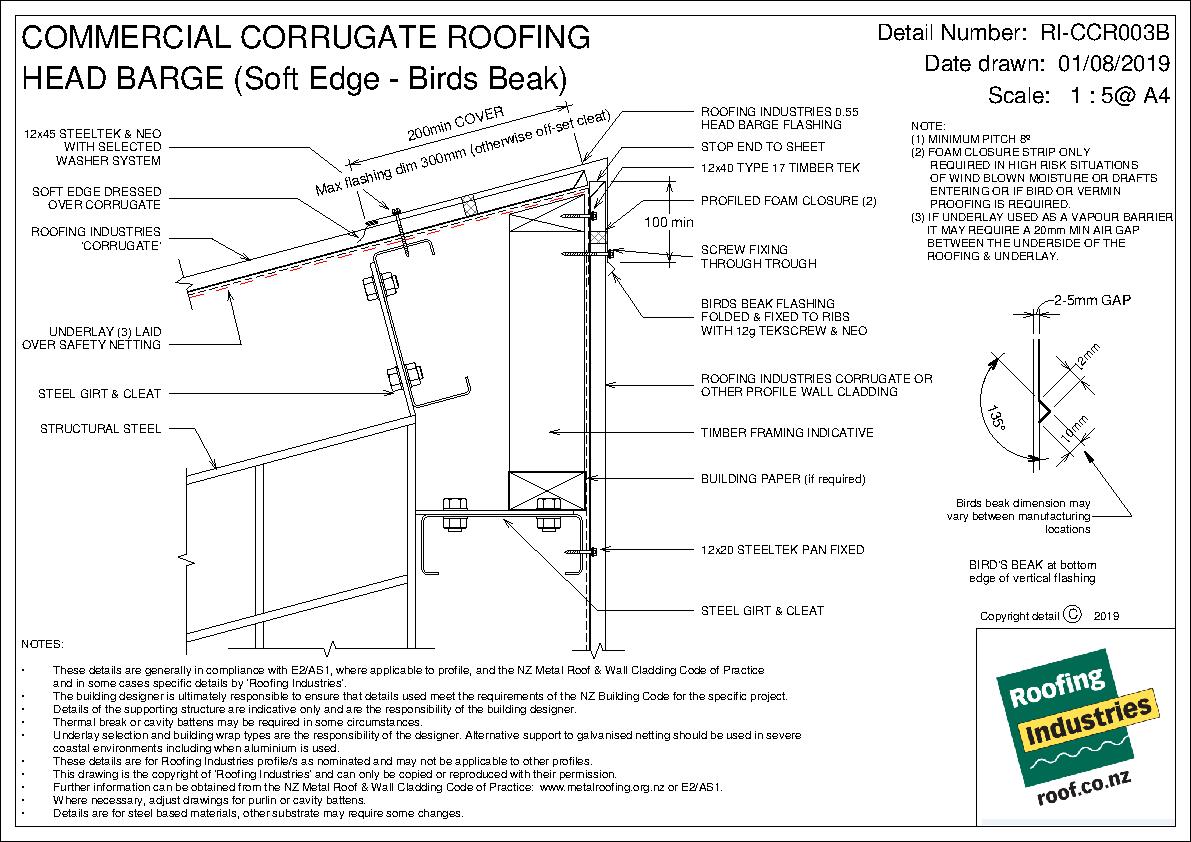

Com. Corrugate Head Barge (Soft Edge — Bird's Beak)

RI-CC-R003B

pdf

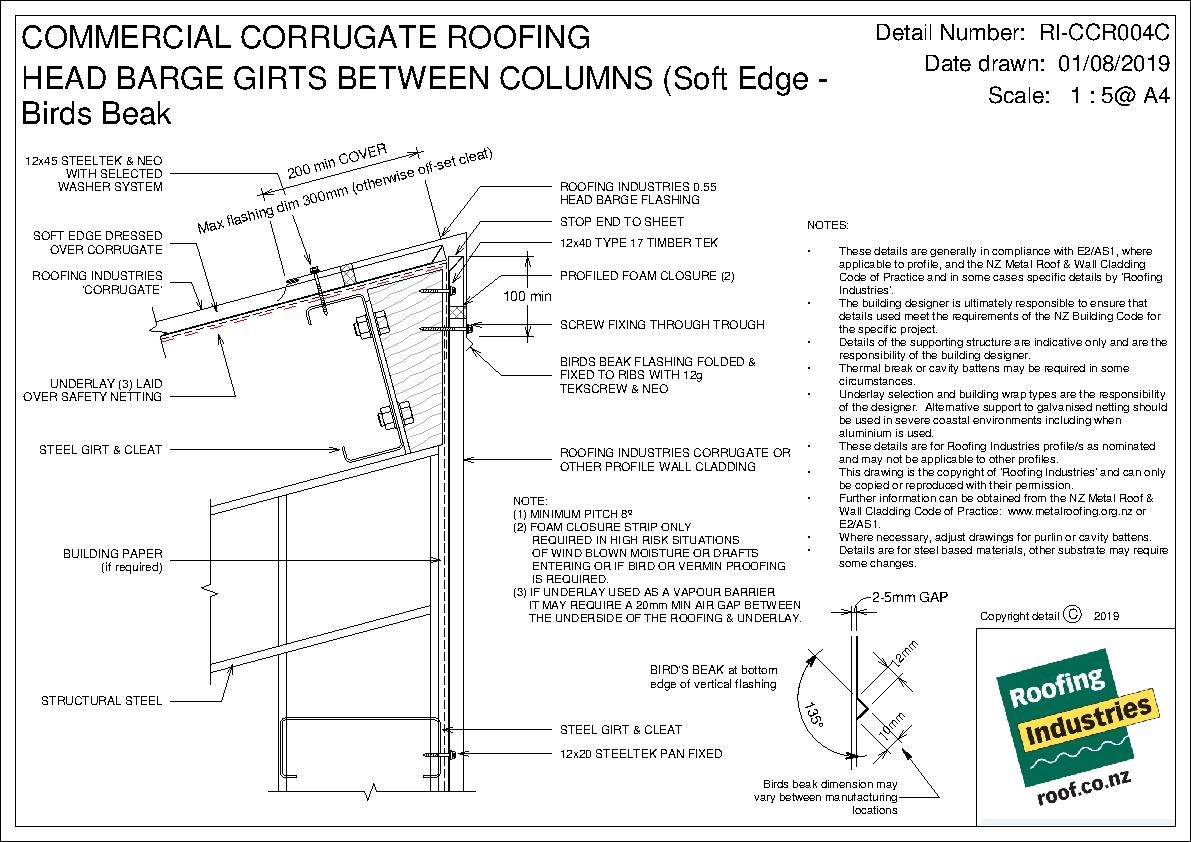

Com. Corrugate Head Barge Girts Between Columns (Soft Edge — Bird's Beak)

RI-CC-R004C

pdf

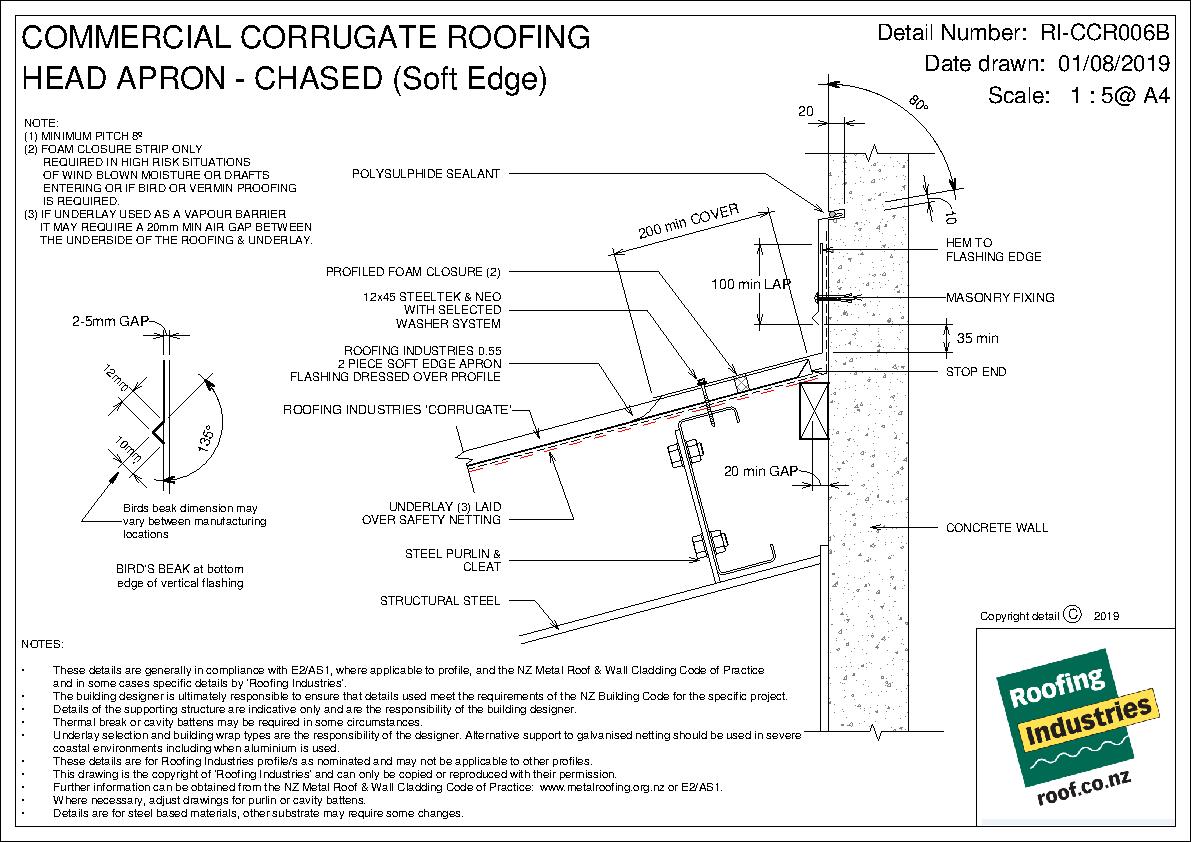

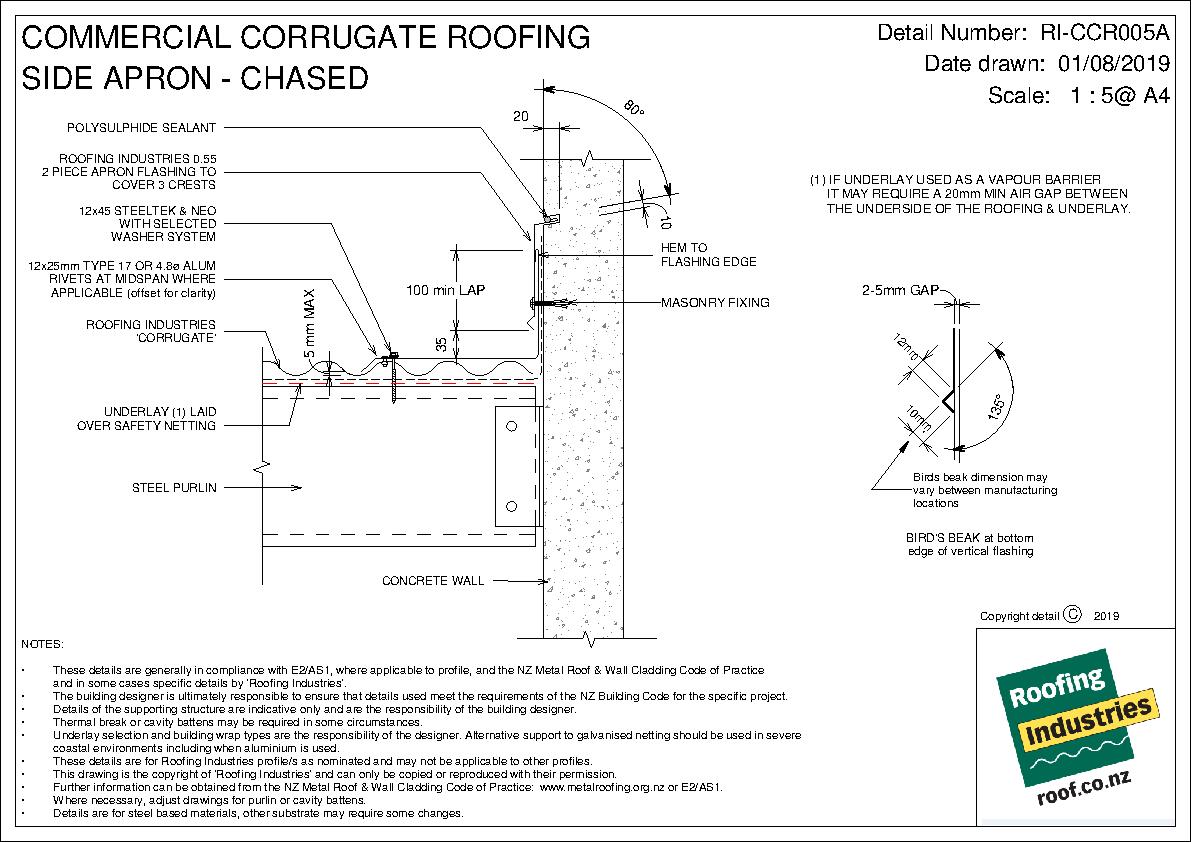

Com. Corrugate Side Apron — Chased

RI-CC-R005A

pdf
Com. Corrugate Side Apron — Chased (Soft Edge)

RI-CC-R006B

pdf

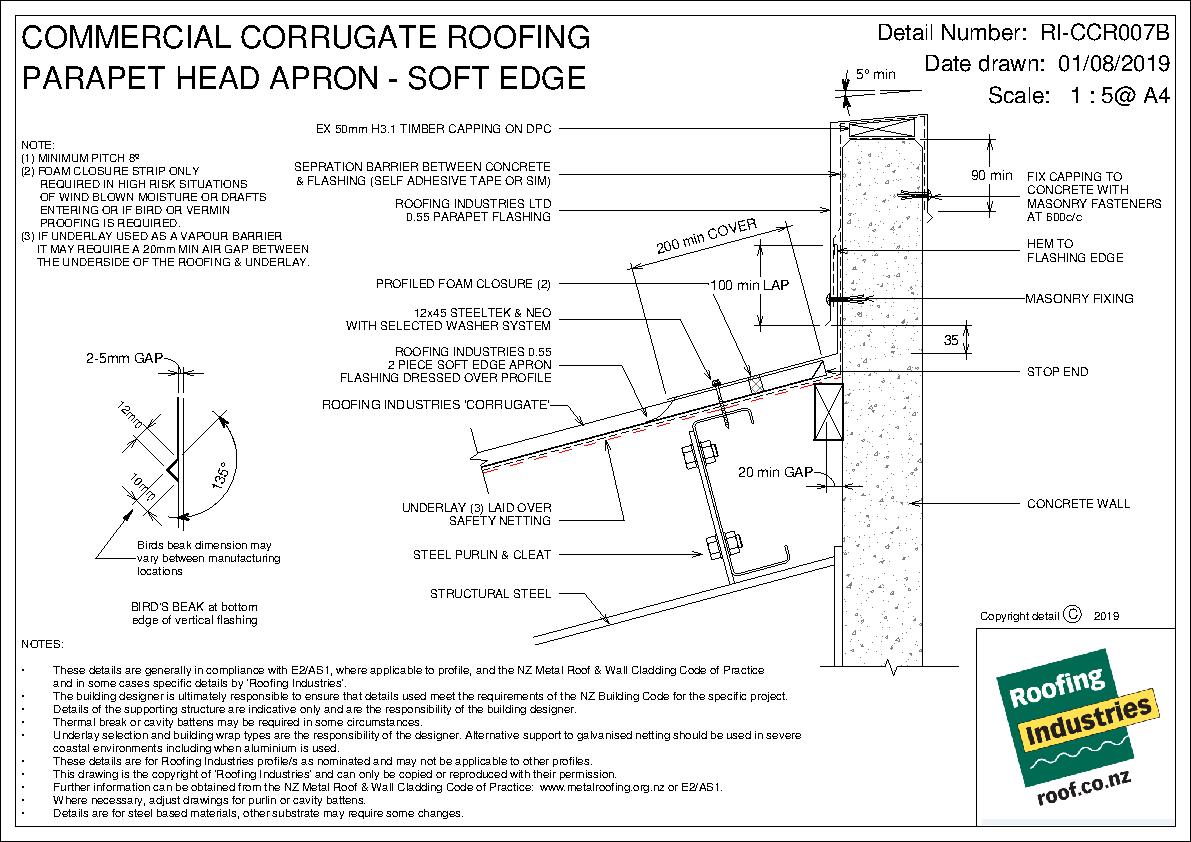

Com. Corrugate Parapet Head Apron — Soft Edge

RI-CC-R007B

pdf
Com. Corrugate Parapet Head Apron Internal Cladding

RI-CC-R007C

pdf

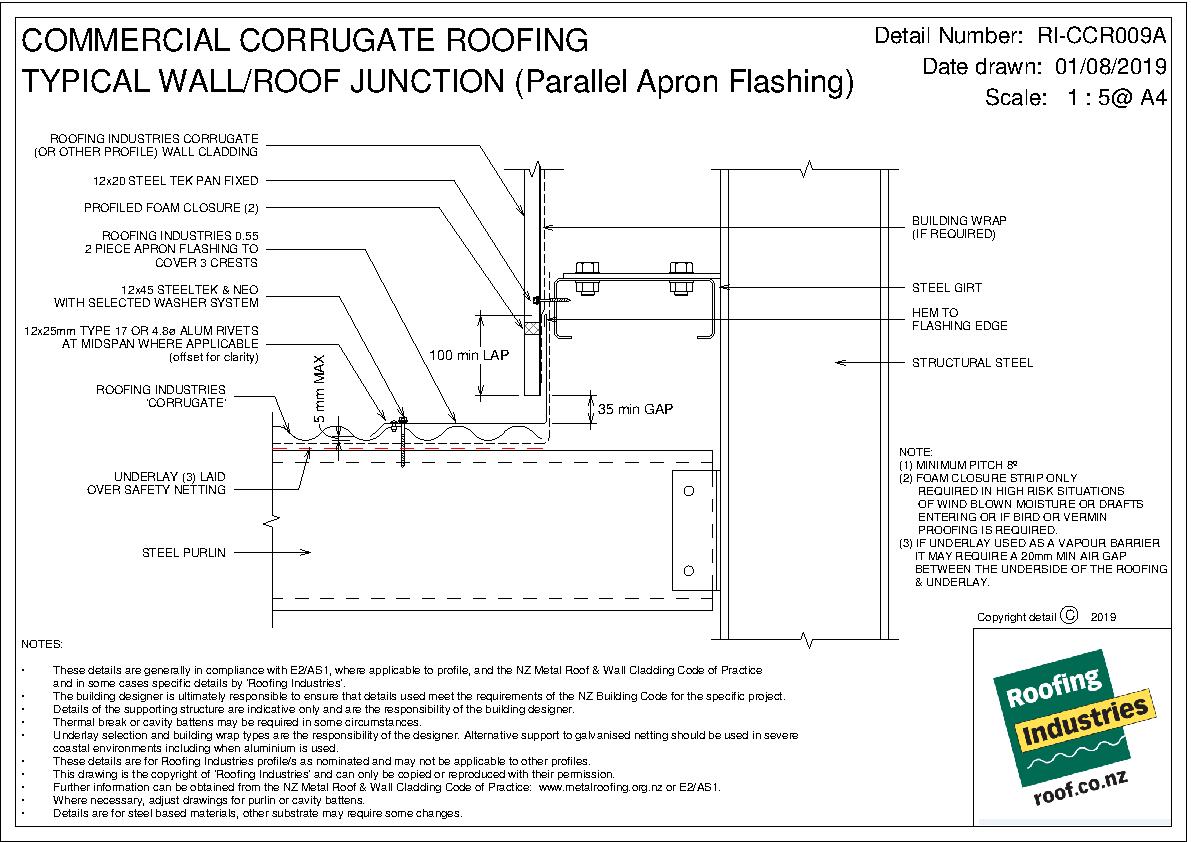

Com. Corrugate Typical Wall/Roof Junction (Parallel Apron Flashing)

RI-CC-R009A

pdf

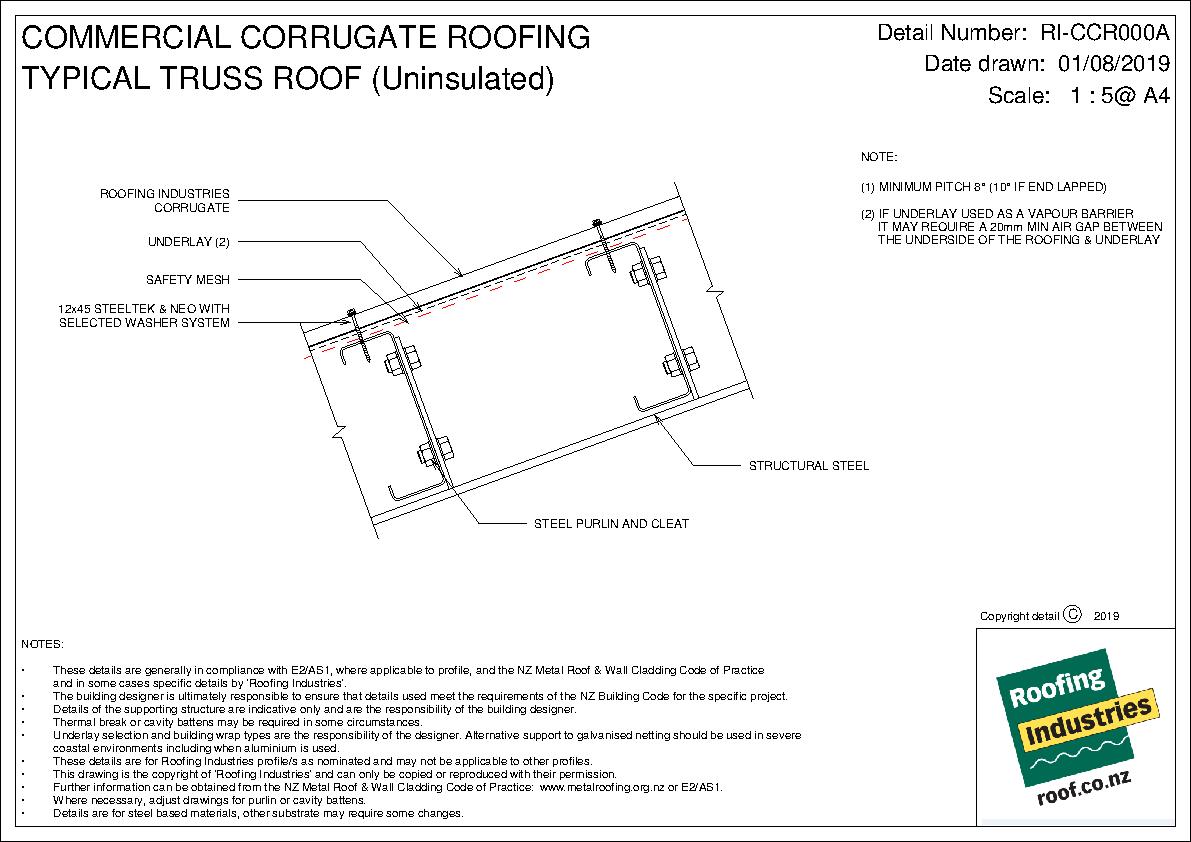

Com. Corrugate Typical Truss Roof (Uninsulated)

RI-CC-R00A

pdf

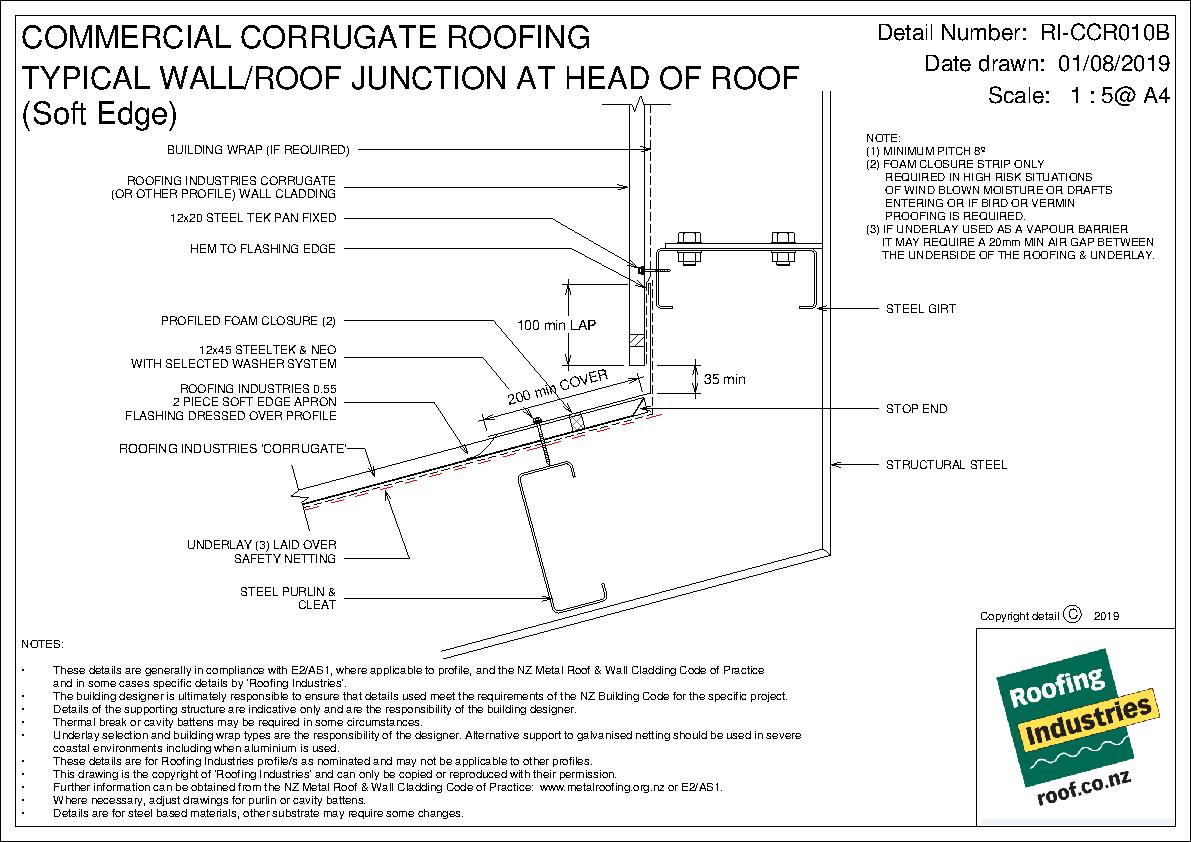

Com. Corrugate Typical Wall/Roof Junction At Head of Roof (Soft Edge)

RI-CC-R010B

pdf

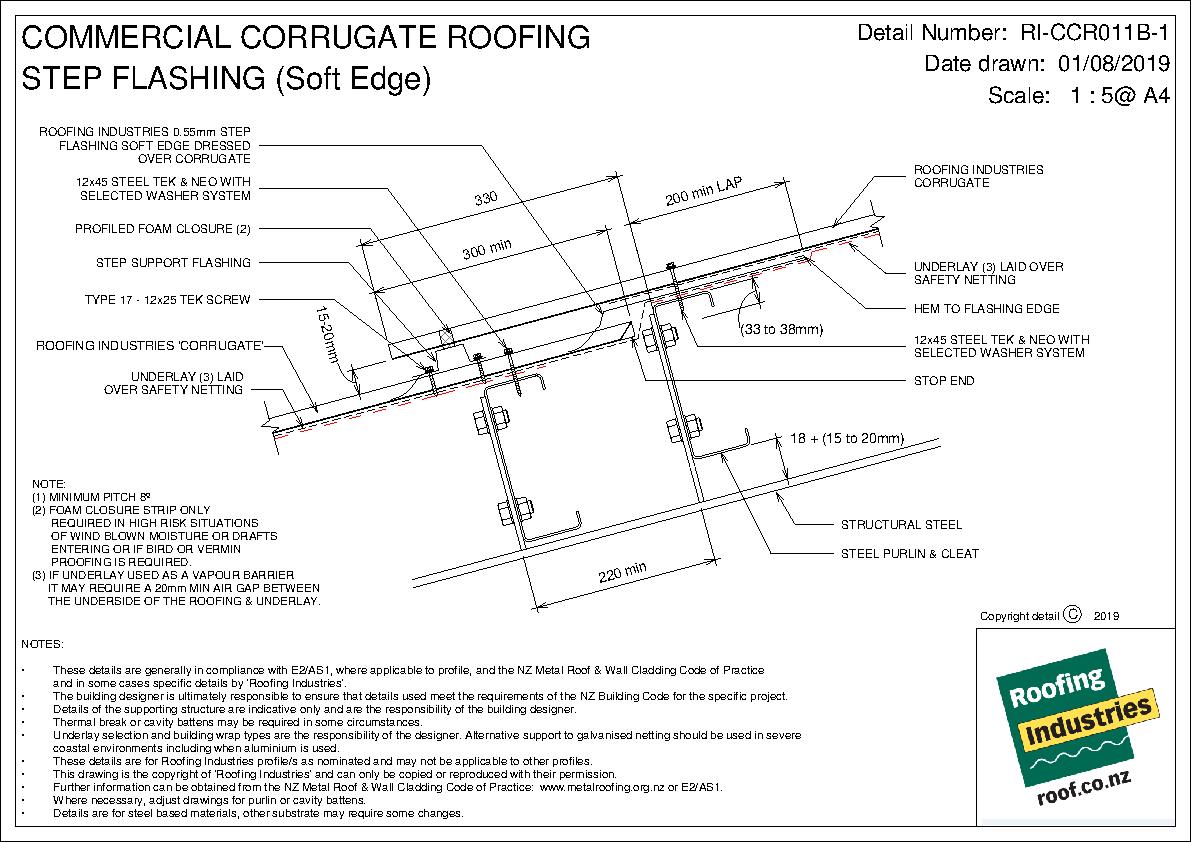

Com. Corrugate Step Flashing (Soft Edge)

RI-CC-R011B-1

pdf

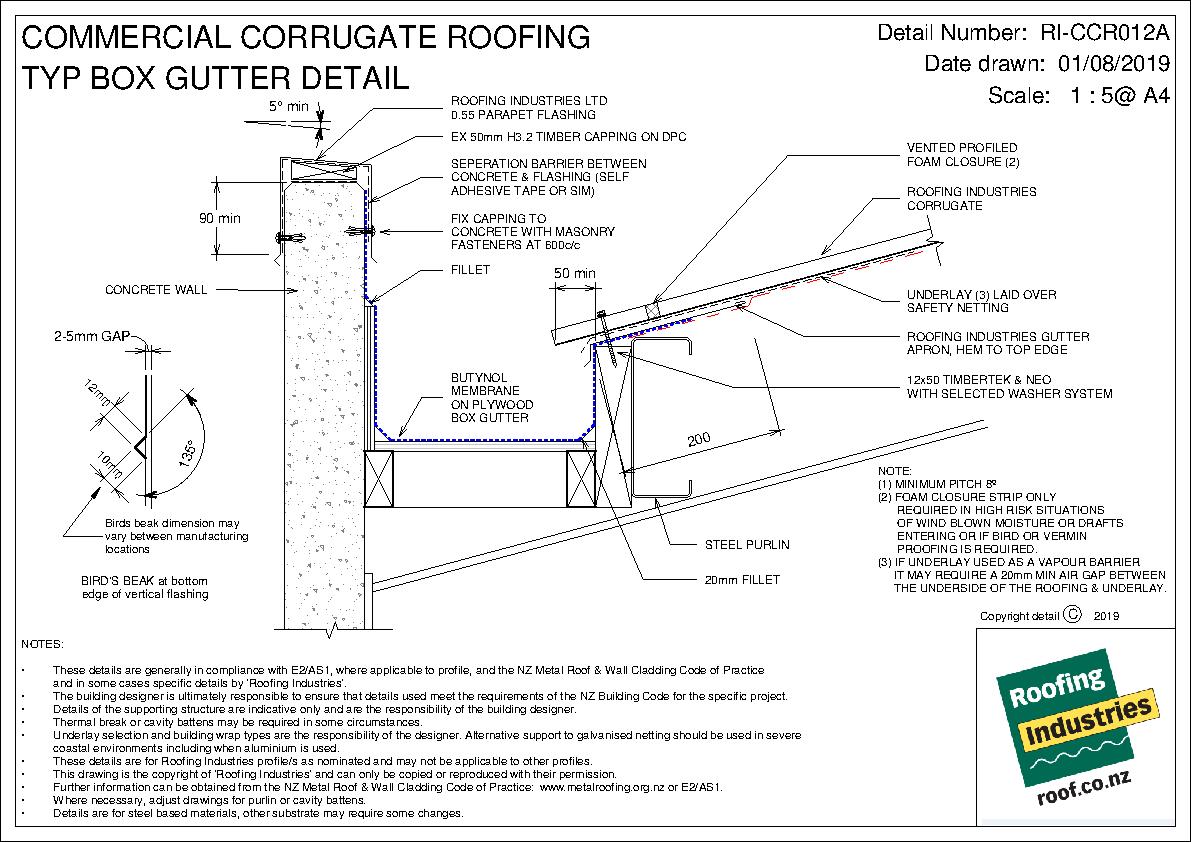

Com. Corrugate Box Gutter Detail

RI-CC-R012A

pdf

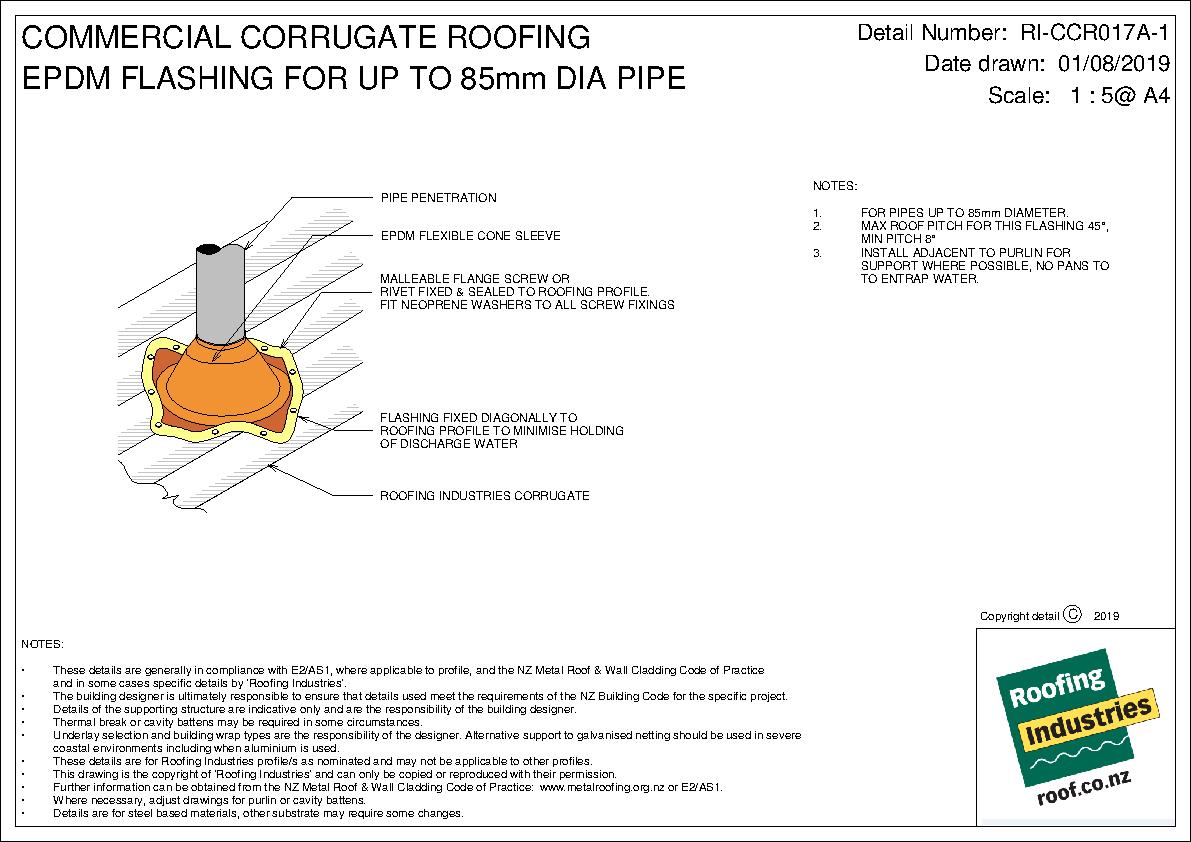

Com. Corrugate EPDM Flashing for up to 85mm Dia Pipe

RI-CC-R017A-1

pdf

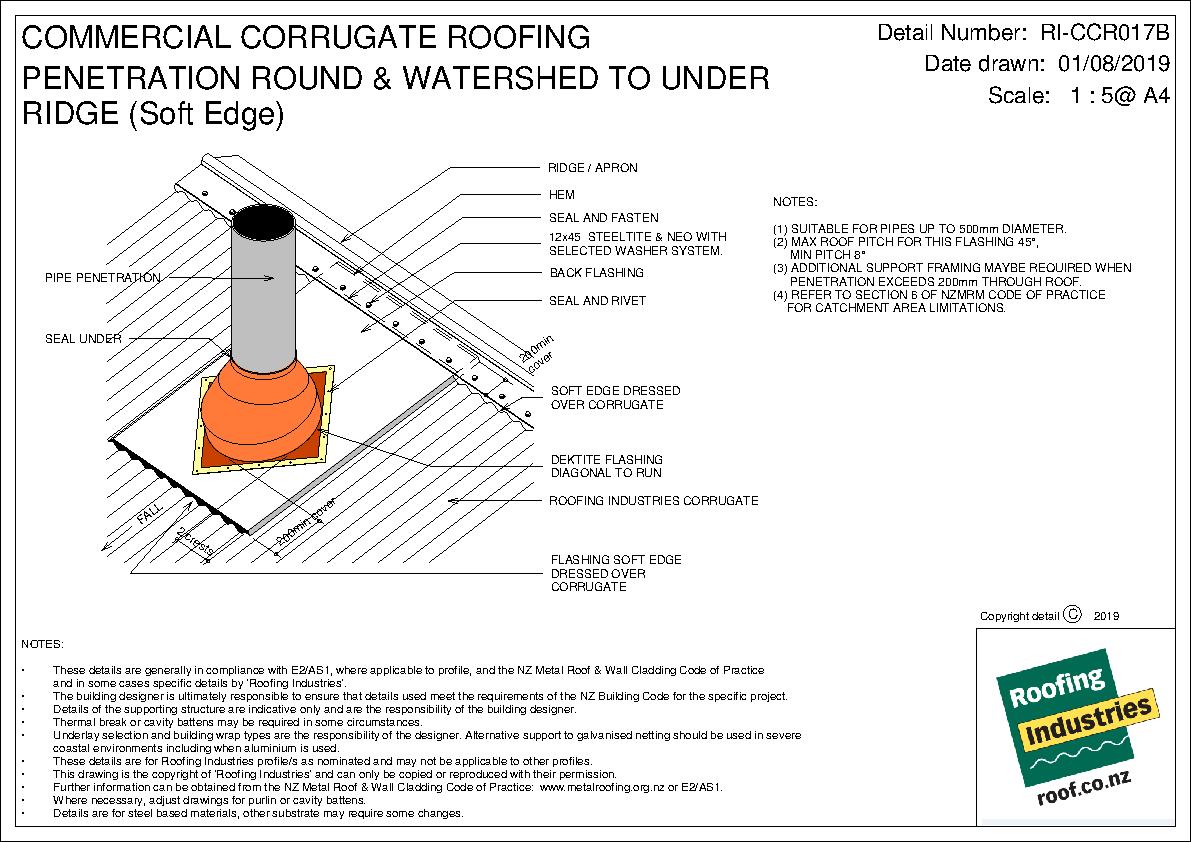

Com. Corrugate Penetration Round & Watershed to Under Ridge (Soft Edge)

RI-CC-R017B

pdf

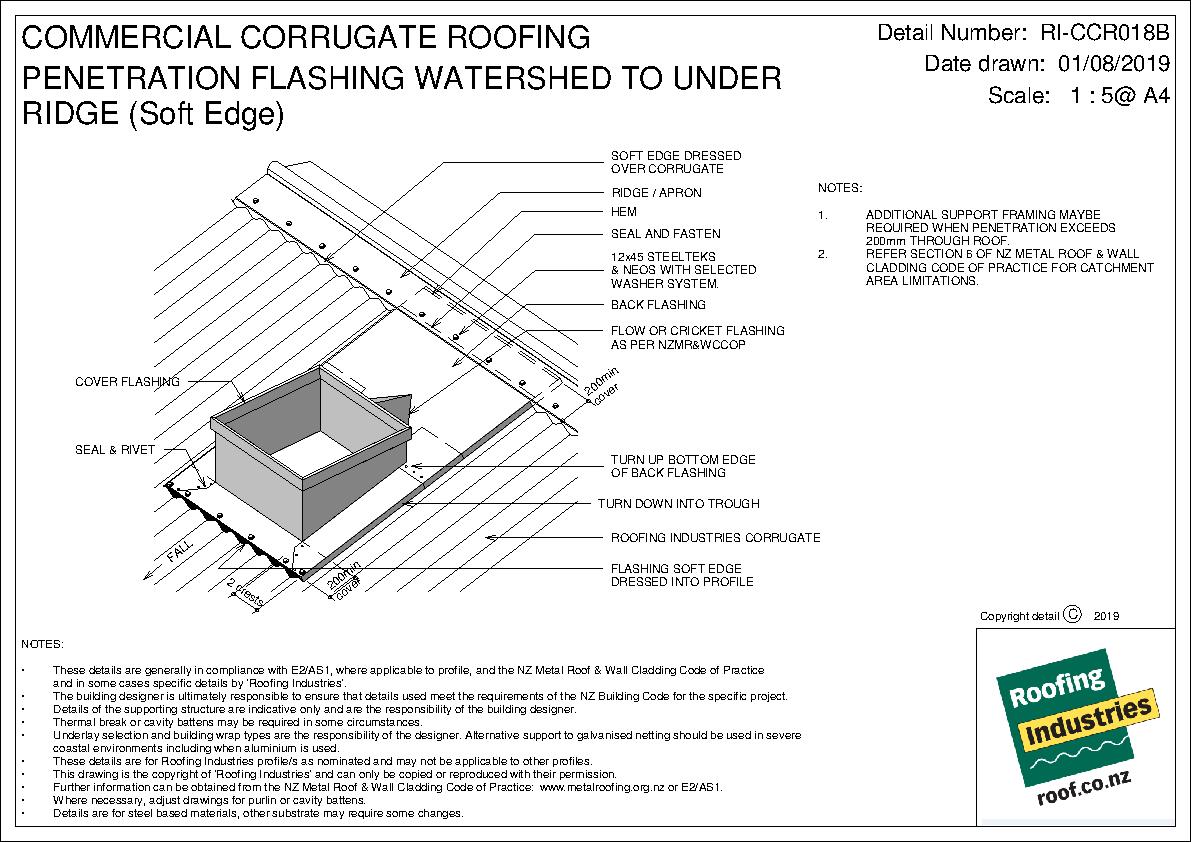

Com. Corrugate Penetration Flashing Watershed to Under Ridge (Soft Edge)

RI-CC-R018B

pdf

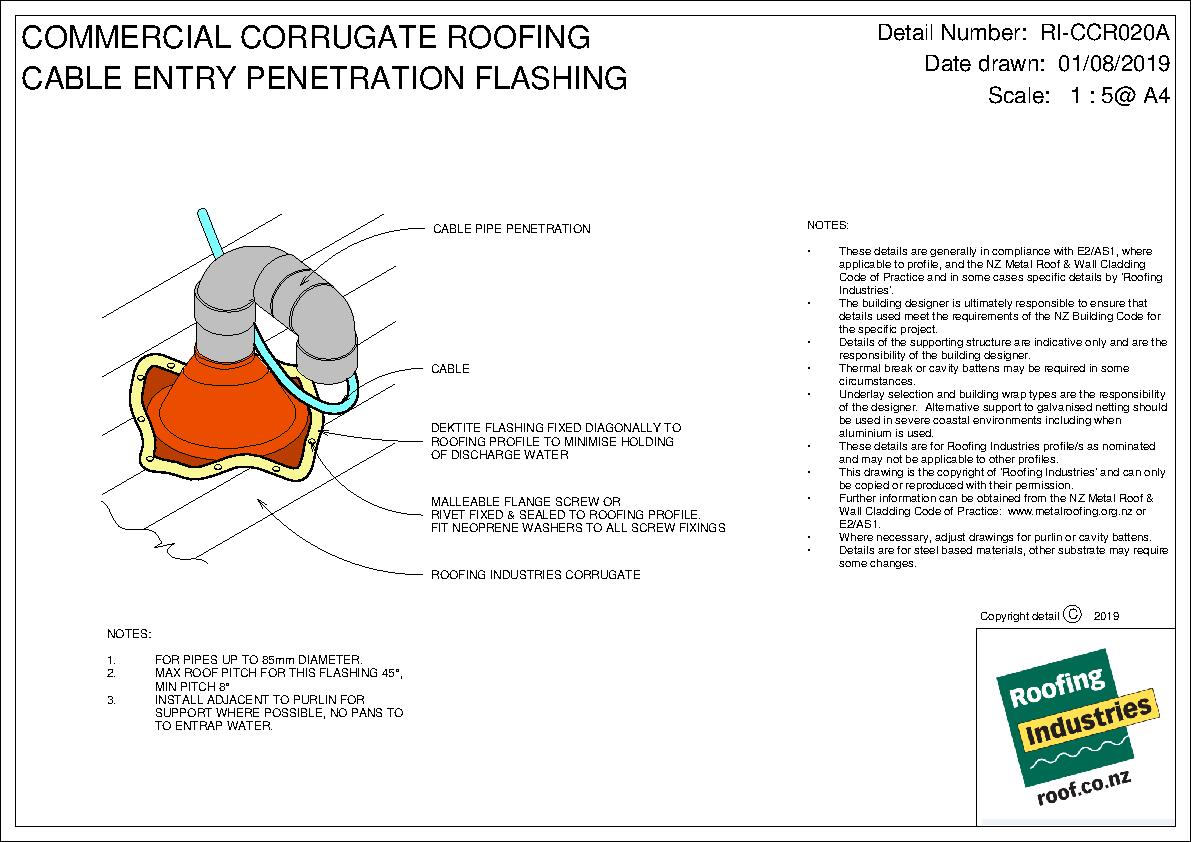

Com. Corrugate Cable Entry Penetration Flashing

RI-CC-R020A

pdf

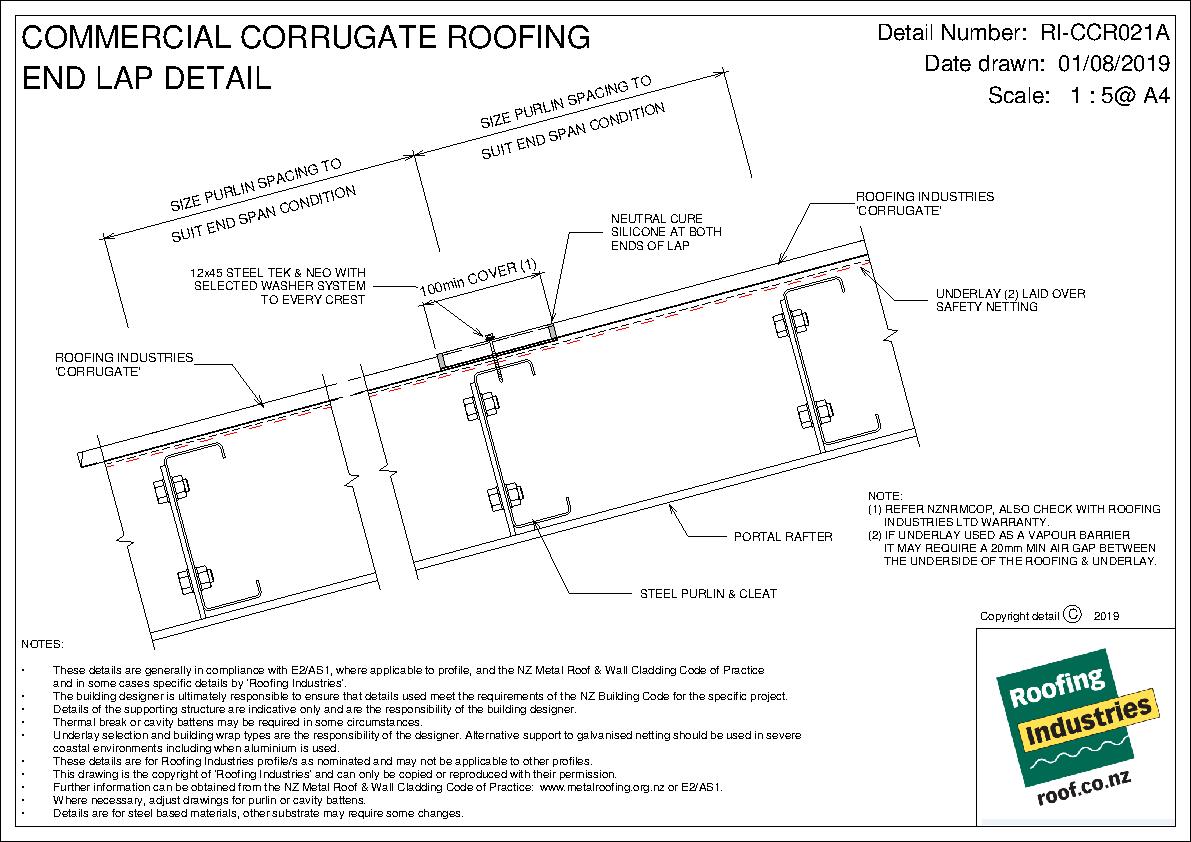

Com. Corrugate End Lap Detail

RI-CC-R021A

pdf

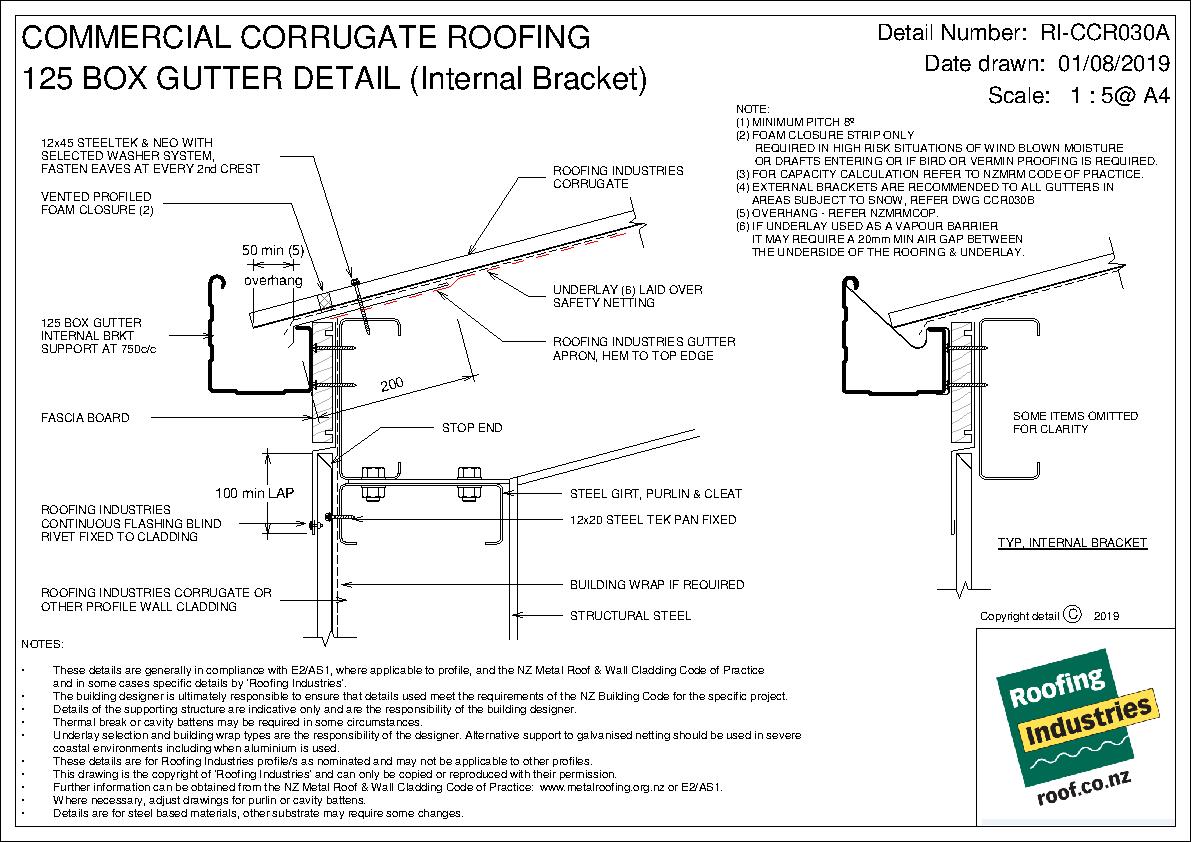

Com. Corrugate 125 Box Gutter Detail (Internal Bracket)

RI-CC-R030A

pdf
Com. Corrugate 175 Box Gutter Detail (Internal Bracket)

RI-CC-R031A

pdf

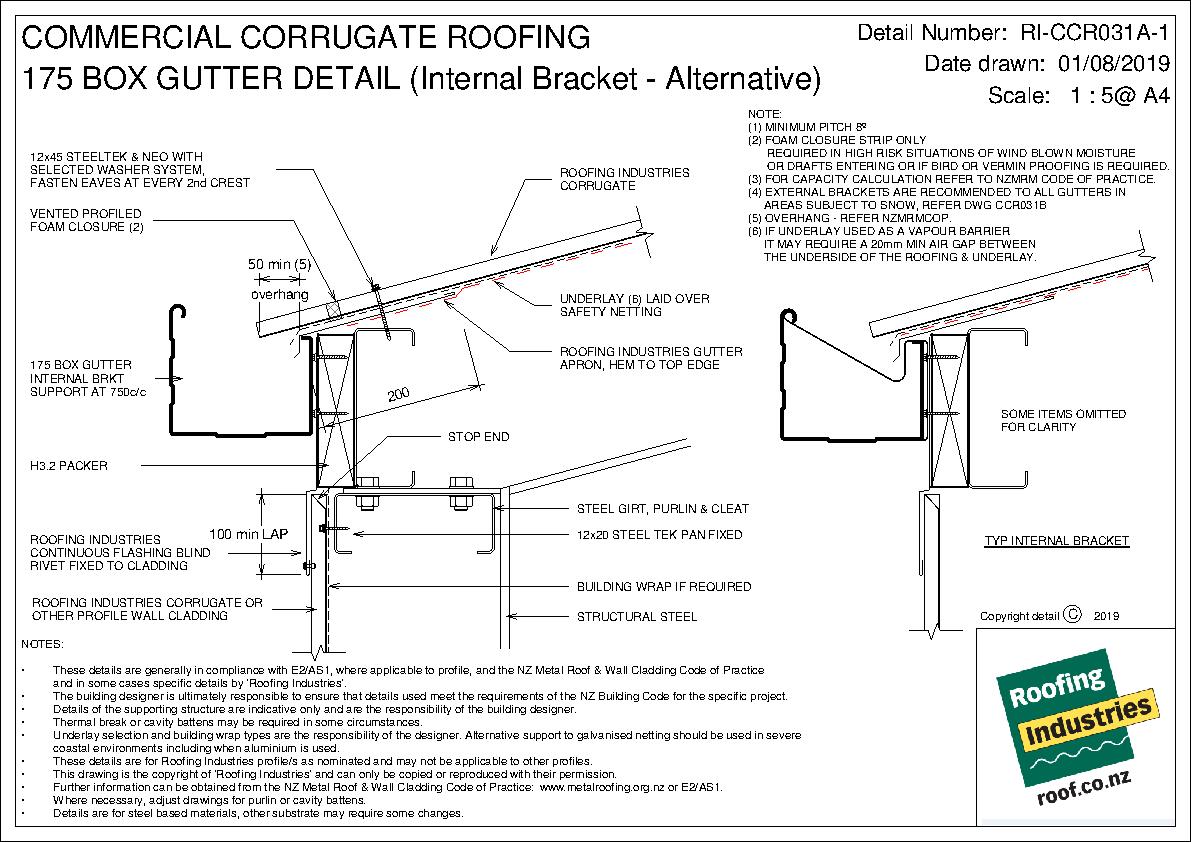

Com. Corrugate 175 Box Gutter Detail (Internal Bracket — Alternative)

RI-CC-R031A-1

pdf
Com. Corrugate 175 Box Gutter Detail (External Bracket)

RI-CC-R031B

pdf

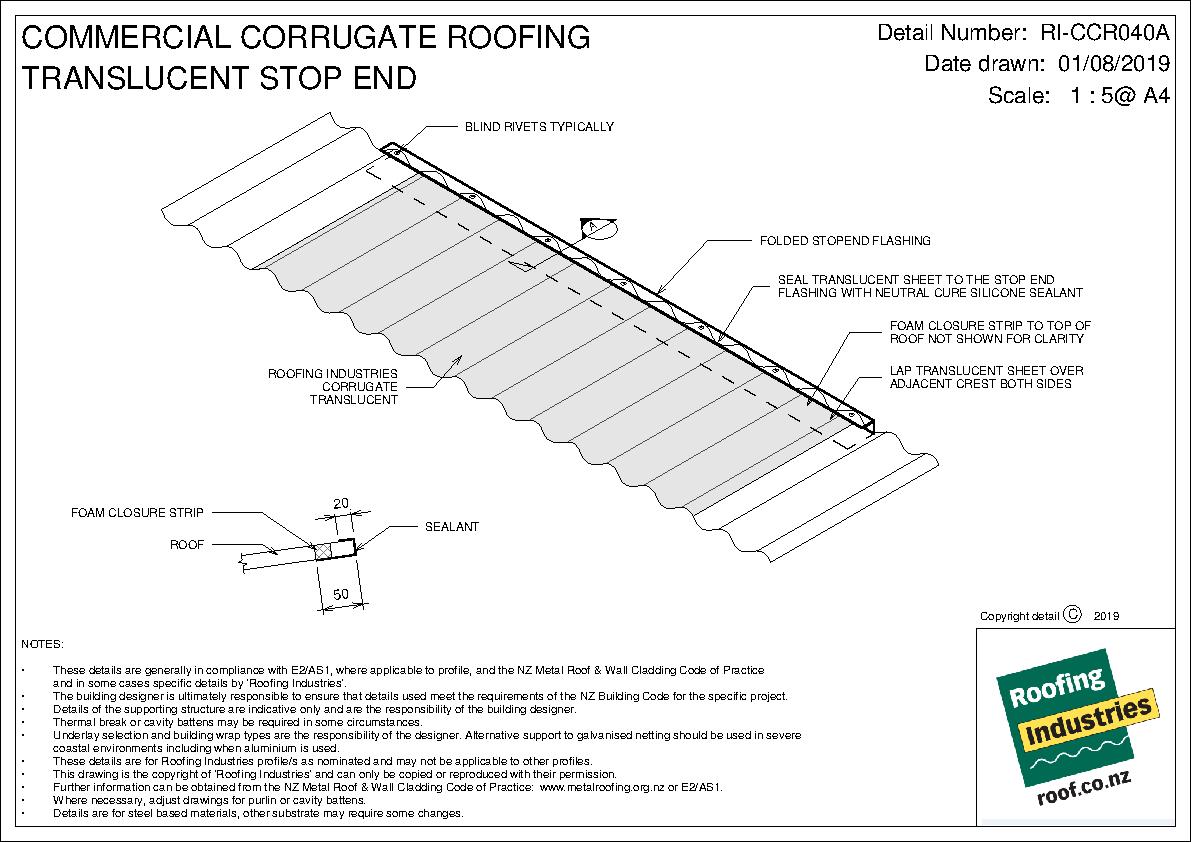

Com. Corrugate Translucent Stop End

RI-CC-R040A

pdf

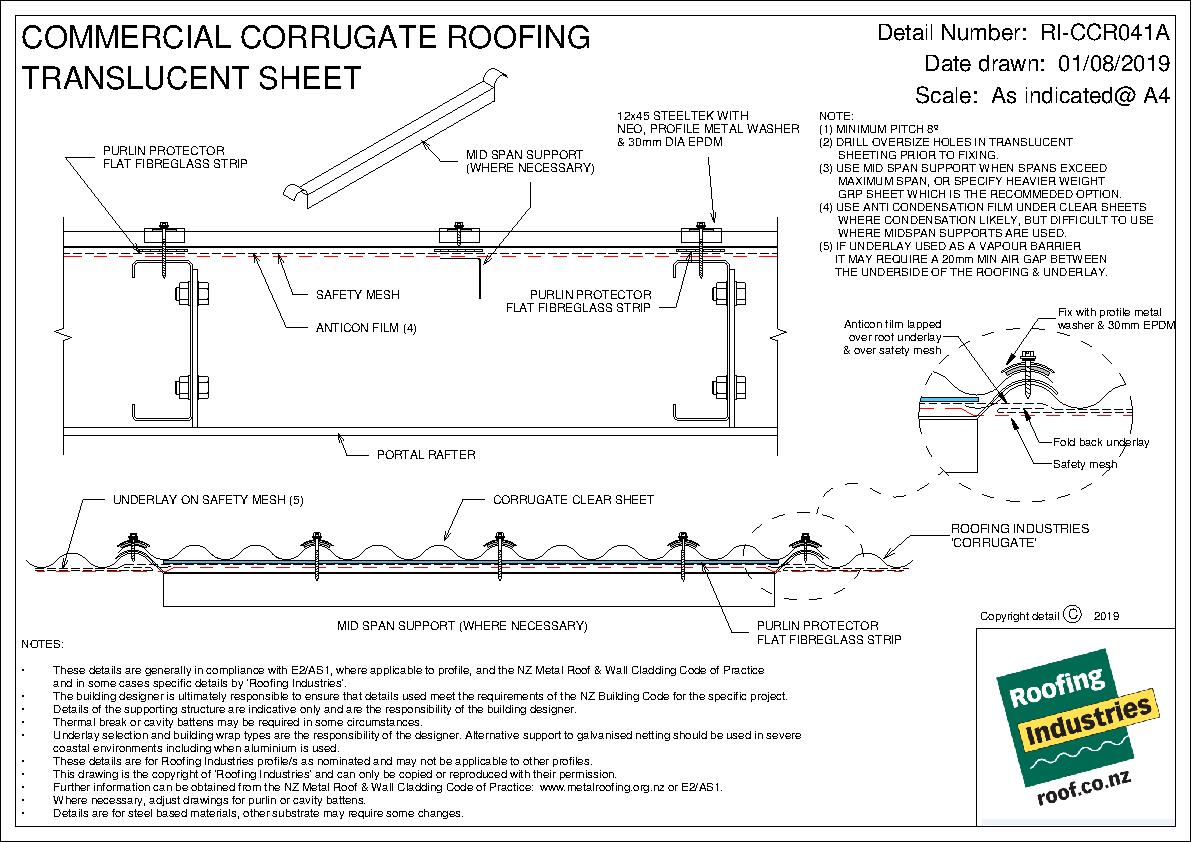

Com. Corrugate Translucent Sheet

RI-CC-R041A

pdf

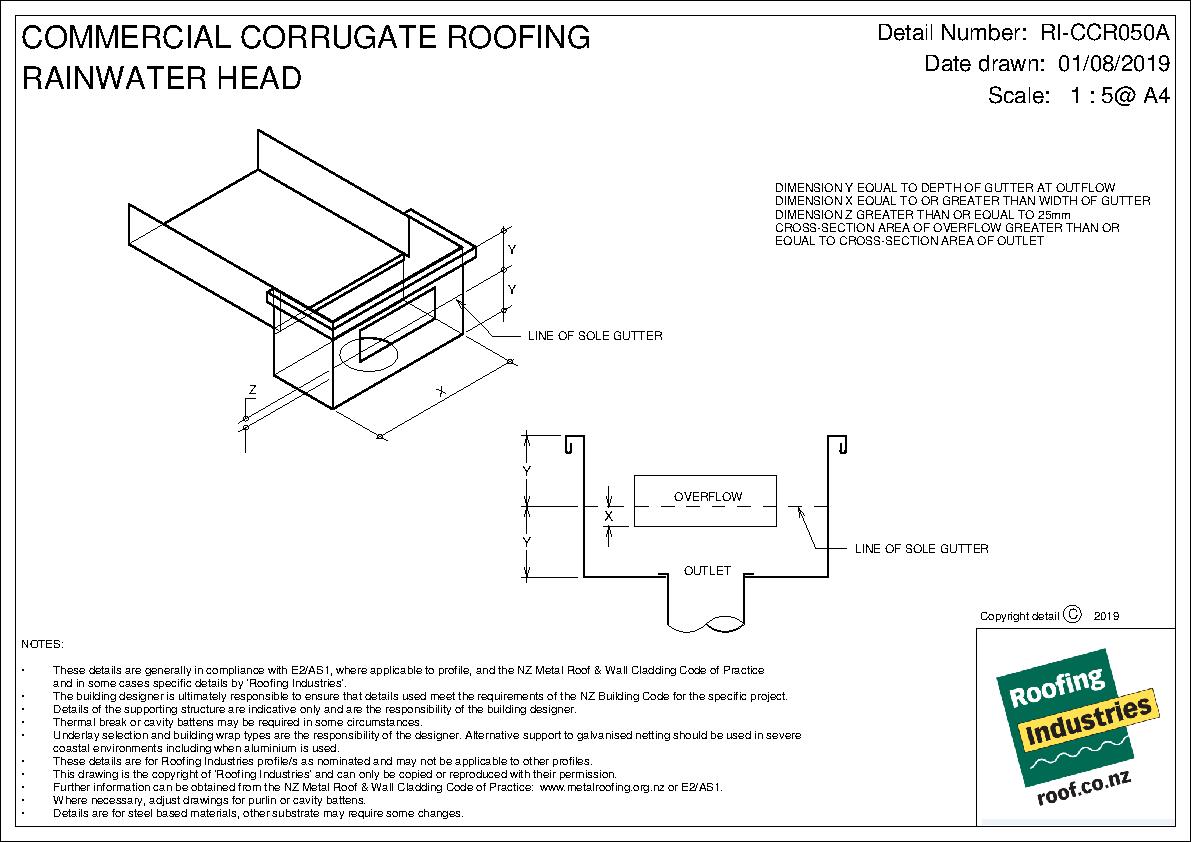

Com. Corrugate Rainwater Head

RI-CC-R050A

pdf

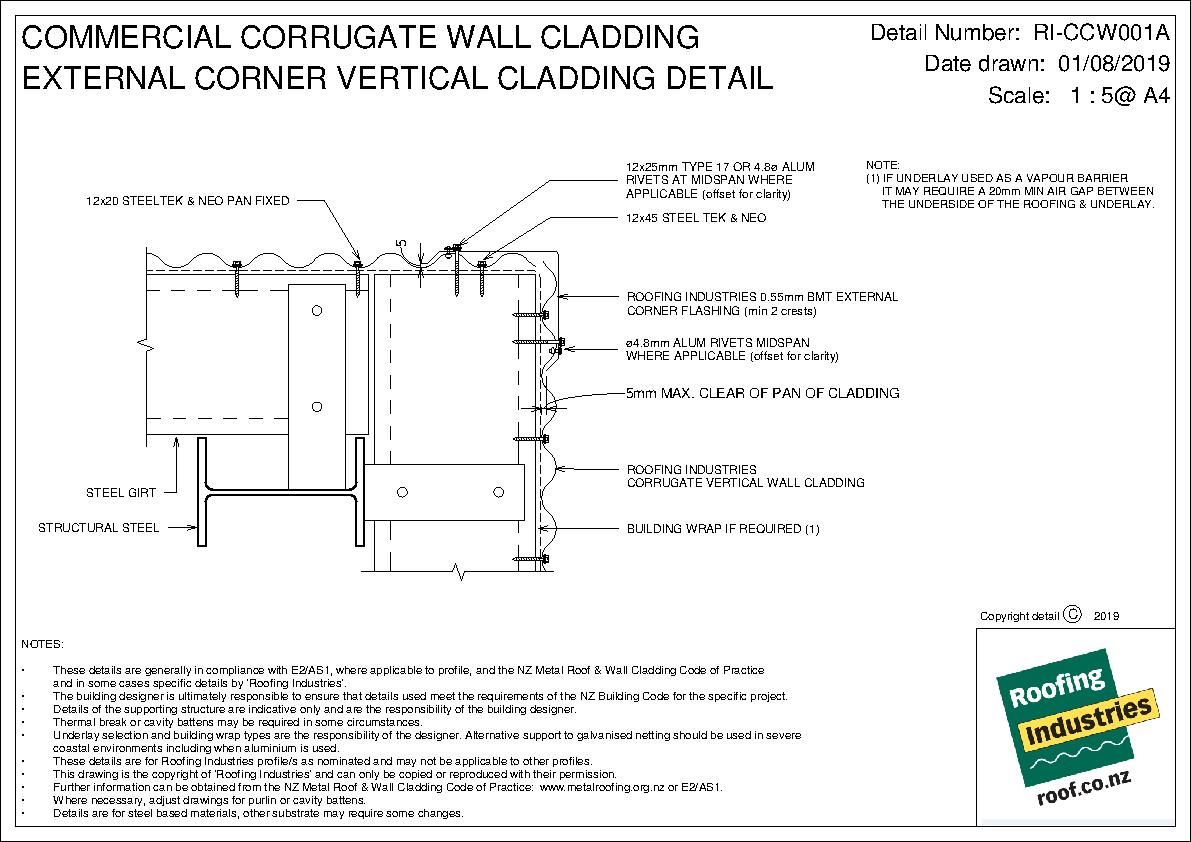

Com. Corrugate External Corner Vertical Cladding Detail

RI-CC-W001A

pdf

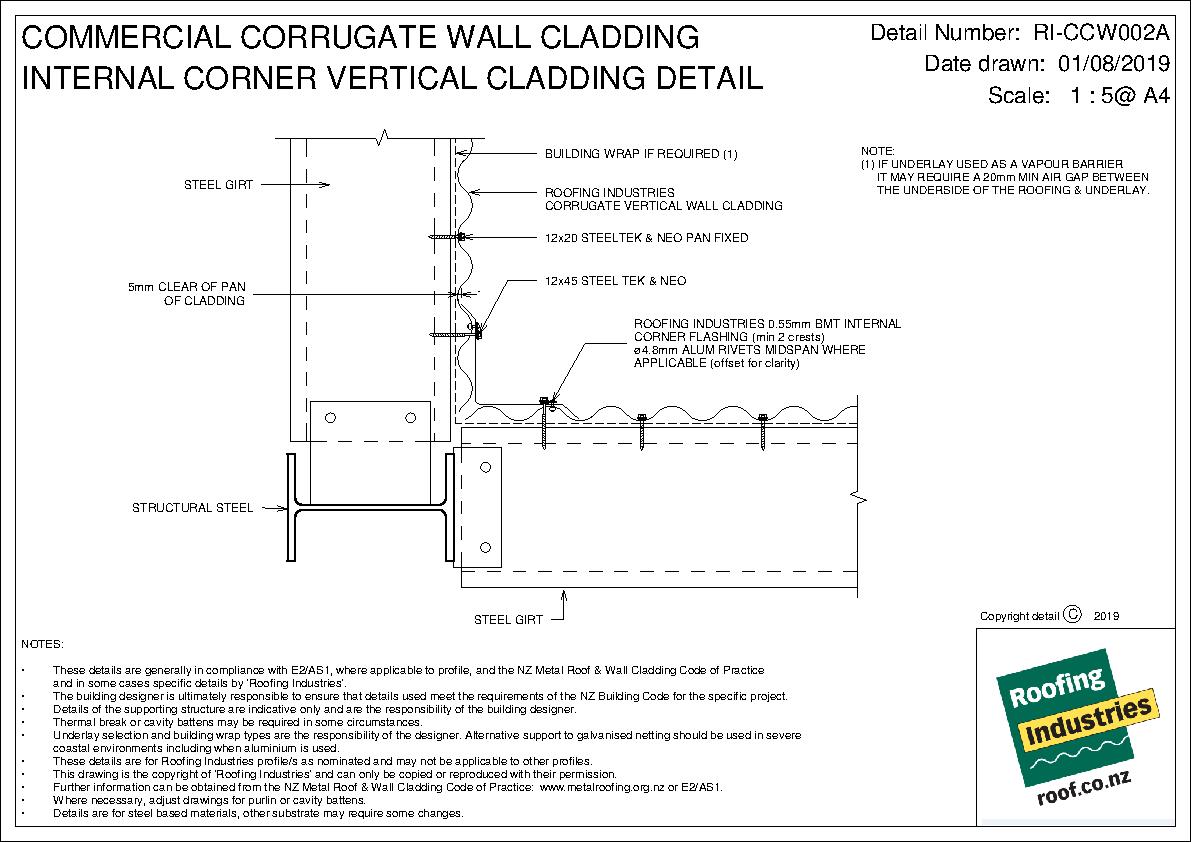

Com. Corrugate Internal Corner Vertical Cladding Detail

RI-CC-W002A

pdf

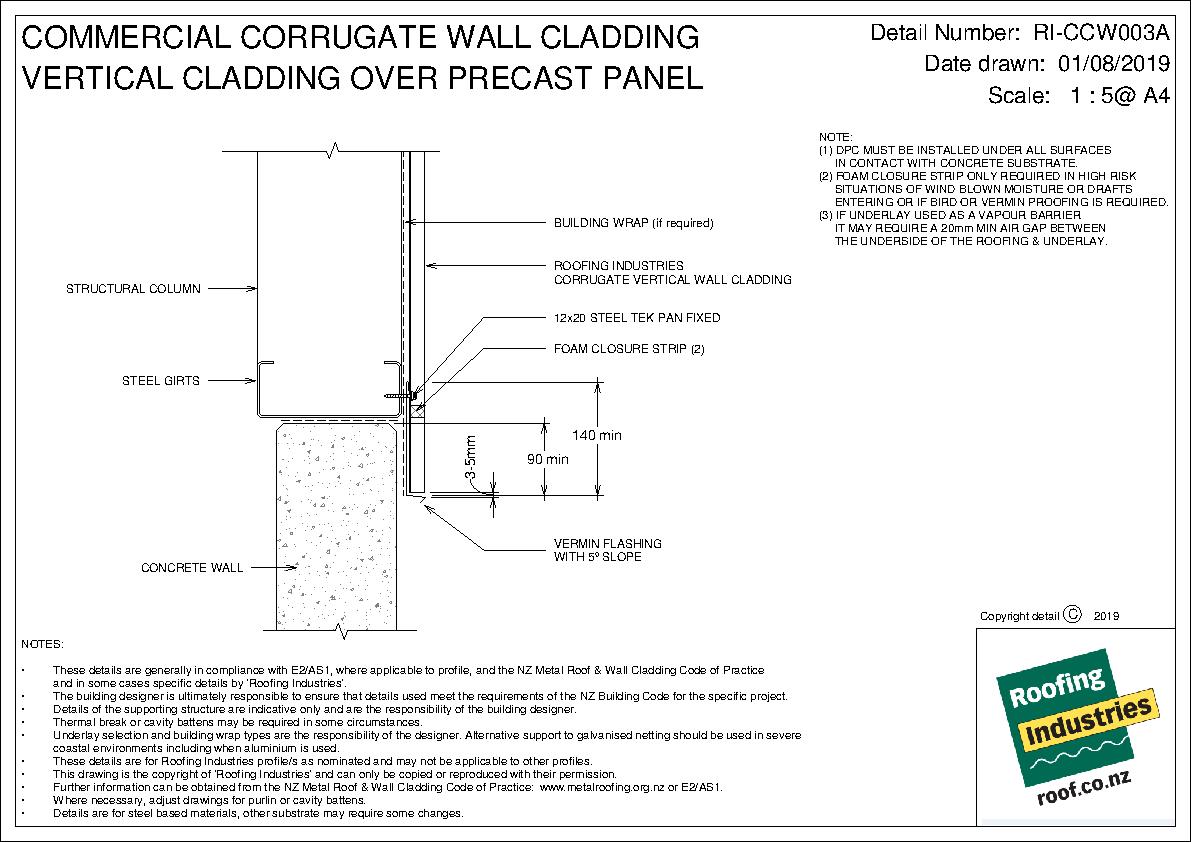

Com. Corrugate Vertical Cladding Over Precast Panel

RI-CC-W003A

pdf

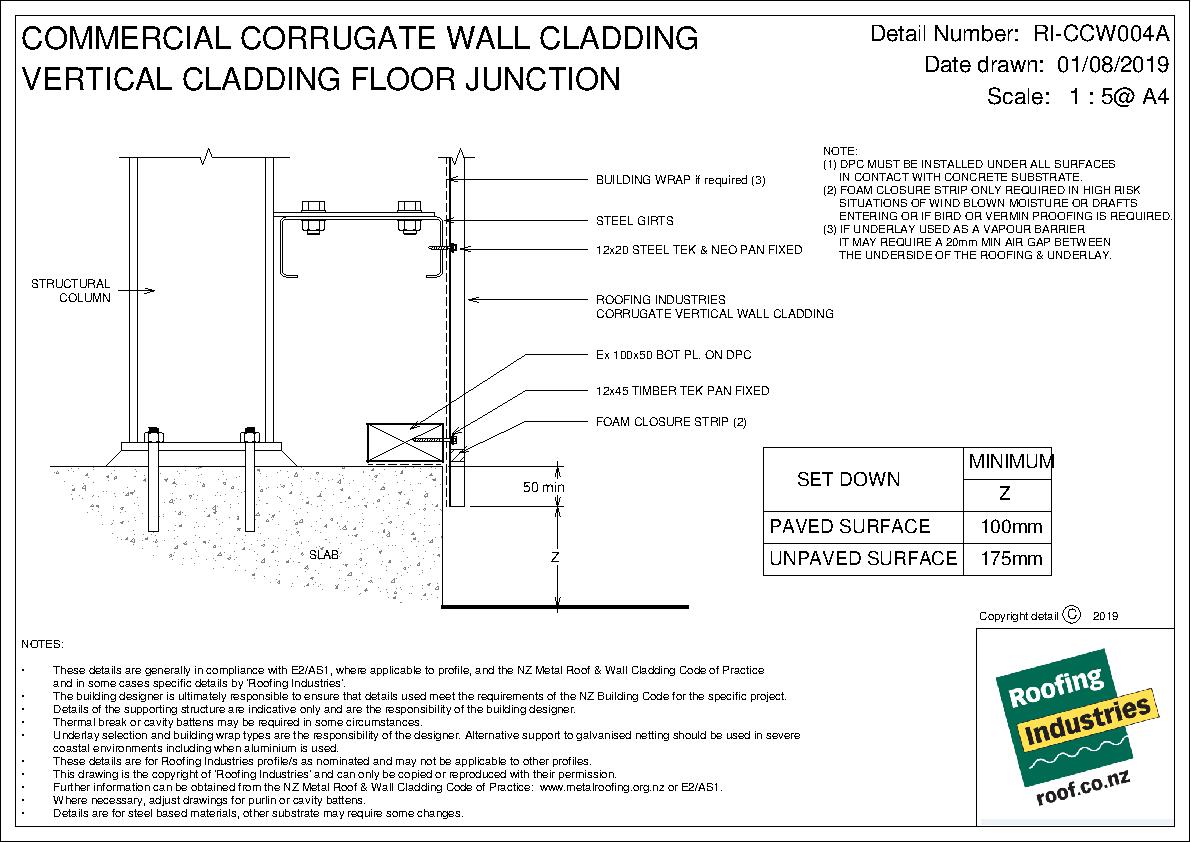

Com. Corrugate Vertical Cladding Floor Junction

RI-CC-W004A

pdf
Com. Corrugate Tilt Panel / Vertical Cladding Junction

RI-CC-W005A

pdf

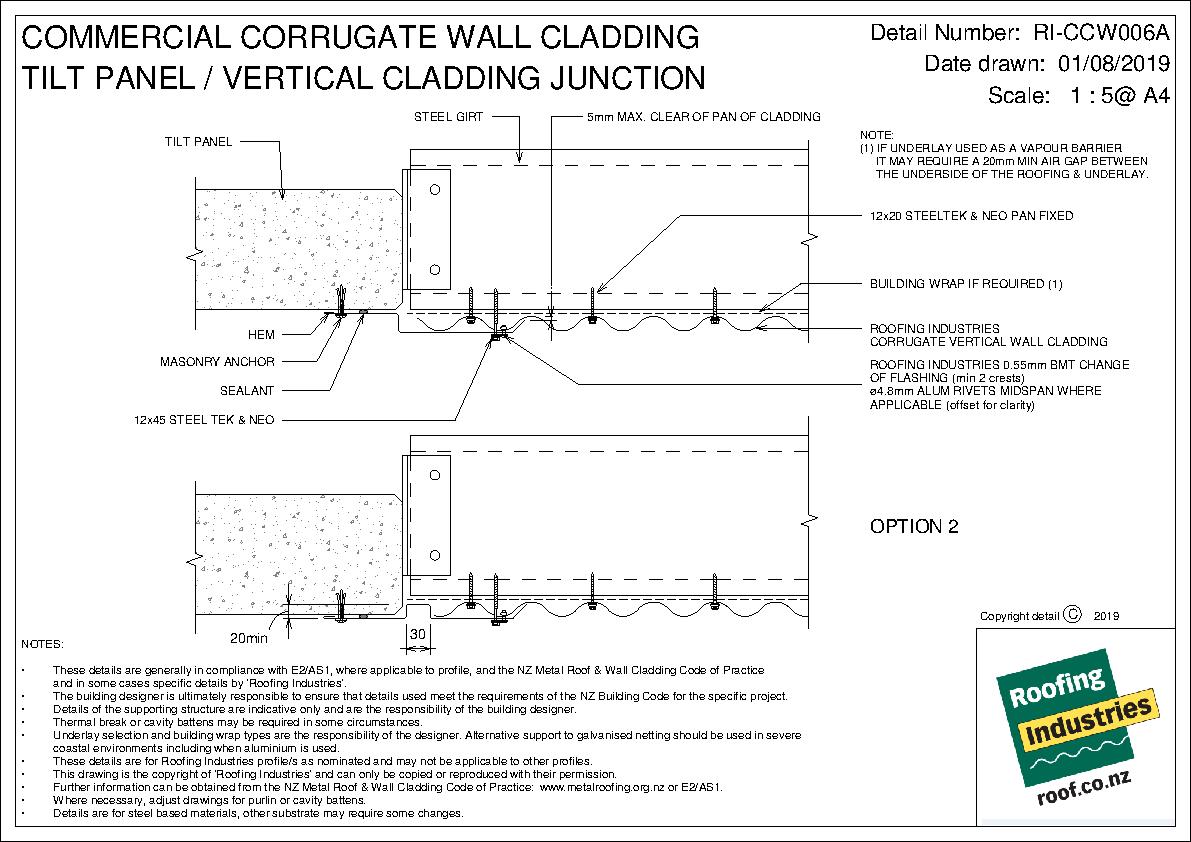

Com. Corrugate Tilt Panel / Vertical Cladding Junction (2)

RI-CC-W006A

pdf

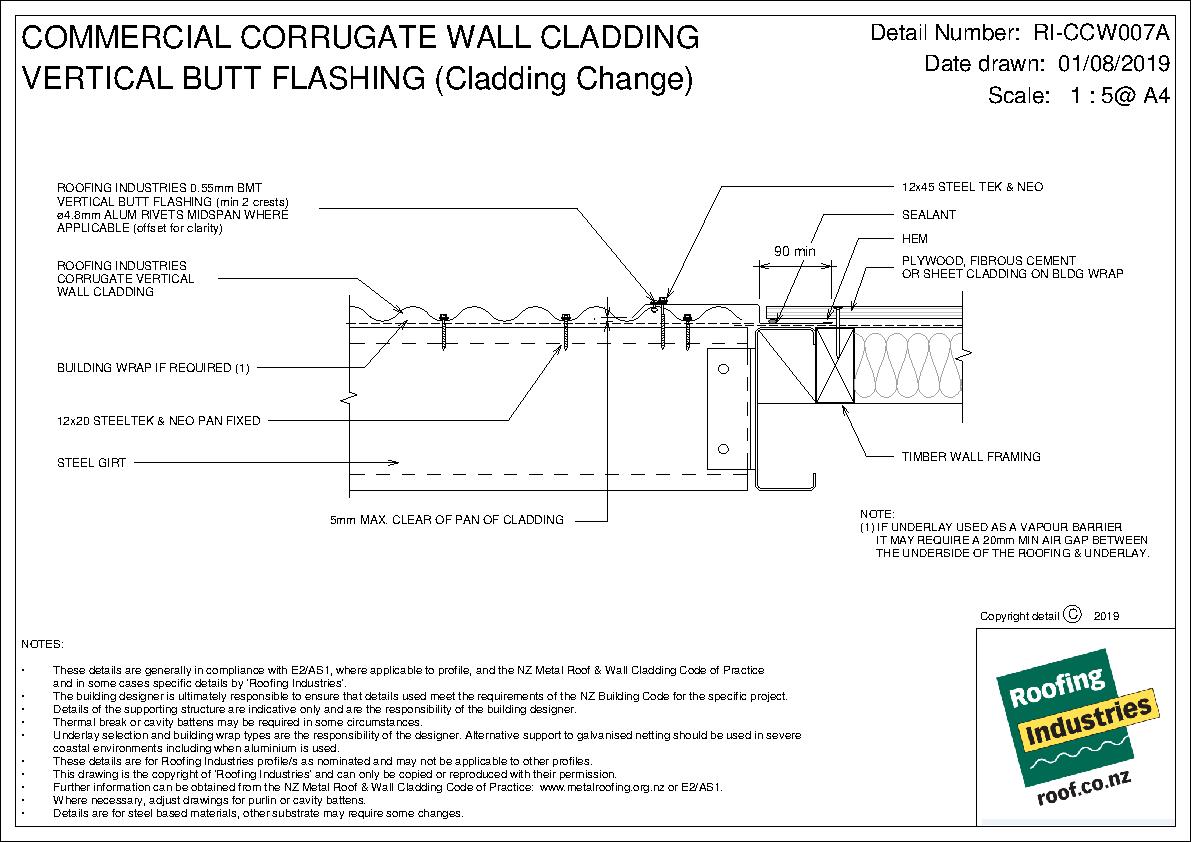

Com. Corrugate Vertical Butt Flashing (Cladding Change)

RI-CC-W007A

pdf

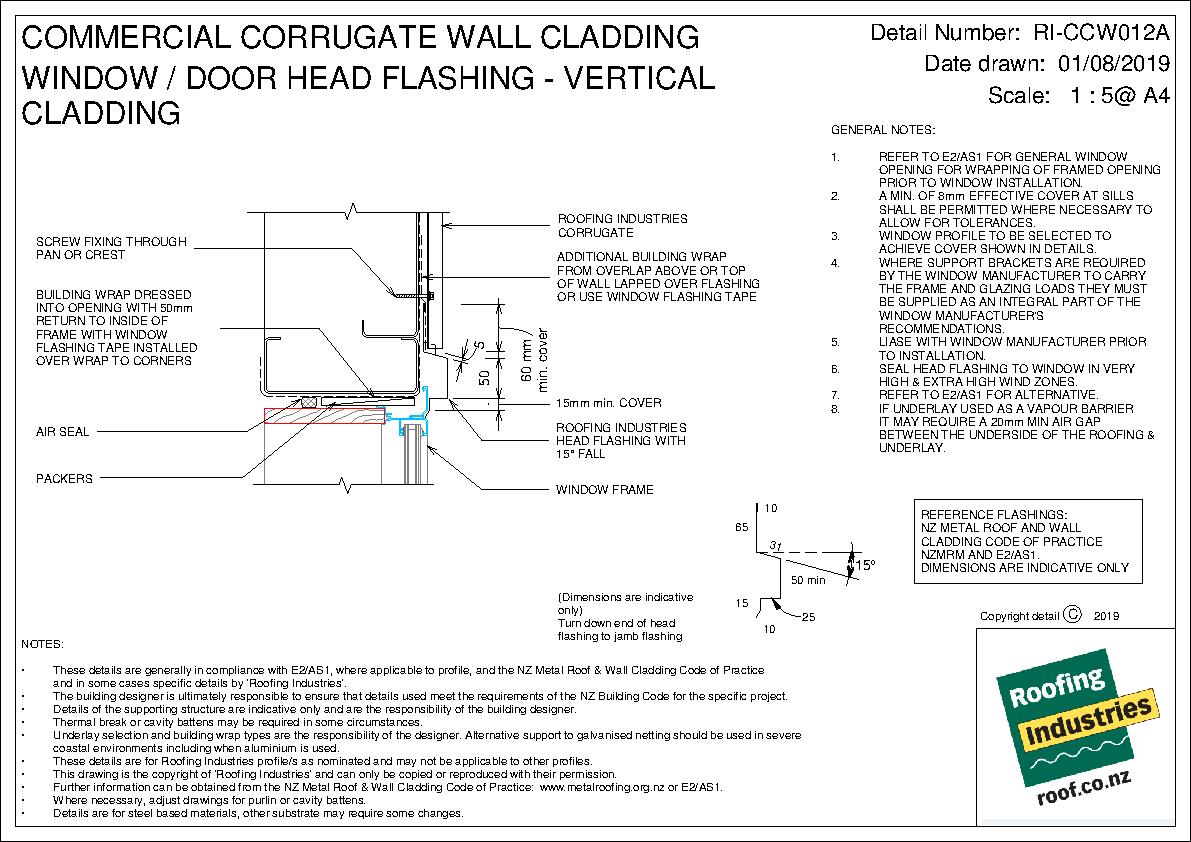

Com. Corrugate Window/Door Head Flashing — Vertical Cladding

RI-CC-W012A

pdf

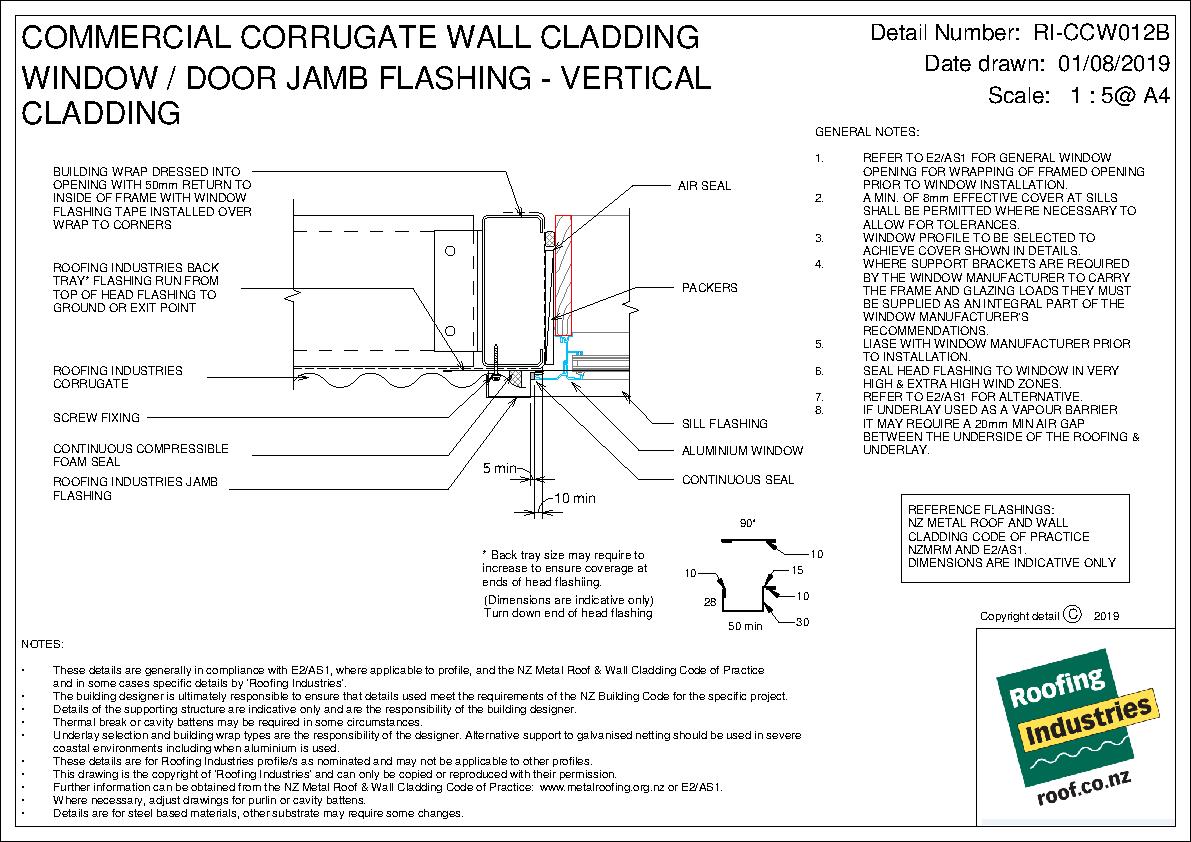

Com. Corrugate Window/Door Jamb Flashing — Vertical Cladding

RI-CC-W012B

pdf

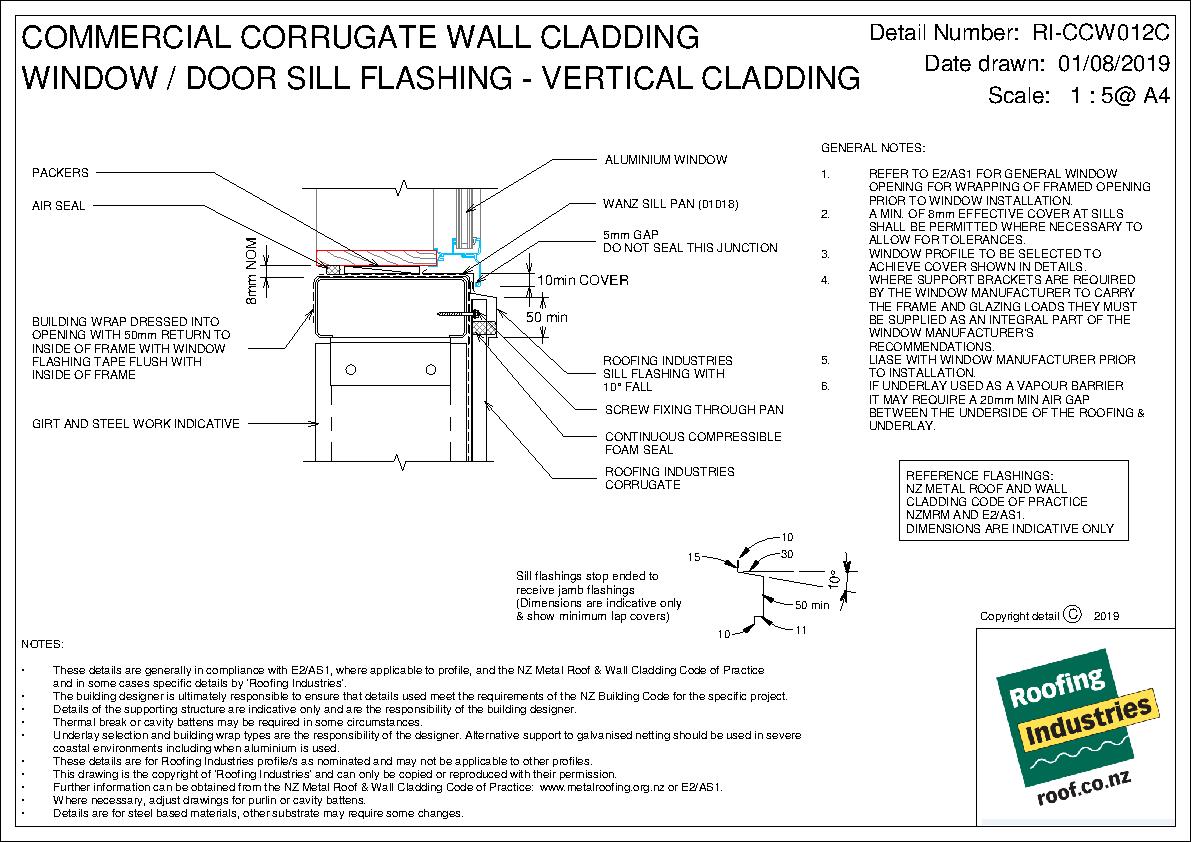

Com. Corrugate Window/Door Sill Flashing — Vertical Cladding

RI-CC-W012C

pdf

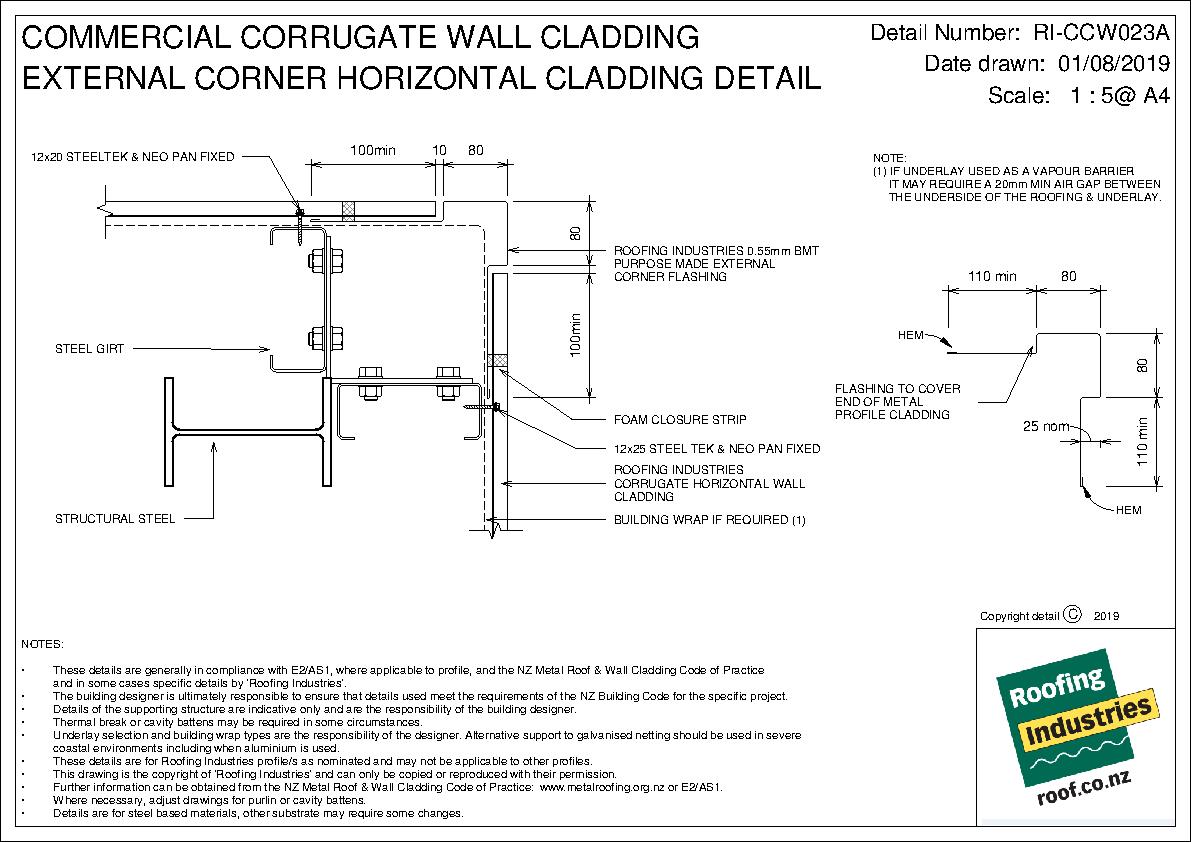

Com. Corrugate External Corner Horizontal Cladding Detail

RI-CC-W023A

pdf

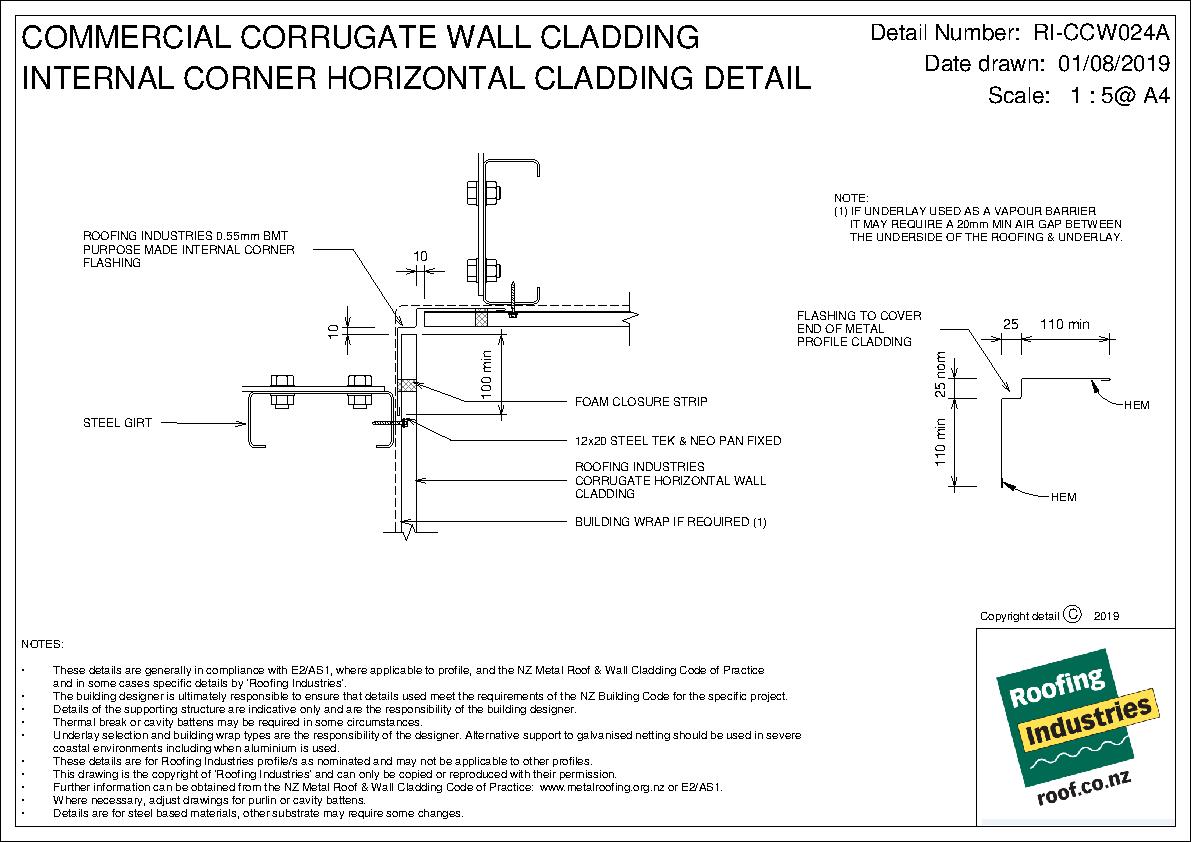

Com. Corrugate Internal Corner Horizontal Cladding Detail

RI-CC-W024A

pdf

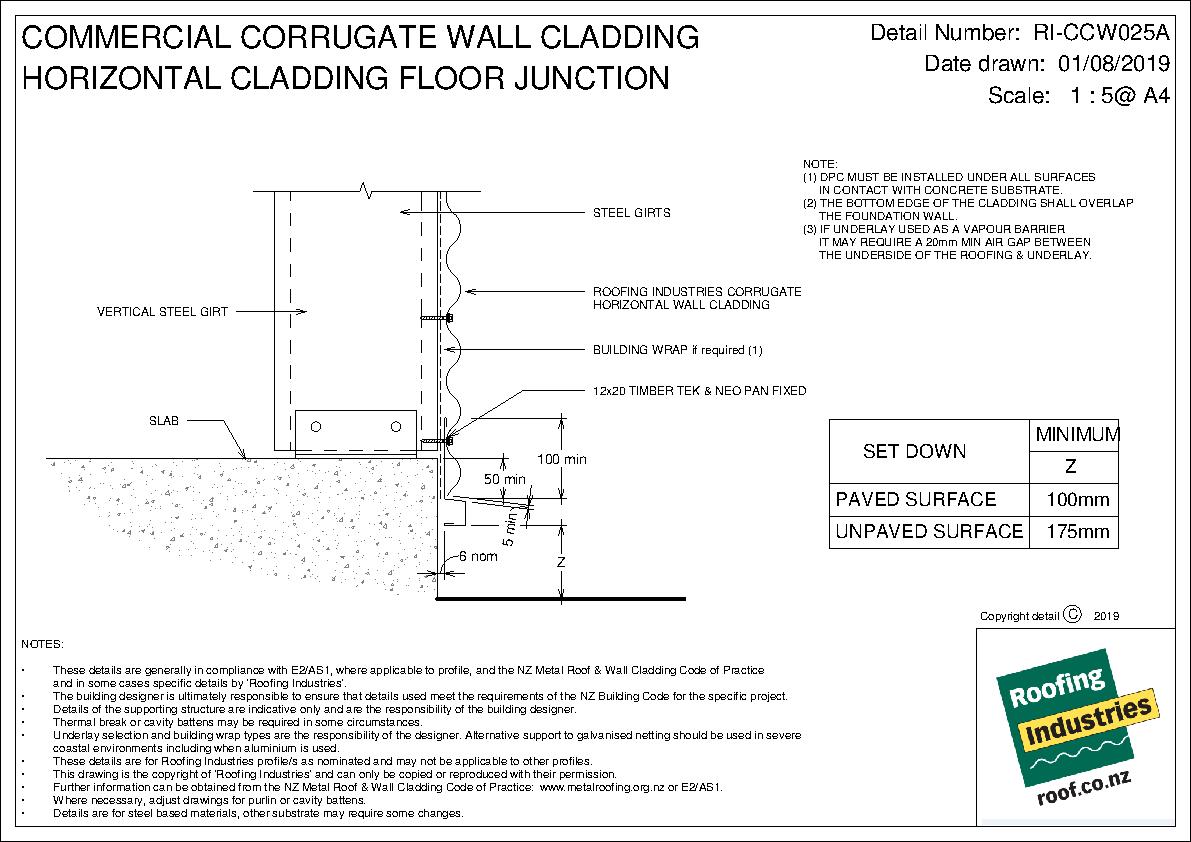

Com. Corrugate Horizontal Cladding Floor Junction

RI-CC-W025A

pdf

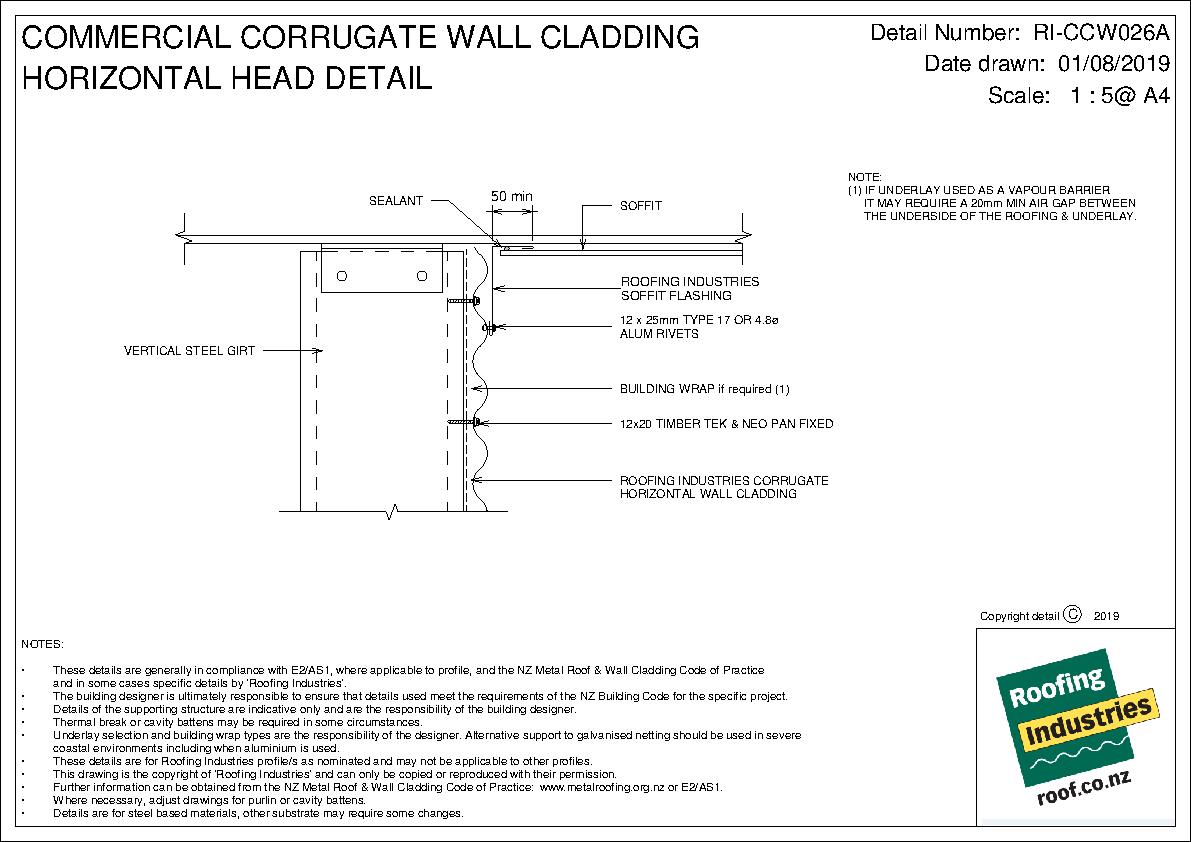

Com. Corrugate Horizontal Head Detail

RI-CC-W026A

pdf

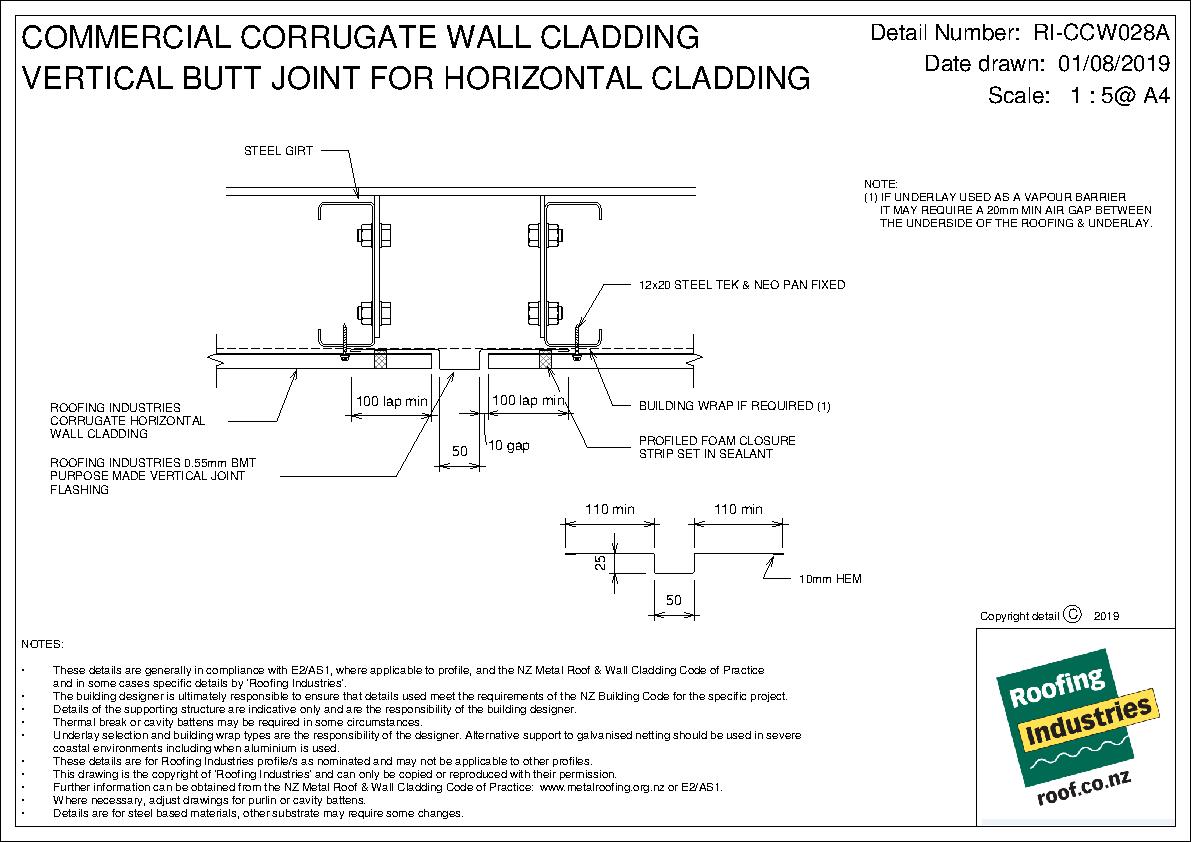

Com. Corrugate Vertical Butt Joint for Horizontal Cladding

RI-CC-W028A

pdf

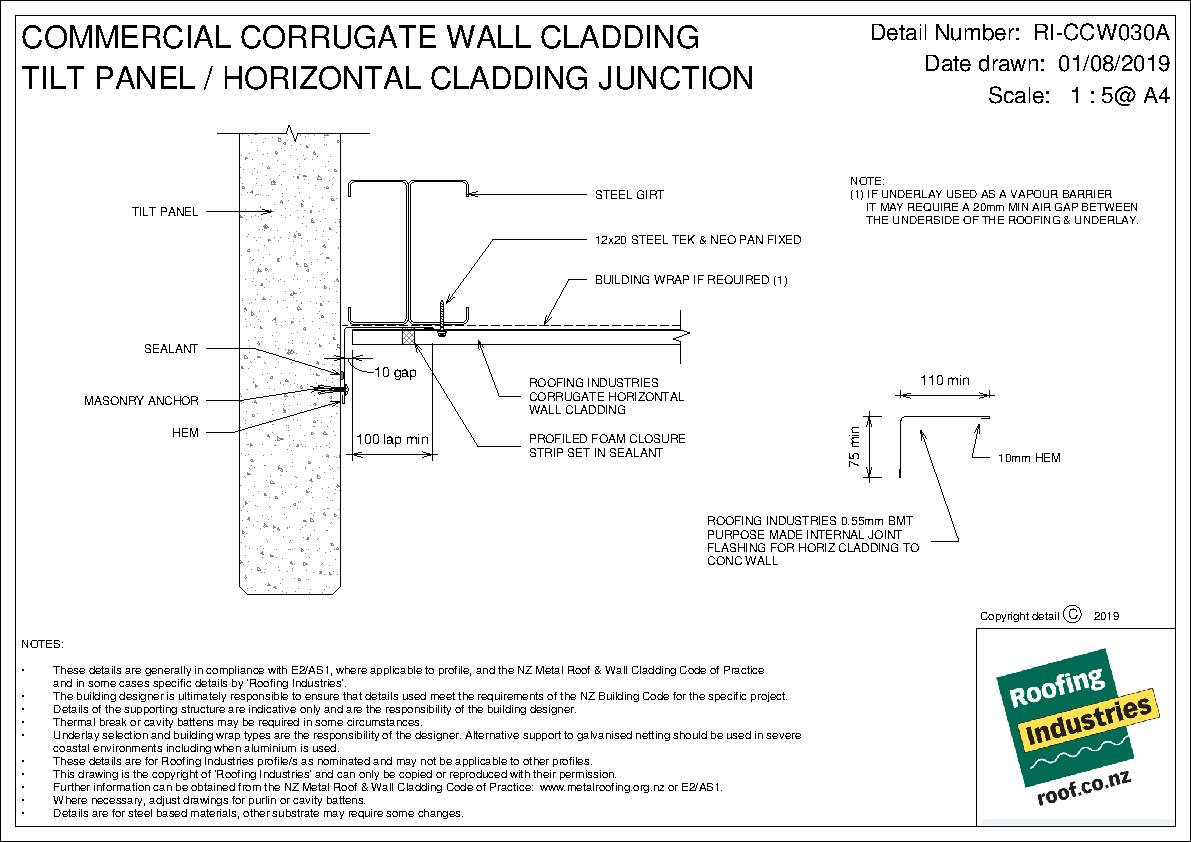

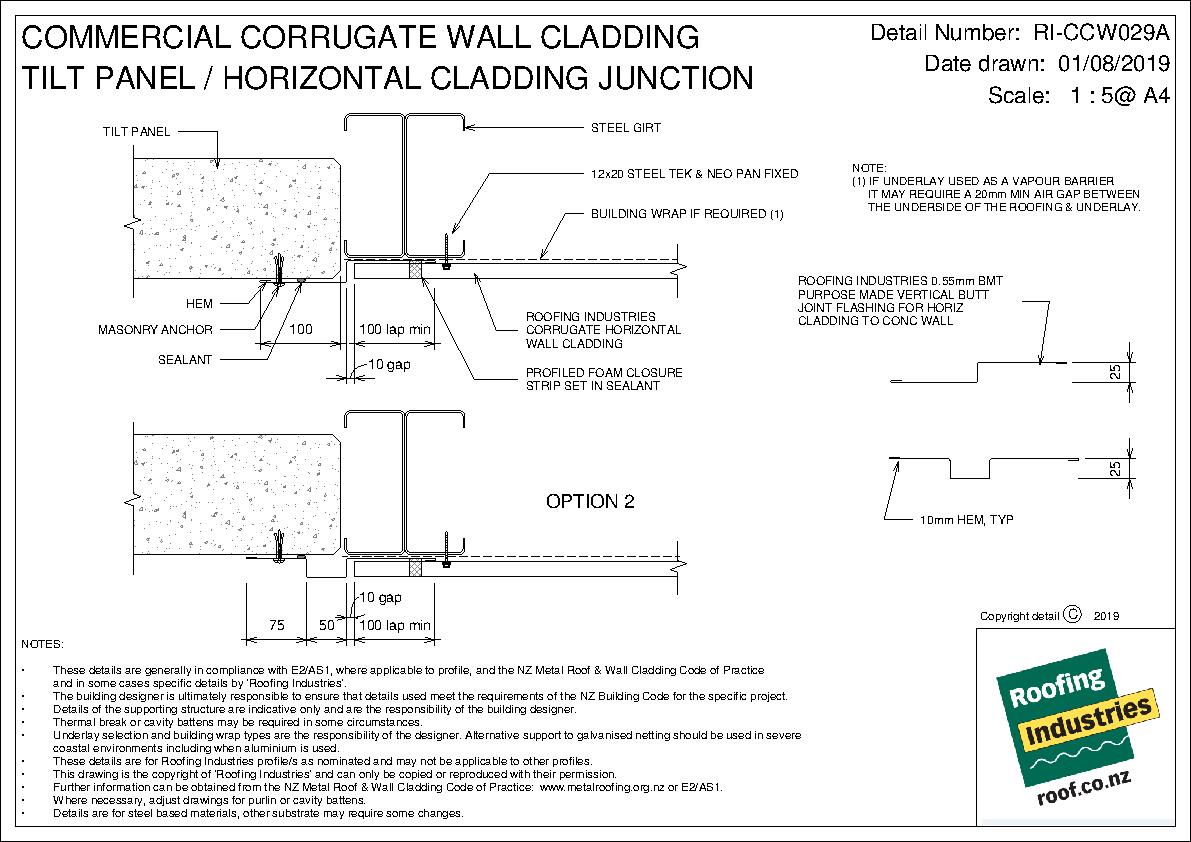

Com. Corrugate Tilt Panel / Horizontal Cladding Junction

RI-CC-W029A

pdf
Com. Corrugate Tilt Panel / Horizontal Cladding Junction (2)

RI-CC-W030A

pdf
RI-CCW032A-WINDOW-DOOR-HEAD-FLASHING-FOR-HORIZ-CLADDING-ON-CAVITY-Recessed-Window-Door-pdf.jpg

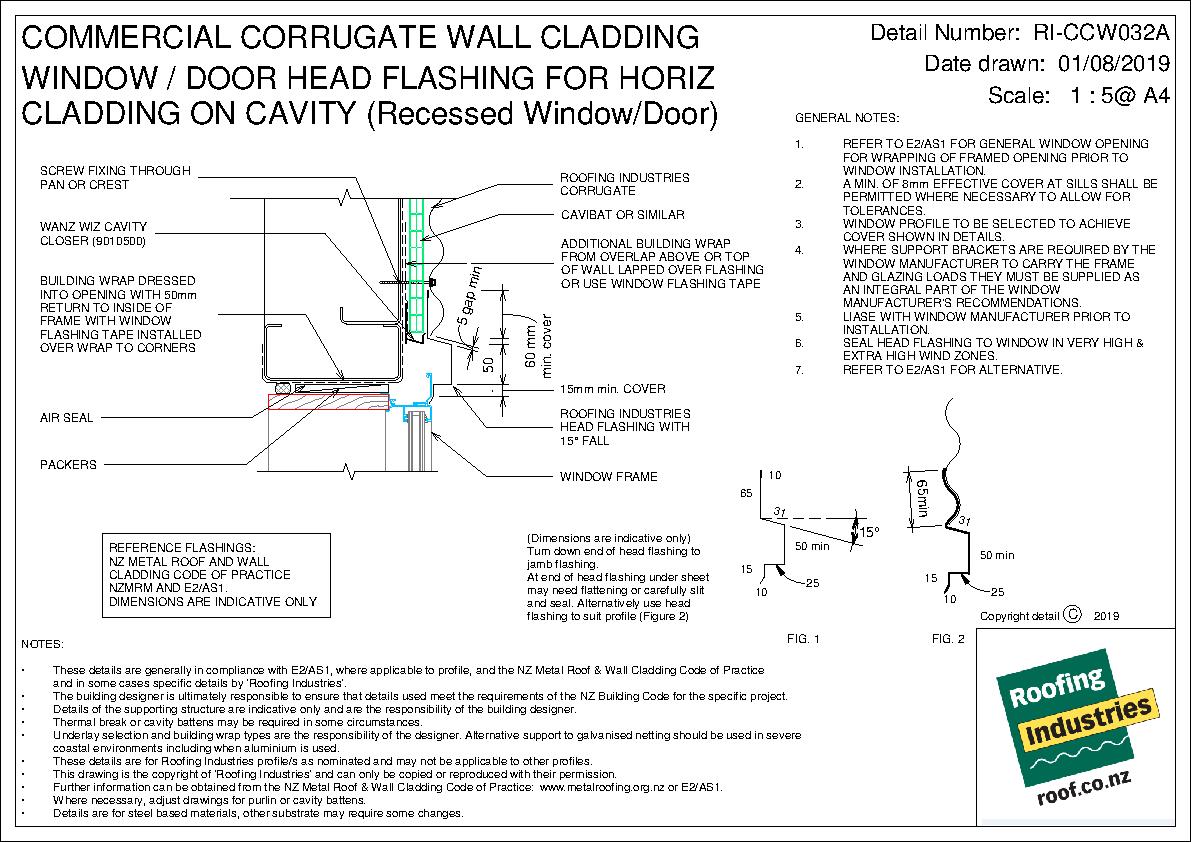

Com. Corrugate Window/Door Head Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CC-W032A

pdf
RI-CCW032B-WINDOW-DOOR-JAMB-FLASHING-FOR-HORIZ-CLADDING-ON-CAVITY-Recessed-Window-Door-pdf.jpg
Com. Corrugate Window/Door Jamb Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CC-W032B

pdf

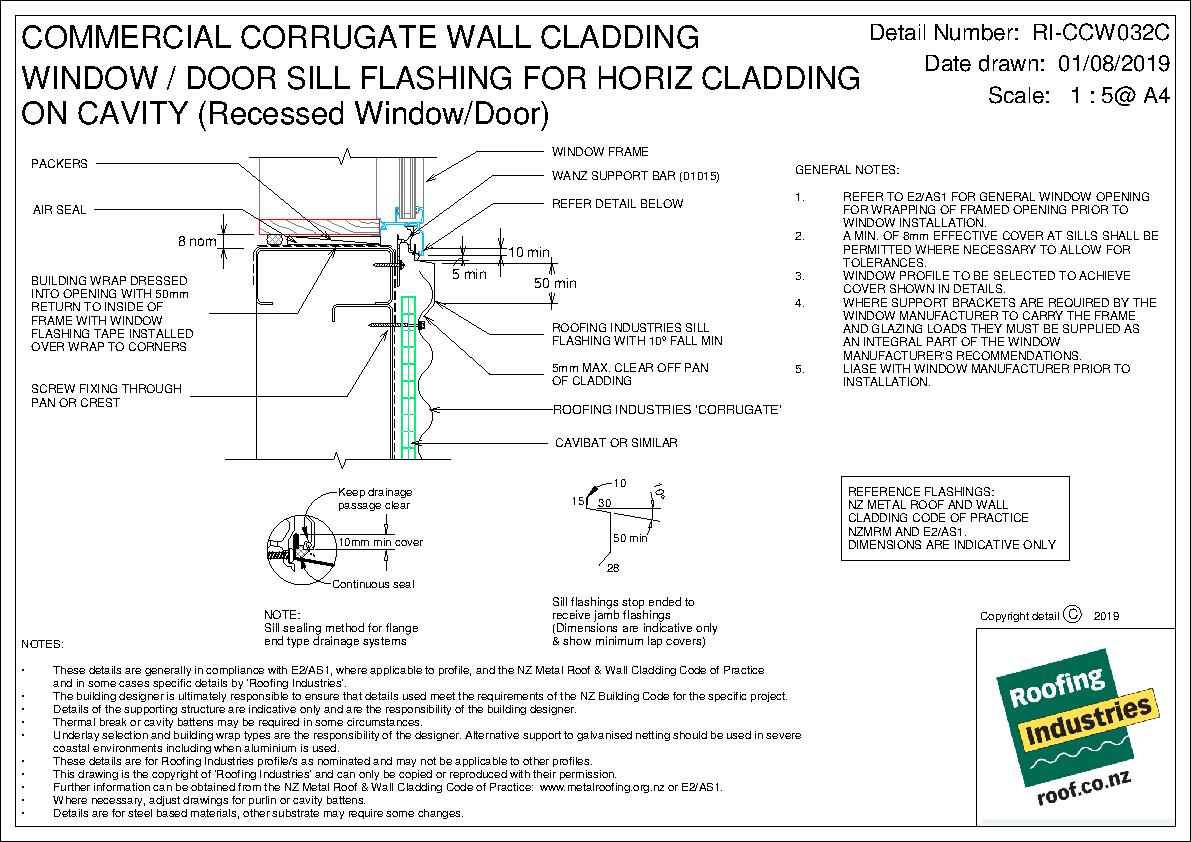

RI-CCW032C-WINDOW-DOOR-SILL-FLASHING-FOR-HORIZ-CLADDING-ON-CAVITY-Recessed-Window-Door-pdf.jpg
Com. Corrugate Window/Door Sill Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CC-W032C

pdf

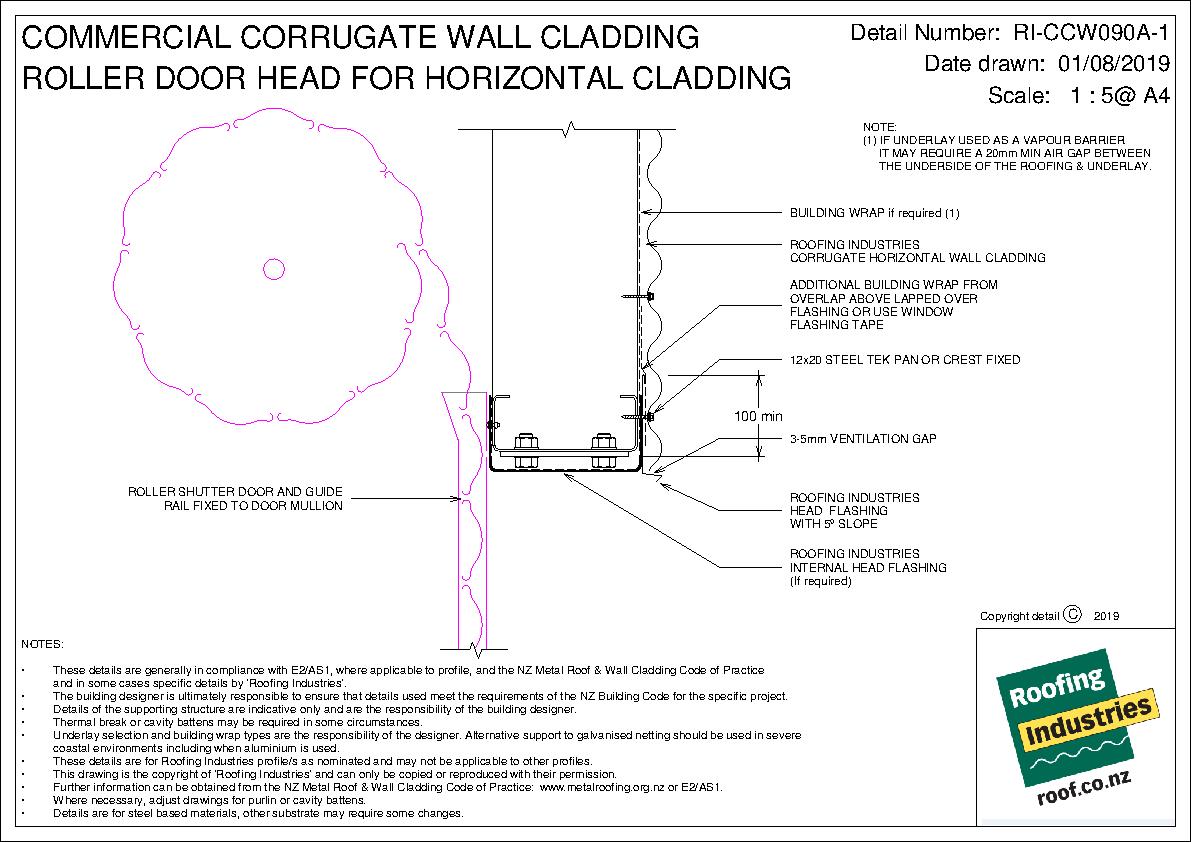

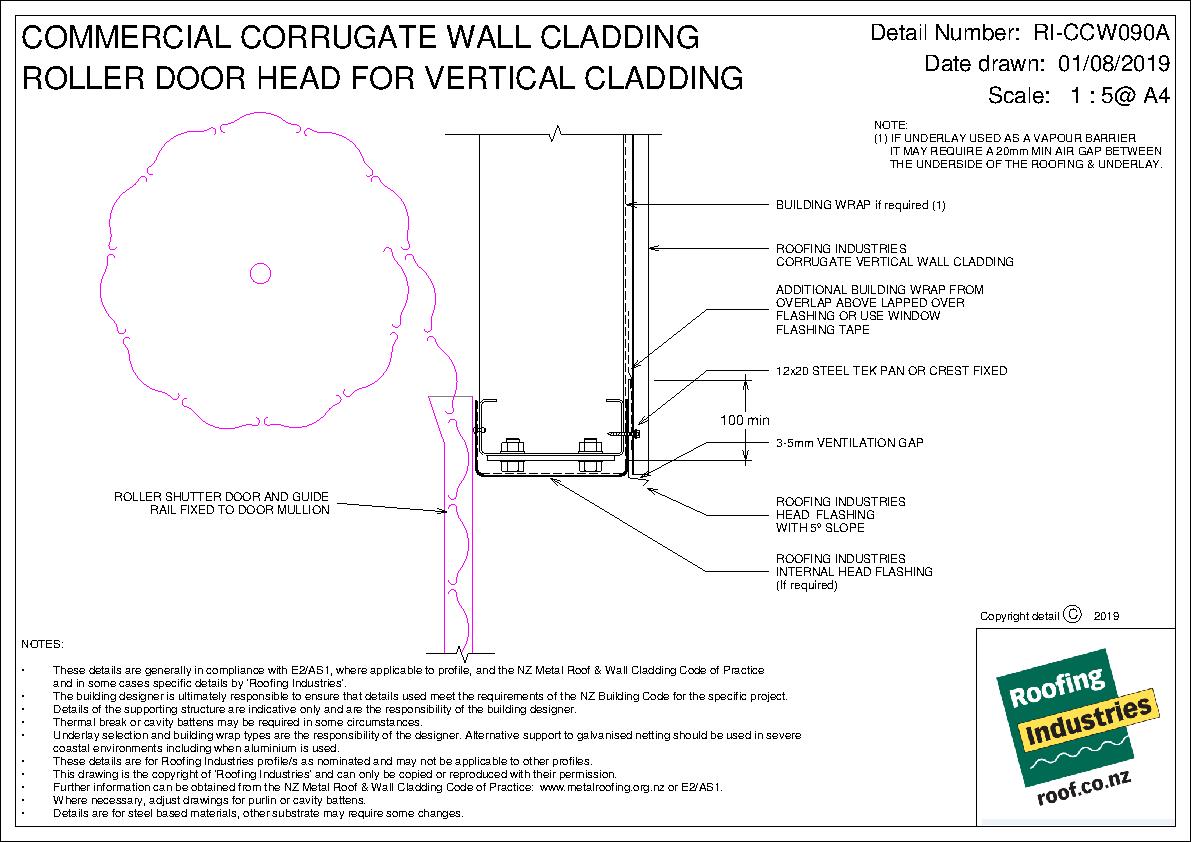

Com. Corrugate Roller Door Head for Vertical Cladding

RI-CC-W090A

pdf
Com. Corrugate Roller Door Head for Horizontal Cladding

RI-CC-W090A-1

pdf

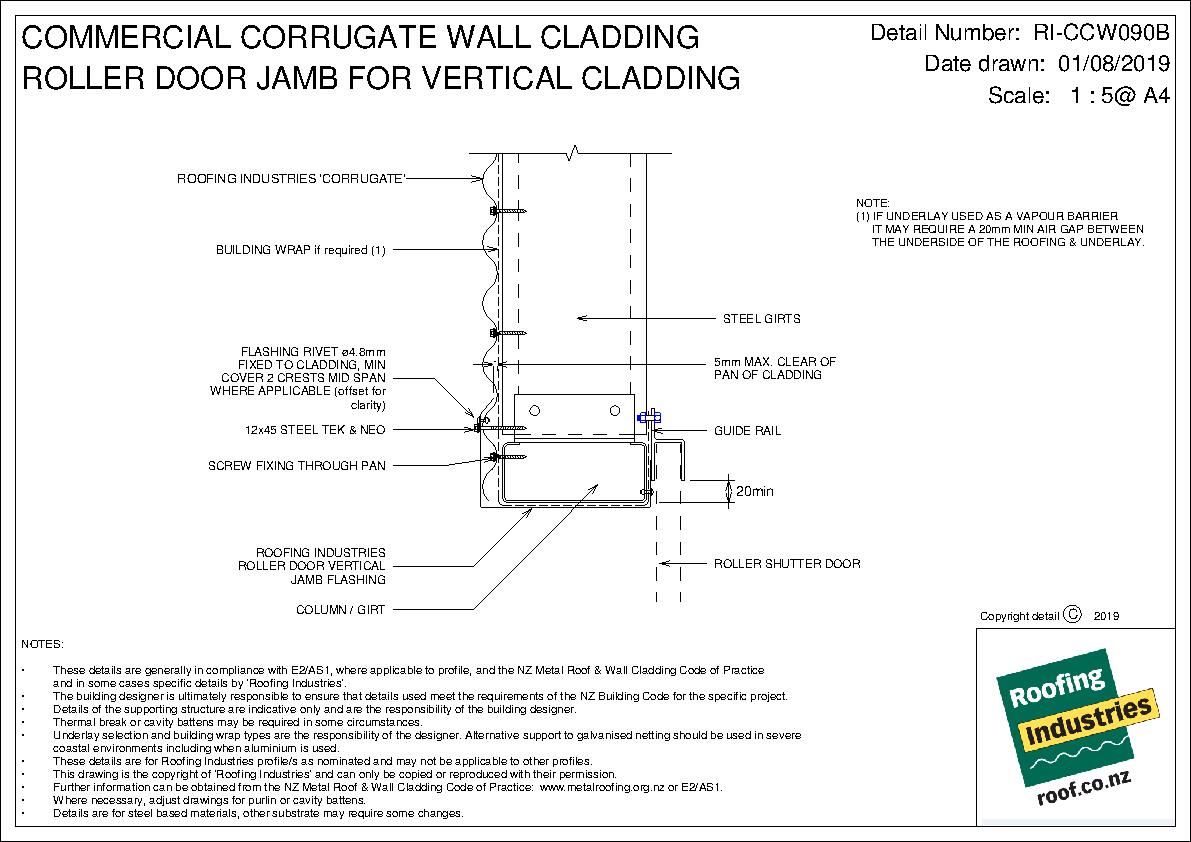

Com. Corrugate Roller Door Jamb for Vertical Cladding

RI-CC-W090B

pdf

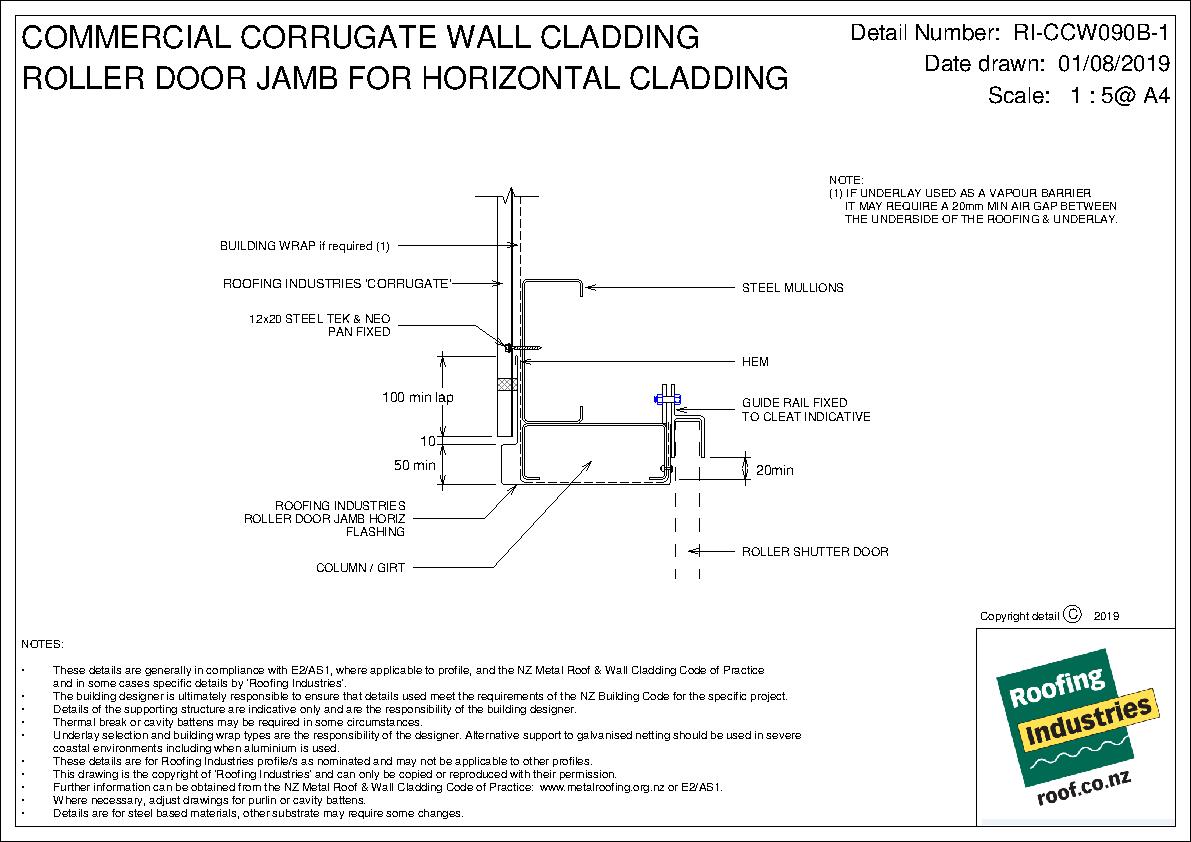

Com. Corrugate Roller Door Jamb for Horizontal Cladding

RI-CC-W090B-1

pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf

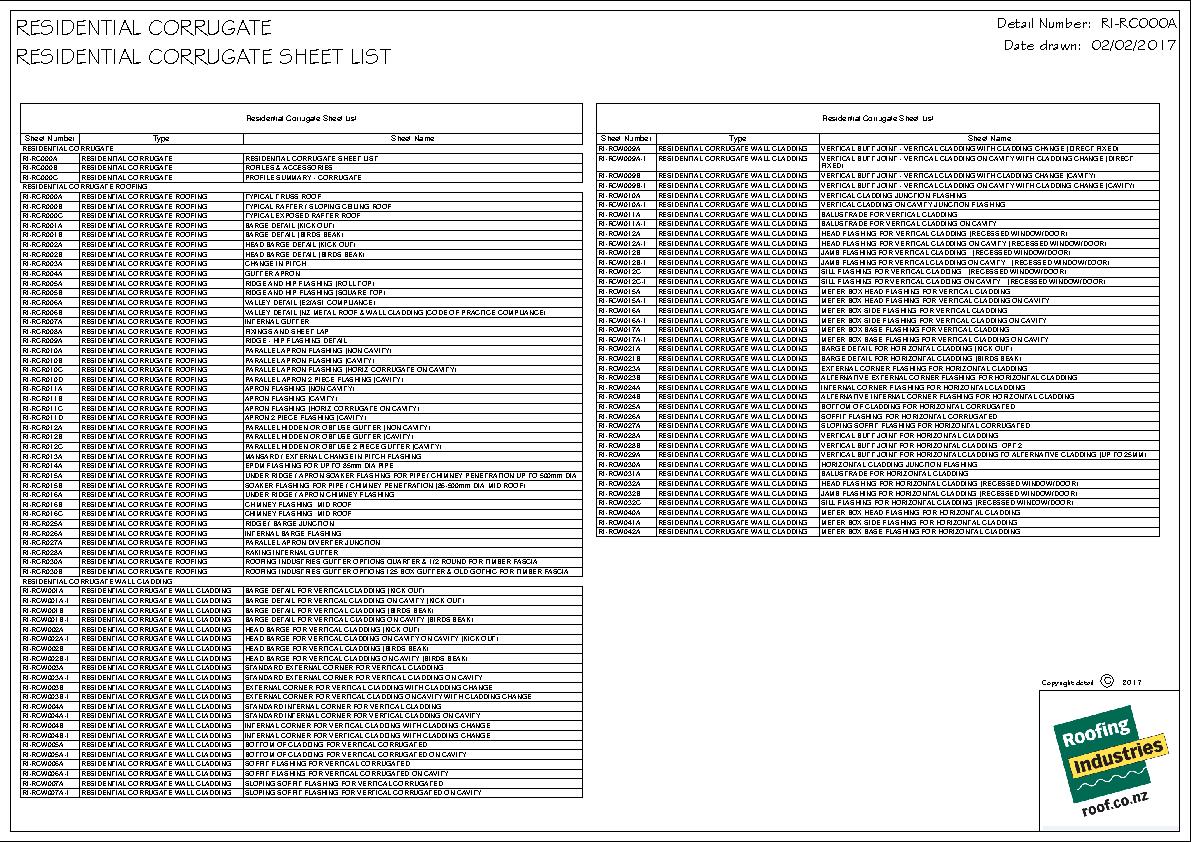

Corrugate Residential Sheet List

RI-RC-000A

2017

dwg
pdf

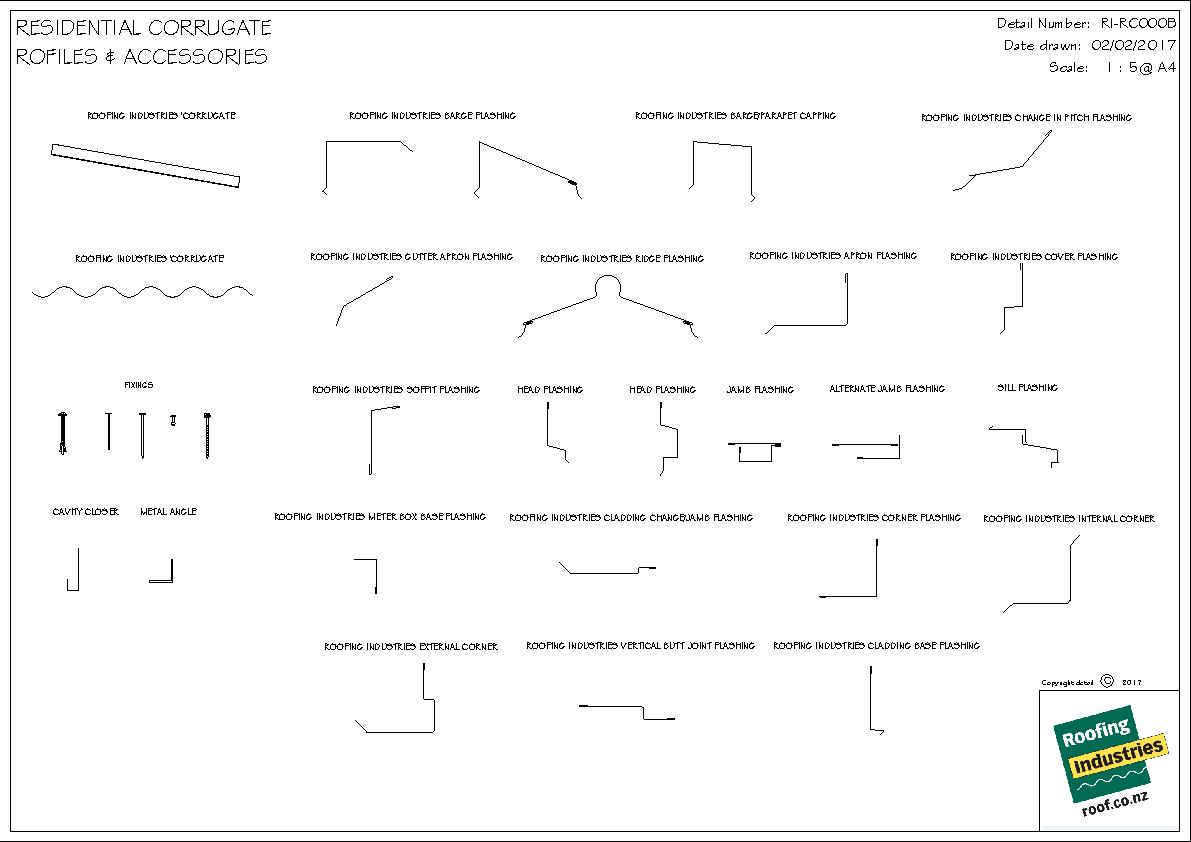

Corrugate Profiles and Accessories

RI-RC-000B

2017

dwg
pdf

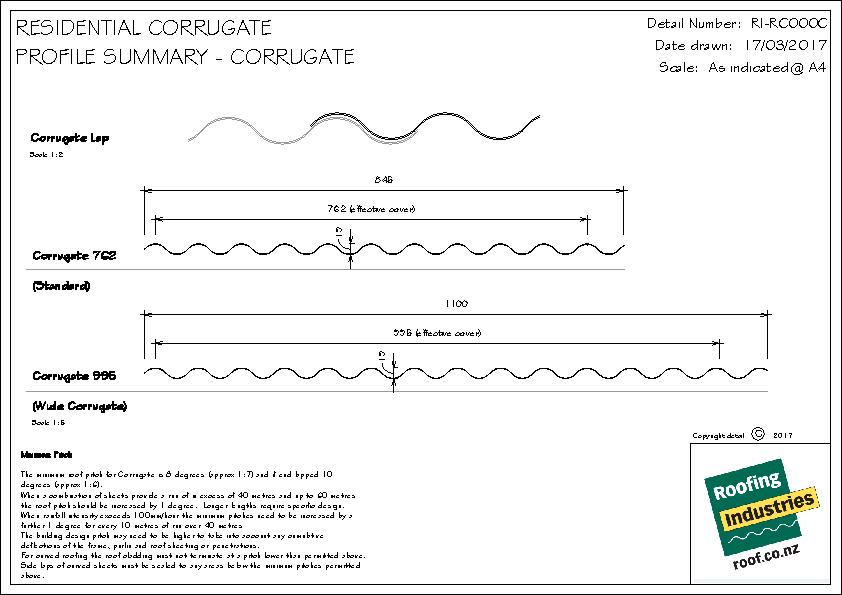

Corrugate Profile Summary

RI-RC-000C

2017

dwg
pdf

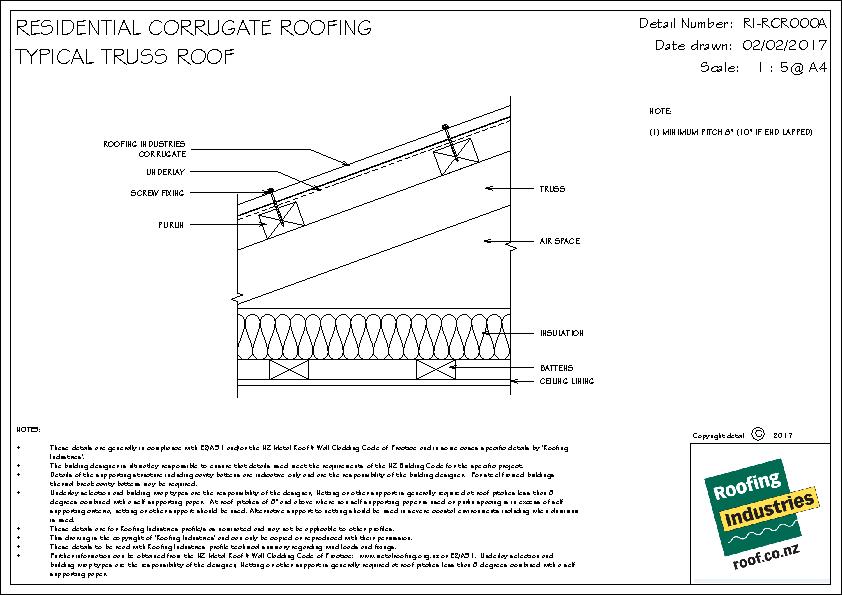

Corrugate Typical Truss Roof

RI-RC-R000A

2017

dwg
pdf

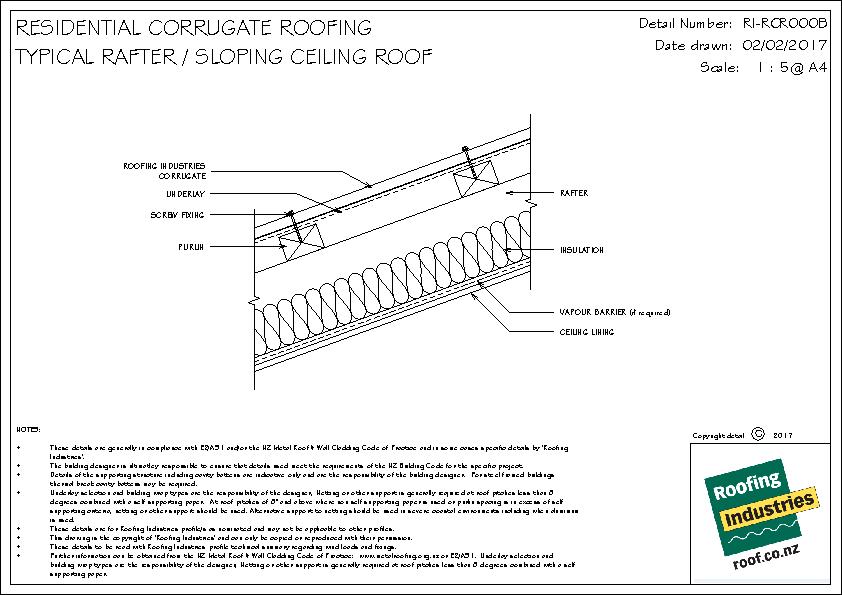

Corrugate Typical Rafter Sloping Ceiling Roof

RI-RC-R000B

2017

dwg
pdf

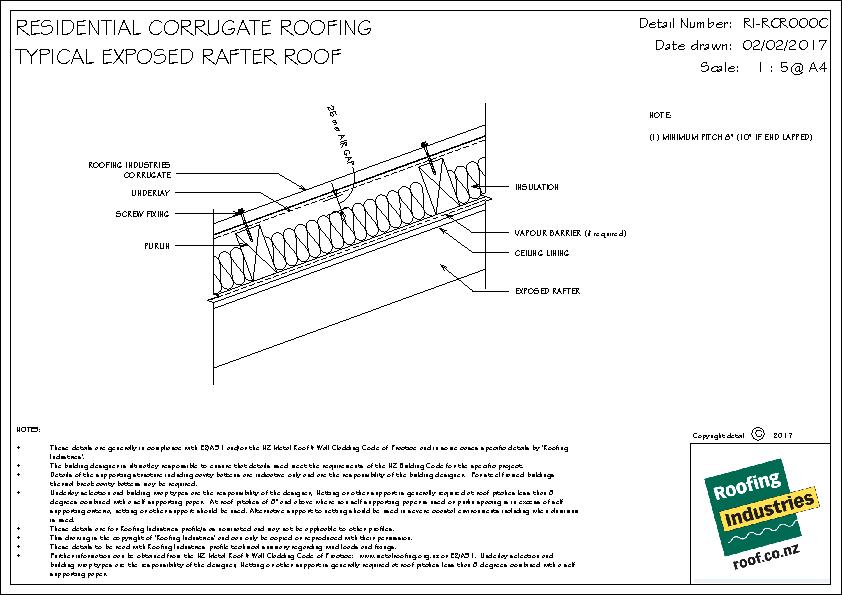

Corrugate Typical Exposed Rafter Roof

RI-RC-R000C

2017

dwg
pdf

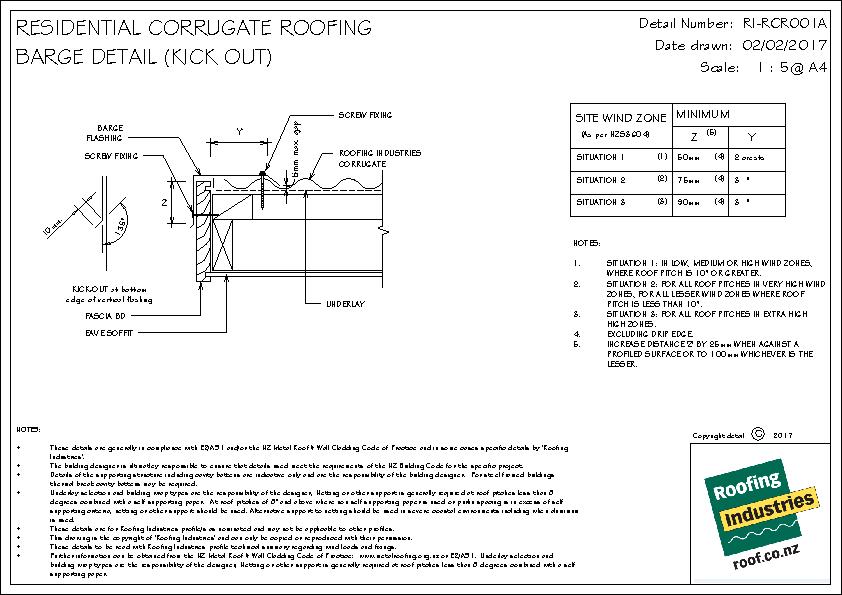

Corrugate Barge Detail (Kick Out)

RI-RC-R001A

2017

dwg
pdf

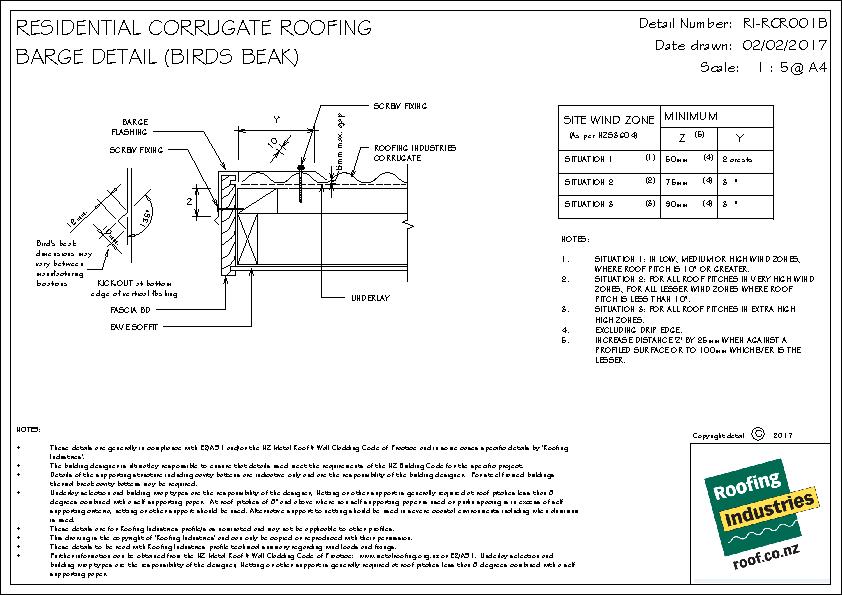

Corruate Barge Detail (Bird's Beak)

RI-RC-R001B

2017

dwg
pdf

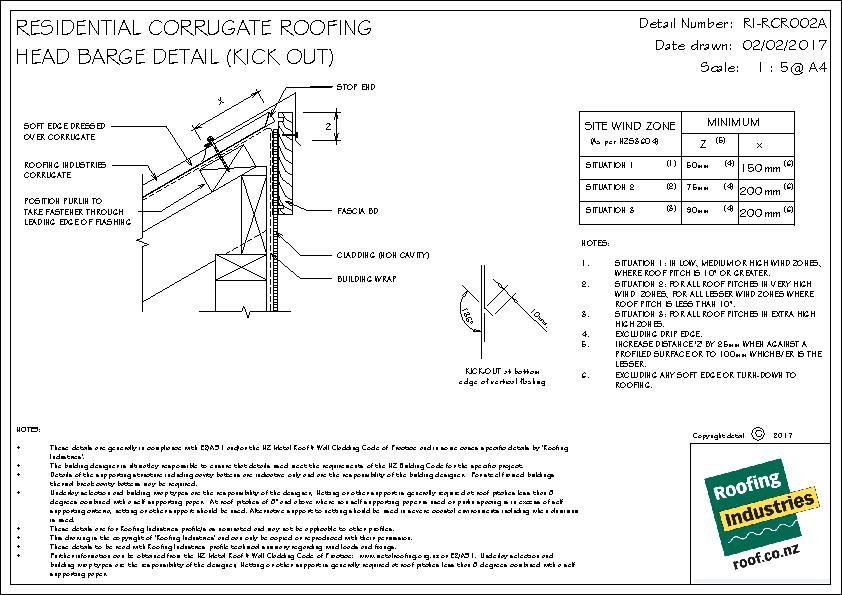

Corrugate Head Barge Detail (Kick Out)

RI-RC-R002A

2017

dwg
pdf

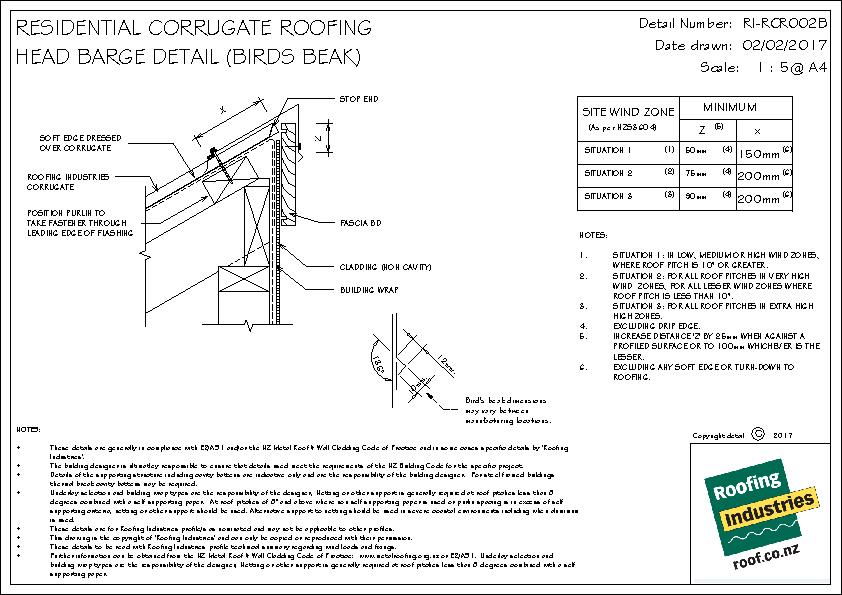

Corrugate Head Barge Detail (Bird's Beak)

RI-RC-R002B

2017

dwg
pdf

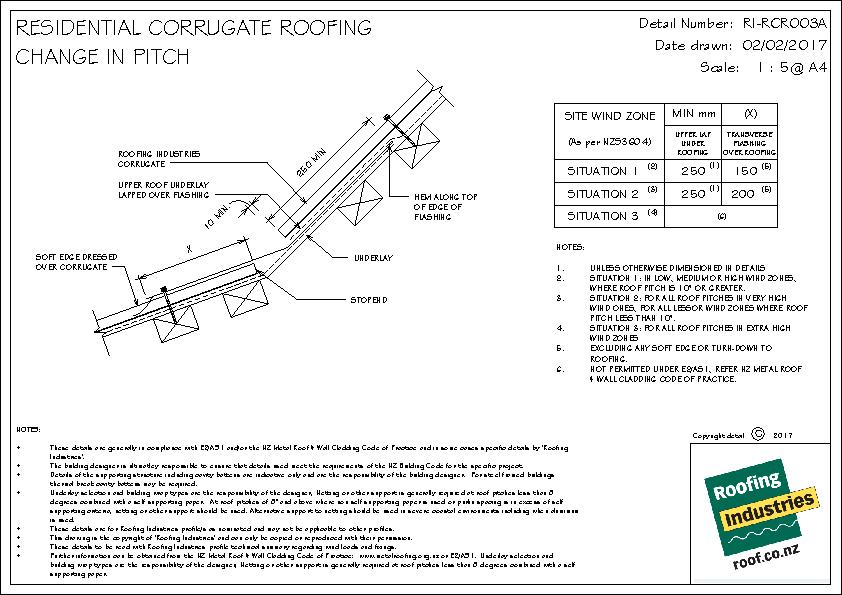

Corrugate Change in Pitch

RI-RC-R003A

2017

dwg
pdf

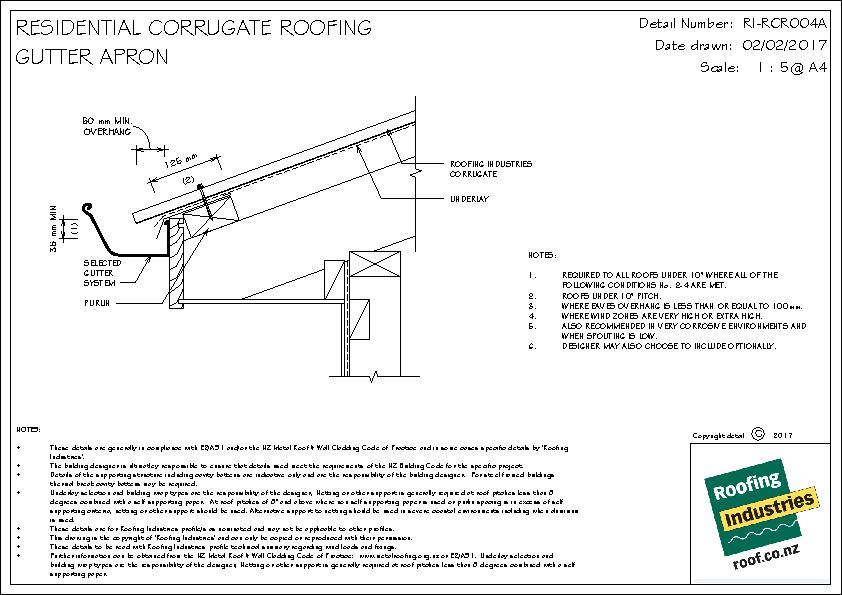

Corrugate Gutter Apron

RI-RC-R004A

2017

pdf

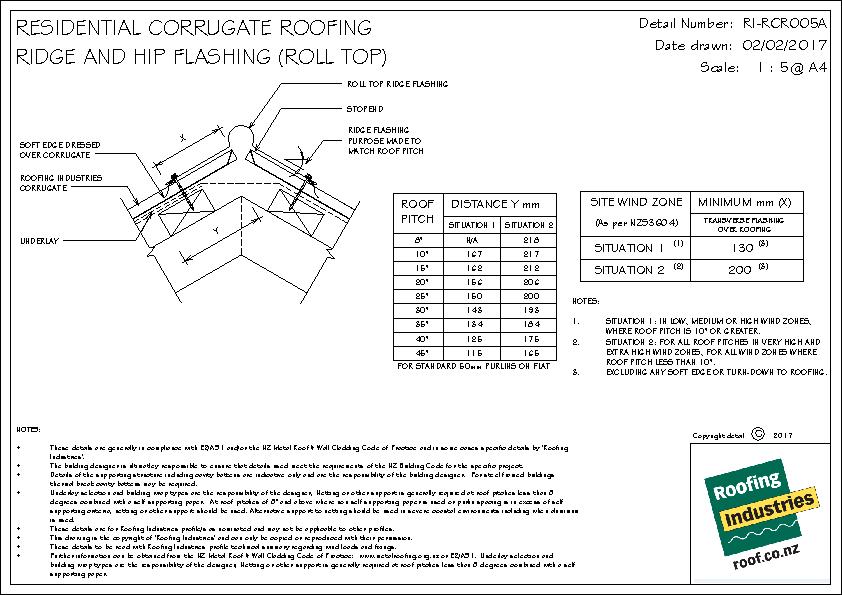

Corrugate Ridge and Hip Flashing (Roll Top)

RI-RC-R005A

2017

dwg
pdf

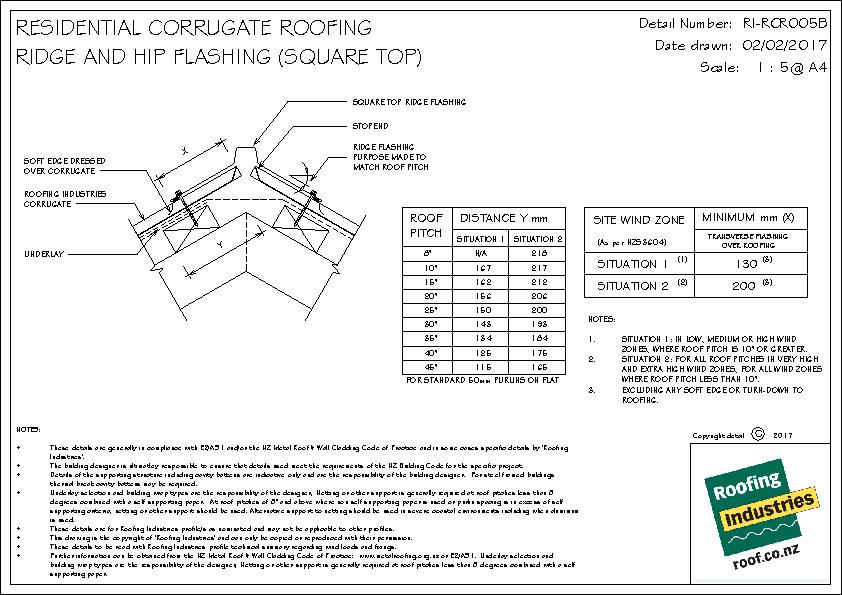

Corrugate Ridge and Hip Flashing (Square Top)

RI-RC-R005B

2017

dwg
pdf

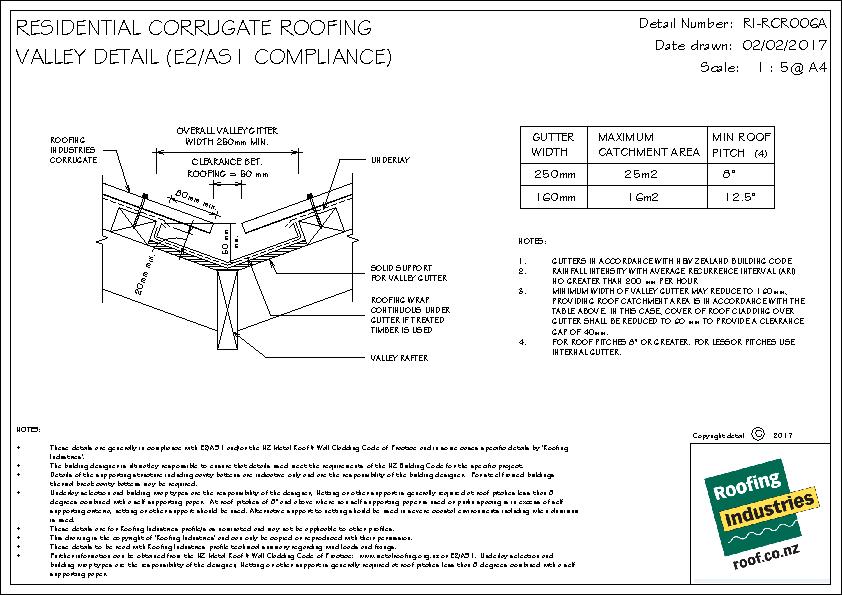

Corrugate Valley Detail (E2-AS1 Compliance)

RI-RC-R006A

2017

dwg
pdf

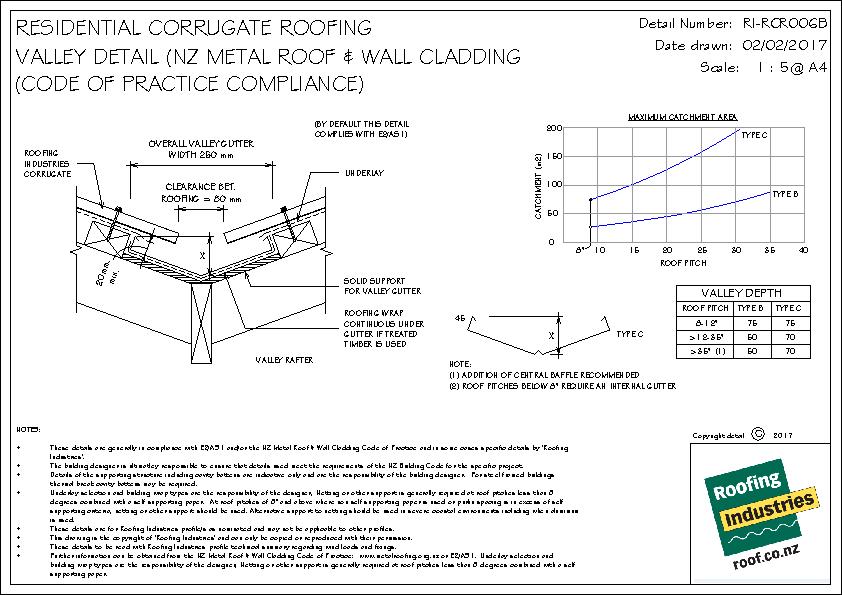

RI-RCR006B-VALLEY-DETAIL-NZ-METAL-ROOF-WALL-CLADDING-CODE-OF-PRACTICE-COMPLIANCE-pdf.jpg
Corrugate Valley Detail (Code of Practice Compliance)

RI-RC-R006B

2017

dwg
pdf

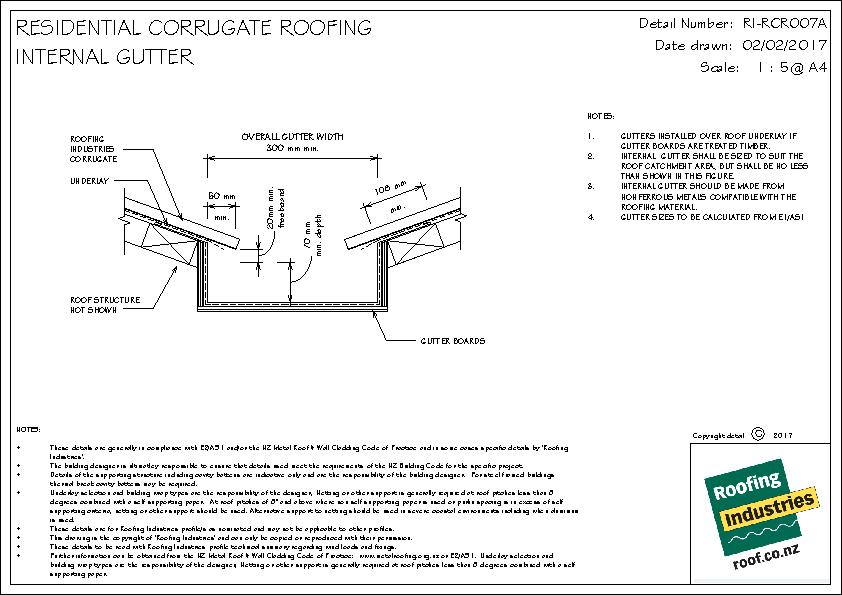

Corrugate Internal Gutter

RI-RC-R007A

2017

dwg
pdf

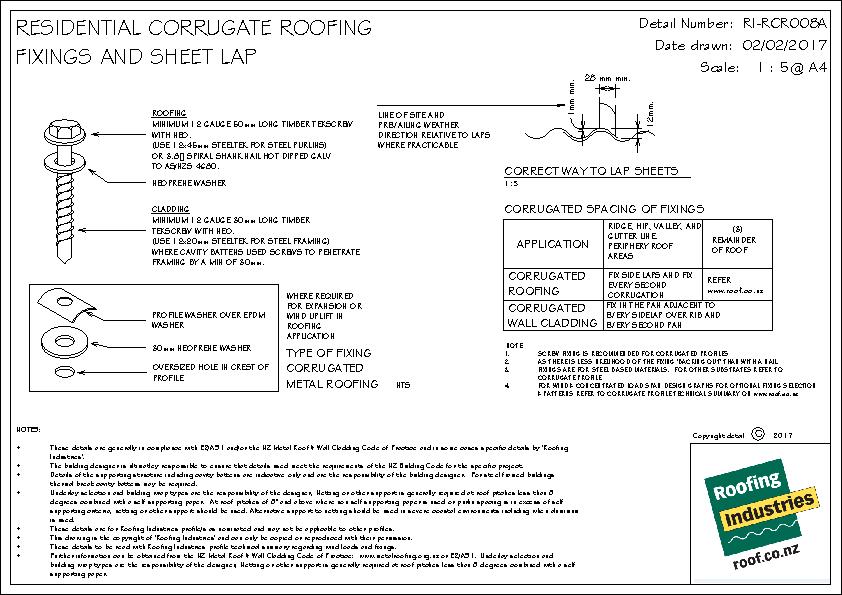

Corrugate Fixings and Sheet Lap

RI-RC-R008A

2017

dwg
pdf

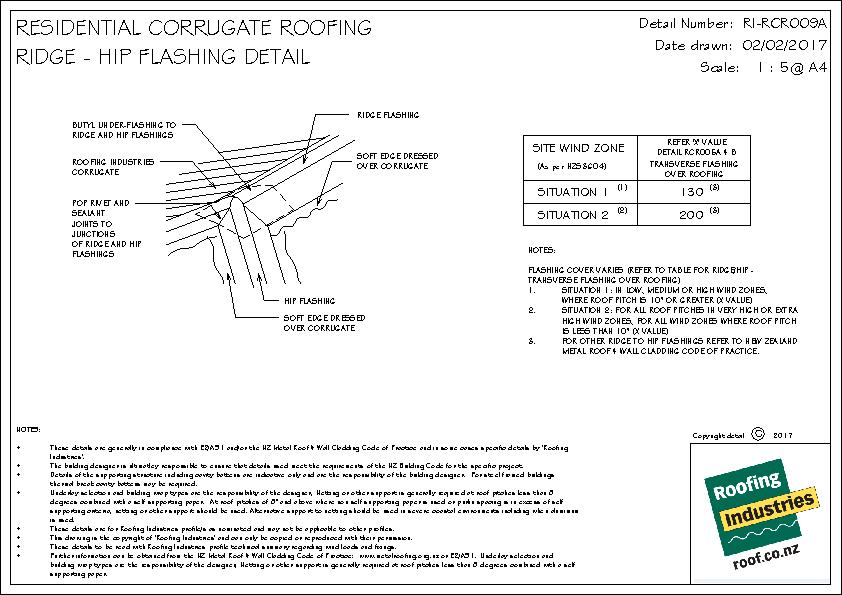

Corrugate Ridge and Hip Flashing Detail

RI-RC-R009A

2017

dwg
pdf

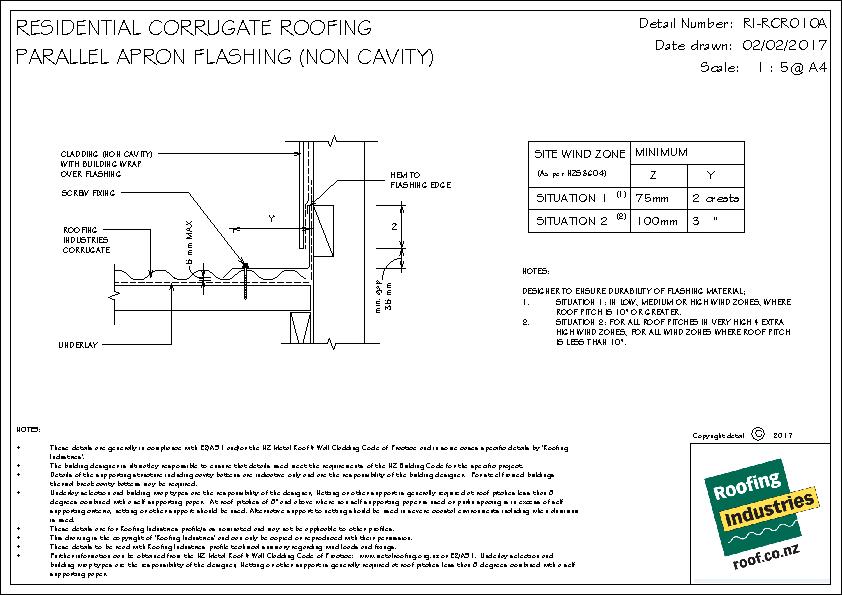

Corrugate Parallel Apron Flashing (Non-Cavity)

RI-RC-R010A

2017

dwg
pdf

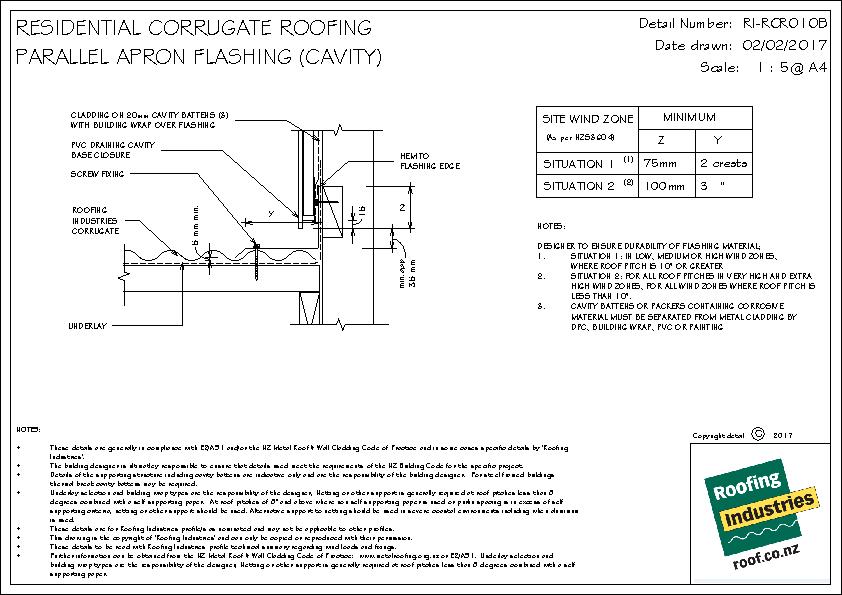

Corrugate Parallel Apron Flashing (Cavity)

RI-RC-R010B

2017

dwg
pdf

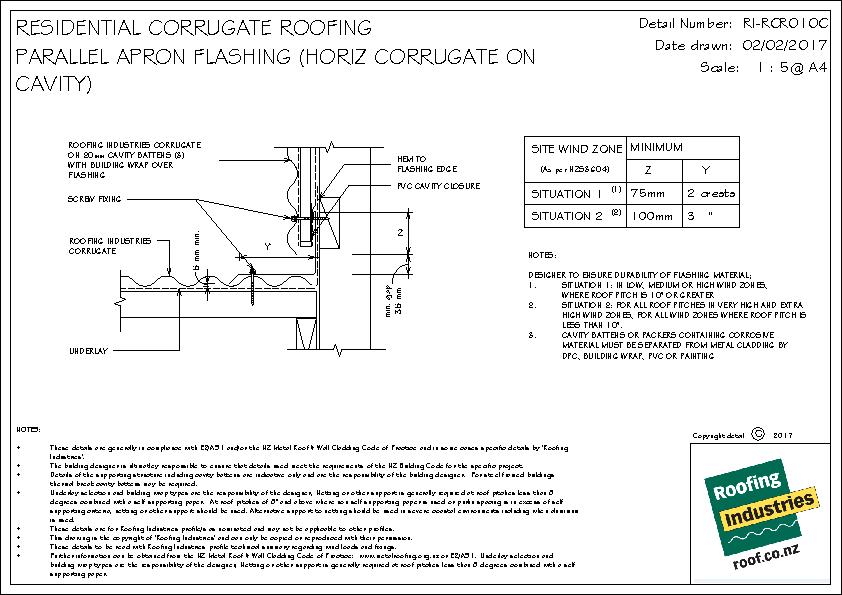

Corrugate Parallel Apron Flashing (Horizontal Corrugate on Cavity)

RI-RC-R010C

2017

dwg
pdf

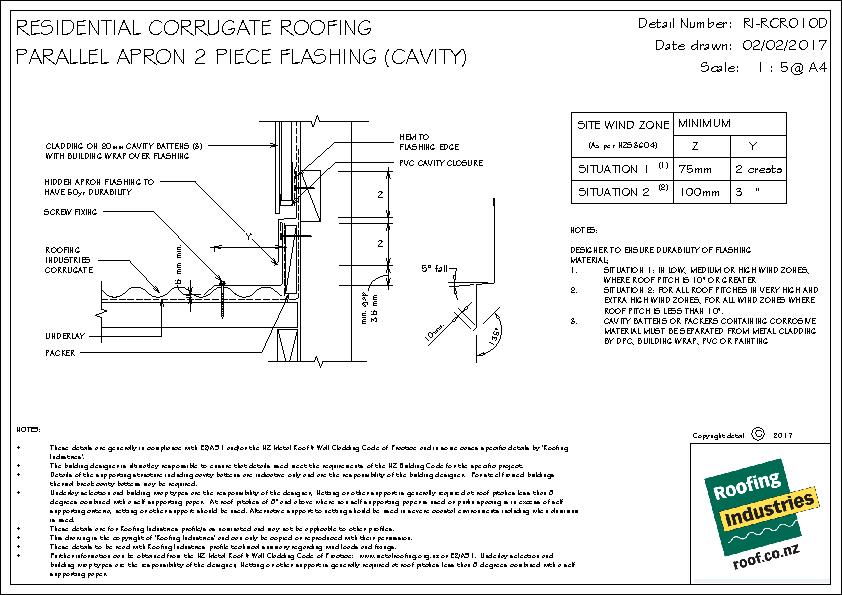

Corrugate Parallel Apron 2 Piece Flashing (Cavity)

RI-RC-R010D

2017

dwg
pdf

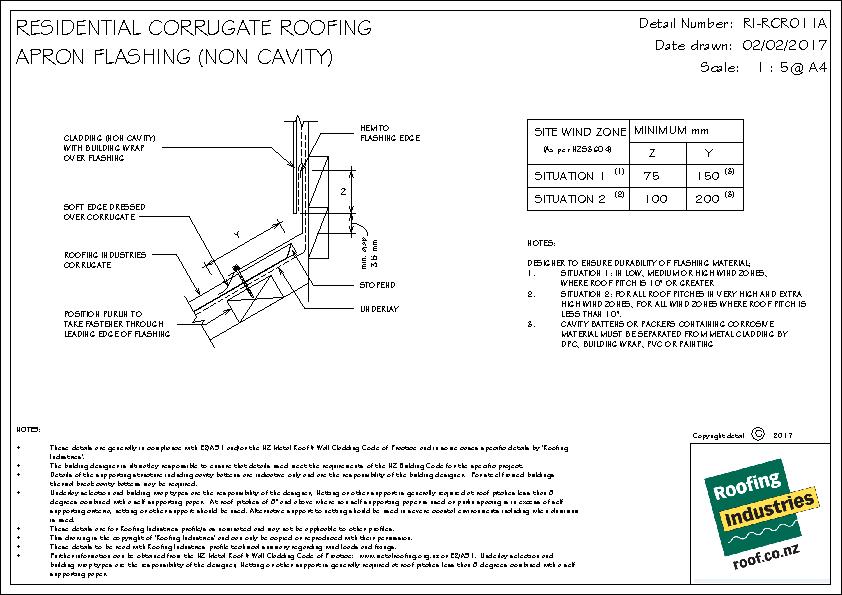

Corrugate Apron Flashing (Non-Cavity)

RI-RC-R011A

2017

dwg
pdf

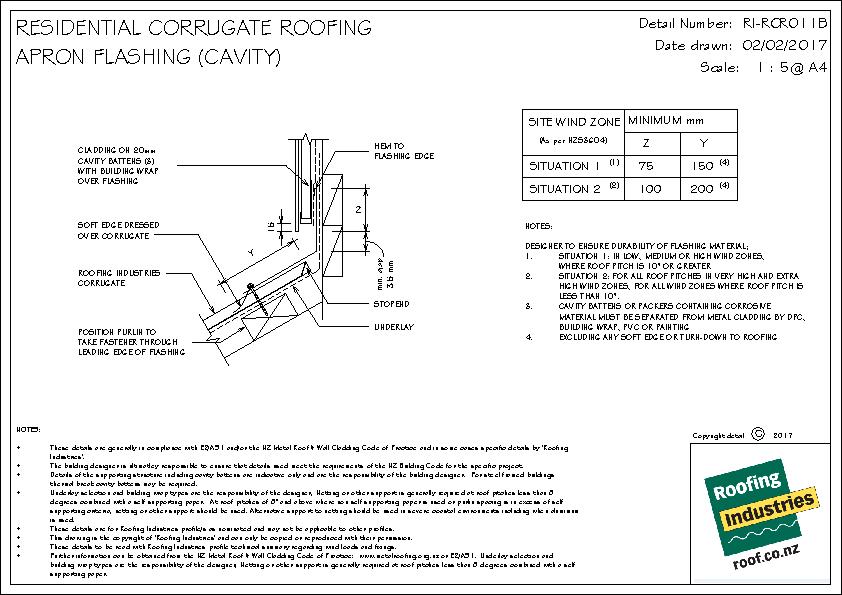

Corrugate Apron Flashing (Cavity)

RI-RC-R011B

2017

dwg
pdf

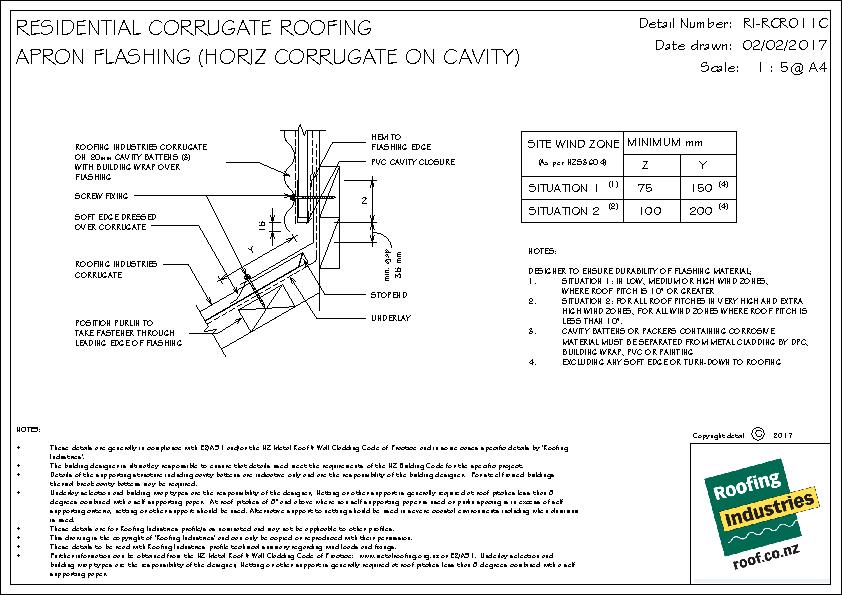

Corrugate Apron Flashing (Horizontal Corrugate on Cavity)

RI-RC-R011C

2017

dwg
pdf

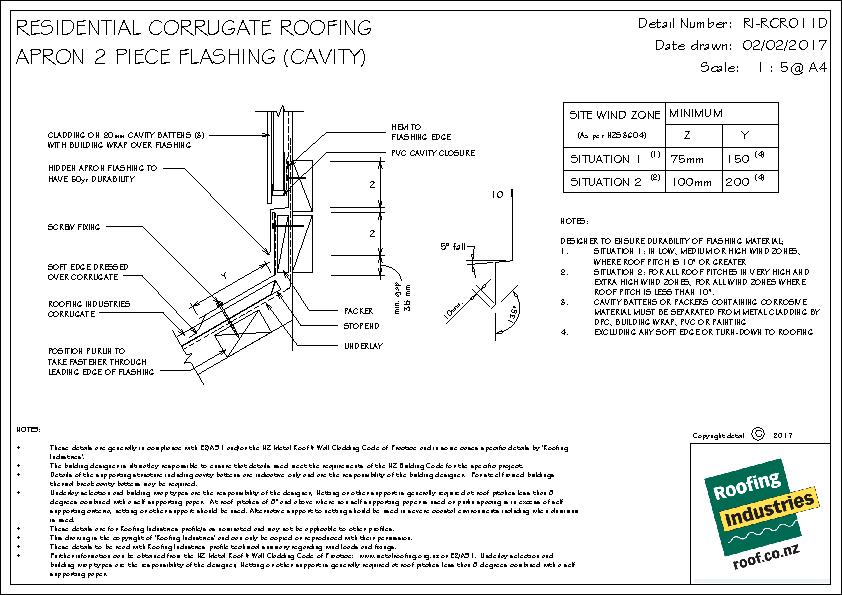

Corrugate Apron 2 Piece Flashing (Cavity)

RI-RC-R011D

2017

dwg
pdf

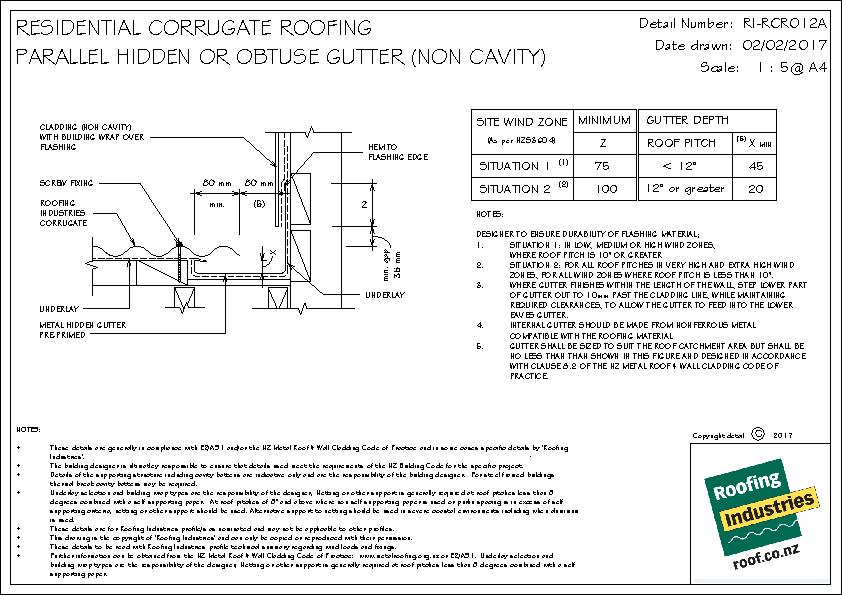

Corrugate Parallel Hidden or Obtuse Gutter (Non-Cavity)

RI-RC-R012A

2017

dwg
pdf

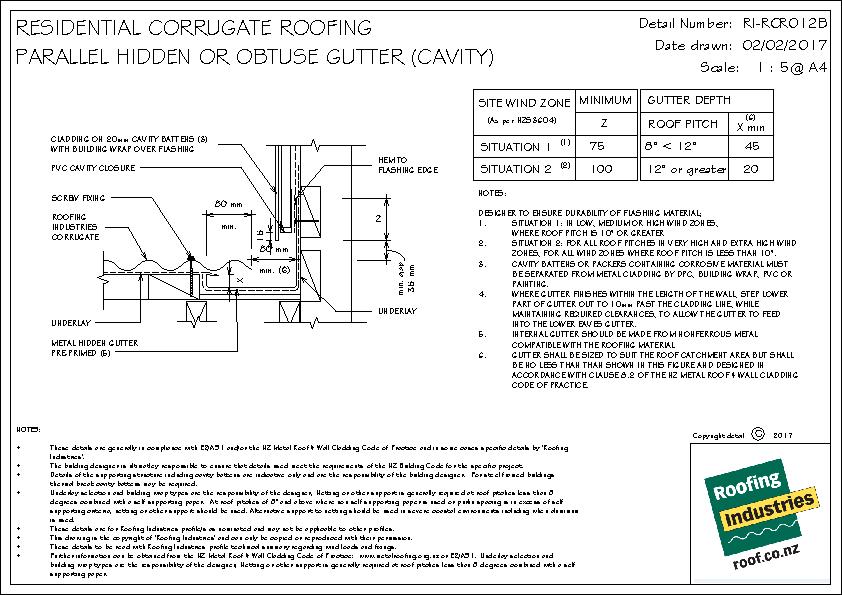

Corrugate Parallel Hidden or Obtuse Gutter (Non-Cavity)

RI-RC-R012B

2017

dwg
pdf

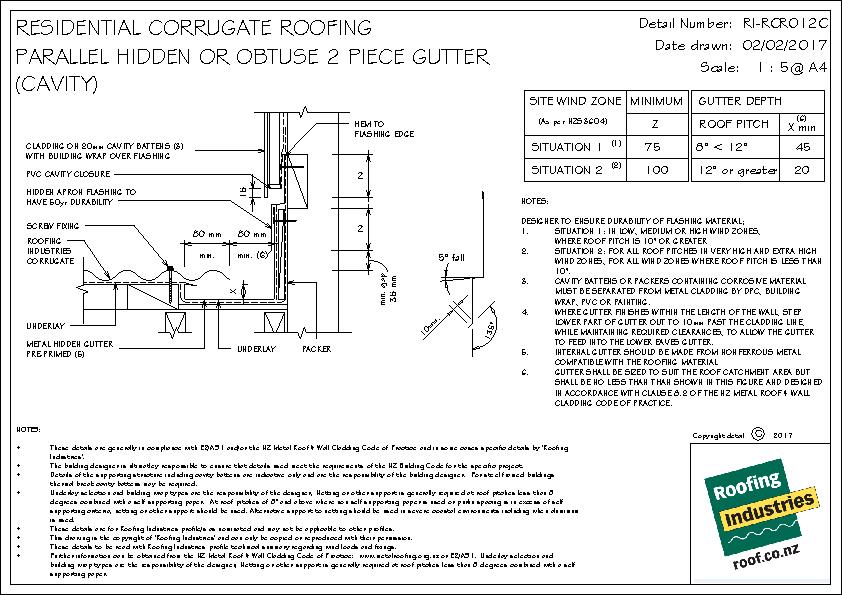

Corrugate Parallel Hidden or Obtuse 2 Piece Gutter (Cavity)

RI-RC-R012C

2017

dwg
pdf

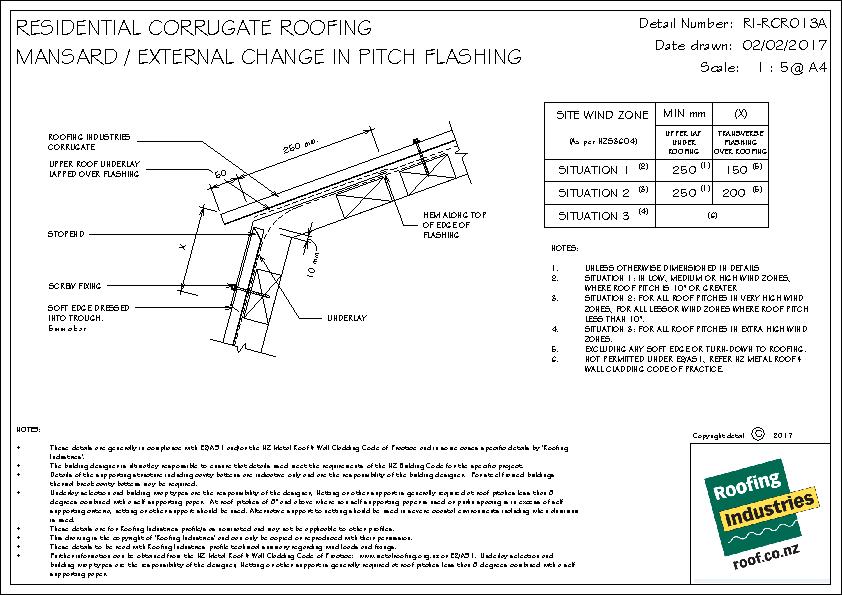

Corrugate Mansard External Change in Pitch

RI-RC-R013A

2017

dwg
pdf

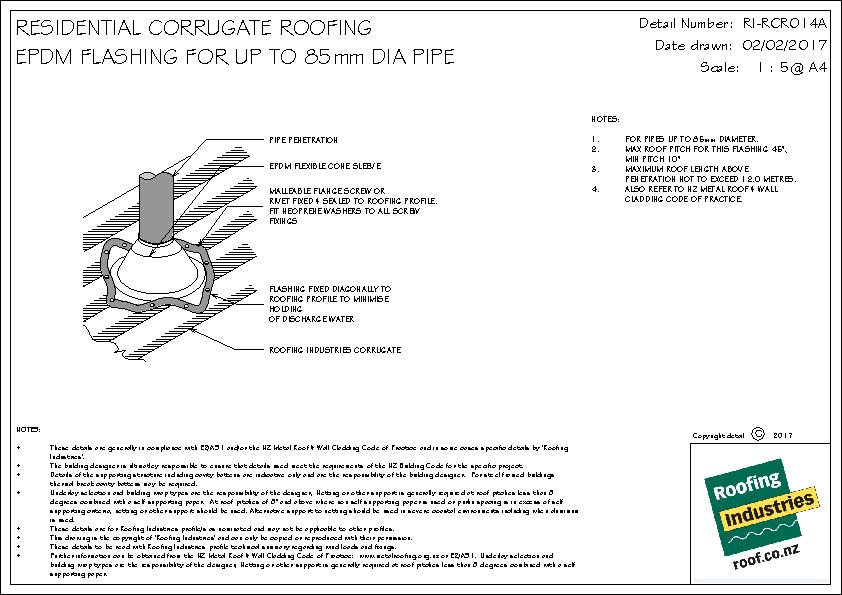

Corrugate EPDM Flashing for up to 85mm Diameter Pipe

Ri-RC-R014A

2017

dwg
pdf

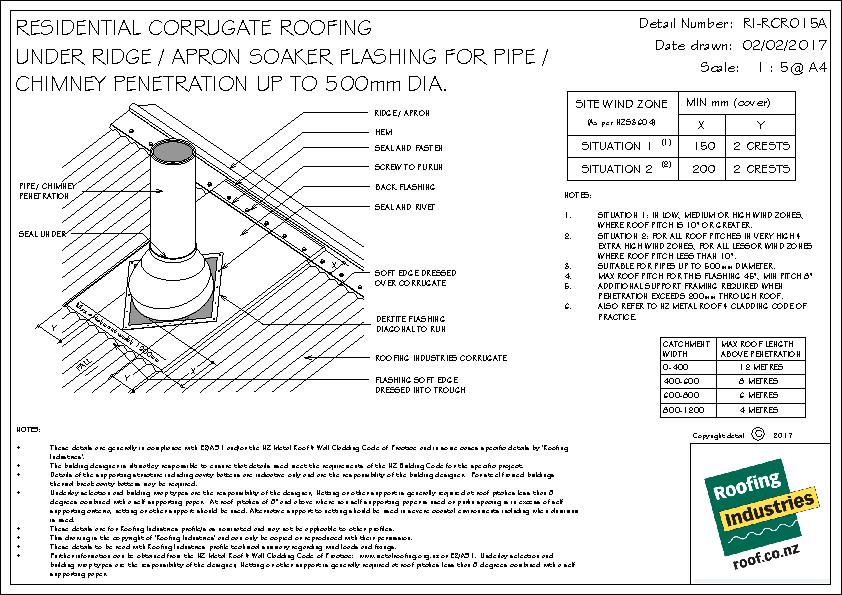

RI-RCR015A-UNDER-RIDGE-APRON-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-UP-TO-500mm-DIA--pdf.jpg
Corrugate Under Ridge Apron Soaker Flashing for Pipe / Chimney Penetration

RI-RC-R015A

2017

dwg
pdf

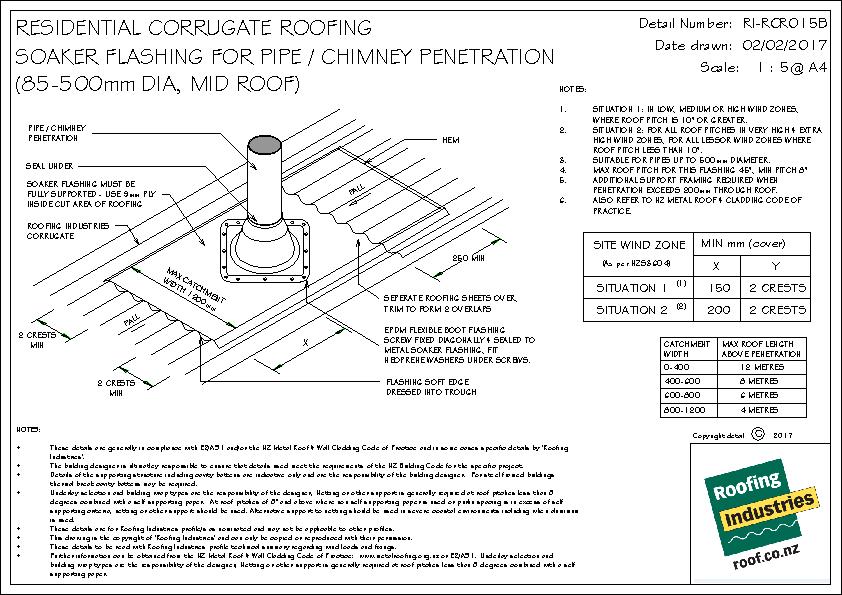

RI-RCR015B-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-85-500mm-DIA-MID-ROOF-pdf.jpg
Corrugate Soaker Flashing Pipe / Chimney Penetration

RI-RC-R015B

2017

dwg
pdf

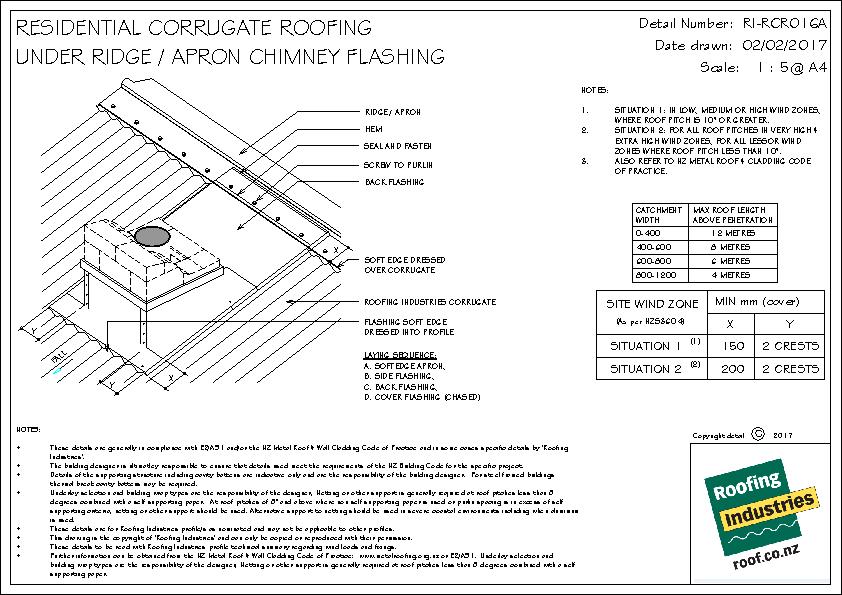

Corrugate Under Ridge Apron Chimney Flashing

RI-RC-R016A

2017

dwg
pdf

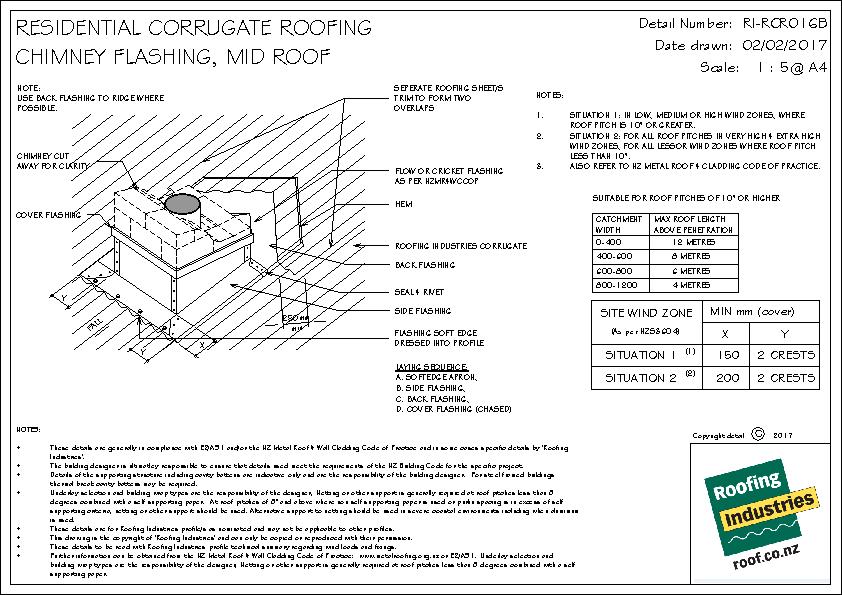

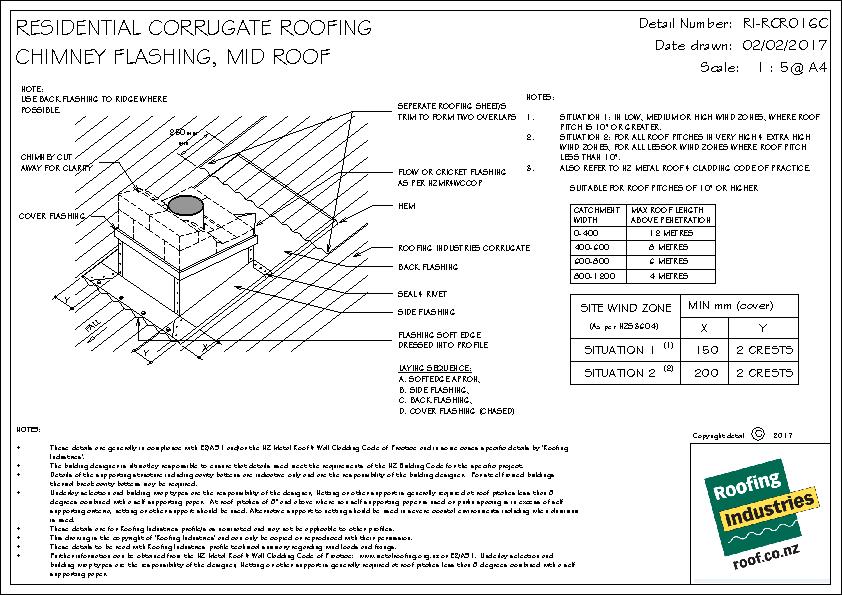

Corrugate Chimney Flashing Mid Roof

RI-RC-R016B

2017

dwg
pdf
Corrugate Chimney Flashing Mid Roof (2)

RI-RC-R016C

2017

dwg
pdf

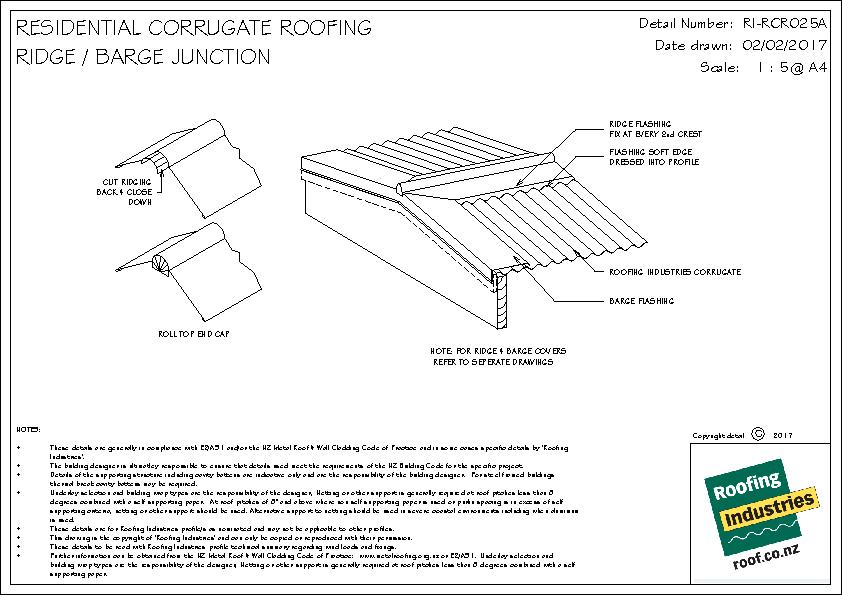

Corrugate Ridge Barge Junction

RI-RC-R025A

2017

dwg
pdf

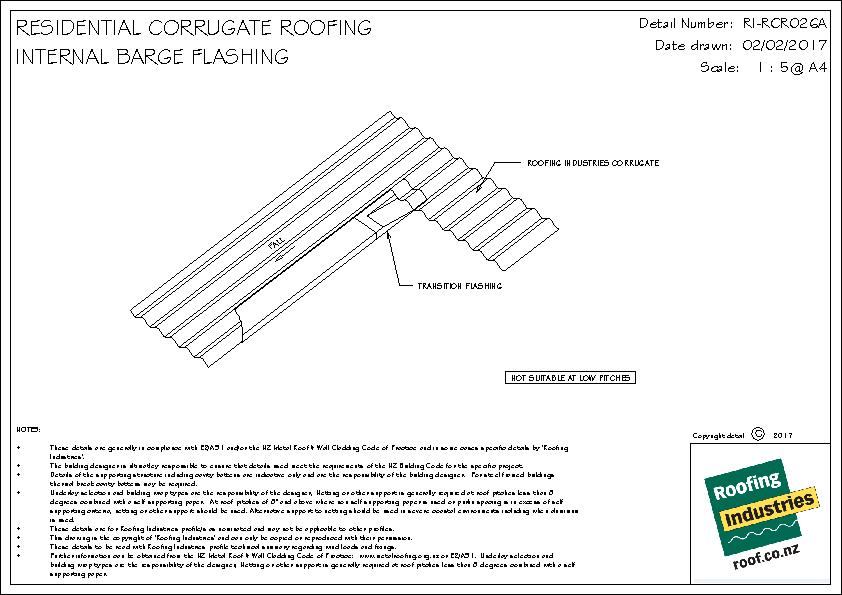

Corrugate Internal Barge Flashing

RI-RC-R026A

2017

dwg
pdf

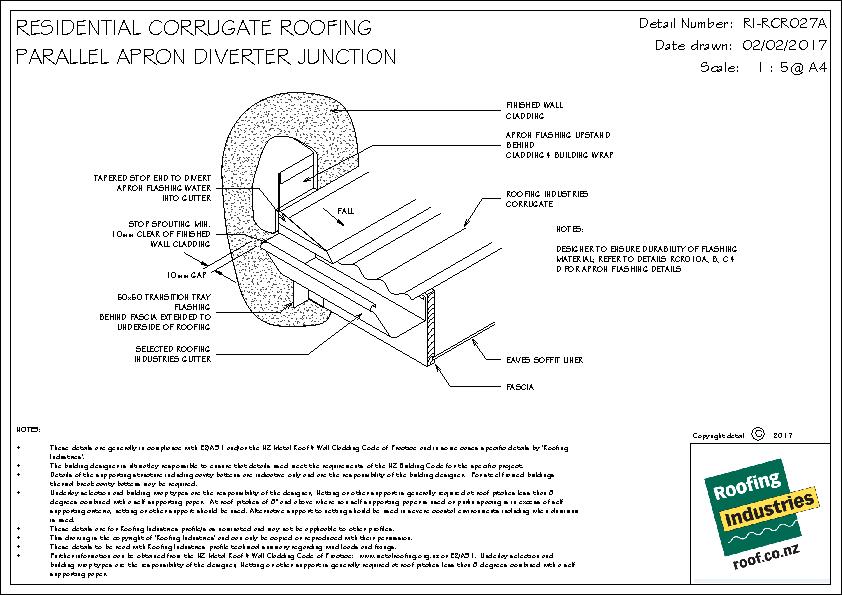

Corrugate Parallel Apron Diverter Junction

RI-RC-R027A

2017

dwg
pdf

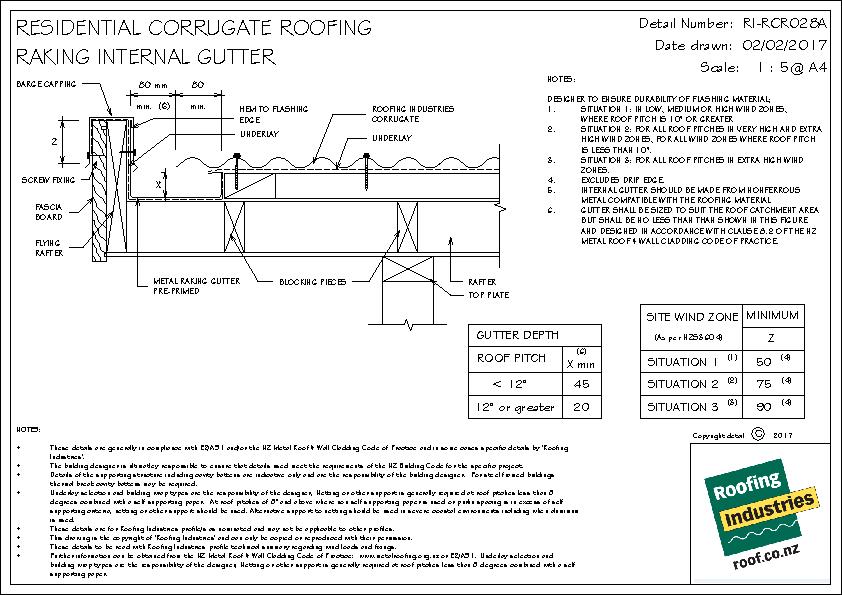

Corrugate Raking Internal Gutter

RI-RC-R028A

2017

dwg
pdf

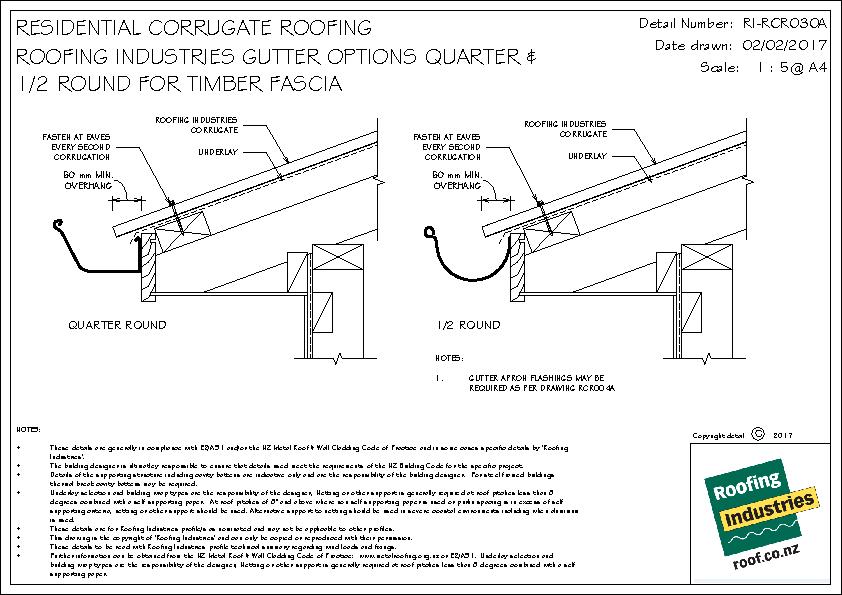

RI-RCR030A-ROOFING-INDUSTRIES-GUTTER-OPTIONS-QUARTER-1-2-ROUND-FOR-TIMBER-FASCIA-pdf.jpg
Corrugate Gutter Options Quarter/Half Round for Timber Fascia

RI-RC-R030A

2017

dwg
pdf
RI-RCR030A-ROOFING-INDUSTRIES-GUTTER-OPTIONS-QUARTER-1-2-ROUND-FOR-TIMBER-FASCIA-pdf.jpg
Corrugate Gutter Options 125 Box / Old Gothic for Timber Fascia

RI-RC-R030B

2017

dwg
pdf

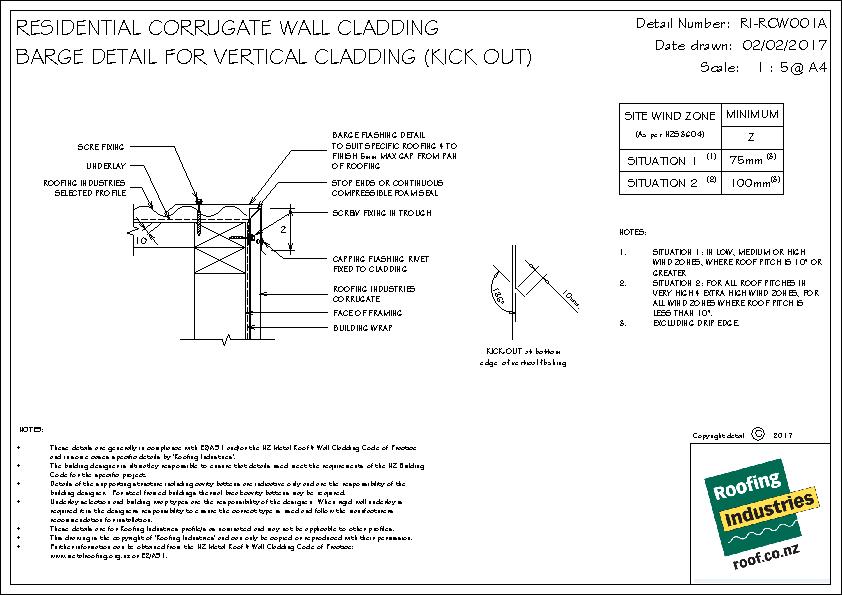

Corrugate Barge Detail for Vertical Cladding (Kick Out)

RI-RC-W001A

2017

dwg
pdf

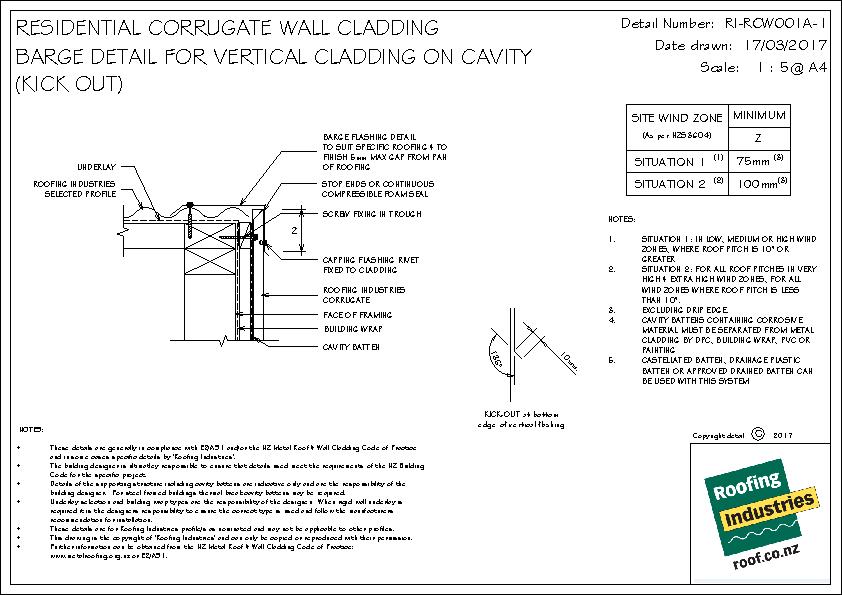

Corrugate Barge Detail for Vertical Cladding on Cavity (Kick Out)

RI-RC-W001A-1

2017

dwg
pdf

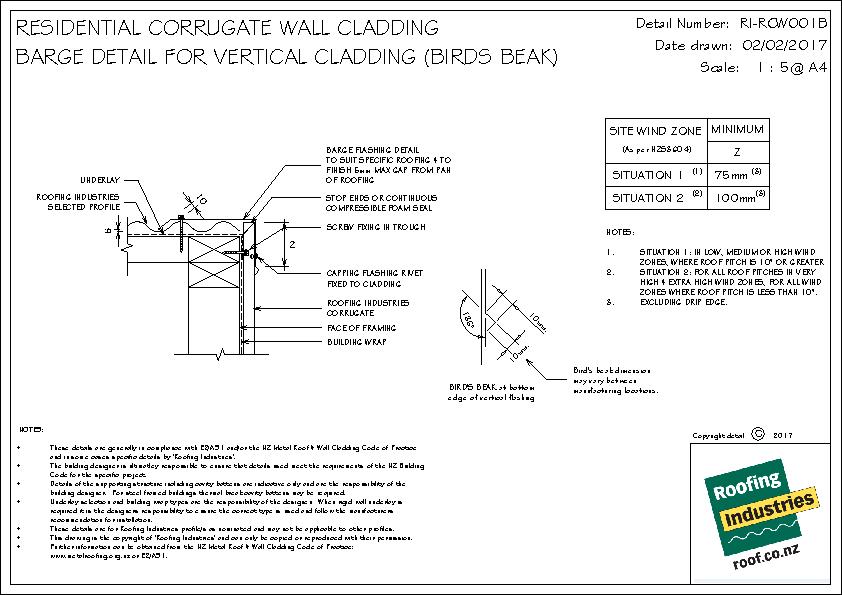

Corrugate Barge Detail for Vertical Cladding (Bird's Beak)

RI-RC-W001B

2017

dwg
pdf

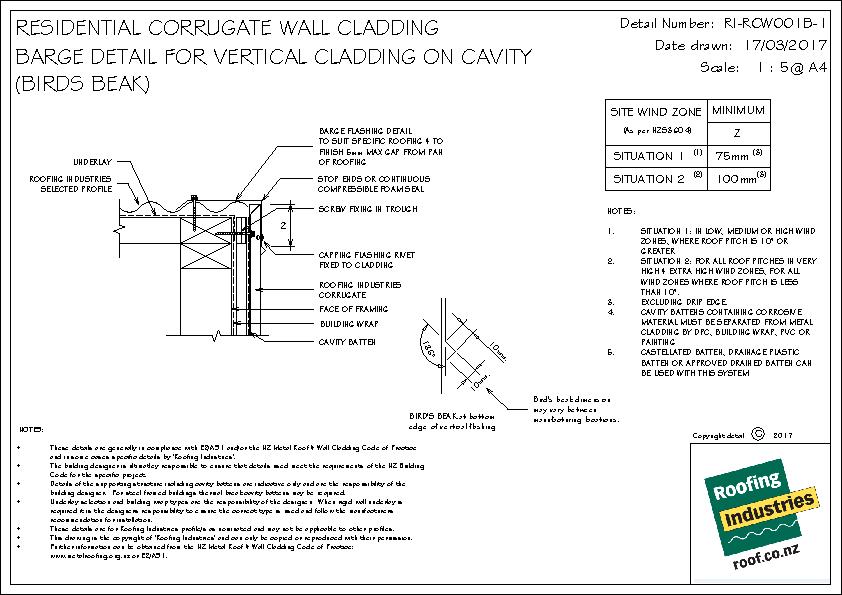

Corrugate Barge Detail for Vertical Cladding on Cavity (Bird's Beak)

RI-RC-W001B-1

2017

dwg
pdf

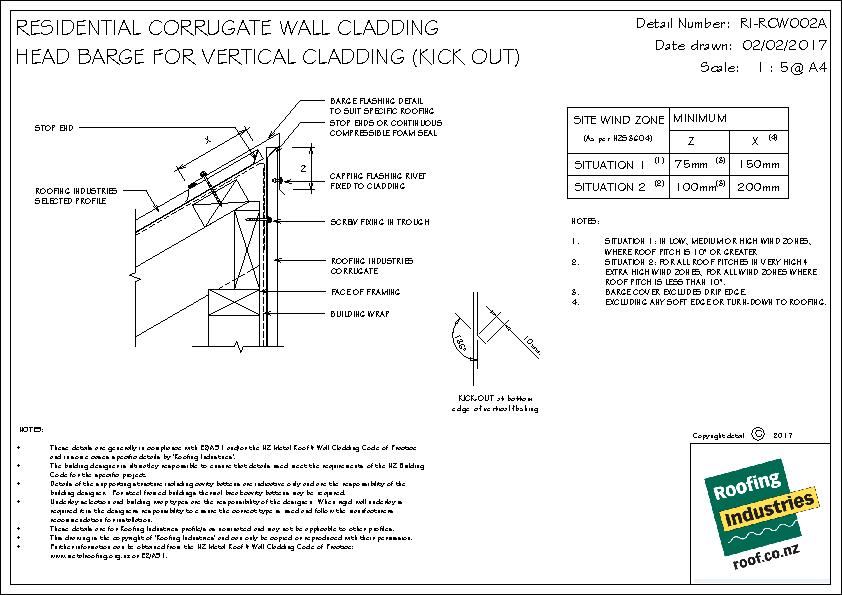

Corrugate Head Barge for Vertical Cladding (Kick Out)

RI-RC-W002A

2017

pdf

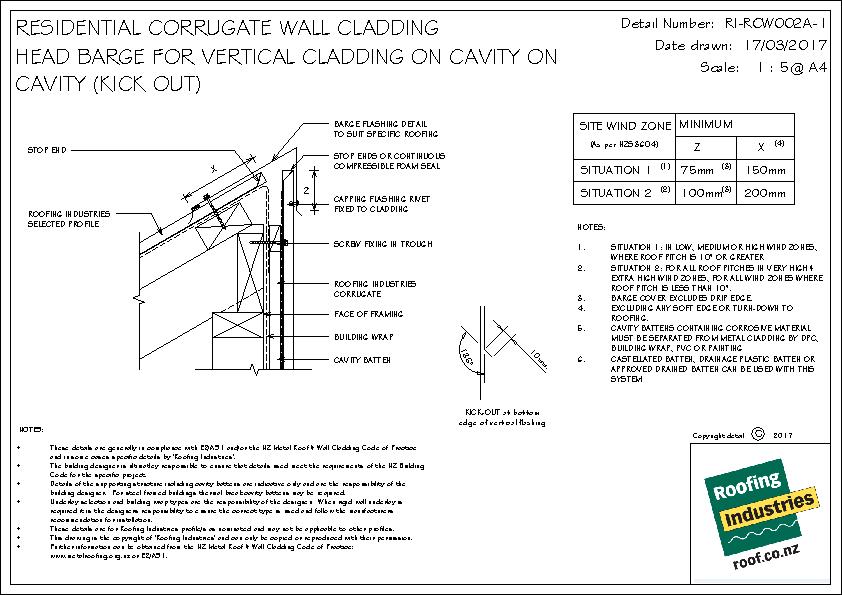

Corrugate Head Barge for Vertical Cladding on Cavity (Kick Out)

RI-RC-W002A-1

2017

dwg
pdf

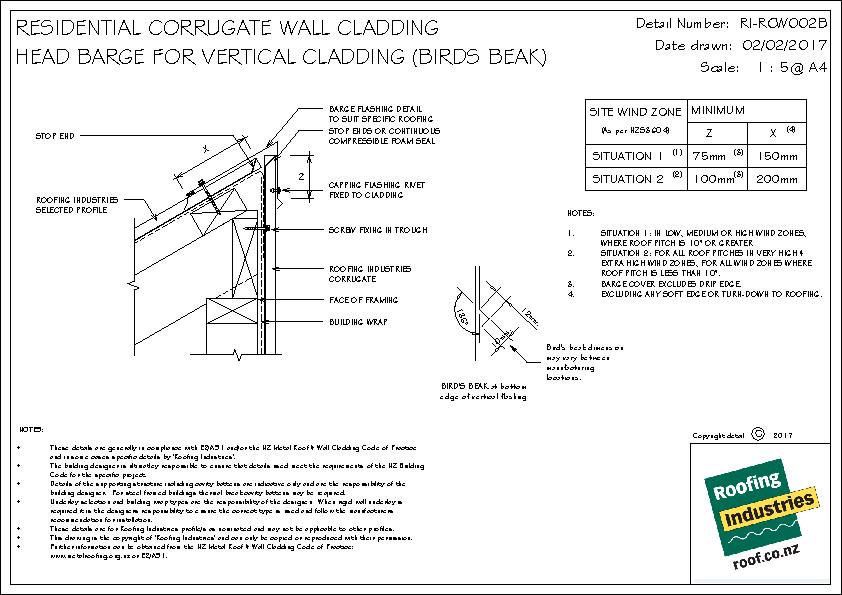

Corrugate Head Barge for Vertical Cladding (Bird's Beak)

RI-RC-W002B

2017

dwg
pdf

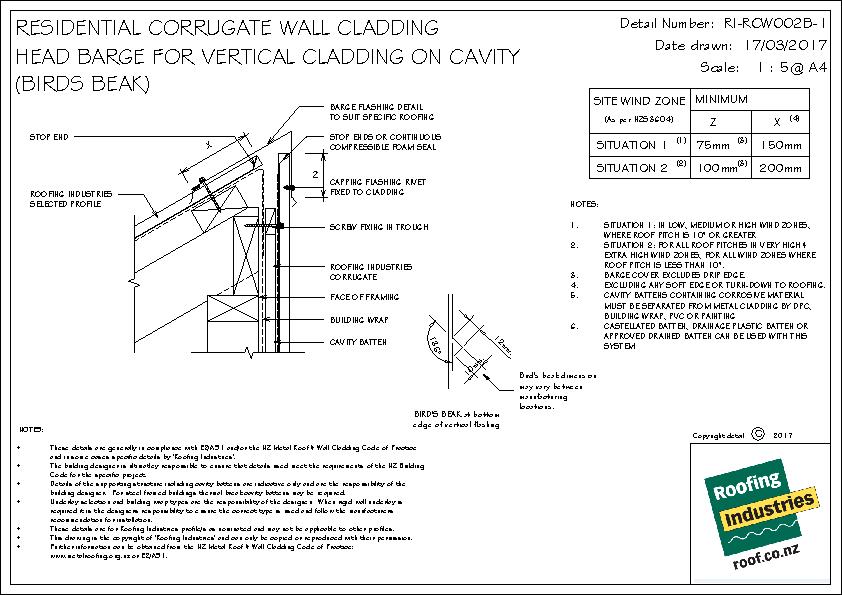

Corrugate Head Barge for Vertical Cladding on Cavity (Bird's Beak)

RI-RC-W002B-1

2017

dwg
pdf

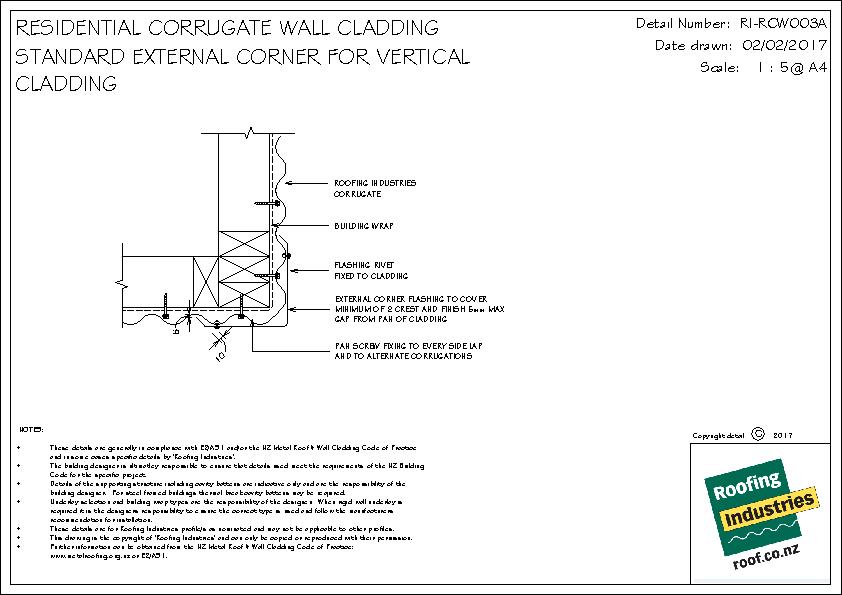

Corrugate Standard External Corner for Vertical Cladding

RI-RC-W003A

2017

dwg
pdf

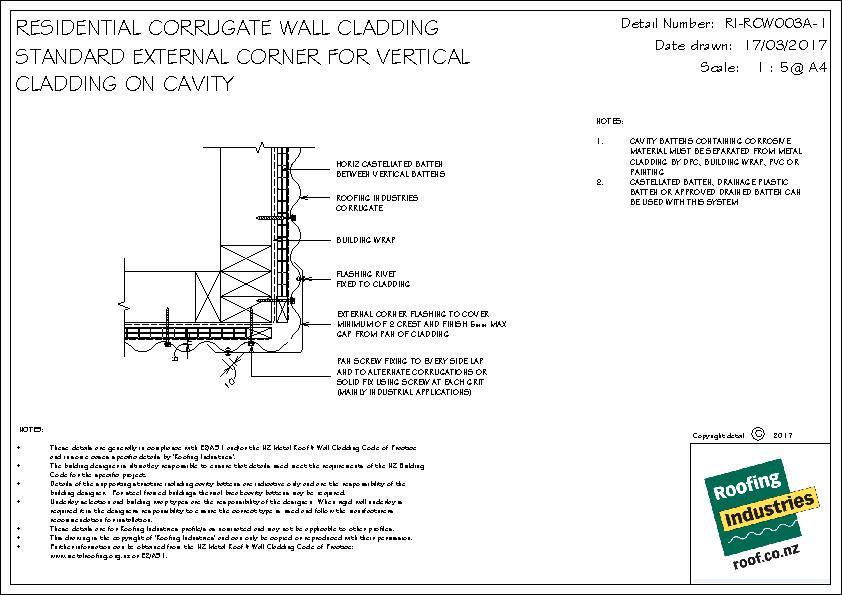

Corrugate Standard External Corner for Vertical Cladding on Cavity

RI-RC-W003A-1

2017

dwg
pdf

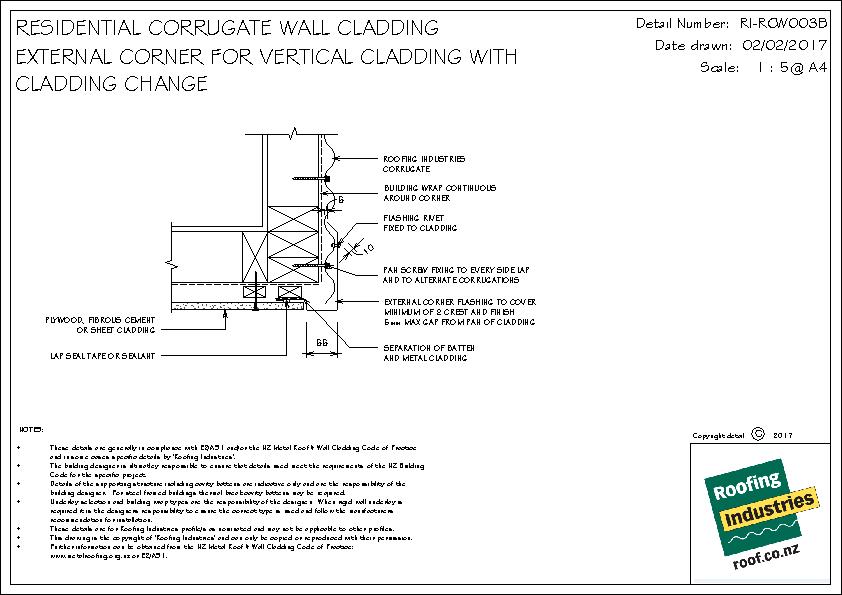

Corrugate External Corner for Vertical Cladding with Cladding Change

RI-RC-W003B

2017

dwg
pdf
RI-RCW003B-1-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-pdf.jpg

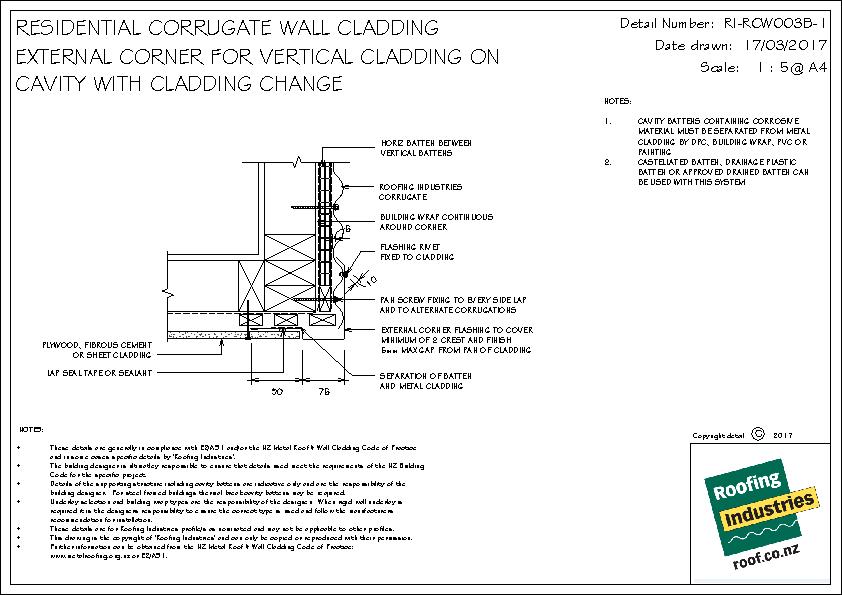

Corrugate External Corner for Vertical Cladding on Cavity with Cladding Change

RI-RC-W003B-1

2017

dwg
pdf

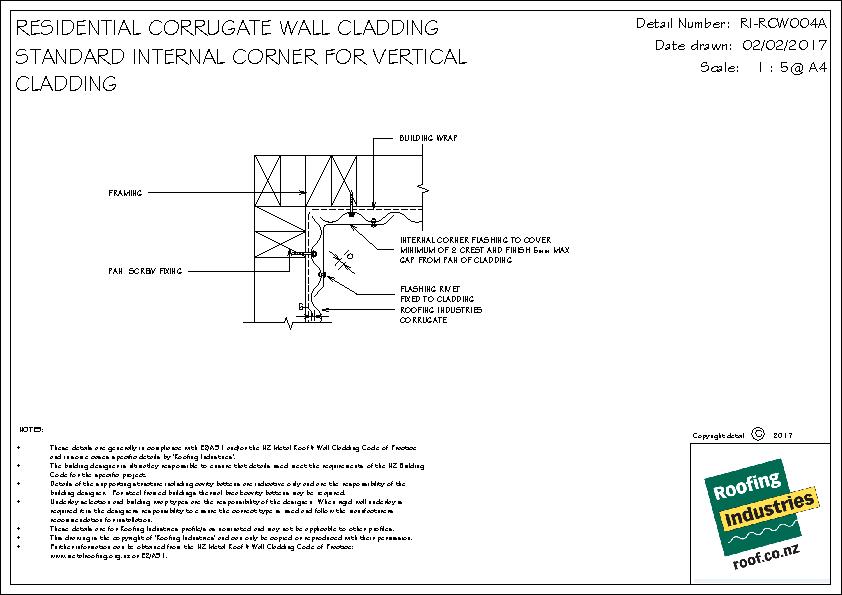

Corrugate Standard Internal Corner for Vertical Cladding

RI-RC-W004A

2017

dwg
pdf

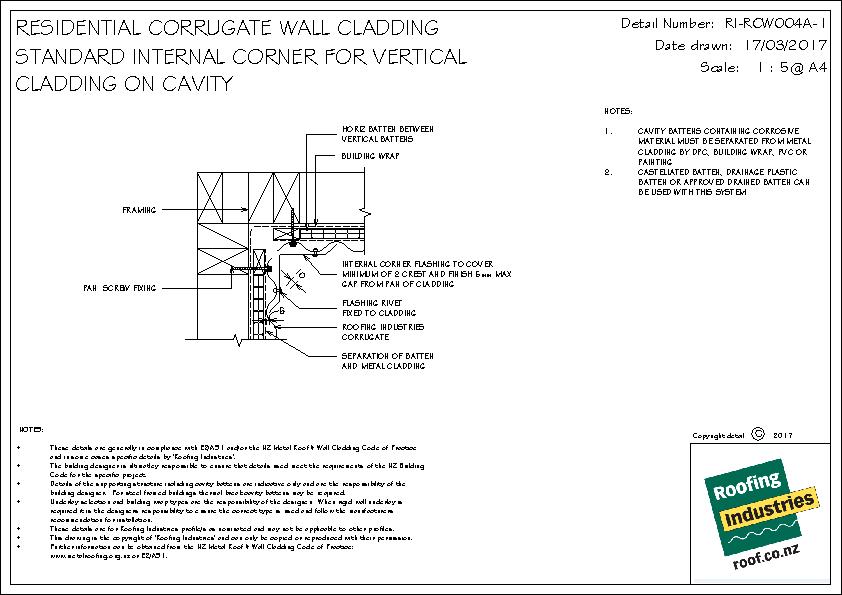

Corrugate Standard Internal Corner for Vertical Cladding on Cavity

RI-RC-W004A-1

2017

dwg
pdf

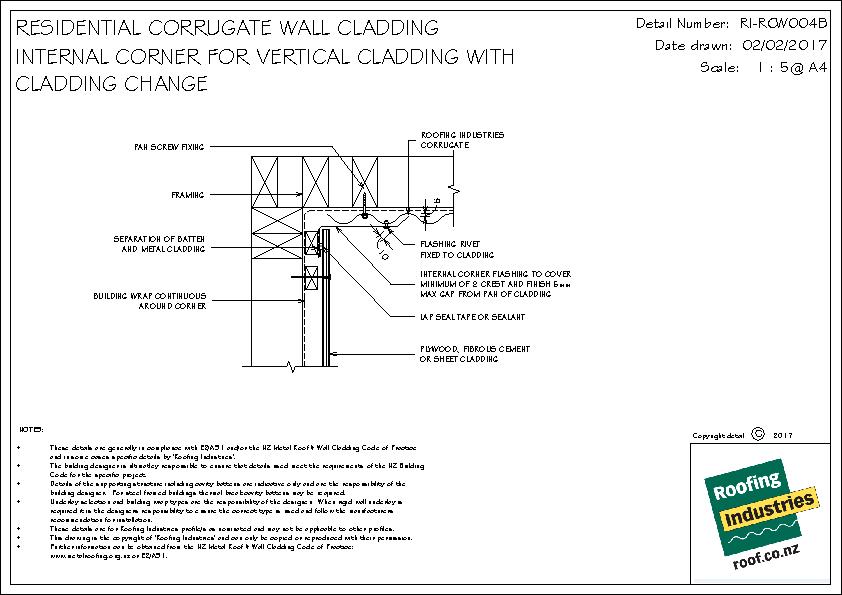

Corrugate Internal Corner for Vertical Cladding with Cladding Change

RI-RC-W004B

2017

dwg
pdf

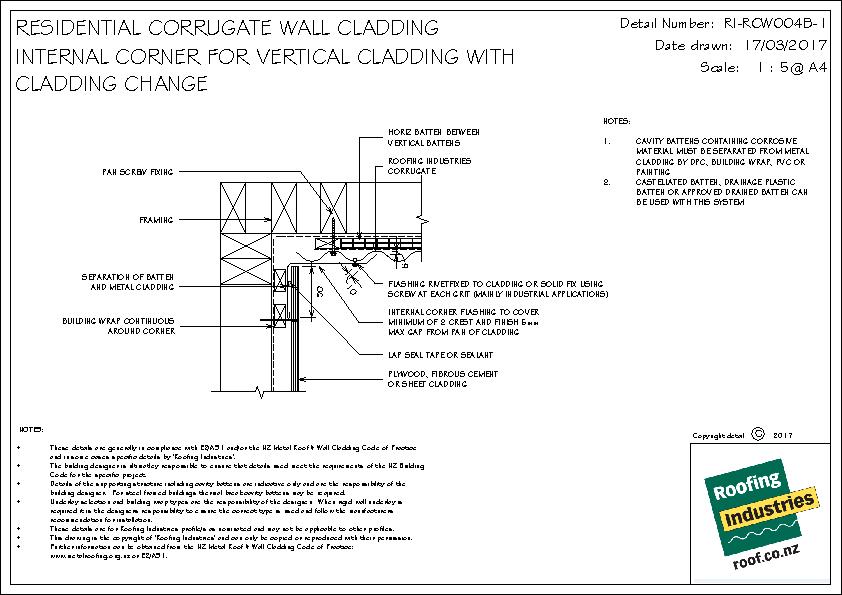

Corrugate Internal Corner for Vertical Cladding with Cladding Change (1)

RI-RC-W004B-1

2017

dwg
pdf

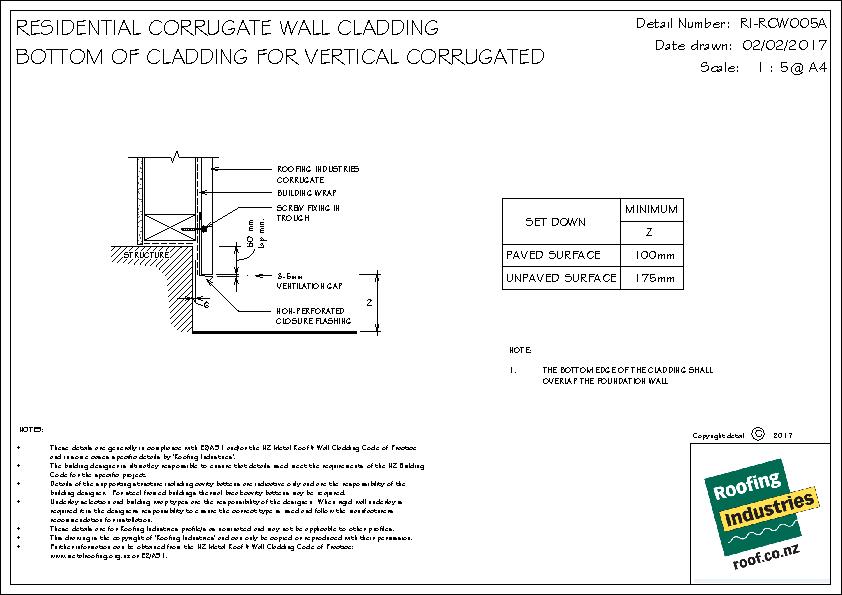

Corrugate Bottom of Cladding for Vertical Corrugated

RI-RC-W005A

2017

dwg
pdf

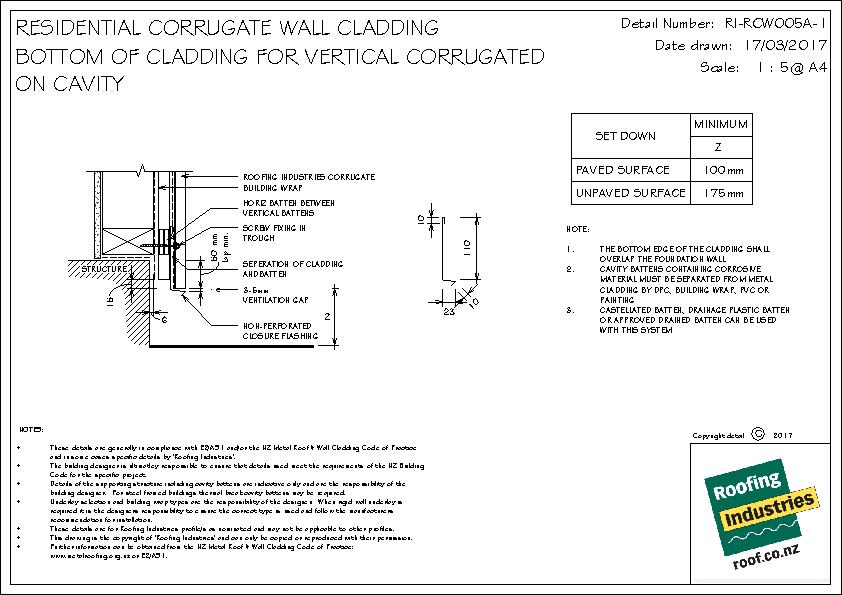

Corrugate Bottom of Cladding for Vertical Corrugated on Cavity

RI-RC-W005A-1

2017

dwg
pdf

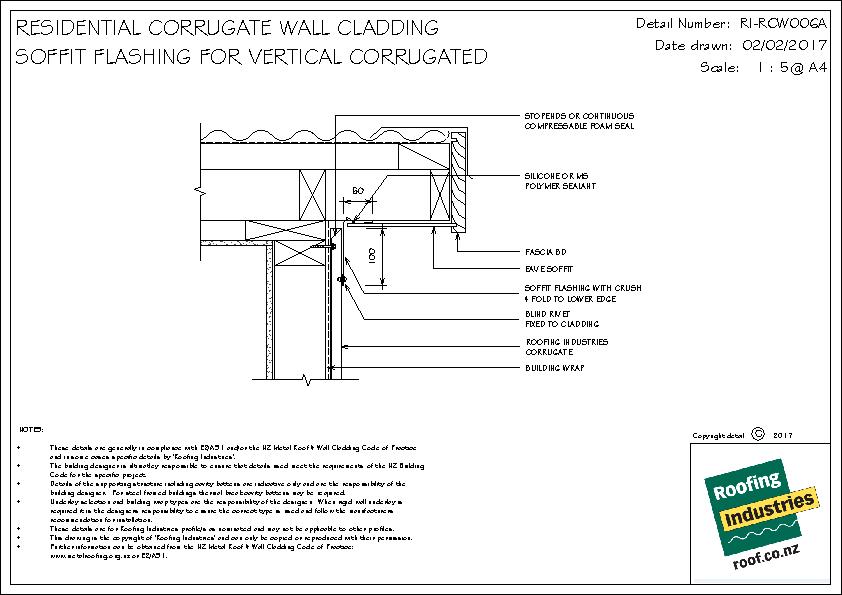

Corrugate Soffit Flashing for Vertical Corrugated

RI-RC-W006A

2017

dwg
pdf
Corrugate Soffit Flashing for Vertical Corrugated on Cavity

RI-RC-W006A-1

2017

dwg
pdf

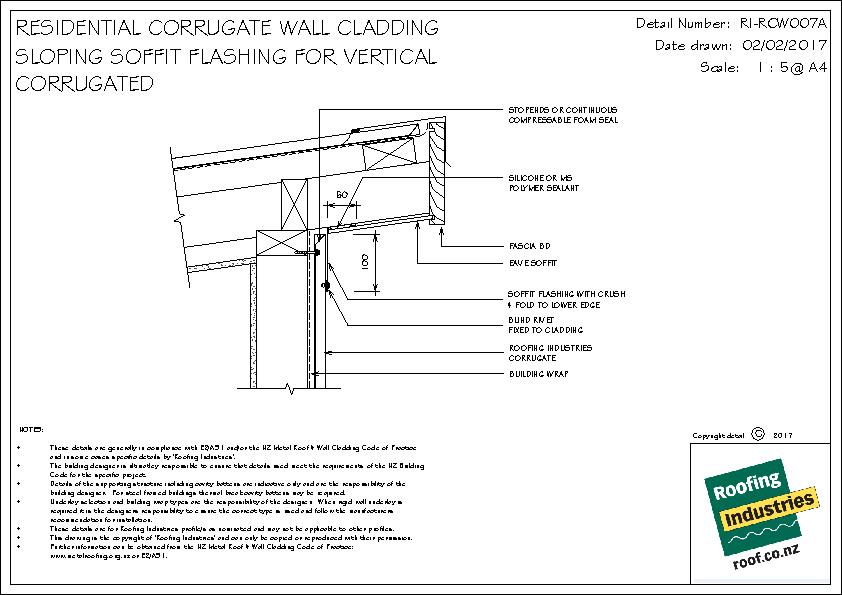

Corrugate Sloping Soffit Flashing for Vertical Corrugate

RI-RC-W007A

2017

dwg
pdf

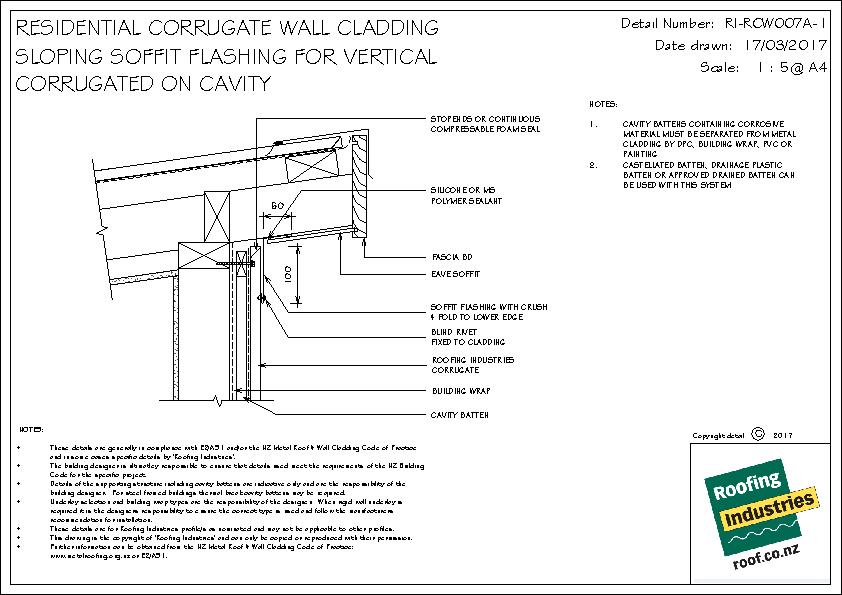

Corrugate Sloping Soffit Flashing for Vertical Corrugate on Cavity

RI-RC-W007A-1

2017

dwg
pdf

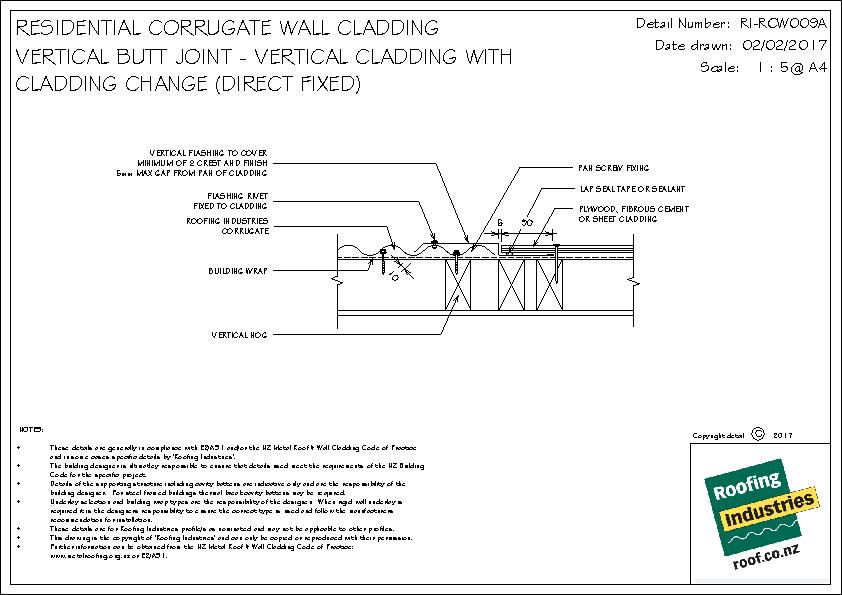

RI-RCW009A-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg
Corrugate Vertical Butt Joint Vertical Cladding with Cladding Change (Direct Fix)

RI-RC-W009A

2017

dwg
pdf
RI-RCW009A-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg

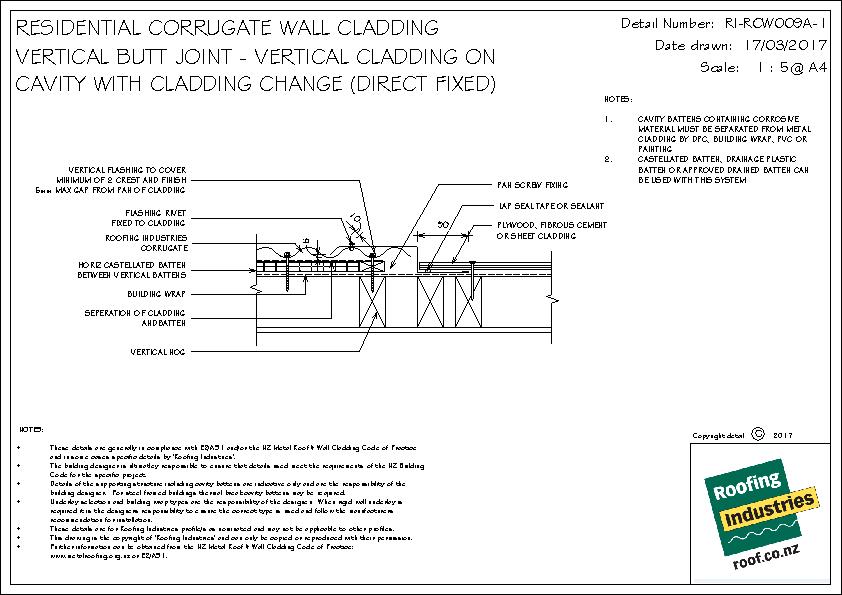

Corrugate Vertical Butt Joint Vertical Cladding on Cavity with Cladding Change (Direct Fix)

RI-RC-W009A-1

2017

dwg
pdf

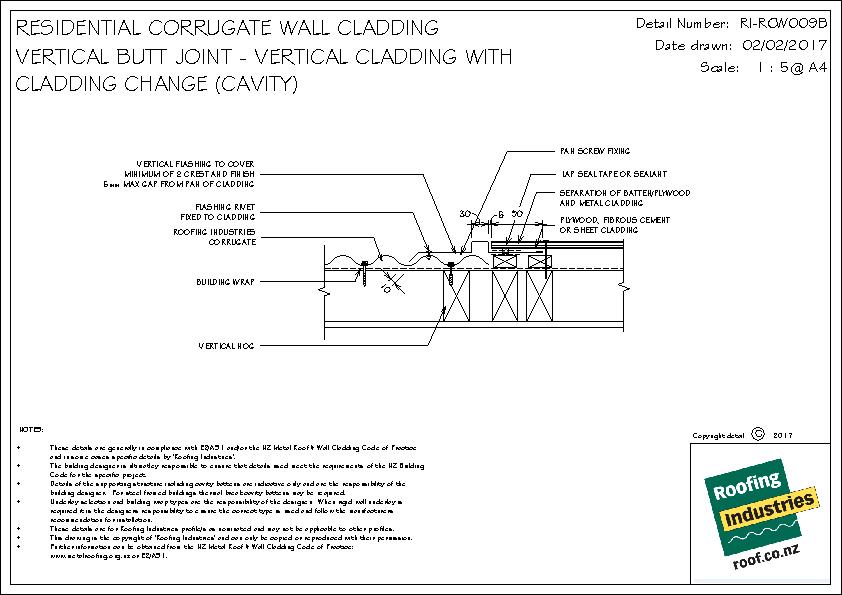

Corrugate Vertical Butt Joint Vertical Cladding with Cladding Change (Cavity)

RI-RC-W009B

2017

dwg
pdf
RI-RCW009B-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg

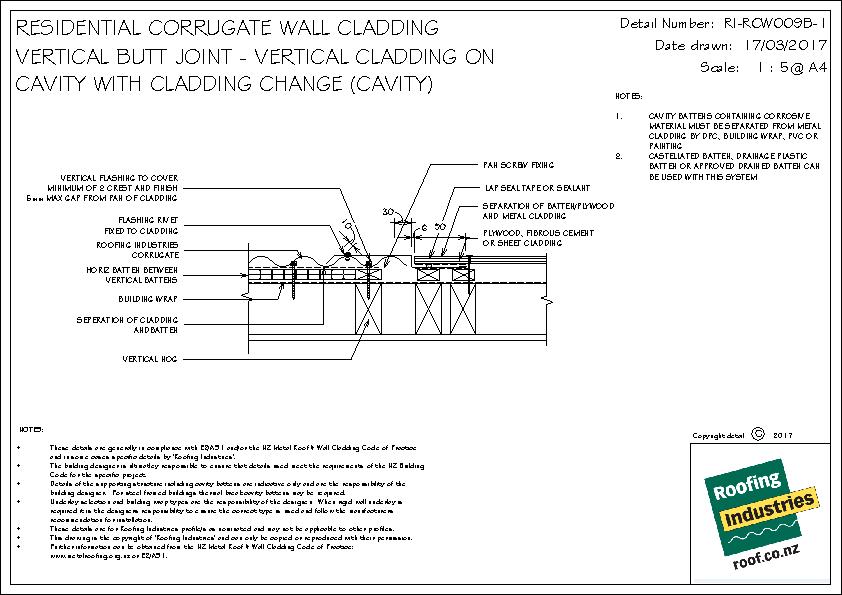

Corrugate Vertical Butt Joint Vertical Cladding on Cavity with Cladding Change (Cavity)

RI-RC-W009B-1

2017

dwg
pdf
Corrugate Vertical Cladding Junction Flashing

RI-RC-W010A

2017

dwg
pdf

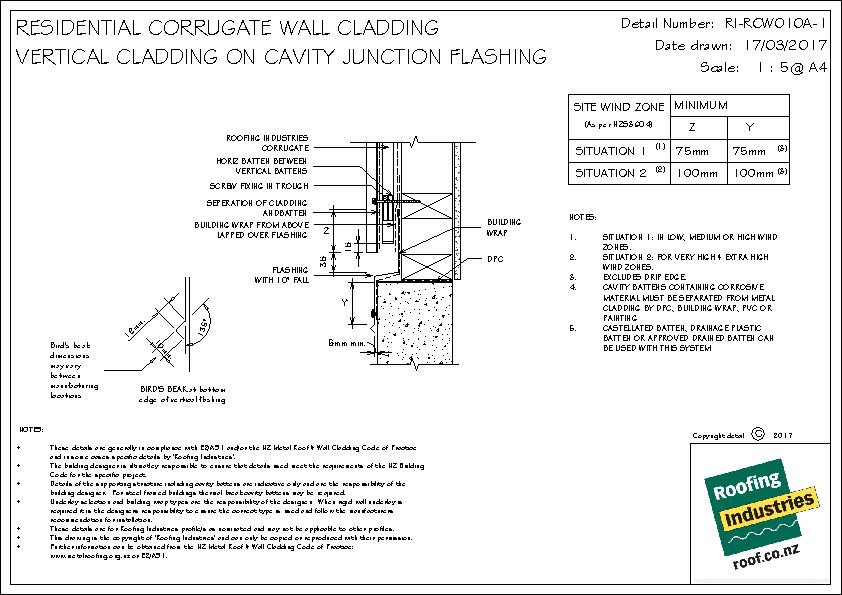

Corrugate Vertical Cladding on Cavity Junction Flashing

RI-RC-W010A-1

2017

dwg
pdf

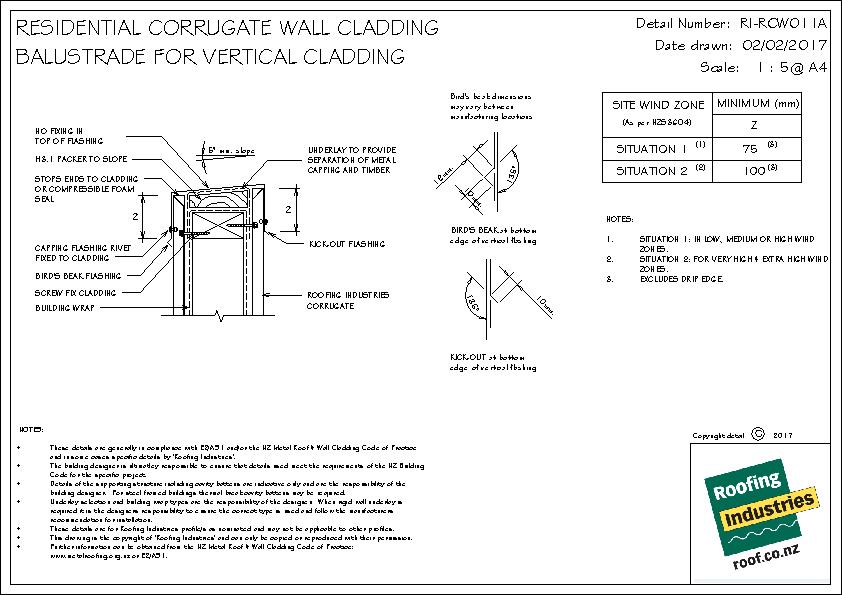

Corrugate Balustrade for Vertical Cladding

RI-RC-W011A

2017

dwg
pdf

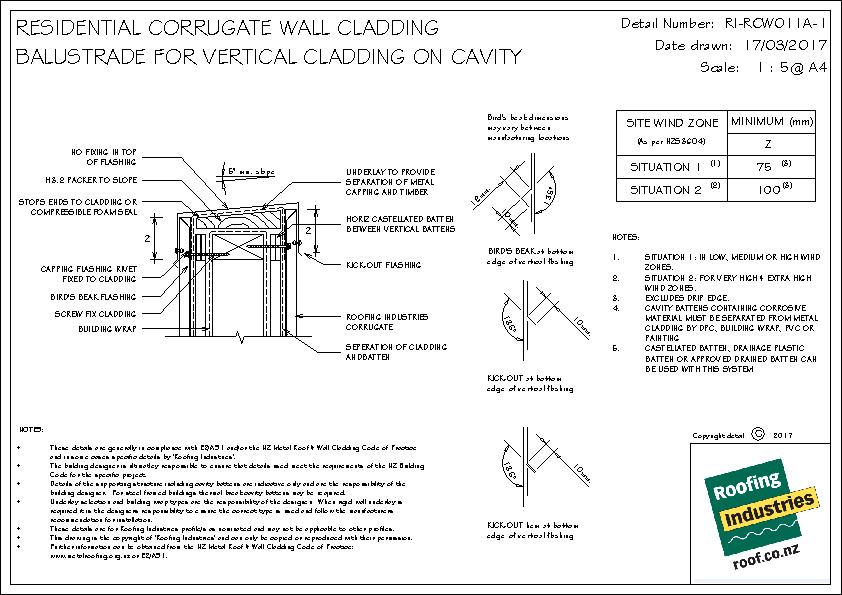

Corrugate Balustrade for Vertical Cladding on Cavity

RI-RC-W011A-1

2017

dwg
pdf

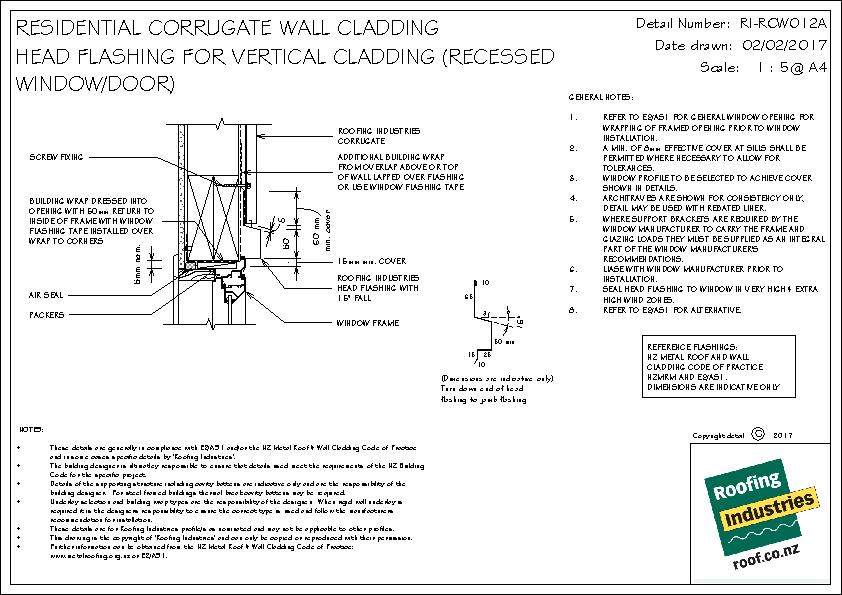

Corrugate Head Flashing for Vertical Cladding (Recessed Window/Door)

RI-RC-W012A

2017

dwg
pdf

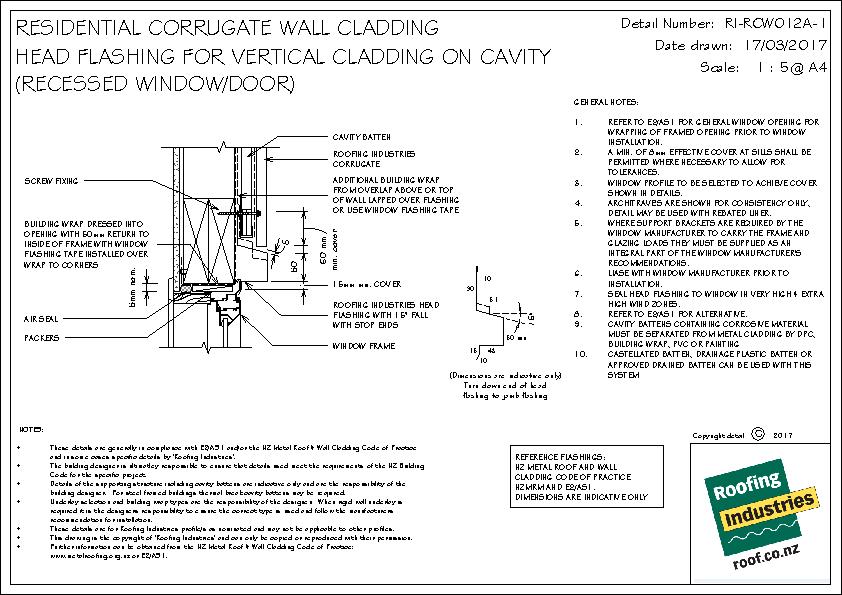

RI-RCW012A-1-HEAD-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Corrugate Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RC-W012A-1

2017

dwg
pdf

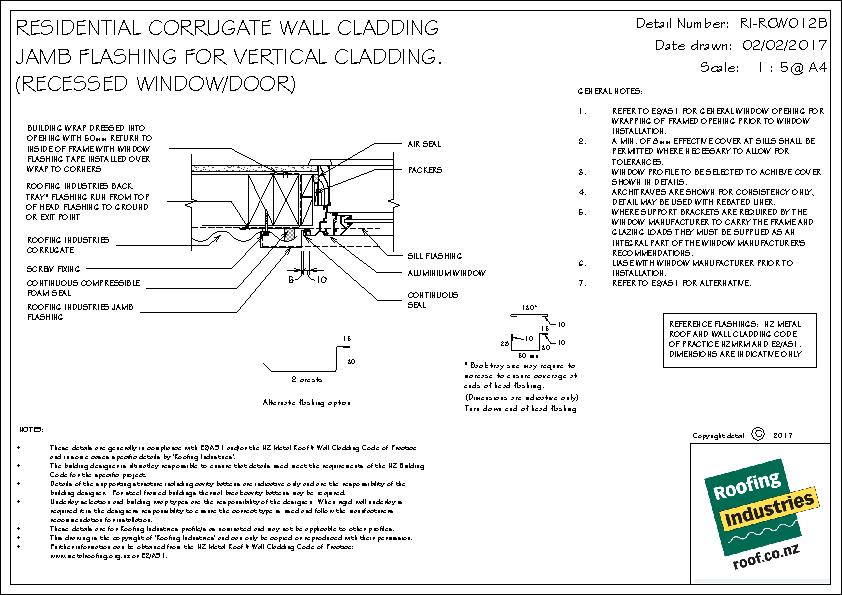

Corrugate Jamb Flashing for Vertical Cladding (Recessed Window/Door)

RI-RC-W012B

2017

dwg
pdf
RI-RCW012B-1-JAMB-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg

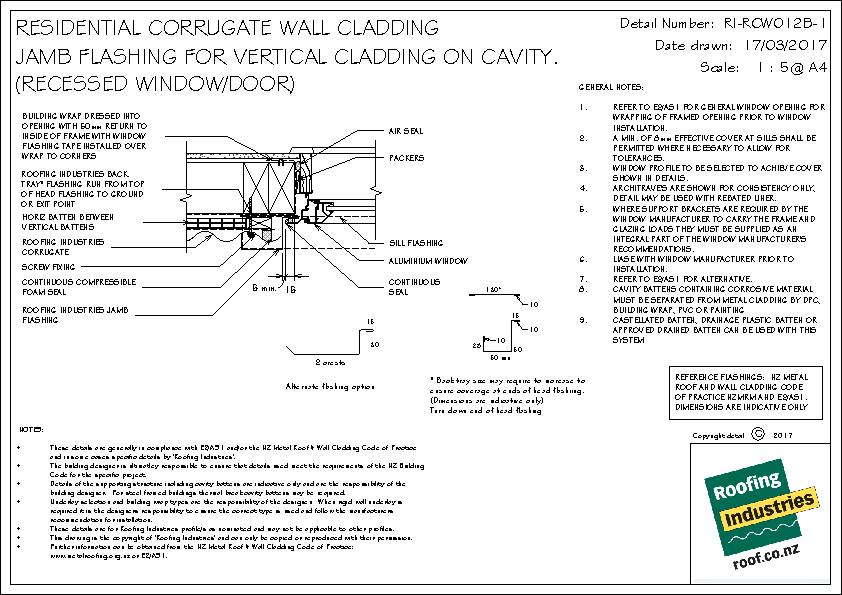

Corrugate Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RC-W012B-1

2017

dwg
pdf

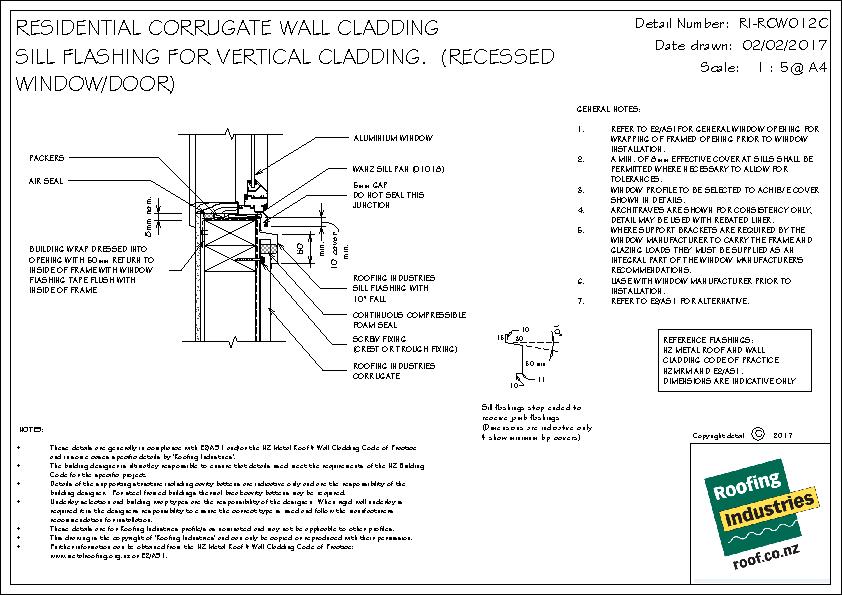

Corrugate Sill Flashing for Vertical Cladding (Recessed Window/Door)

RI-RC-W012C

2017

dwg
pdf

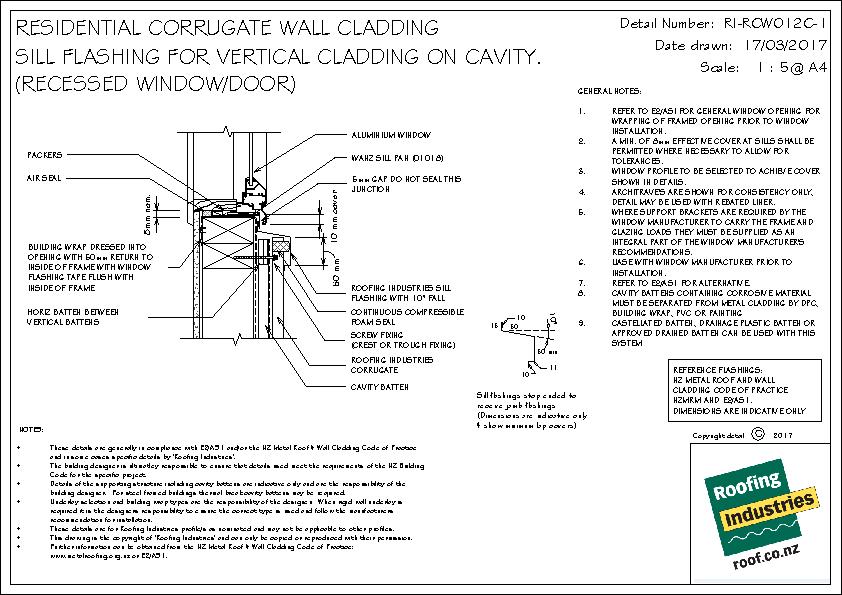

RI-RCW012C-1-SILL-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Corrugate Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RC-W012C-1

2017

dwg
pdf

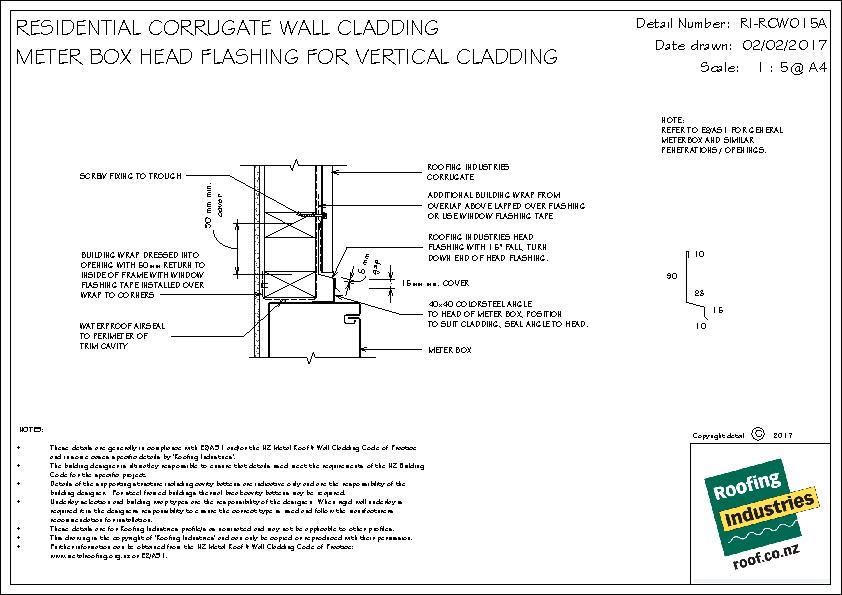

Corrugate Meter Box Head Flashing for Vertical Cladding

RI-RC-W015A

2017

dwg
pdf

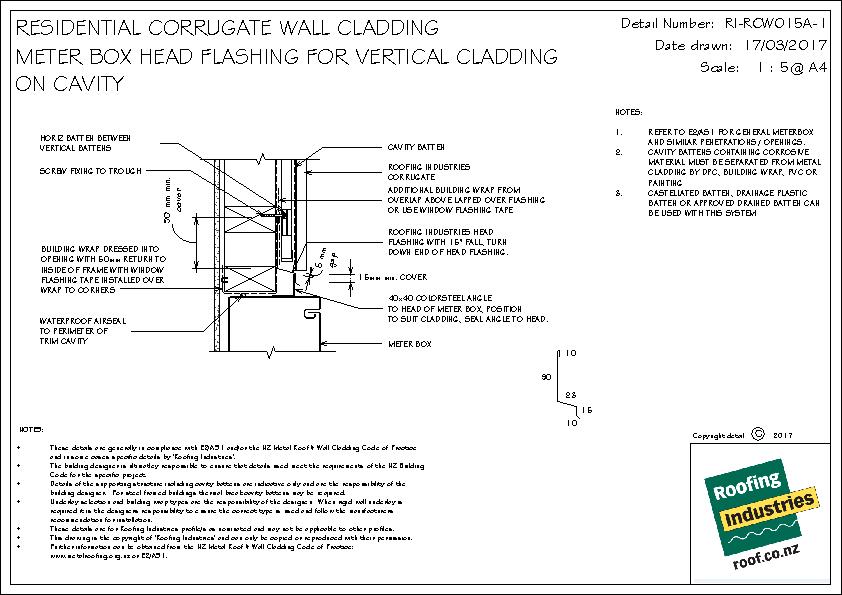

Corrugate Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RC-W015A-1

2017

dwg
pdf

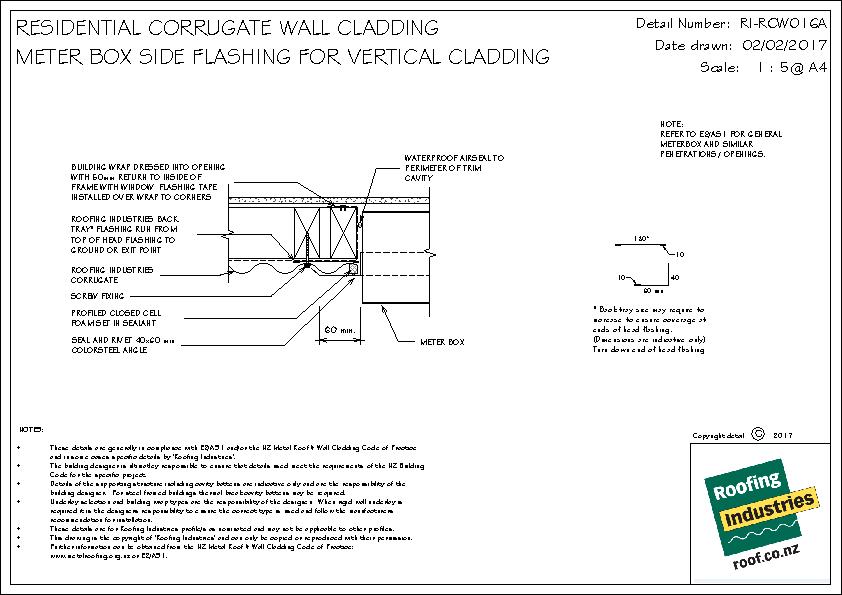

Corrugate Meter Box Side Flashing for Vertical Cladding

RI-RC-W016A

2017

dwg
pdf

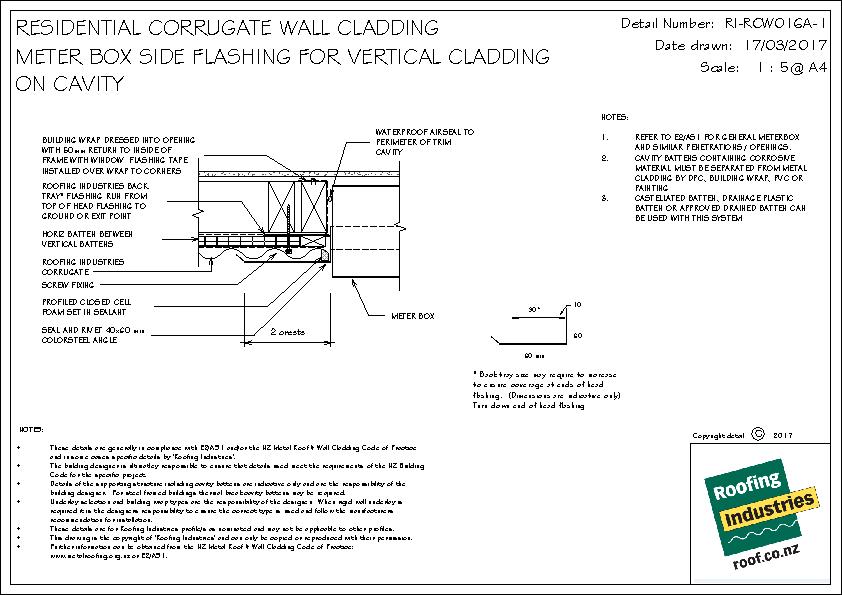

Corrugate Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RC-W016A-1

2017

dwg
pdf

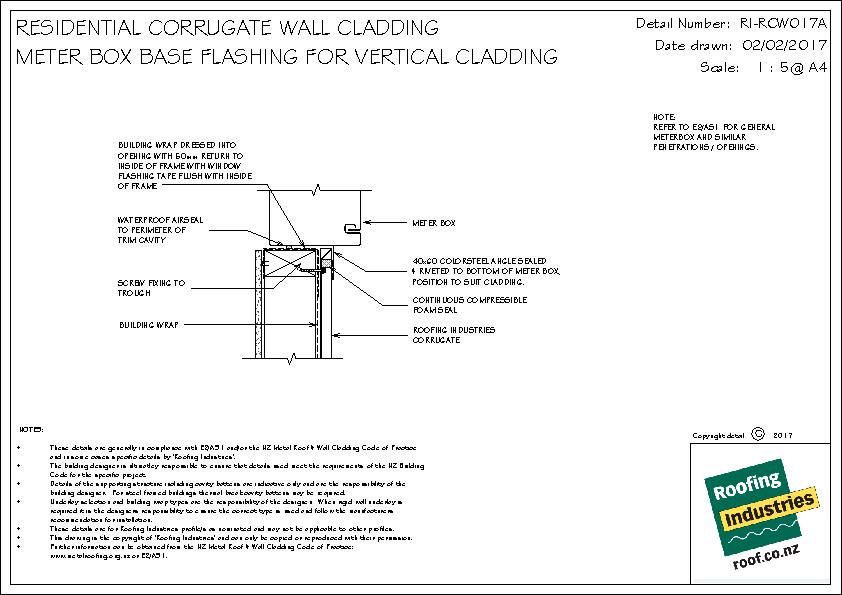

Corrugate Meter Box Base Flashing for Vertical Cladding

RI-RC-W017A

2017

dwg
pdf

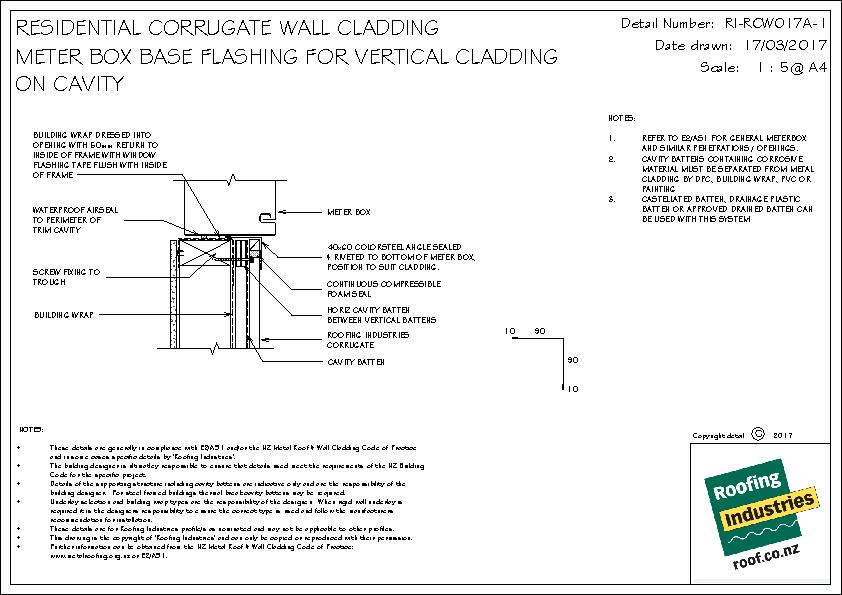

Corrugate Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RC-W017A-1

2017

dwg
pdf

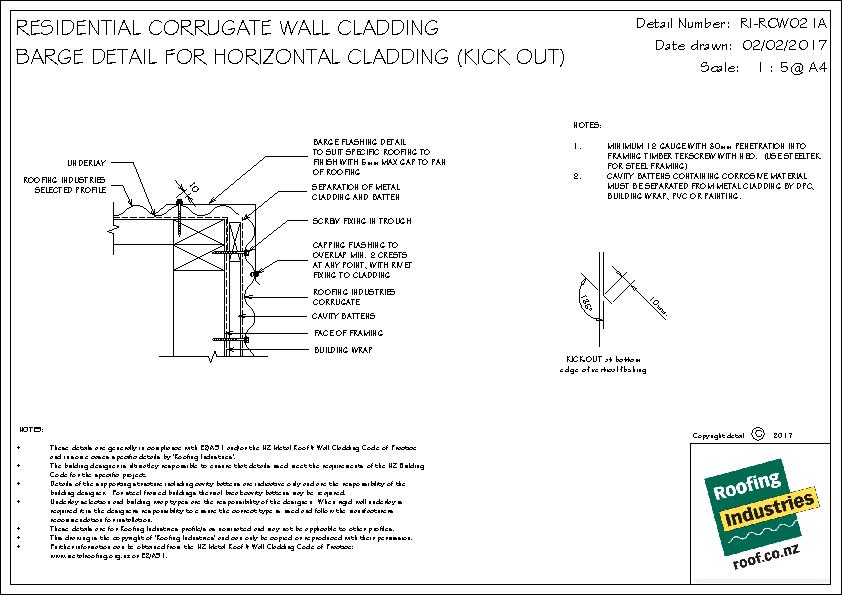

Corrugated Barge Detail for Horizontal Cladding (Kick Out)

RI-RC-W021A

2017

dwg
pdf

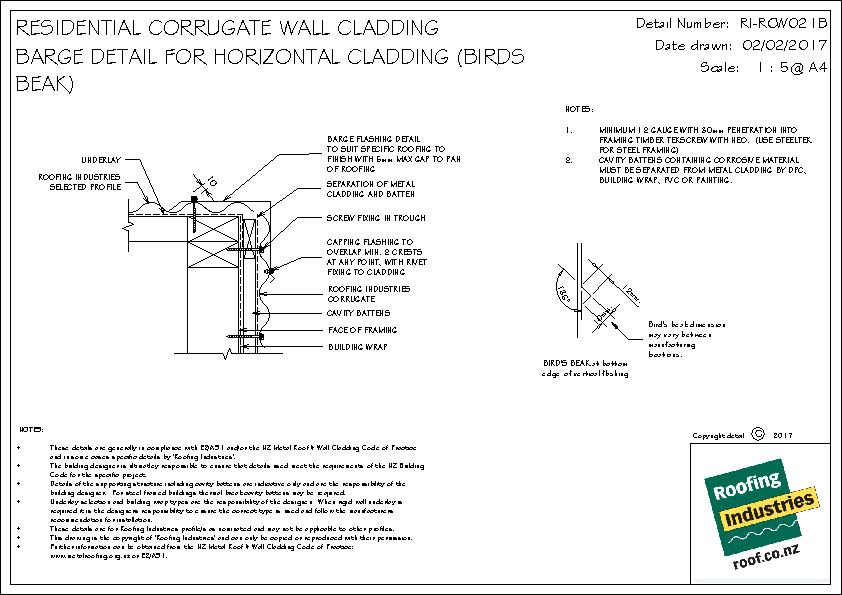

Corrugate Barge Detail for Horizontal Cladding (Bird's Beak)

RI-RC-W021B

2017

dwg
pdf

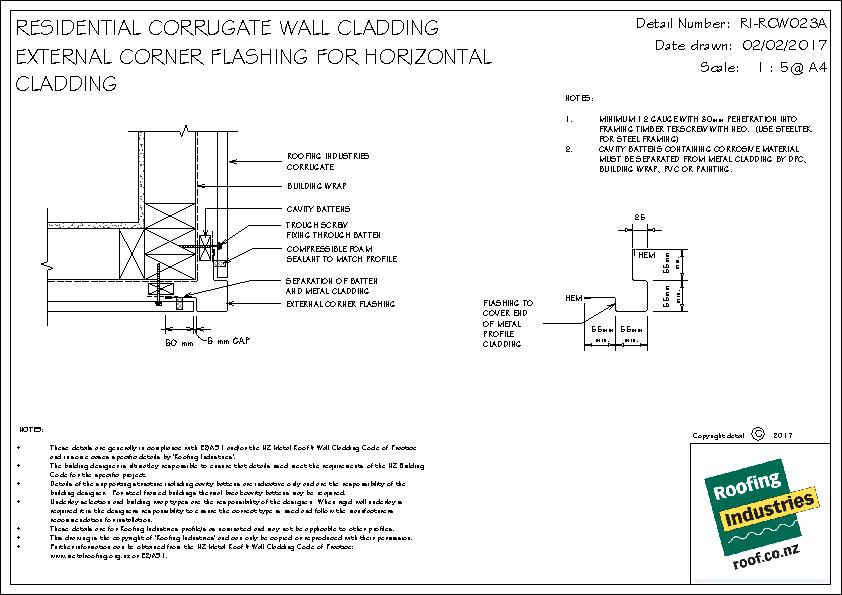

Corrugate External Corner Flashing for Horizontal Cladding

RI-RC-W023A

2017

dwg
pdf

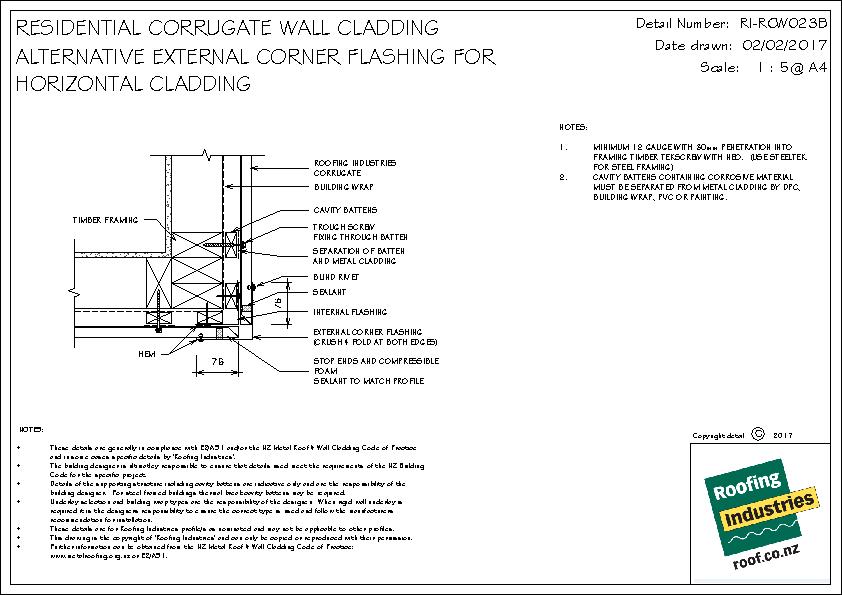

Corrugate Alternative External Corner Flashing for Horizontal Cladding

RI-RC-W023B

2017

dwg
pdf

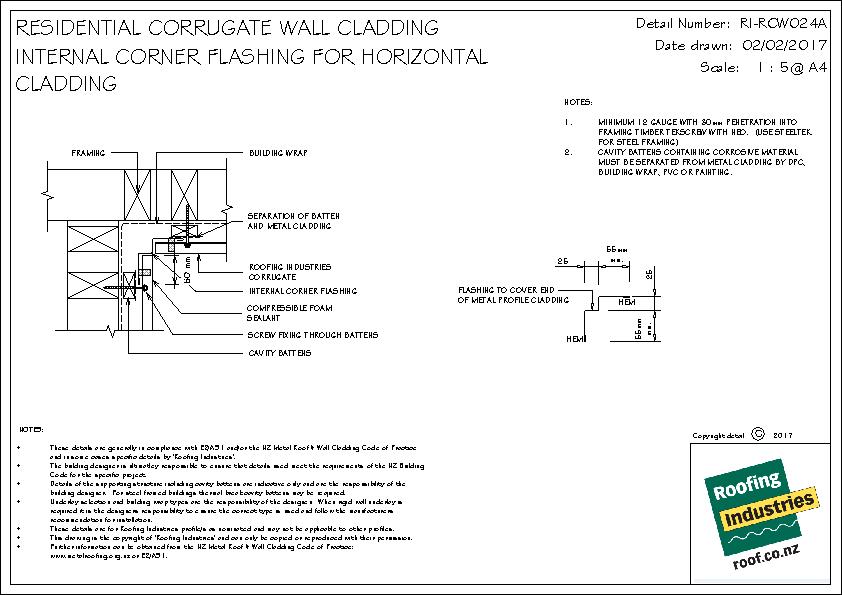

Corrugate Internal Corner Flashing for Horizontal Cladding

RI-RC-W024A

2017

dwg
pdf

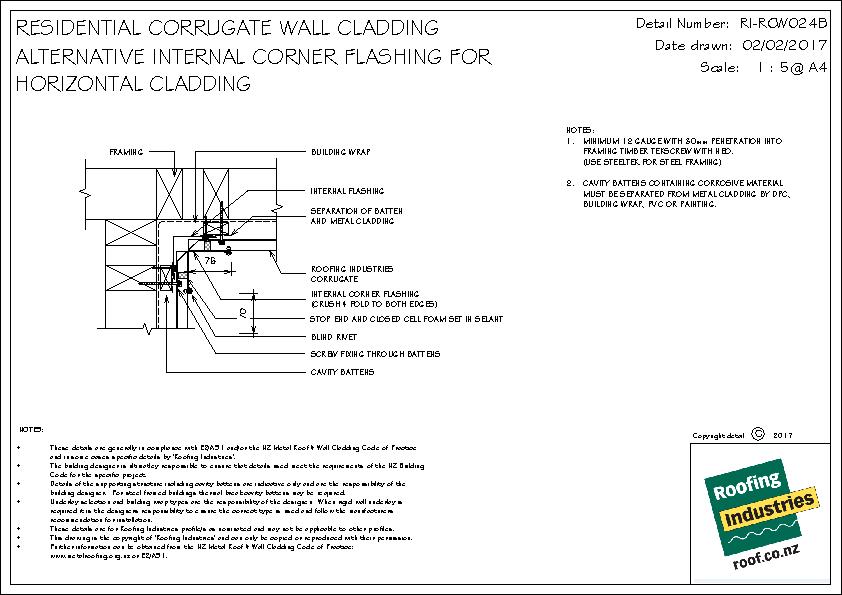

Corrugate Alternative Internal Corner Flashing for Horizontal Cladding

RI-RC-W024B

2017

dwg
pdf

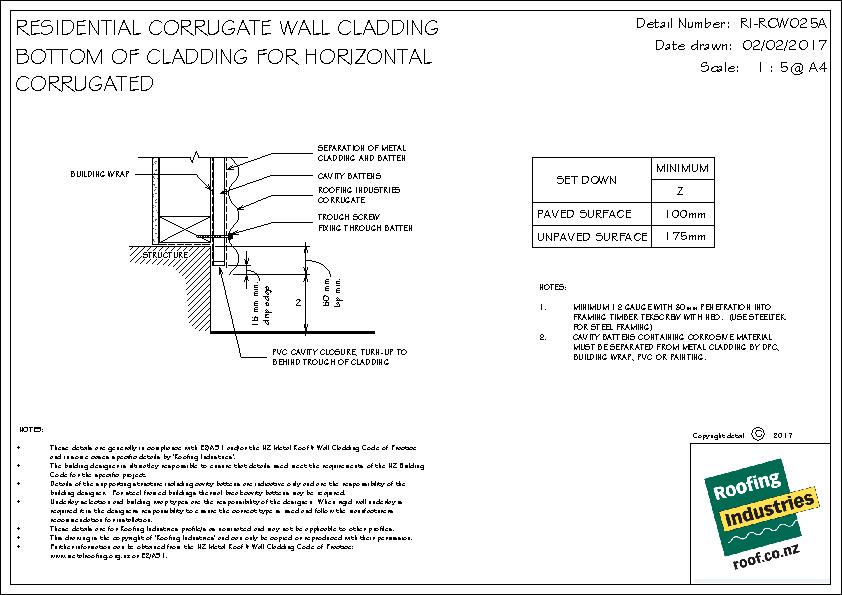

Corrugate Bottom of Cladding for Horizontal Corrugated

RI-RC-W025A

2017

dwg
pdf

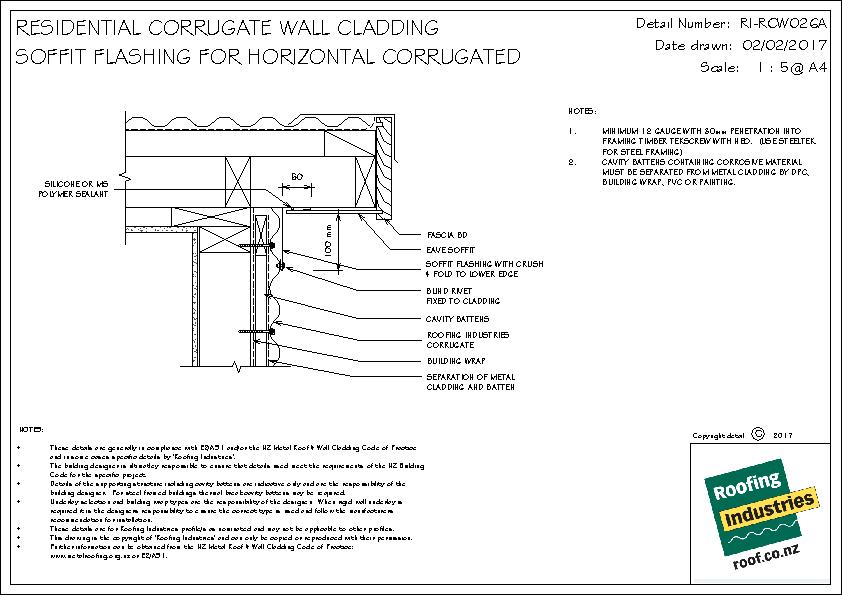

Corrugate Soffit Flashing for Horizontal Corrugated

RI-RC-W026A

2017

dwg
pdf

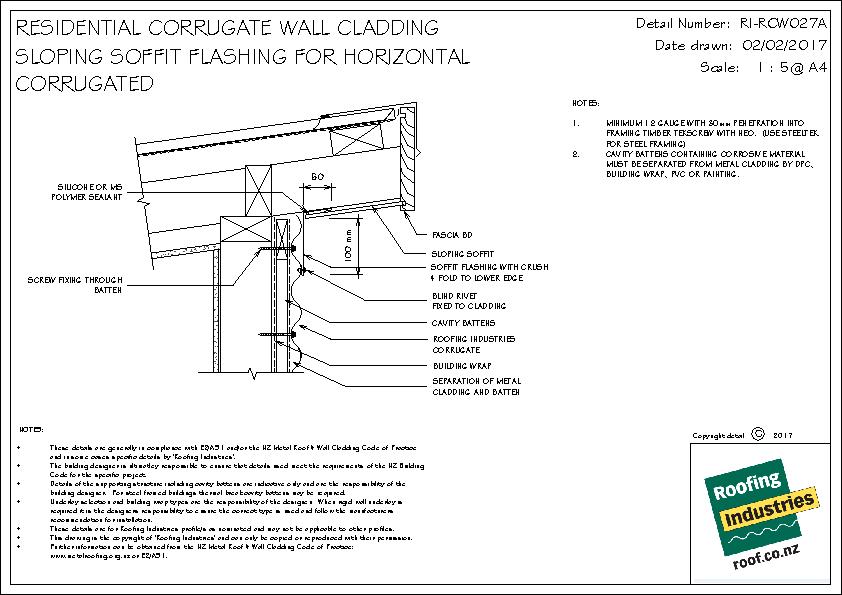

Corrugate Sloping Soffit Flashing for Horizontal Corrugated

RI-RC-W027A

2017

dwg
pdf

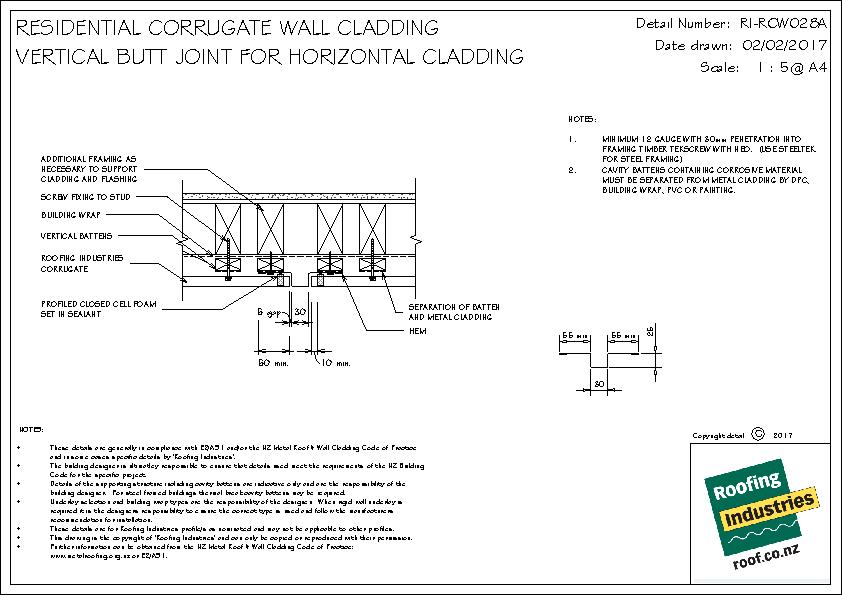

Corrugate Vertical Butt Joint for Horizontal Cladding

RI-RC-W028A

2017

dwg
pdf

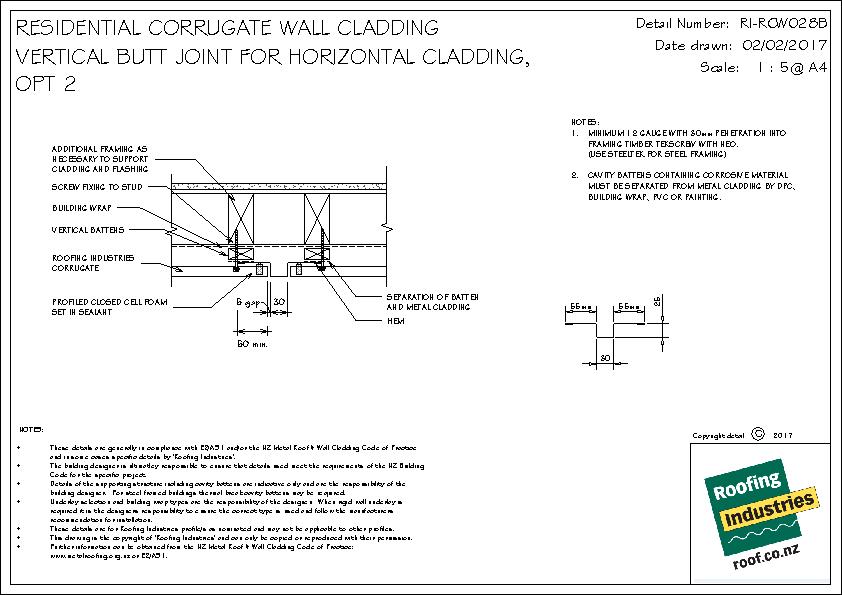

Corrugate Vertical Butt Joint for Horizontal Cladding (Option 2)

RI-RC-W028B

2017

dwg
pdf
RI-RCW029A-VERTICAL-BUTT-JOINT-FOR-HORIZONTAL-CLADDING-TO-ALTERNATIVE-CLADDING-UP-TO-25MM-pdf.jpg

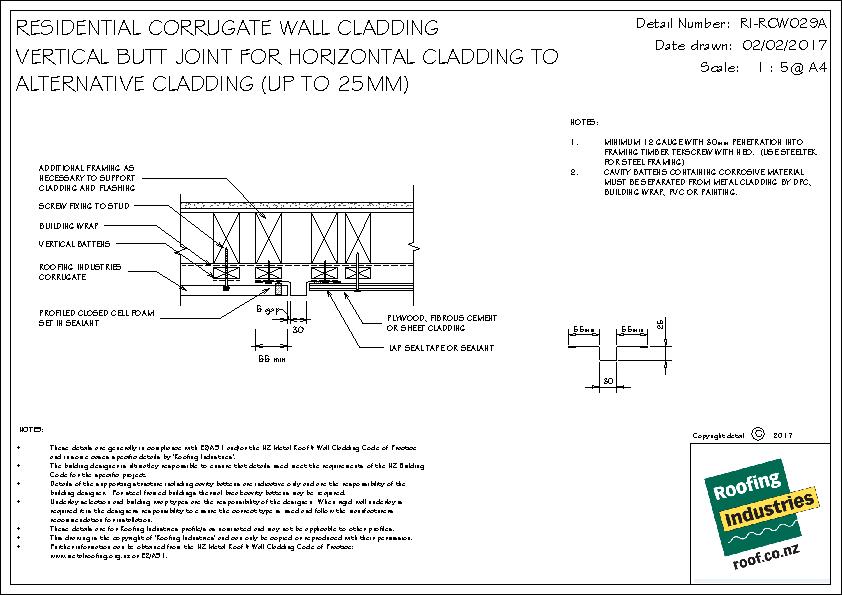

Corrugate Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25mm)

RI-RC-W029A

2017

dwg
pdf

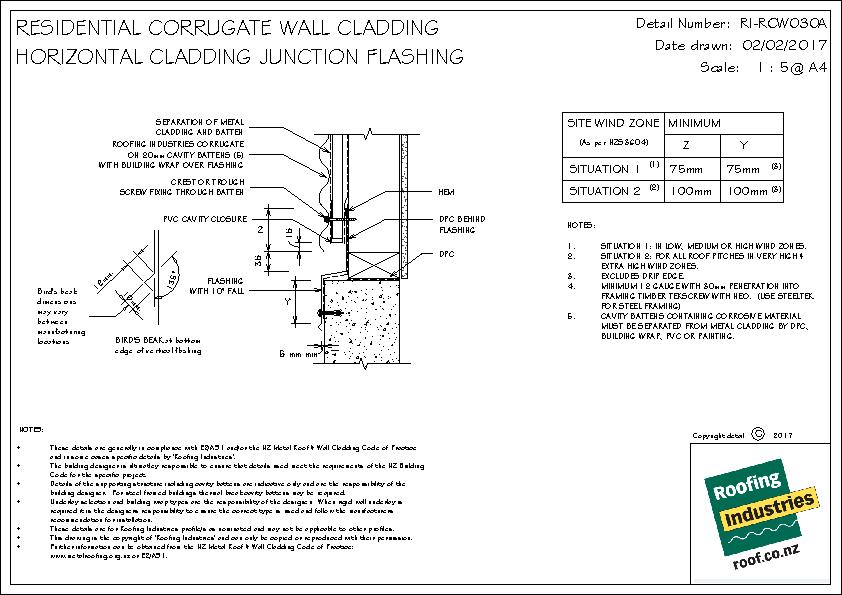

Corrugate Horizontal Cladding Junction Flashing

RI-RC-W030A

2017

dwg
pdf

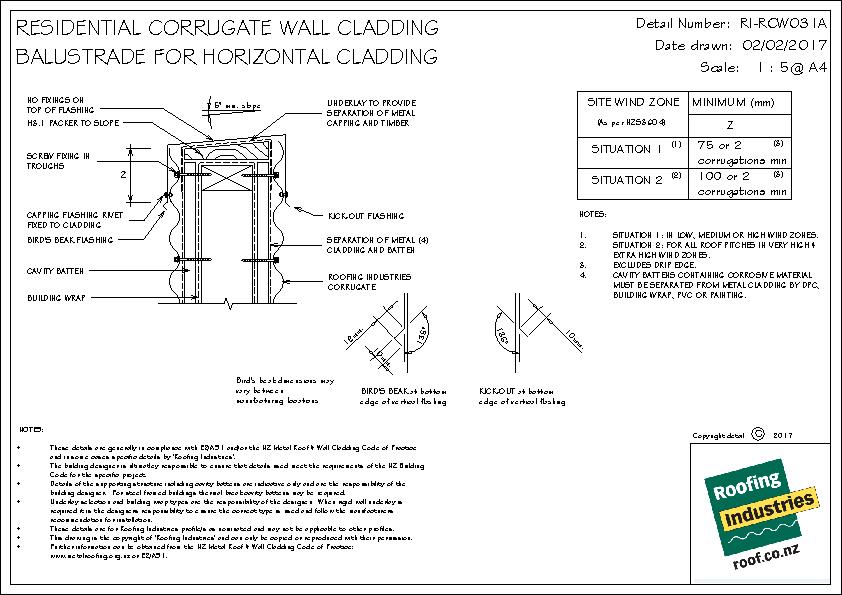

Corrugate Balustrade for Horizontal Cladding

RI-RC-W031A

2017

dwg
pdf

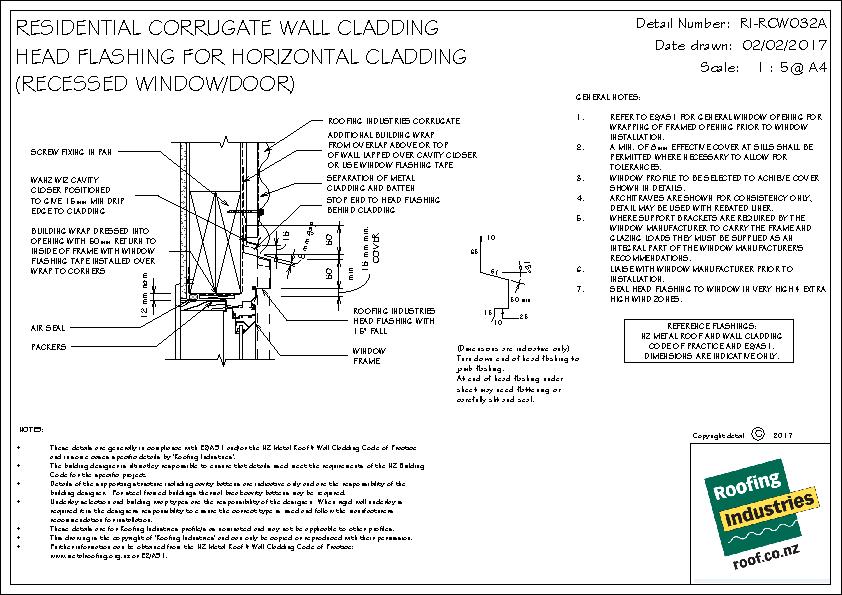

Corrugate Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RC-W032A

2017

dwg
pdf

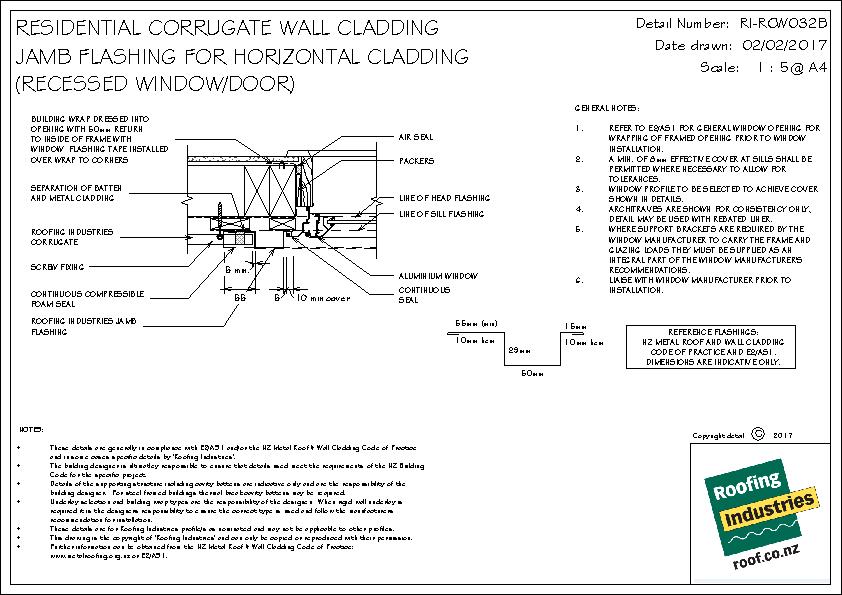

Corrugate Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RC-W032B

2017

dwg
pdf
Corrugate Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RC-W032C

2017

dwg
pdf

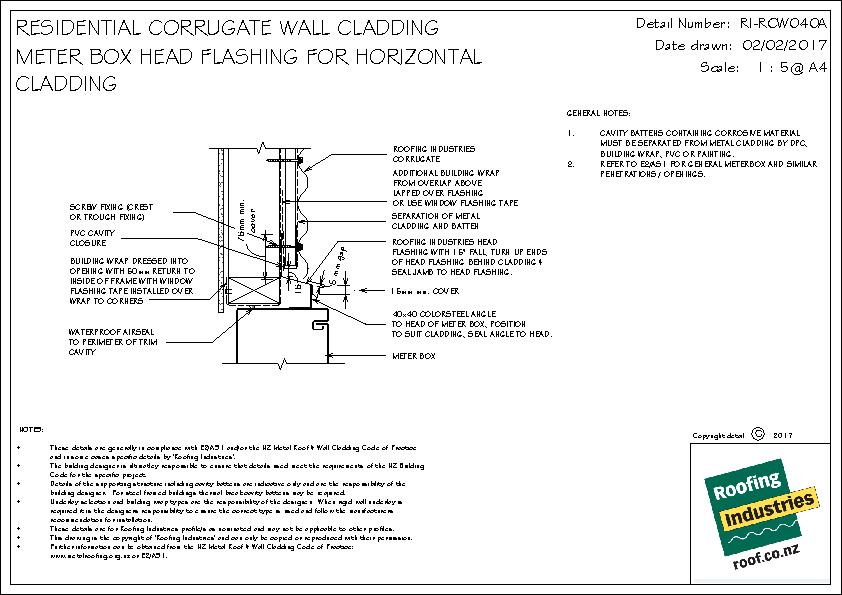

Corrugate Meter Box Head Flashing for Horizontal Cladding

RI-RC-W040A

2017

dwg
pdf

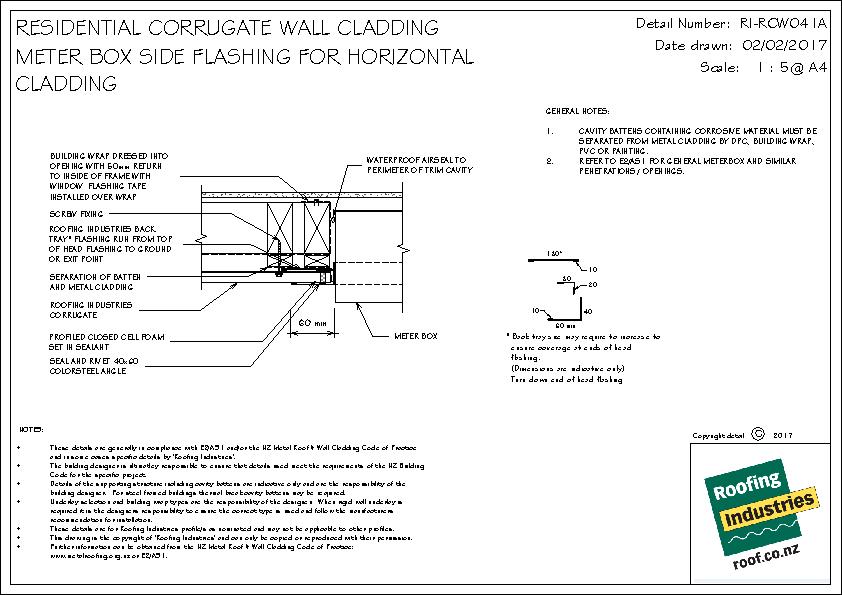

Corrugate Meter Box Side Flashing for Horizontal Cladding

RI-RC-W041A

2017

dwg
pdf

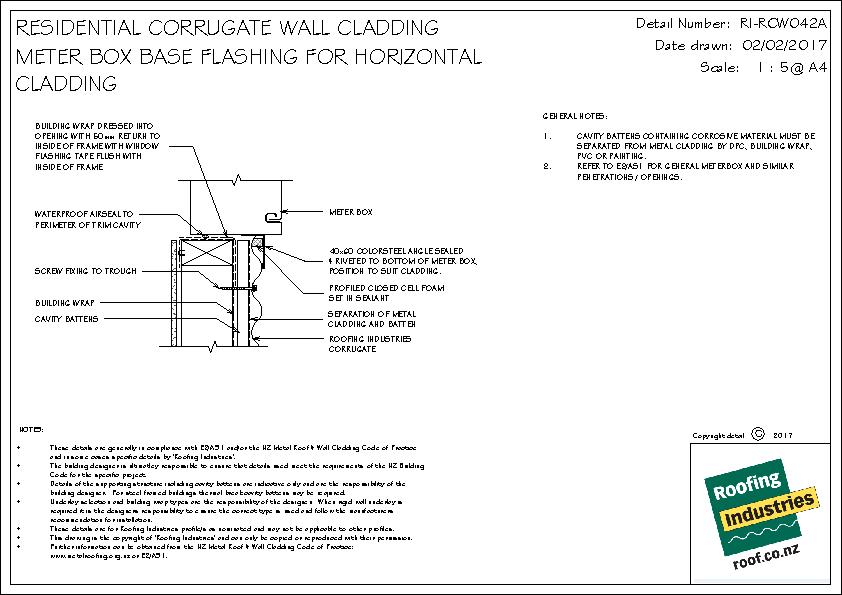

Corrugate Meter Box Base Flashing for Horizontal Cladding

RI-RC-W042A

2017

dwg
pdf

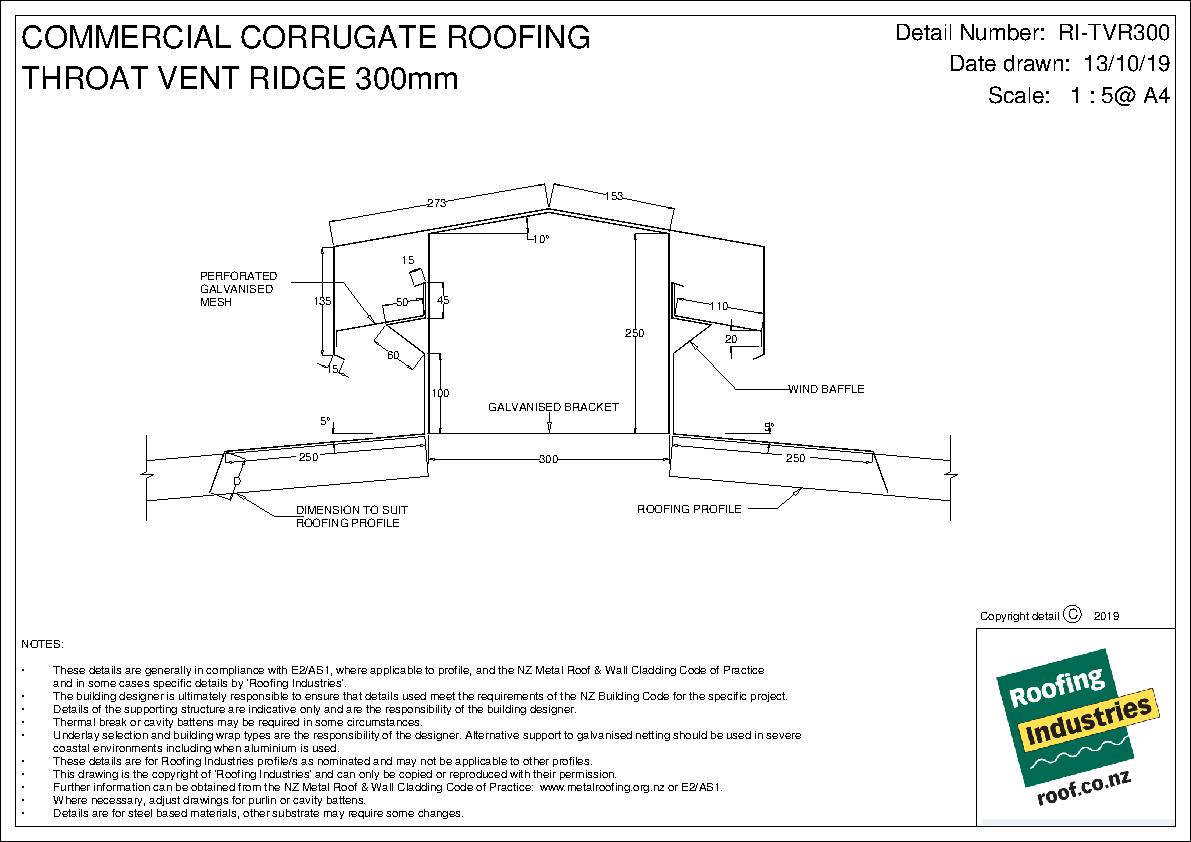

Com. Corrugate Throat Vent Ridge 300mm

RI-TVR-300

pdf

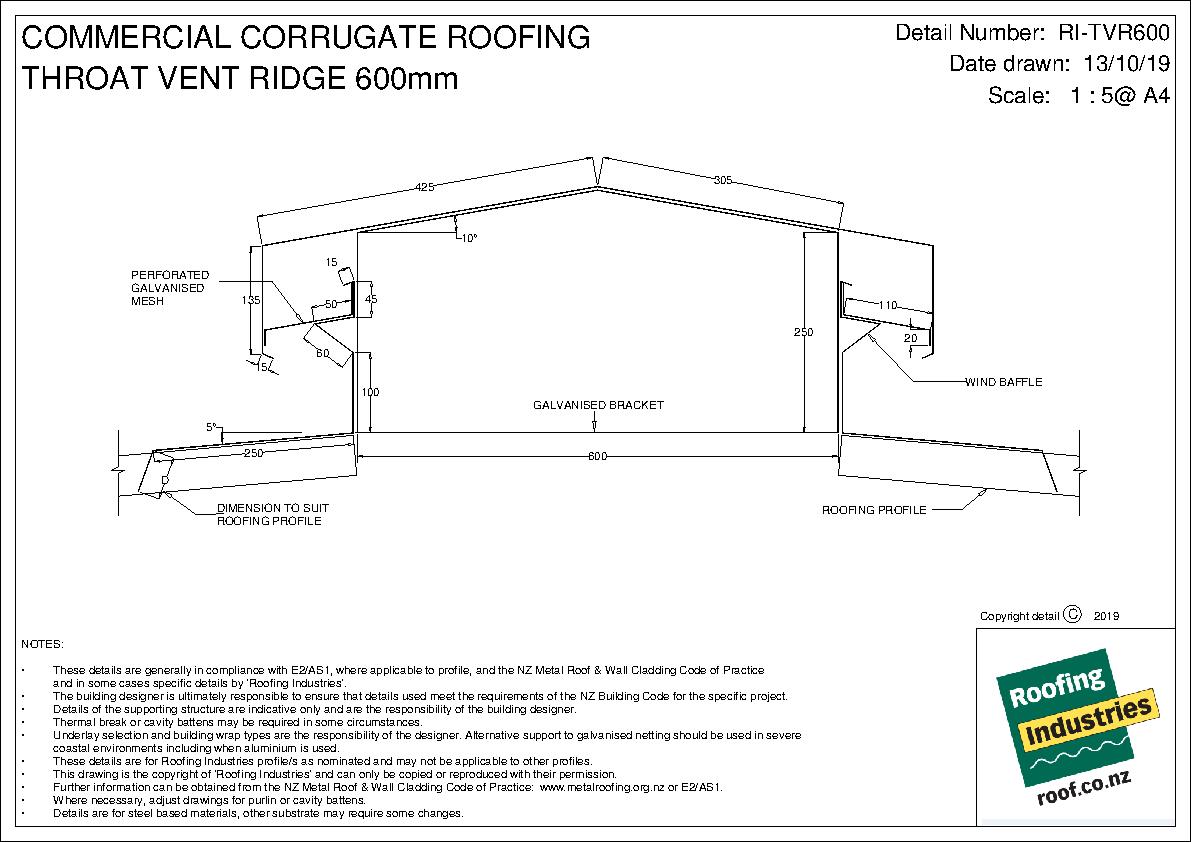

Com. Corrugate Throat Vent Ridge 600mm

RI-TVR-600

pdf
BIM
View full
Filters
Project Type
RVT Version
Clear filters
RI Fascia and gutters image
Fascia and Gutter Profiles

RI-AF01 2016

Revit 2016

rvt
RI CC000C PROFILE SUMMARY CORRUGATE pdf
Corrugate Commercial Details 2016

RI-CC 2016

Revit 2016

rvt
RI CC000C PROFILE SUMMARY CORRUGATE pdf
Corrugate Commercial Details 2019

RI-CC 2019

Revit 2019

rvt
RI RC 000C

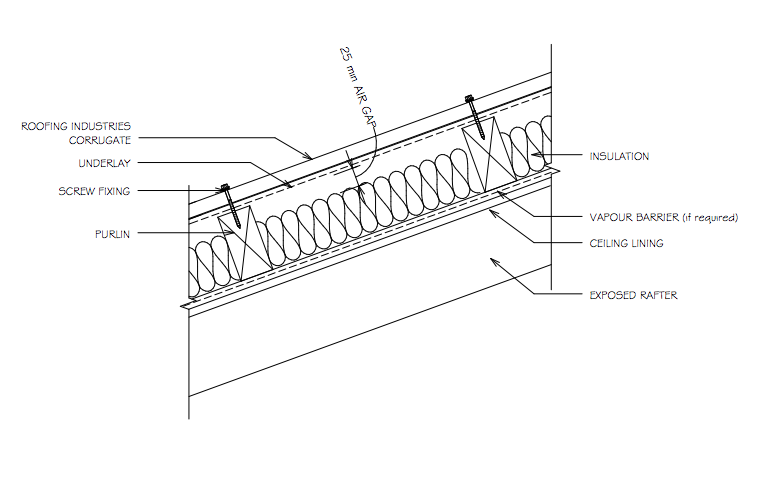

Corrugate Residential Details 2016

RI-RC 2016

Revit 2016

rvt
RI RC 000C
Corrugate Residential Details 2019

RI-RC 2019

Revit 2019

rvt

Roofing Industries is a 100% New Zealand owned and operated metal roof and cladding manufacturing business.

Product Enquiries

News from Roofing Industries

High Performance Roofing and Cladding for a 28m-High Logistics Facility
High Performance Roofing and Cladding for a 28m-High Logistics Facility
Roofing Industries
July 2024 Case Studies
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control NEW
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control
Roofing Industries
November 2023 New Products
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Roofing Industries
August 2023 Case Studies
View all news

Popular Products from Roofing Industries

Trimrib® Roofing and Cladding
Trimrib® Roofing and Cladding
Roofing Industries
Eurostyle® spanlok® Roofing and Cladding
Eurostyle® spanlok® Roofing and Cladding
Roofing Industries
True Oak® Corrugate Roofing and Cladding
True Oak® Corrugate Roofing and Cladding
Roofing Industries

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
