APL Architectural Series ThermalHEART® Sliding Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

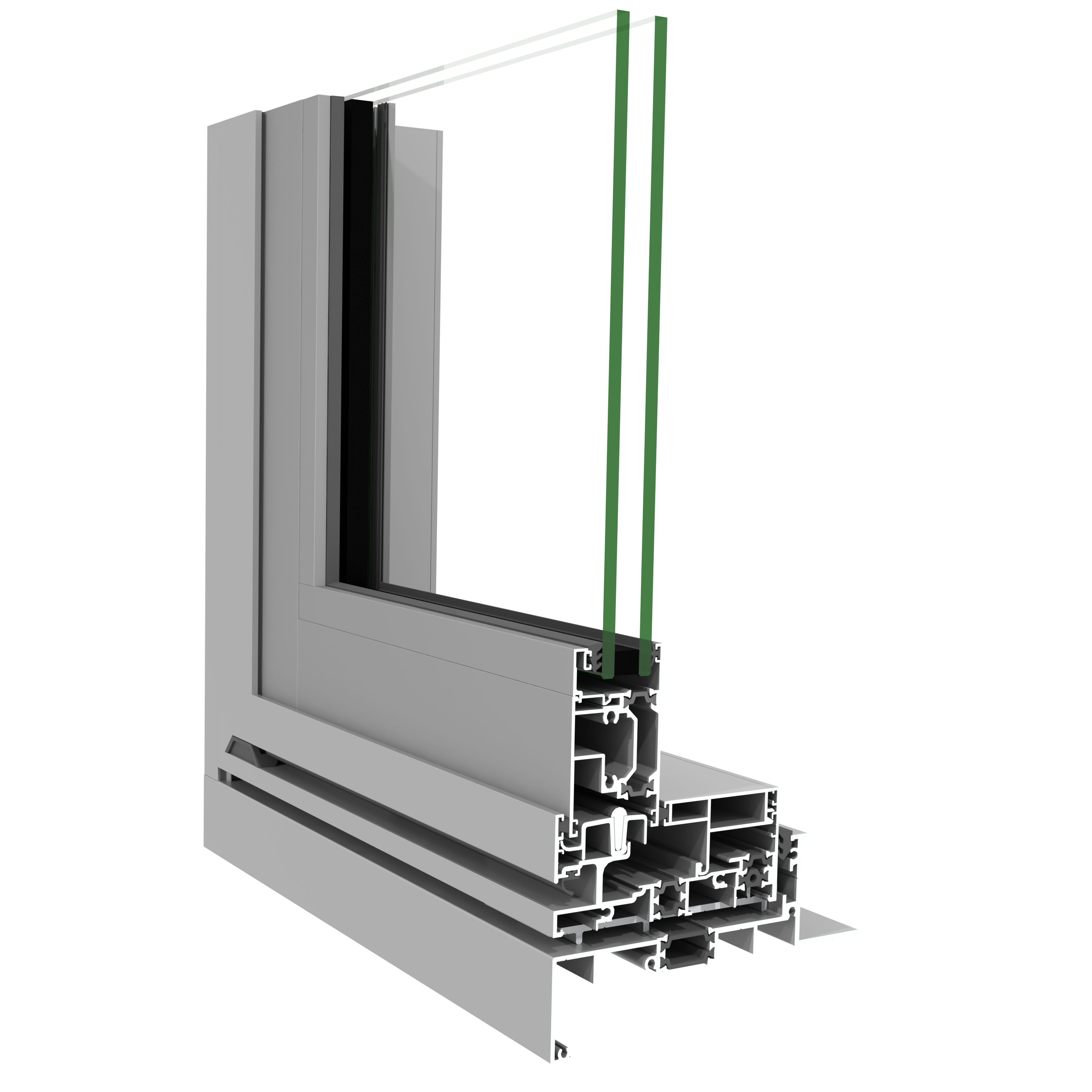

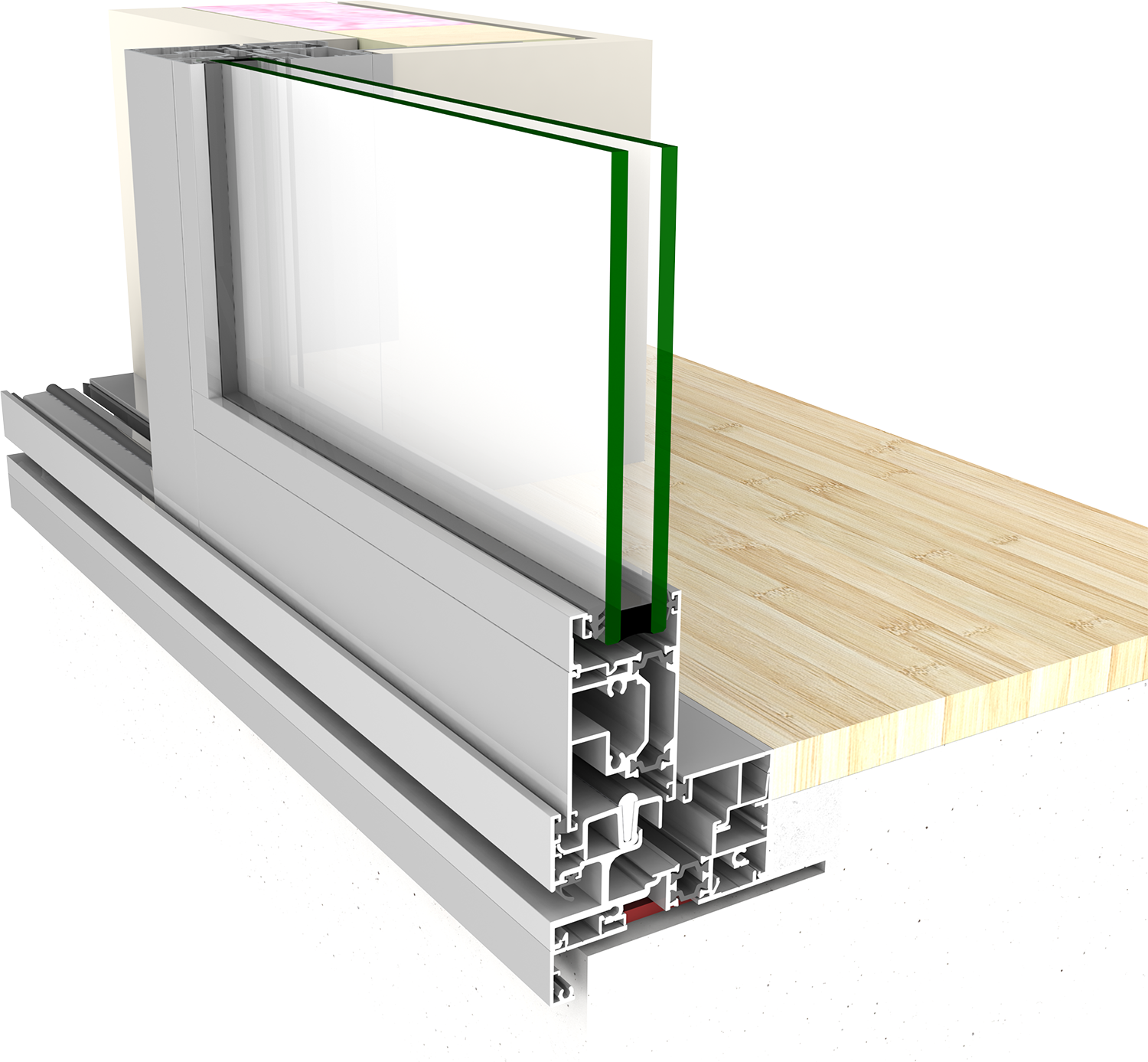

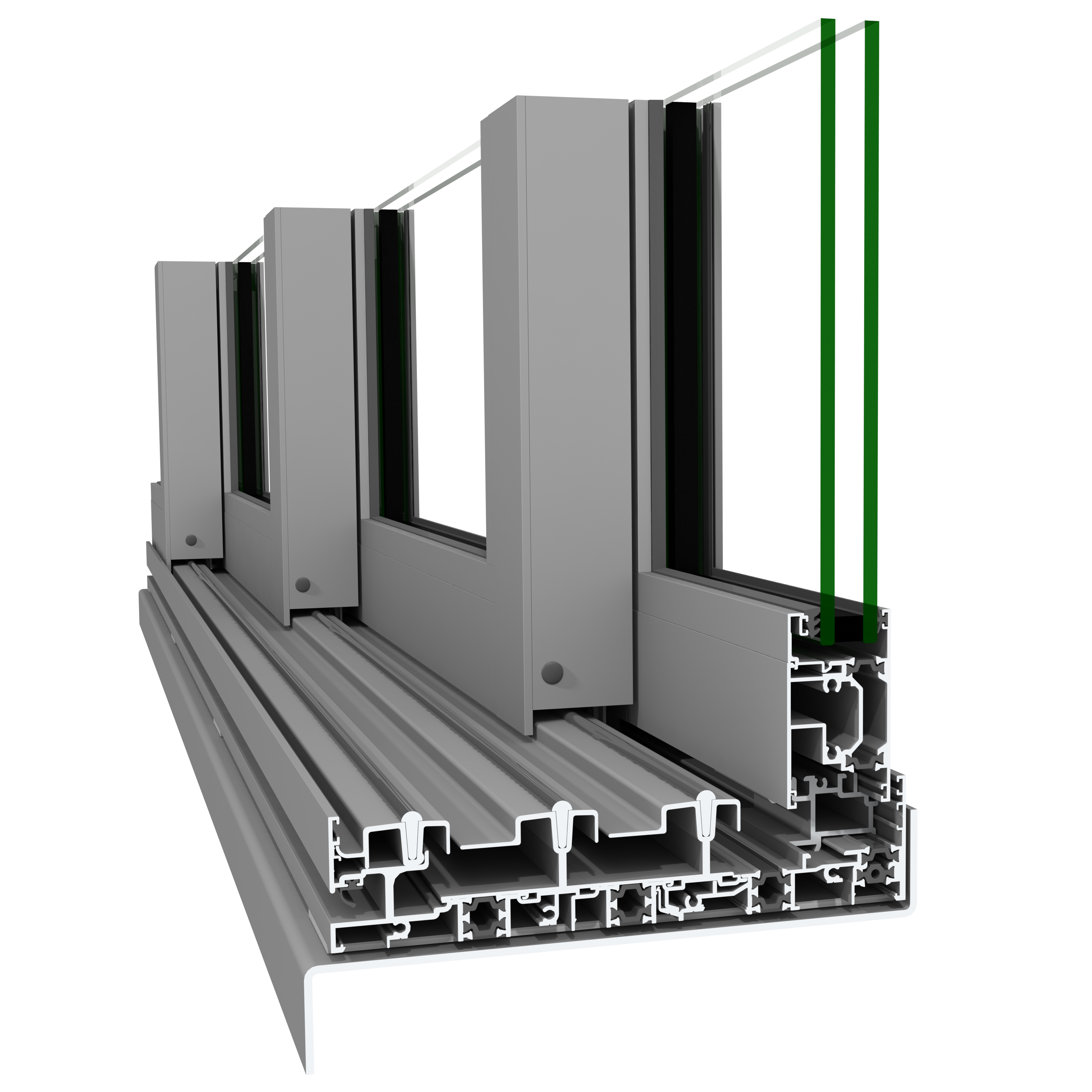

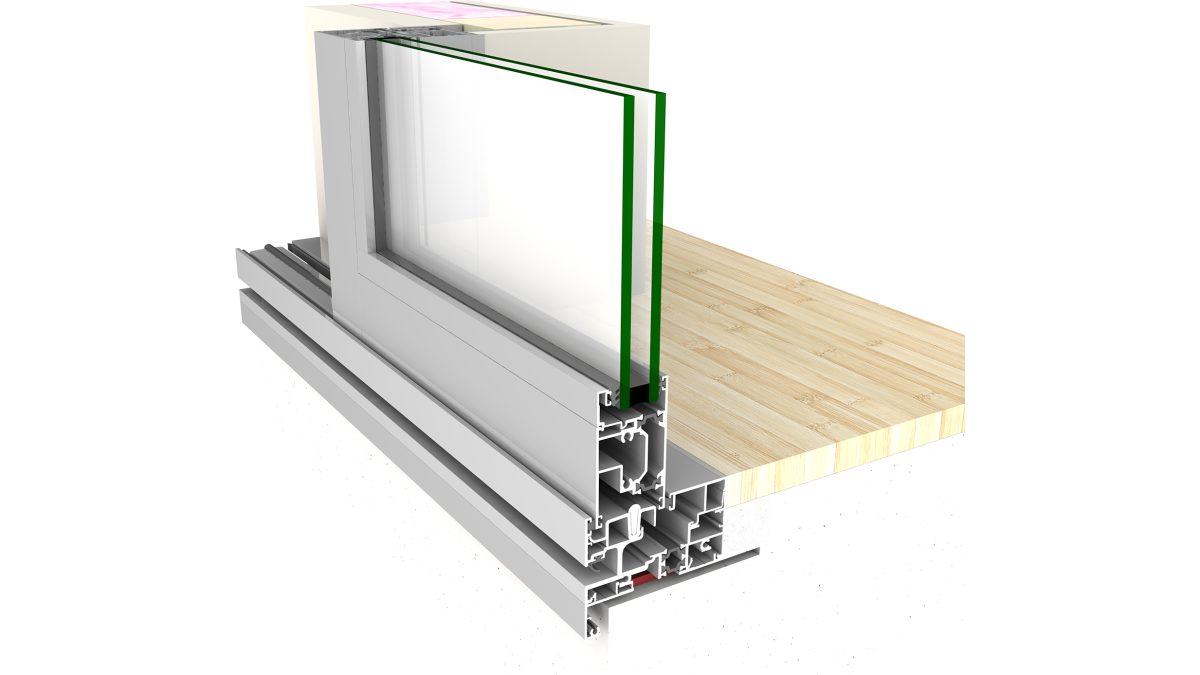

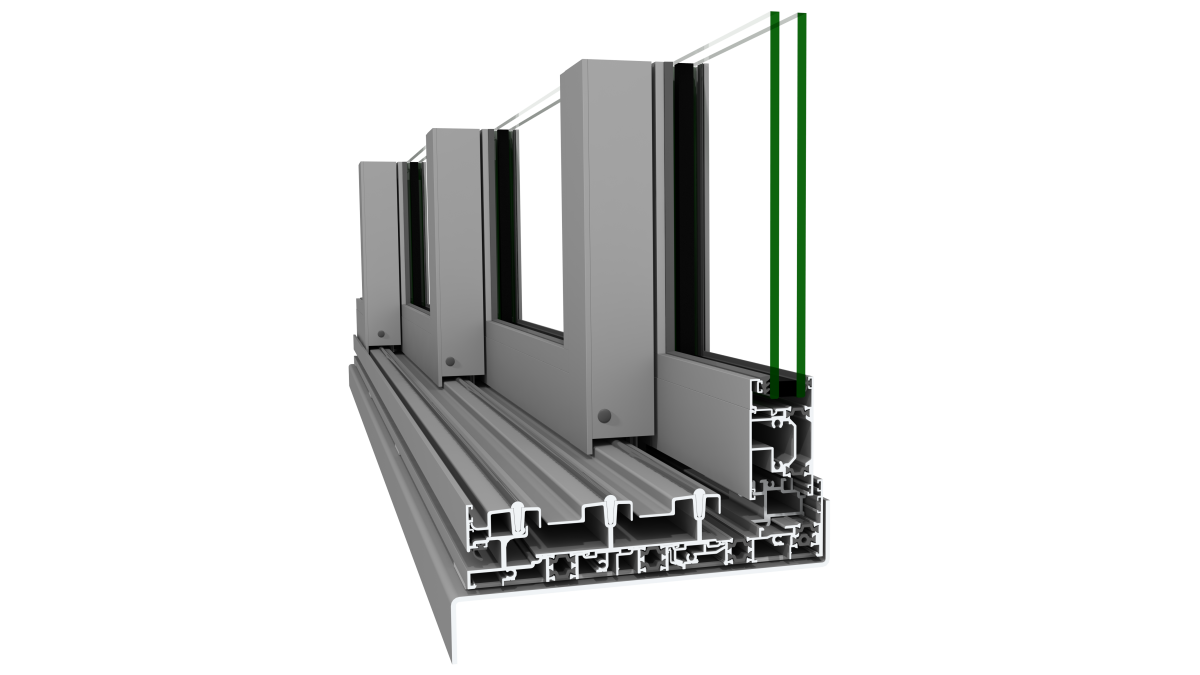

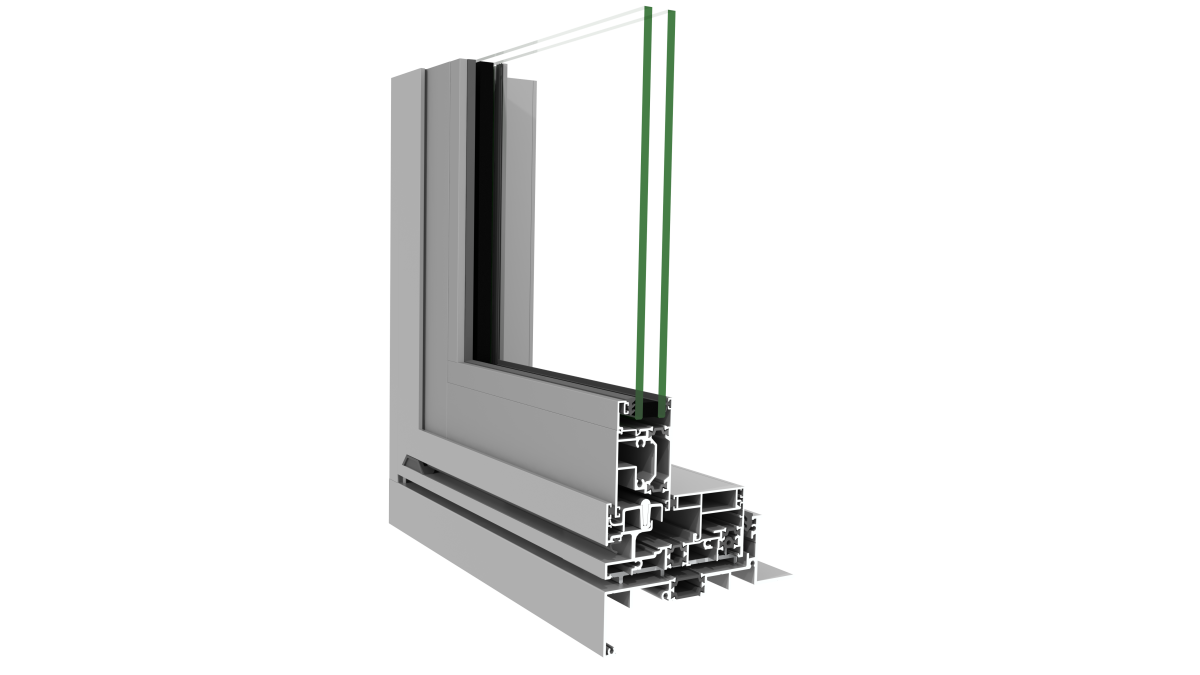

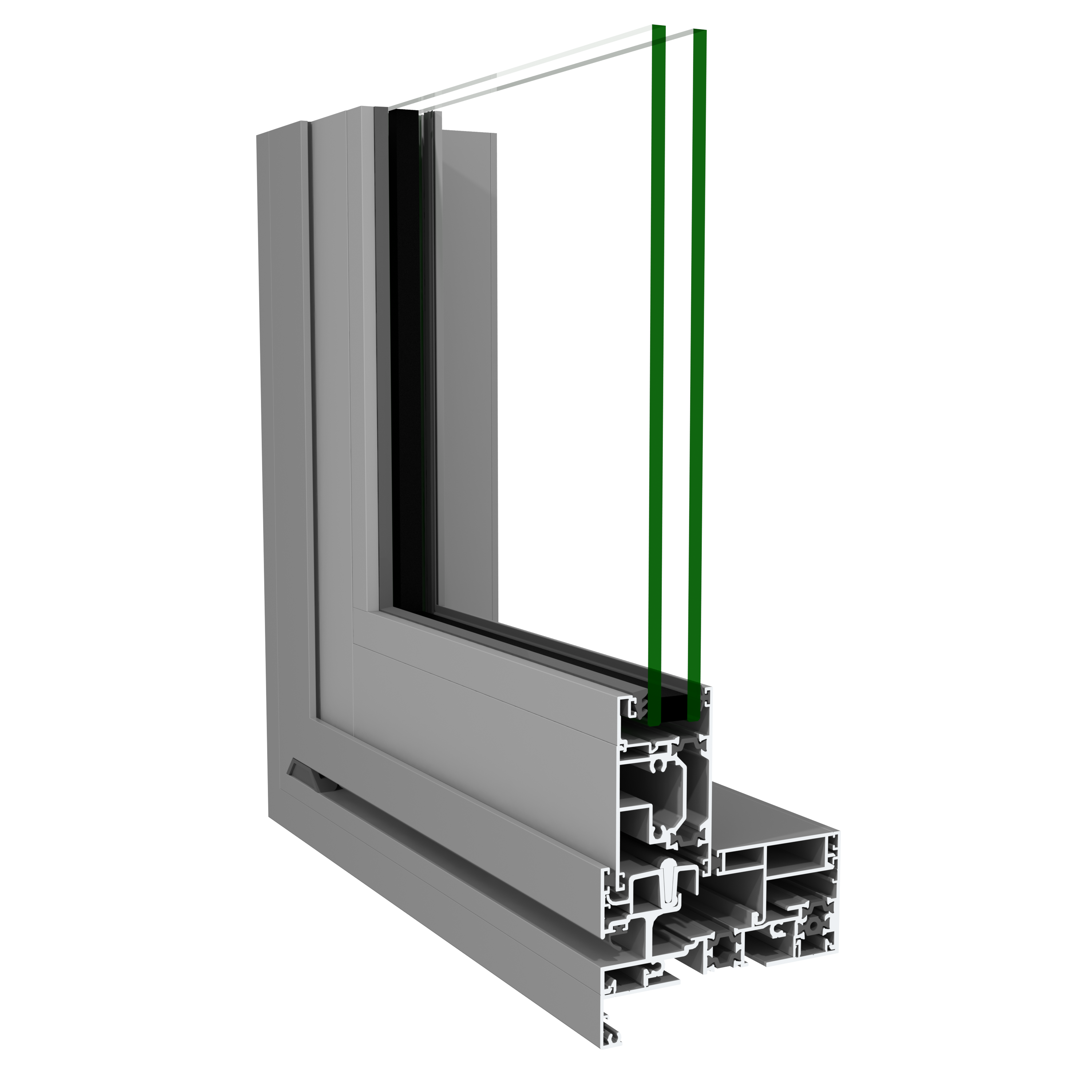

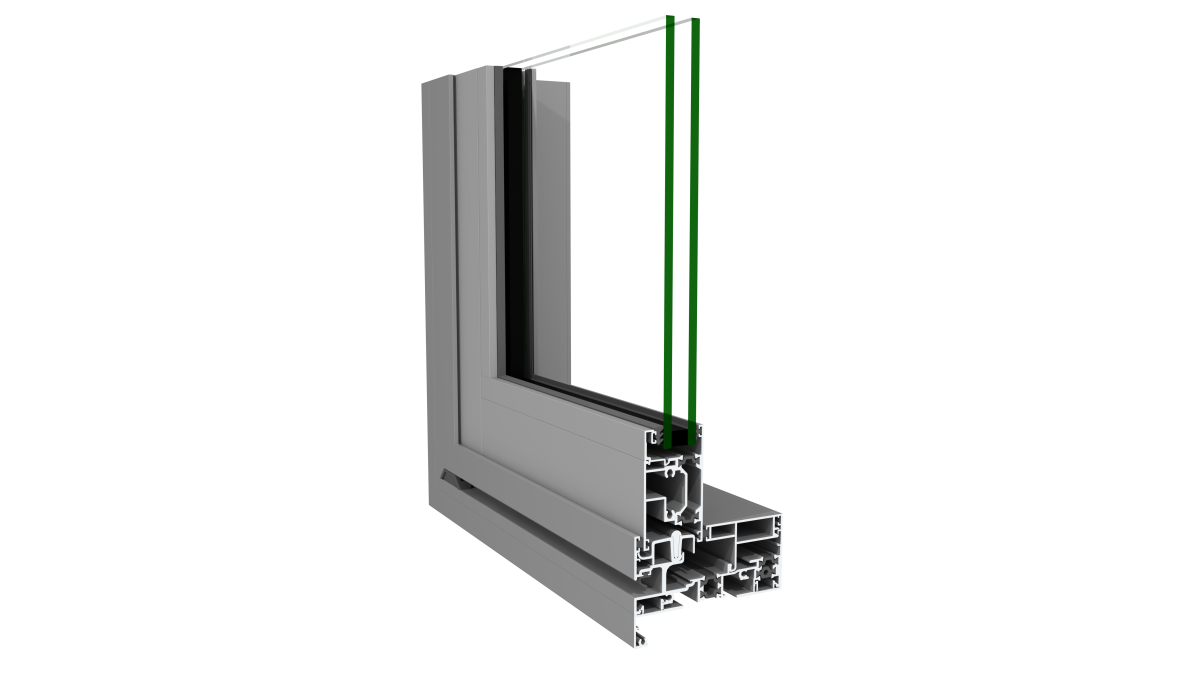

APL Architectural Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track and are rated to 3.0m high. Interlocker stiles and mullions are flush in the closed position.

Key Features
  • The sill frame has a flush track
  • Interlockers stiles and mullions are flush in the closed position
  • A bypass slider is available where two or more panels can be moved independently without a fixed panel

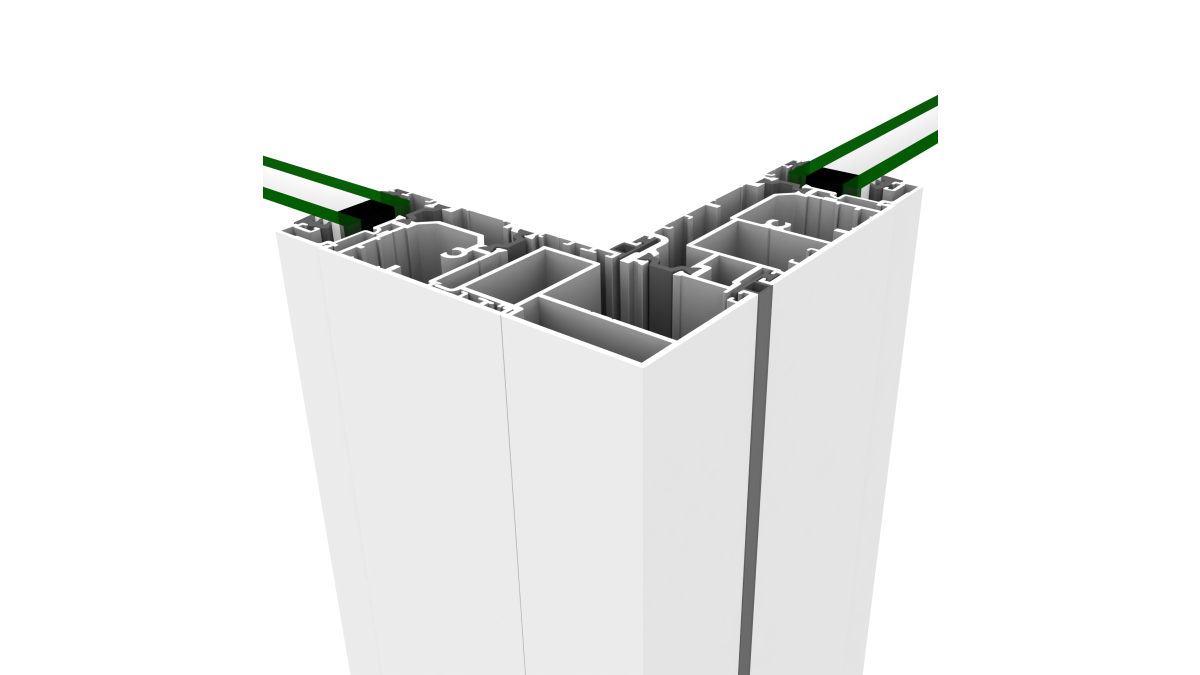

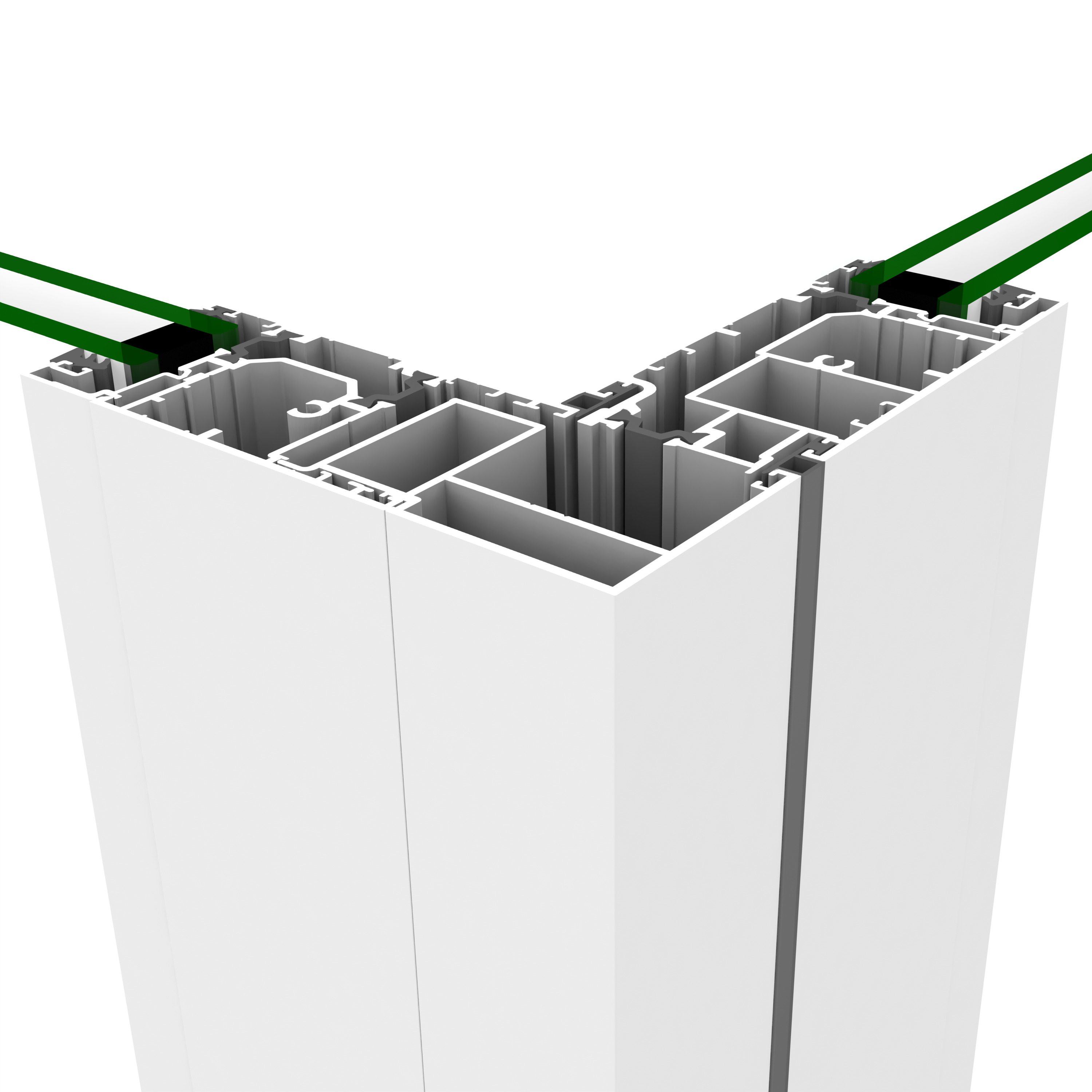

  • Corner sliding doorsare available with no corner post (exterior and interior corners)
  • Sill tray and seismic frames are available
  • Wide opening is possible in bi-parting or multi-stacking configurations
  • Overwall and cavity sliding options are available
  • Maximum glass thickness of 32mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum size
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Sashes in sidelights need to be carefully considered and out of the travel path of the door panel
  • Recommended maximum 2.8m high doors in Extra High wind zones — for larger sizes
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Launched in 2023
  • New range rolling out nationally
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Full Specification Guide: APL Architectural Series ThermalHEART®

2023

Specification Guide: APL Architectural Series ThermalHEART® Sliding Doors
Span Tables
Data Sheet: APL Architectural Series ThermalHEART®

2023

APL and Sustainability
Declare Label
Manufacturer Contact List
AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
Altherm Brochure
Altherm Care, Maintenance & Warranty Brochure (with AGP)
Altherm on Masterspec
Specifier Guide

2023

WGANZ Guide to E2/AS1
CAD/PDF Details
Filters
Frame type
APL Architectural Series ThermalHEART® Sliding Doors

FULL SET

PDF and ZIP (contains all DWGs)

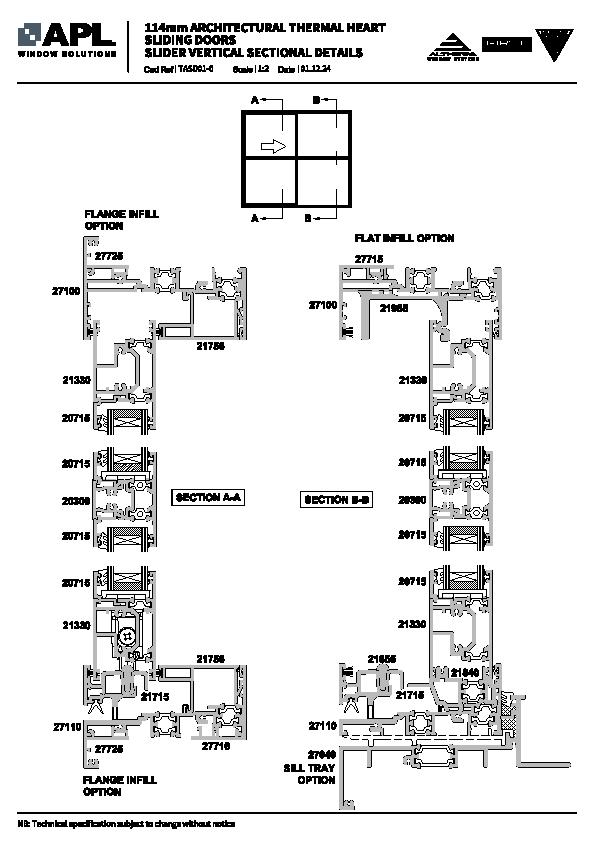

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider Vertical

TASD01

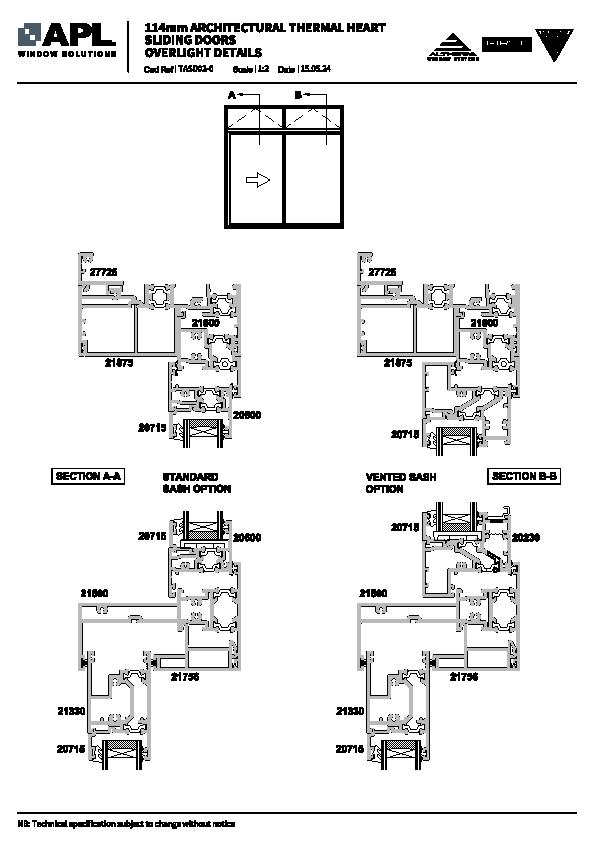

114mm APL Architectural Series ThermalHEART® Sliding Doors - Overlight Details

TASD02

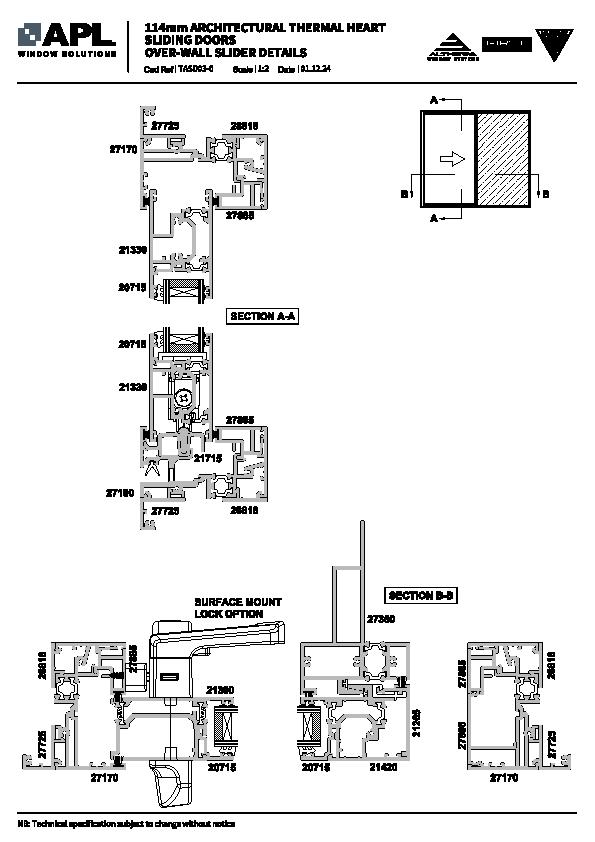

114mm APL Architectural Series ThermalHEART® Sliding Doors - Over-Wall Slider

TASD03

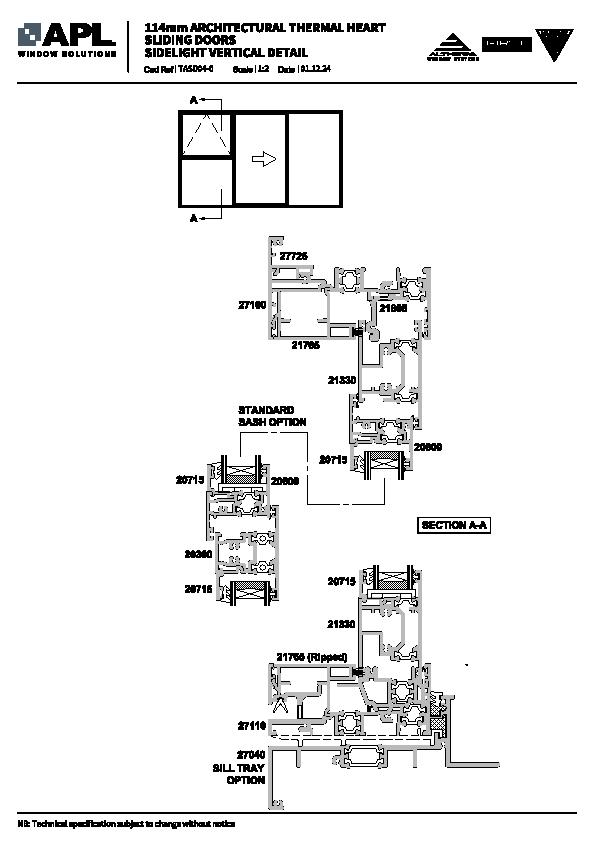

114mm APL Architectural Series ThermalHEART® Sliding Doors - Sidelight Vertical

TASD04

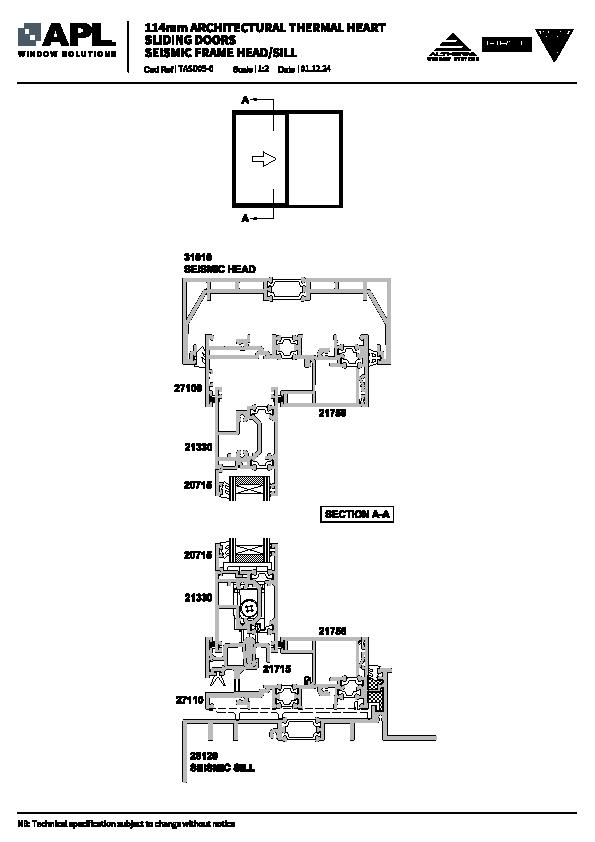

114mm APL Architectural Series ThermalHEART® Sliding Doors - Seismic Frame Head/Sill

TASD05

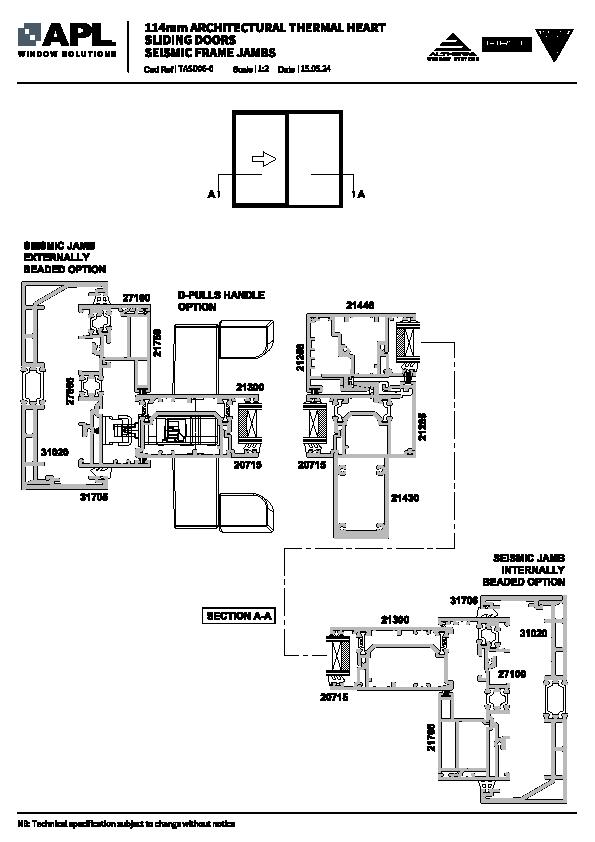

114mm APL Architectural Series ThermalHEART® Sliding Doors - Seismic Frame Jambs

TASD06

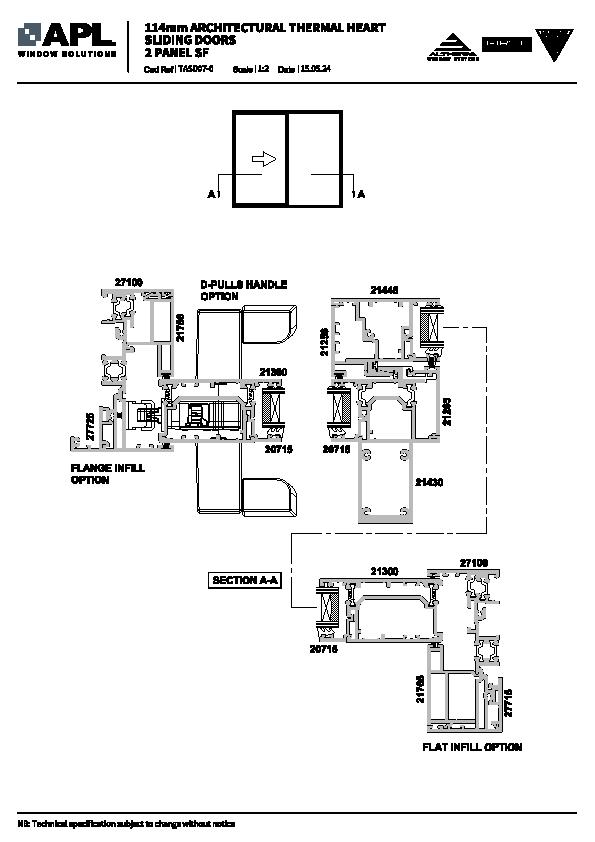

114mm APL Architectural Series ThermalHEART® Sliding Doors - 2 Panel SF

TASD07

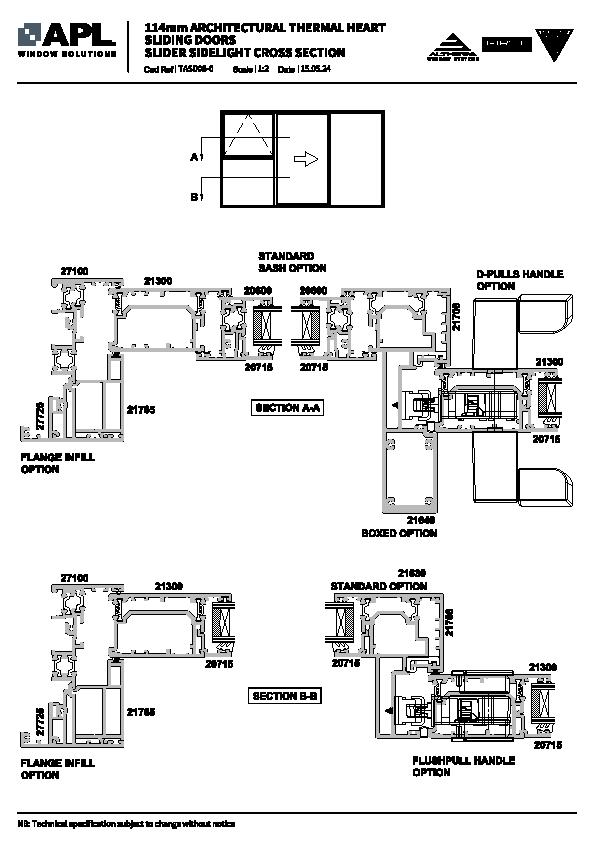

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider Sidelight Cross Section

TASD08

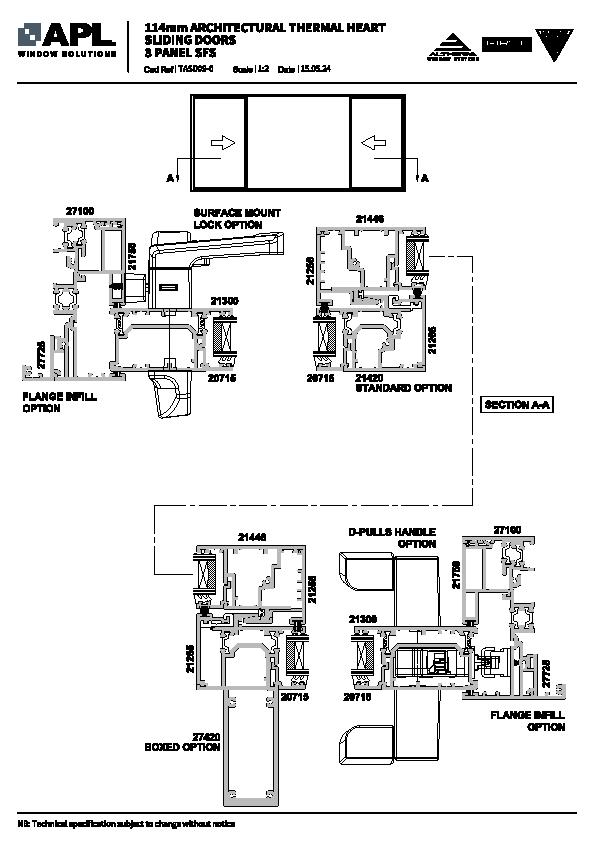

114mm APL Architectural Series ThermalHEART® Sliding Doors - 3 Panel SFS

TASD09

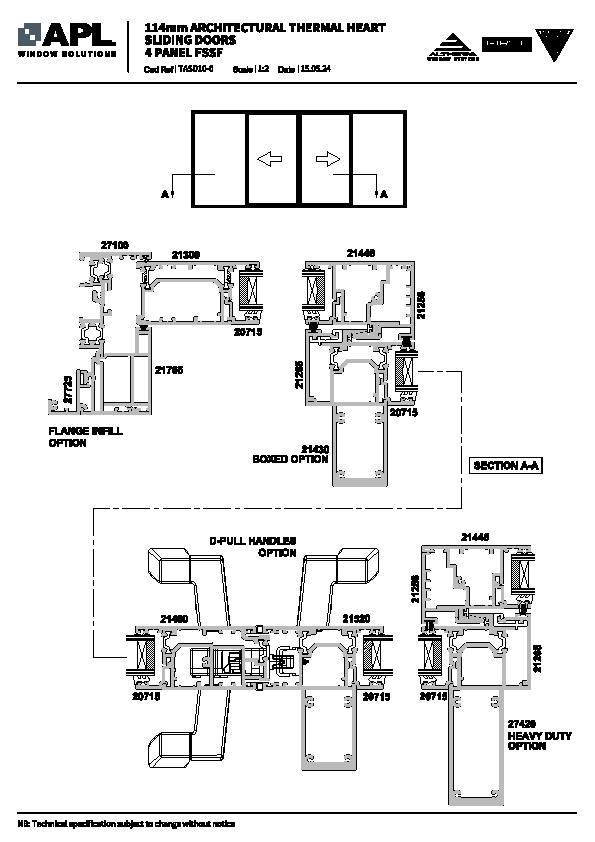

114mm APL Architectural Series ThermalHEART® Sliding Doors - 4 Panel FSSF

TASD10

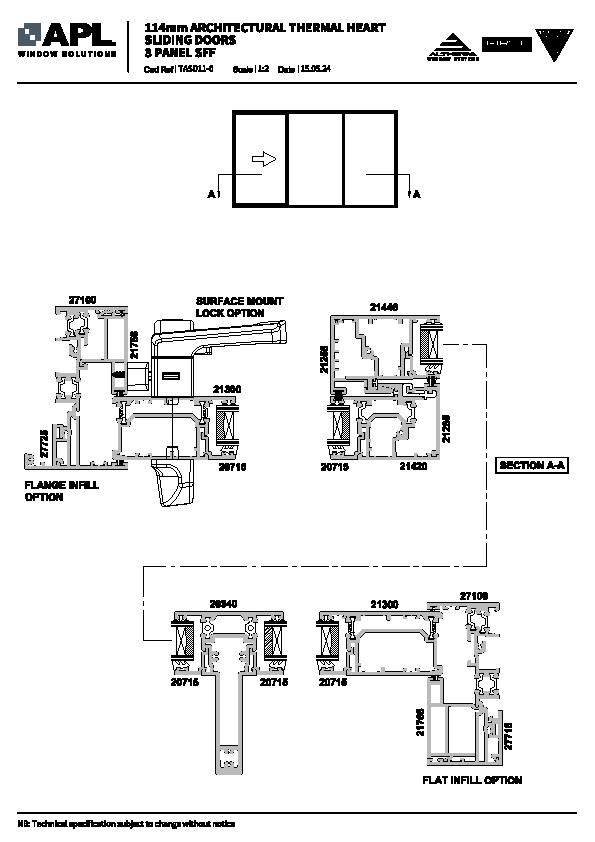

114mm APL Architectural Series ThermalHEART® Sliding Doors - 3 Panel SFF

TASD11

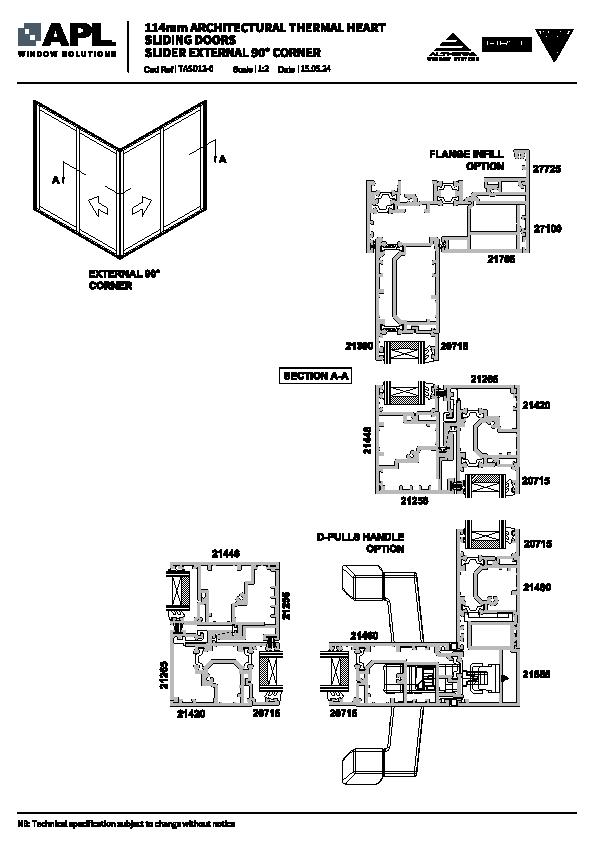

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider External 90° Corner

TASD12

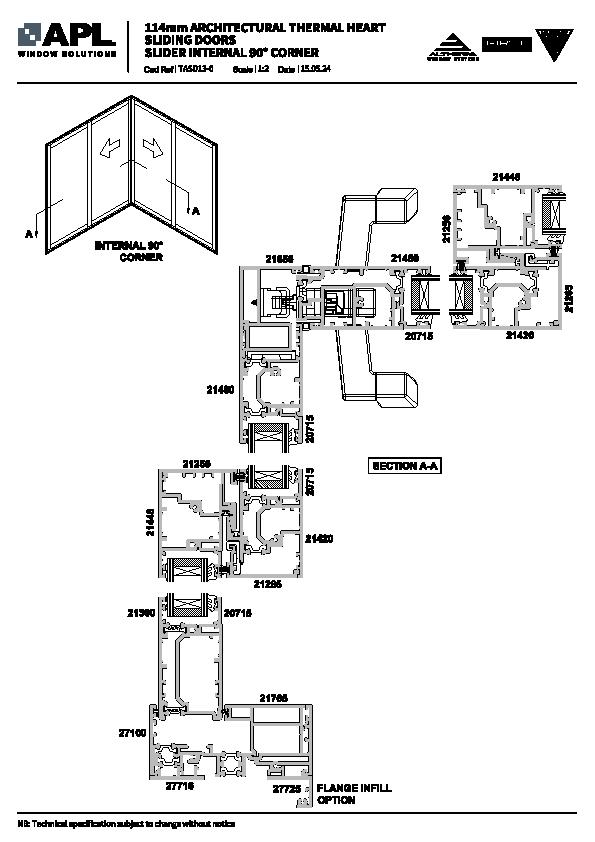

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider Internal 90° Corner

TASD13

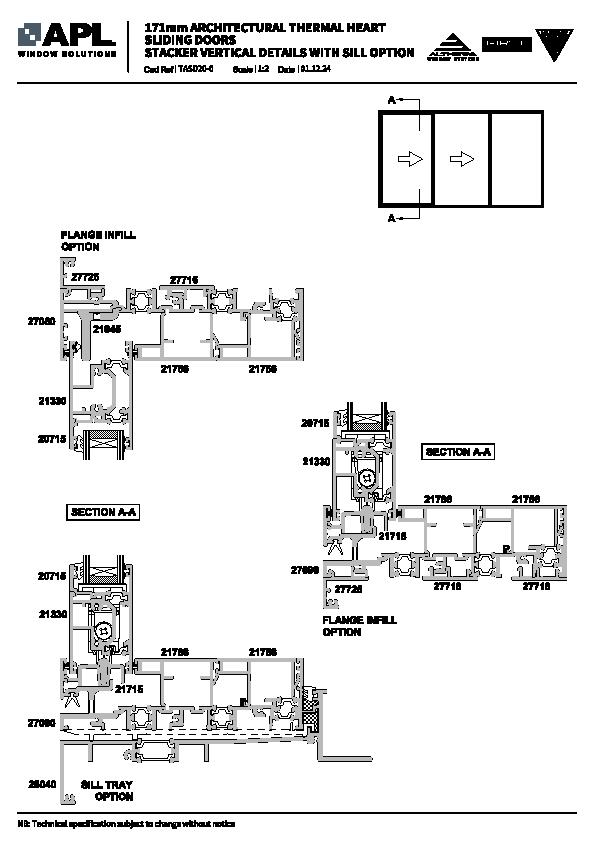

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Vertical Details with Sill Option

TASD20

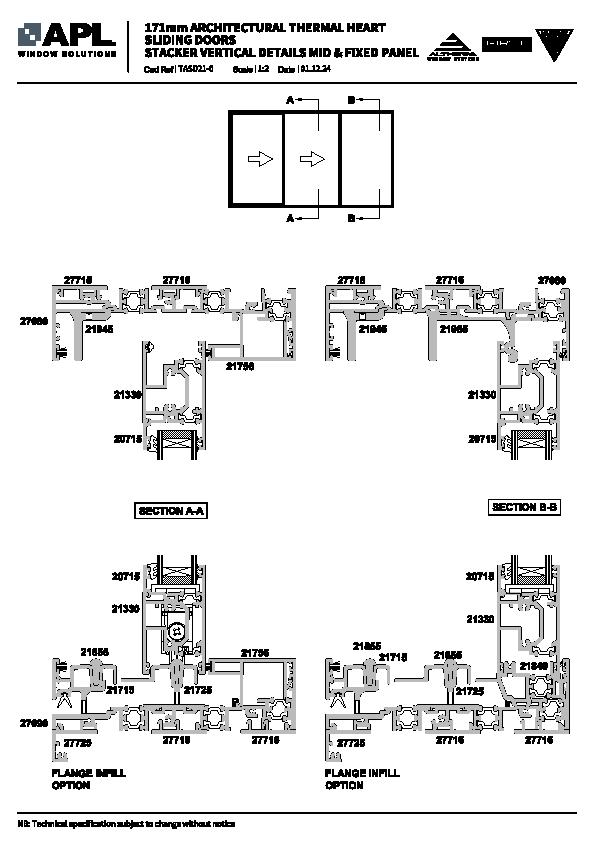

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Vertical Details Mid & Fixed Panel

TASD21

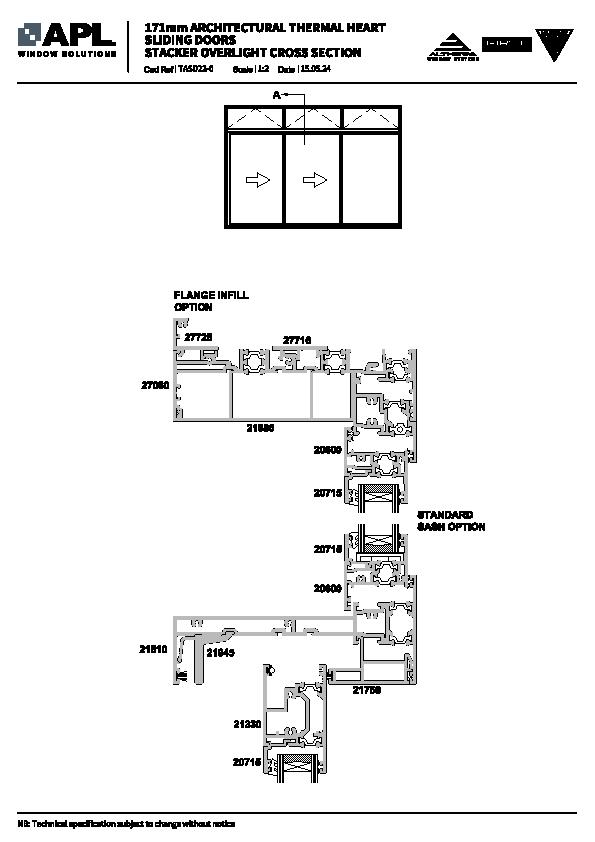

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Overlight Cross Section

TASD22

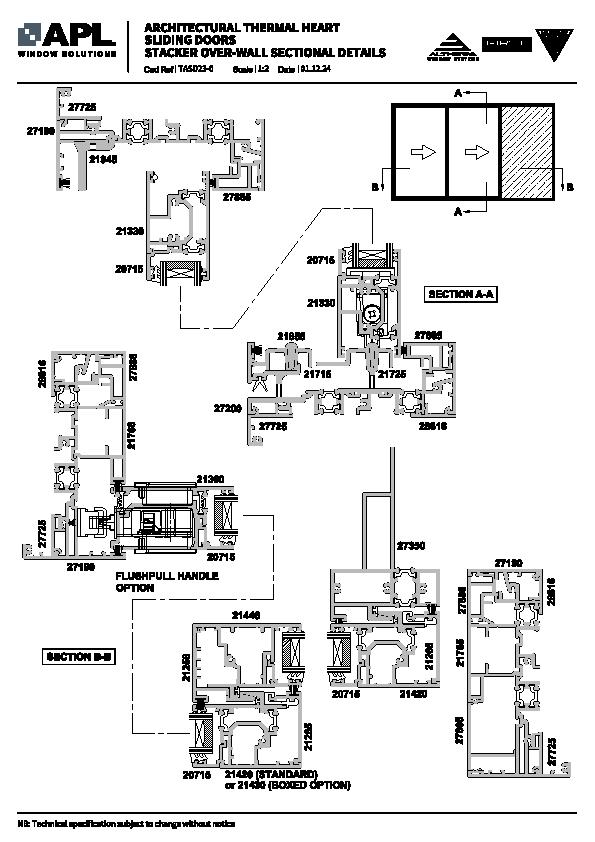

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Over-Wall

TASD23

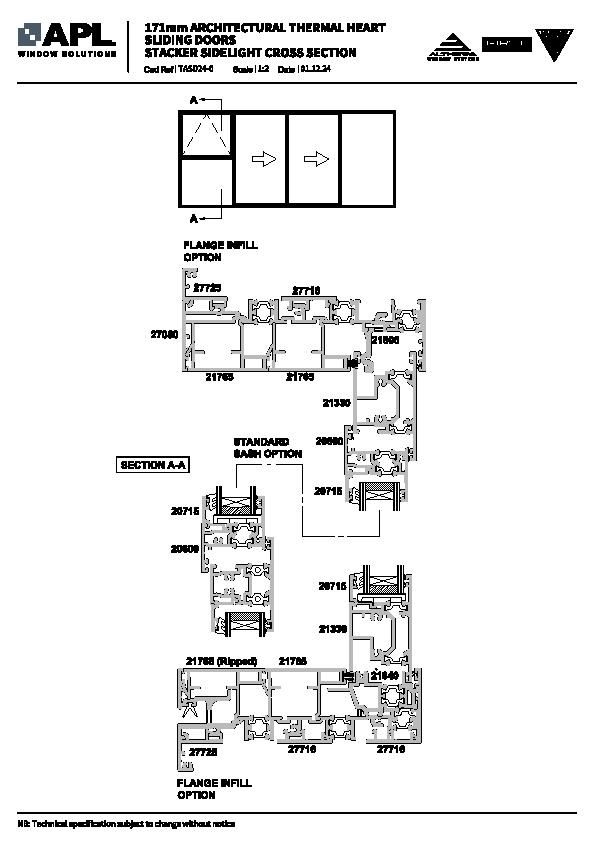

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Sidelight Vertical Cross Section

TASD24

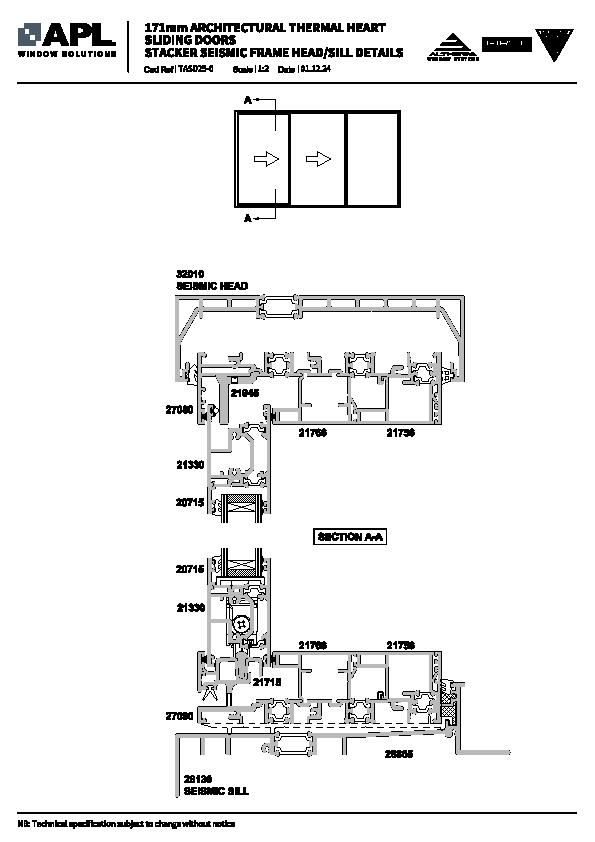

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Seismic Frame Head/Sill Details

TASD25

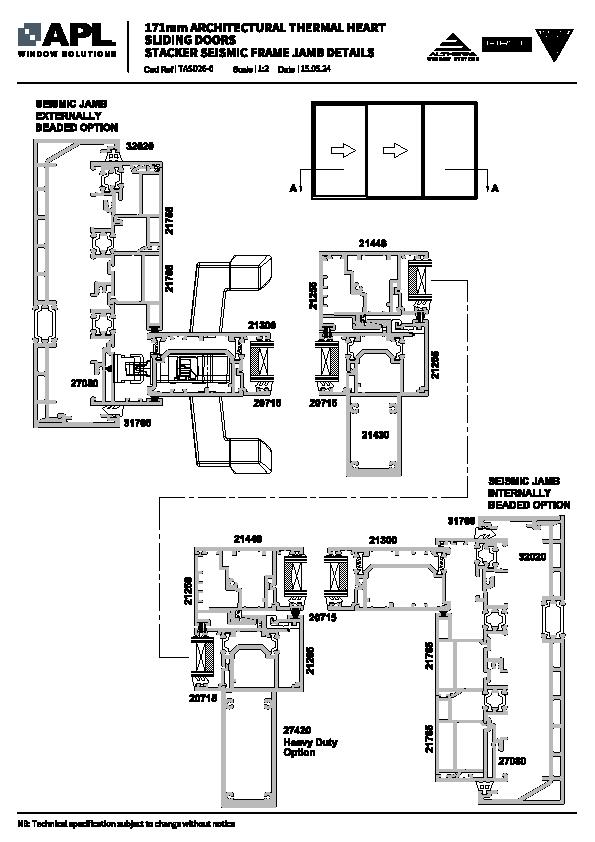

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Seismic Frame Jamb Details

TASD26

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 3 Panel SSF

TASD27

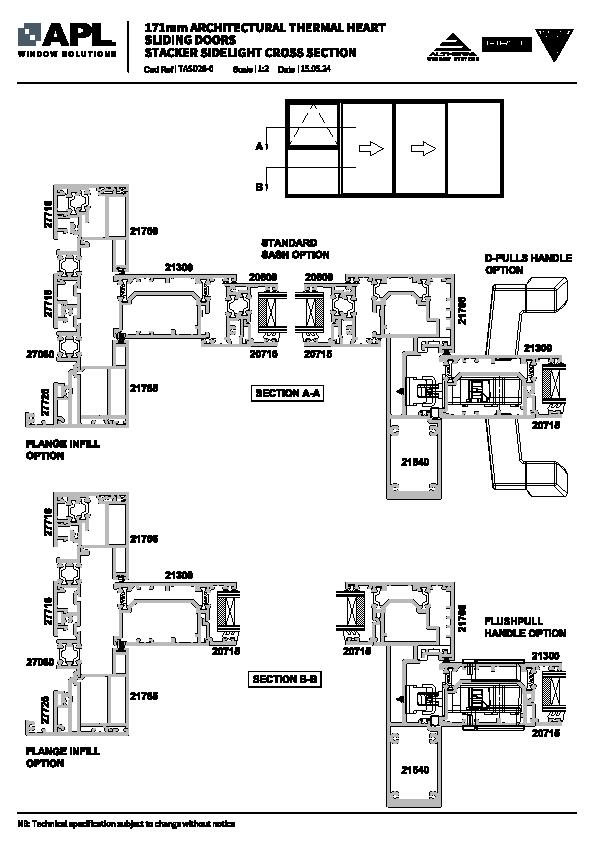

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Sidelight Horizontal Cross Section

TASD28

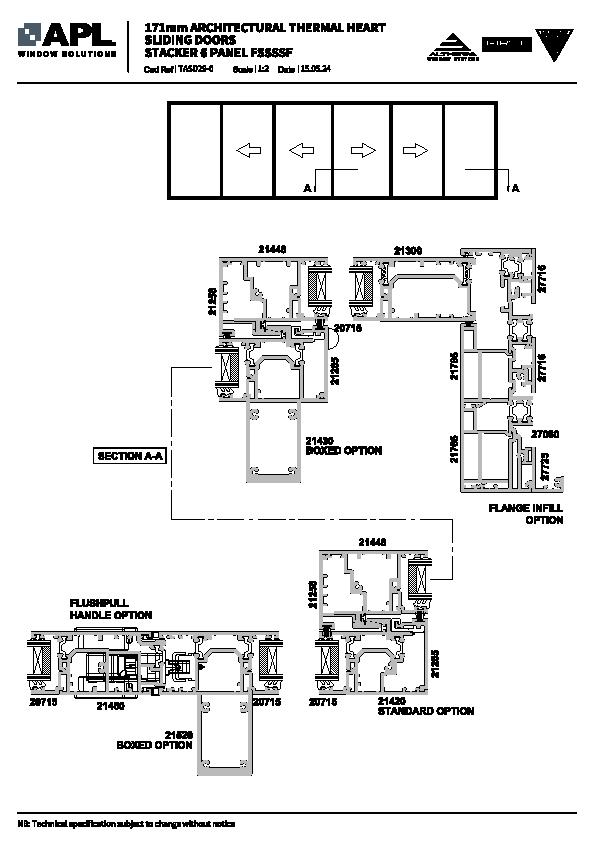

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 6 Panel FSSSSF

TASD29

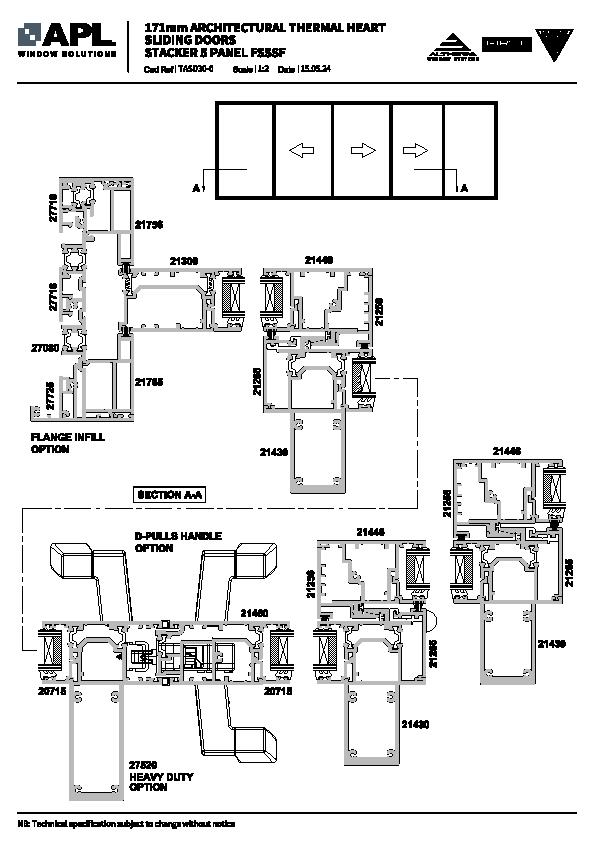

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 5 Panel FSSSF

TASD30

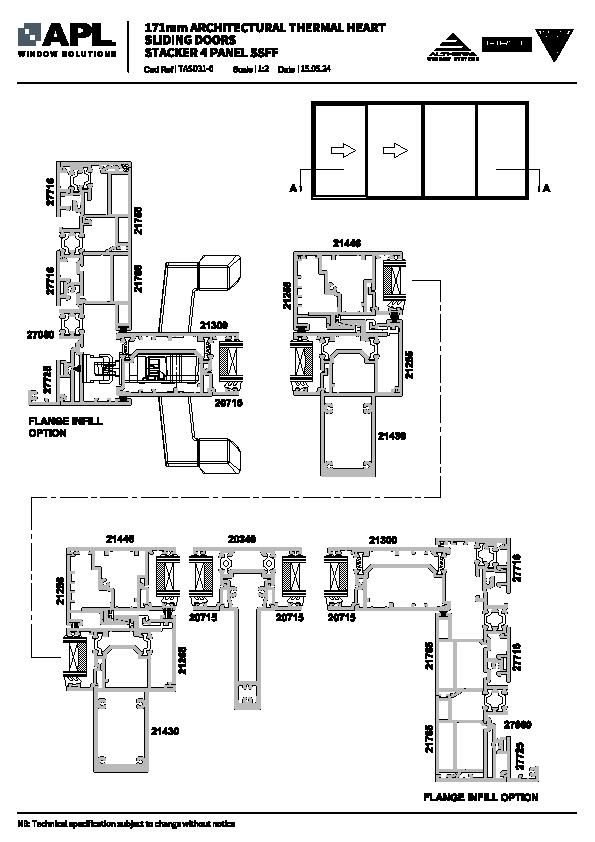

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 4 Panel SSFF

TASD31

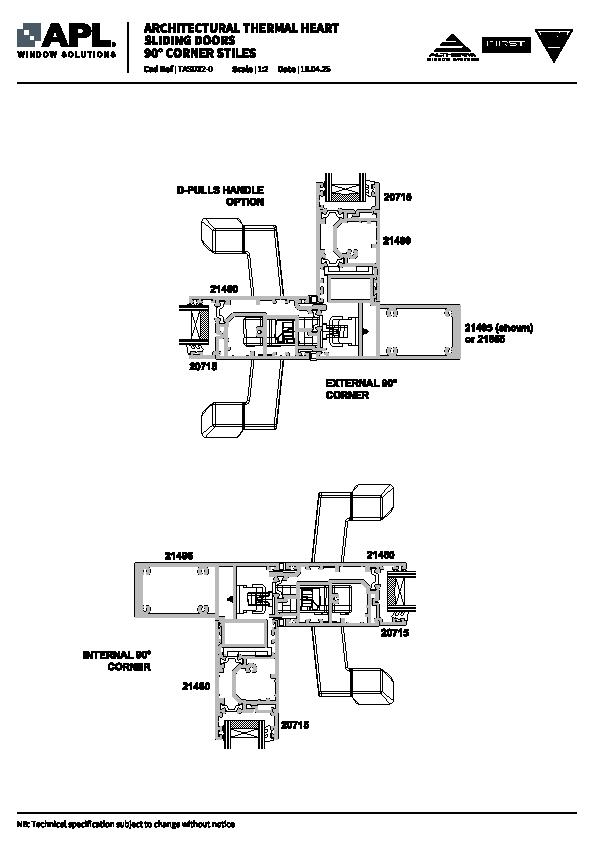

APL Architectural Series ThermalHEART® Sliding Doors 90° Corner Stiles

TASD32

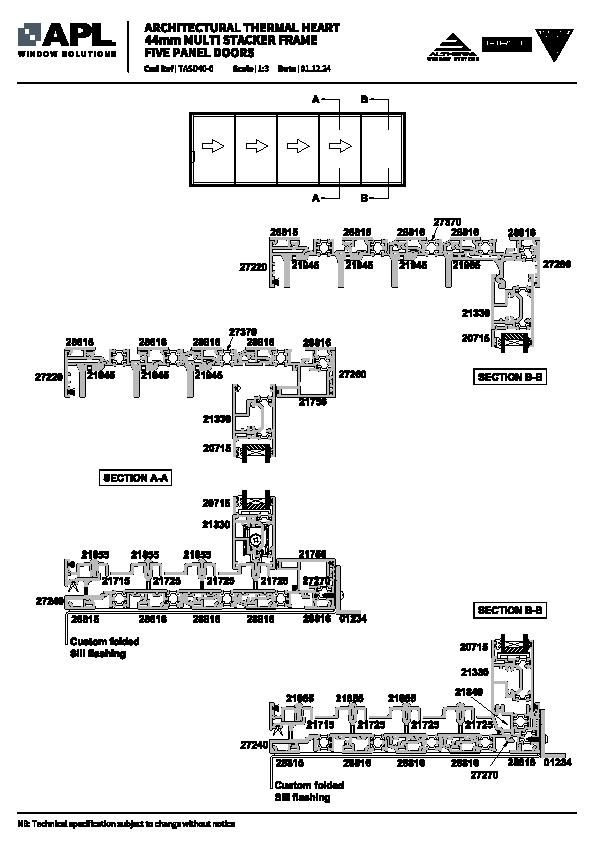

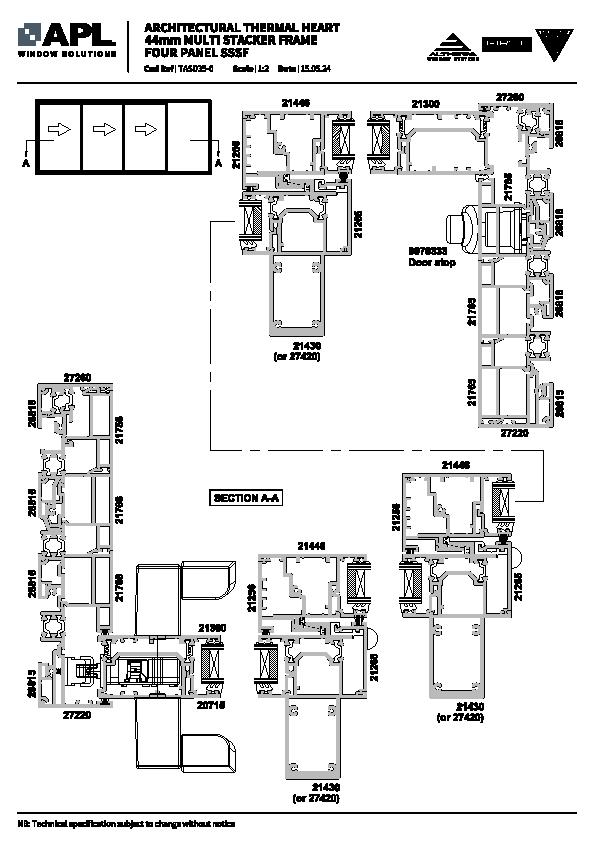

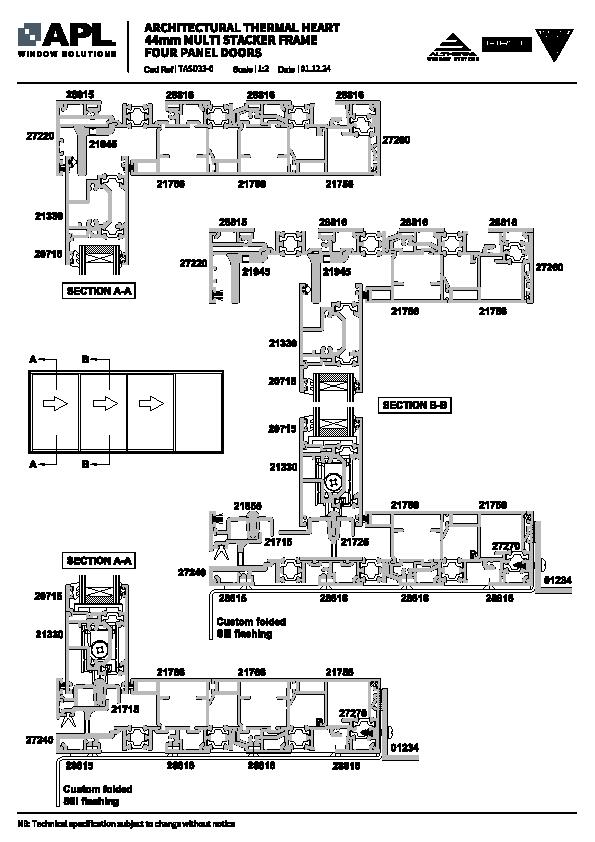

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSF

TASD33

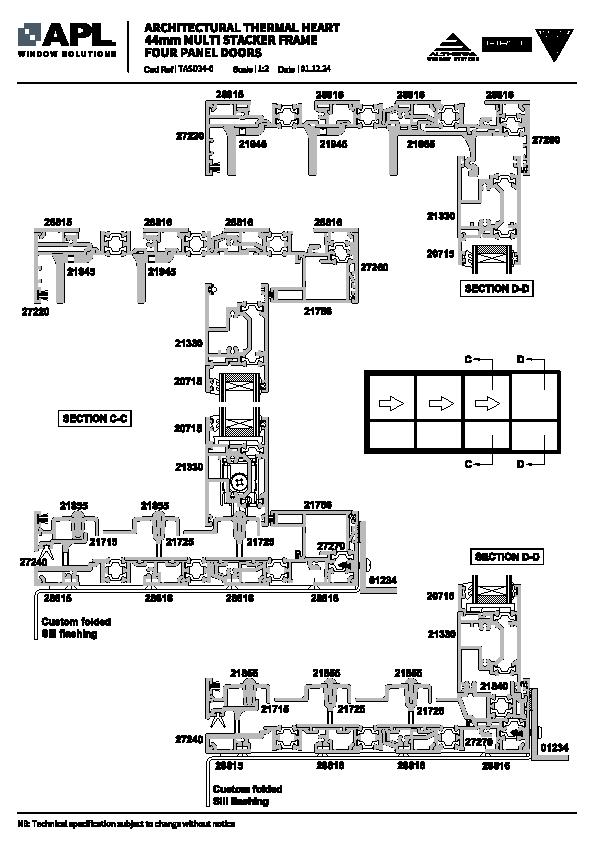

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSF

TASD34

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSF

TASD35

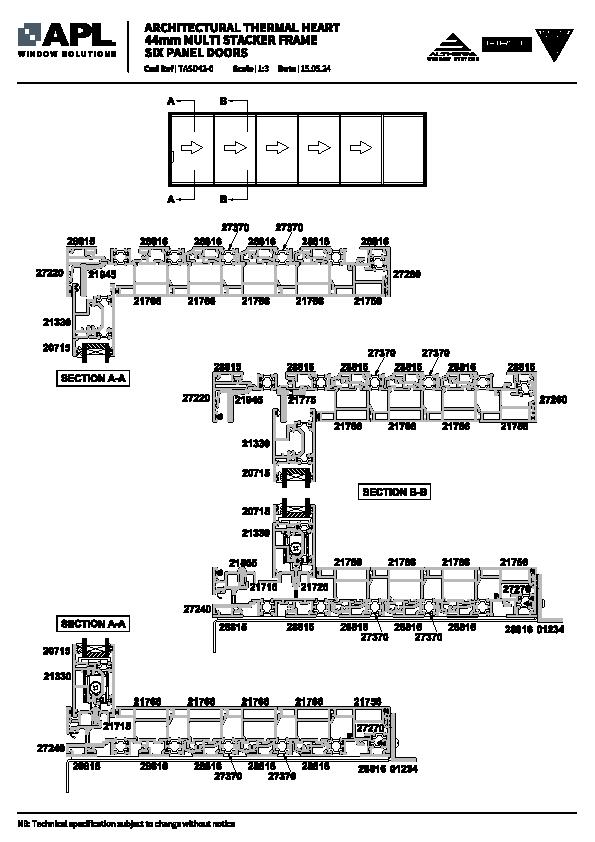

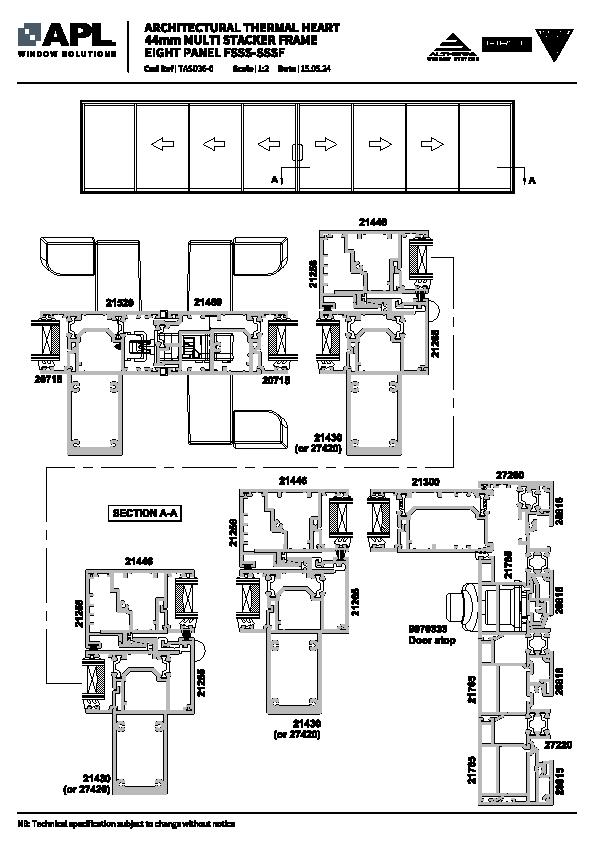

Architectural Series Thermal Heart - 44mm Multi Stacker Frame FSSS-SSSF

TASD36

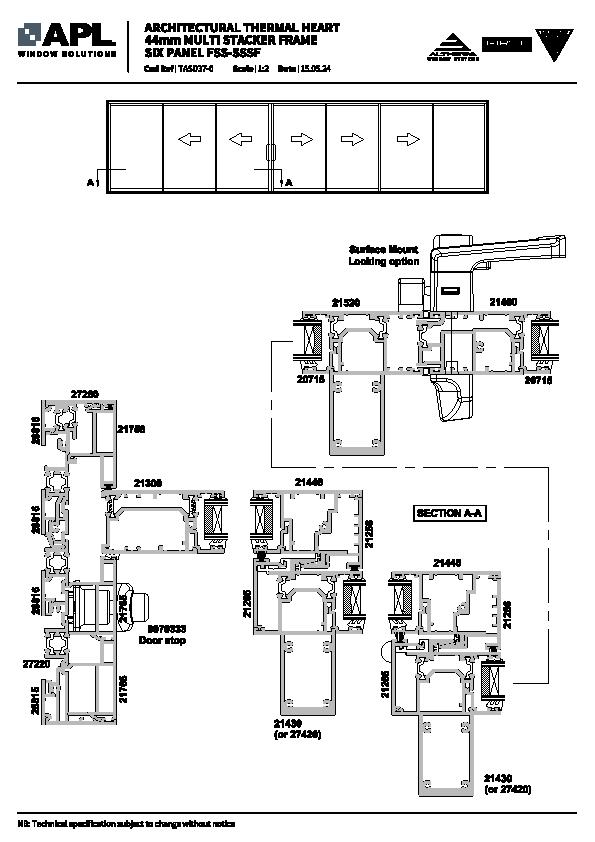

Architectural Series Thermal Heart - 44mm Multi Stacker Frame FSS-SSSF

TASD37

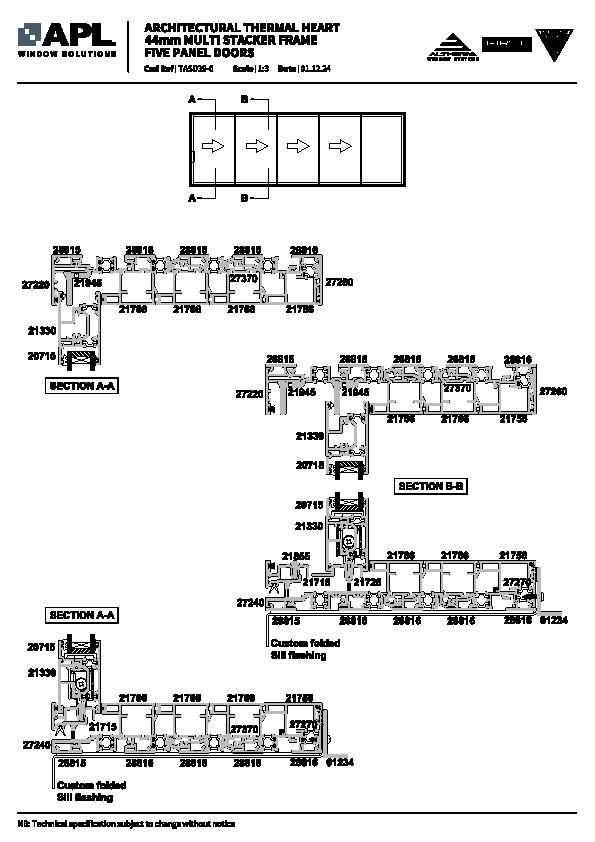

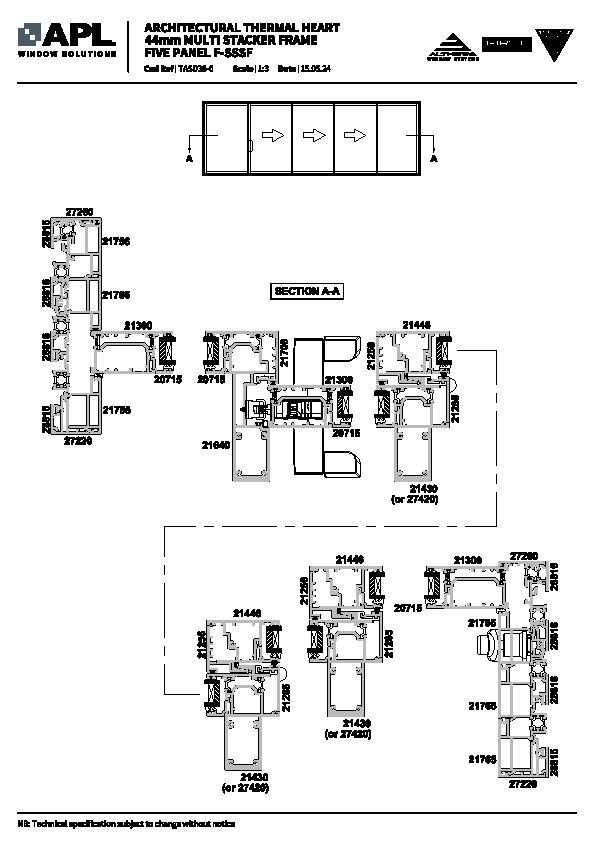

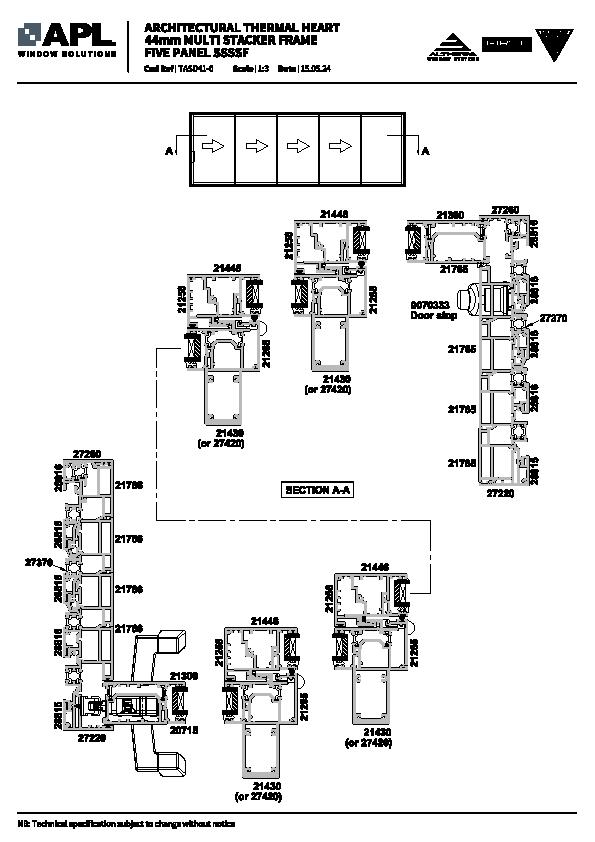

Architectural Series Thermal Heart - 44mm Multi Stacker Frame FSSSF

TASD38

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSSF

TASD39

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSSF

TASD40

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSSF

TASD41

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSSSF

TASD42

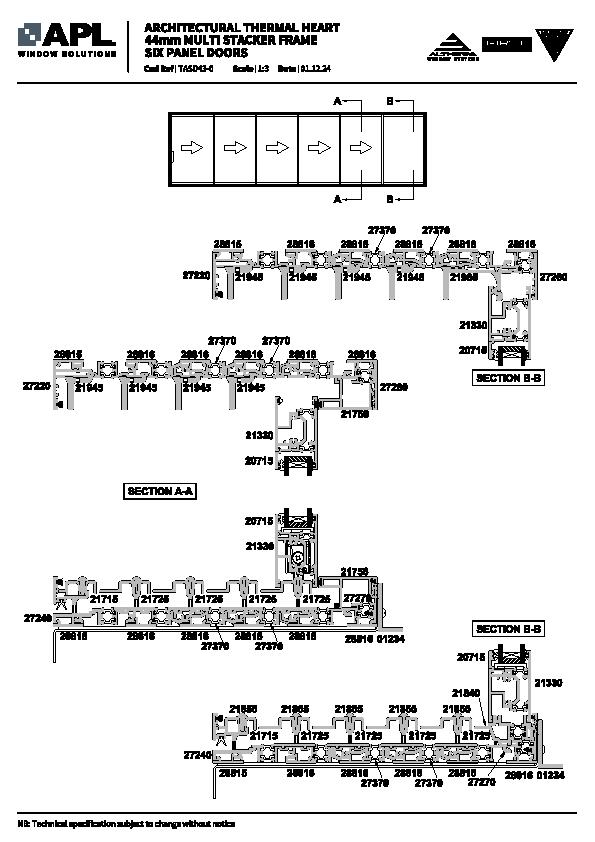

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSSSF

TASD43

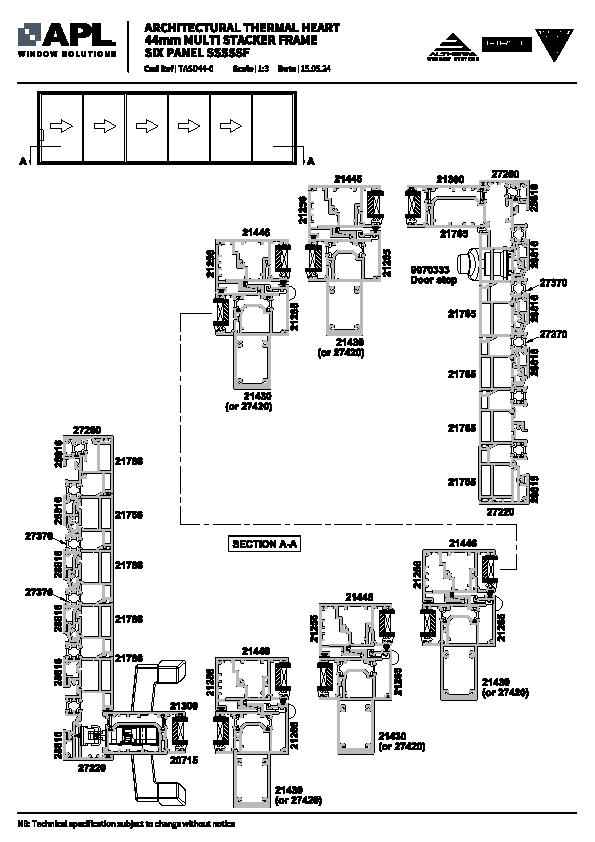

Architectural Series Thermal Heart - 44mm Multi Stacker Frame SSSSSF

TASD44

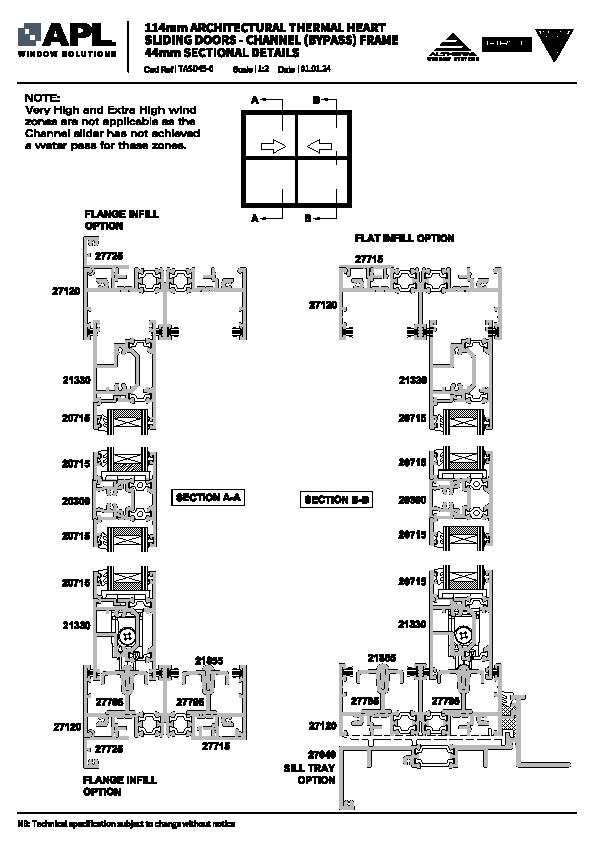

Architectural Series Thermal Heart - 44mm Channel Bipass Frame

TASD45

Architectural Series Thermal Heart - 44mm Channel Bipass Frame with Overlight

TASD46

Architectural Series Thermal Heart - 44mm Channel Bipass Frame

TASD47

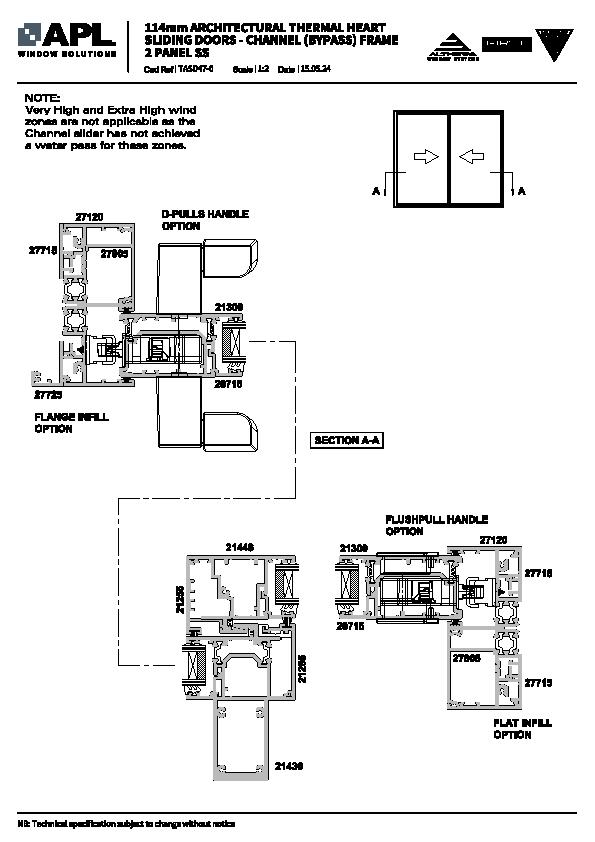

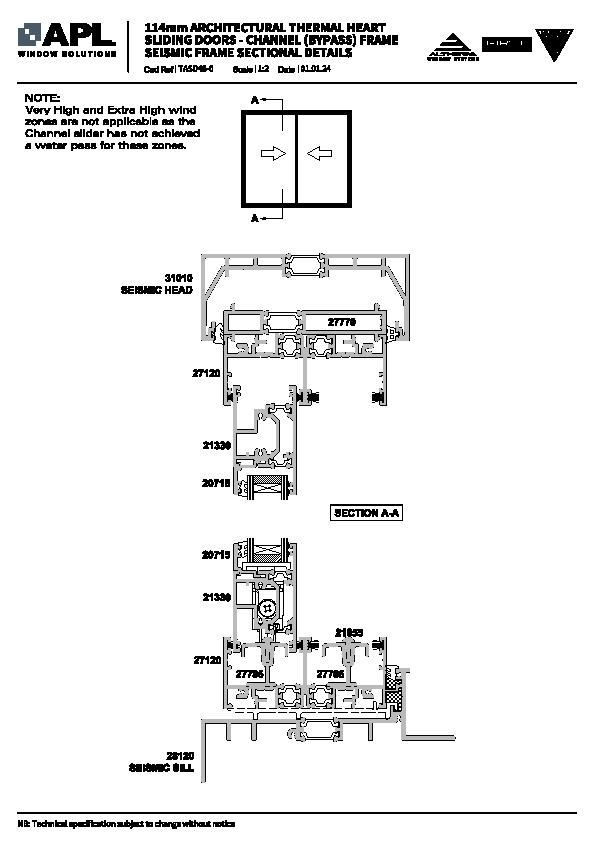

Architectural Series Thermal Heart - 44mm Channel Bipass Seismic Frame

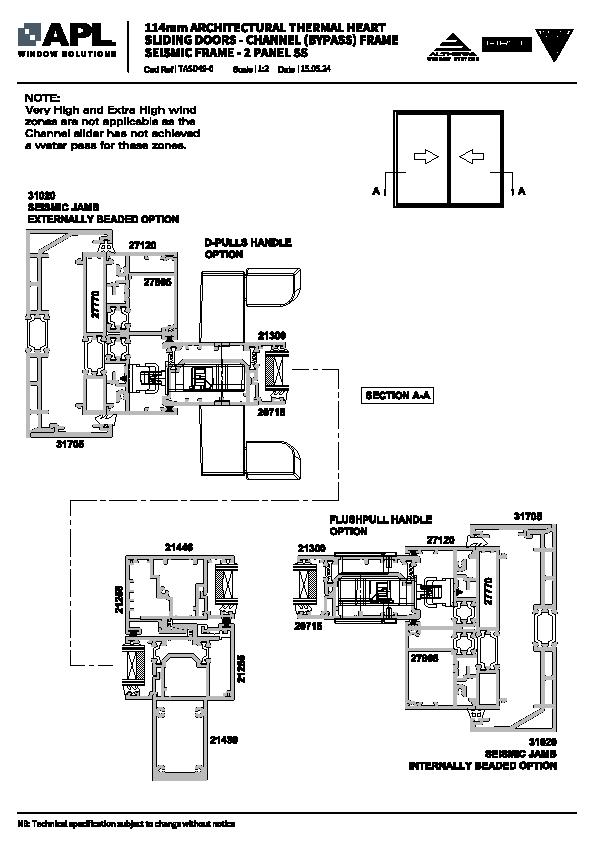

TASD48

Architectural Series Thermal Heart - 44mm Channel Bipass Seismic Frame

TASD49

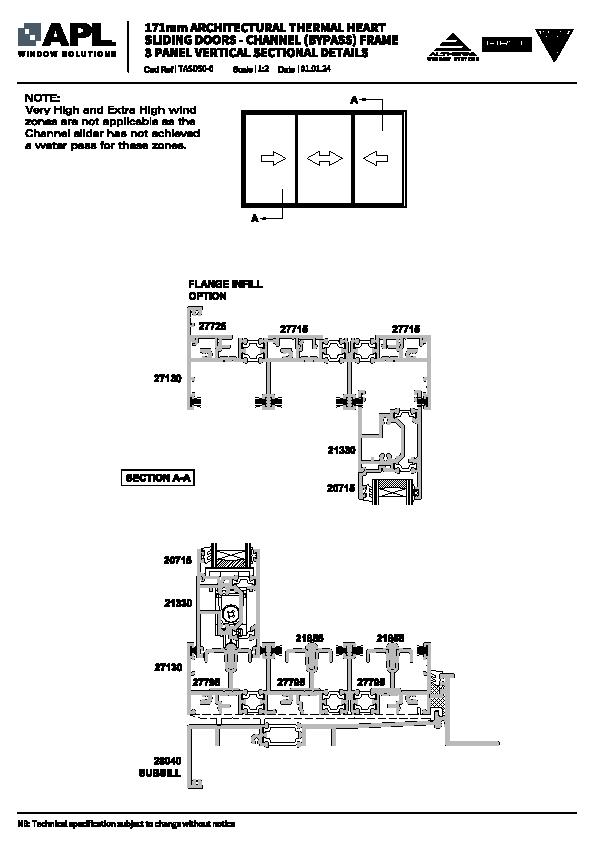

Architectural Series Thermal Heart - 44mm Channel Bipass Frame 3 Panel

TASD50

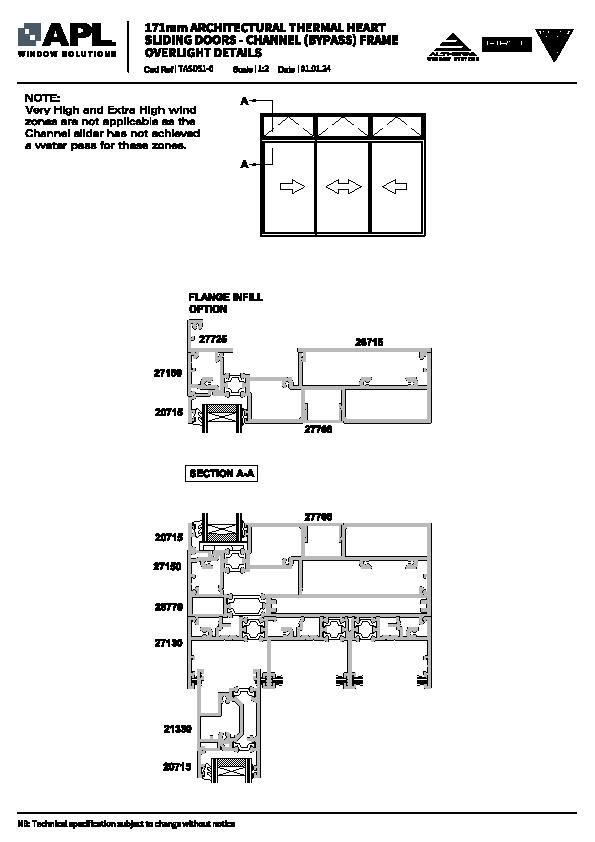

Architectural Series Thermal Heart - 44mm Channel Bipass 171mm Frame with Overlight

TASD51

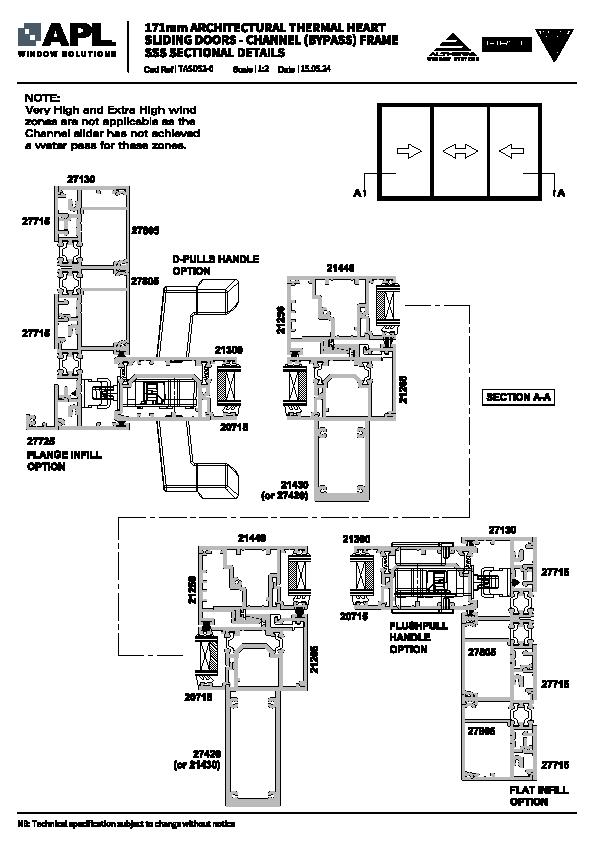

Architectural Series Thermal Heart - 44mm Channel Bipass 171mm Frame

TASD52

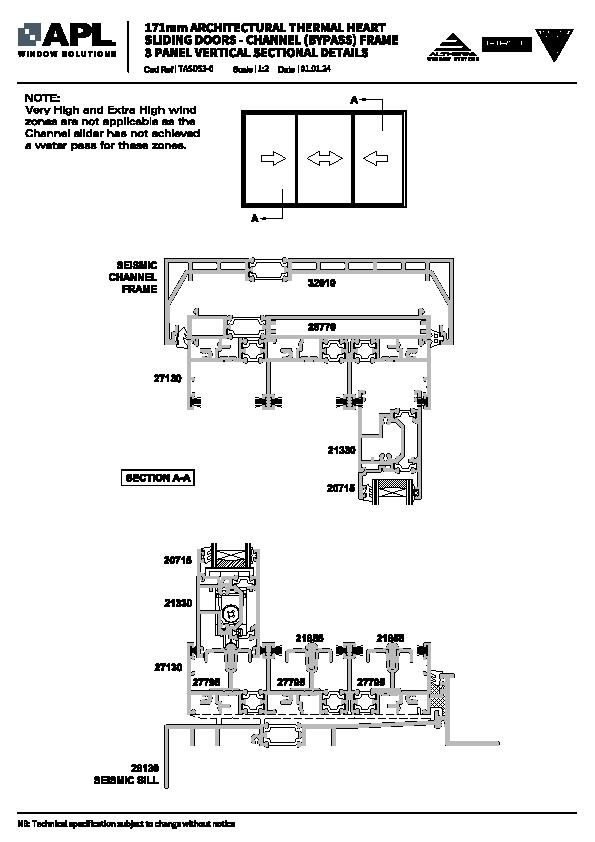

Architectural Series Thermal Heart - 44mm Channel Bipass 171mm Seismic Frame

TASD53

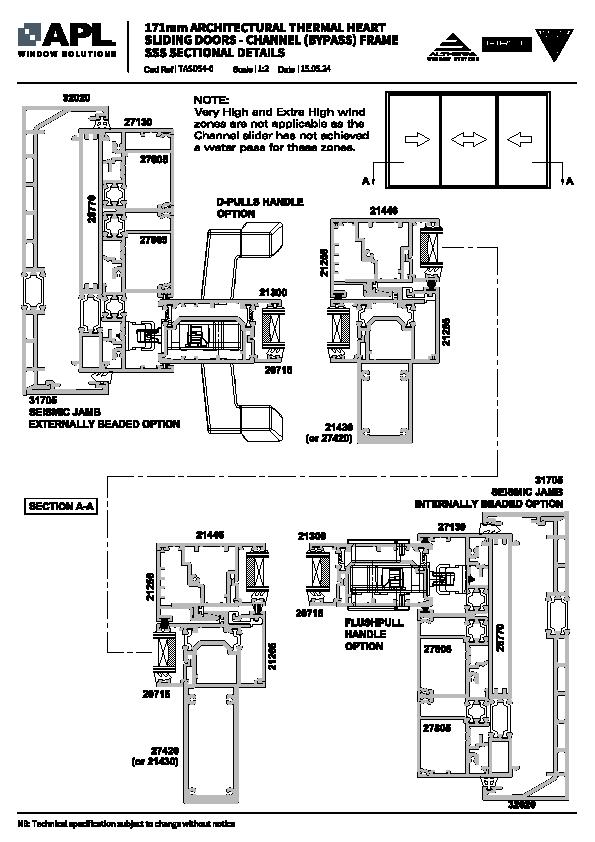

Architectural Series Thermal Heart - 44mm Channel Bipass 171mm Seismic Frame SSS

TASD54

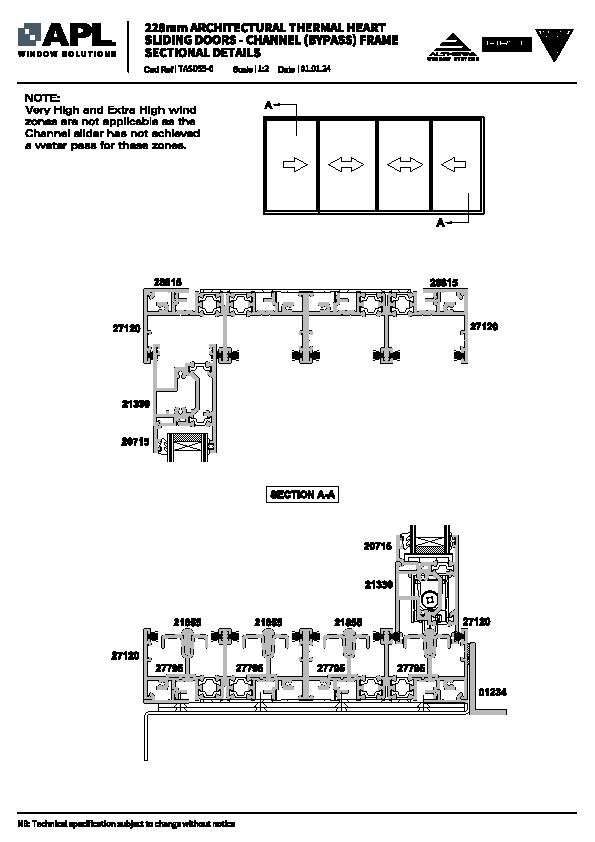

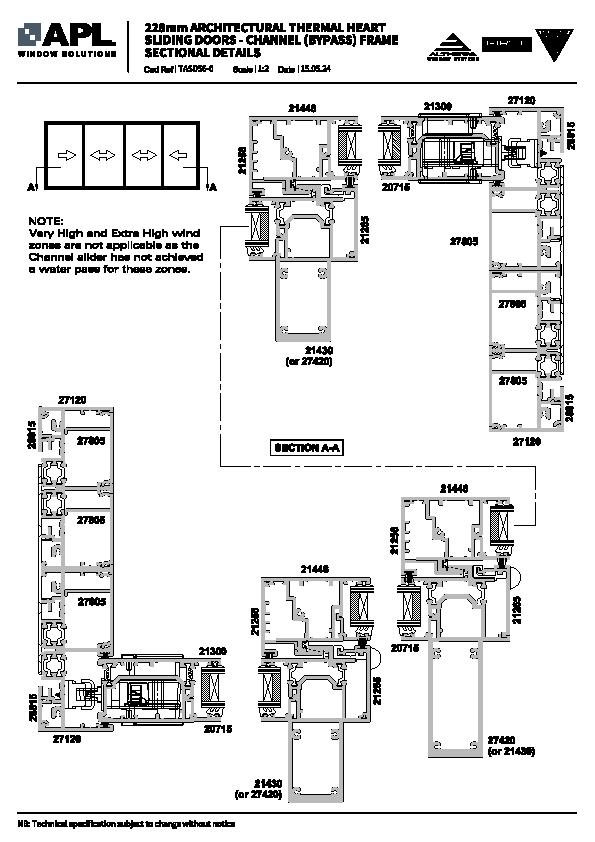

Architectural Series Thermal Heart - 44mm Channel Bipass 228mm Frame

TASD55

Architectural Series Thermal Heart - 44mm Channel Bipass 228mm Frame

TASD56

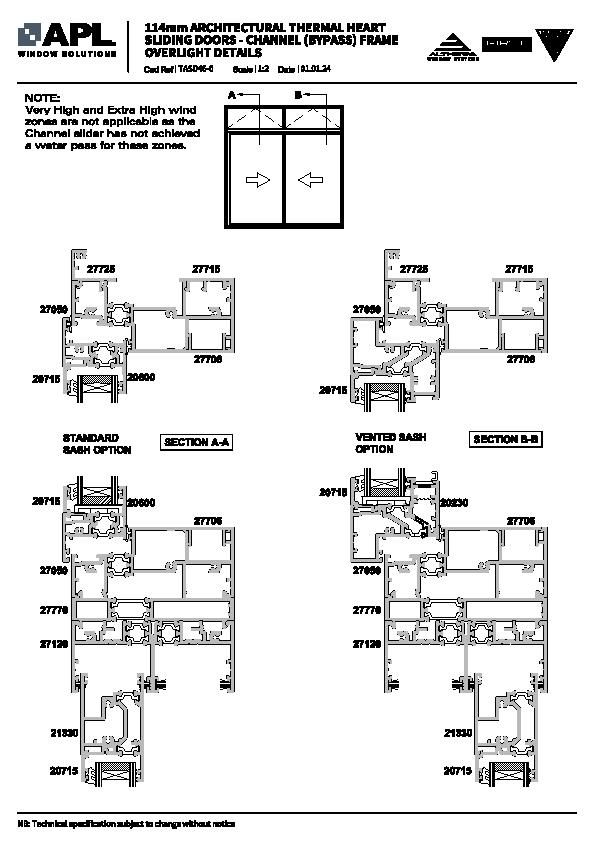

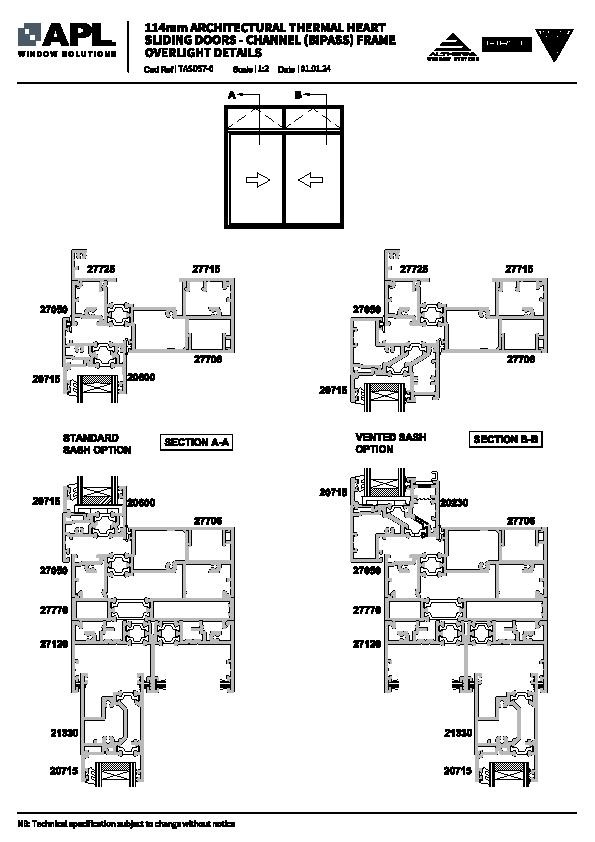

Architectural Series Thermal Heart - 44mm Channel Bipass 114mm Frame with Overlight

TASD57

Installation Details
Filters
Frame type

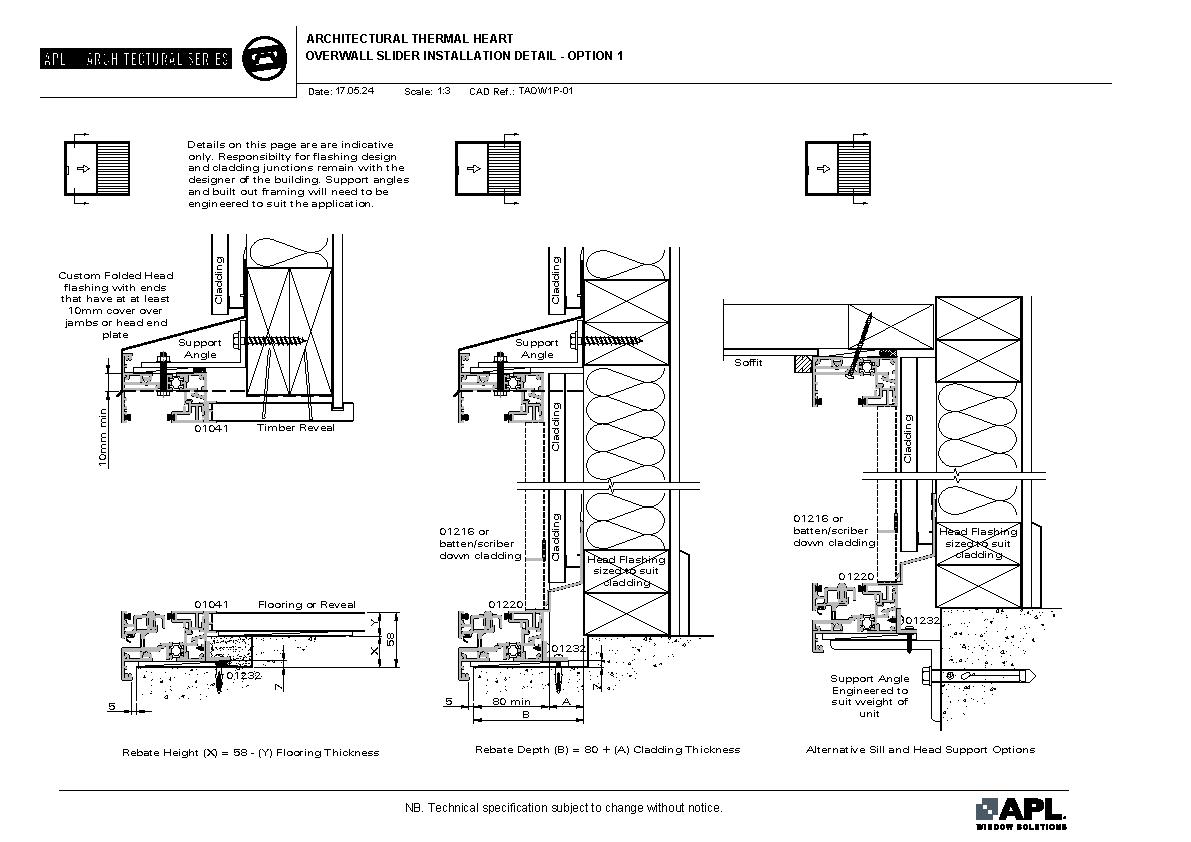

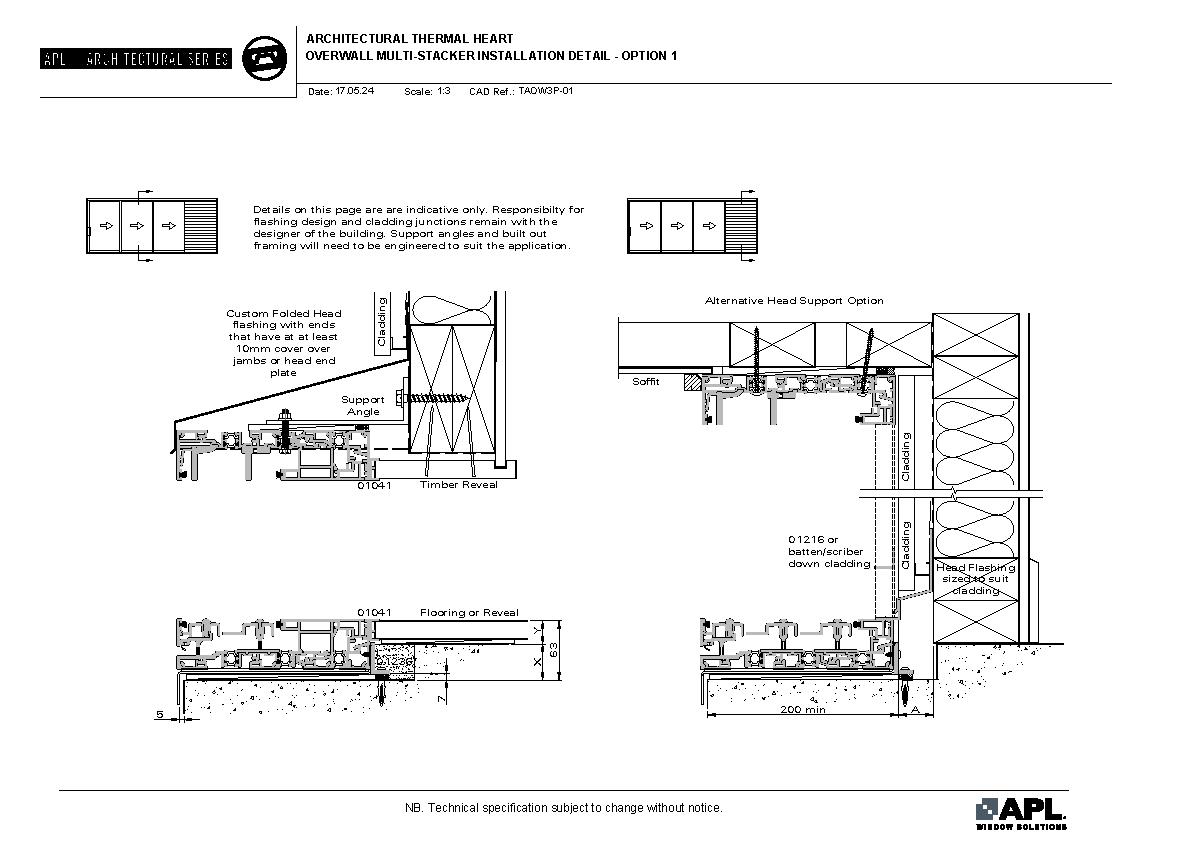

APL Architectural Series ThermalHEART® - Overwall 1 Panel Installation Detail

TAOW1P

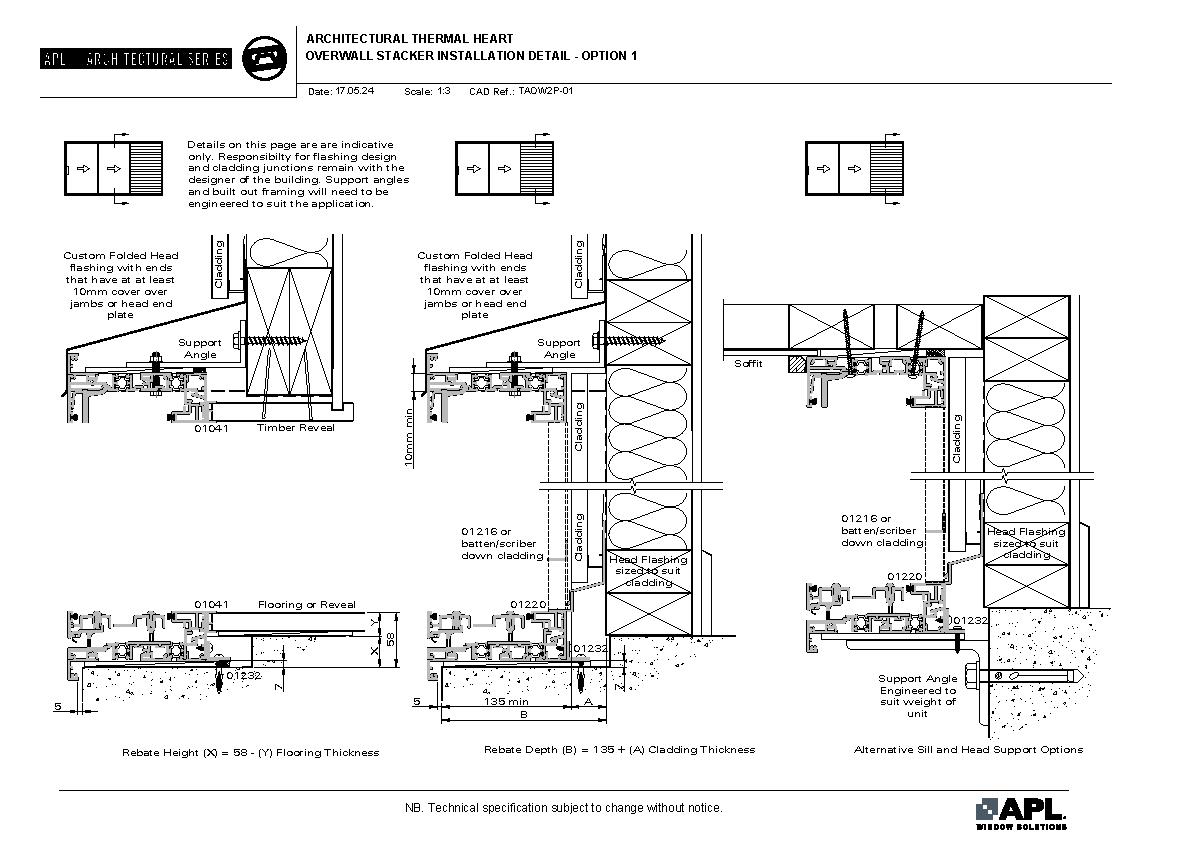

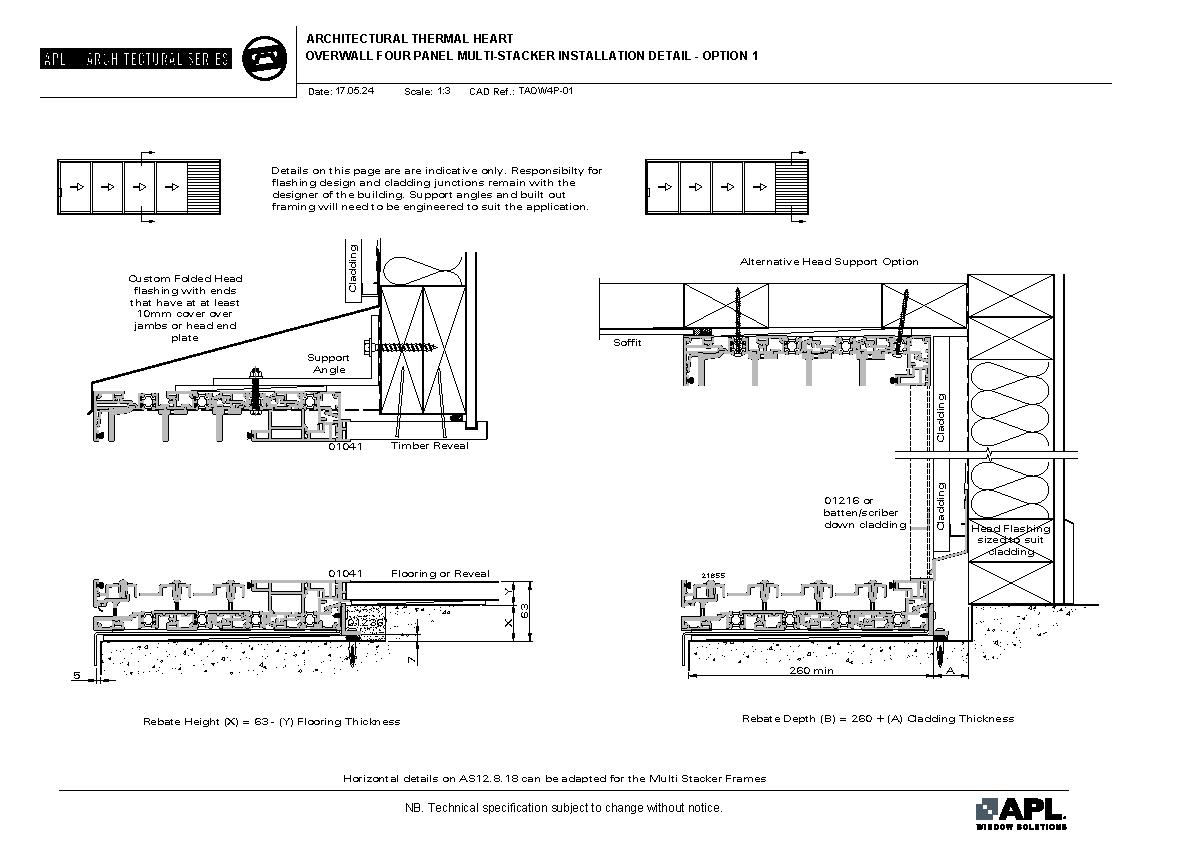

APL Architectural Series ThermalHEART® - Overwall 2 Panel Installation Detail

TAOW2P

APL Architectural Series ThermalHEART® - Overwall 3 Panel Installation Detail

TAOW3P

APL Architectural Series ThermalHEART® - Overwall 4 Panel Installation Detail

TAOW4P

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Board & Batten

TA114SDBB

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Brick Veneer

TA114SDBV

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Bevelback Weatherboard

TA114SDBW

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Flat Sheet

TA114SDFS

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Profile Metal

TA114SDPM

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Rusticated Weatherboard

TA114SDRW

APL Architectural Series ThermalHEART® - 114mm Sliding Door on Stucco

TA114SDST

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Board & Batten

TA171SDBB

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Brick Veneer

TA171SDBV

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Bevelback Weatherboard

TA171SDBW

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Flat Sheet

TA171SDFS

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Profile Metal

TA171SDPM

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Rusticated Weatherboard

TA171SDRW

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Stucco

TA171SDST
