Commercial 80mm & 100mm Shopfront
ALTHERM Window Systems
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

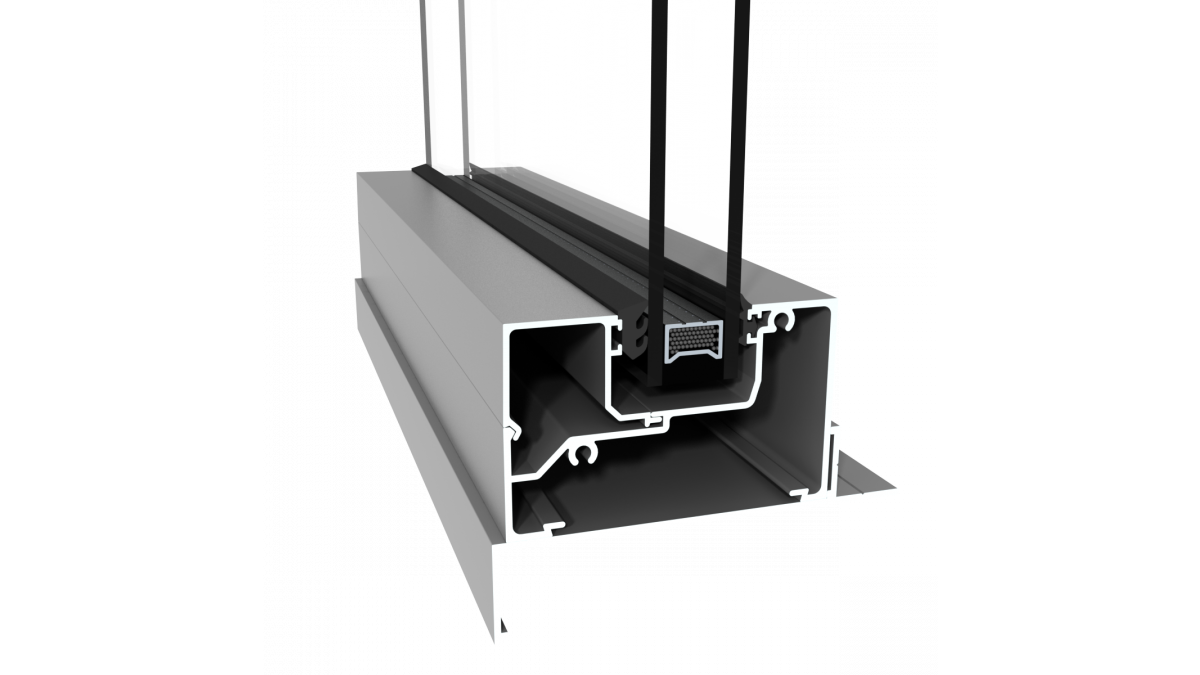

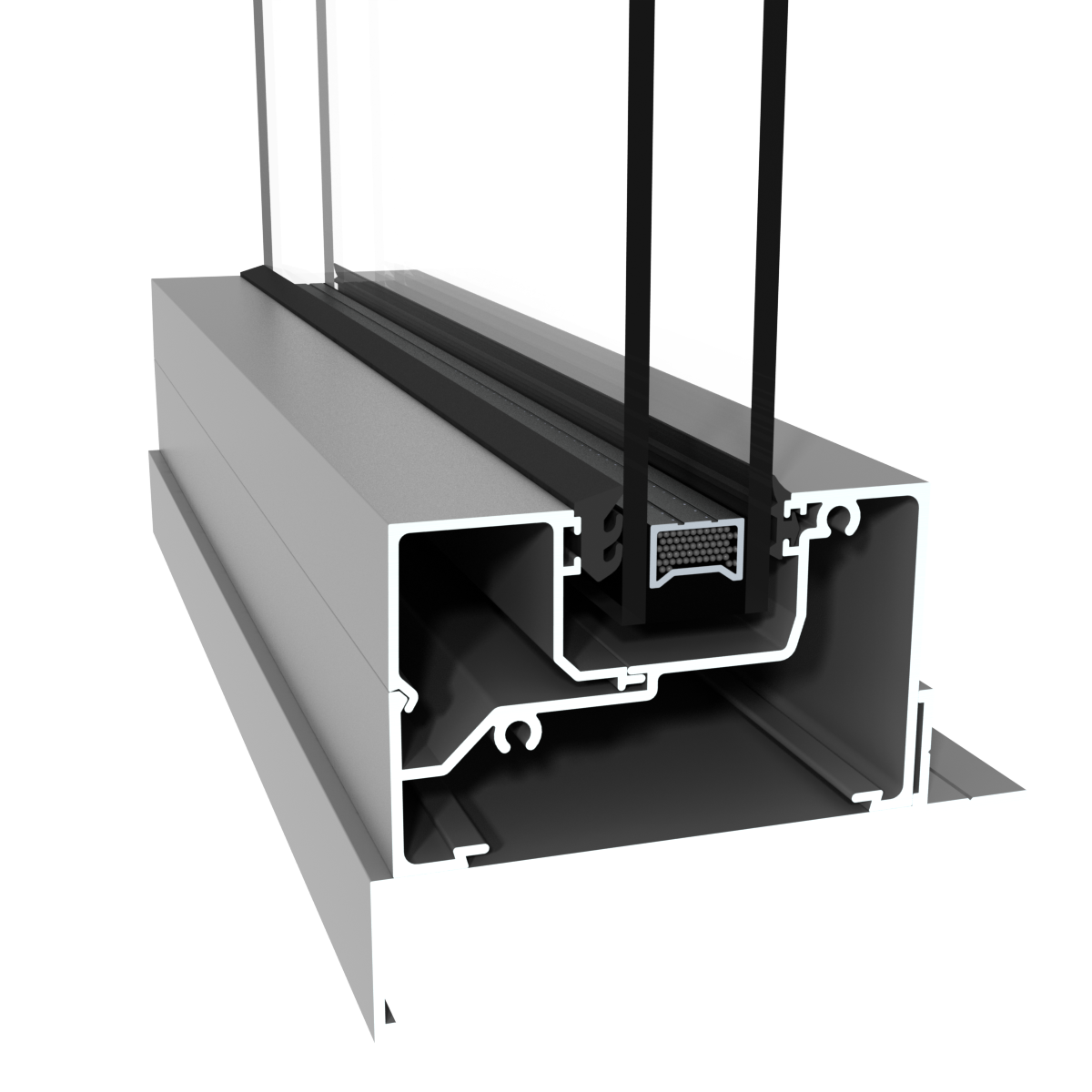

253 80mm Shopfront Sill Section

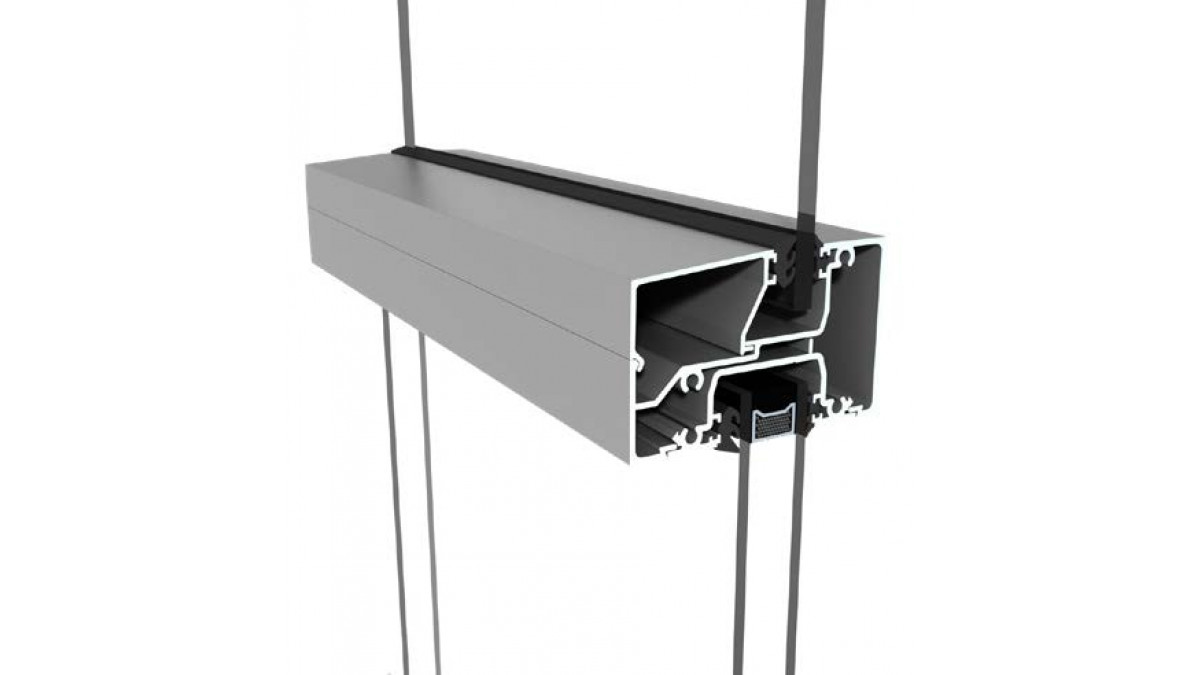

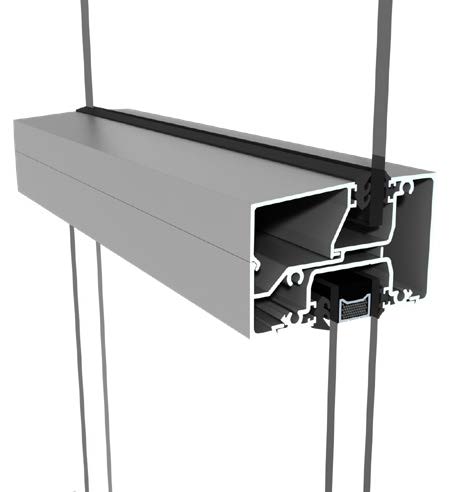

80mm shopfront transom double and single glazed

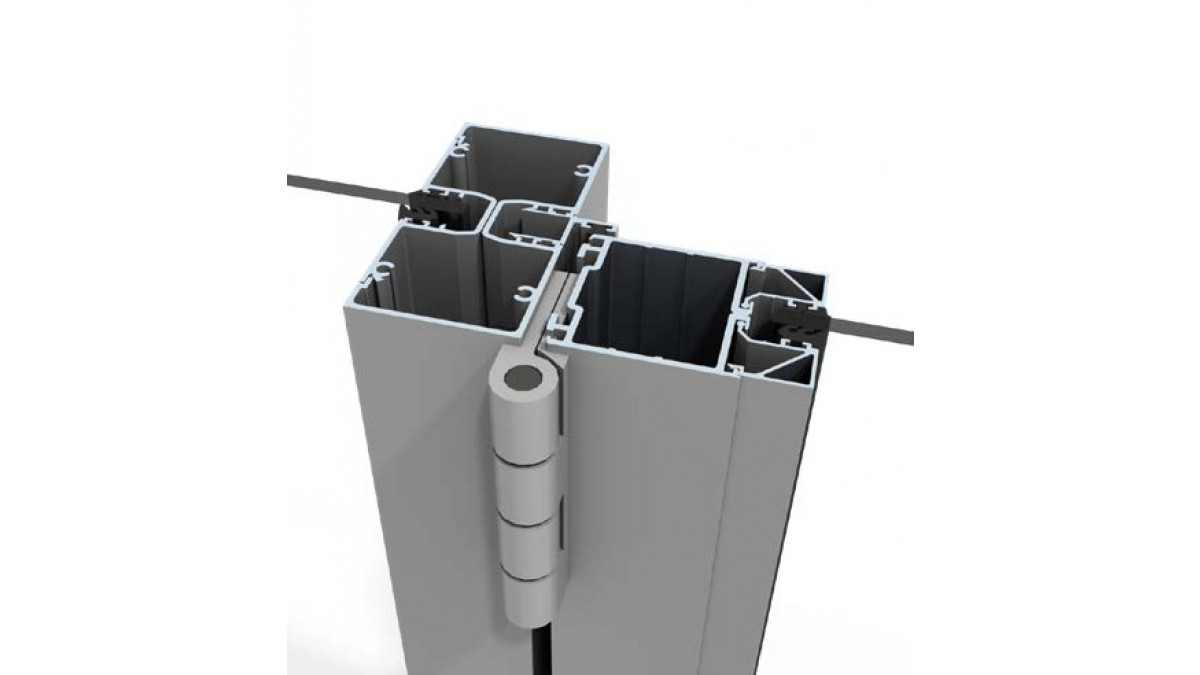

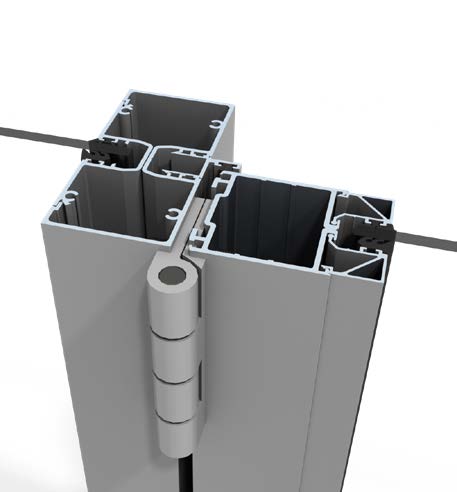

100mm shopfront mullion and Magnum hinged door

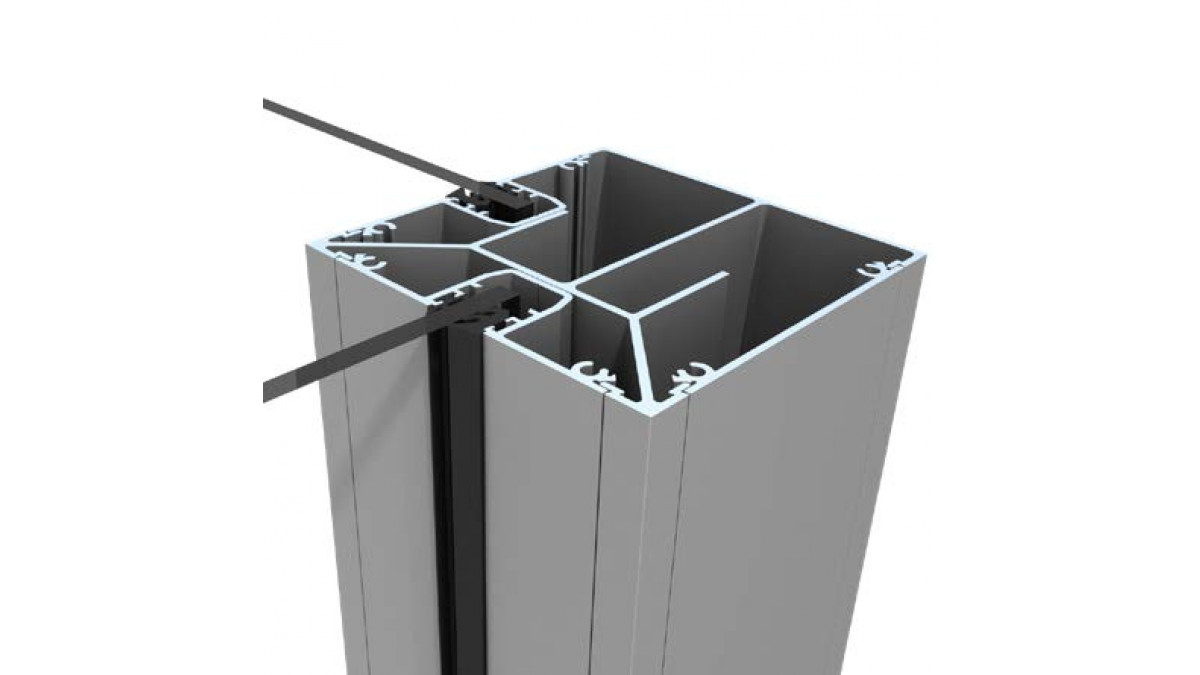

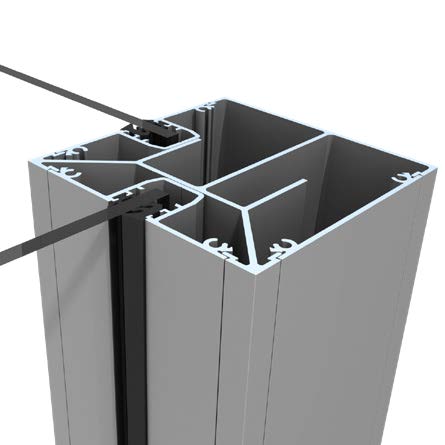

100mm shopfront corner post

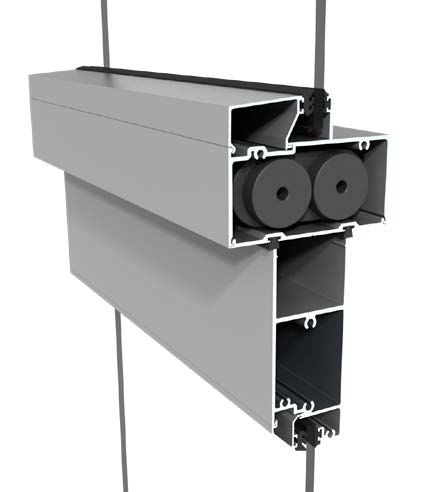

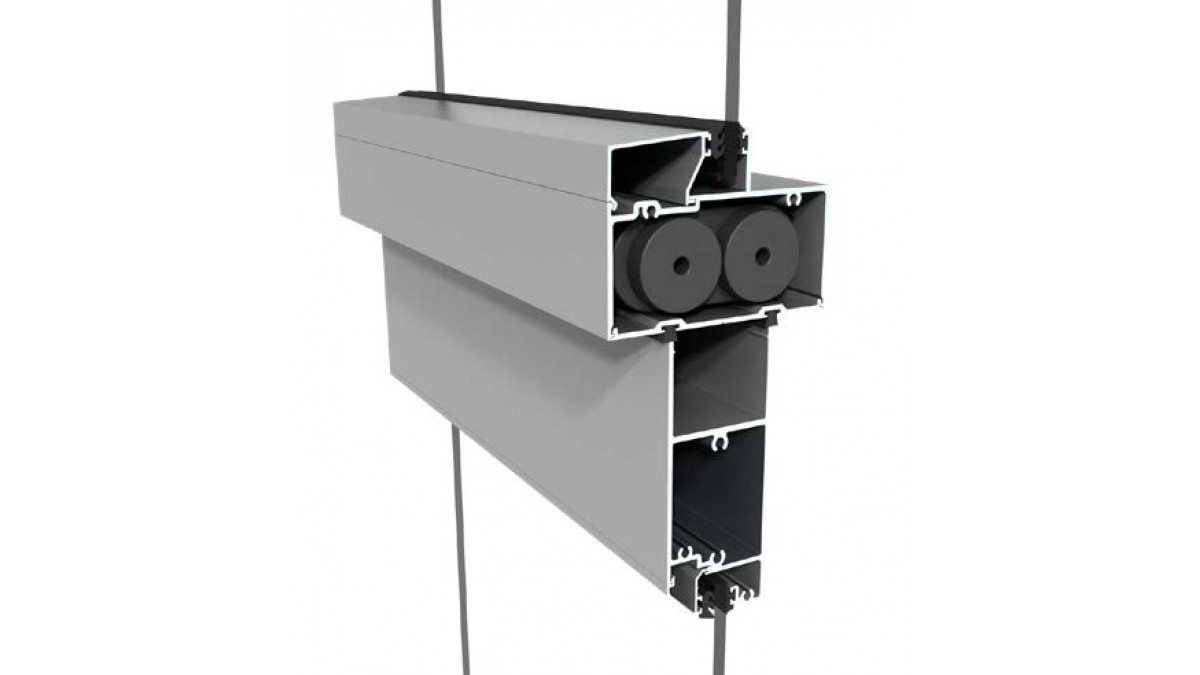

100mm shopfront with glazing above and pivot door below
ACSF02 0
Description

These window systems are designed for shopfront locations, generally at ground level and in protected situations.

The glazing pocket lies in a central position in the frame and mullion in the 100mm suite and in an offset position in the 80mm suite, giving the windows an appearance of solidity in a setting of robust aluminium profiles.

Key Features
  • For shopfront locations, generally at ground level and in protected situations up to 6m in height
  • The glazing pocket lies in a central position in the frame and mullion for the 100mm suite, and in an offset position in the 80mm suite
  • Can incorporate opening sashes from the 40mm Window Series using an inserted sash adapter
  • Compatible with Magnum commercial doors
  • Incorporates individually drained transoms
  • Can accept double glazing
  • Sill tray available
Categories
Commercial Windows and Shopfronts
Ranges
Commercial Series
Scope of Use
  • Designed for ground level environments in weather protected situations
  • Need to be used in defined maximum sizes according to the wind exposure
  • Compatible with opening sashes or Magnum commercial doors mounted in a range of styles — conventional hinged, floor sprung, with concealed transom closer, manual sliding and automatic
Limitations on Use
  • Not suitable for multi-storey or exposed locations
  • Generally preassembled in sections at the factory and joined and sealed on site; glazing is also usually done on site
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 1993
  • Some design upgrades released
  • Widely used by builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed



  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Environmental Product Declaration (EPD) Report

2023

URL
Altherm on Masterspec
URL
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Altherm Design Brochure

2020

URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full

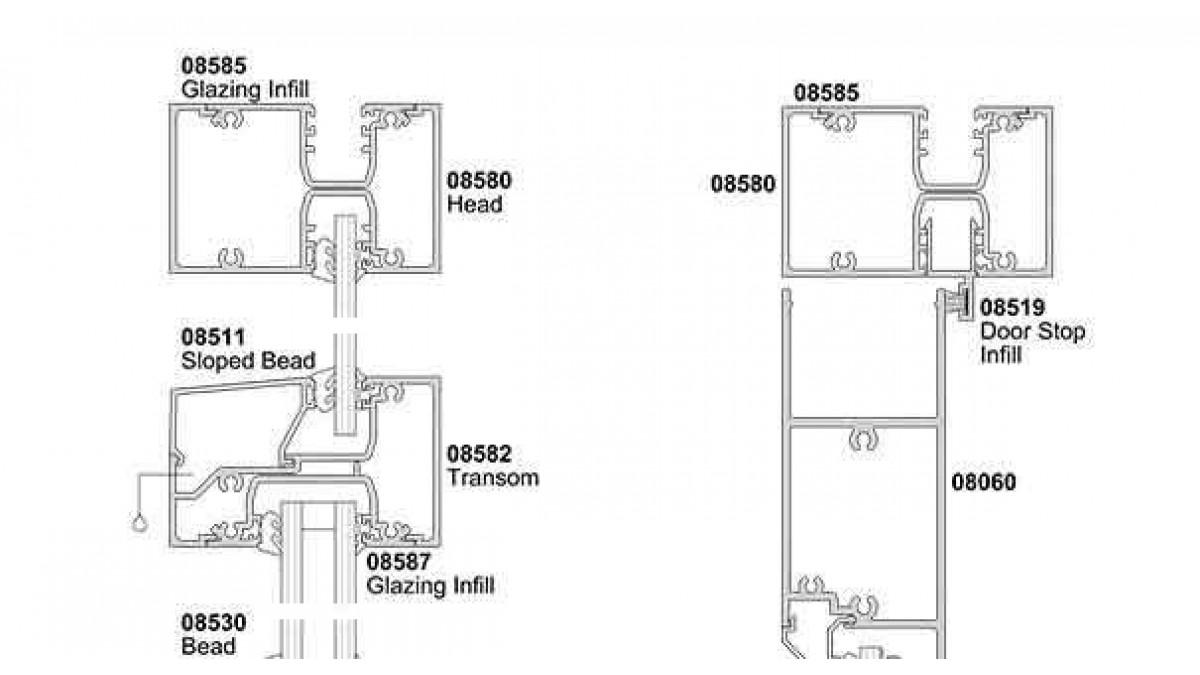

Full Set of Drawings
pdf

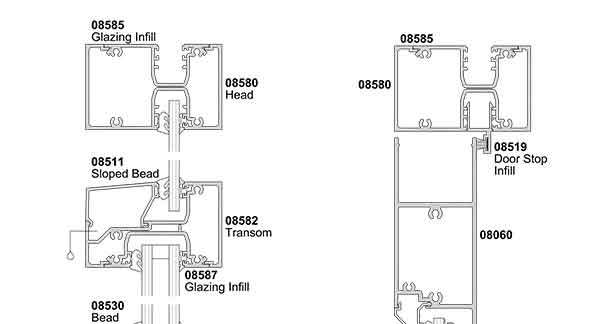

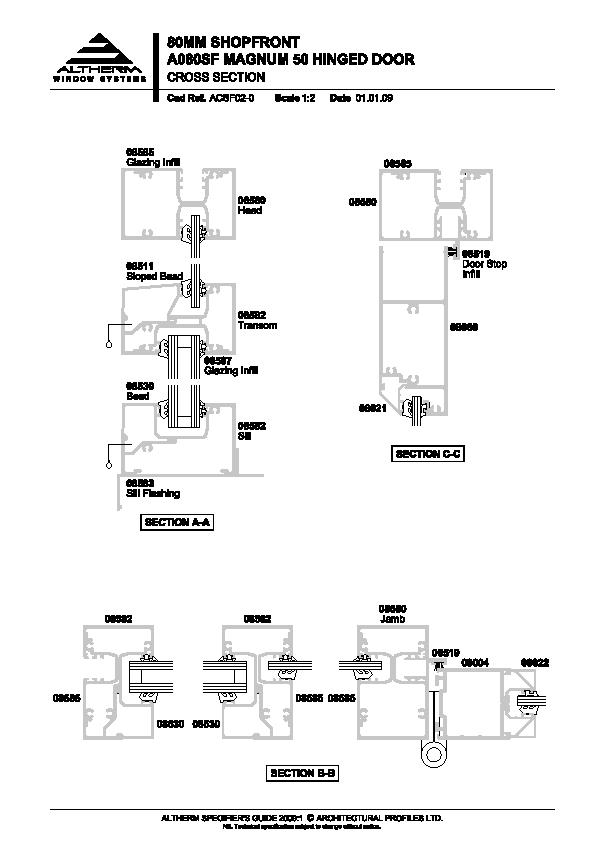

Altherm Commercial 80mm & 100mm Shopfront 80mm Shopfront A080SF Magnum 50 Hinged Door

ACSF02-0

dwf
dwg
dxf
pdf

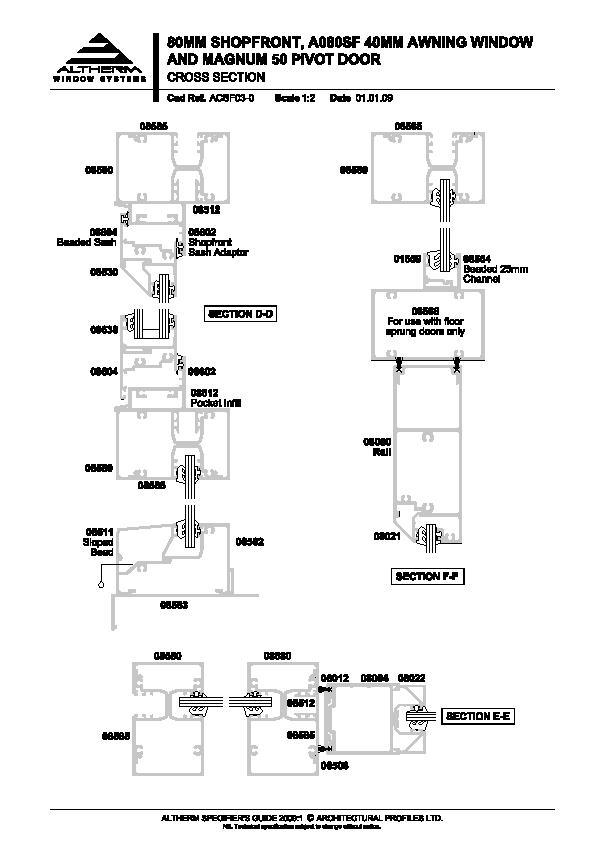

Altherm Commercial 80mm & 100mm Shopfront 80mm Shopfront, A080SF 40mm Awning Window and Magnum 50 Pivot Door

ACSF03-0

dwf
dwg
dxf
pdf

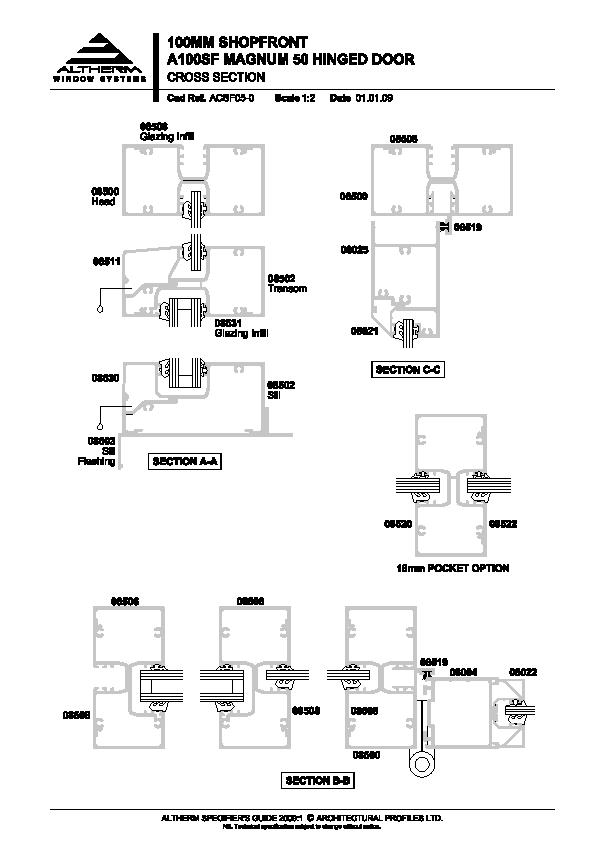

Altherm Commercial 80mm & 100mm Shopfront 100mm Shopfront A100SF Magnum 50 Hinged Door

ACSF05-0

dwf
dwg
dxf
pdf

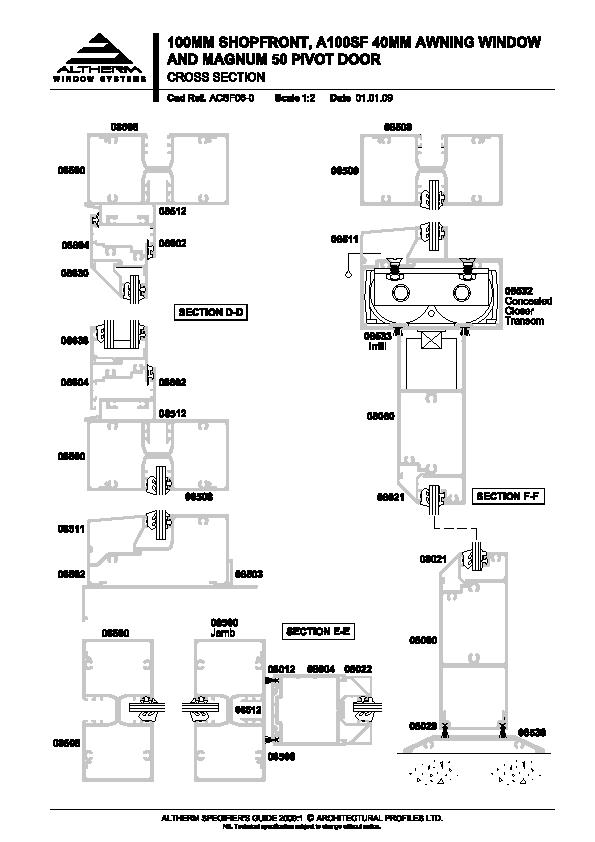

Altherm Commercial 80mm & 100mm Shopfront 100mm Shopfront, A100SF 40mm Awning Window and Magnum 50 Pivot Door

ACSF06-0

dwf
dwg
dxf
pdf

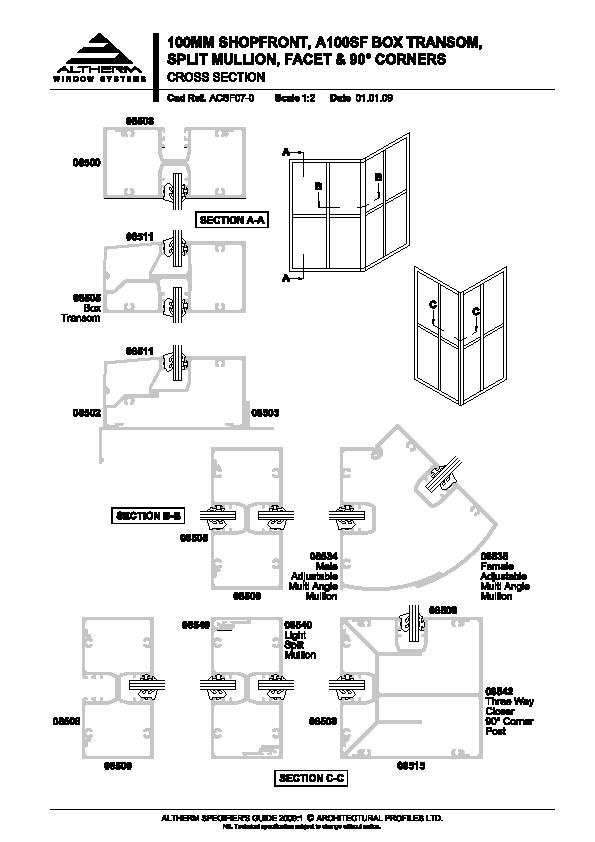

Altherm Commercial 80mm & 100mm Shopfront 100mm Shopfront, A100SF Box Transom Split Mullion, Facet & 90º Corners

ACSF07-0

dwf
dwg
dxf
pdf

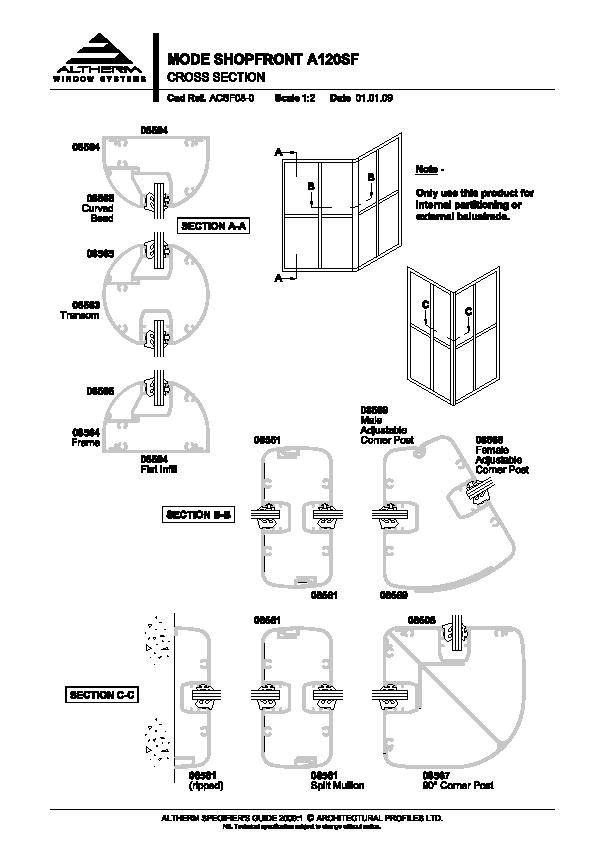

Altherm Commercial 80mm & 100mm Shopfront Mode Shopfront A120SF

ACSF08-0

dwf
dwg
dxf
pdf

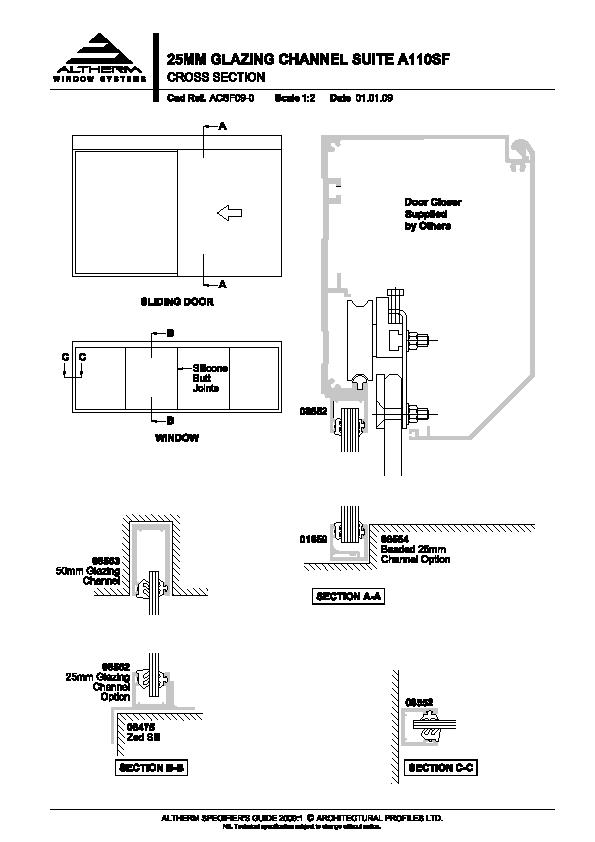

Altherm Commercial 80mm & 100mm Shopfront 25mm Glazing Channel Suite A100SF

ACSF09-0

dwf
dwg
dxf
pdf
BIM
View full

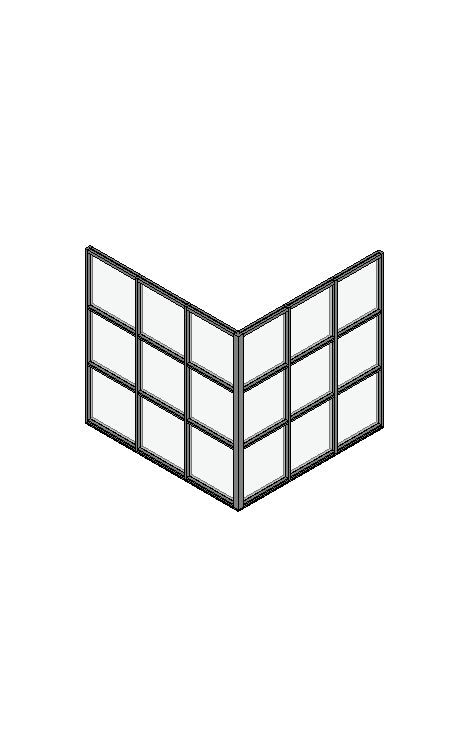

External Corner
Altherm Commercial 100mm Shopfront, 90° Corner (Curtain Wall)
rfa
rvt
Fixed System
Altherm Commercial 100mm Shopfront, Fixed System (Curtain Wall)
rfa
rfa
rvt

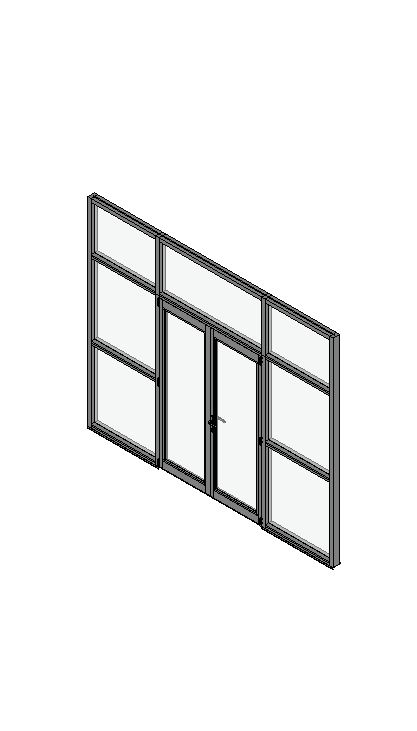

French Door
Altherm Commercial 100mm Shopfront, Magnum 50 French Door (Curtain Wall)
rfa
rfa
rvt
Hinged Door
Altherm Commercial 100mm Shopfront, Magnum 50 Hinged Door (Curtain Wall)
rfa
rfa
rvt

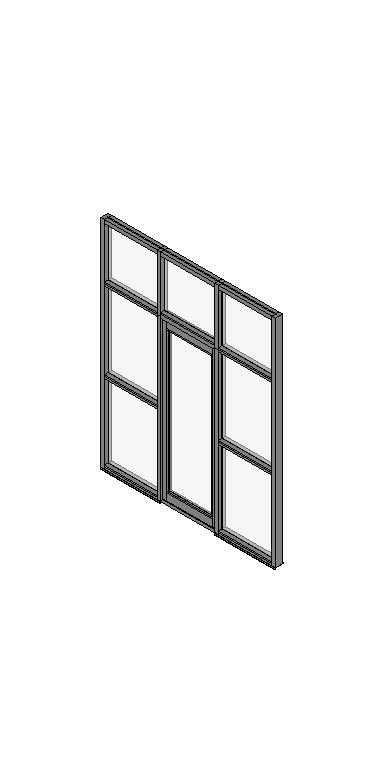

Pivot Door One P
Altherm Commercial 100mm Shopfront, Magnum 50 Pivot Door One Panel (Curtain Wall)
rfa
rfa
rvt

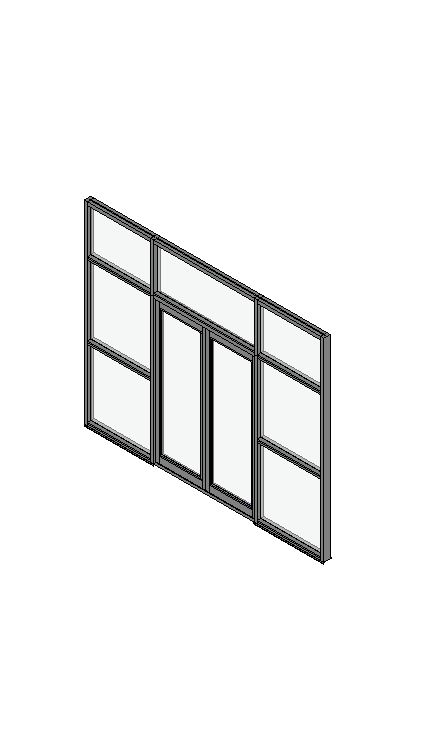

Pivot Door Two P
Altherm Commercial 100mm Shopfront, Magnum 50 Pivot Door Two Panel (Curtain Wall)
rfa
rfa
rvt

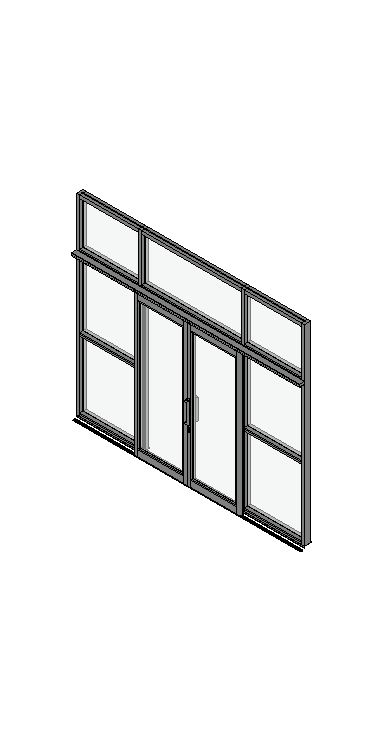

sliding
Altherm Commercial 100mm Shopfront, Magnum 50 Sliding Door 4 Panel (Curtain Wall)
rfa
rfa
rvt
