Altherm Windows and the New Waitangi Museum

Te Rau Aroha Museum on the Waitangi Treaty Grounds is a building with two contrasting frontages — one giving entry to quiet, interior spaces for display and thoughtful contemplation, the other a function centre that looks outwards, rimmed by a wide verandah and tall panes of glass to capture light and bushy views.

It’s the architectural equivalent of a ‘game of two halves’ — a tough brief for Grant Harris, of HB Architecture, who was tasked with designing the $14.6m museum in collaboration with the Waitangi National Trust and other advisors on a tight construction timeline, with funding from the Provincial Growth Fund.

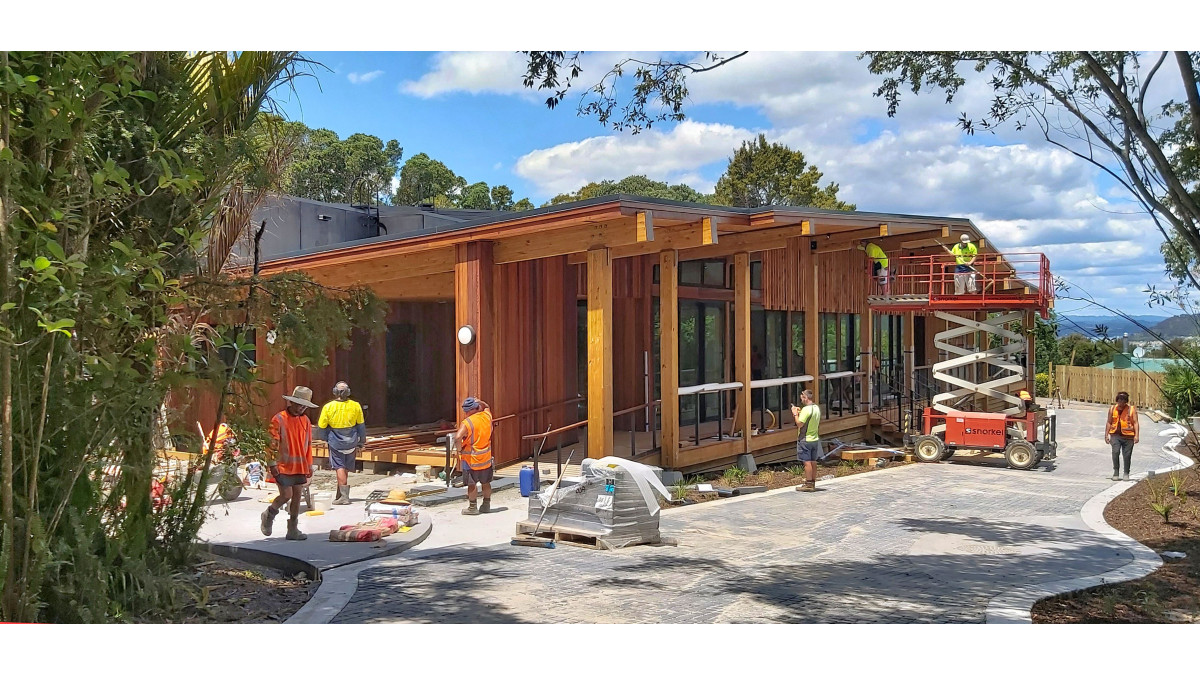

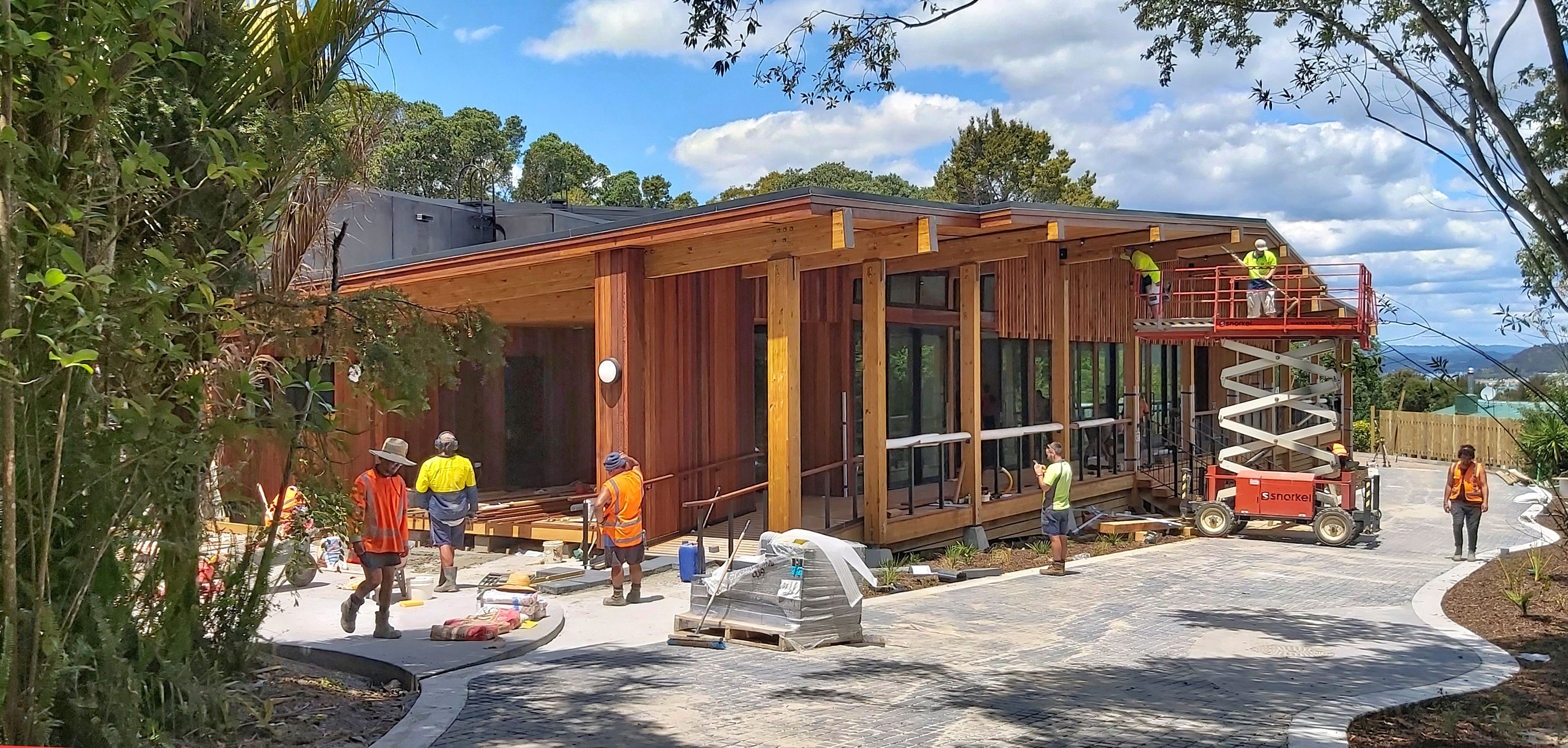

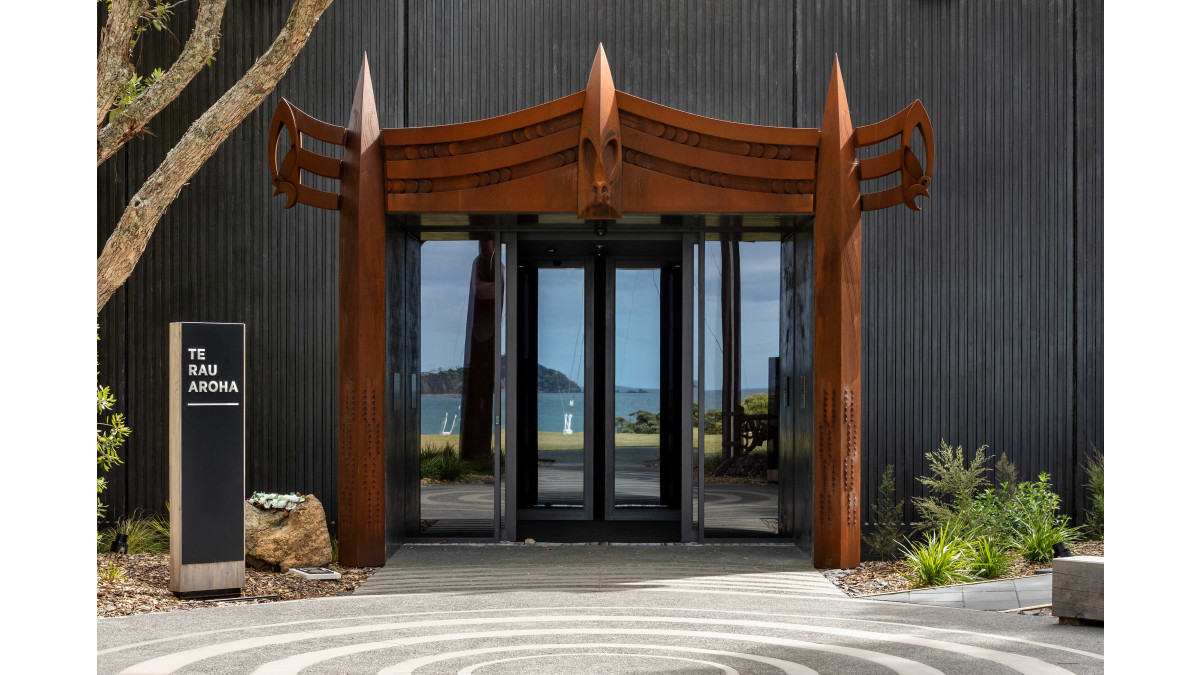

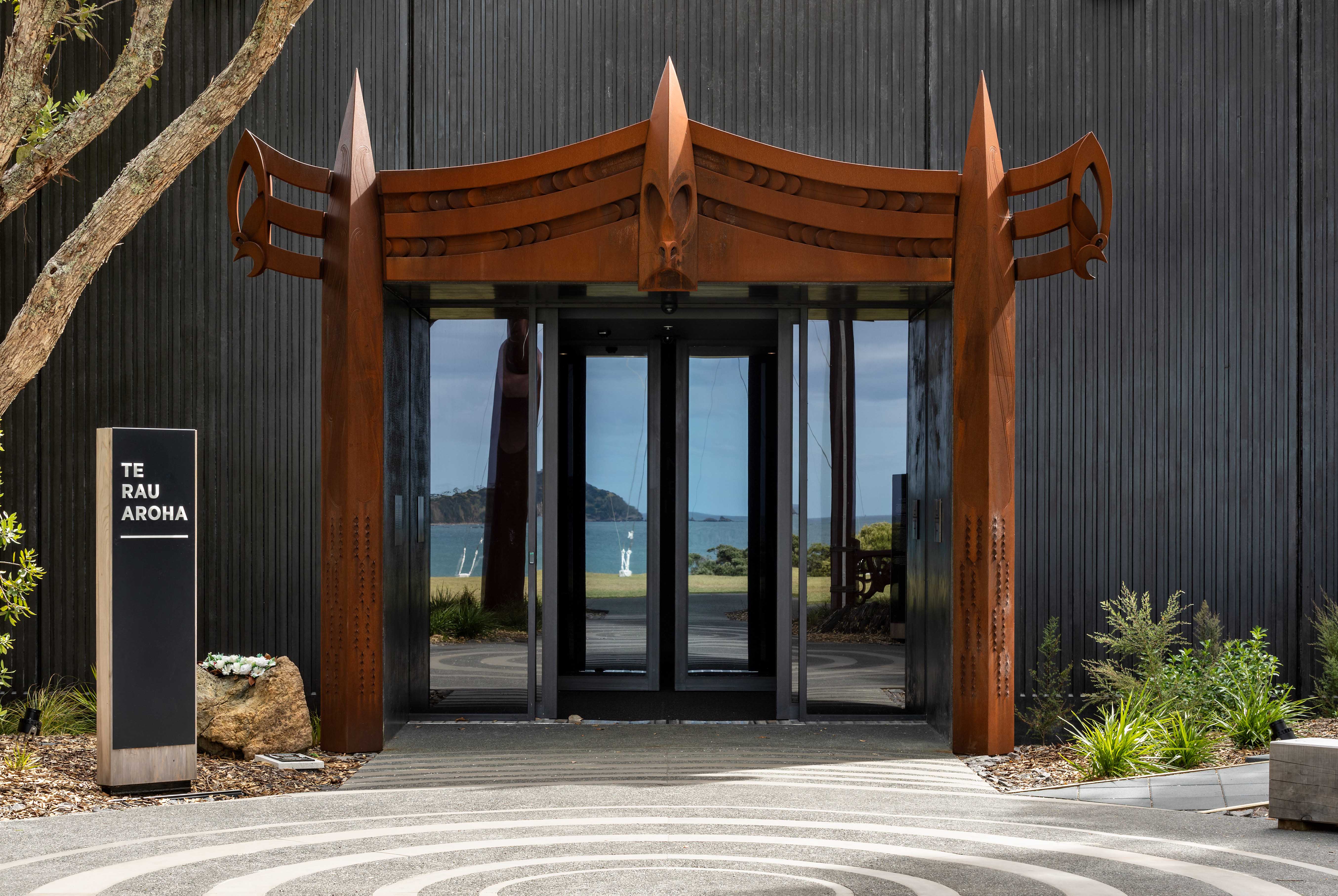

The two-part building that evolved uses windows and doors from Altherm Northland, in Whangarei, with most of the 33 installed units allocated to the highly transparent Tahuaroa Function Centre. Here, an imposing array of 3-metre-high APL Architectural Series doors are capped by raking overlights in the Commercial 40mm Window Series. Elsewhere, a wide variety of Altherm products were used — at the main entrance, behind the carved portal, 3-metre-high Commercial Magnum autodoors were set in 100mm Shopfront. Also, on the window schedule were Metro Series windows and doors, high-level 40mm sashes on electric openers, and extensive use of Altair louvres, principally set in Metro Series hinged door panels.

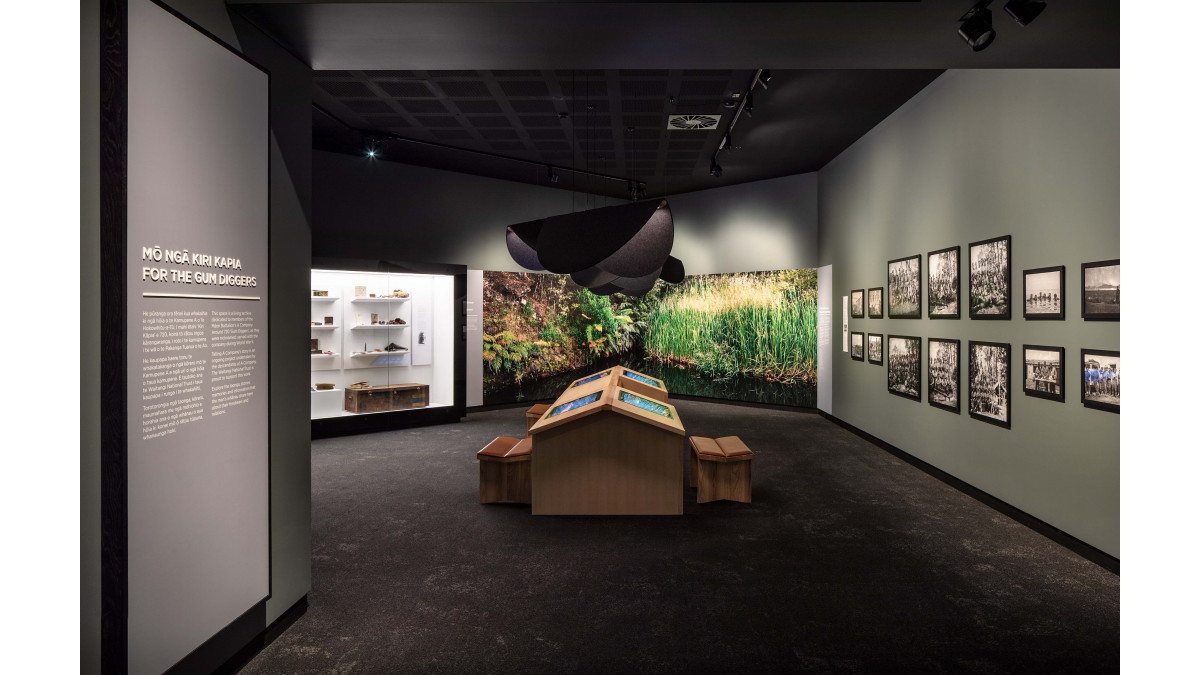

The theme of the museum’s main exhibition is the Price of Citizenship, highlighting Maori commitment to the armed forces through various conflicts. There is little use of glazing in the three, bunker-like, interactive galleries, though one, eye-catching Altherm window was installed in a room corner — a 5.5-metre-high, vertical slit (40mm fixed light) that captures afternoon illumination behind grey tint glass.

Exhibitions cover the New Zealand Wars and the Boer War, with a strong focus on the Pioneer Battalion of World War I and the 28 (Maori) Battalion of World War II. Another gallery is dedicated to the 28 (Maori) Battalion’s A Company, most of whom hailed from Northland. The third gallery acts as a contemplative Whare Maumahara (house of memories) for visitors, descendants and whanau.

The windows and doors throughout were powdercoated in Duratec Matt Black with most of the glazing in Low-E IGU’s using a combination or green or grey tint, depending on the location.

The builder was Henwood Construction, of Kerikeri.

Commercial Magnum Commercial Doors

ALTHERM Window Systems

View Product

Magnum commercial doors are versatile and robust and are suitable for commercial, institutional and some specialised residential settings.

Suitable for a wide range of commercial environments
Also used in some residential applications
Location and exposure suitability will depend on door type used e.g. sliding, hinged
Magnum sliders are compatible with the 100mm Shopfront suite
Need to be used in defined maximum sizes according to the wind exposure

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

Commercial 40mm Window Series

ALTHERM Window Systems

View Product

The 40mm series is a diverse range of window products designed for versatility — as strip windows, hopper and pivoting windows, seismically framed windows and curtain wall applications.

Suitable for commercial environments
For low to high rise applications
Need to be used in defined maximum sizes
The 40mm window system is compatible with the use of Magnum commercial doors
Hopper window option is suitable for institutional and education sector use

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

APL Architectural Series Altair Louvres

ALTHERM Window Systems

View Product

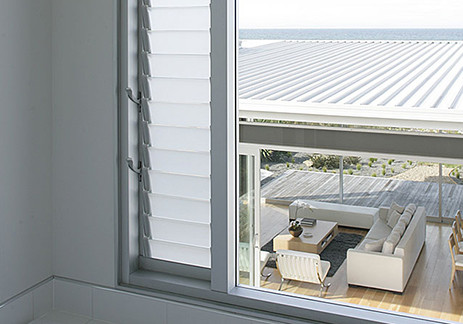

The APL Architectural Series can incorporate the Altair louvre system from Breezway, Australia.

NZ Made

Altair system is suitable for a wide range of residential applications in less exposed environments
Should be used with louvre weather bar system for optimum weather resistance
Needs to be used in defined maximum sizes according to the wind exposure
Altair louvres comply with NZ weatherproofing requirements up to 'Extra High' wind zones when used together with the louvre weather bar system

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

Commercial 80mm & 100mm Shopfront

ALTHERM Window Systems

View Product

These window systems are designed for shopfront locations, generally at ground level and in protected situations.

Designed for ground level environments in weather protected situations
Need to be used in defined maximum sizes according to the wind exposure
Compatible with opening sashes or Magnum commercial doors mounted in a range of styles — conventional hinged, floor sprung, with concealed transom closer, manual sliding and automatic

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2
