Commercial 40mm Window Series
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

The 40mm series is a diverse range of window products designed for versatility — as strip windows, hopper and pivoting windows, seismically framed windows and curtain wall applications.

There are numerous sash and fixed light options for different site exposures, glass thickness and aesthetic requirements.

Key Features
  • For low to high rise applications
  • A varied, multi-product window system based on a 40mm frame platform. It includes:
    • Glazed frames and sashes for general commercial applications

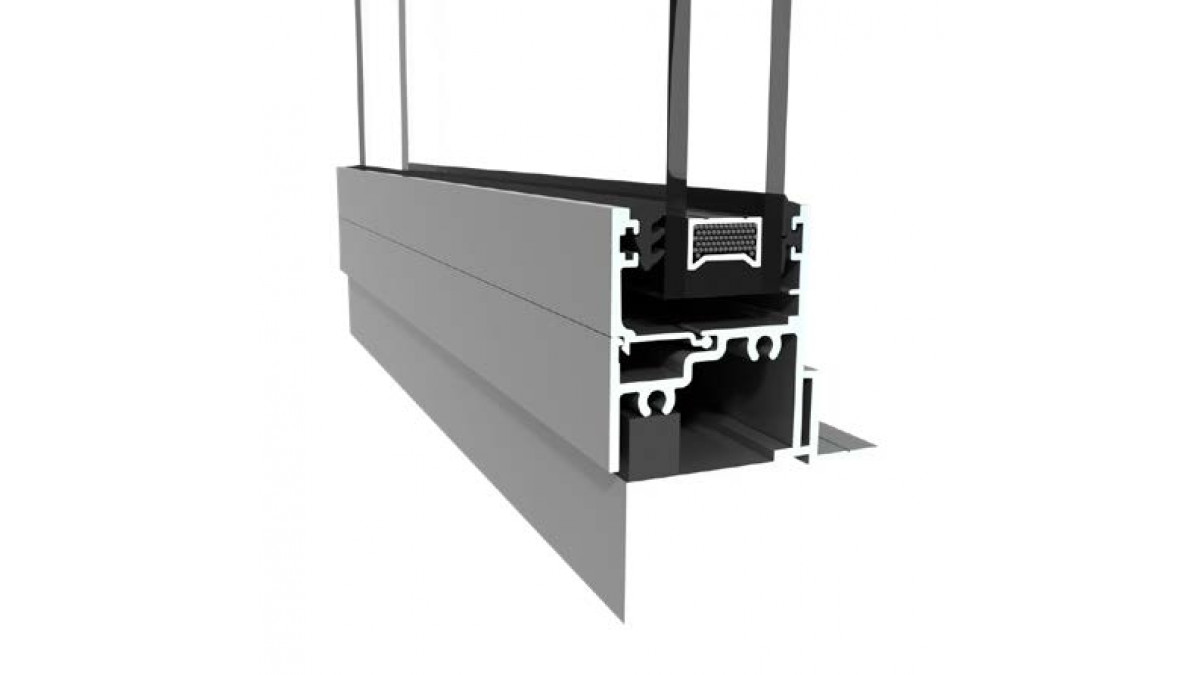

    • Glazed frames and sashes for strip windows
    • Hopper windows
    • Pivoting windows

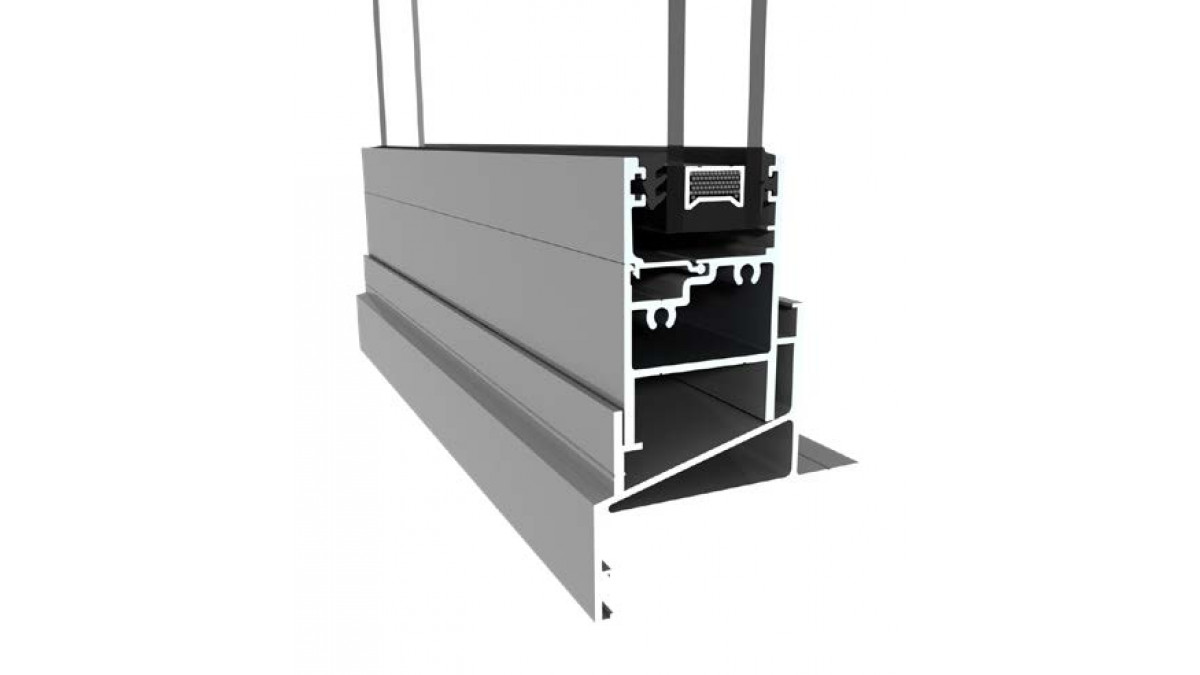

    • Glazed frames seismically separated from the building structure
    • Curtain walling

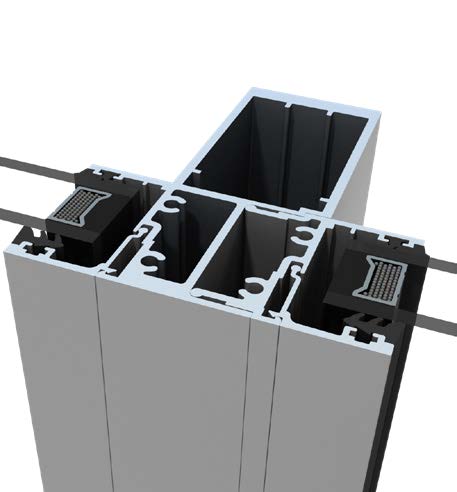

  • Substantially sized box-section extrusions allow large sashes up to 1600mm high x 1000mm wide dependent on the glass used (awning & casement applications)
Scope of Use
  • Suitable for commercial environments
  • For low to high rise applications
  • Need to be used in defined maximum sizes
  • The 40mm window system is compatible with the use of Magnum commercial doors
  • Hopper window option is suitable for institutional and education sector use
Limitations on Use

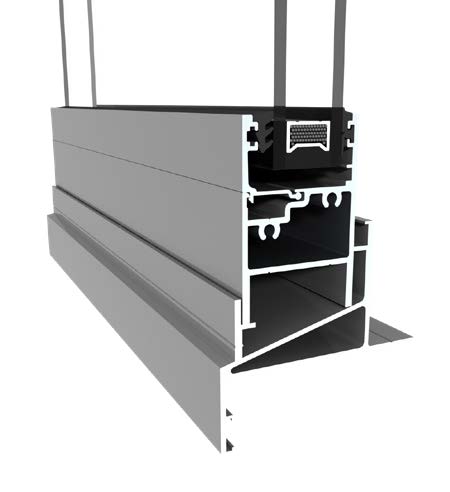

  • The 40mm seismic system is for banks of windows requiring seismic separation in low to medium rise applications
  • Depending on type of project, windows may come fully assembled and glazed or be assembled on site from pre-made modules
  • 40mm curtain wall glazed panels are generally pre-assembled and fixed to continuous runs of curtain wall mullion on site
  • Shop drawings can be supplied by manufacturers when specified
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • The 40mm window series was launched in 1993
  • Some design upgrades have taken place
  • Widely used by builders and specifiers



Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Data Sheet
Span Tables
Altherm on Masterspec
Specifier Guide
Environmental Product Declaration (EPD) Report

2023

WGANZ Guide to E2/AS1
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

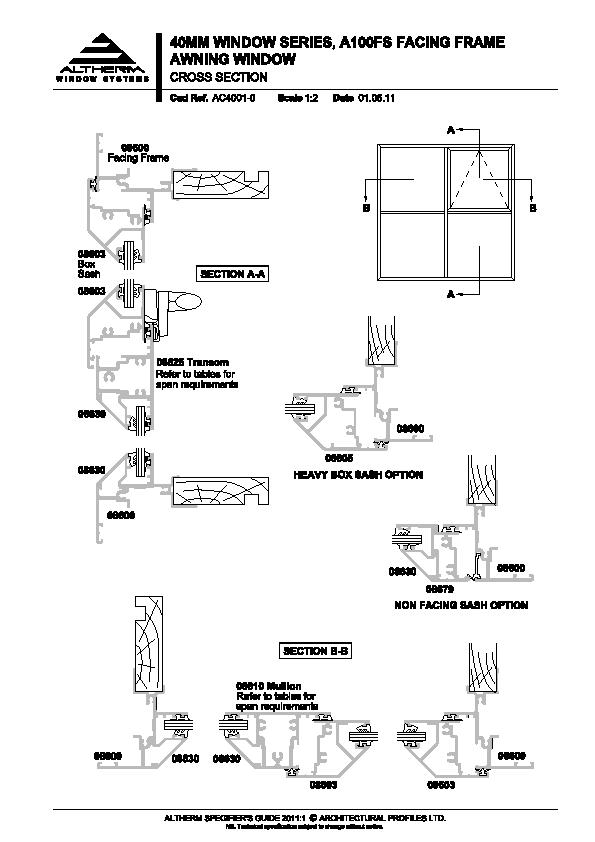

Altherm Commercial 40mm Window Series A100FS Facing Frame Awning Window

AC4001-0

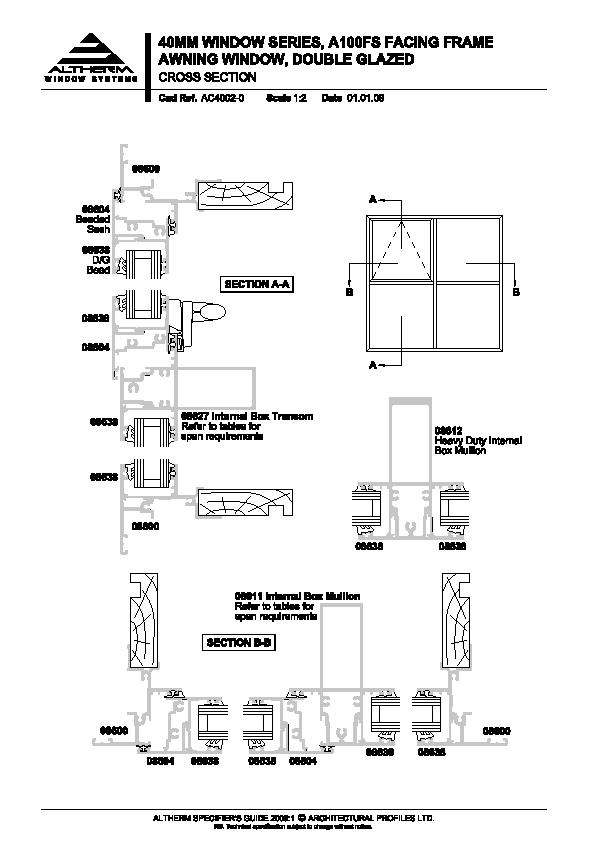

Altherm Commercial 40mm Window Series A100FS Facing Frame Awning Window, Double Glazed

AC4002-0

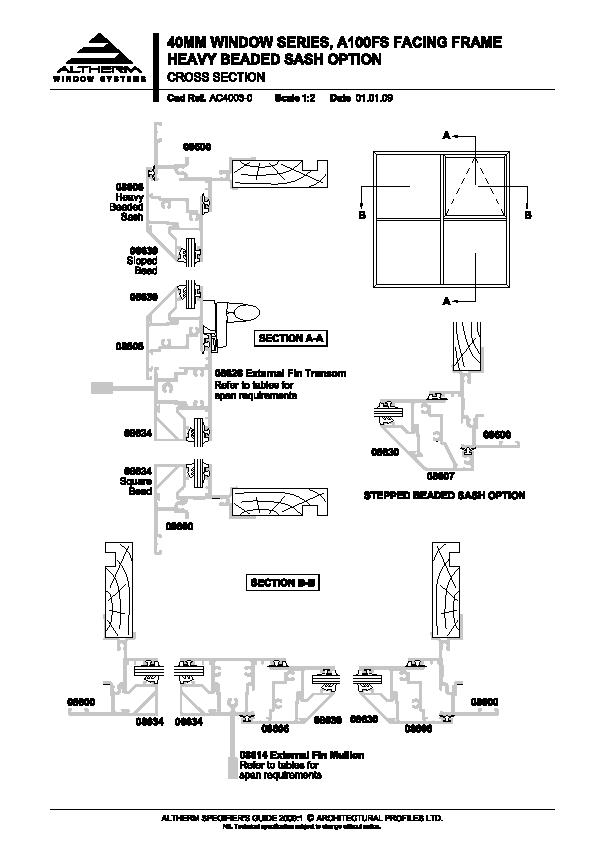

Altherm Commercial 40mm Window Series A100FS Facing Frame Heavy Beaded Sash Option

AC4003-0

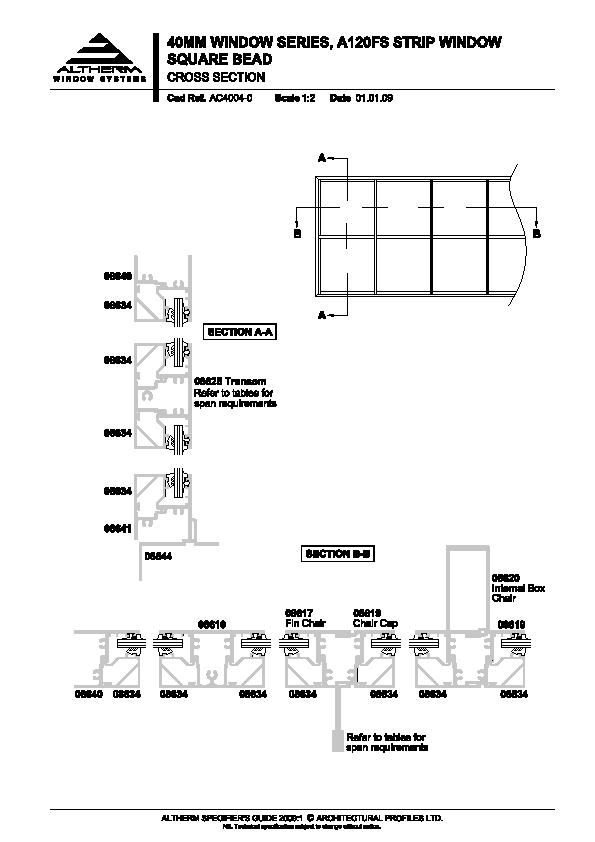

Altherm Commercial 40mm Window Series A120FS Strip Window Square Bead

AC4004-0

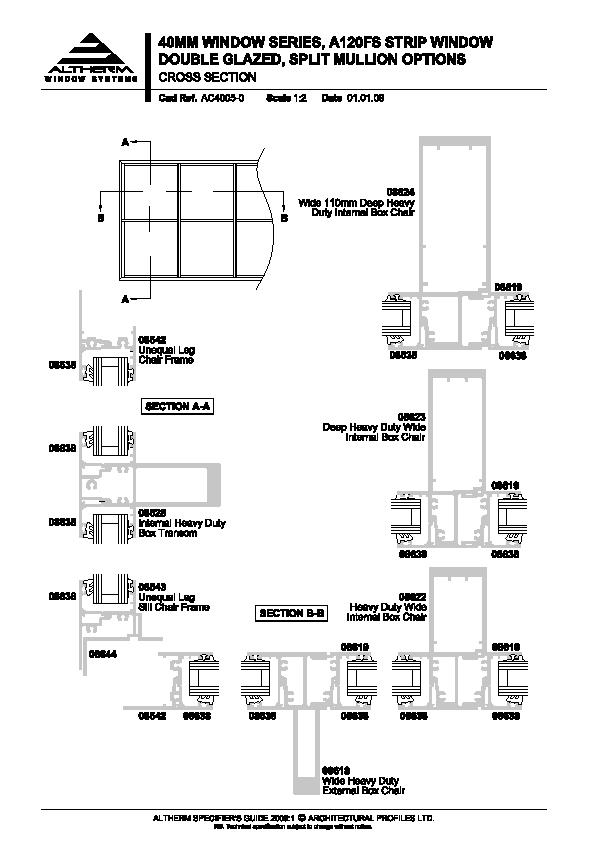

Altherm Commercial 40mm Window Series A120FS Strip Window Double Glazed, Split Mullion Options

AC4005-0

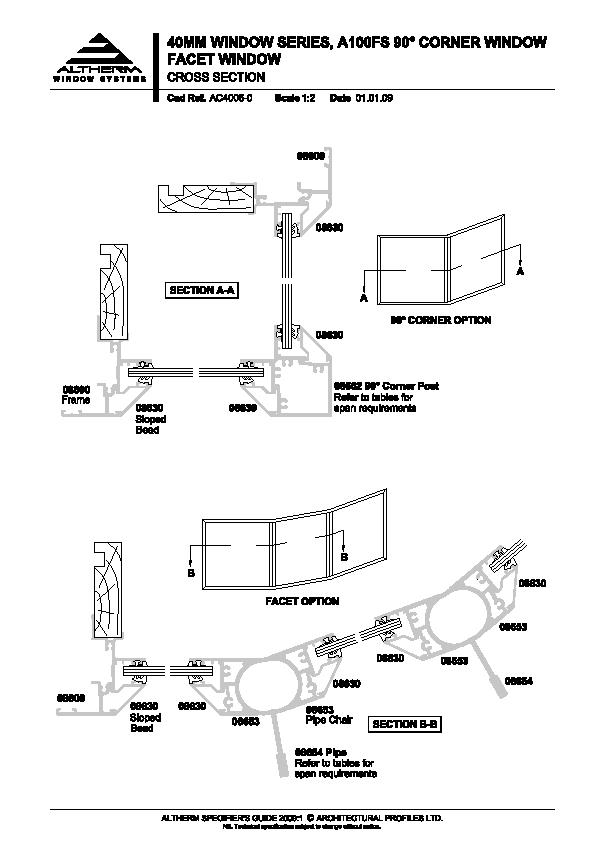

Altherm Commercial 40mm Window Series A100FS 90º Corner Window Facet Window

AC4006-0

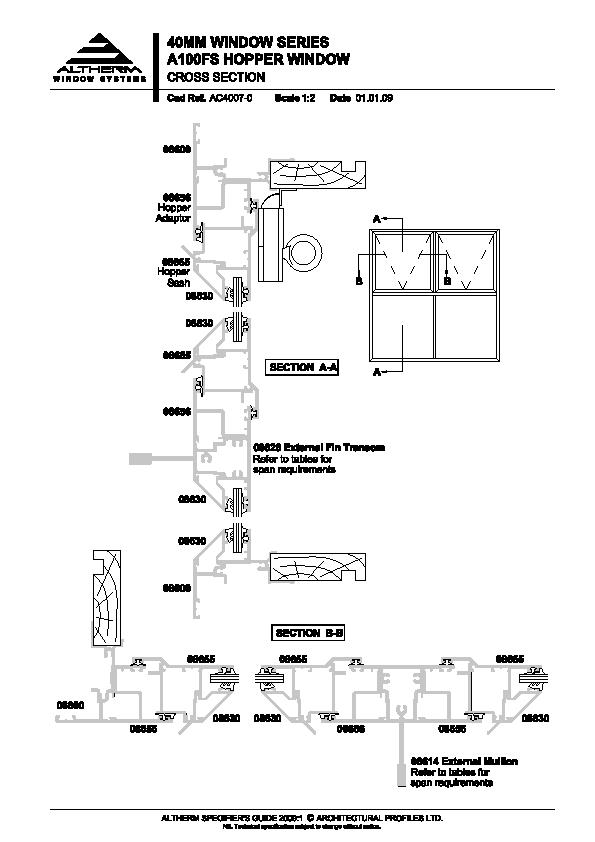

Altherm Commercial 40mm Window Series A100FS Hopper Window

AC4007-0

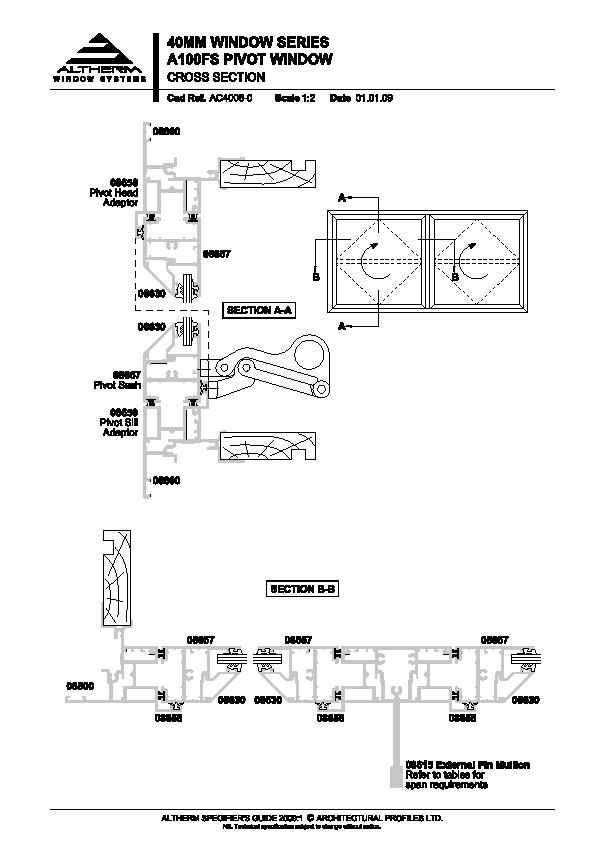

Altherm Commercial 40mm Window Series A100FS Pivot Window

AC4008-0

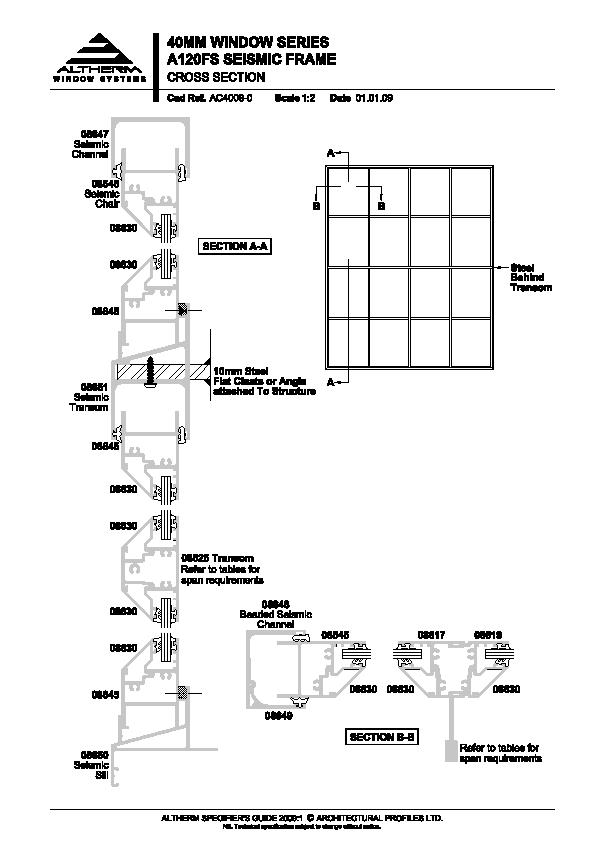

Altherm Commercial 40mm Window Series A120FS Seismic Frame

AC4009-0

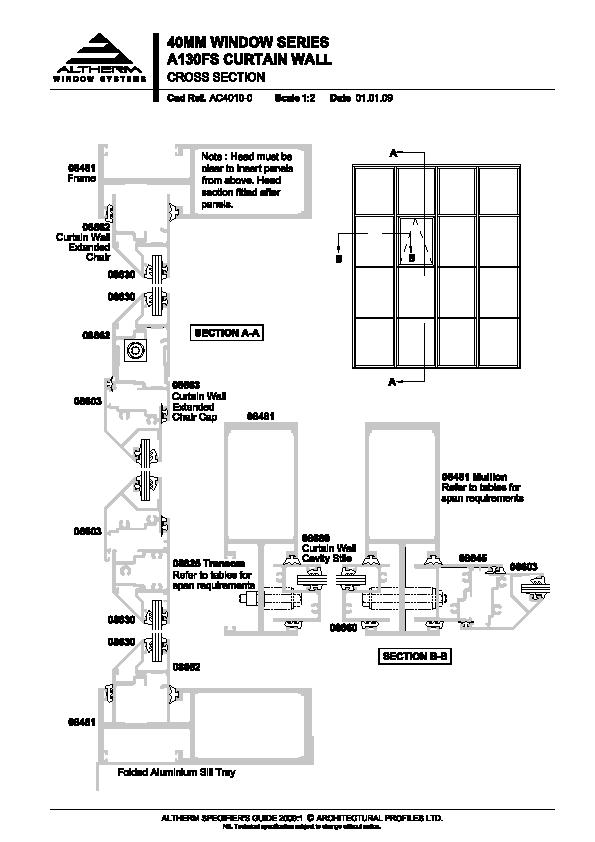

Altherm Commercial 40mm Window Series A130FS Curtain Wall

AC4010-0

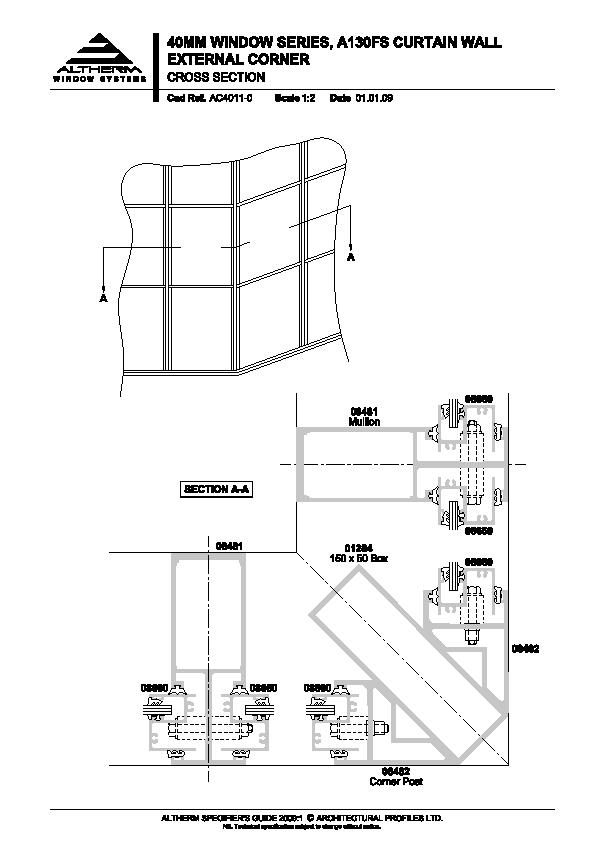

Altherm Commercial 40mm Window Series A130FS Curtain Wall External Corner

AC4011-0

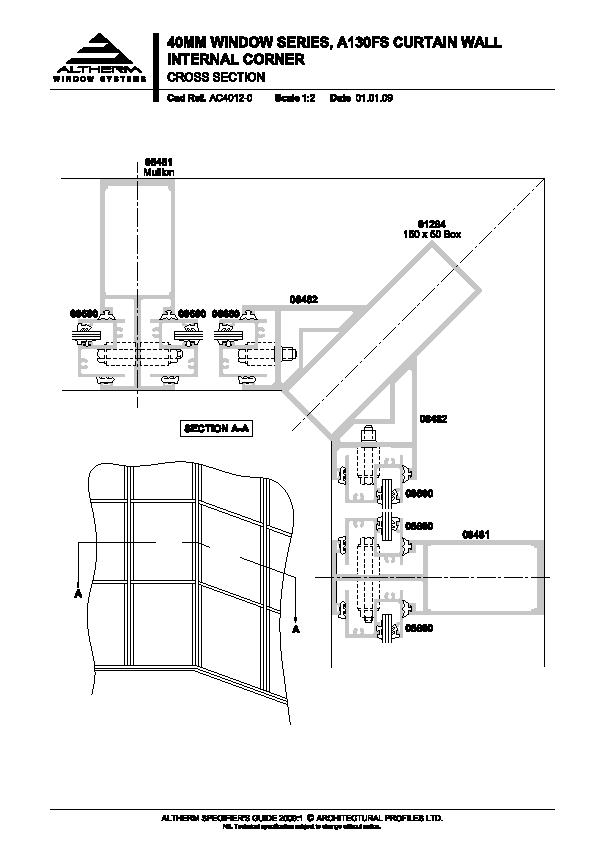

Altherm Commercial 40mm Window Series A130FS Curtain Wall Internal Corner

AC4012-0

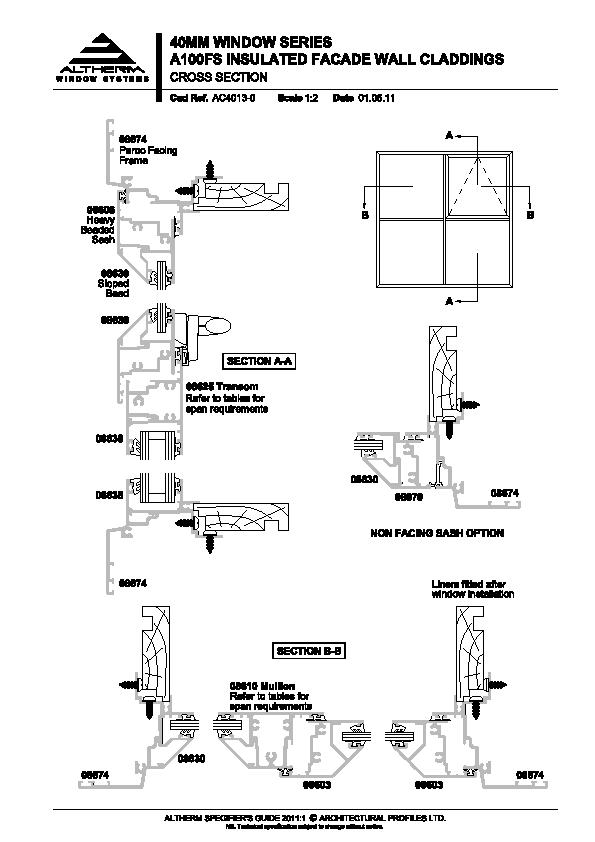

Altherm Commercial 40mm Window Series A100FS Insulated Facade Wall Claddings

AC4013-0

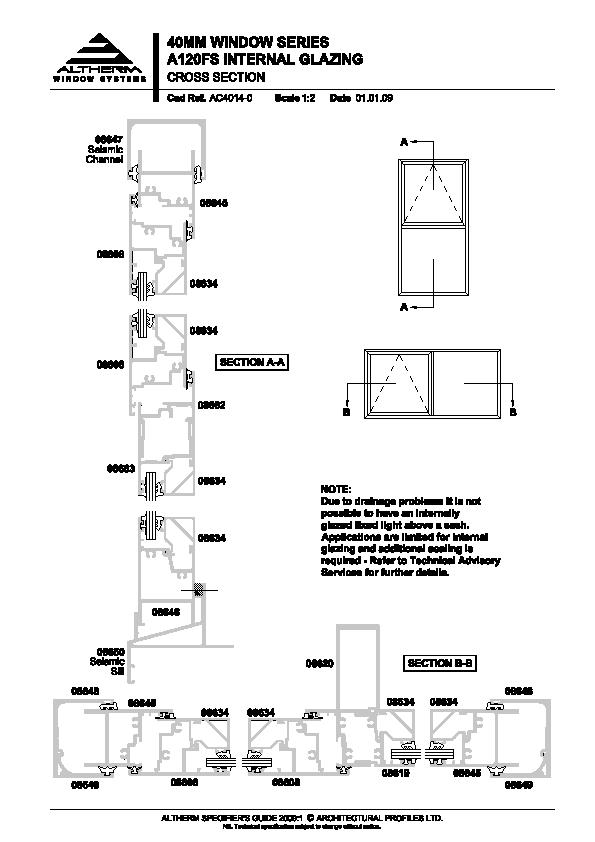

Altherm Commercial 40mm Window Series A120FS Internal Glazing

AC4014-0
