Smart Lock Glass Balustrade
Opus Hardware
All products

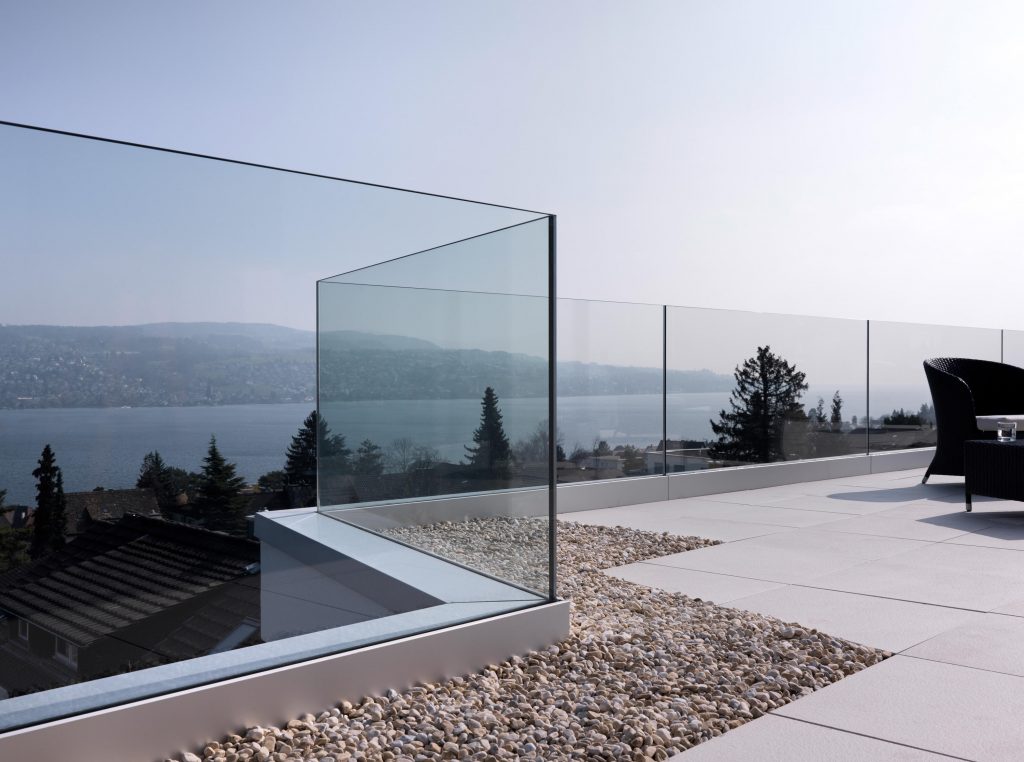

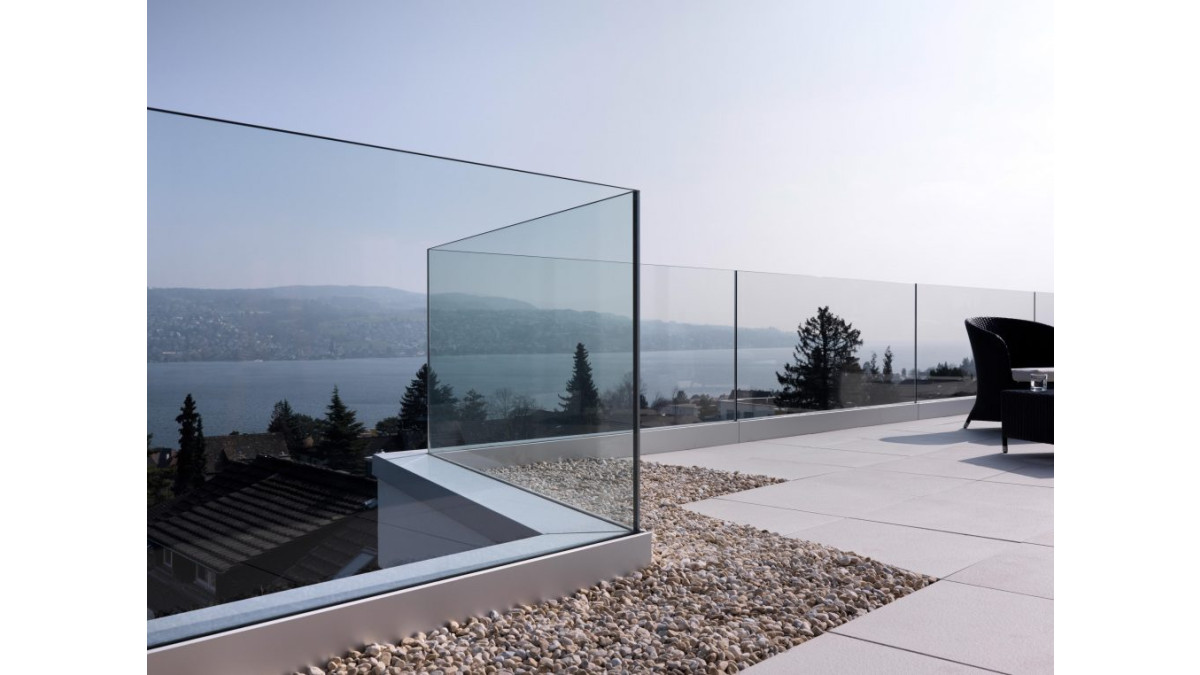

Smart Lock Image

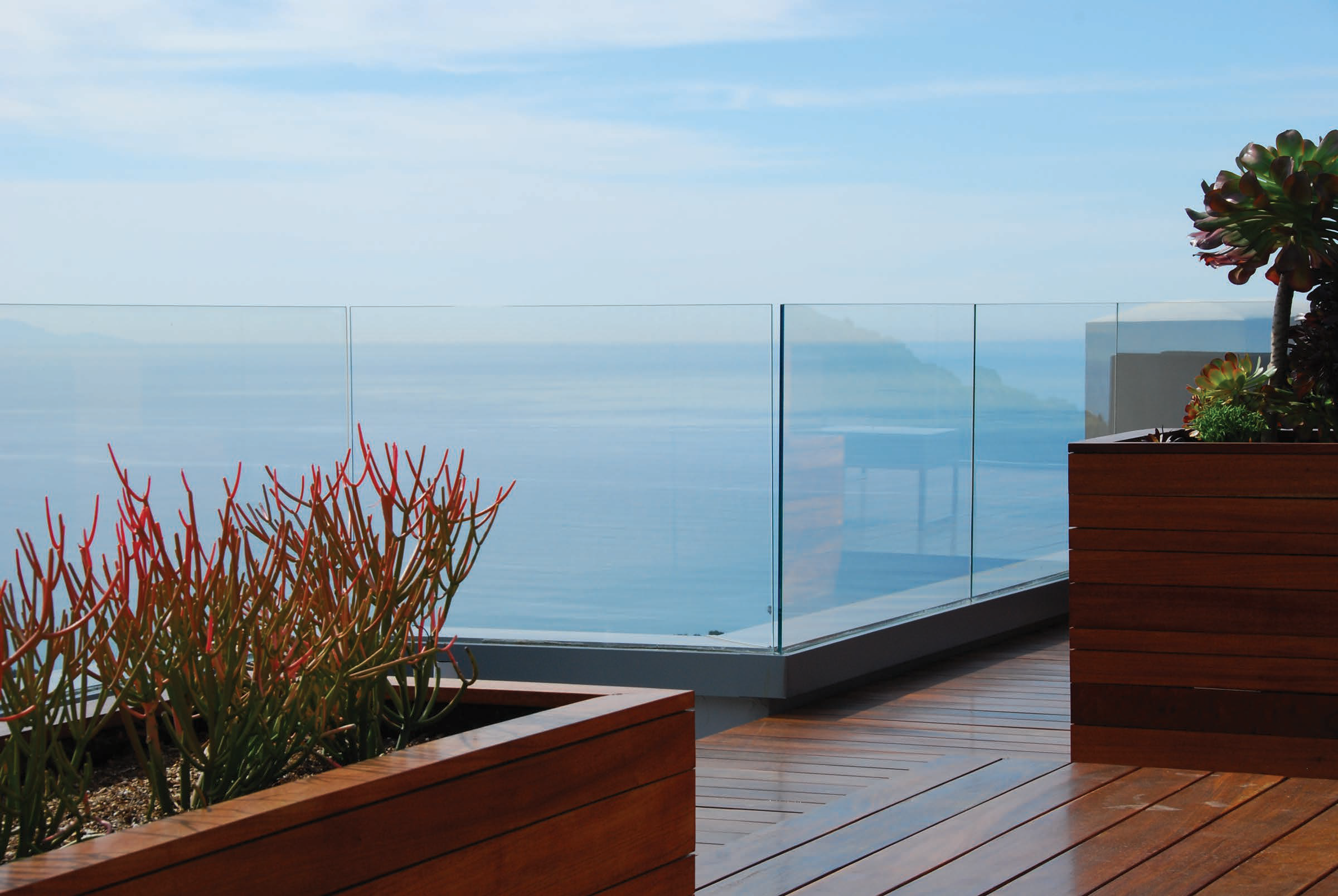

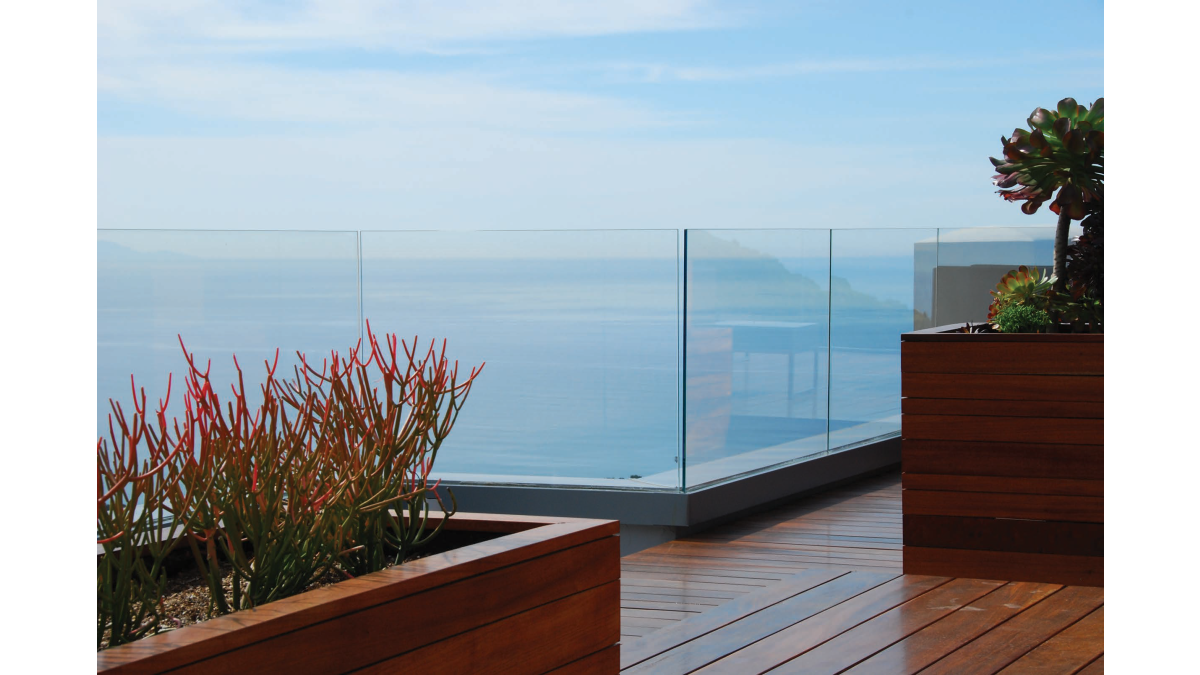

Smart Lock 14

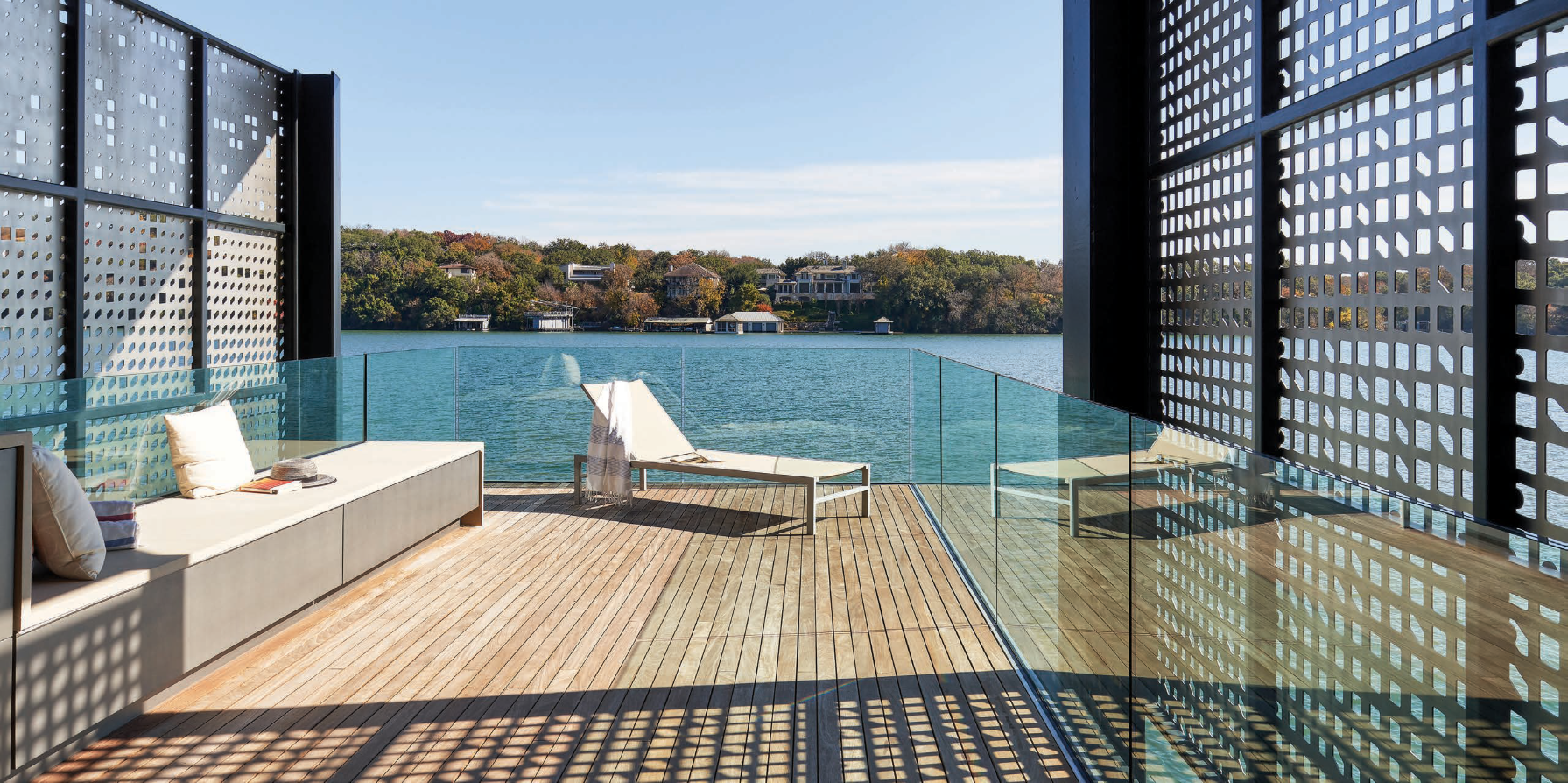

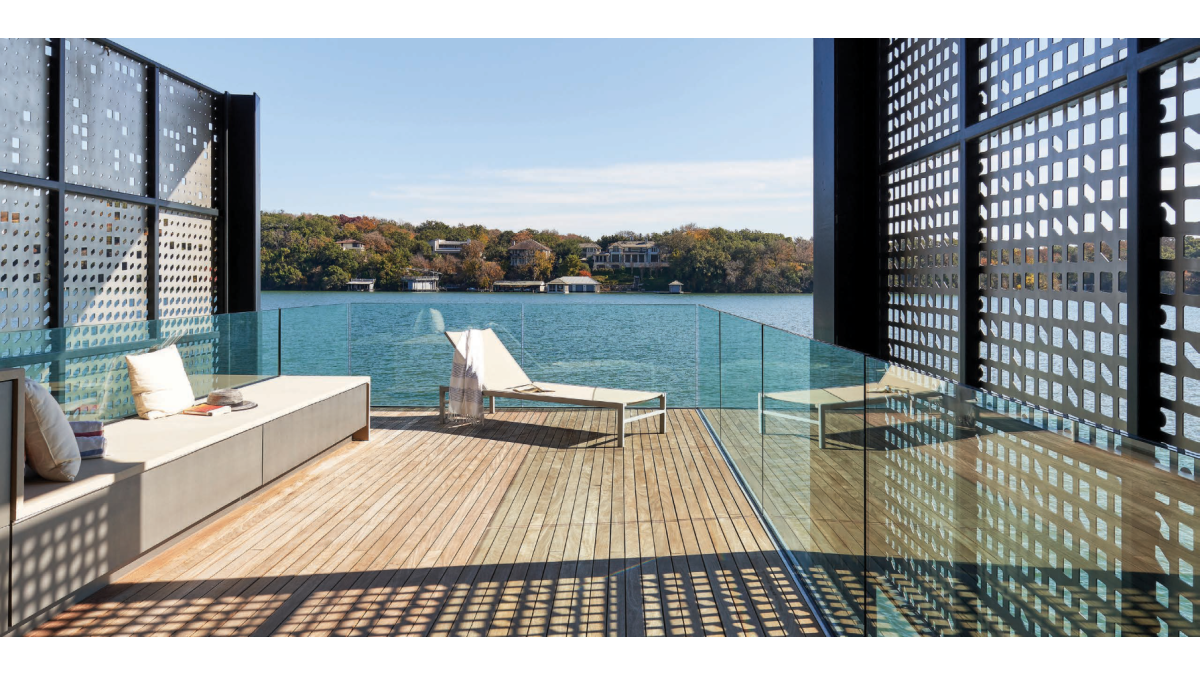

Smart Lock 15 small

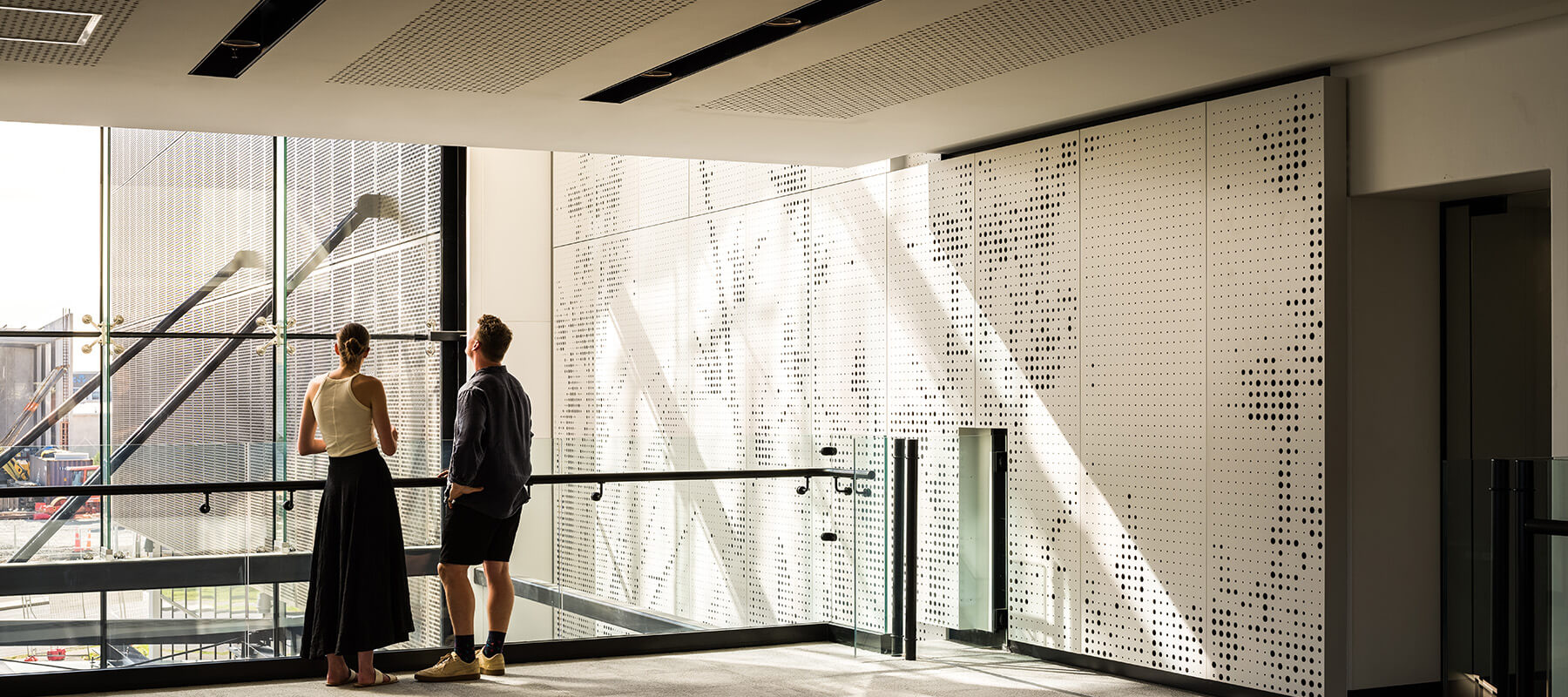

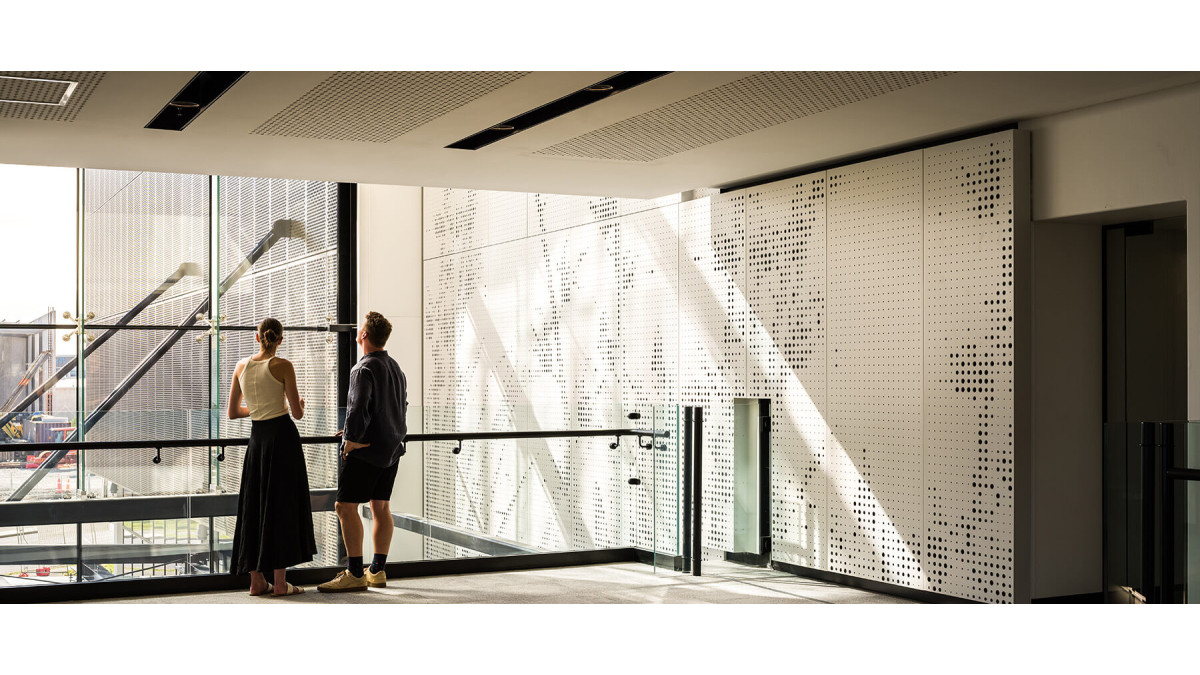

Smart Lock 2

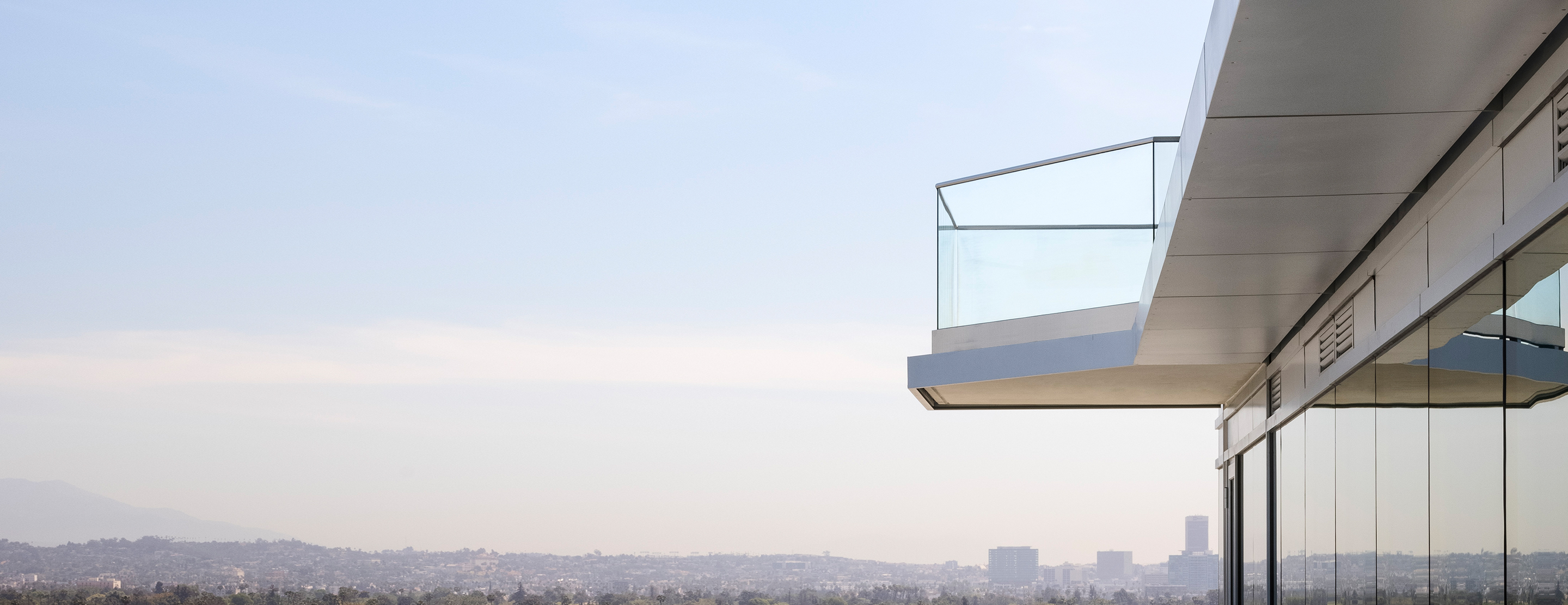

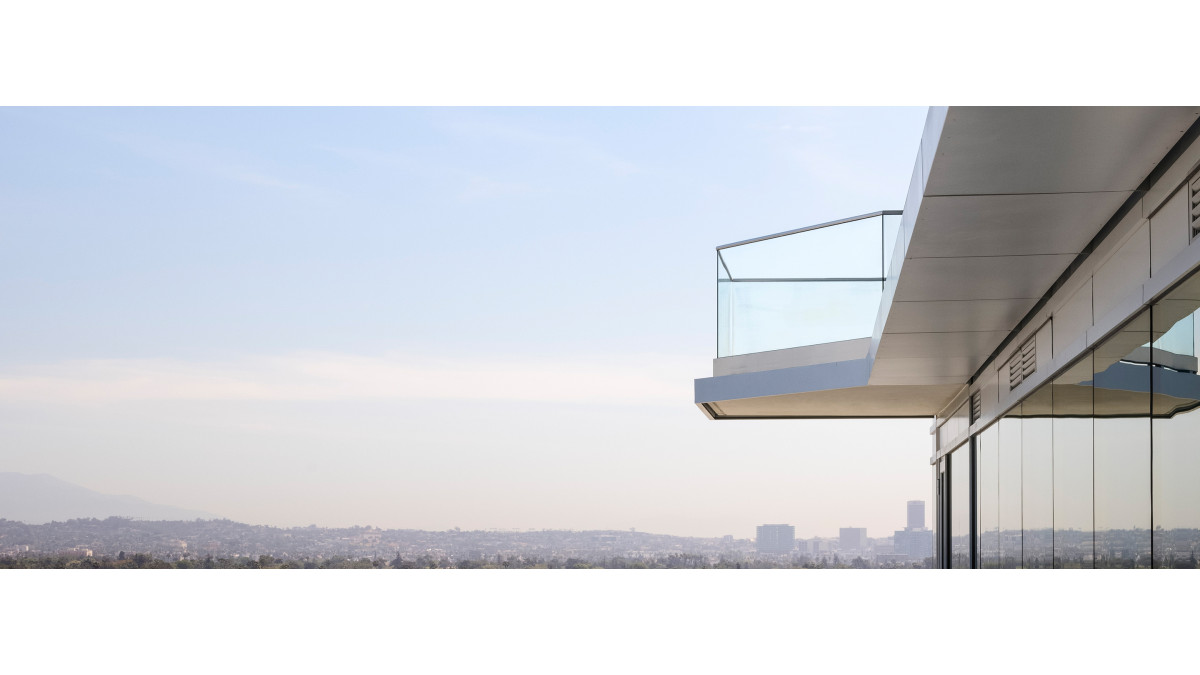

Smart Lock 13

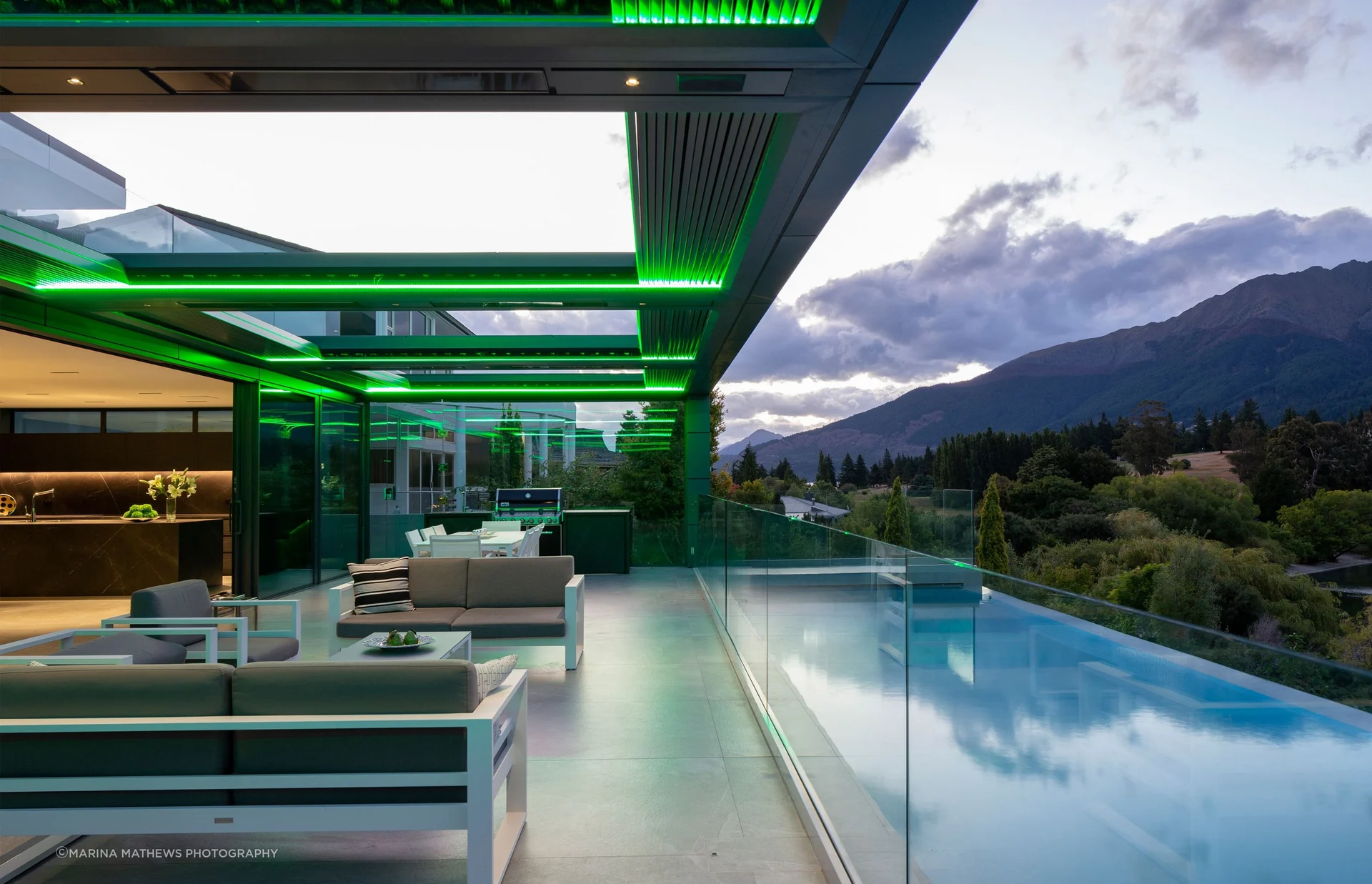

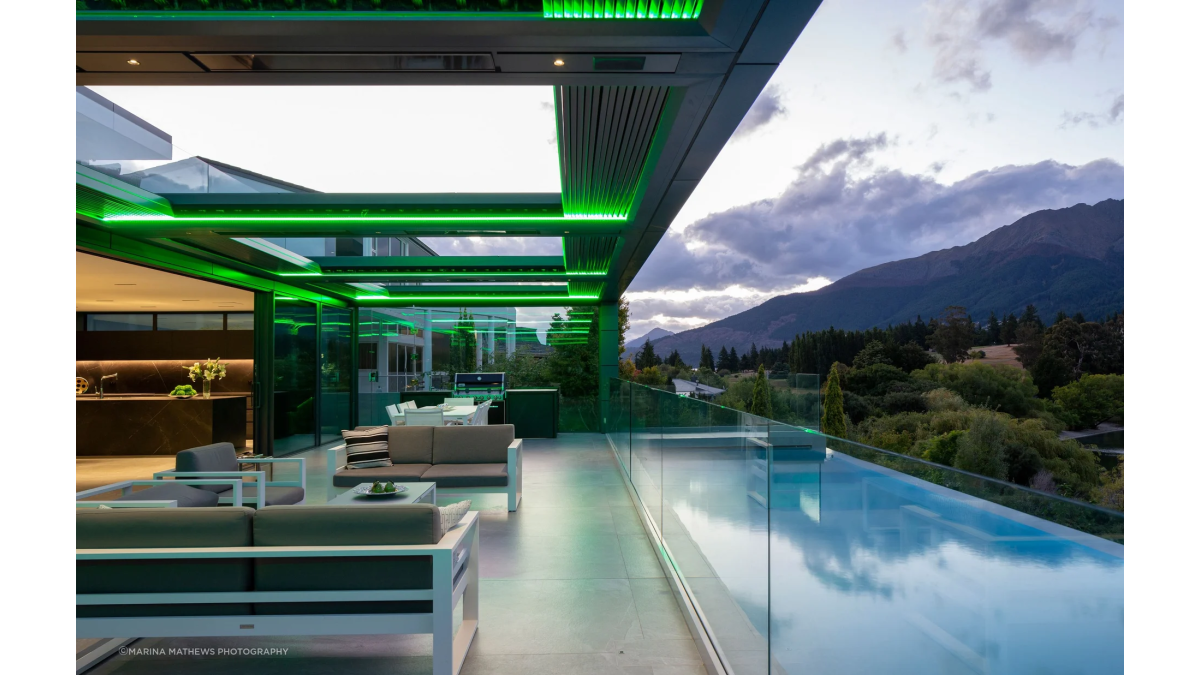

Smart Lock 11

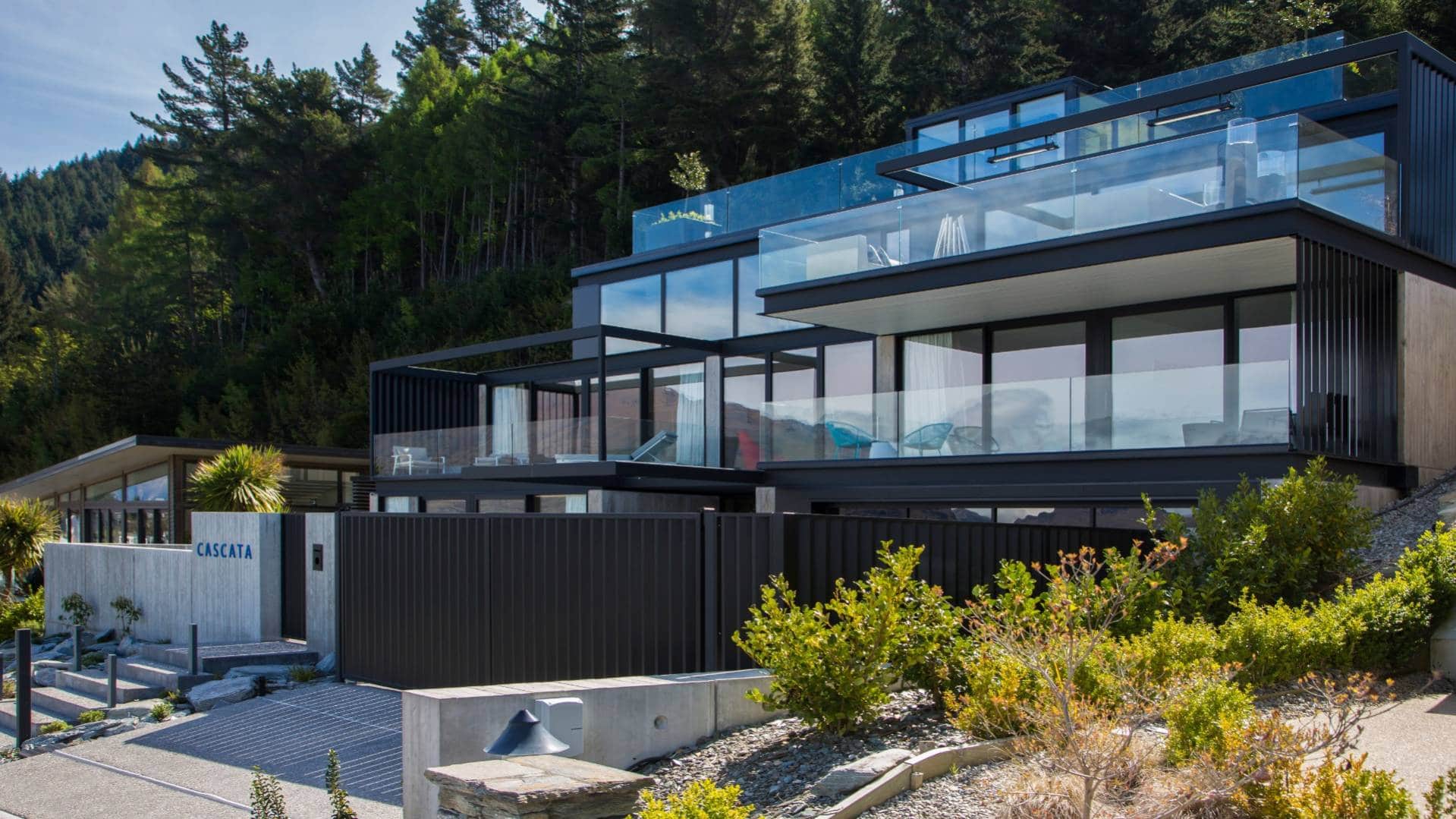

Smart Lock 10

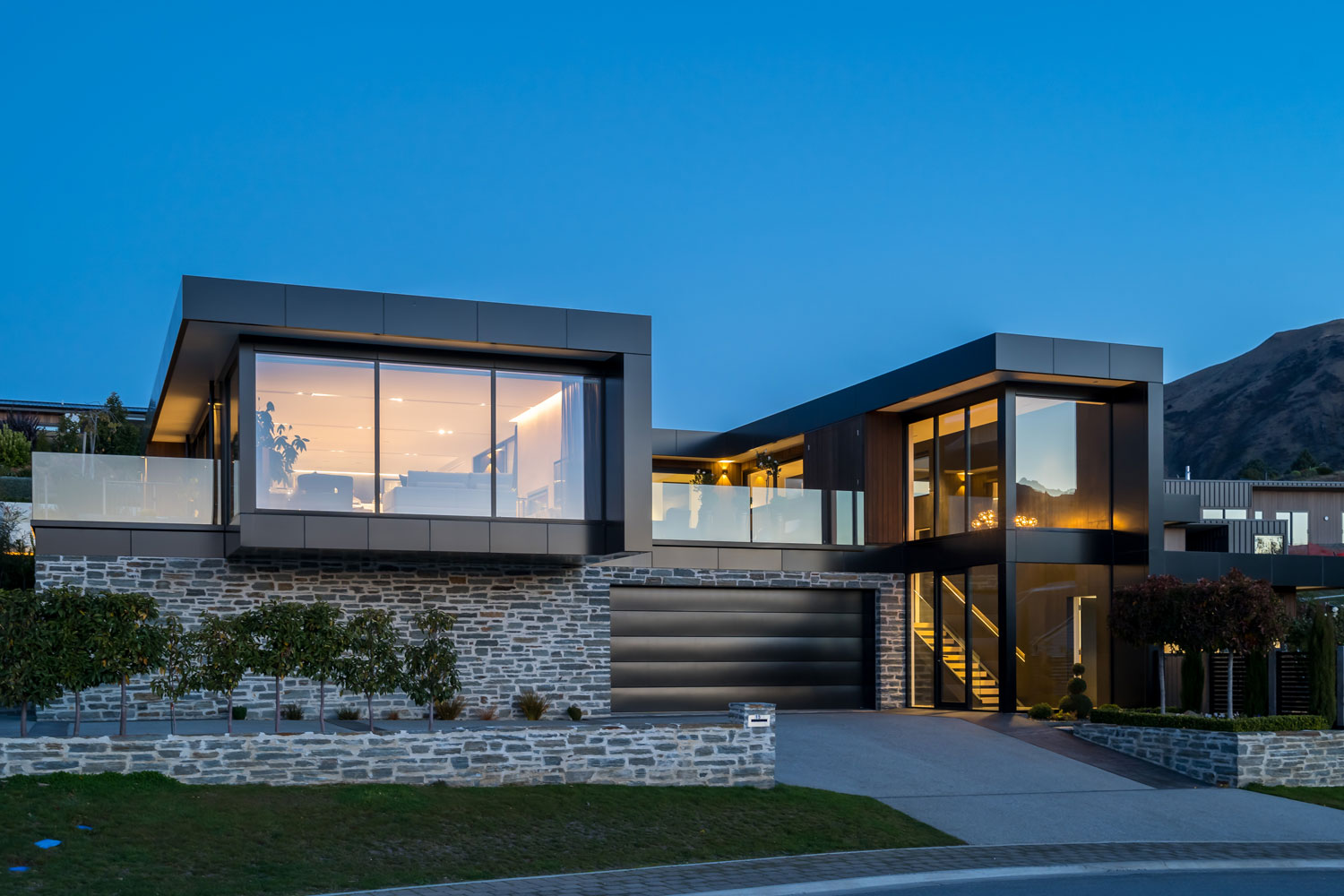

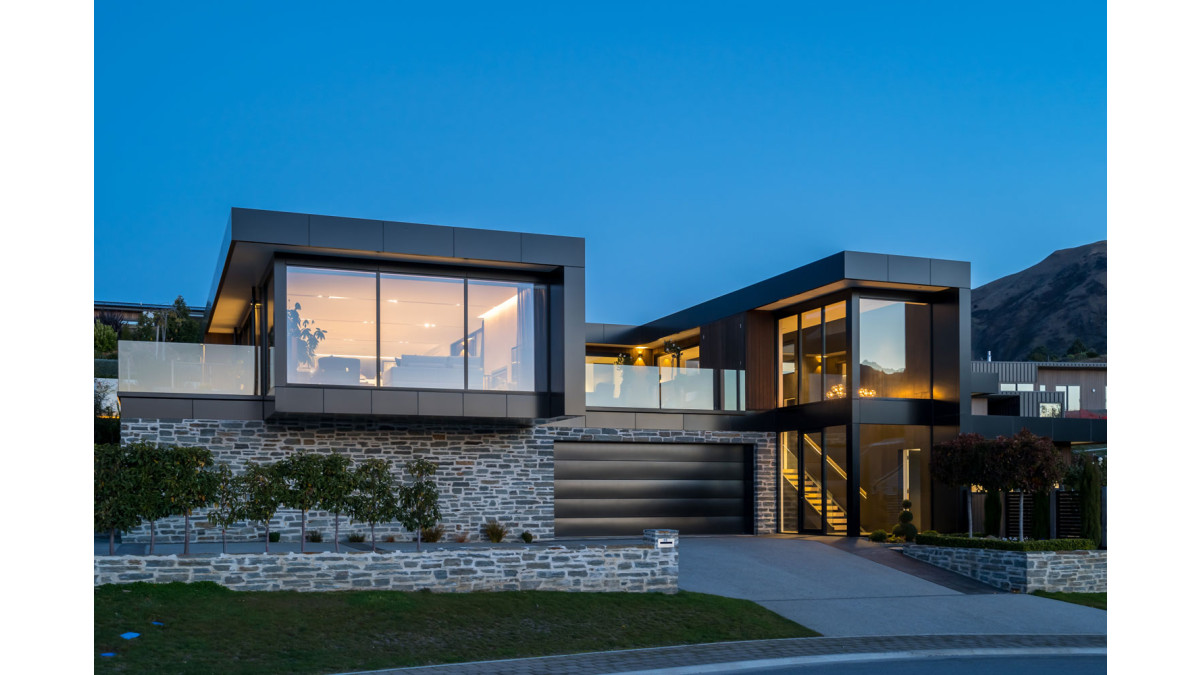

Smart Lock 1

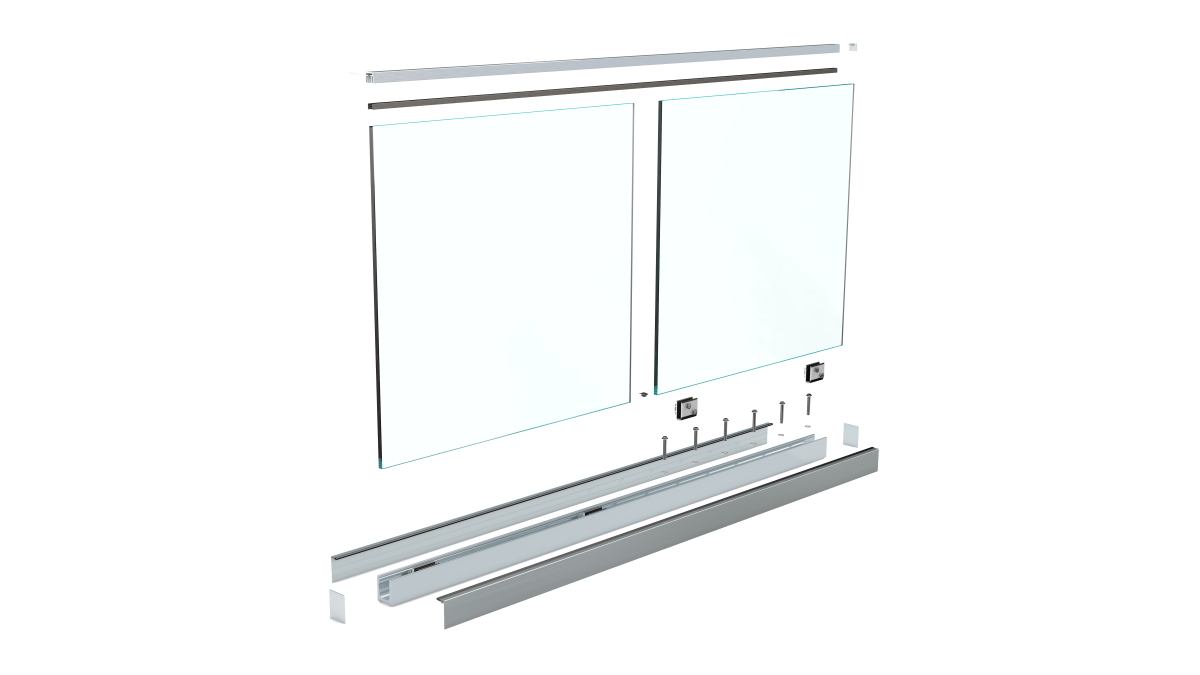

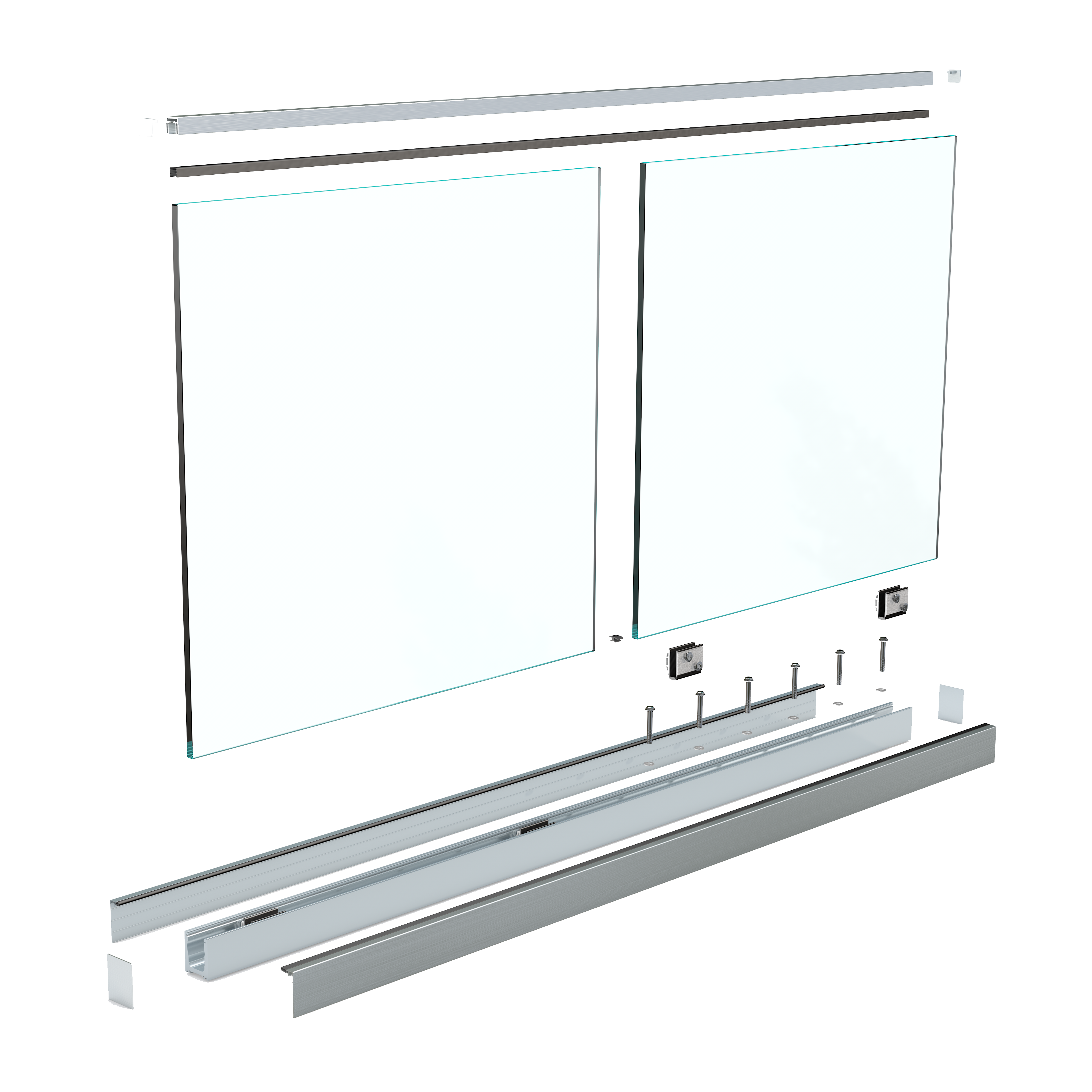

Exlpoded Video 220914

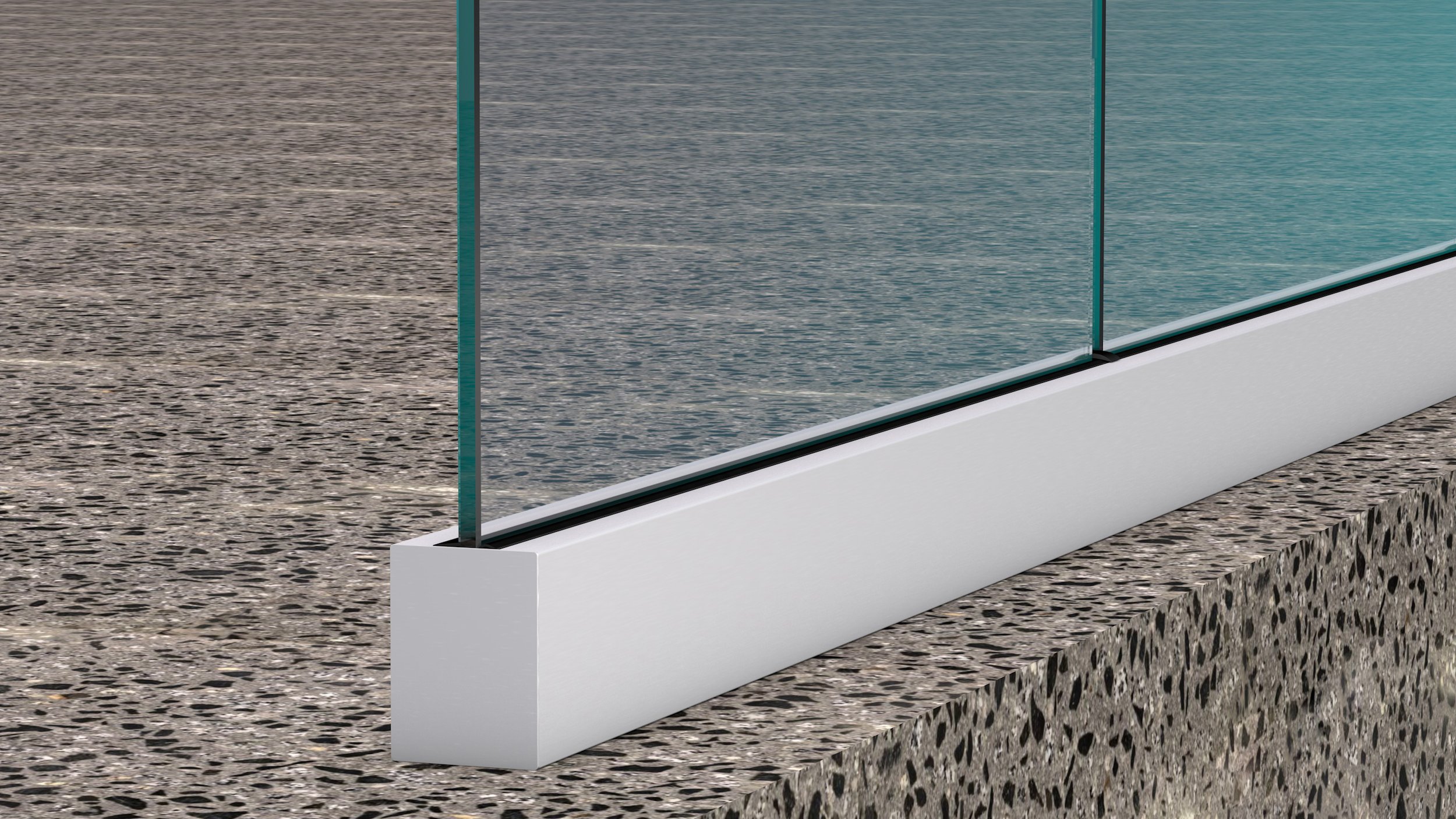

BR Top+fixed
Top/Base Fix — Suitable for top fixing on all situations

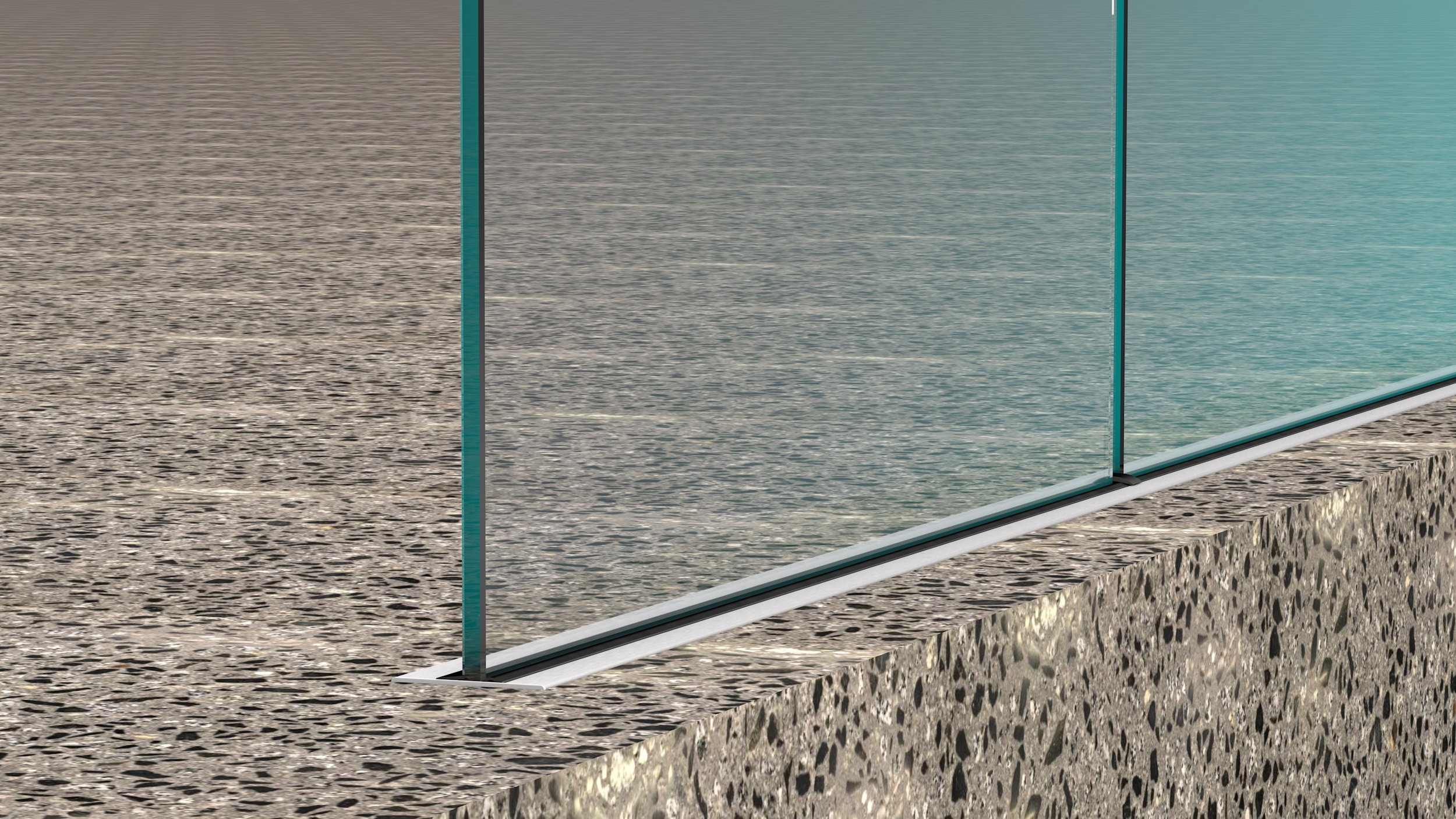

BR Recessed
Recessed (Concealed) — Providing a streamline look, particularly suited to installation in concrete, or below floating tiles, with no visible fixings.

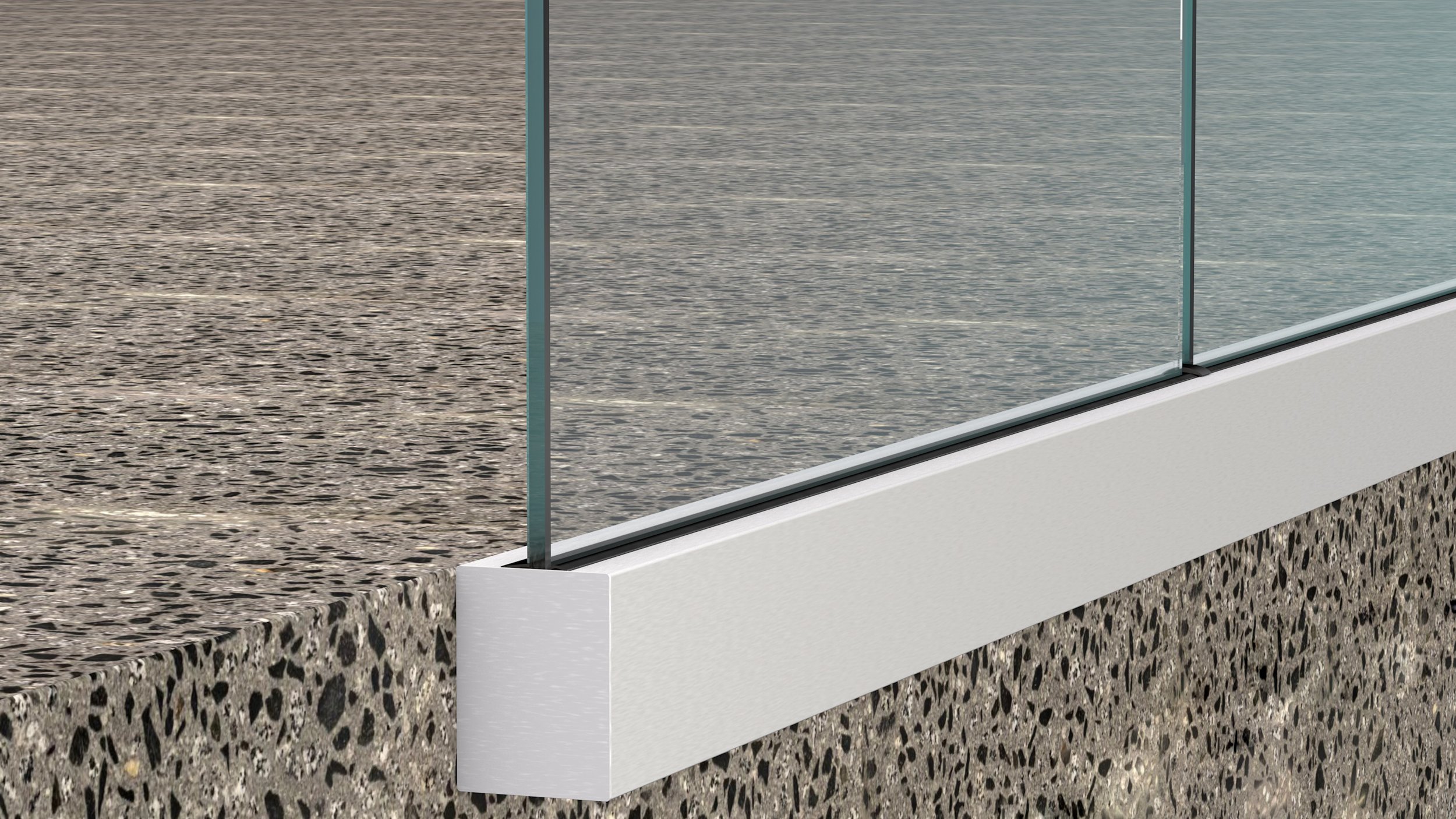

BR Side+fixed
Side/Face Fix — Suitable for side fixing on all situations.

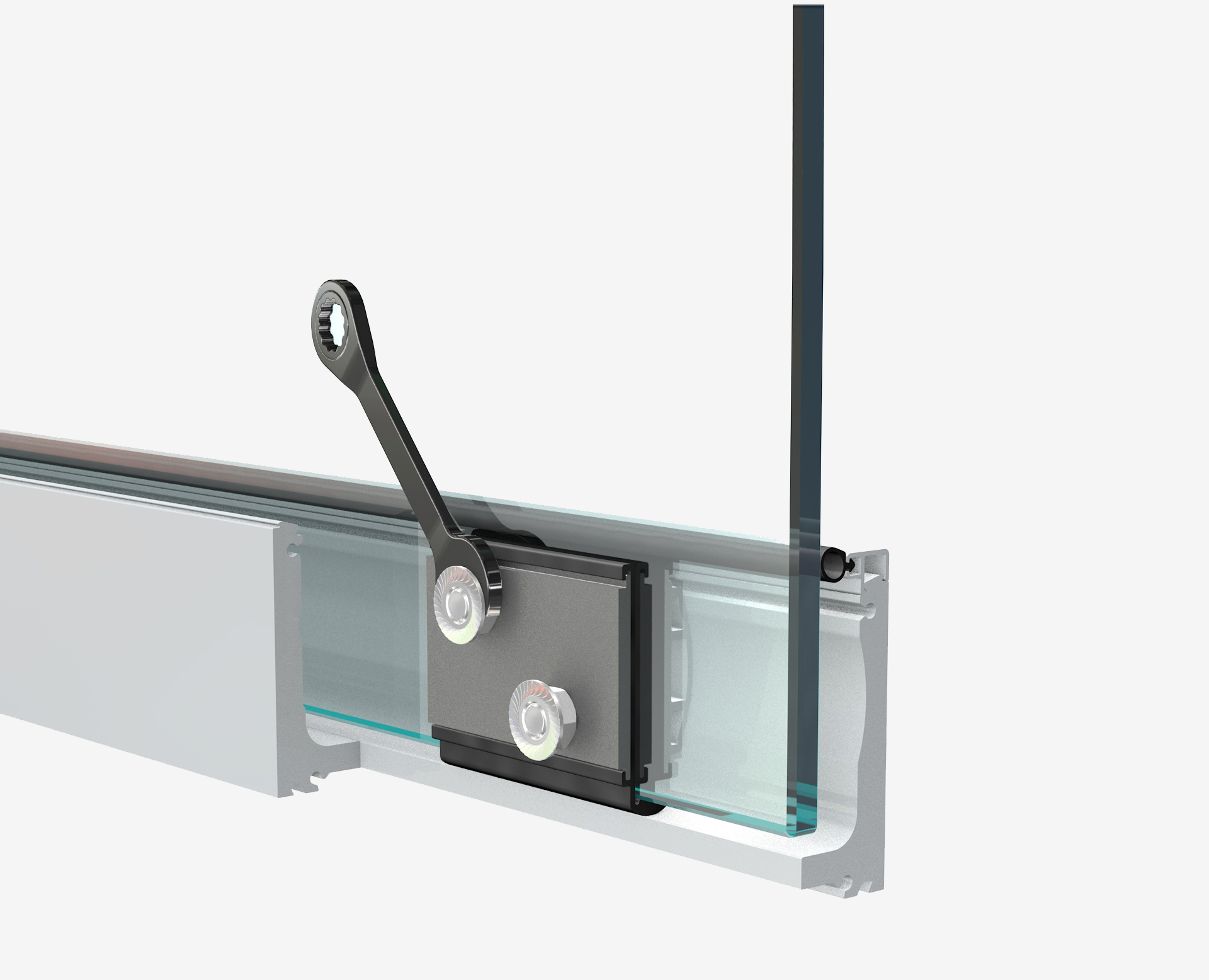

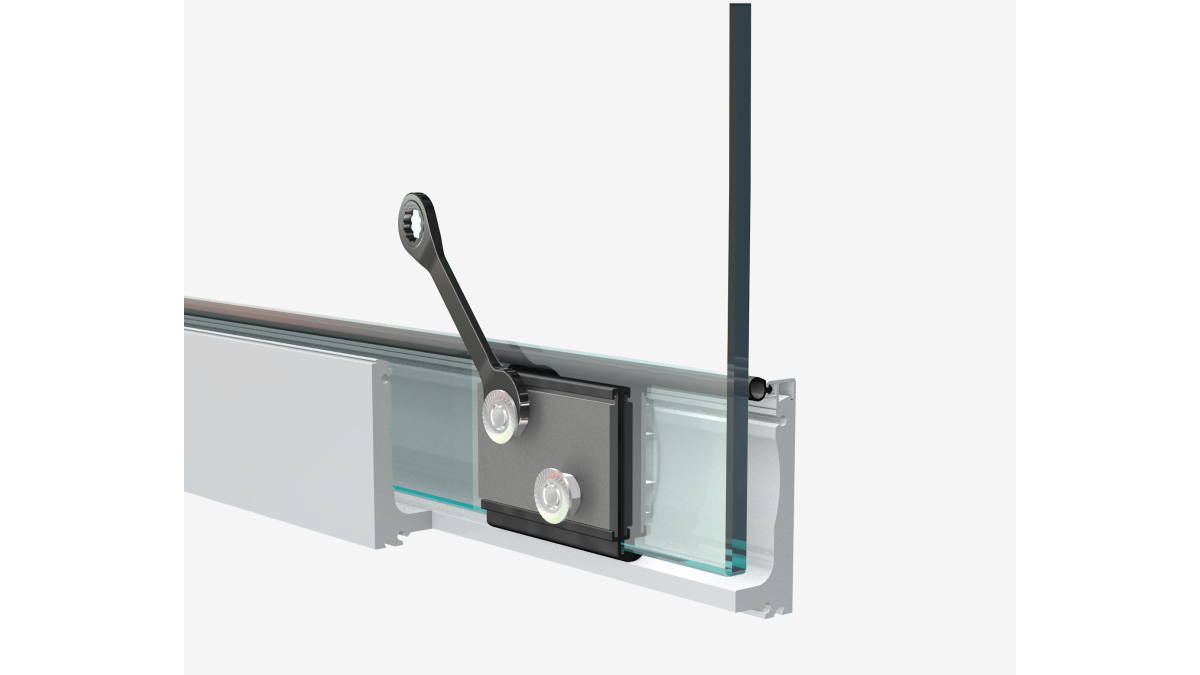

Spanner ClampAS
Description

The Opus Smart Lock Balustrade System is a frameless (or semi-frameless) glass channel system, which can be used as a balustrade or pool fence for residential or commercial applications. The continuous channel system has no visible fixings and can be recessed for a completely frameless look, as well as top or side fixed.

The unique design uses a special high strength hollow-core aluminium extrusion and special (single-side adjustment) glass clamp kits that secure and locate the glass into the aluminium section.

Smart Lock's clever locating and adjusting technique allows installers to adjust the glass panels once in place, with a turn of a spanner. The single-sided adjustment and locking eliminates the need for scaffold or external access during glass fitment around balconies or other areas protecting a fall, saving on installation time.

Key Features
  • Suitable for residential, commercial and retail situations
  • Suitable for up Extra High wind zones (subject to glass requirements)
  • Accommodates 12mm to 21.52mm glass types
  • The Smart Lock System can be base fixed (top) or side fixed (face) mounted into timber, steel or concrete
  • Smart Lock's clever locating and adjusting technique allows installers to adjust the glass panels once in place, with a turn of a spanner
  • Single-sided adjustment and locking, eliminates the need for scaffold or external access saving on installation time
  • No holes or notches required — glass is friction clamped via clamp kits within the channel body
  • No visible fixings, continuous channel system
  • Comes standard in Brushed Anodised Silver or Brushed Black — can be powder coated to any colour of choice
  • User friendly — simple and fast to install, align, and adjust
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Pool Fencing
Ranges
Balustrade & Pool Systems
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for balustrades, pool fencing, wind breaks, or barriers
  • Suitable for residential and commercial
  • Occupancy Types: A, B, C1, C2, C3, D
  • Suitable for up Extra High wind zones (subject to glass requirements)
  • Accommodates 12mm to 21.52mm glass types
  • Mounted into timber, steel or concrete
  • Top fixed, top recessed, or side fixed
  • Frameless or semi-frameless with handrail
Limitations on Use
  • Not suitable for C5 Occupancy — please refer to the Tough Lock commercial channel, which is certified for C5 Occupancy
  • Must be designed and installed in accordance with the technical literature from Opus Hardware
  • Where used as pool fencing, must be designed and installed following specific guidelines and hardware to meet NZBC F9
Statement of Building Code Compliance
  • B1 Structure
  • F2 Hazardous Building Materials
  • F4 Safety from Falling
  • F9 Restricting Access to Residential Pools

Design loads are in accordance with AS/NZS 1170.1:2002 table 3.3 as modified by NZBC B1/VM1 and DBH Guidance on Barrier Design (March 2012).

  • Occupancy Types: A, B, C1, C2, C3, D
Test Results
Test Results
Documents
Smart Lock Balustrade Design Manual

2024

pdf
Channel Drawings Data Sheet

2024

pdf
Data Sheets: Smart Lock System
pdf
Balustrade PS1 Producer Statement Request Form

2024

pdf
Opus Hardware Warranty & Maintenance Guide

v1 2024

pdf
Product Guide: Balustrade & Pool
pdf
Additional Information
URL
CAD/PDF Details
View full

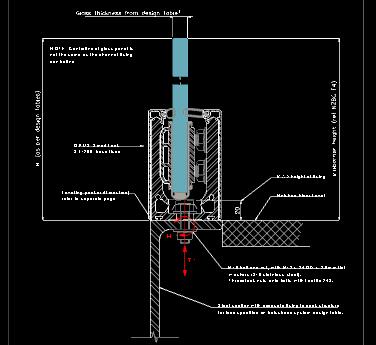

Screenshot 2024 08 26 073342
Smart Lock DWG CAD Design Fixing Details

2024

dwg
Installation Details
View full

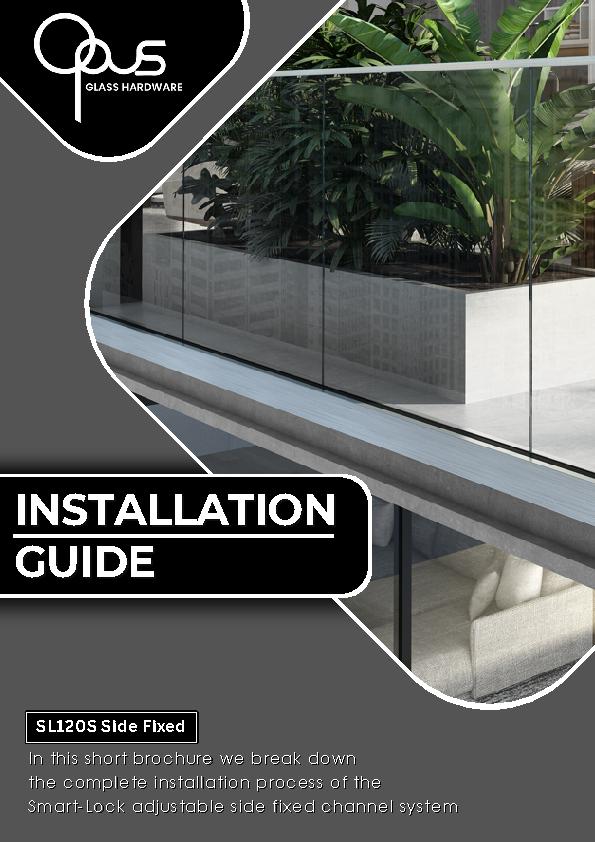

Smart Lock SL120S Side Fixed Channel Installation Instructions pdf
Side Fixed Installation Instructions

2024

pdf

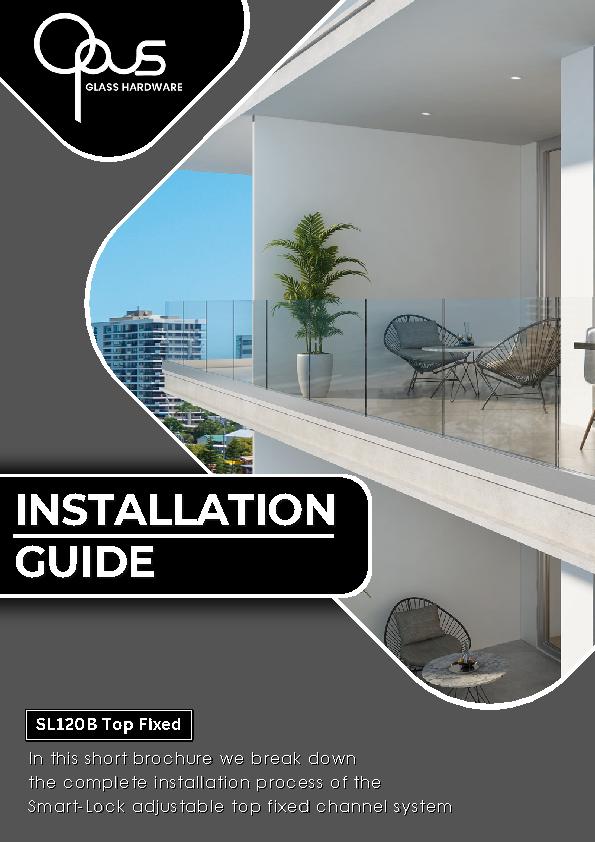

Smart Lock SL120B Top Fixed Channel Installation Guide pdf
Top Fixed Installation Instructions

2024

pdf
