Metro Series Sliding Doors

ALTHERM Window Systems

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

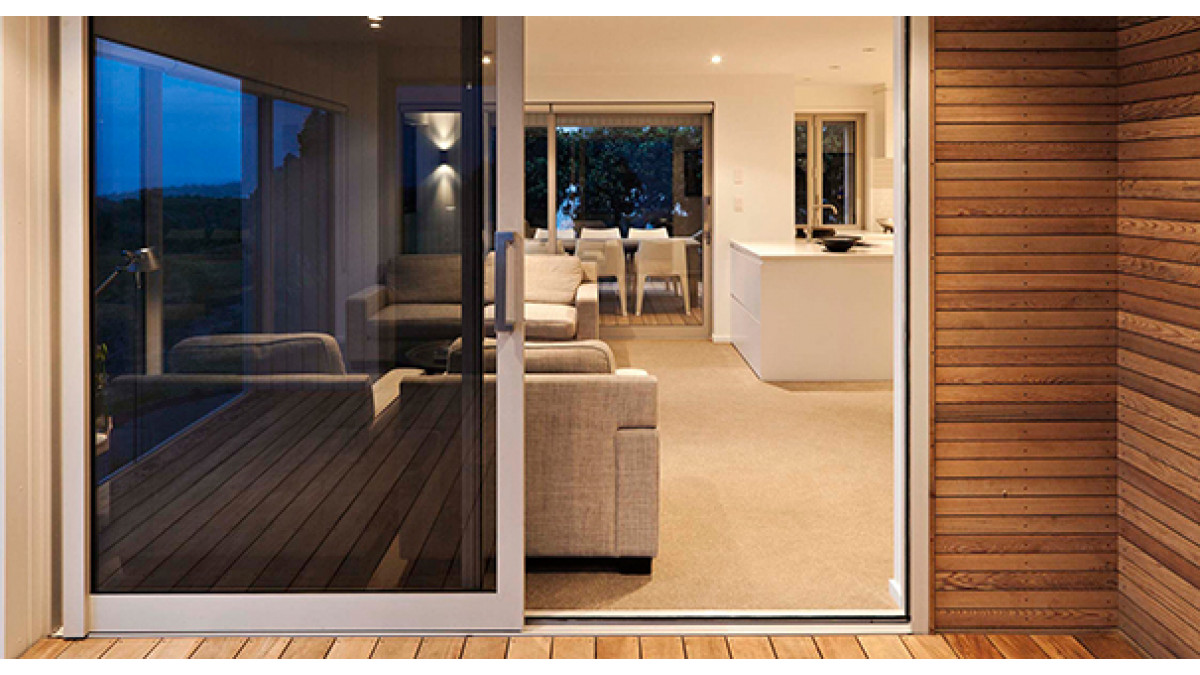

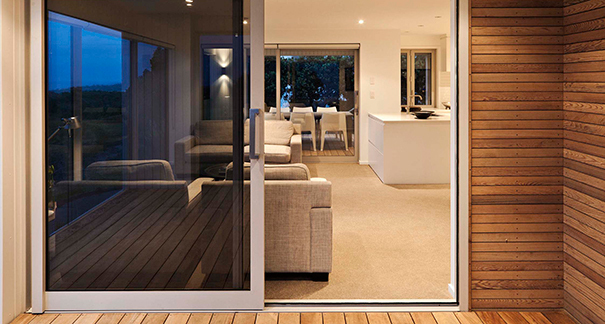

Alth Metro Slid Dr Savill

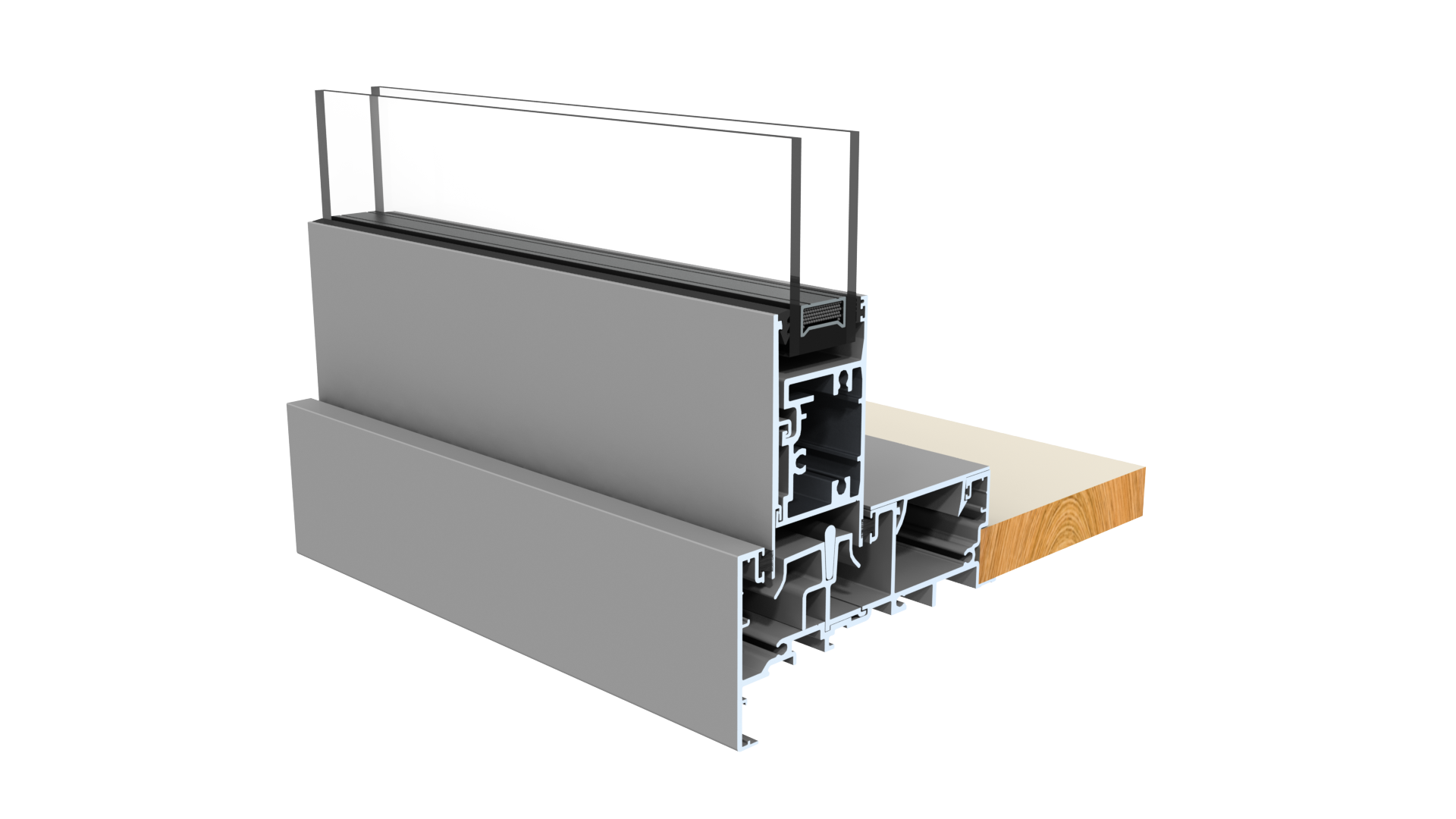

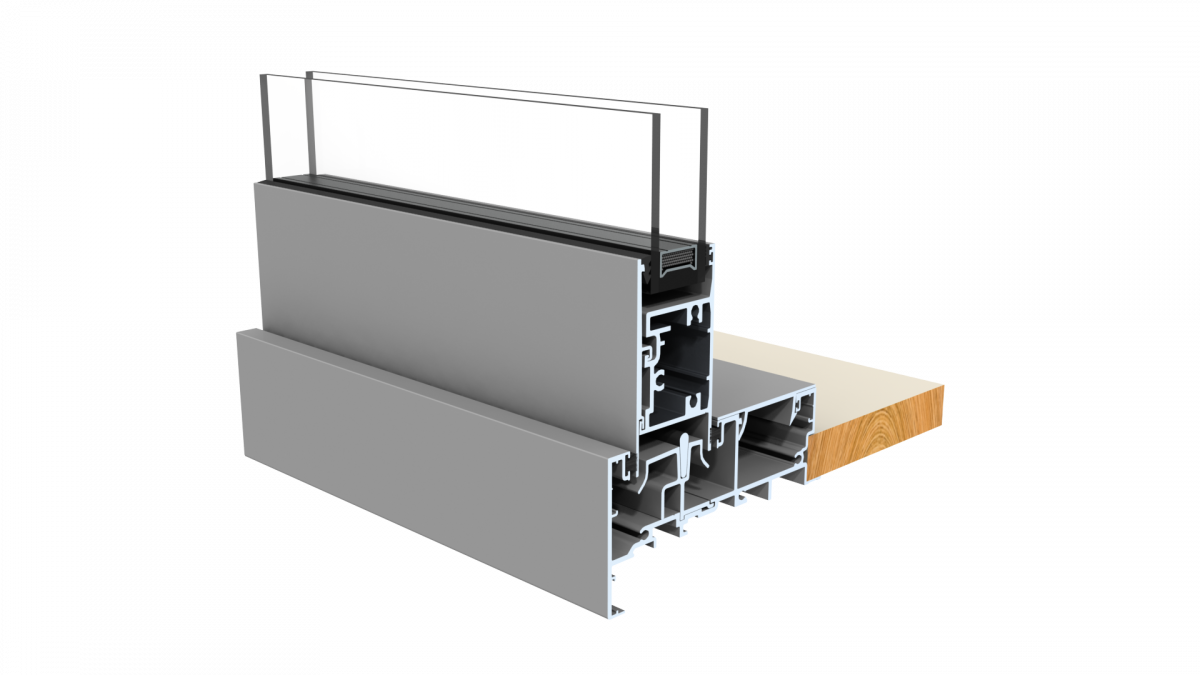

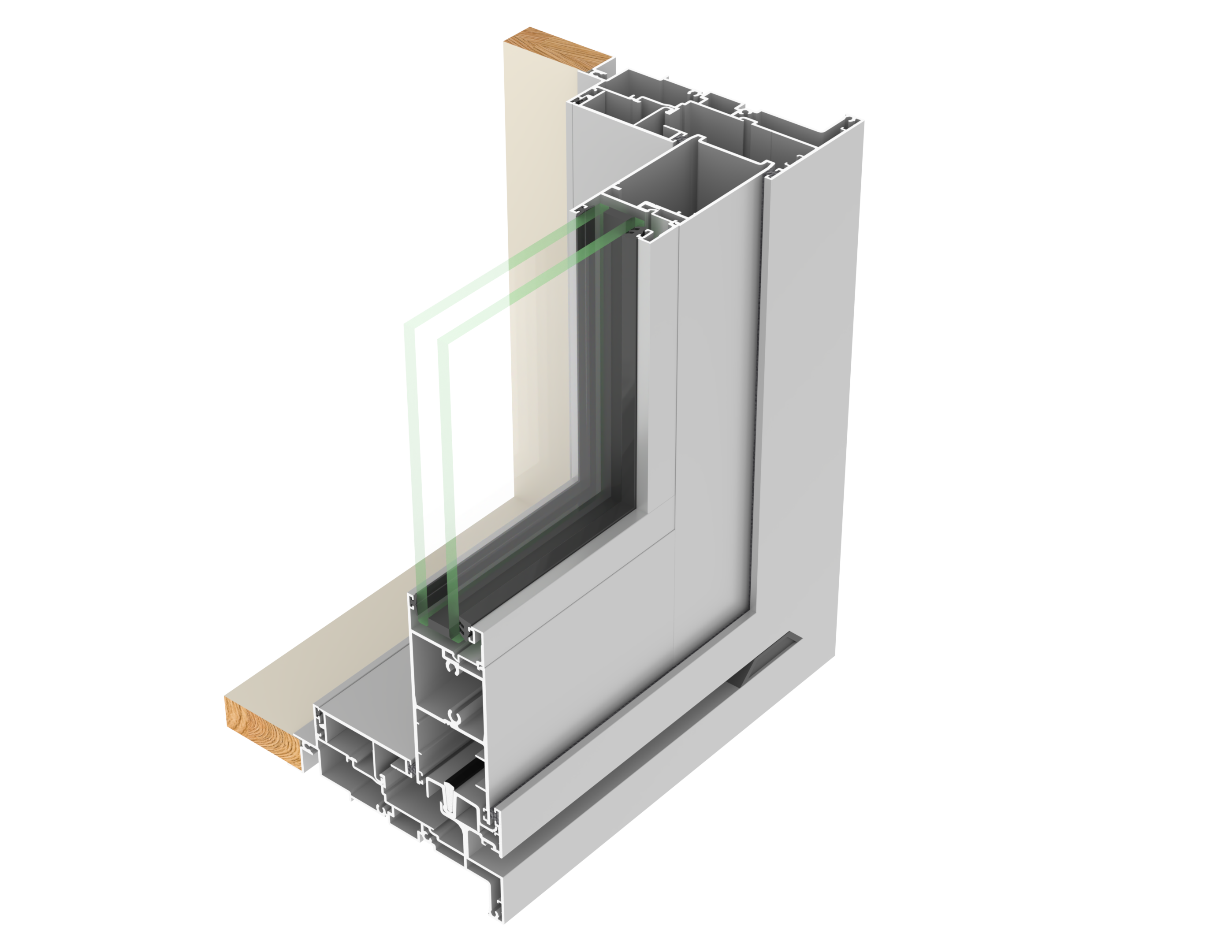

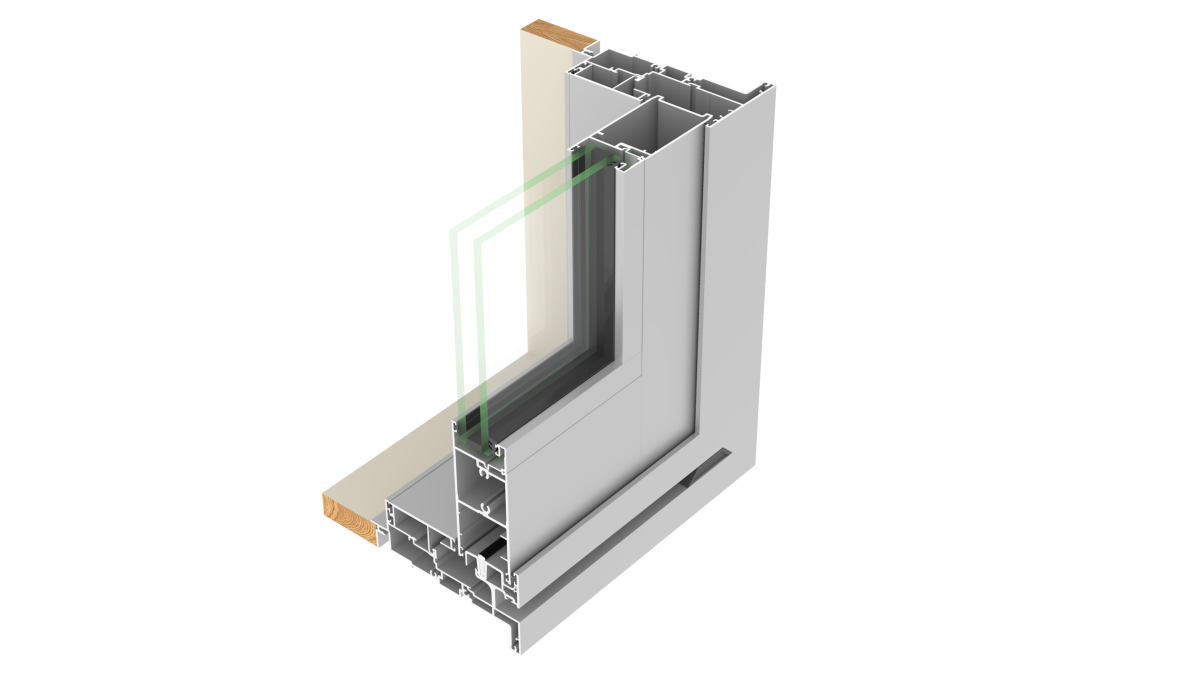

132 Metro Sliding Door Frame + Panel

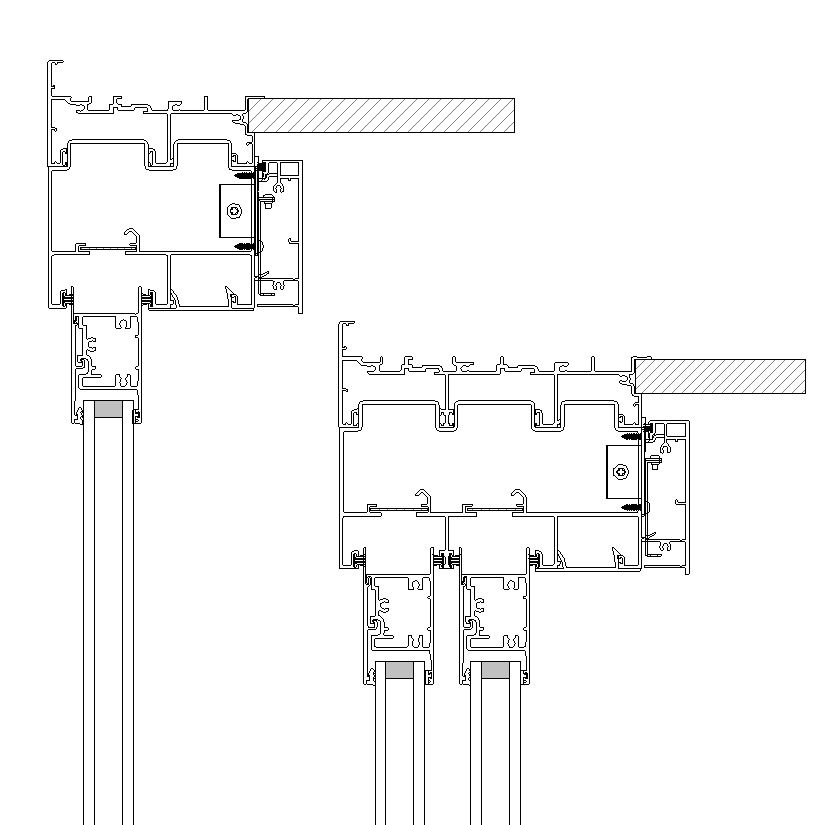

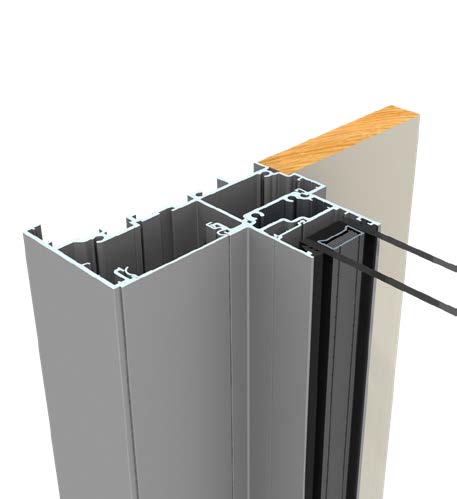

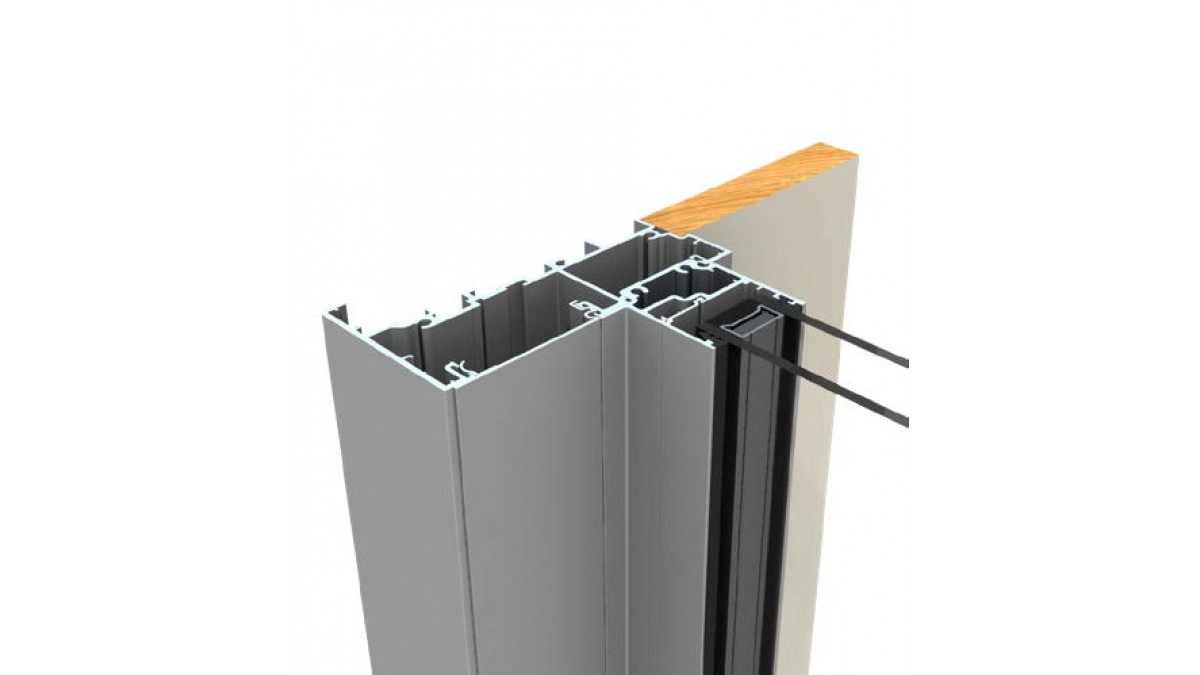

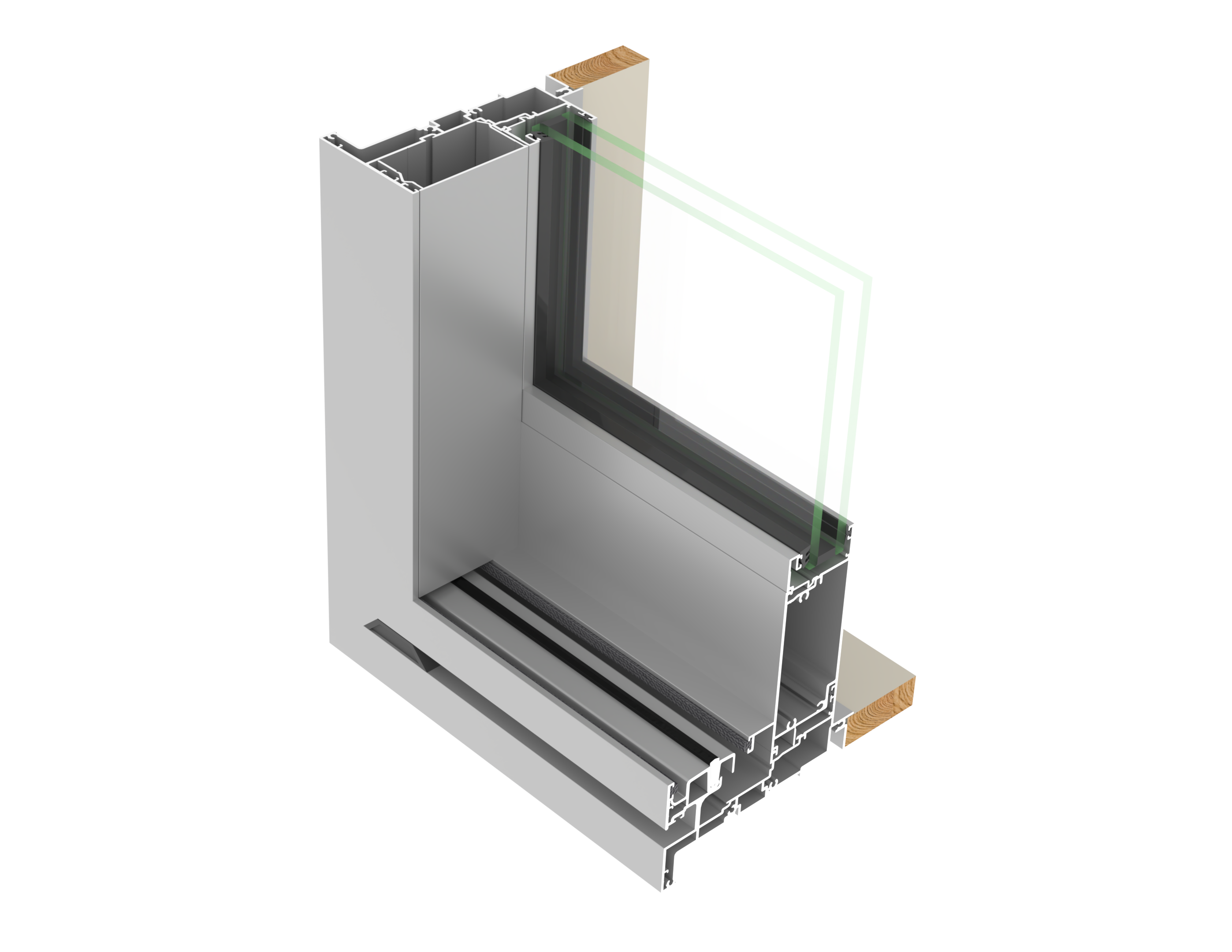

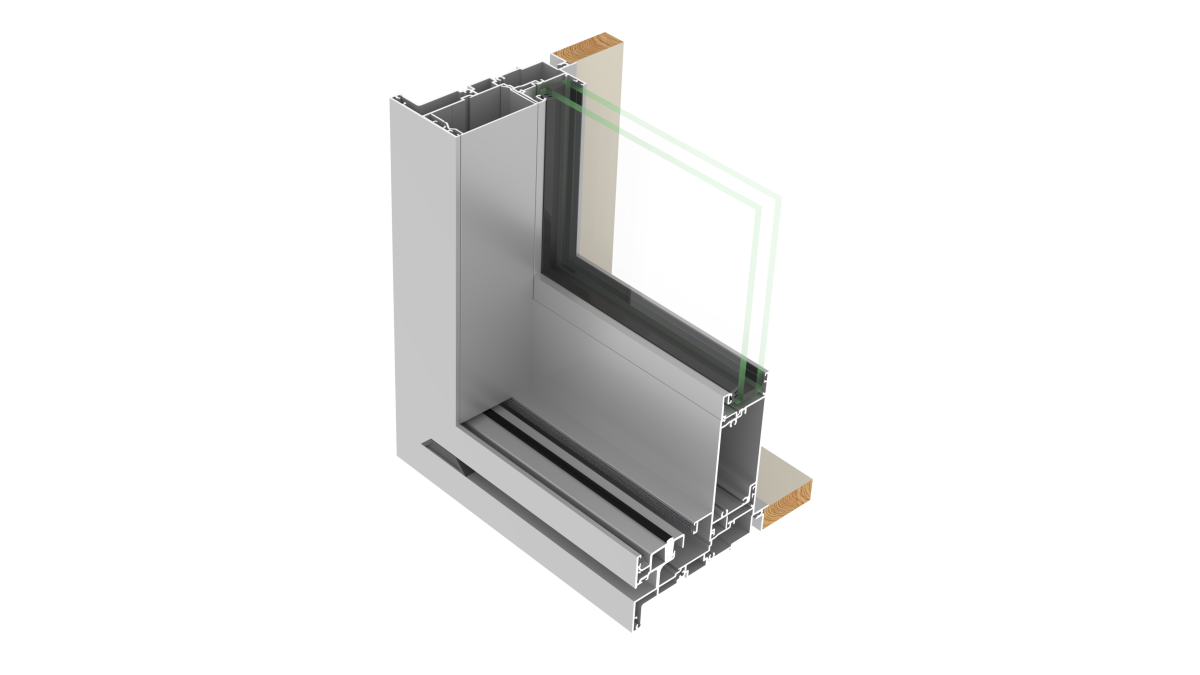

Jamb detail with fixed light shown

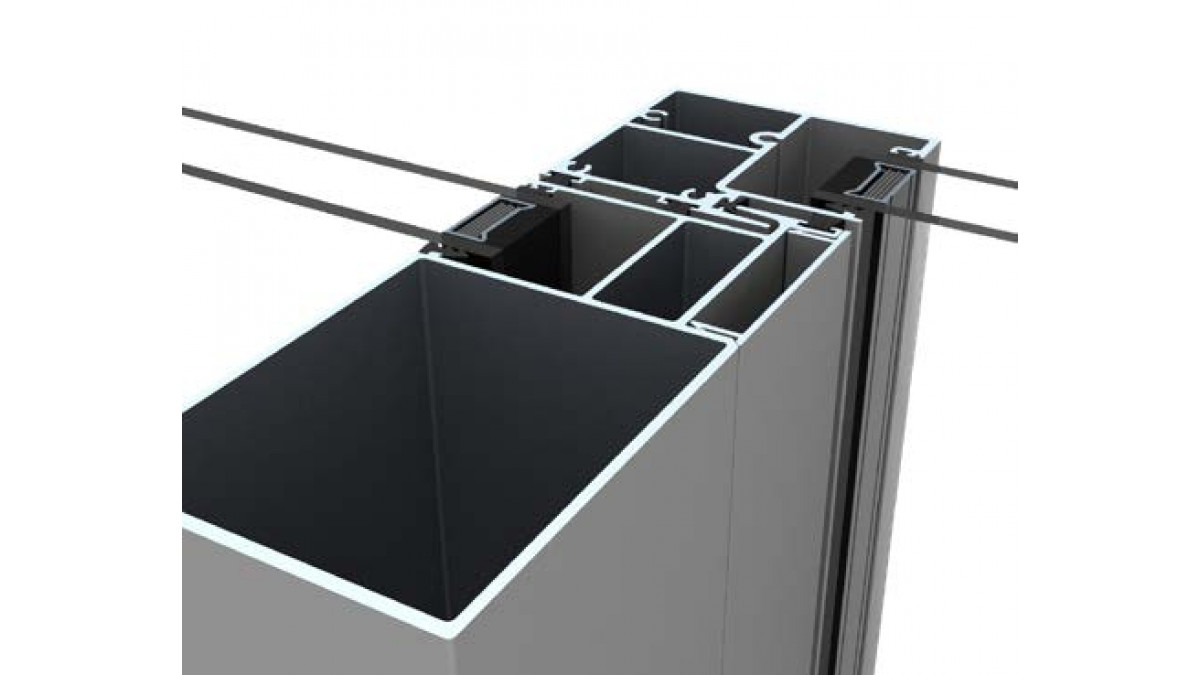

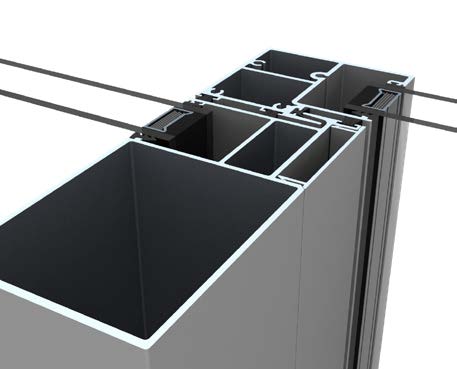

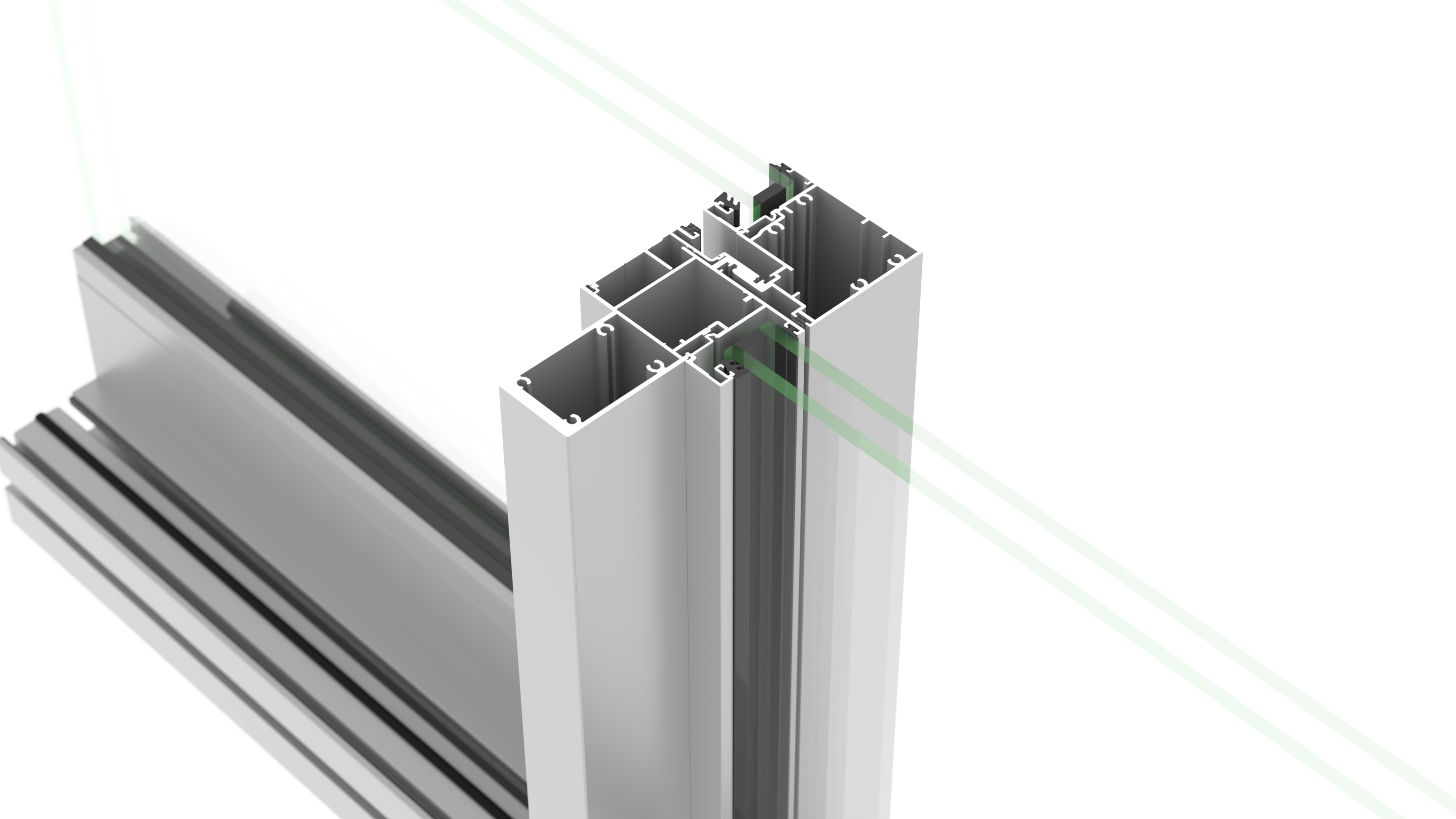

Metro sliding door interlockers are flush in the closed position

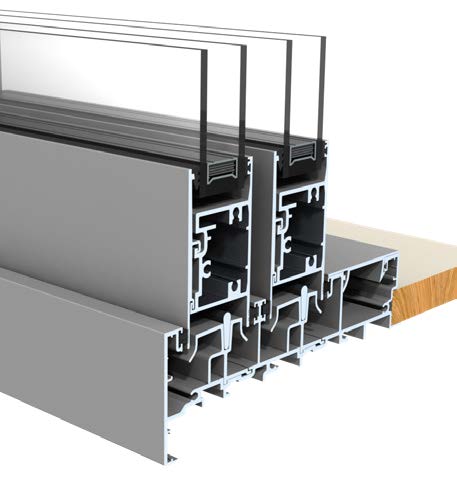

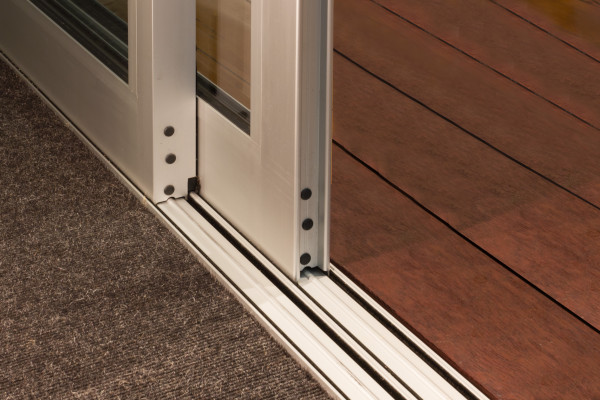

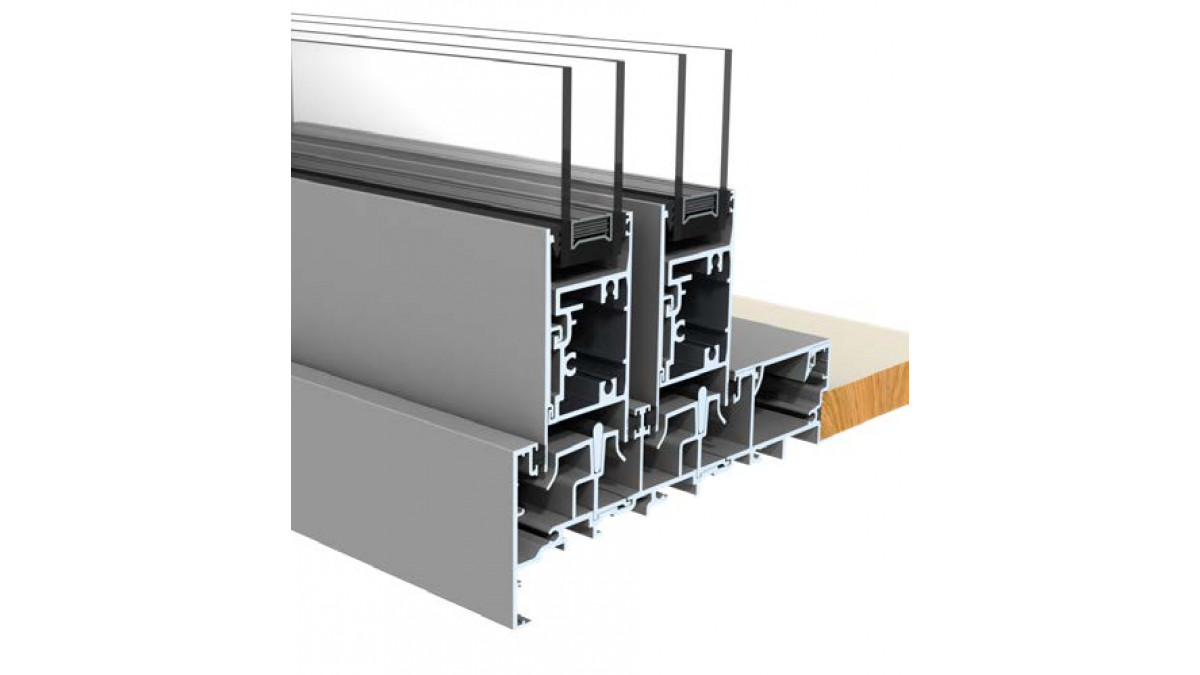

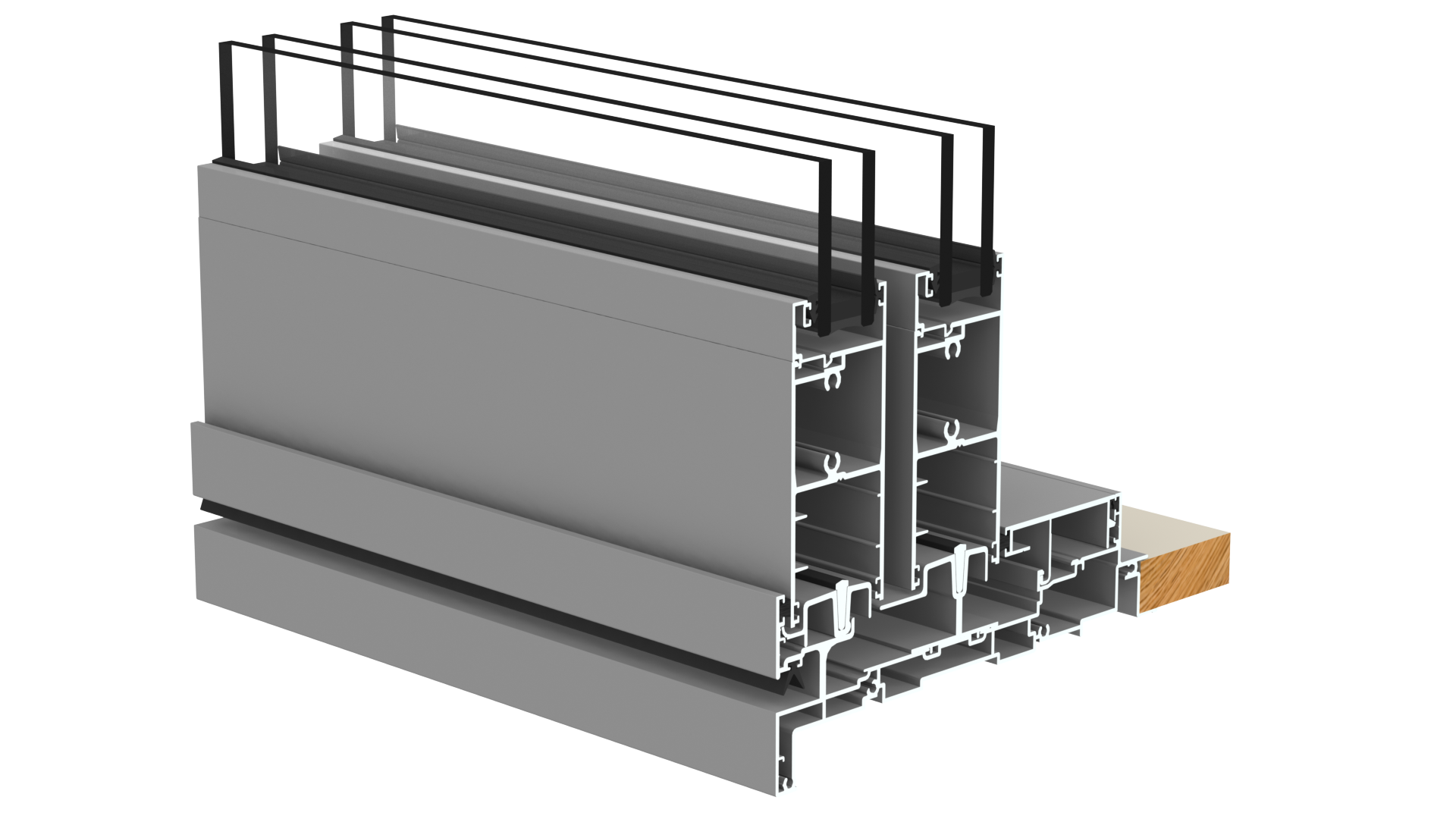

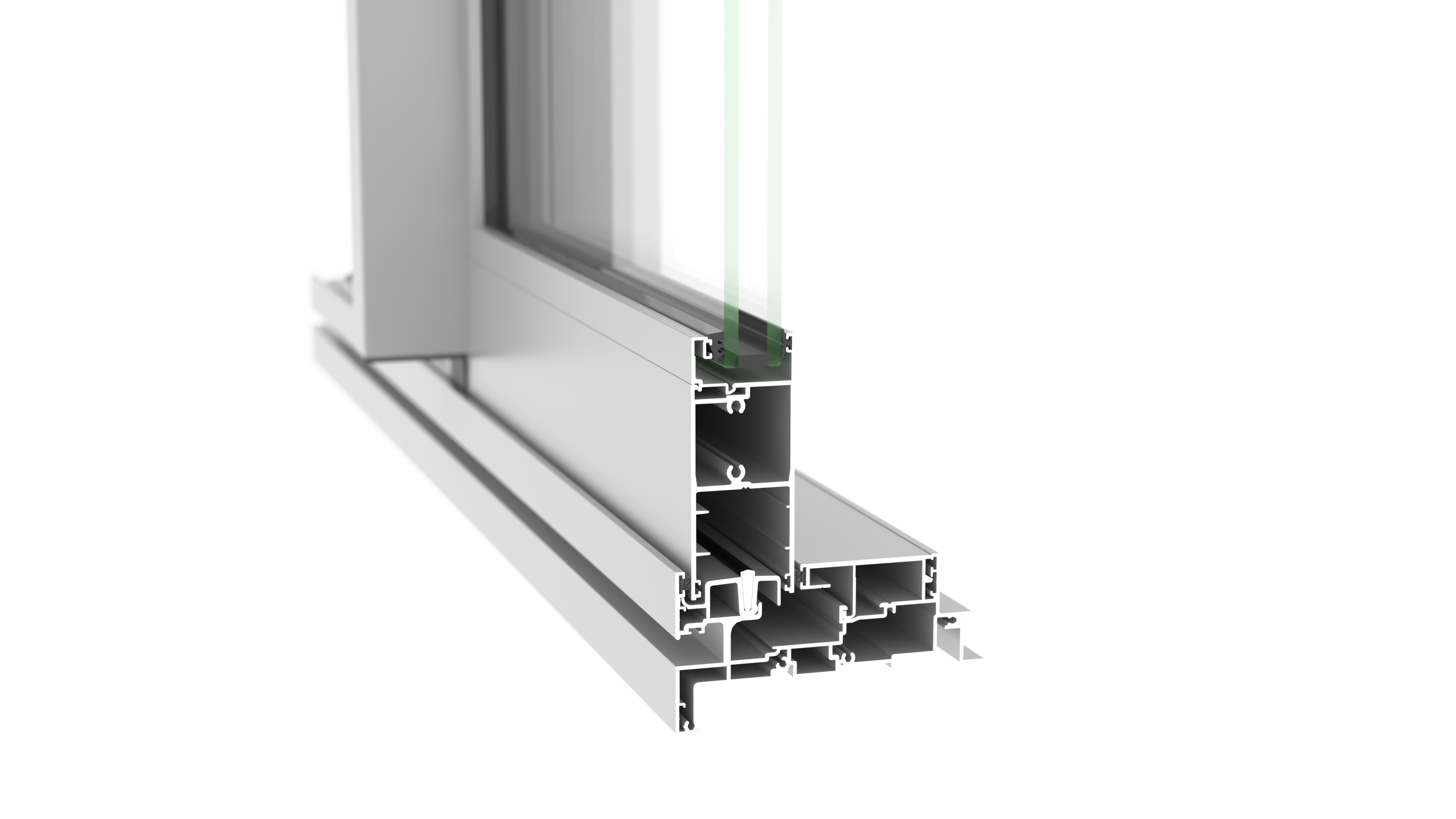

Multi slider sill frame

Product Enquiries

Description

Metro Series sliders move on an external track with fixed sidelight. External sliding doors optimise weathertightness and ensure suitability in demanding locations.

Extra sill support is available in stacking sliders with projecting external tracks.

Key Features

Recommended maximum 2400mm high doors in Extra High wind zones. For larger sizes consider using the APL Architectural Series
Metro occupies an intermediate position between Altherm Residential and the APL Architectural Series
Features an exterior sliding track as standard
The sill frame has a flush track to optimise inside-to-out plane
Interlocker stiles and mullions are flush in the closed position
Corner sliders (90°) are available with no corner post (exterior and interior corners)
An over-wall slider option is available

Categories

Sliding Doors

Ranges

Metro Series

Scope of Use

Suitable for most residential environments in larger sizes
A good option for maximum views and ventilation
Need to be used in defined maximum sizes according to the wind exposure

Limitations on Use

Open bi-folds need to be monitored in windy conditions
Recommended maximum 2400mm high doors in Extra High wind zones. For larger sizes consider using the APL Architectural Series
In closed position bi-fold door stiles impact views

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2006
Design upgrades regularly released
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies
News

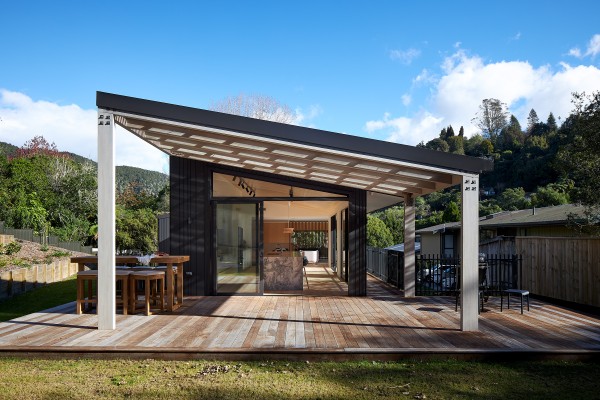

A Crowd-pleasing Bach Using Altherm Window Systems

A Crowd-pleasing Bach Using Altherm Window Systems

ALTHERM Window Systems

August 2023

Case Studies

Slide Away with Altherm Window Systems

Slide Away with Altherm Window Systems

ALTHERM Window Systems

December 2022

Case Studies

Altherm Windows and Doors Provide Uncompromised Views

Altherm Windows and Doors Provide Uncompromised Views

ALTHERM Window Systems

August 2022

Case Studies

Flush Sill Feature for Popular Metro Series Sliding Doors

Flush Sill Feature for Popular Metro Series Sliding Doors

ALTHERM Window Systems

November 2016

New Products

Documents

Data Sheet

Span Tables

Declare Label

2022

Altherm on Masterspec

Full Specification

Specification Clause

Specifier Guide

WGANZ Guide to E2/AS1

Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

Sound Solutions Brochure

2020

AGP Cleaning & Maintenance

AGP Condensation Guide

AGP Visual Quality of Glass

APL and Sustainability

2019

Manufacturer Contact List

CAD/PDF Details

Altherm Metro Series Sliding Doors Drawings pdf

Full Set of Drawings

AMSD

AMSD02 0 pdf

Altherm Metro Series Sliding Door Two Panel FS

AMSD02-0

AMSD03 0

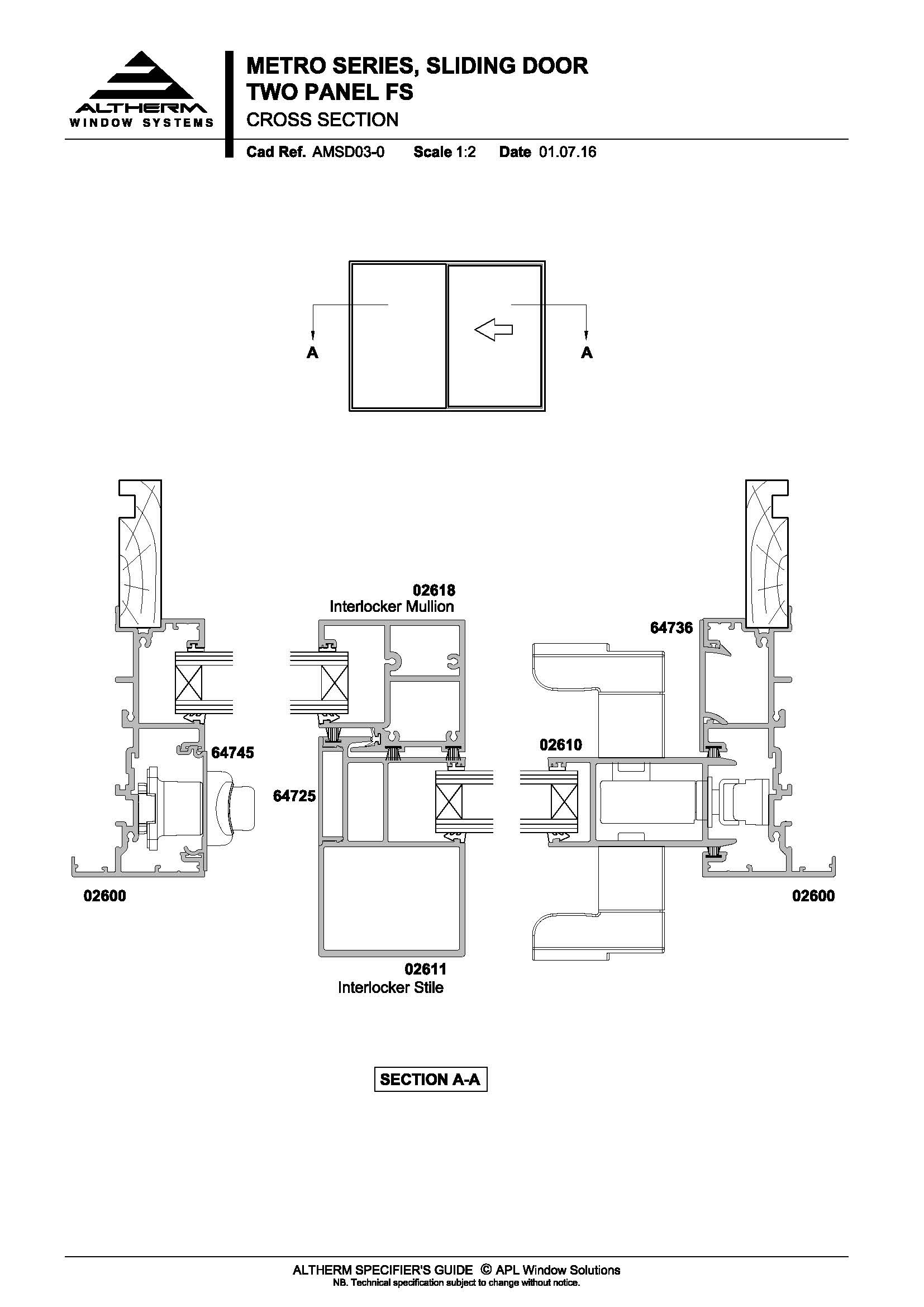

Altherm Metro Series Sliding Door Two Panel FS

AMSD03-0

AMSD04 0

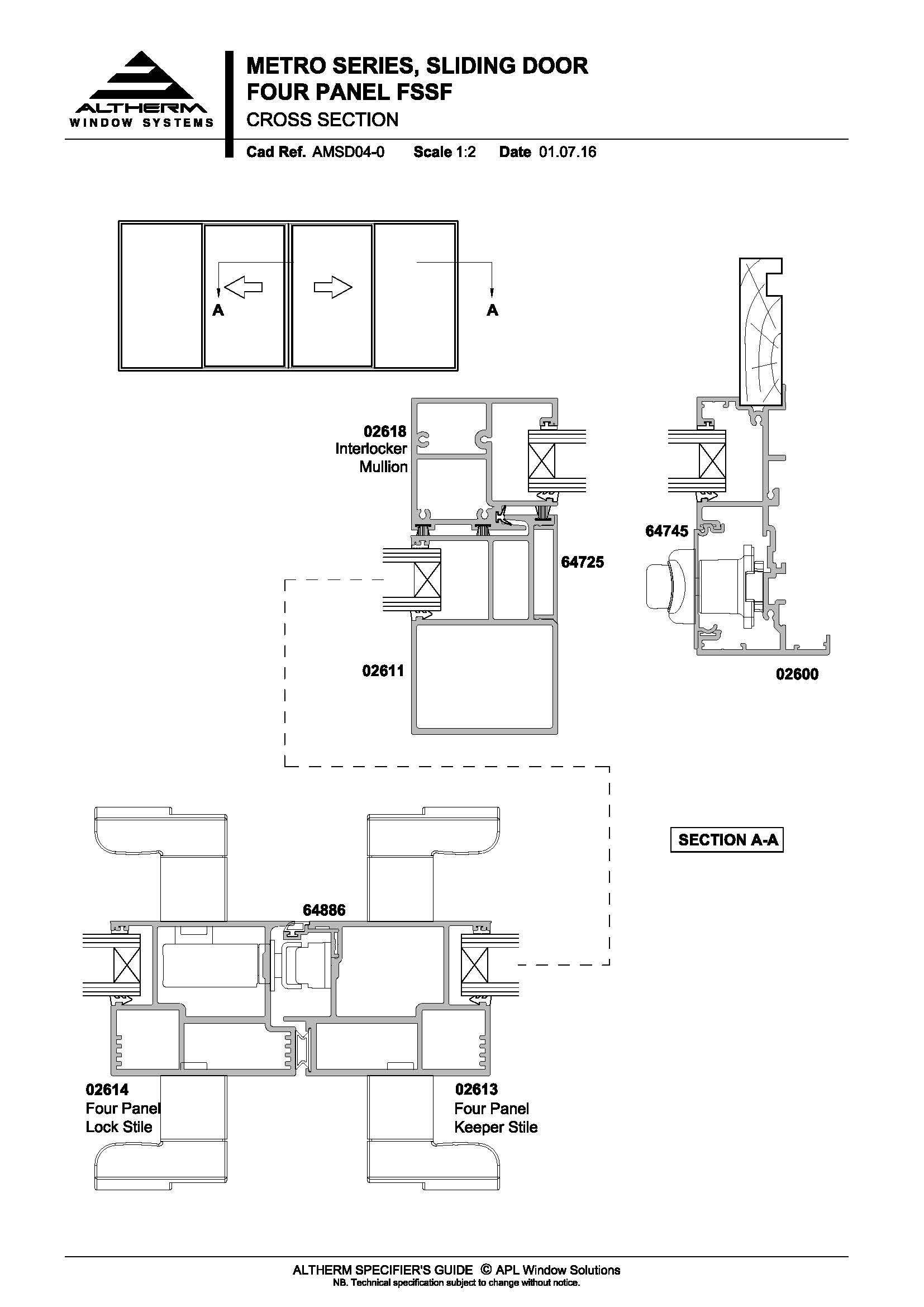

Altherm Metro Series Sliding Door Four Panel FSSF

AMSD04-0

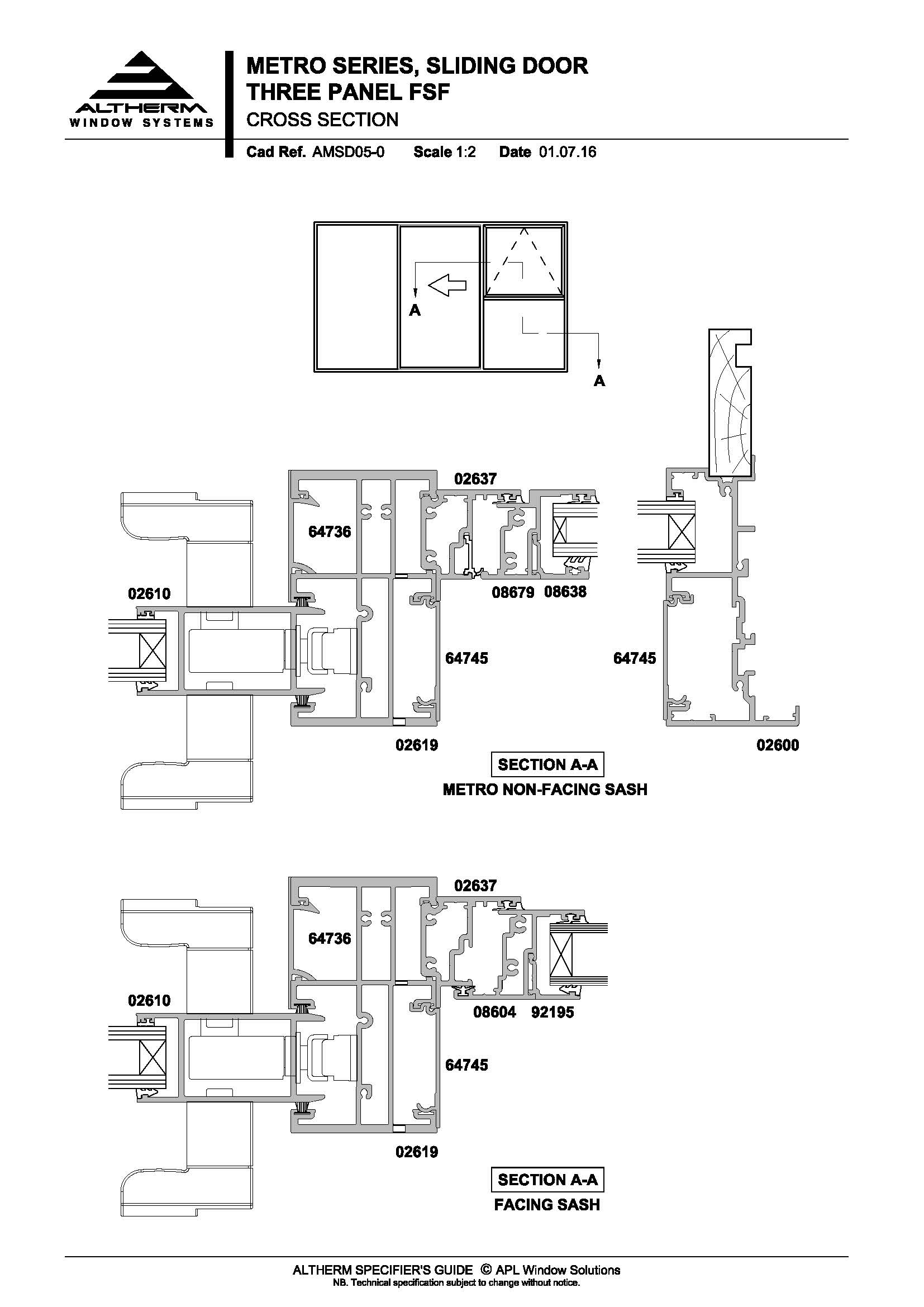

AMSD05 0

Altherm Metro Series Sliding Door Three Panel FSF

AMSD05-0

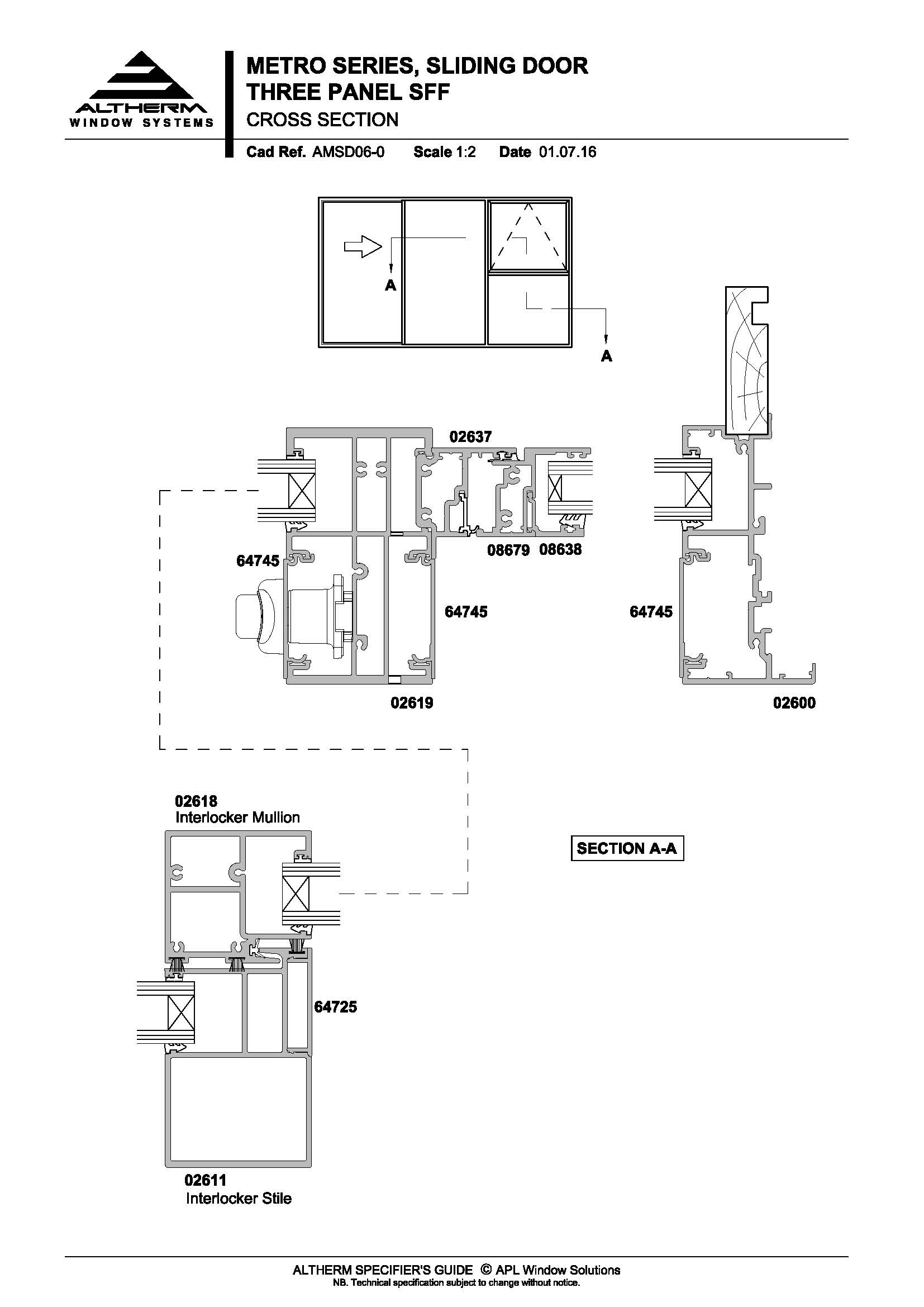

AMSD06 0

Altherm Metro Series Sliding Door Three Panel SFF

AMSD06-0

AMSD07 0

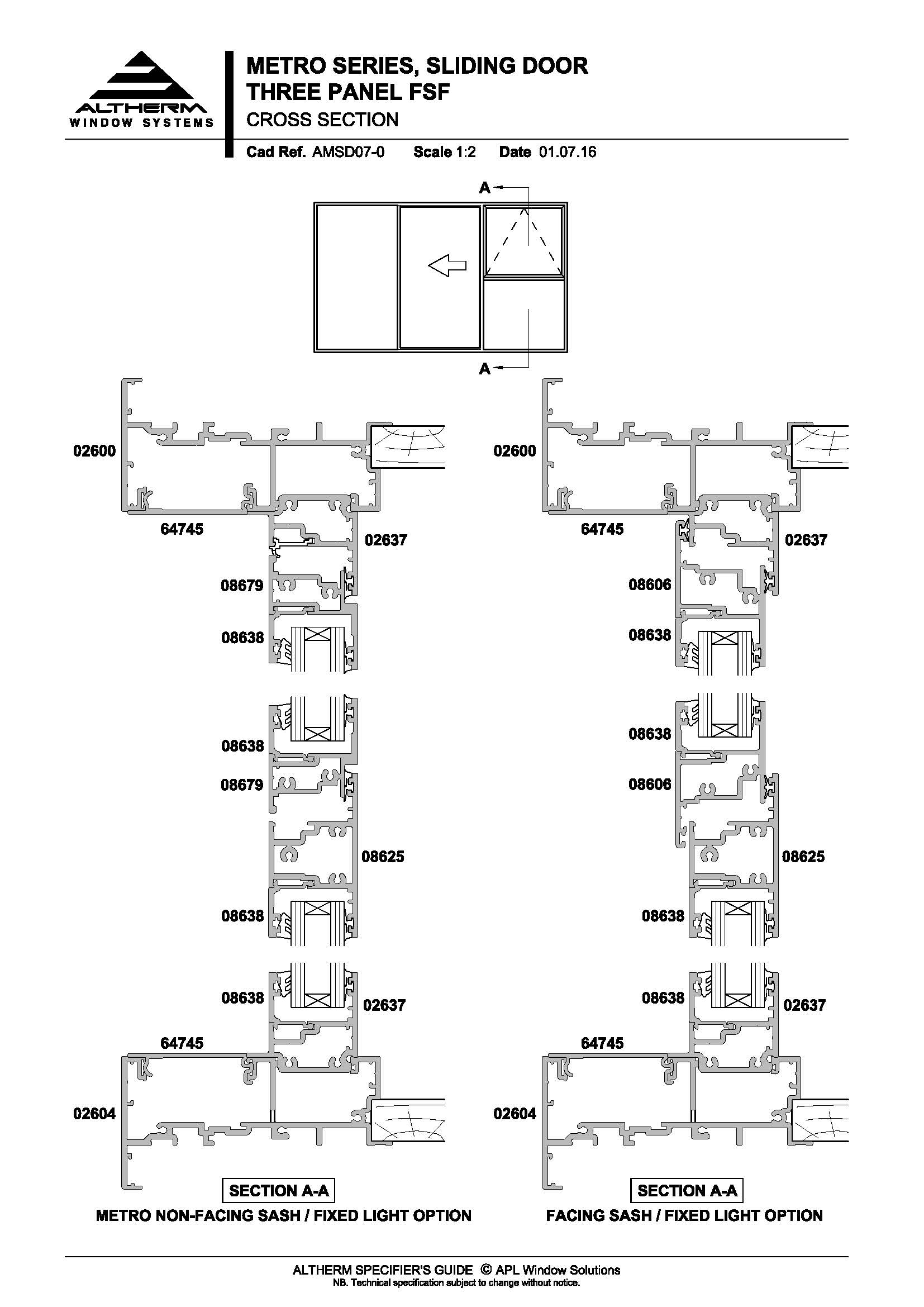

Altherm Metro Series Sliding Door Three Panel FSF

AMSD07-0

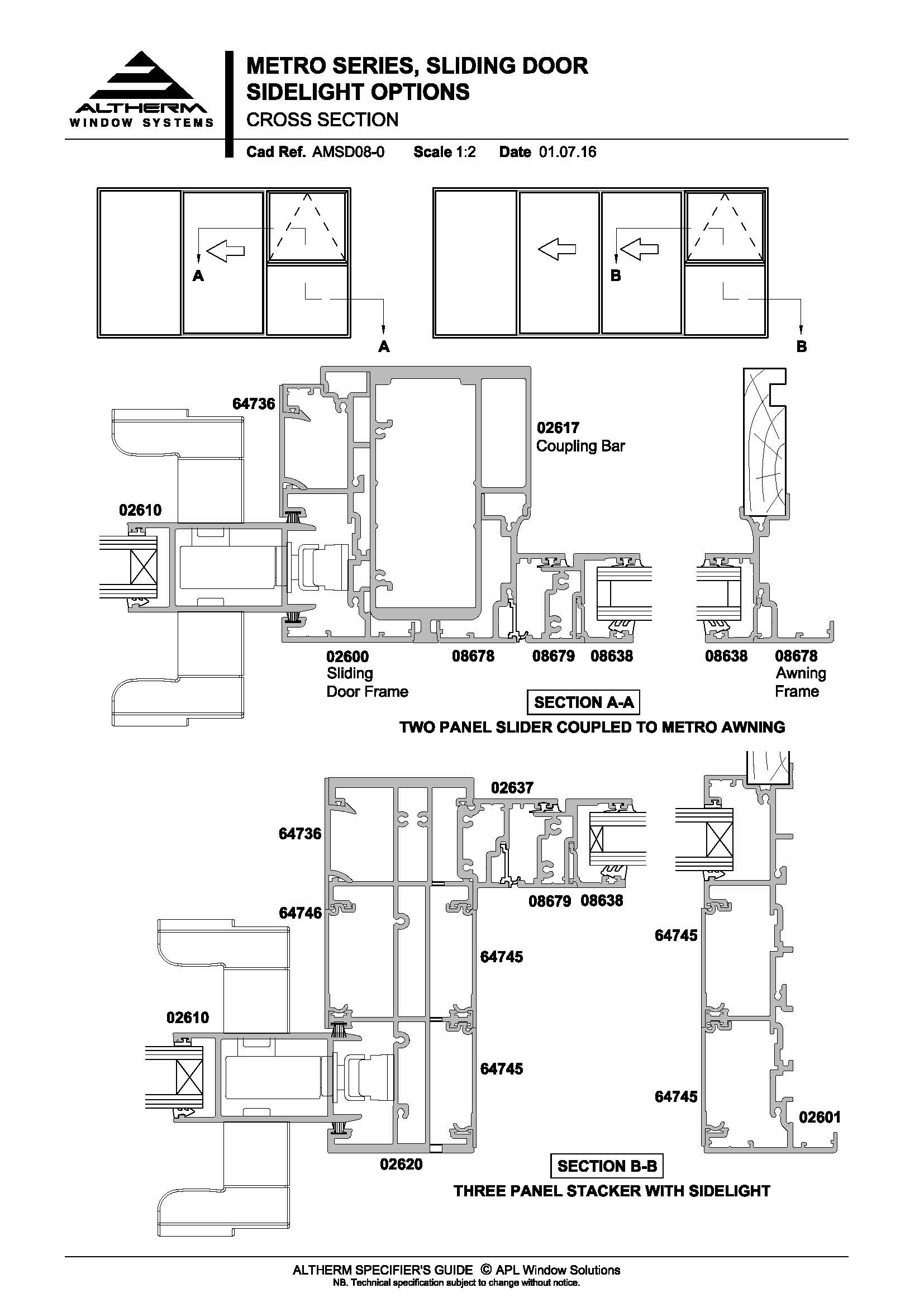

AMSD08 0

Altherm Metro Series Sliding Door Coupled Sidelight Options

AMSD08-0

AMSD09 0 pdf

Altherm Metro Series Sliding Door Three Panel SSF

AMSD09-0

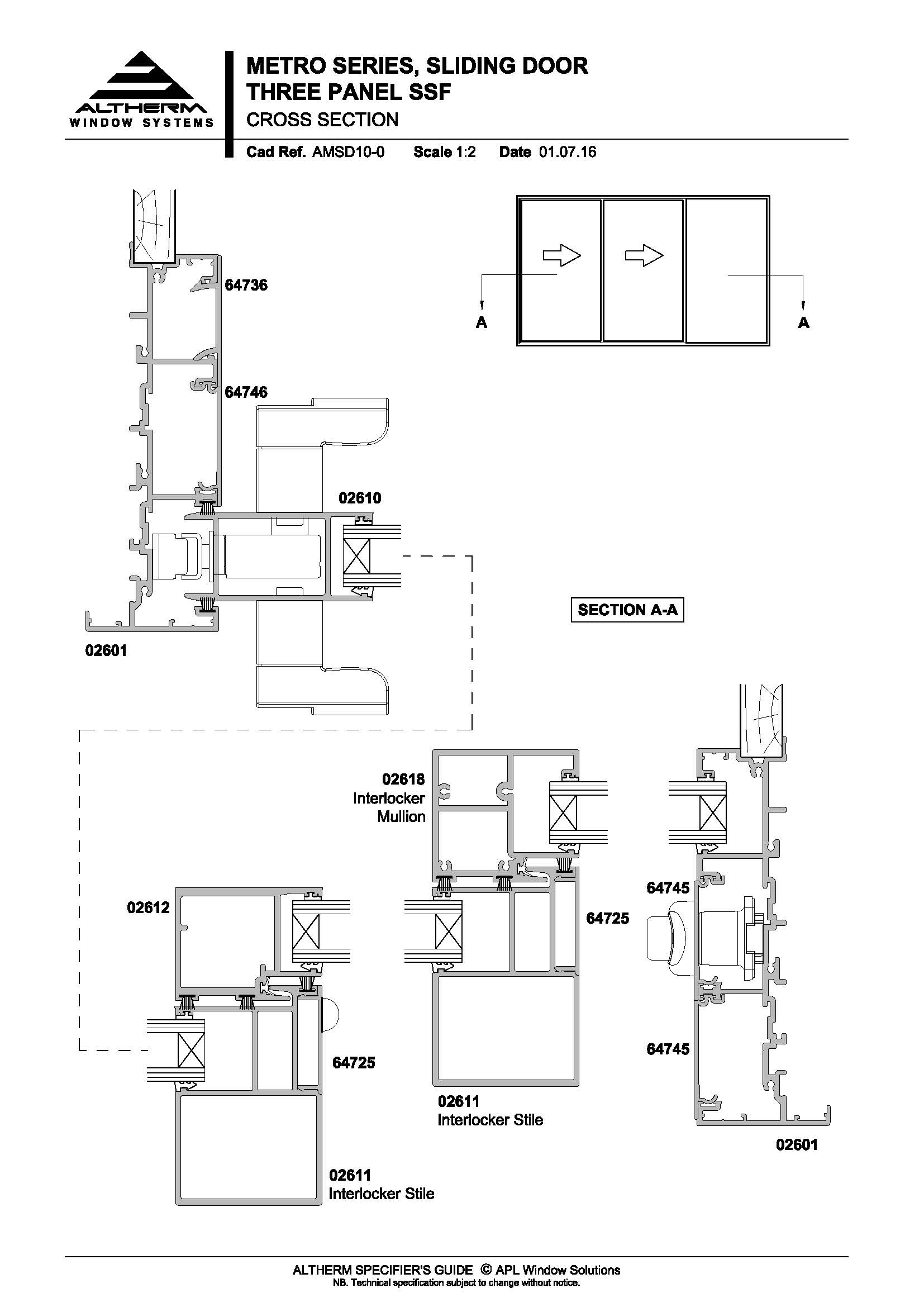

AMSD10 0

Altherm Metro Series Sliding Door Three Panel SSF

AMSD10-0

AMSD11 0 updated

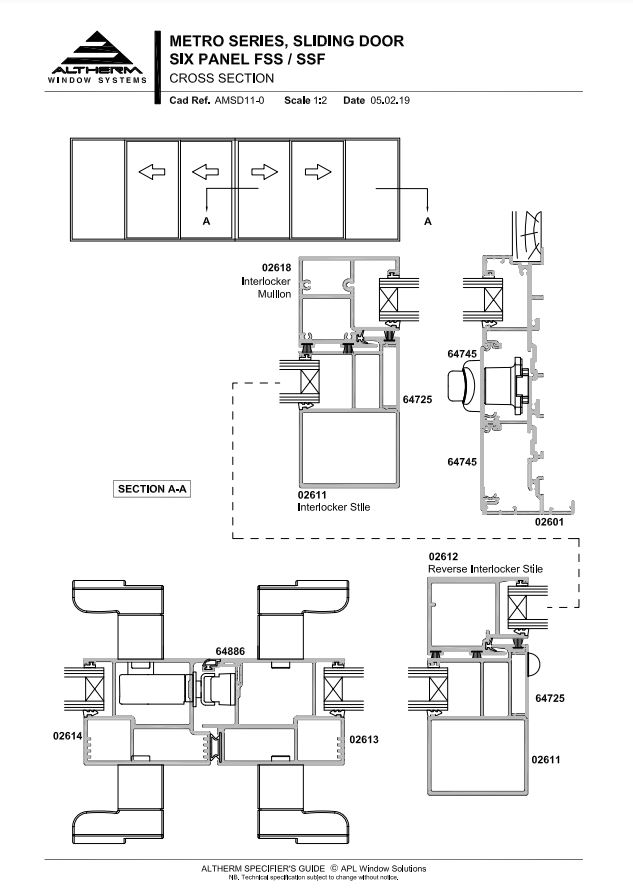

Altherm Metro Series Sliding Door Six Panel FSS / SSF

AMSD11-0

AMSD12 0

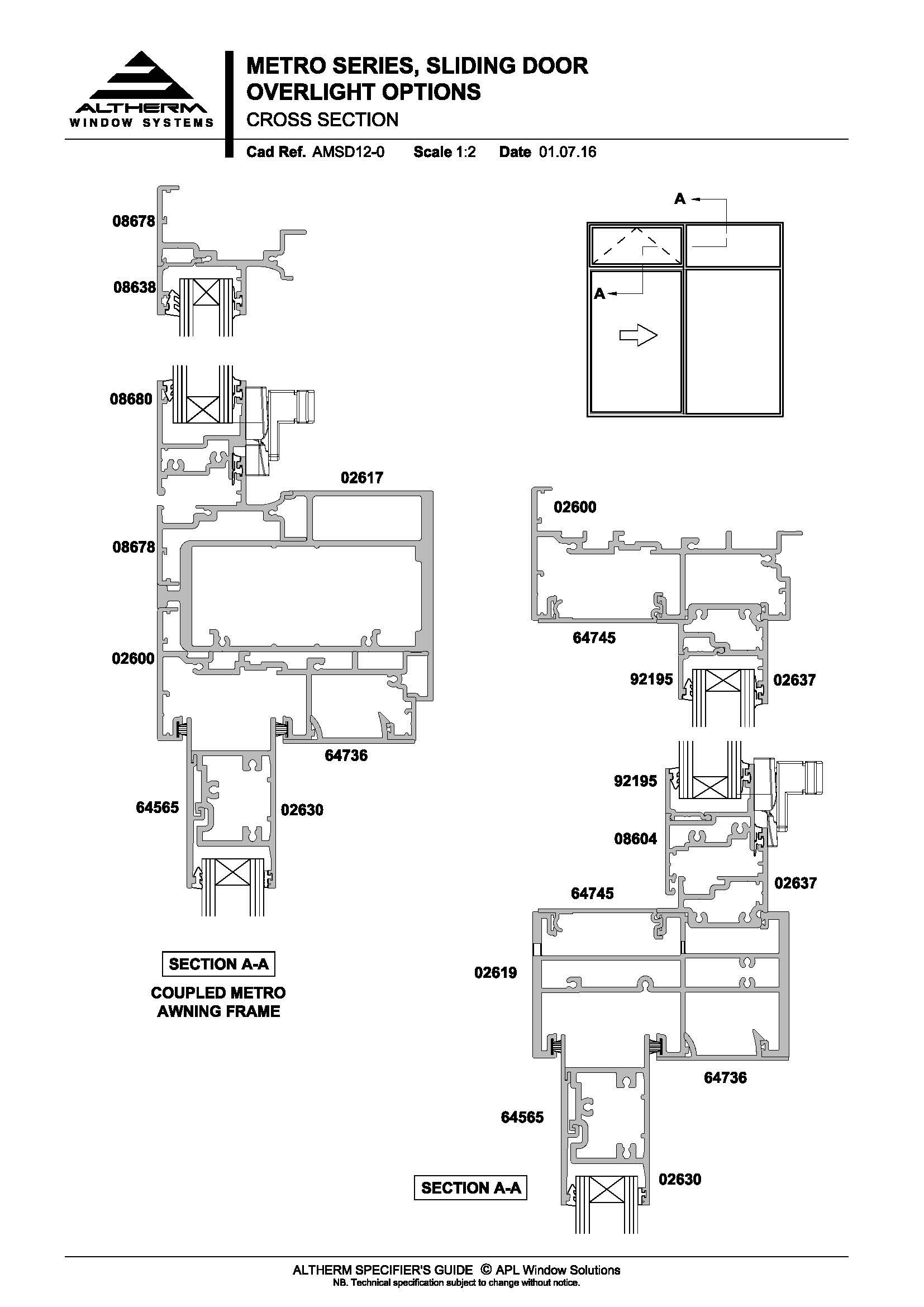

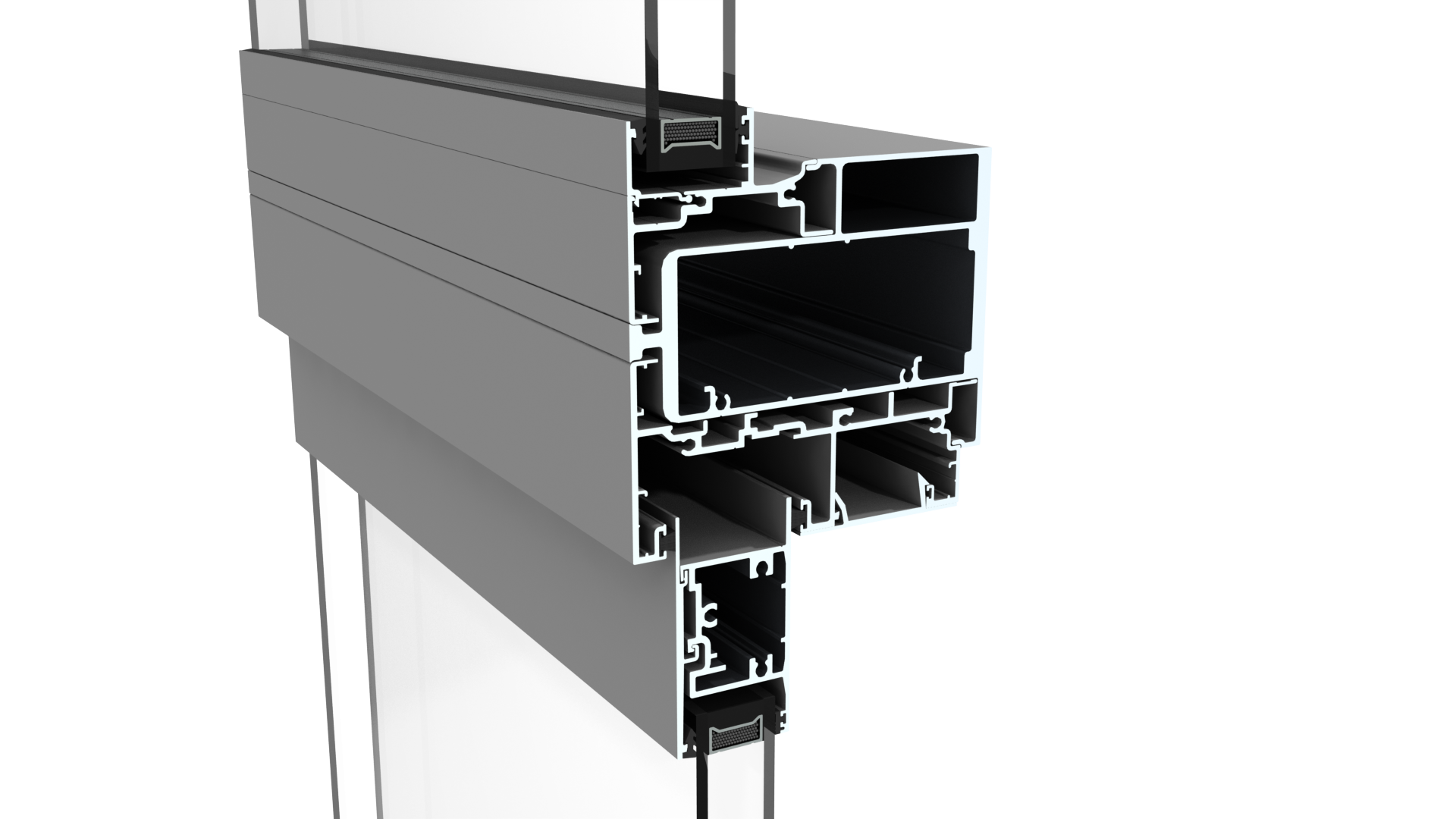

Altherm Metro Series Sliding Door Overlight Options

AMSD12-0

AMSD13 0

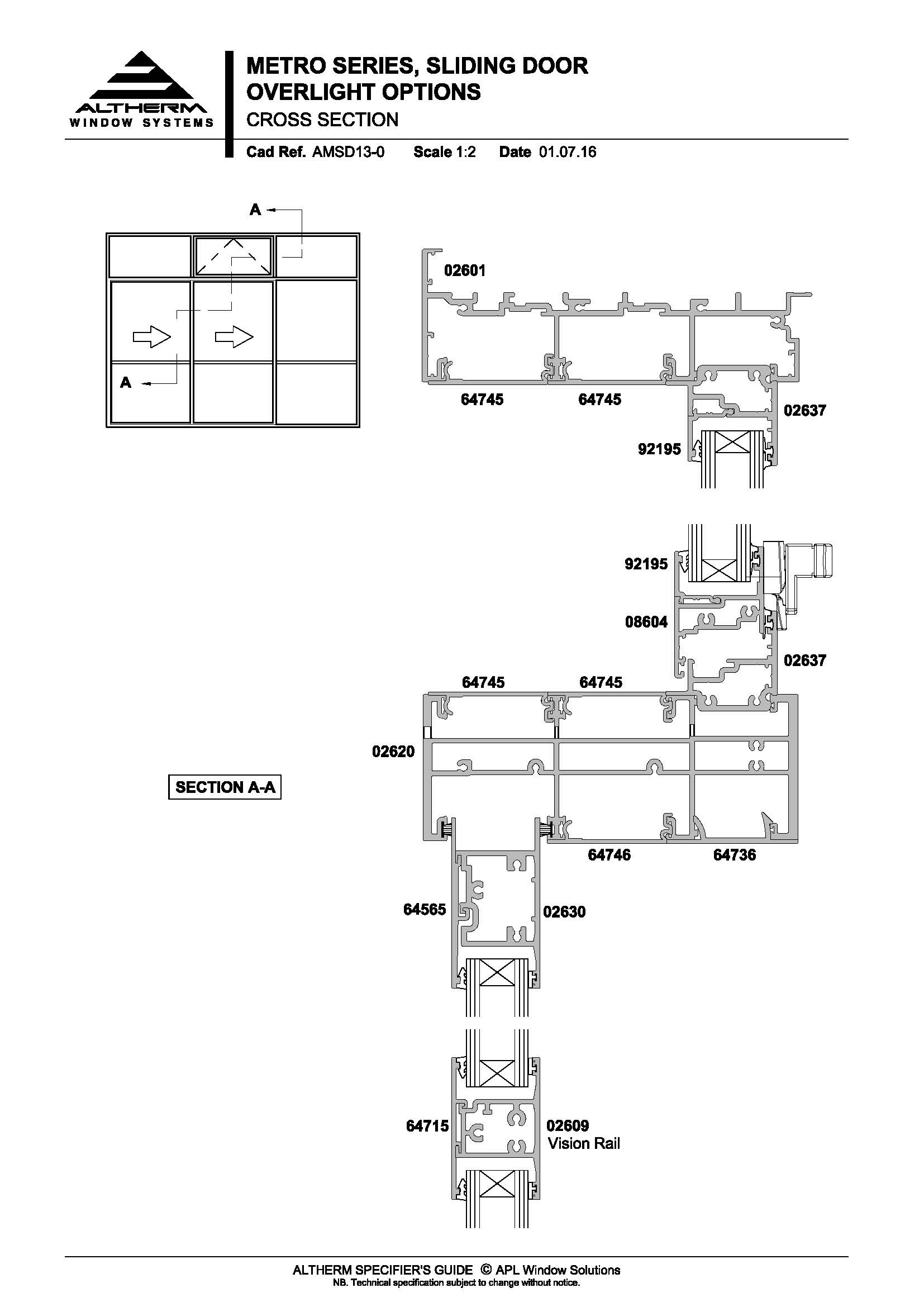

Altherm Metro Series Sliding Door Overlight Options

AMSD13-0

AMSD14 0

Altherm Metro Series Sliding Door Single Panel Overwall

AMSD14-0

AMSD15 0

Altherm Metro Series Sliding Door Single Panel Overwall

AMSD15-0

AMSD16 0

Altherm Metro Series Sliding Door Single Panel Overwall

AMSD16-0

AMSD17 0

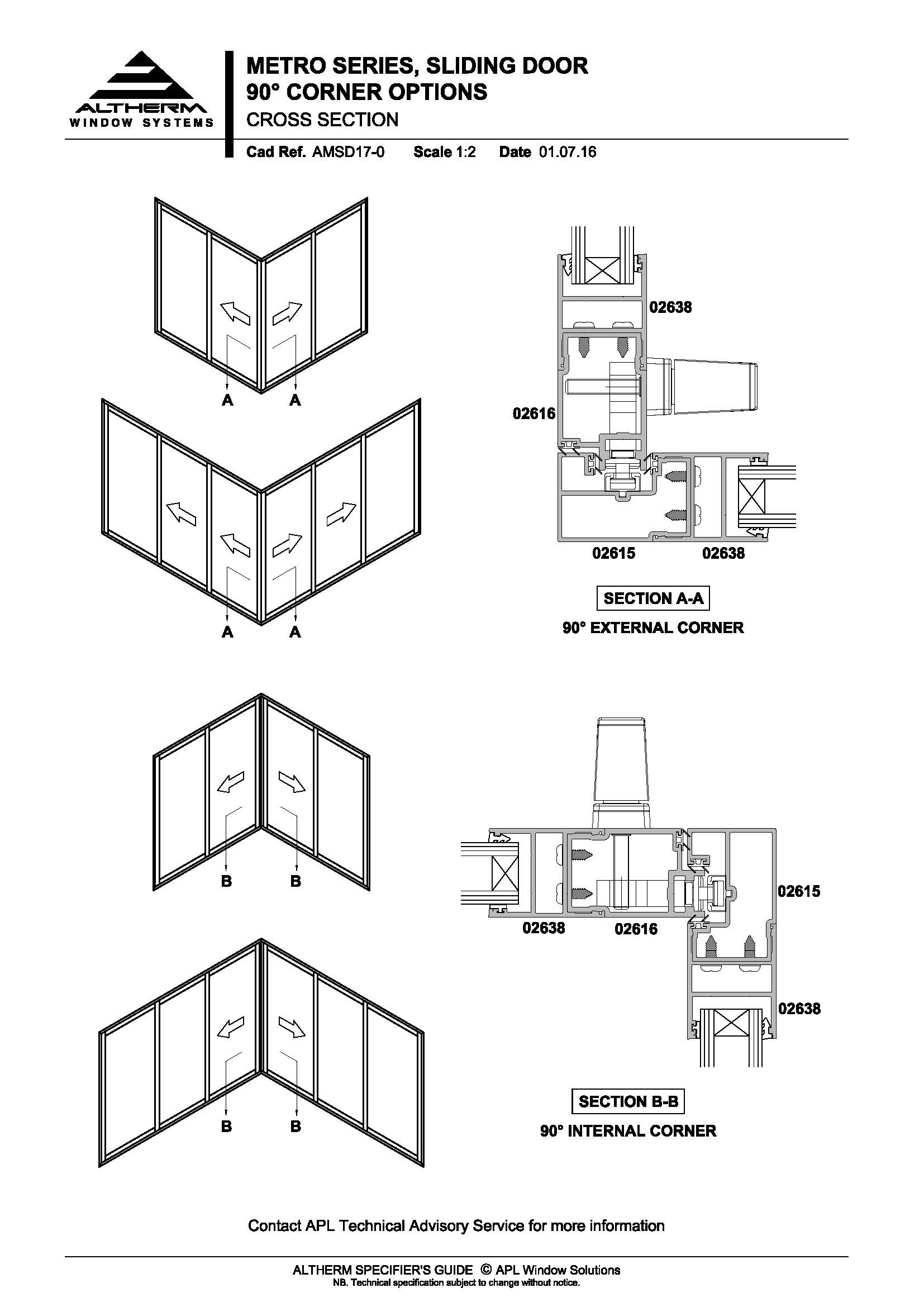

Altherm Metro Series Sliding Door 90° Corner Options

AMSD17-0

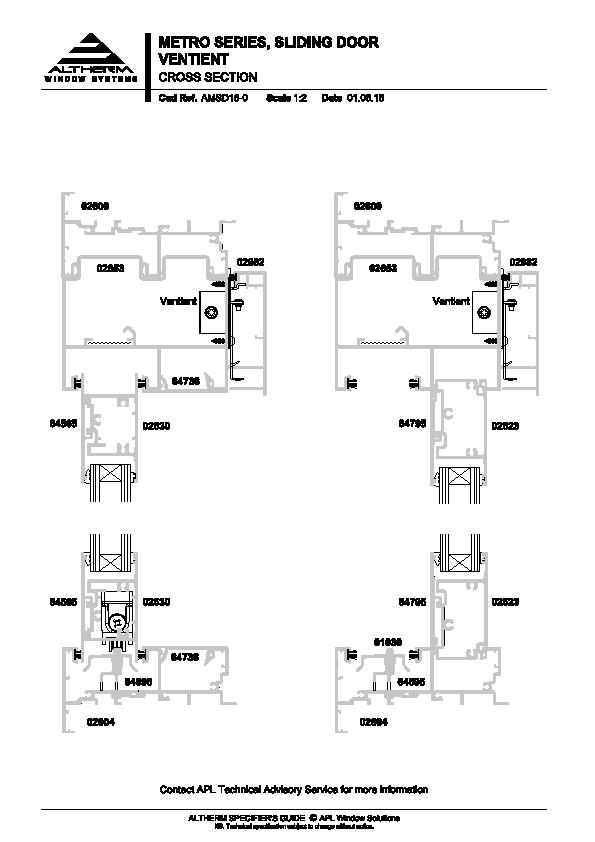

Altherm Metro Series Ventient Sliding Door

AMSD18-0

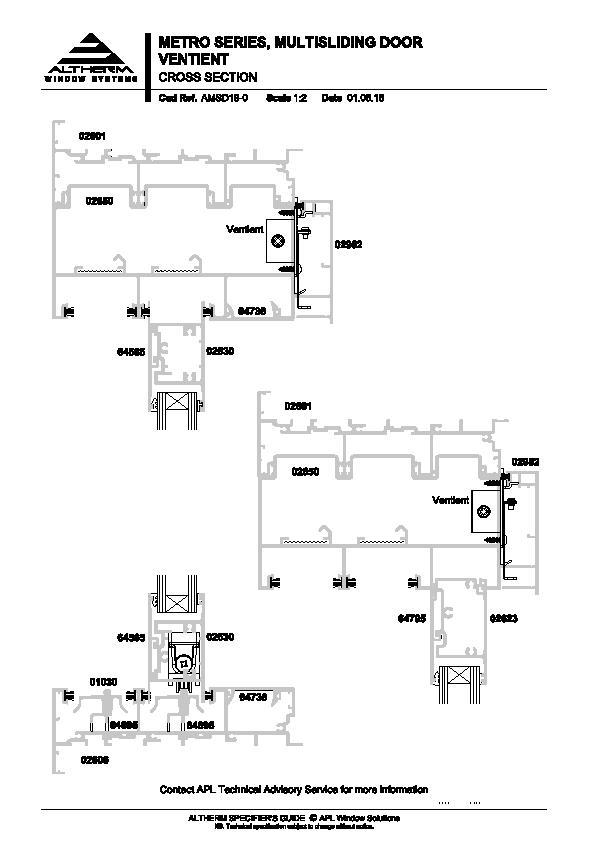

Altherm Metro Series Ventient Multisliding Door

AMSD19-0

Installation Details

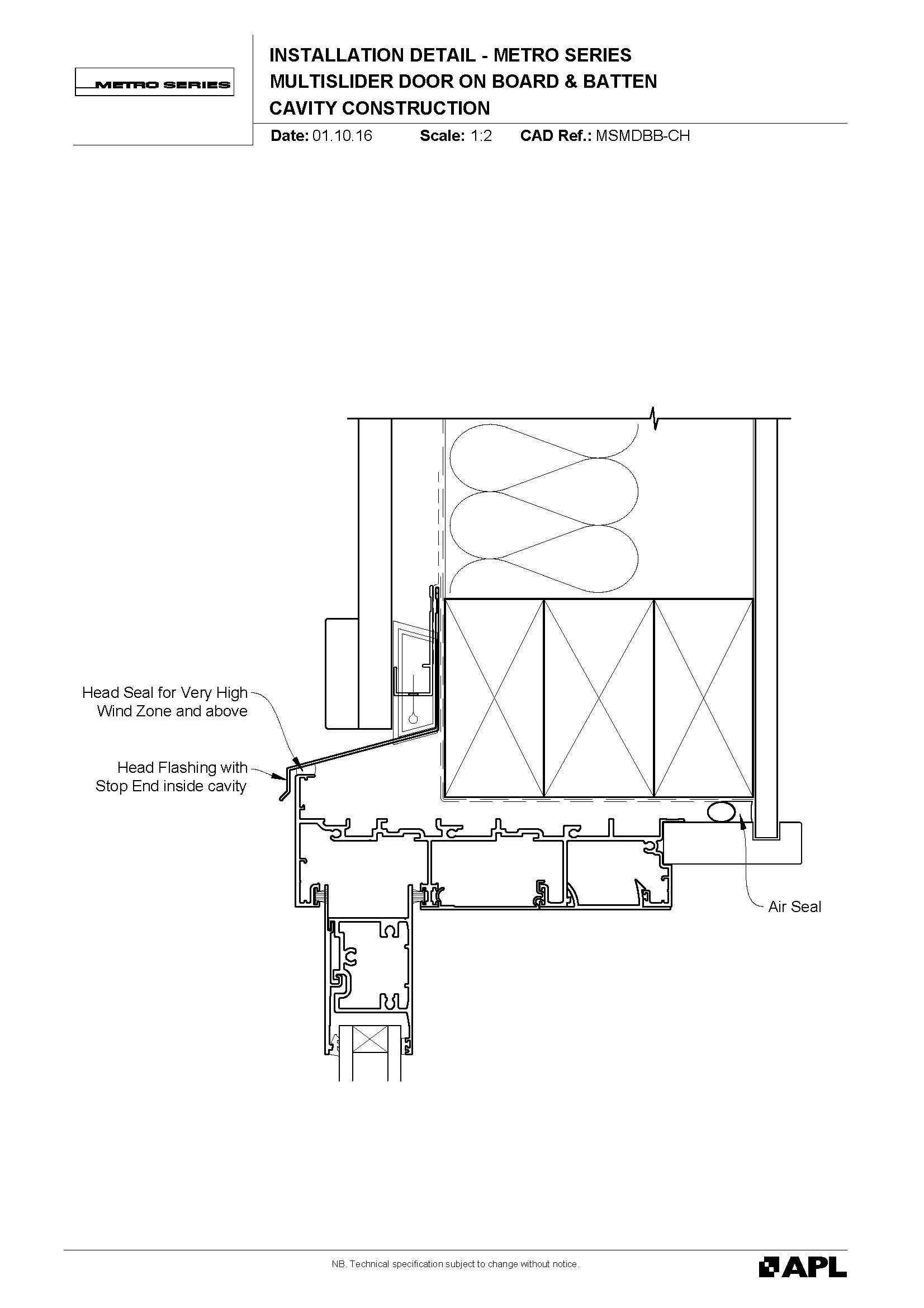

MSMDBB

Altherm Metro Series Multislider Door on Board & Batten

MSMDBB

MSMDBV

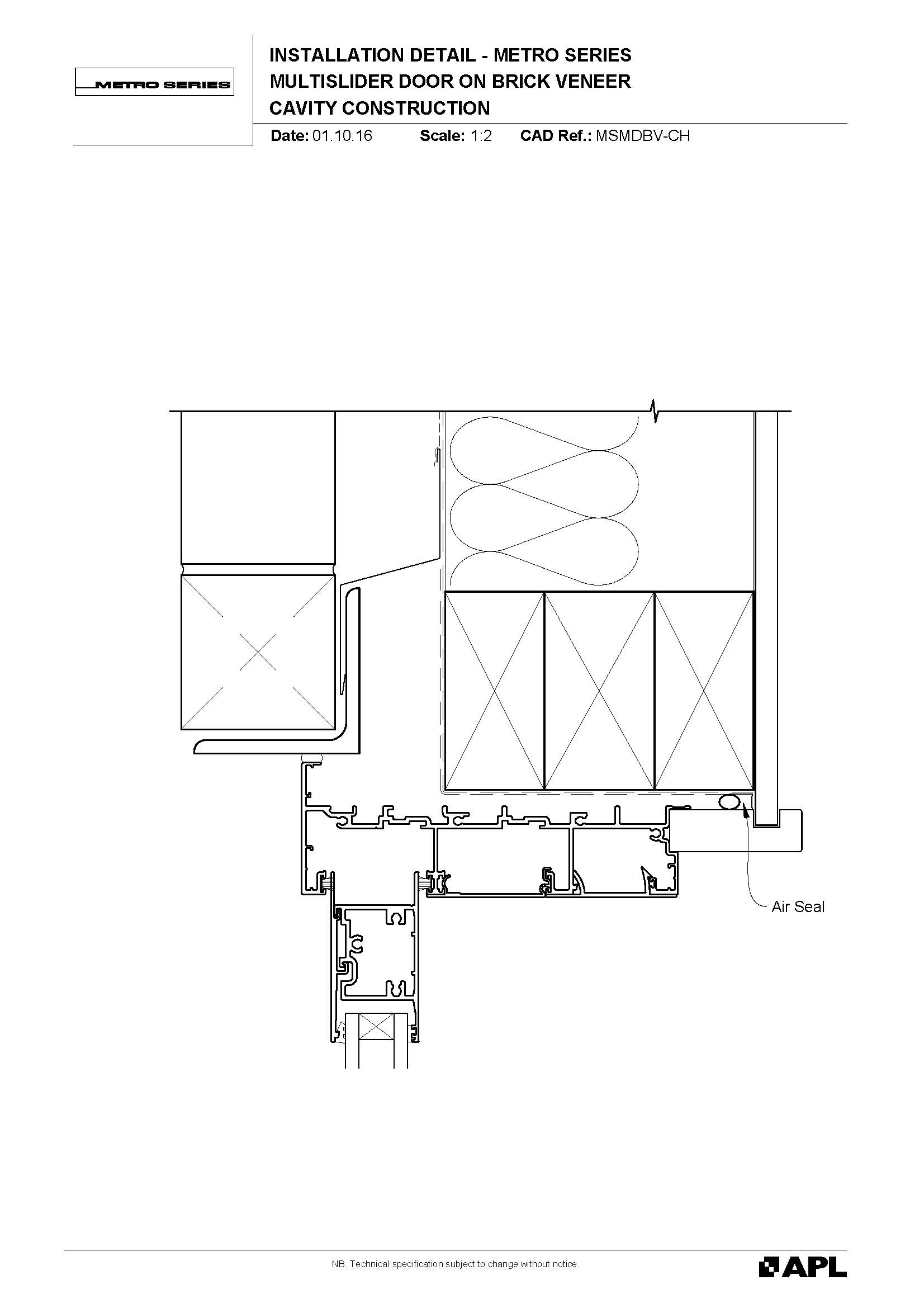

Altherm Metro Series Multislider Door on Brick Veneer

MSMDBV

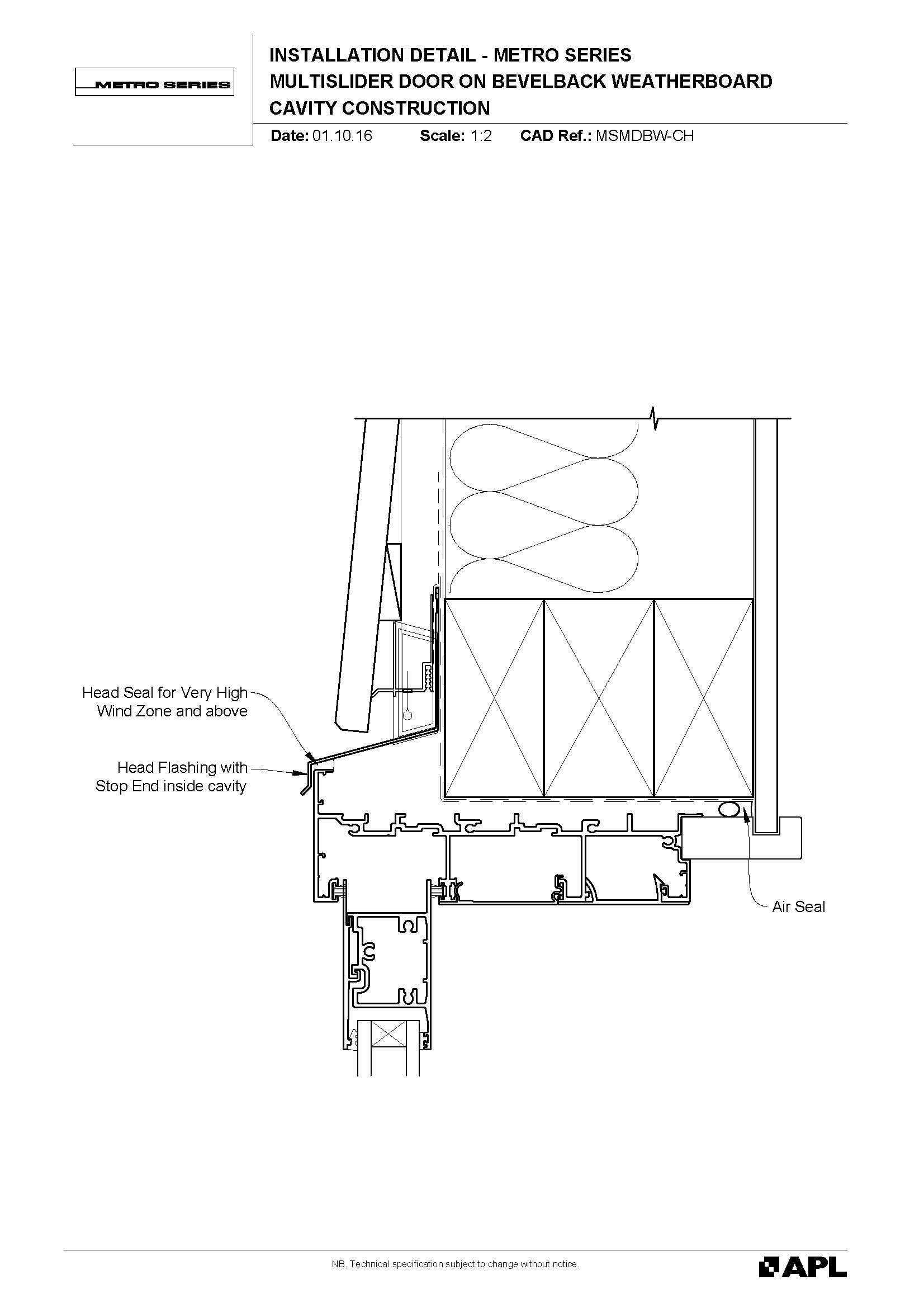

MSMDBW

Altherm Metro Series Multislider Door on Bevelback Weatherboard

MSMDBW

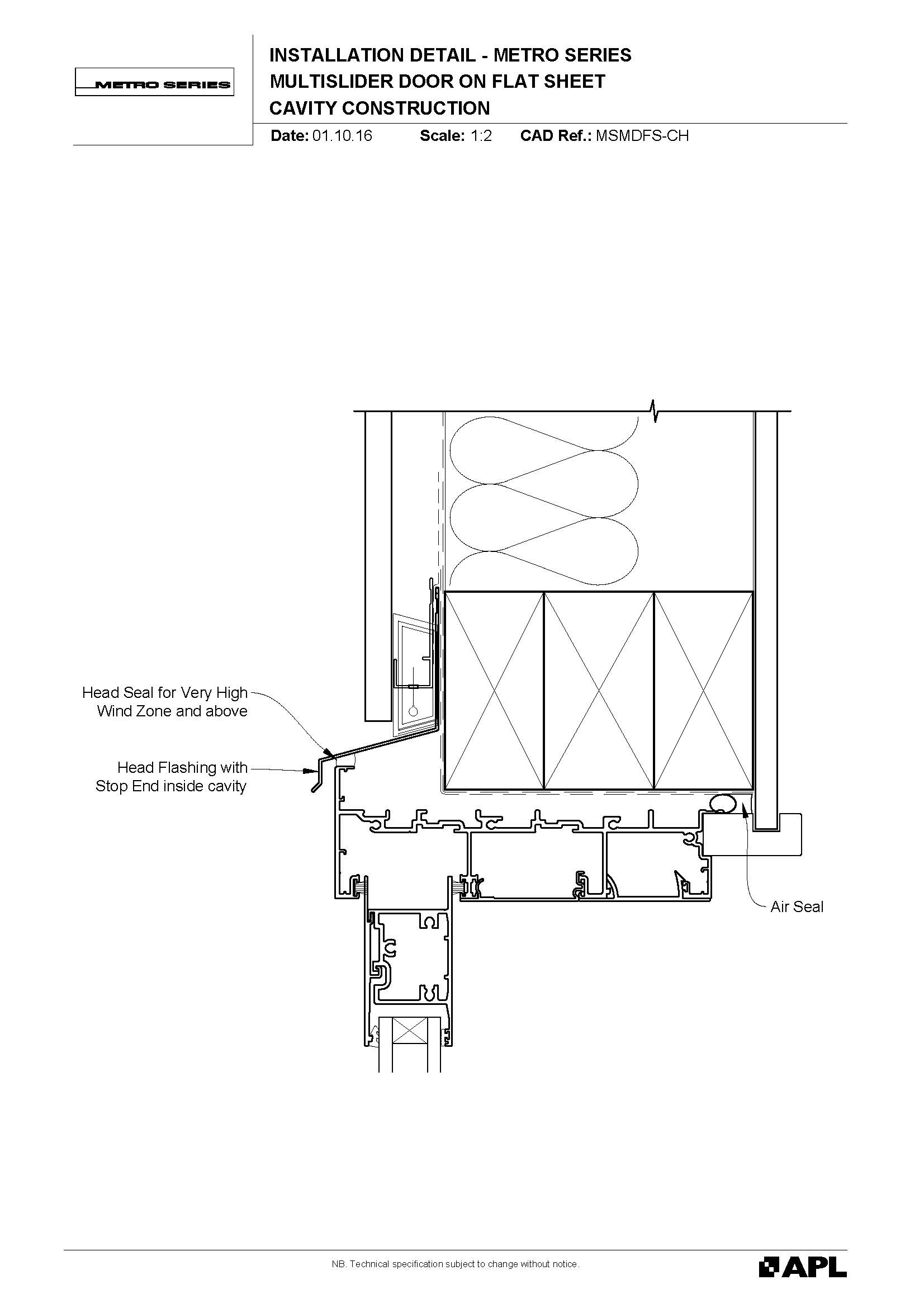

MSMDFS

Altherm Metro Series Multislider Door on Flat Sheet

MSMDFS

MSMDNC

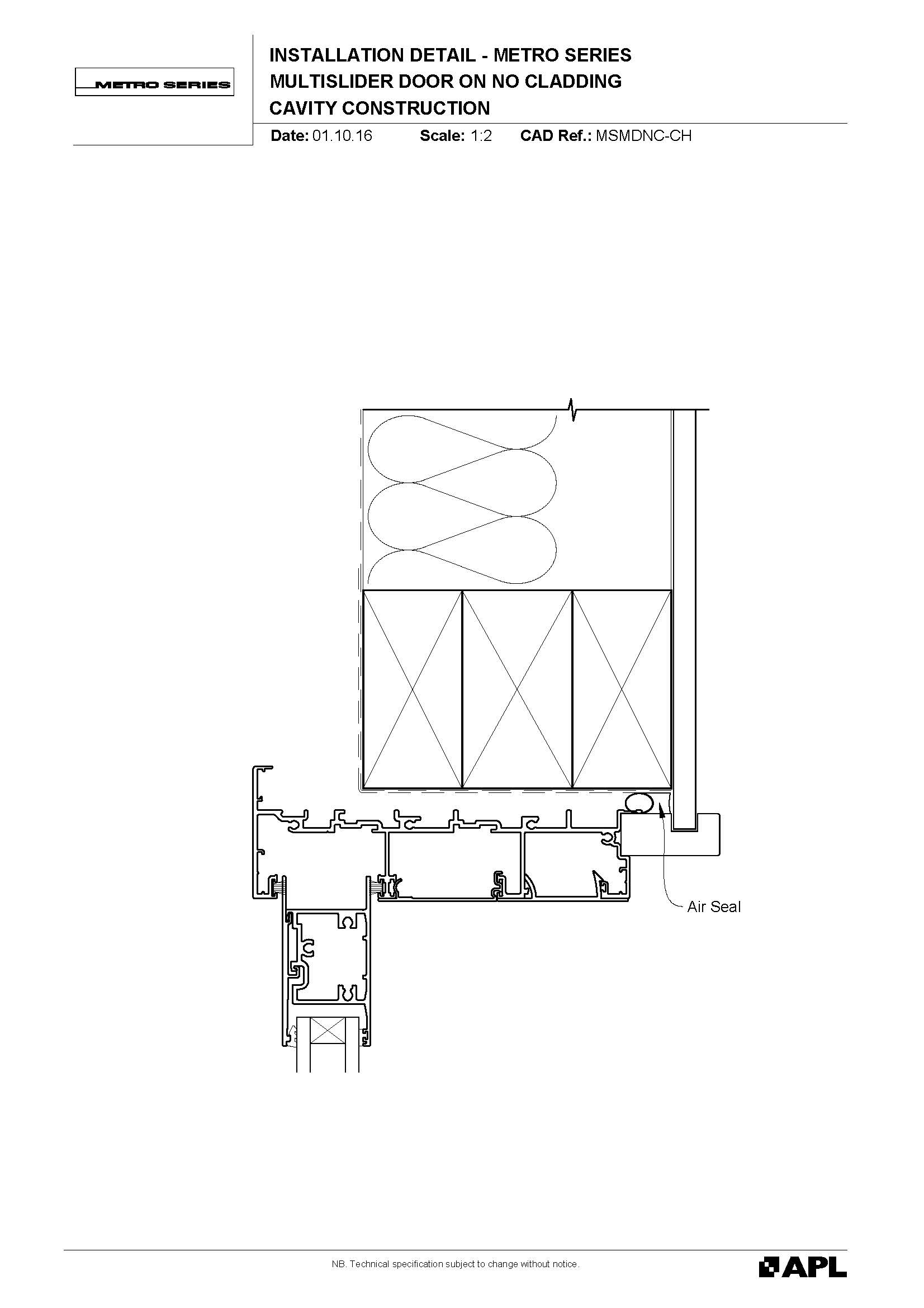

Altherm Metro Series Multislider Door on No Cladding

MSMDNC

MSMDPM

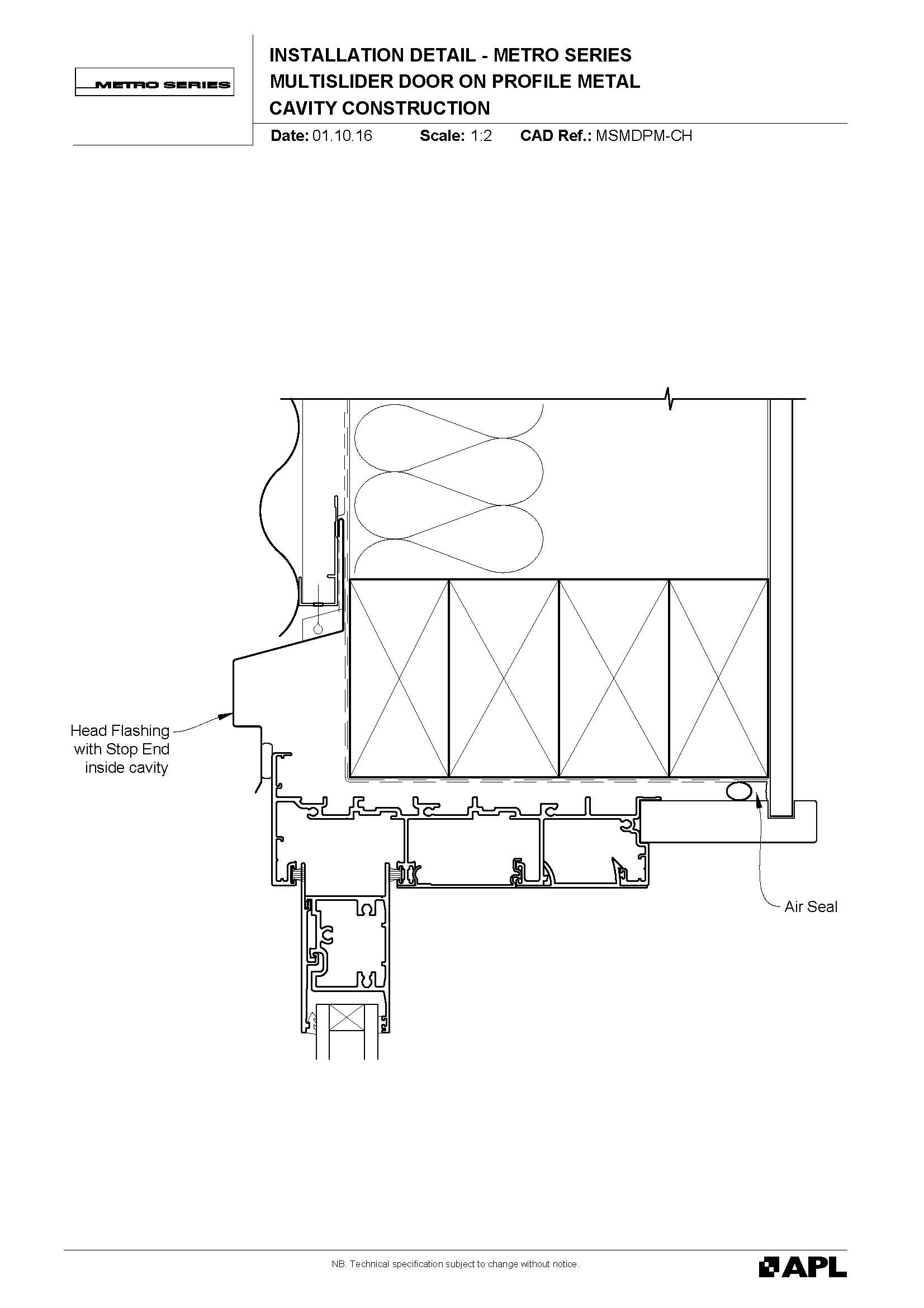

Altherm Metro Series Multislider Door on Profile Metal

MSMDPM

MSMDRW

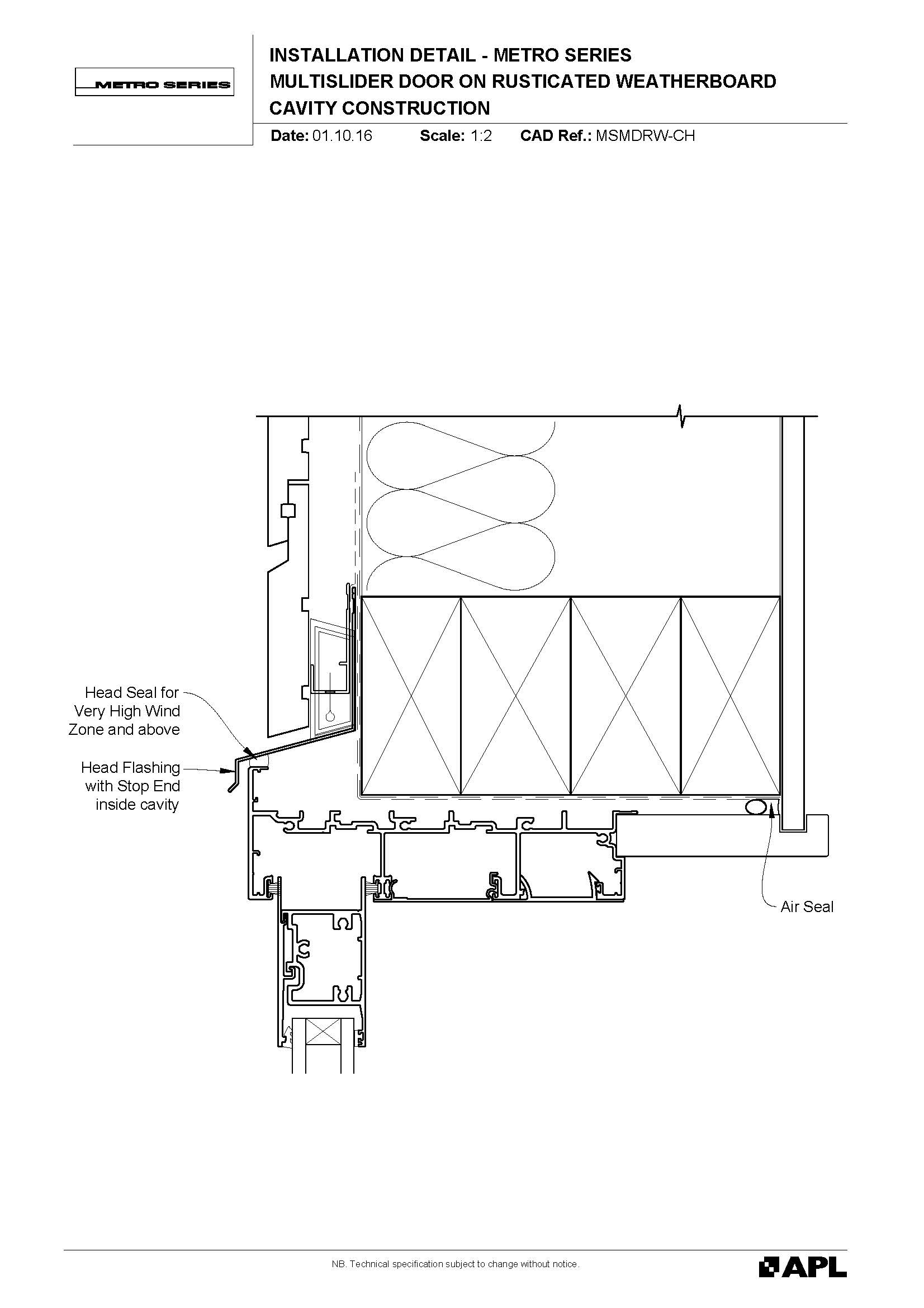

Altherm Metro Series Multislider Door on Rusticated Weatherboard

MSMDRW

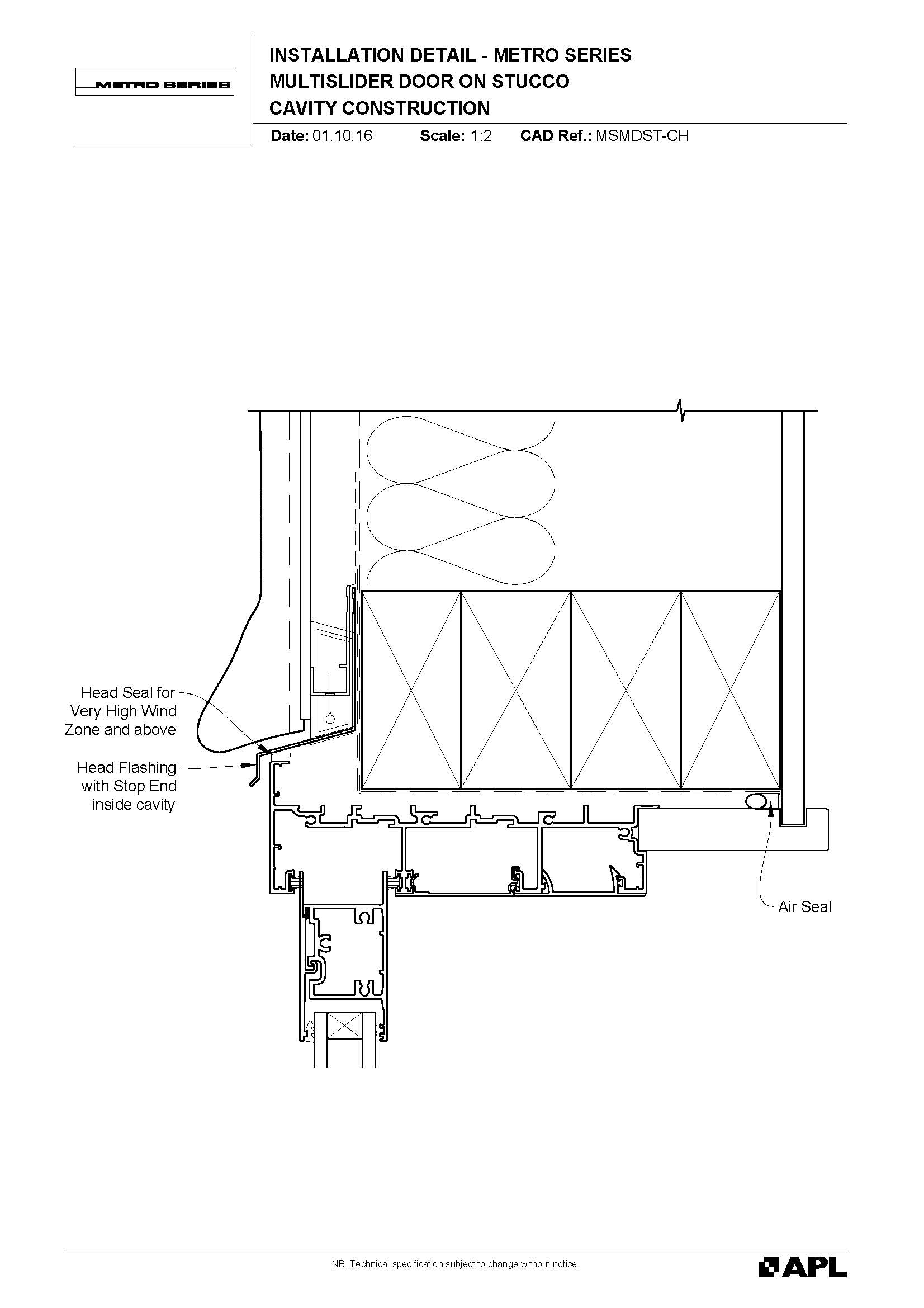

MSMDST

Altherm Metro Series Multislider Door on Stucco

MSMDST

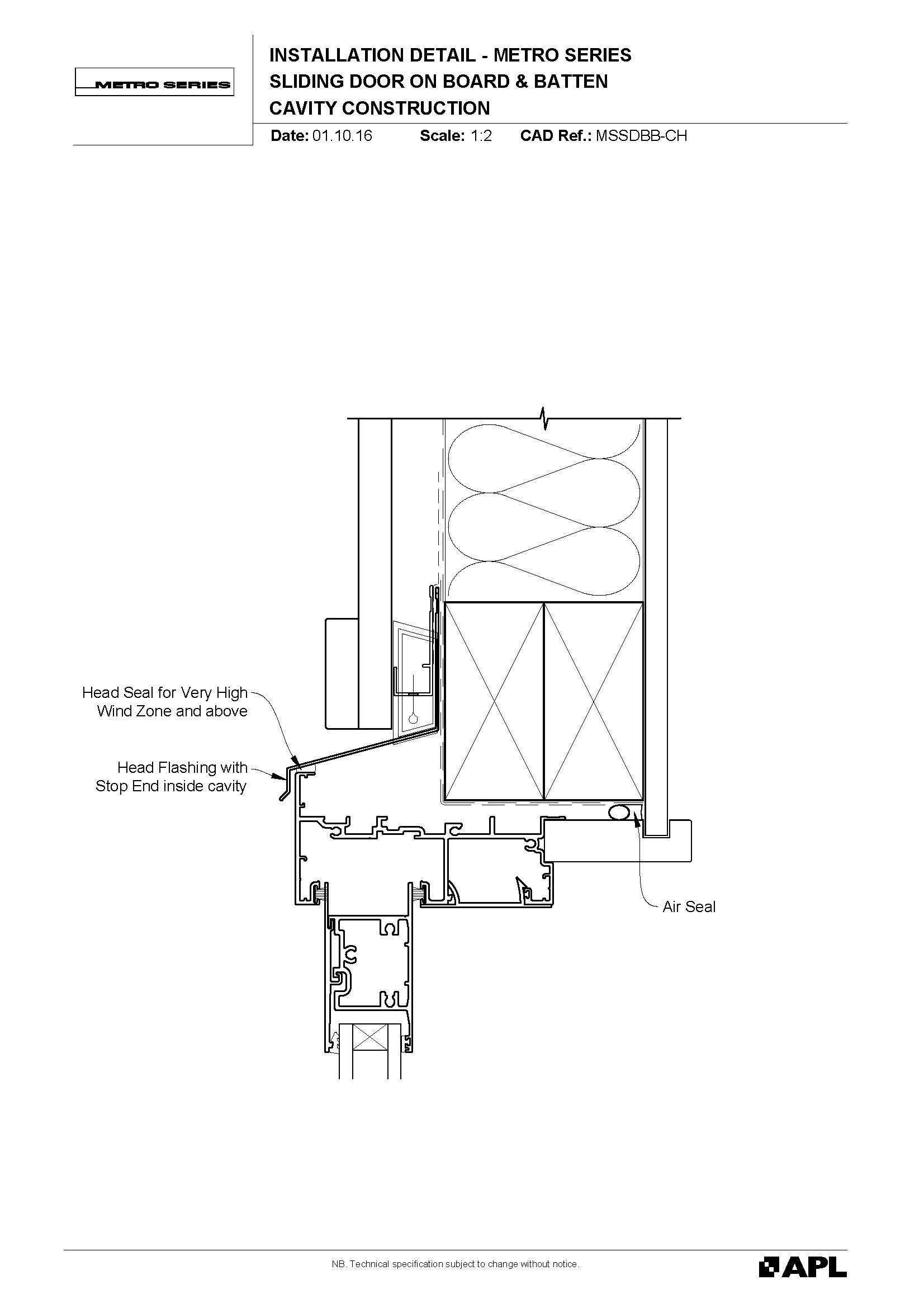

MSSDBB

Altherm Metro Series Sliding Door on Board & Batten

MSSDBB

MSSDBV

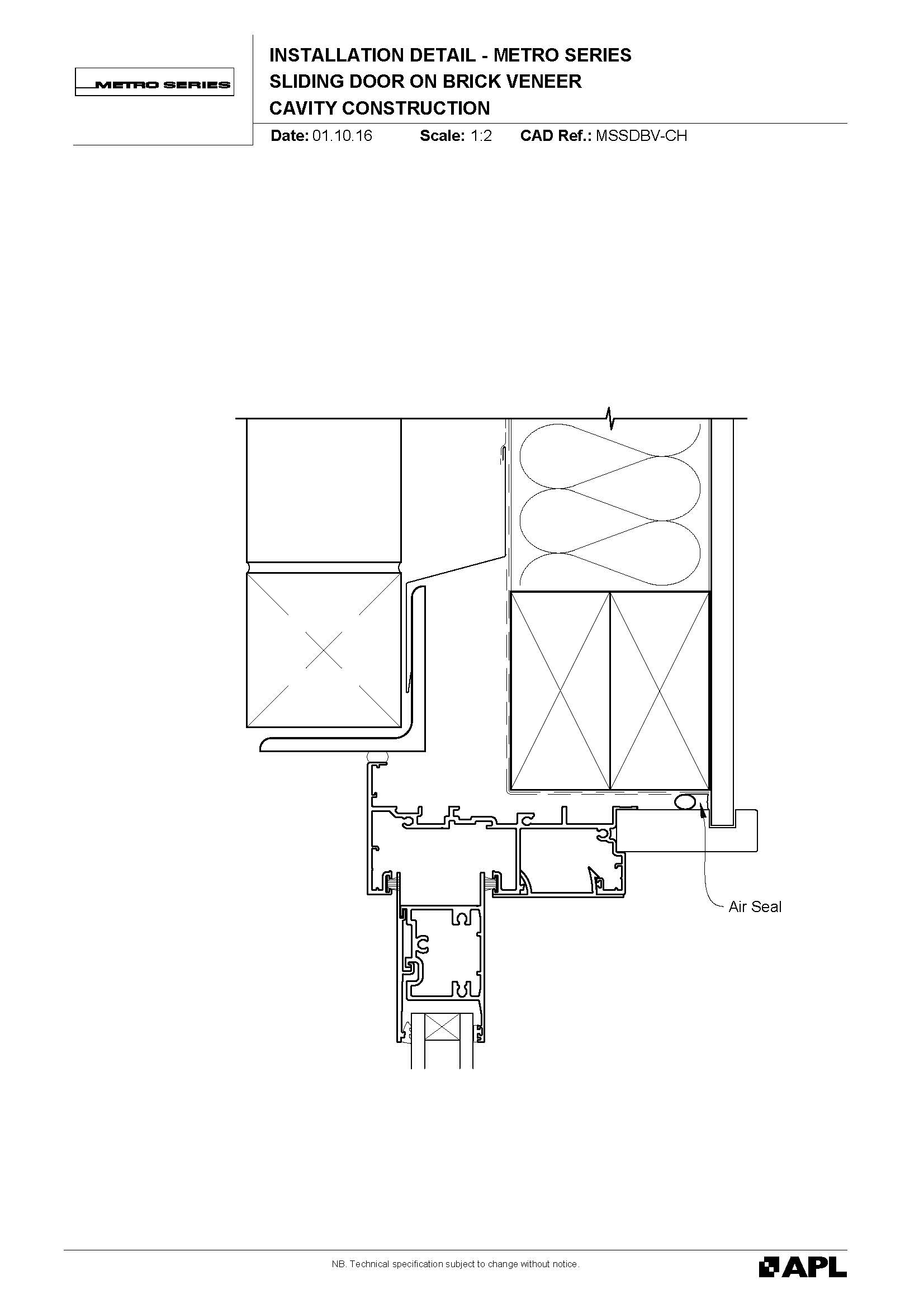

Altherm Metro Series Sliding Door on Brick Veneer

MSSDBV

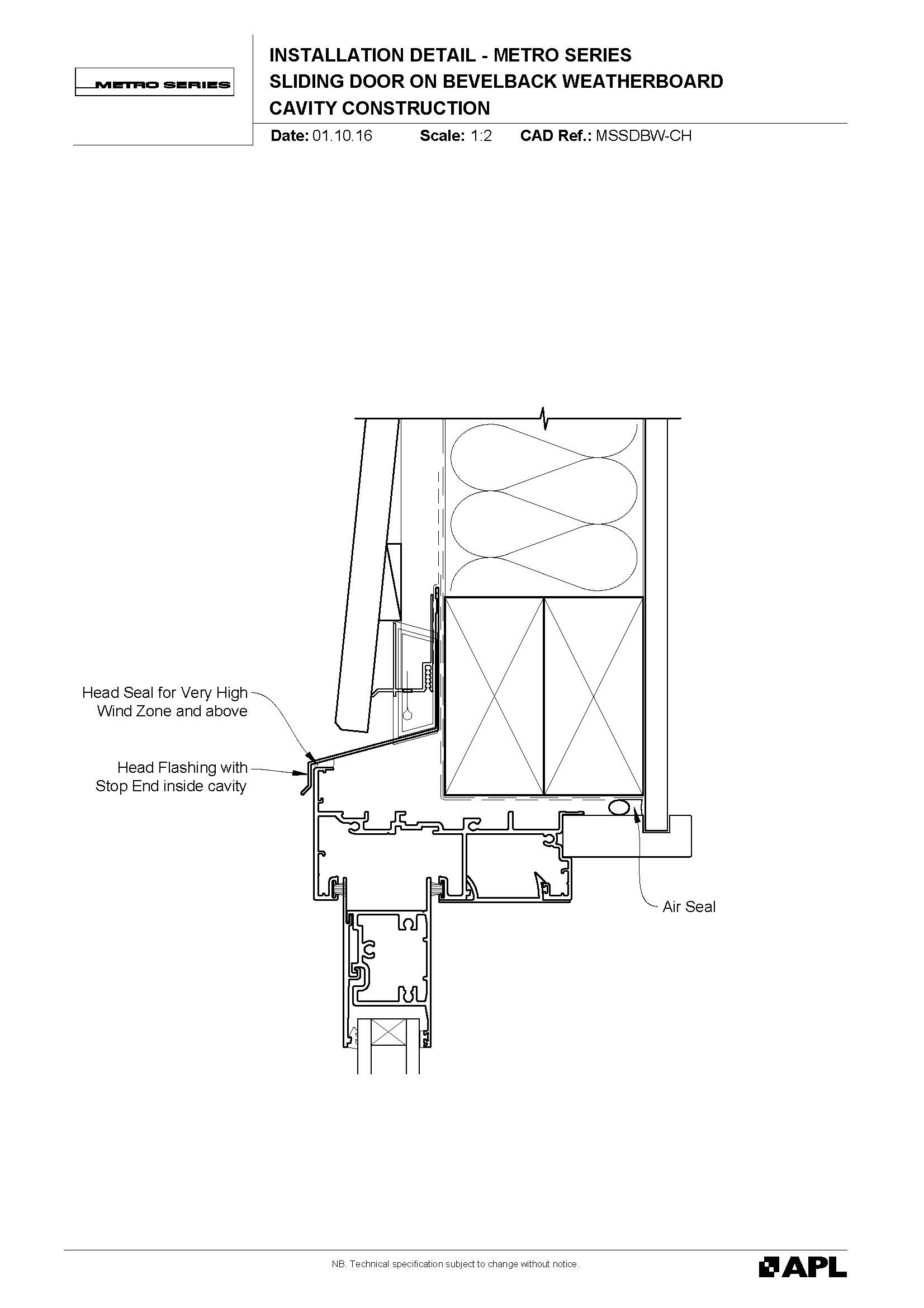

MSSDBW

Altherm Metro Series Sliding Door on Bevelback Weatherboard

MSSDBW

MSSDFS

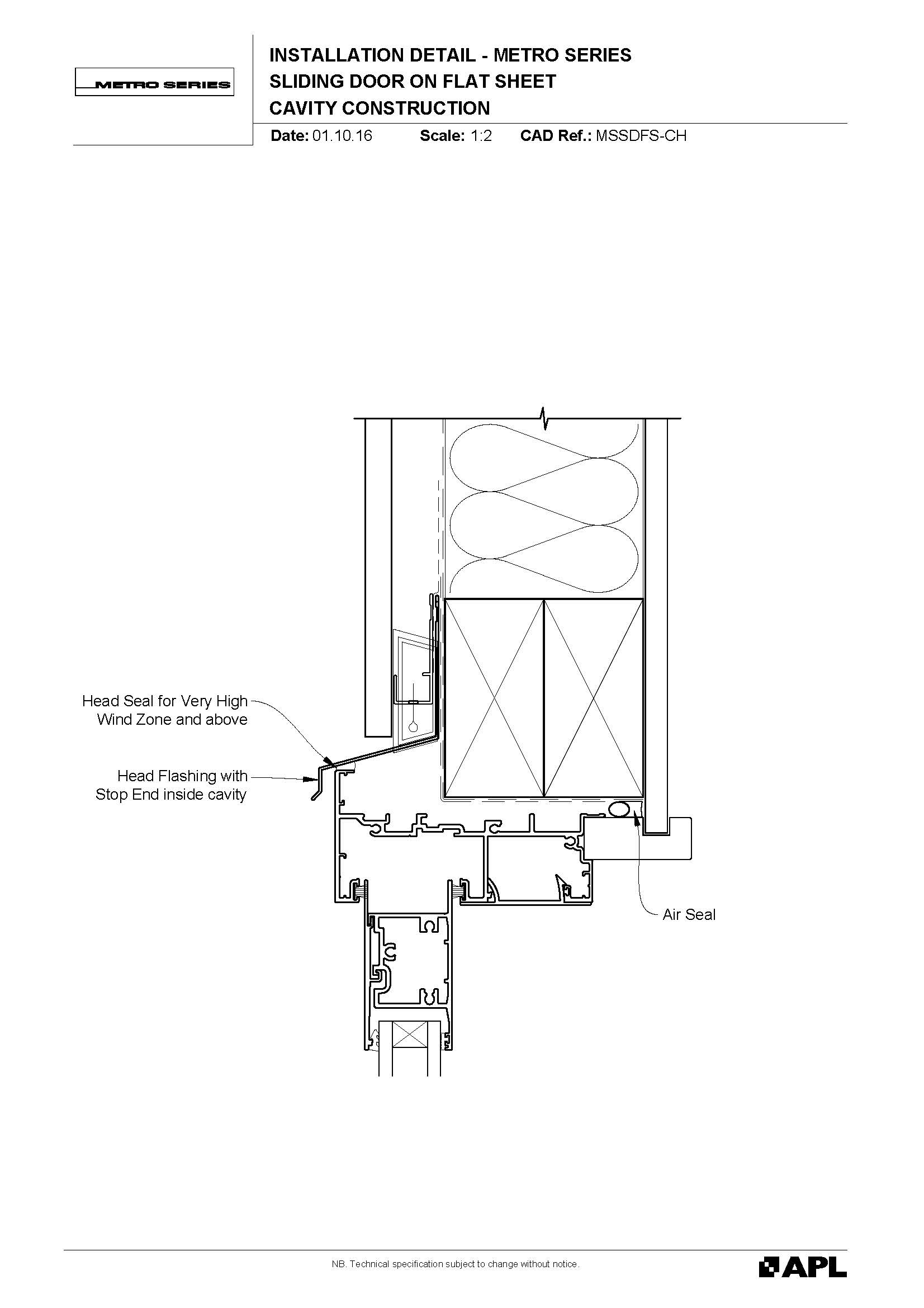

Altherm Metro Series Sliding Door on Flat Sheet

MSSDFS

MSSDNC

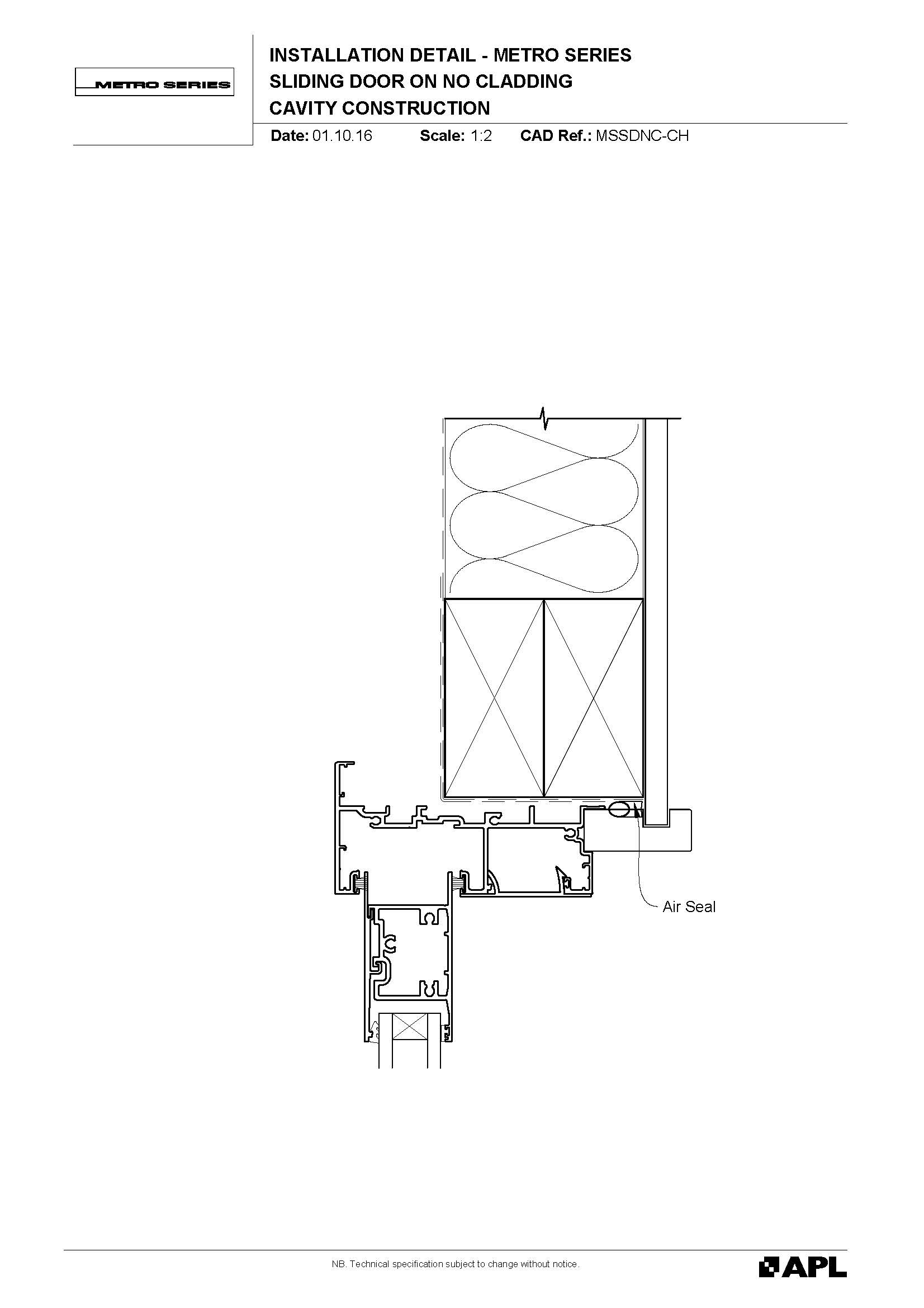

Altherm Metro Series Sliding Door on No Cladding

MSSDNC

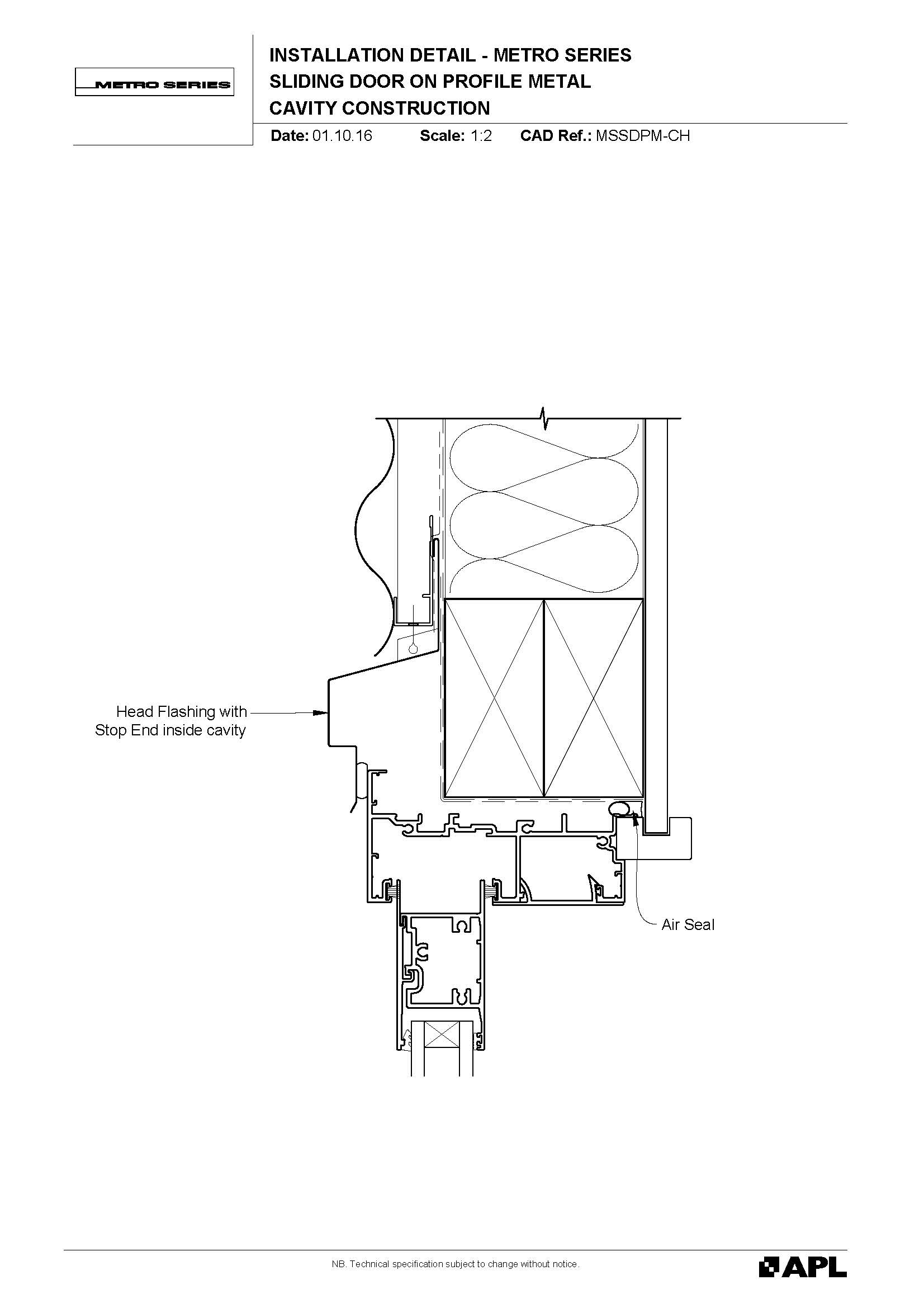

MSSDPM

Altherm Metro Series Sliding Door on Profile Metal

MSSDPM

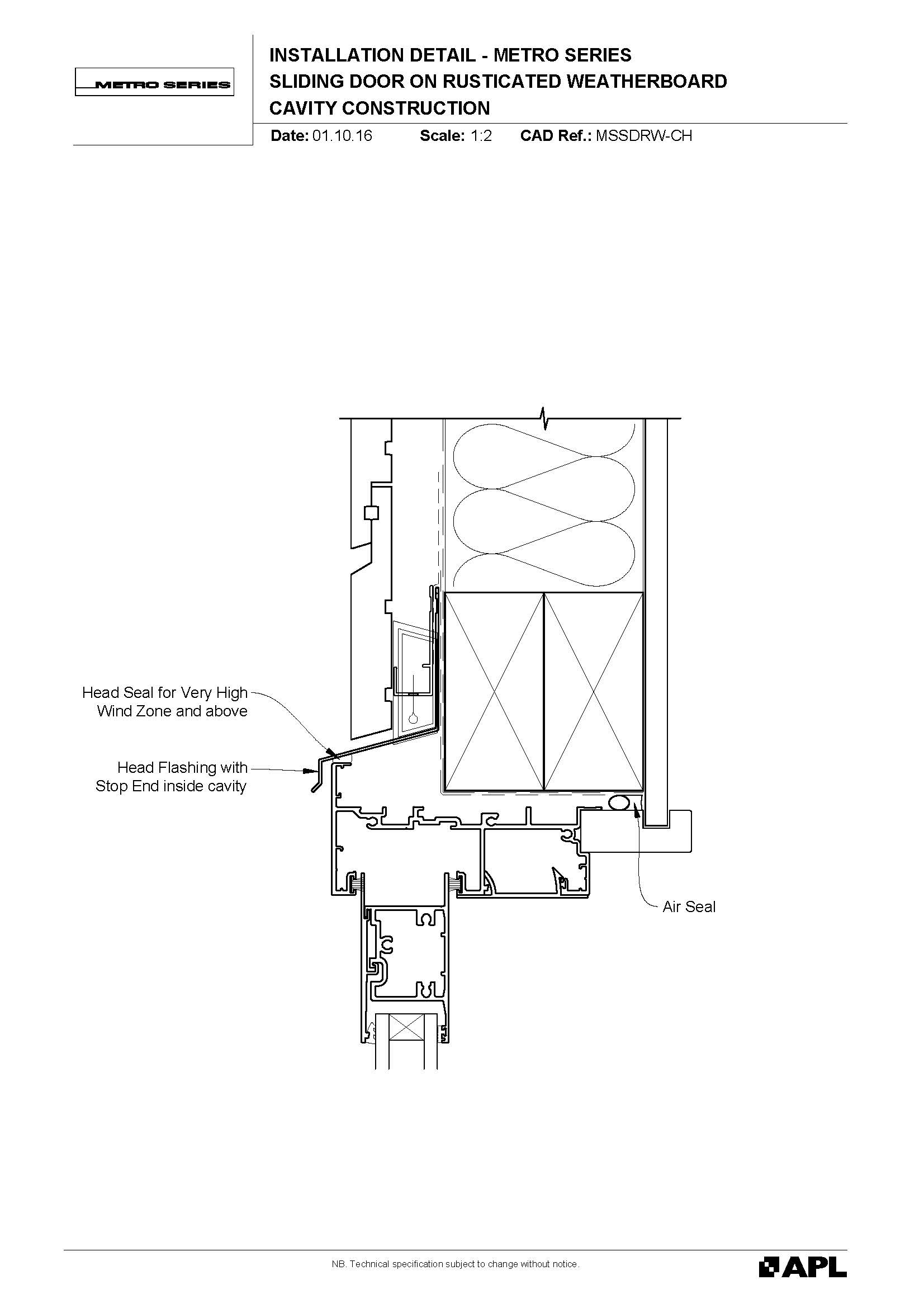

MSSDRW

Altherm Metro Series Sliding Door on Rusticated Weatherboard

MSSDRW

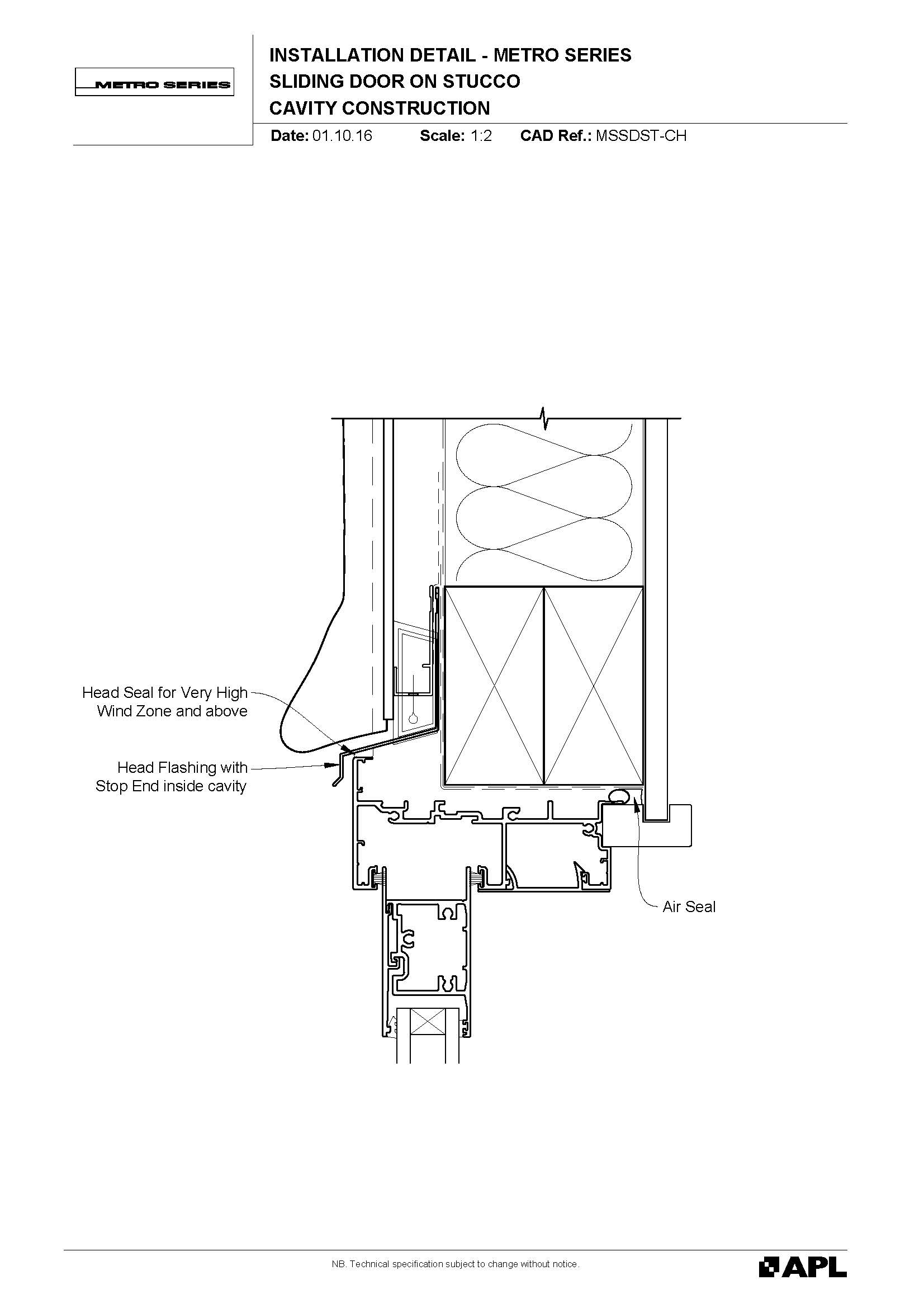

MSSDST

Altherm Metro Series Sliding Door on Stucco

MSSDST

BIM

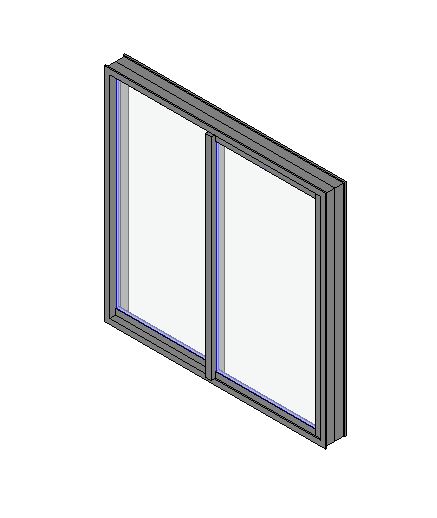

2 panel

Altherm Metro Series Sliding Door FS

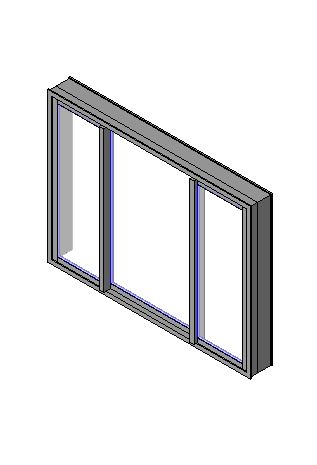

3 panel sidelight

Altherm Metro Series Sliding Door FSF

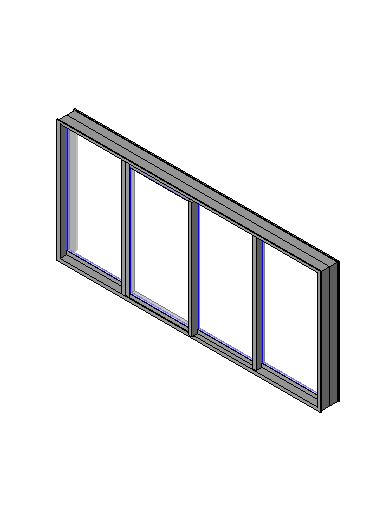

3+1 panel

Altherm Metro Series Sliding Door FSSF

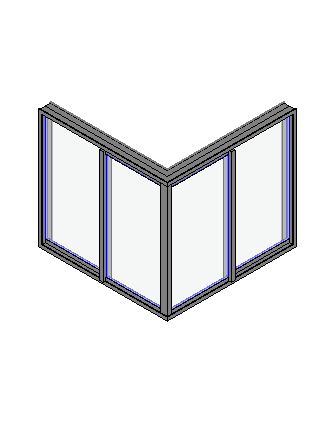

90 external

Altherm Metro Series Sliding Door FSSF 90° External Corner

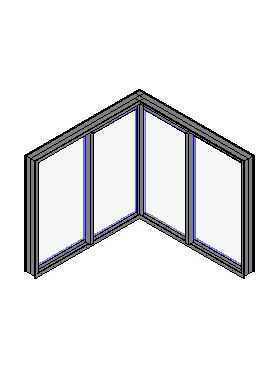

90 Internal

Altherm Metro Series Sliding Door FSSF 90° Internal Corner

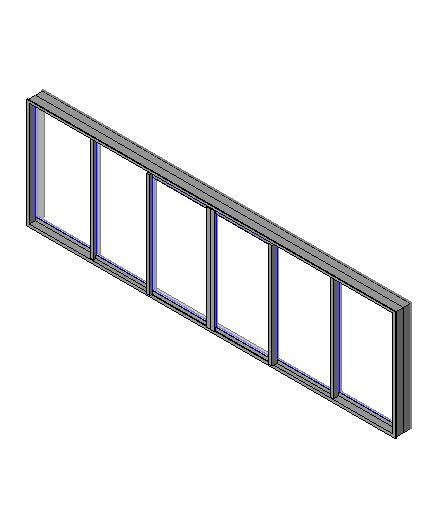

6 panel

Altherm Metro Series Sliding Door FSSSSF

2 panel overlight

Altherm Metro Series Sliding Door SF with Overlight

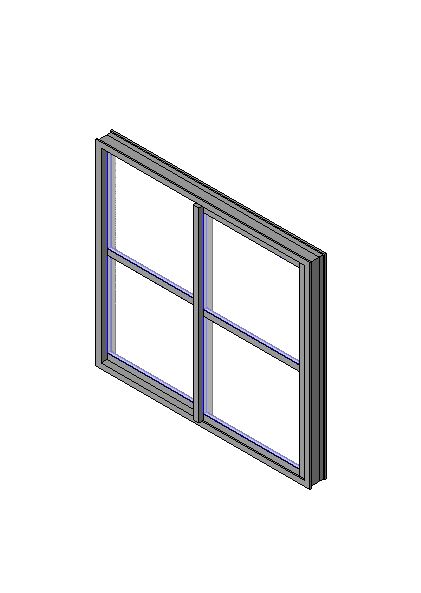

2 panel vision rail

Altherm Metro Series Sliding Door SF with Vision Rail

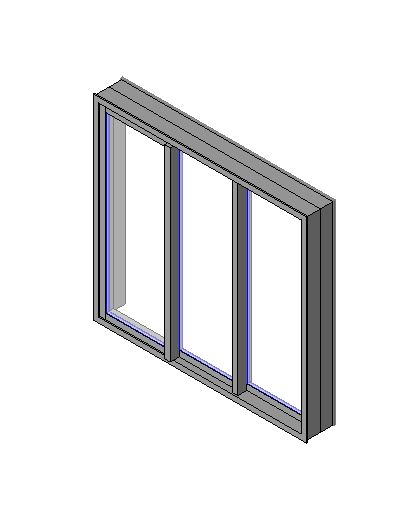

3 panel

Altherm Metro Series Sliding Door SFS

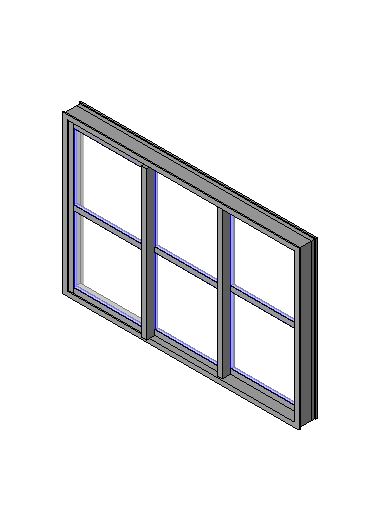

3 panel vision rail

Altherm Metro Series Sliding Door SSF

3 panel

Altherm Metro Series Sliding Door SSF

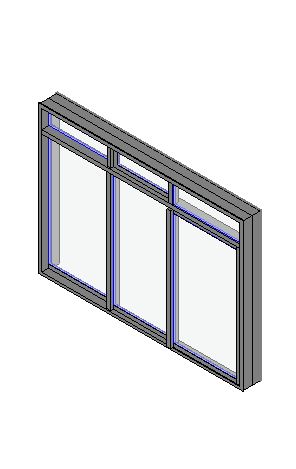

3 panel overlight

Altherm Metro Series Sliding Door SSF

Sliding Doors

Metro Series Sliding Doors/Windows Ventient

Revit LT 2020
