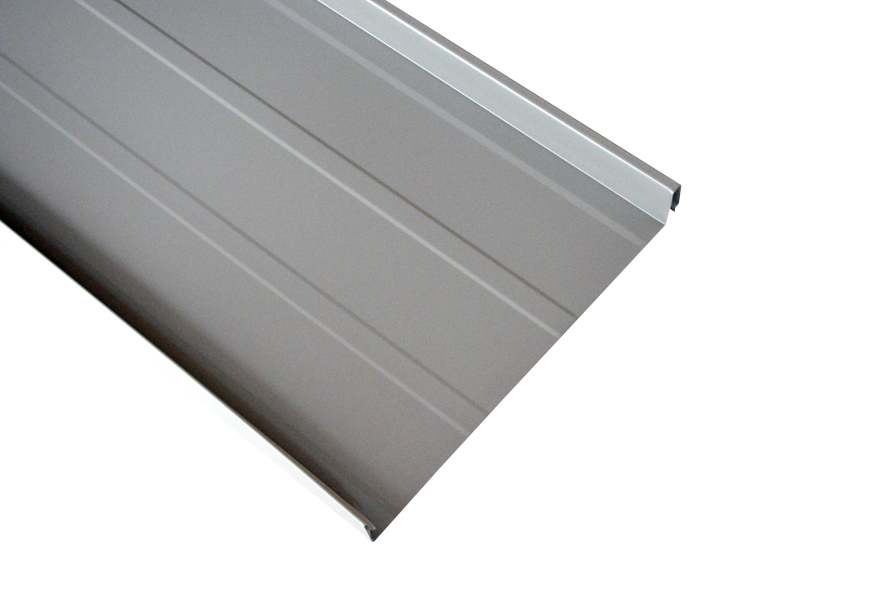

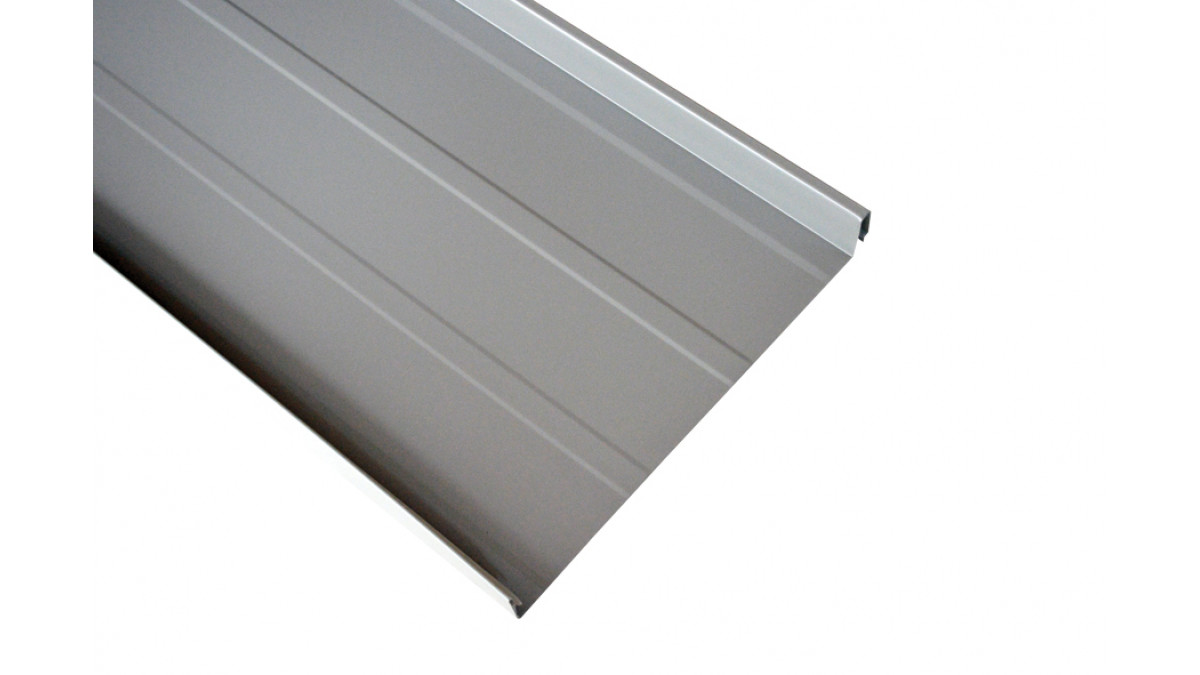

SPANLOK HERO edit
Spanlok3
Description

Part of the Eurostyle® range, spanlok® is a standing seam profile that can be used for roofing and cladding applications. spanlok can be installed without the need for solid substrate support. It can be directly fixed to purlins and girts, significantly reducing construction costs.

spanlok features a distinctly higher 45mm rib profile, for aesthetic shadow lines, and has excellent spanning capability.  spanlok is available in varying tray widths and profile shapes.

Key Features
  • 45mm rib profile
  • Can be installed without a solid substrate
  • Can be used in roofing and cladding applications
  • Available in steel, aluminium and copper substrates
  • Four standard pan widths
  • Suitable for residential or commercial buildings
Categories
Metal Cladding Metal Roofing
Ranges
Tray
Scope of Use
  • Residential roofing and cladding
  • Commercial roofing and cladding
  • Heritage buildings
  • Public buildings
  • Sporting arenas
  • Churches and art galleries
  • Alpine snowfall areas
  • Internal wall panelling
Limitations on Use
  • Minimum roof pitch 3 degrees
Statement of Building Code Compliance

Eurostyle® will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Eurostyle performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

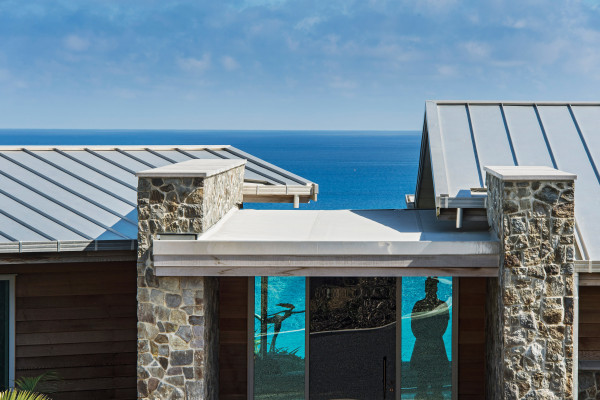

  • Case Studies

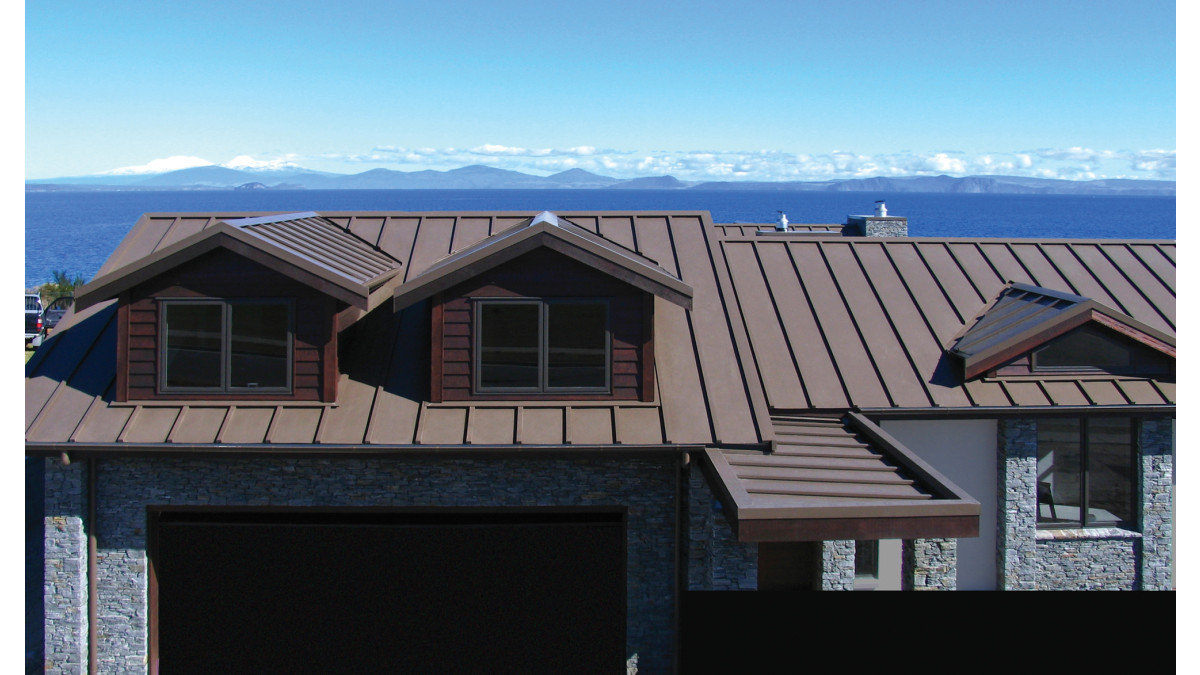

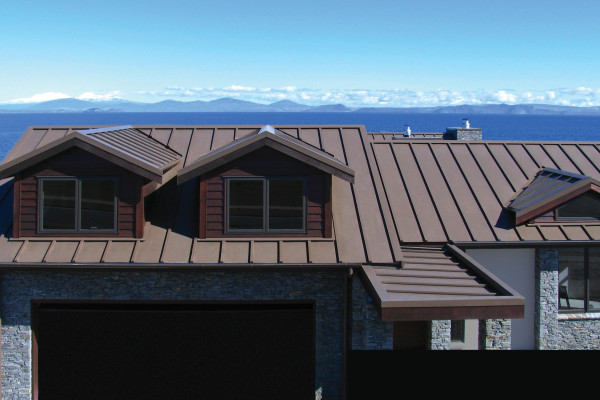

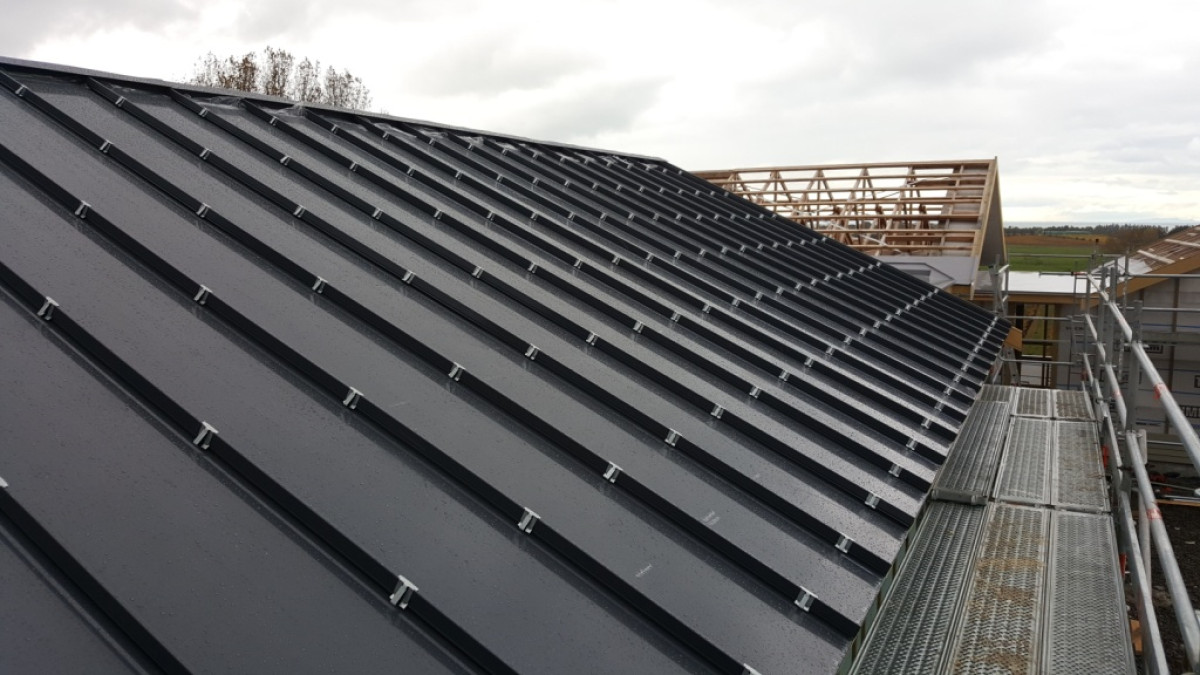

  • News
Documents
Profile Technical Summary

2016

pdf
Product Brochure: Eurostyle

2024

pdf
Selection Guide: Eurostyle
pdf
Brochure: Roofing with Style

2024

pdf
Working Spec 3D Models: Eurostyle Spanlok
URL
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Eurostyle Spanlok & Eurolok

2022

pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
Brochure: Re-Roof
pdf

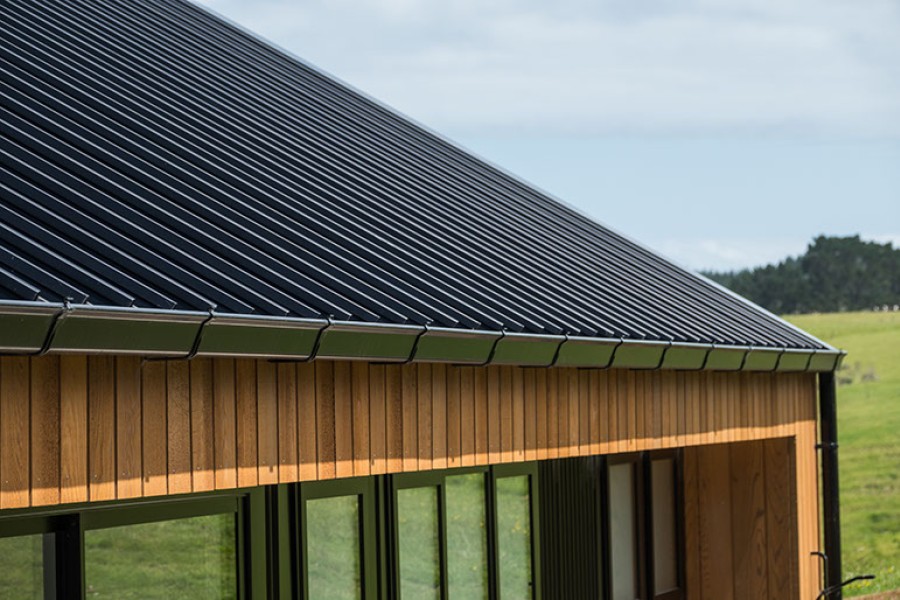

Brochure: EZI-FLO Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
RANZ Roofing Guide
URL

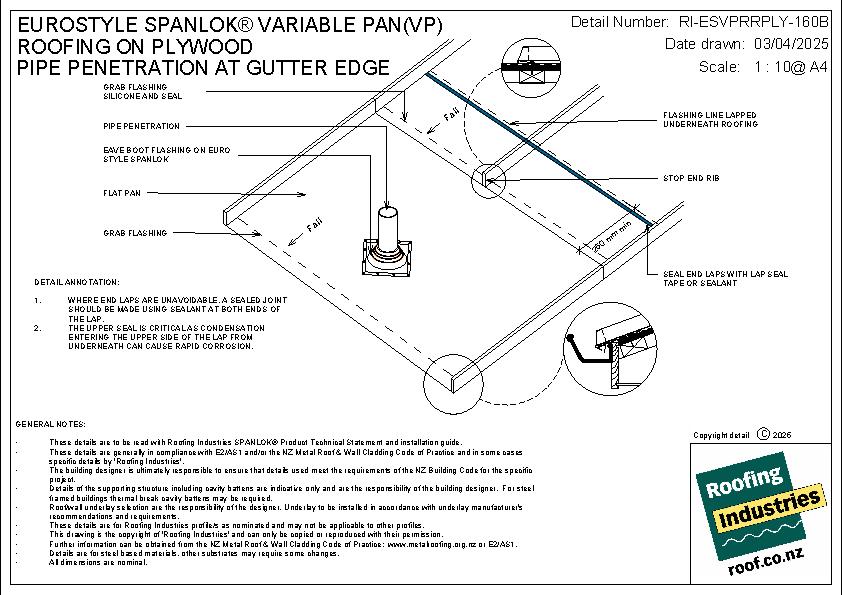

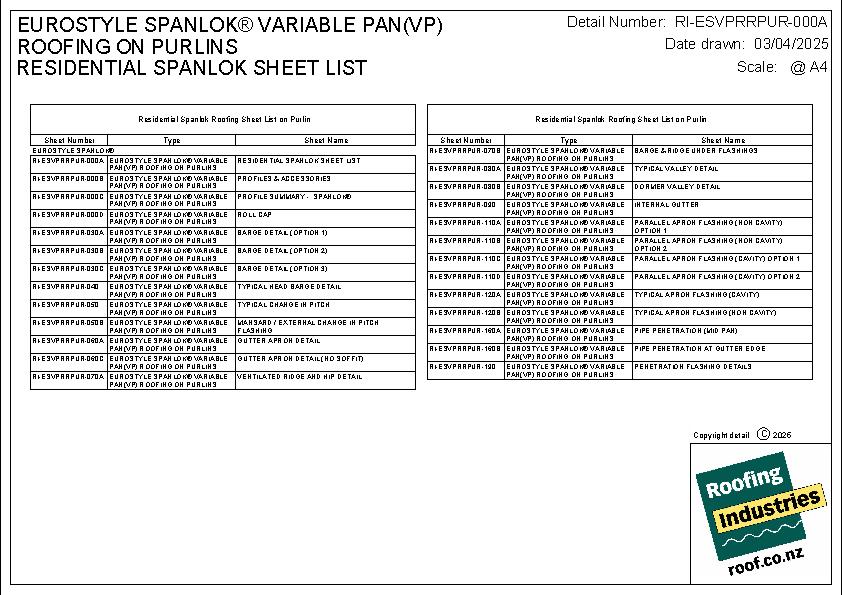

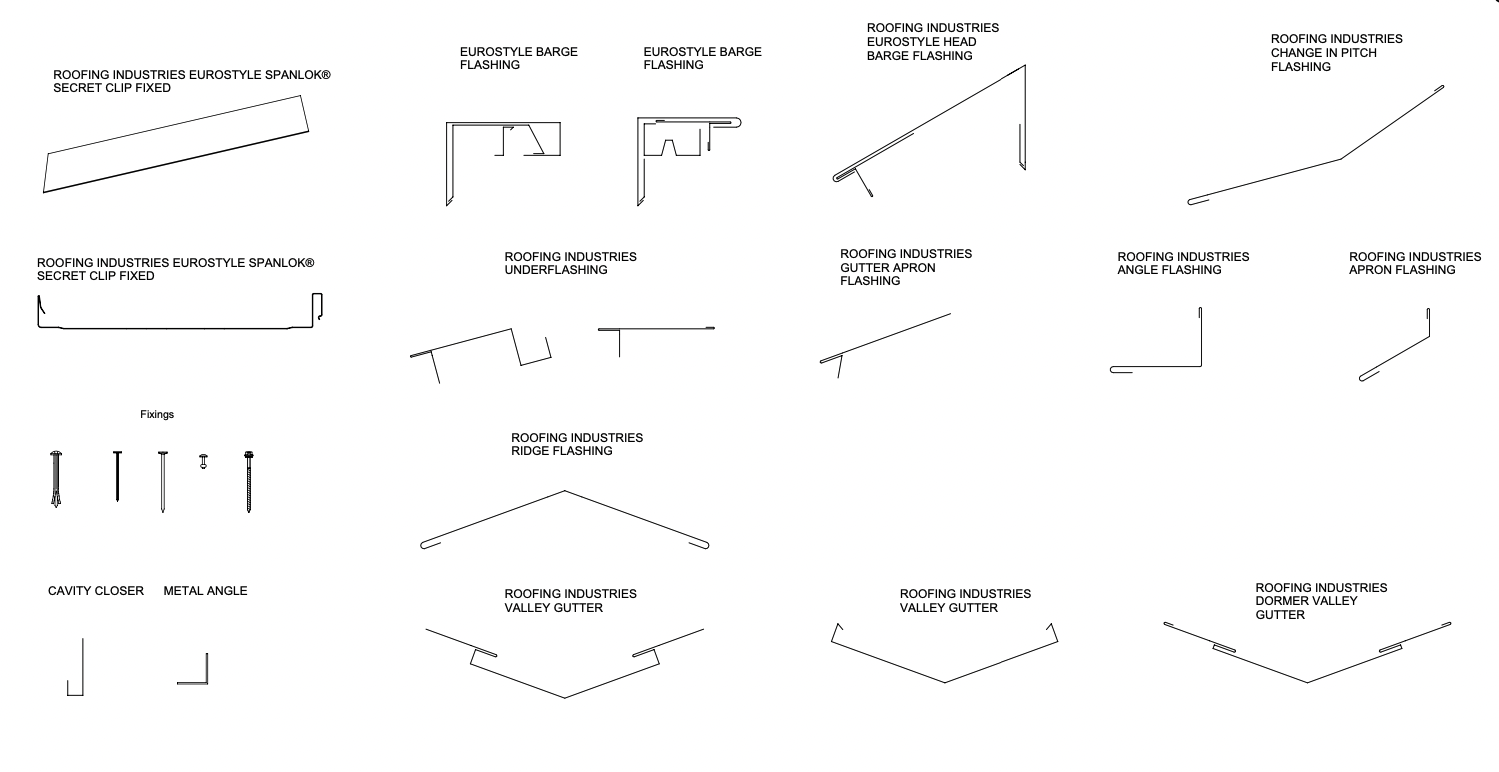

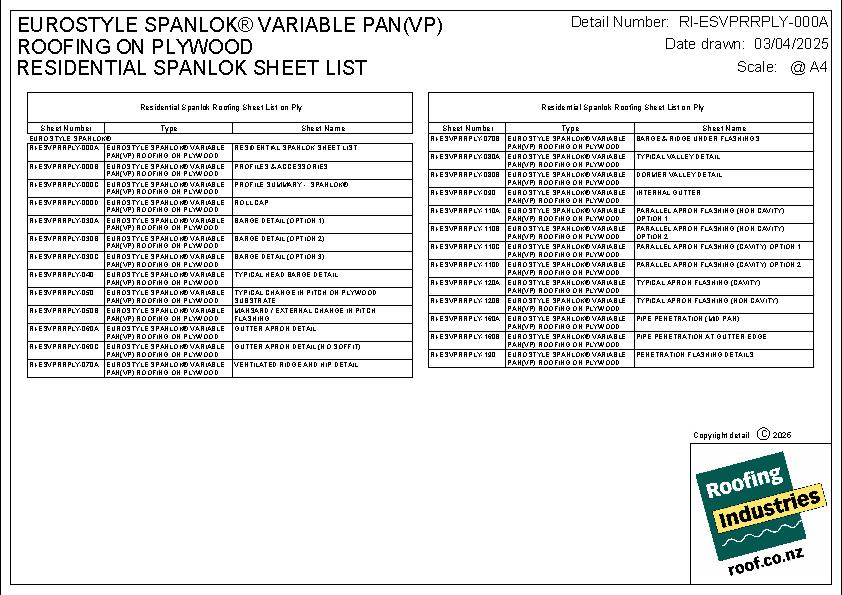

CAD/PDF Details
View full
Filters
Project Type
Full Sets
Roofing Details
Wall Cladding Details
Clear filters

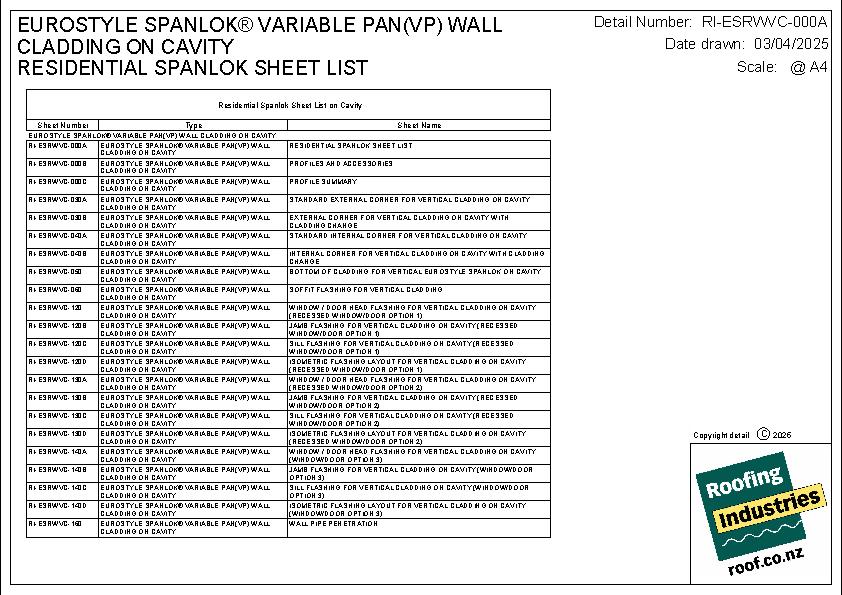

EUROSTYLE SPANLOK VARIABLE PANVP WALL CLADDING ON CAVITY 03 04 2025 pdf
Residential Eurostyle Spanlok Vertical Variable Pan (VP) Wall Cladding on Cavity Full Set

RI-ESRWVC-00

2025

pdf
zip
RI ESRWVC 000A RESIDENTIAL SPANLOK SHEET LIST pdf v3
Eurostyle Spanlok Residential Variable Pan (VP) Wall Cladding on Cavity Sheet List

RI-ESRWVC-000A

2025

dwg
pdf
RI ESRWVC 000B PROFILES AND ACCESSORIES pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Profile Summary

RI-ESRWVC-000B

2025

dwg
pdf

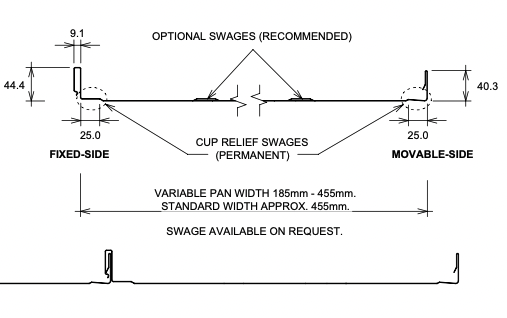

RI ESRWVC 000C PROFILE SUMMARY pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Profiles and Accessories

RI-ESRWVC-000C

2025

dwg
pdf
RI ESRWVC 030A STANDARD EXTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Standard External Corner for Vertical Cladding on Cavity

RI-ESRWVC-030A

2025

dwg
pdf
RI ESRWVC 030B EXTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY WITH CLADDING CHANGE pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity External Corner for Vertical Cladding on Cavity with Cladding Change

RI-ESRWVC-030B

2025

dwg
pdf
RI ESRWVC 040A STANDARD INTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY pdf v2
Residential Eurostyle Spanlok Variable Pan (VP )Wall Cladding on Cavity Standard Internal Corner for Vertical Cladding on Cavity

RI-ESRWVC-040A

2025

dwg
pdf
RI ESRWVC 040B INTERNAL CORNER FOR VERTICAL CLADDING ON CAVITY WITH CLADDING CHANGE pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Standard Internal Corner for Vertical Cladding on Cavity with Cladding Change

RI-ESRWVC-040B

2025

dwg
pdf
RI ESRWVC 050 BOTTOM OF CLADDING FOR VERTICAL EUROSTYLE SPANLOK ON CAVITY pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Base of Vertical Cladding on Cavity

RI-ESRWVC-050

2025

dwg
pdf
RI ESRWVC 060 SOFFIT FLASHING FOR VERTICAL CLADDING pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Soffit Flashing for Vertical Cladding

RI-ESRWVC-060

2025

dwg
pdf
RI ESRWVC 120 WINDOW DOOR HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Head Flashing Recessed Window/Door Option 1

RI-ESRWVC-120

2025

dwg
pdf
RI ESRWVC 120B JAMB FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Jamb Flashing Recessed Window/Door Option 1

RI-ESRWVC-120B

2025

dwg
pdf
RI ESRWVC 120C SILL FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Sill Flashing Recessed Window/Door Option 1

RI-ESRWVC-120C

2025

dwg
pdf
RI ESRWVC 120D ISOMETRIC FLASHING LAYOUT FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 1 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Isometric Flashing Layout Recessed Window/Door Option 1

RI-ESRWVC-120D

2025

pdf
RI ESRWVC 130A WINDOW DOOR HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Head Flashing Recessed Window/Door Option 2

RI-ESRWVC-130A

2025

dwg
pdf
RI ESRWVC 130B JAMB FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Jamb Flashing Recessed Window/Door Option 2

RI-ESRWVC-130B

2025

dwg
pdf
RI ESRWVC 130C SILL FLASHING FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Sill Flashing Recessed Window/Door Option 2

RI-ESRWVC-130C

2025

dwg
pdf
RI ESRWVC 130D ISOMETRIC FLASHING LAYOUT FOR VERTICAL CLADDING ON CAVITY RECESSED WINDOW DOOR OPTION 2 pdf
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Isometric Flashing Layout Window/Door Option 2

RI-ESRWVC-130D

2024

pdf
RI ESRWVC 140A WINDOW DOOR HEAD FLASHING FOR VERTICAL CLADDING ON CAVITY WINDOW DOOR OPTION 3 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Head Flashing Window/Door Option 3

RI-ESRWVC-140A

2025

dwg
pdf
RI ESRWVC 140B JAMB FLASHING FOR VERTICAL CLADDING ON CAVITY WINDOW DOOR OPTION 3 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Jamb Flashing Window/Door Option 3

RI-ESRWVC-140B

2025

dwg
pdf
RI ESRWVC 140C SILL FLASHING FOR VERTICAL CLADDING ON CAVITY WINDOW DOOR OPTION 3 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Sill Flashing Window/Door Option 3

RI-ESRWVC-140C

2025

dwg
pdf
RI ESRWVC 140D ISOMETRIC FLASHING LAYOUT FOR VERTICAL CLADDING ON CAVITY WINDOW DOOR OPTION 3 pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Isometric Flashing Layout Window/Door Option 3

RI-ESRWVC-140D

2025

pdf
RI ESRWVC 160 WALL PIPE PENETRATION pdf v3
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Cavity Wall Pipe Penetration

RI-ESRWVC-160

2025

dwg
pdf
EUROSTYLE SPANLOK VARIABLE PANVP WALL CLADDING ON PLYWOOD 03 04 2025 pdf
Residential Eurostyle Spanlok Variable Pan (VP) Wall Cladding on Plywood Full Set

RI-ESRWVP-00

2025

pdf
zip

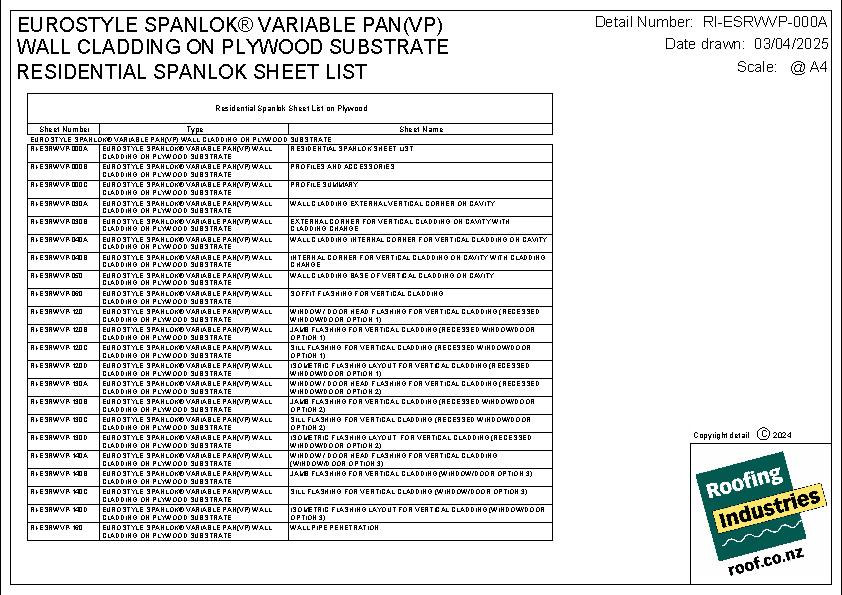

RI ESRWVP 000A RESIDENTIAL SPANLOK SHEET LIST pdf v3
