Allproof and Firefly Collaborate to Offer the Complete Fire Stopping Solution

This new partnership means Allproof will be importing and distributing Firefly passive fire solutions to complement their own NZ made systems. This expands the range of solutions available on the market and options available to specifiers and installers.

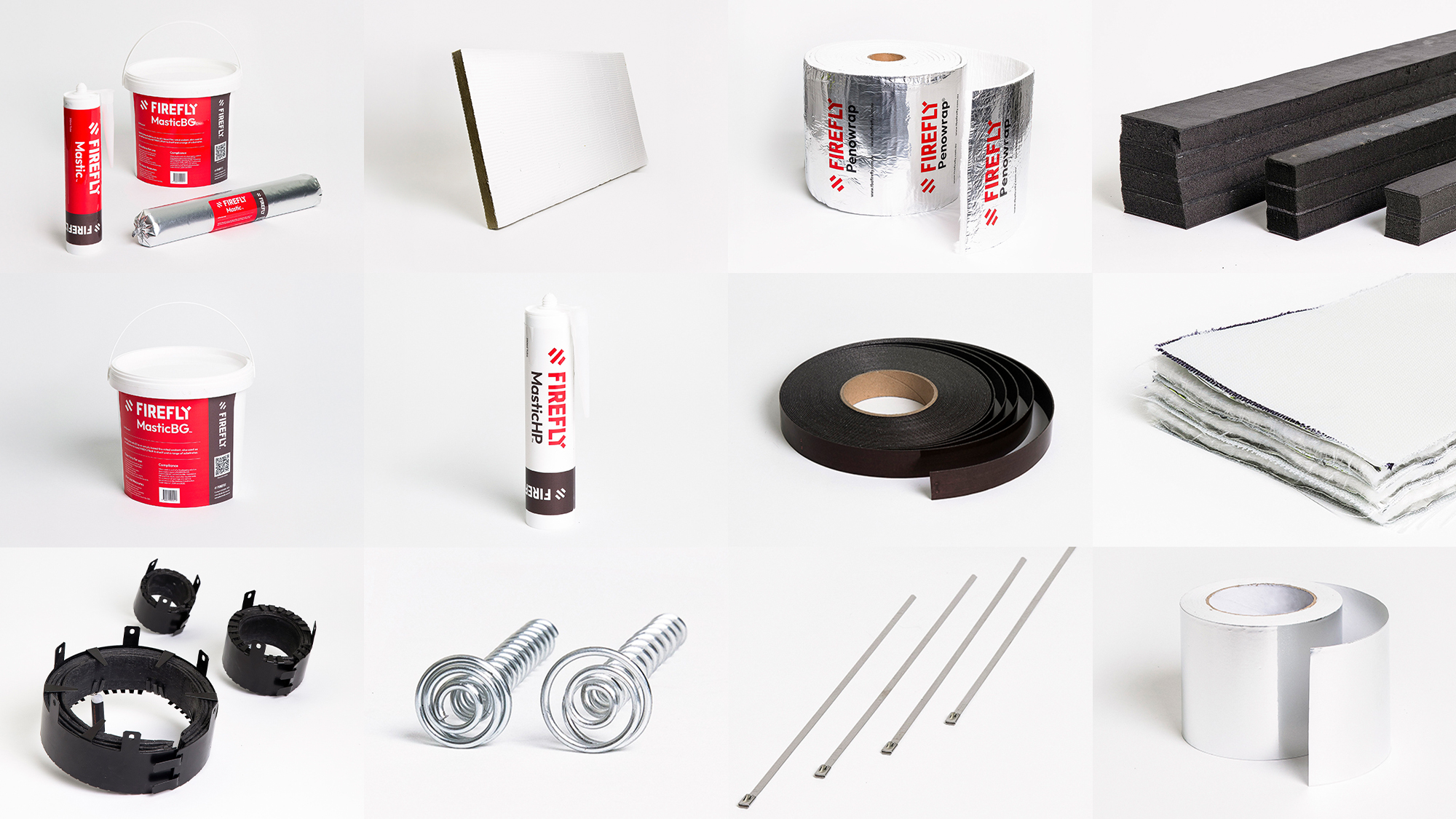

Allproof will be adding to their catalogue:

Fire Stopping: Batt, sealants and collar solutions
Structural Protection: Steel protection as well as concrete upgrade and protection for the support elements inside the building line
Compartment Barriers: Smoke and flame barriers and Titan Party wall systems
Seismic Solutions: Catering to horizontal, vertical, lateral and axial movement
Movement Joints: Control joints, Titan Base Isolator and Seismic 2 Hour Fire Rated Joint System
Multiservice Blocks: Open vertical substrate penetrations with existing or new services

Allproof Industries can now offer a complete fire stopping solution for architects which are tested to AS1530.4:2014 as compliant project solutions. They have technical support through their partner Firefly as well as their own NZ based Sales Support to help with purchase, installation and technical queries.

By aligning with FIREFLY, Allproof can provide enhanced technical expertise and support to the industry.

About FIREFLY

FIREFLY, a subsidiary of TBA Protective Technologies Ltd, is committed to delivering innovative and premium passive fire stopping and thermal protection solutions. With over 140 years of experience and a strong connection to their UK head office, they bring best-in-class technology and expertise to their solutions. Their extensive range of fire-resistant textiles and passive fire stopping products is designed to ensure the highest levels of safety and compliance for your peace of mind.

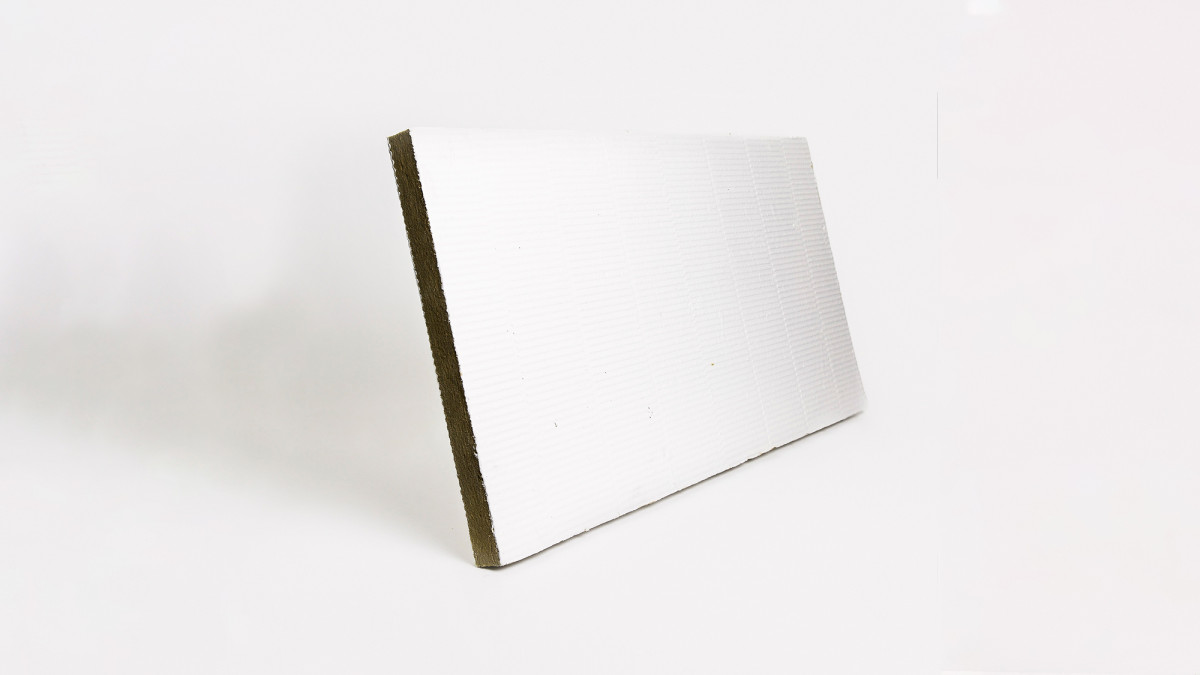

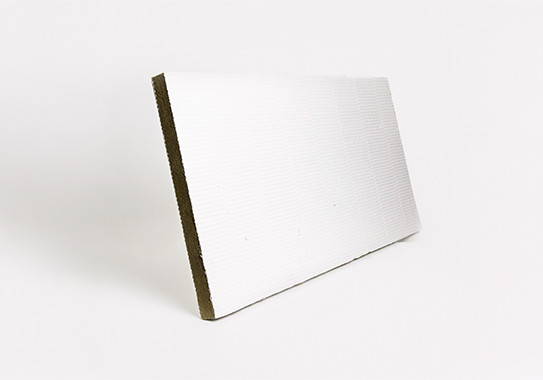

FIREFLY Batt

Allproof Industries

View Product

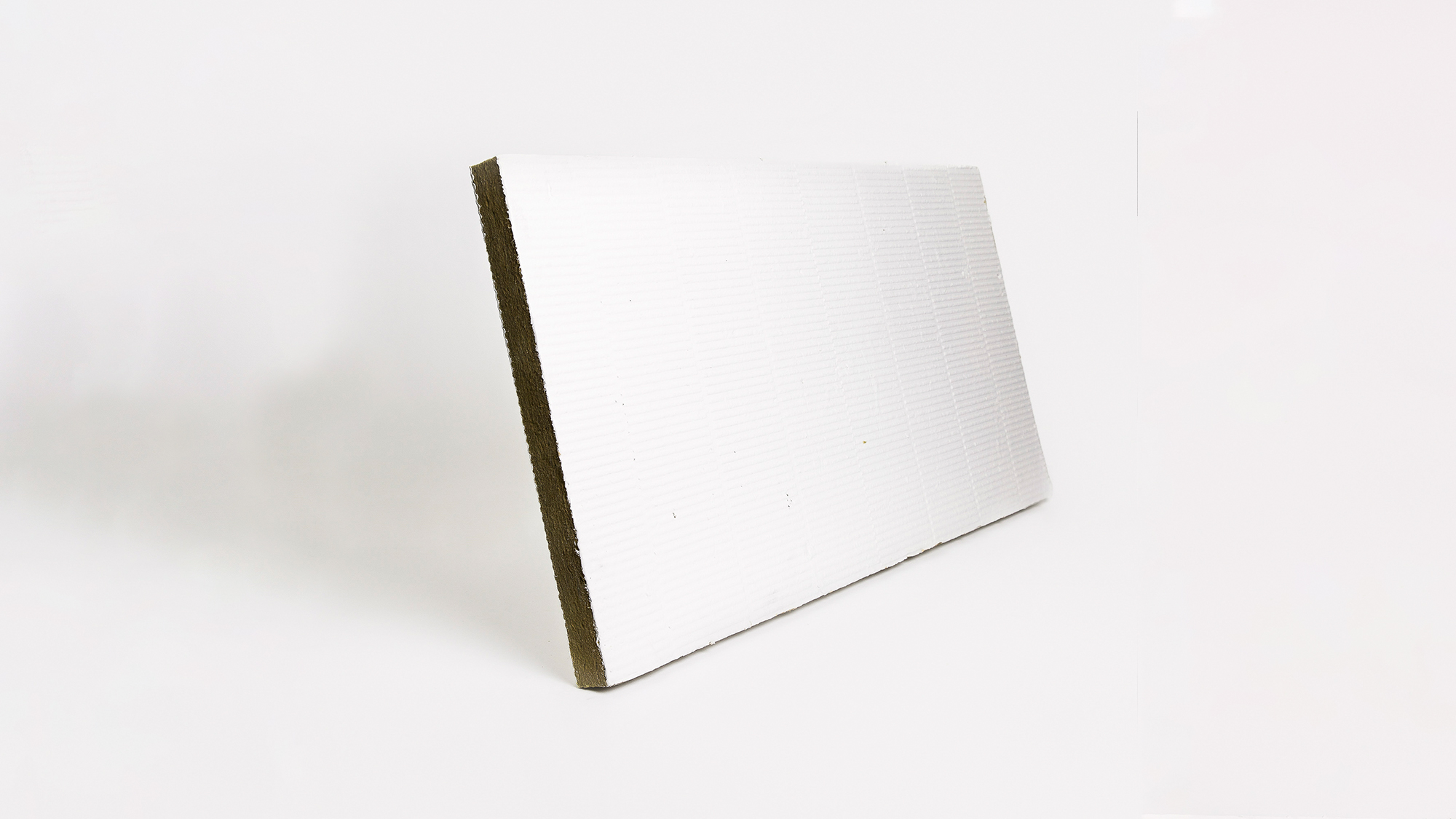

A high-density mineral fibre batt (180kg/m³ fire batt) factory coated on both faces to a precise thickness with a white durable fire resistant mastic.

Designed for use in tested passive fire protection solutions.
Used to fire stop large holes in floors and walls with or without service penetrations.
Also used as a linear gap seal up to 1200mm high x infinite length in walls and up to 600 mm wide x infinite length in floors.
FIREFLYBatt™ seals provide solutions for multiple service penetrations within various wall substrates (FR plasterboard, Hebel Powerpanel, Pronto Panel, Speedpanel, block & masonry) and floor/ceiling substrates (concrete, masonry and FR plasterboard).
Up to -/240/240 dependent on tested system. For subject FRL refer to referenced reports or to the FIREFLYPFPApp.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.4 2014 Assessed in accordance with AS4072.1 2005.

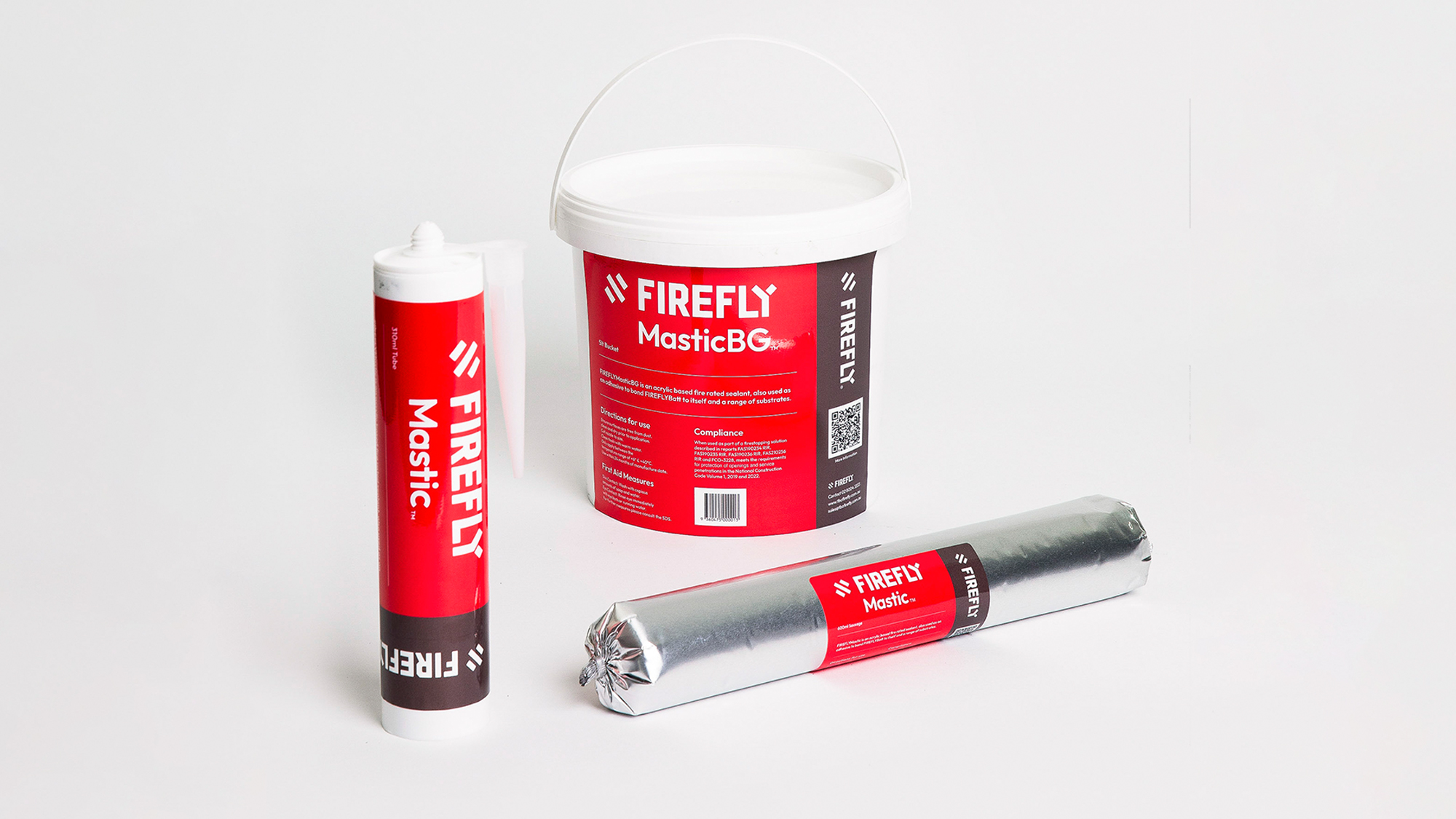

FIREFLY Mastic

Allproof Industries

View Product

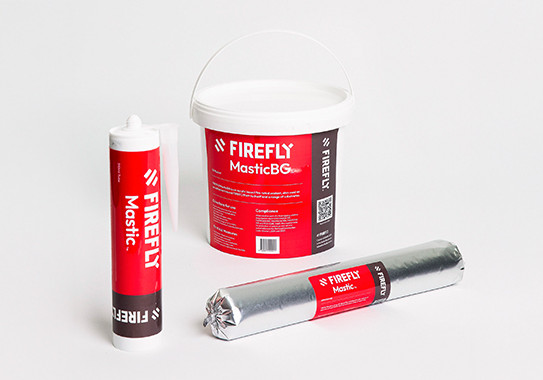

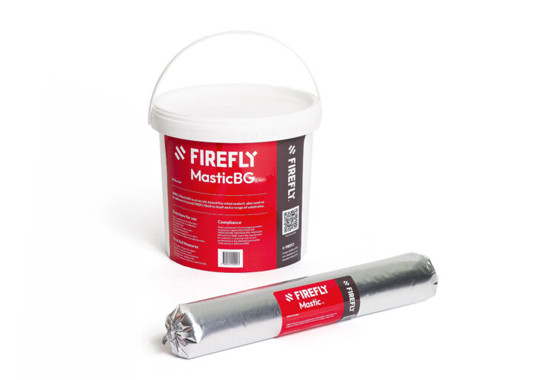

A water based acrylic sealant used to seal around services and for adhering FIREFLY Penowrap to substrates and to FIREFLYBatt.

Designed for use in tested passive fire protection solutions.
Sealant for passive fire protection.
Up to -/240/240 dependent on tested system. For subject FRL refer to referenced reports or to the FIREFLYPFPApp.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.4 2014 Assessed in accordance with AS4072.1 2005.

Test Results

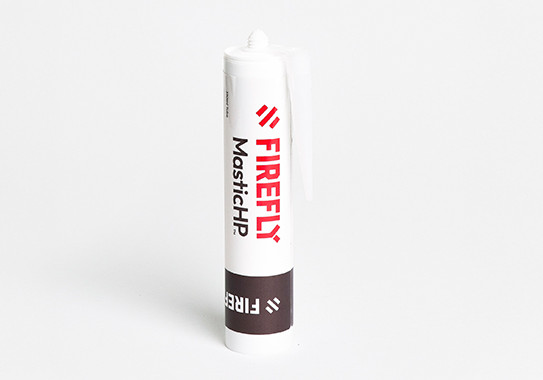

FIREFLY MasticHP

Allproof Industries

View Product

FIREFLYMasticHP is a high pressure exerting intumescent sealant.

Designed for use in tested passive fire protection solutions.
High pressure exerting intumescent sealant for passive fire protection.
Up to -/240/240 dependent on tested system. For subject FRL refer to referenced reports or to the FIREFLYPFPApp.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.4 2014 Assessed in accordance with AS4072.1 2005.

Test Results

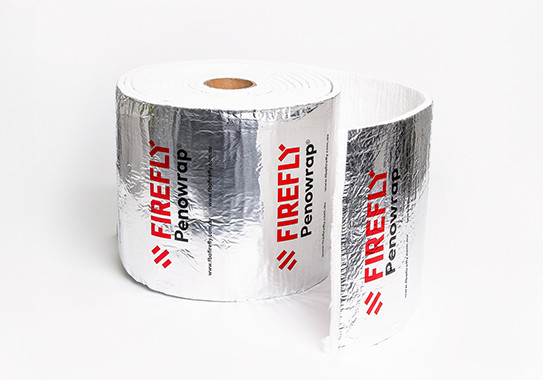

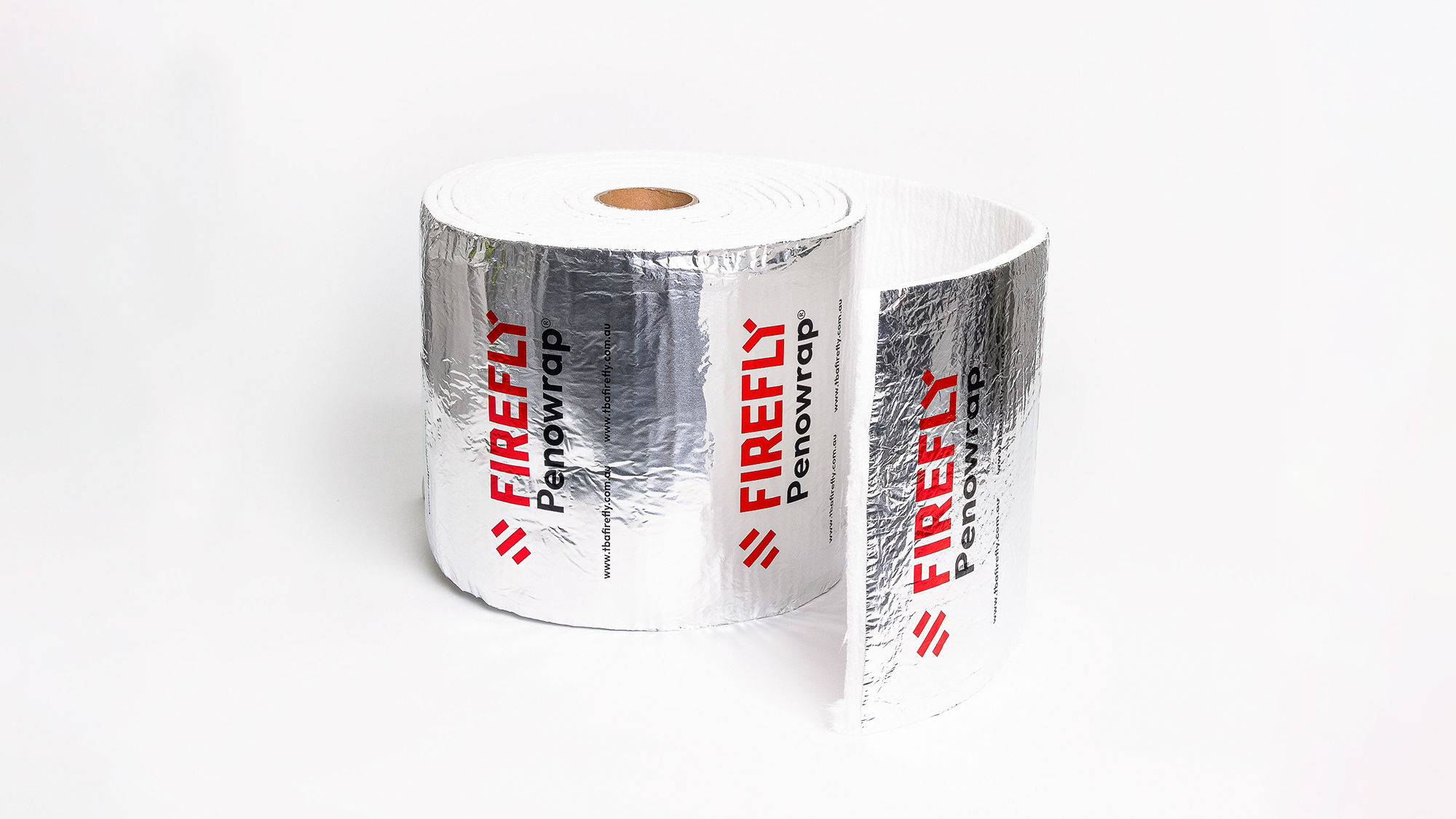

FIREFLY Penowrap

Allproof Industries

View Product

A thin, lightweight and flexible wrap comprising extremely high fire and thermal resistance capabilities when used as a component of…

Designed for use in tested passive fire protection solutions.
Used to maintain fire resistance in walls, floors and ceilings that have been penetrated by structural or service penetrations, when used with FIREFLY products.
Tested systems encompass steel universal beams, timber beams, C & Z purlins, various service penetrations, power and communications cables (of all sizes and bundles, with or without steel cable trays) as well as VASS, EAE, ABB and IPD electrical busducts with copper or aluminium conductors.
Up to -/240/240 dependent on tested system. For subject FRL refer to referenced reports or to the FIREFLYPFPApp.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.4 2014 Assessed in accordance with AS4072.1 2005.

FIREFLY Phoenix

Allproof Industries

View Product

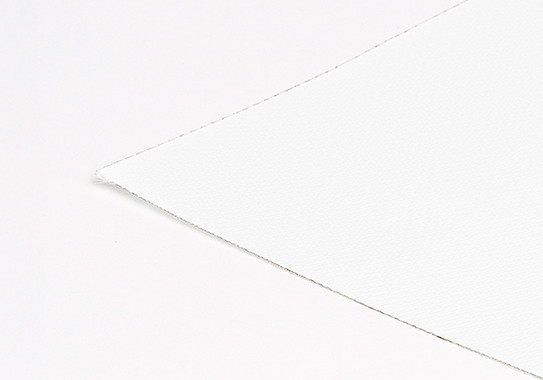

EFLY Phoenix is a lightweight fabric smoke and fire barrier, weighing 500g per m² and is 0.4m thick.

Designed for use in tested passive fire protection solutions.
Used to provide smoke reservoirs and smoke and flame compartmentation or sub division of roof spaces and voids above demountable partitions and suspended ceilings.
Can be used as a smoke barrier in both vertical and horizontal applications.
Ideal for Aged Care Centres amongst others.
Can be retrofitted with minimal disruption to occupants.
Dry installation, simply fixed to existing structure with no studwork required. Seams are stapled with the FIREFLY R31 staple gun and R31 12mm stainless steel staples, using a double fold method to create a neat seal. A continuous perimeter fix is required for smoke compartmentation or sub division.
Up to -/90/- dependent on tested system. For subject FRL refer to referenced reports.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.1 non combustibility.

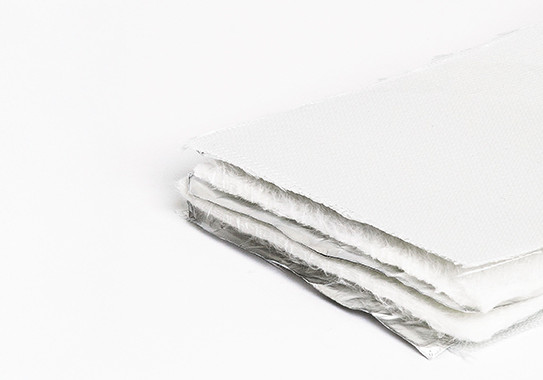

FIREFLY Plus 60

Allproof Industries

View Product

FIREFLY Plus 60 is a lightweight and flexible fabric cavity fire barrier with an inner core of insulating fire protection.

Used as a fire engineered solution to continue compartment walls up into the roof void, maintaining both the integrity and insulation of the compartmentation between dwellings, lift shafts and stairwells. Ideal for strata units amongst others. Can also be used to provide inside out or outside in fire protection to steel or timber boundary walls. Is a primary component of the FIREFLY BAL-FZ Roof & Wall systems. Easy to install, it’s flexibility and fire rating make it ideal for bespoke applications.

Up to 30/30/30 when self supporting and -/60/30 when fixed to a substrate.

For subject FRL refer to referenced reports.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.1 non combustibility.

AS1530.3 simultaneous determination of ignitability, flame propagation, heat release and smoke release.

Tested and assessed in accorance with AS1530.4 2014 and AS4072.1 2005.

Tested and assessed in accordance with AS1530.8.2 BAL-FZ Roof System & Wall Systems.

FIREFLY Strap

Allproof Industries

View Product

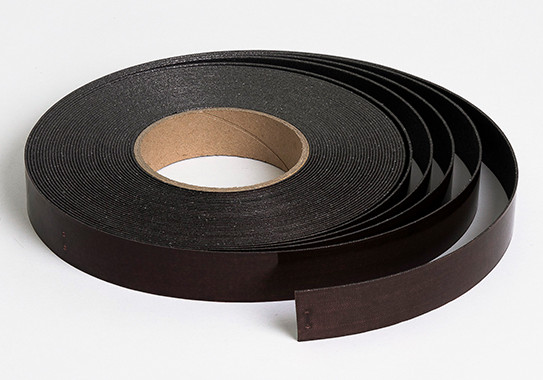

FIREFLYStrap is a high pressure intumescent wrap.

Designed for use in tested passive fire protection solutions.
Used to wrap around thermally lagged copper pipes and small PVC/HDPE pipes. Will expand in a fire to replace the gap left by the thermal insulation and plastic pipes as they melt or break down, maintaining the full integrity of the fire seal.
Up to -/240/240 dependent on tested system. For subject FRL refer to referenced reports or to the FIREFLYPFPApp

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.4 2014 Assessed in accordance with AS4072.1 2005.

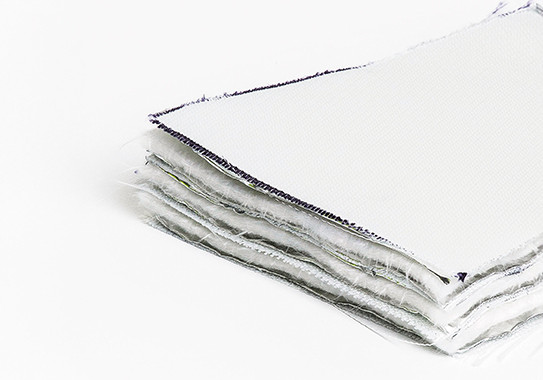

FIREFLY Titan

Allproof Industries

View Product

FIREFLY Titan is a lightweight and flexible fabric cavity fire barrier with an inner core of insulating fire protection.

Designed for use in tested passive fire protection solutions.
Used to provide a seal of up to 6.3m high x infinite length, extending from the head of a compartment wall or sub-division wall to the underside of the roof lining.
Primary fire stopping component of the Titan Spandrel System. Its flexibility and fire rating make it ideal for bespoke applications.
Up to 60/60/60 when self supported and -/120/60 when fixed to a substrate. For subject FRL refer to referenced reports.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.1 non combustibility.

AS1530.3 simultaneous determination of ignitability, flame propagation, heat release and smoke release.

Tested and assessed in accordance with AS1530.4 2014 and AS4072.1 2005.
