FIREFLY Strap
Description

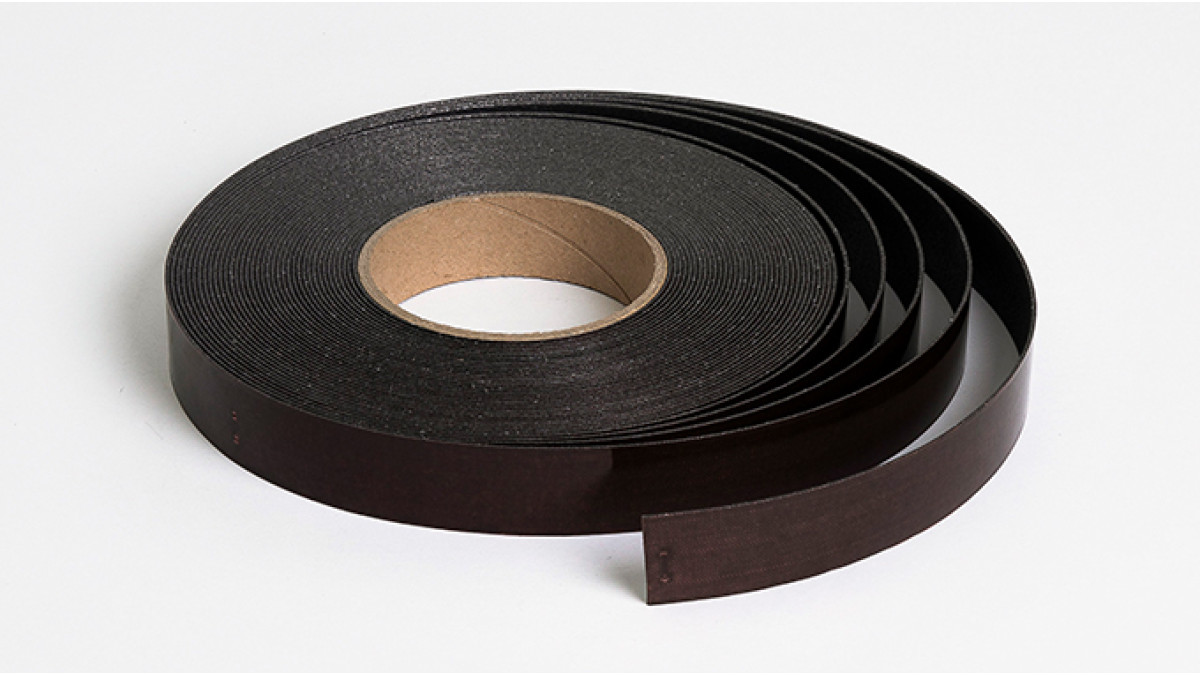

FIREFLYStrap is a high pressure intumescent wrap. Available in a 25m long coil, easily cut to the required length using a long bladed Stanley knife.

Key Features

Dimensions: 40mm x 2mm x 25m roll

Scope of Use

Used to wrap around thermally lagged copper pipes and small PVC/HDPE pipes. Will expand in a fire to replace the gap left by the thermal insulation and plastic pipes as they melt or break down, maintaining the full integrity of the fire seal.

Up to -/240/240 dependent on tested system. For subject FRL refer to referenced reports or to the FIREFLYPFPApp

Limitations on Use



Designed for use in tested passive fire protection solutions.

Statement of Building Code Compliance

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
  • Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.4 2014 Assessed in accordance with AS4072.1 2005.

Documents
Technical/Design Manual
