FIREFLY Titan
Description

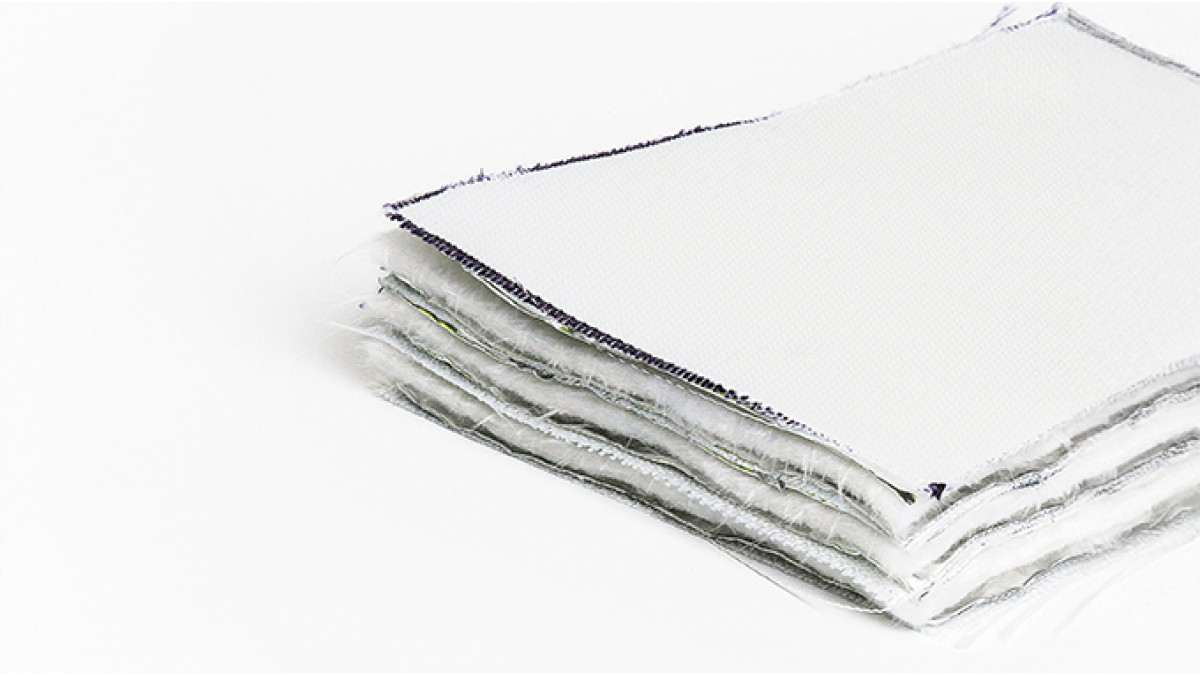

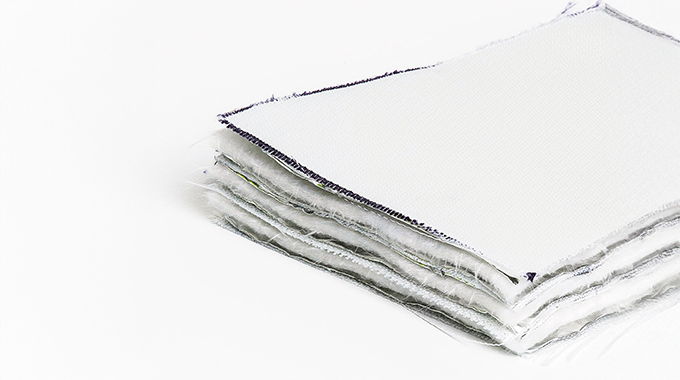

FIREFLY Titan is a lightweight and flexible fabric cavity fire barrier with an inner core of insulating fire protection. It provides good accoustic performance.

Key Features

Available in a 6m x 1.3m (7.8m²) roll, 15mm thick 3.9kg m².

Scope of Use

Used to provide a seal of up to 6.3m high x infinite length, extending from the head of a compartment wall or sub-division wall to the underside of the roof lining. Primary fire stopping component of the Titan Spandrel System. It’s flexibility and fire rating make it ideal for bespoke applications.

Up to 60/60/60 when self supported and -/120/60 when fixed to a substrate. For subject FRL refer to referenced reports.

Limitations on Use

Designed for use in tested passive fire protection solutions.

Statement of Building Code Compliance

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
  • Clause C4 Movement to place of safety: Performance C4.3

Tested in accordance with AS1530.1 non combustibility.

AS1530.3 simultaneous determination of ignitability, flame propagation, heat release and smoke release.

Tested and assessed in accorance with AS1530.4 2014 and AS4072.1 2005.

Documents
Technical/Design Manual
