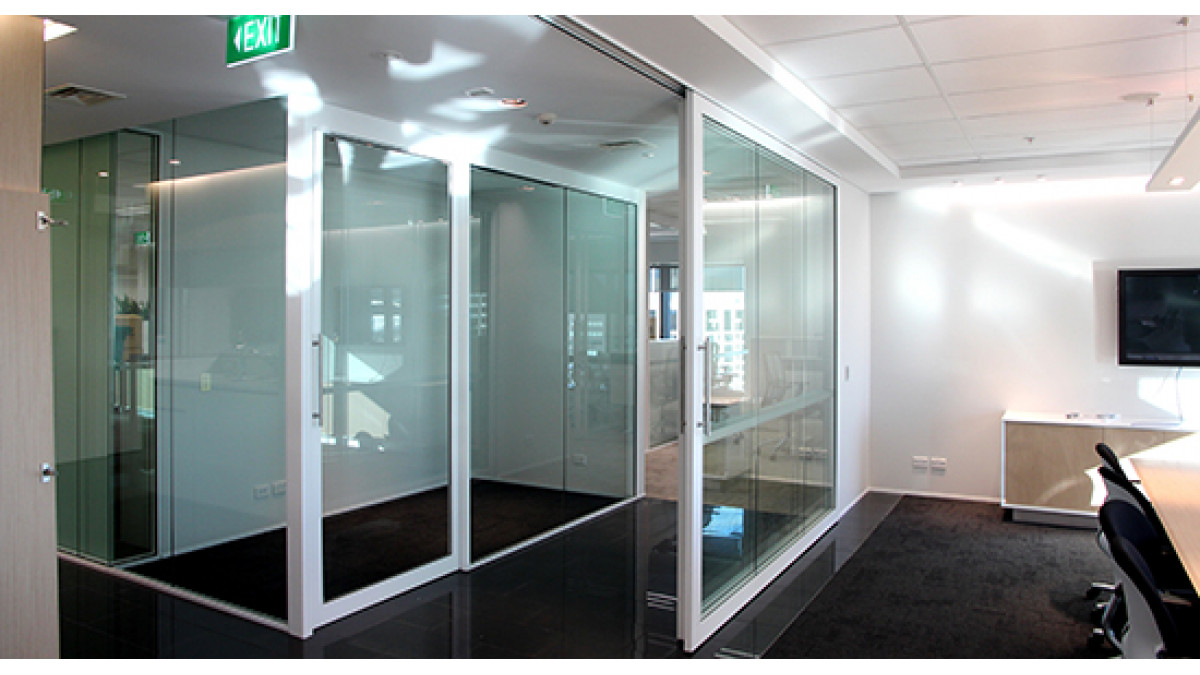

E Series 105 - Aluminium Partition System
Description

Potter Interior Systems' series of partitioning systems incorporates a number of new design elements that is still interchangeable with existing systems.

E Series 105 provides an edgeline glazing and double-glazing design to provide a clean looking partitioning system. E Series 105 gives a standard detail of 105 x 25mm.



Key Features

The system has the following options available:

  • Can accommodate glass thicknesses 6 — 12.38mm
  • Door thicknesses of 38 — 50mm can be used
  • Standard wall size based around 64mm steel stud with one layer of plasterboard on each side
Categories
Partitions
Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made
Documents
E Series 105 - Specifier Manual
Glazed Internal Partition - Glass Guidelines
Declare Accreditation
Specification Clause (Masterspec)
Maintenance Instructions
CAD/PDF Details

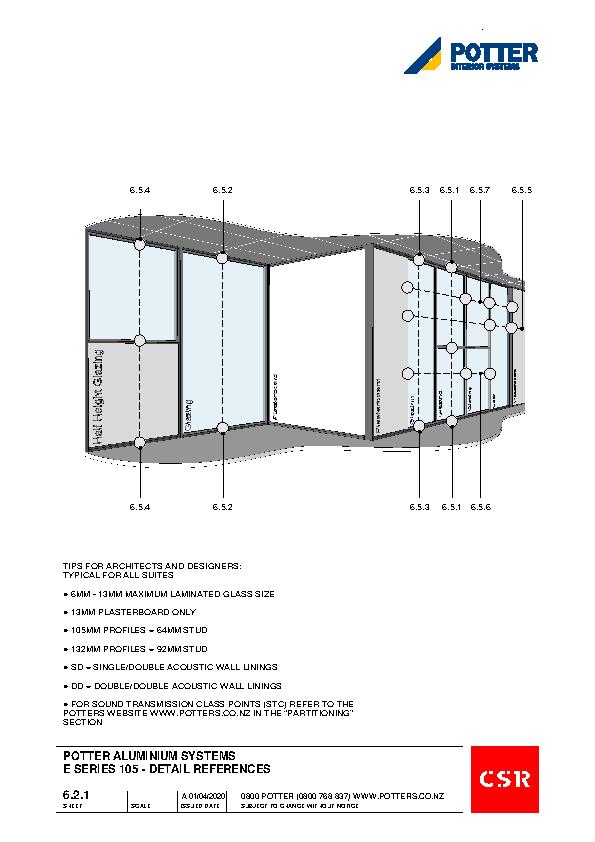

6.2.1 Detail References

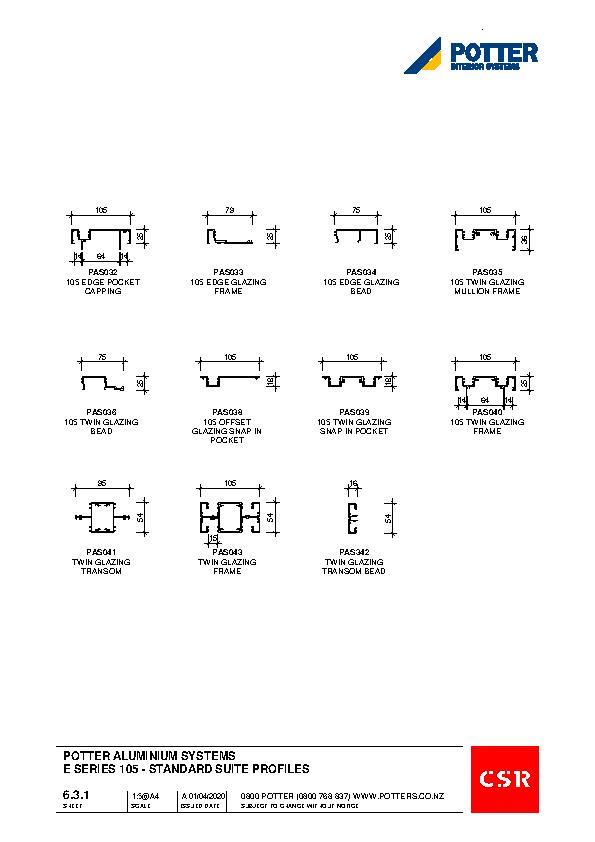

6.3.1 Standard Suite Profiles

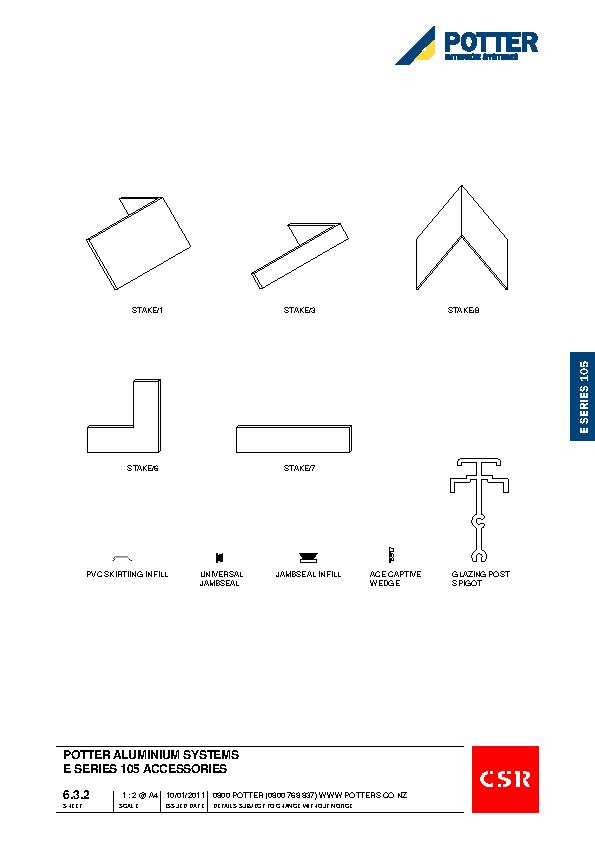

6.3.2 Accessories

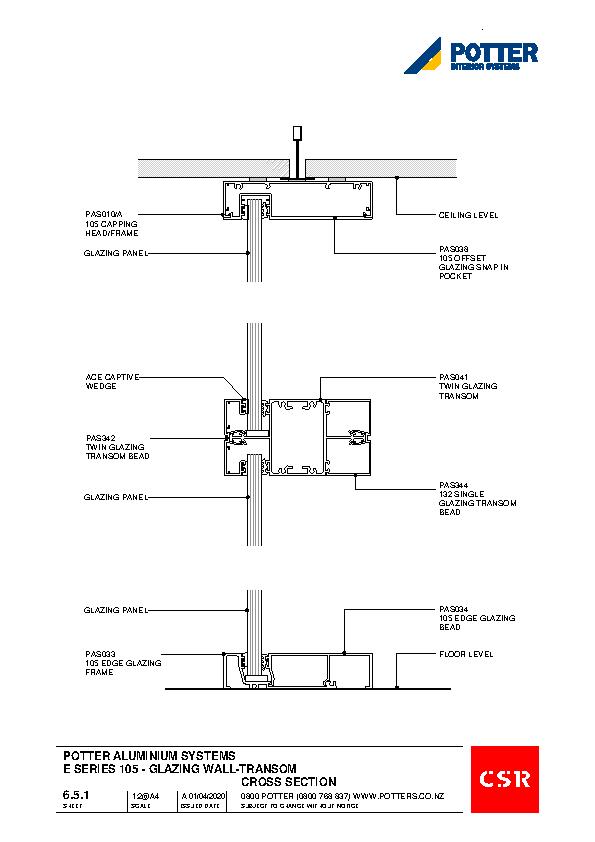

6.5.1 Glazing Wall Transom

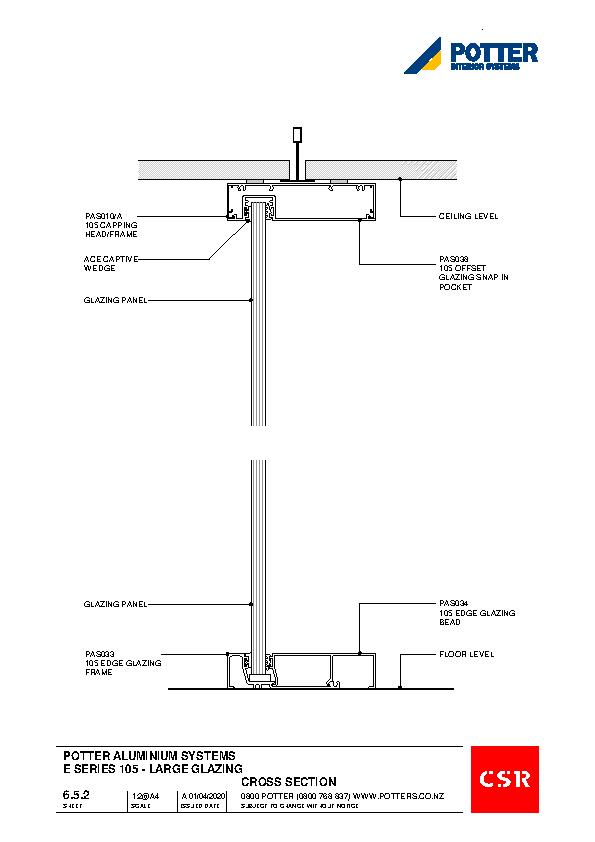

6.5.2 Large Glazing

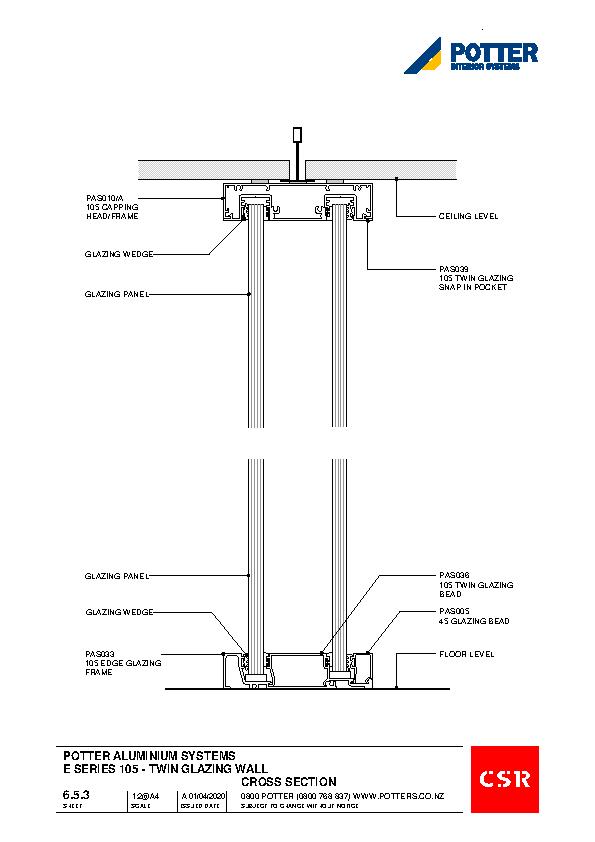

6.5.3 Double Glazing Wall

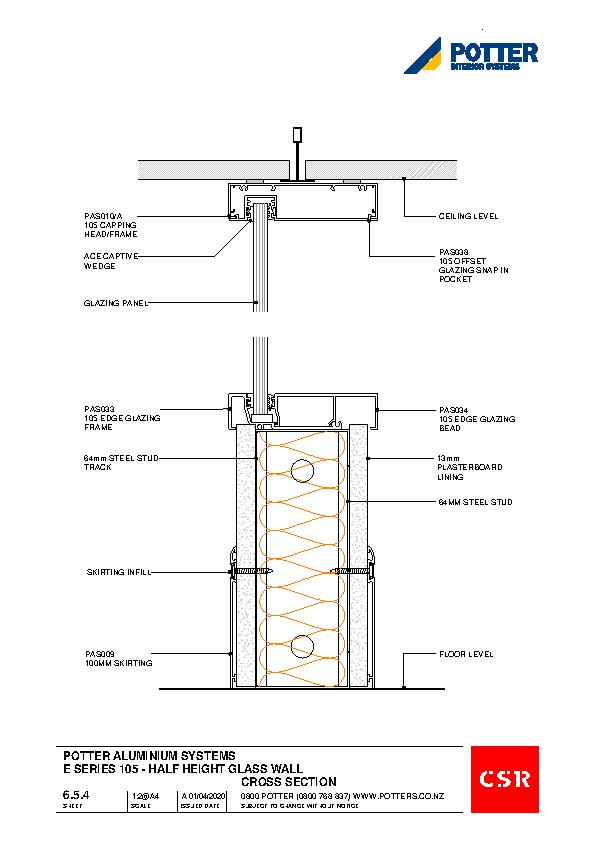

6.5.4 Half Height Glass Wall

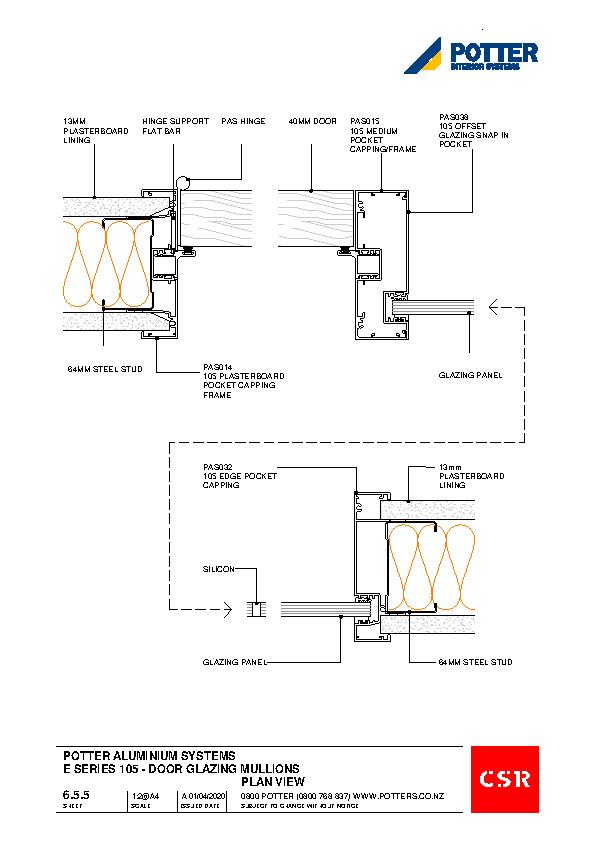

6.5.5 Door Glazing Mullions

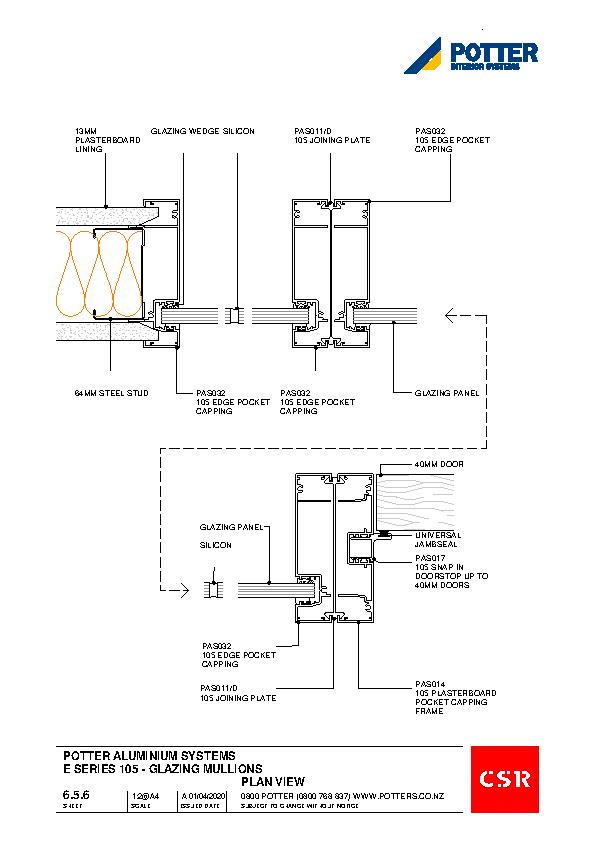

6.5.6 Glazing Mullions

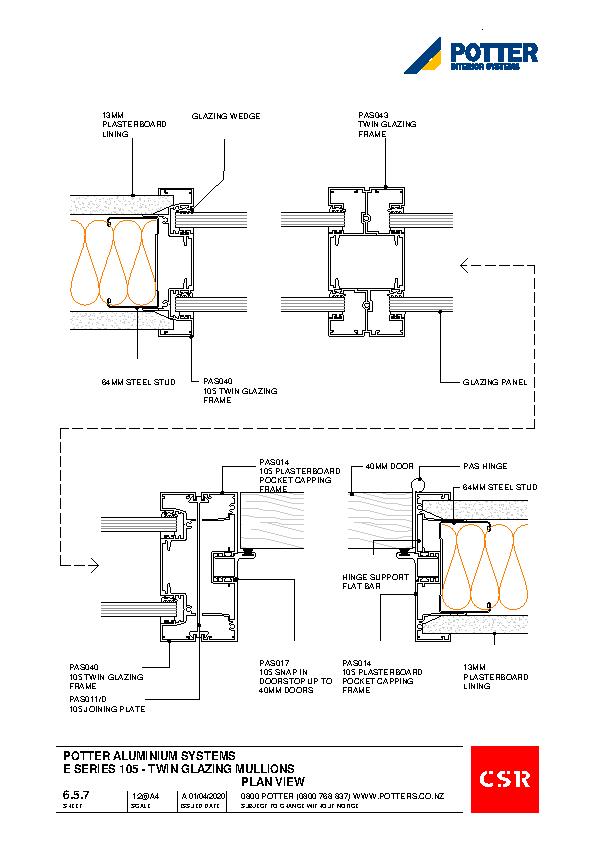

6.5.7 Double Glazing Mullions
