DS Series — Doors & Sliders — Aluminium Partition System
Description

DS Series doors are designed to fit with Potters' aluminium systems for bifold and sliding doors.

Key Features

DS Series Door:

  • Designed to fit with Potter aluminium partition systems (PAS)
  • Available in 35mm thick doors only
  • Styles and rail sizes 45mm, 75mm, 100mm,120mm and 150mm
  • Can accommodate glass thicknesses of 13mm thick laminated glass

DS Series Sliders, Bi-Folds + Stacker Doors:

  • Designed to fit with Potter aluminium partition systems (PAS)
  • Available in numerous configurations based around the 38mm door series

DS Series Smoke Rated Doors:

  • Proudly designed by Potter Interior Systems and manufactured in New Zealand
  • Door system has undergone extensive testing at ambient temperatures in accordance with AS/NZS 1530.7:1998
  • The DS Series Smoke Control Door not only complies with the stringent requirements of the New Zealand Building Code (NZBC) but has achieved an outstanding -/-/-SM rating
  • This rating underscores our commitment to providing top-tier smoke control solutions that enhance safety and performance



Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made
Scope of Use

DS Series Door:

  • Designed to fit with Potter aluminium partition systems (PAS)
  • Available in 35mm thick doors only
  • Styles and rail sizes 45mm, 75mm, 100mm,120mm and 150mm
  • Can accommodate glass thicknesses of 13mm thick laminated glass

DS Series Sliders, Bi-Folds + Stacker Doors:

  • Designed to fit with Potter aluminium partition systems (PAS)
  • Available in numerous configurations based around the 38mm door series

DS Series Smoke Rated Doors:

  • Door system has undergone extensive testing at ambient temperatures in accordance with AS/NZS 1530.7:1998
  • -/-/-SM rating



Statement of Building Code Compliance

DS Series Smoke Rated Doors system has undergone extensive testing at ambient temperatures in accordance with AS/NZS 1530.7:1998, and has a -/-/-SM rating

Other Performance Attributes
  • All aluminium partition suites carry the Declare label
  • Final Assembly: New Zealand
  • Life Expectancy: 50+ years
  • End of of Life Options: 100% Reusable/Recyclable
Documents
Data Sheet
DS Series - Specifier Manual
Glazed Internal Partition - Glass Guidelines
Declare Accreditation
Installation and Operation
Maintenance Instructions
CAD/PDF Details

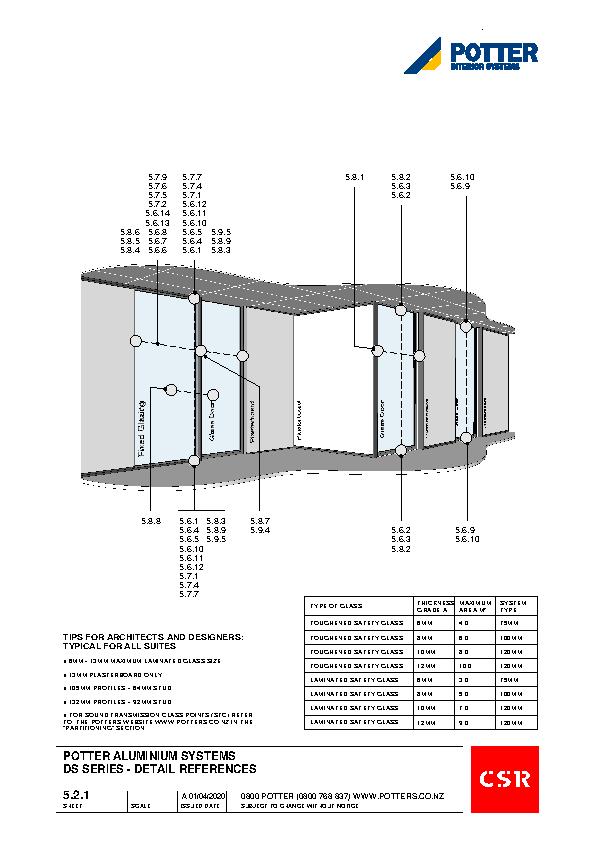

5.2.1 Detail References

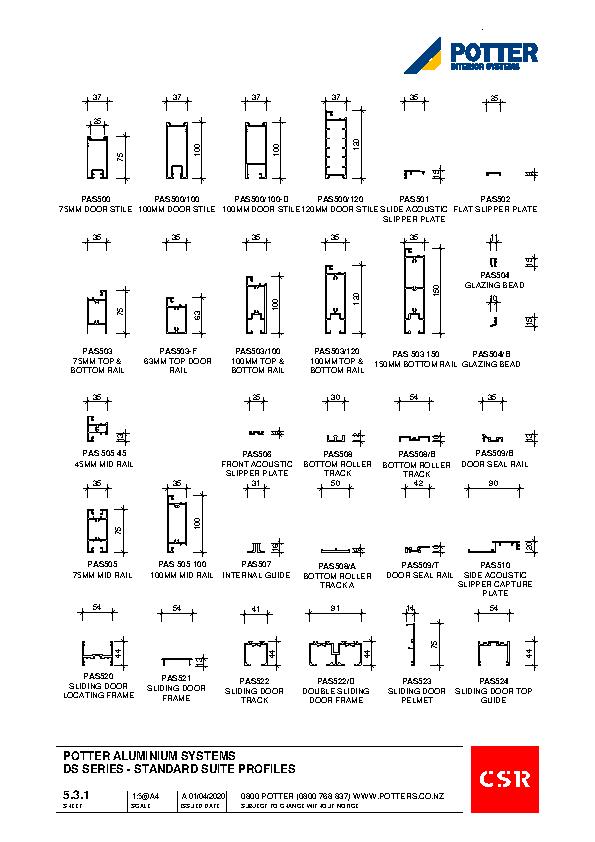

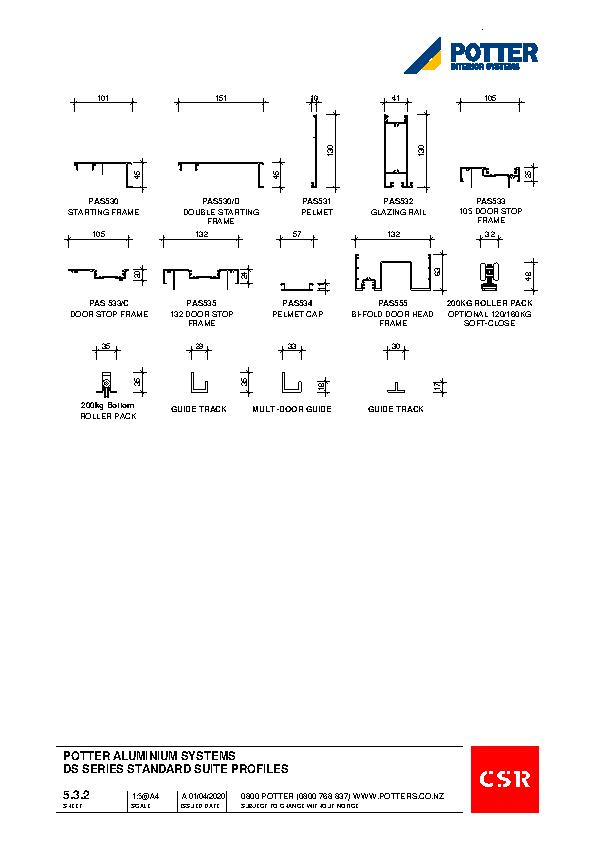

5.3.1 Standard Suite Profiles
5.3.2 Accessories

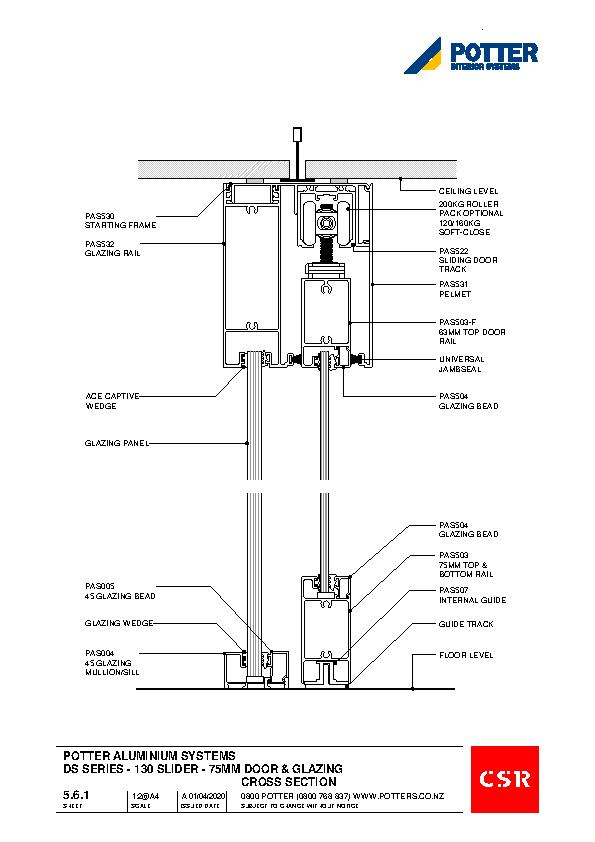

5.6.1 130 Slider 75mm Door and Glazing

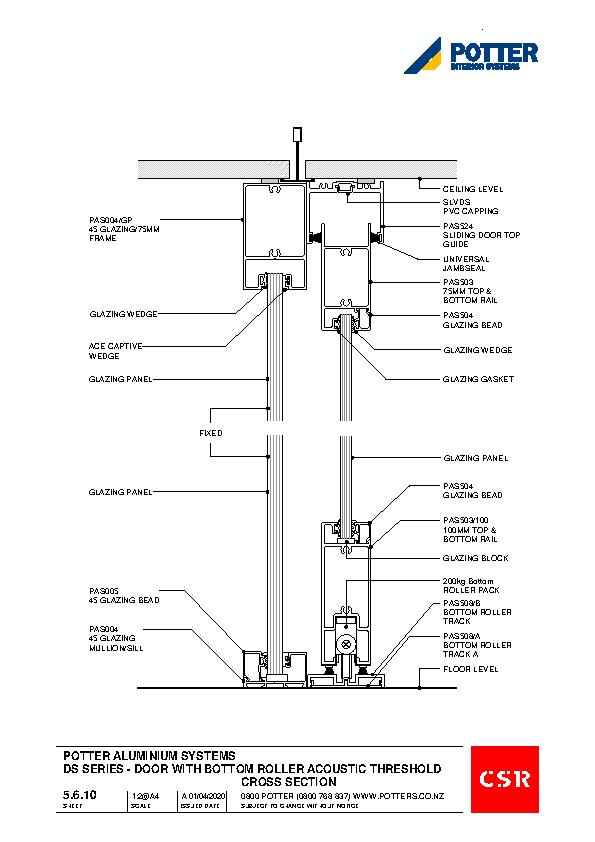

5.6.10 Door With Timberline Roller

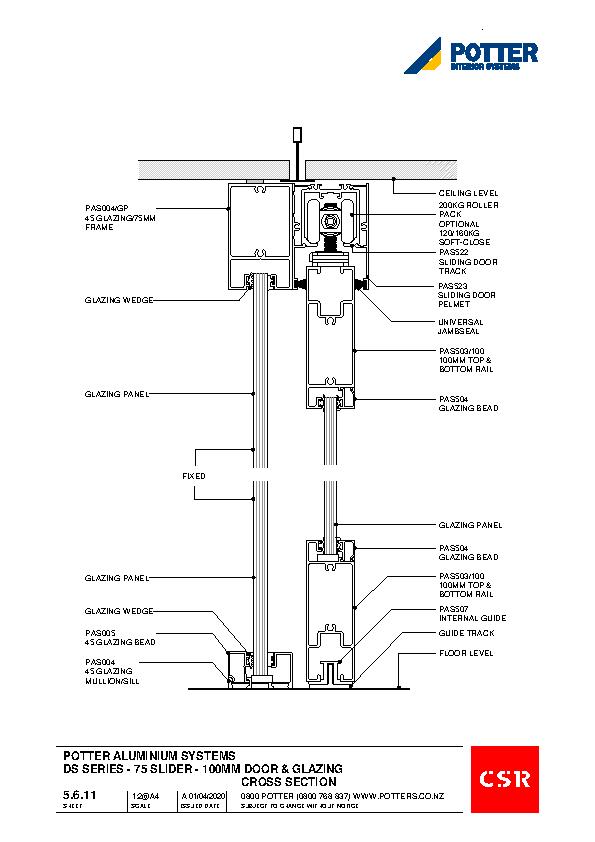

5.6.11 75 Slider 100mm Door and Glazing

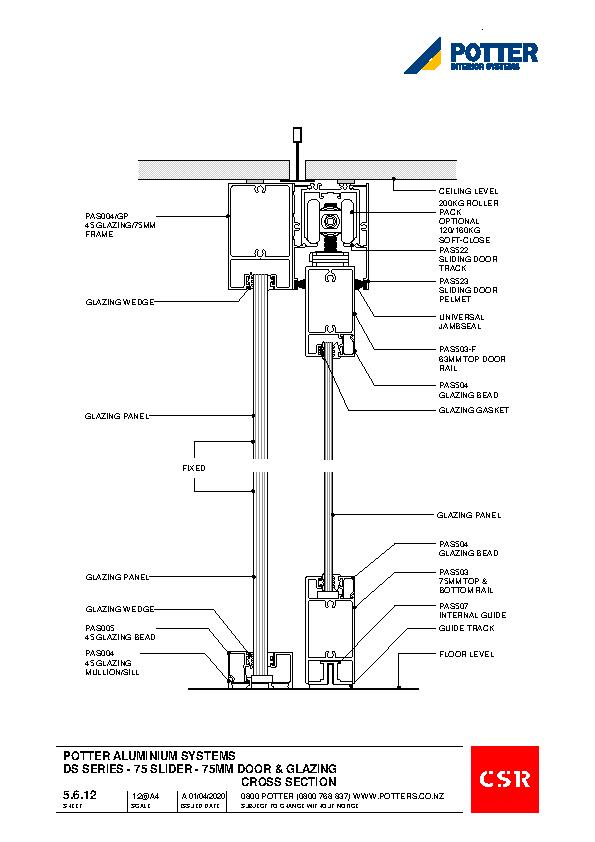

5.6.12 75 Slider 75mm Door And Glazing

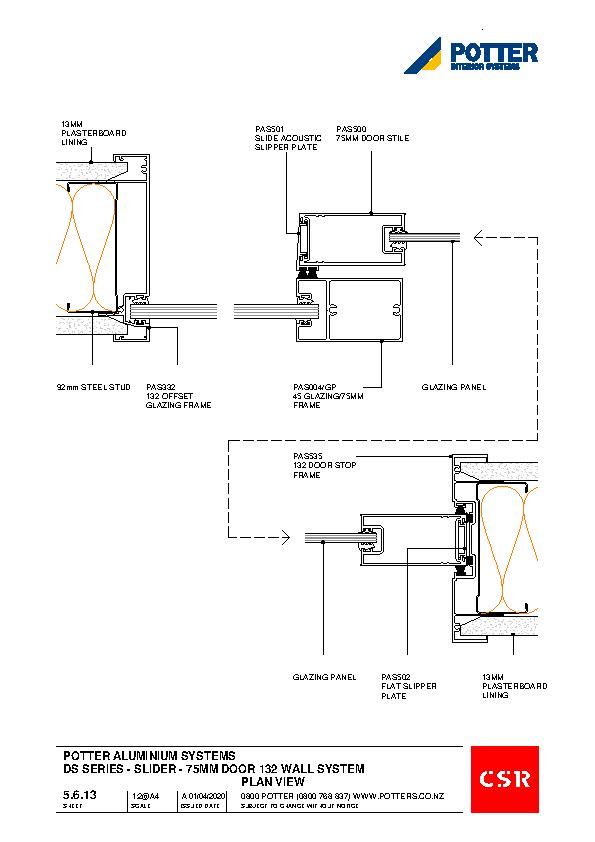

5.6.13 DS SERIES - SLIDER - 75MM DOOR 132 WALL SYSTEM

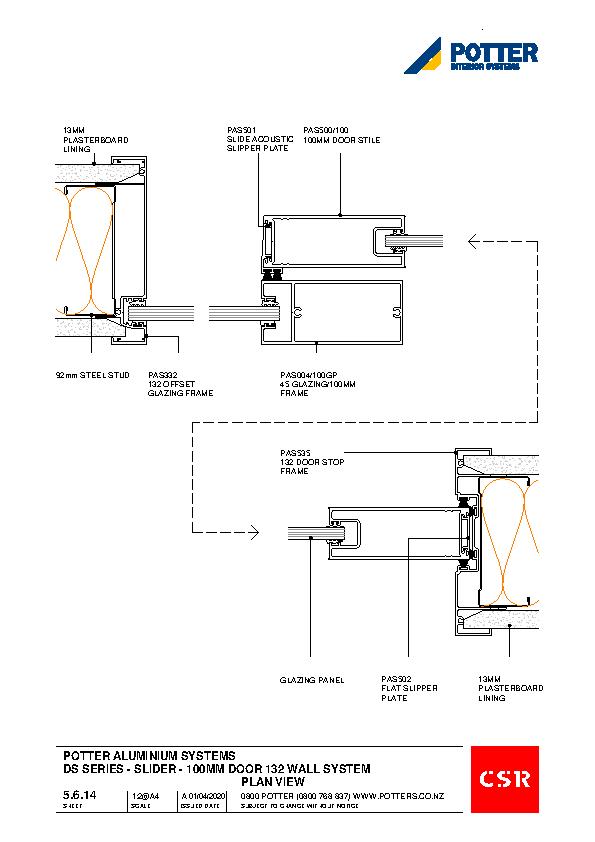

5.6.14 DS SERIES - SLIDER - 100MM DOOR 132 WALL SYSTEM
5.6.14 DS SERIES - SLIDER - 100MM DOOR 132 WALL SYSTEM

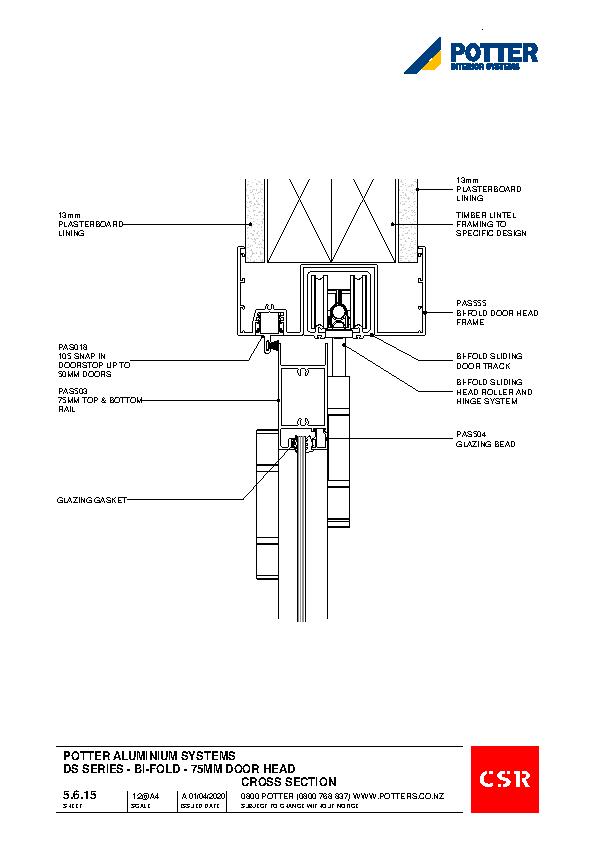

5.6.15 DS SERIES - BI-FOLD - 75MM DOOR HEAD

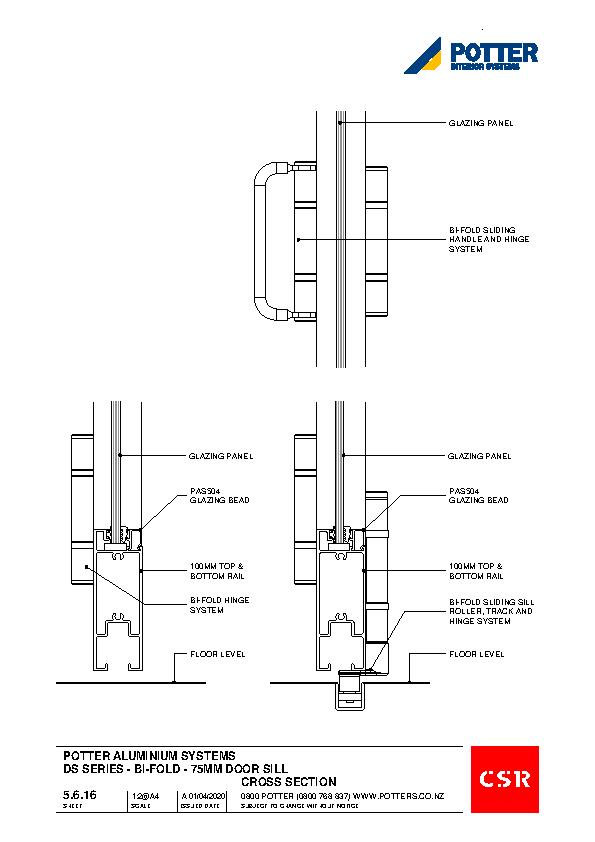

5.6.16 DS SERIES - BI-FOLD - 75MM DOOR SILL

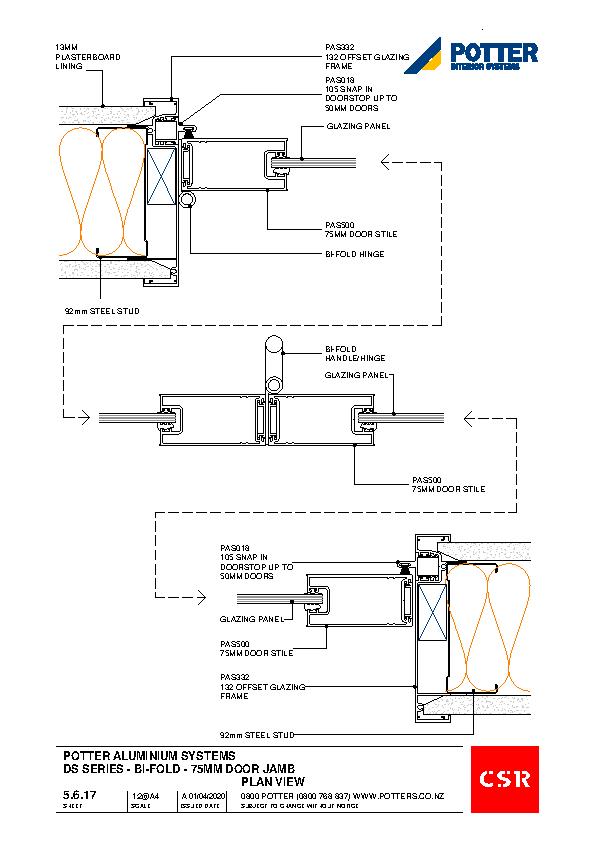

5.6.17 DS SERIES - BI-FOLD - 75MM DOOR JAMB

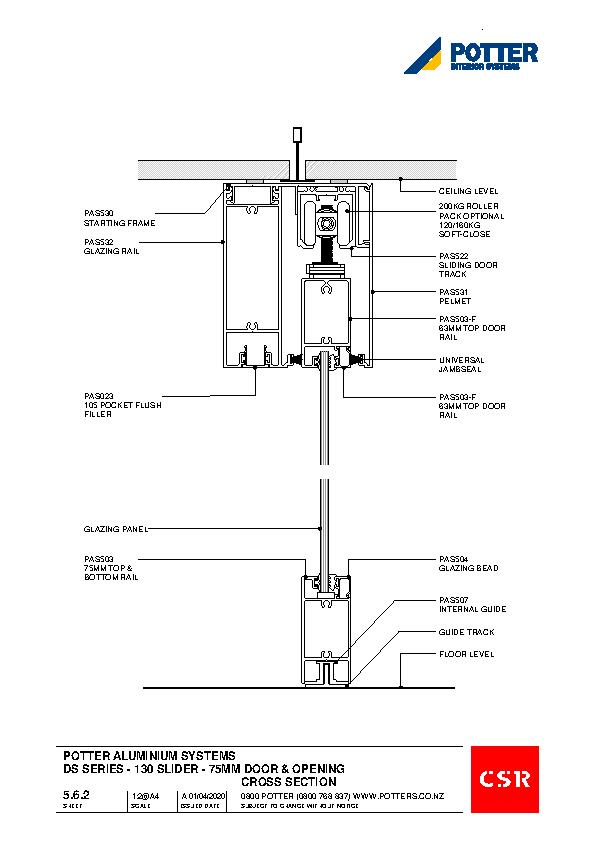

5.6.2 130 Slider 75mm Door and Opening

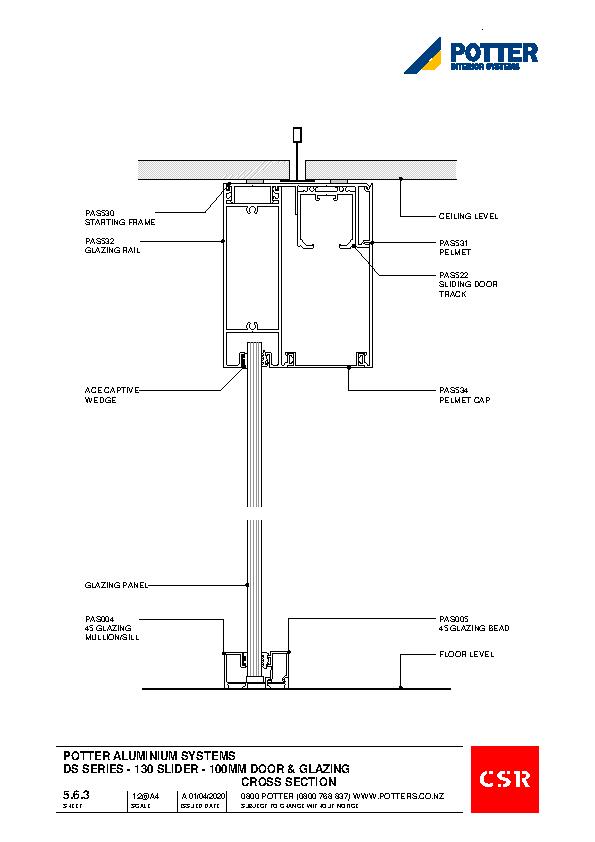

5.6.3 130 Slider 100mm Door and Glazing
5.6.4 130 Slider 100mm Door and Glazing

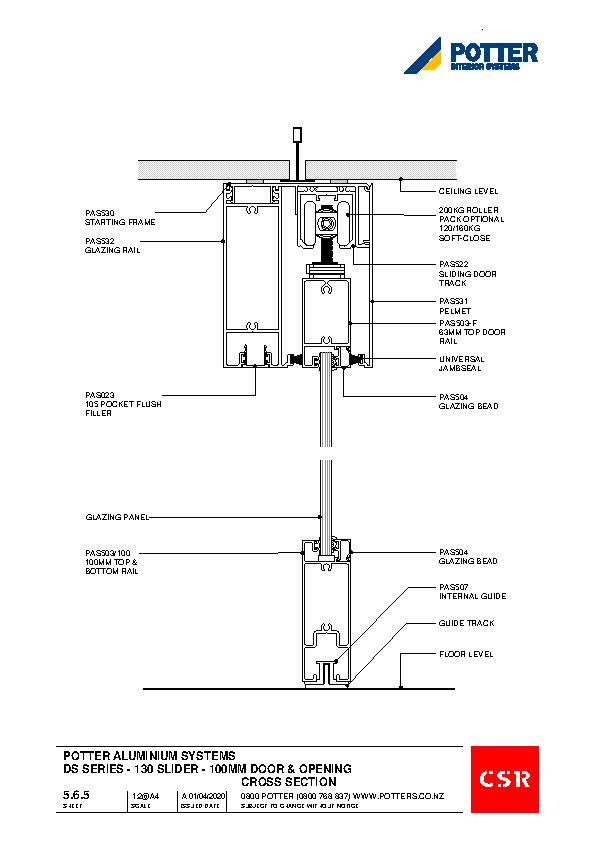

5.6.5 130 Slider 100mm Door and Opening

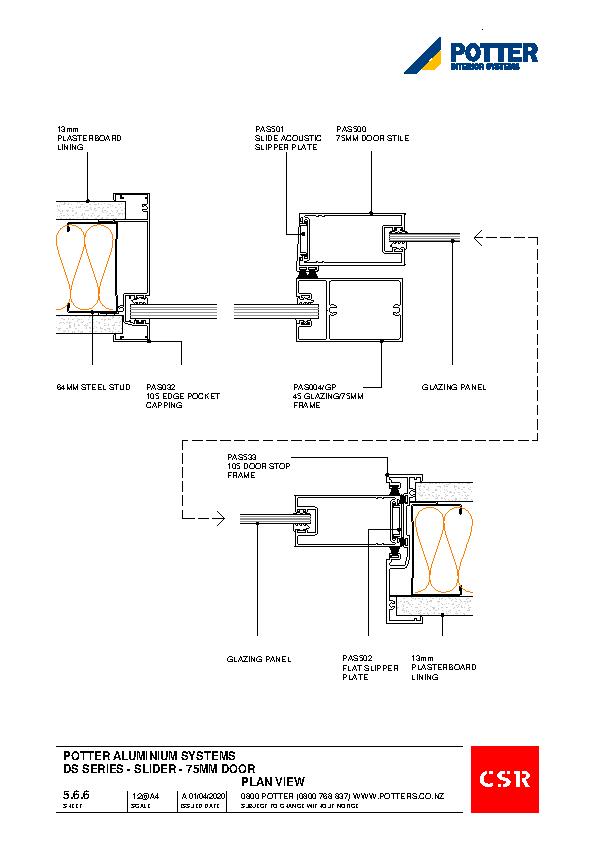

5.6.6 Slider 75mm Door

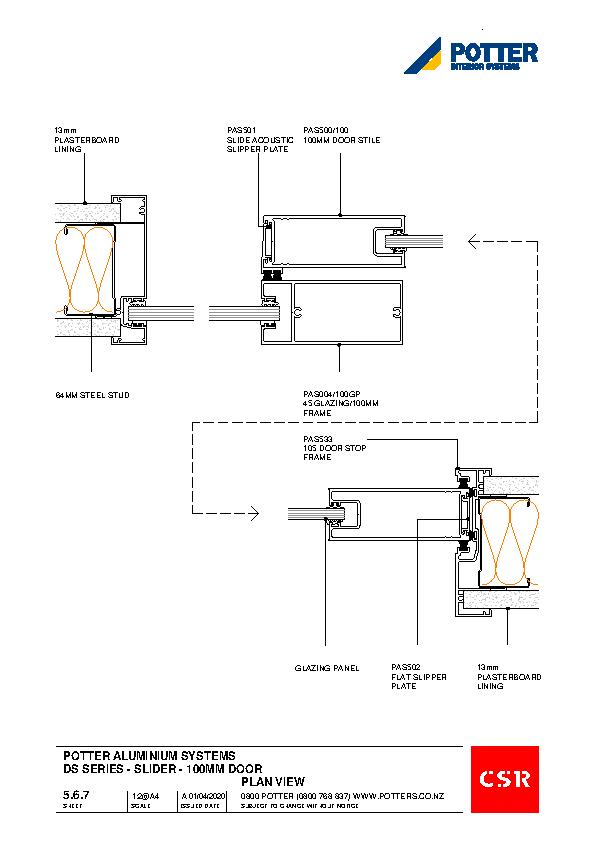

5.6.7 Slider 100mm Door

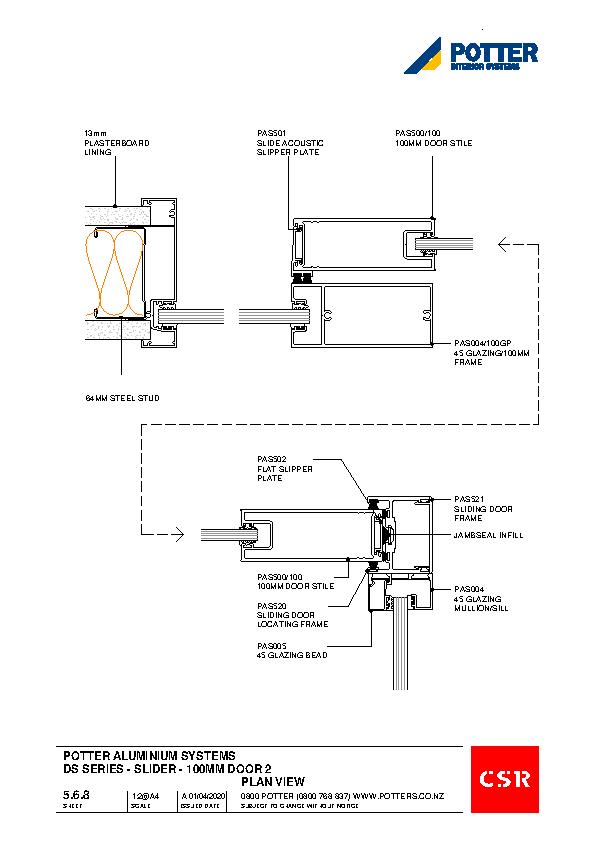

5.6.8 Slider 100mm Door 2

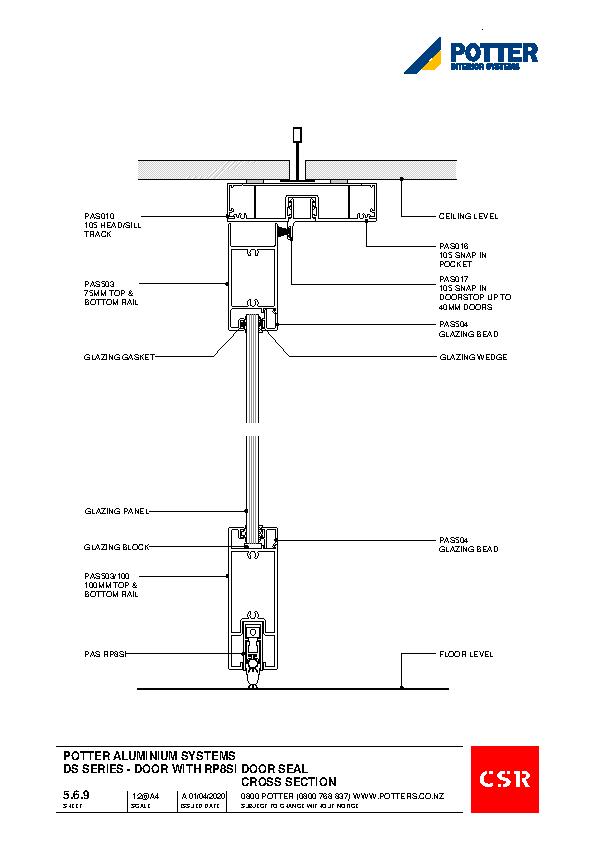

5.6.9 Door With RP8SI Seal

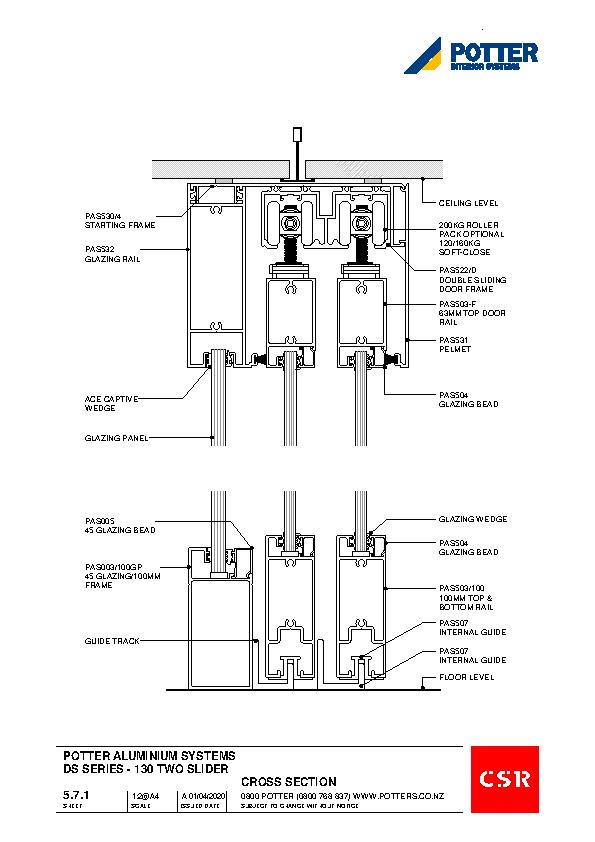

5.7.1 DS SERIES - 130 TWO SLIDER

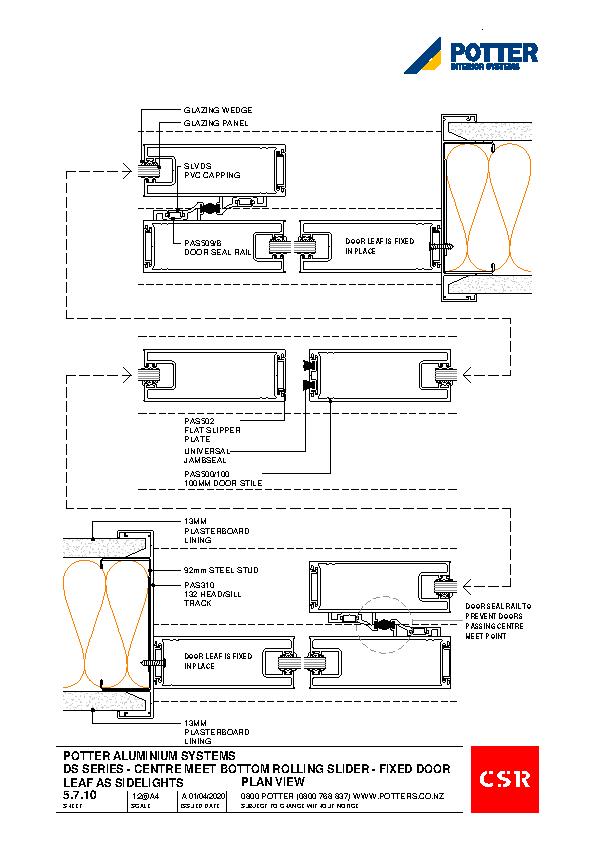

5.7.10 DS SERIES - CENTRE MEET BOTTOM ROLLING SLIDER - FIXED DOOR LEAF AS SIDELIGHTS

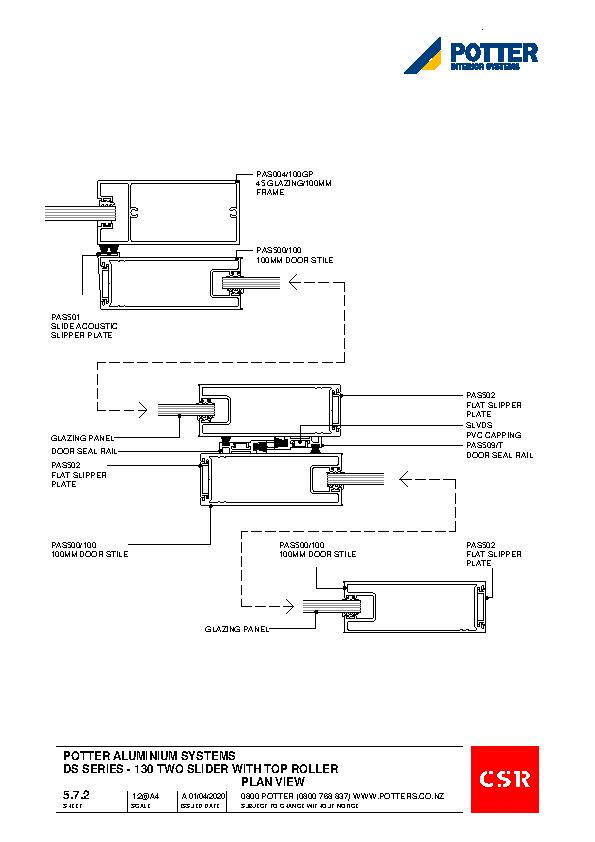

5.7.2 DS SERIES - 130 TWO SLIDER WITH TOP ROLLER

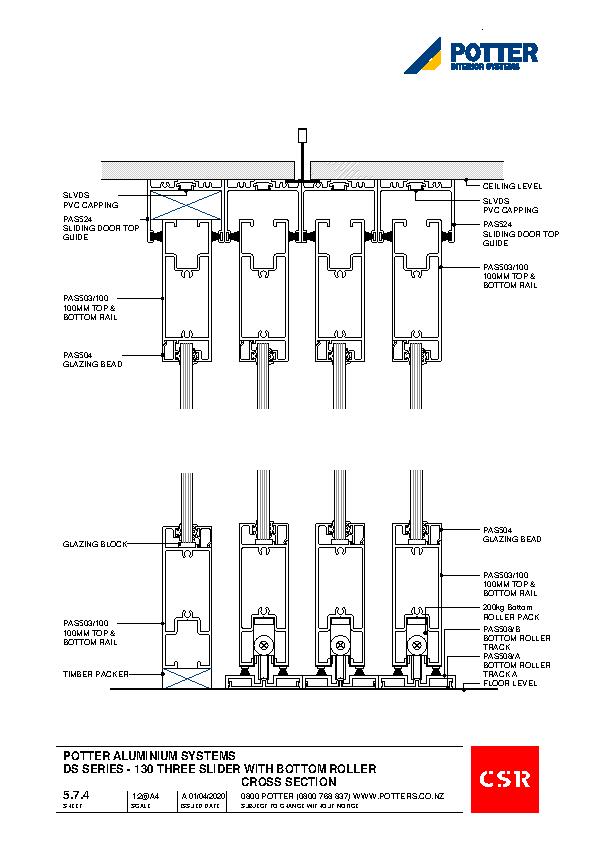

5.7.4 DS SERIES - 130 THREE SLIDER WITH BOTTOM ROLLER

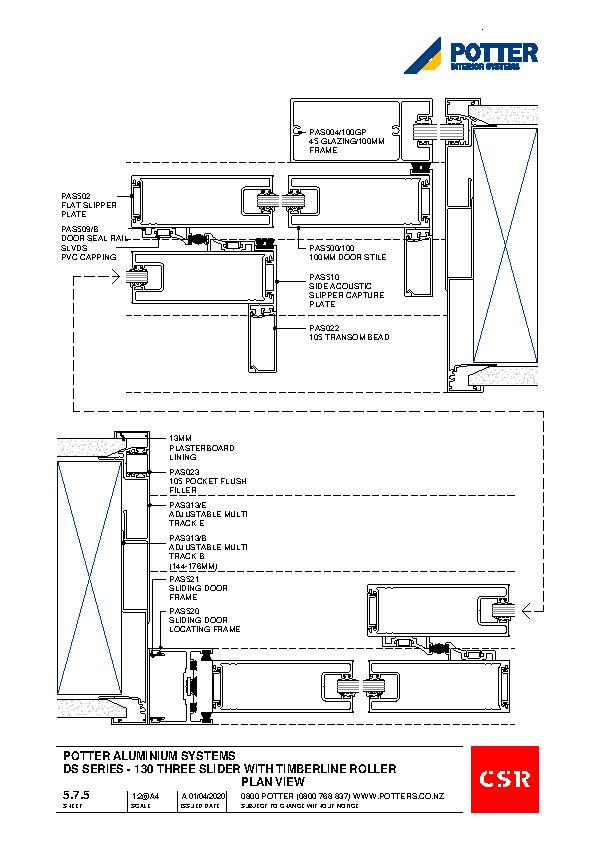

5.7.5 DS SERIES - 130 THREE SLIDER WITH TIMBERLINE ROLLER

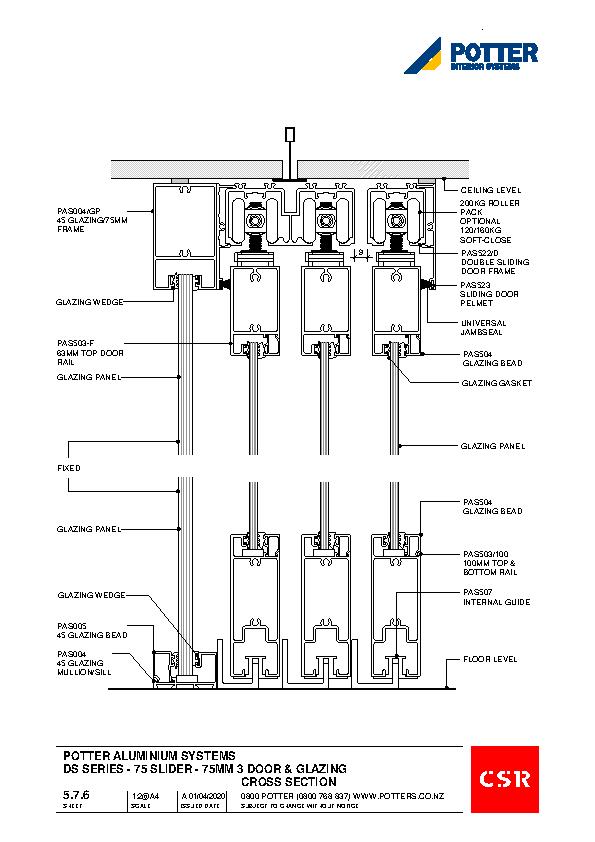

5.7.6 DS SERIES - 75 SLIDER - 75MM 3 DOOR & GLAZING

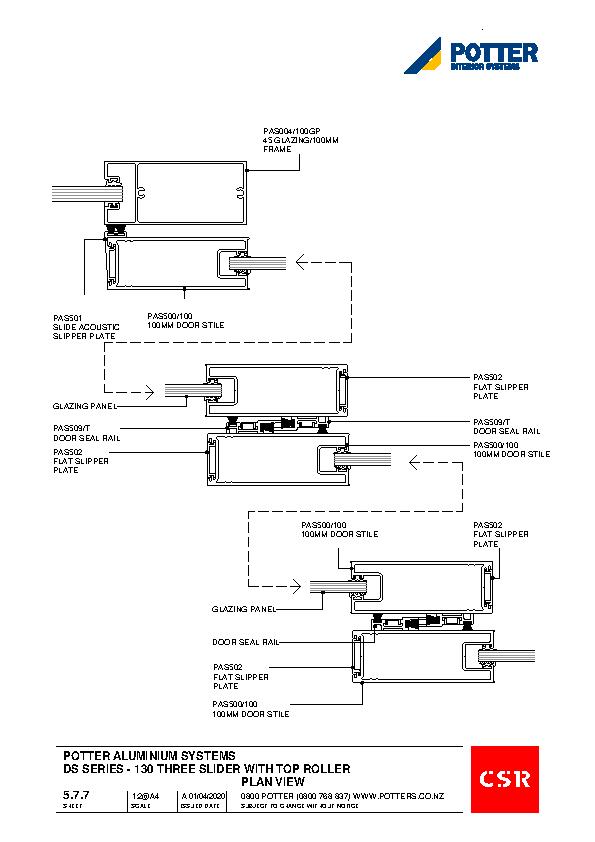

5.7.7 DS SERIES - 130 THREE SLIDER WITH TOP ROLLER

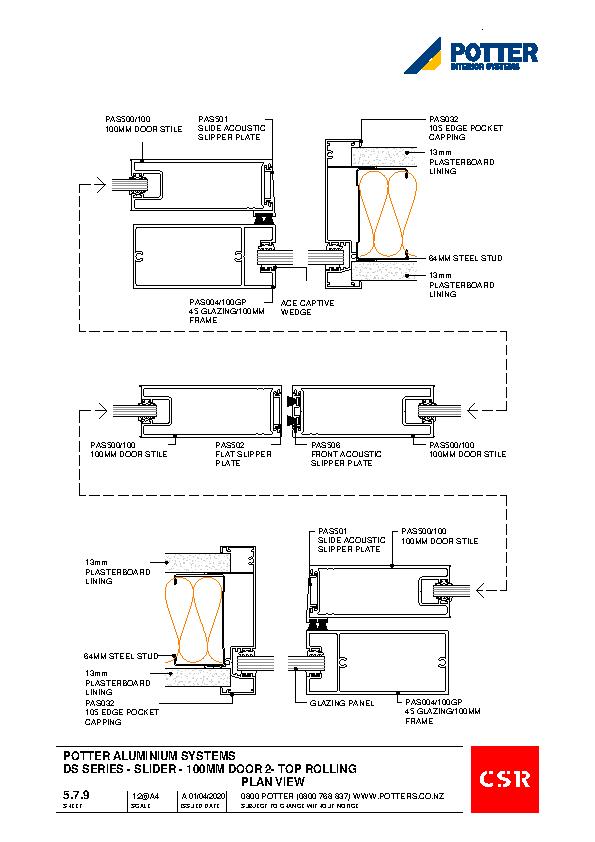

5.7.9 DS SERIES - SLIDER - 100MM DOOR 2- TOP ROLLING

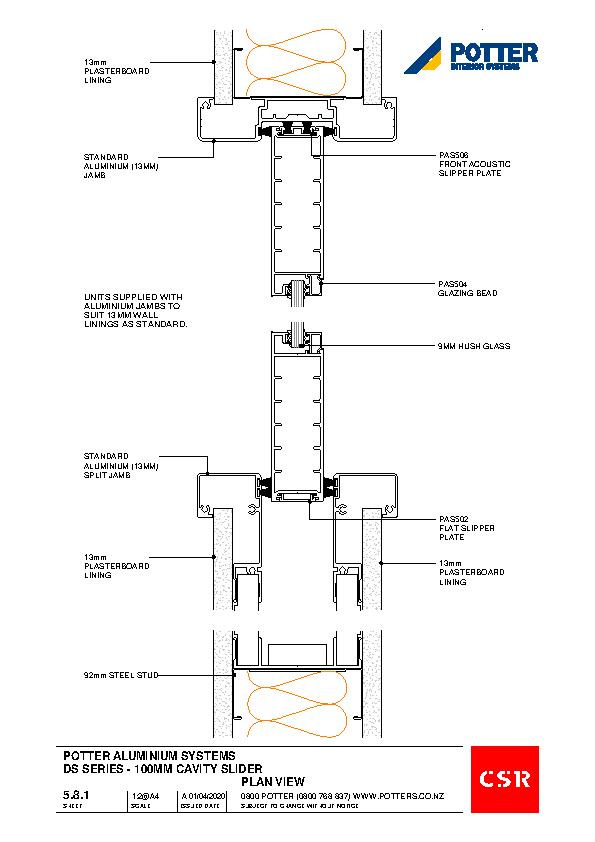

5.8.1 DS SERIES - 100MM CAVITY SLIDER

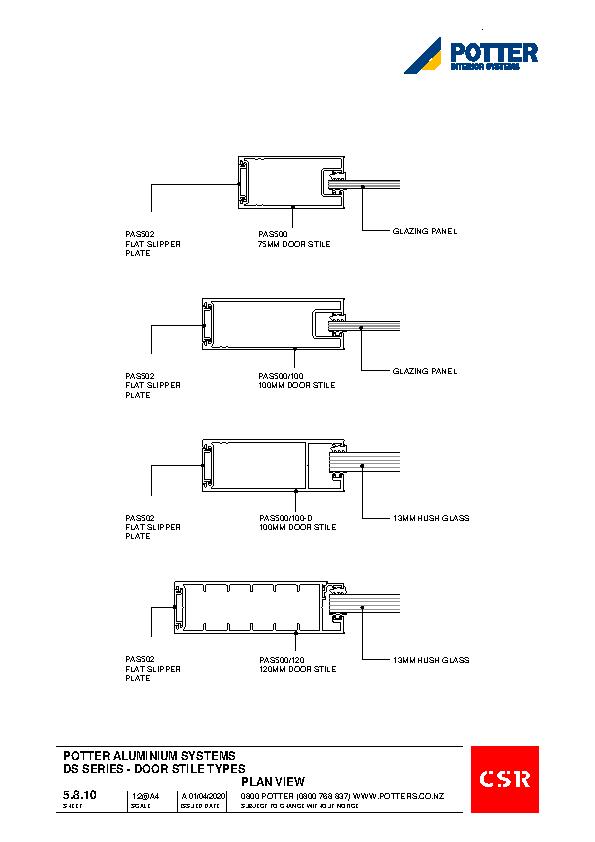

5.8.10 DS SERIES - DOOR STILE TYPES

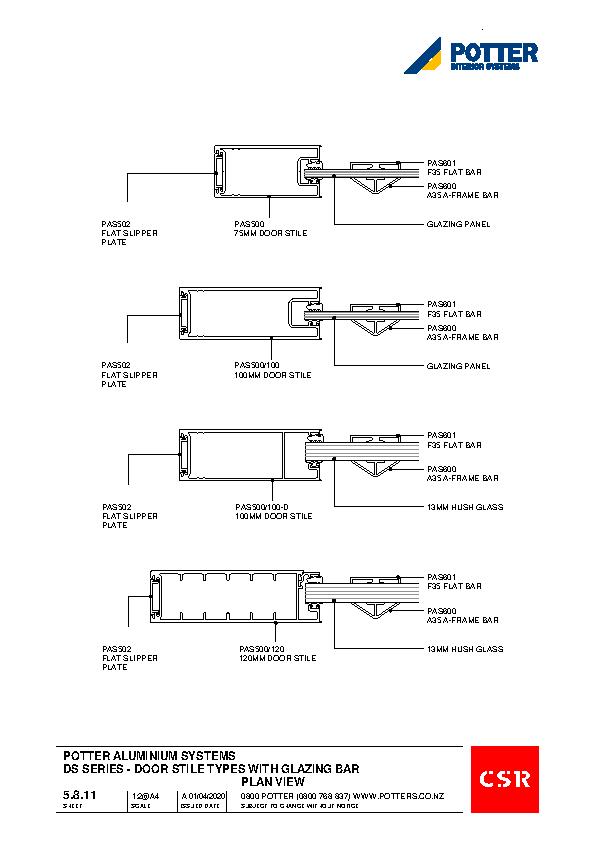

5.8.11 DS SERIES - DOOR STILE TYPES WITH GLAZING BAR
5.8.11 DS SERIES - DOOR STILE TYPES WITH GLAZING BAR

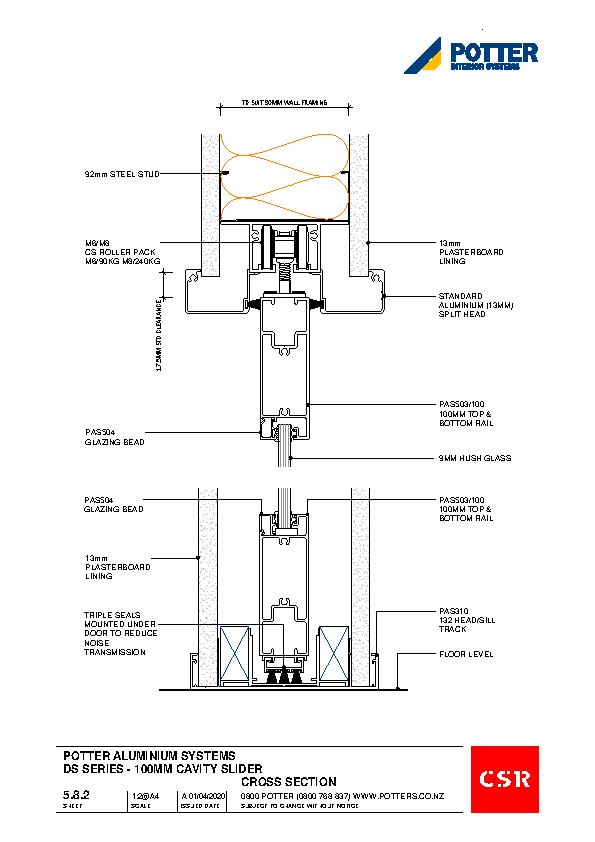

5.8.2 DS SERIES - 100MM CAVITY SLIDER

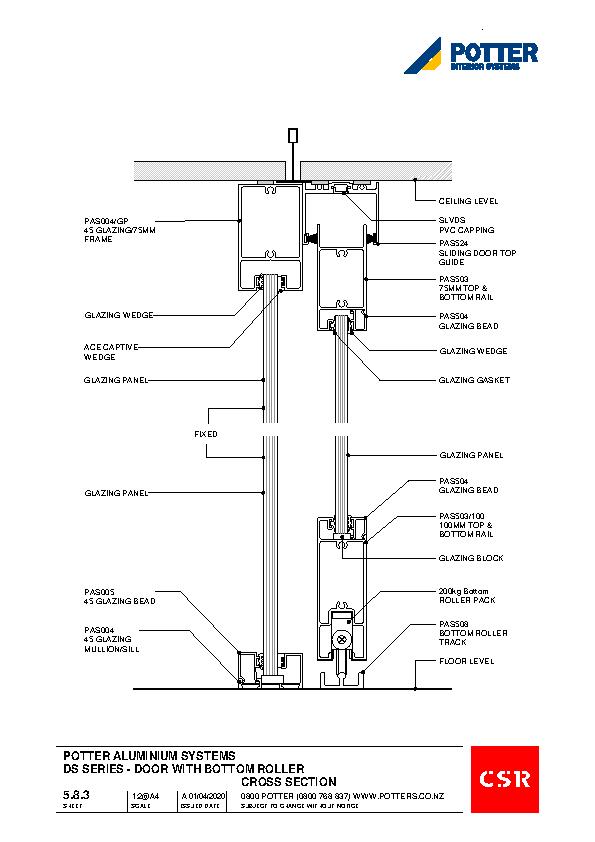

5.8.3 DS SERIES - DOOR WITH BOTTOM ROLLER

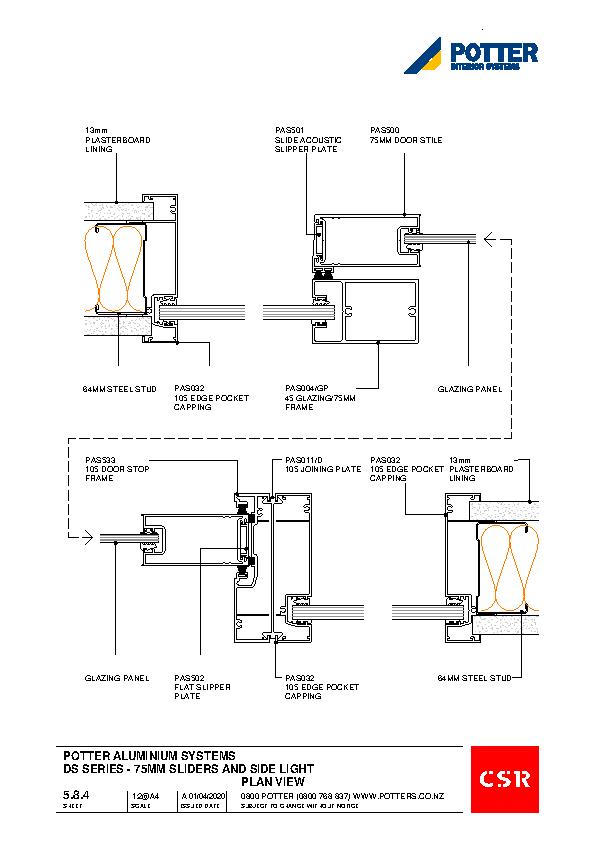

5.8.4 DS SERIES - 75MM SLIDERS AND SIDE LIGHT

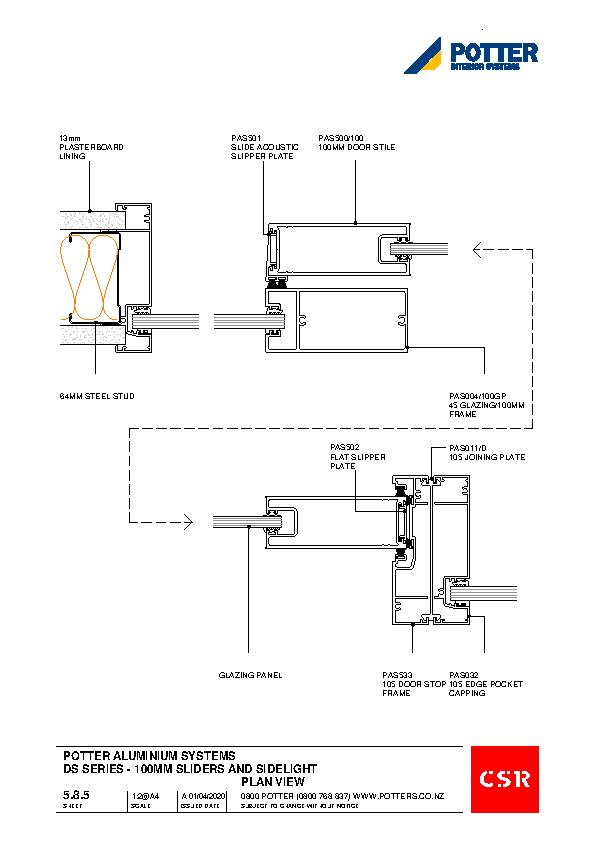

5.8.5 DS SERIES - 100MM SLIDERS AND SIDELIGHT

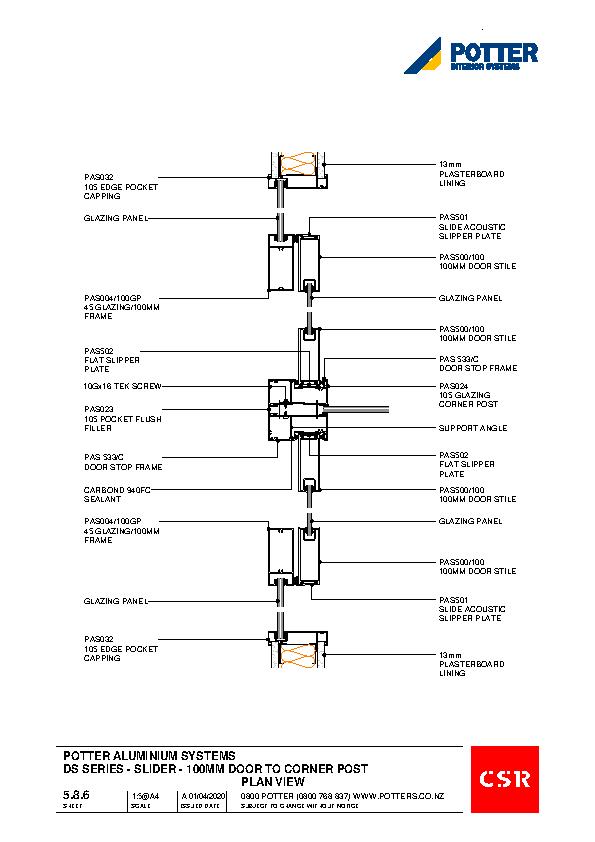

5.8.6 DS SERIES - SLIDER - 100MM DOOR TO CORNER POST

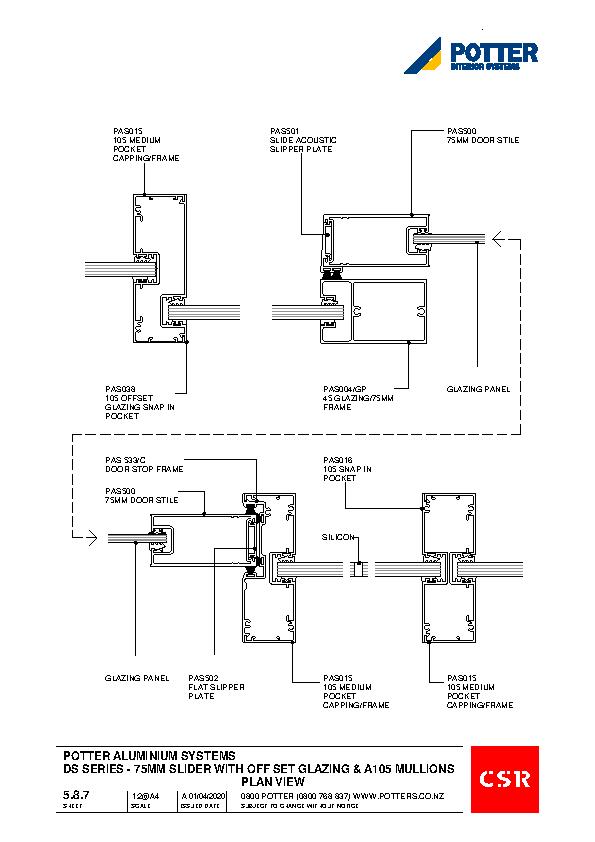

5.8.7 DS SERIES - 75MM SLIDER WITH OFF SET GLAZING & A105 MULLIONS
5.8.8 DS SERIES - 100MM AND 45MM MID RAILS

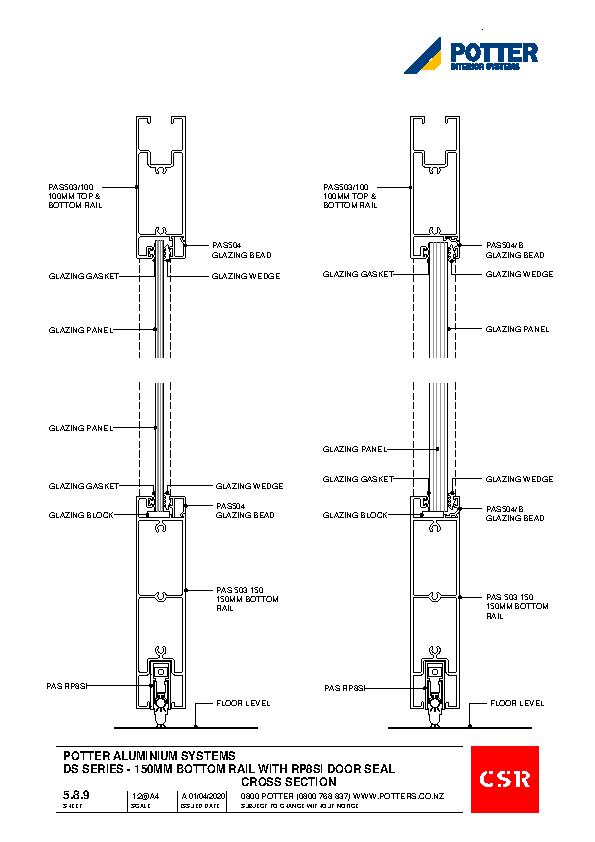

5.8.9 DS SERIES - 150MM BOTTOM RAIL WITH RP8SI DOOR SEAL

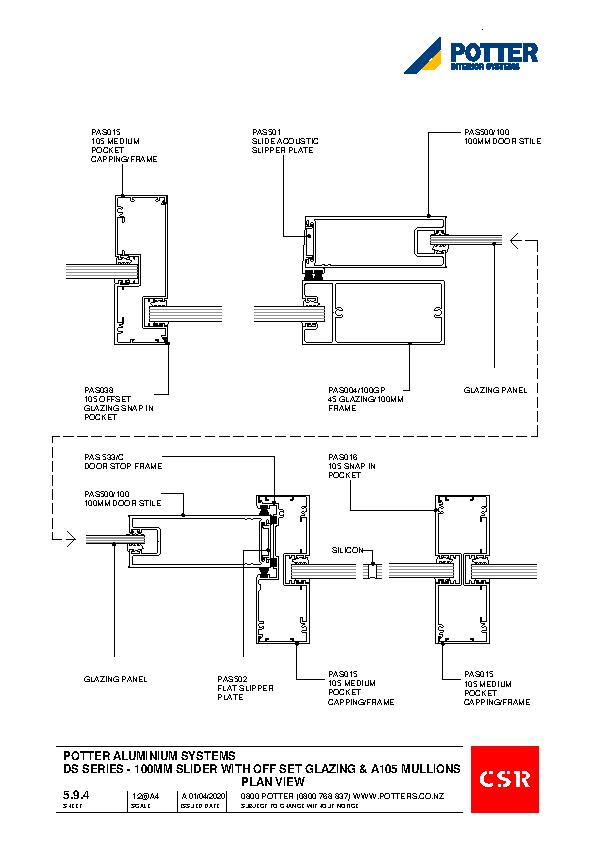

5.9.4 DS SERIES - 100MM SLIDER WITH OFF SET GLAZING & A105 MULLIONS

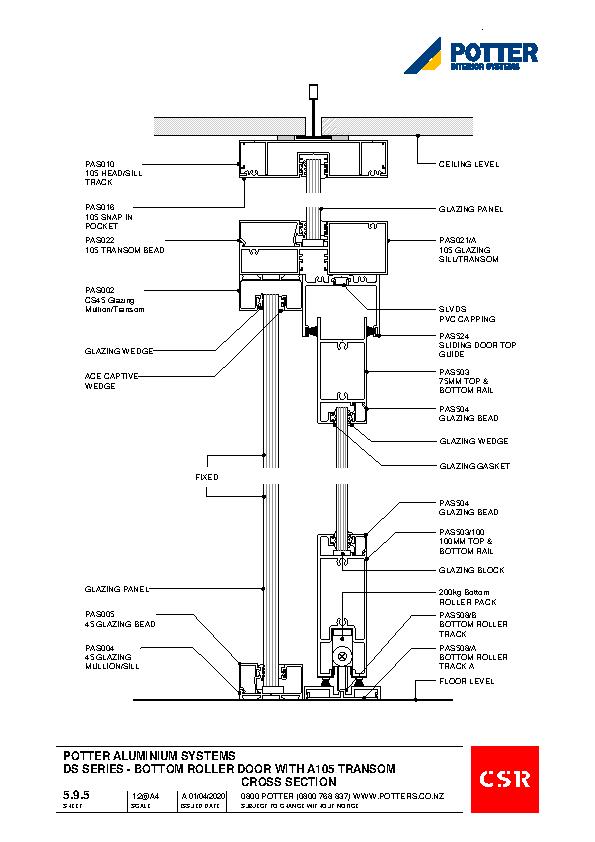

5.9.5 DS SERIES - BOTTOM ROLLER DOOR WITH A105 TRANSOM

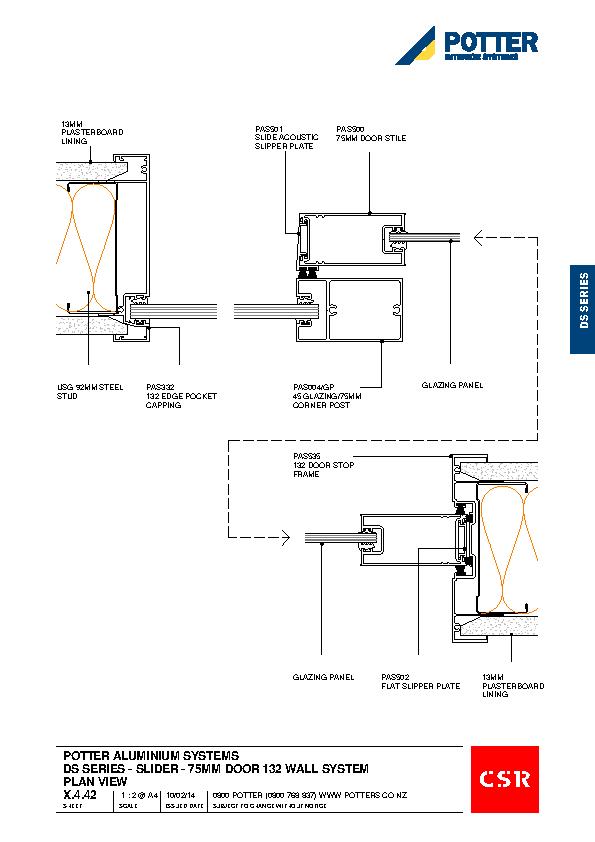

X.4.42 DS Series - Slider - 75mm Door 132 Wall System

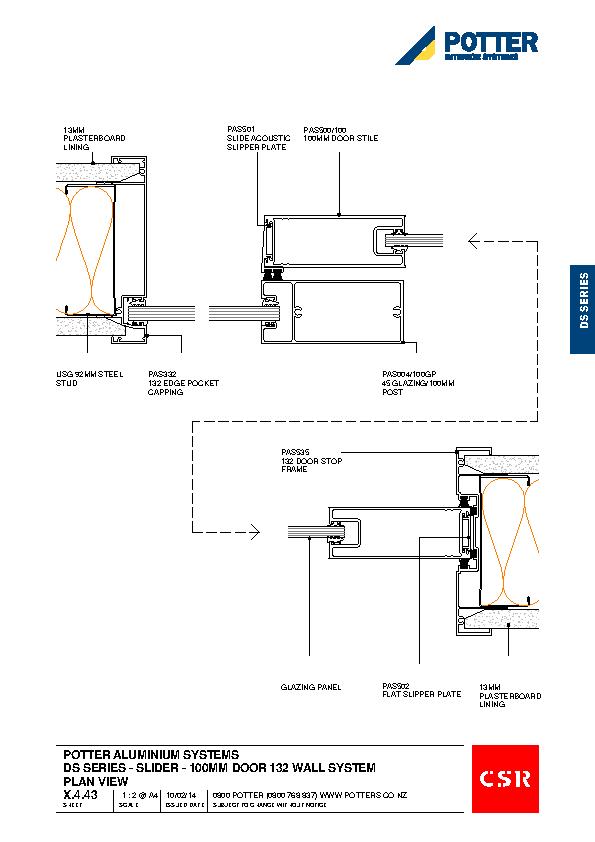

X.4.43 DS Series - Slider - 100mm Door 132 Wall System
