A Series 105 - Aluminium Partition System
Potter Interior Systems
All products

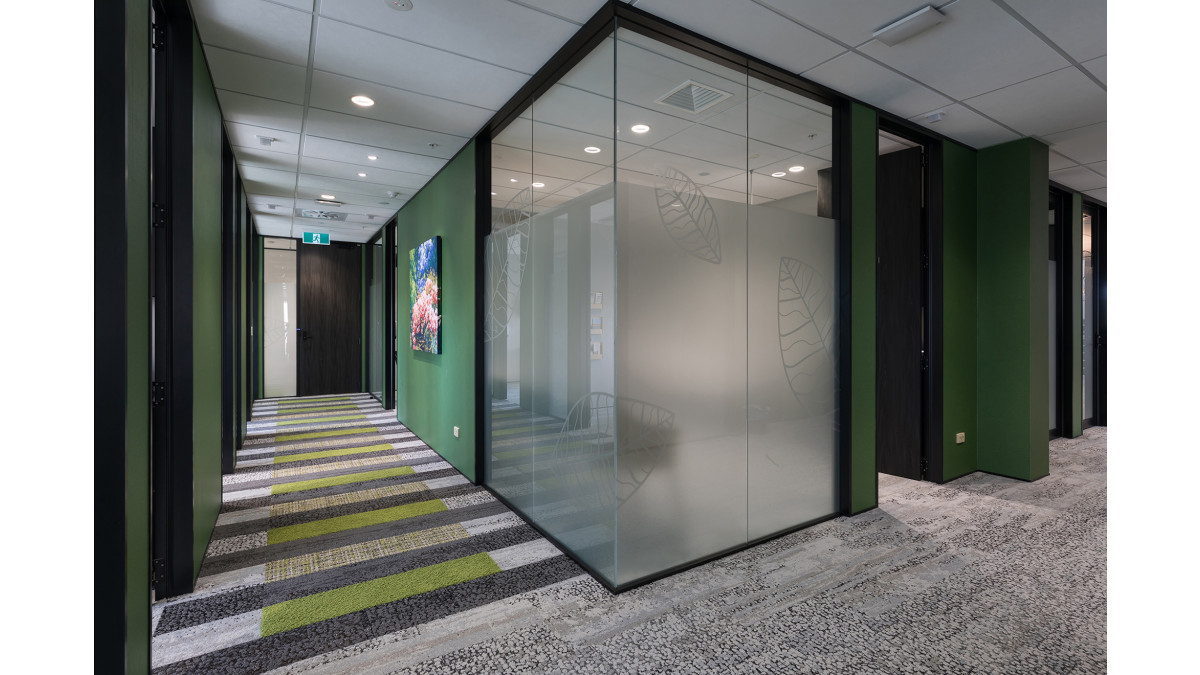

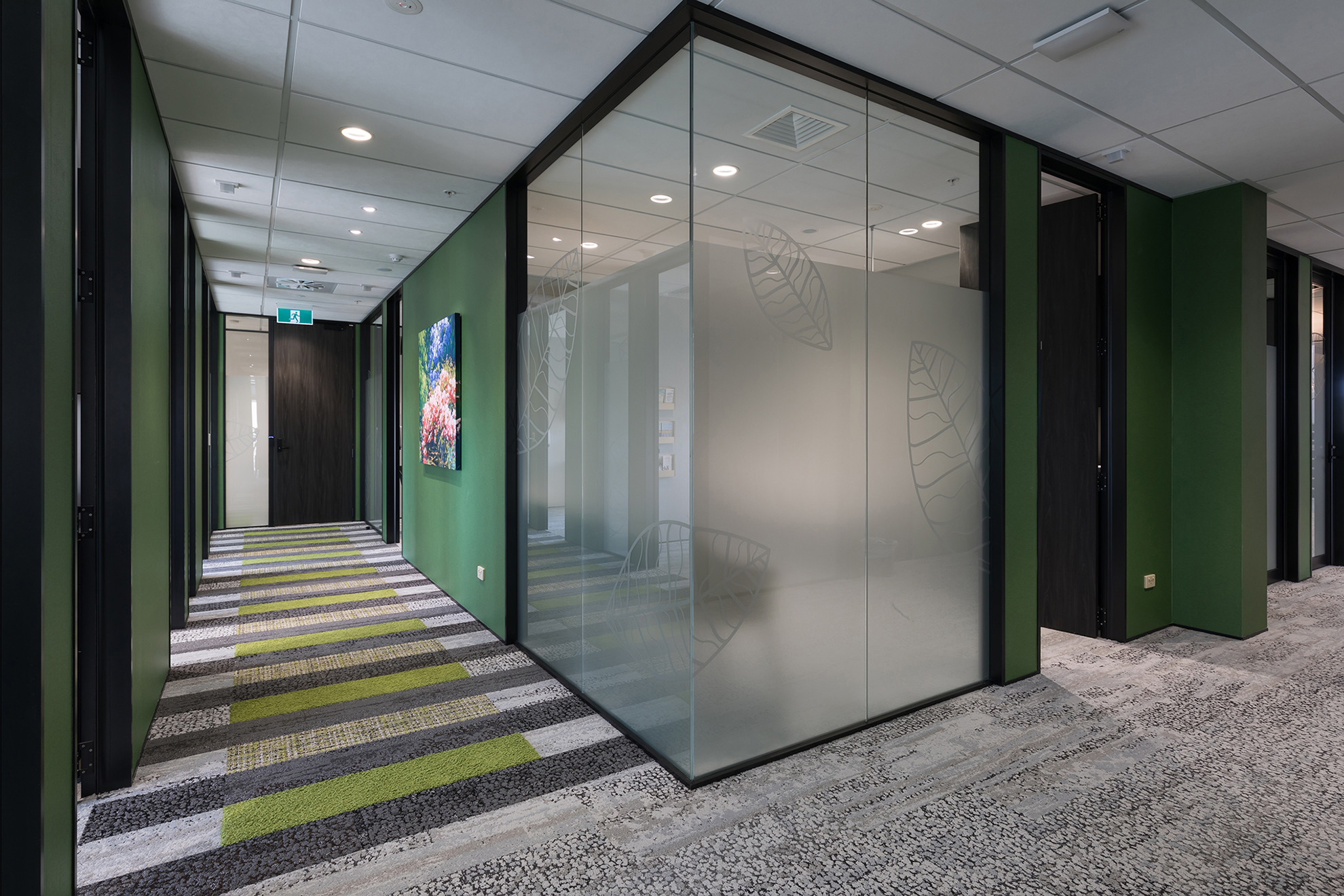

2A4A0262 22 eboss

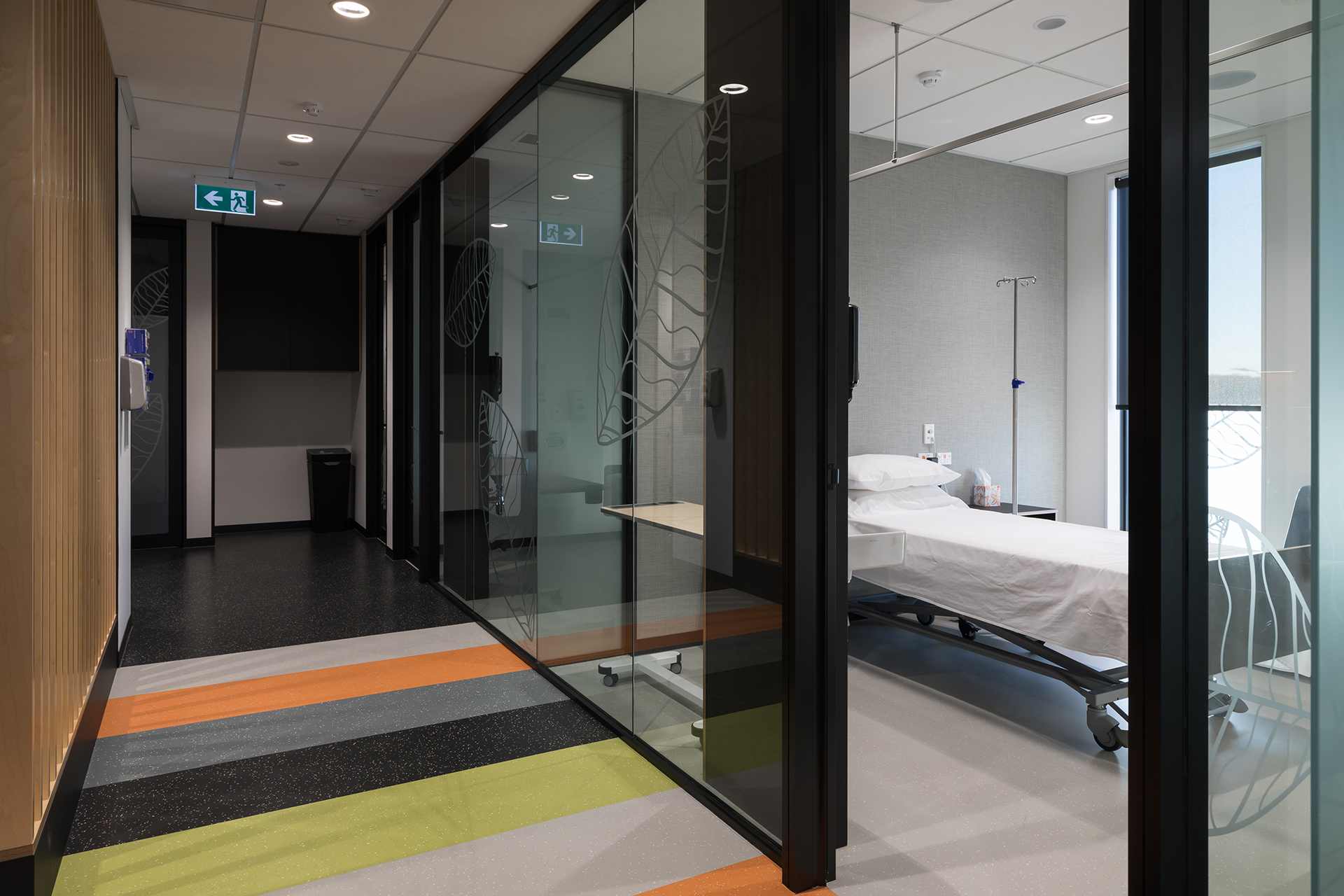

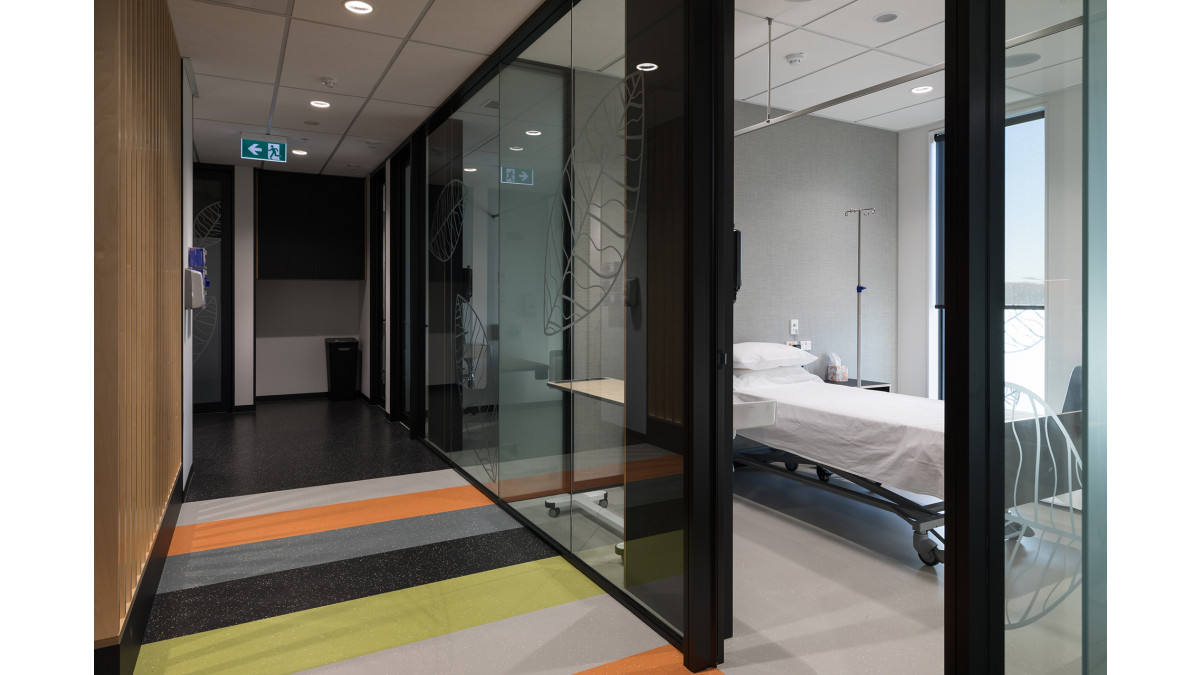

2A4A0311 44 eboss

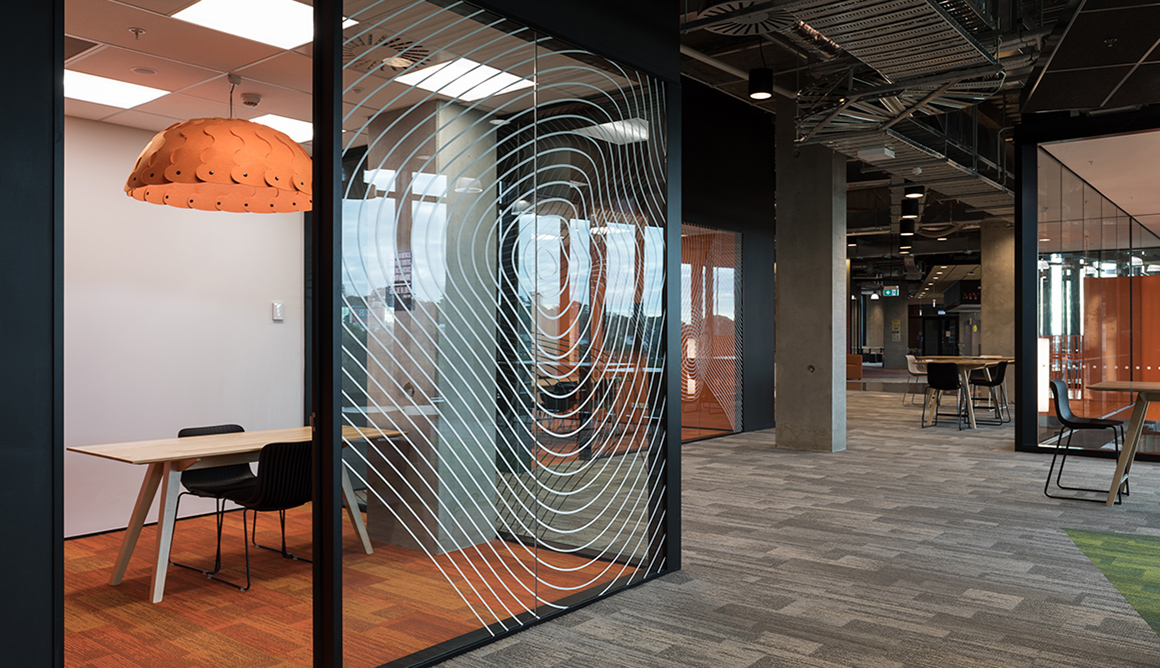

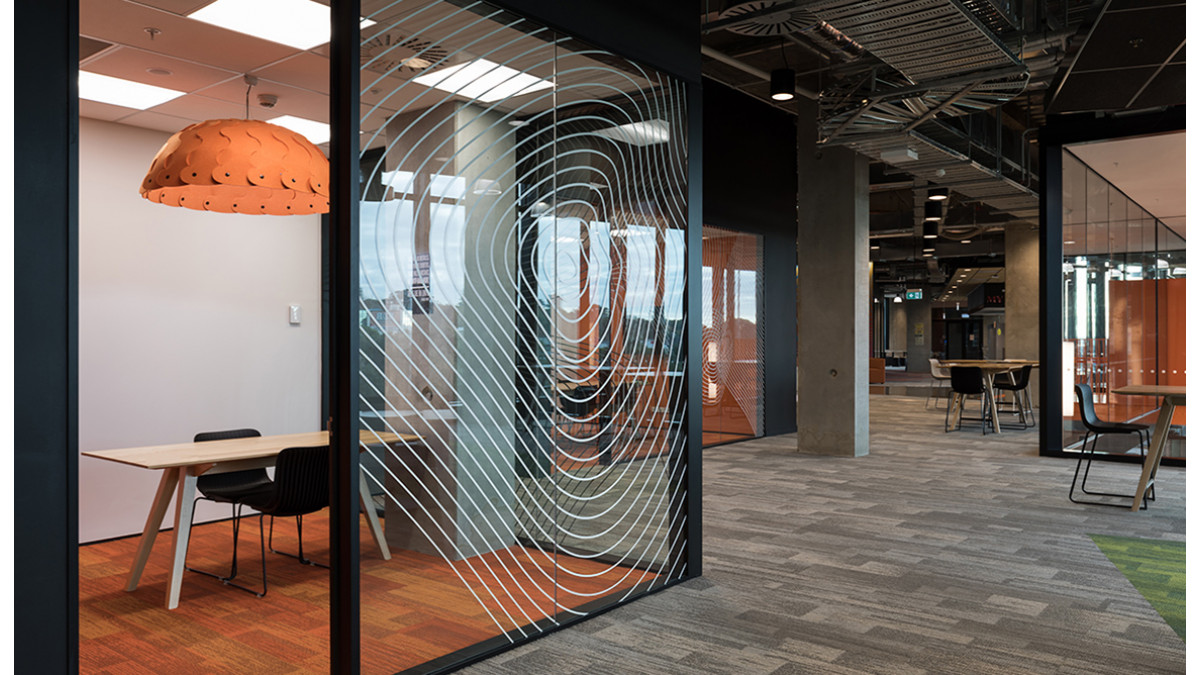

2A4A9470 16 eboss

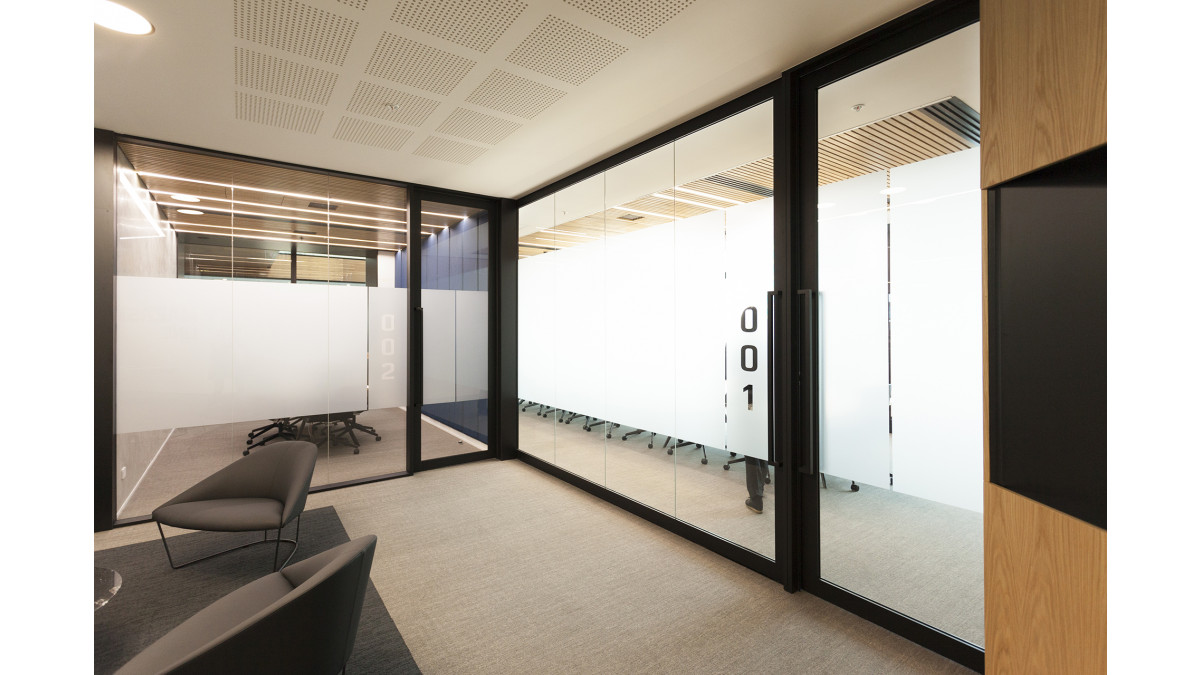

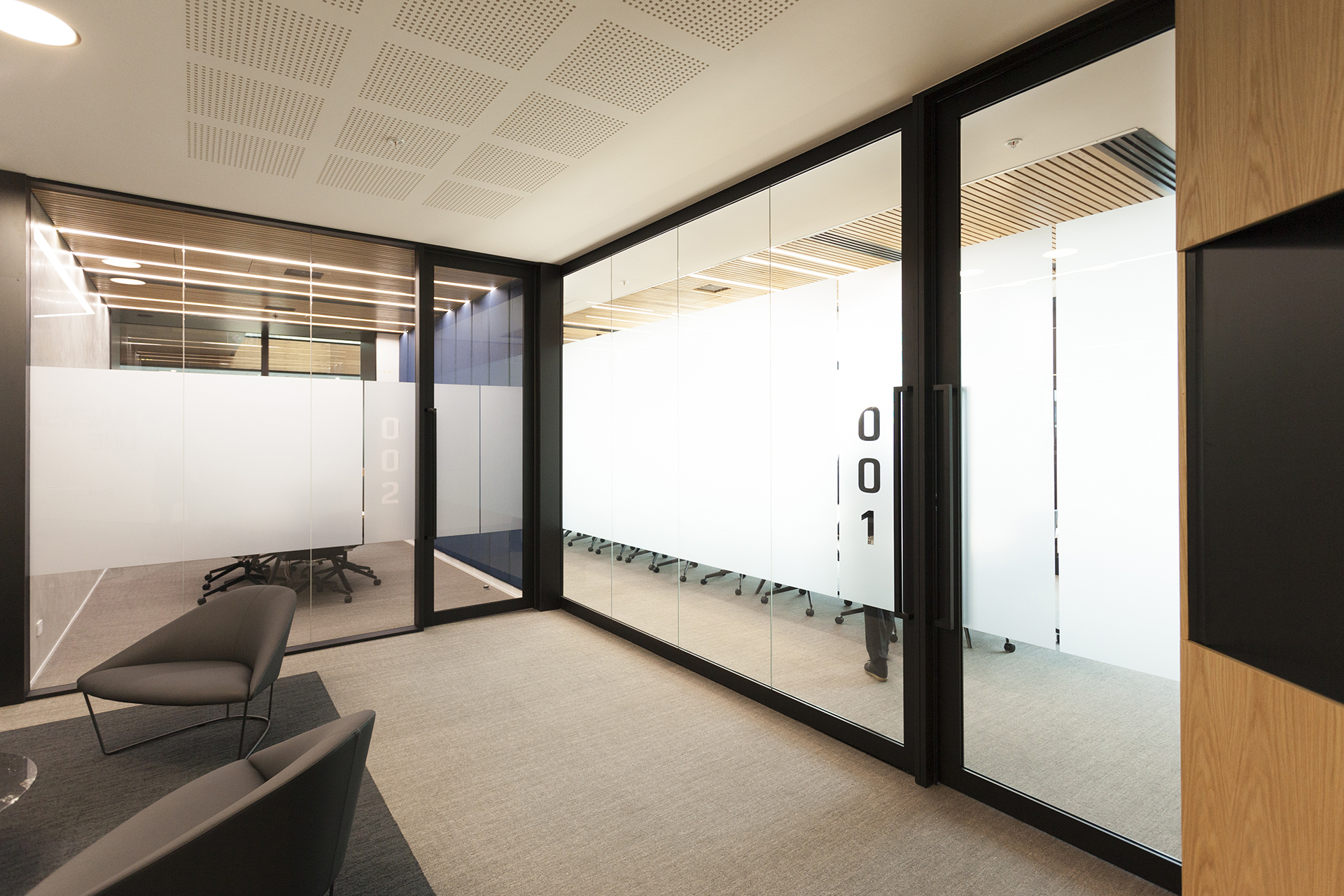

A104 1 ebos

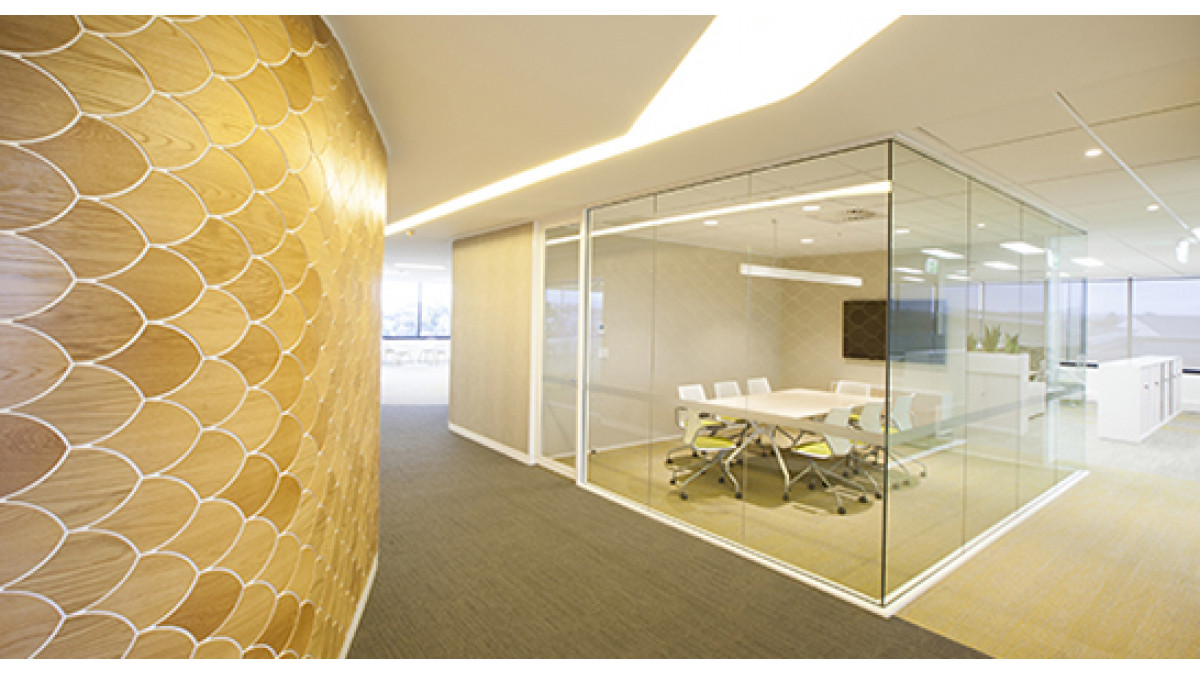

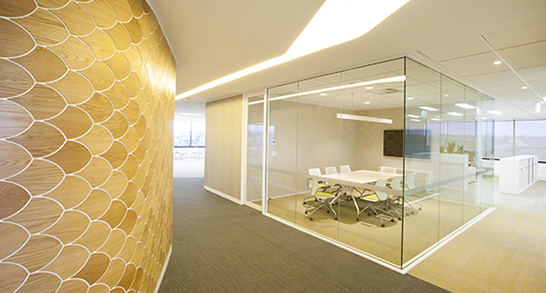

A Series 105 03

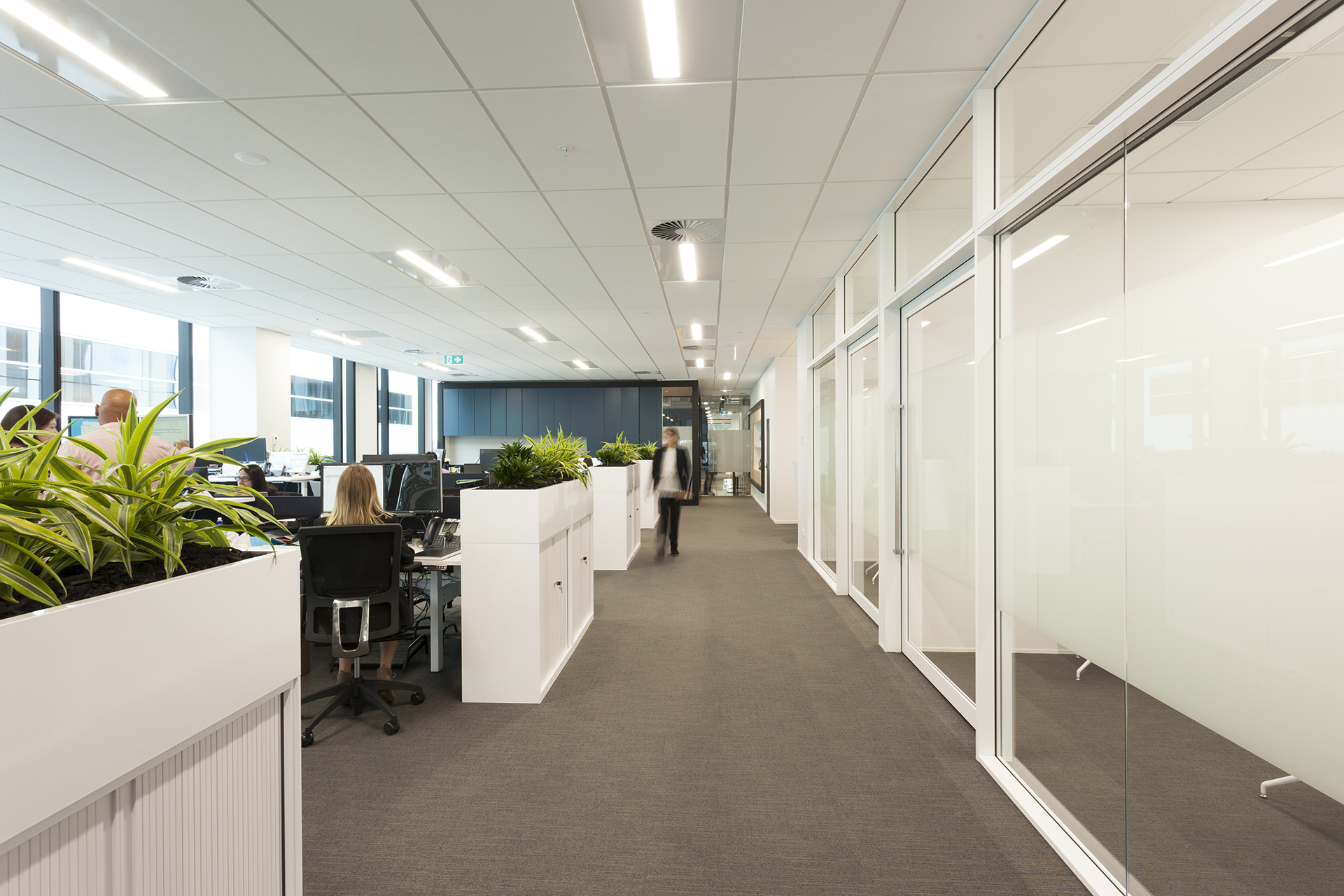

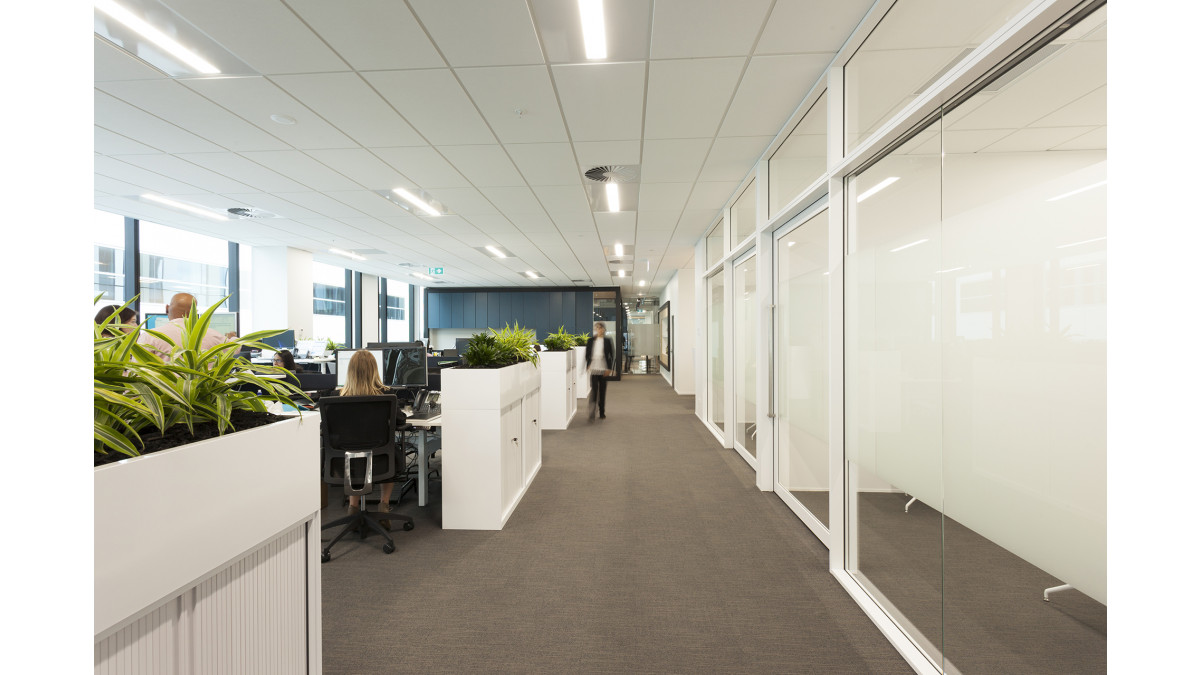

A104 2eboss
Declare Label Aluminium Partitions eboss2
Description

A Series 105 provides a complete aluminium partition system for plasterboard and glazing. Featuring central line glazing with numerous configurations and design options.

Key Features
  • Standard profile size of 105mm x 25mm, 105mm x 35mm, or 105mm x 50mm
  • Standard wall size based on 64mm steel stud with either a single or double layer of 13mm plaster board on each side
  • Can accommodate glass thicknesses between 6mm and 13mm
  • Door thicknesses between 35mm – 50mm can be used
  • Shadowline details optional
Categories
Partitions
Ranges
Aluminium Systems
Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made
Scope of Use

Complete aluminium partition system for plasterboard and glazing:

  • Standard wall size based on 64mm steel stud with either a single or double layer of 13mm plaster board on each side
  • Can accommodate glass thicknesses between 6mm and 13mm
  • Door thicknesses between 35mm – 50mm can be used
Statement of Building Code Compliance

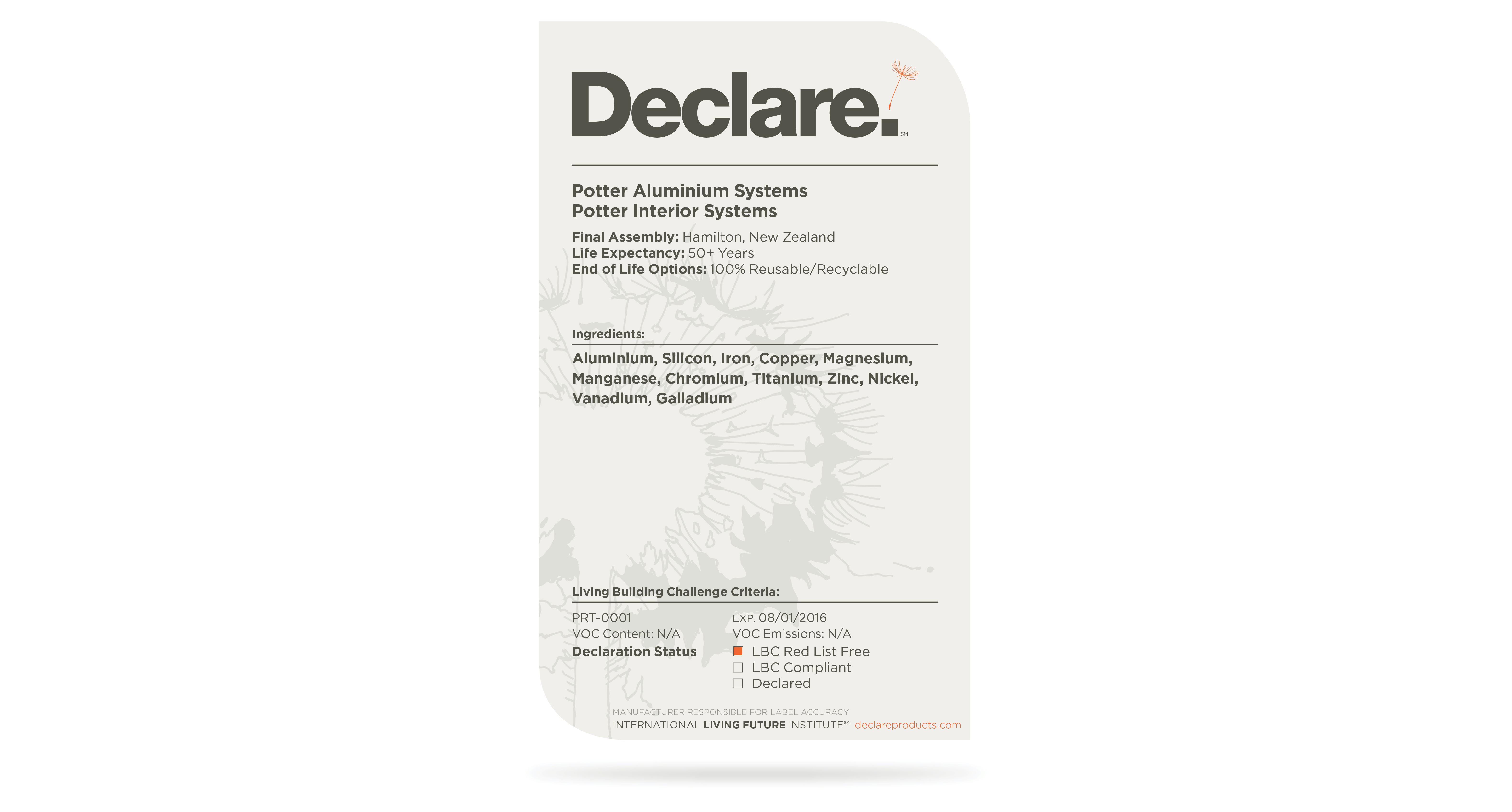

All aluminium partition suites carry the Declare label.
Final Assembly: New Zealand. Life Expectancy: 50+ years. End of of Life Options: 100% Reusable/Recyclable.

  • Case Studies
  • News
  • Technical Advice
Josh Hepi

Partition Bracing Simplified

The interior fit-out landscape is ever changing — there are new developments, and recent changes have seen that it is no longer acceptable to install internal partitions and sliding door systems that are directly fixed to grid and tile suspended ceilings without bracing.
Documents
Declare Accreditation
pdf
Specification Clause (Masterspec)
pdf
CAD/PDF Details
View full

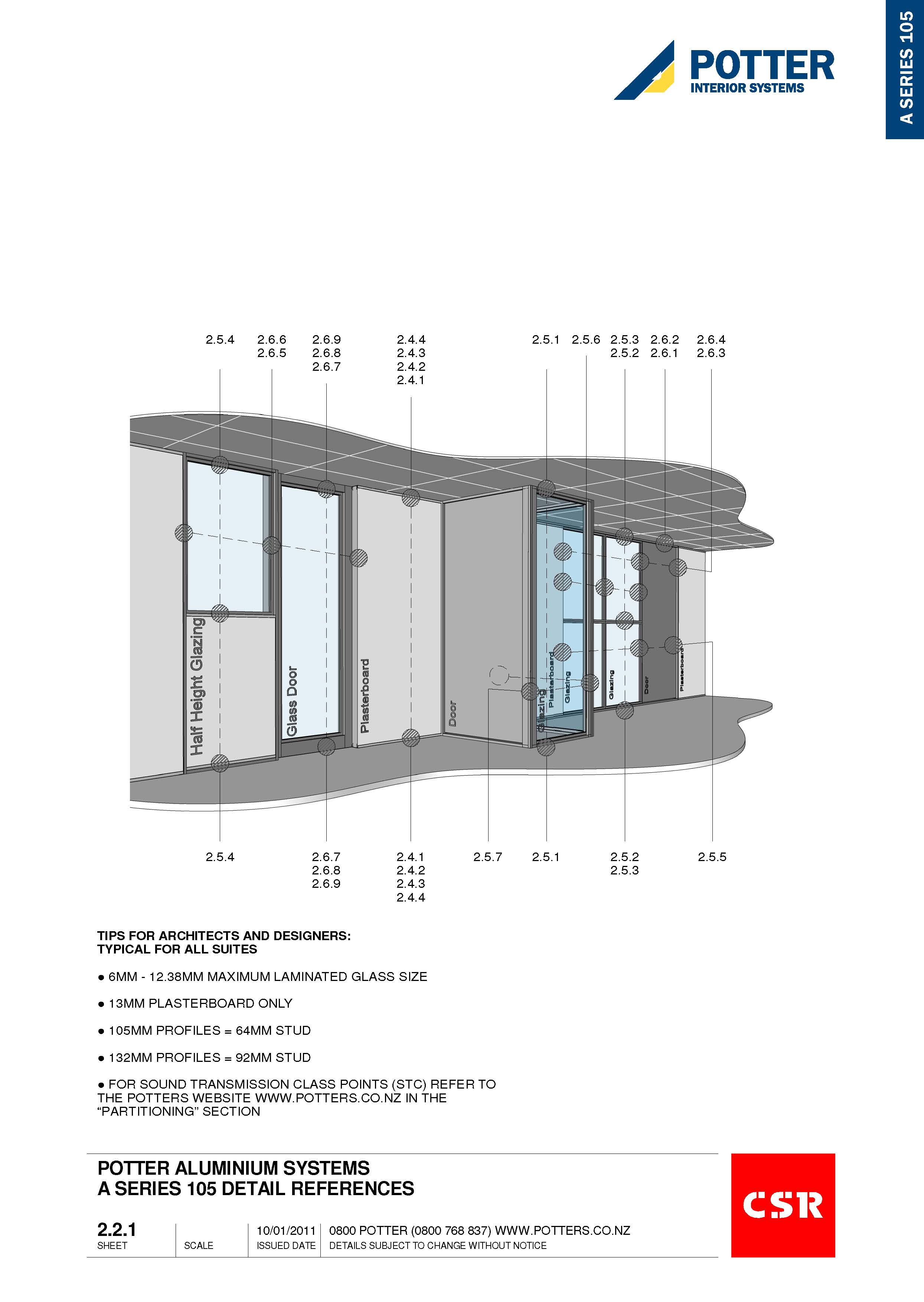

2.2.1 A Series 105 Detail References
2.2.1 Detail References
dwg
dxf
pdf

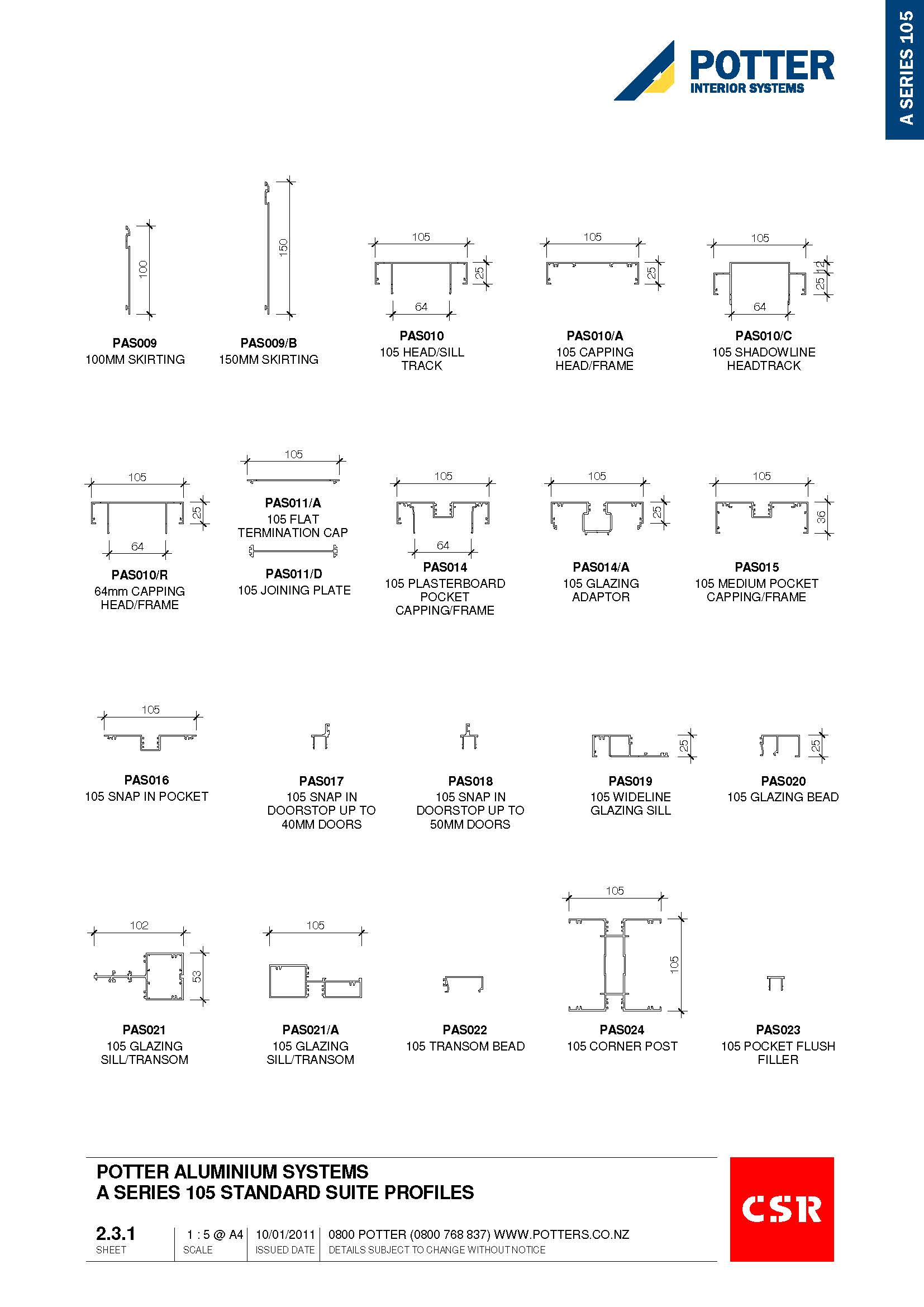

A Series 105 Standard Suite Profiles
2.3.1 Standard Suite Profiles
dwg
dxf
pdf
pdf

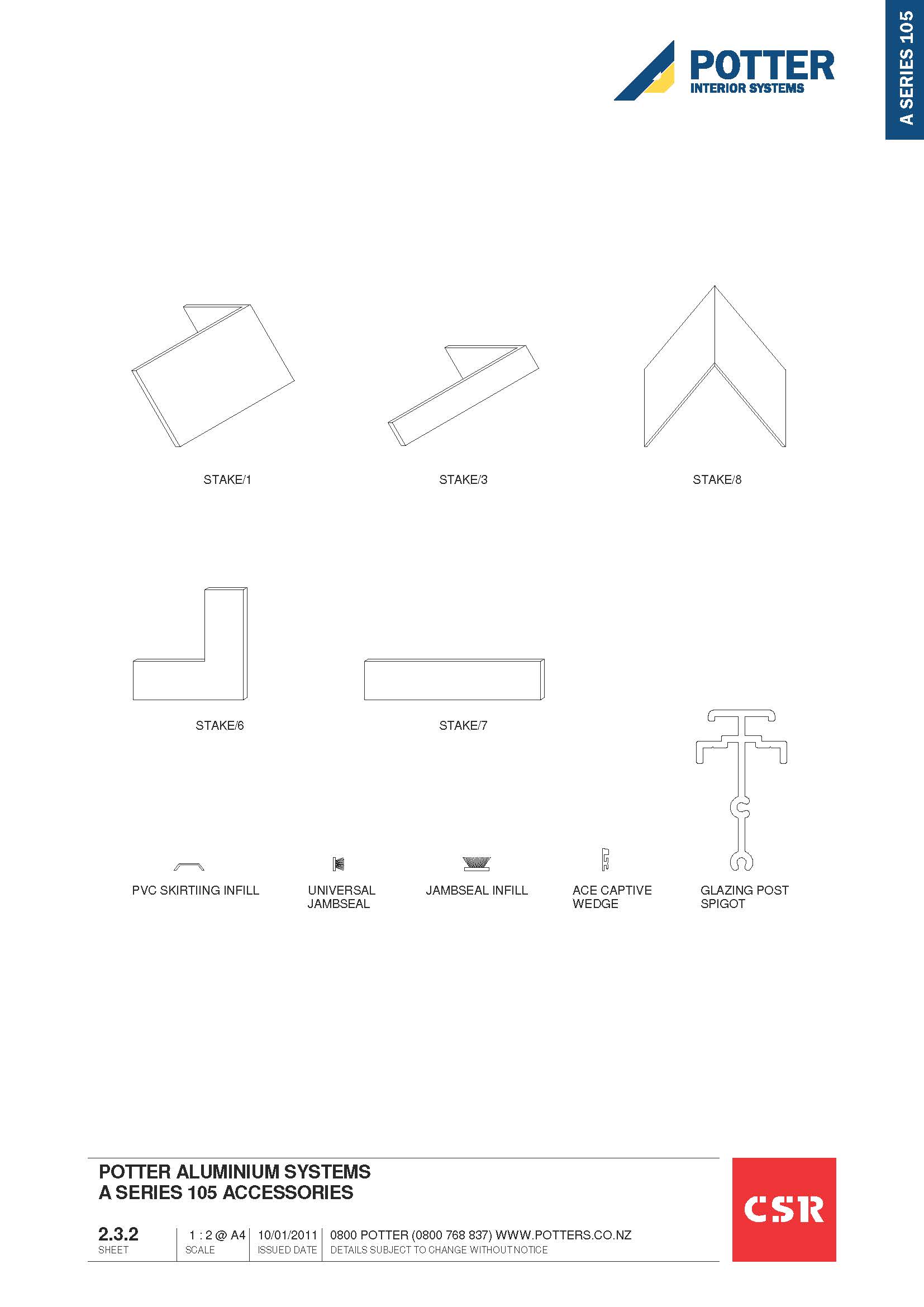

A Series 105 Accessories
2.3.2 Accessories
dwg
dxf
pdf
pdf

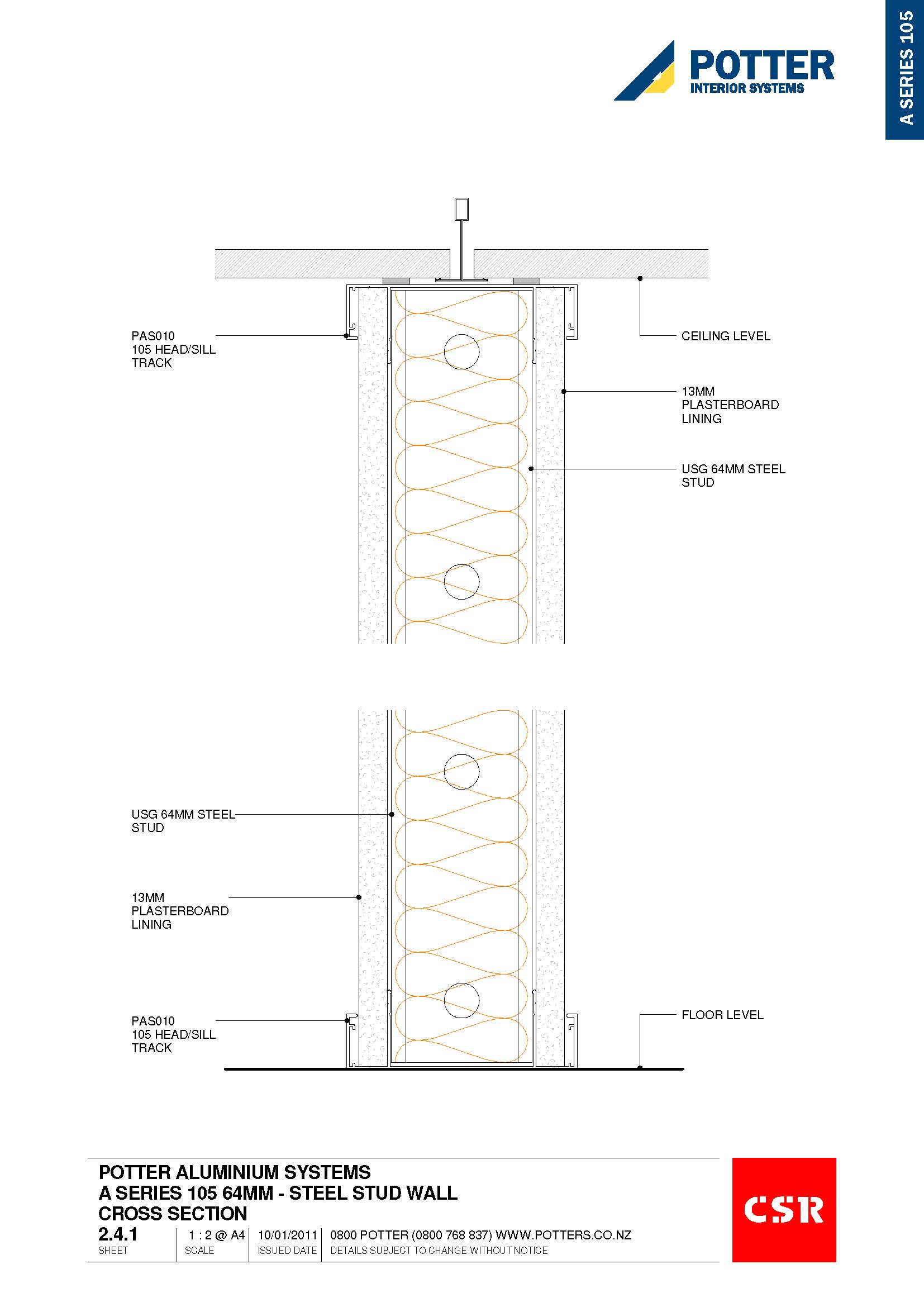

2.4.1 A Series 105 64mm Steel Stud Wall Cross Section
2.4.1 64mm Steel Stud Wall Cross Section
dwg
dxf
pdf
pdf

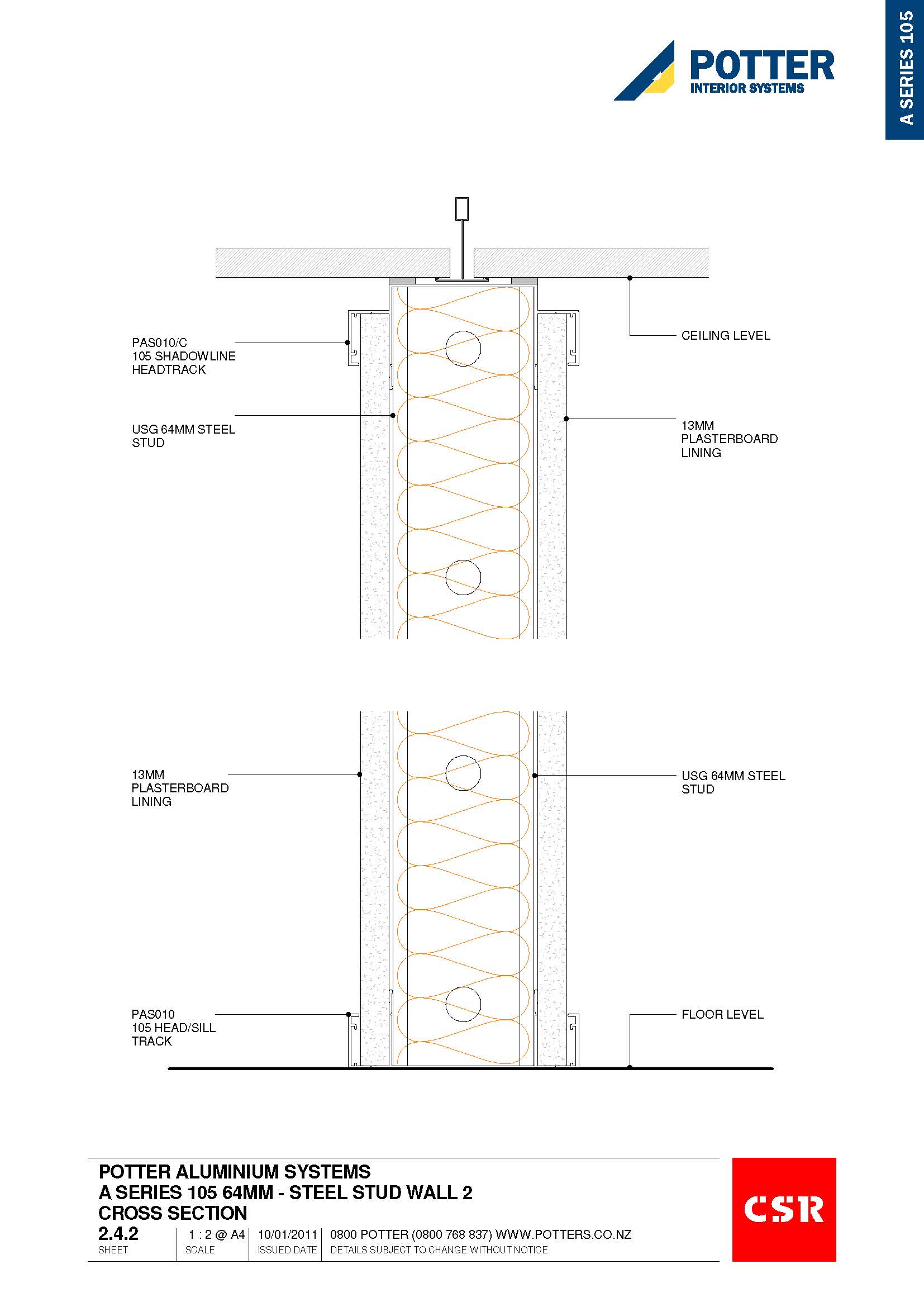

2.4.2 A Series 105 64mm Steel Stud Wall 2 Cross Section
2.4.2 64mm Steel Stud Wall 2 Cross Section
dwg
dxf
pdf
pdf

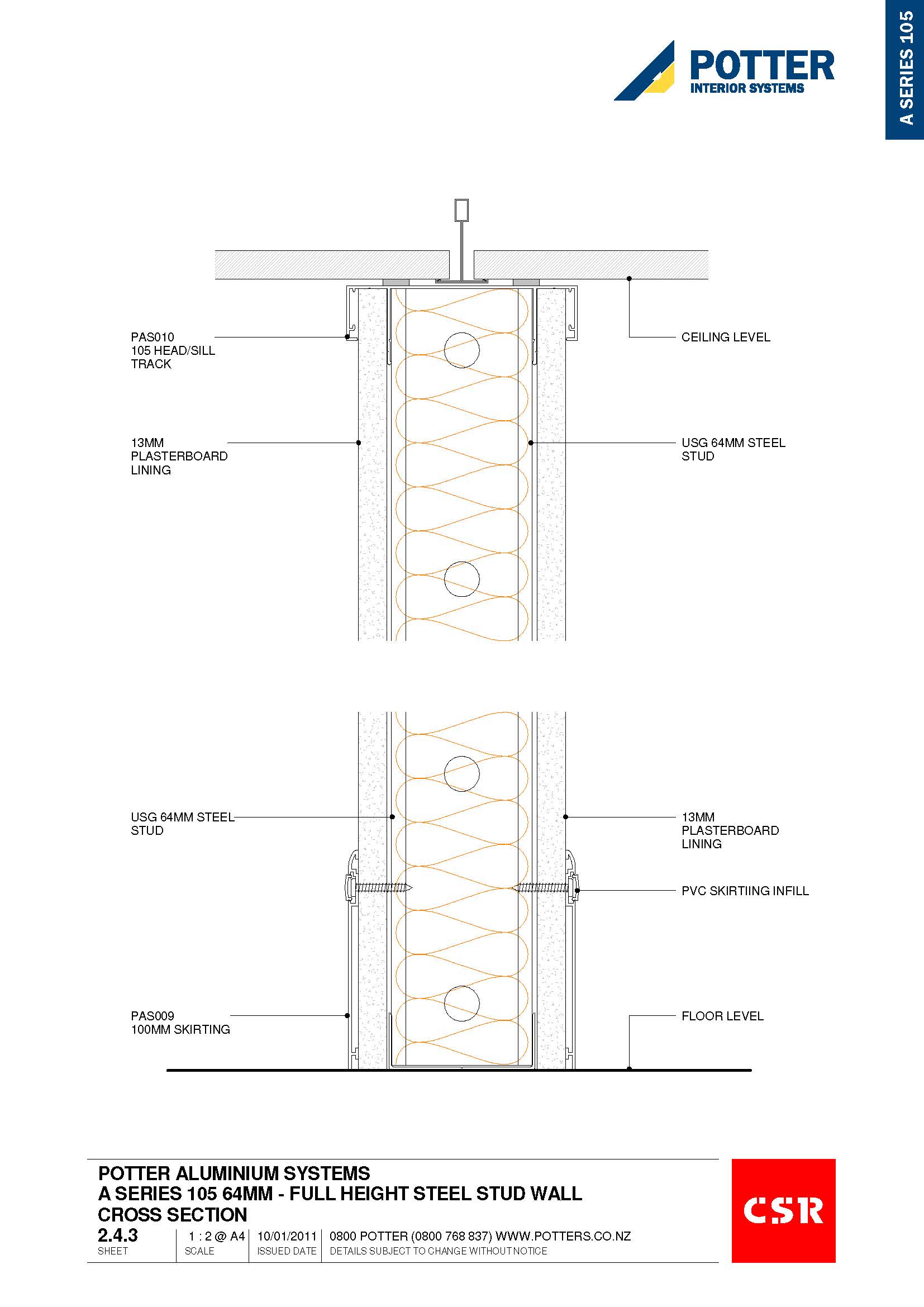

2.4.3 A Series 105 64mm Full Height Steel Stud Wall
2.4.3 64mm Full Height Steel Stud Wall
dwg
dxf
pdf
pdf

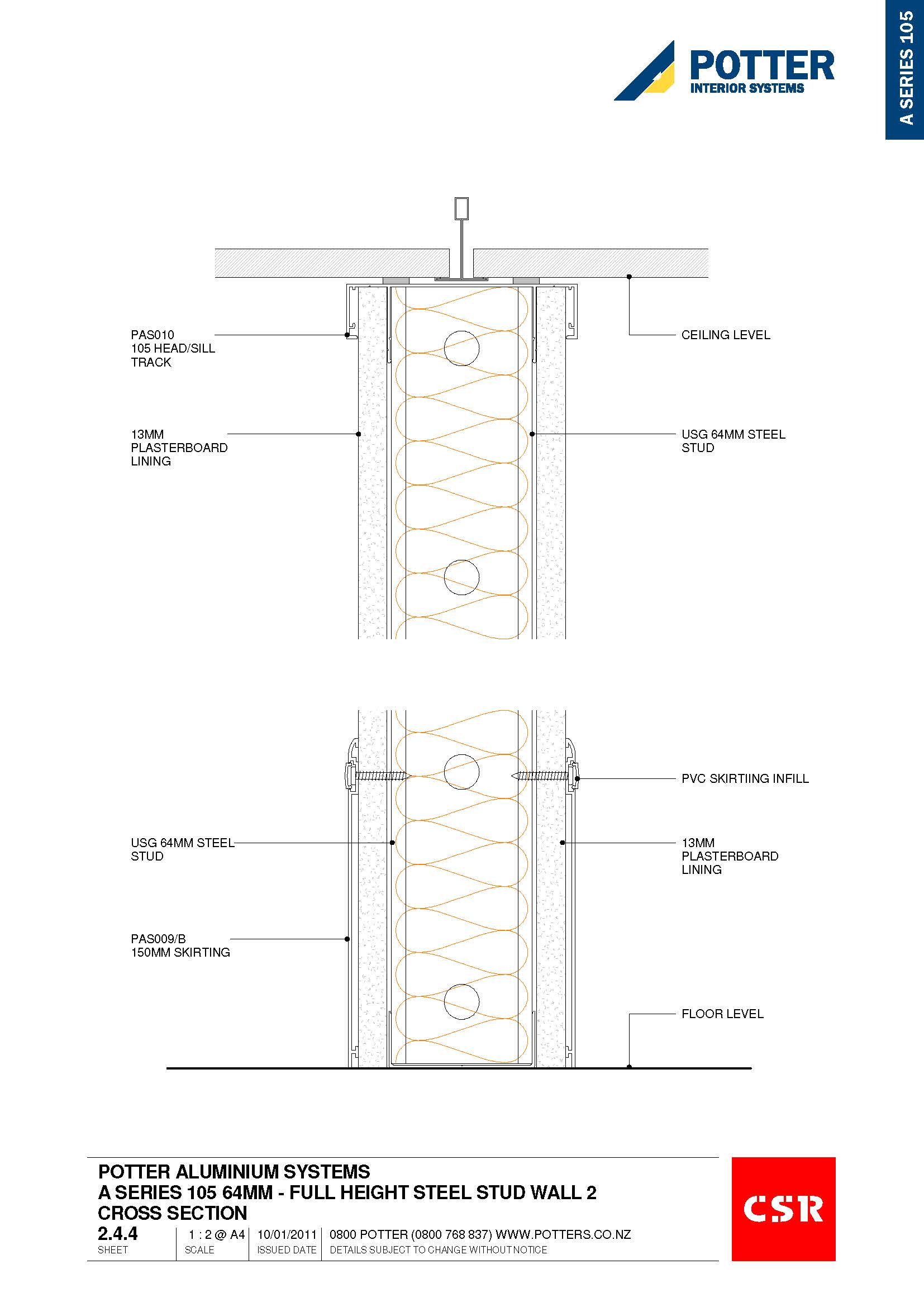

2.4.4 A Series 105 64mm Full Height Steel Stud Wall 2
2.4.4 64mm Full Height Steel Stud Wall 2
dwg
dxf
pdf
pdf

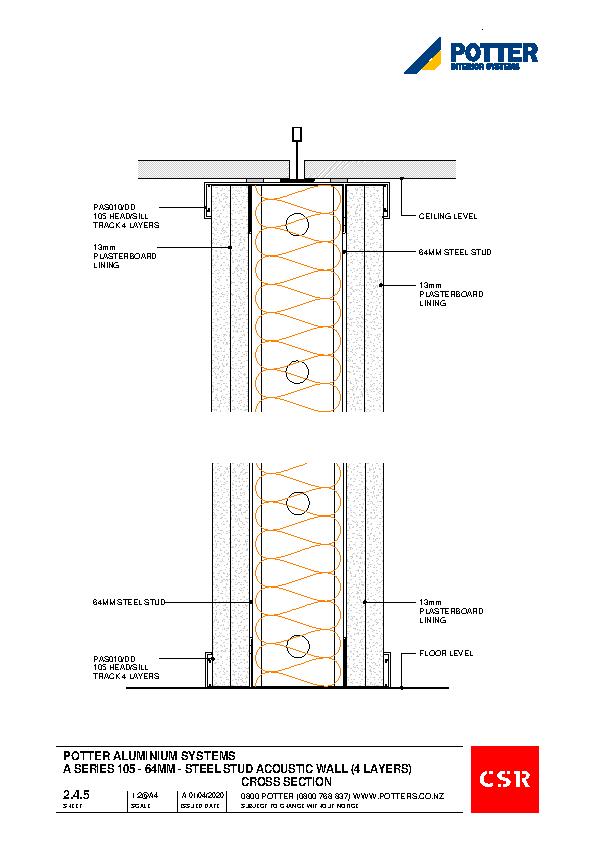

2.4.5 A Series 105 – 64mm Stud Acoustic Wall 4 Layers (51 KB)
dwg
dxf
pdf

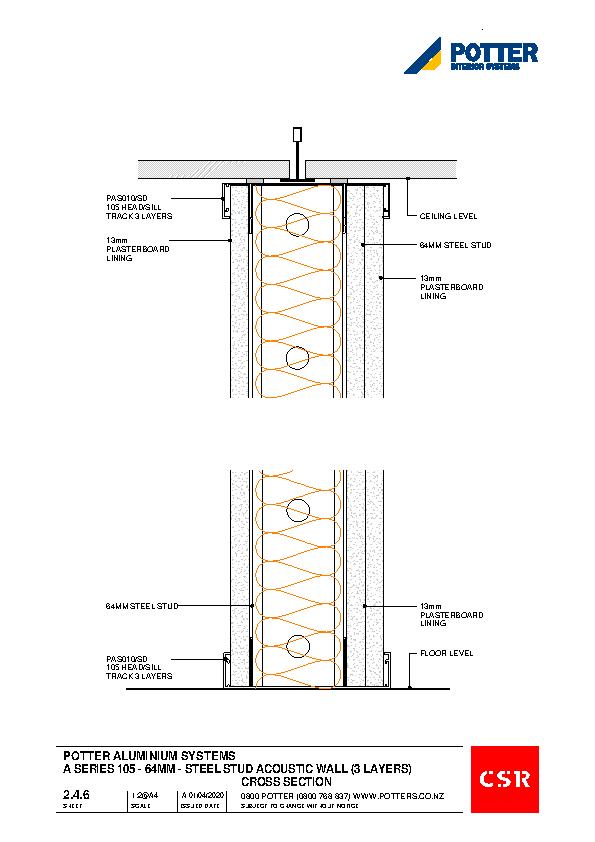

2.4.6 A Series 105 – 64mm Steel Stud Acoustic Wall 3 Layers
dwg
pdf

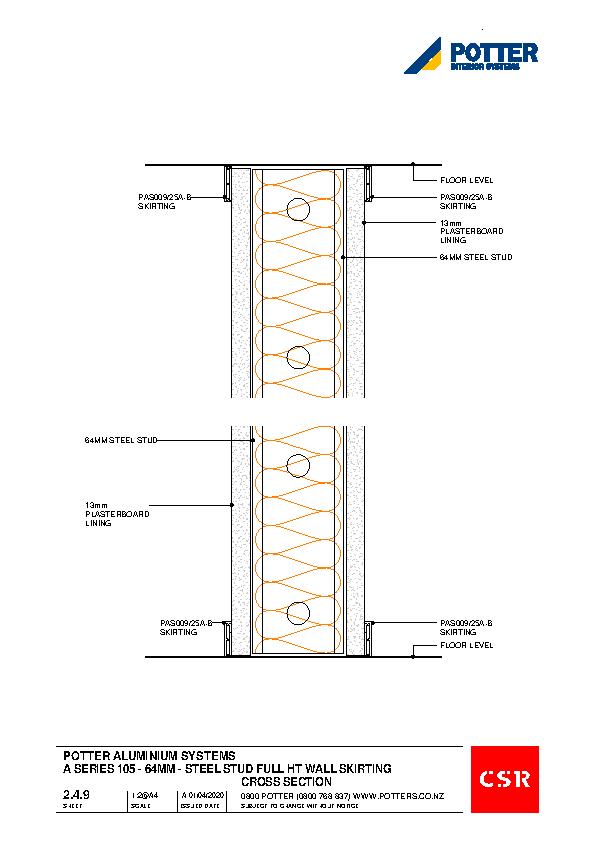

2.4.9 A SERIES 105 - 64MM - STEEL STUD FULL HT WALL SKIRTING
dwg
dxf
pdf

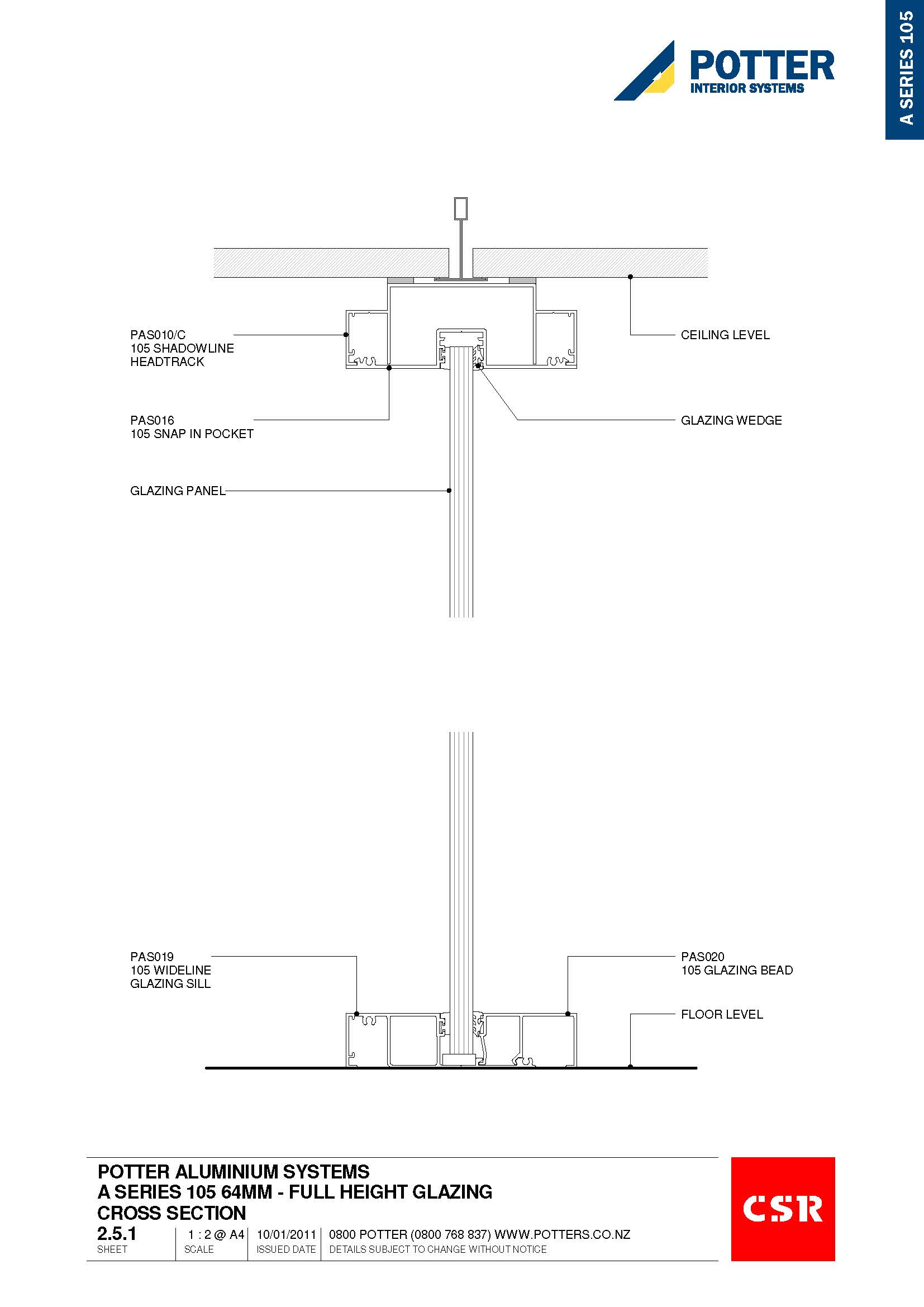

2.5.1 A Series 105 64mm Full Height Glazing
2.5.1 64mm Full Height Glazing
dwg
dxf
pdf
pdf

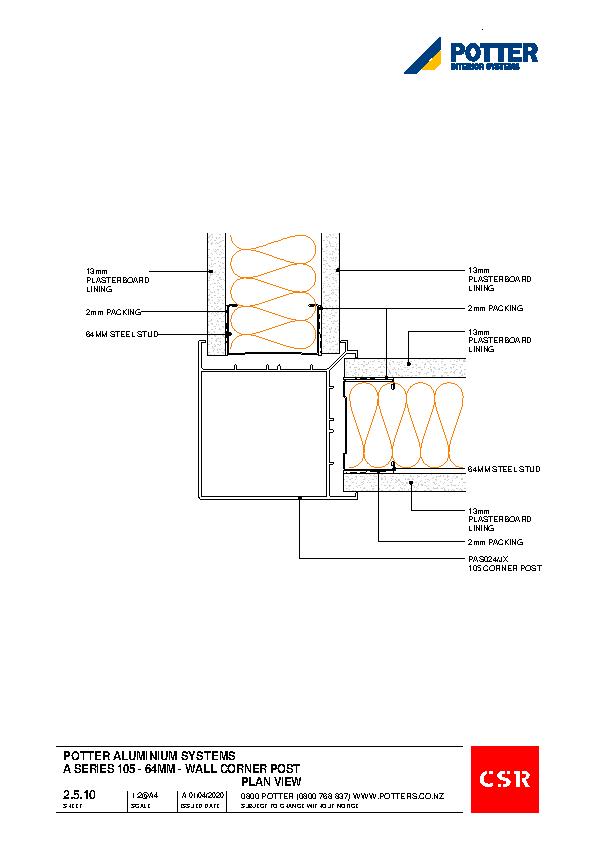

2.5.10 A Series 105 – 64mm Wall Corner Post
dwg
dxf
pdf
pdf

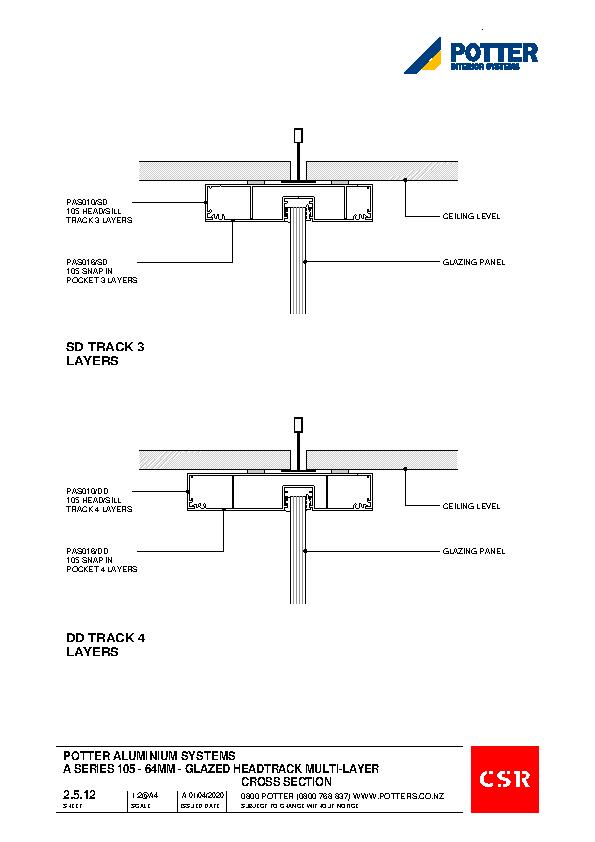

2.5.12 A Series 105 – 64mm Glazed Headtrack Multi Layer
dwg
dxf
pdf
pdf

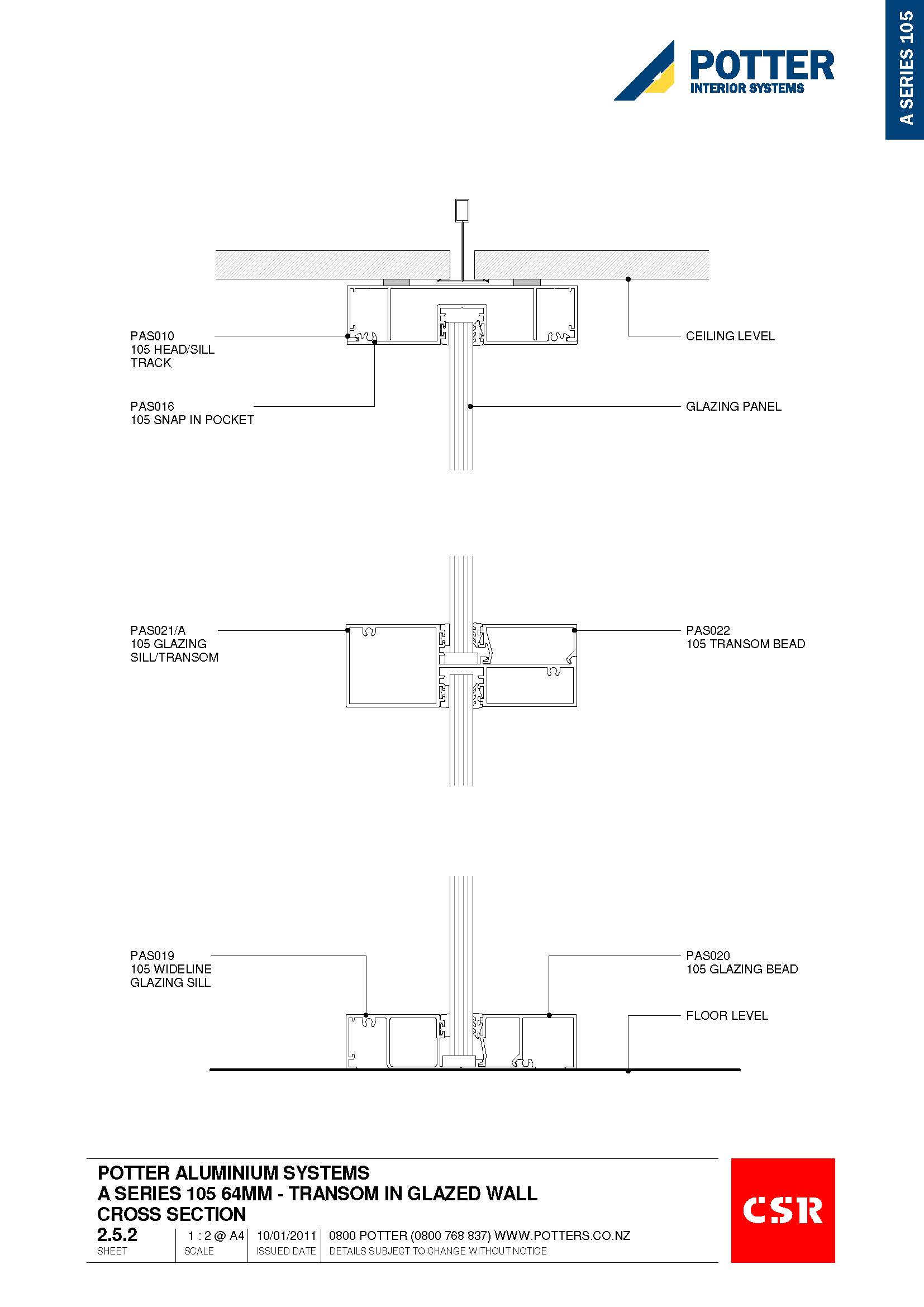

2.5.2 A Series 105 64mm Transom In Glazed Wall
2.5.2 64mm Transom In Glazed Wall
dwg
dxf
pdf
pdf
2.5.3 A Series 105 64mm Optional Transom In Glazed Wall
2.5.3 64mm Optional Transom In Glazed Wall
dwf
dwg
DXF
pdf

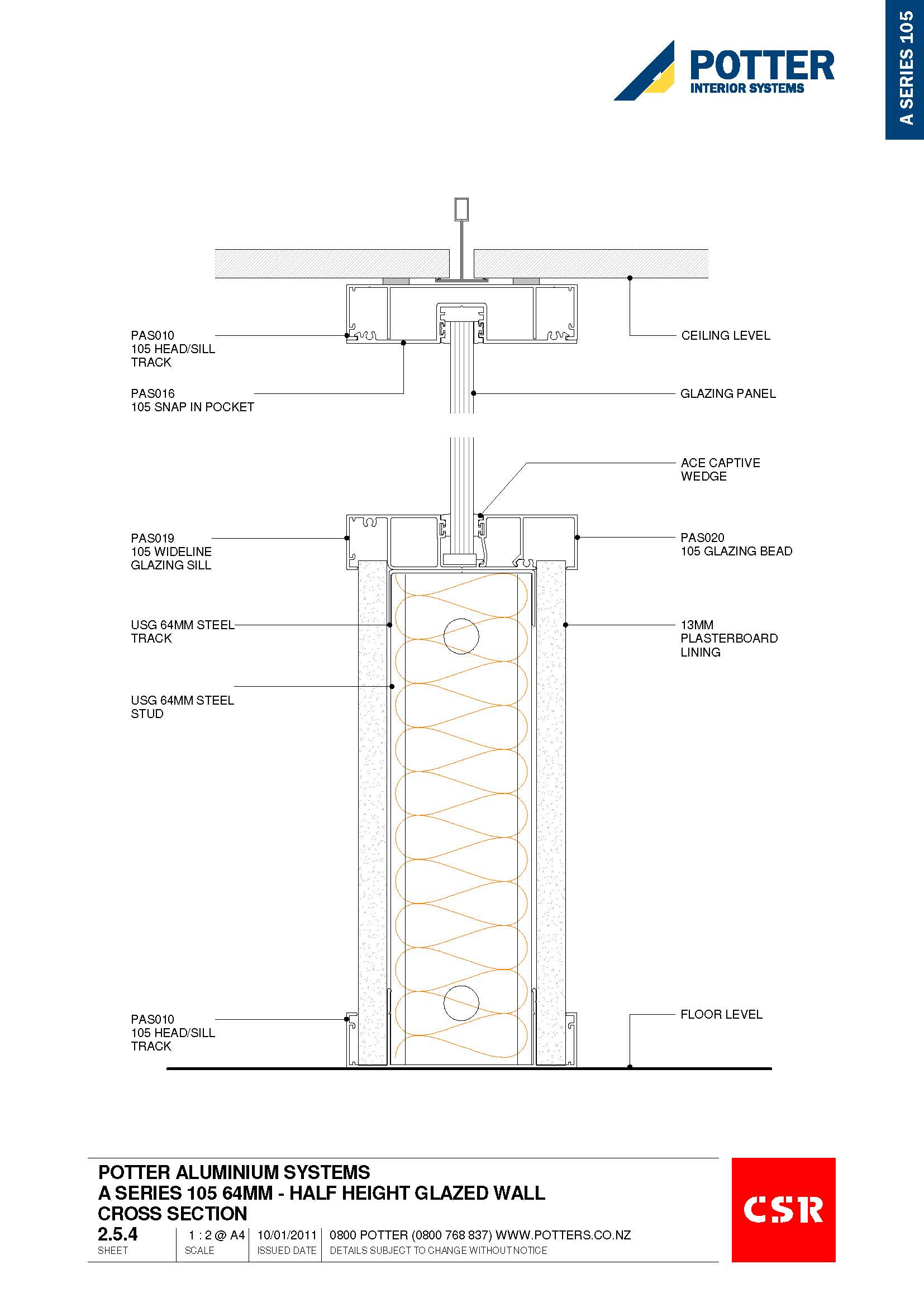

2.5.4 A Series 105 2.5.4 64mm Half Height Glazed Wall
2.5.4 64mm Half Height Glazed Wall
dwg
dxf
pdf

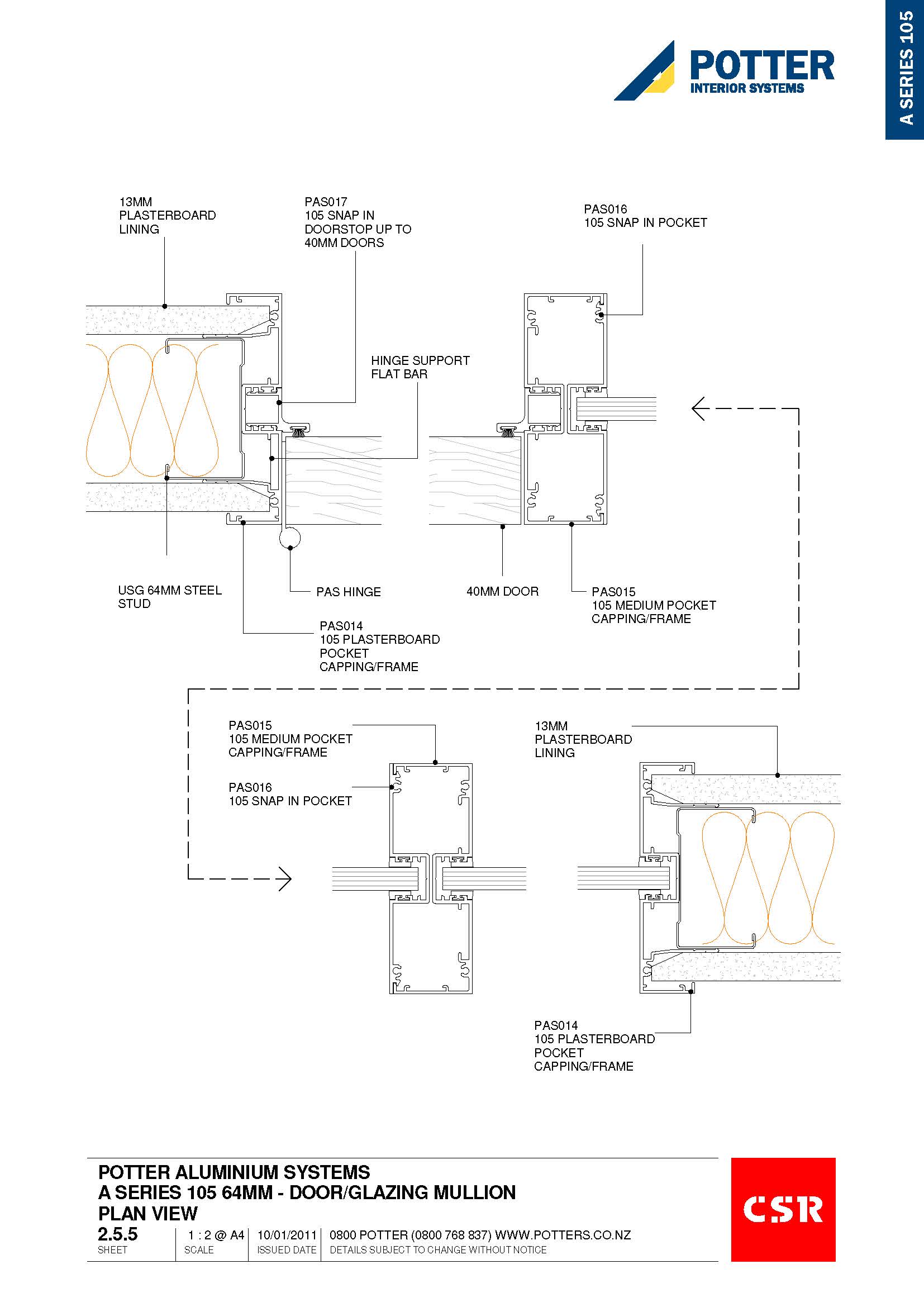

2.5.5 A Series 105 64mm Door Glazing Mullio
2.5.5 64mm Door-Glazing Mullion
dwg
dxf
pdf
pdf

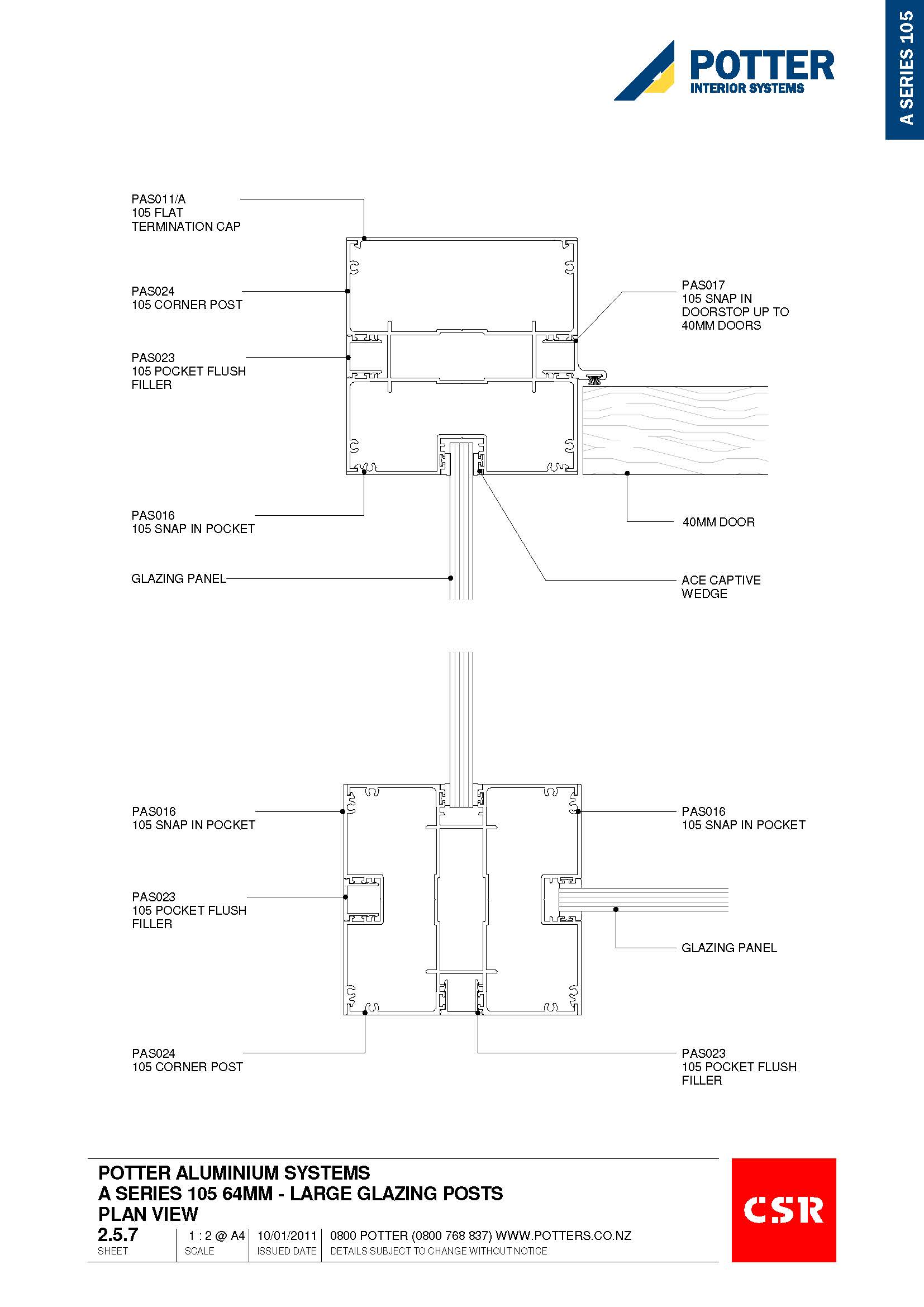

2.5.7 A Series 105 64mm Large Glazing Posts
2.5.7 64mm Large Glazing Posts
dwg
dxf
pdf
pdf

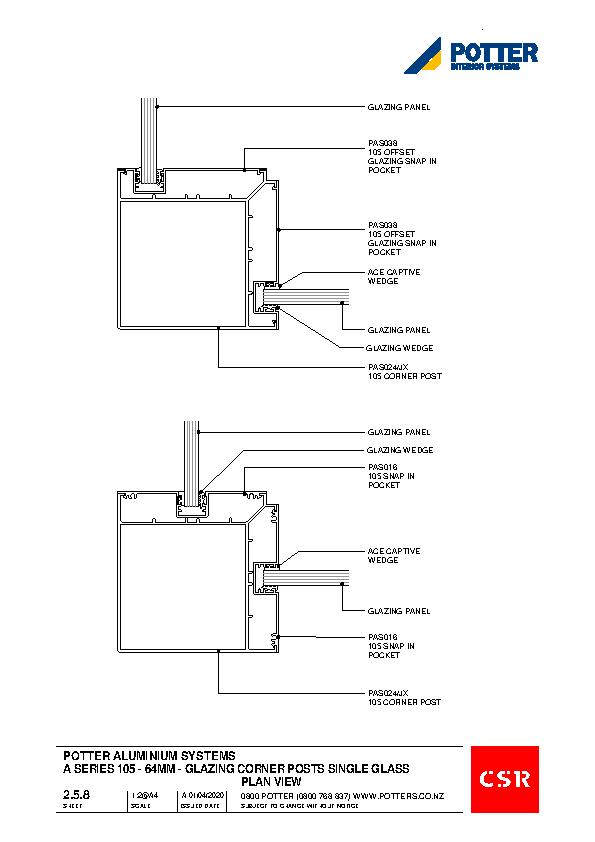

2.5.8 A Series 105 – 64mm Glazing Corner Posts Single
dwg
dxf
pdf
pdf

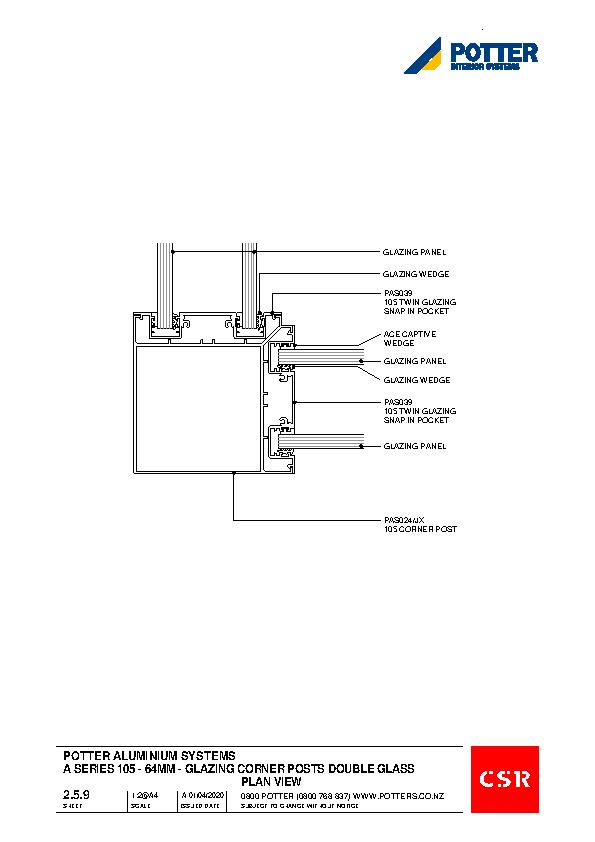

2.5.9 A Series 105 – 64mm Glazing Corner Posts Double
dwg
dxf
pdf
pdf
2.6.1 A Series 105 64mm 40mm Door Headtrack Details
2.6.1 64mm 40mm Door Headtrack Details
dwg
dxf
pdf
pdf

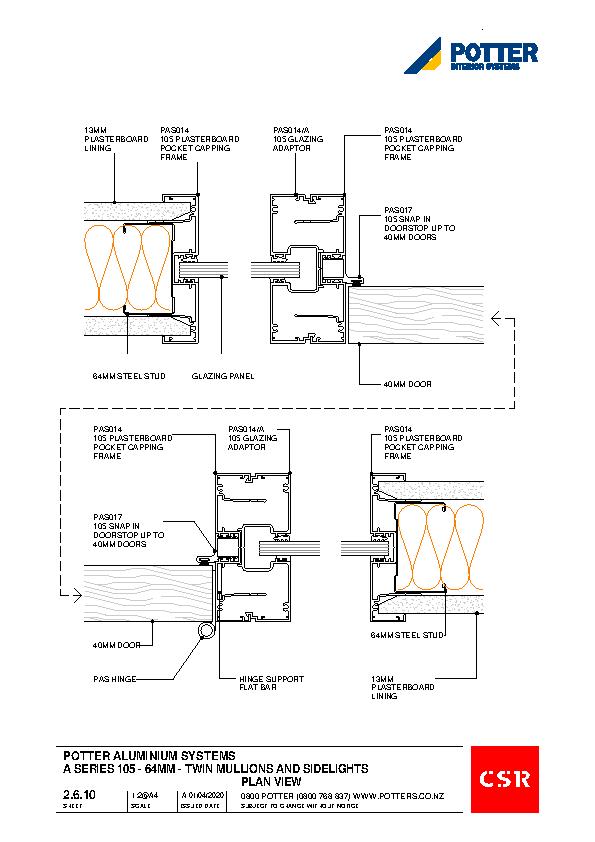

2.6.10 A Series 105 – 64mm Twin Mullions + Sidelights
dwg
dxf
pdf

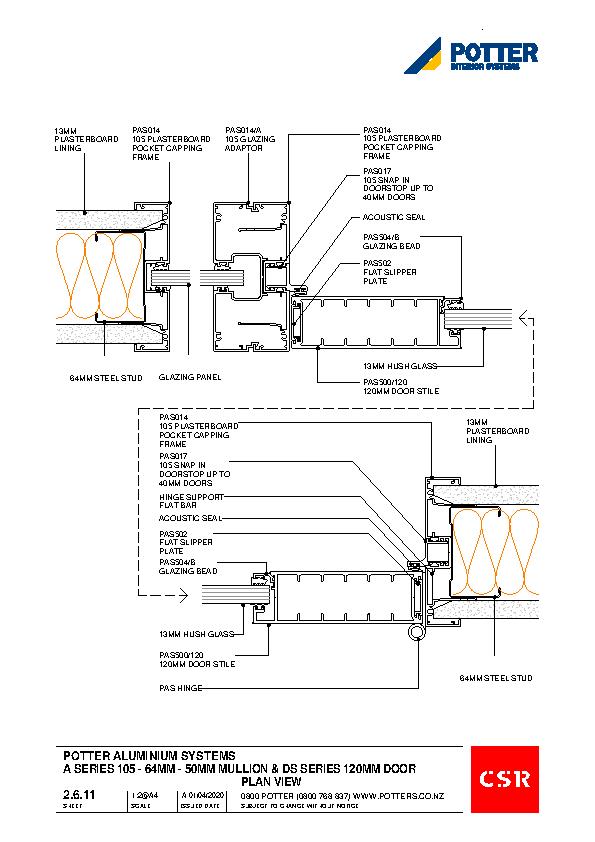

2.6.11 A Series 105 – 64mm – 50mm Mullion + DS Series 120mm
dwg
dxf
pdf
2.6.12 A Series 105 64mm – 40mm Door Headtrack Multi Layer
dwg
dxf
pdf

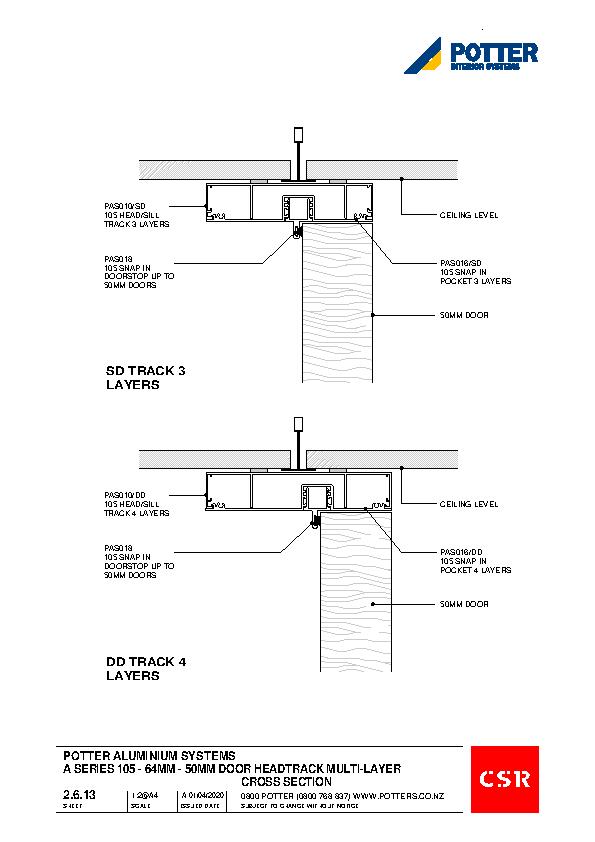

2.6.13 A Series 105 64mm – 50mm Door Headtrack Multi Layer
dwg
dxf
pdf

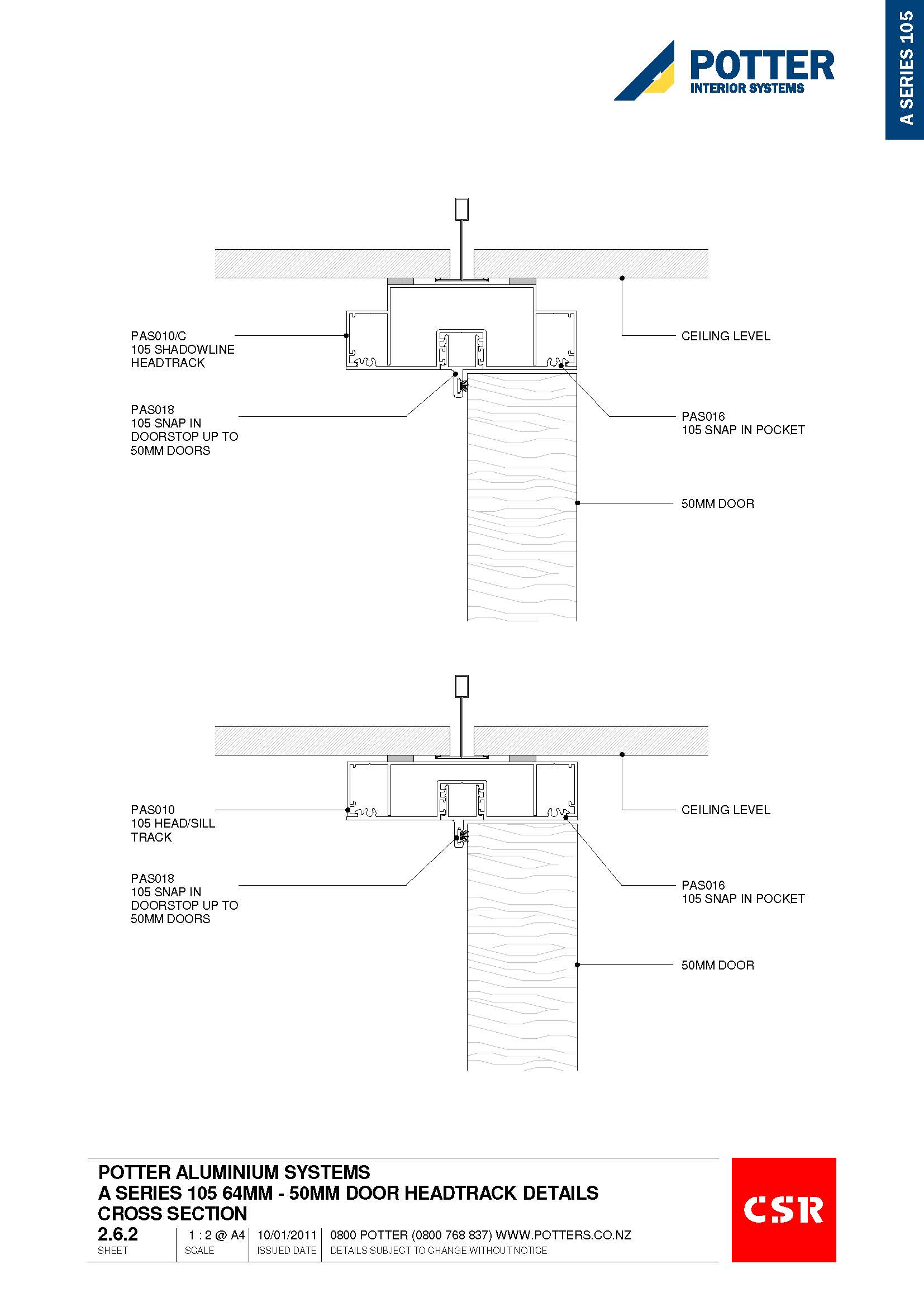

2.6.2 A Series 105 64mm 50mm Door Headtrack Details
2.6.2 64mm 50mm Door Headtrack Details
dwg
dxf
pdf
pdf

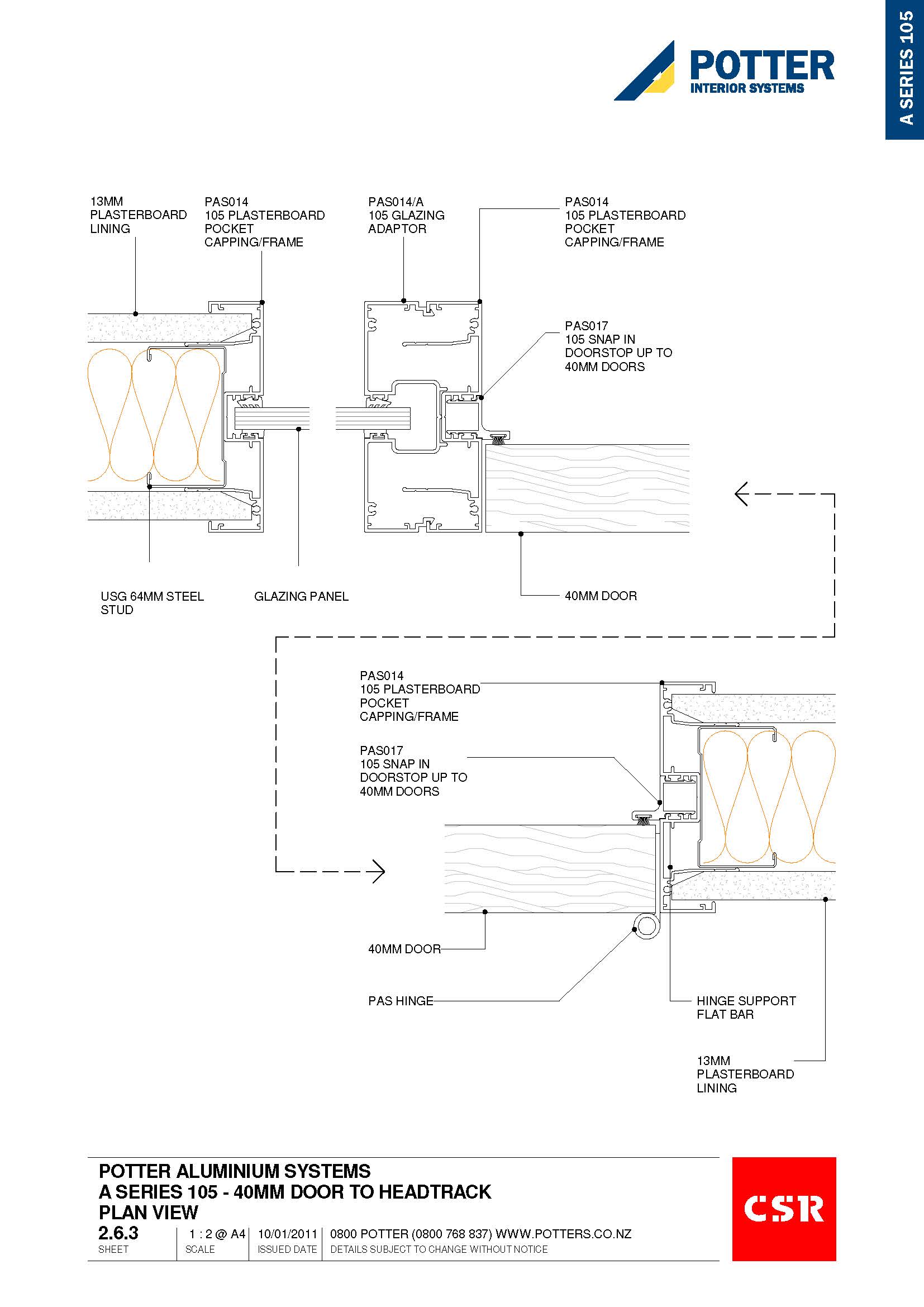

2.6.3 A Series 105 40mm Door To Headtrack
2.6.3 40mm Door To Headtrack
dwg
dxf
pdf

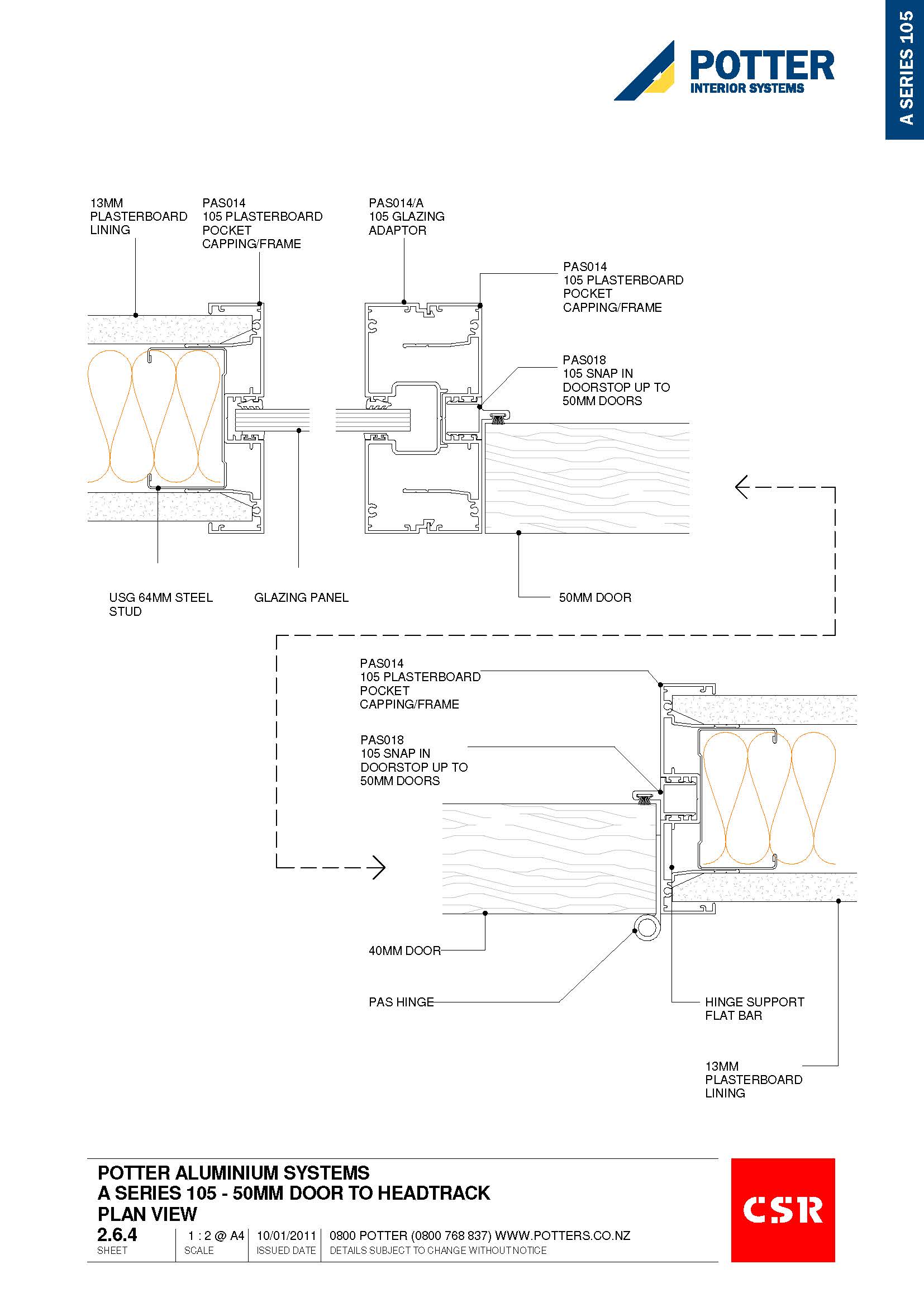

2.6.4 A Series 105 50mm Door To Headtrack
2.6.4 50mm Door To Headtrack
dwg
dxf
pdf

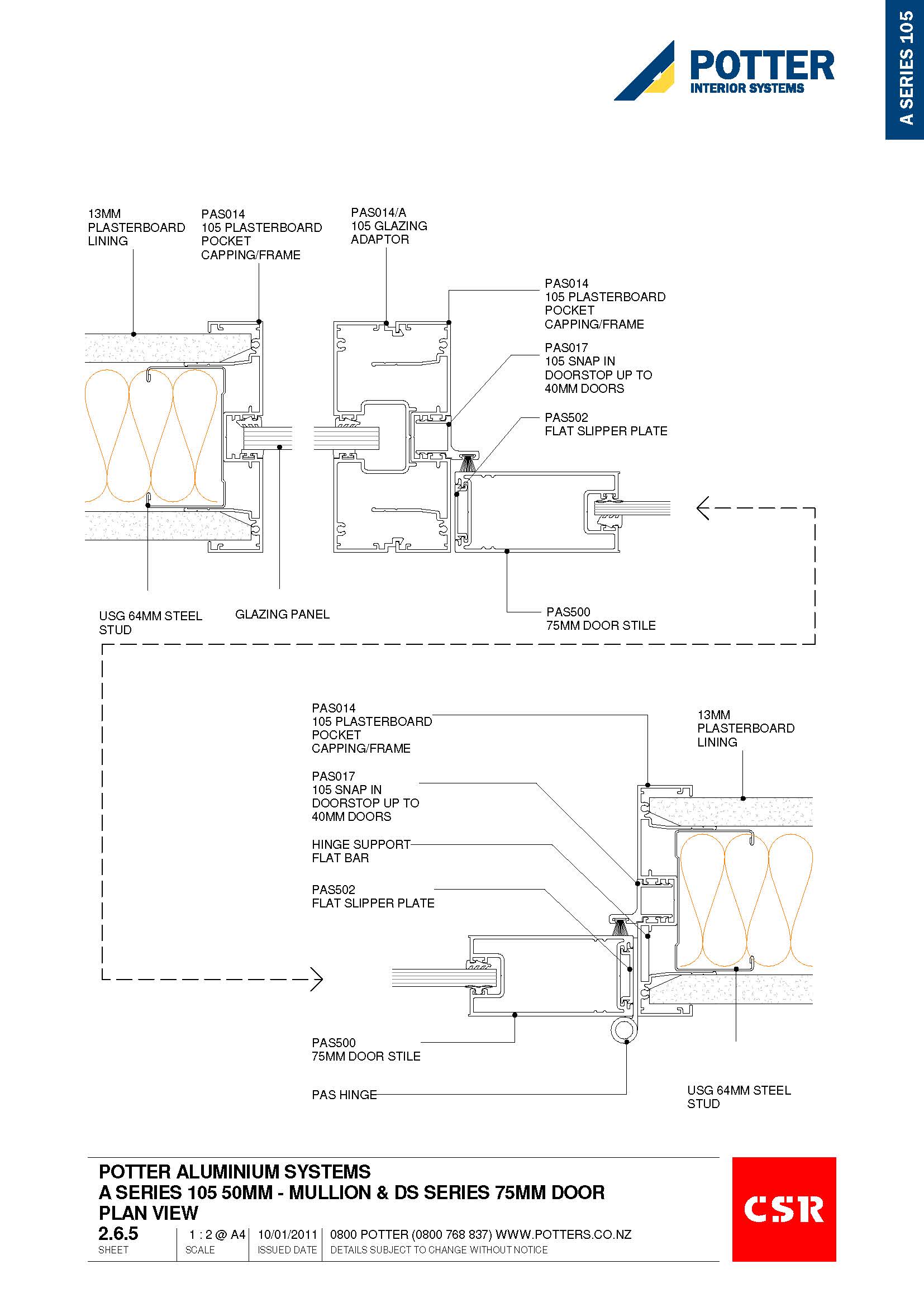

2.6.5 A Series 105 50mm Mullion DS Series 75mm Door
2.6.5 50mm Mullion & DS Series 75mm Door
dwg
dxf
pdf

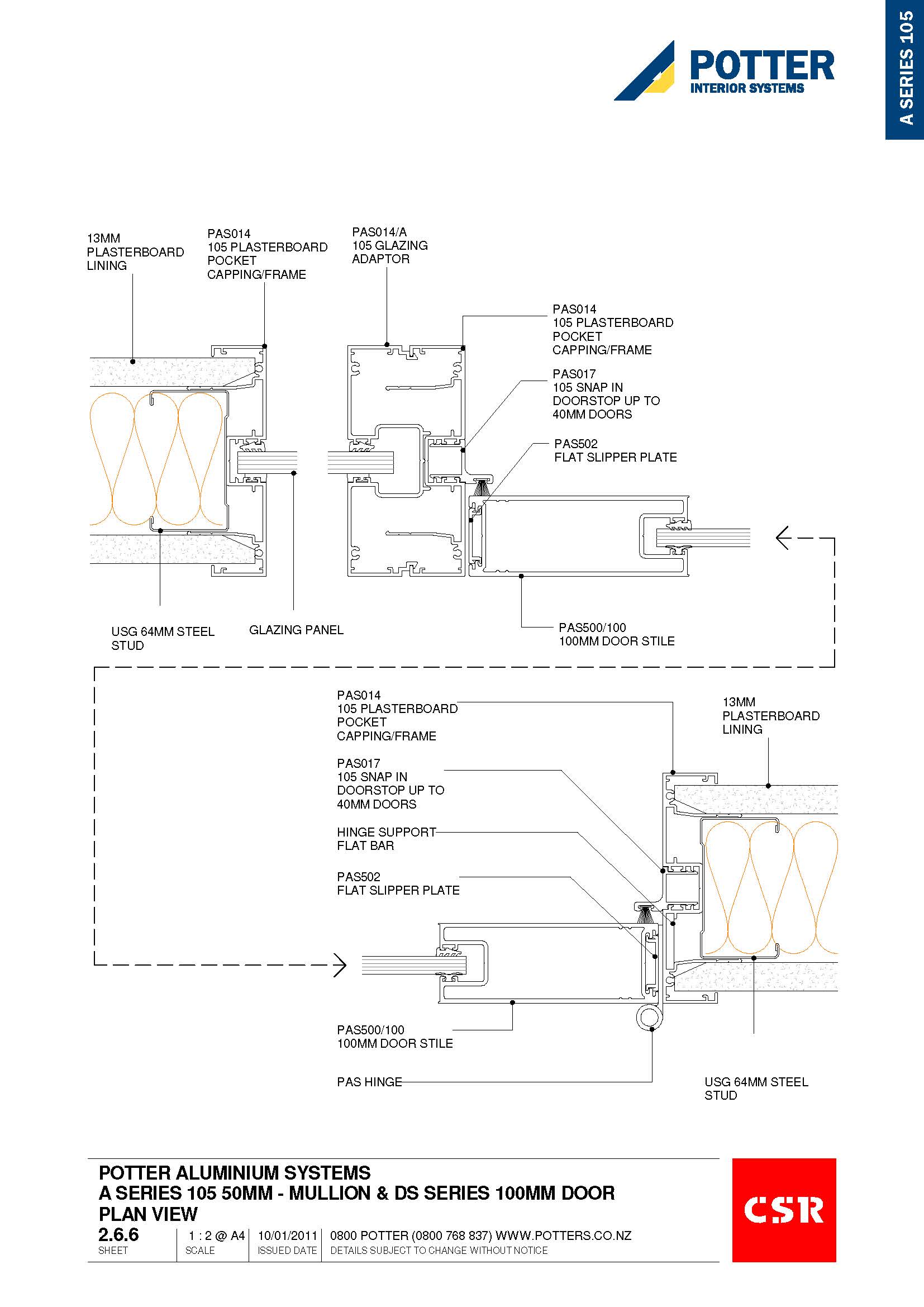

2.6.6 A Series 105 50mm Mullion DS Series 100mm Door
2.6.6 50mm Mullion & DS Series 100mm Door
dwg
dxf
pdf

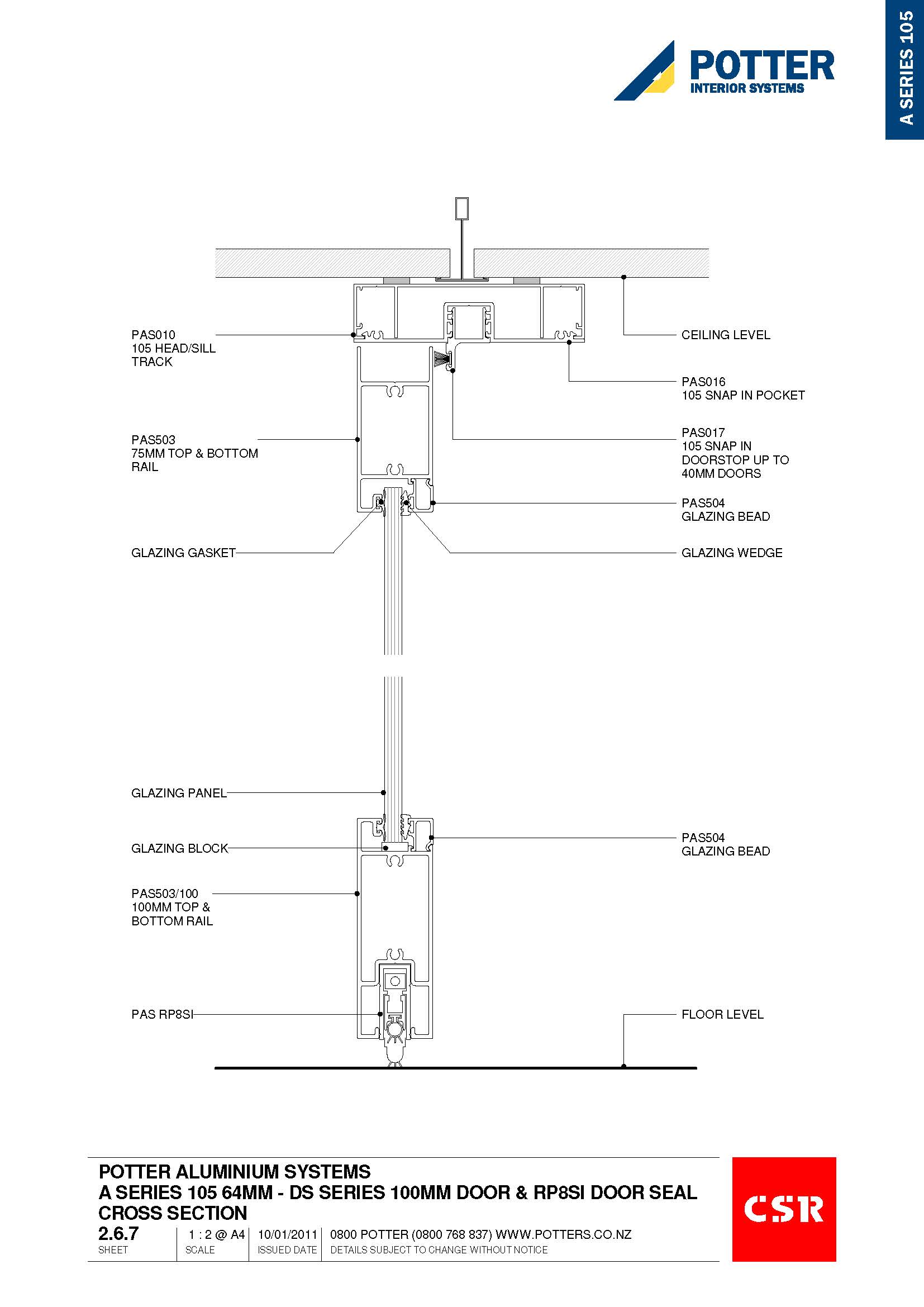

2.6.7 A Series 105 64mm 100mm Door RP8SI Door Seal
2.6.7 64mm DS Series 100mm Door & RP8SI Door Seal
dwg
dxf
pdf

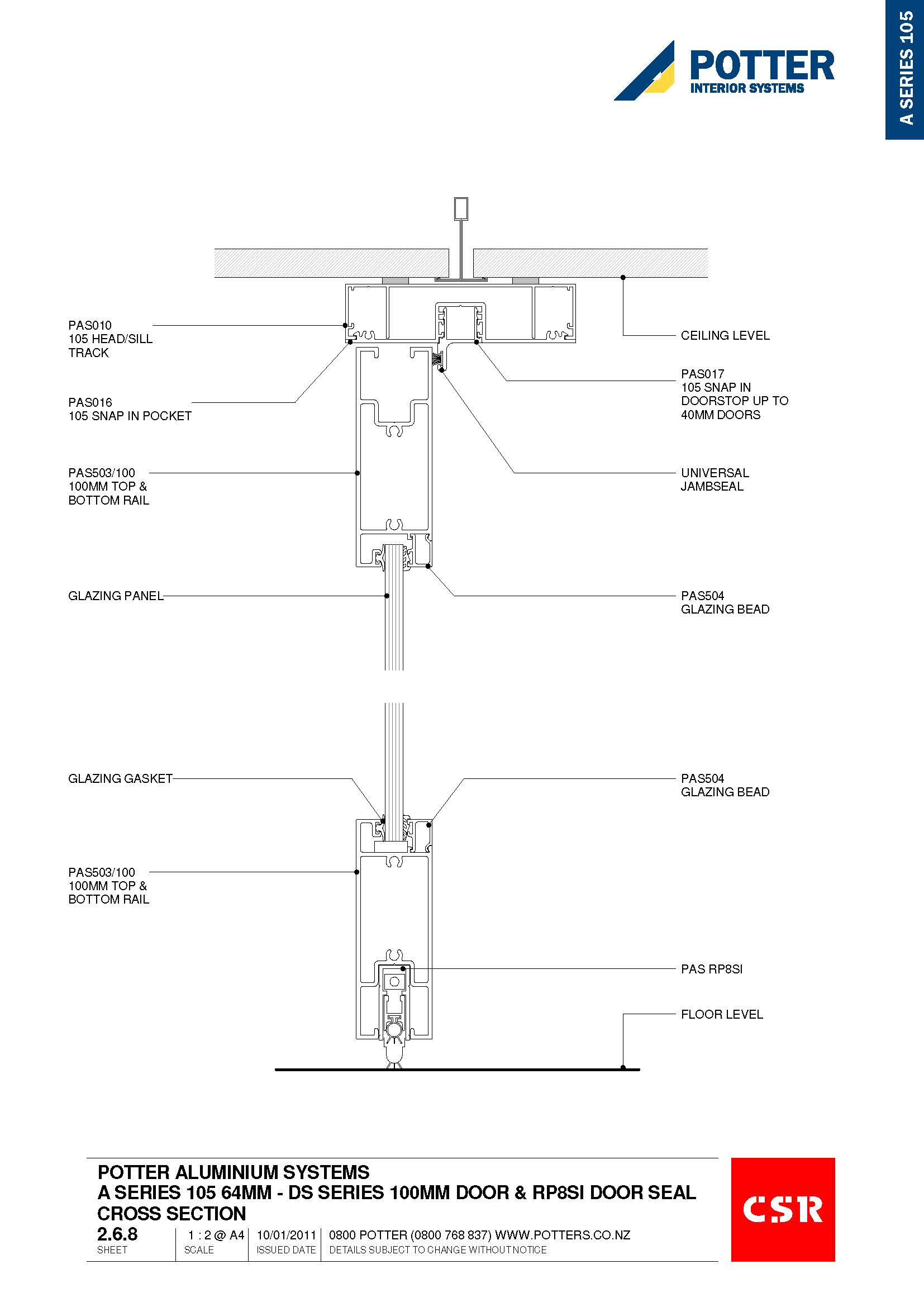

2.6.8 A Series 105 64mm 100mm Door RP8SI Door Seal
2.6.8 64mm DS Series 100mm Door & RP8SI Door Seal
dwg
dxf
pdf

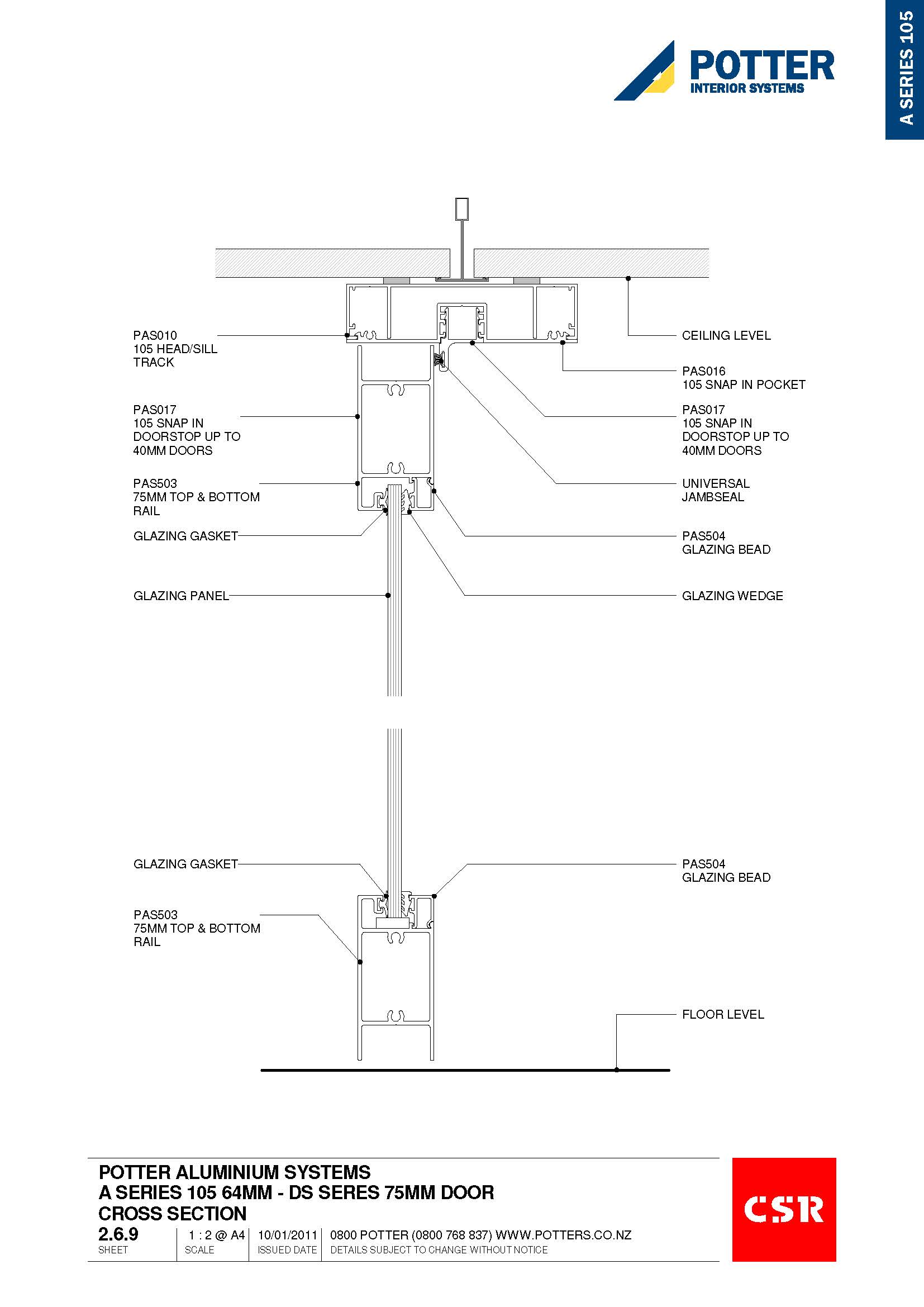

2.6.9 A Series 105 64mm DS Series 75mm Door
