Partition Bracing Simplified

The interior fit-out landscape is ever changing — there are new developments, and recent changes have seen that it is no longer acceptable to install internal partitions and sliding door systems that are directly fixed to grid and tile suspended ceilings without bracing.

There is a sharp focus on the performance of non-structural elements within the building process, and the team at TRACKLOK have been working to simplify the bracing of partitions.

Utilising the unique features of TRACKLOK partition bracing, three set out charts have been produced, that cover standard partitioning requirements for architects, engineers, installers and regulators. The set out charts provide typical layouts, featuring TRACKLOK placements as guidance to ensure clarity and optimum performance.

The set out charts include:

Standard centres at 2.4m (2.0m at 12m above ground in Wellington)
TRACKLOK in plane deflection for inter-storey drift on stiff return walls
Guidance from design through to install
Engineer detail regarding horizontal load parameters
Consistency of communication throughout the build

Please contact the technical support team at Potter Interior Systems at [email protected] or TRACKLOK directly for partition bracing design assistance.

A Series 105 - Aluminium Partition System

Potter Interior Systems

View Product

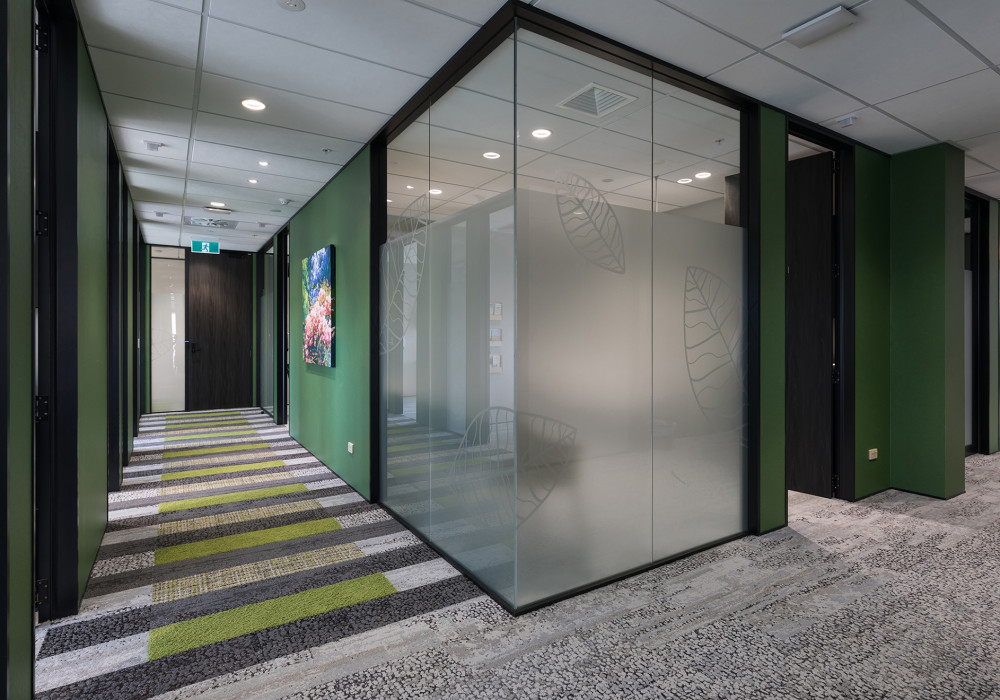

A Series 105 provides a complete aluminium partition system for plasterboard and glazing.

Declare LBC Red List Free

NZ Made

Complete aluminium partition system for plasterboard and glazing:

Standard wall size based on 64mm steel stud with either a single or double layer of 13mm plaster board on each side
Can accommodate glass thicknesses between 6mm and 13mm
Door thicknesses between 35mm – 50mm can be used

All aluminium partition suites carry the Declare label.
Final Assembly: New Zealand. Life Expectancy: 50+ years. End of of Life Options: 100% Reusable/Recyclable.

Tracklok

Potter Interior Systems

View Product

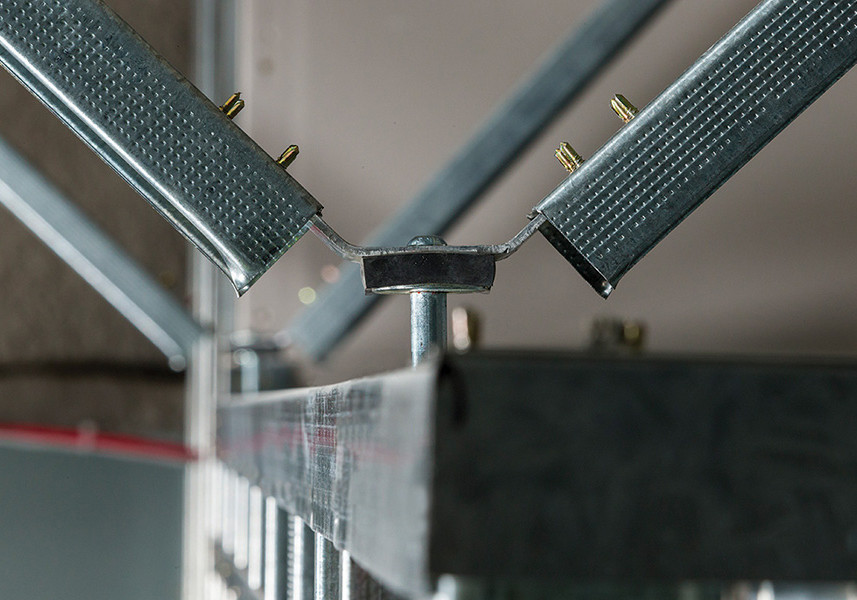

Tracklok Ltd have designed and developed a range of pre-engineered, off the shelf connections to seismically and structurally bracing non structural elements in commercial buildings.

Importance Level 2, 3 and 4 Buildings
Hospitals
Commercial Interiors
Schools
Commercial/Residential
Hotels
Lateral support for sliding doors

Complies to and provides compliance with AS/NZS 1170.5 and AS/NZS 4219
Provides compliance with NZ Building Code:

Clause B1 — Structure
Clause B2 — Durability
Clause F2 — Hazardous Building Materials

Contributes to compliance with NZ Building Code:

Clause F6 — Visibility in Escape Routes
Clause D1 — Access Routes

Tracklok installation specifications were developed to perform under the seismic loads for parts specified in NZS 1170.5 Section 8, as referenced by B1/VM1 of the NZBC

Clause B1 — Structure
Clause B2 — Durability
Clause F2 — Hazardous Building Materials

Clause F6 — Visibility in Escape Routes
Clause D1 — Access Routes
