DF Series 105 & 132 - Aluminium Partition System
Description

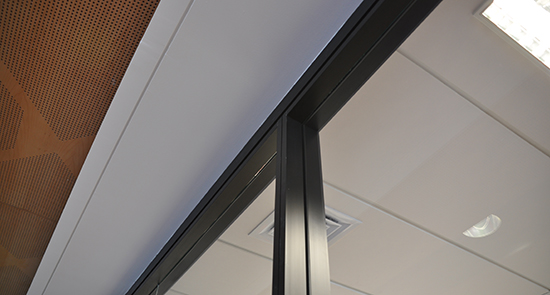

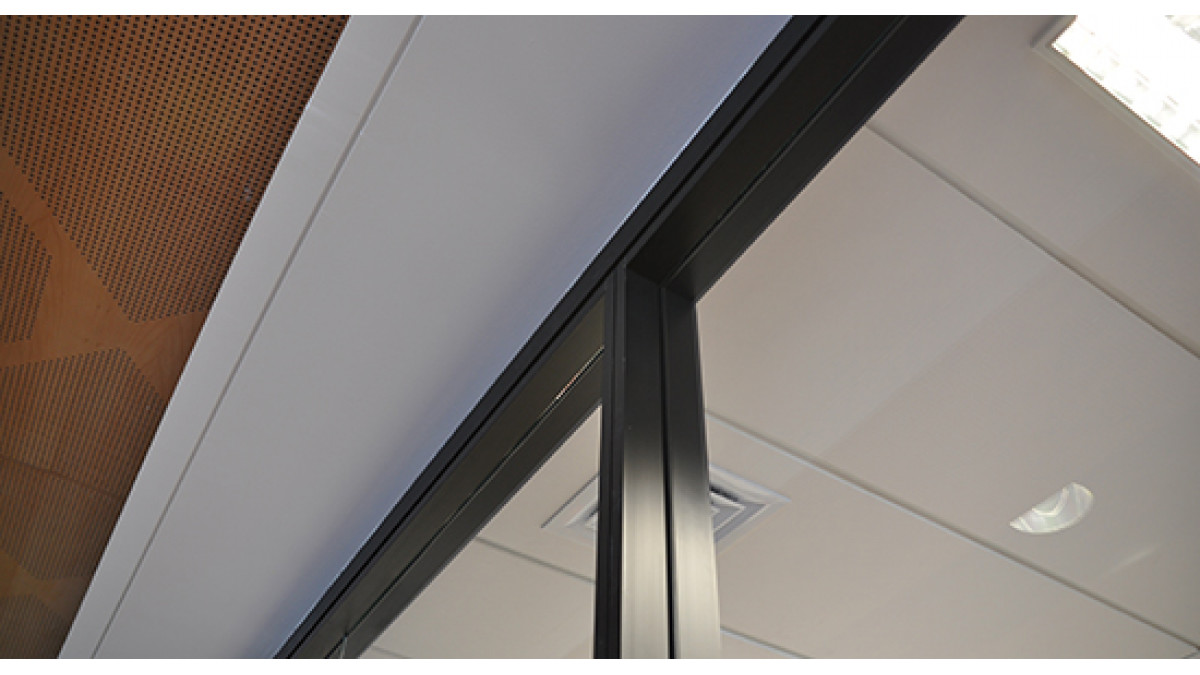

DF Series has been designed to help with exposed full height aluminium partitions in the modern office designs which tend not to have a traditional panel ceiling. The designs help with live loads and can be set at +/- 25mm Deflection.

The DF Series can also be used as a base build wall starter which will allow movement between existing structures and internal partitions. The DF Series 105 uses a 64mm steel stud but also comes in 92mm steel stud variant DF Series 132.

Categories
Partitions
Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made

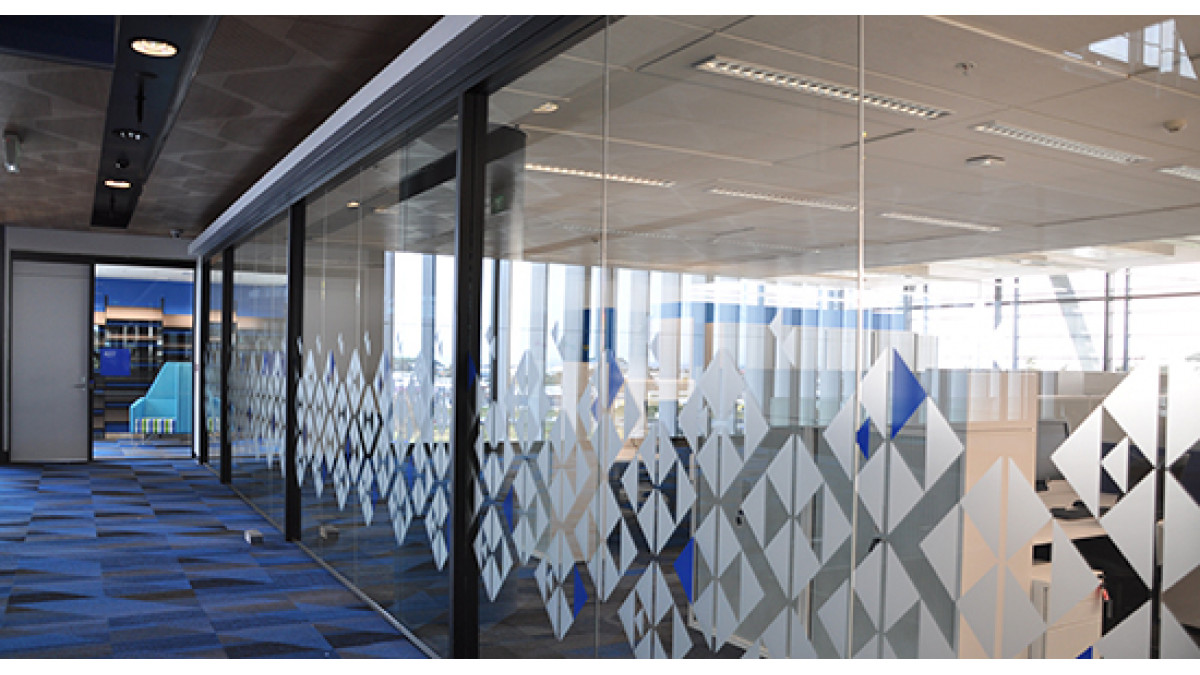

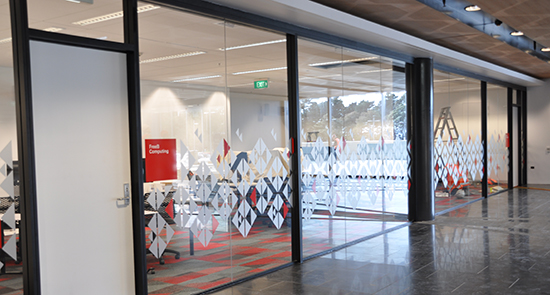

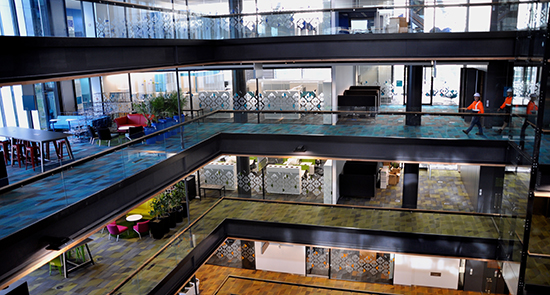

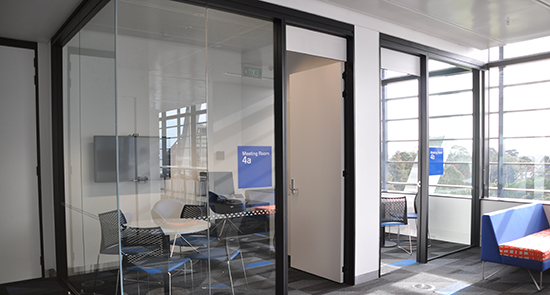

In-Service History

Projects include:

  • BASF Quad 5, Auckland
  • Ceres Building, Auckland

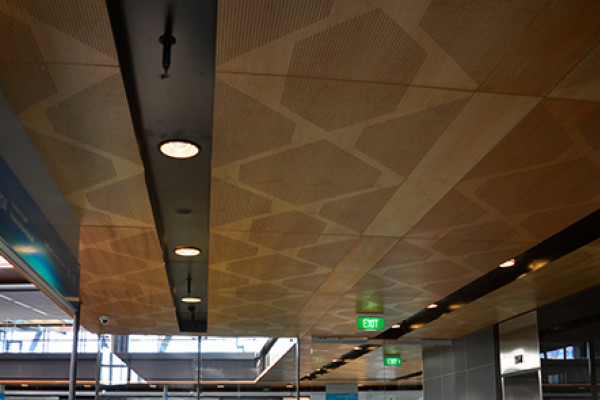

  • MIT Manukau, Auckland
  • Trimble Building, Christchurch
Documents
DF Series 105 & 132 - Specifier Manual
Glazed Internal Partition - Glass Guidelines
Declare Accreditation
Maintenance Instructions
CAD/PDF Details

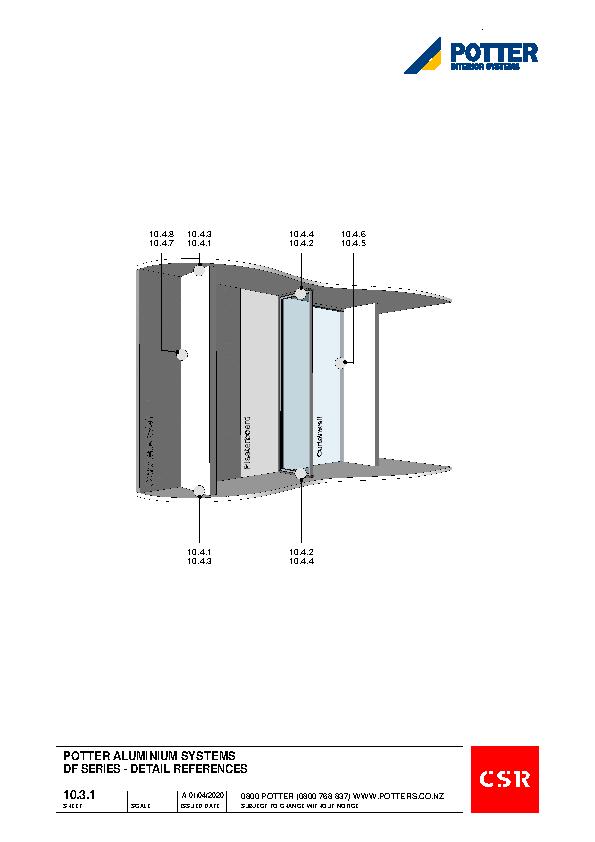

10.3.1 DF SERIES - DETAIL REFERENCES

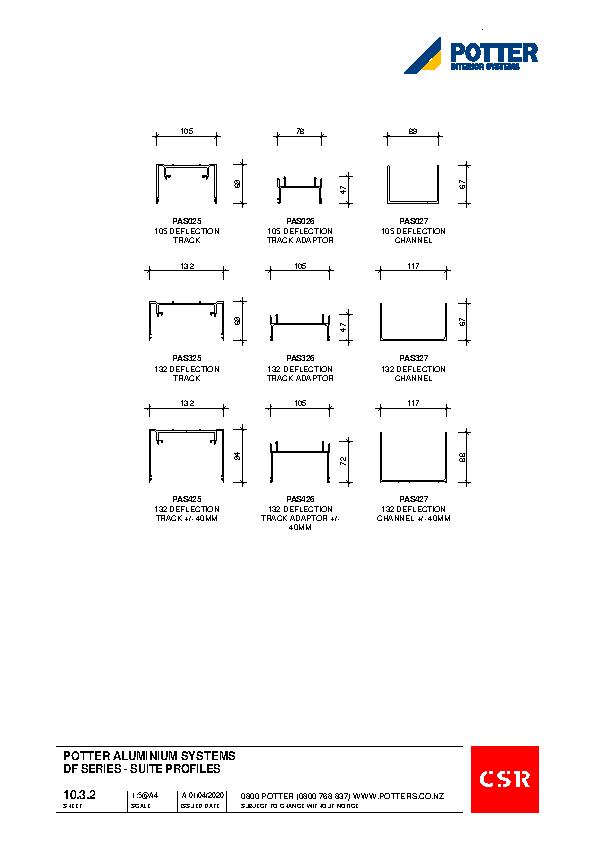

10.3.2 DF SERIES - SUITE PROFILES

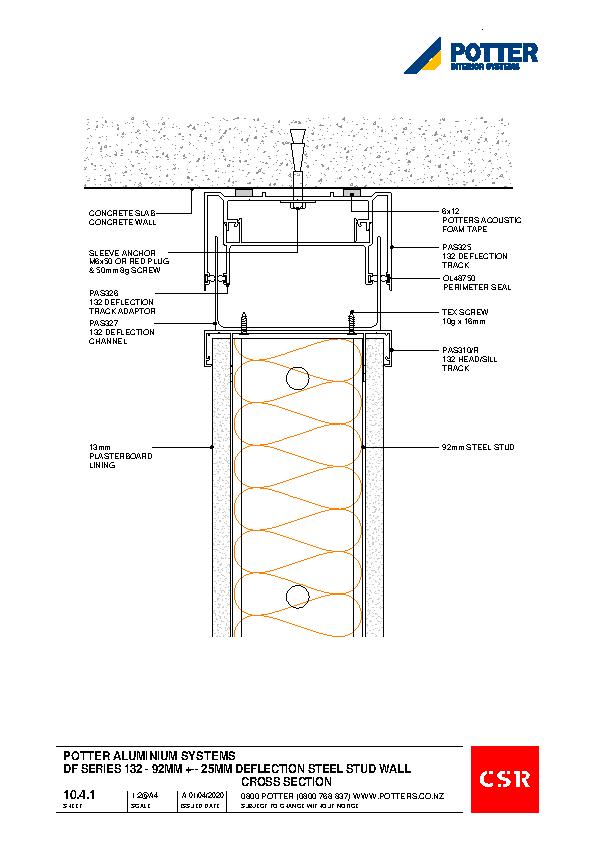

10.4.1 DF SERIES 132 - 92MM +-- 25MM DEFLECTION STEEL STUD WALL

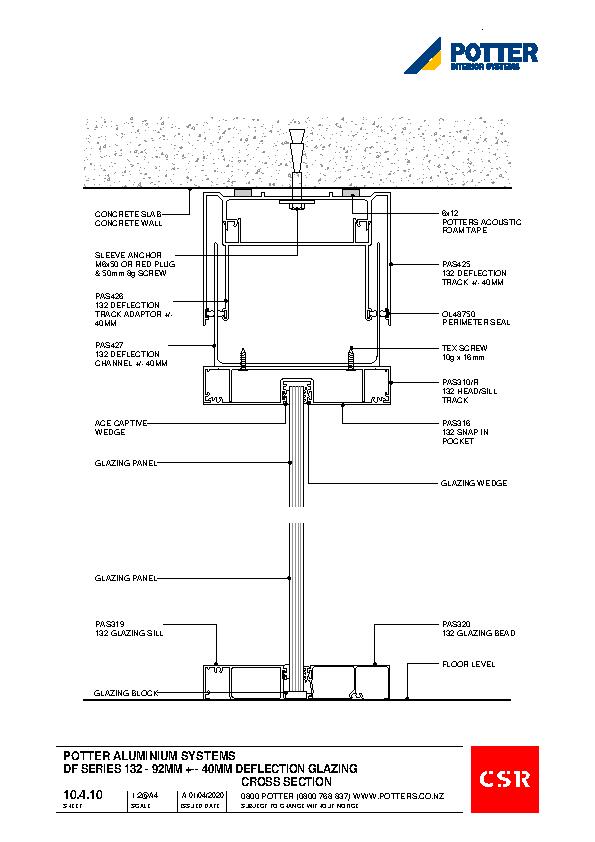

10.4.10 DF SERIES 132 - 92MM +-- 40MM DEFLECTION GLAZING
10.4.11 DF SERIES 132 - 92MM +-- 40MM DEFLECTION 92MM STEEL STUD

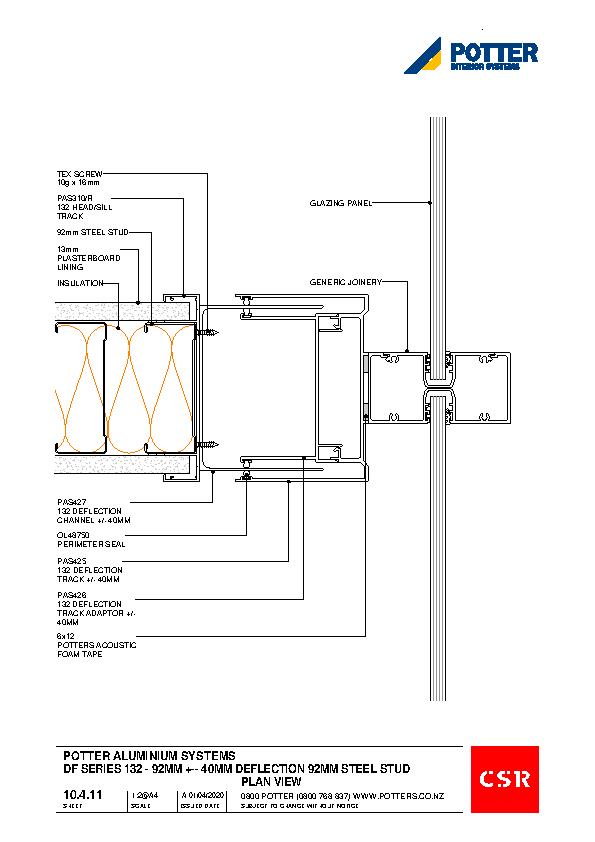

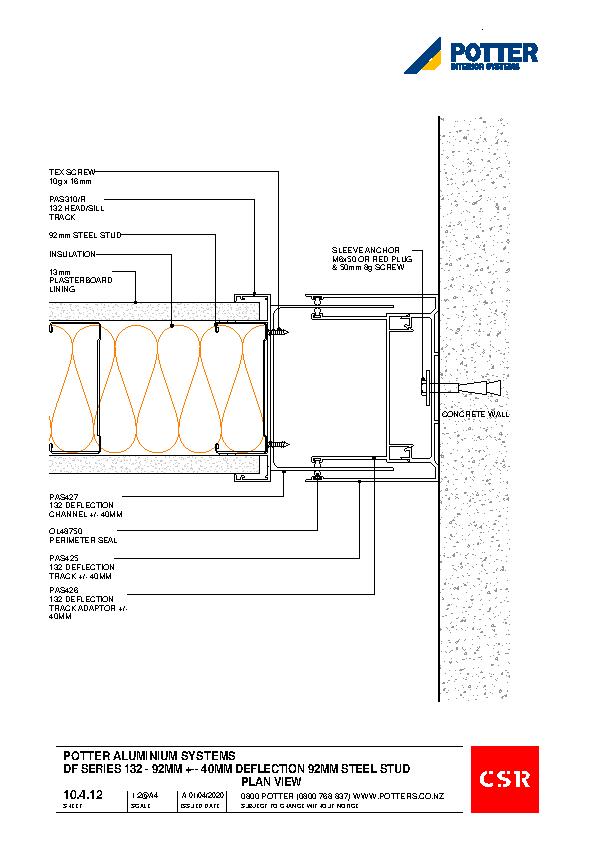

10.4.12 DF SERIES 132 - 92MM +-- 40MM DEFLECTION 92MM STEEL STUD

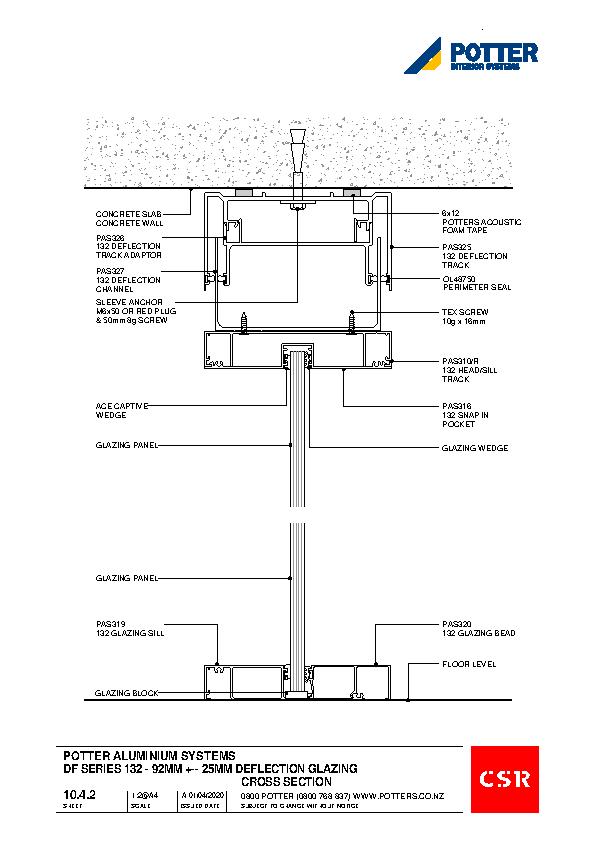

10.4.2 DF SERIES 132 - 92MM +-- 25MM DEFLECTION GLAZING

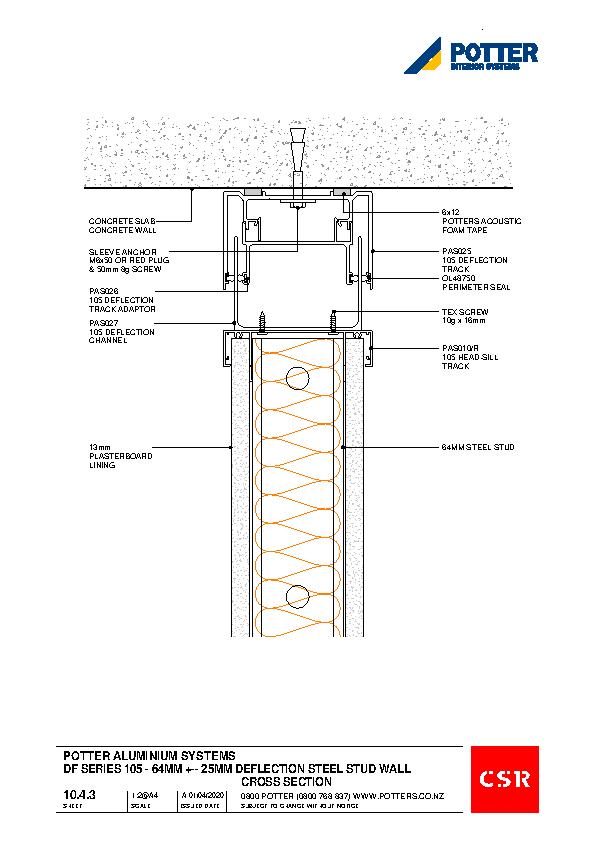

10.4.3 DF SERIES 105 - 64MM +-- 25MM DEFLECTION STEEL STUD WALL

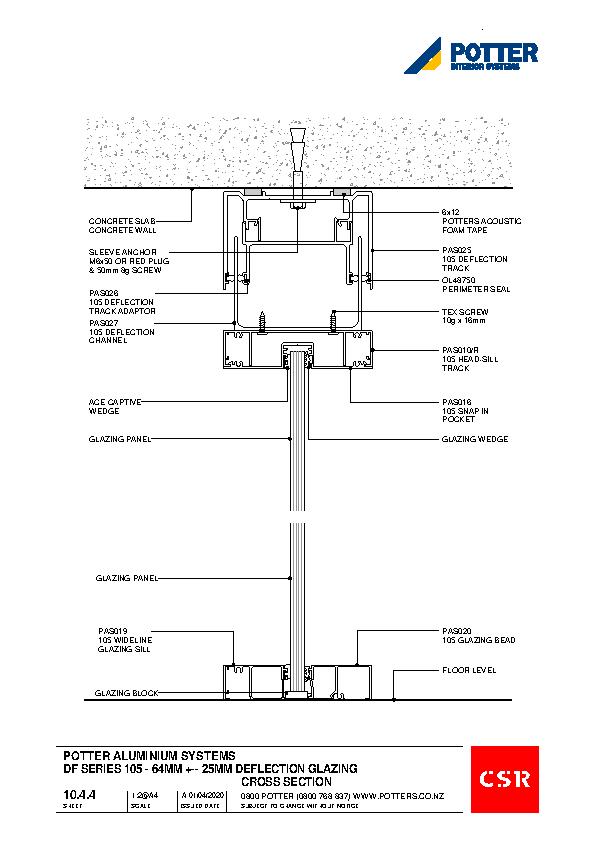

10.4.4 DF SERIES 105 - 64MM +-- 25MM DEFLECTION GLAZING

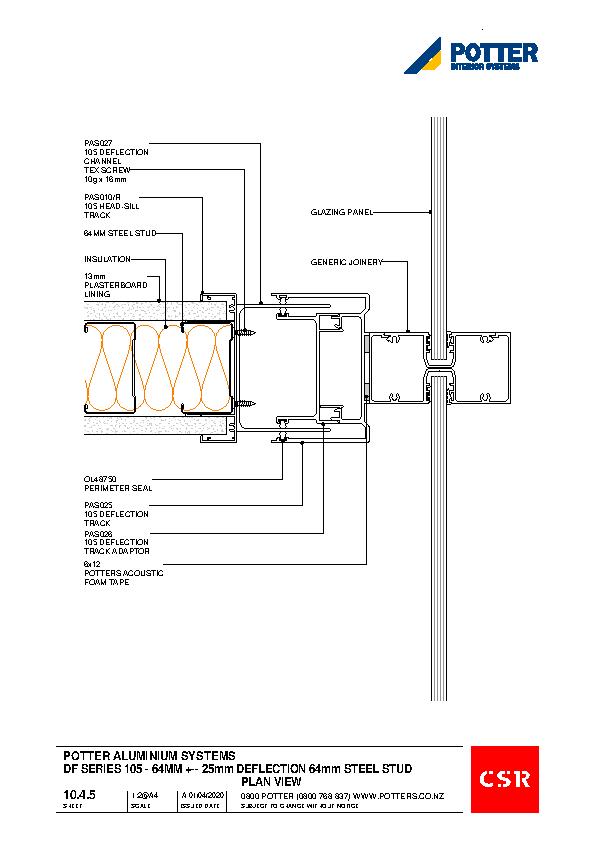

10.4.5 DF SERIES 105 - 64MM +-- 25mm DEFLECTION 64mm STEEL STUD

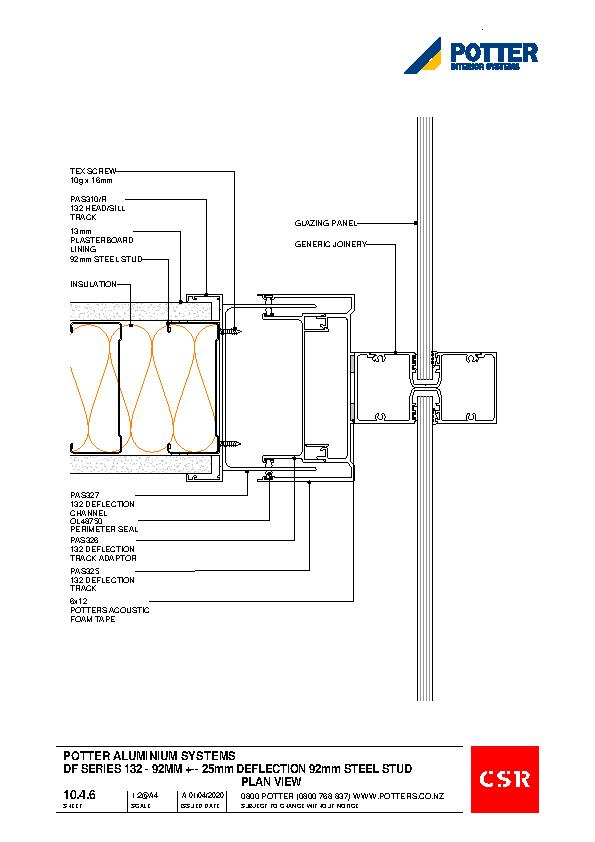

10.4.6 DF SERIES 132 - 92MM +-- 25mm DEFLECTION 92mm STEEL STUD

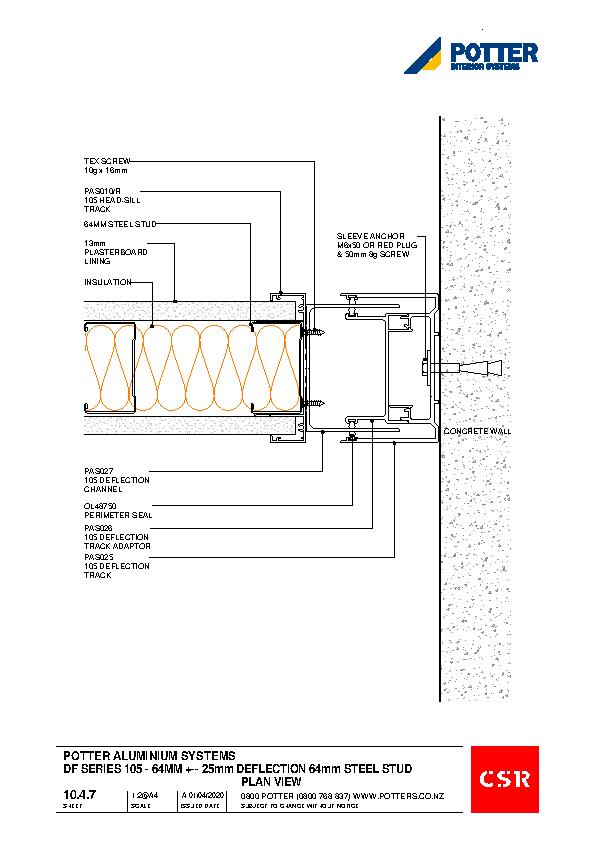

10.4.7 DF SERIES 105 - 64MM +-- 25mm DEFLECTION 64mm STEEL STUD

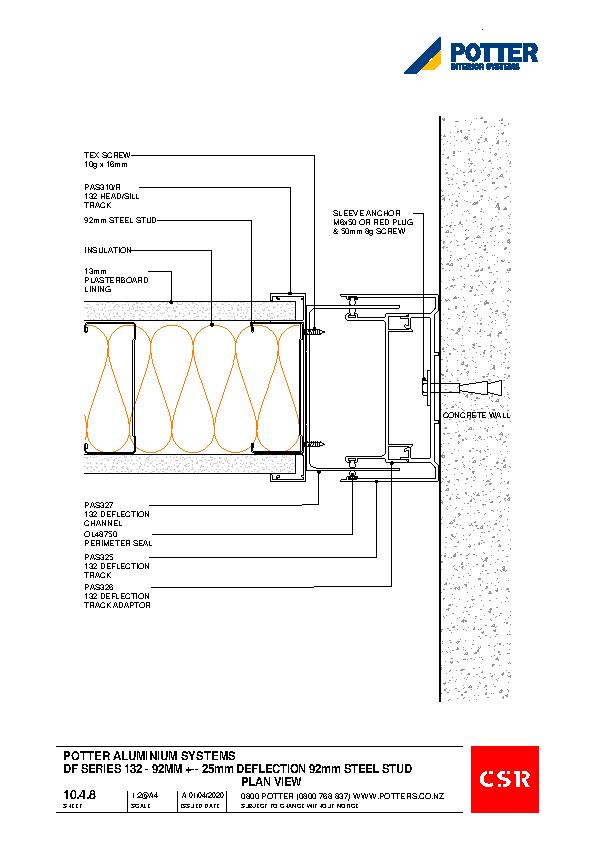

10.4.8 DF SERIES 132 - 92MM +-- 25mm DEFLECTION 92mm STEEL STUD

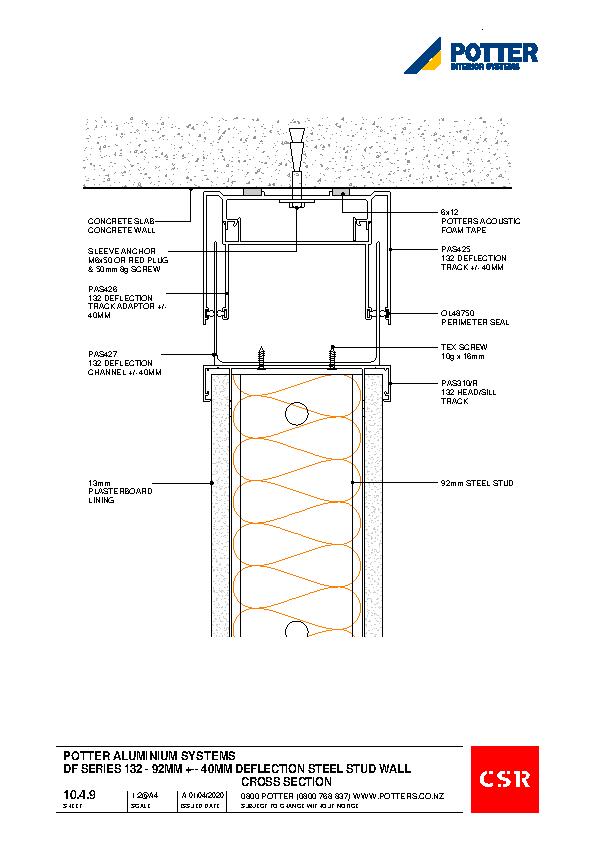

10.4.9 DF SERIES 132 - 92MM +-- 40MM DEFLECTION STEEL STUD WALL
