Bossfire Fyrebox Multi Service Cable and Pipe Transit
Description

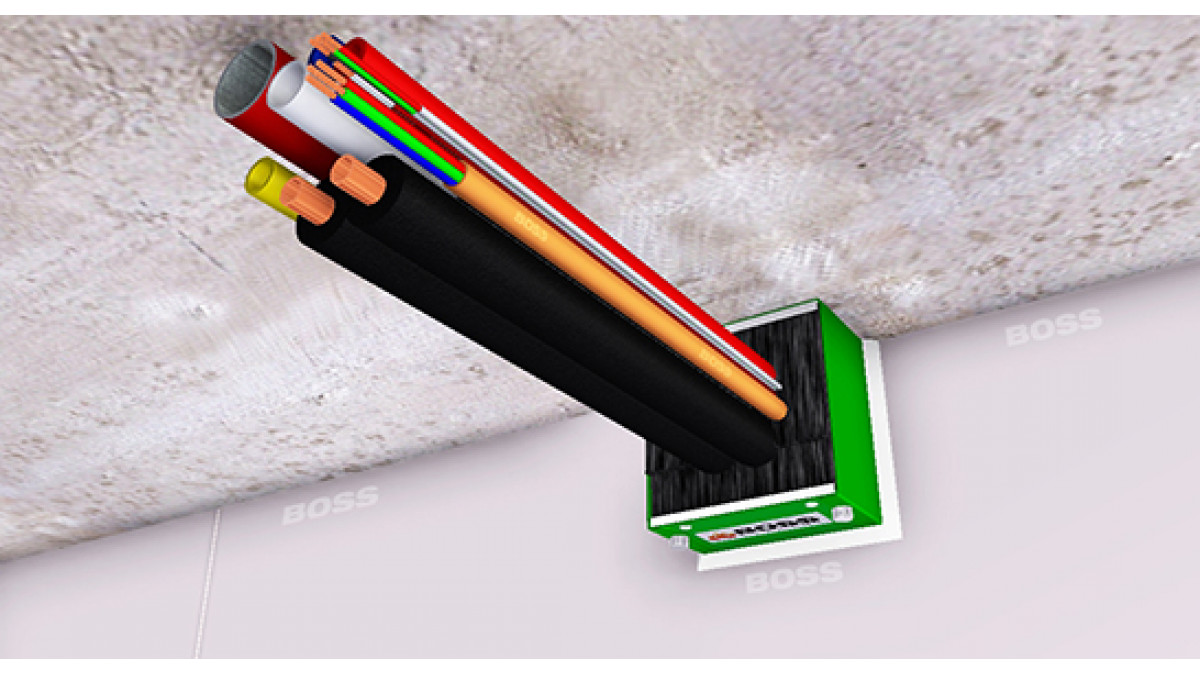

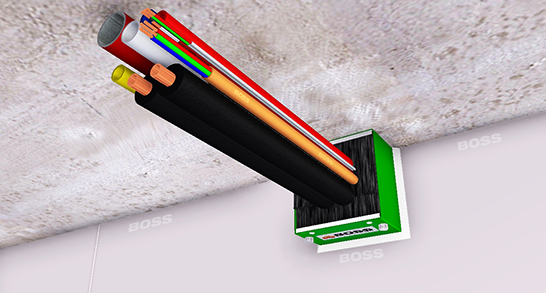

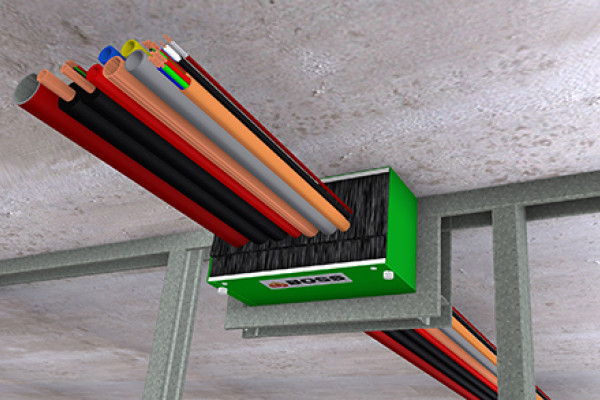

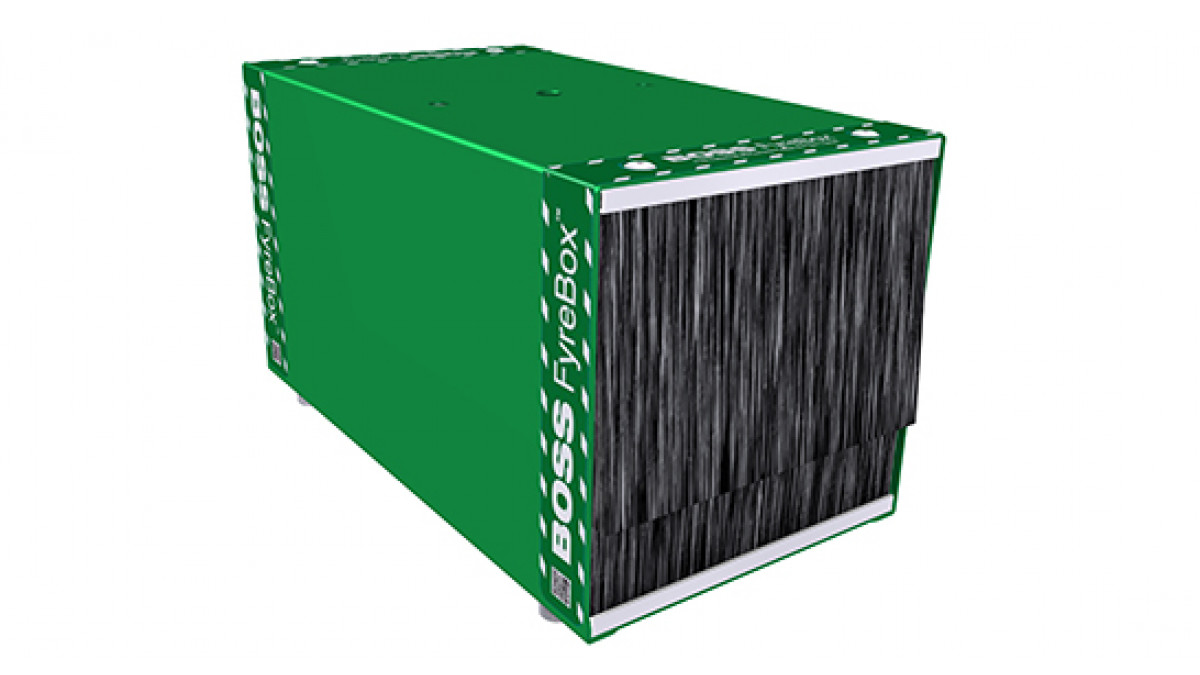

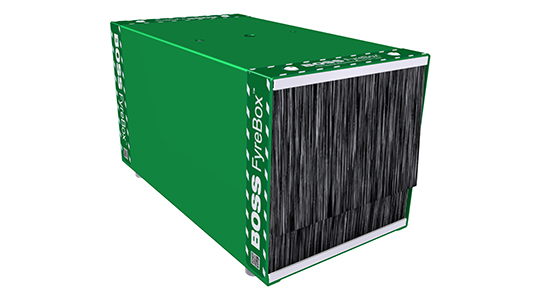

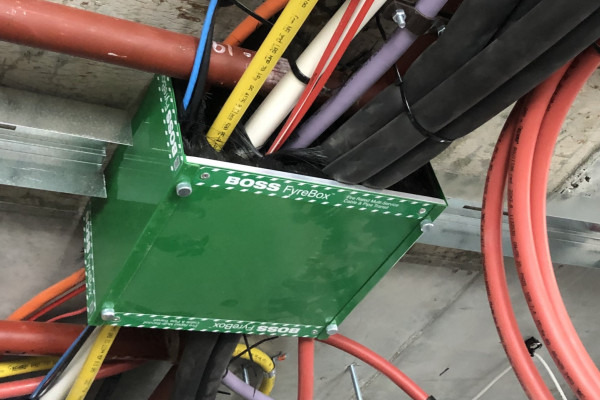

The BOSS FyreBox is revolutionising firestopping methods for large bundles of mixed services. Designed to allow large bundles of pipes and cables to all pass through one single fire rated enclosure, the BOSS FyreBox is the only tested and proven method of firestopping multiple services with such simplicity of installation and ease of compliance. Commonly used for apartment entry configurations above an entry door to an SOU, the BOSS FyreBox is also suited for service risers, shafts, plant areas and data rooms in a variety of residential, commercial and industrial buildings.

Key Features
  • Offers up to Industry leading 2 hour fire rating  (FRL -/120/120)

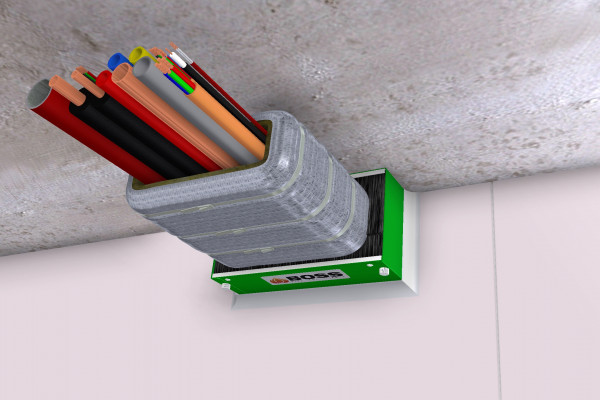

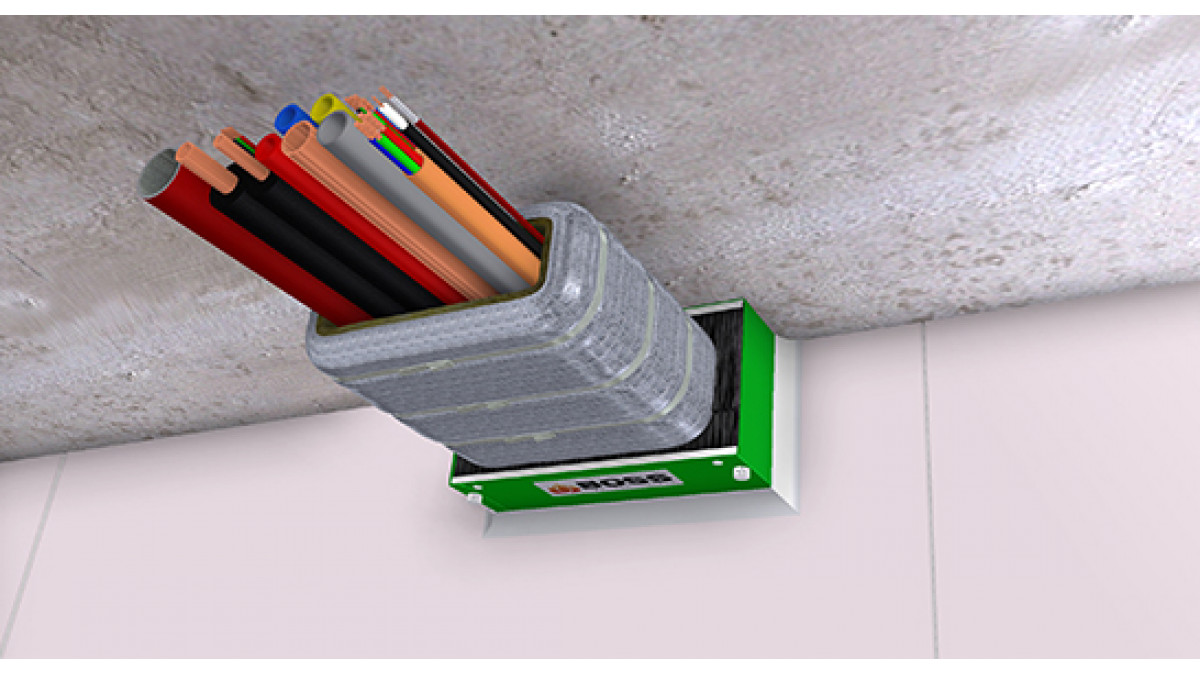

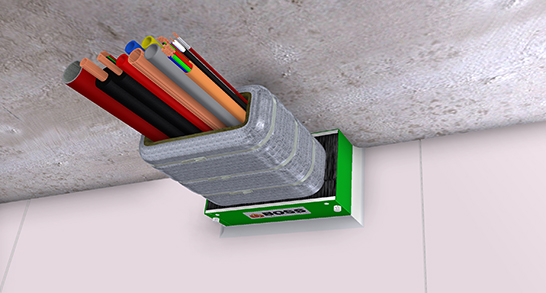

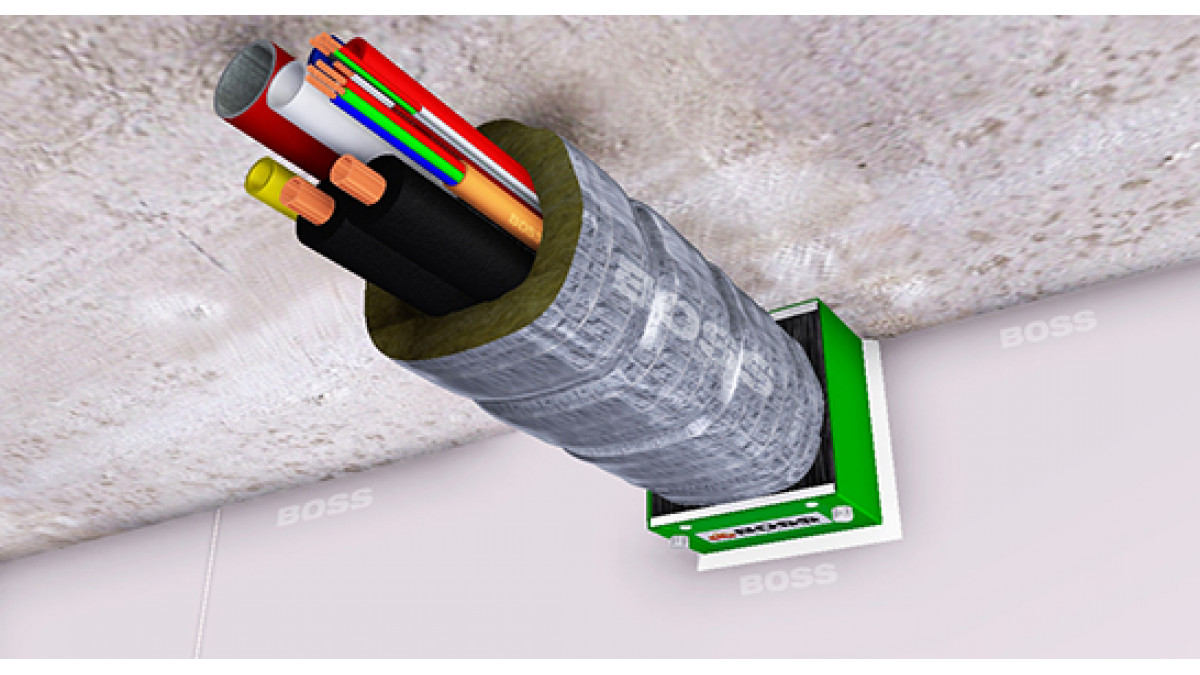

  • 60min and 90min (FRL -/60/60 and -/90/90) configurations available without any requirement for thermal wraps.
  • Approved for a wide range of walls, floors & ceilings
  • Easy and cost effective installation saving up to 90% of installation time.
  • Acoustic system rated to Rw50 – BCA compliant for apartment construction.
  • Large range of tested and certified services for Electrical, Plumbing and HVAC trades.
  • Tested and certified firestopping to AS1530.4-2014 and AS4072.1 for a variety of services.
  • The BOSS Fire® Transit Box makes AS1851 periodic maintenance inspections simple and reliable.

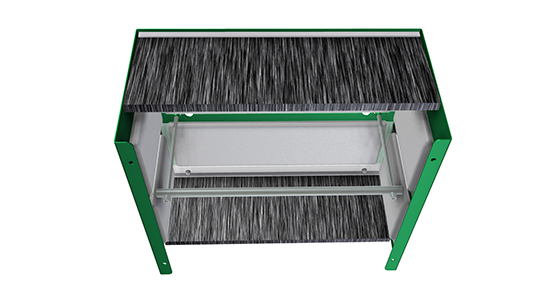

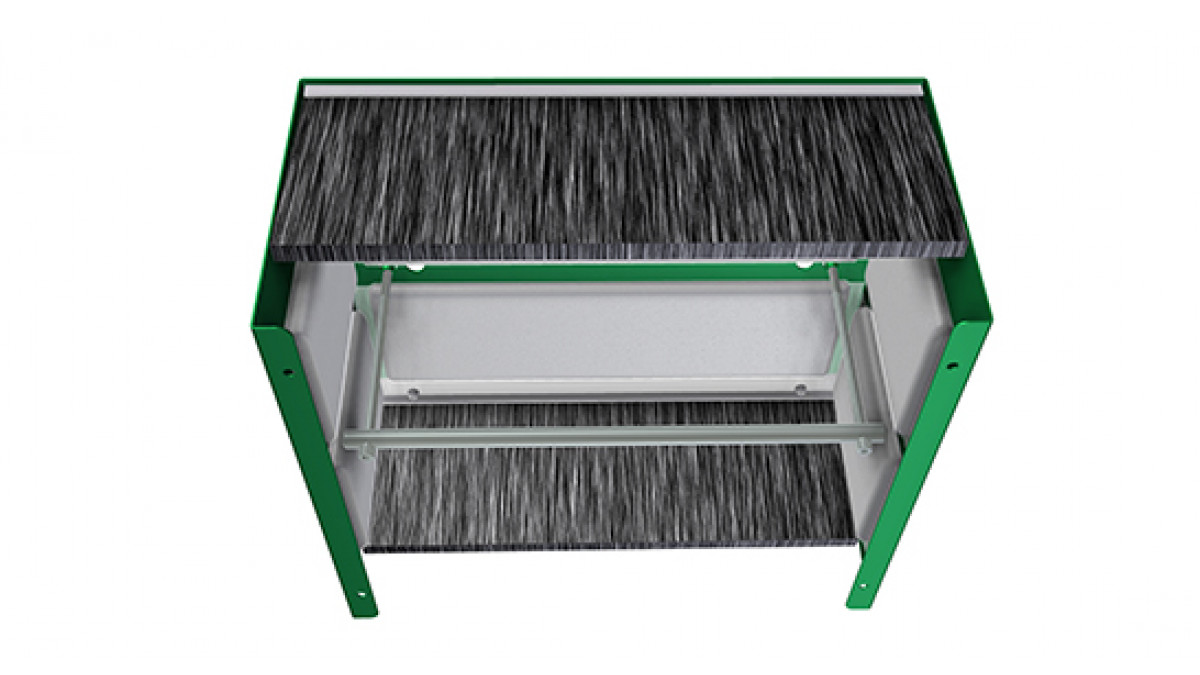

  • The unique BrushSeal™ offers future proofing construction design which ensures that services can be added or changed at later stages without any need for new firestopping measures.

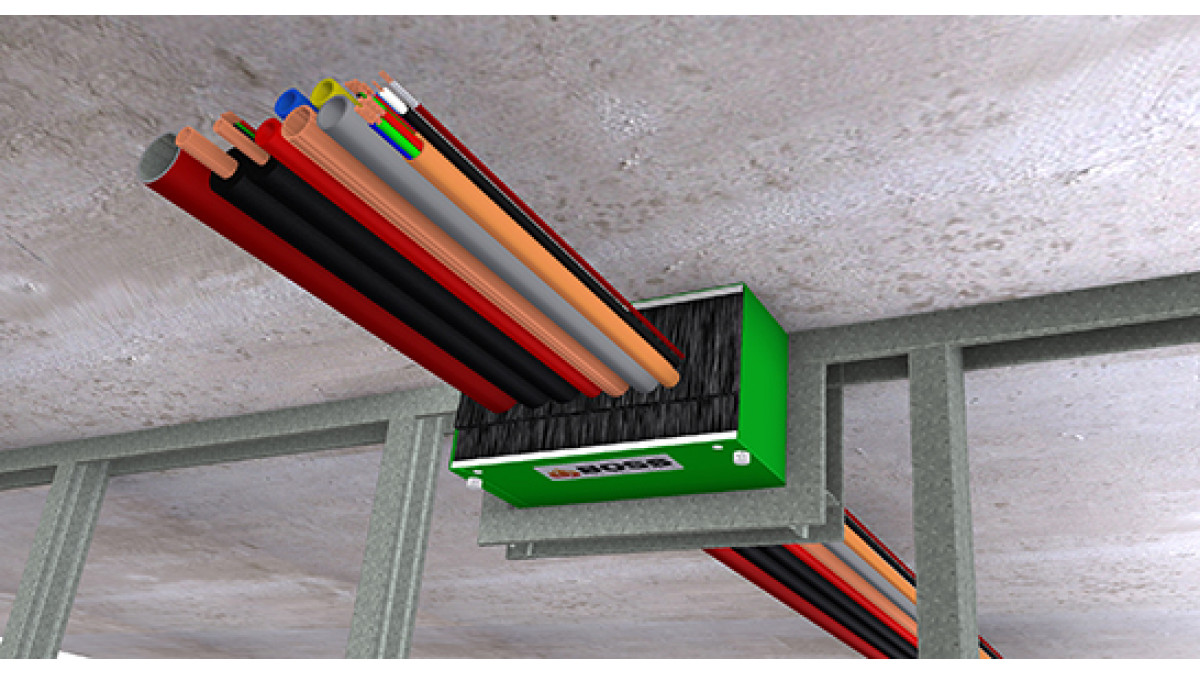

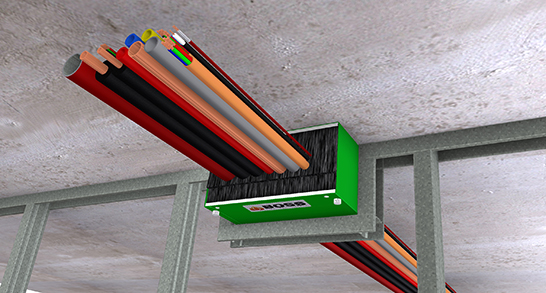

  • Services simply “pass through” with no need to cut individual holes, no is there  any need to cut any inserts or seal any individual service. The intumescent inside expands rapidly closing off the services in the event of a fire.
Scope of Use

Certified services include:

  • Steel sprinkler pipes up to 60mm Diameter
  • Copper pipes – Lagged and Unlagged up to 40mm
  • PEX Water pipes up to 32mm
  • PEX/AL/PEX Gas Pipes up to 32mm
  • A/C Lagged copper Paircoil pipes for HVAC (Up to 13mm/19mm)
  • uPVC pipes and conduit up to 32mm
  • Mains and Sub Mains Power cables
  • TPS power cables
  • Aluminium Core Power Cables
  • Data Cables including CAT6 & CAT5E
  • Security, Intercom, Fire and EWIS cables
  • Coax TV (MATV / CATV / SMATV) cables.
  • NBN Cables and Conduit
  • PP Pipes up to 32mm
  • HDPE Pipes up to 32mm
  • PB Pipes up to 32mm

Certified substrates include:

  • Fire Rated Plasterboard wall systems
  • Shaftliner / Shaftwall systems
  • Concrete / Masonry Walls
  • AAC / Hebel Walls
  • Dincel Walls
  • AFS Walls
  • BOSS Batt
  • Speedpanel & Korok Walls
  • CLT (Cross Laminated Timber) Walls
  • Concrete Floor Slabs
  • Plasterboard Ceilings
Statement of Building Code Compliance

The new generation of BOSS Fire® Transit Box is now tested and approved to AS1530.4: 2014 and AS4072.1-2005 for 60, 90 and 120 minute configurations on a larger variety of services than ever before. New approvals relate to a wider variety of wall, floor and ceiling systems.

  • Case Studies
  • News
  • Technical Advice
Documents
Data Sheet
Installation and Operation
Product Brochure
