Allthrough Balcony Drain by Allproof Industries

Allthrough Balcony Drain

Allproof Industries

All products

Product Enquiries

Description

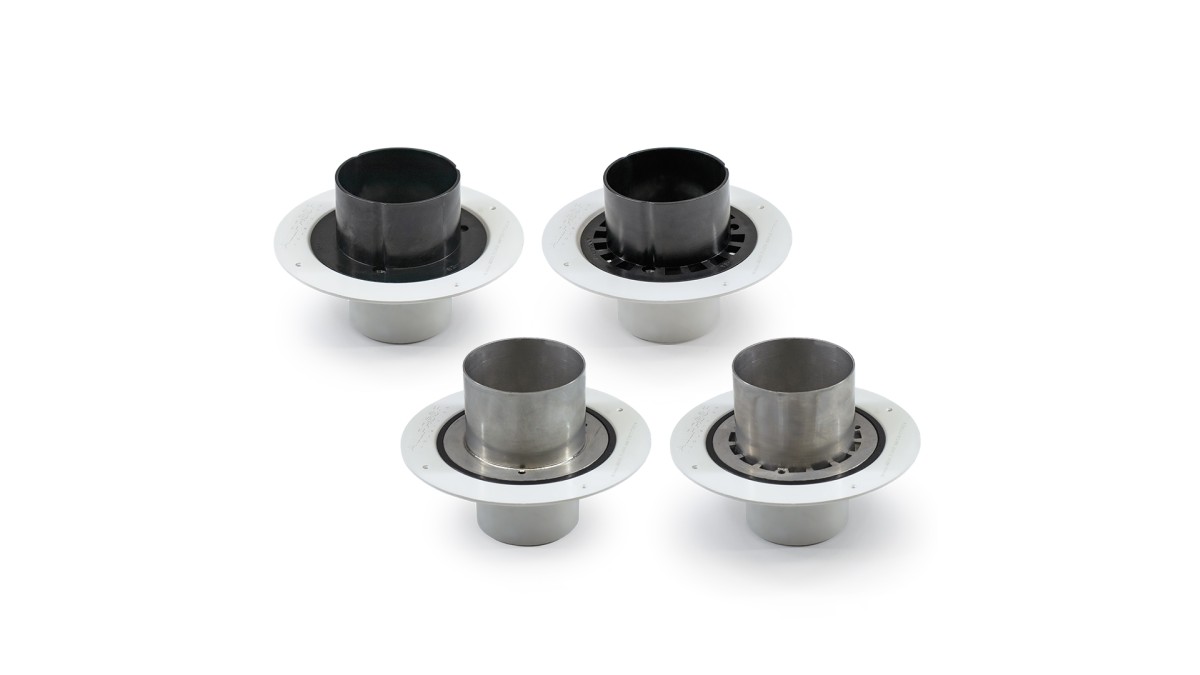

The Allproof Allthrough is a unique solution to meet the requirements of multi-level balcony drainage. The system features a closed sleeve for straight-through levels and an open sleeve for levels where the surface drainage needs to be allowed to feed into the downpipe. The unit is suitable for a floating deck/tile application or a membrane finish balcony.

Key Features

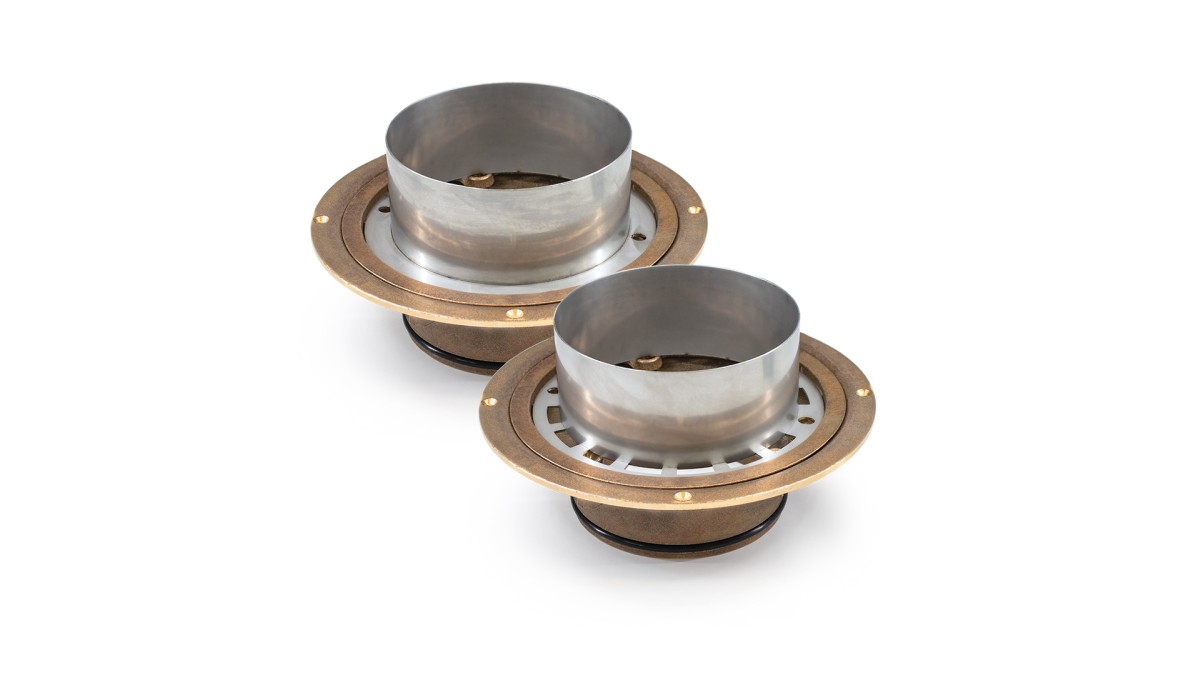

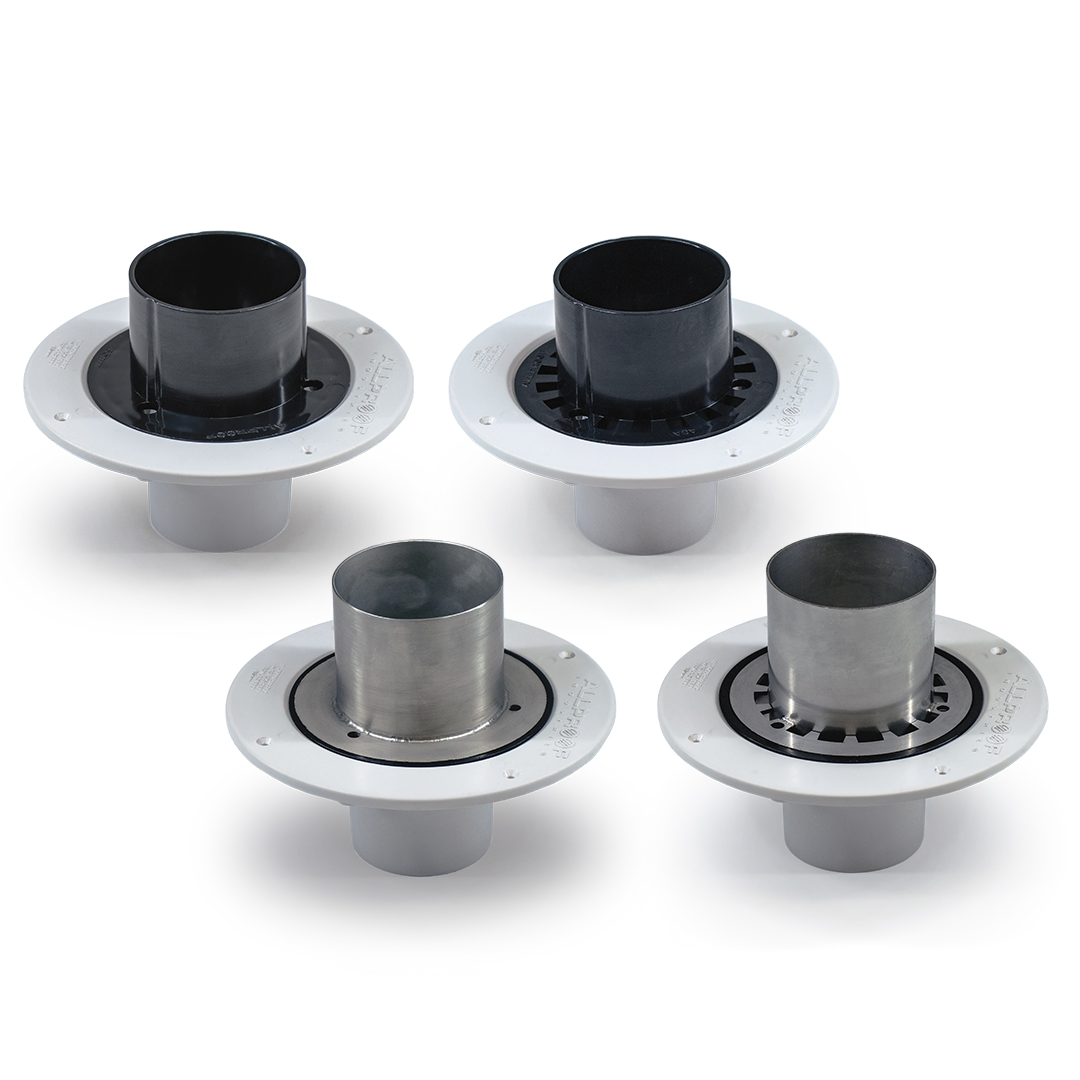

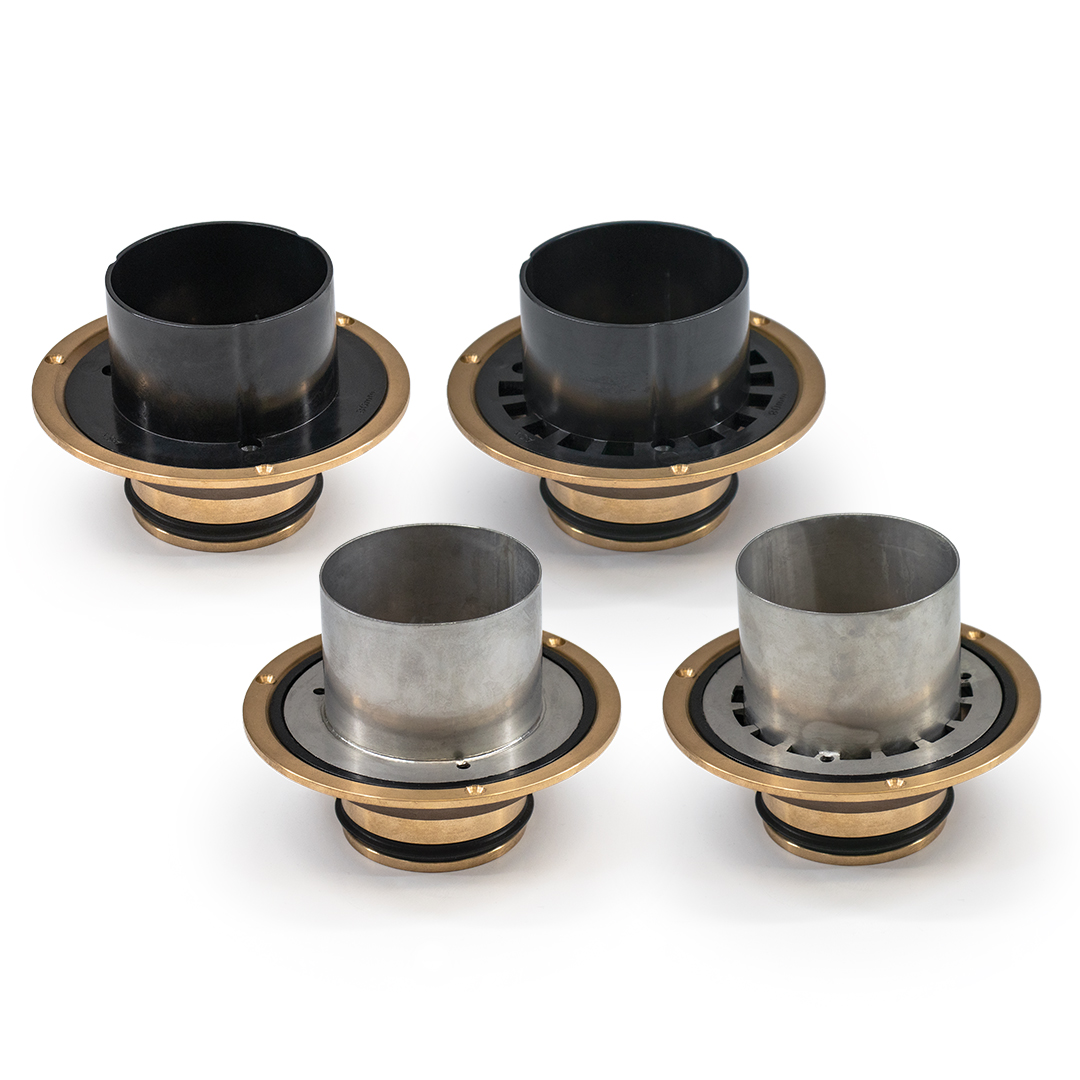

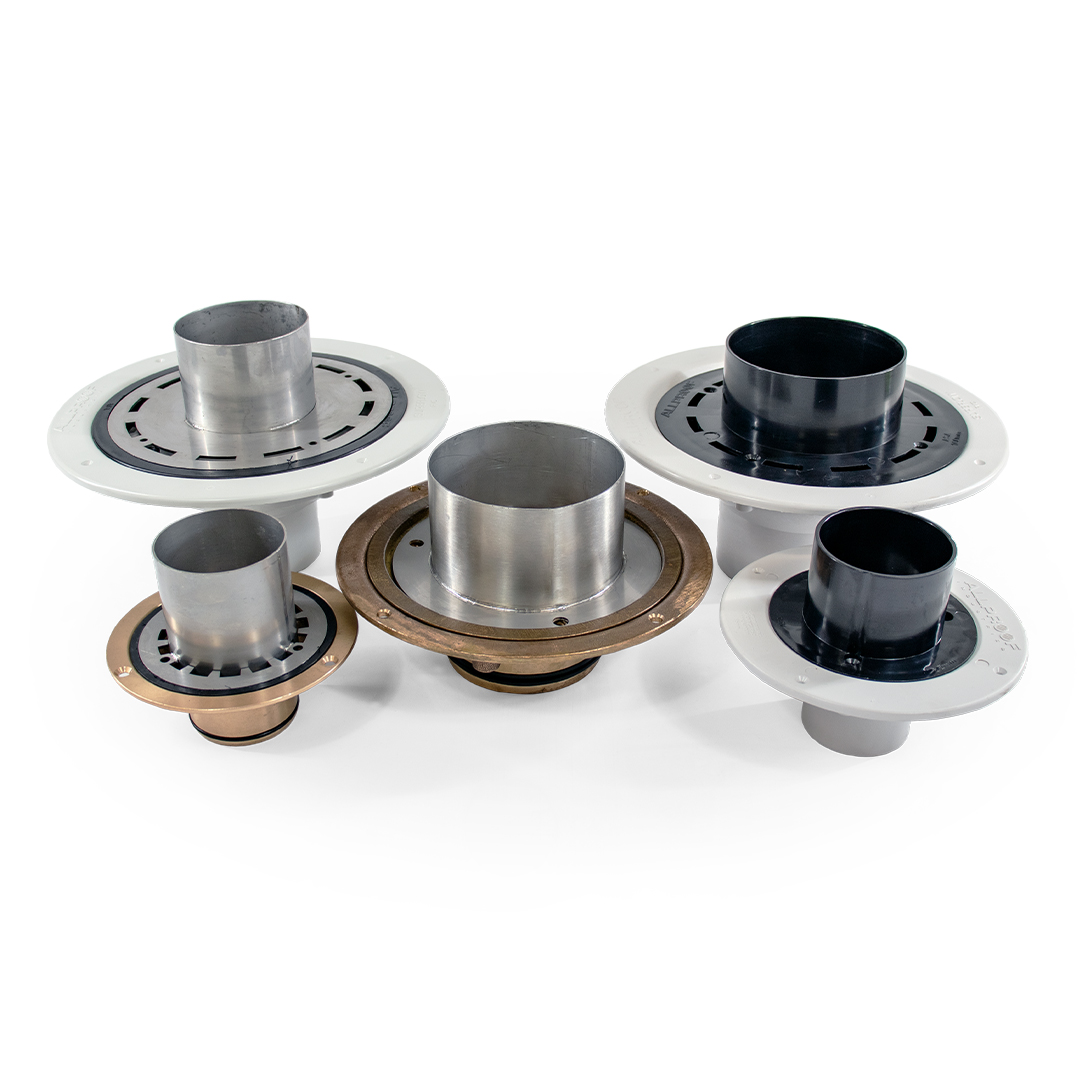

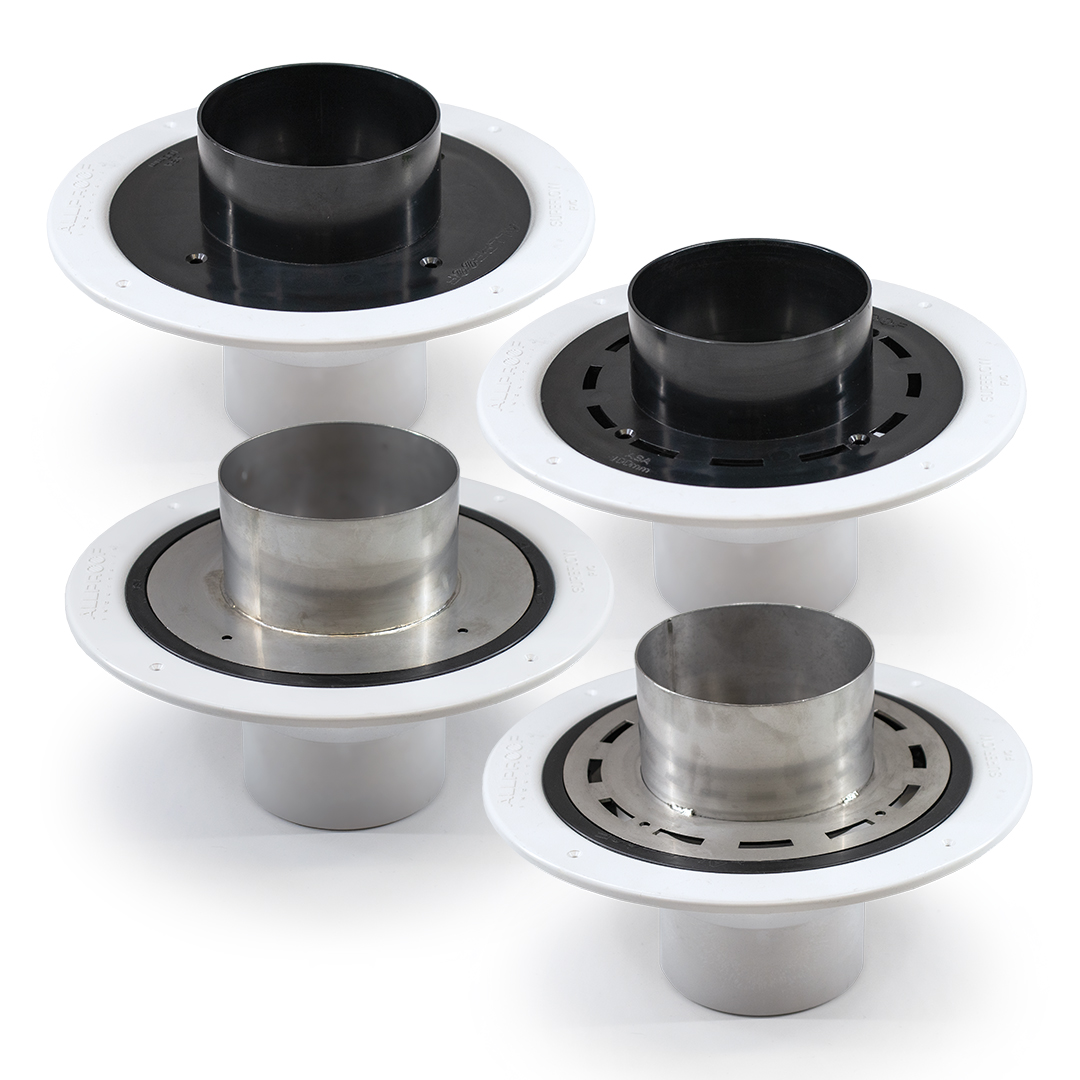

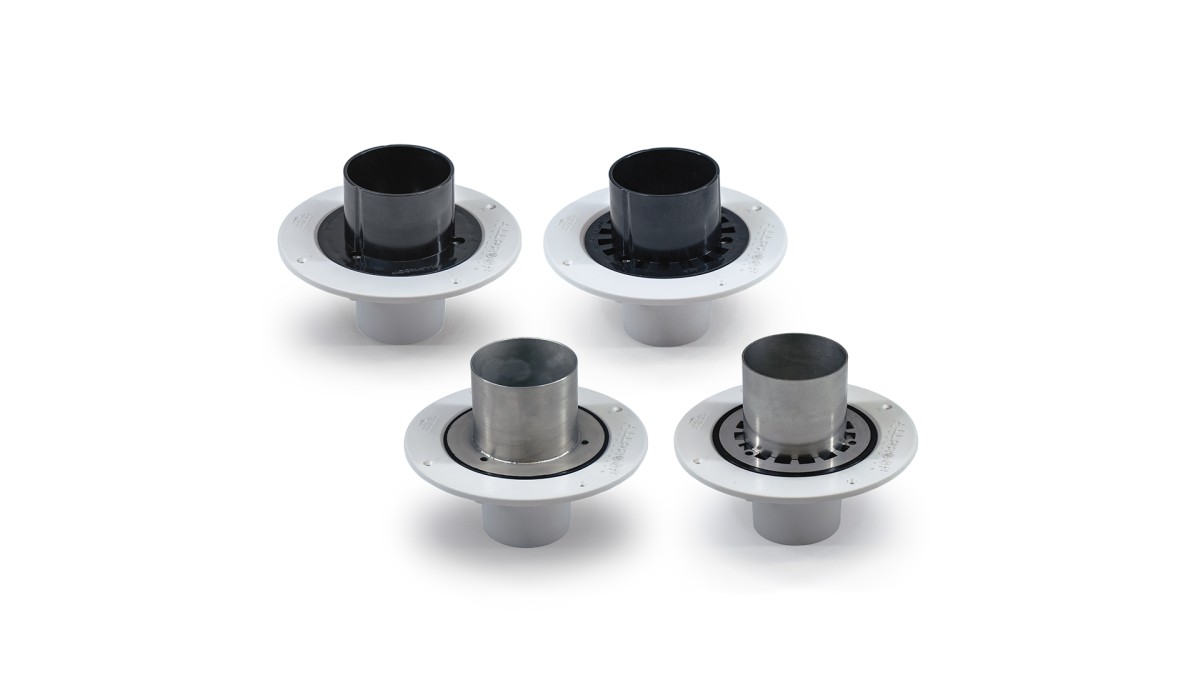

Solid one-piece ASA UV stable plastic clamp ring and pipe sleeve unit.

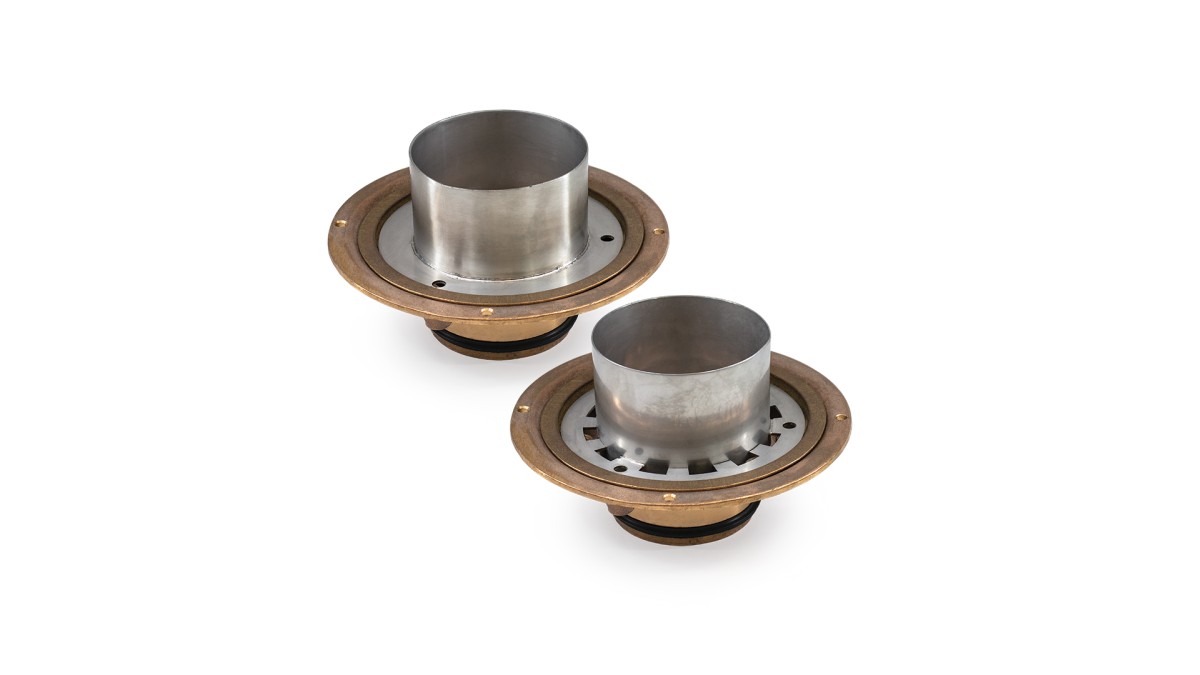

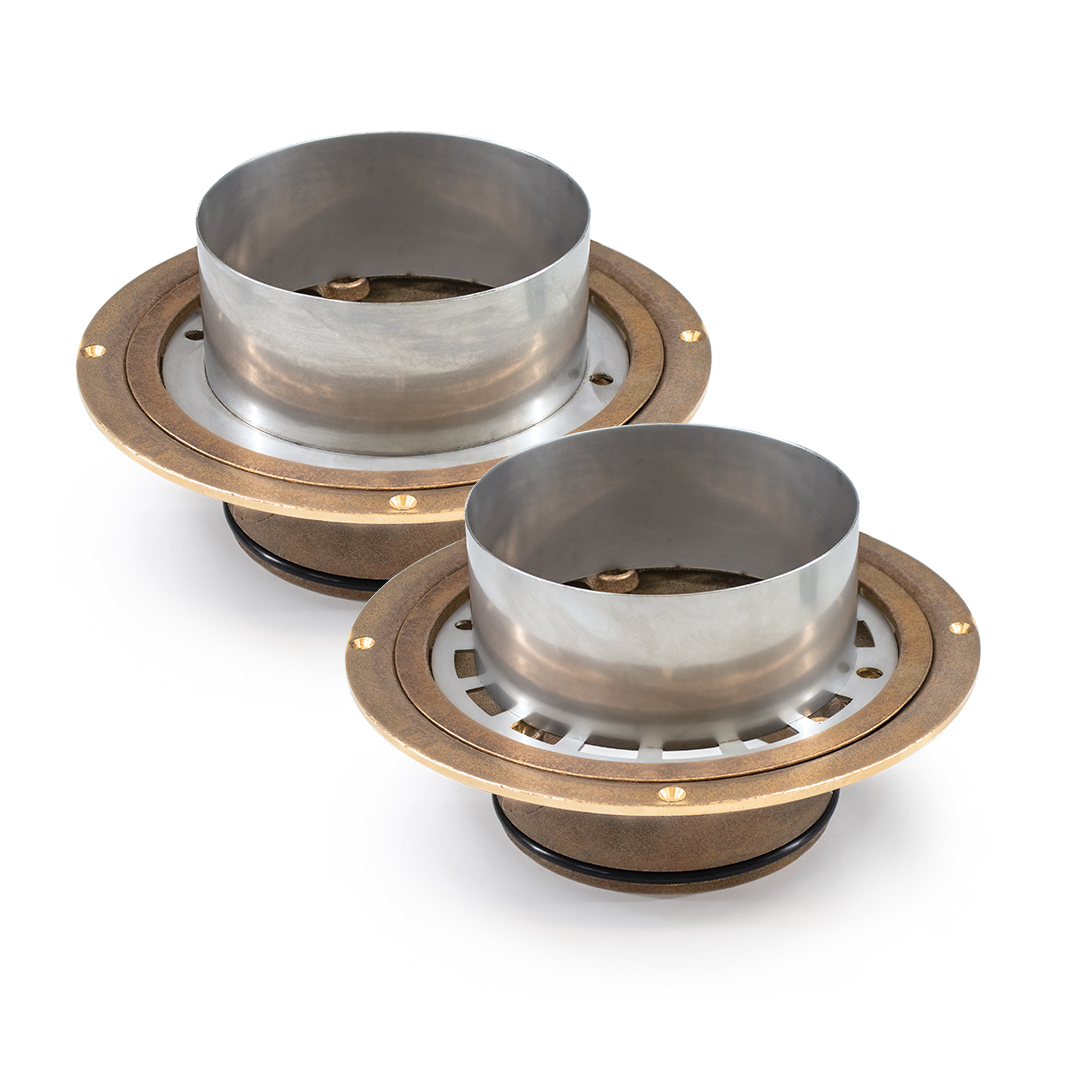

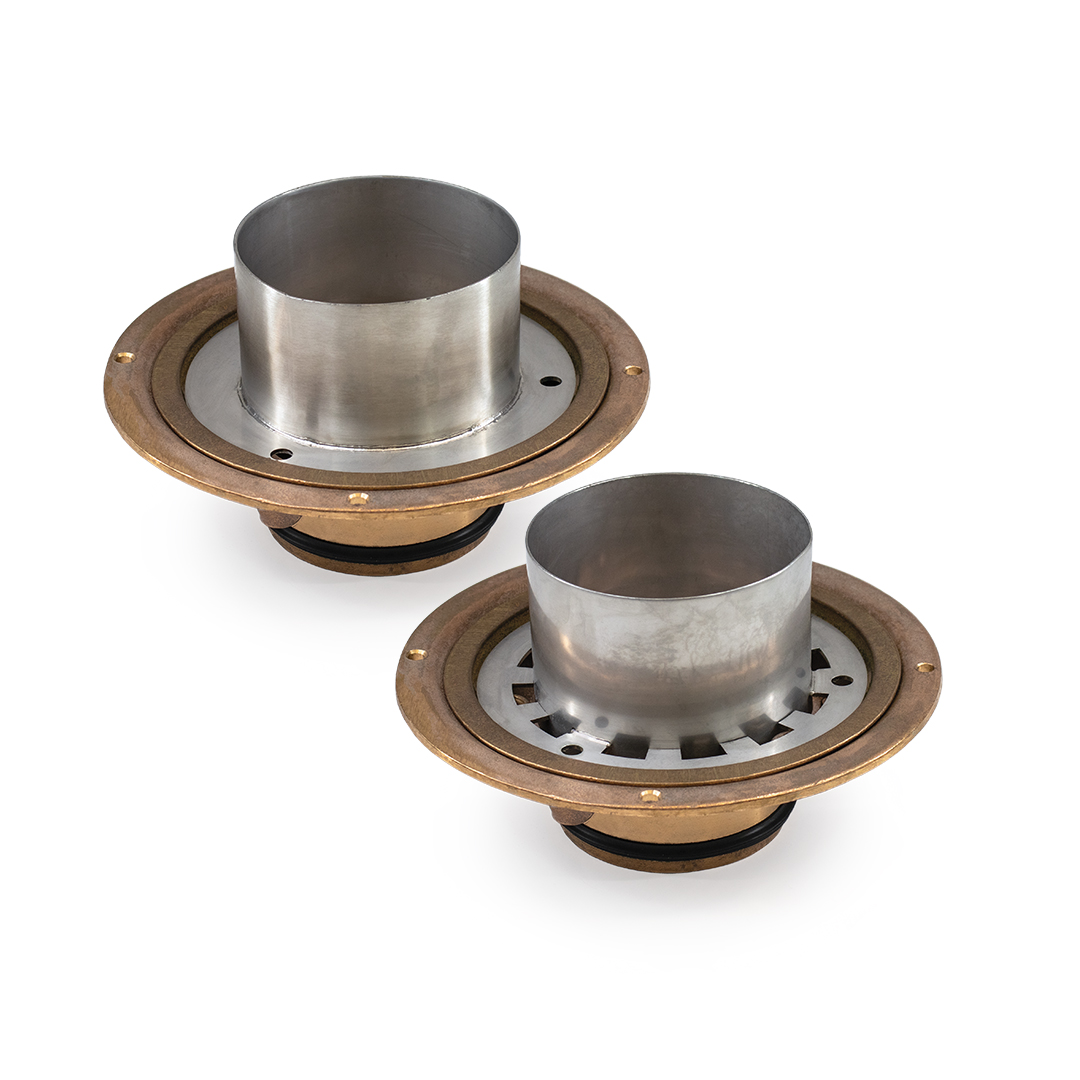

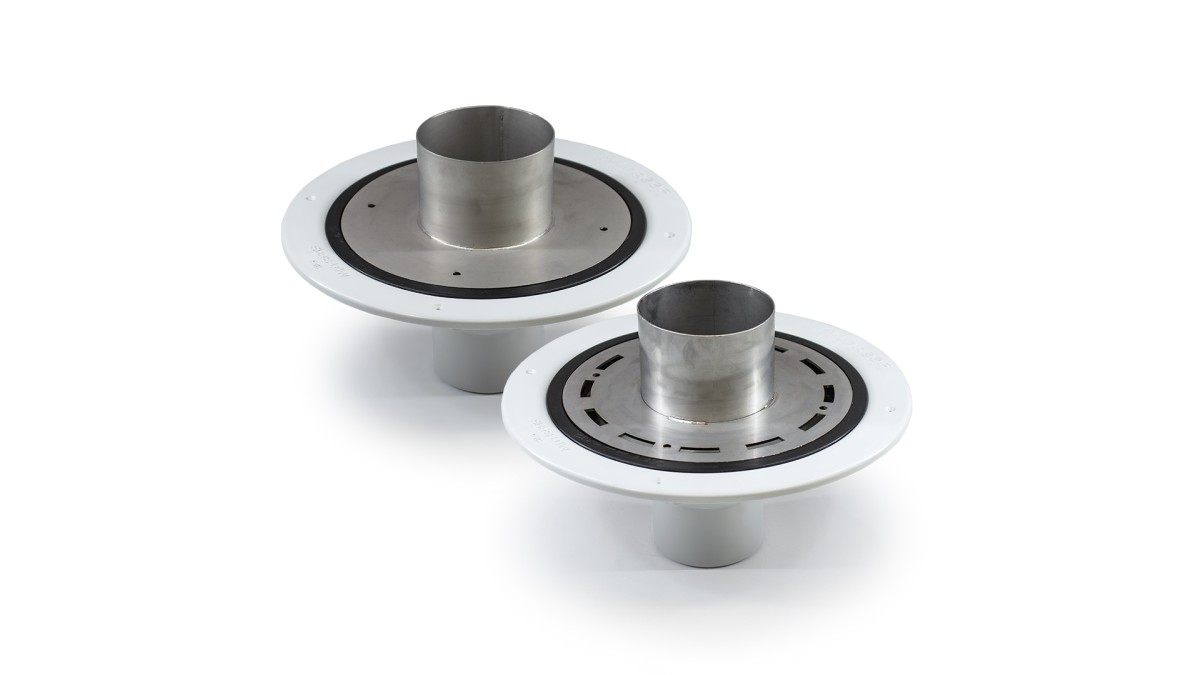

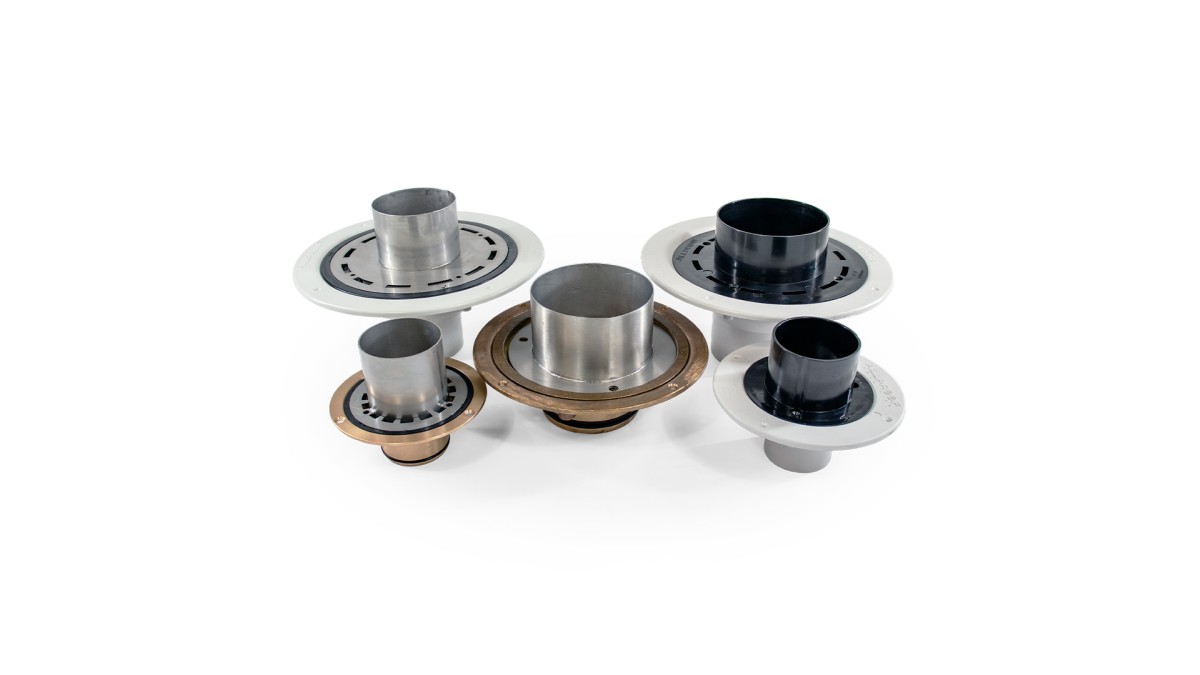

Durable two-piece stainless steel pipe sleeve with ASA or bronze clamp ring.

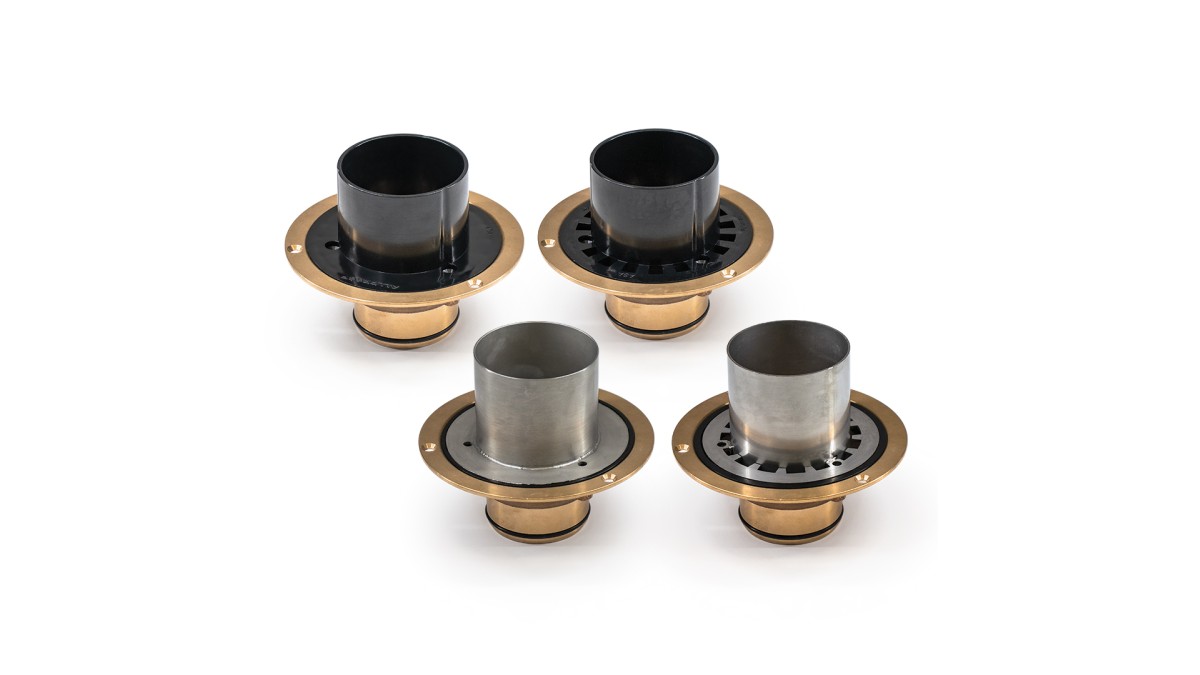

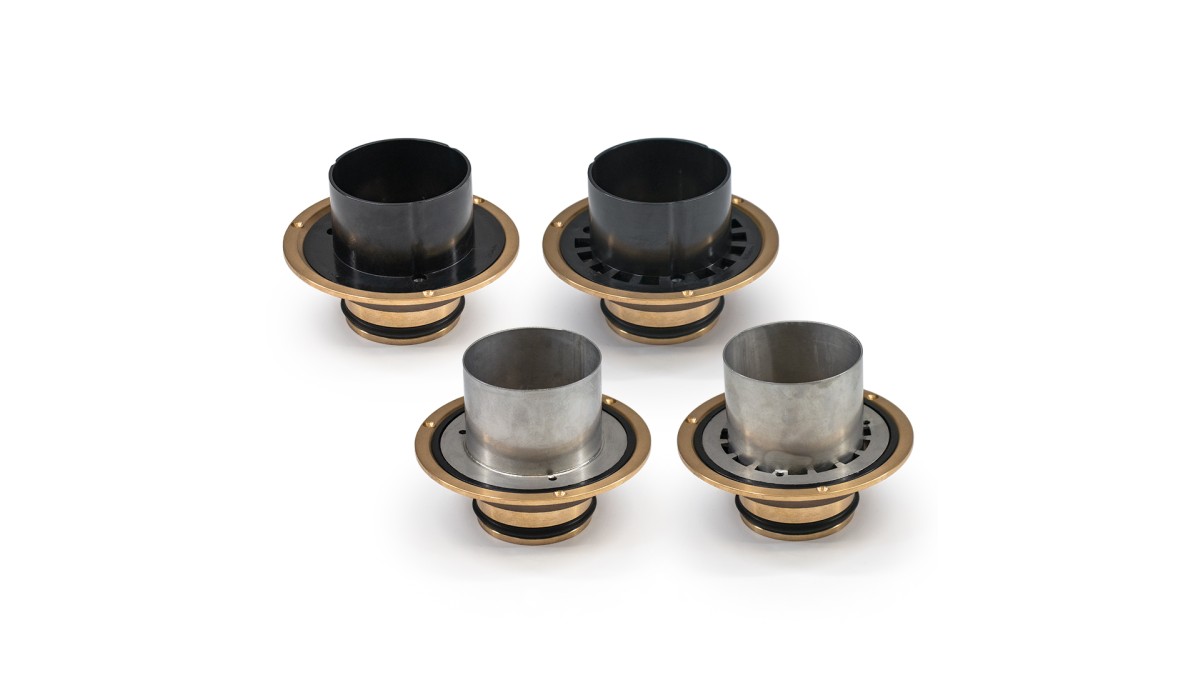

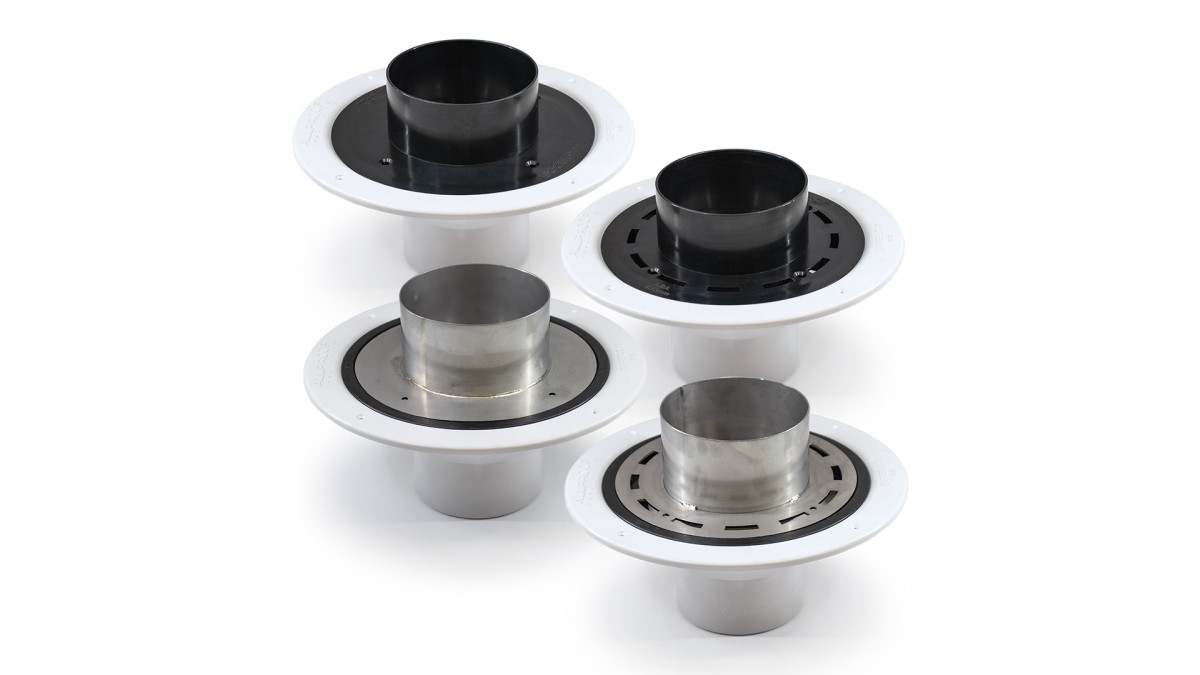

Brass and thick-walled PVC bases compatible with asphalt-based membranes.
PVC base compatible with liquid-applied membranes.
Suitable for downpipe sizes 65mm to 150mm.

Ranges

Roof/Balcony Drainage

NZ Made

NZ-Owned Business

Scope of Use

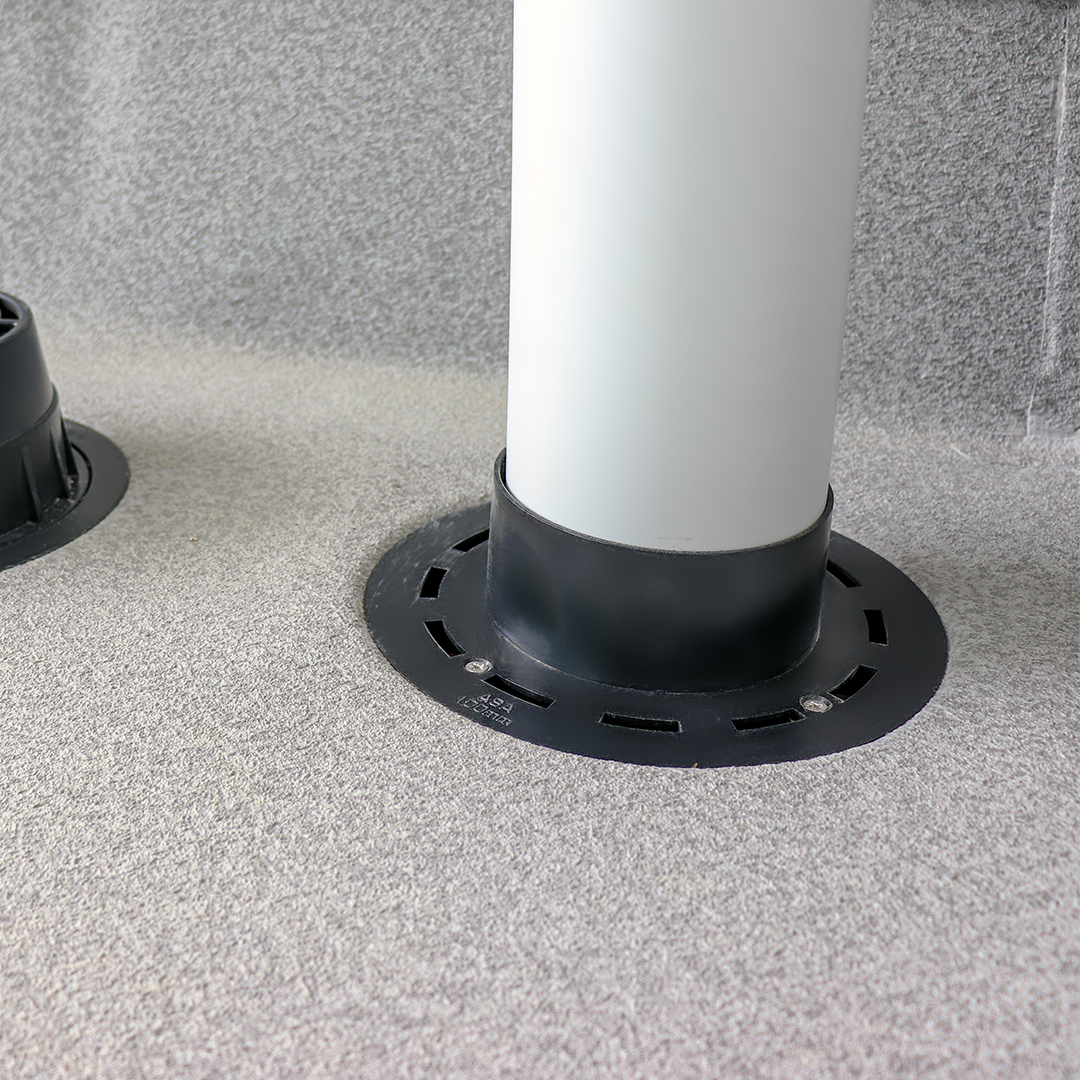

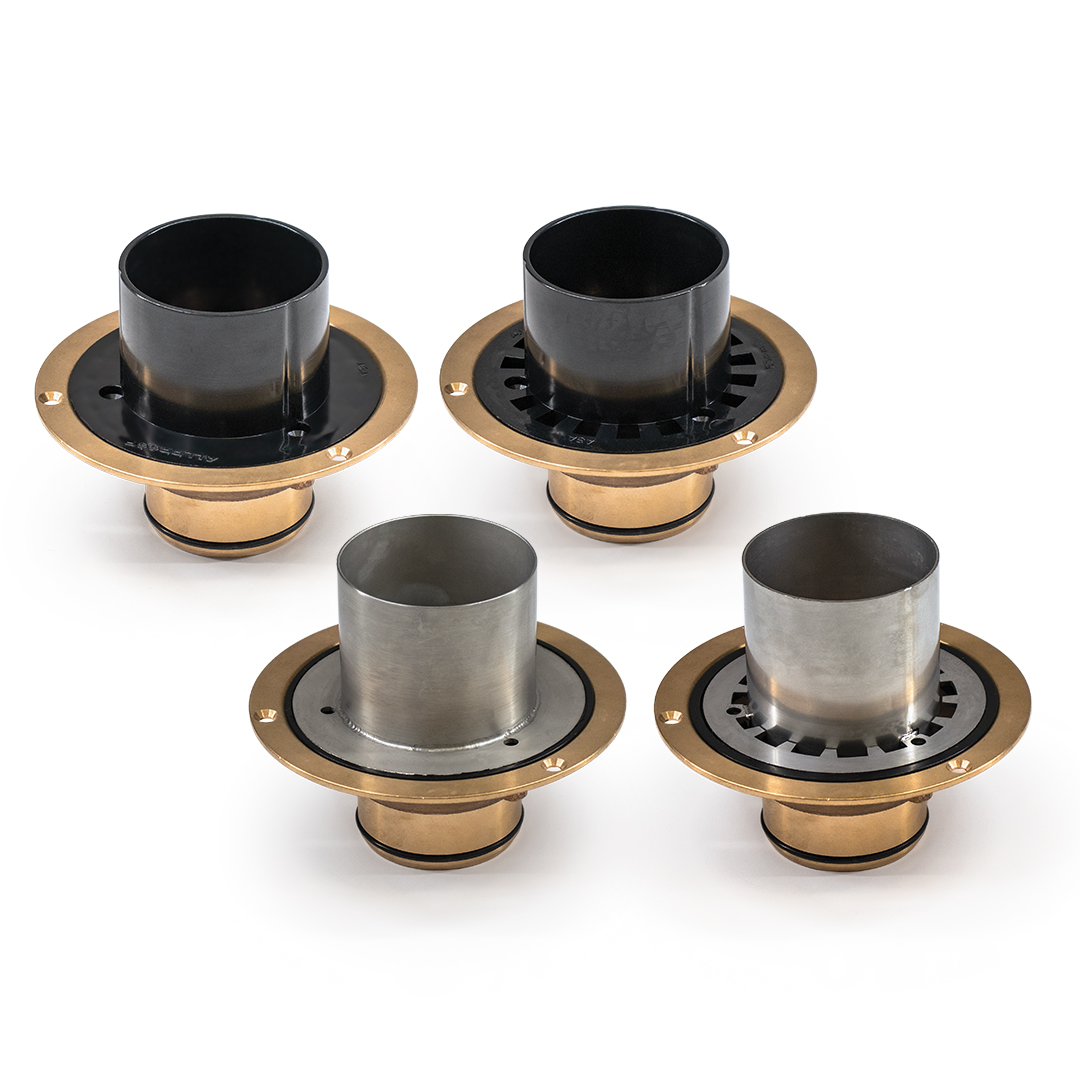

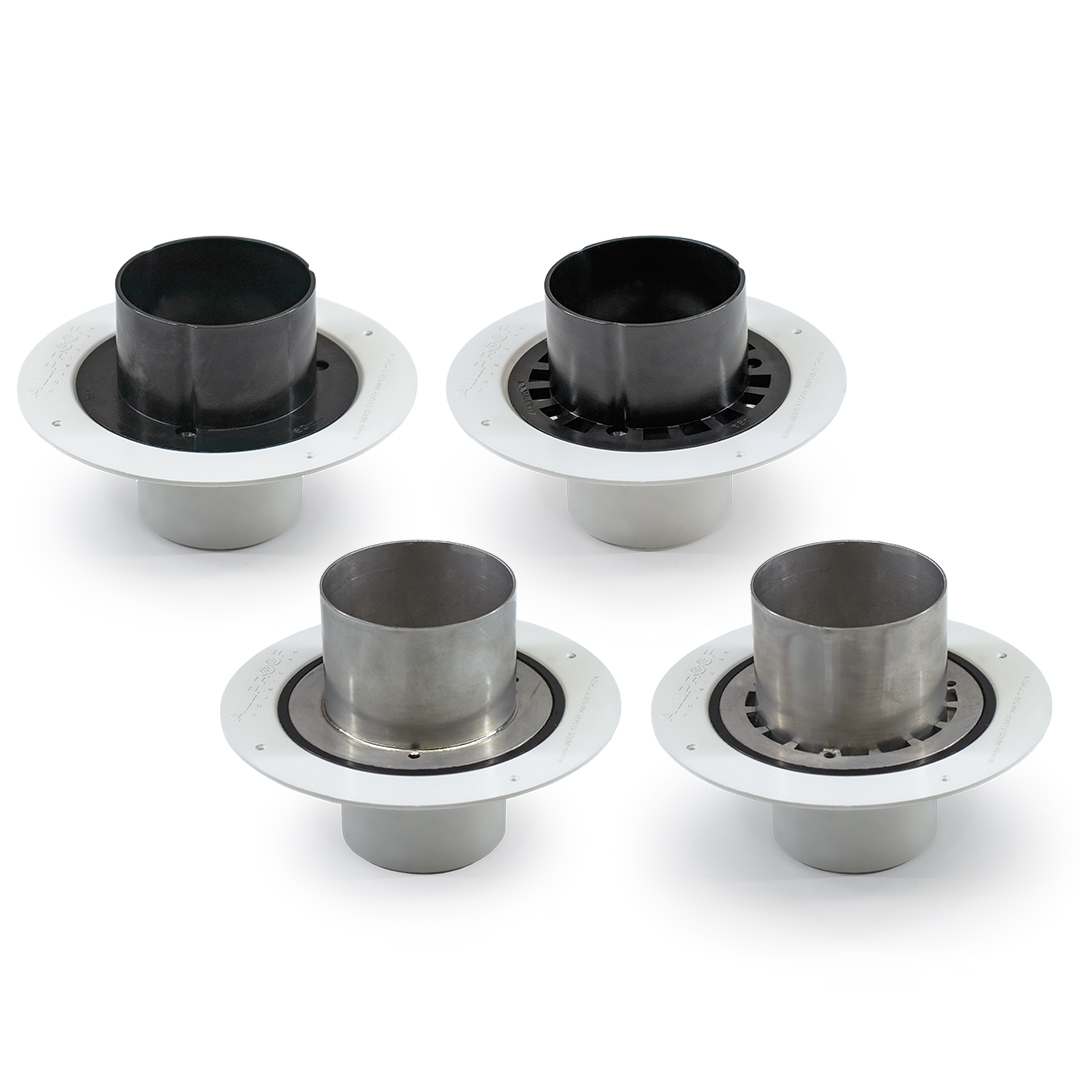

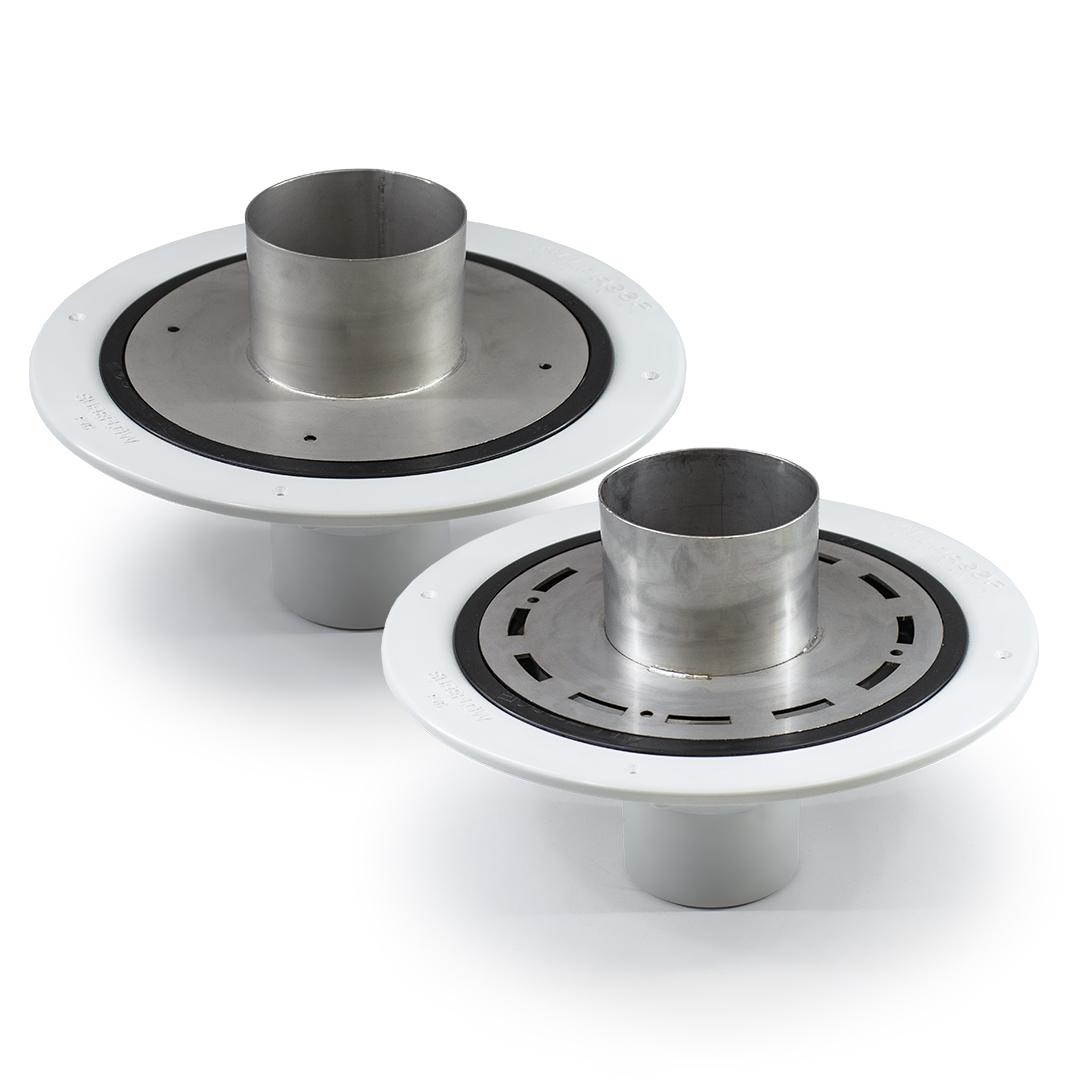

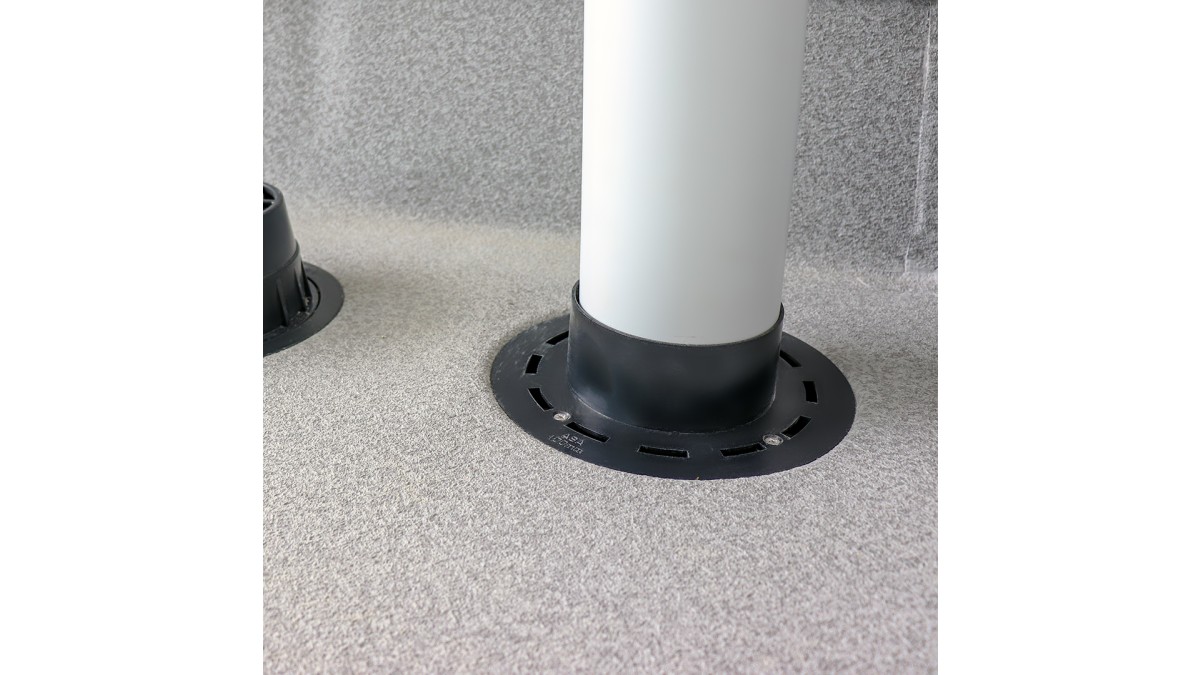

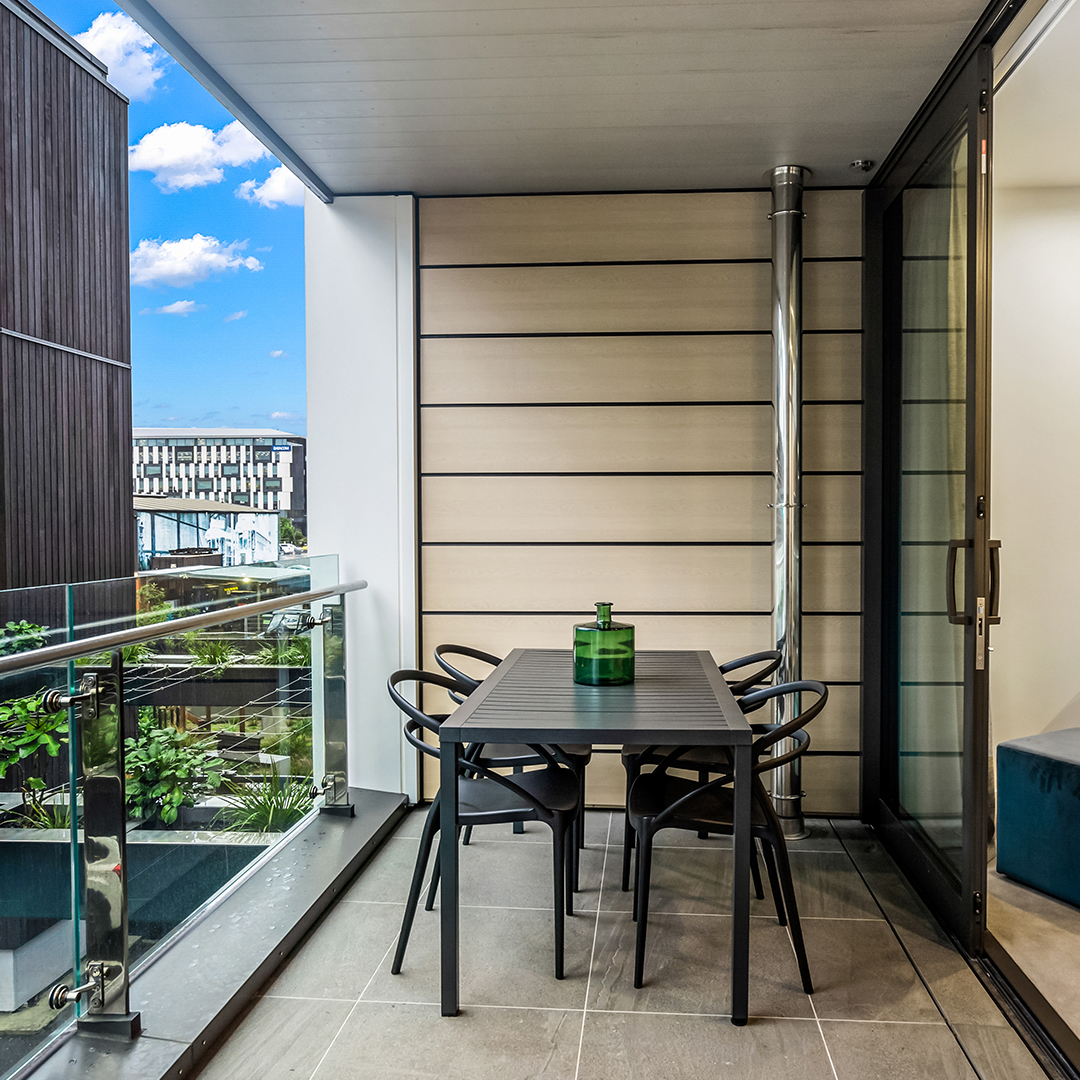

The Allthrough is a drainage flange supplied with either a stainless-steel sleeve and clamp ring or one a piece solid ASA UV stabilised plastic unit. The Allthrough flange and sleeve connects to downpipe creating a visually continuous run of downpipe through balconies with integrated drainage. The clamp ring has an open and closed option for required functions.

The flange is to be rebated into the balcony substrate with membrane dressed into it, the Allthough sleeve and clamping ring is then installed directing the connecting downpipe directly into the drainage flange. When an open Allthough is used this will then allow drainage of the balcony through the downpipe and removes the requirements of further drainage fittings around the balcony.

Limitations on Use

The AT100 O has been hydraulically tested using an independent NATA accredited laboratory. It is suitable for draining the roof and individual balconies up to 5 litres per second without splash from the downpipe through the Allthrough grating onto waterproof membrane level.

For all other product selections roof drainage will require a closed sleeve.

Please note the compatibility with waterproof membranes when selecting a flange option, especially if a heat-applied membrane is being used.

Statement of Building Code Compliance

NZBC E1 Surface Water. When selected and installed correctly Allproof roof drain and rainwater systems provide the appropriate solution for rainwater removal. The system includes overflows (E1.5.5) and downpipes (E1.4.0) compliant with all requirements in NZBC E1.
NZBC E2 External Moisture. Allproof roof drains are fully compatible with roofing membranes providing a sealed outlet for rainwater. Allproof roof drain outlets are designed and fully compliant with all specifications outlined in NZBC E2, specifically Figure 63 and Figure 64.
B2/AS1 Durability: B2.3.1 — Allproof roof drain systems meet the requirements of B2.3.1 (a) not less than 50 years, (b) not less than 15 years and (c) not less than 5 years.
