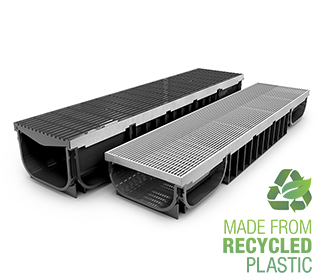

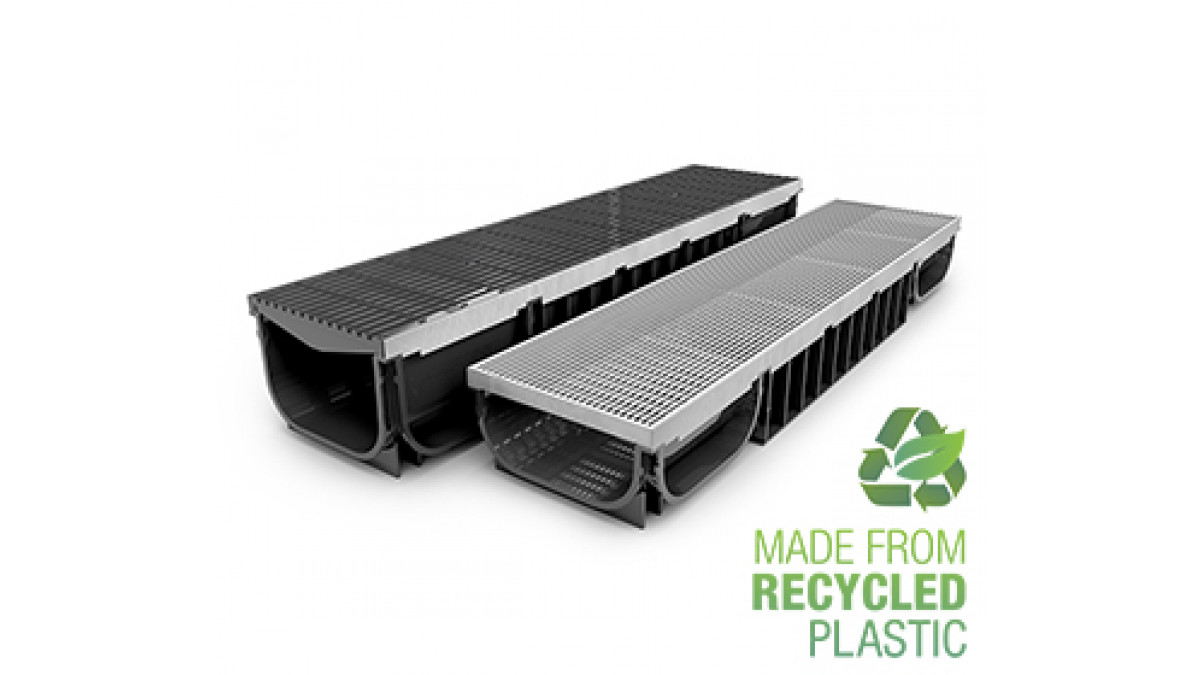

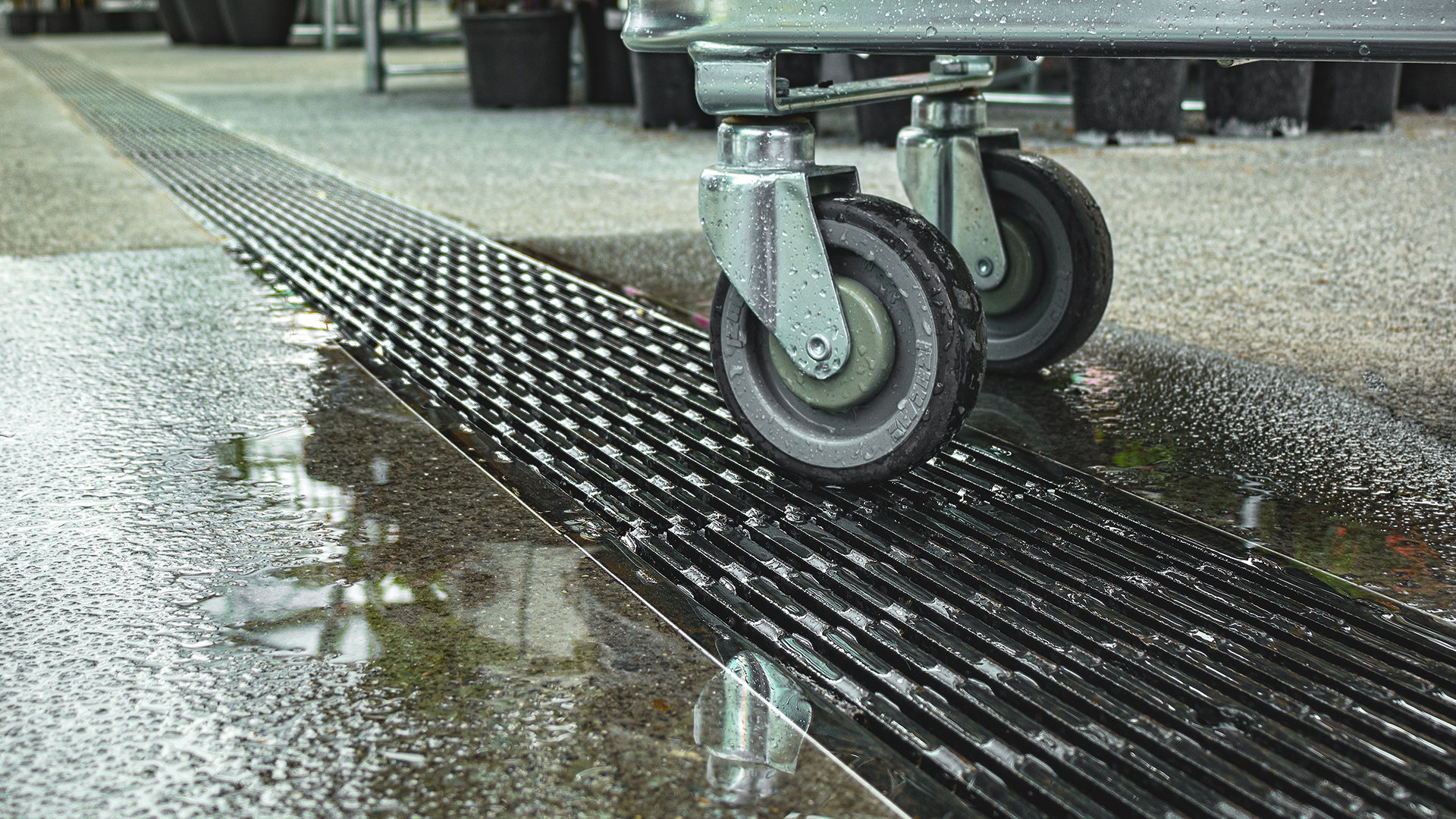

The Allproof CC200 commercial linear channel drain is a medium duty high-capacity solution for external stormwater and surface water drainage. It has been designed for installation in concrete, pavers or epoxy finished floors. The trench drain gains its strength from the surrounding concrete, the 100% recycled polypropene creates an easy to handle and install system. The grates include black plastic, heelproof cast iron and 316 stainless steel wedge wire.

This system is ideal for urban pedestrianised areas, all the grates are heelproof and the 316 SS wedge wire has an R11 slip resistance rating. These features also make it an excellent option for educational facilities.

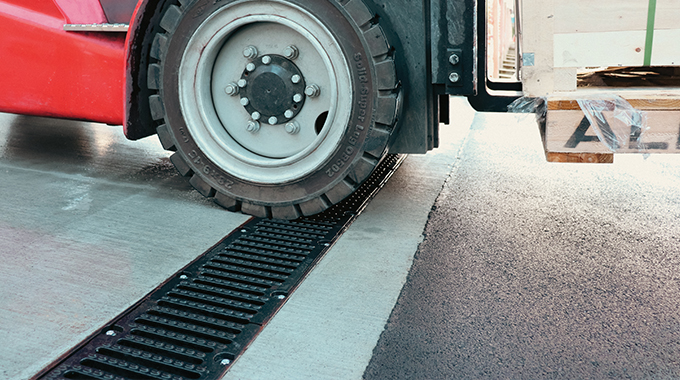

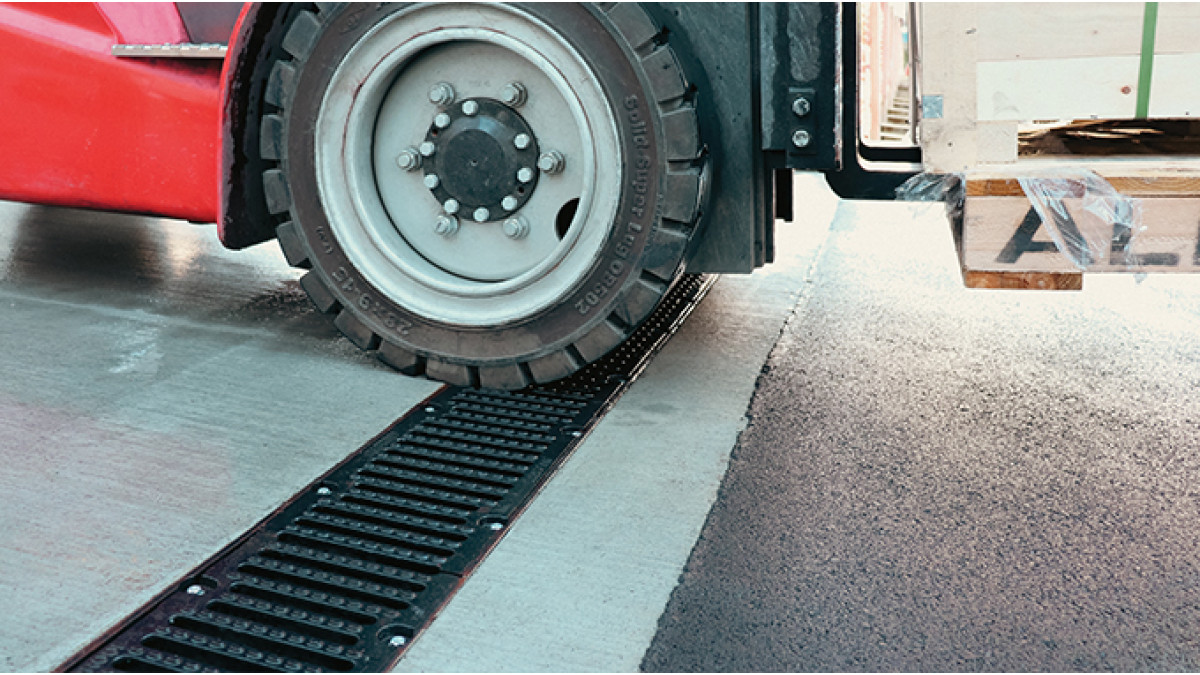

The cast iron grate is load class rated up to a classification of D allowing this versatile strip drain to also be used in loading bays, car parks and other commercial applications requiring a durable drainage solution.

Allproof floor surface water drainage products have been designed for compliance with the scope outlined in building codes listed above and to be installed as per published installation guides.

The standards these products have been designed to does not consider fire resistance.

For draining aggressive chemical substances careful product selection is required, see product details for further information.

Concrete encasement for appropriate load class requirements is needed, see installation details for further information.

Load class limitations specific to each grate design, see product details and install documents for further information.

NZBC E1 Surface Water:

• E1.1/E1.2: Allproof Surface water drainage systems have been designed to safeguard people from injury or illness, and other property from damage caused by surface water.

• E1.3.1/E1.3.2: When correctly selected for the scenario and installed in line with Allproof literature these systems will protect property from surface water in an event having a 10% probability of occurring annually or entering a property in an event having a 2% probability of occurring annually.

• E1.3.3: When selected and installed correctly Allproof surface water systems with convey water to an appropriate outfall using gravity, avoid the likelihood of blockages, provide access for maintenance and clearing blockages, and avoid the likelihood of damage from superimposed loads or normal ground movements.

B2/AS1 Durability: B2.3.1 - Allproof surface water drainage systems meet the requirements of B2.3.1 (b) not less than 15 years and (c) not less than 5 years.

AS 3996 Access covers and grates: Allproof surface water drainage systems have been designed to comply to the specifications and testing set out in AS 3996. By complying to this standard Allproof products are made to improve the performance of trafficable covers and grates in vehicular and pedestrian areas, thus reducing risk of injury or loss through damage.

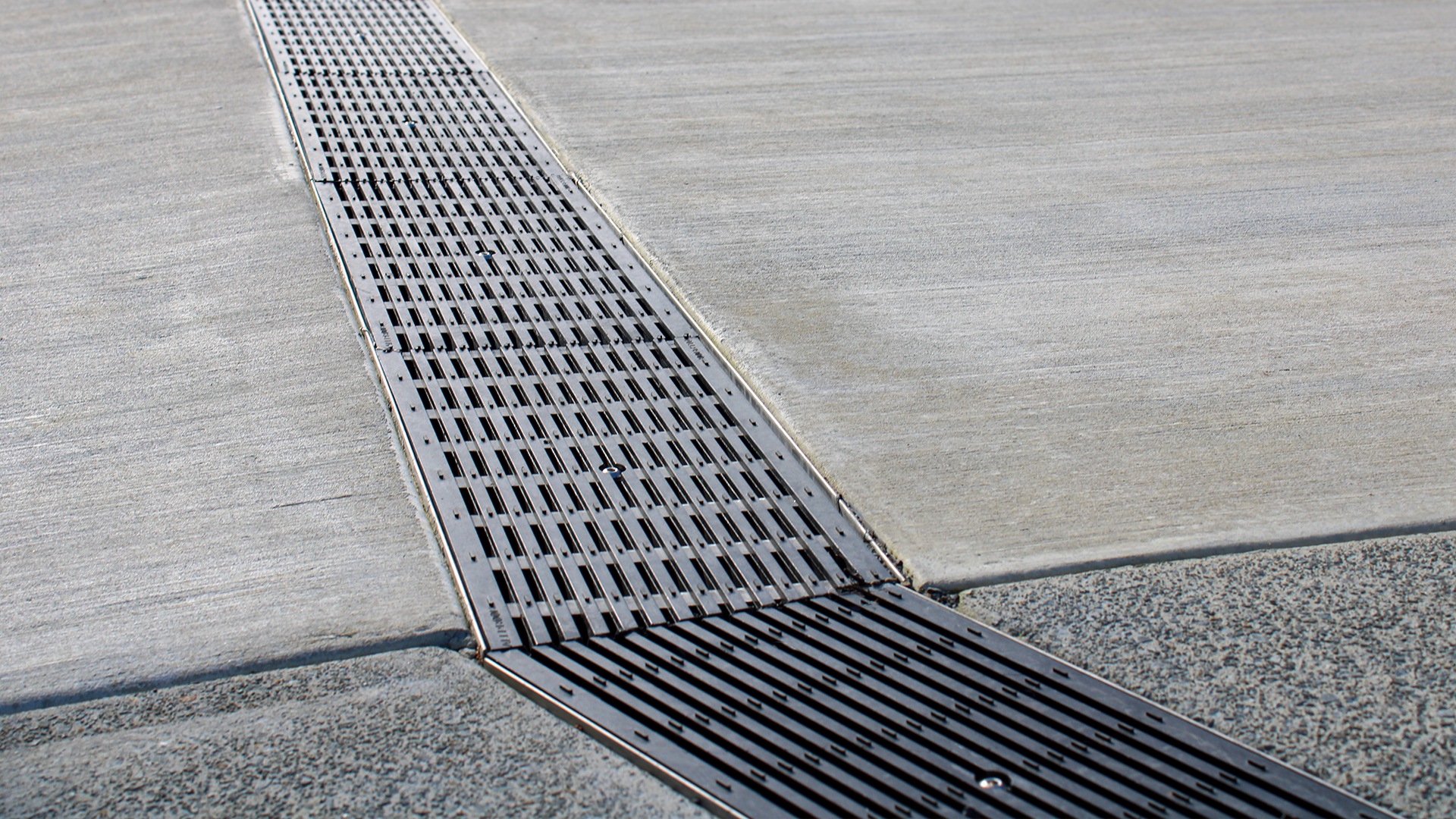

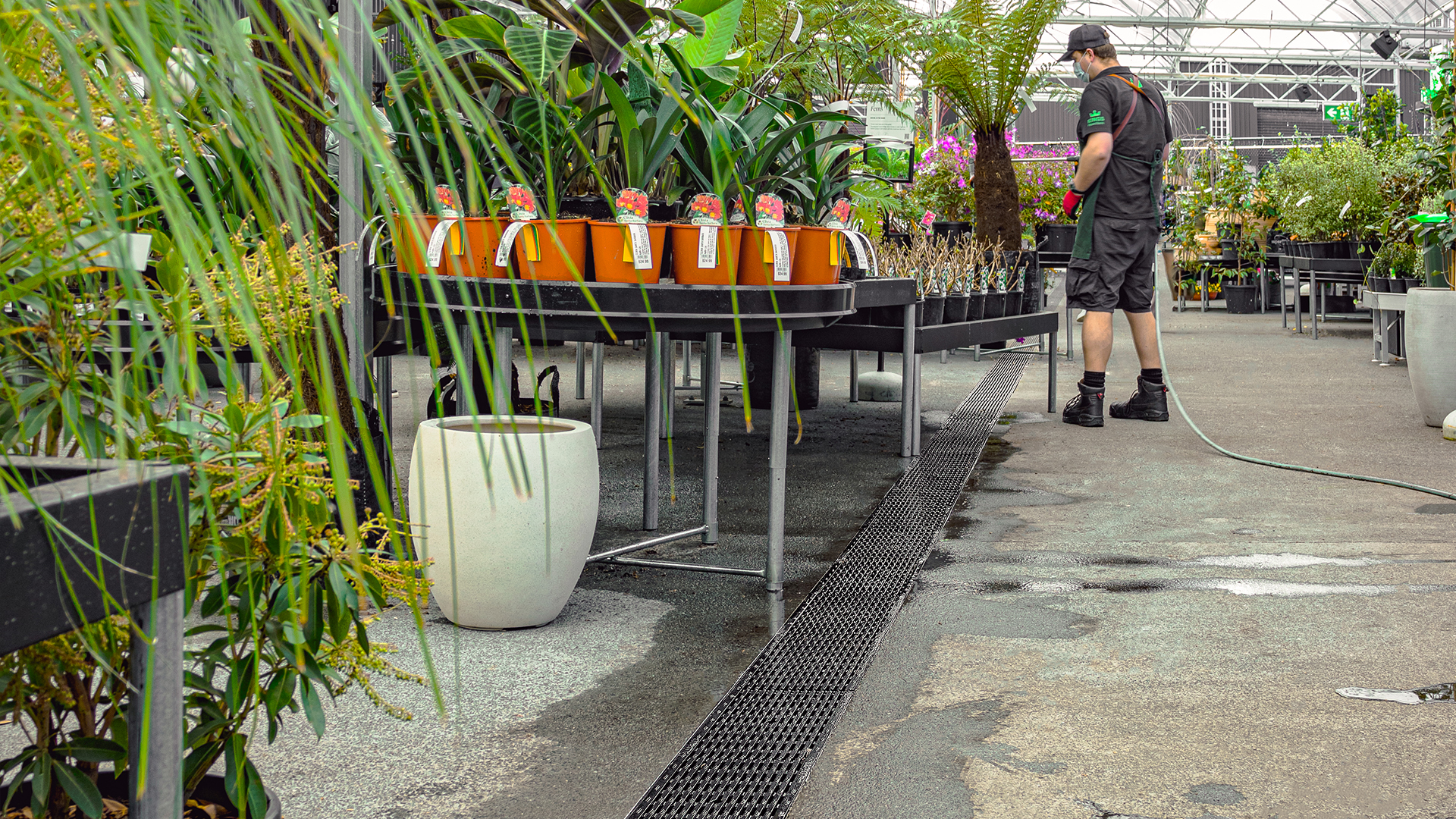

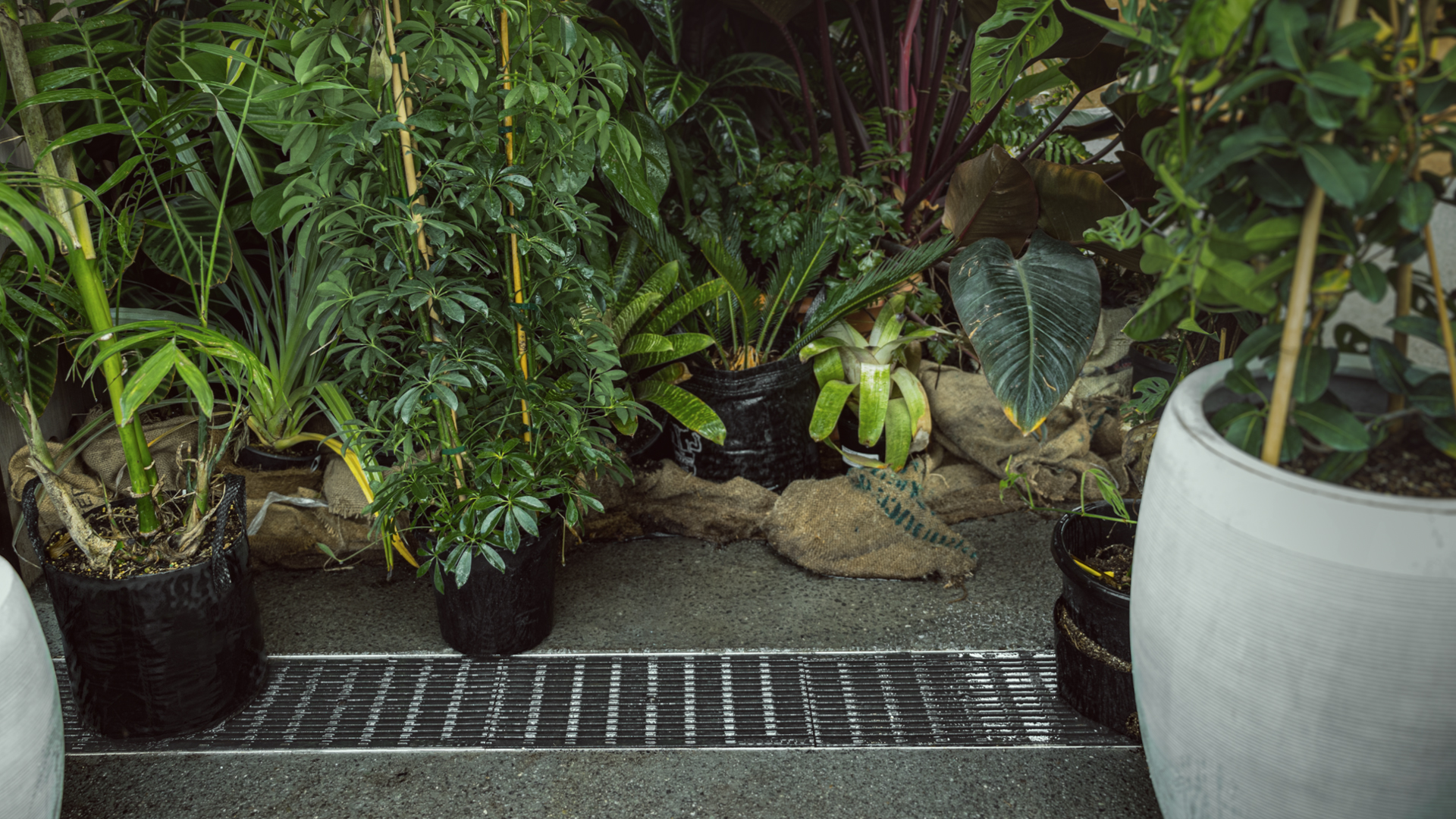

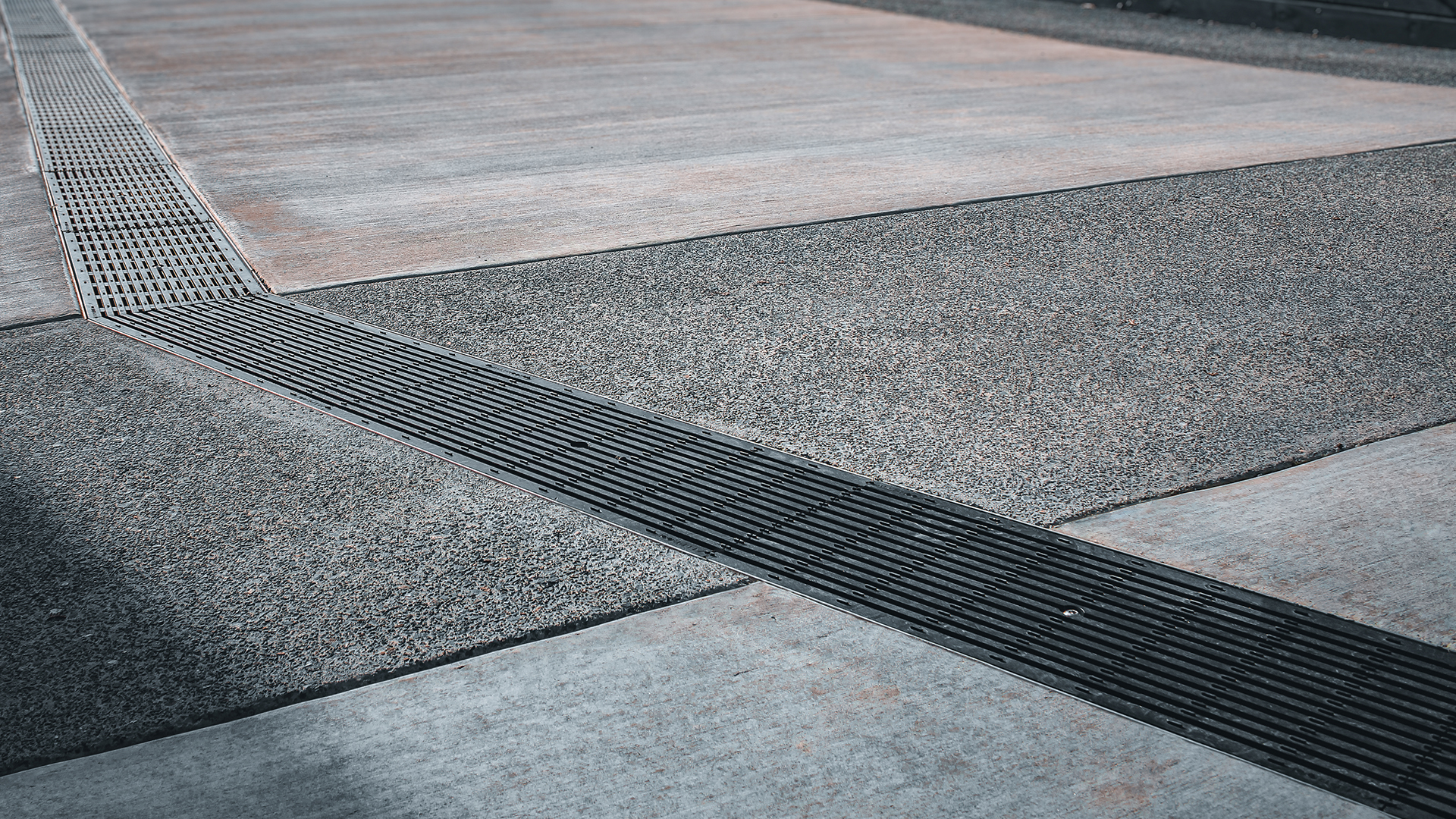

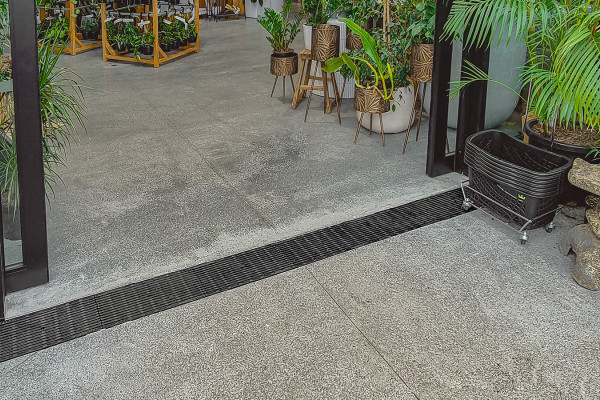

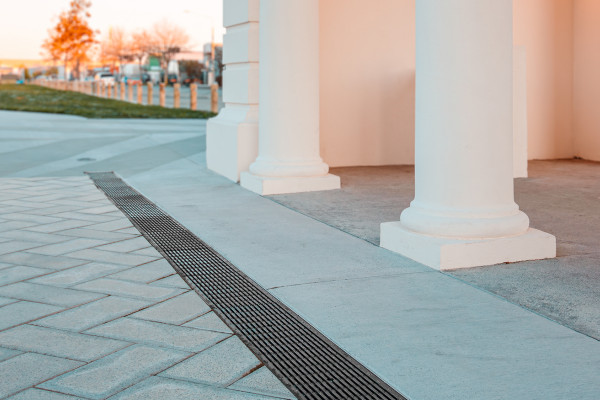

Installed at Allproof Industries production facility in Beach Haven, Kings Plant Barn Stonefields, Lancaster Park Christchurch and Auckland University's Rec Centre.

• Load class tested
• Made from recycled polypropylene
