• Used on roofs and balconies
• Commercial and residential

• To be installed as per published installation guides.

  For commercial and/or residential applications.

  For use on flat roofs and internal gutter designs.

  Grate selection should be considered for installation scenario.

  If cleanout is located inside a building a lid with seal must be selected as per G13/AS2 Figure 10. The following product apply to this install scenario - BT100, BT PVC, Cast Bronze Vinyl Cleanout, Vinylrite Cleanouts. All products are applicable to external applications.

  Allproof floor waste products have been designed for compliance with the scope outlined in building codes listed above for internal floor drainage and to be installed as per published installation guides. For commercial and/or residential applications. Compatible with other AS/NZS and NZBC compliant DWV systems, waterproofing membrane systems and flooring systems.

G1/AS1 Personal hygiene 1.1, 1.3.2 and clause 2.5: Allproof floor wastes are designed to provide an appropriate drainage solution for showers and various other sanitary fixtures required for personal hygiene. Floor wastes are designed to safely remove wastewater removing risk of contamination, when cleaned and correctly maintained floor wastes shall not harbour dirt and germs and prevent unpleasant odours from being emitted from the DWV system. Floor wastes for showers with a tray or a level threshold satisfy provisions of E3/AS1 internal moisture.

Refer to install guides and specifications for further information.

NZBC G13/AS1 Foul water clause 1(b), 3.1(c) & (d) and clause 3.4 Floor Outlets: Allproof floor waste systems (water traps and grates) have been designed and manufactured to be compliant to all requirements set out in G13/AS1.

> The water seal in the gully prevents foul air and gases entering buildings,

> Grates are removable to access the system for maintenance and cleaning,

> Grates finish flush with the floor,

> Outlets exceed the minimum diameter.

Refer to install guides and specifications for further information.

NZBC G13/AS3 Foul water and AS/NZS 3500.2 clauses 4.6: Allproof floor waste systems have been designed to comply with all criteria outlined in AS/NZS 3500.2 and modifications covered in NZBC G13/AS3. Outlet connections designed to specifications in Appendix A of 3500.2. Gullies designed in accordance with requirements in clause 4.6.

AAS 3740 clause 3.14: Allproof floor waste systems have been designed to specifications and requirements set out in AS 3740 clause 3.14 for the membrane to drainage connection following figures 3.8 and 3.9.

B2/AS1 Durability: B2.3.1 - Allproof floor waste systems meet the requirements of B2.3.1 (a) not less than 50 years, (b) not less than 15 years and (c) not less than 5 years.

WaterMark Certificate of Conformity has been obtained on all relevant floor wate components for-

> AS1260 (WMKA 21800),

> WMTS-040 (WMKT 21223),

> and AS2887 (WM 74706).

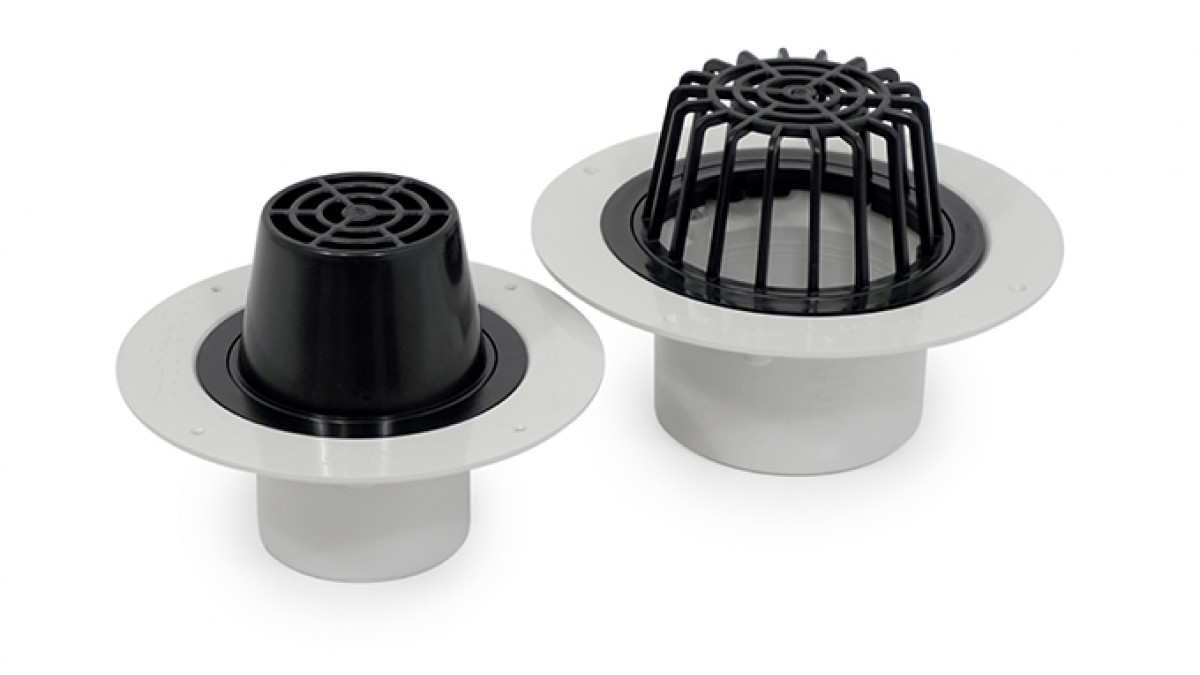

NZBC E1 Surface Water. When selected and installed correctly Allproof roof drain and rainwater systems provide the appropriate solution for rainwater removal. The system includes overflows (E1.5.5) and downpipes (E1.4.0) compliant with all requirements in NZBC E1.

NZBC E2 External Moisture. Allproof roof drains are fully compatible with roofing membranes providing a sealed outlet for rainwater. Allproof roof drain outlets are designed and fully compliant with all specifications outlined in NZBC E2, specifically Figure 63 and Figure 64.

• Used country wide in both commercial and residential settings
