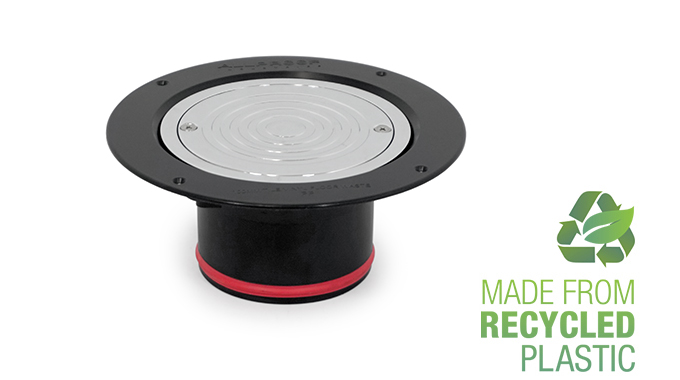

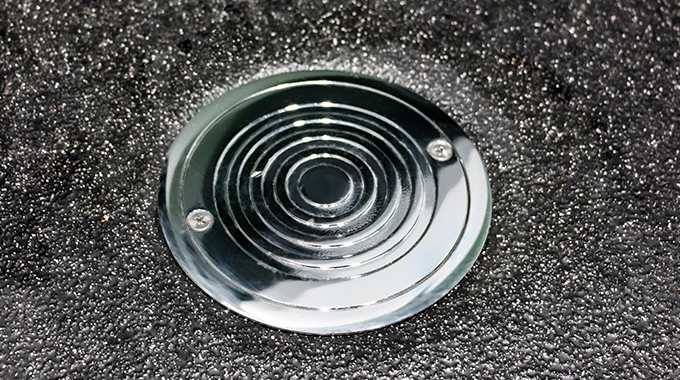

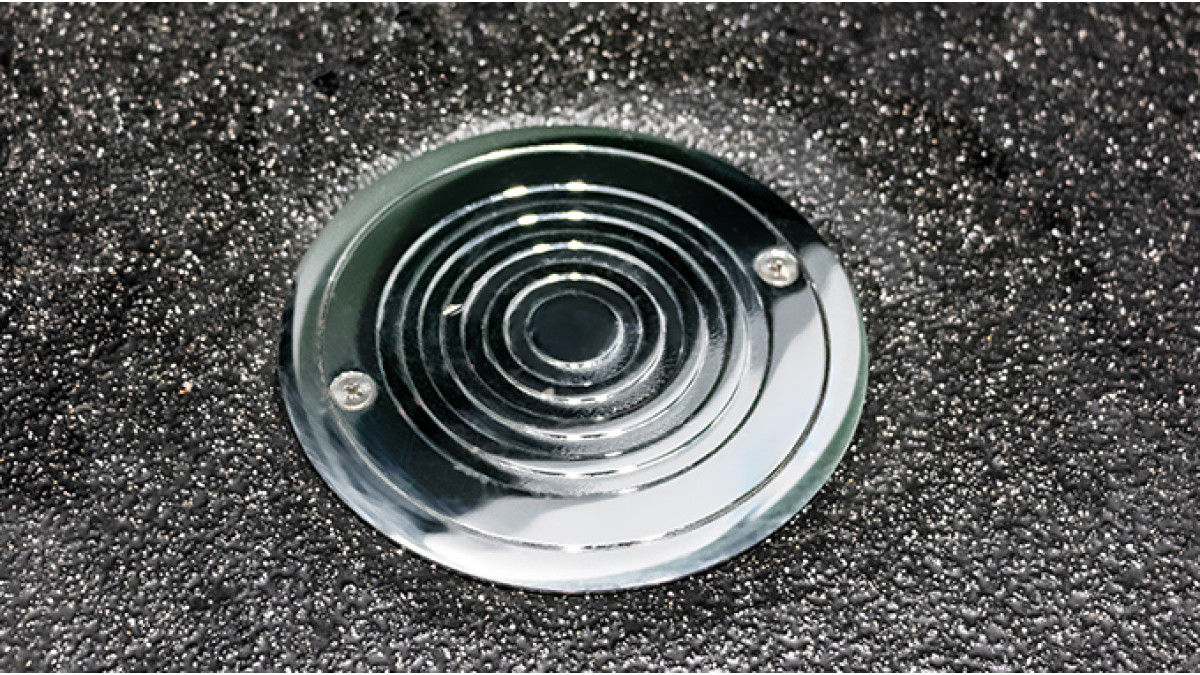

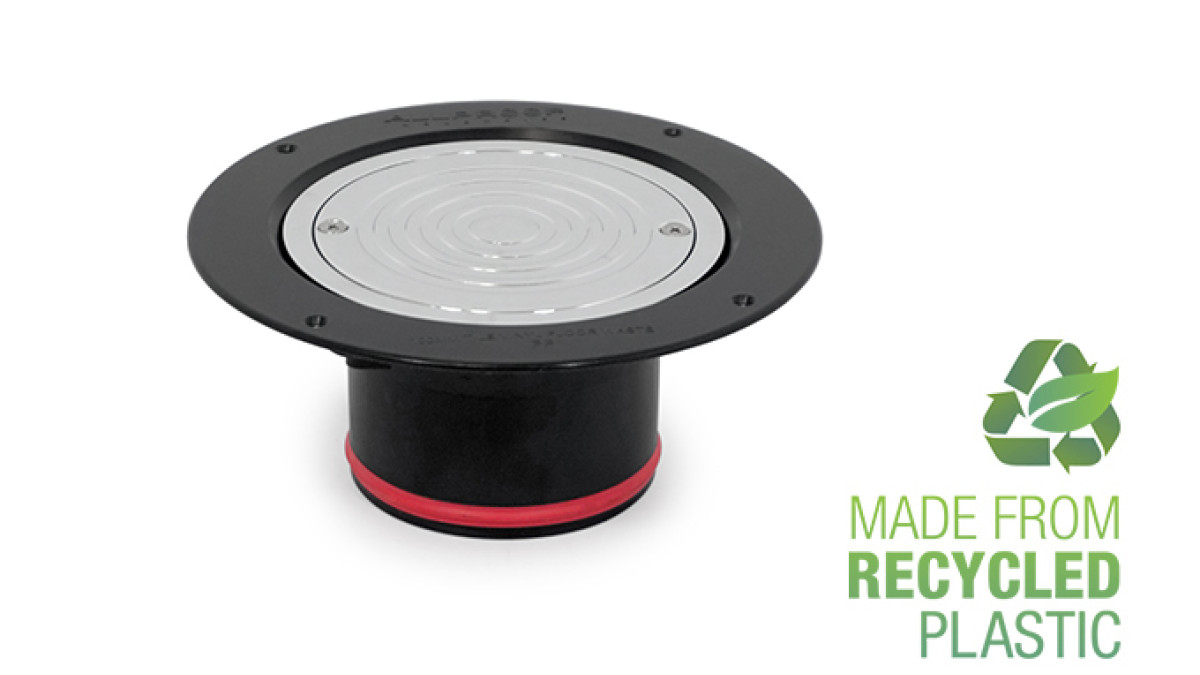

Cleanout / inspection point drains are designed to provide an access point for maintenance to drainage systems that have been buried or otherwise inaccessible.

• Suits 100mm HDPE pipes
• Compatible with vinyl flooring systems
• Suitable for use in commercials buildings
• Inspection / cleaning / rodding point on long runs of DWV pipe

If cleanout is located inside a building a lid with seal must be selected as per G13/AS2 Figure 10. The following product apply to this install scenario - BT100, BT PVC, Cast Bronze Vinyl Cleanout, Vinylrite Cleanouts. All products are applicable to external applications.

NZBC G13/AS2: Allproof cleanouts provide the ability to install an inspection point / rodding point to drainage systems in accordance with clause 5.7 and Figure 10.

NZBC G13/AS3: Allproof BT100, BT PVC, Cast Bronze Vinyl Cleanout, Vinylrite Cleanouts provide the ability to install an inspection point / rodding point to drainage systems in accordance with clause 4.4 of ASNZS3500.2-2018 as referenced in G13/AS3.

B2/AS1 Durability: B2.3.1 - Allproof cleanout systems meet the requirements of B2.3.1 (a) not less than 50 years, (b) not less than 15 years and (c) not less than 5 years.

Used nationwide.

All grates:

• Are removable to access the system for maintenance and cleaning,
• Finish flush with the floor,
• Are applicable to external applications.
