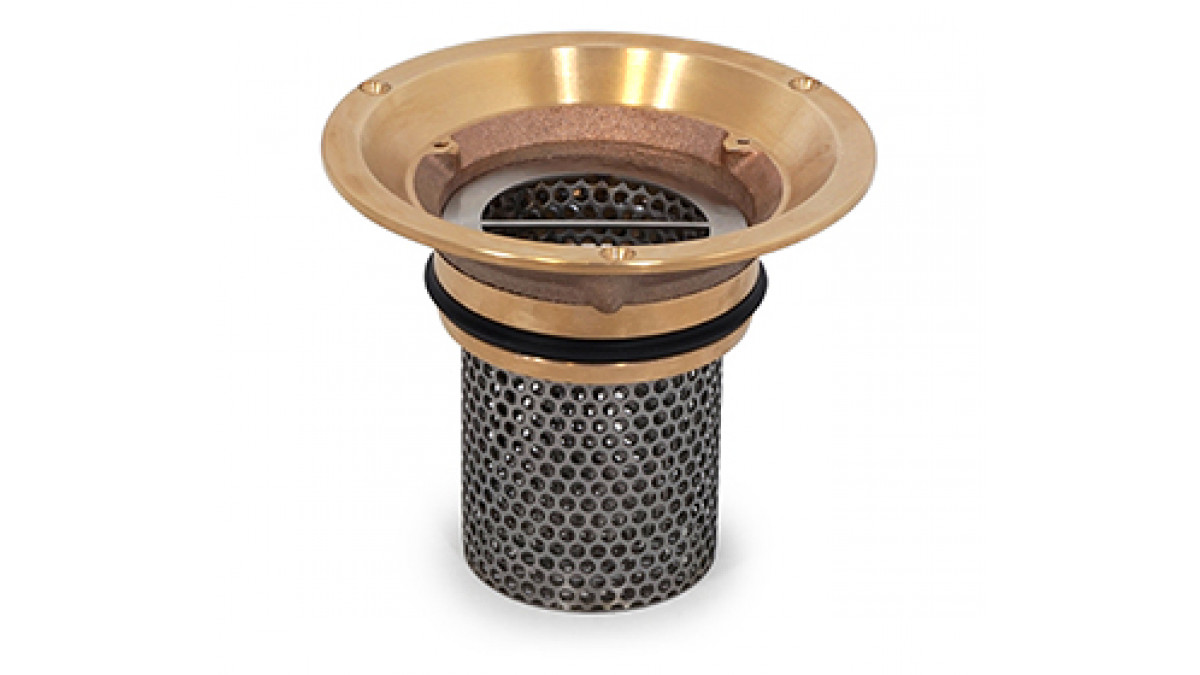

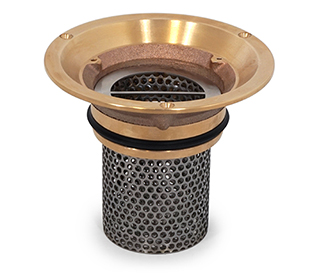

• Base flange fits inside 100mm pipe riser
• Cam-lock grate for easy waste access without disturbing vinyl/membrane

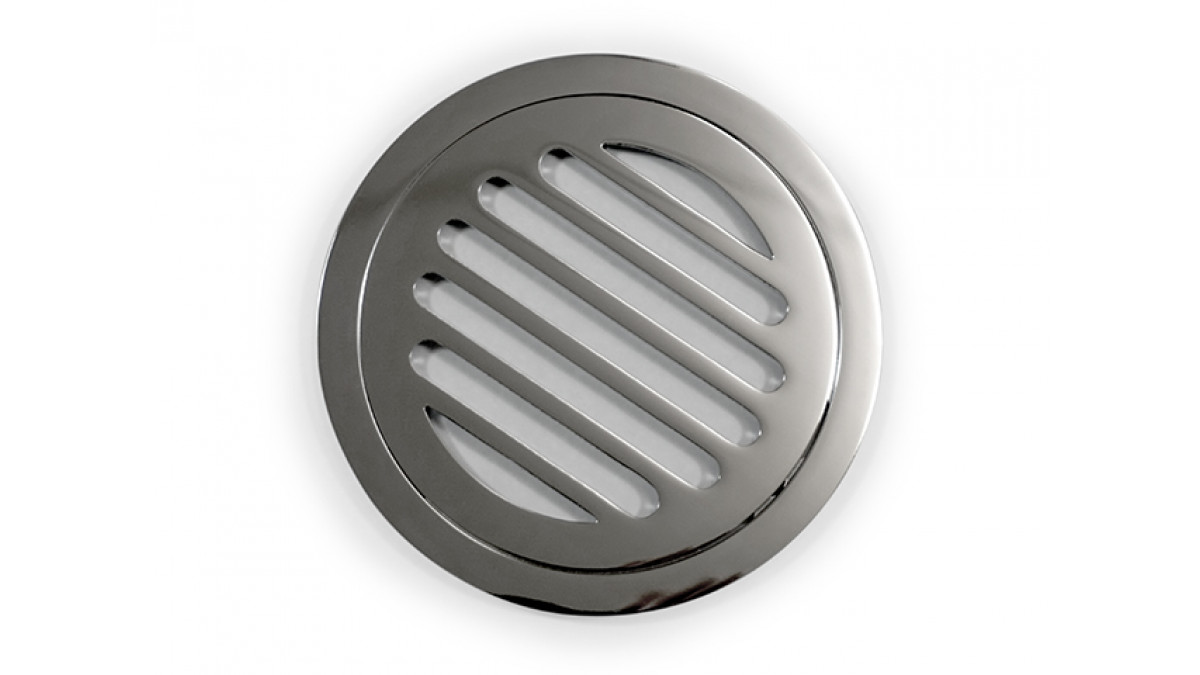

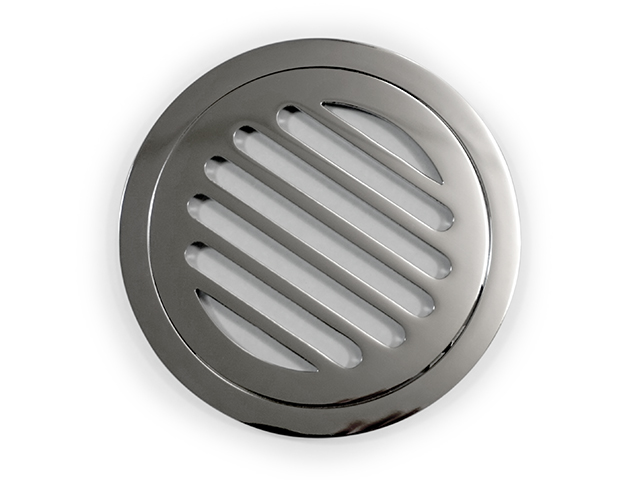

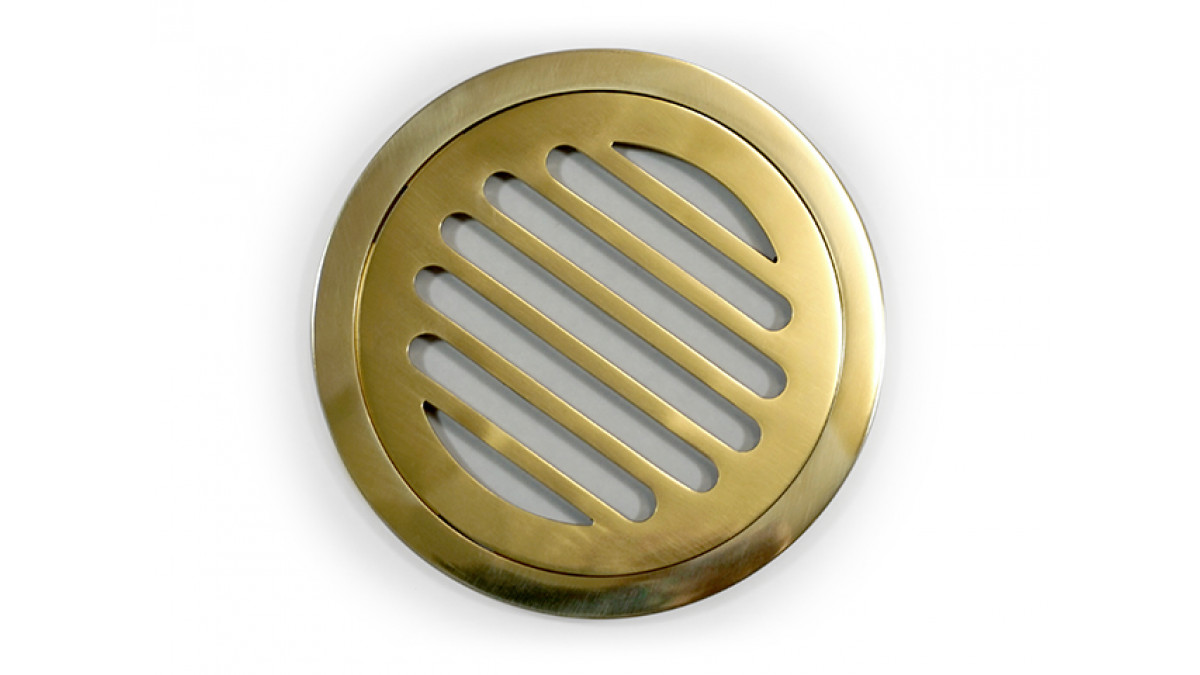

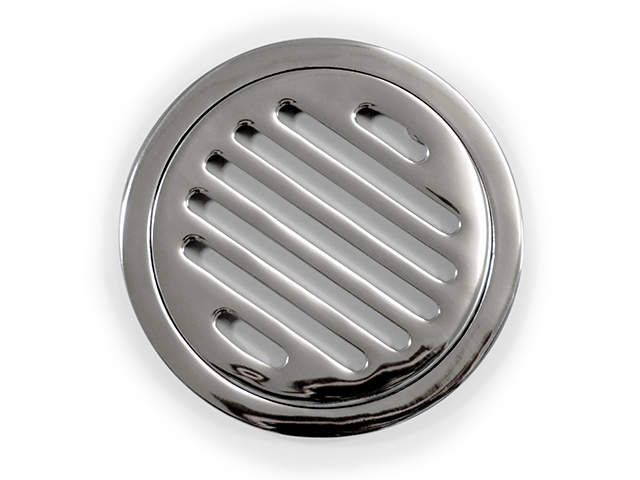

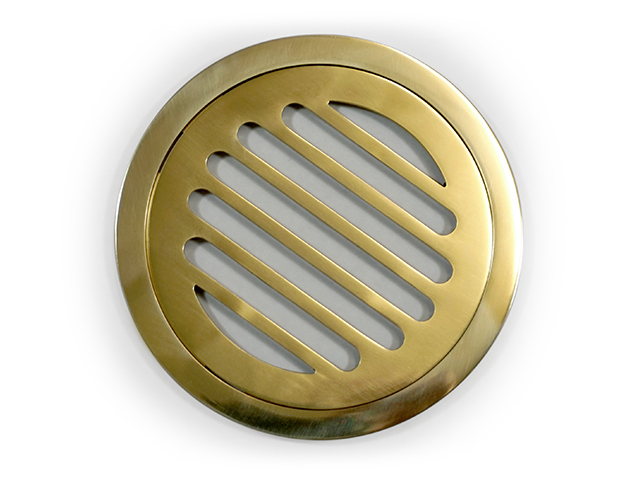

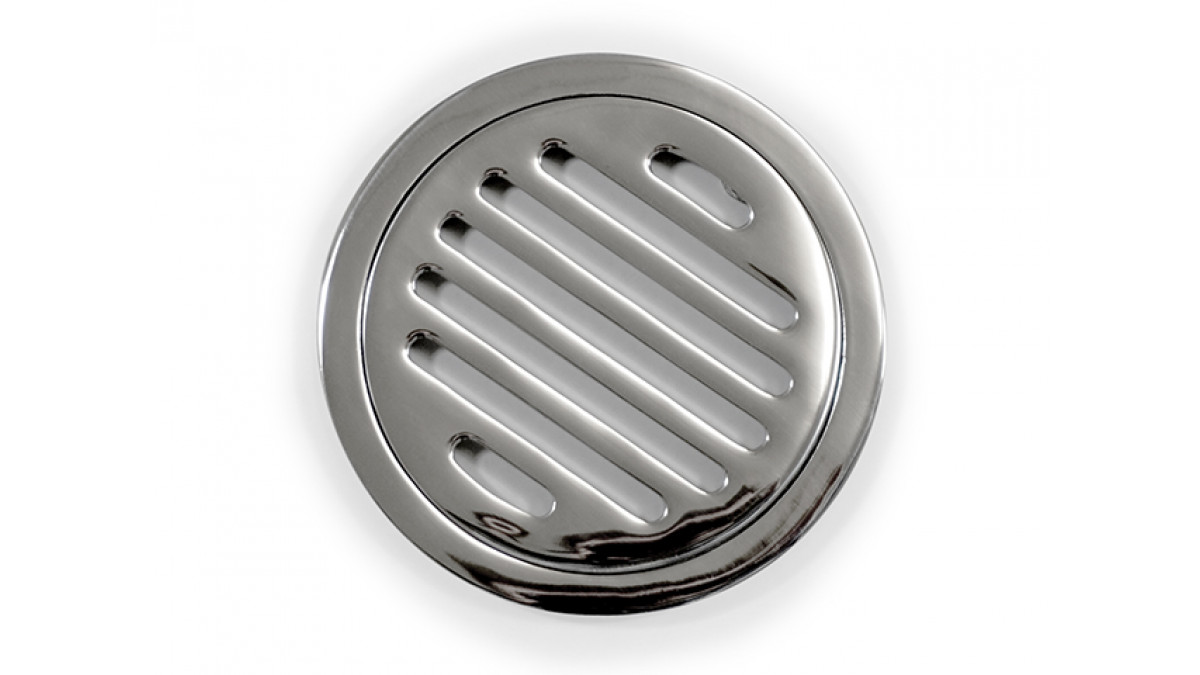

• Clamp ring/grate feature flush finish with flooring
• Security screw, hinged, domed and clean out options available

To be installed as per published installation guides and information.

For draining aggressive chemical substances careful product selection is required, see product details for further information.

Grate selection should be considered for installation scenario.

Channel clear open area should be considered in regards to hydraulic performance requirements.

NZBC E1 Surface Water: When installed correctly in scenarios that applies to NZBC E1, Allproof Commercial Kitchen Drainage Systems fulfil the requirements outlined in the building code clause to safeguard people from injury or illness and property from damage caused my surface water.

NZBC G13/AS1 Foul water G13.1(b), G13.3.1(c) & (d) and clause 3.4 Floor Outlets: Allproof floor waste systems (water traps and grates) have been designed and manufactured to be compliant to all requirements set out in G13/AS1-

> The water seal in the gully prevents foul air and gases entering buildings.

> Grates are removable to access the system for maintenance and cleaning.

> Grates finish flush with the floor.

> Outlets exceed the minimum diameter.

Refer to install guides and specifications for further information.

NZBC G13/AS3 Foul water and AS/NZS 3500.2 clauses 4.6: Allproof floor waste systems have been designed to comply with all criteria outlined in AS/NZS 3500.2 and modifications covered in NZBC G13/AS3. Outlet connections designed to specifications in Appendix A of 3500.2. Gullies designed in accordance to requirements in clause 4.6.

B2/AS1 Durability: B2.3.1 - Allproof commercial kitchen and floor waste systems meet the requirements of B2.3.1 (a) not less than 50 years, (b) not less than 15 years and (c) not less than 5 years.

• High quality cast bronze for durability and longevity
• Independently flow rate tested
