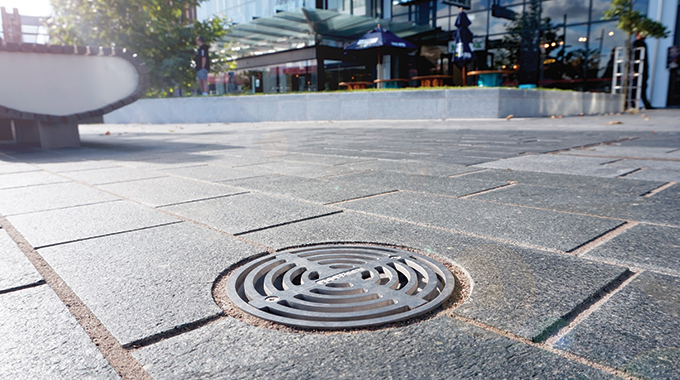

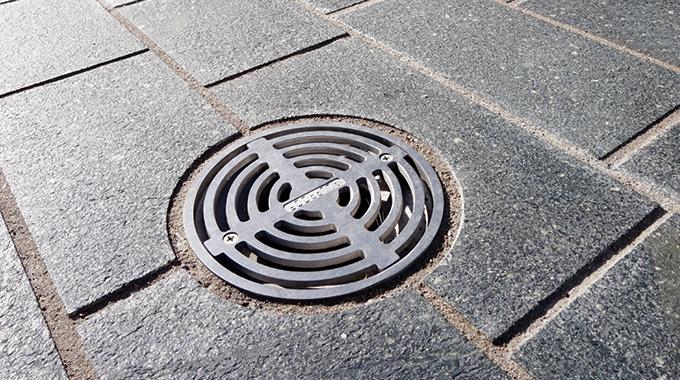

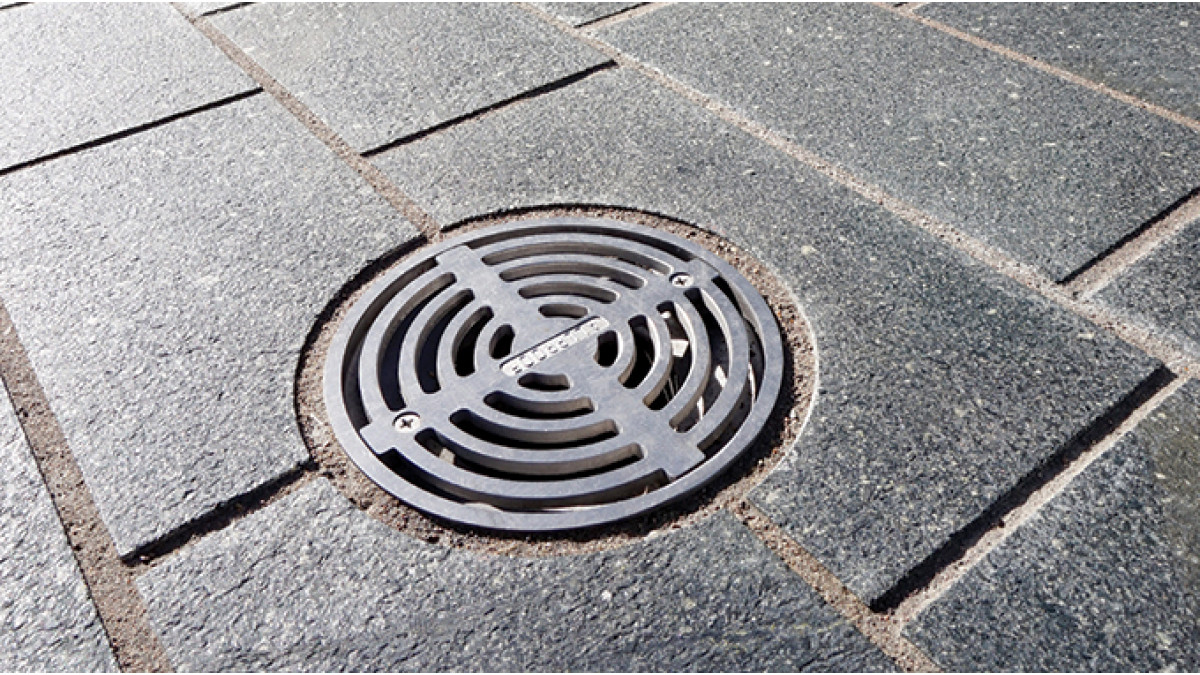

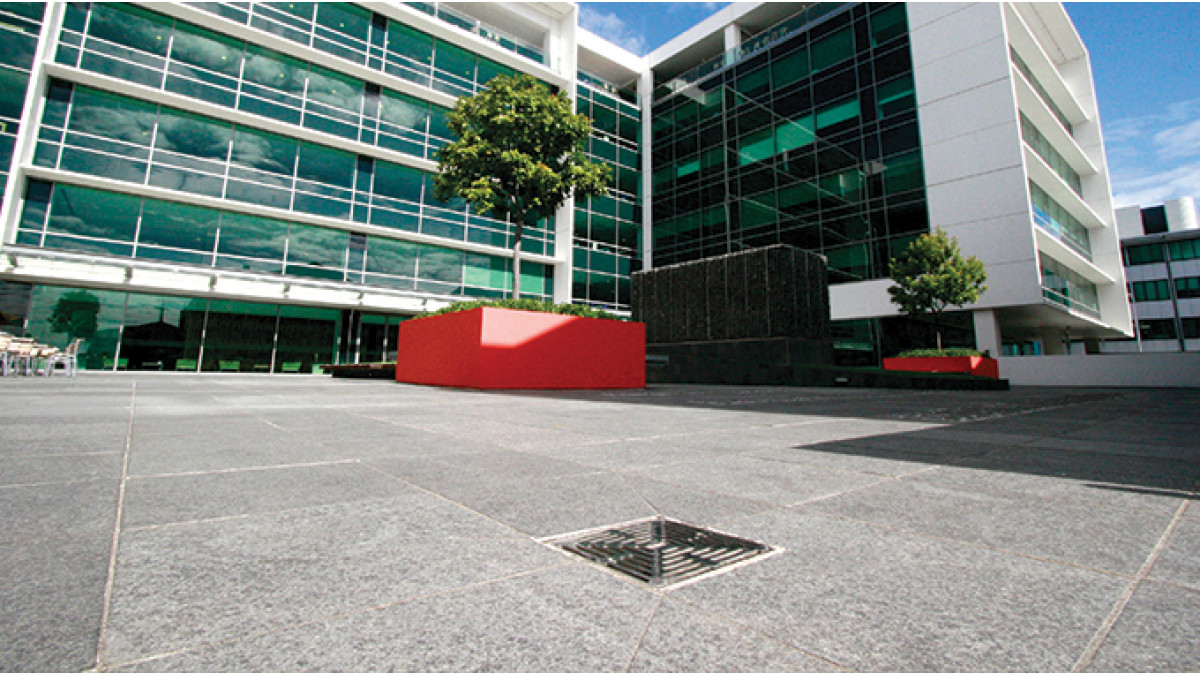

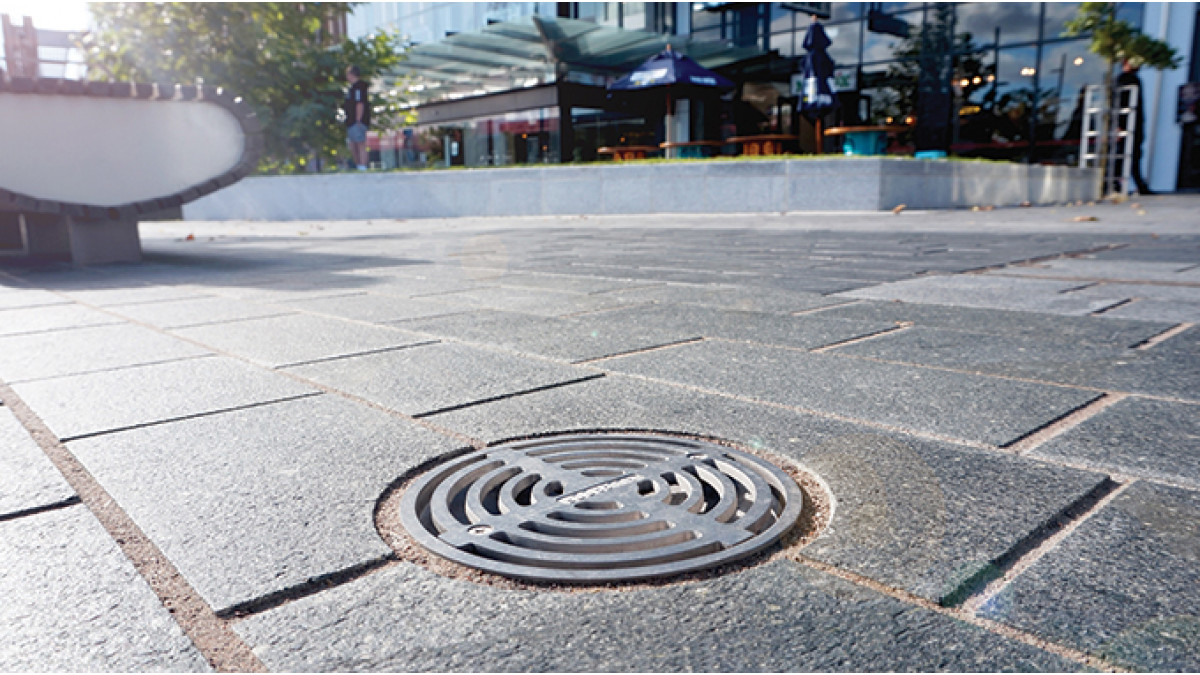

• For use in commercial and public settings -such as commercial kitchens, public restrooms, food processing areas, hospitals, leisure facilities and any public space
• Suit pipe size: 80mm, 100mm and 150mm

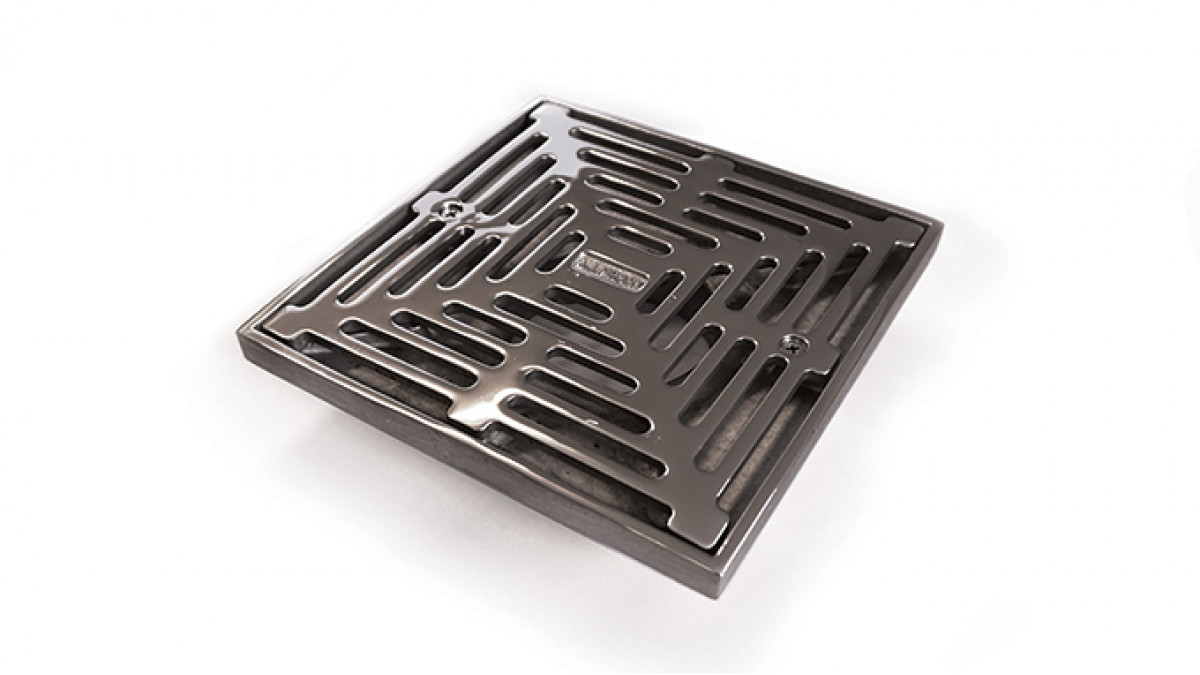

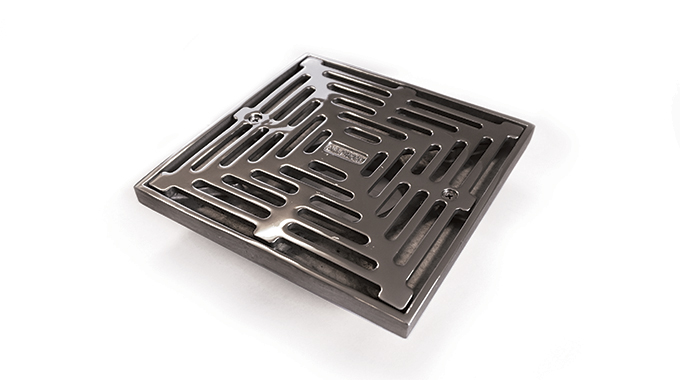

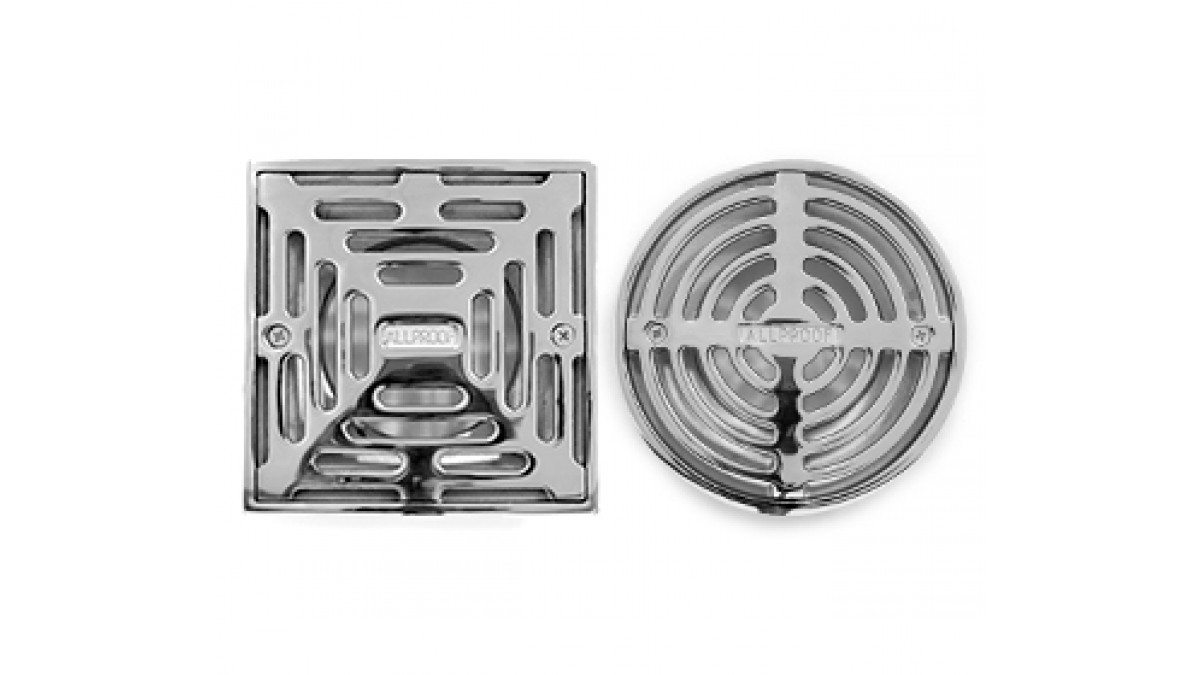

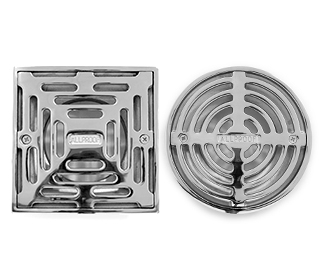

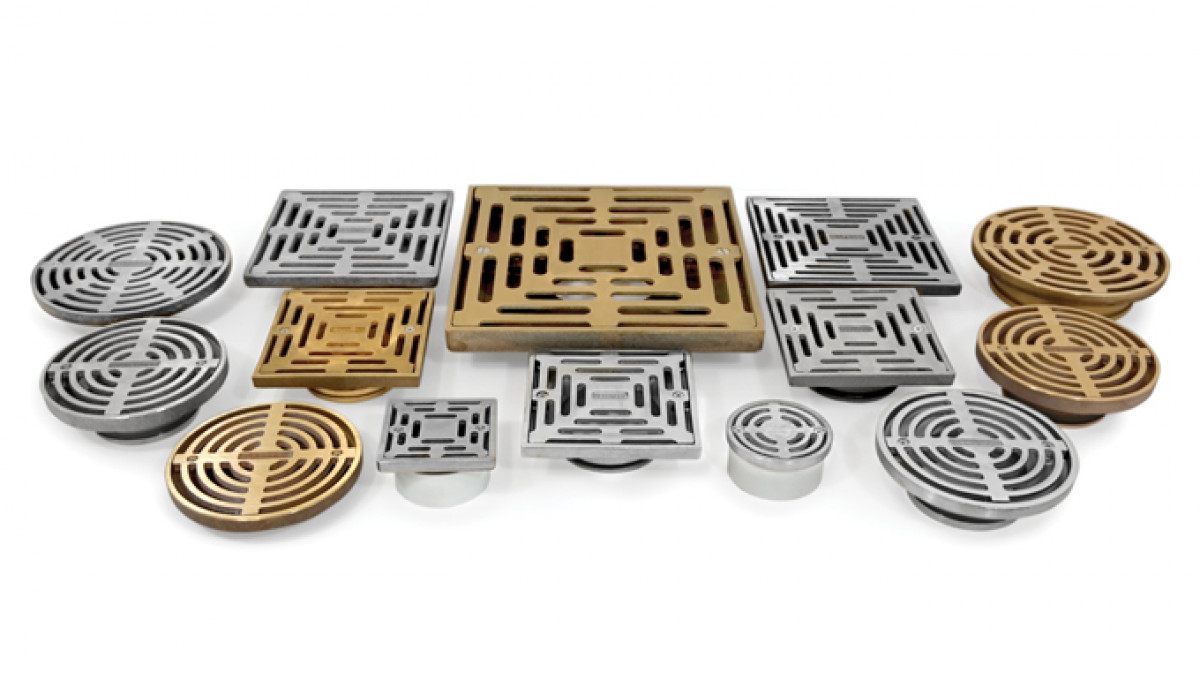

• Grate sizes: 100mm, 150mm, 200mm and 300mm

• Allproof floor surface water drainage products have been designed for compliance with the scope outlined in building codes listed above and to be installed as per published installation guides.
• The standards these products have been designed to does not consider fire resistance.
• For draining aggressive chemical substances careful product selection is required, see product details for further information.
• Concrete encasement for appropriate load class requirements is needed, see installation details for further information.
• Load class limitations specific to each grate design, see product details and install documents for further information
• Grate selection should be considered for installation scenario.
• Channel clear open area should be considered in regards to hydraulic performance requirements.

NZBC E1 Surface Water:

• E1.1/E1.2: Allproof Surface water drainage systems have been designed to safeguard people from injury or illness, and other property from damage caused by surface water.
• E1.3.1/E1.3.2: When correctly selected for the scenario and installed in line with Allproof literature these systems will protect property from surface water in an event having a 10% probability of occurring annually or entering a property in an event having a 2% probability of occurring annually.
• E1.3.3: When selected and installed correctly Allproof surface water systems with convey water to an appropriate outfall using gravity, avoid the likelihood of blockages, provide access for maintenance and clearing blockages, and avoid the likelihood of damage from superimposed loads or normal ground movements.

B2/AS1 Durability:

• B2.3.1 — Allproof surface water drainage systems meet the requirements of B2.3.1 (b) not less than 15 years and (c) not less than 5 years.

AS 3996 Access covers and grates:

• Allproof surface water drainage systems have been designed to comply to the specifications and testing set out in AS 3996. By complying to this standard Allproof products are made to improve the performance of trafficable covers and grates in vehicular and pedestrian areas, thus reducing risk of injury or loss through damage

NZBC G13/AS1 Foul water G13.1(b), G13.3.1(c) & (d) and clause 3.4 Floor Outlets:

• Allproof floor waste systems (water traps and grates) have been designed and manufactured to be compliant to all requirements set out in G13/AS1:
  • The water seal in the gully prevents foul air and gases entering buildings.

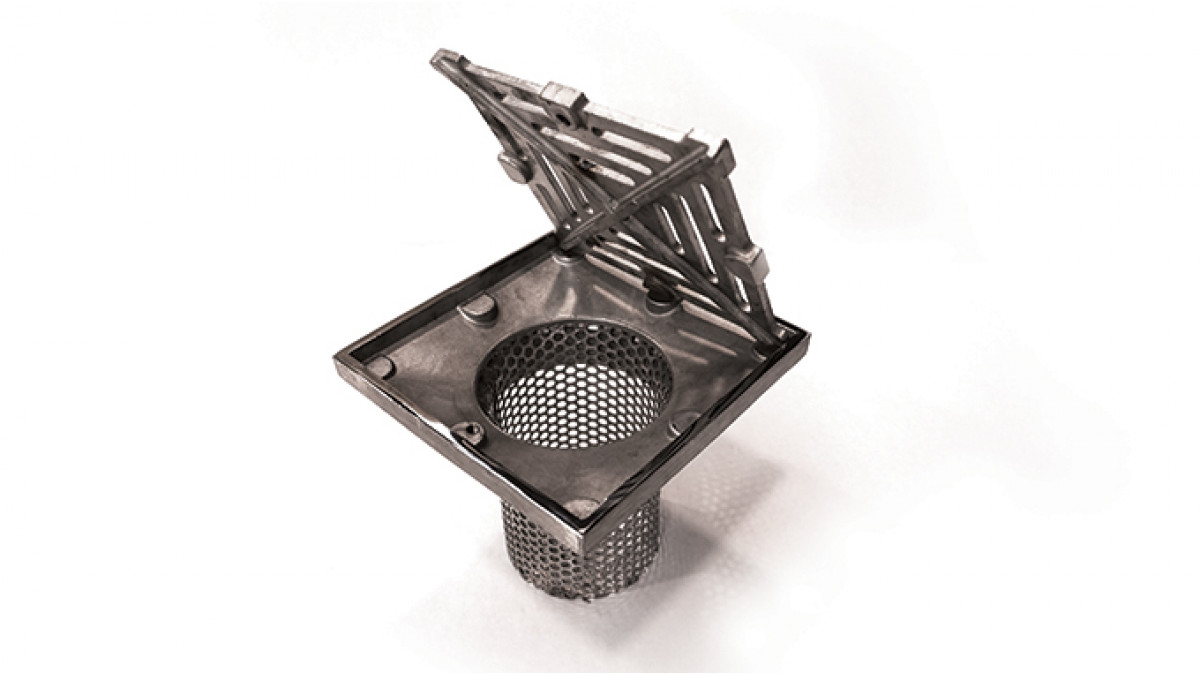

  • Grates are removable to access the system for maintenance and cleaning.

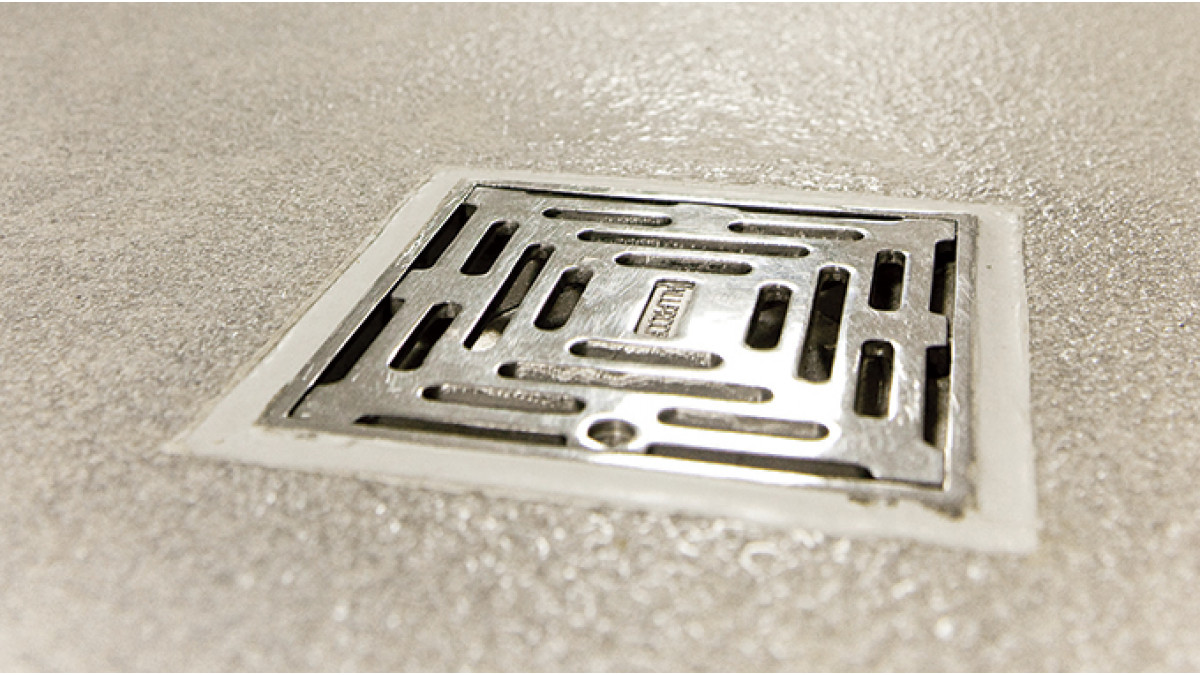

  • Grates finish flush with the floor.
  • Outlets exceed the minimum diameter.

Refer to install guides and specifications for further information.

NZBC G13/AS3 Foul water and AS/NZS 3500.2 clauses 4.6:

• Allproof floor waste systems have been designed to comply with all criteria outlined in AS/NZS 3500.2 and modifications covered in NZBC G13/AS3. Outlet connections designed to specifications in Appendix A of 3500.2. Gullies designed in accordance to requirements in clause 4.6.

• Used country wide in commercial and residential settings
