Polymer Concrete Slot
Description

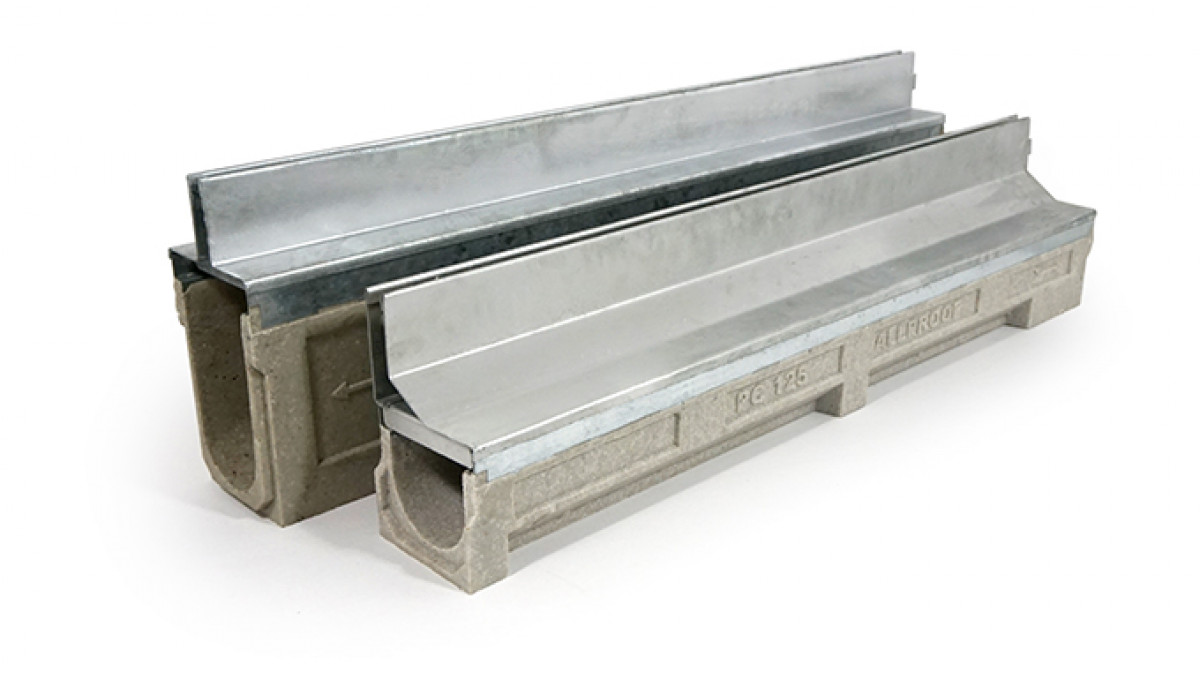

Allproof Industries PC Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for commercial linear drainage installation. Our commercial linear drainage is the ideal solution to all heavy-duty channel requirements. Available in a range of sizes and grate options, and available rated from load class A to D.

Key Features
  • Polymer Concrete
  • Galvanised or stainless steel edge
  • Straight lengths and sloped joiners
  • Range of sizes and grate options
  • 75 to 225mm deep – including high capacity 200mm wide channel
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Allproof Industries' commercial linear drainage is the ideal solution to all heavy duty channel requirements
  • Available rated from load class A to E

The system design accommodates runs of up to 43 metres, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in maximum length of 76 metres between sumps. Overall system length is unlimited, dependent on required flow rates or other constraints.

Limitations on Use

Allproof floor surface water drainage products have been designed for compliance with the scope outlined in building codes listed above and to be installed as per published installation guides.

The standards these products have been designed to does not consider fire resistance.
For draining aggressive chemical substances careful product selection is required, see product details for further information.
Concrete encasement for appropriate load class requirements is needed, see installation details for further information.
Load class limitations specific to each grate design, see product details and install documents for further information.

Statement of Building Code Compliance

NZBC E1 Surface Water:

• E1.1/E1.2: Allproof Surface water drainage systems have been designed to safeguard people from injury or illness, and other property from damage caused by surface water.

• E1.3.1/E1.3.2: When correctly selected for the scenario and installed in line with Allproof literature these systems will protect property from surface water in an event having a 10% probability of occurring annually or entering a property in an event having a 2% probability of occurring annually.

• E1.3.3: When selected and installed correctly Allproof surface water systems with convey water to an appropriate outfall using gravity, avoid the likelihood of blockages, provide access for maintenance and clearing blockages, and avoid the likelihood of damage from superimposed loads or normal ground movements.

B2/AS1 Durability: B2.3.1 - Allproof surface water drainage systems meet the requirements of B2.3.1 (b) not less than 15 years and (c) not less than 5 years.

AS 3996 Access covers and grates: Allproof surface water drainage systems have been designed to comply to the specifications and testing set out in AS 3996. By complying to this standard Allproof products are made to improve the performance of trafficable covers and grates in vehicular and pedestrian areas, thus reducing risk of injury or loss through damage.

In-Service History

Our Polymer Concrete channel has been used in a wide variety of installations around New Zealand and Australia including government facilities and communal areas.

Most notiably our channel can be seen in Takapuna commons, Ponsonby Central as well as in car parks, factories, loading docks and other industrial situations.

Documents
CAD/PDF Link
Installation Details
Revit - Polymer Concrete Slot

V001

Masterspec Specification
Product Maintenance
Product Warranty

0820

Brochure
Additional Information

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
