CK Sumps
Allproof Industries
All products

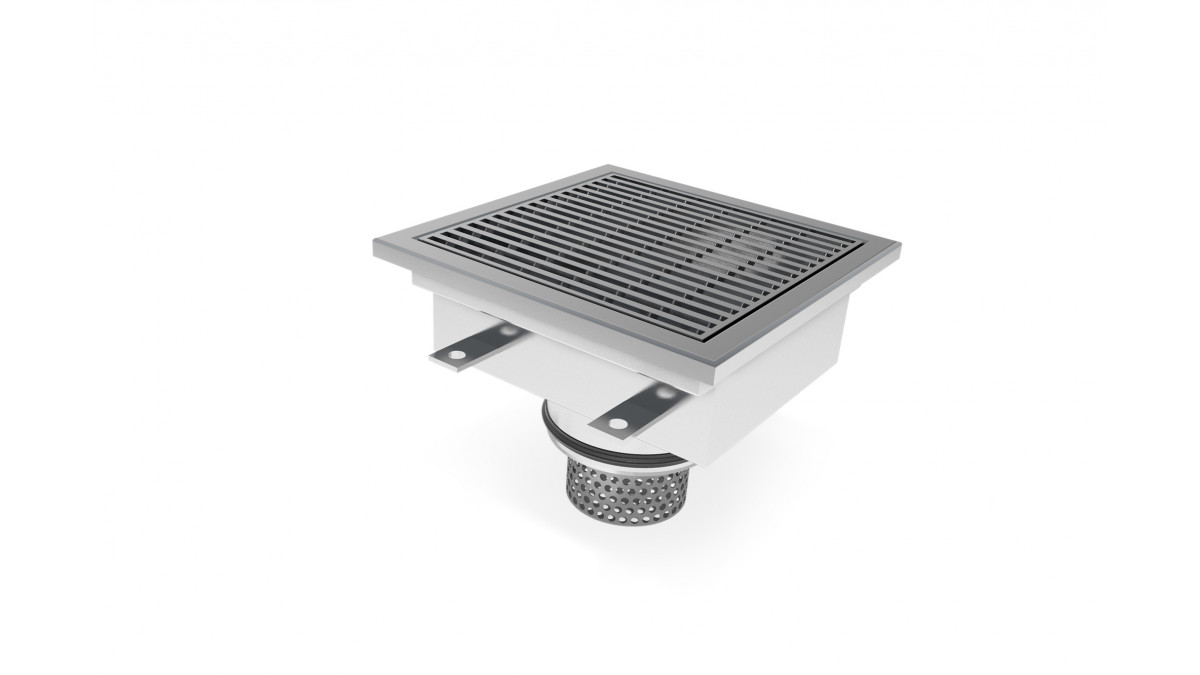

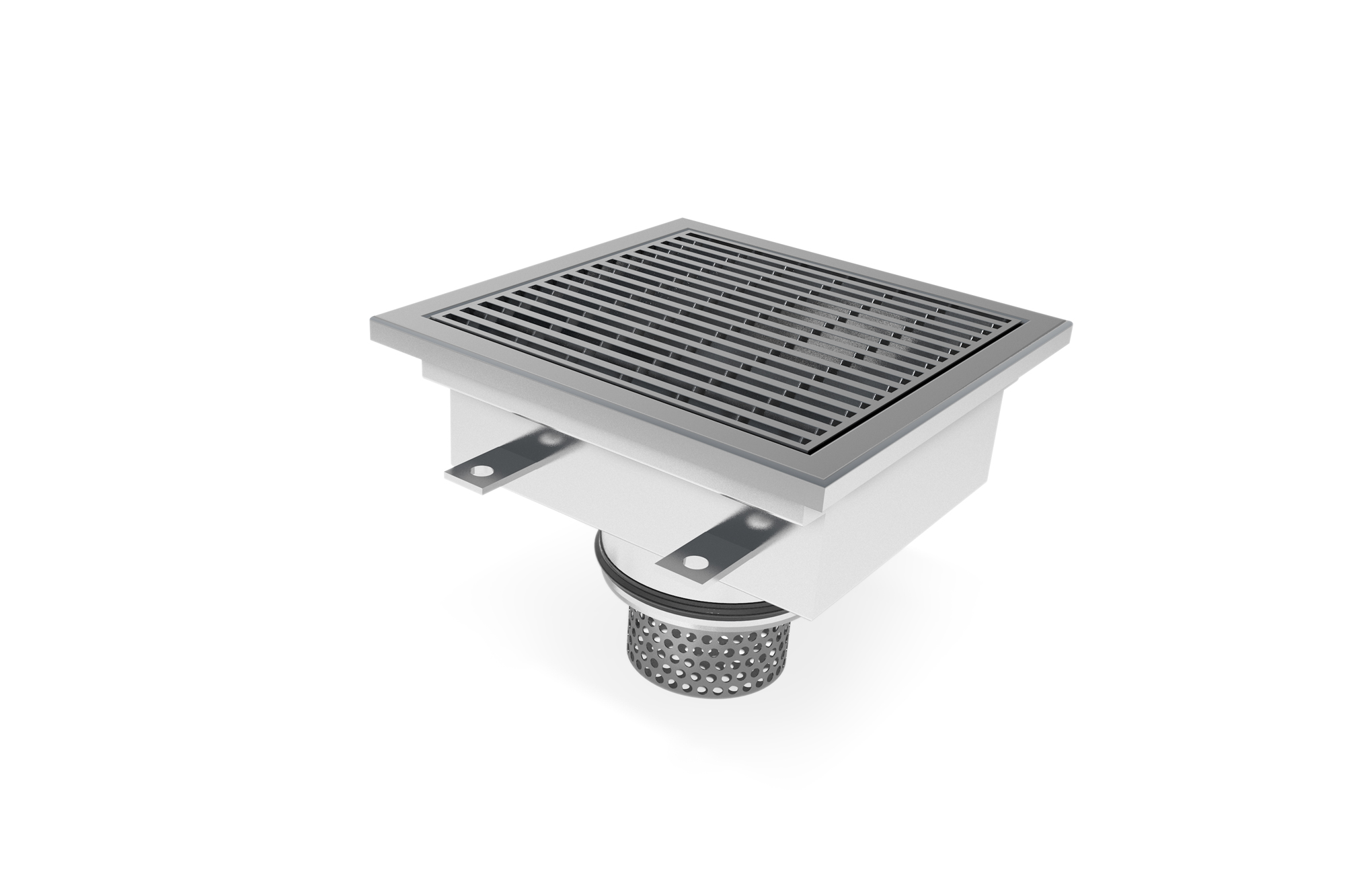

CKSUMP200WW

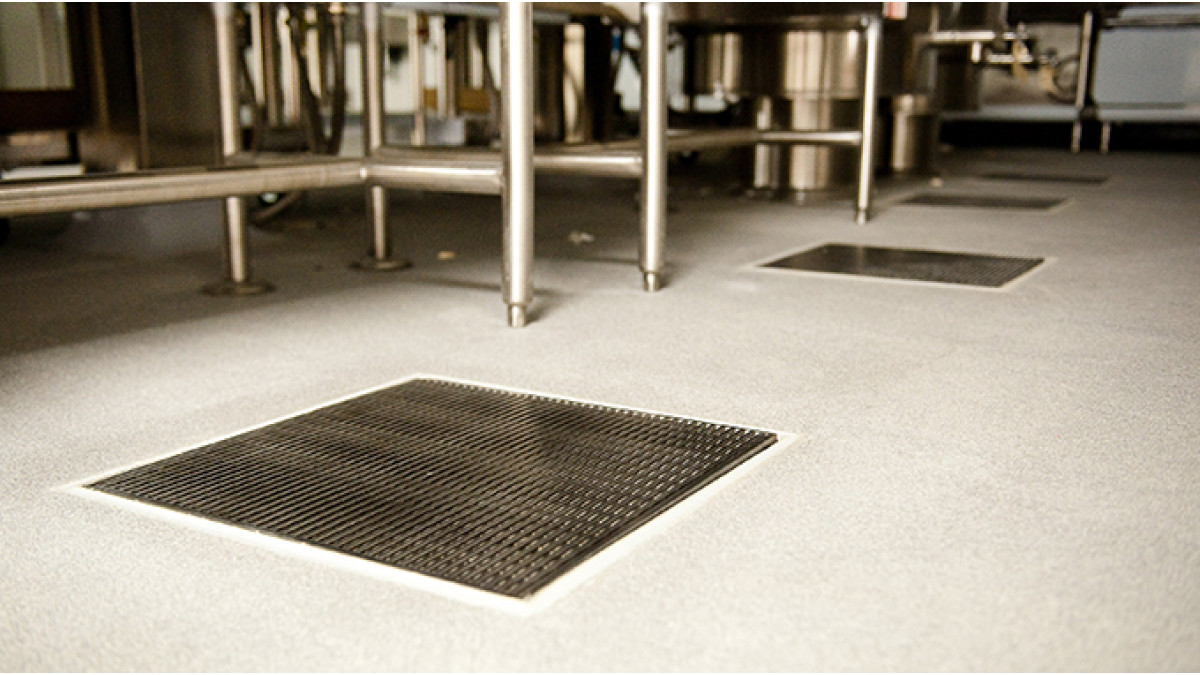

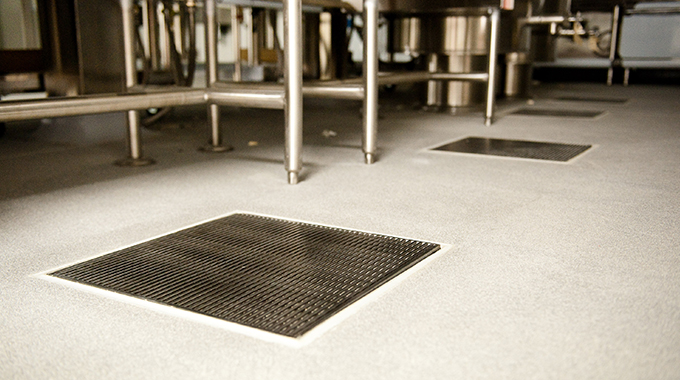

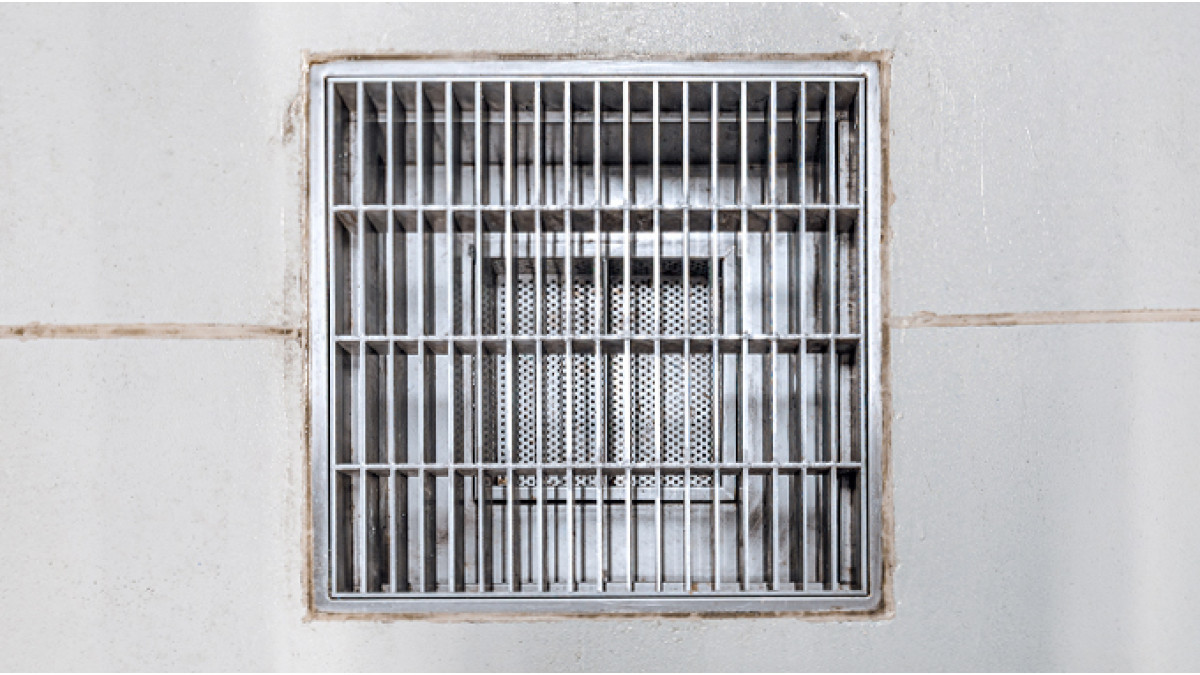

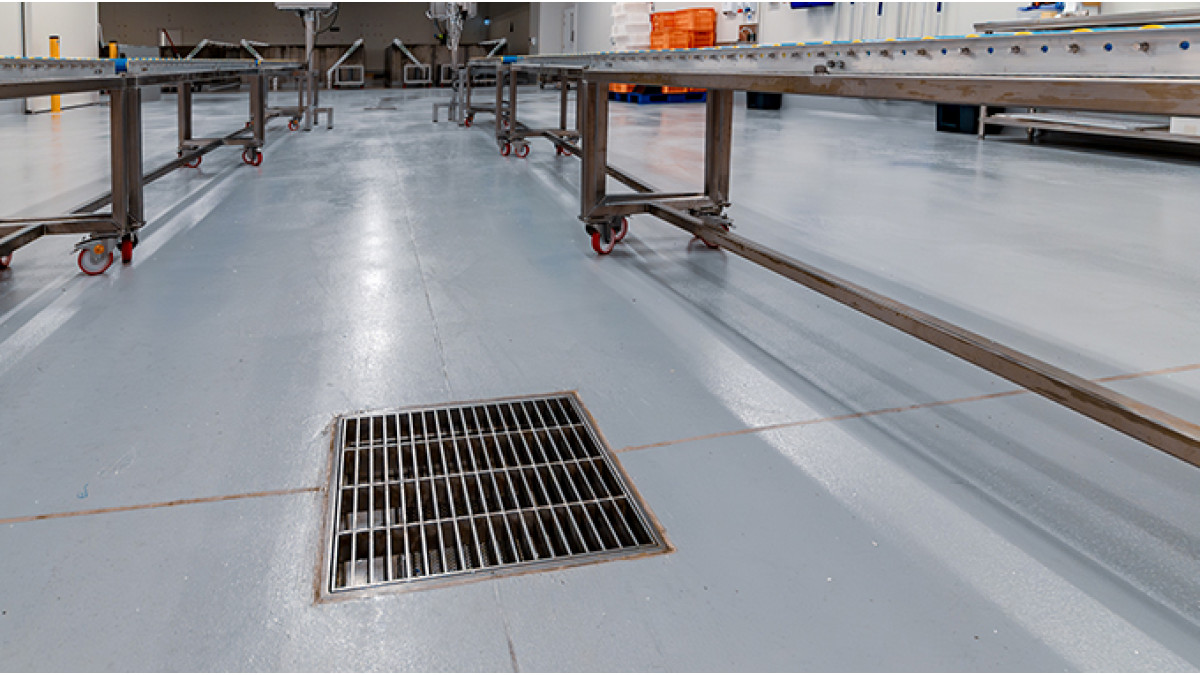

CK SUMP install ProductSlider 680x380

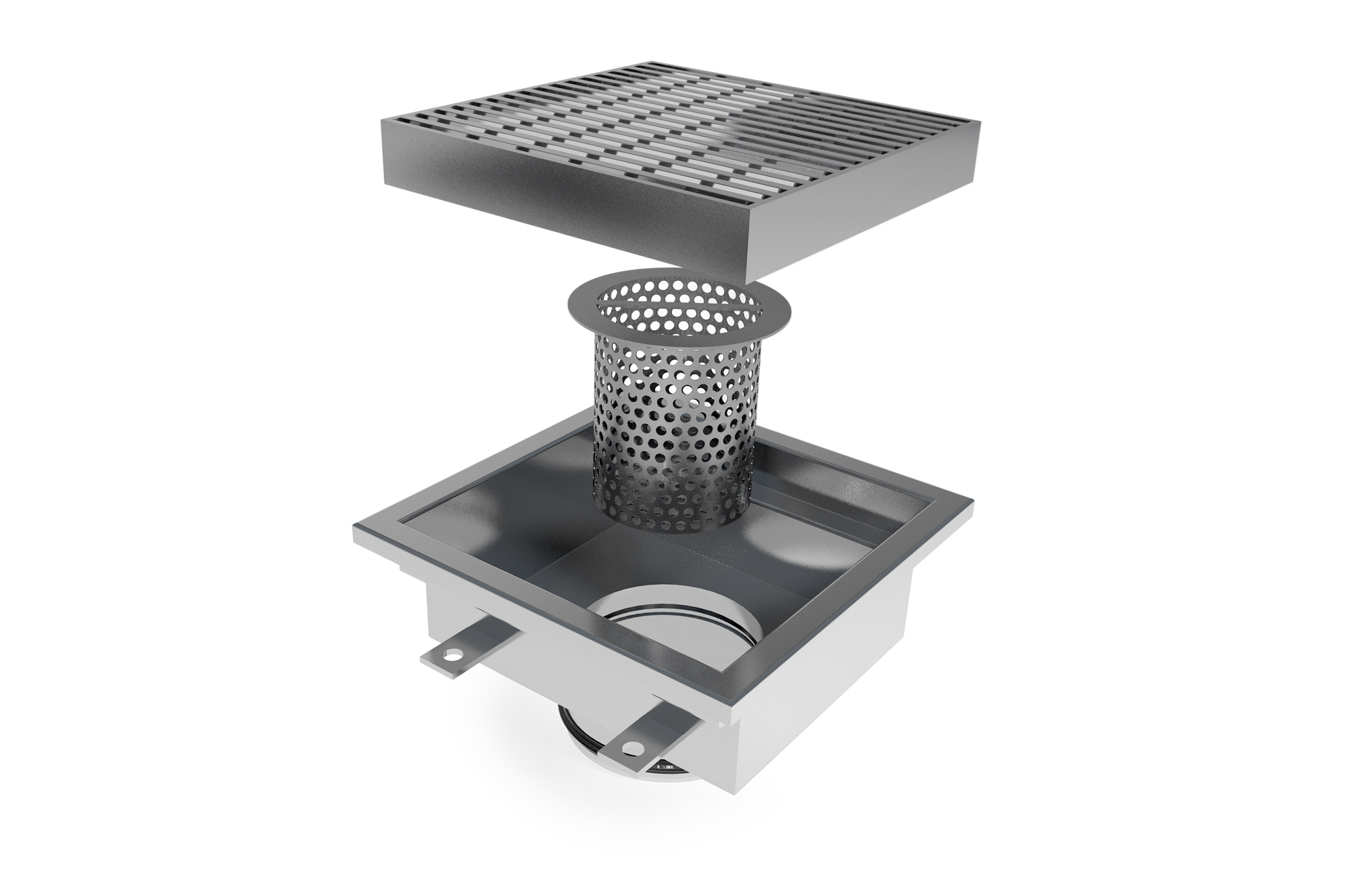

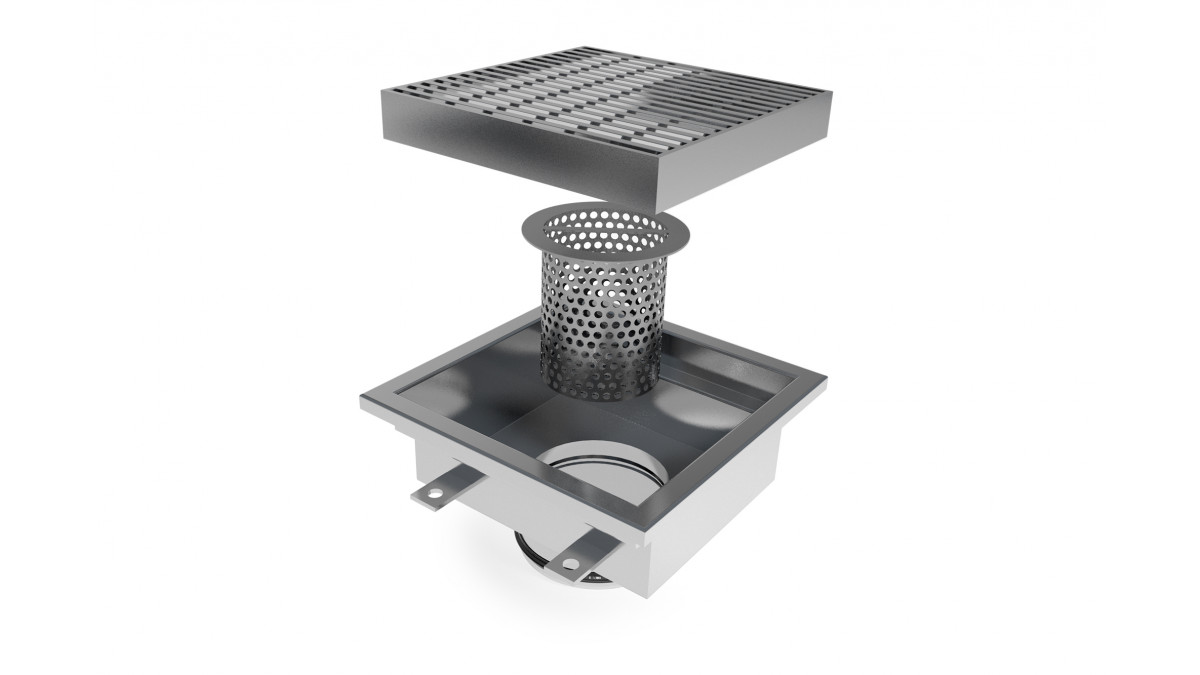

CKSUMP200WW Exploded
Description

A Commercial kitchen sump featuring all stainless steel construction, available in standard and custom sizes.

Three grate designs with slip resistance ratings (AS4586) and load rating (AS3996), open areas cater for varying requirements around hydraulic performance and catchment of solids.

Includes strainer baskets to prevent blockages forming in plumbing systems.

Key Features
  • 304 and 316 grade SS
  • Custom and standard sizes available
  • Includes 100mm O-ring outlet at end to suit i.d. PVC and HDPE
  • Bolted union to connect to sump/channel
  • Standard 15mm epoxy filled safety edge
  • Includes primary removal strainer basket —- connected by SS cable
  • Secondary fixed strainer optional
Categories
Channel and Grate Drainage Pipes and Drainage Fittings
Ranges
Commercial Kitchen
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Commercial kitchens
  • Food prep areas and production facilities
  • Situations requireing custom stainless sumps
Limitations on Use
  • Suitable for tiled, epoxy and concrete finish floors
In-Service History
  • Used country wide in commercial kitchens including Eden Park stadium
  • Roof top terrace at Westfield New Market
  • Food and beverage production facilities including Keri Juice
Other Performance Attributes

Security option with grate lockdown fixings.

Antifloat tags for installation.

E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
G3 Food Preparation and Prevention of Contamination compliant
Food Preparation and Prevention of Contamination
Test Results
Test Results
  • Case Studies
  • News
Documents
CAD/PDF Link
URL
Food Production Drainage Systems

V2-11/05/22

URL
Product Maintenance
URL
Product Warranty

0820

URL
Brochure
URL
Additional Information
URL

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
