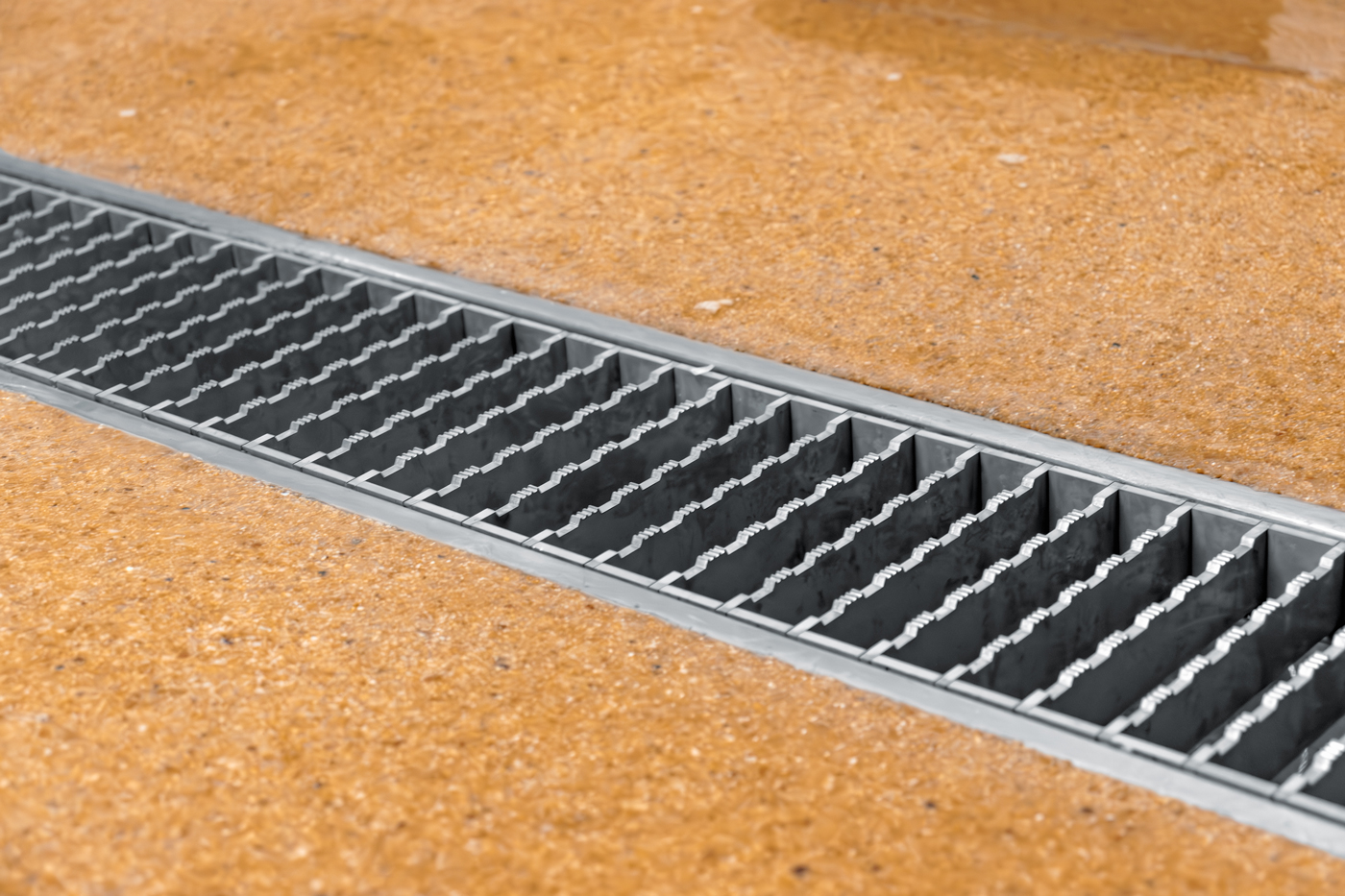

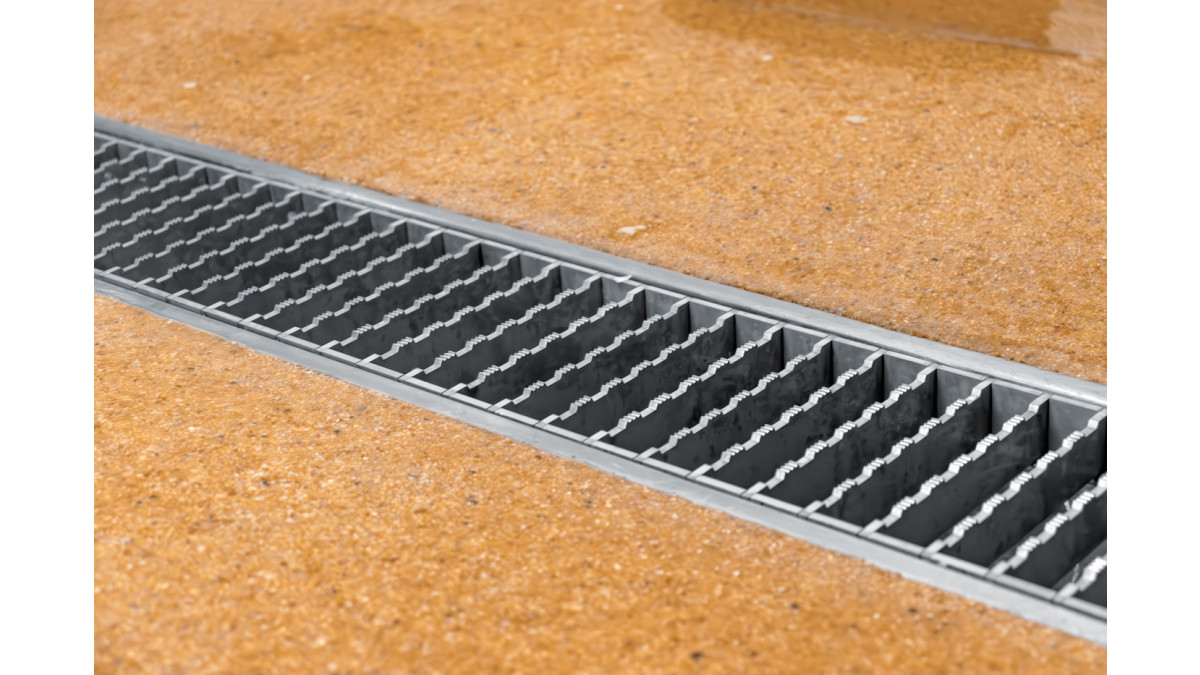

CK Series SRL grate Archers Road Supermarket

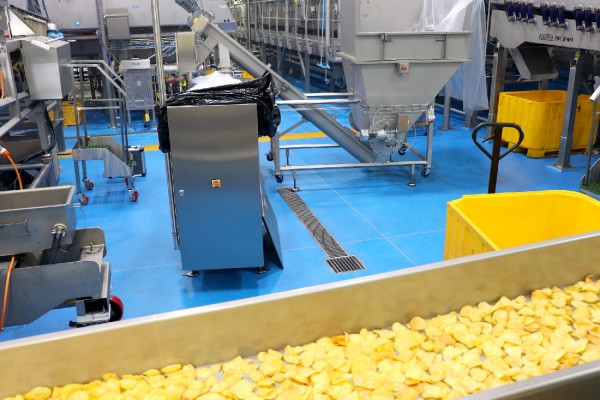

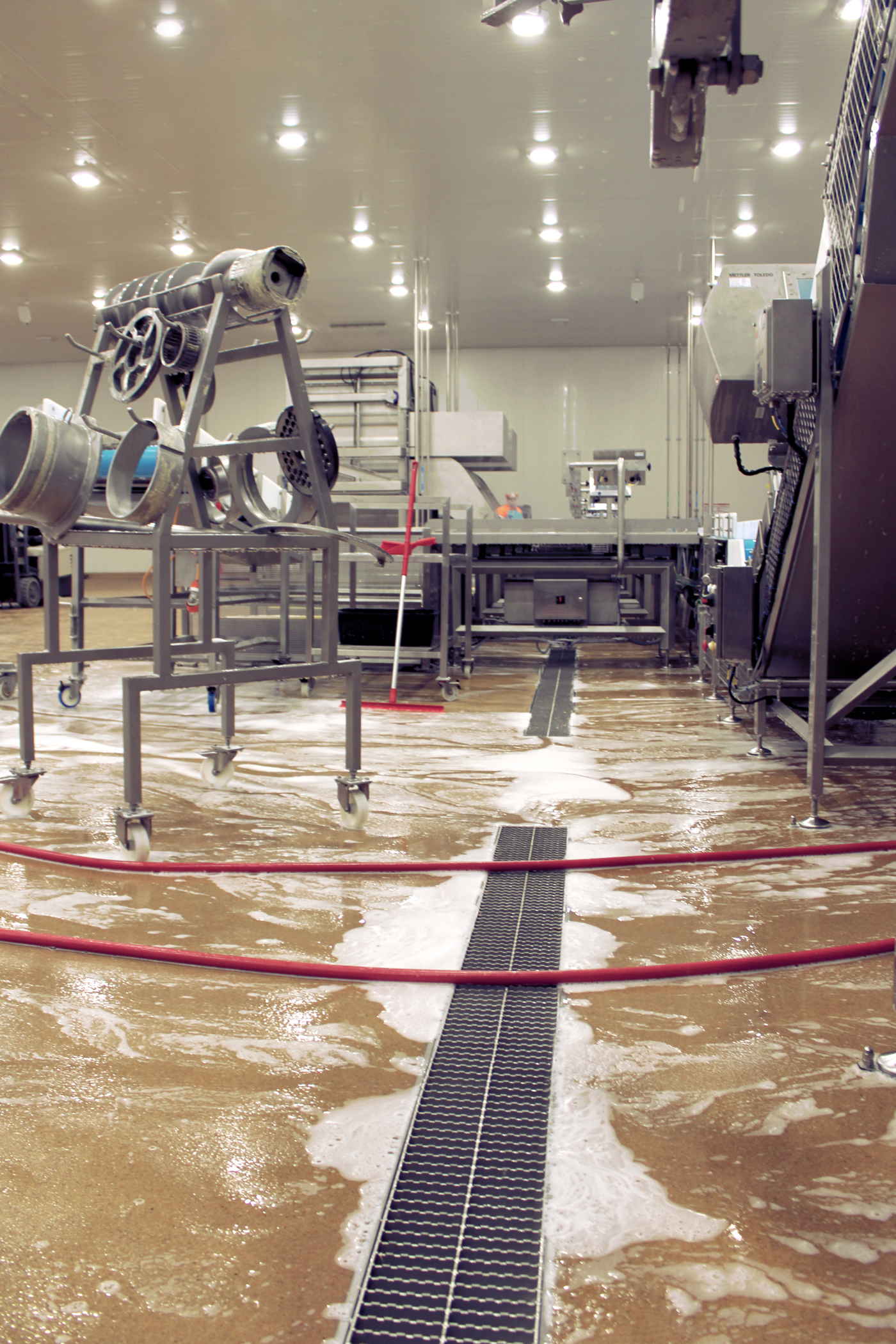

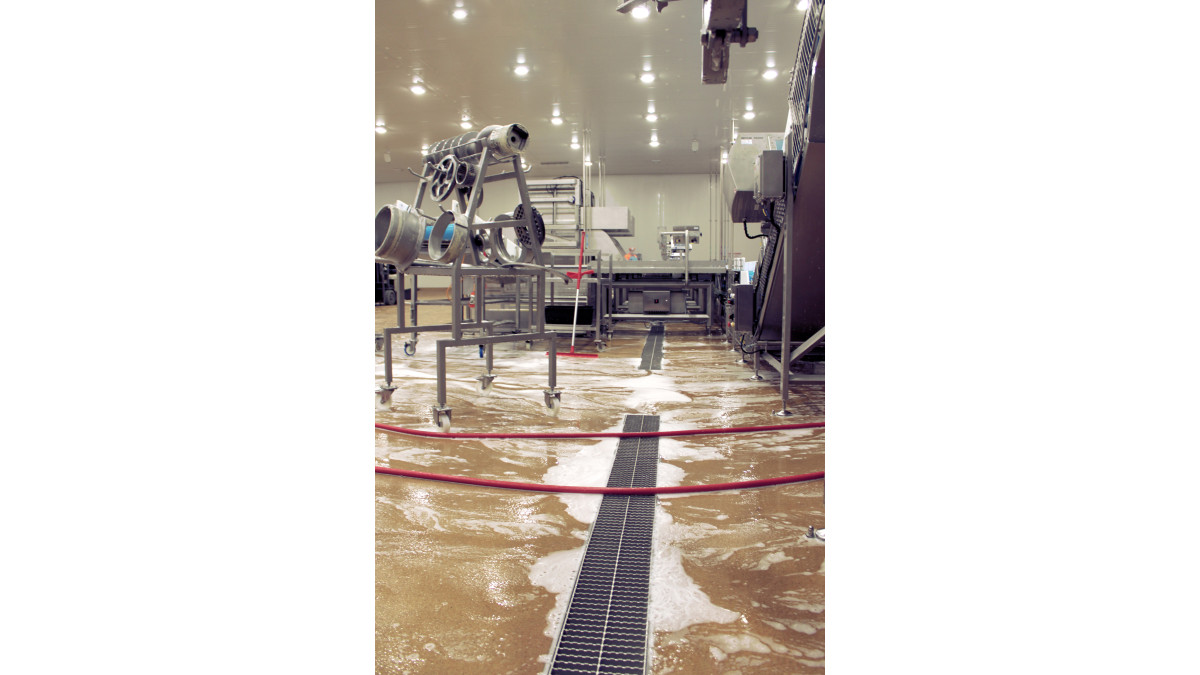

Commercial food production facility IMG 1872 Chris Edit 1400px

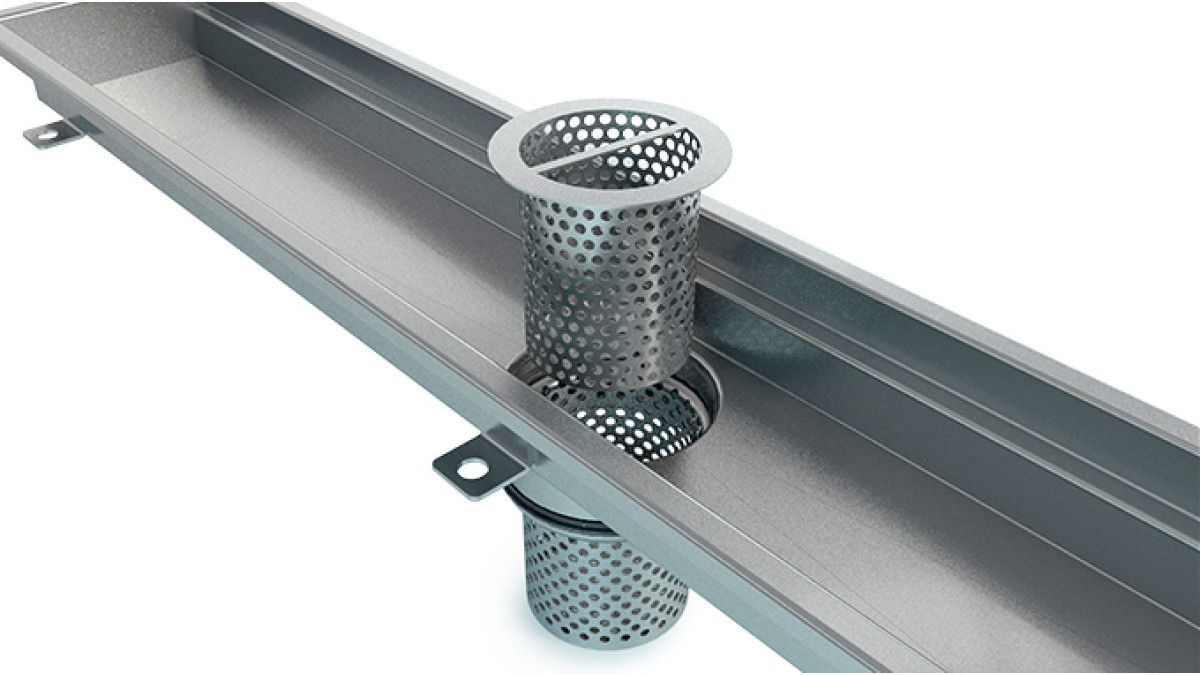

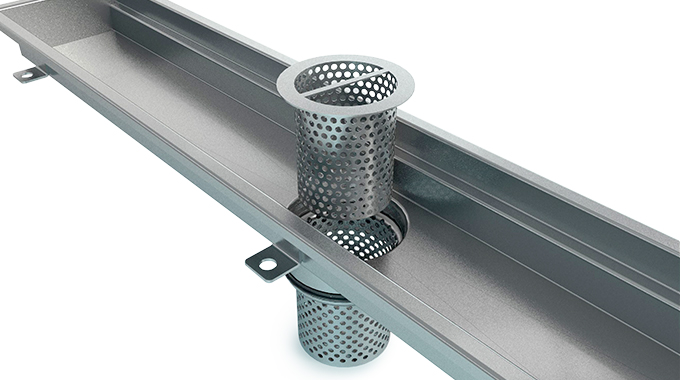

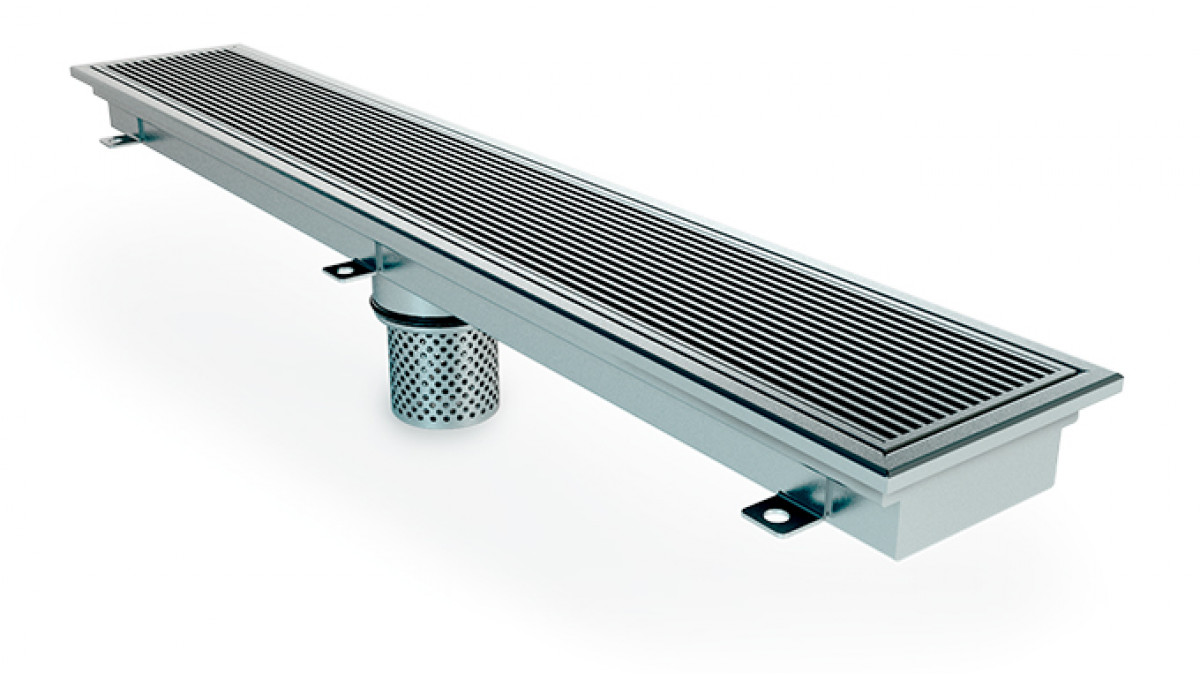

CK commercial kitchen channel double strainer exploded product slider image 680x380px

Product Enquiries

Description

The CK Series is the ideal solution for commercial kitchens, food production facilities and commercial application requiring a durable, high performing and easily maintainable drainage system. The CK Series is suitable for tiled, epoxy and concrete finish floors.

All stainless steel construction with a 100mm outlet. Includes a primary removal strainer basket connected by SS cable, with secondary fixed strainers as optional.

CK Channels come in standard lengths with a variety of grate styles tested for slip resistance (AS4586) and load class rating (AS3996). Custom sizes and finishes are available.

Key Features

304 grade stainless steel
Standard stock items available
Includes 100mm O-ring outlet to suit i.d. for either PVC or HDPE, please specify when ordering
Standard 15mm epoxy filled safety edge
Includes primary removal strainer basket – connected by SS cable
Includes double strainer basket, 1x removal strainer basket (connected by SS cable) & 1x fixed strainer basket
Dimensions and SS grade (316) can be customised on request

Ranges

Commercial Kitchen

NZ Made

NZ-Owned Business

Scope of Use

Commercial kitchens
Food preparation areas
Production facilities

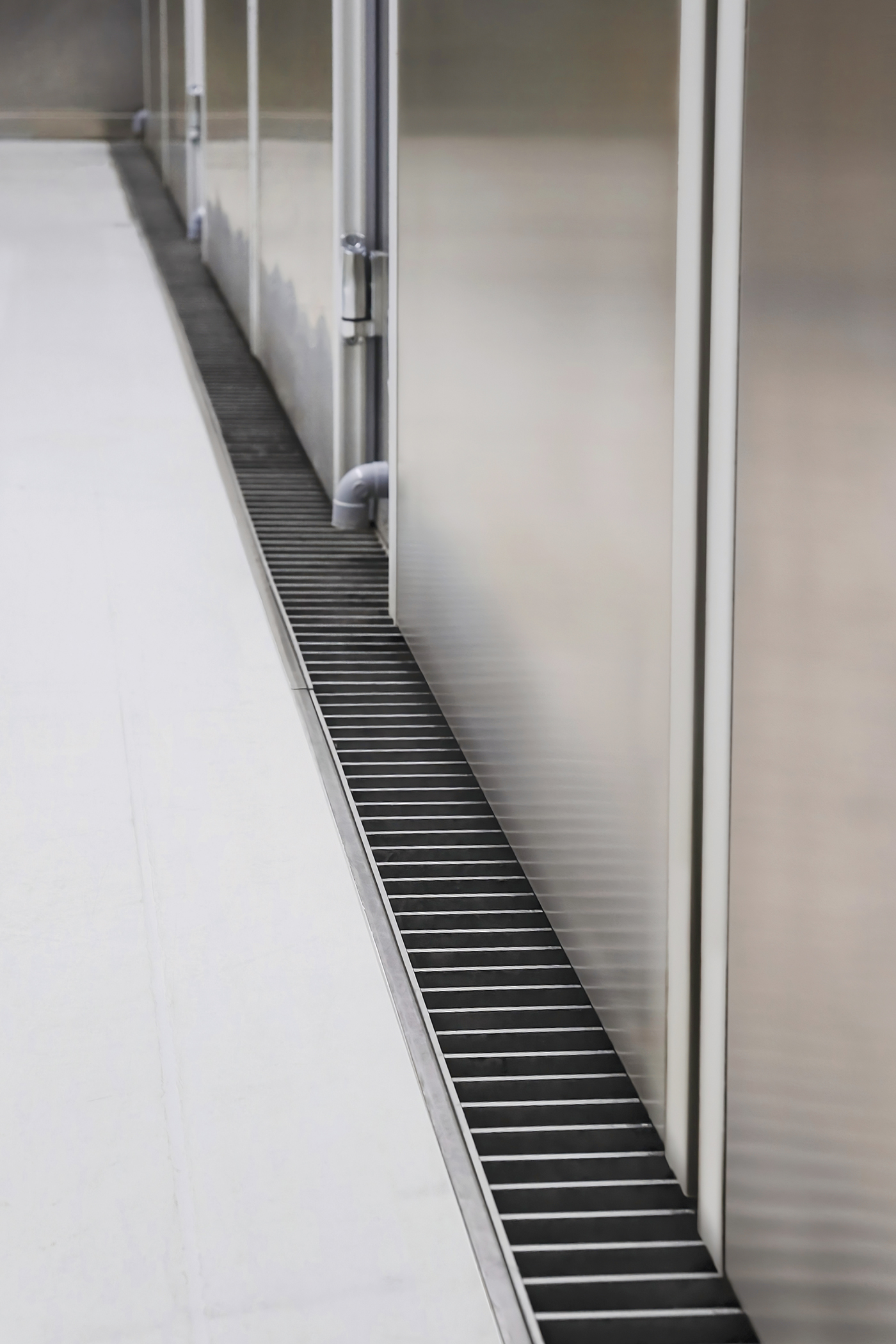

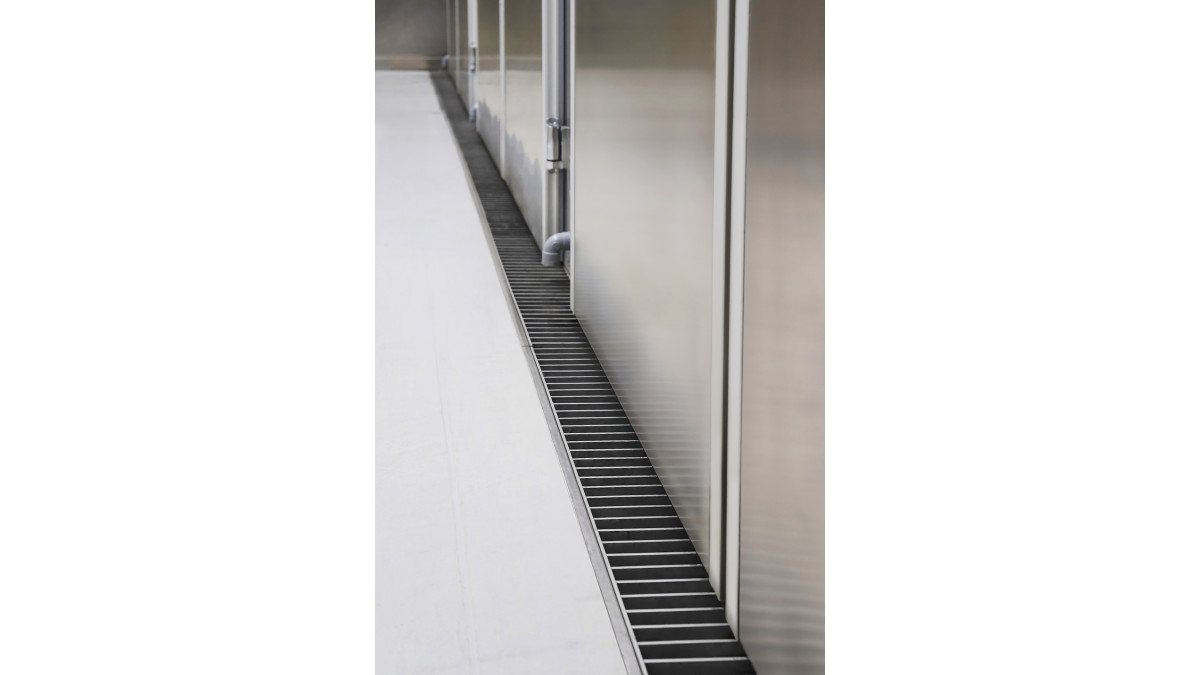

Separating wet and dry surface areas (in front of chillers etc)

Limitations on Use

To be installed as per published installation guides and information.
For draining aggressive chemical substances careful product selection is required, see product details for further information.
Grate selection should be considered for installation scenario.
Channel clear open area should be considered in regards to hydraulic performance requirements.

Statement of Building Code Compliance

NZBC E1 Surface Water: When installed correctly in scenarios that applies to NZBC E1, Allproof Commercial Kitchen Drainage Systems fulfil the requirements outlined in the building code clause to safeguard people from injury or illness and property from damage caused my surface water.

NZBC G13/AS1 Foul water G13.1(b), G13.3.1(c) & (d) and clause 3.4 Floor Outlets: Allproof floor waste systems (water traps and grates) have been designed and manufactured to be compliant to all requirements set out in G13/AS1-

> The water seal in the gully prevents foul air and gases entering buildings.

> Grates are removable to access the system for maintenance and cleaning.

> Grates finish flush with the floor.

> Outlets exceed the minimum diameter.

Refer to install guides and specifications for further information.

NZBC G13/AS3 Foul water and AS/NZS 3500.2 clauses 4.6: Allproof floor waste systems have been designed to comply with all criteria outlined in AS/NZS 3500.2 and modifications covered in NZBC G13/AS3. Outlet connections designed to specifications in Appendix A of 3500.2. Gullies designed in accordance to requirements in clause 4.6.

B2/AS1 Durability: B2.3.1 - Allproof commercial kitchen and floor waste systems meet the requirements of B2.3.1 (a) not less than 50 years, (b) not less than 15 years and (c) not less than 5 years
