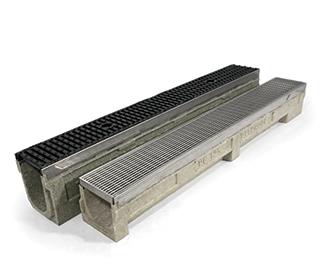

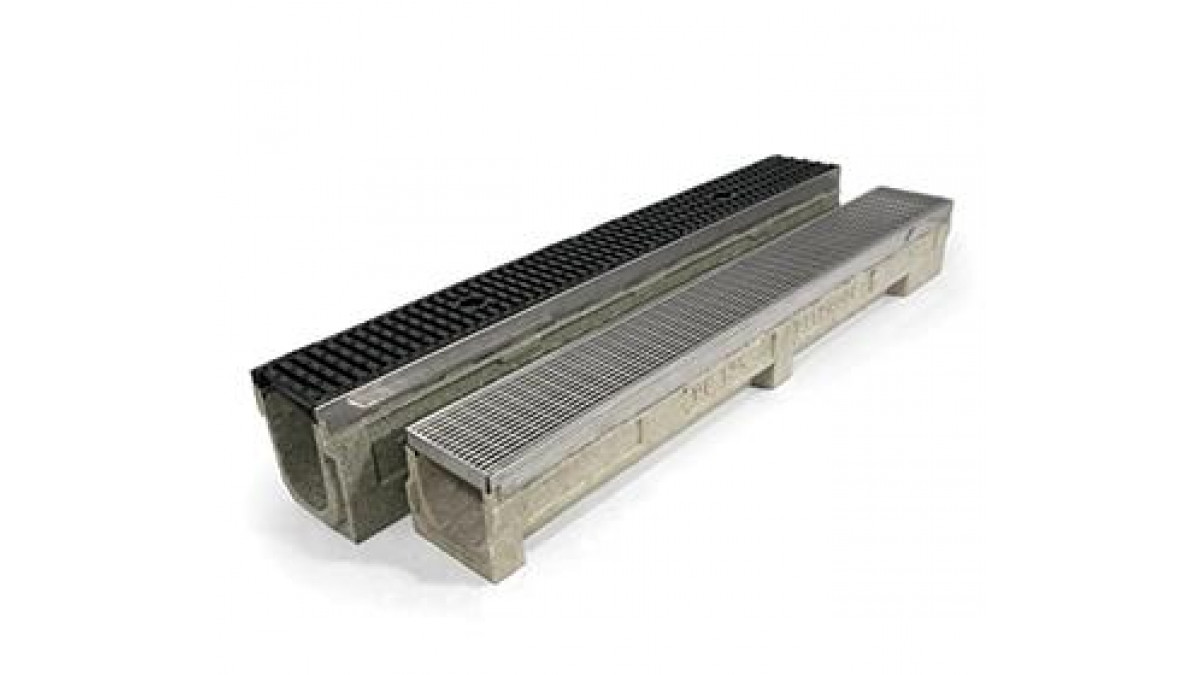

100mm Clear Opening Polymer Concrete
Description

Allproof Industries' Polymer Concrete Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for commercial linear drainage installation. Allproof's commercial linear drainage provides a solution to all heavy duty channel requirements. It is available in a range of sizes and grate options, and available rated from load class A to D.

All channels and grates come as standard with lockdowns to secure the grates and prevent any damage through movement. Security lockdowns may be available depending on system set up and project requirements, please contact Allproof for more information.

Key Features
  • Polymer concrete
  • Straight lengths, sloped joiners, and sumps
  • Grating lock-downs
  • Range of grate options — from heavy-duty cast iron, to architectural grade wedge wire
  • 75 to 225mm deep — Including High-Capacity 200mm wide channel
  • Galvanised steel edge or stainless steel edge
NZ-Owned Business
NZ-Owned Business
Scope of Use

Allproof Industries' commercial linear drainage provides a solution for all heavy-duty channel requirements. Available in a range of sizes and grate options, and available rated from load class A to E.

Design requirements

  • All channels and grates come as standard with lockdowns to secure the grates and prevent any damage through movement. Security lockdowns may be available depending on system set-up and project requirements. Please contact Allproof for more information.
  • Grates from this range can be utilised on other systems manufactured by Allproof Industries, allowing designers to create consistency throughout their projects.
  • The system design accommodates runs of up to 43 meters, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in a maximum length of 86 meters between sumps. Overall, the system length is unlimited. This may be reduced dependent on required capacities or other constraints. Allproof recommends engaging a Hydraulics Consultant with your exact requirements.
  • On site mitre cuts are used to form corners, junctions and irregular lengths.
  • Joints can be sealed with a suitable flexible sealant if required.
  • Outlets are achieved by utilising pre-marked knockouts.
  • Allproof supplies a wide range of grates to meet durability and capacity requirements. These include stainless steel, galvanised steel, glass-filled nylon and cast iron.
Limitations on Use

The system design accommodates runs of up to 43 meters, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in a maximum length of 86 meters between sumps. Overall, the system length is unlimited.

A minimum concrete surround is required to meet load capacity requirements. Please see documentation available on allproof.com.

Installation requirements

  • A minimum concrete surround is required to meet load capacity requirements. Please see documentation available on allproof.com.
  • Channels are set to height on a bed of concrete to achieve the required embedment and finished paving height.
  • Allproof suggests that site concrete is used to haunch the channel into position and prevent movement during concrete placement.
  • It is imperative to support the channel from the weight of the setting concrete by having either the original grates or appropriate bracing in place. Protect grates from concrete contamination during installation by wrapping them in plastic or masking tape. Alternatively, timber infills to match the grate width can be installed during the concrete pour to maintain channel design width.
  • Chemicals used during installation and finishing may react with a galvanised edge and/or grates, please ensure this has been catered for or a stainless steel finish may be required.
Statement of Building Code Compliance

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause E1 Surface water: Performance E1.3.1, E1.3.2, E1.3.3, E1.3.3(a), E1.3.3(b), E1.3.3(c), E1.3.3(d), E1.3.3(e), E1.3.3(f)

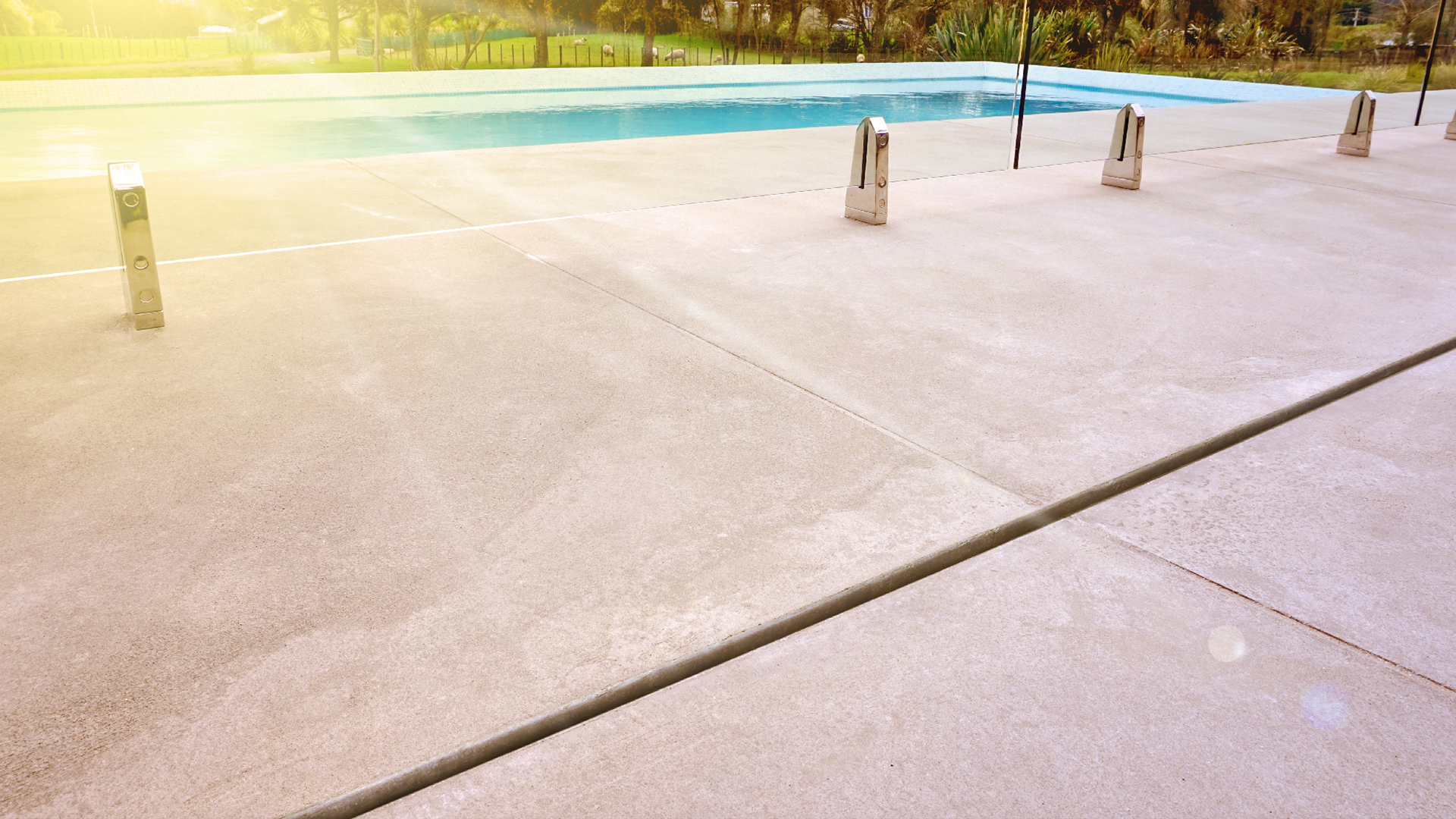

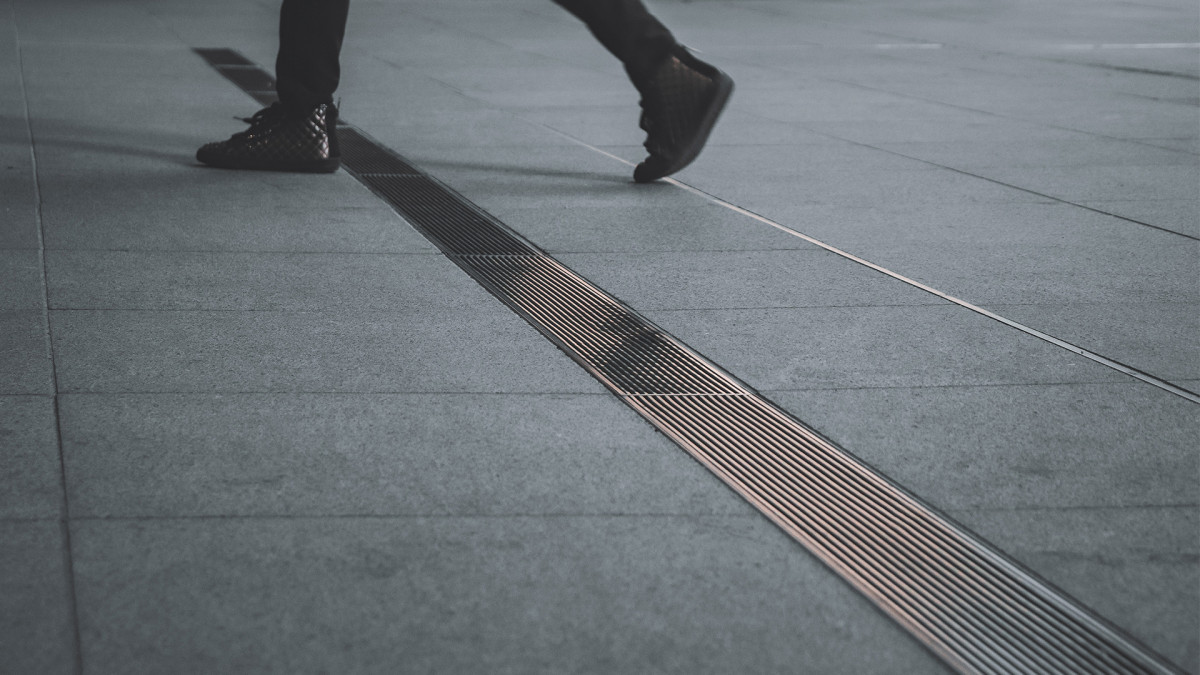

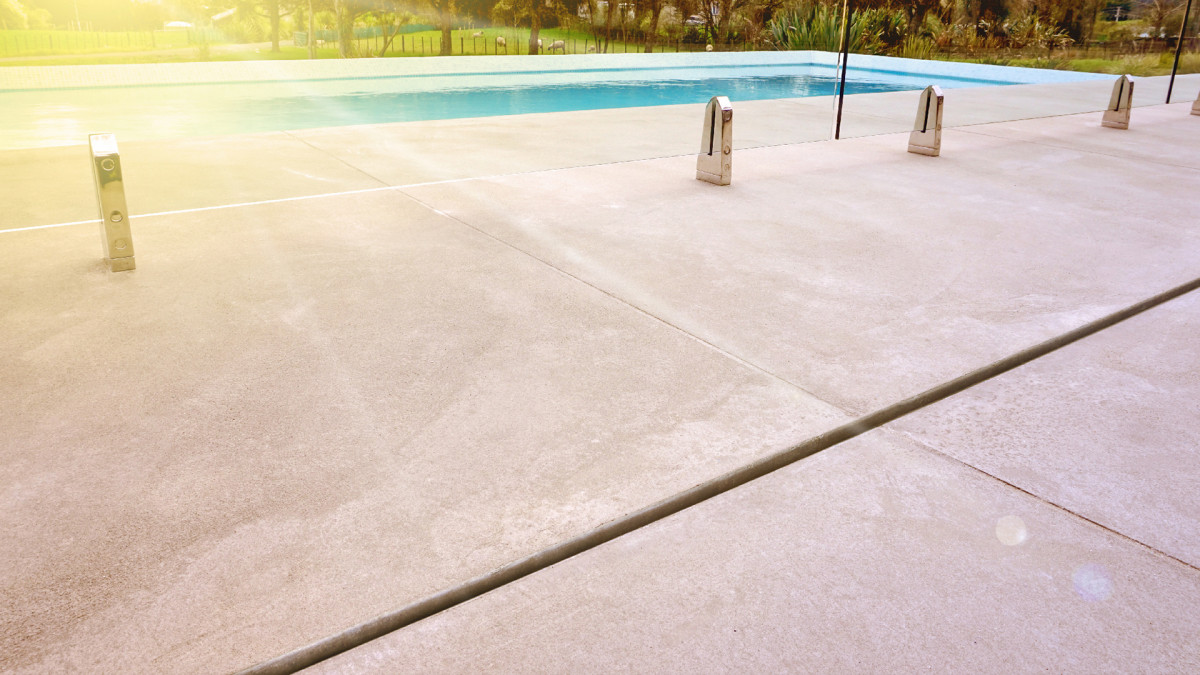

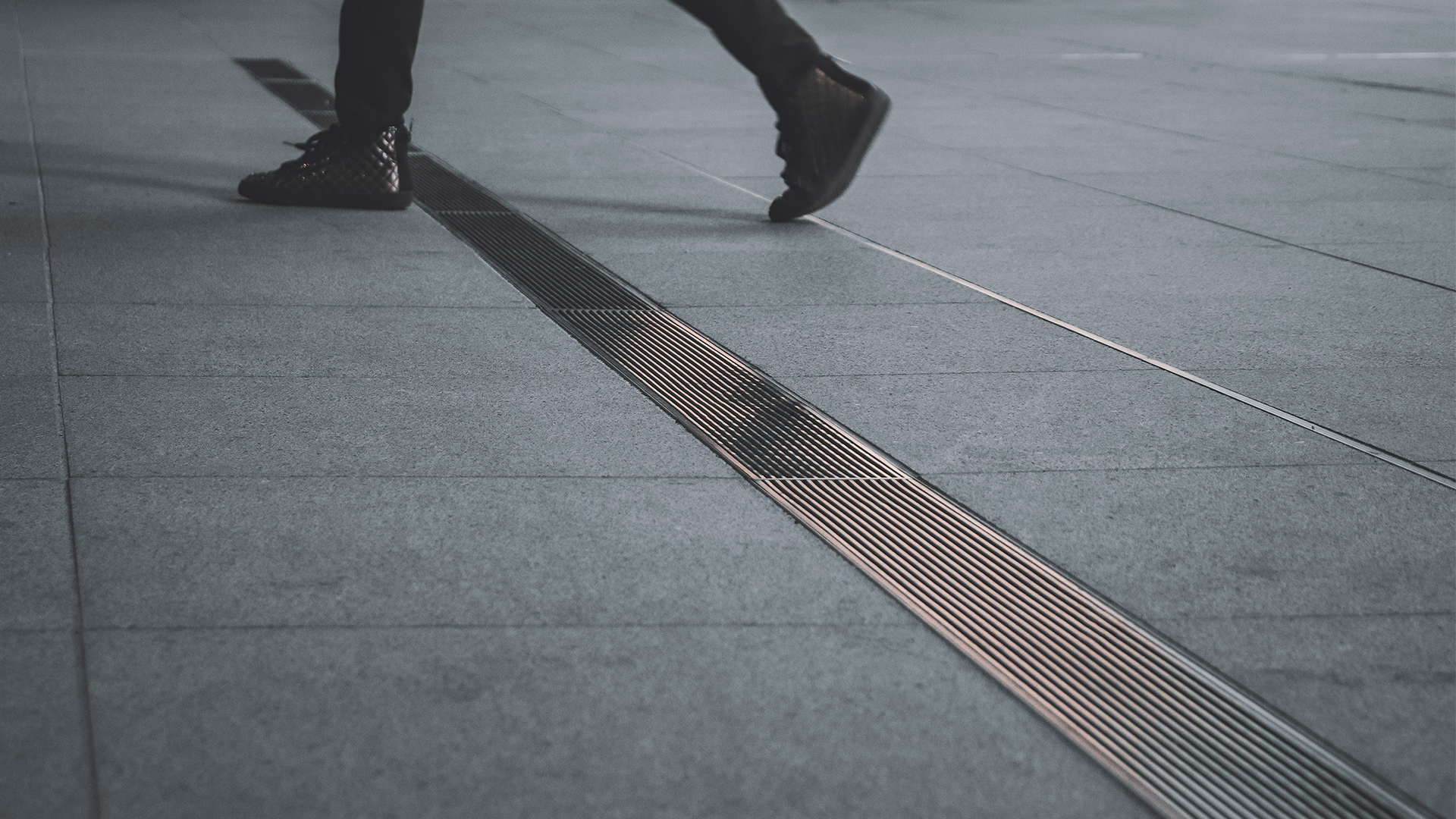

In-Service History

Allproof's Polymer Concrete channel has been used in a wide variety of installations around New Zealand and Australia including government facilities and communal areas.

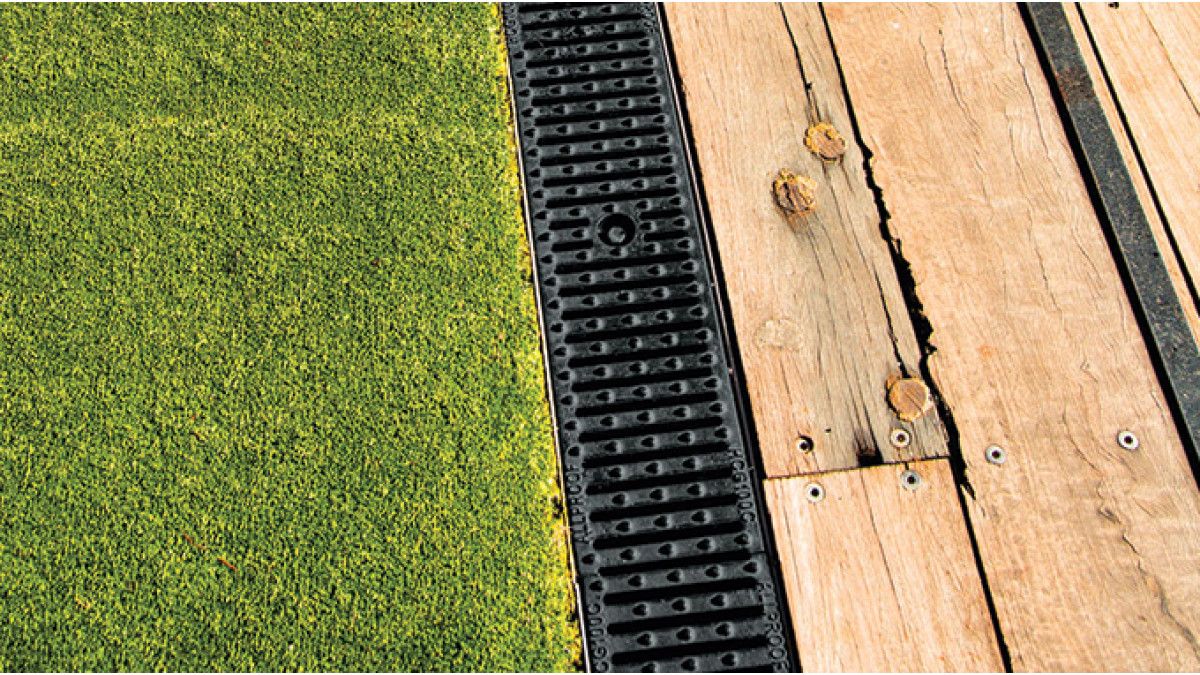

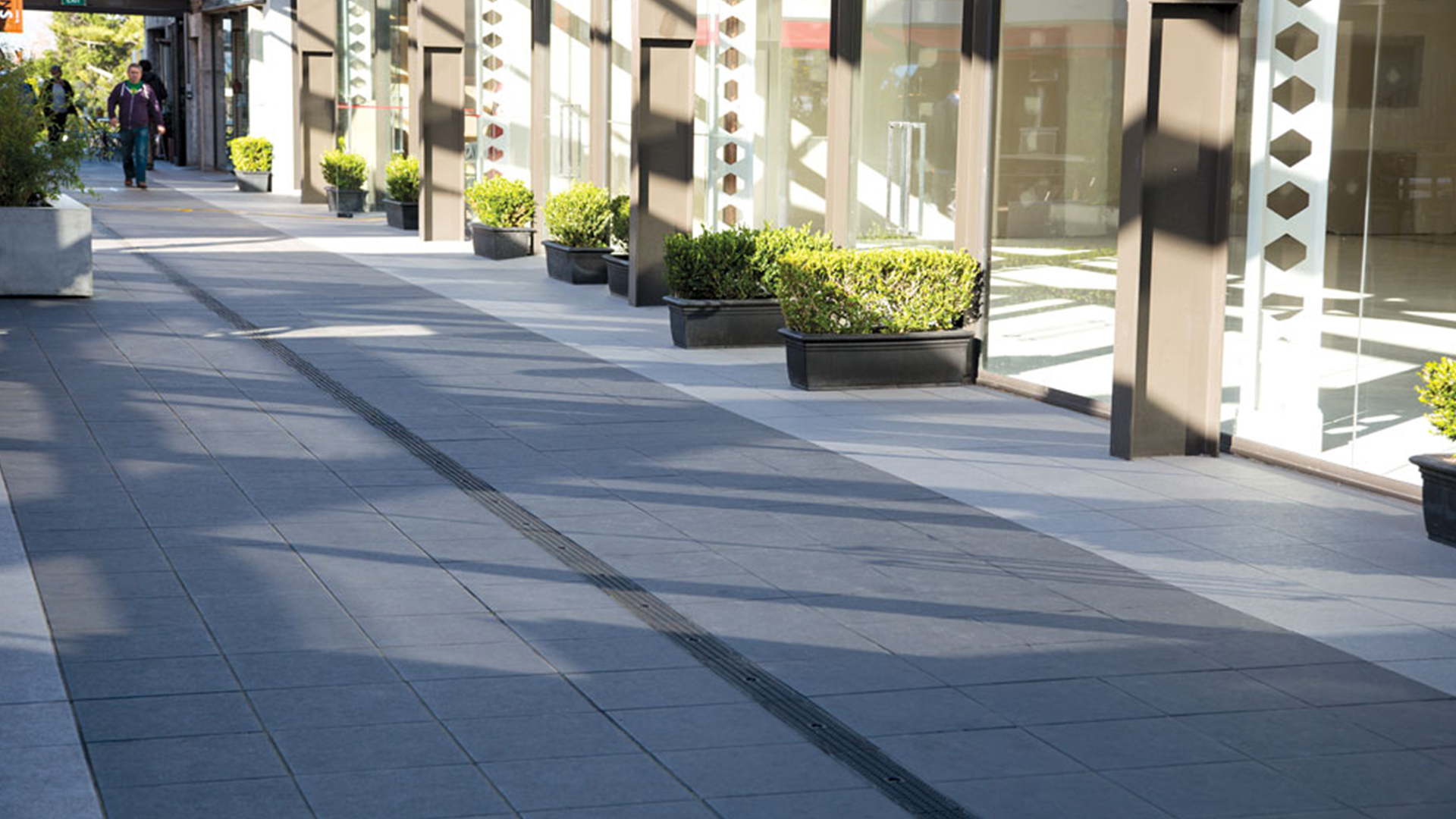

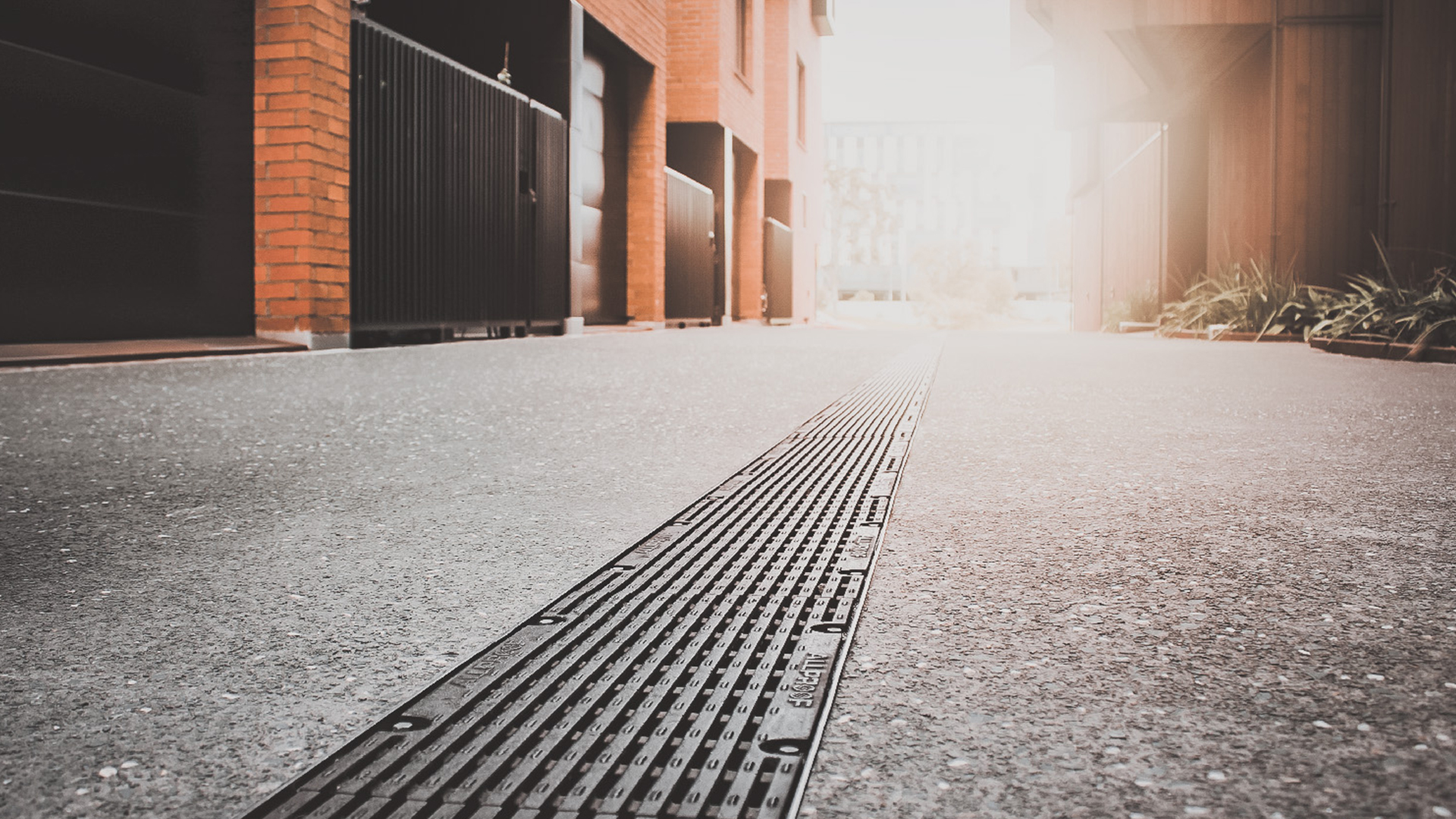

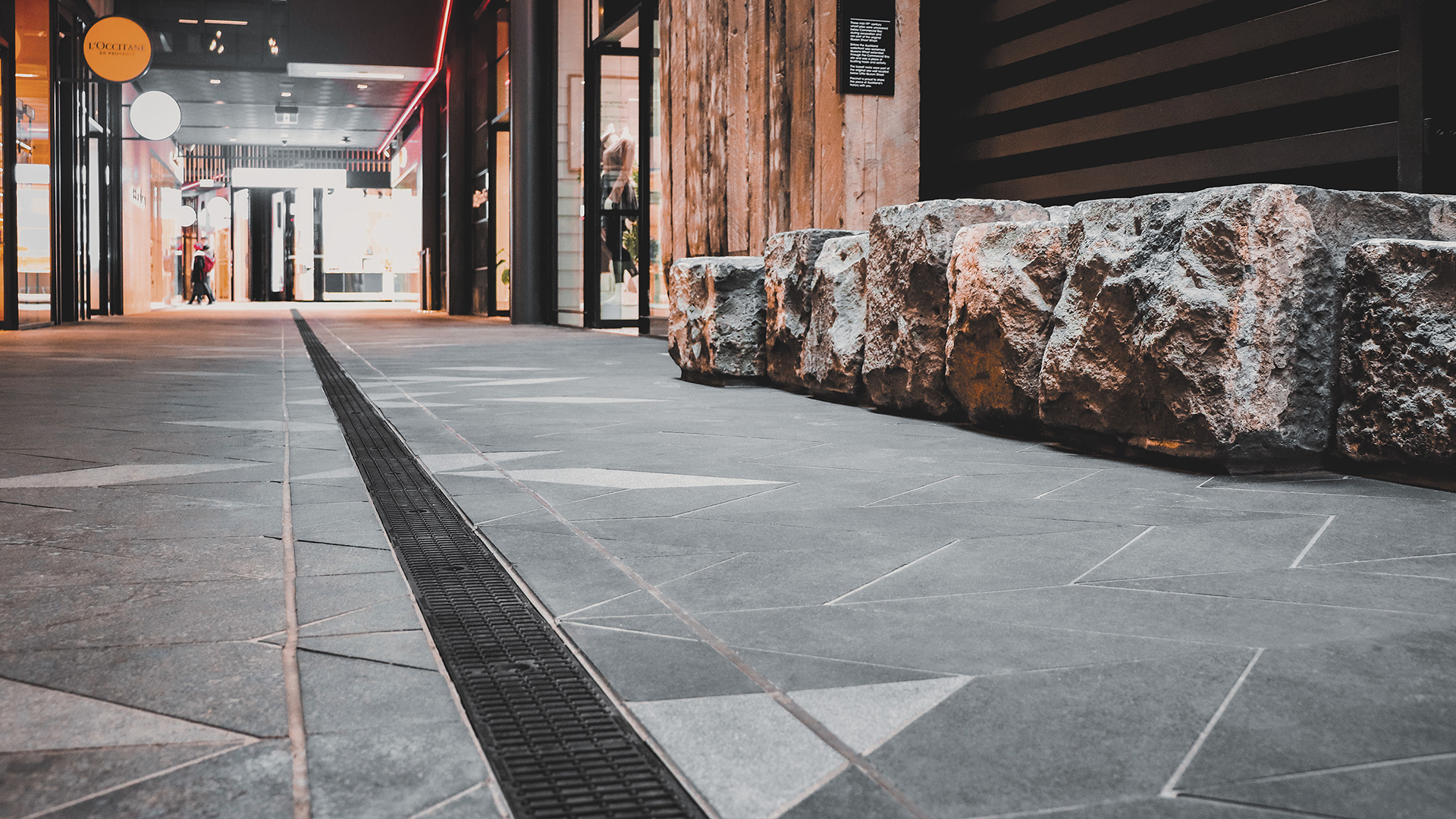

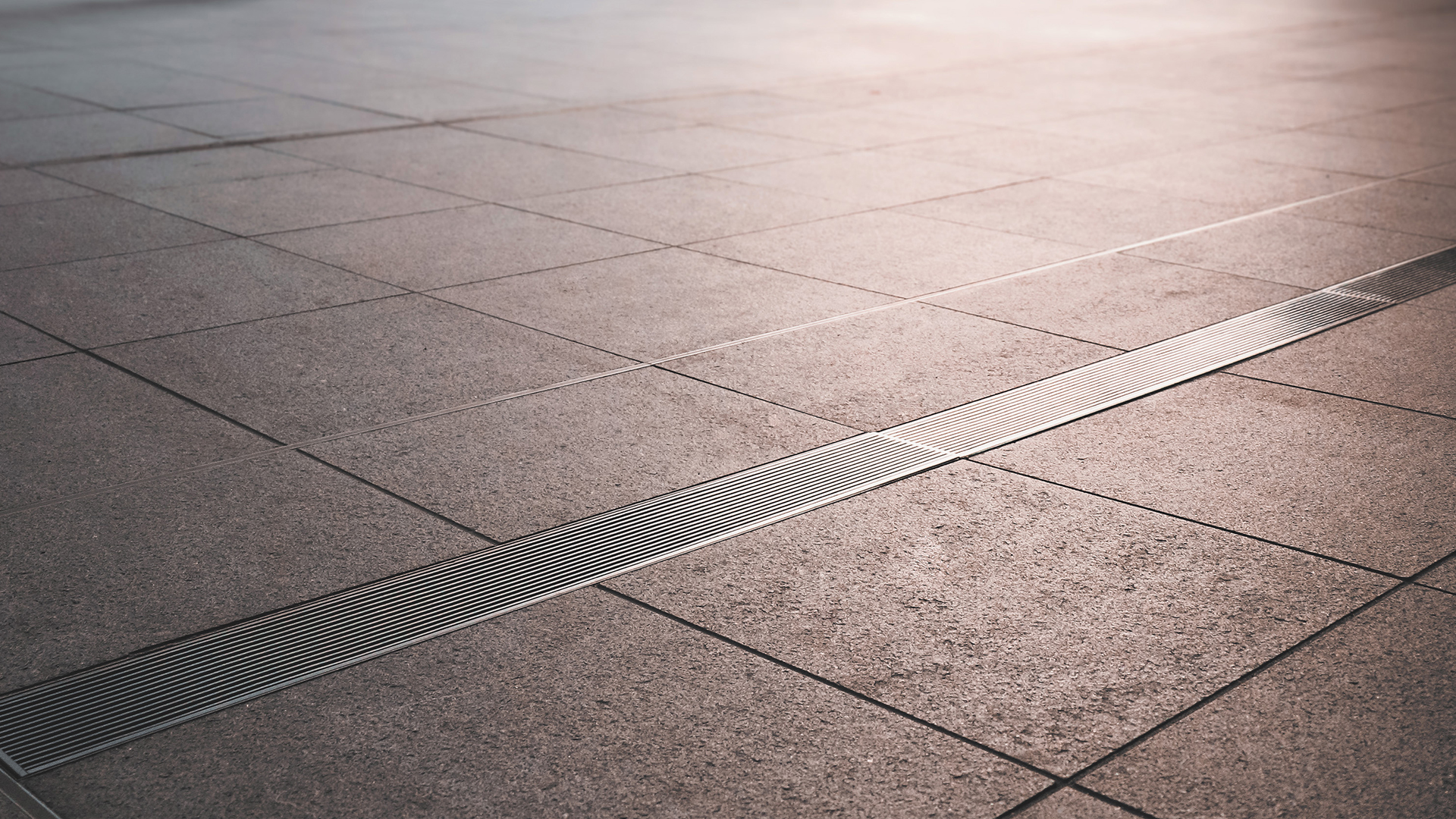

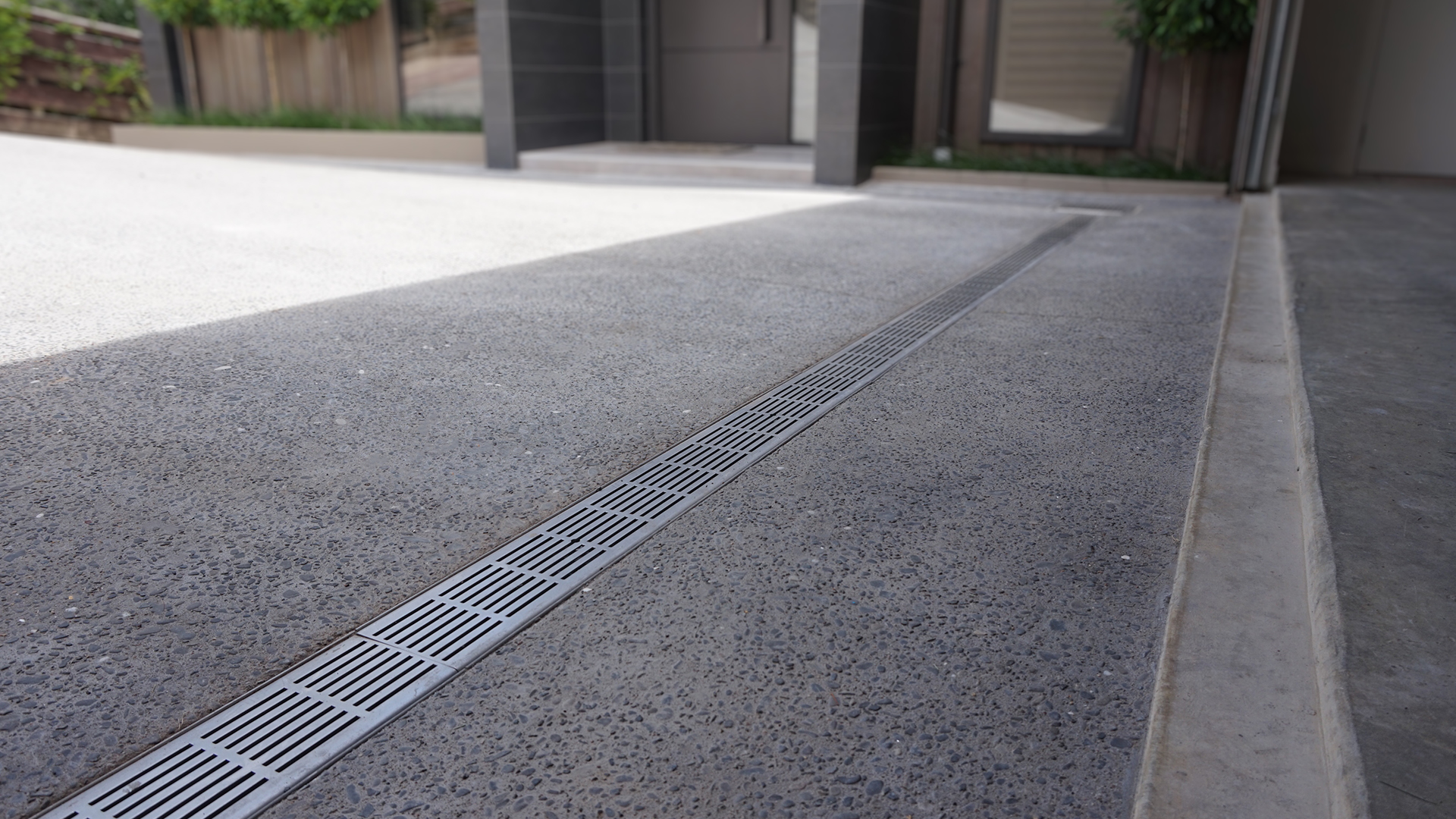

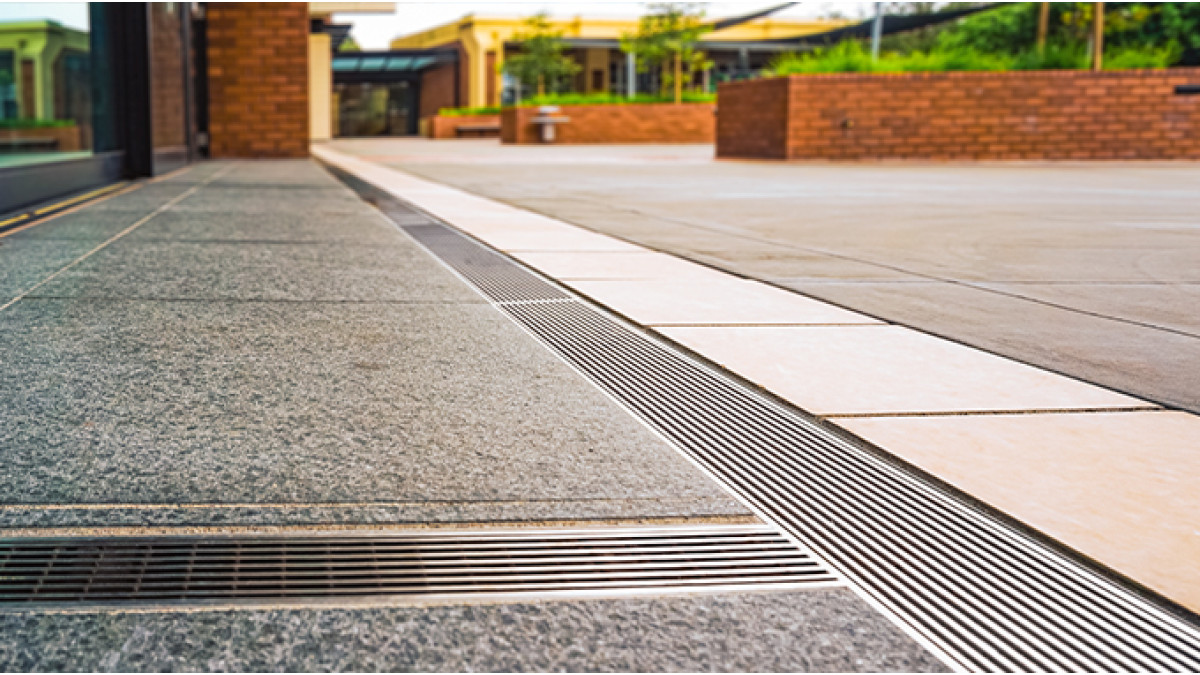

Most notably, the channel can be seen in Takapuna Commons, Auckland University of Technology, Ponsonby Central, and Melbourne's South Wharf precinct. It can also be seen in car parks, factories, loading docks and other industrial situations.

Other Performance Attributes

Maintenance requirements:

  • All grates are removable and regular cleaning and removal of debris is advised to maintain the channel function
  • Sumps require regular cleaning as per E1 stipulation
E1 Surface Water compliant
Surface Water
Test Results
Test Results
Documents
CAD/PDF Link
Installation Details
Revit — Polymer Concrete

V001

Masterspec Specification
Product Maintenance
Product Warranty

0820

Brochure
