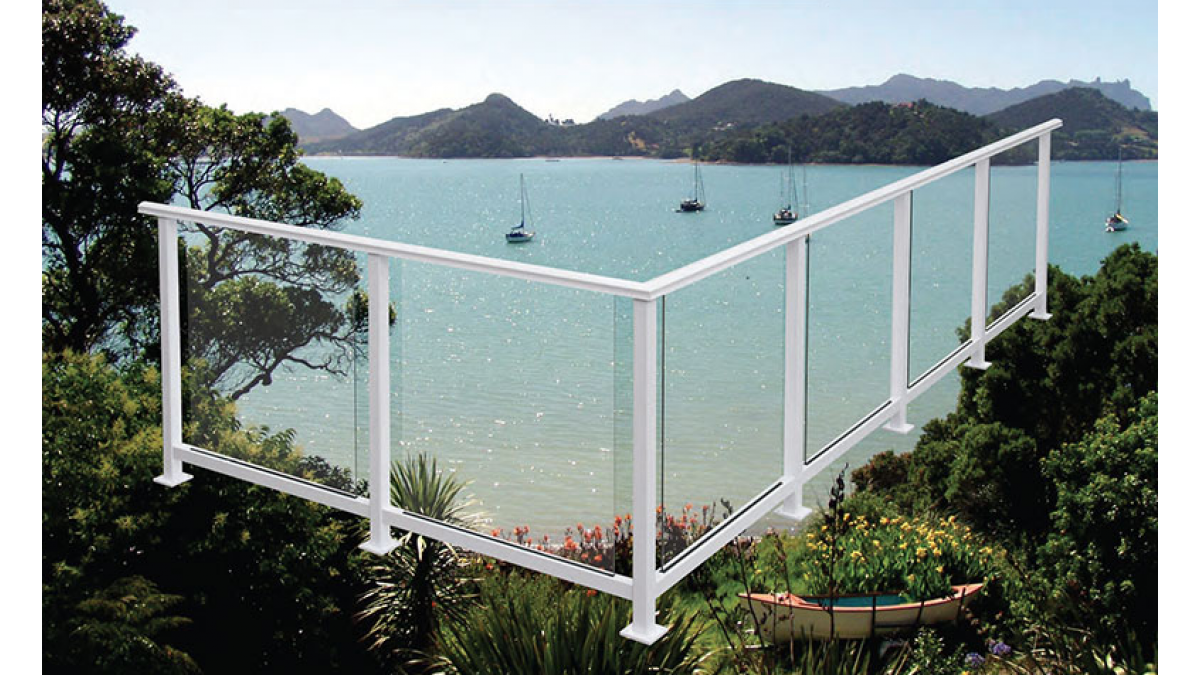

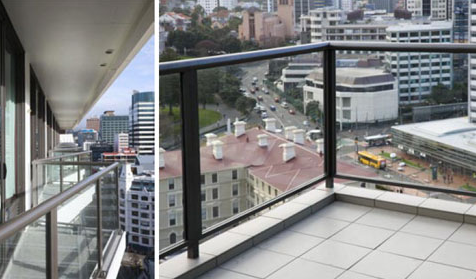

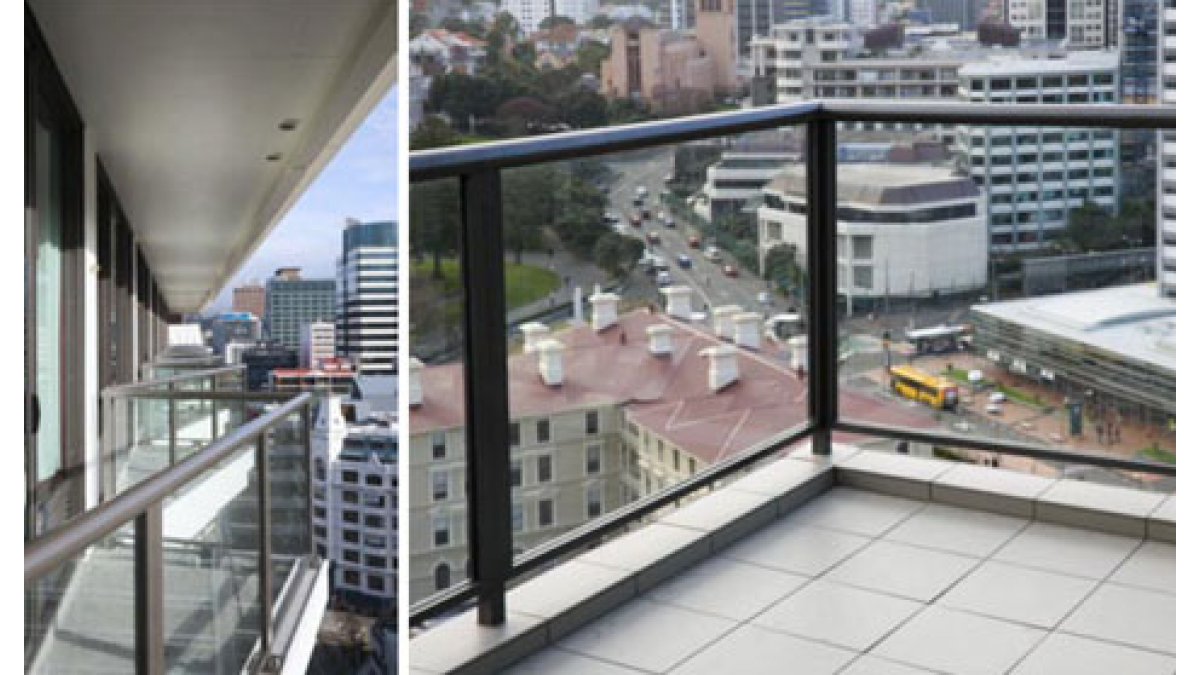

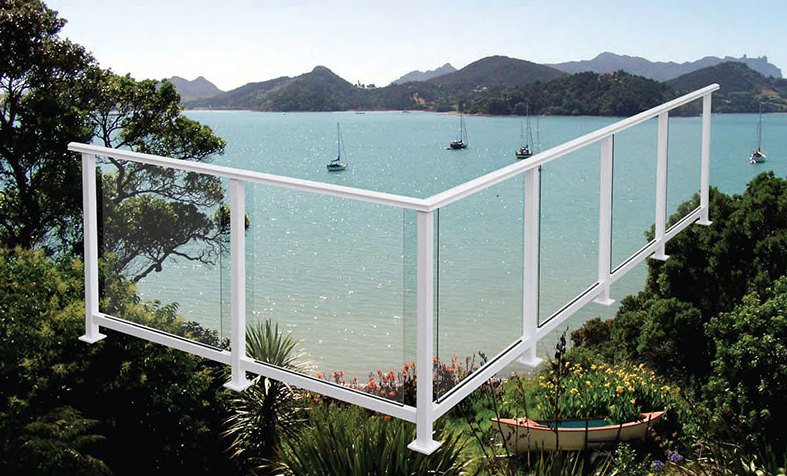

High Performance Balustrading and Privacy Screen Systems

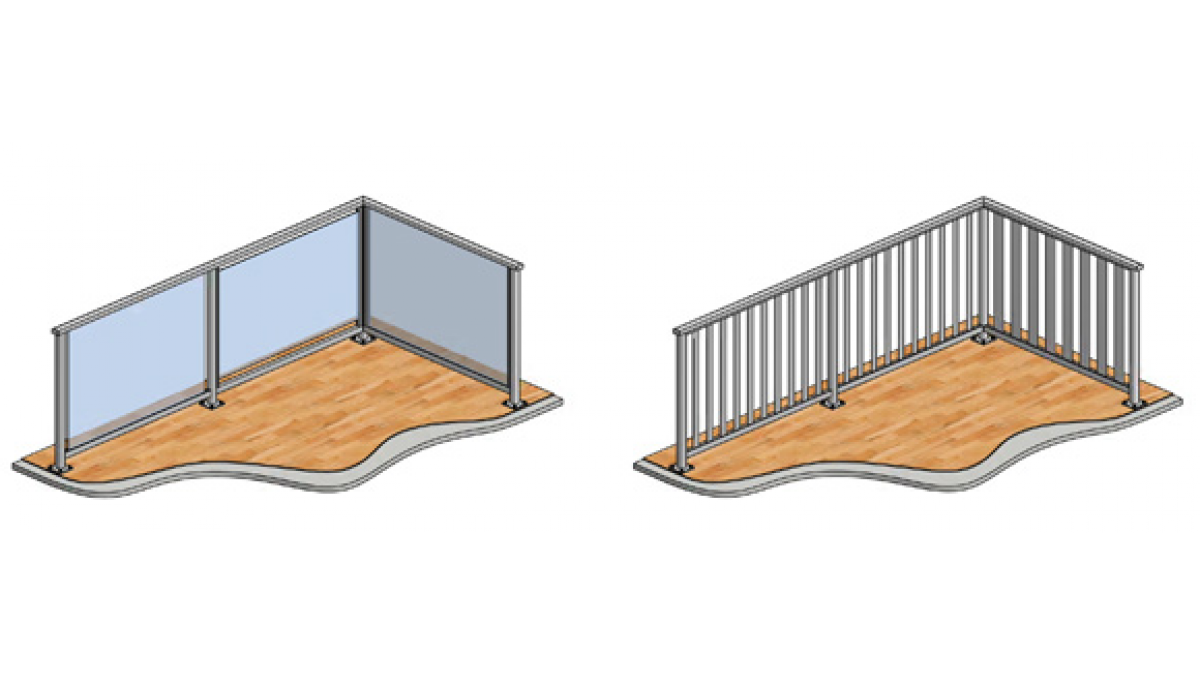

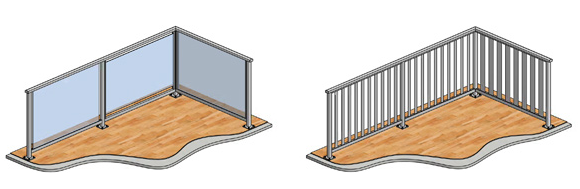

Architectural .75 is designed for New Zealand conditions and can be customised to suit your desired configuration, whether it be maximising expansive views, capturing light, or offering privacy.

Design Standards

  • Architectural .75 has been designed in accordance with AS/NZS1664.1:1997 Aluminium Structures Part 1 – Limit State Design
  • Compliance with loading requirements has been tested by Materials and Testing Laboratories Ltd (17/01/2013 )
  • Fixing of balusters has been verified against Ramset Dynabolt Sleeve Anchor Manual. V5:2012

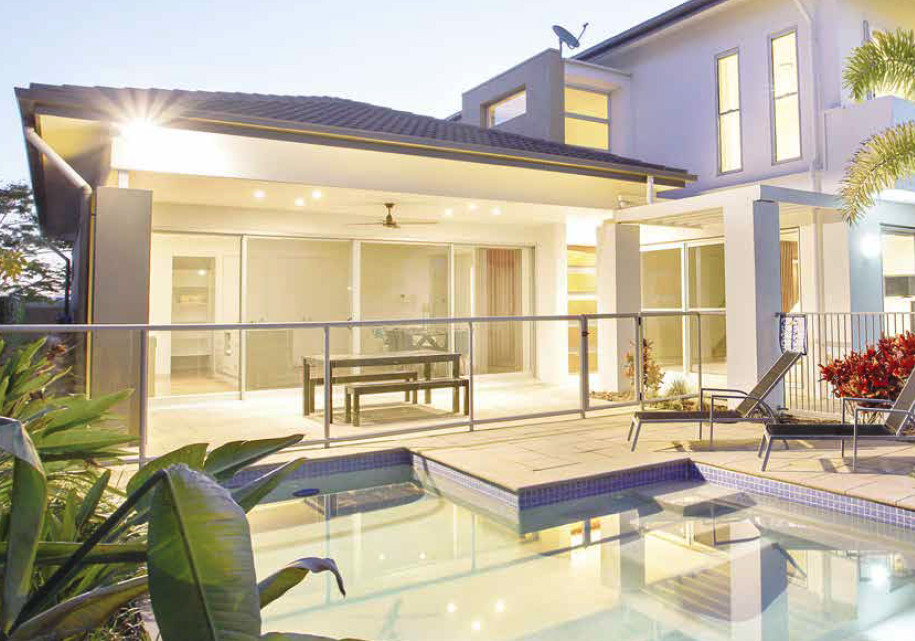

  • NZS 8500:2006 safety barriers & fences around swimming pools, spa pools & hot tubs

Material Properties

  • Main posts for extrusion UA7085 are 6261/T6
  • All components used in production of rails, infill balusters and glazing beads are manufactured from extruded UA sections in alloy & temper 6060/T5
  • Base plates are manufactured from 5083 / H321 Sheet.
  • Stainless steel fixings are 316/SS

View more information on Vulcan Building Systems, including contact details.
comments powered by Disqus
April 2014 EBOSSNOW Product News

News from Vulcan Building Systems

Elevating Eco-Friendly Construction with Vulcan

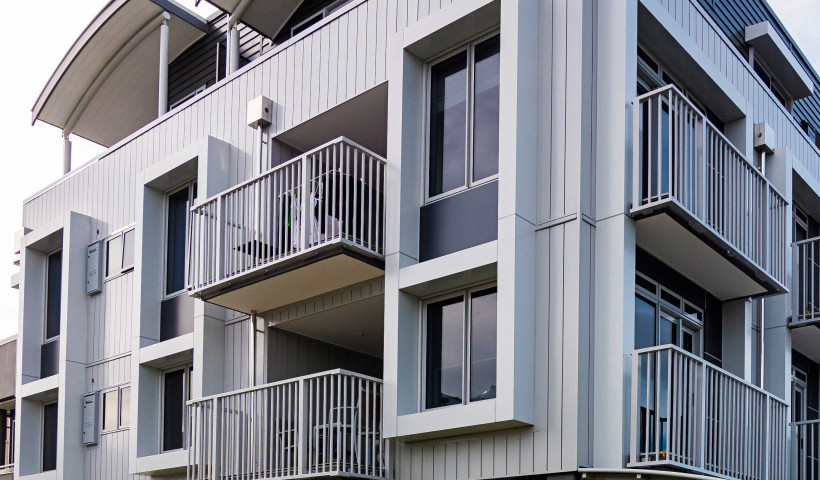

Customise Cladding Design with UlltraClad
