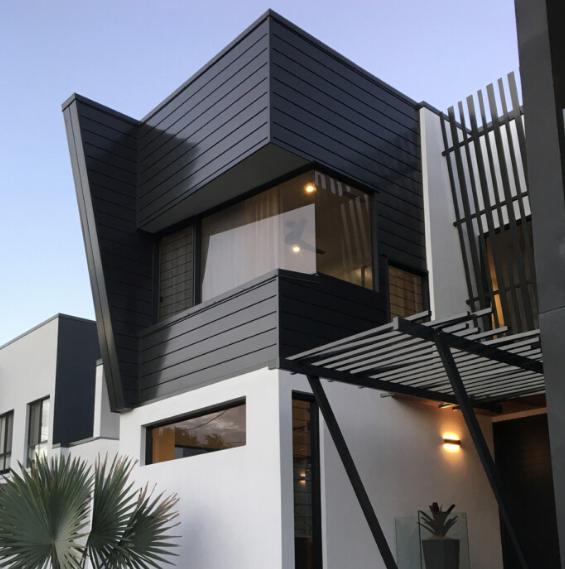

UltraClad is an external wall cladding for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
• constructed with timber framing complying with the NZBC; and,
• with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
• situated in NZS 3604 Wind Zones up to, and including Extra High.

See BRANZ Appraisal 487 for full information.

• Must only be installed horizontally on vertical, flat surfaces
• For use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills, and must meet NZS:4211 for the relevant Wind Zone or design wind pressure

UltraClad® Cavity System, if designed, used, installed and maintained in accordance with the statements and conditions of BRANZ Appraisal 487, will meet the following provisions of the NZBC:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The UltraClad® Cavity System meets the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 (a), (f), (h) and (j)].
• Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years and B2.3.2. The UltraClad® Cavity System meets these requirements.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The UltraClad® Cavity System meets this requirement.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The UltraClad® Cavity System meets this requirement.

See BRANZ Appraisal 487 for full information.

• UltraClad embraces the circular economy with its 100% recyclable aluminium composition
• Crafted from premium extruded aluminium for unparalleled durability, won't rot, warp, or fade
• Powder coating provides enhanced durability and resistance to fading compared to conventional paint
