UltraClad by Vulcan Building Systems is a true leader in cladding technology. Its innovative design, ease of installation, and superior performance in durability, weather protection, fire resistance, and structural integrity make it the ideal choice for modern buildings. Whether you're constructing a residential or commercial project, UltraClad offers the versatility and reliability you need for long-lasting success.

The complete cladding system

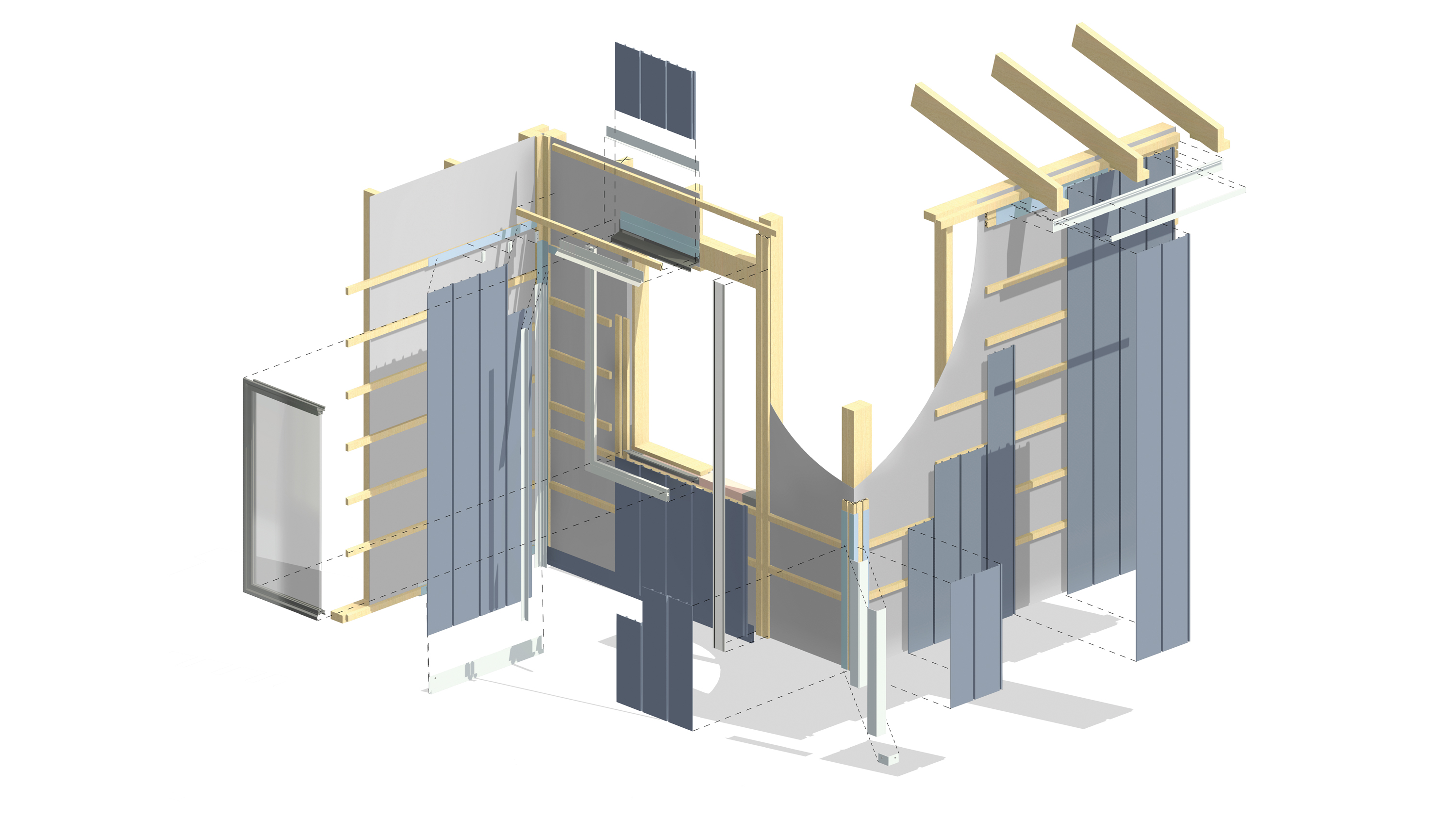

UltraClad is the complete cladding system designed to streamline the construction process. Offered by Vulcan Building Systems, this fully integrated system simplifies installation and significantly reduces overall costs. The system includes high-quality aluminium weatherboards, locators for concealed fixing, internal and external corner moulds, starter strips, board jointers, window flashings, and various accessories. This comprehensive setup ensures faster construction times and enhanced performance, making UltraClad the go-to choice for Kiwi builders.

Excellent durability

Crafted from premium extruded aluminium, UltraClad delivers excellent durability. Unlike traditional cladding materials that suffer from rot, warp, or fade under environmental stresses, UltraClad stands the test of time. Its exceptional resistance to the elements ensures that the structure remains in top condition, offering not only long-lasting performance but also peace of mind for years to come.

Weathertight protection

UltraClad goes above and beyond in providing a completely weathertight system. Its 100% impermeable surface ensures that moisture cannot penetrate the building structure, protecting the building from potential water damage. Rigorously tested and evaluated by BRANZ, UltraClad surpasses the quality standards set by the New Zealand Building Code (NZBC), making it a highly reliable choice for safeguarding buildings from the elements.

Fire resistance for added safety

Safety is paramount in modern construction, and UltraClad delivers superior fire resistance. This cladding solution is designed to provide excellent protection against fire hazards, aligning with the highest safety standards. UltraClad has undergone rigorous fire testing, including:

• Bushfire resistance test of an external wall system to BAL-A40 in accordance with AS 1530.8.1-2007

These tests ensure that UltraClad meets stringent fire safety regulations and helps protect the building from fire damage.

Scope of use

The UltraClad Cavity System is ideal for use as an external wall cladding system in residential and light commercial buildings that adhere to domestic construction techniques. It is designed to withstand:

• Wind zones up to ‘Extra High’
• Seismic earthquake situations
• Aluminium window and door joinery installed with jambs, heads, and sills
• Vertical and horizontal applications

Performance standards and compliance

UltraClad is designed to meet or exceed the provisions of the New Zealand Building Code (NZBC). BRANZ Appraisals (487 [2024], 796 [2024]) confirm that, when installed and maintained in accordance with the guidelines, UltraClad will meet or contribute to meeting the following provisions:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4. UltraClad can handle loads arising from self-weight, earthquakes, wind, and impact (i.e., B1.3.3 (a), (f), (h), and (j)).
• Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years and B2.3.2.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

UltraClad's performance meets the highest standards for structural integrity and safety, providing you with a cladding solution that meets long-term building code requirements.

In service history

Since its introduction in 2005, UltraClad has been a trusted and reliable choice for cladding systems. Over the years, it has continued to perform without issues, providing consistent results and durability in a wide range of building applications.
