Assistrail Public Access Handrails
Description

Moddex Assistrail Public Access Handrail systems ensure safety on accessible routes for people moving in and out of buildings, and to ensure that those who are mobility impaired or vision impaired can traverse the site safely and with ease.

Moddex Public Access Handrails are available in 7 configurations:

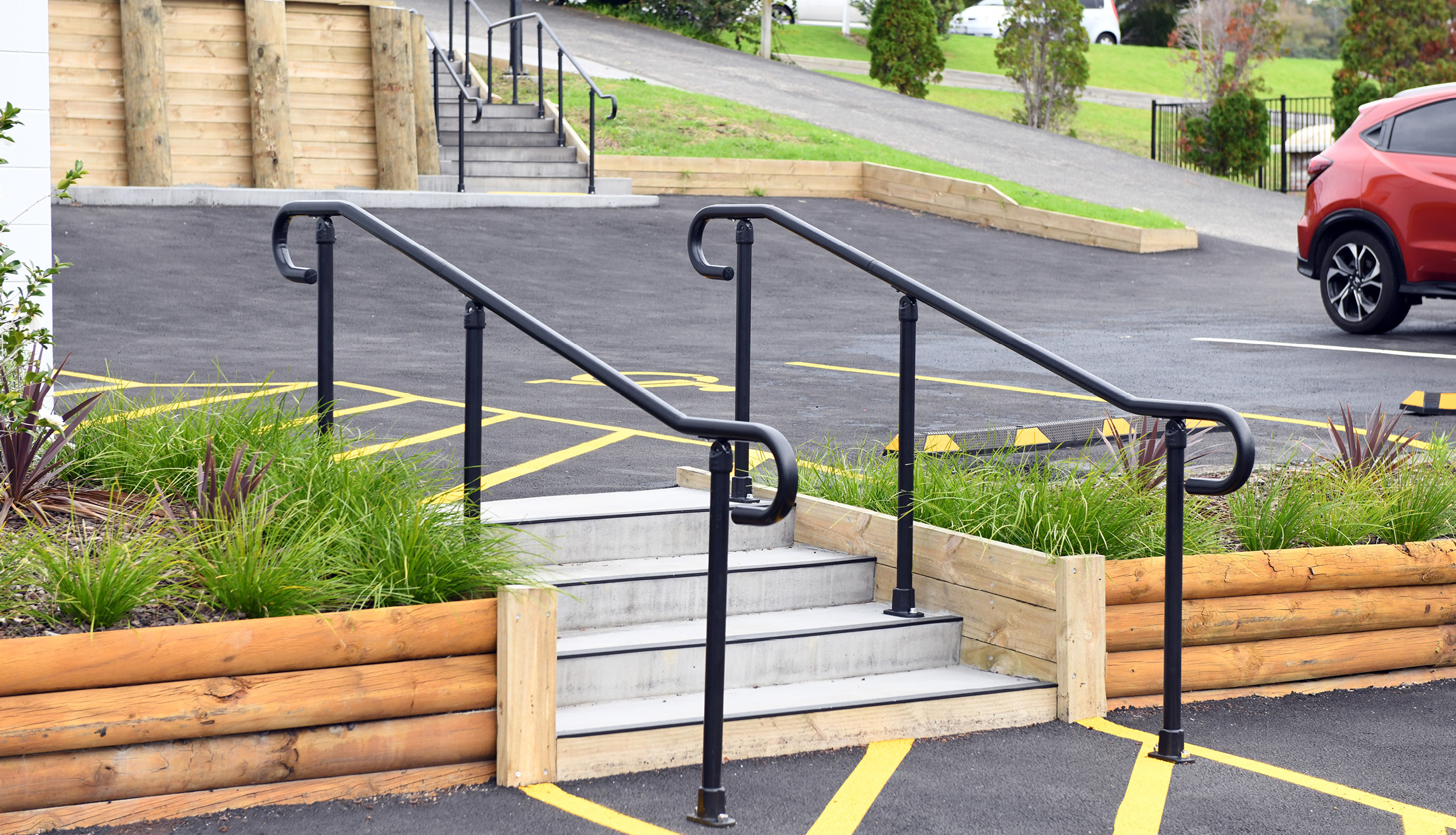

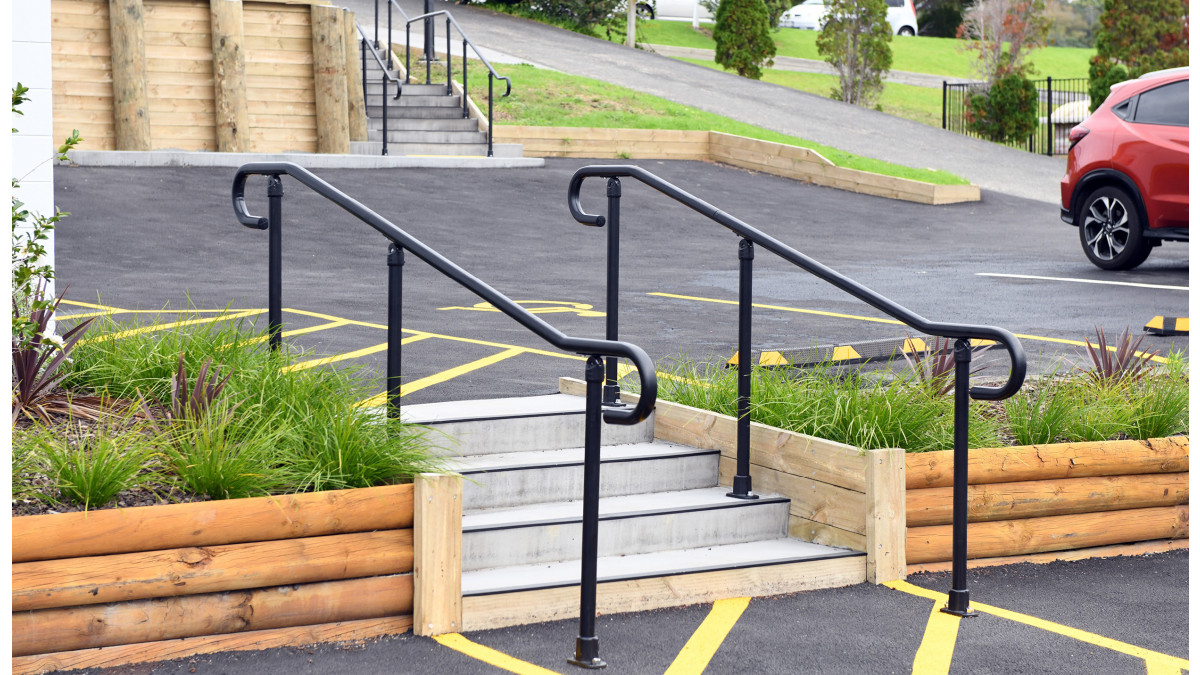

  • AR10 — Top rail only

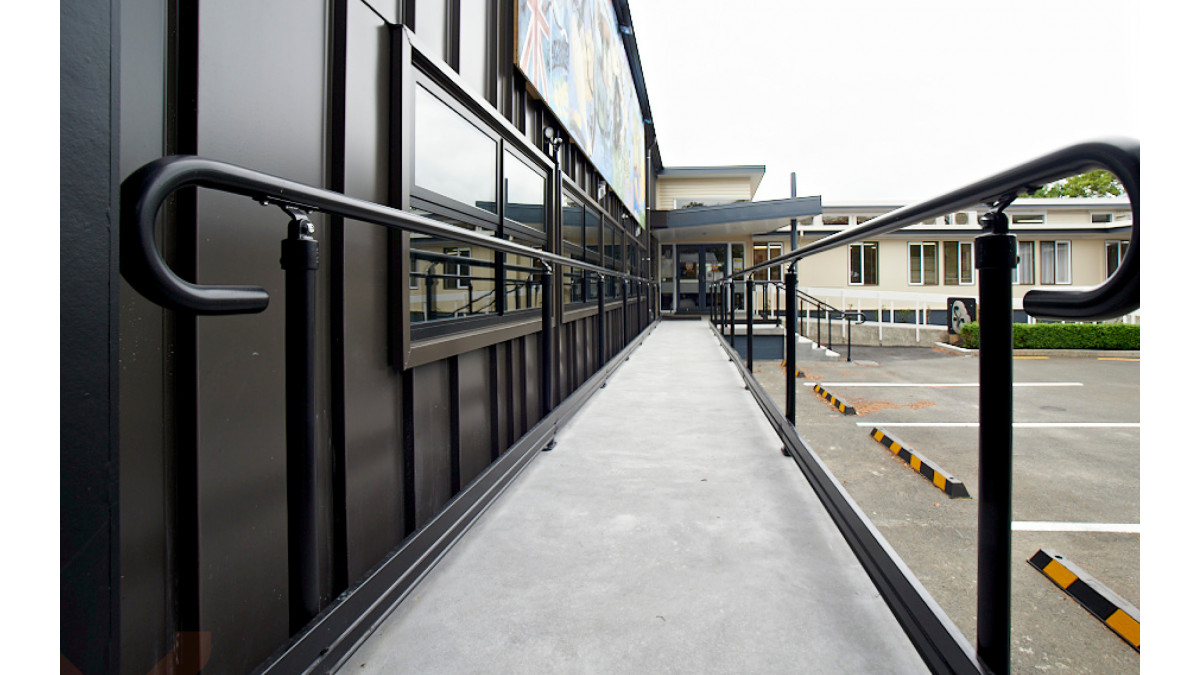

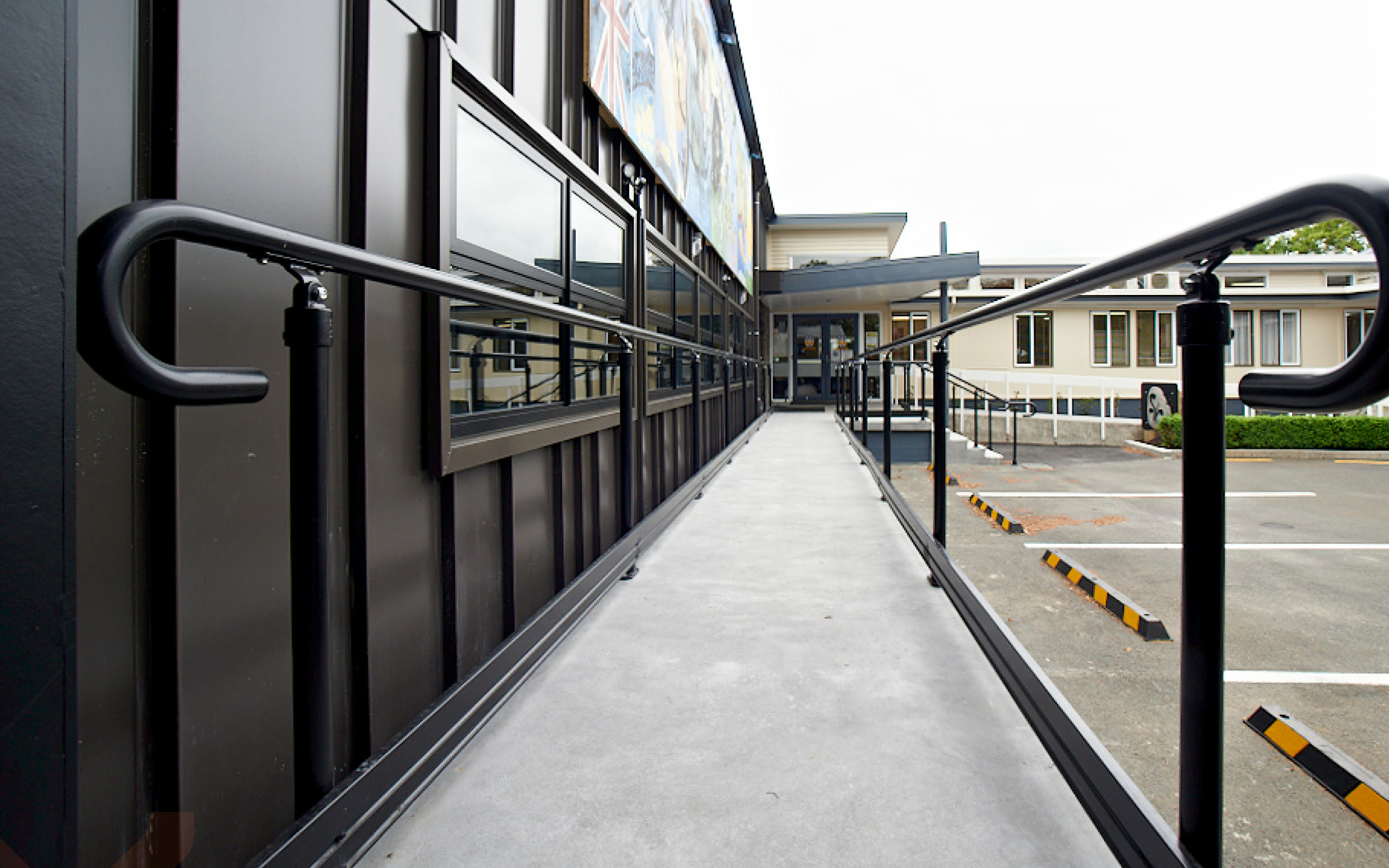

  • AR20 — Top rail with kickplate

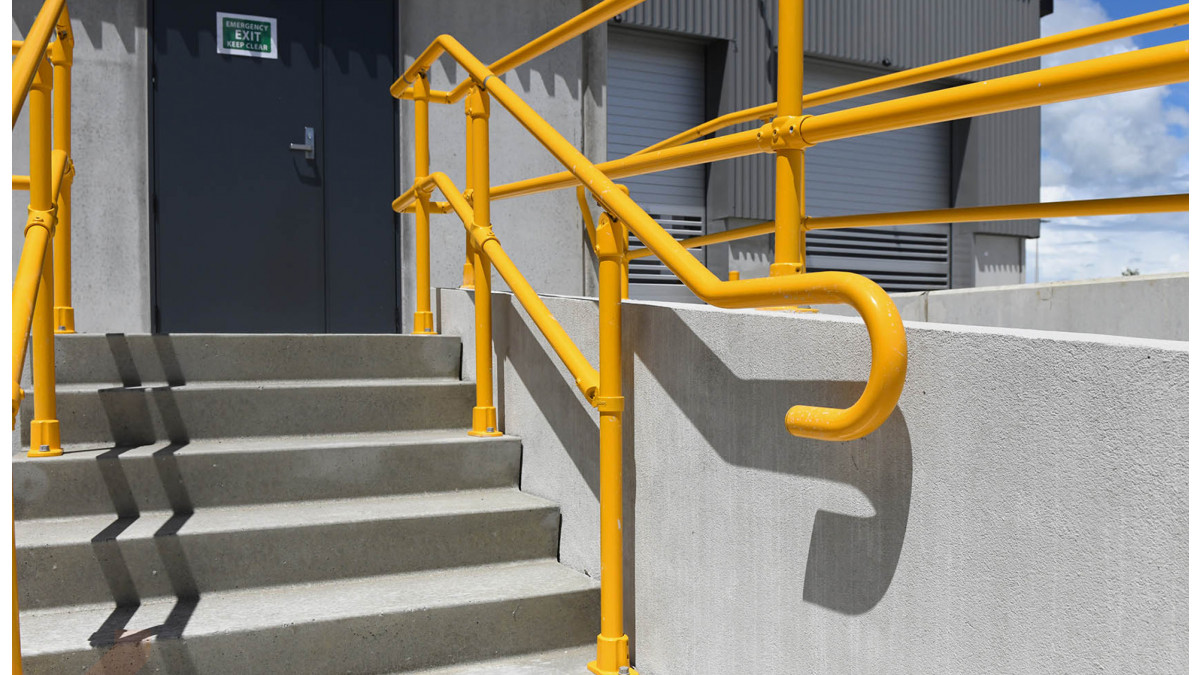

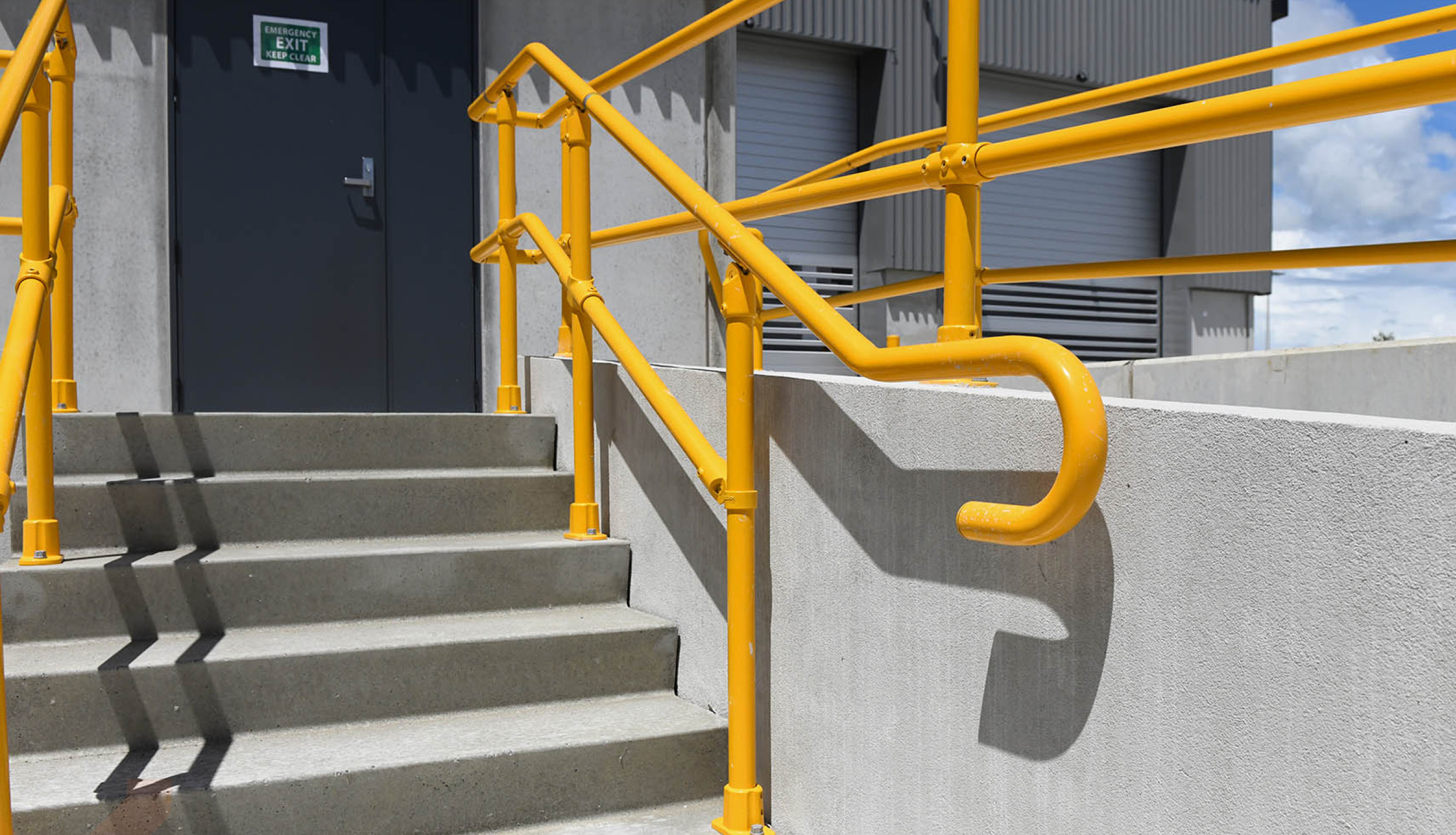

  • AR30 — Top and mid-rail

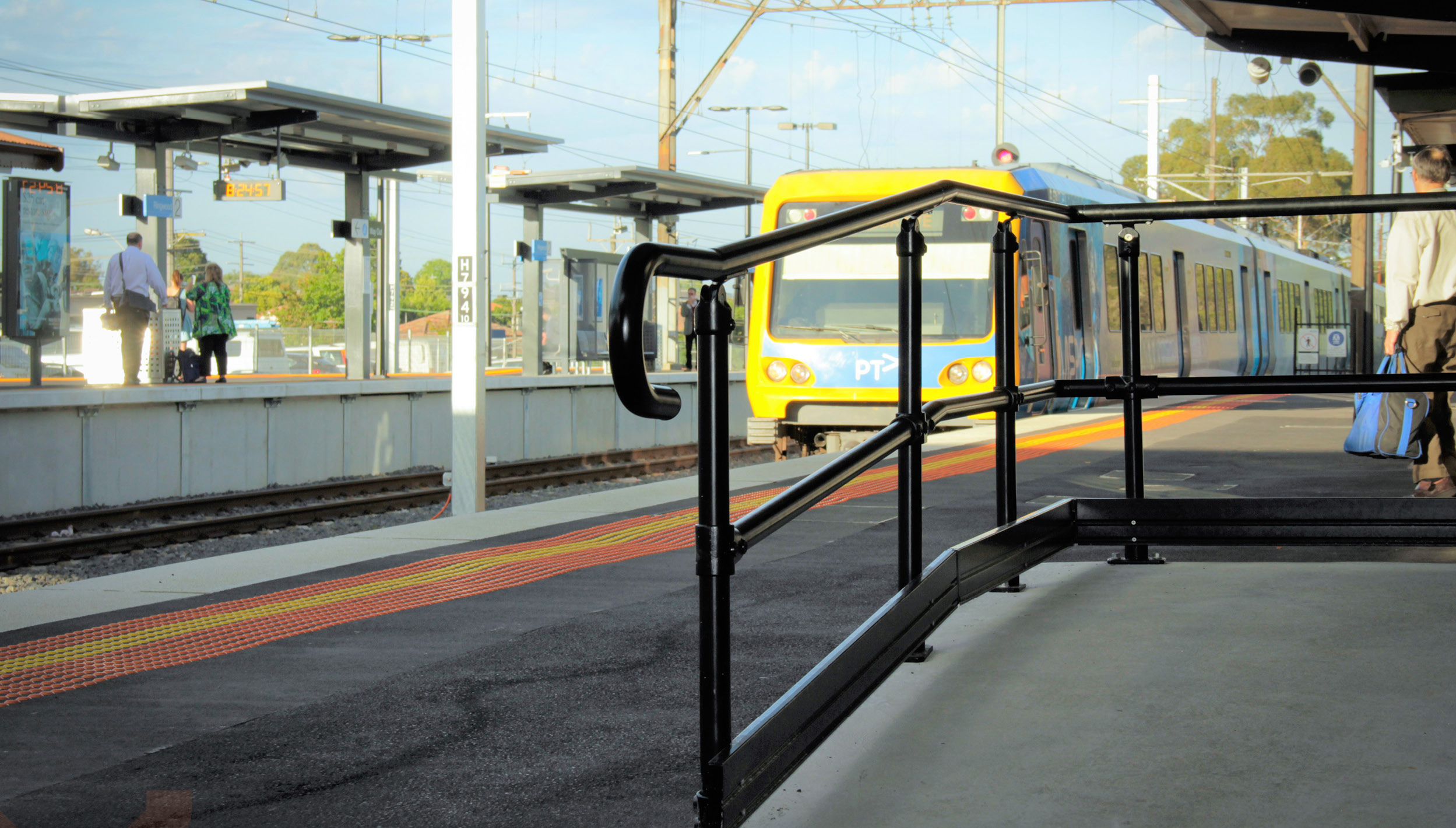

  • AR40 — Top and mid-rail with kickplate

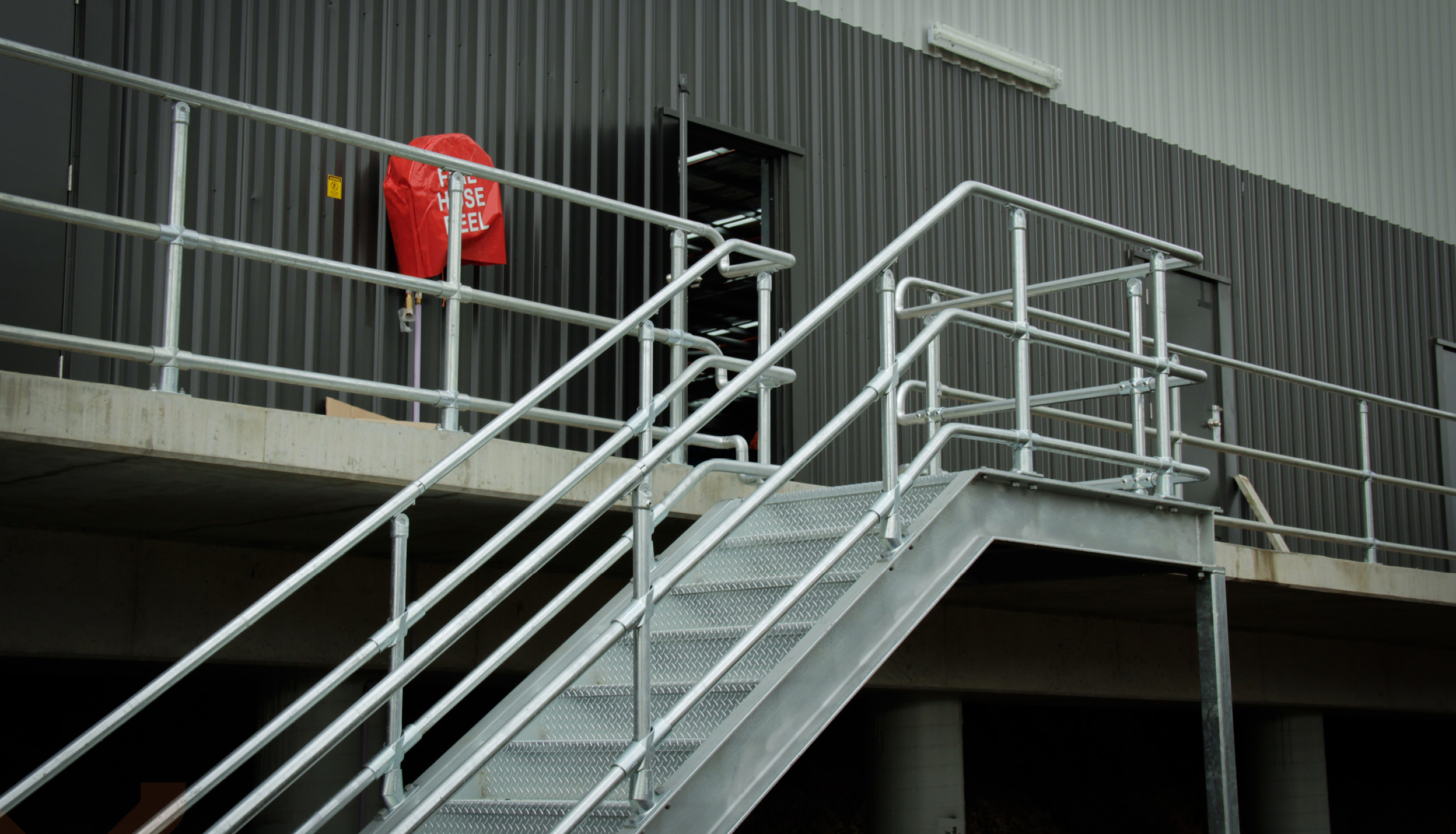

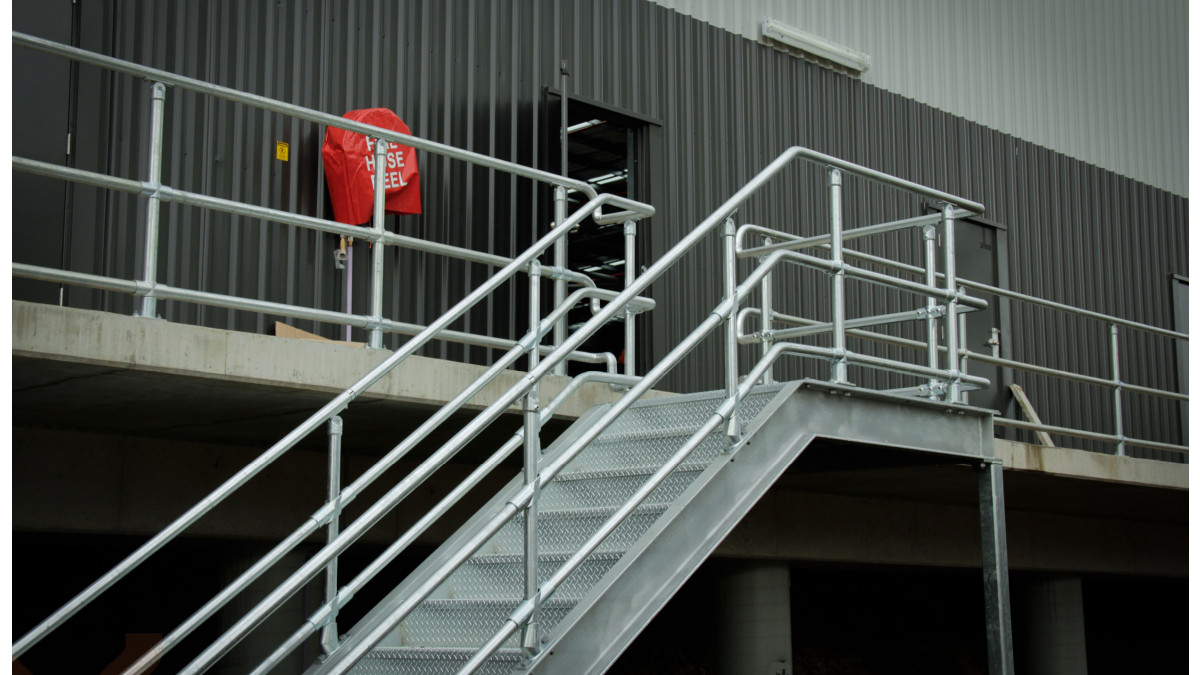

  • AR45 — Top, mid and bottom rail

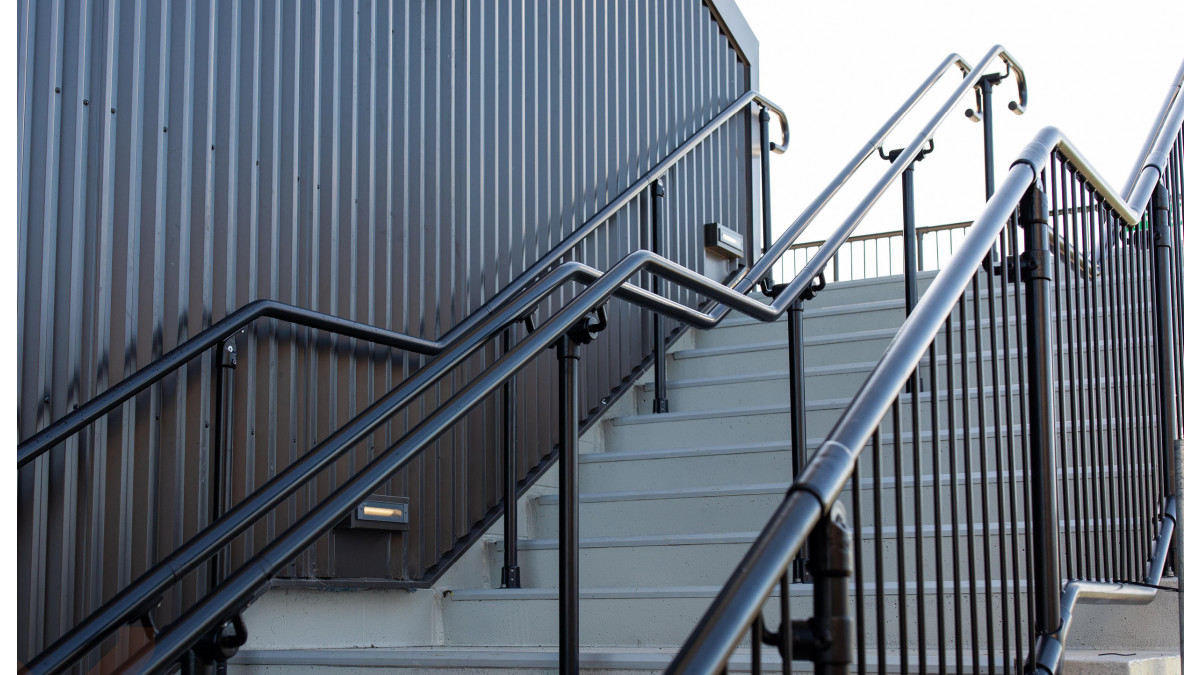

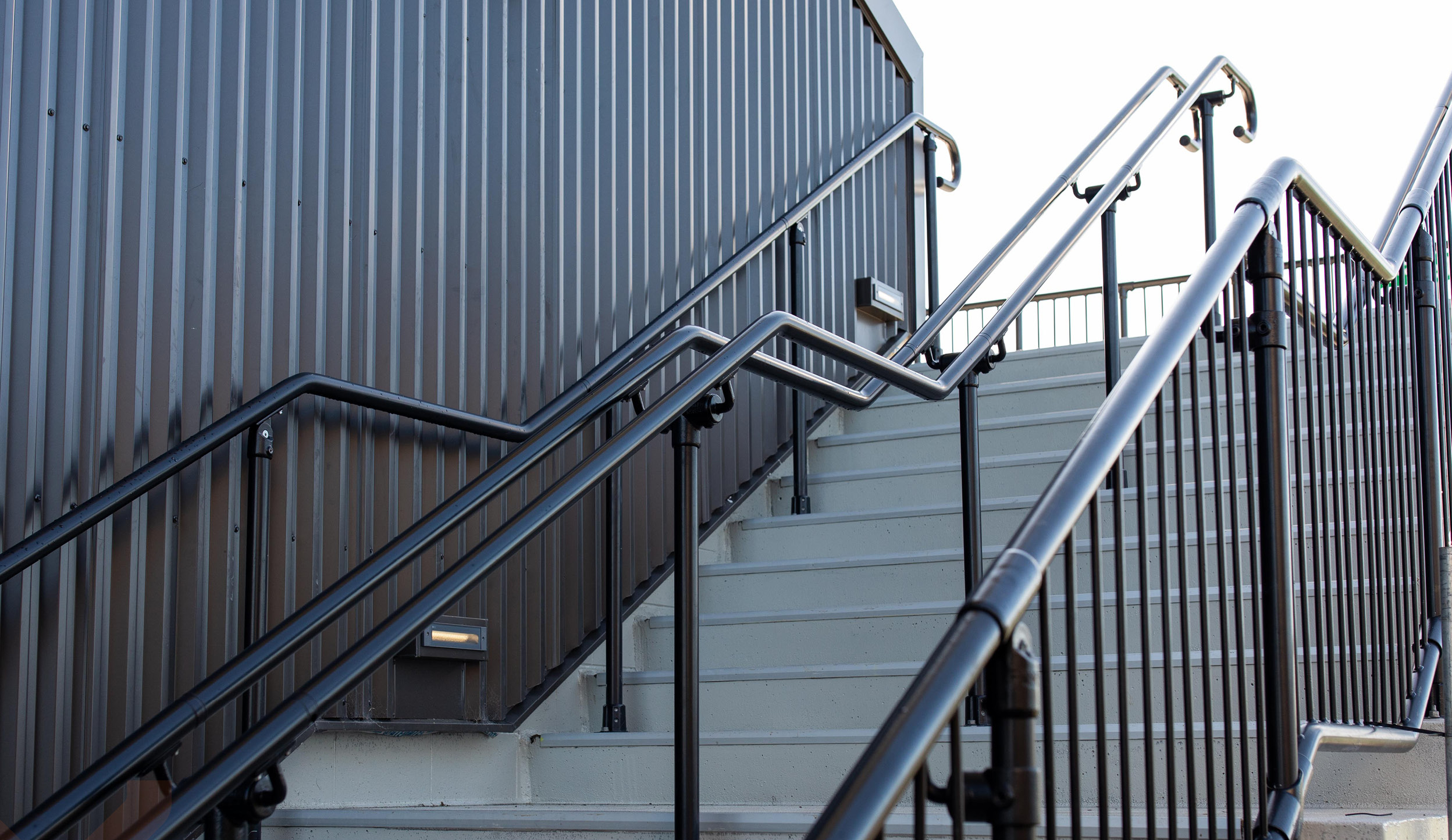

  • AR130 — Twin offset handrail

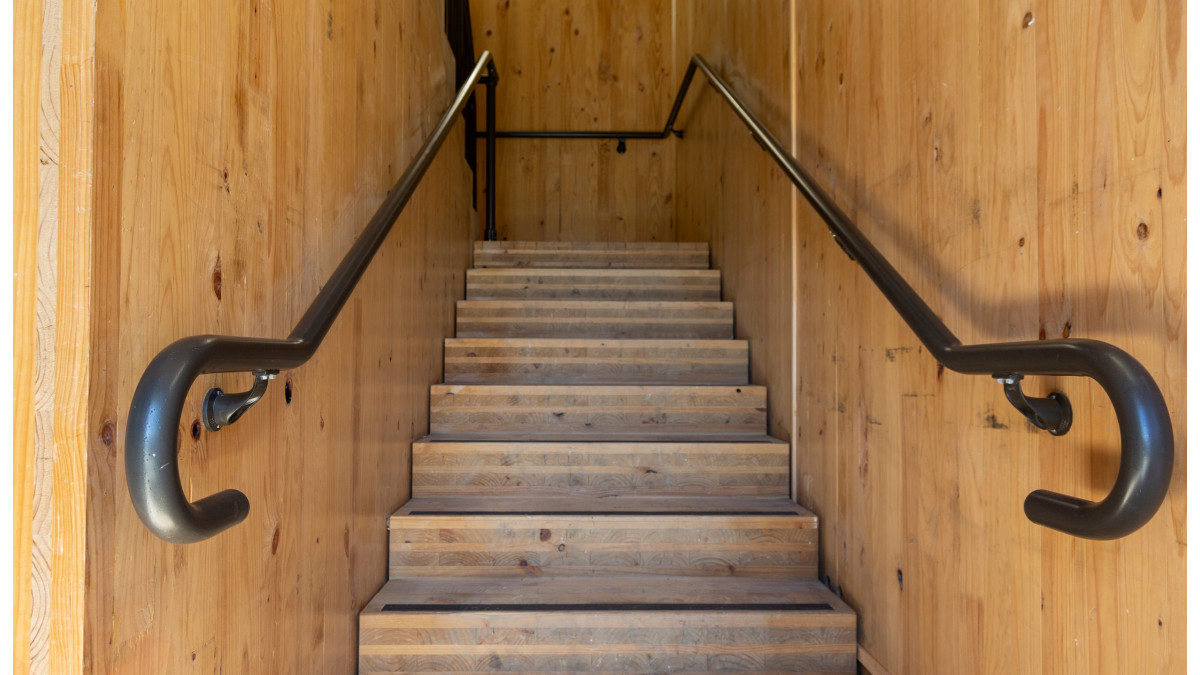

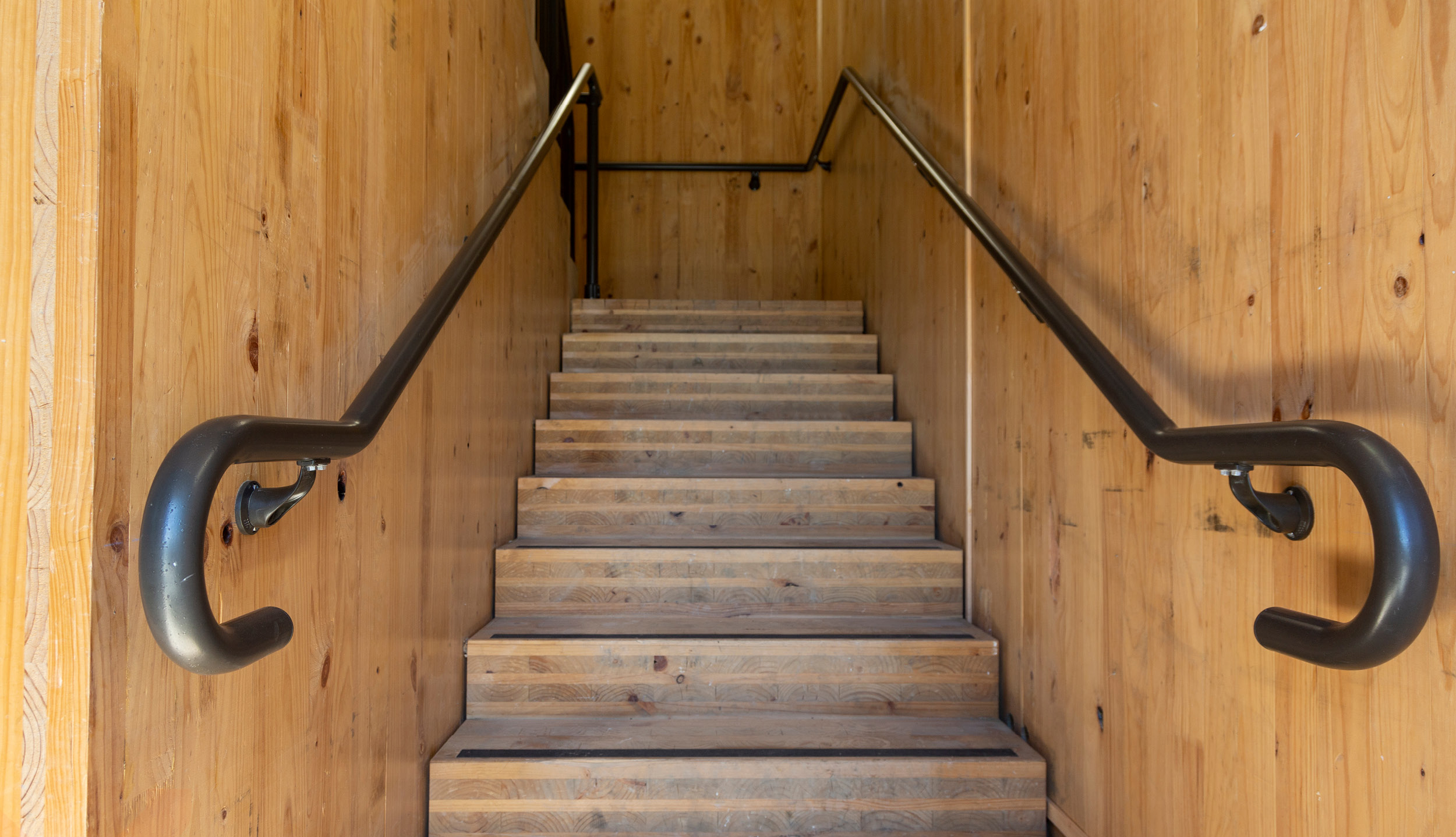

  • AR150 — Single wall-mounted handrail
Key Features
  • Modular flexibility
  • No-weld assembly
  • Flat pack delivery
  • Easy to install
  • Galvanised zinc for durability and corrosion resistance
  • BIM and CAD files available
  • Colour options
  • Smooth and continuous top rails for compliance with NZS 4121:2001
Scope of Use

Easily configured to suit a wide range of applications:

  • DDA access ramps and stairs
  • Fire stairs
  • Schools and universities
  • Aged care
  • Public access areas
  • Community centres
  • Sport and recreation centres
  • Hospitals and medical facilities
  • Public transport
  • Warehouses and loading bays
Statement of Building Code Compliance
  • Moddex Assistrail Public Access handrails are designed and manufactured in accordance with New Zealand Standard 4121:2001 and the New Zealand Building Code
  • Refer to Moddex Assistrail PS1 for further product specification details



Other Performance Attributes
  • Testing and performance based on requirement of Australian Standard AS1170.1 Clause 3.6 Table 3.3
  • Stringent vibration endurance tests have been performed

Warranty

5 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturers specifications and recommendations, unless otherwise negotiated at the time of purchase.

Documents
BIM Content Library
Guide to Handrail & Balustrade Compliance
Data Sheet: AR10
Data Sheet: AR130
Data Sheet: AR150
Data Sheet: AR20
Data Sheet: AR30
Data Sheet: AR40
Data Sheet: AR45
Moddex Masterspec Worksection
Handrail & Balustrade Configurations

2014

Mounting Options

2018

Building Product Information Sheet - Assistrail

v1

Moddex Brochure

2021

Moddex are New Zealand and Australia’s leading manufacturer of innovative barrier systems for large-scale infrastructure and non-residential construction projects.
