Metro Series ThermalHEART® Sliding Windows
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore
SI 684 v1 current

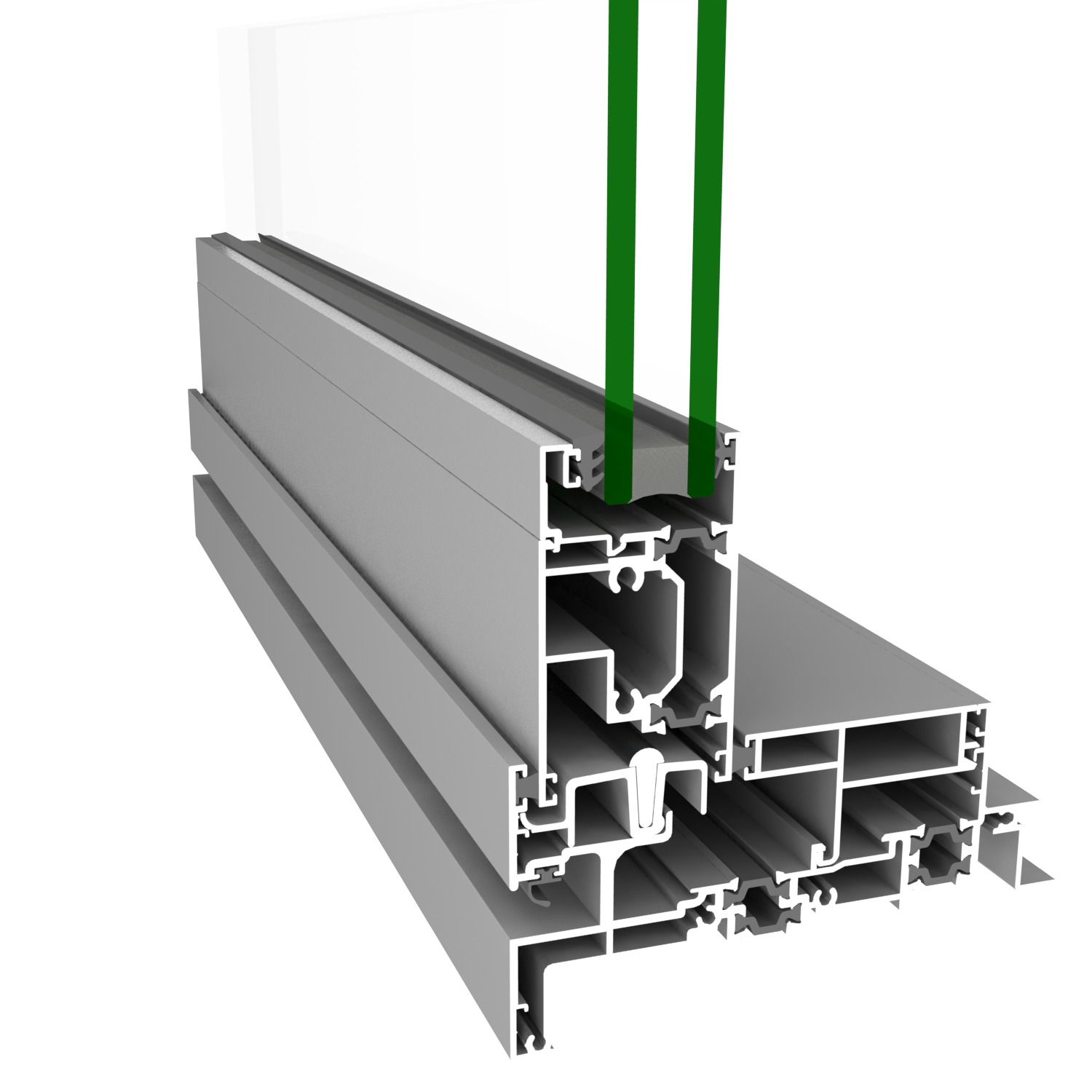

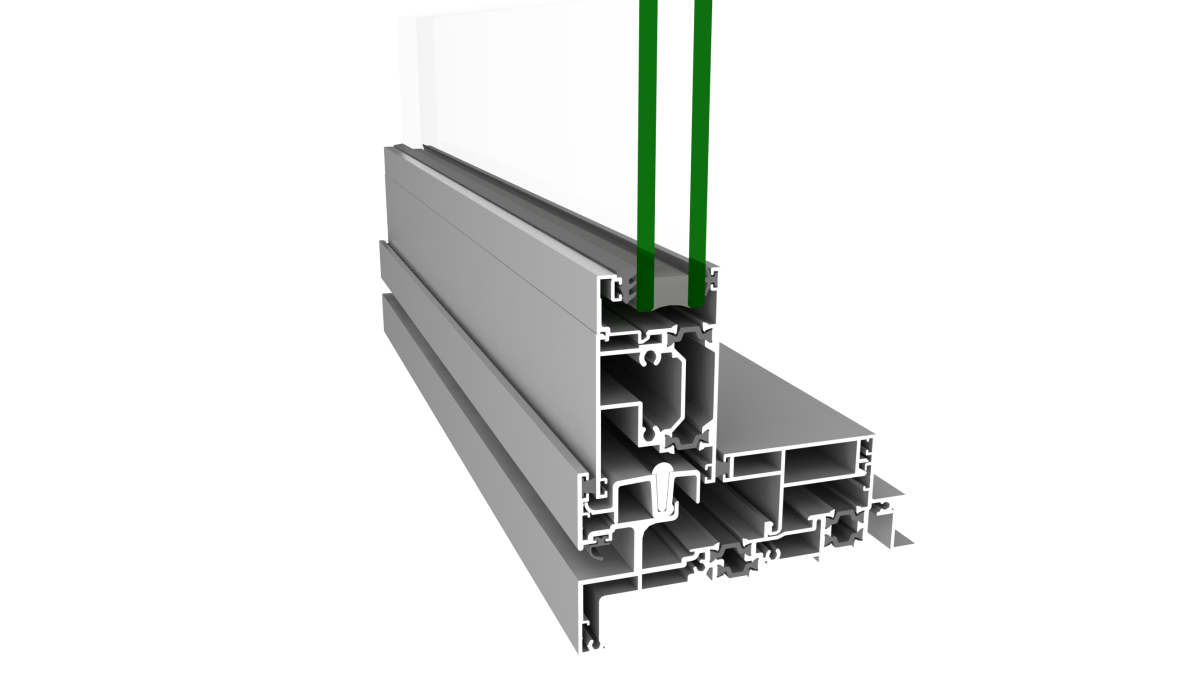

SW1 W

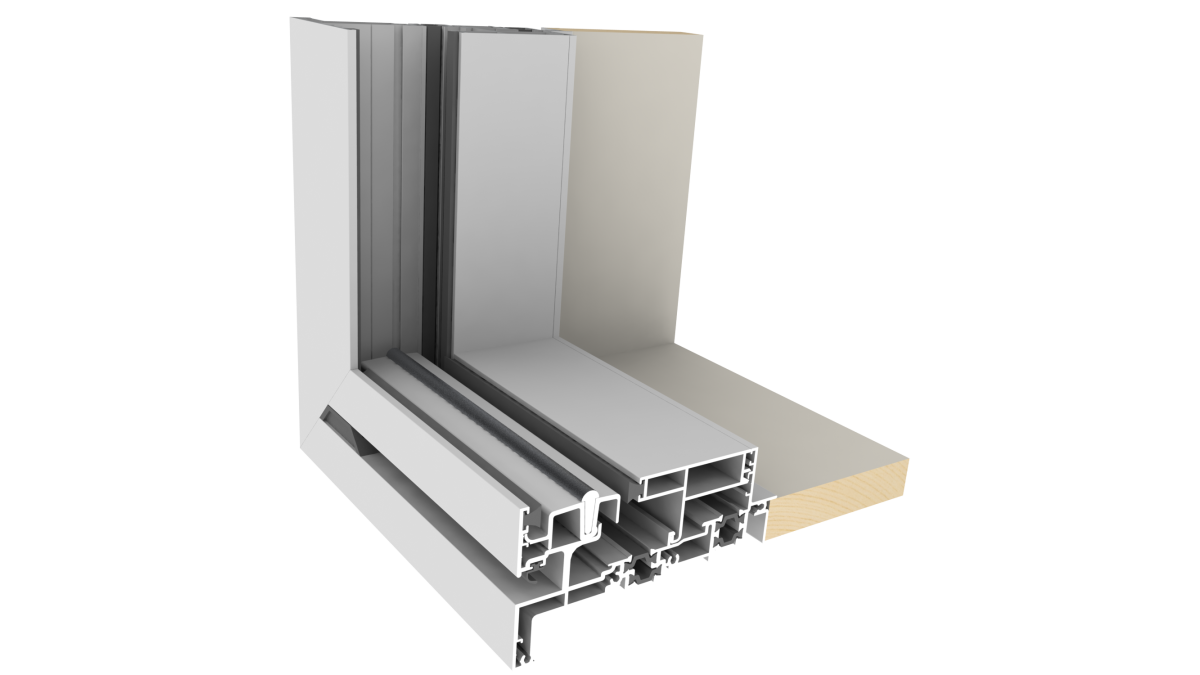

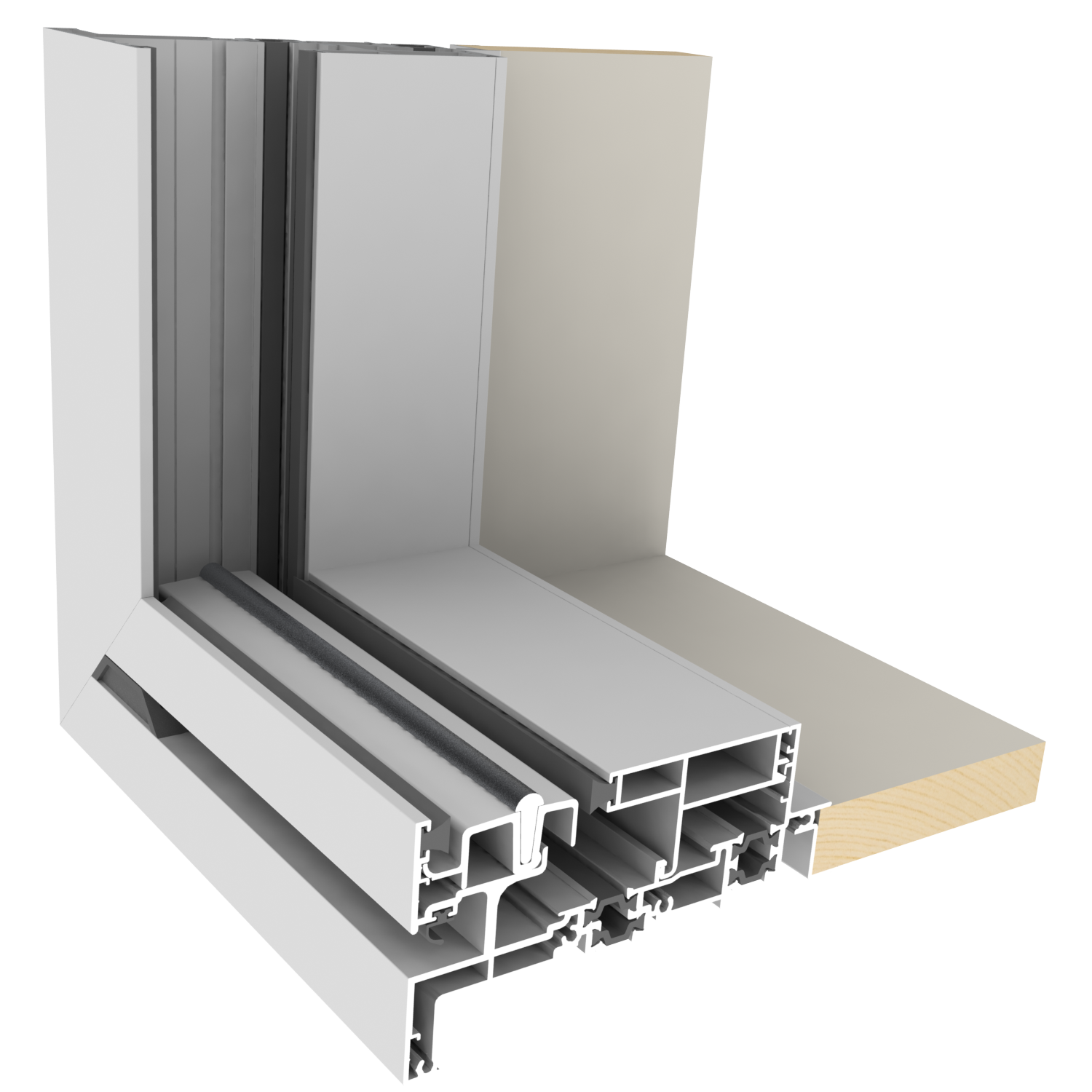

SW2 W

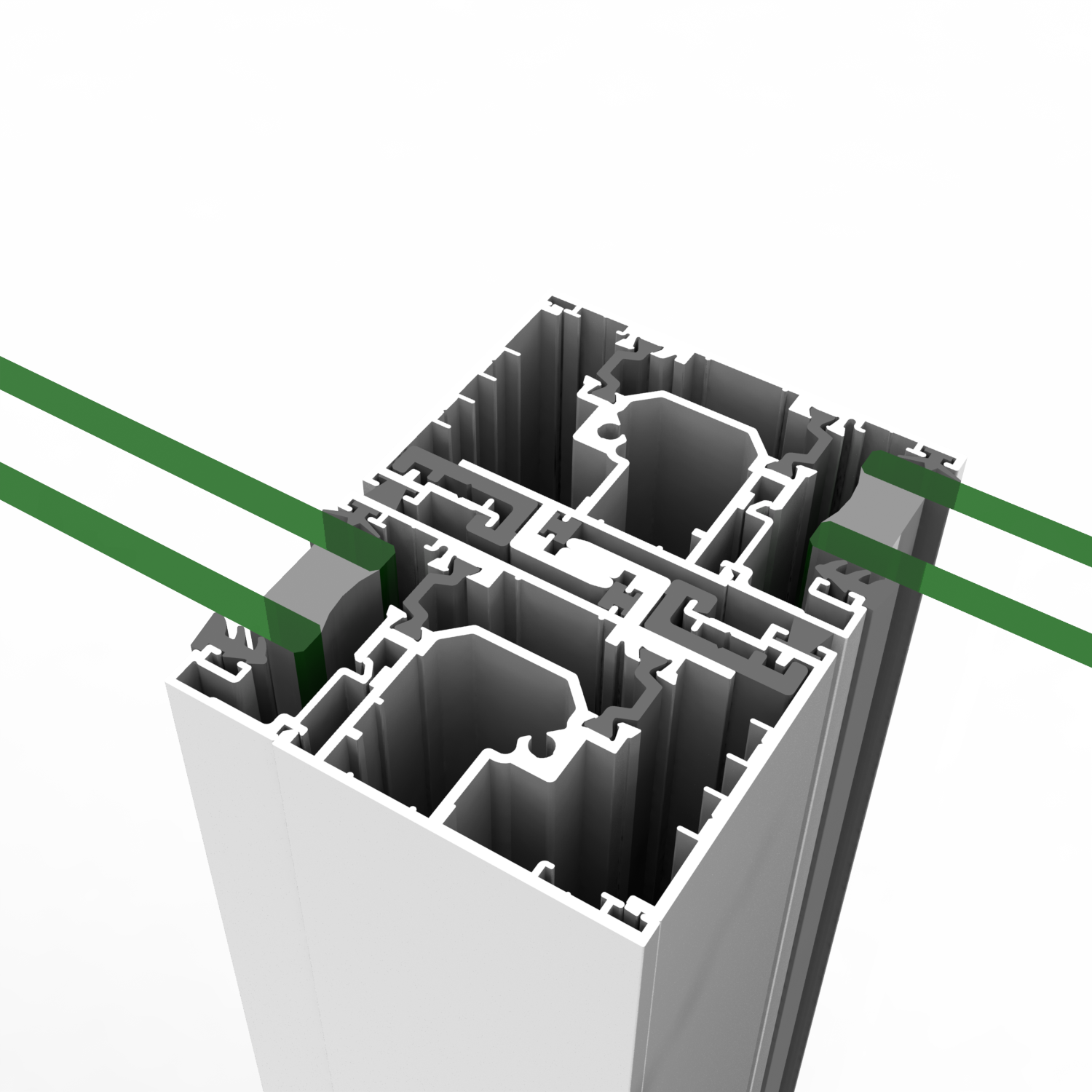

SW3 W

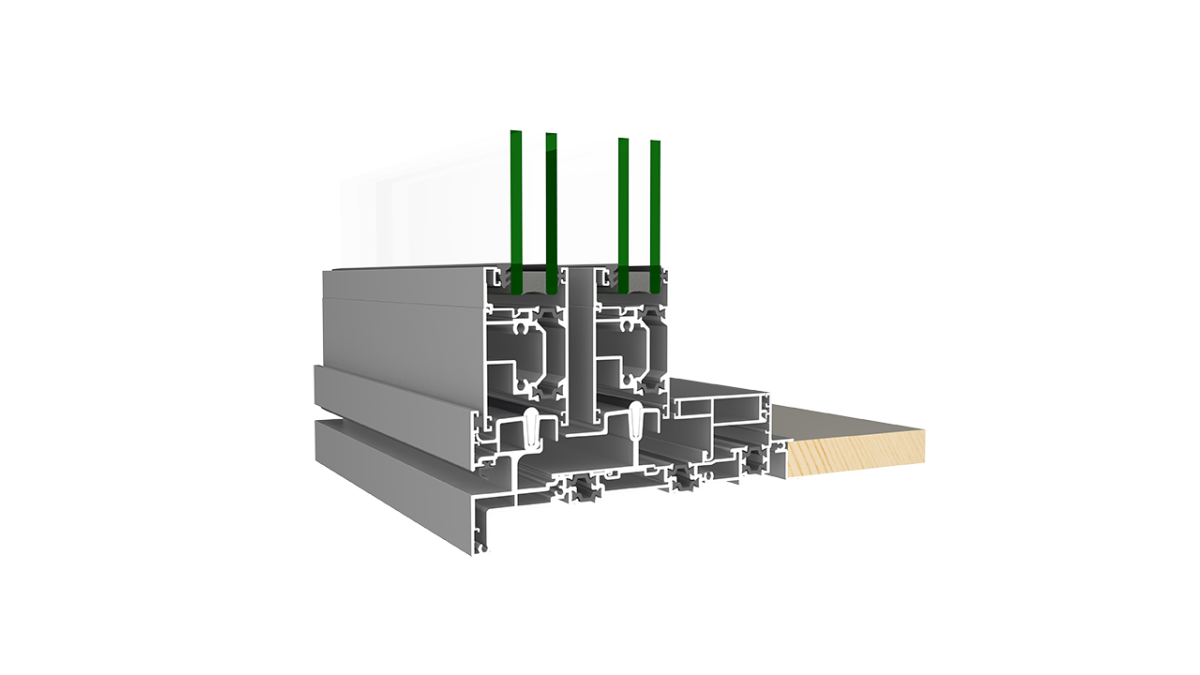

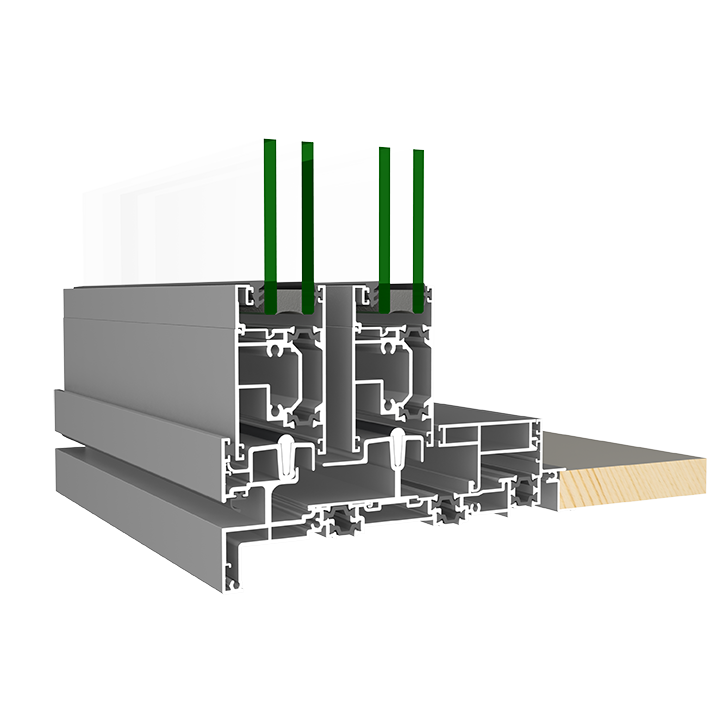

SW4 W LR

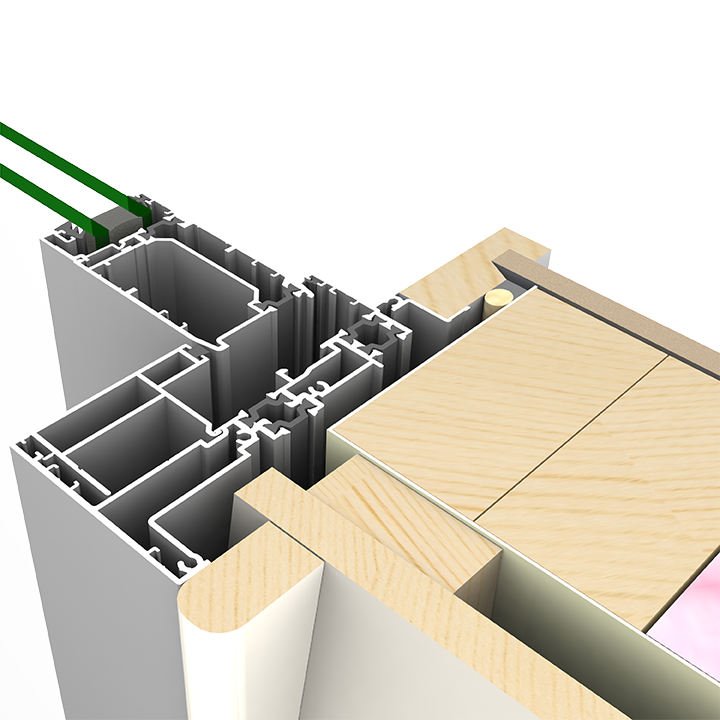

SW5 W LR
Description

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

Key Features
  • An exterior sliding track as standard
  • Ideal for non-projecting or servery windows
  • Smooth sliding action
  • Wide opening is possible in bi-parting or stacking configurations.
  • Stiles and rails feature slender sightlines

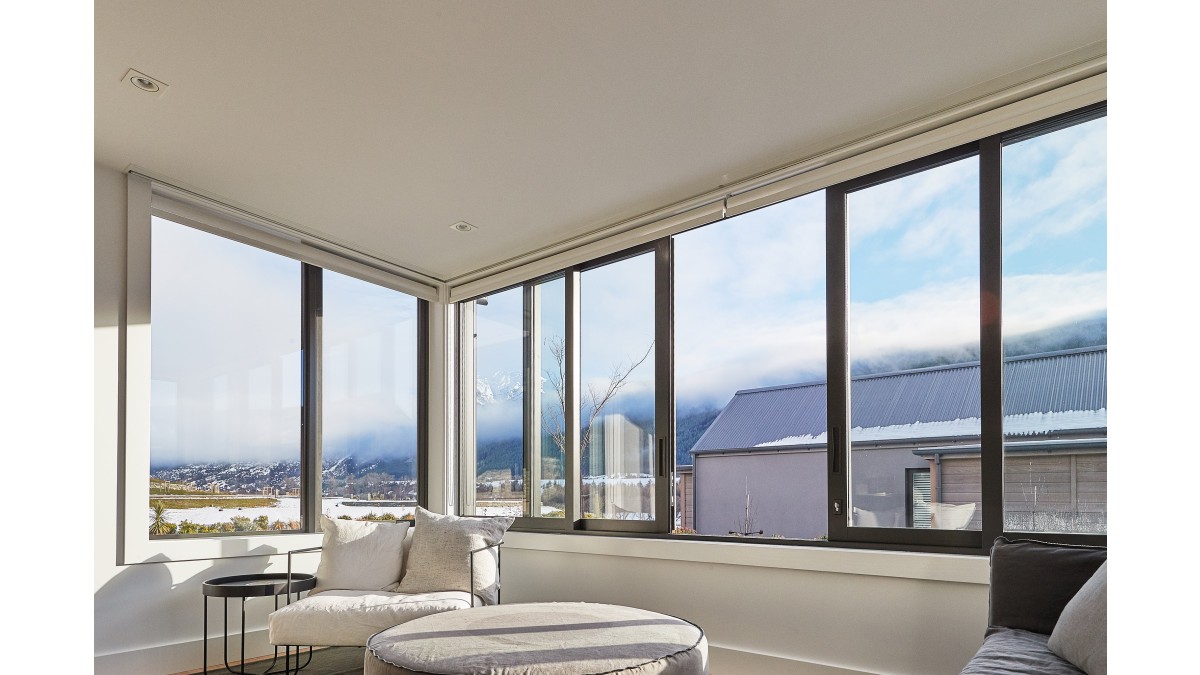

  • Corner sliding windows (90°) are available with no corner post (exterior and interior corners)
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Categories
Sliding Windows
Ranges
Metro Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended in maximum sizes
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2023 (previous version 2012)
  • New range rolling out nationally; previous version in use in residential projects, including medium rise, throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Specifier Guide
pdf
WGANZ Guide to E2/AS1

2022

pdf
Data Sheet: Metro Series ThermalHEART® Windows
pdf
Span Tables: Metro Series ThermalHEART® Sliding Windows
pdf
Declare Label

2023

pdf
Environmental Product Declaration (EPD) Report

2023

URL
Specifier Guide
URL
Full Specification Guide: Metro Series ThermalHEART®
docx
Specification Guide: Metro Series ThermalHEART Sliding Windows
docx
Vantage on Masterspec
URL
Manufacturer Contact List
URL
AGP Cleaning & Maintenance
pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Vantage Brochure
URL
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability
URL
CAD/PDF Details
View full

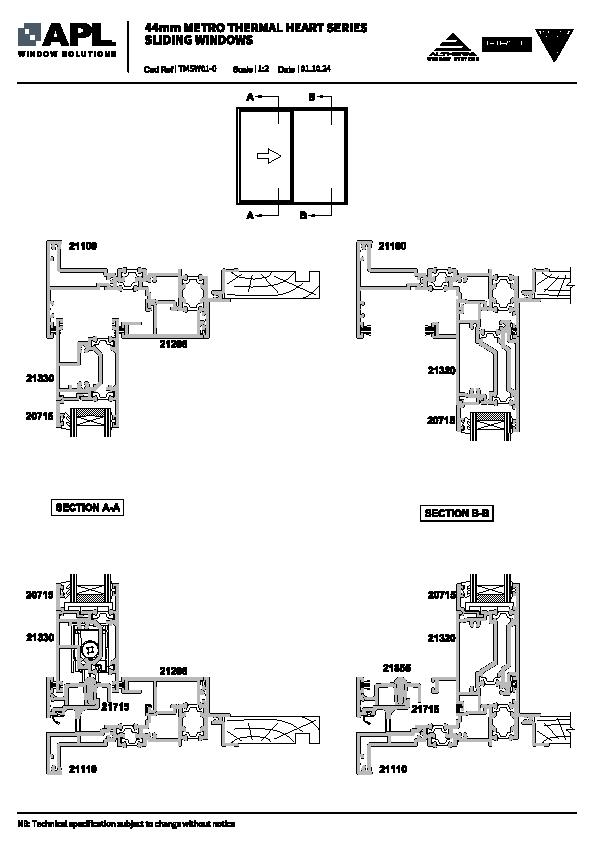

APL Metro Thermal Heart Sliding Window Drawings pdf
Metro Series ThermalHEART® Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
TMSW01 0 pdf
Metro Series ThermalHEART® Sliding Windows

TMSW01

dwg
dxf
pdf
TMSW02 0 pdf

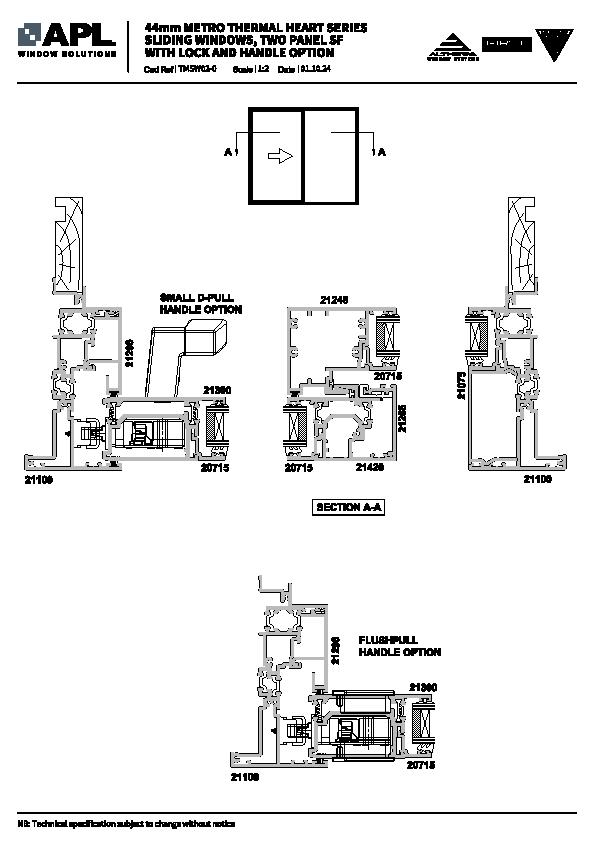

Metro Series ThermalHEART® Sliding Windows — Two Panel SF

TMSW02

dwg
dxf
pdf
TMSW03 0 pdf

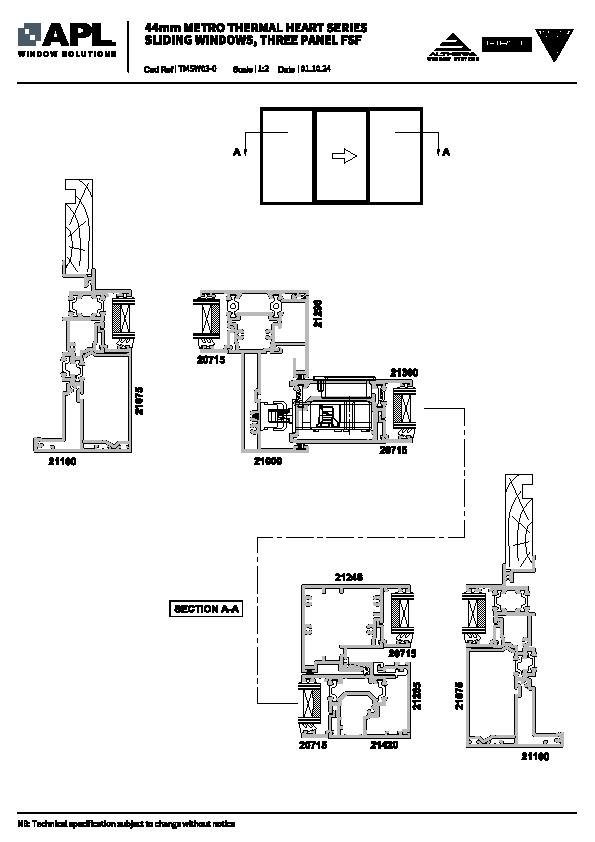

Metro Series ThermalHEART® Sliding Windows — Three Panel FSF

TMSW03

dwg
dxf
pdf

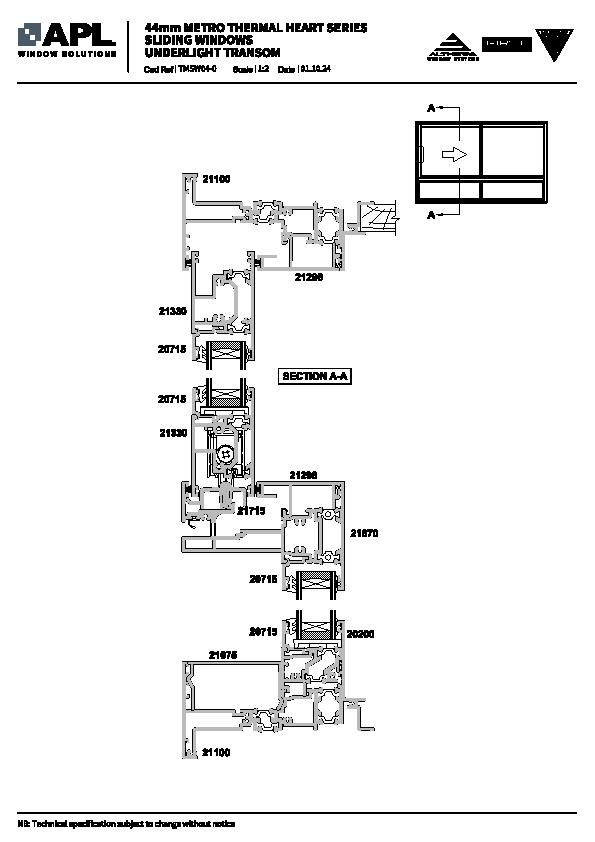

TMSW04 0 pdf
Metro Series ThermalHEART® Sliding Windows — Underlight Transom

TMSW04

dwg
dxf
pdf
TMSW05 0 pdf

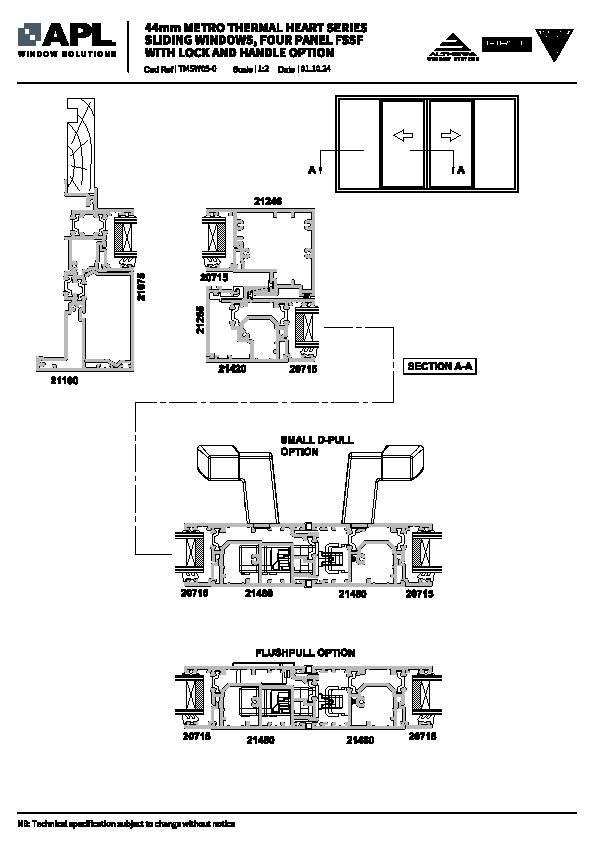

Metro Series ThermalHEART® Sliding Windows — Four Panel FSSF

TMSW05

dwg
dxf
pdf

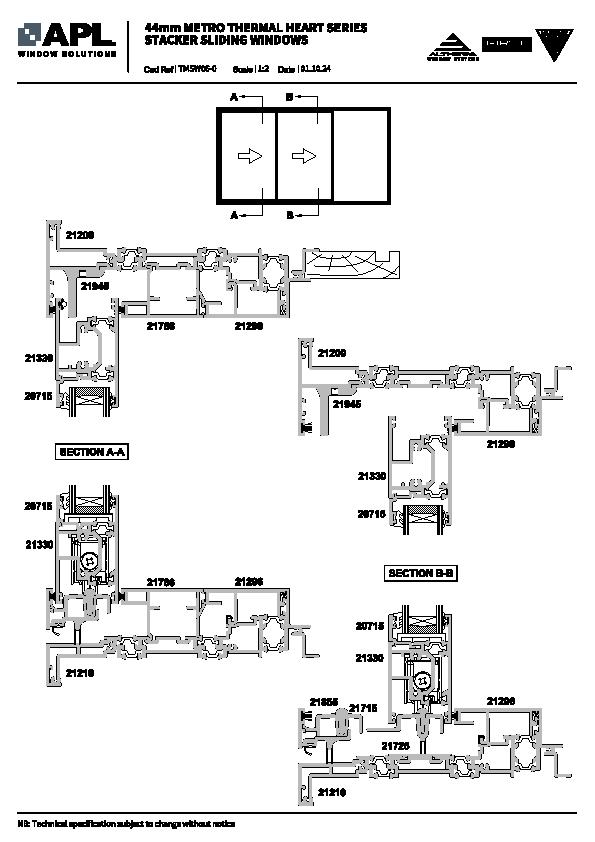

TMSW06 0 pdf
Metro Series ThermalHEART® Stacker Sliding Windows

TMSW06

dwg
dxf
pdf
TMSW07 0 pdf

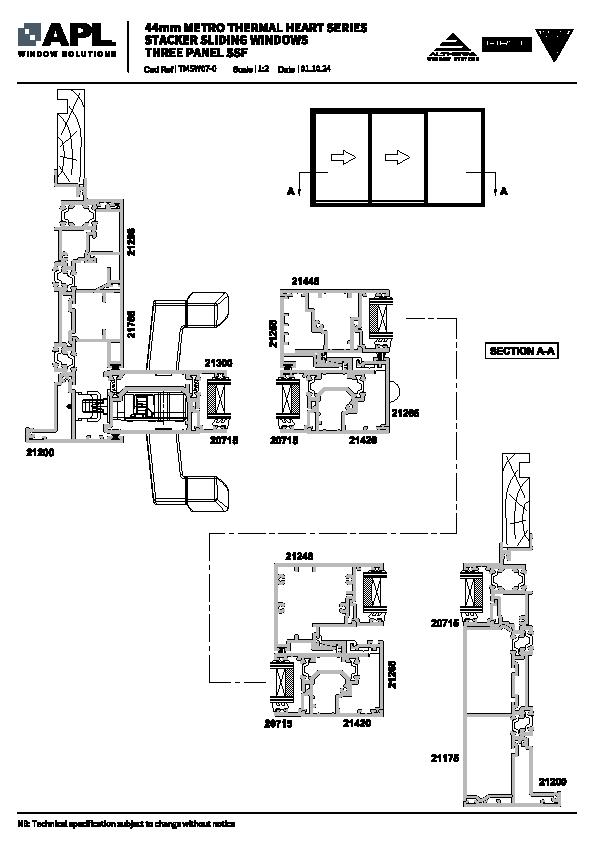

Metro Series ThermalHEART® Stacker Sliding Windows — Three Panel SSF

TMSW07

dwg
dxf
pdf
TMSW10 0 pdf

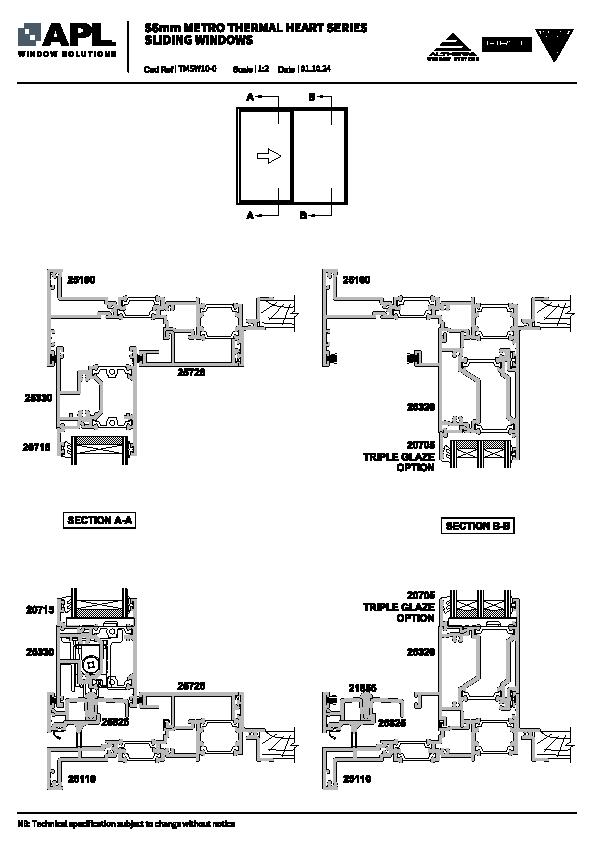

Metro Series ThermalHEART® Sliding Windows (56mm)

TMSW10

dwg
dxf
pdf
TMSW11 0 pdf

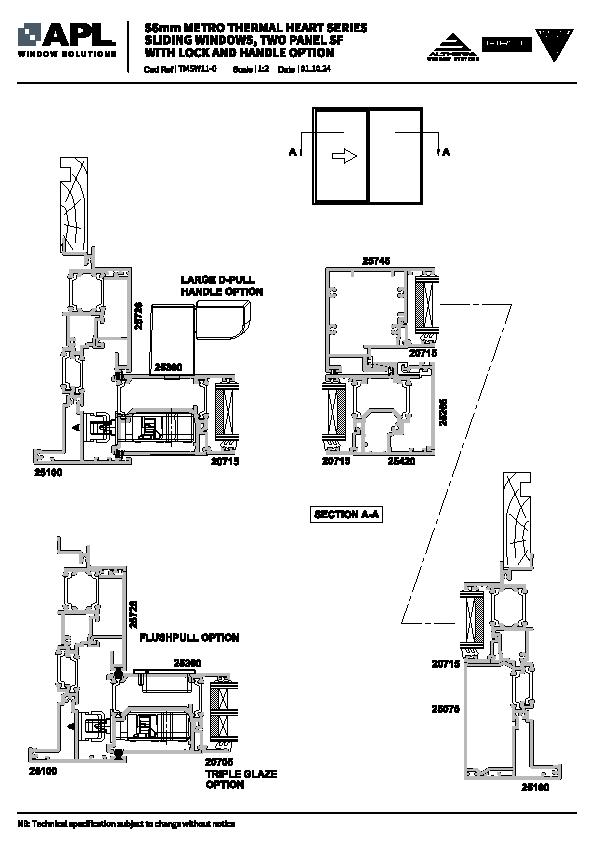

Metro Series ThermalHEART® Sliding Windows — Two Panel SF (56mm)

TMSW11

dwg
dxf
pdf
TMSW12 0 pdf

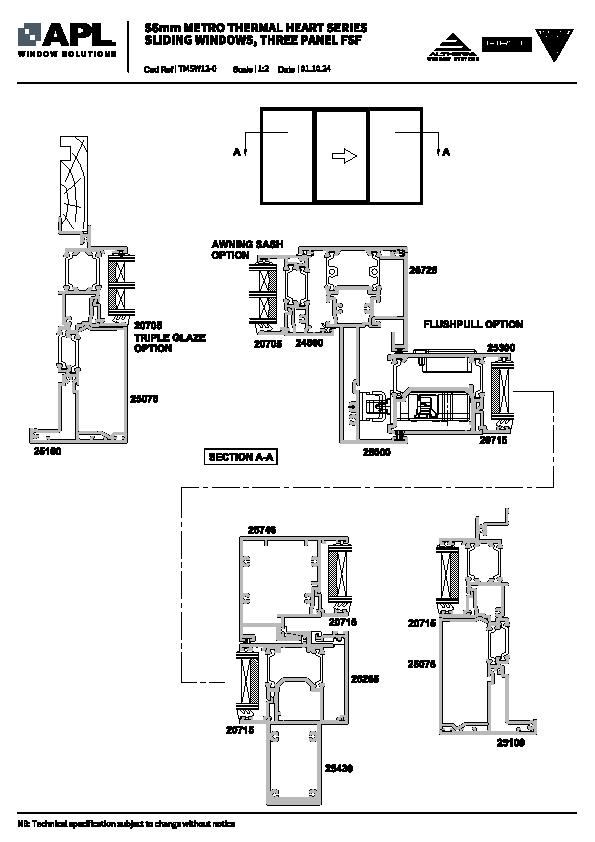

Metro Series ThermalHEART® Sliding Windows — Three Panel FSF (56mm)

TMSW12

dwg
dxf
pdf
TMSW13 0 pdf

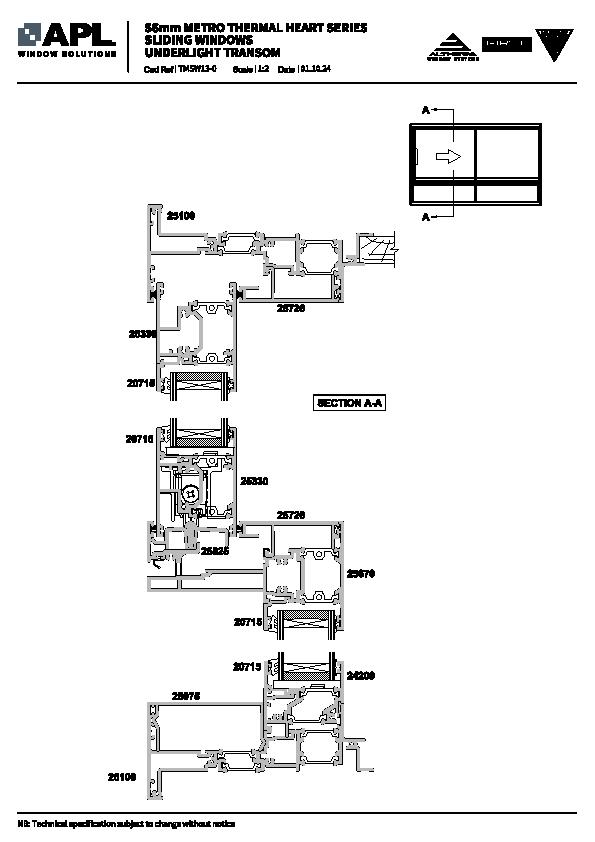

Metro Series ThermalHEART® Sliding Windows — Underlight Transom (56mm)

TMSW13

dwg
dxf
pdf
TMSW14 0 pdf

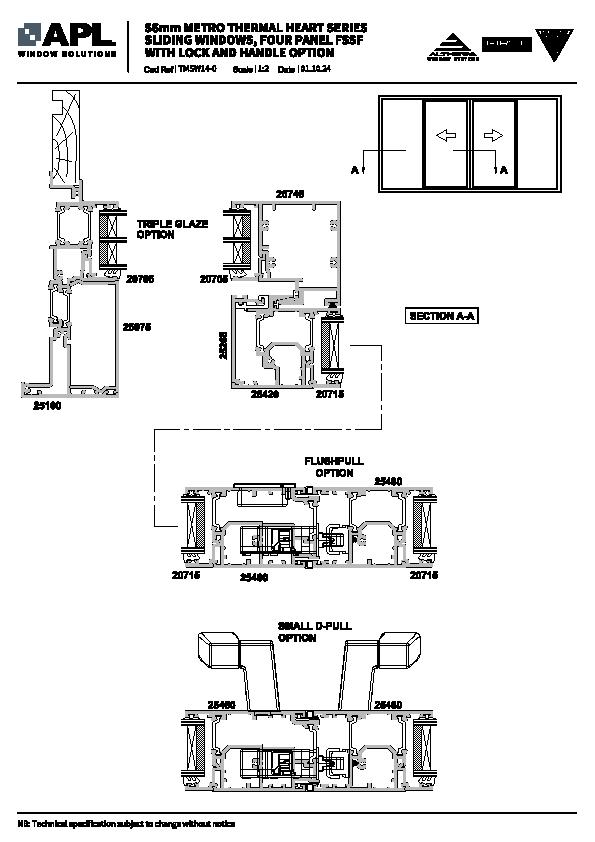

Metro Series ThermalHEART® Sliding Windows — Four Panel FSSF (56mm)

TMSW14

dwg
dxf
pdf
TMSW15 0 pdf

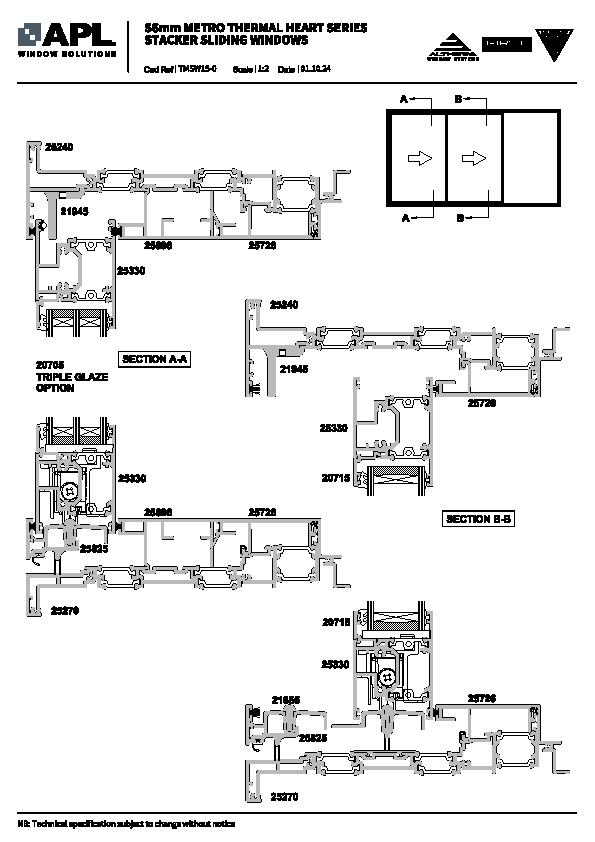

Metro Series ThermalHEART® Stacker Sliding Windows (56mm)

TMSW15

dwg
dxf
pdf

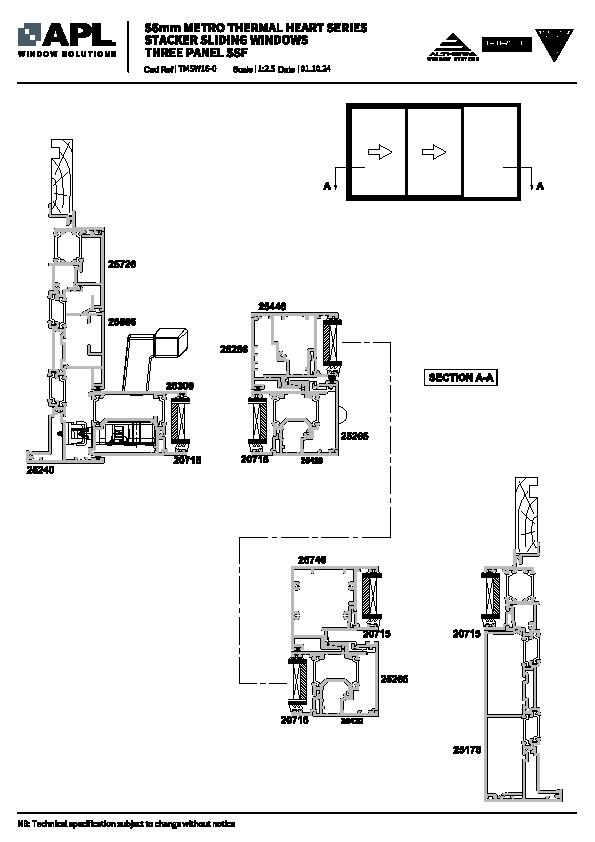

TMSW16 0 pdf
Metro Series ThermalHEART® Sliding Windows — Three Panel SSF (56mm)

TMSW16

dwg
dxf
pdf
Installation Details
View full
TM44SWBB pdf v3
Metro Series ThermalHEART® Sliding Window on Board & Batten

TM44SWBB

dwg
pdf
TM44SWBV pdf v3
Metro Series ThermalHEART® Sliding Window on Brick Veneer

TM44SWBV

dwg
pdf
TM44SWBW pdf v3
Metro Series ThermalHEART® Sliding Window on Bevelback Weatherboard

TM44SWBW

dwg
pdf
TM44SWFS pdf v3
Metro Series ThermalHEART® Sliding Window on Flat Sheet

TM44SWFS

dwg
pdf
TM44SWPM pdf v3
Metro Series ThermalHEART® Sliding Window on Profile Metal

TM44SWPM

dwg
pdf
TM44SWRW pdf v3
Metro Series ThermalHEART® Sliding Window on Rusticated Weatherboard

TM44SWRW

dwg
pdf
TM44SWST pdf v3
Metro Series ThermalHEART® Sliding Window on Stucco

TM44SWST

dwg
pdf
TM56SWBB pdf v3
Metro Series ThermalHEART® Sliding Window on Board & Batten (56mm)

TM56SWBB

dwg
pdf
TM56SWBV pdf v3
Metro Series ThermalHEART® Sliding Window on Brick Veneer (56mm)

TM56SWBV

dwg
pdf
TM56SWBW pdf v3
Metro Series ThermalHEART® Sliding Window on Bevelback Weatherboard (56mm)

TM56SWBW

dwg
pdf
TM56SWFS pdf v3
Metro Series ThermalHEART® Sliding Window on Flat Sheet (56mm)

TM56SWFS

dwg
pdf
TM56SWPM pdf v3
Metro Series ThermalHEART® Sliding Window on Profile Metal (56mm)

TM56SWPM

dwg
pdf
TM56SWRW pdf v3
Metro Series ThermalHEART® Sliding Window on Rusticated Weatherboard (56mm)

TM56SWRW

dwg
pdf
TM56SWST pdf v3
Metro Series ThermalHEART® Sliding Window on Stucco (56mm)

TM56SWST

dwg
pdf
