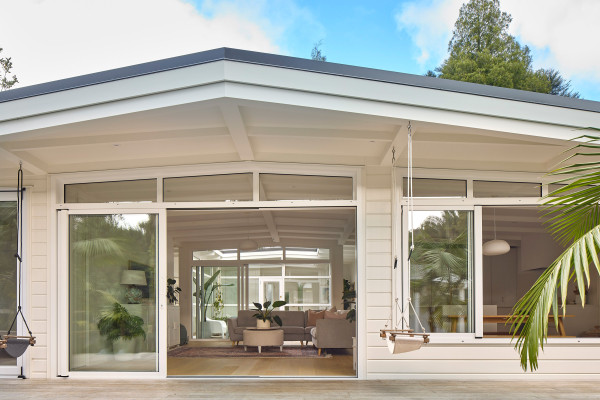

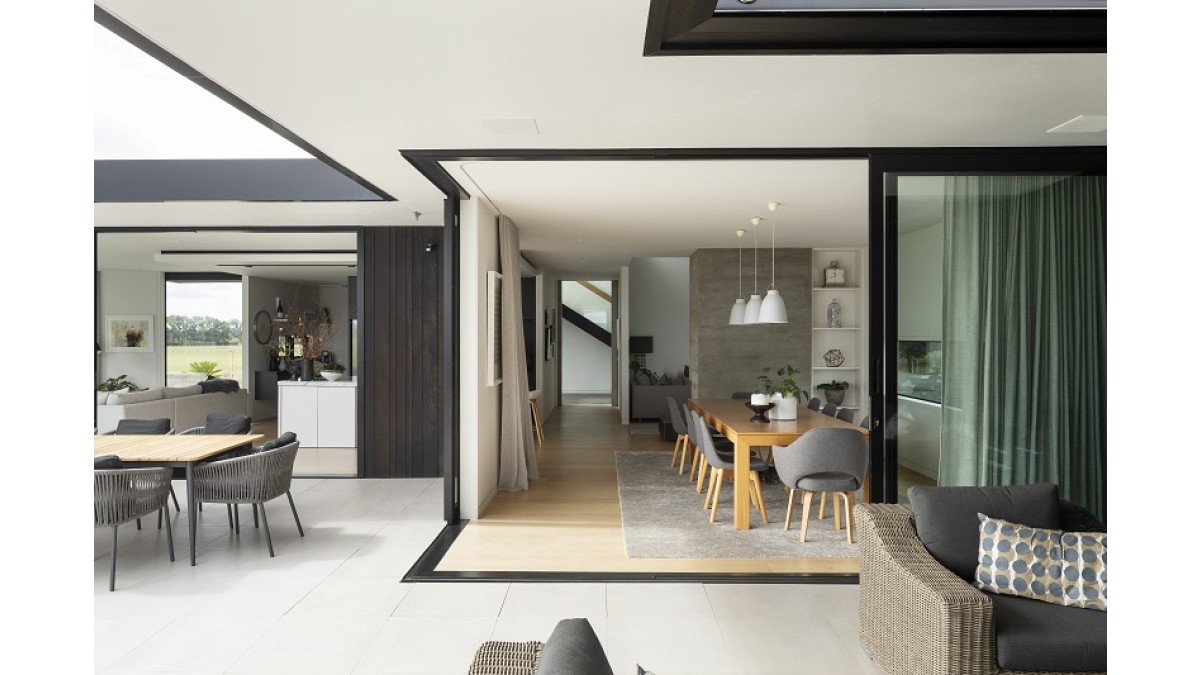

Flush sill sliding doors allow for uninterrupted indoor/outdoor flow

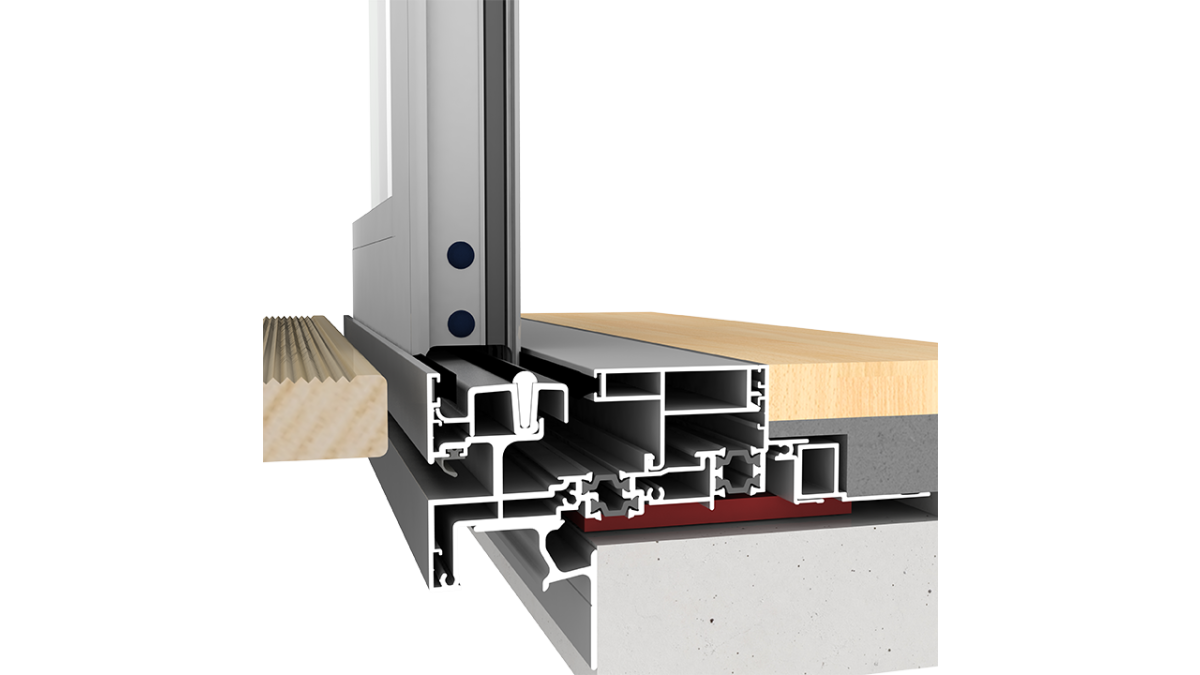

Sliding door sill – single panel

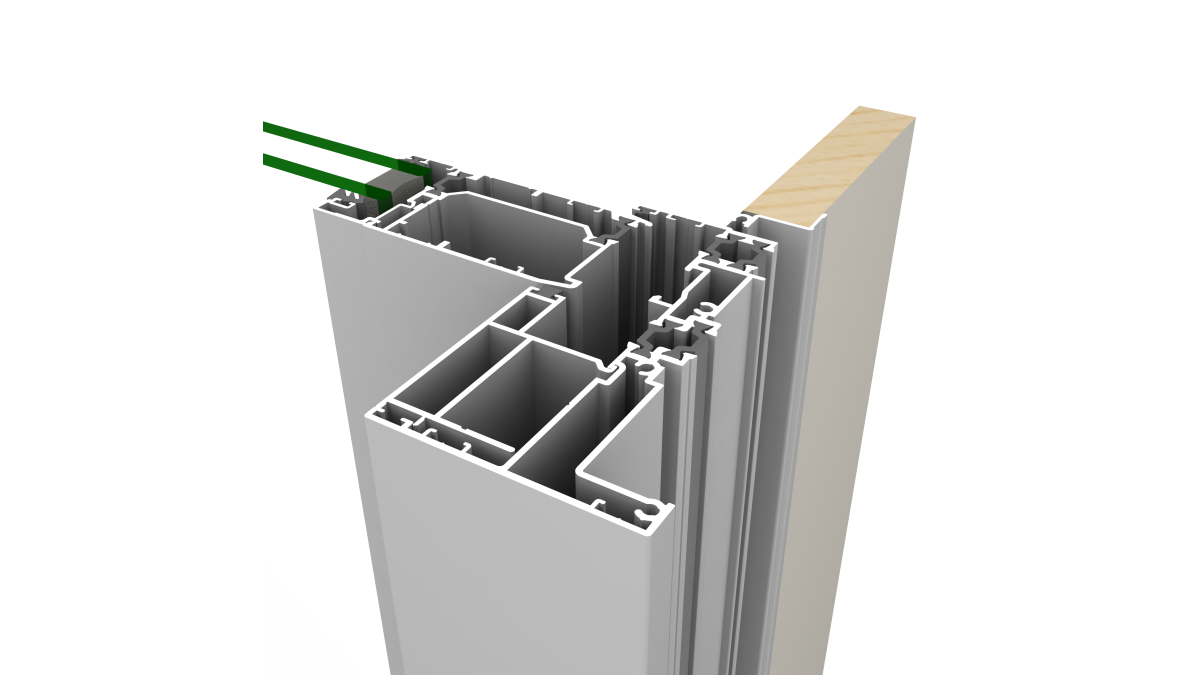

The sliding door jamb detail

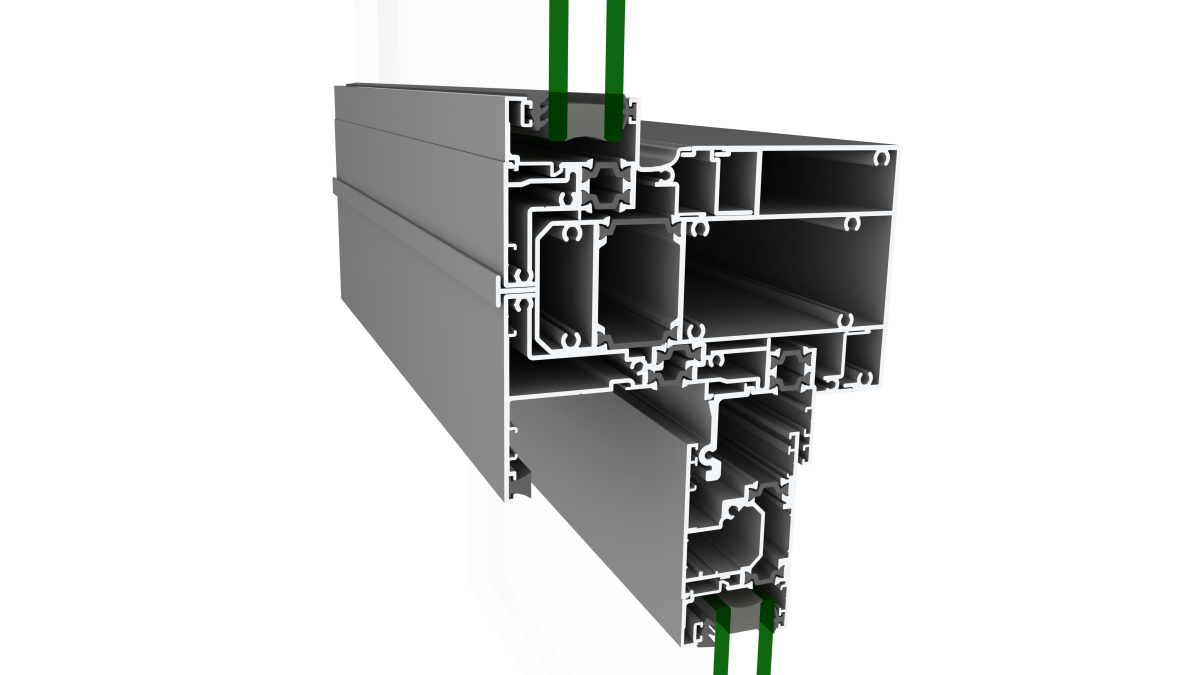

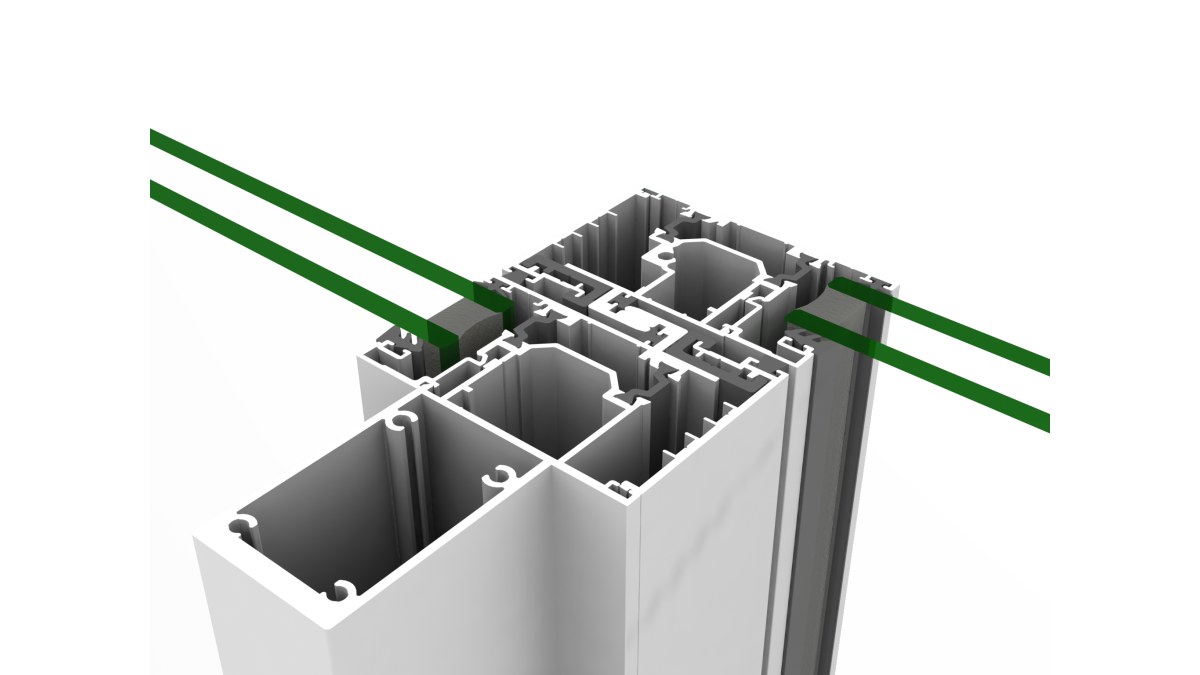

Fully thermally isolated interlocker stiles in closed position with strengthening box on external stile

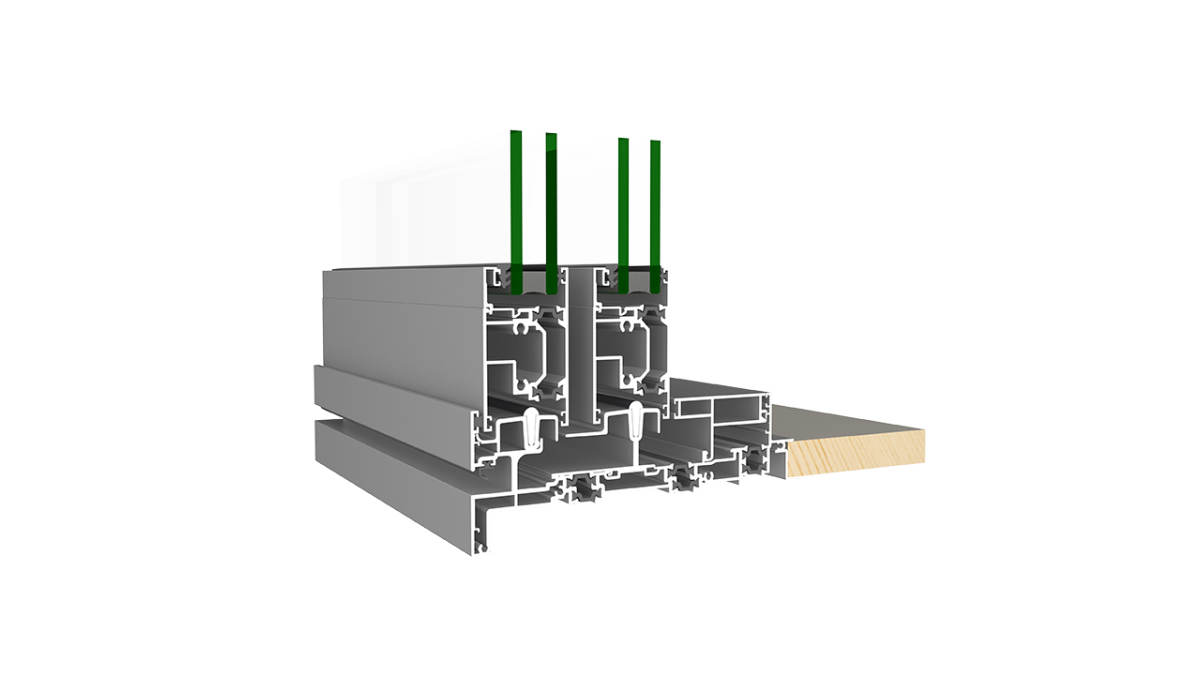

Multi slider sill frame

Door overlight coupling detail

Product Enquiries

Description

Metro Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track and are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Interlocker stiles and mullions are flush in the closed position.

Key Features

An exterior sliding track as standard
The sill frame has a flush track to optimise inside-to-outside plane
Interlocker stiles and mullions are flush in the closed position
Door stiles and rails feature slender sightlines
Interlockers vary in depth according to height, width and wind pressure requirements
Corner sliding doors (90°) are available with no corner post (exterior and interior corners)
Innovative sill frame design improves weather and water resistance — door height of 2700mm possible in demanding wind zones. For larger sizes consider using APL Architectural Series ThermalHEART®
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

Metro Series ThermalHEART®

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
Sashes in sidelights need to be carefully considered and out of the travel path of the door panel
Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Redesigned and relaunched in 2023 (previous version 2012)
New range rolling out nationally; previous version in use in residential projects, including medium rise, throughout New Zealand by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies

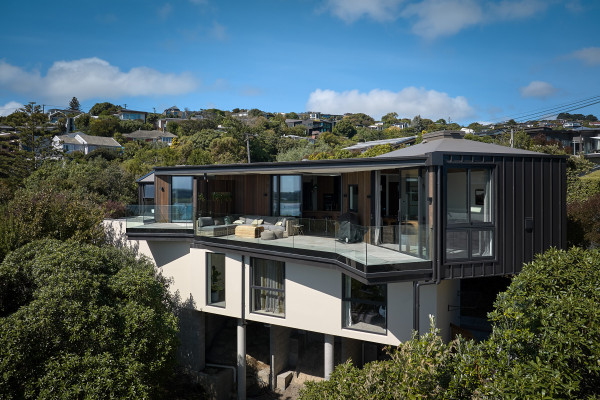

Vantage Windows and Doors Seen in the Hills of Mount Pleasant

VANTAGE Windows & Doors

June 2024

Case Studies

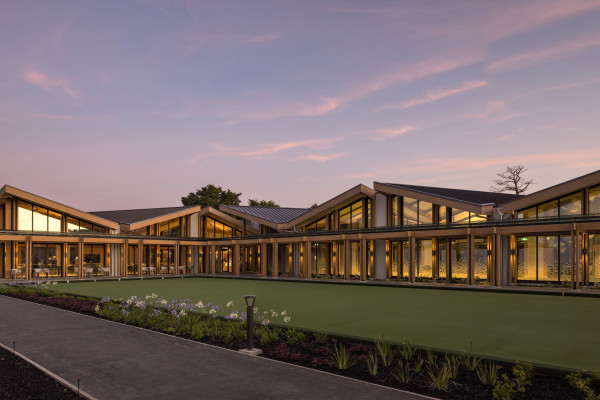

Retirement Village Clubhouses Opt for the Spectacular

VANTAGE Windows & Doors

May 2024

Case Studies

APL's New Research and Development Facility Receives Architectural Award

VANTAGE Windows & Doors

June 2016

Case Studies

Documents

WGANZ Guide to E2/AS1

2022

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

Exploring Options for Self-certification of Building Work

Complaints Not Upheld

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Metro Series ThermalHEART® Sliding Doors

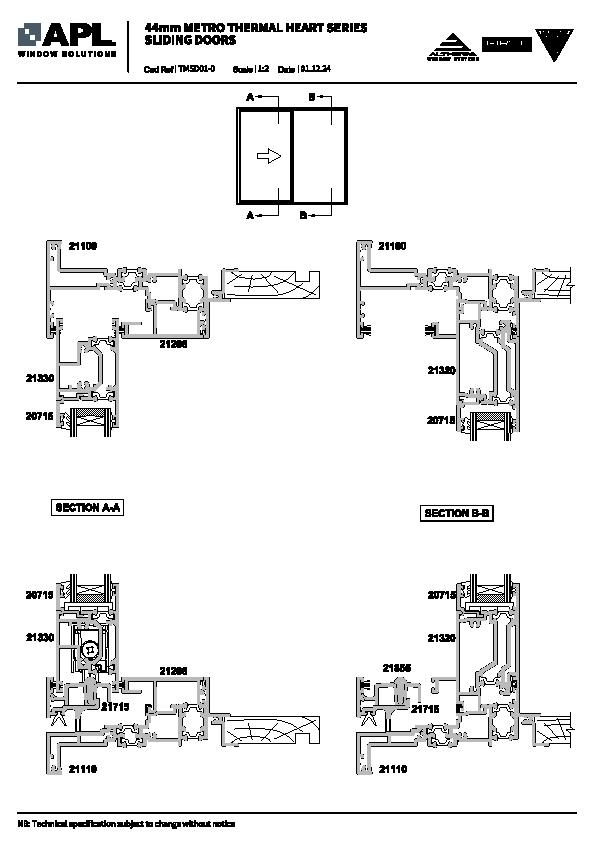

Metro Series ThermalHEART® Sliding Doors

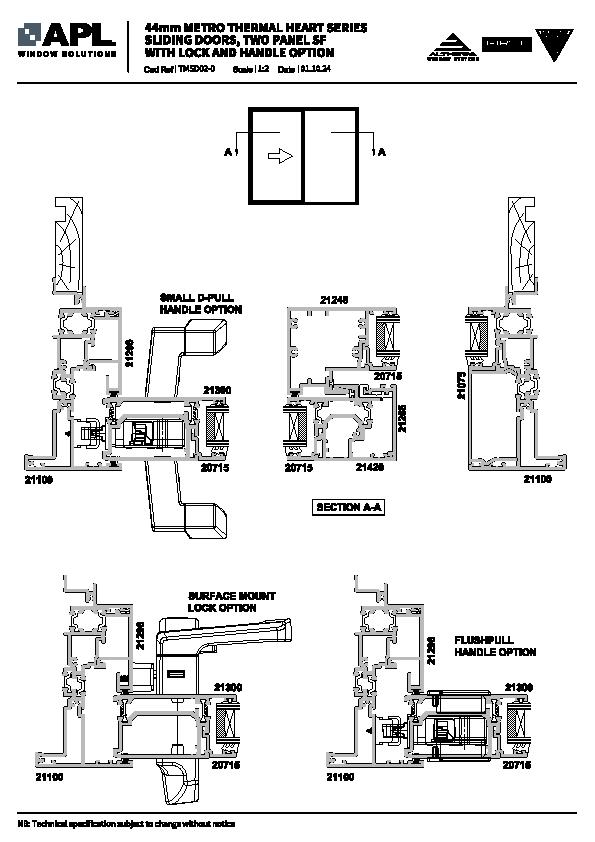

Metro Series ThermalHEART® Sliding Doors — Two Panel SF with Lock & Handle Option

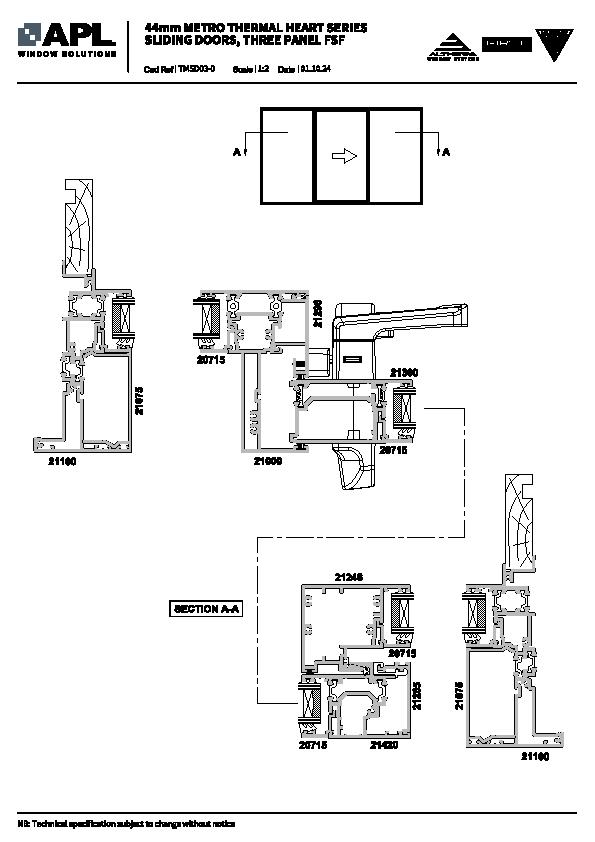

Metro Series ThermalHEART® Sliding Doors — Three Panel FSF

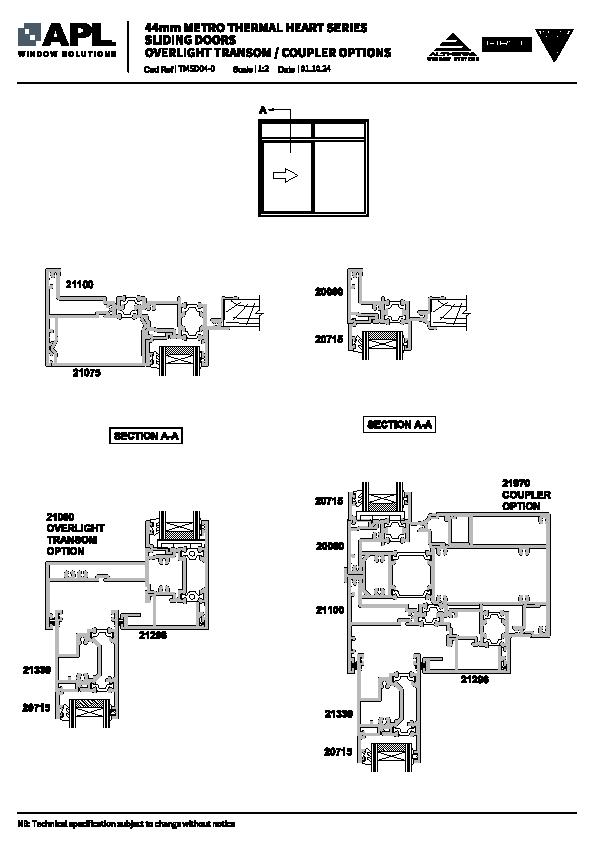

Metro Series ThermalHEART® Sliding Doors — Overlight Transom / Coupler options

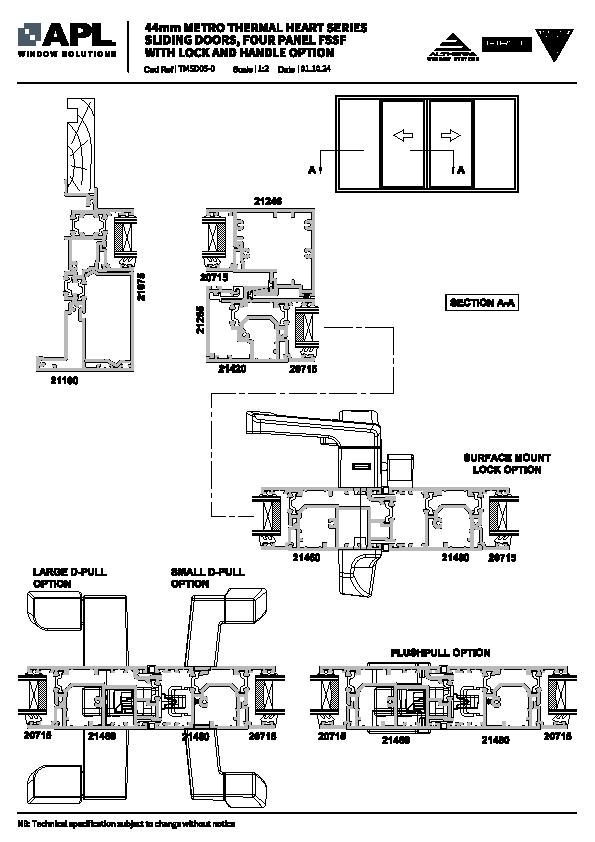

Metro Series ThermalHEART® Sliding Doors — Four Panel FSSF with Handle Options

Metro Series ThermalHEART® Sliding Doors — Three Panel SFS

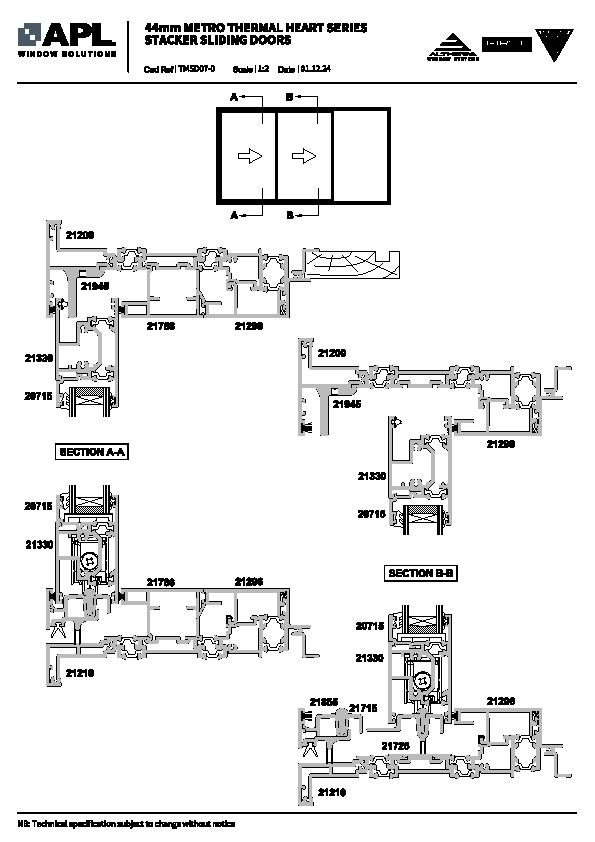

Metro Series ThermalHEART® Stacker Sliding Doors

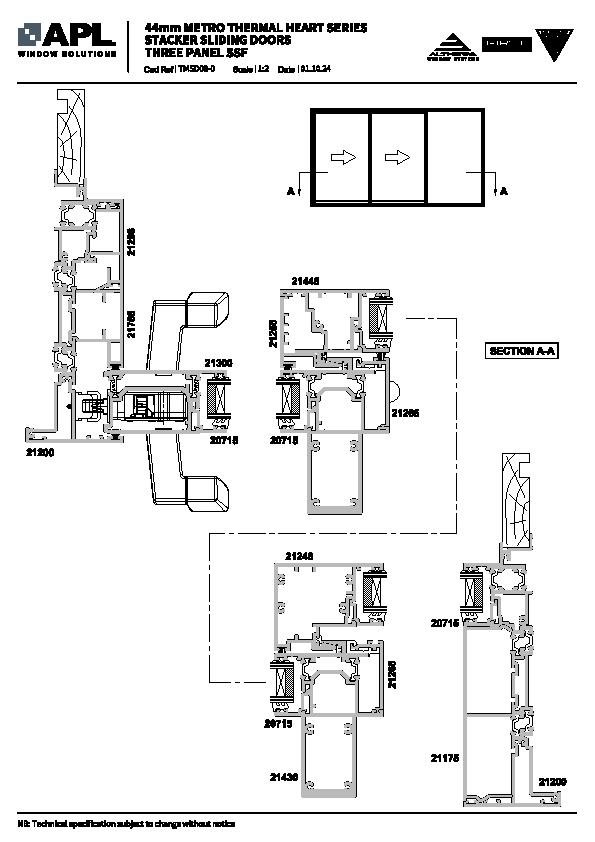

Metro Series ThermalHEART® Stacking Sliding Doors — Three Panel SSF

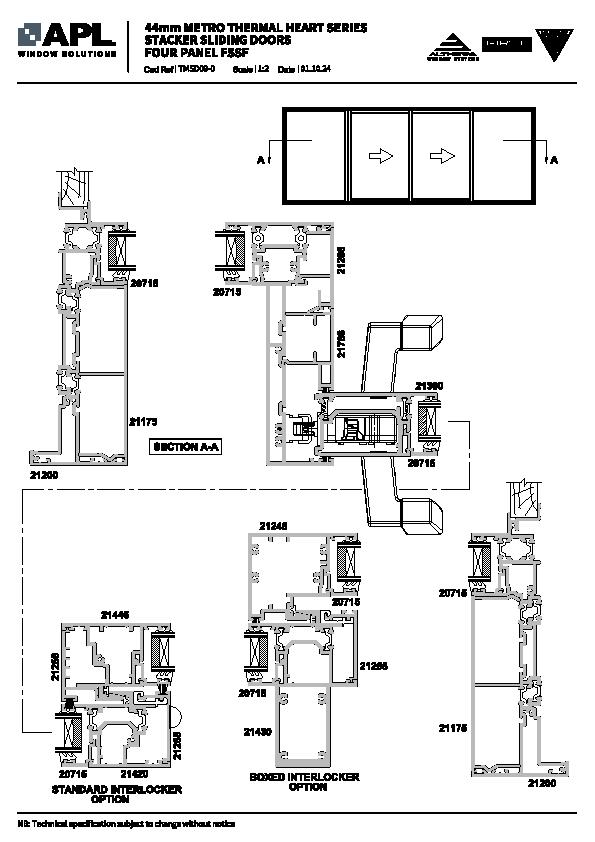

Metro Series ThermalHEART® Stacker Sliding Doors — Four Panel FSSF

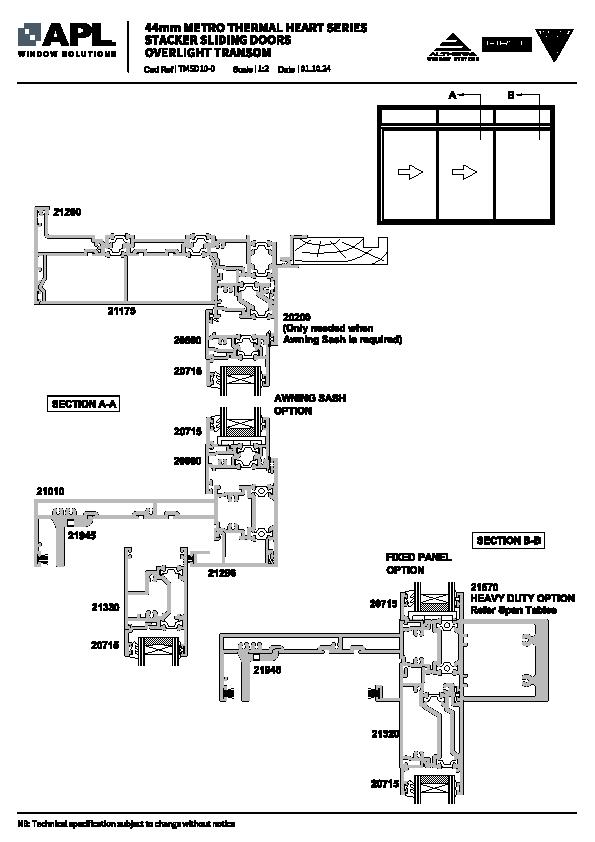

Metro Series ThermalHEART® Stacker Sliding Doors — Overlight Transom

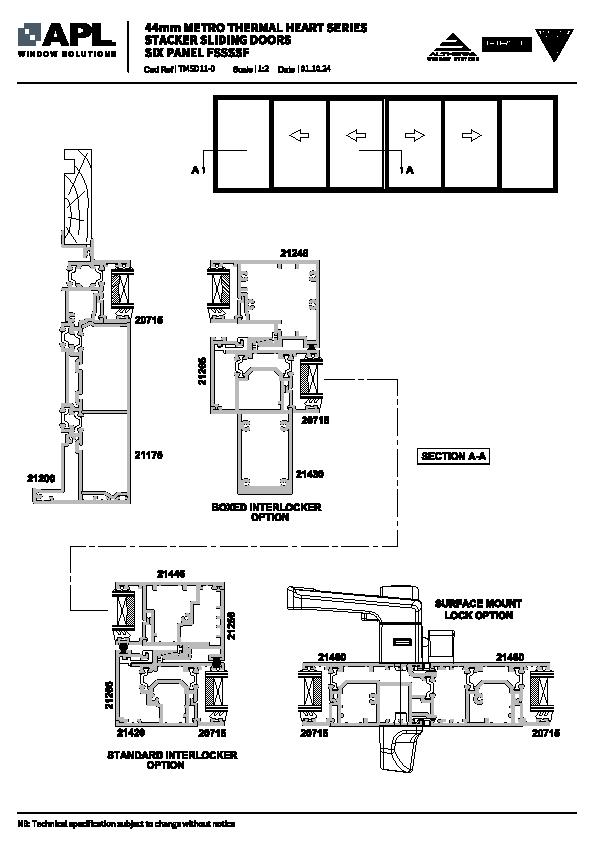

Metro Series ThermalHEART® Sliding Doors — Six Panel FSSSSF

Metro Series ThermalHEART® Sliding Doors — Five Panel FSSSF

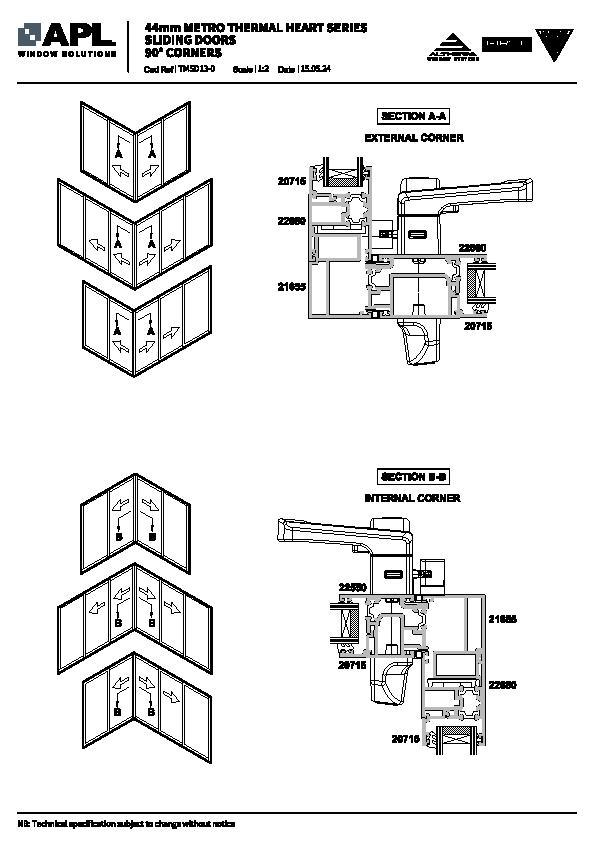

Metro Series ThermalHEART® Sliding Doors — 90° Corners

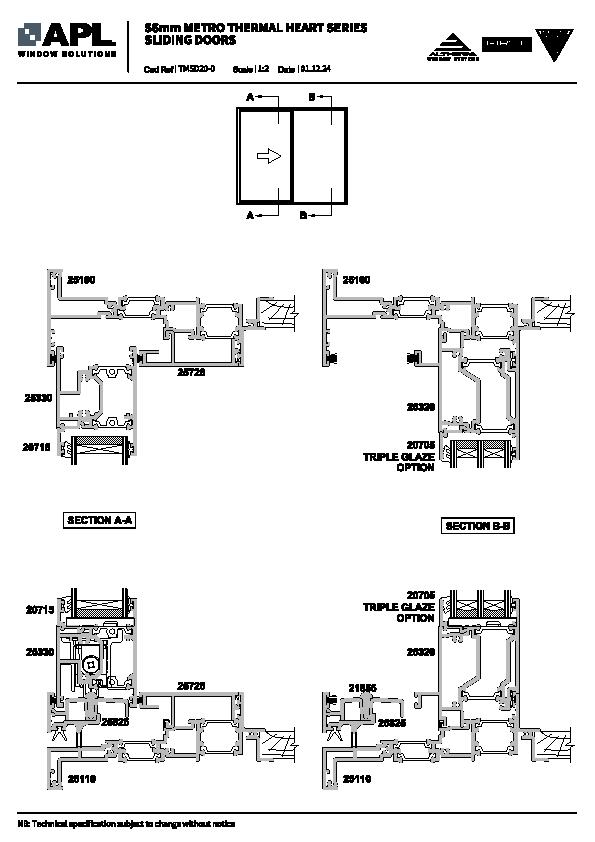

Metro Series ThermalHEART® Sliding Doors (56mm)

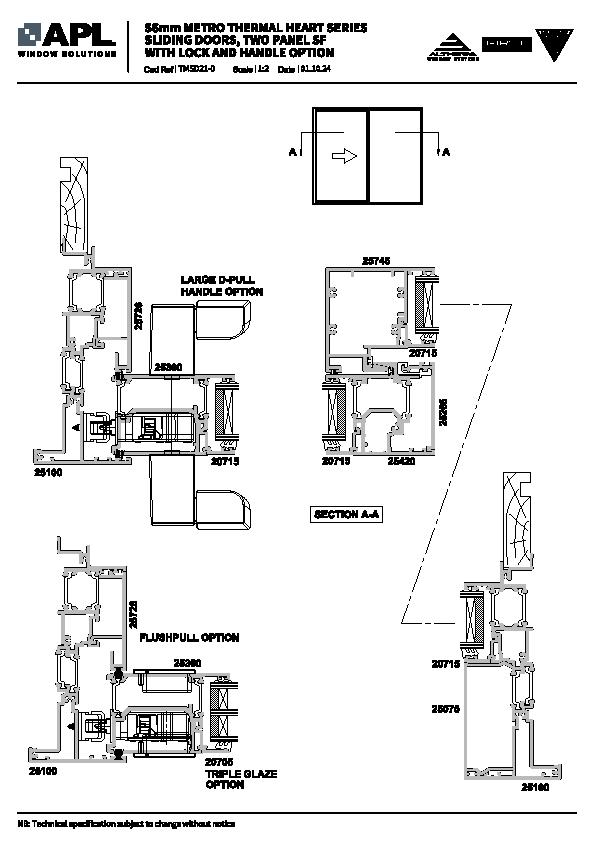

Metro Series ThermalHEART® Sliding Doors — Two Panel SF with Lock & Handle Option (56mm)

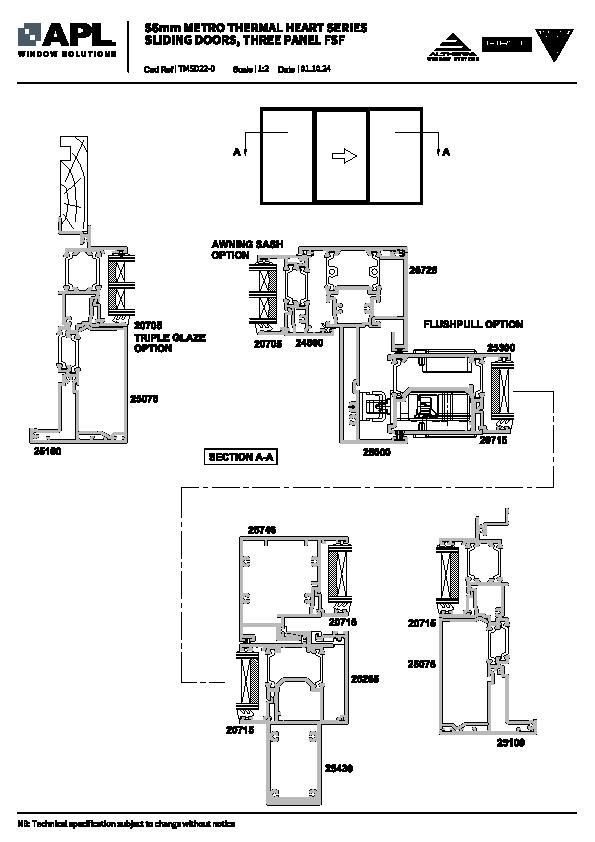

Metro Series ThermalHEART® Sliding Doors — Three Panel FSF (56mm)

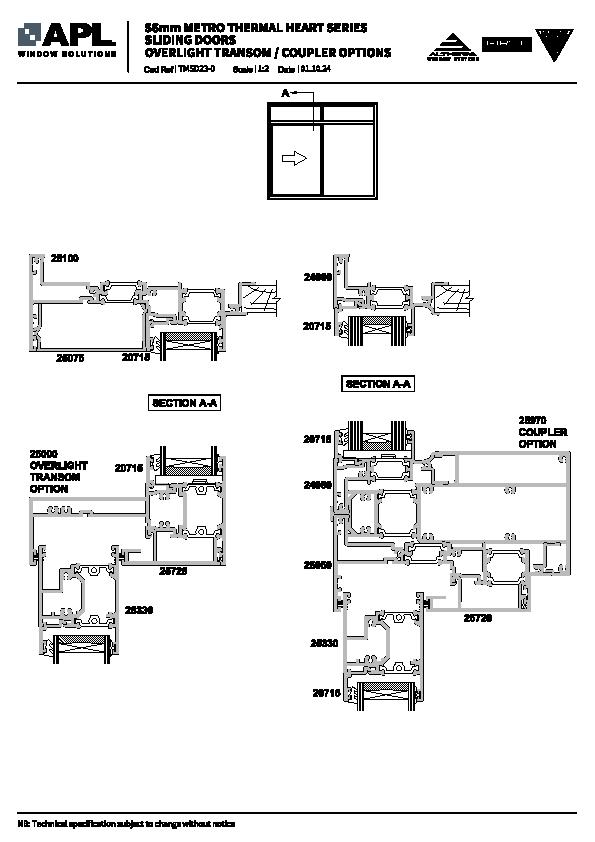

Metro Series ThermalHEART® Sliding Doors — Overlight Transom / Coupler (56mm)

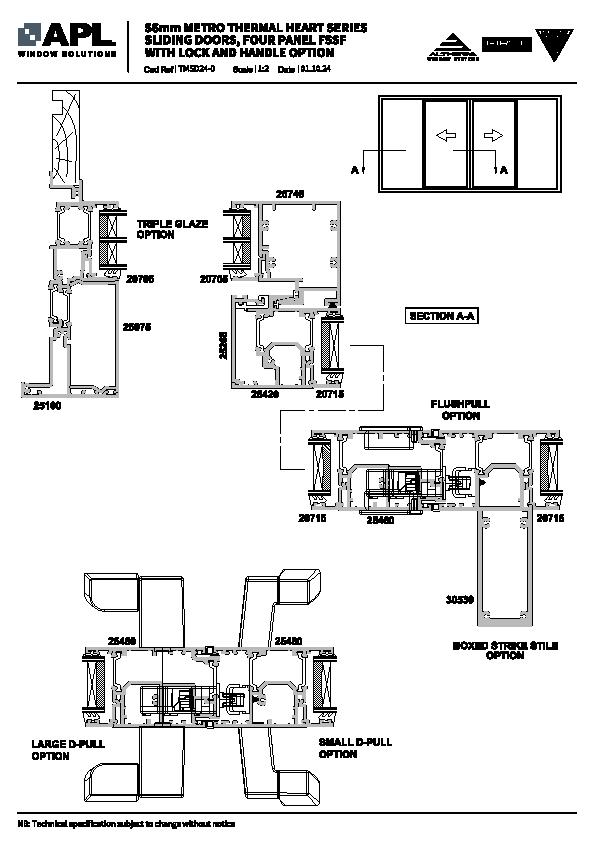

Metro Series ThermalHEART® Sliding Doors — Four Panel FSSF with Handle Options (56mm)

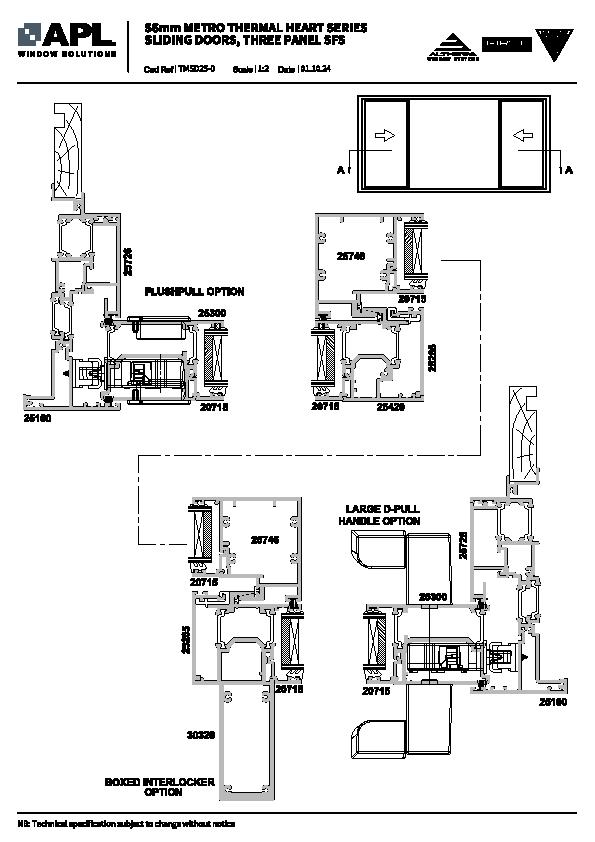

Metro Series ThermalHEART® Sliding Doors — Three Panel SFS (56mm)

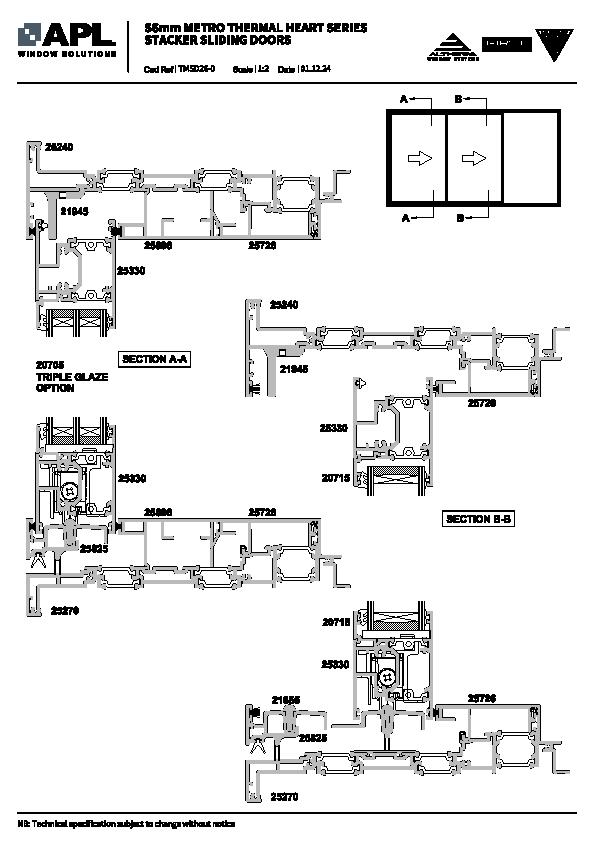

Metro Series ThermalHEART® Stacker Sliding Doors (56mm)

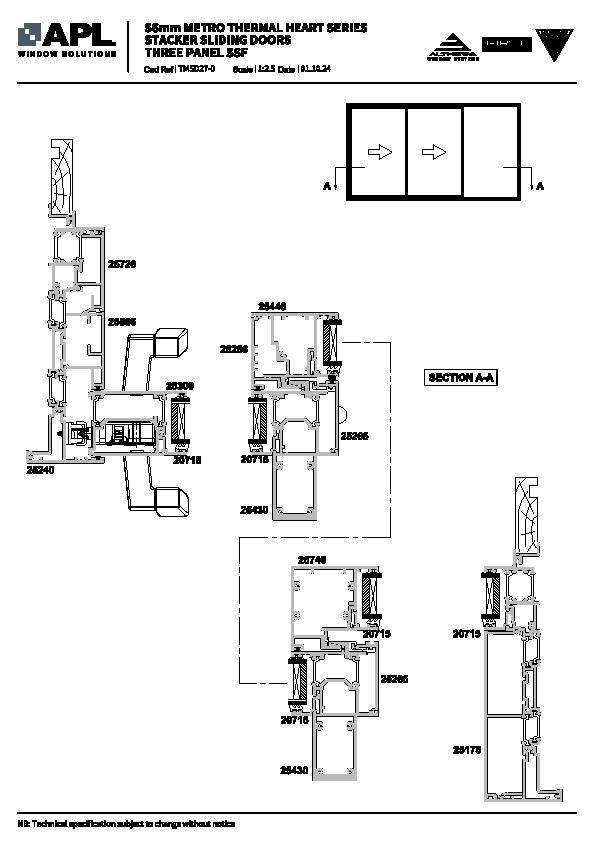

Metro Series ThermalHEART® Stacker Sliding Doors — Three Panel SSF (56mm)

Metro Series ThermalHEART® Stacker Sliding Doors — Four Panel FSSF (56mm)

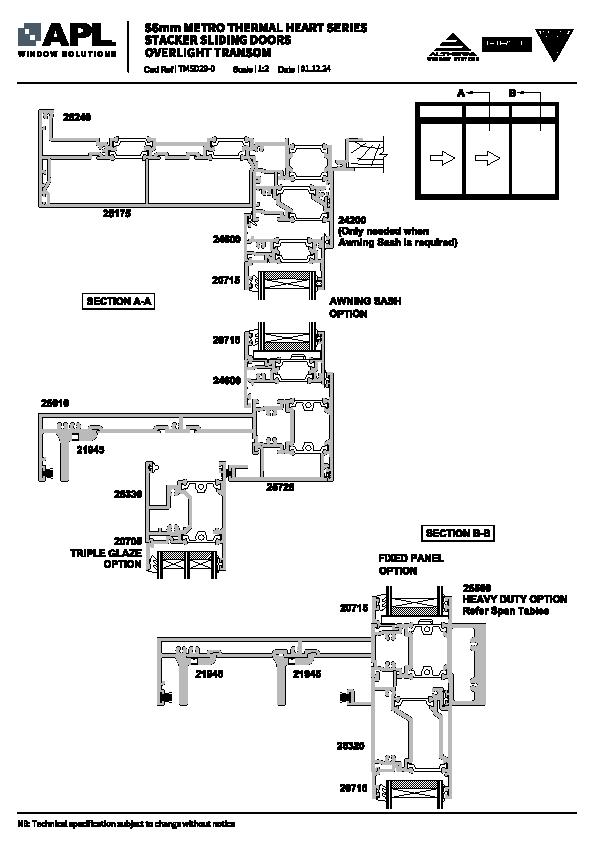

Metro Series ThermalHEART® Stacker Sliding Doors — Overlight Transom (56mm)

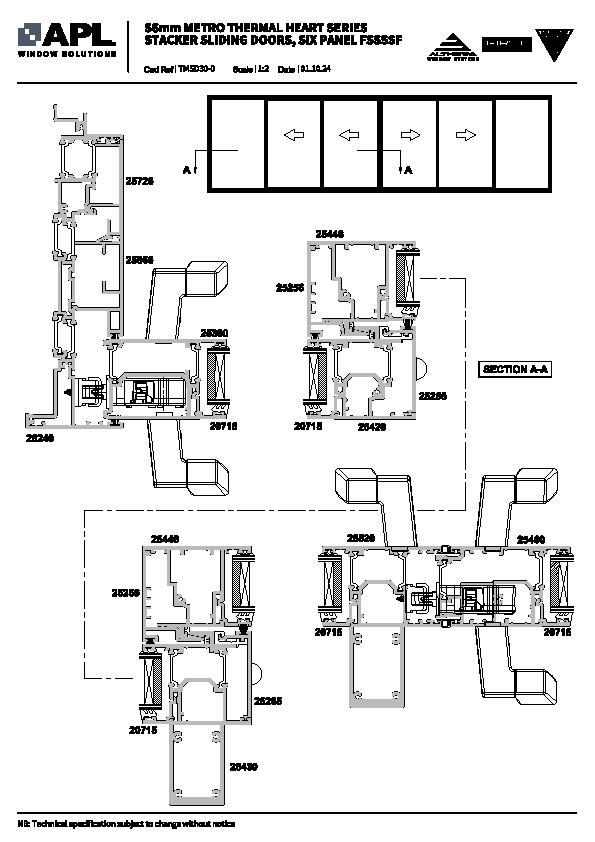

Metro Series ThermalHEART® Sliding Doors — Six Panel FSSSSF (56mm)

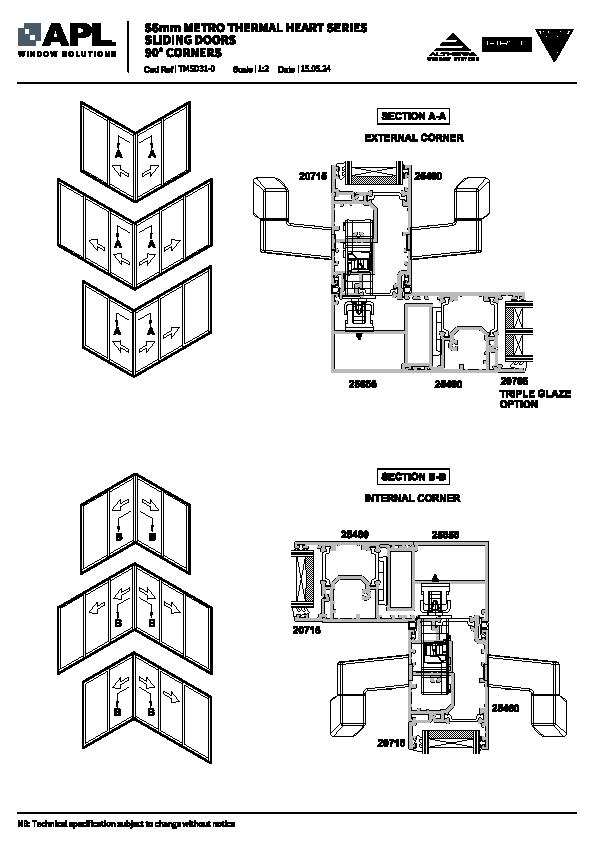

Metro Series ThermalHEART® Sliding Doors — 90° Corners (56mm)
