Residential Series ThermalHEART Sliding Doors
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore
apl sd
SD 1 Res ed

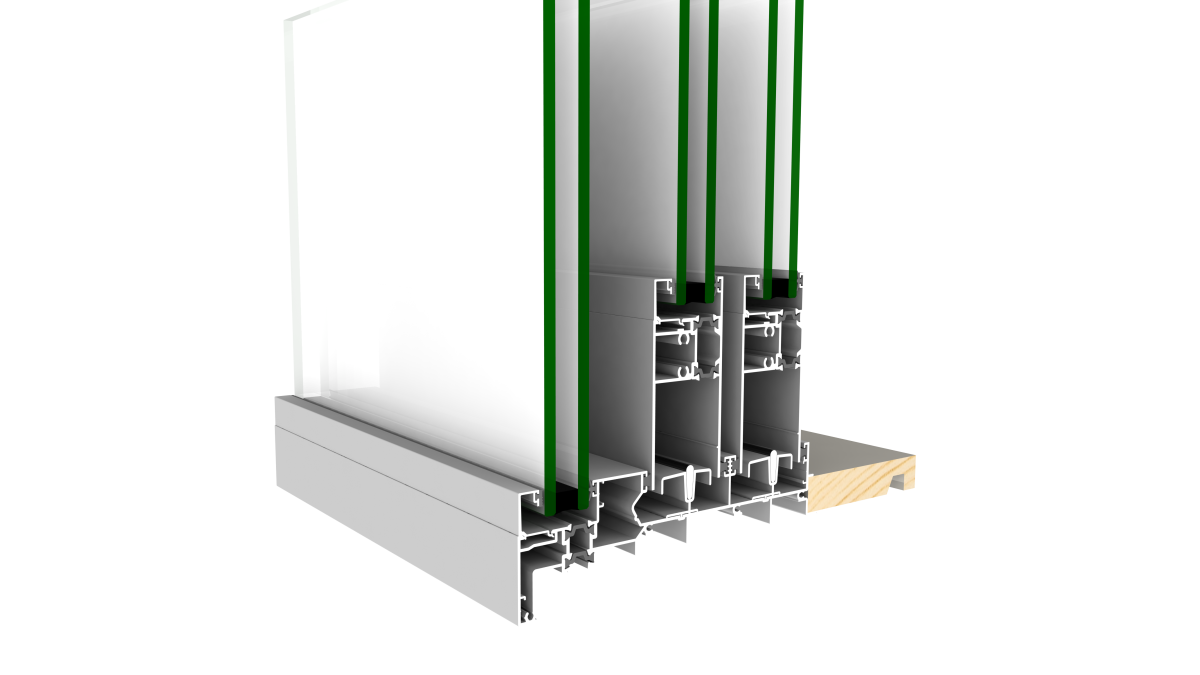

SD 2 Res

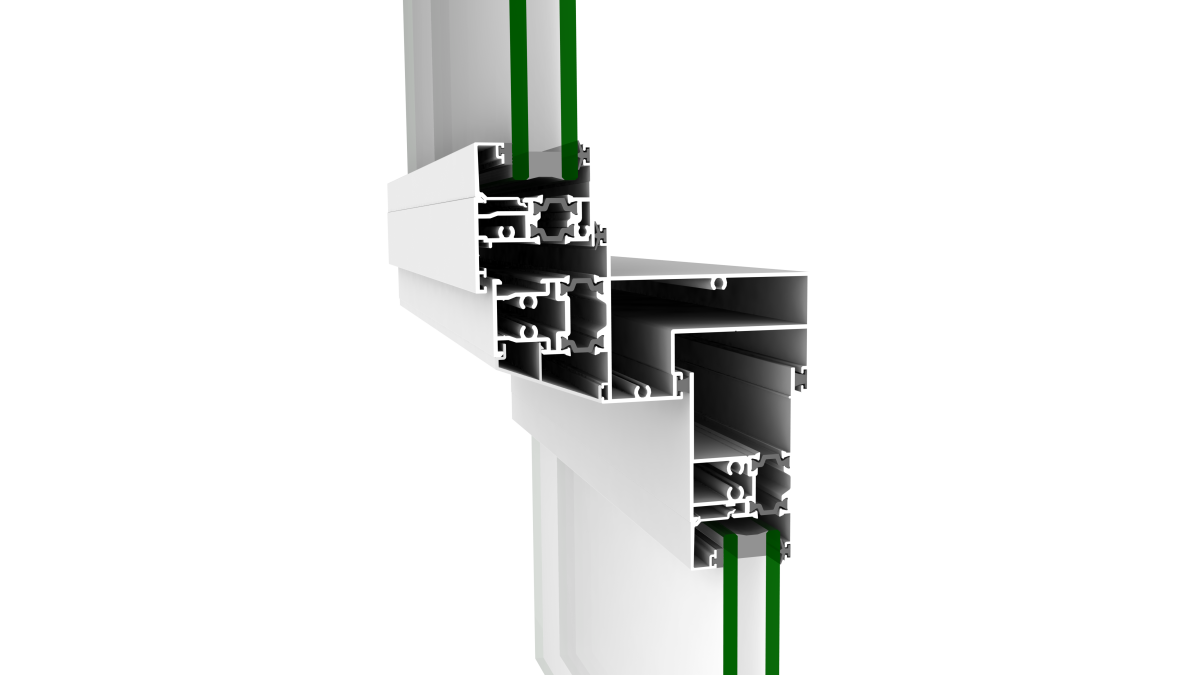

SD 5 Res
Description

Residential Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an internal track with fixed or sashed sidelight and are rated to 2.2m high. For higher doors consider using Metro Series ThermalHEART®. Interlocker stiles and mullions are flush in the closed position.

Key Features

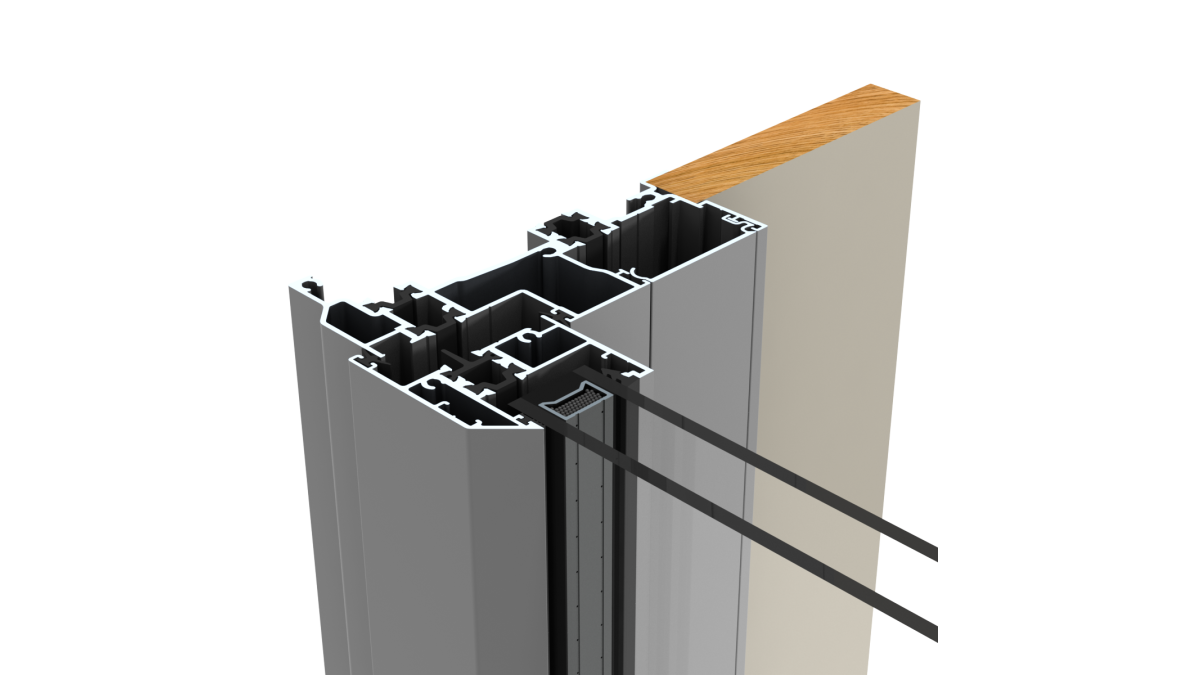

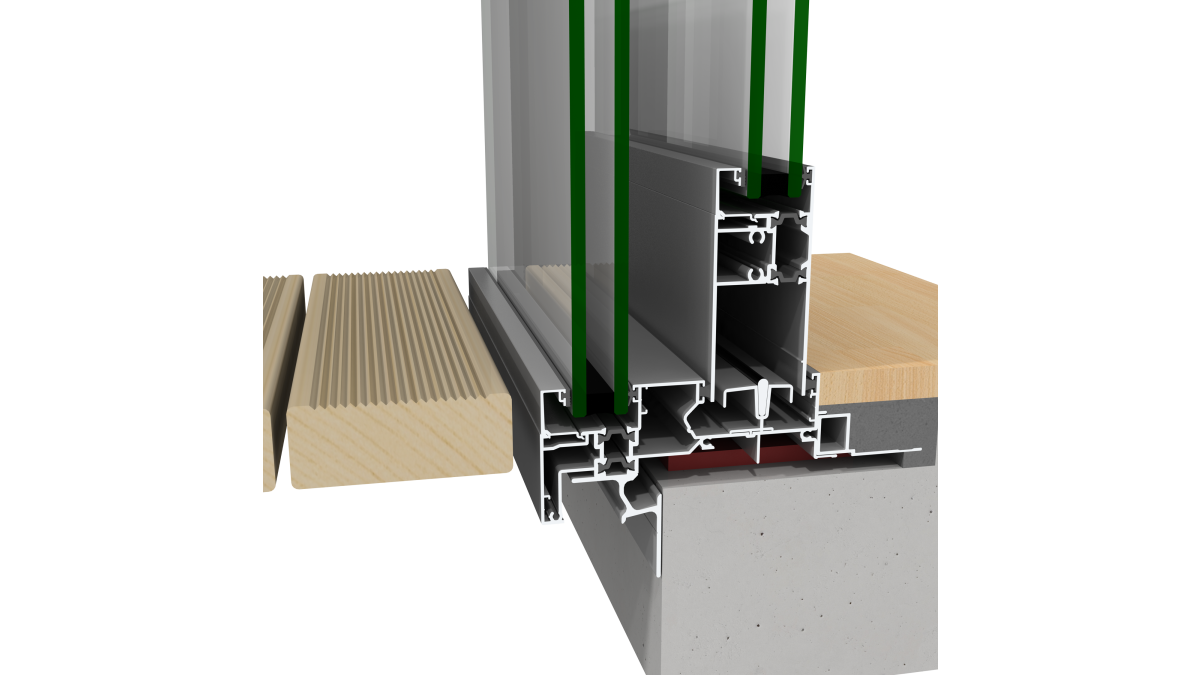

  • Flush sill design
  • Recommended maximum 2200mm high doors in Extra High wind zones — for larger sizes consider using Metro Series ThermalHEART®
  • Thermal efficiency achieved through a minimum of 16mm thermal breaks in aluminium profiles
  • 24mm IGU as standard but 32m IGU can be used with a wedged bead — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
  • Door stiles and rails feature slender sightlines

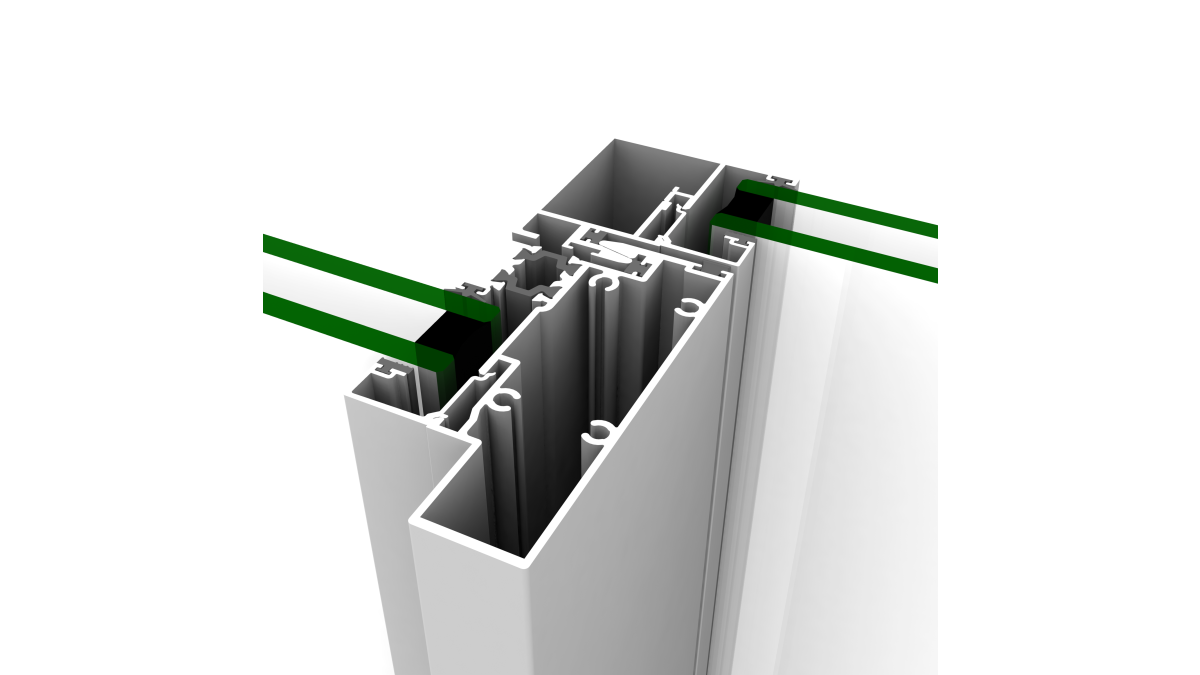

  • Interlocker stiles vary in depth according to height, width and wind pressure requirements
Categories
Sliding Doors
Ranges
Residential Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use
  • Available in defined maximum sizes
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Recommended maximum 2200mm high doors in Very High wind zones — For larger sizes consider using Metro Series ThermalHEART®
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2022 (previous version 2011)
  • New range rolling out nationally; previous version in use in residential projects throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Data Sheet: Residential Series ThermalHEART® Doors

2023

pdf
Span Tables: Residential Series ThermalHEART® Sliding Doors

2022

pdf
Declare Label

2022

pdf
Environmental Product Declaration (EPD) Report

2023

URL
Full Specification Guide: Residential Series ThermalHEART

2023

docx
Specification Guide: Residential Series ThermalHEART Sliding Doors

2023

docx
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Vantage Brochure
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
CAD/PDF Details
View full

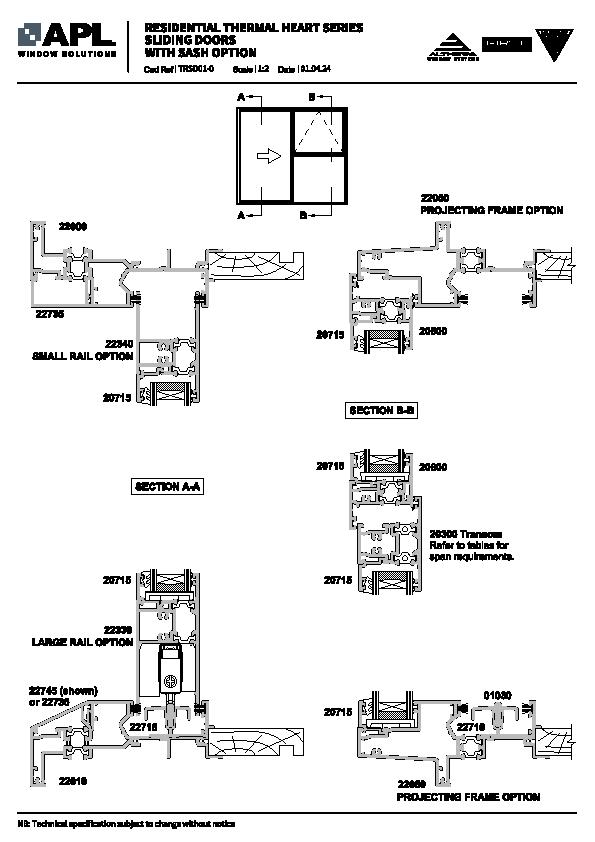

APL Residential Thermal Heart Sliding Doors Drawings pdf
Residential Series ThermalHEART® Sliding Doors

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip
TRSD01 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — With Sash Option

TRSD01-0

dwg
dxf
pdf
TRSD02 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Two Panel SF with Lock & Handle Option

TRSD02-0

dwg
dxf
pdf
TRSD03 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Overlight with Rail Options

TRSD03-0

dwg
dxf
pdf
TRSD04 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Three Panel FSF with Stile & Handle Options

TRSD04-0

dwg
dxf
pdf
TRSD05 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Four Panel FSSF with Handle Options

TRSD05-0

dwg
dxf
pdf
TRSD06 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Three Panel SSF

TRSD06-0

dwg
dxf
pdf
TRSD07 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Three Panel SSF with Stacker Overlight Transom

TRSD07-0

dwg
dxf
pdf
TRSD08 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Three Panel SSF with Reverse Interlocker Stile Options

TRSD08-0

dwg
dxf
pdf
TRSD09 0 pdf v3
Residential Series ThermalHEART® Sliding Doors — Six Panel FSSSSF

TRSD09-0

dwg
dxf
pdf
TRSD10 0 pdf

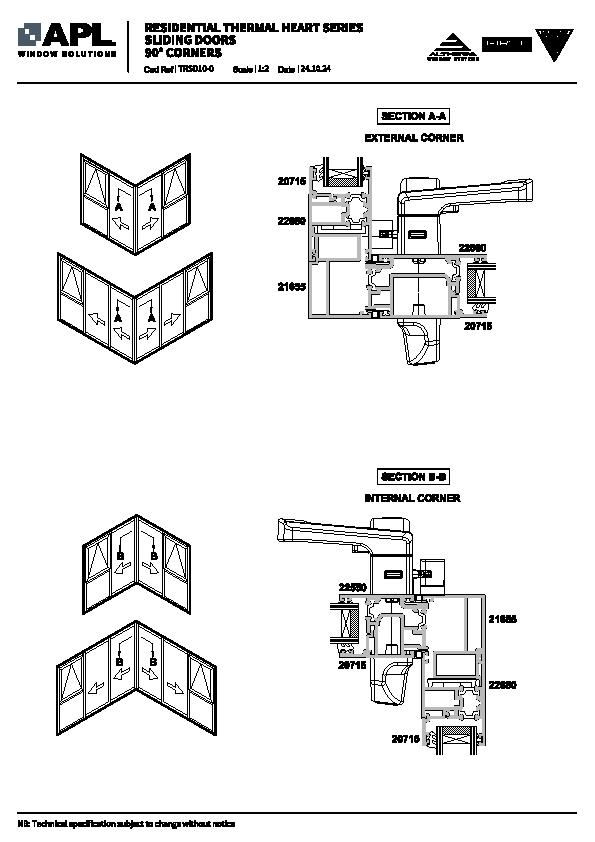

Residential Series ThermalHEART® Sliding Doors — 90° Corners

TRSD10-0

dwg
dxf
pdf
Installation Details
View full
Filters
Frame Type SD
Clear filters
TRMDBB pdf

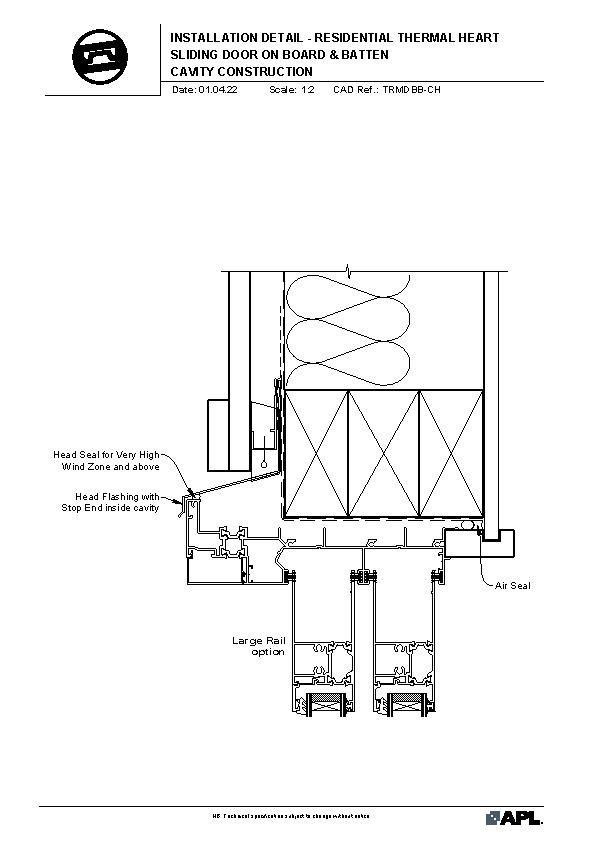

Residential Series ThermalHEART® Sliding Door — On Board & Batten Cavity Construction

TRMDBB

dwg
pdf
TRMDBV pdf

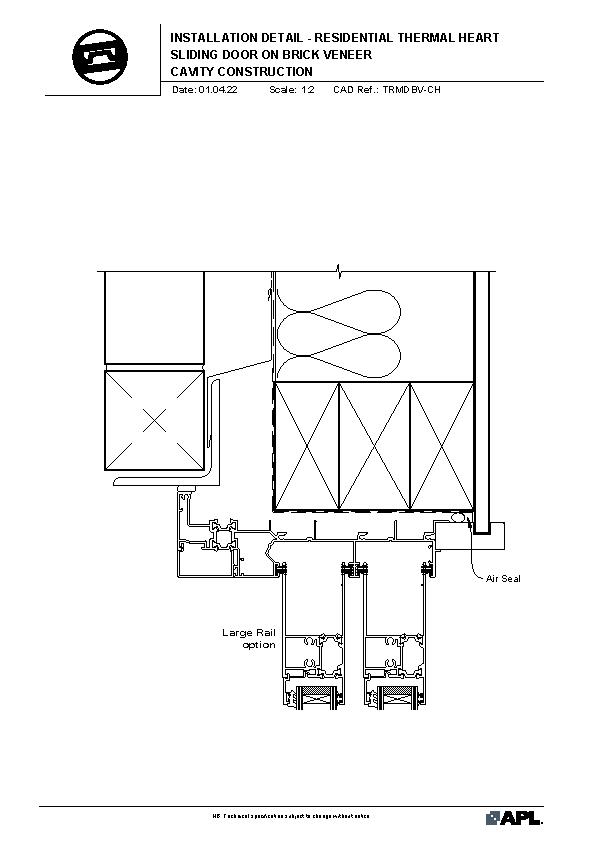

Residential Series ThermalHEART® Sliding Door — On Brick Veneer Cavity Construction

TRMDBV

dwg
pdf
TRMDBW pdf
Residential Series ThermalHEART® Sliding Door — On Bevelback Weatherboard Cavity Construction

TRMDBW

dwg
pdf
TRMDFS pdf

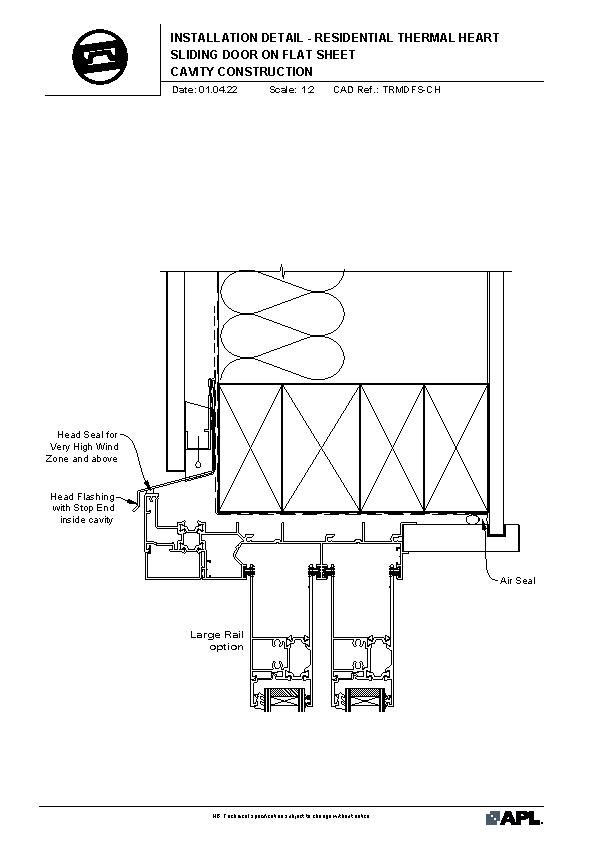

Residential Series ThermalHEART® Sliding Door — On Flat Sheet Cavity Construction

TRMDFS

dwg
pdf
TRMDPM pdf

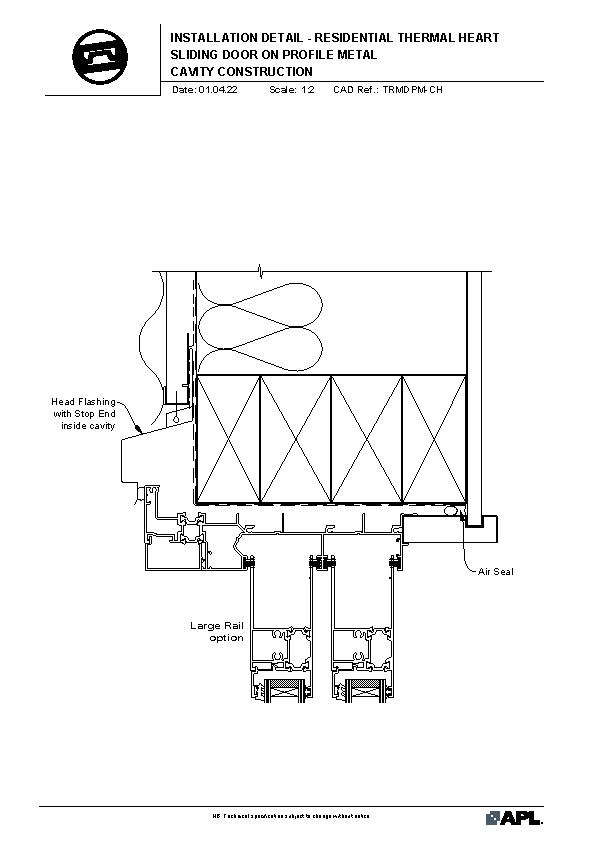

Residential Series ThermalHEART® Sliding Door — On Profile Metal Cavity Construction

TRMDPM

dwg
pdf
TRMDRW pdf

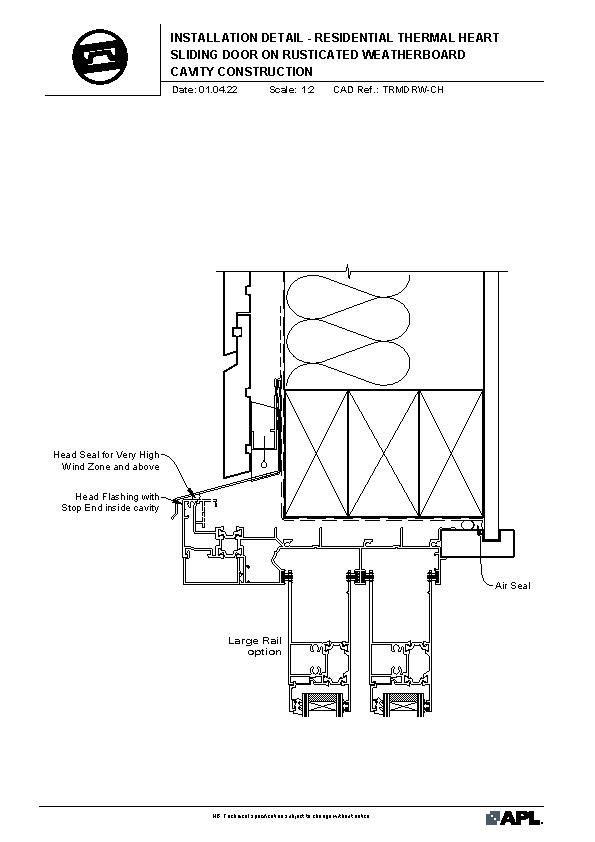

Residential Series ThermalHEART® Sliding Door — On Rusticated Weatherboard Cavity Construction

TRMDRW

dwg
pdf
TRMDST pdf

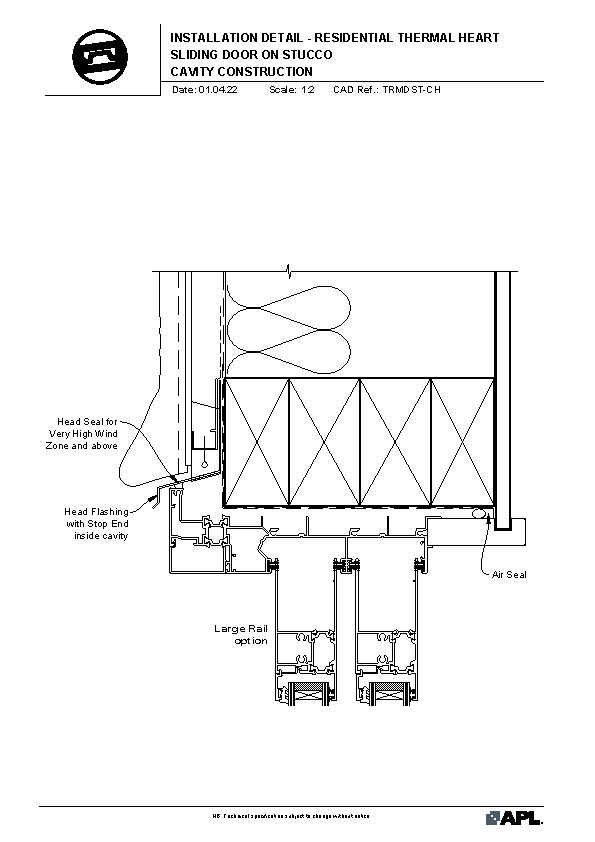

Residential Series ThermalHEART® Sliding Door — On Stucco Cavity Construction

TRMDST

dwg
pdf
TRPMDBB pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Board & Batten Cavity Construction

TRPMDBB

dwg
pdf
TRPMDBV pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Brick Veneer Cavity Construction

TRPMDBV

dwg
pdf
TRPMDBW pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Bevelback Weatherboard Cavity Construction

TRPMDBW

dwg
pdf
TRPMDFS pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Flat Sheet Cavity Construction

TRPMDFS

dwg
pdf
TRPMDPM pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Profile Metal Cavity Construction

TRPMDPM

dwg
pdf
TRPMDRW v2 pdf
Residential Series ThermalHEART® Projecting Sliding Door — On Rusticated Weatherboard Cavity Construction

TRPMDRW

dwg
pdf
TRPMDST pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Stucco Cavity Construction

TRPMDST

dwg
pdf
TRPSDBB pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Board & Batten Cavity Construction

TRPSDBB

dwg
pdf
TRPSDBW pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Bevelback Weatherboard Cavity Construction

TRPSDBW

dwg
pdf
TRPSDFS pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Flat Sheet Cavity Construction

TRPSDFS

dwg
pdf
TRPSDPM pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Profile Metal Cavity Construction

TRPSDPM

dwg
pdf
TRPSDRW pdf v2
Residential Series ThermalHEART® Projecting Sliding Door — On Rusticated Weatherboard Cavity Construction

TRPSDRW

dwg
pdf
TRPSDST pdf v3
Residential Series ThermalHEART® Projecting Sliding Door — On Stucco Cavity Construction

TRPSDST

dwg
pdf
TRSDBB pdf

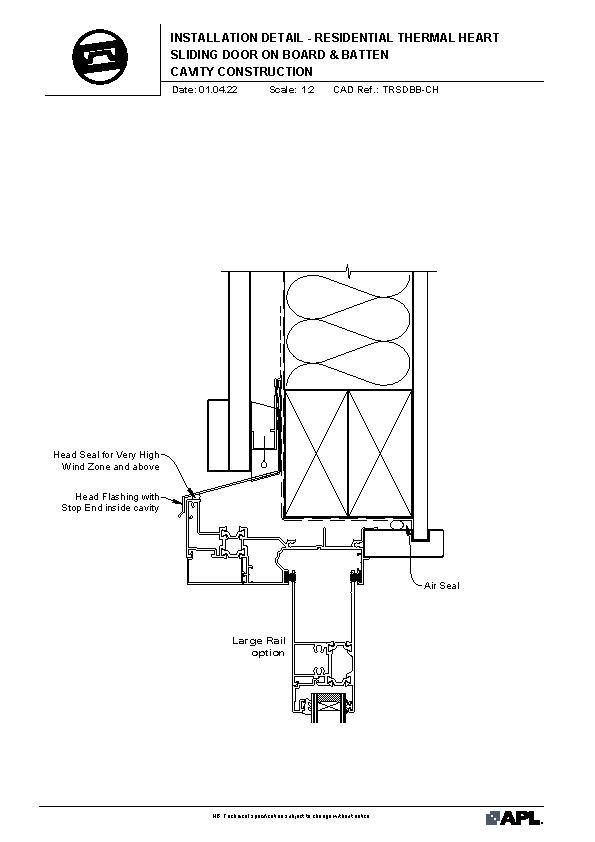

Residential Series ThermalHEART® Sliding Door — On Board & Batten Cavity Construction

TRSDBB

dwg
pdf
TRSDBV pdf

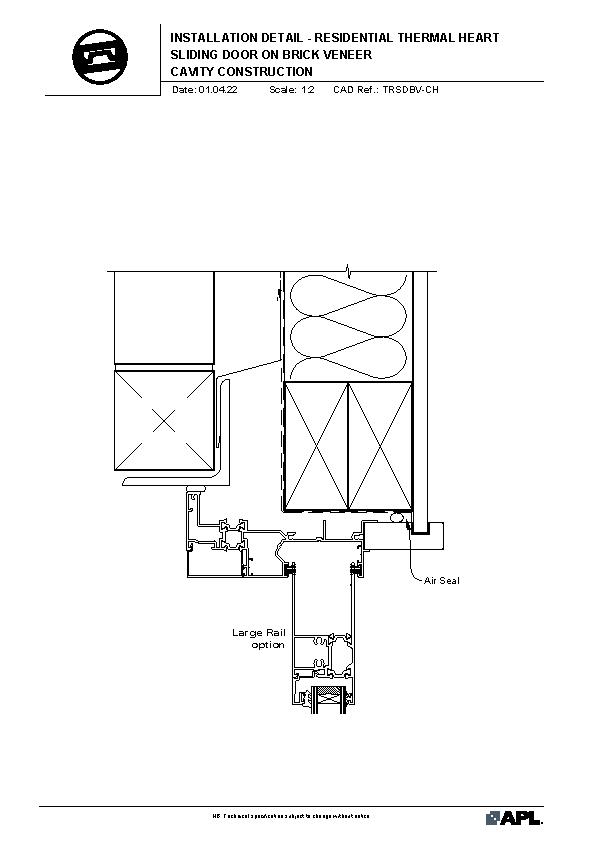

Residential Series ThermalHEART® Sliding Door — On Brick Veneer Cavity Construction

TRSDBV

dwg
pdf
TRSDBW pdf

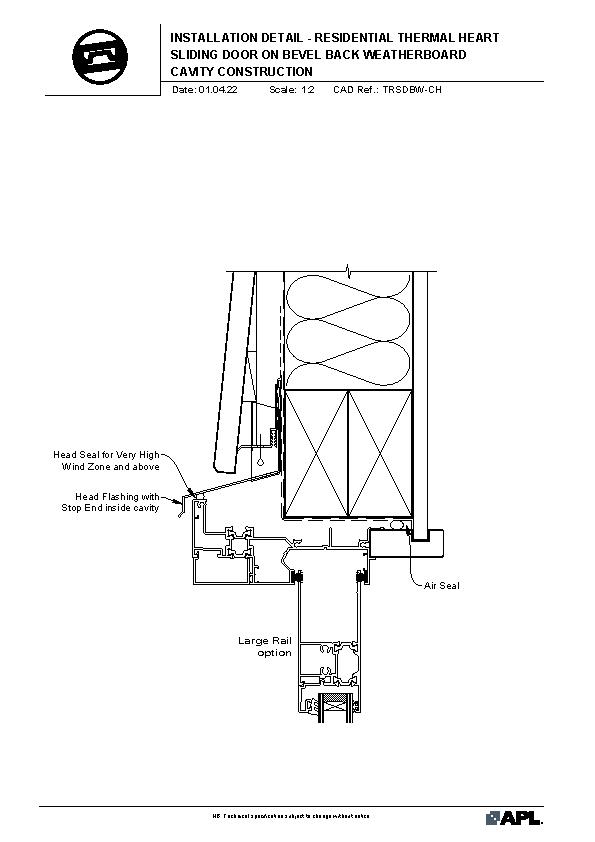

Residential Series ThermalHEART® Sliding Door — On Bevelback Weatherboard Cavity Construction

TRSDBW

dwg
pdf
TRSDFS pdf

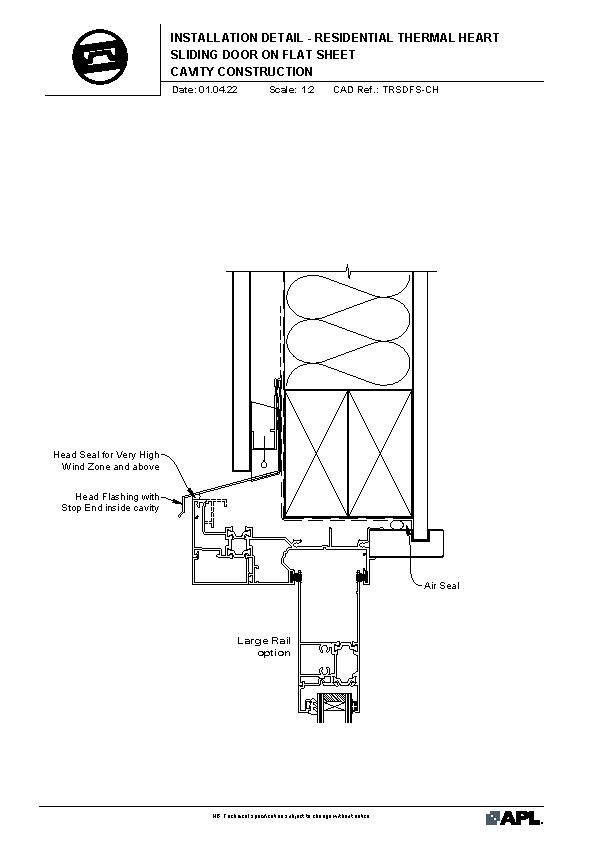

Residential Series ThermalHEART® Sliding Door — On Flat Sheet Cavity Construction

TRSDFS

dwg
pdf
TRSDPM pdf

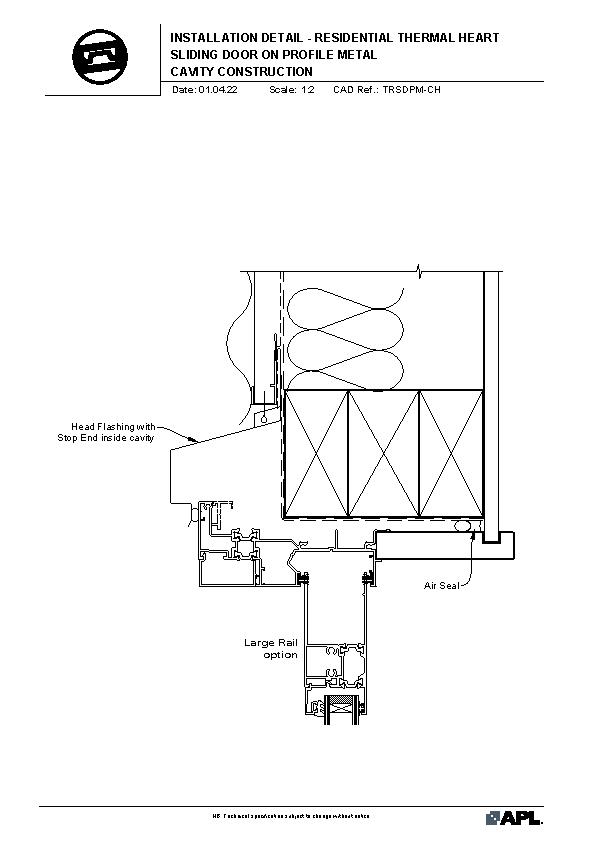

Residential Series ThermalHEART® Sliding Door — On Profile Metal Cavity Construction

TRSDPM

dwg
pdf
TRSDRW pdf

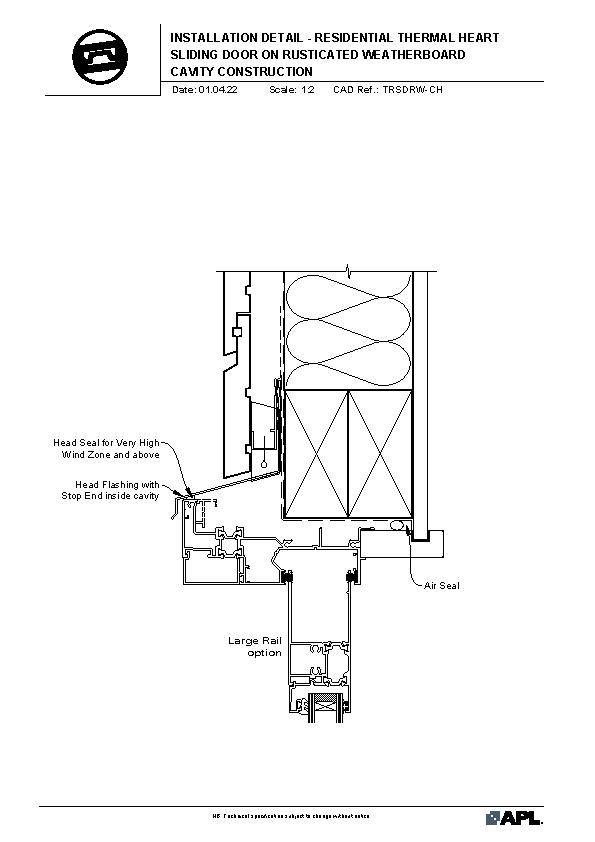

Residential Series ThermalHEART® Sliding Door — On Rusticated Weatherboard Cavity Construction

TRSDRW

dwg
pdf
TRSDST pdf

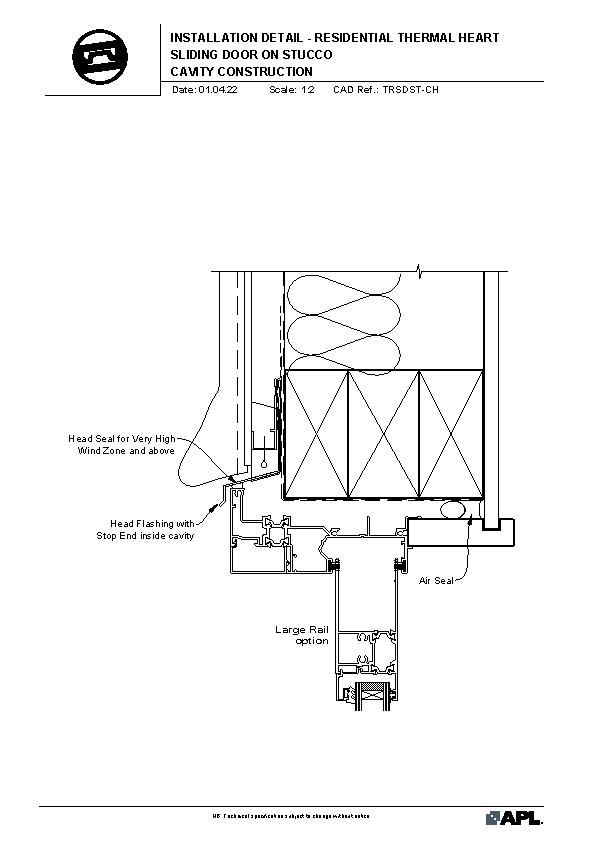

Residential Series ThermalHEART® Sliding Door — On Stucco Cavity Construction

TRSDST

dwg
pdf
