APL Architectural Series ThermalHEART® Sliding Doors
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

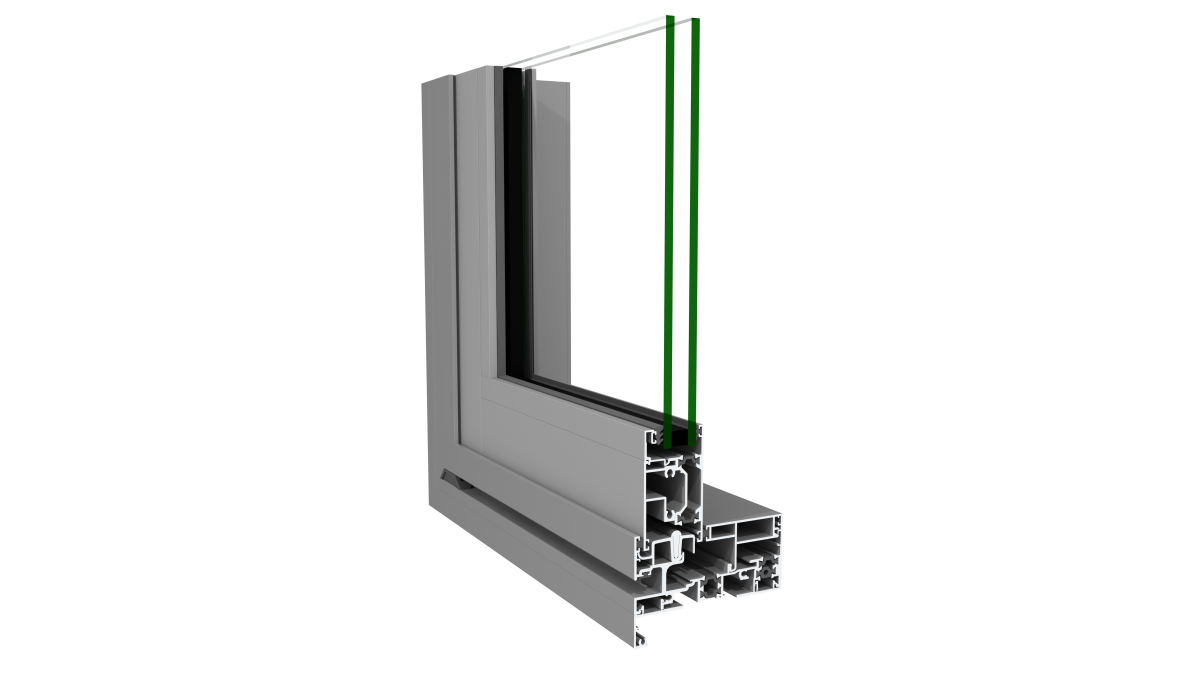

ASTH SD1

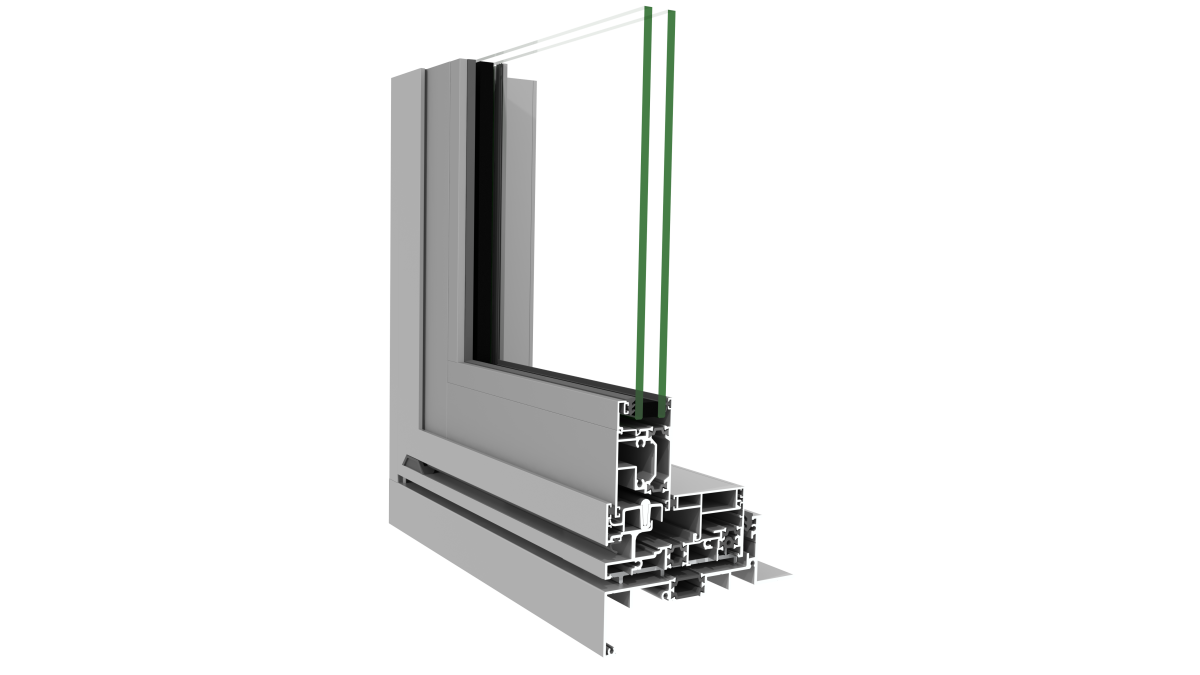

ASTH SD2

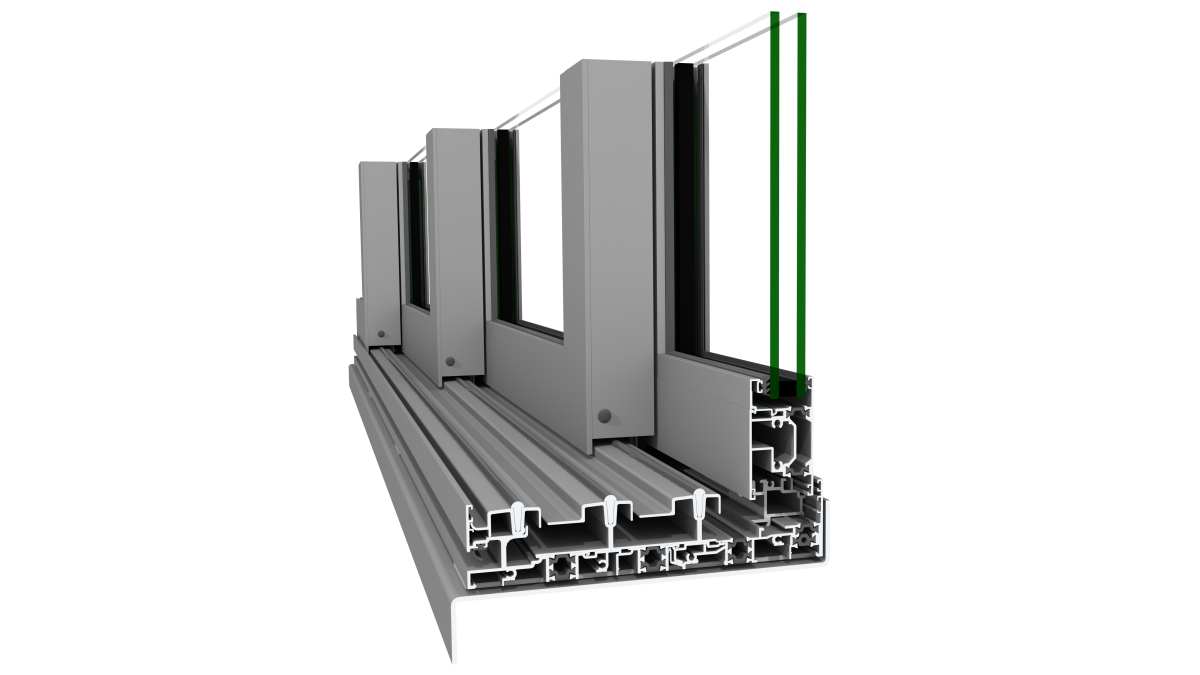

ASTH SD3

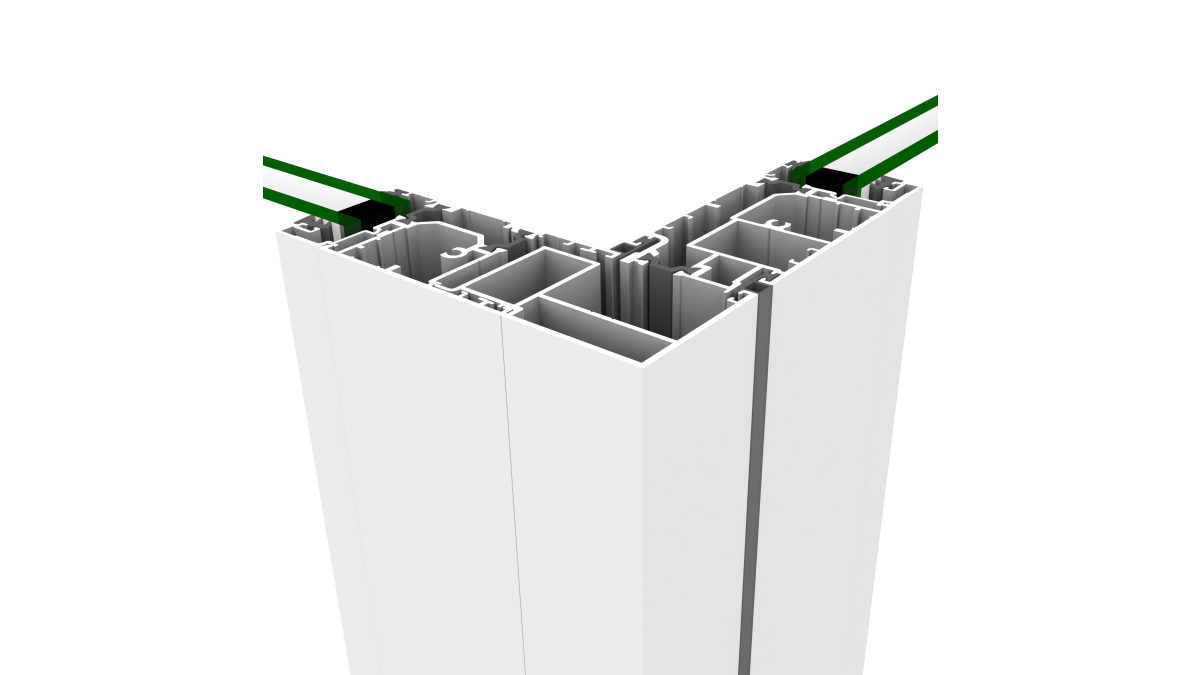

ASTH SD4

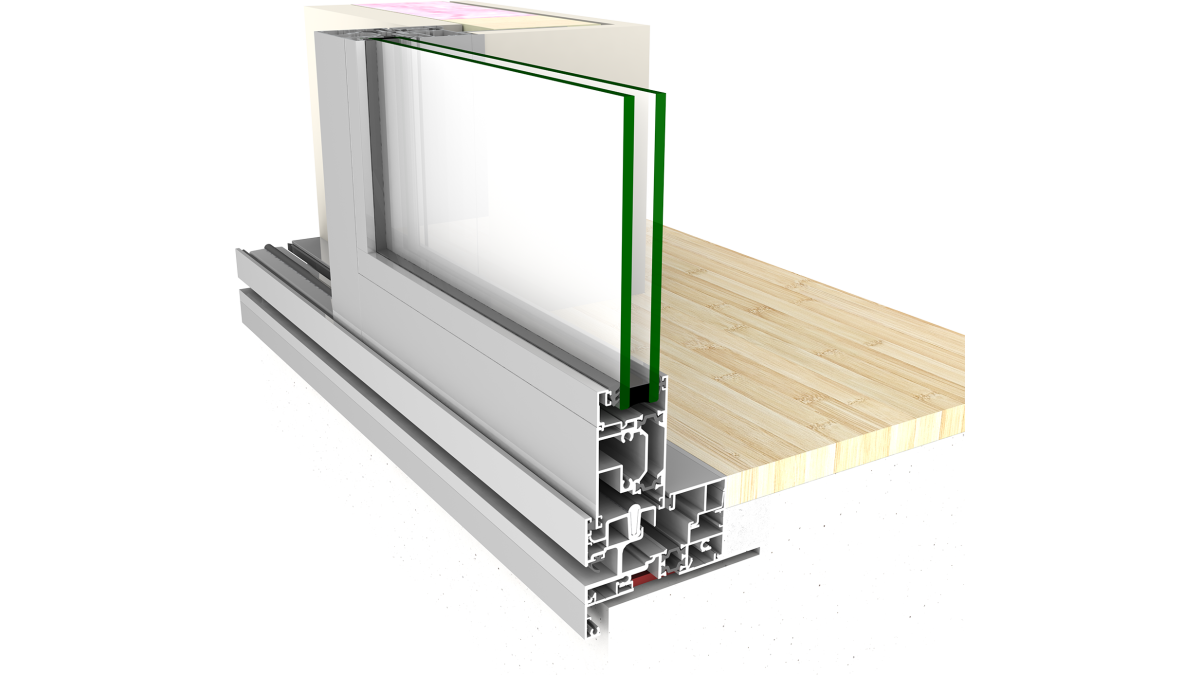

ASTH SD5
Description

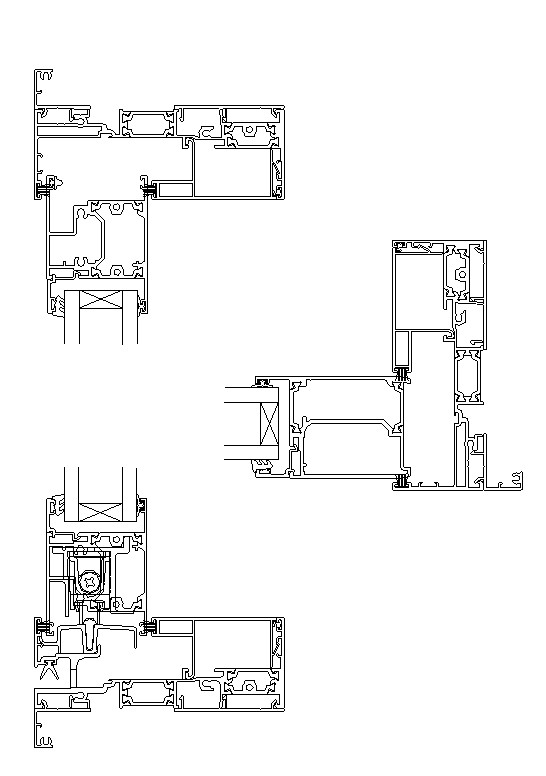

APL Architectural Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track and are rated to 3.0m high. Interlocker stiles and mullions are flush in the closed position.

Key Features

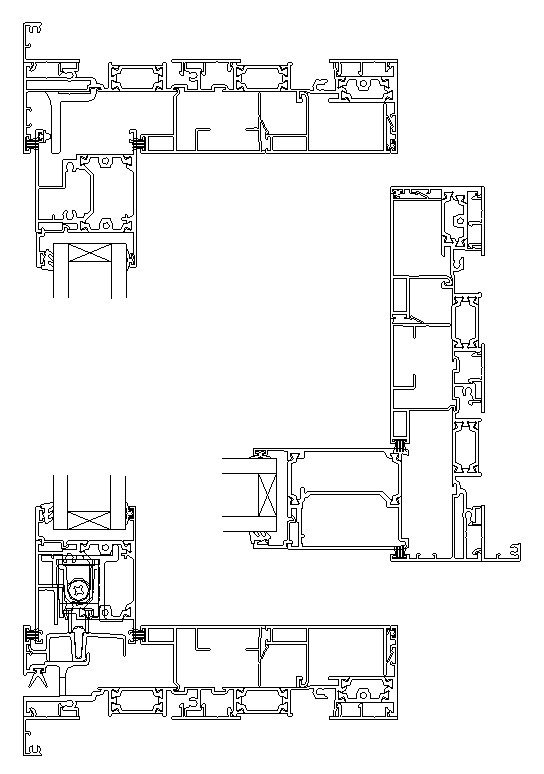

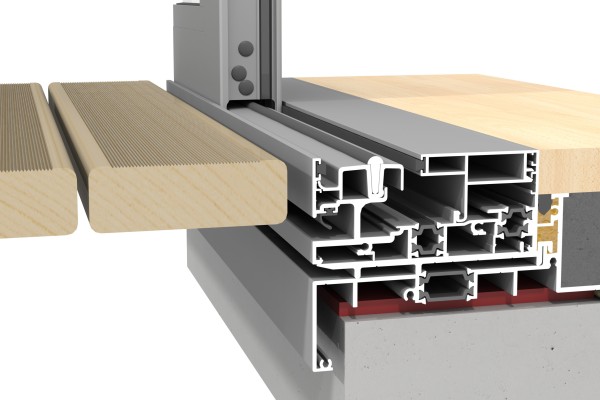

  • The sill frame has a flush track
  • Interlockers stiles and mullions are flush in the closed position
  • A bypass slider is available where two or more panels can be moved independently without a fixed panel
  • Corner sliding doorsare available with no corner post (exterior and interior corners)
  • Sill tray and seismic frames are available
  • Wide opening is possible in bi-parting or multi-stacking configurations
  • Overwall and cavity sliding options are available
  • Maximum glass thickness of 32mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Categories
Sliding Doors
Ranges
APL Architectural Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum size
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Sashes in sidelights need to be carefully considered and out of the travel path of the door panel
  • Recommended maximum 2.8m high doors in Extra High wind zones — for larger sizes
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Launched in 2023
  • New range rolling out nationally
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • News
Documents
Full Specification Guide: APL Architectural Series ThermalHEART®
docx
Specification Guide: APL Architectural Series ThermalHEART® Sliding Doors
docx
Span Tables
pdf
Data Sheet: APL Architectural Series ThermalHEART®

2023

pdf
APL and Sustainability
URL
Declare Label
pdf
Manufacturer Contact List
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
Specifier Guide

2023

URL
Vantage Brochure
URL
Vantage Care, Maintenance & Warranty Brochure (with AGP)
URL
Vantage on Masterspec
URL
WGANZ Guide to E2/AS1
pdf
CAD/PDF Details
View full
Filters
Frame Type SD
Clear filters
APL Architectural Thermal Heart Sliding Door Drawings pdf
APL Architectural Series ThermalHEART® Sliding Doors

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip

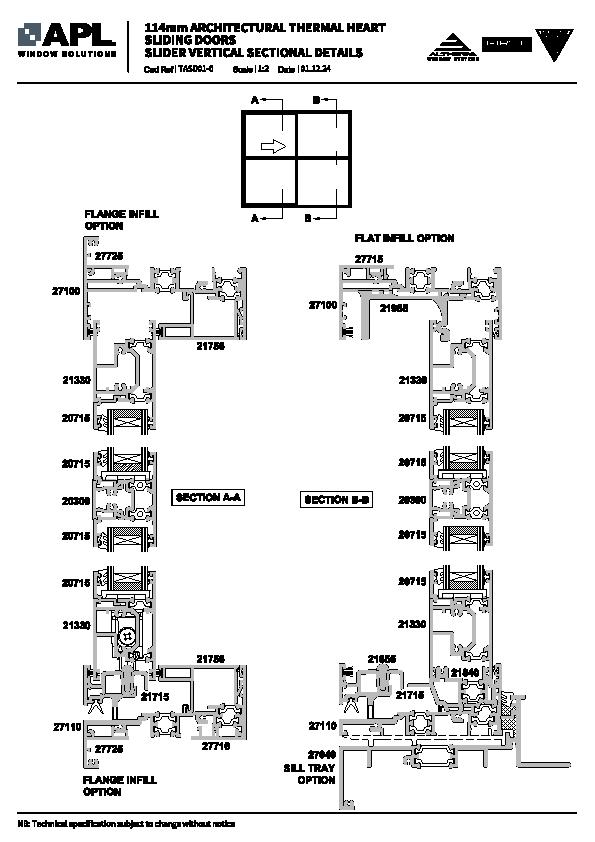

TASD01 0 pdf

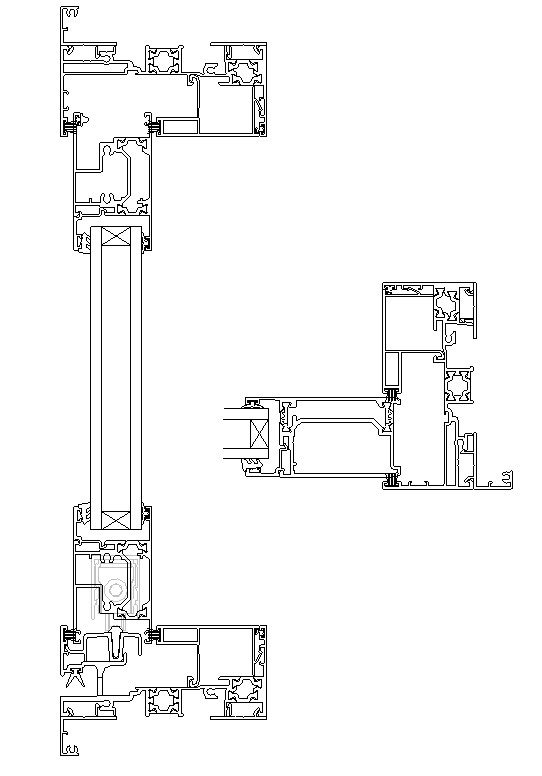

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider Vertical

TASD01

dwg
dxf
pdf

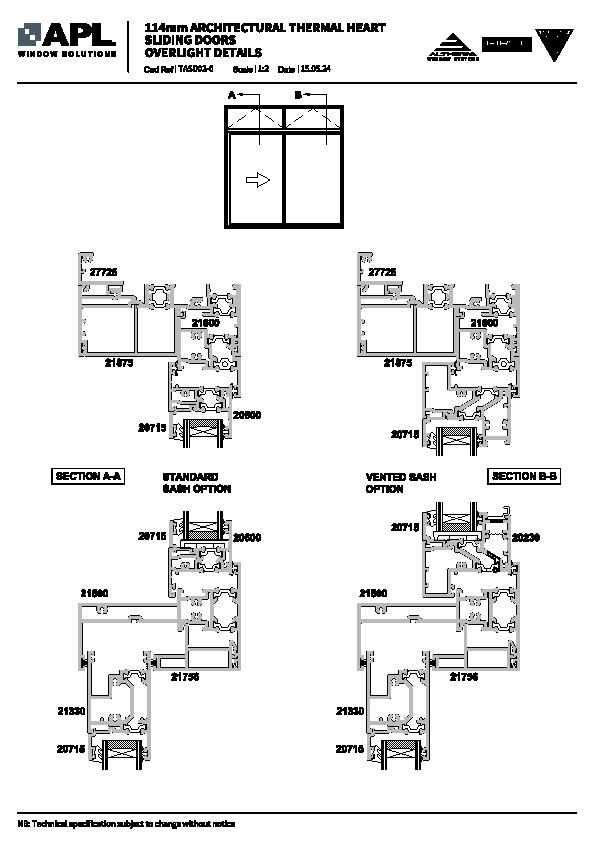

TASD02 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Doors - Overlight Details

TASD02

dwg
dxf
pdf
TASD03 0 pdf

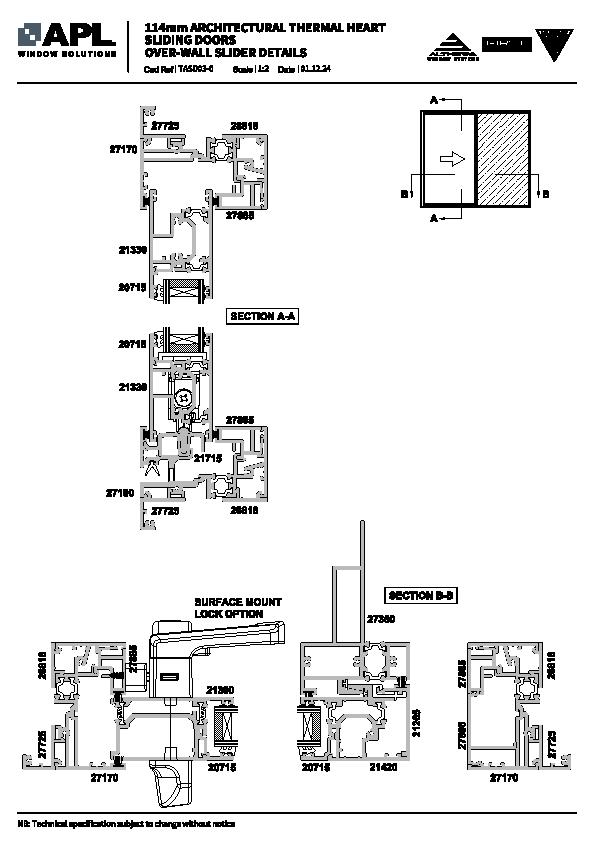

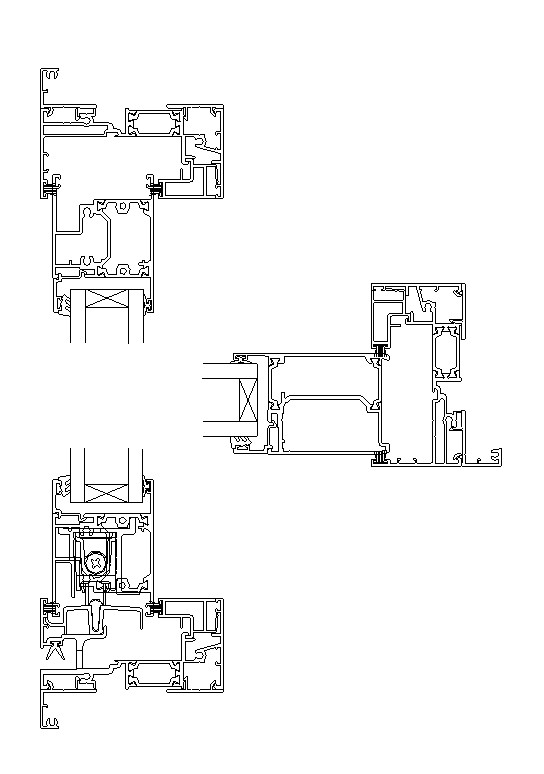

114mm APL Architectural Series ThermalHEART® Sliding Doors - Over-Wall Slider

TASD03

dwg
dxf
pdf
TASD04 0 pdf

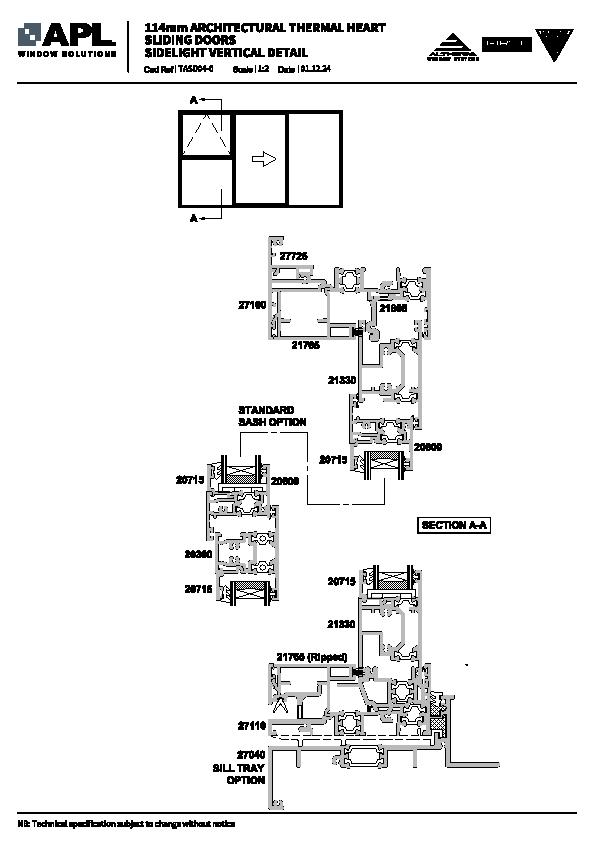

114mm APL Architectural Series ThermalHEART® Sliding Doors- Sidelight Vertical

TASD04

dwg
dxf
pdf
TASD05 0 pdf

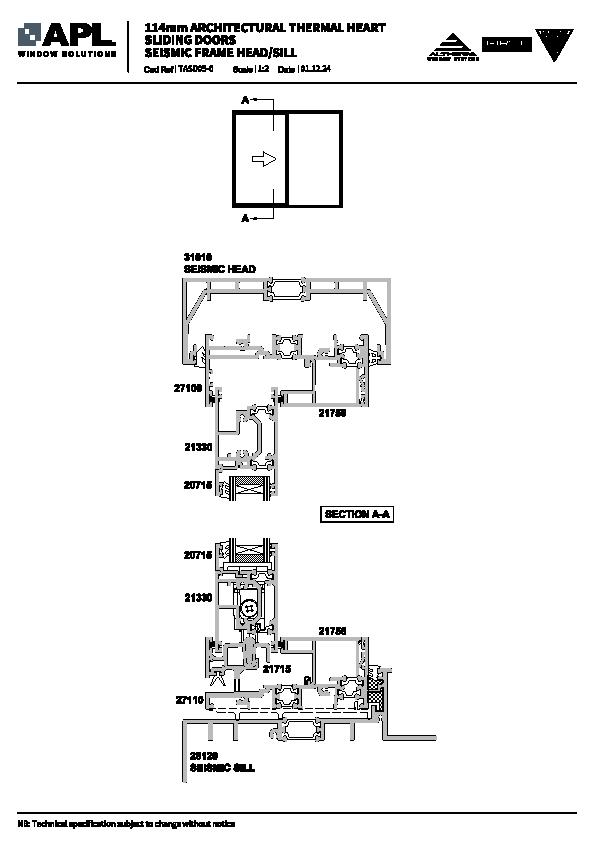

114mm APL Architectural Series ThermalHEART® Sliding Doors - Seismic Frame Head/Sill

TASD05

dwg
dxf
pdf
TASD06 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Doors - Seismic Frame Jambs

TASD06

dwg
dxf
pdf
TASD07 0 pdf

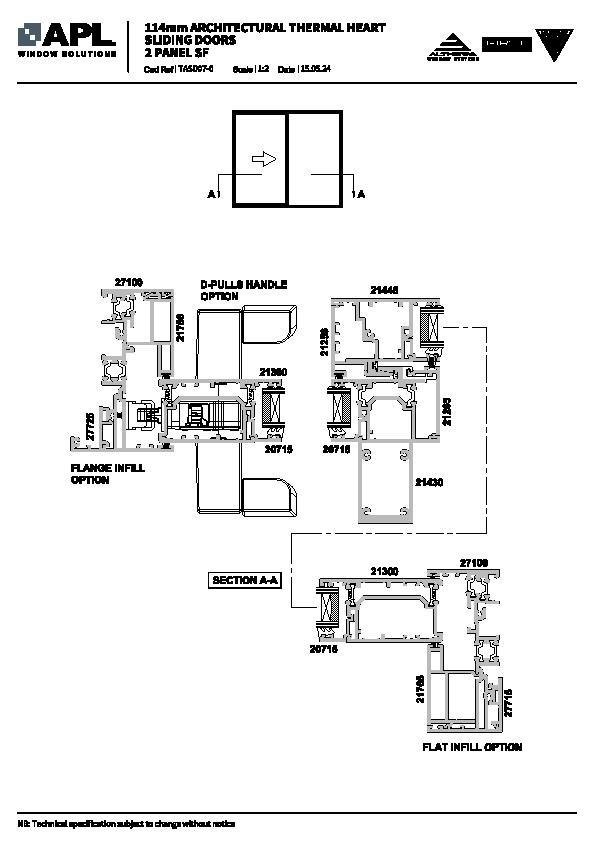

114mm APL Architectural Series ThermalHEART® Sliding Doors - 2 Panel SF

TASD07

dwg
dxf
pdf
TASD08 0 pdf

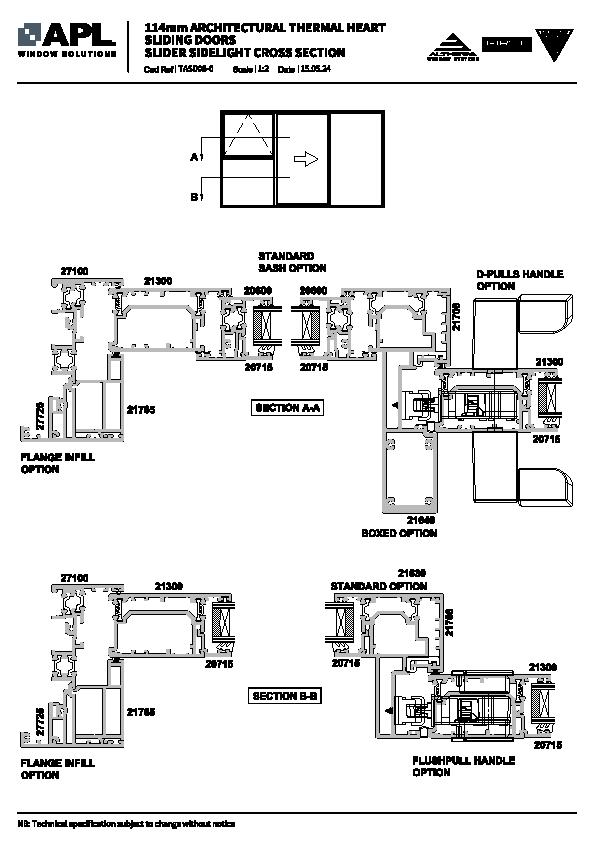

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider Sidelight Cross Section

TASD08

dwg
dxf
pdf
TASD09 0 pdf

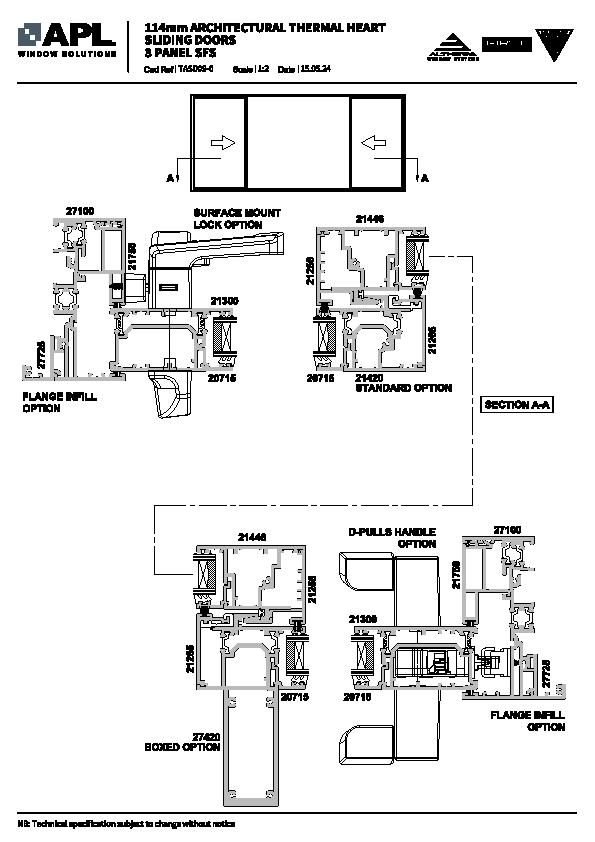

114mm APL Architectural Series ThermalHEART® Sliding Doors - 3 Panel SFS

TASD09

dwg
dxf
pdf
TASD10 0 pdf

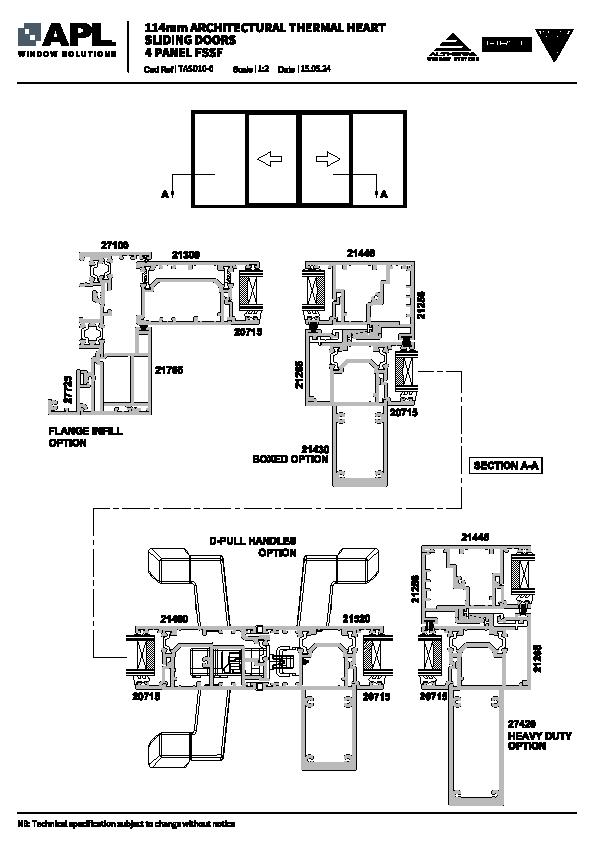

114mm APL Architectural Series ThermalHEART® Sliding Doors - 4 Panel FSSF

TASD10

dwg
dxf
pdf

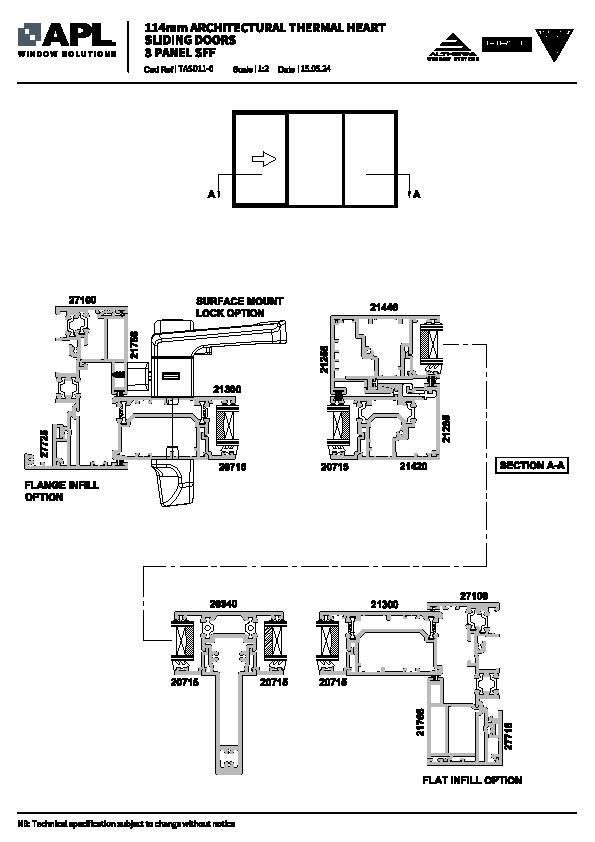

TASD11 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Doors - 3 Panel SFF

TASD11

dwg
dxf
pdf

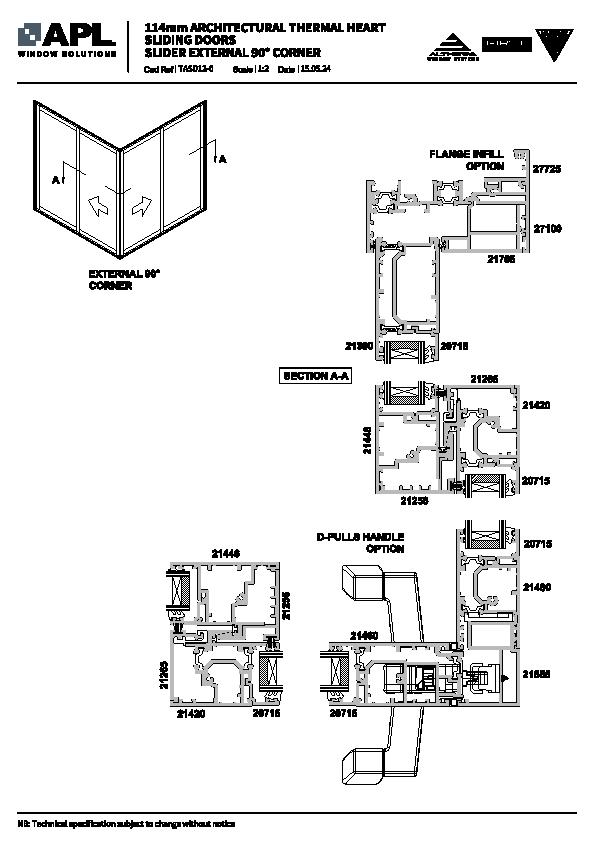

TASD12 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider External 90° Corner

TASD12

dwg
dxf
pdf
TASD13 0 pdf

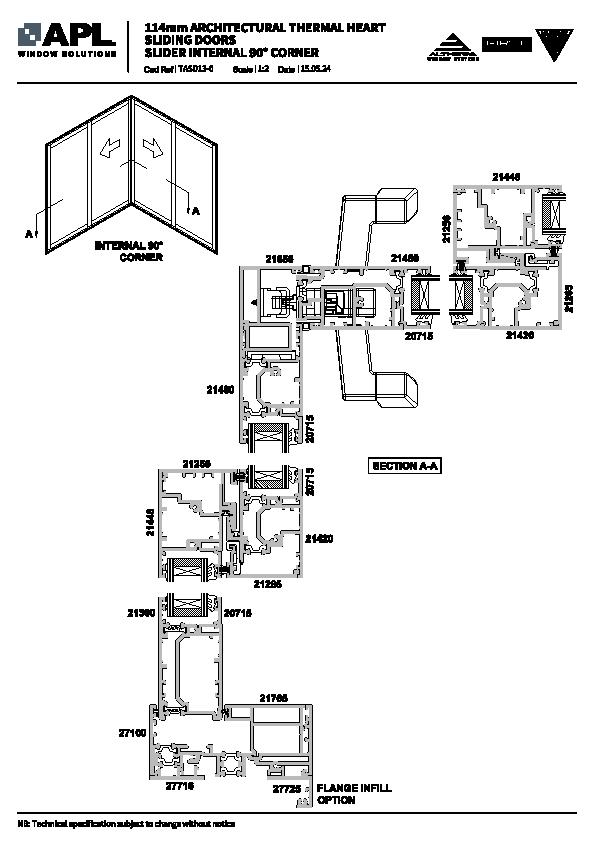

114mm APL Architectural Series ThermalHEART® Sliding Doors - Slider Internal 90° Corner

TASD13

dwg
dxf
pdf
TASD20 0 pdf

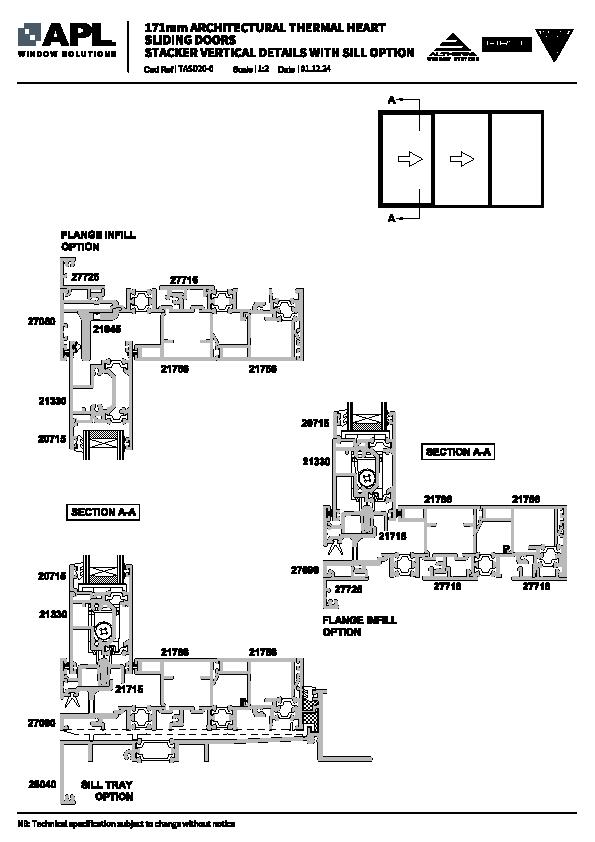

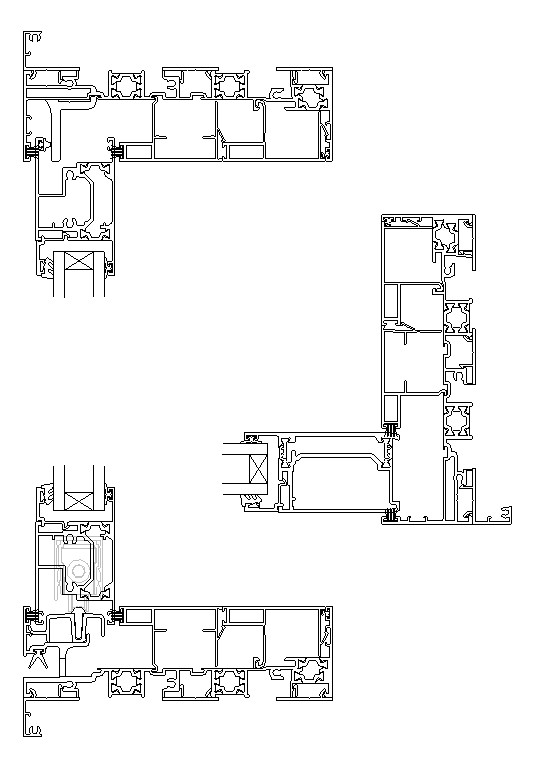

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Vertical Details with Sill Option

TASD20

dwg
dxf
pdf
TASD21 0 pdf

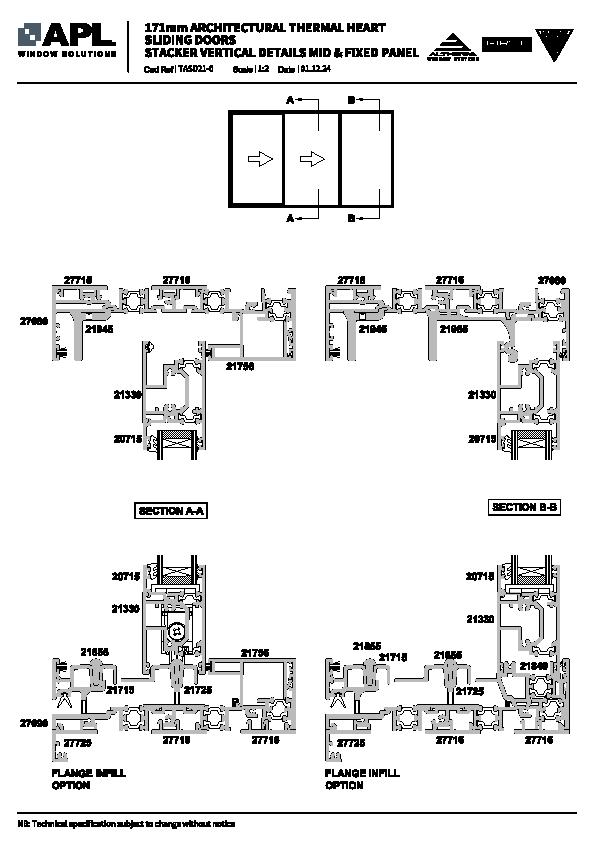

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Vertical Details Mid & Fixed Panel

TASD21

dwg
dxf
pdf
TASD22 0 pdf

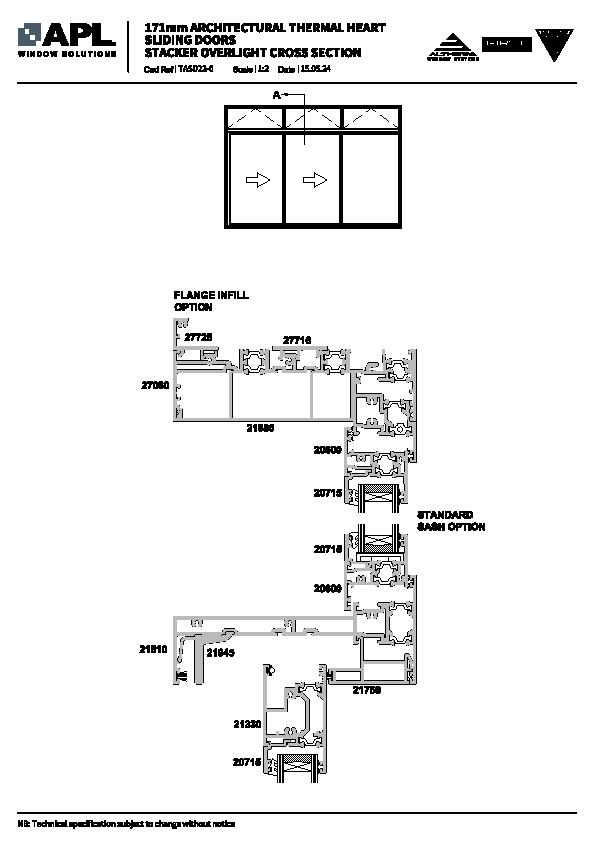

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Overlight Cross Section

TASD22

dwg
dxf
pdf

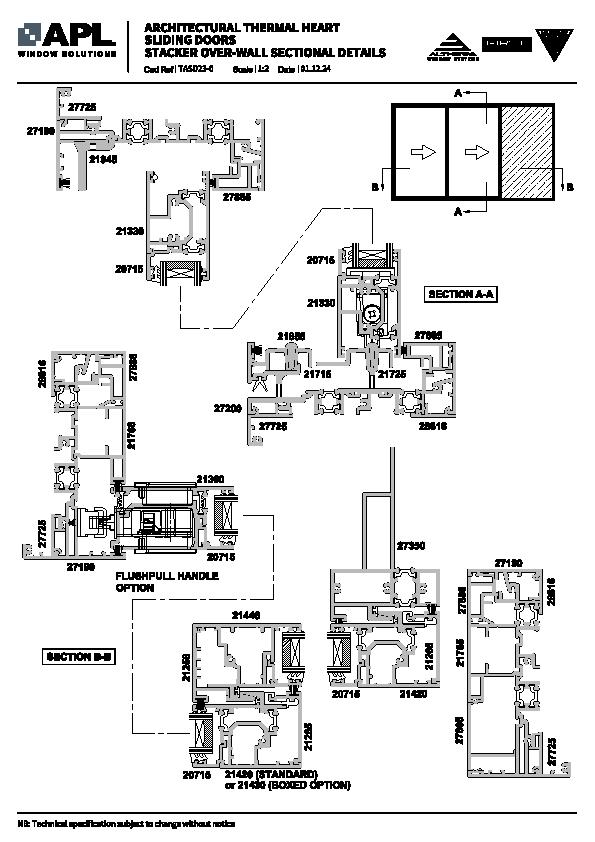

TASD23 0 pdf
171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Over-Wall

TASD23

dwg
dxf
pdf
TASD24 0 pdf

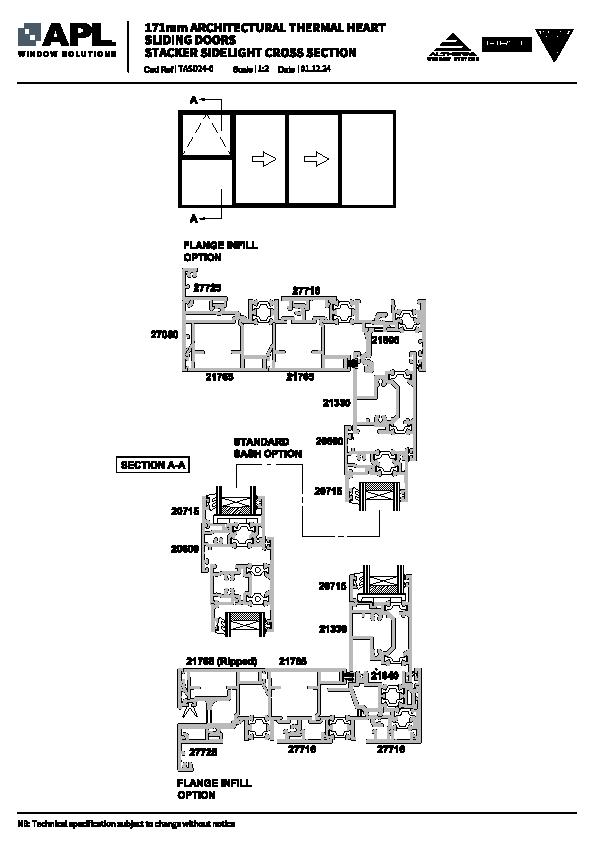

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Sidelight Vertical Cross Section

TASD24

dwg
dxf
pdf
TASD25 0 pdf

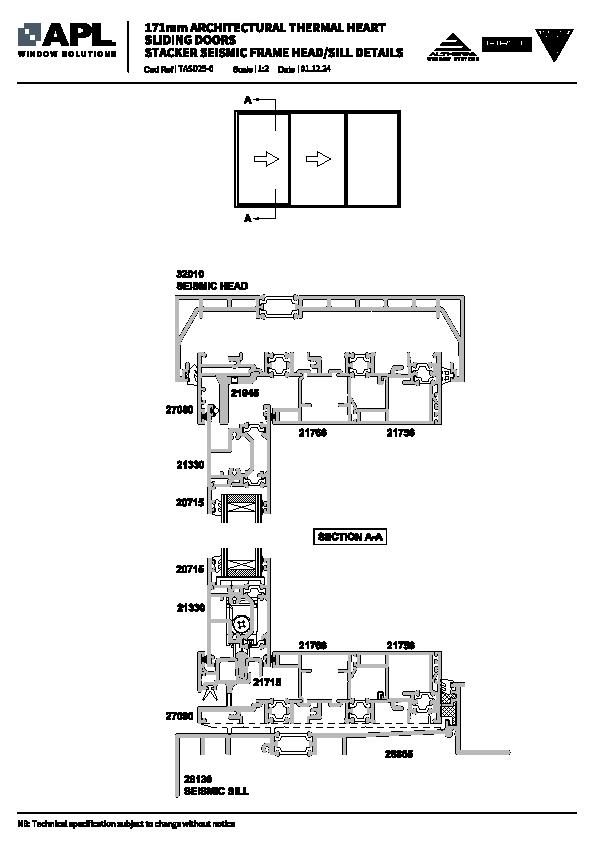

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Seismic Frame Head/Sill Details

TASD25

dwg
dxf
pdf
TASD26 0 pdf

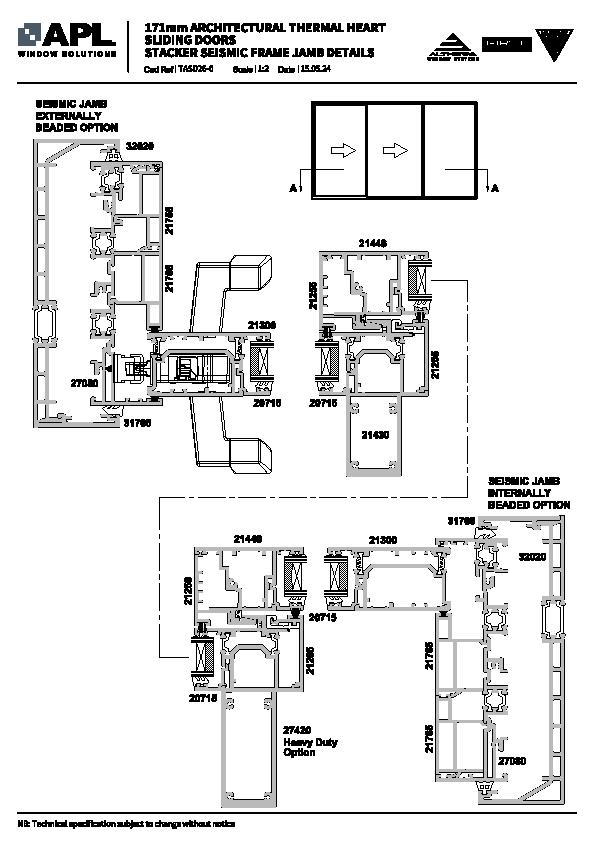

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Seismic Frame Jamb Details

TASD26

dwg
dxf
pdf

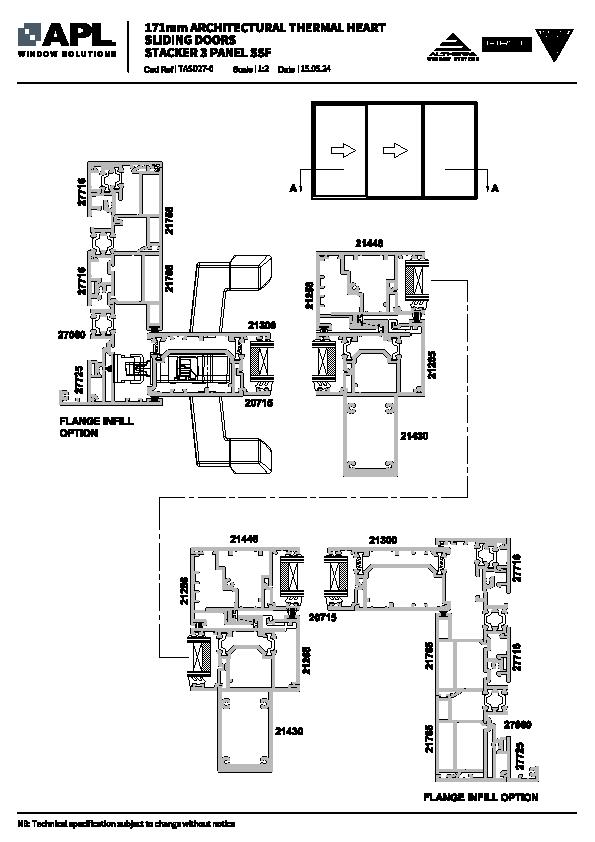

TASD27 0 pdf
171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 3 Panel SSF

TASD27

dwg
dxf
pdf

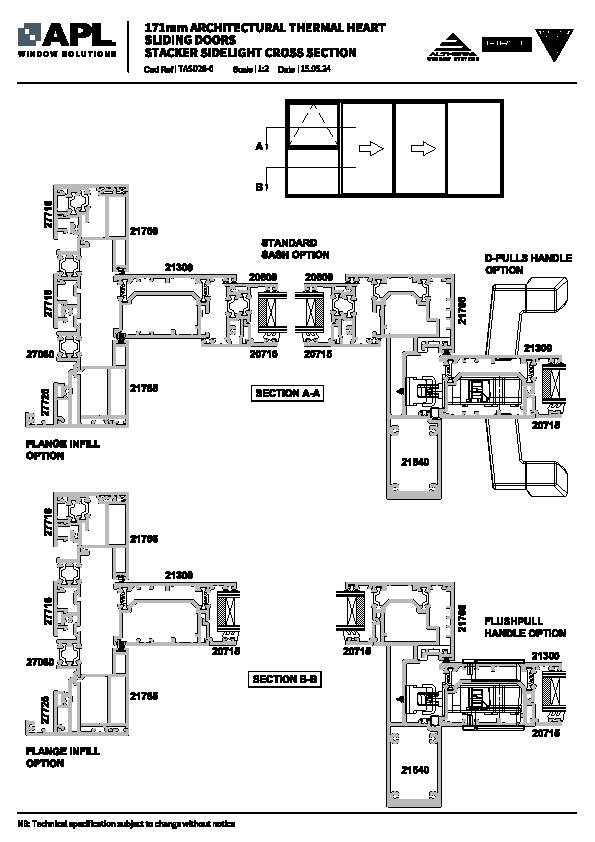

TASD28 0 pdf
171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker Sidelight Horizontal Cross Section

TASD28

dwg
dxf
pdf
TASD29 0 pdf

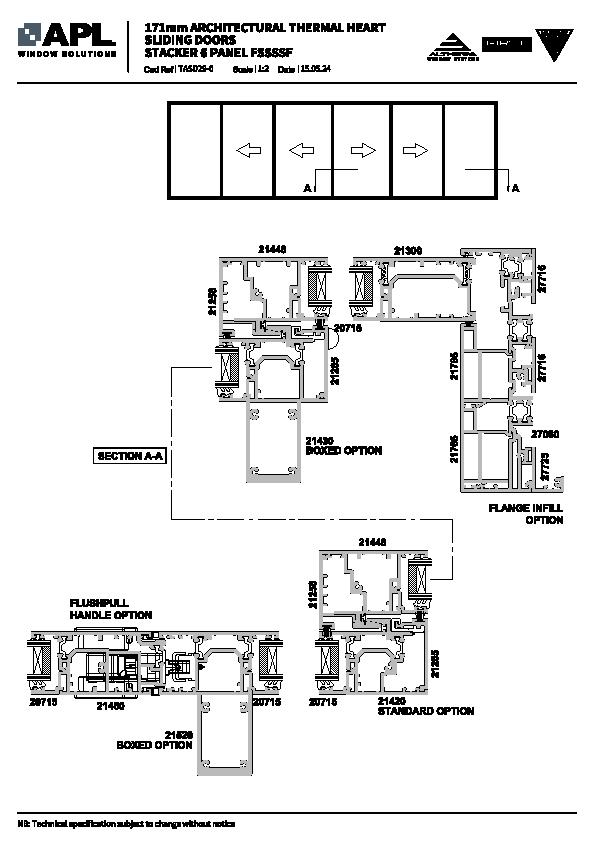

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 6 Panel FSSSSF

TASD29

dwg
dxf
pdf
TASD30 0 pdf

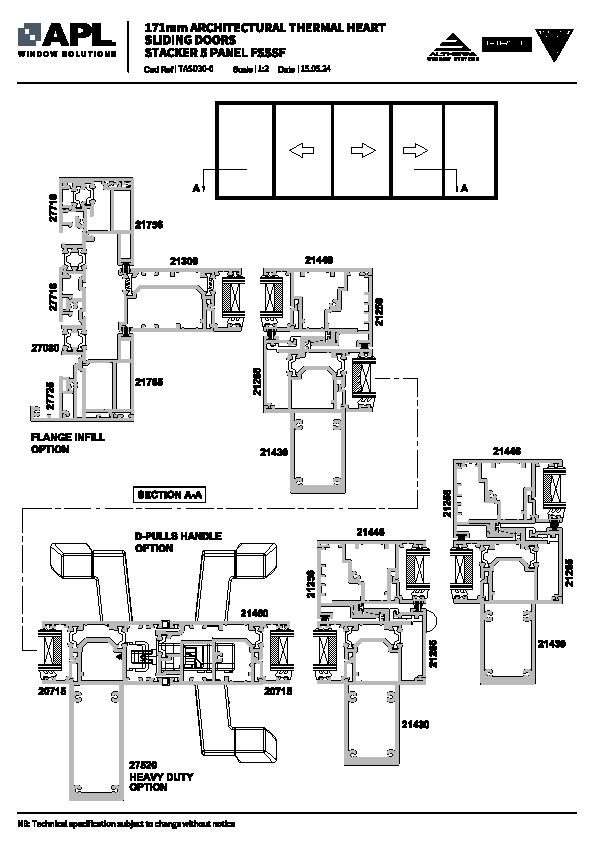

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 5 Panel FSSSF

TASD30

dwg
dxf
pdf
TASD31 0 pdf

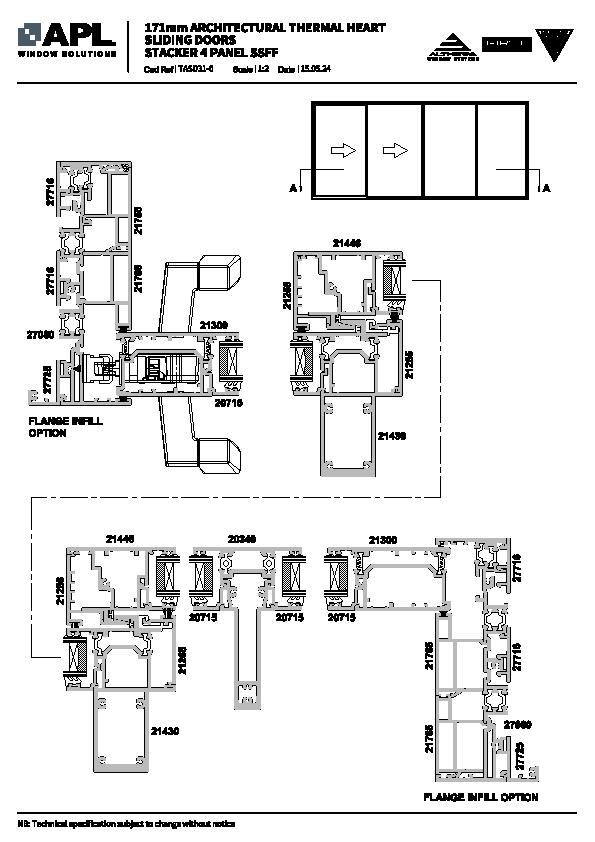

171mm APL Architectural Series ThermalHEART® Sliding Doors - Stacker 4 Panel SSFF

TASD31

dwg
dxf
pdf

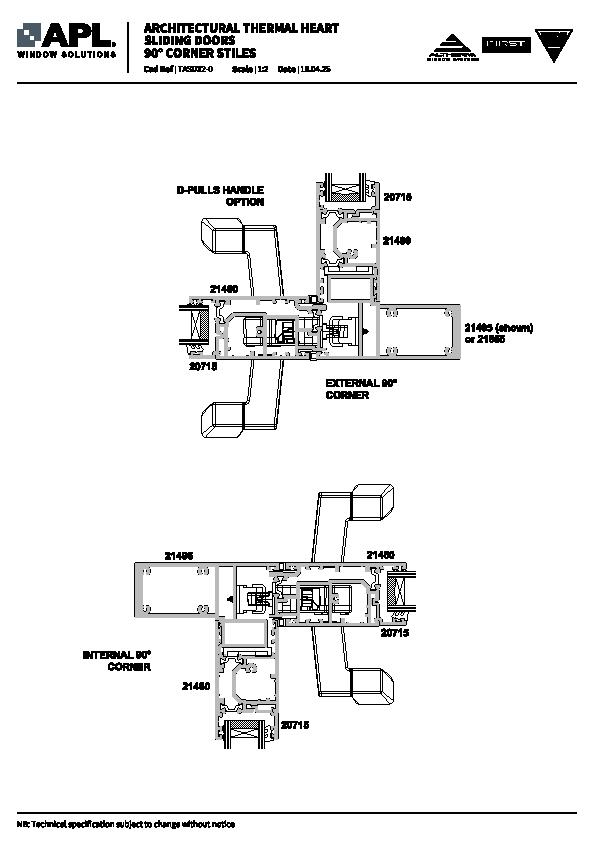

TASD32 0 pdf
APL Architectural Series ThermalHEART® Sliding Doors 90° Corner Stiles

TASD32

dwg
dxf
pdf

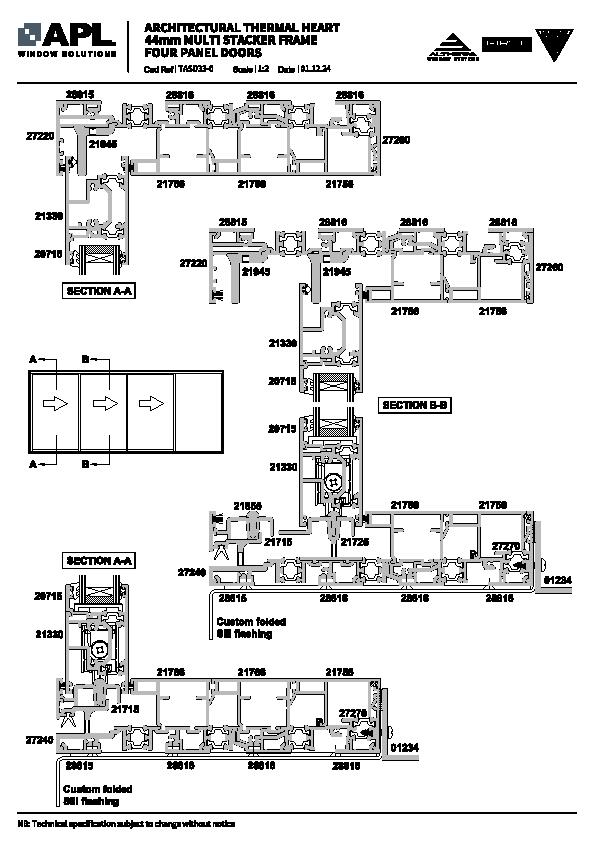

TASD33 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Four Panel

TASD33

dwg
dxf
pdf
TASD34 0 pdf

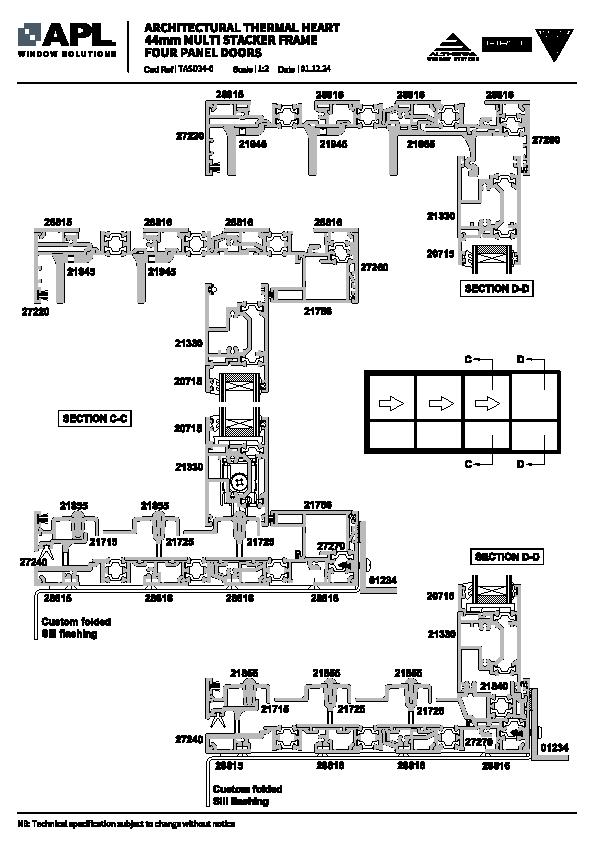

Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Four Panel

TASD34

dwg
dxf
pdf

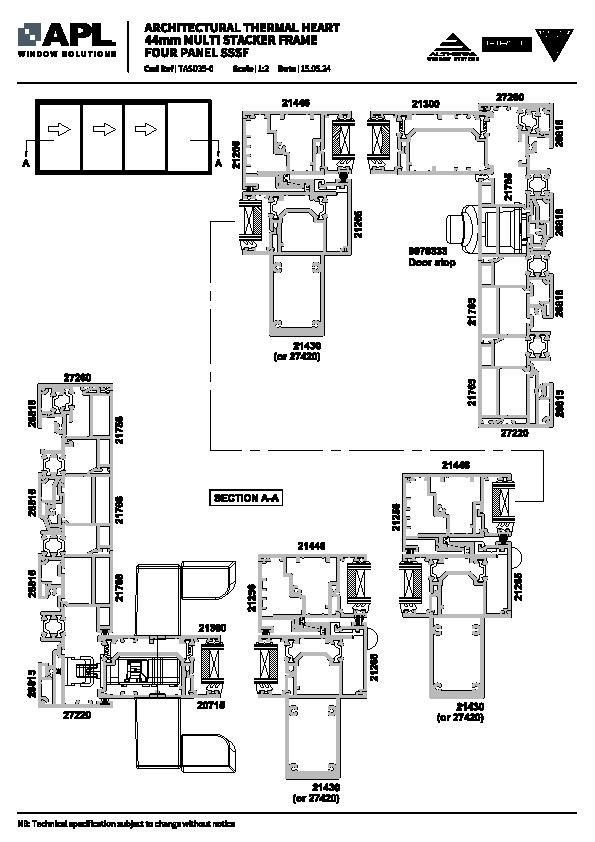

TASD35 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Four Panel

TASD35

dwg
dxf
pdf

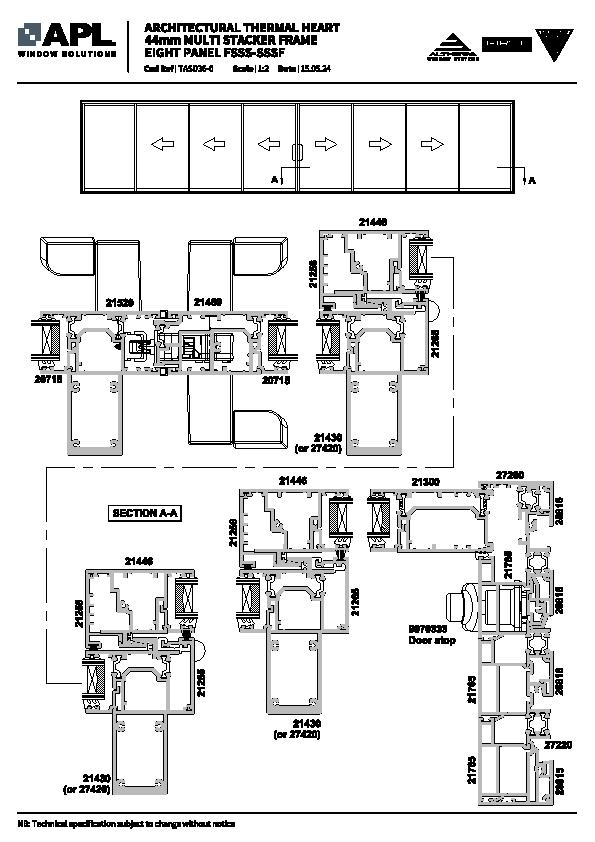

TASD36 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Eight Panel FSSS-SSSF

TASD36

dwg
dxf
pdf
TASD37 0 pdf

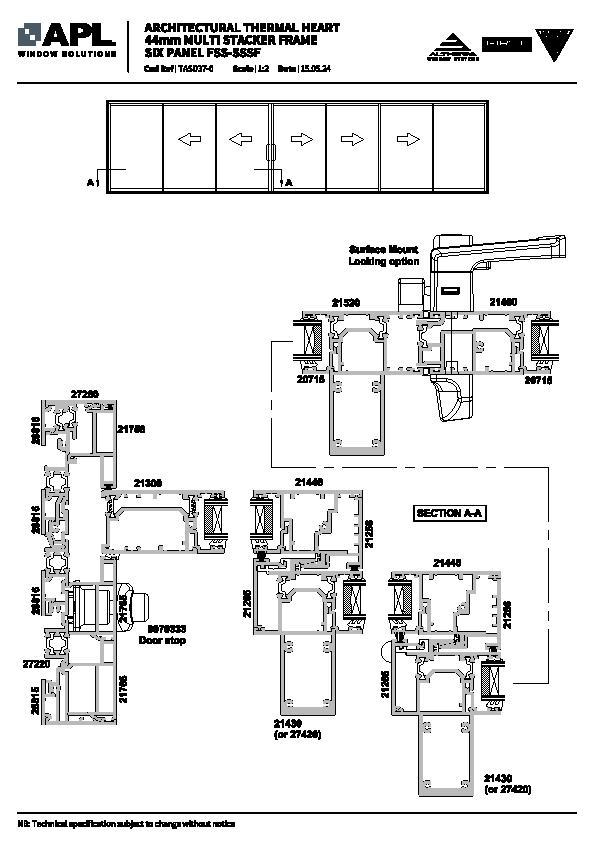

Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Six Panel FSS-SSSF

TASD37

dwg
dxf
pdf

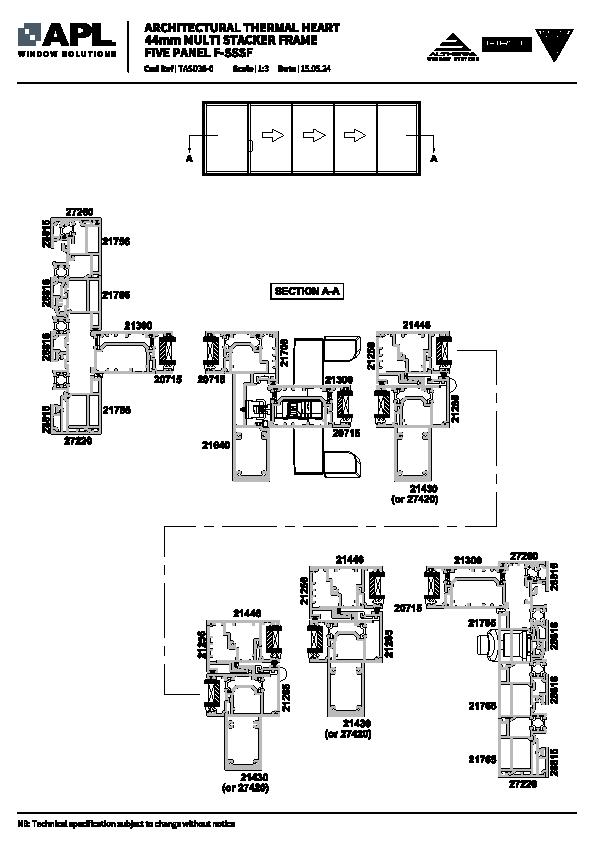

TASD38 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Five Panel FSSSF

TASD38

dwg
dxf
pdf

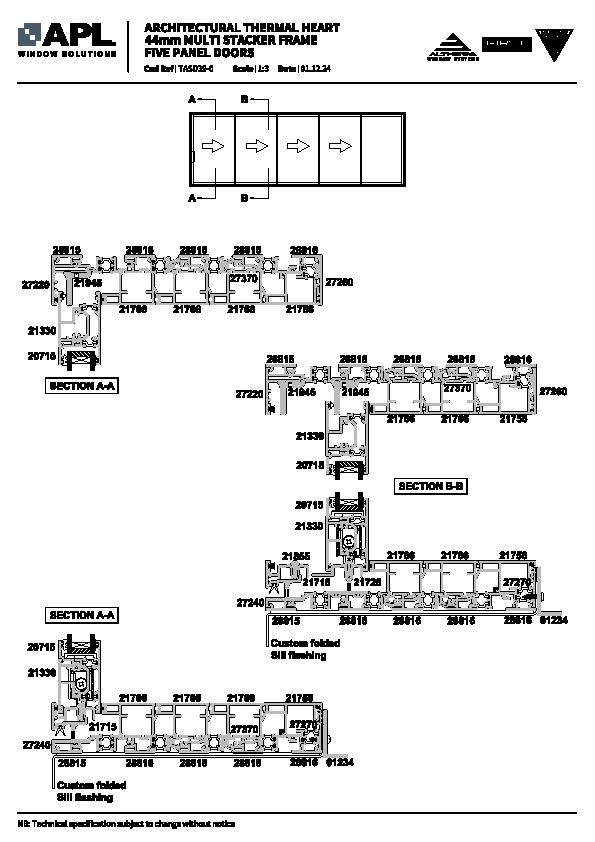

TASD39 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Five Panel SSSSF

TASD39

dwg
dxf
pdf
TASD40 0 pdf

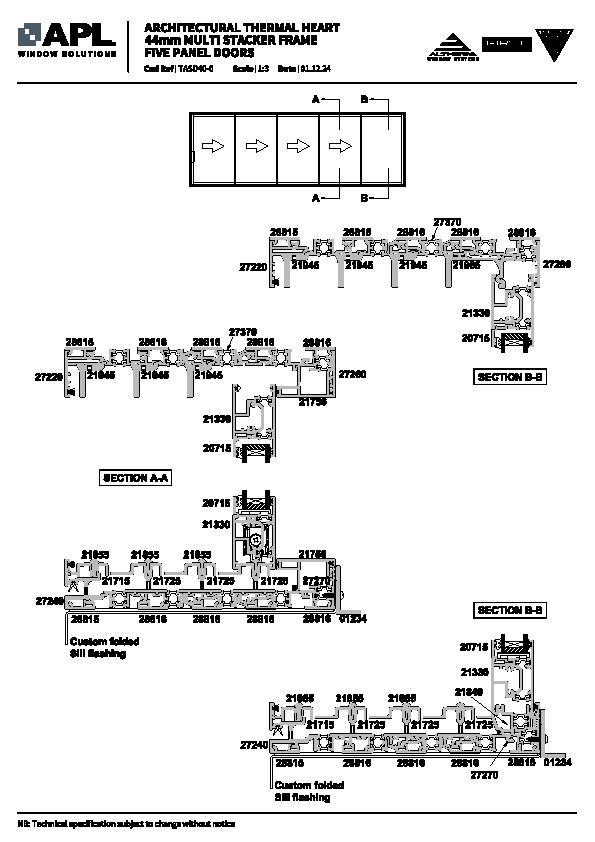

Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Five Panel SSSSF

TASD40

dwg
dxf
pdf

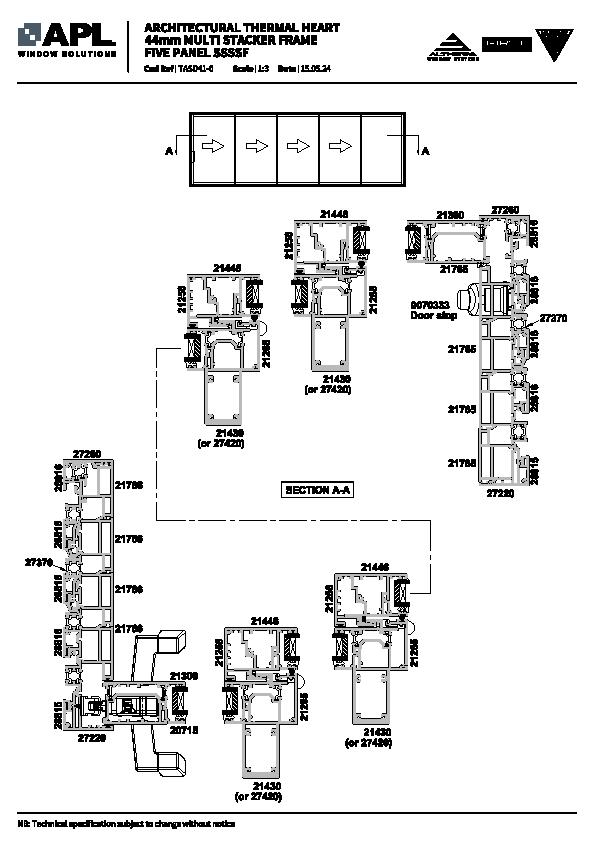

TASD41 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Five Panel SSSSF

TASD41

dwg
dxf
pdf
TASD42 0 pdf

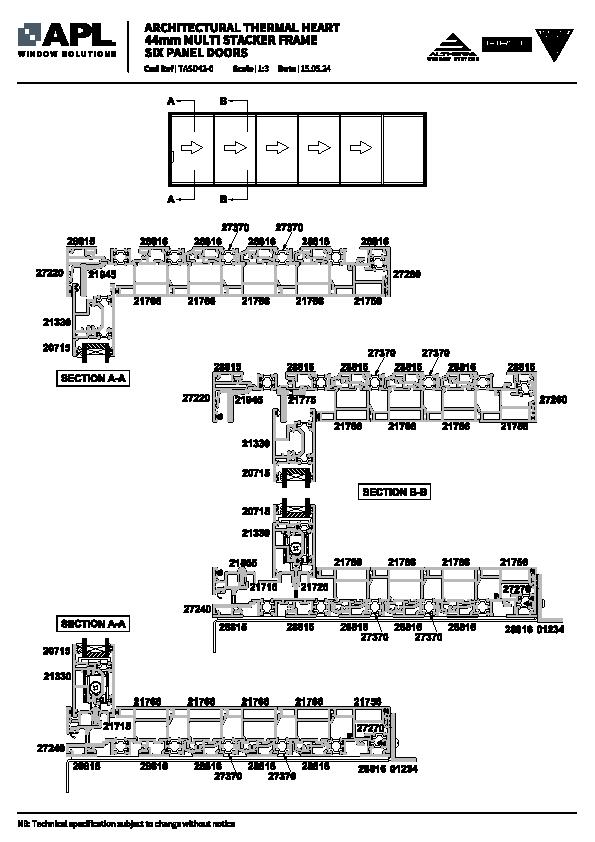

Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Six Panel SSSSSF

TASD42

dwg
dxf
pdf

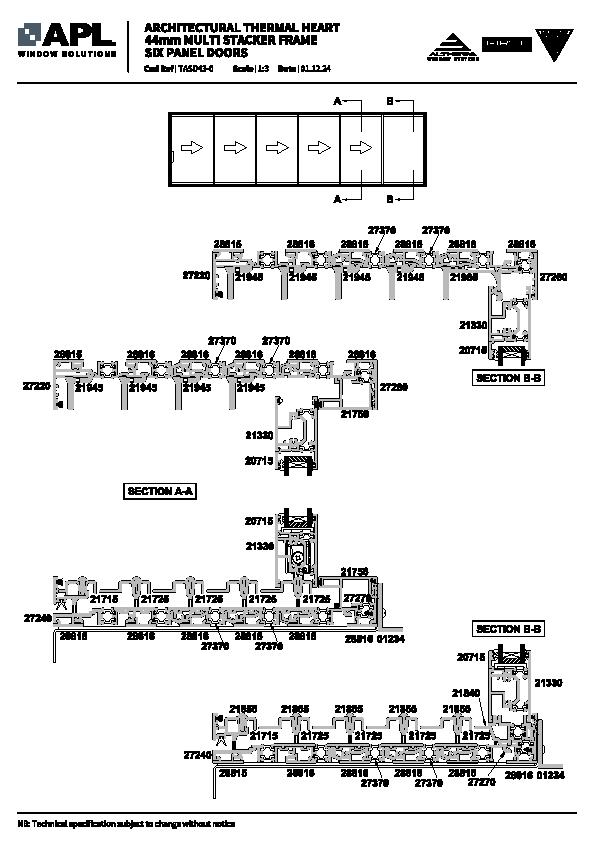

TASD43 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Six Panel

TASD43

dwg
dxf
pdf

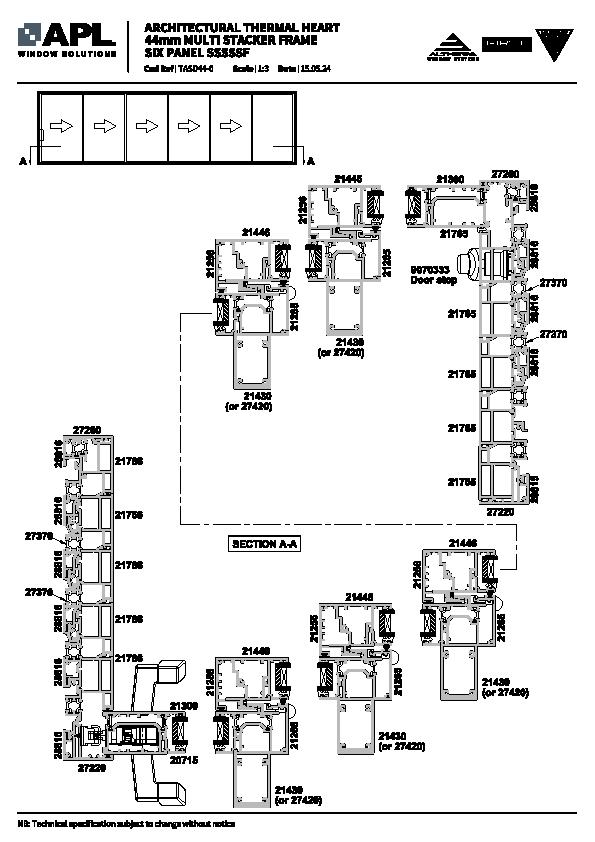

TASD44 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Multi Stacker Frame Six Panel SSSSSF

TASD44

dwg
dxf
pdf
TASD45 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 114mm Frame

TASD45

dwg
dxf
pdf

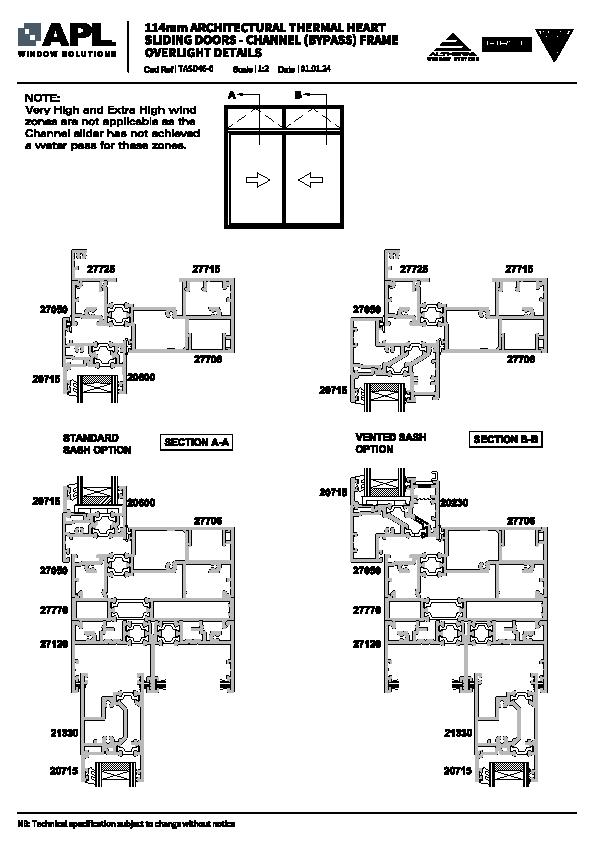

TASD46 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 114mm Frame with Overlight

TASD46

dwg
dxf
pdf
TASD47 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 114mm Frame 2 Panel

TASD47

dwg
dxf
pdf

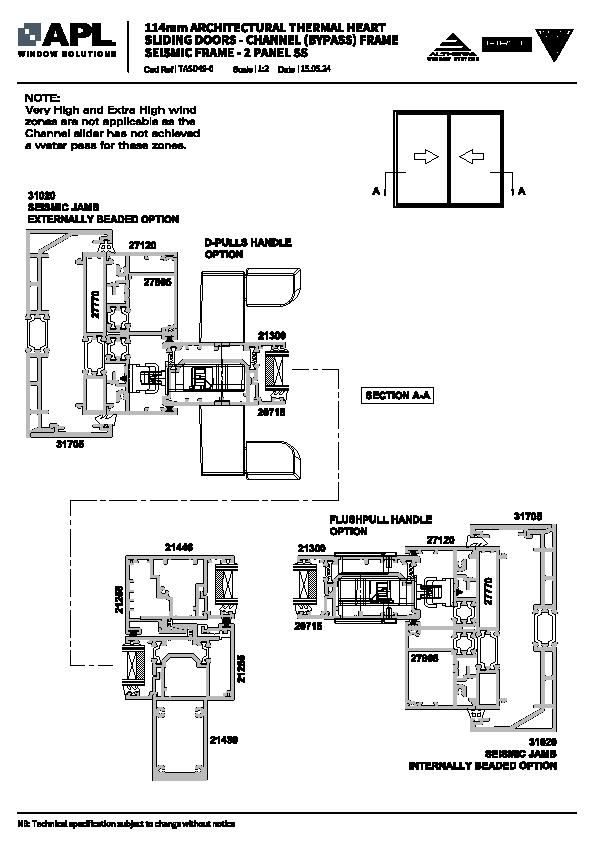

TASD48 0 pdf

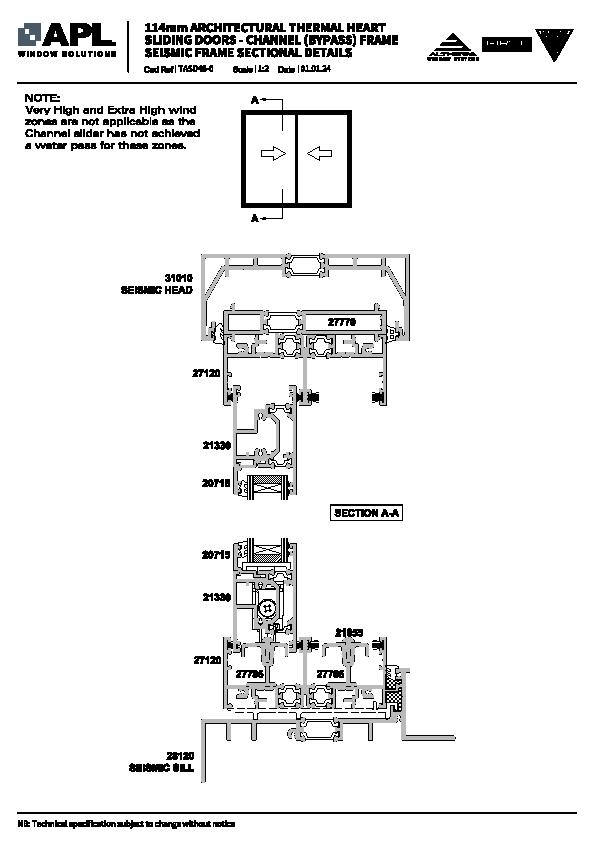

Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 114mm Seismic Frame

TASD48

dwg
dxf
pdf
TASD49 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 114mm Seismic Frame 2 Panel

TASD49

dwg
dxf
pdf

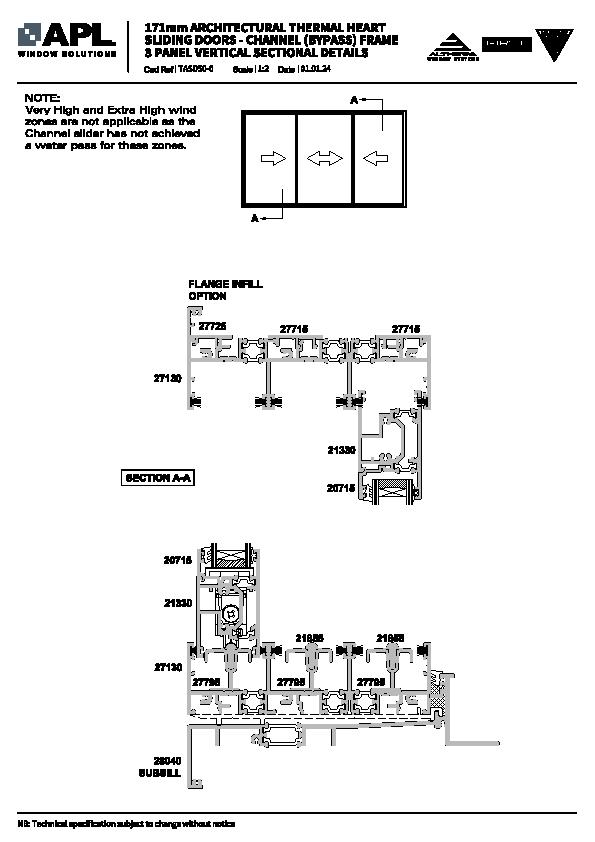

TASD50 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 171mm Frame 3 Panel

TASD50

dwg
dxf
pdf
TASD51 0 pdf

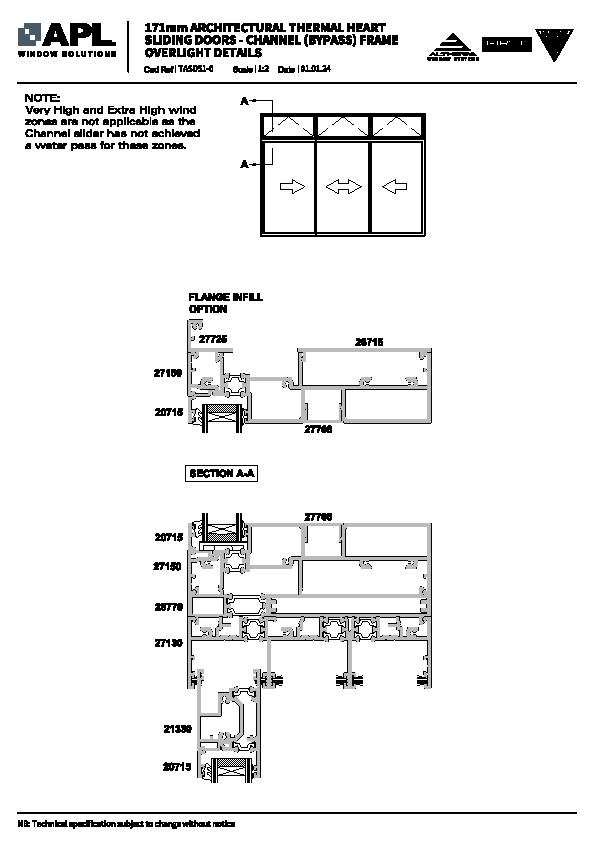

Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 171mm Frame with Overlight

TASD51

dwg
dxf
pdf

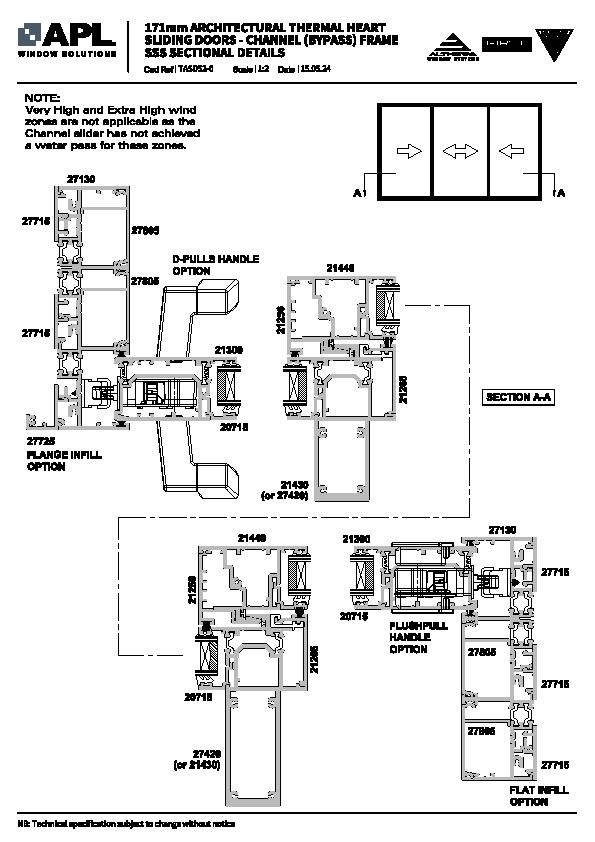

TASD52 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 171mm Frame

TASD52

dwg
dxf
pdf

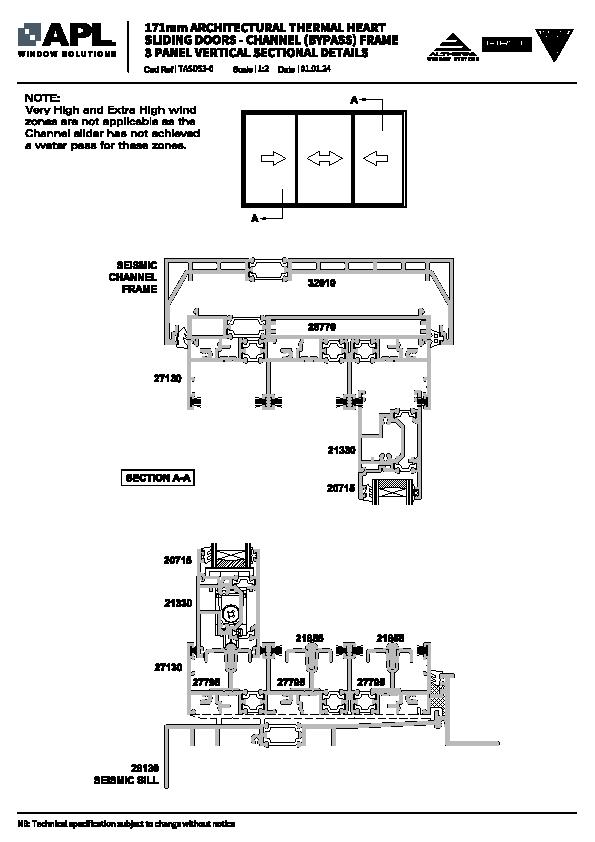

TASD53 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 171mm Seismic Frame 3 Panel

TASD53

dwg
dxf
pdf

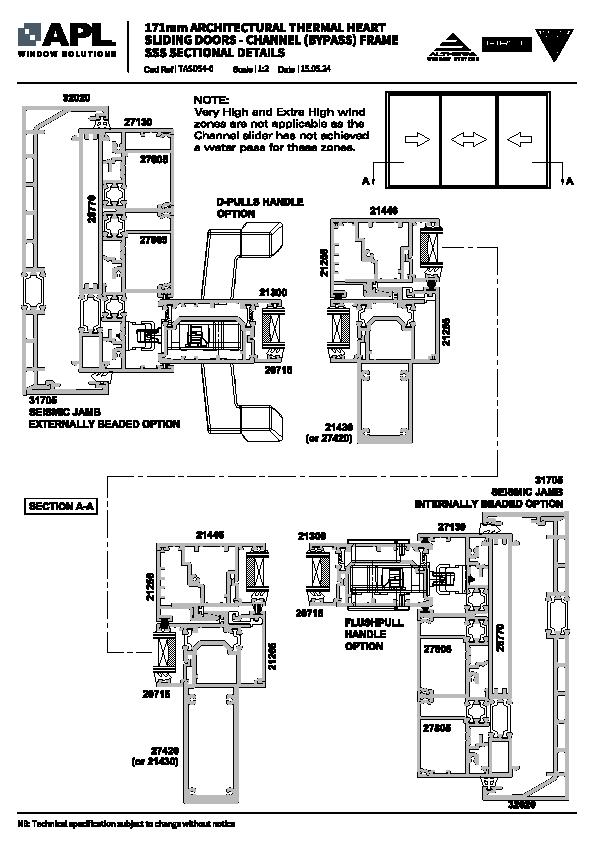

TASD54 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 171mm Seismic Frame

TASD54

dwg
dxf
pdf

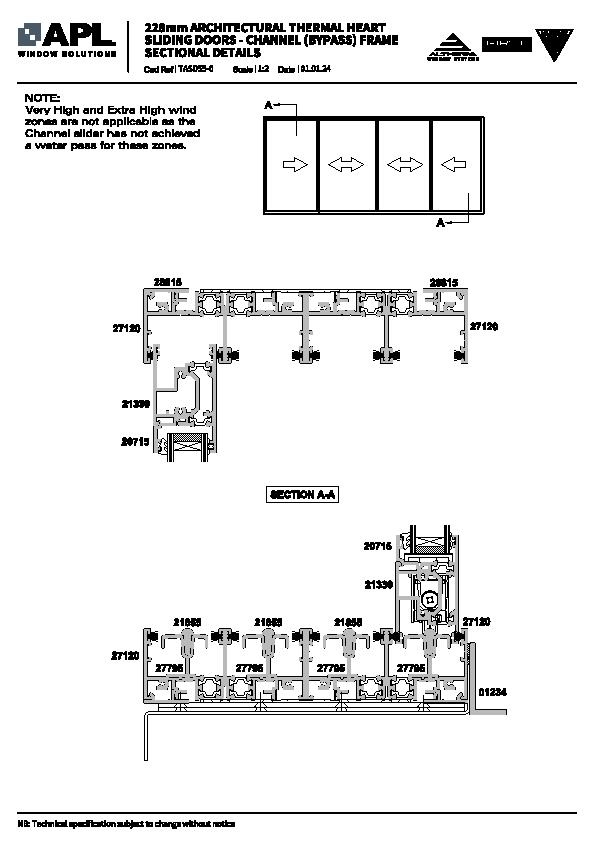

TASD55 0 pdf

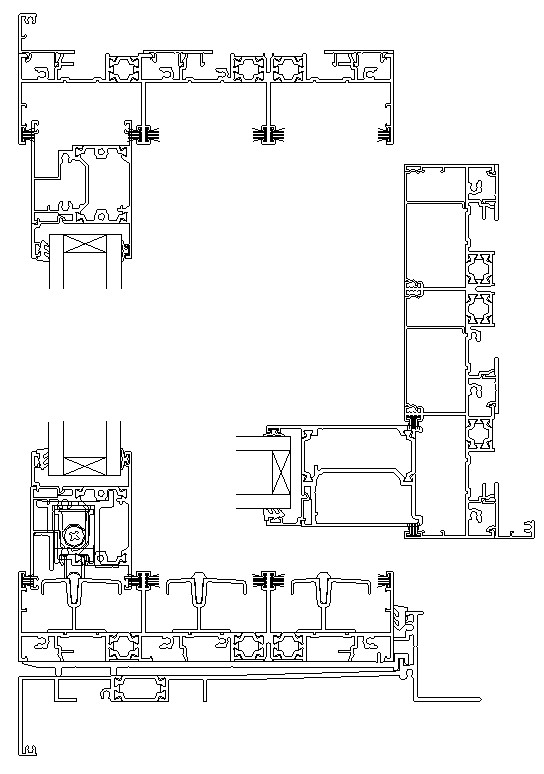

Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 228mm Frame

TASD55

dwg
dxf
pdf

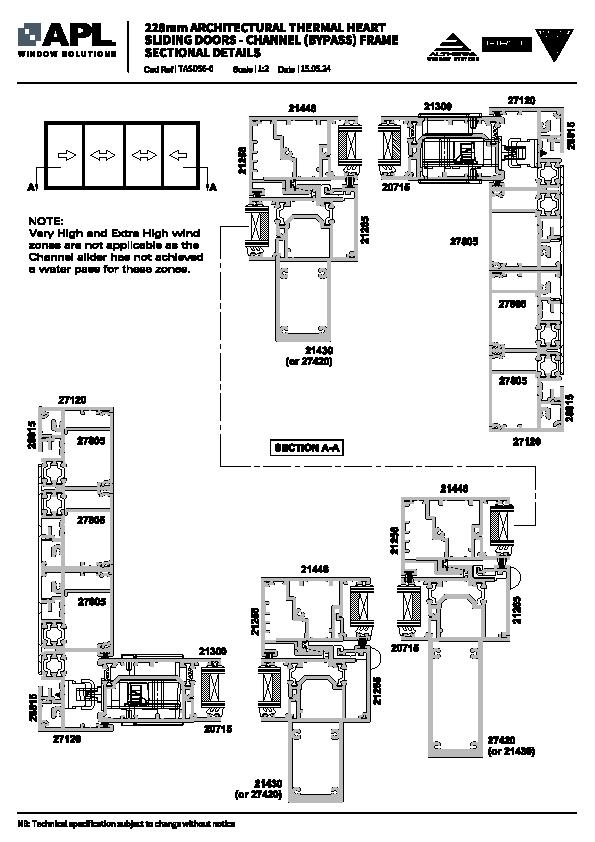

TASD56 0 pdf
Architectural Series ThermalHEART® Sliding Doors - 44mm Channel Bypass 228mm Frame

TASD56

dwg
dxf
pdf
Installation Details
View full
TAOW1P pdf v3
APL Architectural Series ThermalHEART® - Overwall 1 Panel Installation Detail

TAOW1P

dwg
pdf
TAOW2P pdf v3
APL Architectural Series ThermalHEART® - Overwall 2 Panel Installation Detail

TAOW2P

dwg
pdf

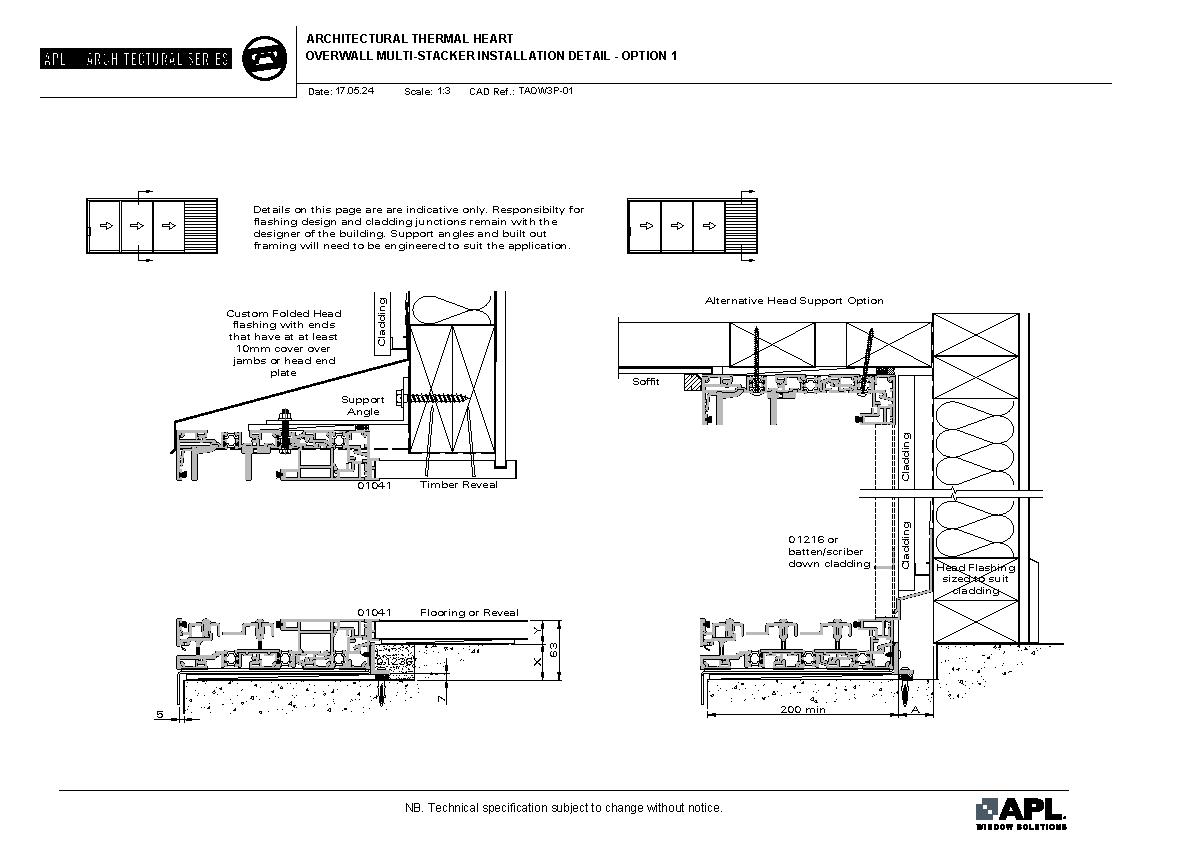

TAOW3P pdf
APL Architectural Series ThermalHEART® - Overwall 3 Panel Installation Detail

TAOW3P

dwg
pdf

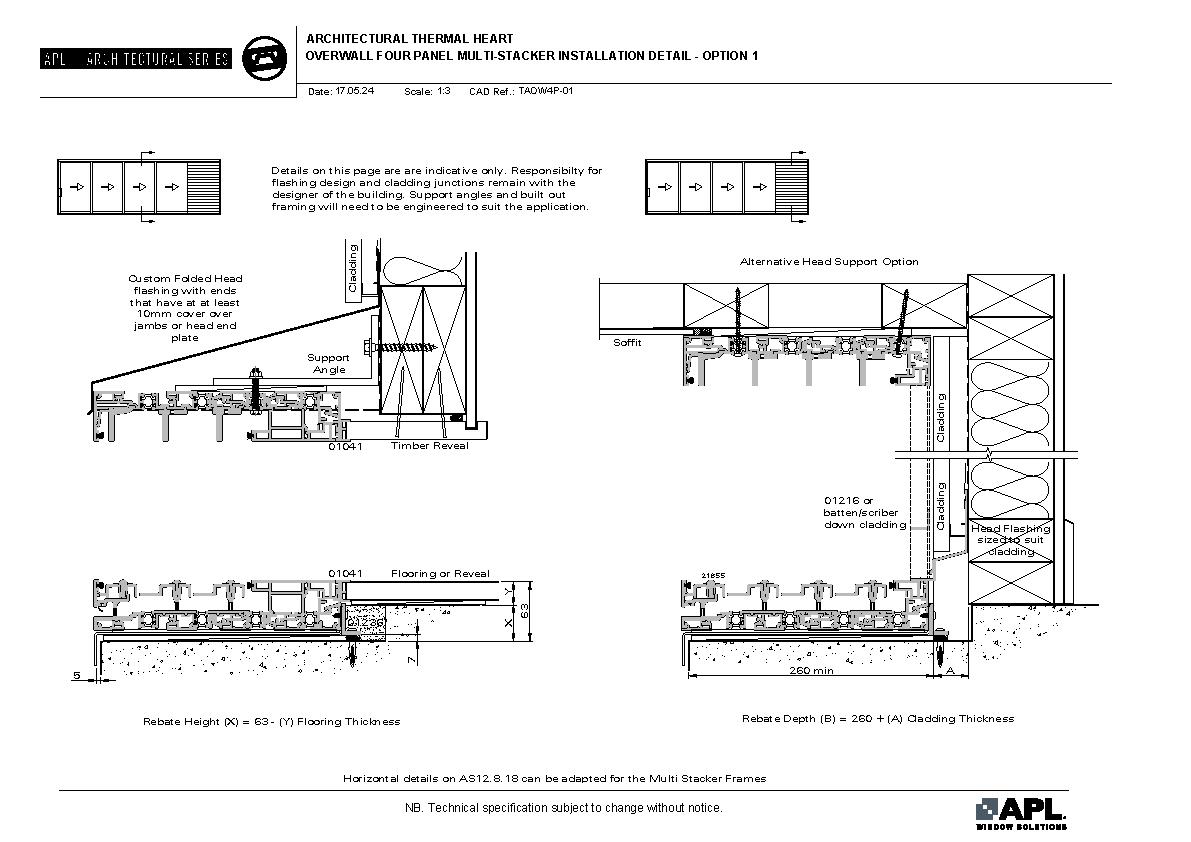

TAOW4P pdf
APL Architectural Series ThermalHEART® - Overwall 4 Panel Installation Detail

TAOW4P

dwg
pdf
TA114SDBB pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Board & Batten

TA114SDBB

dwg
pdf
TA114SDBV pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Brick Veneer

TA114SDBV

dwg
pdf
TA114SDBW pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Bevelback Weatherboard

TA114SDBW

dwg
pdf
TA114SDFS pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Flat Sheet

TA114SDFS

dwg
pdf
TA114SDPM pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Profile Metal

TA114SDPM

dwg
pdf
TA114SDRW pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Rusticated Weatherboard

TA114SDRW

dwg
pdf
TA114SDST pdf v3
APL Architectural Series ThermalHEART® - 114mm Sliding Door on Stucco

TA114SDST

dwg
pdf

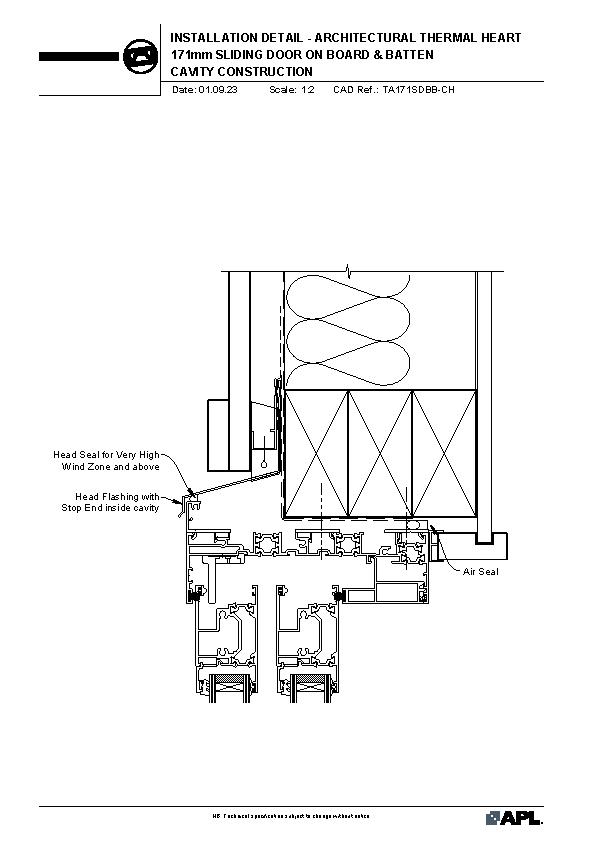

TA171SDBB pdf
APL Architectural Series ThermalHEART® - 171mm Sliding Door on Board & Batten

TA171SDBB

dwg
pdf
TA171SDBV pdf

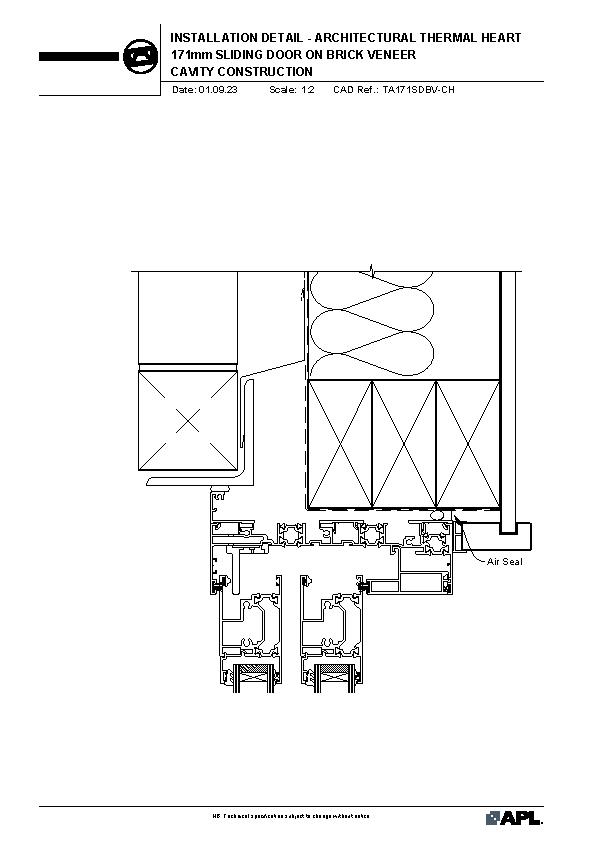

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Brick Veneer

TA171SDBV

dwg
pdf
TA171SDBW pdf v3
APL Architectural Series ThermalHEART® - 171mm Sliding Door on Bevelback Weatherboard

TA171SDBW

dwg
pdf

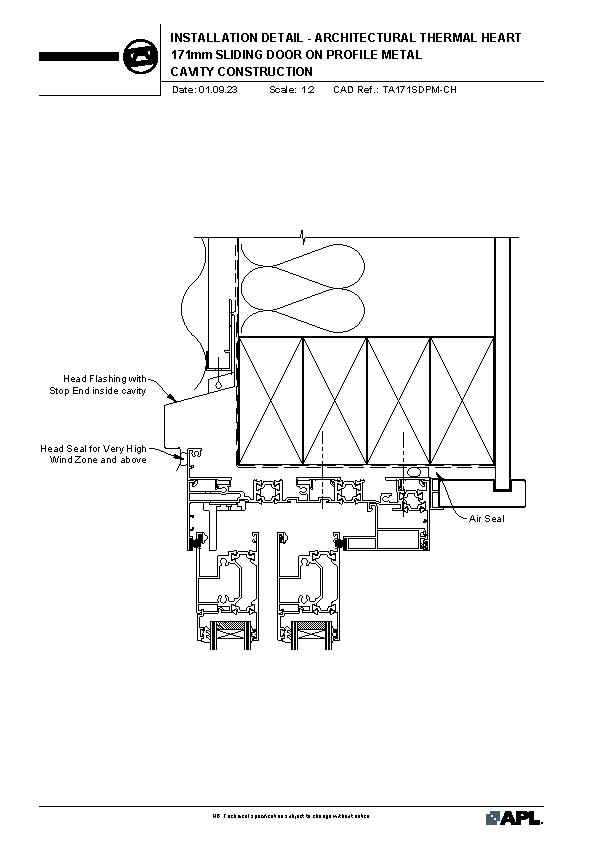

TA171SDPM pdf
APL Architectural Series ThermalHEART® - 171mm Sliding Door on Profile Metal

TA171SDPM

dwg
pdf
TA171SDRW pdf

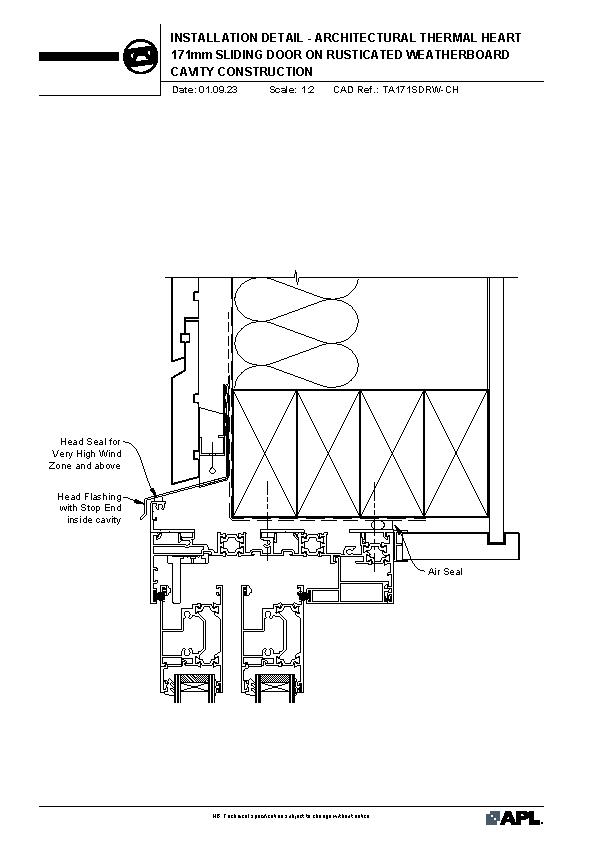

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Rusticated Weatherboard

TA171SDRW

dwg
pdf

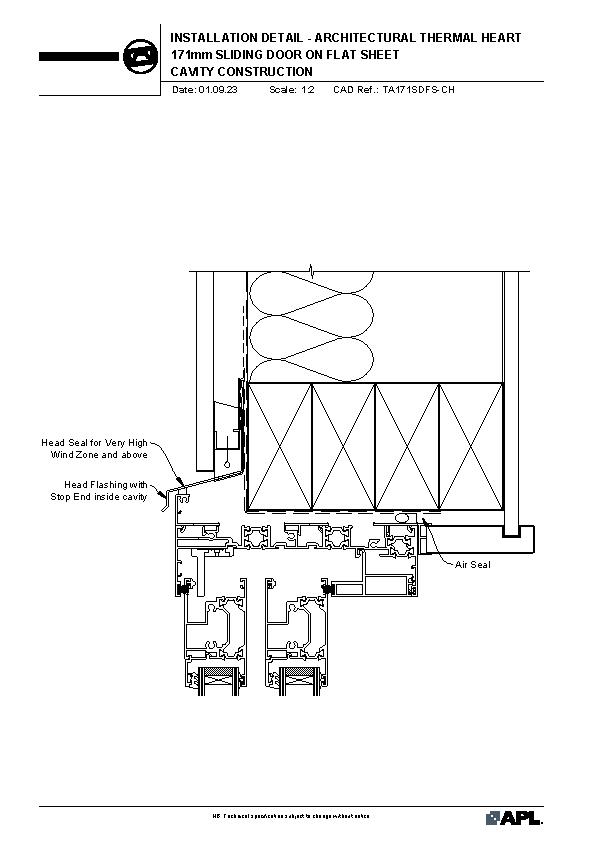

TA171SDFS pdf
APL Architectural Series ThermalHEART® - 171mm Sliding Door on Flat Sheet

TAS171SDFS

dwg
pdf
TA171SDST pdf

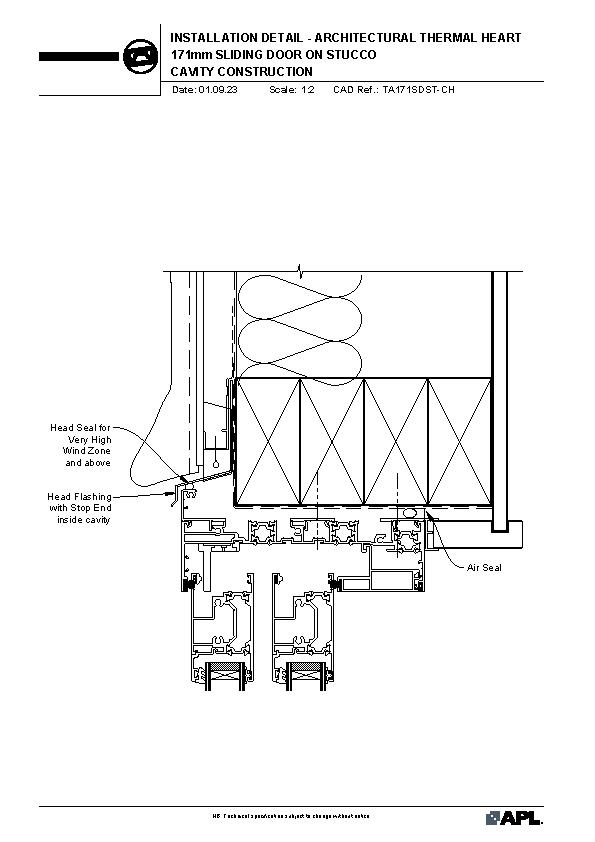

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Stucco

TAS171SDST

dwg
pdf

Vantage Windows & Doors' locally made joinery is found in more New Zealand homes than any other brand, and Vantage are always refining and innovating solutions to meet changing needs.

Product Enquiries

News from VANTAGE Windows & Doors

Tōtara Haumaru: North Shore Hospital with Distinctive Design Touches
Tōtara Haumaru: North Shore Hospital with Distinctive Design Touches
VANTAGE Windows & Doors
November 2024 Case Studies
Walking on Sunshine with Vantage Windows & Doors
Walking on Sunshine with Vantage Windows & Doors
VANTAGE Windows & Doors
October 2024 Case Studies
APL Outlines Commitment to Sustainability
APL Outlines Commitment to Sustainability
VANTAGE Windows & Doors
August 2024 Product News
View all news

Popular Products from VANTAGE Windows & Doors

APL Architectural Series Sliding Doors
APL Architectural Series Sliding Doors
VANTAGE Windows & Doors
Metro Series ThermalHEART® Sliding Doors
Metro Series ThermalHEART® Sliding Doors
VANTAGE Windows & Doors
Metro Series ThermalHEART® Awning & Casement Windows
Metro Series ThermalHEART® Awning & Casement Windows
VANTAGE Windows & Doors

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
