Revit Details Now Available for Metro Series Windo

These models in RFA format have been added to the online specifier manuals for Altherm, First and Vantage on the EBOSS website.

APL Window Solutions has assembled a range of window and door configurations as 2D and 3D objects. These join other online drawing formats offered — DWF, DWG and DXF.

The 3D objects are fully parametric and can be stretched to the required sizes. They come complete with basic product information attached. The 2D objects can be inserted directly into detail drawings. As the models have been created in-house, they can be used with confidence in relation to accuracy and functionality.

Work is currently underway to complete Revit details for the APL Architectural Series. Other product ranges will follow.

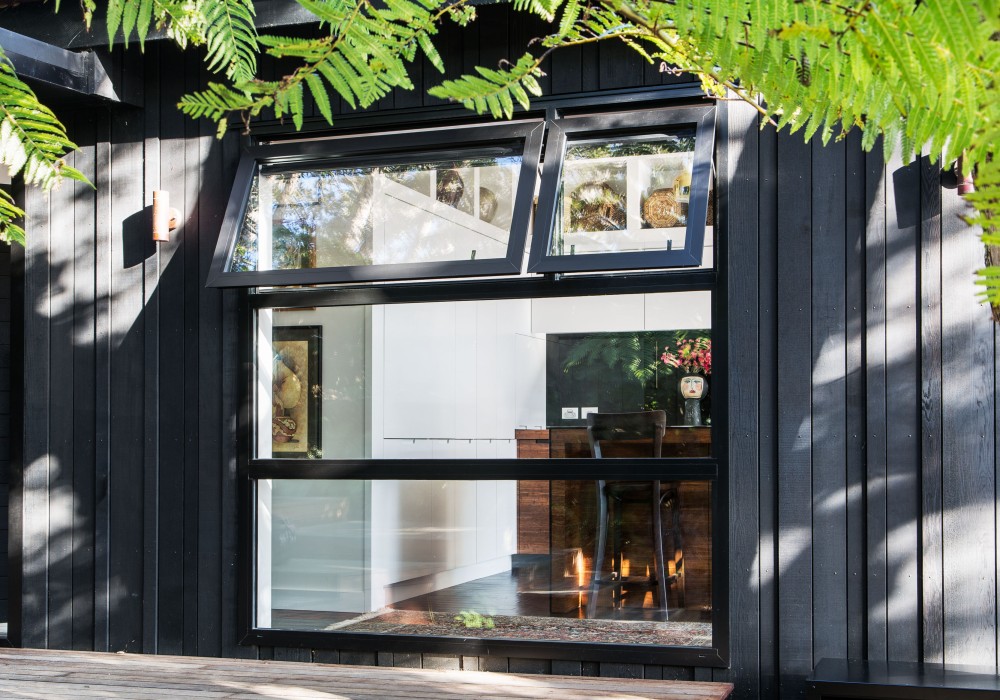

Metro Series Awning & Casement Windows

VANTAGE Windows & Doors

View Product

A non-facing sash is used as standard to enhance the range aesthetics emphasising clean, flat surfaces for a modern appearance.

Suitable for most residential environments in larger sizes
Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure.

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

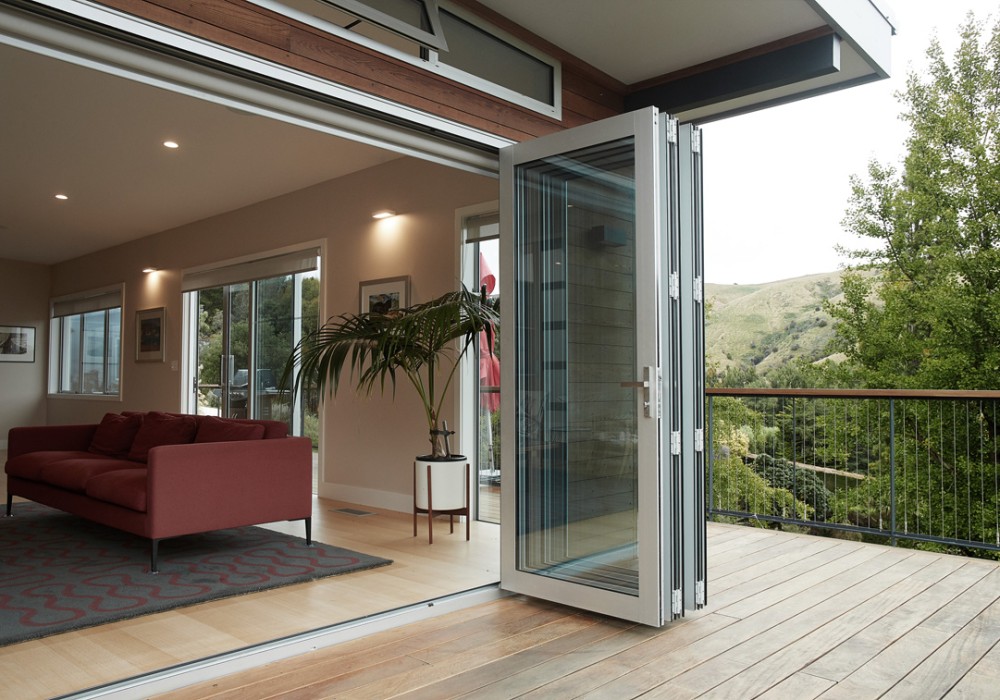

Metro Series Bi-Fold Doors & Windows

VANTAGE Windows & Doors

View Product

Both doors and windows use the same system, which is bottom-rolling with an in-frame track.

Suitable for broad residential use
Maximise views and ventilation but need to be monitored if windy conditions occur
Available in defined maximum sizes

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

Metro Series ThermalHEART® Awning & Casement Windows

VANTAGE Windows & Doors

View Product

Awning and casement windows have clean lines and a visual aesthetic that matches the entire product range.

Suitable for broad residential use, including in apartments and buildings over 10m in height
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

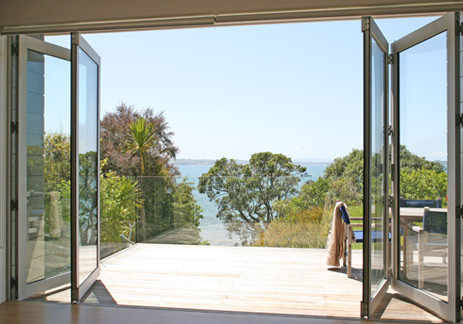

Metro Series ThermalHEART® Bi-Fold Doors & Windows

VANTAGE Windows & Doors

View Product

The bi-fold system is bottom rolling with an in-frame track for optimum panel support.

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

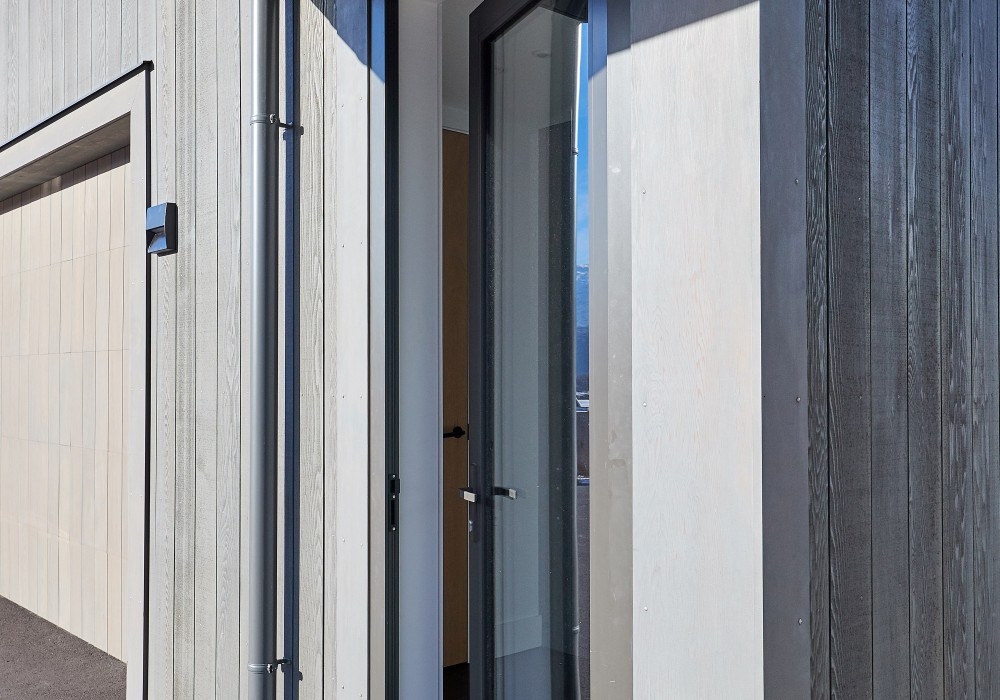

Metro Series ThermalHEART® Hinged & French Doors

VANTAGE Windows & Doors

View Product

These are available in open-in and open-out formats.

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

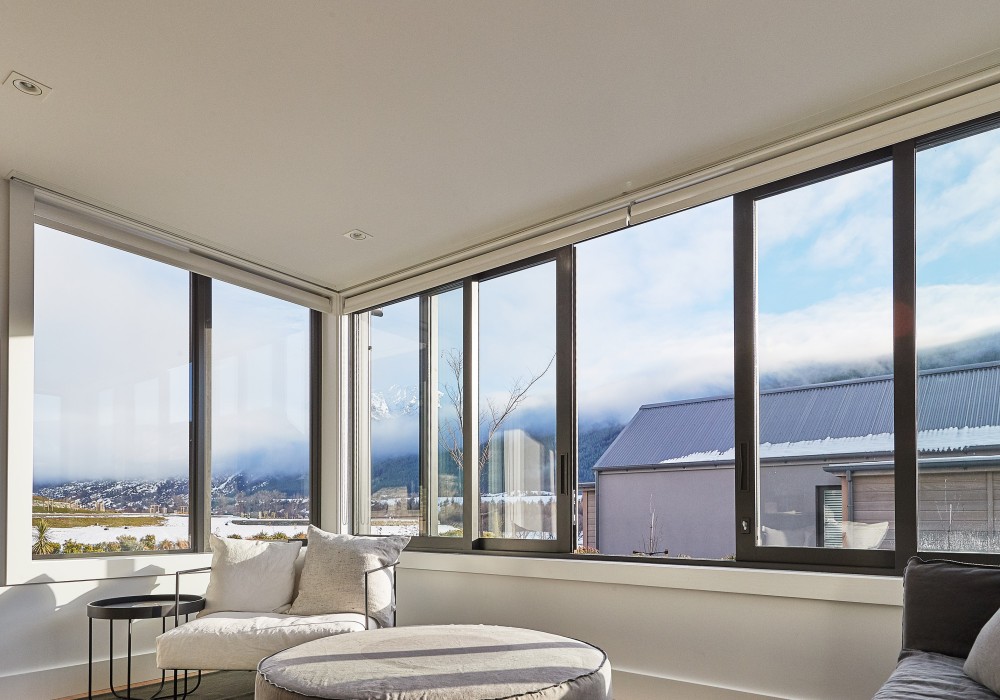

Metro Series ThermalHEART® Sliding Windows

VANTAGE Windows & Doors

View Product

Sliding windows use the sliding door system, which has slender sightlines.

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses
