Metro Series Bi-Fold Doors & Windows
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore
Metro Bi folds Algies IMG 5601 Copy

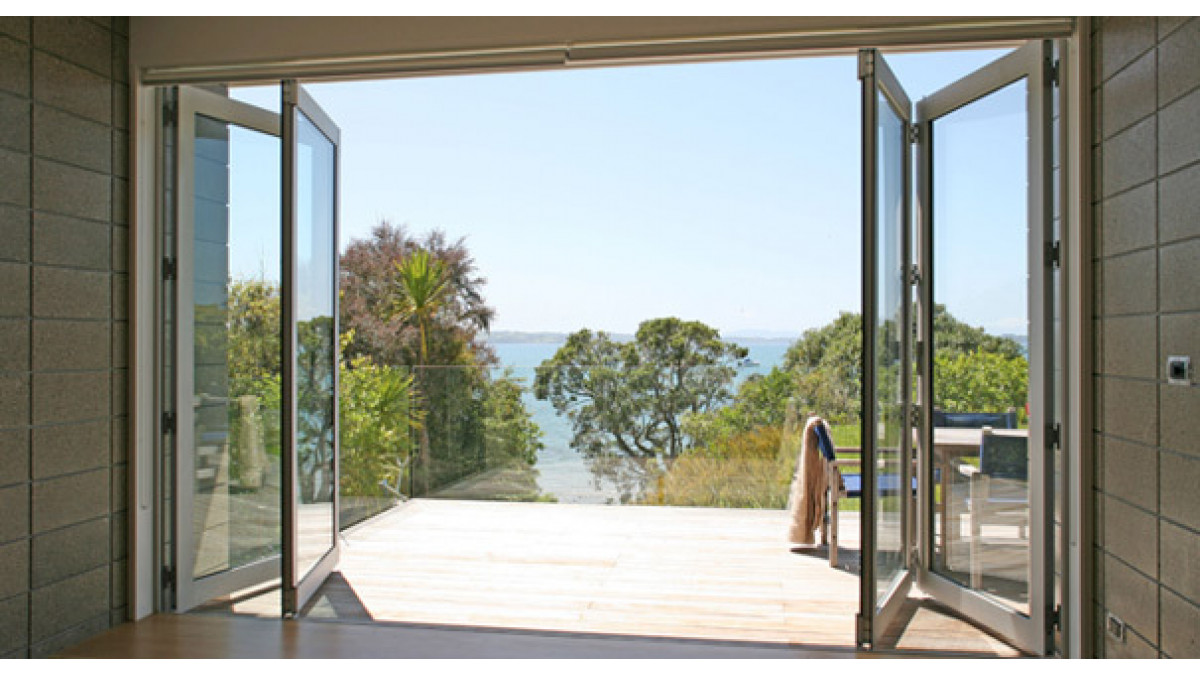

Bifold doors opening up to frame the view
118 Metro BW Sill + Roller copy

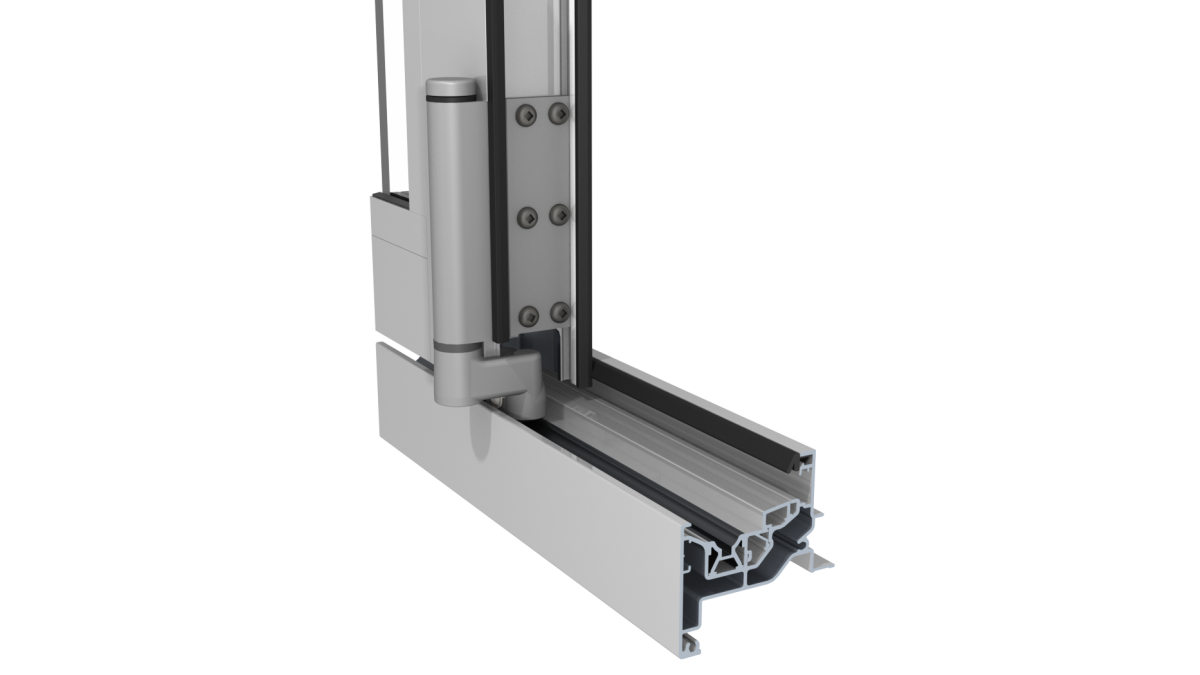

Sill track and panel roller

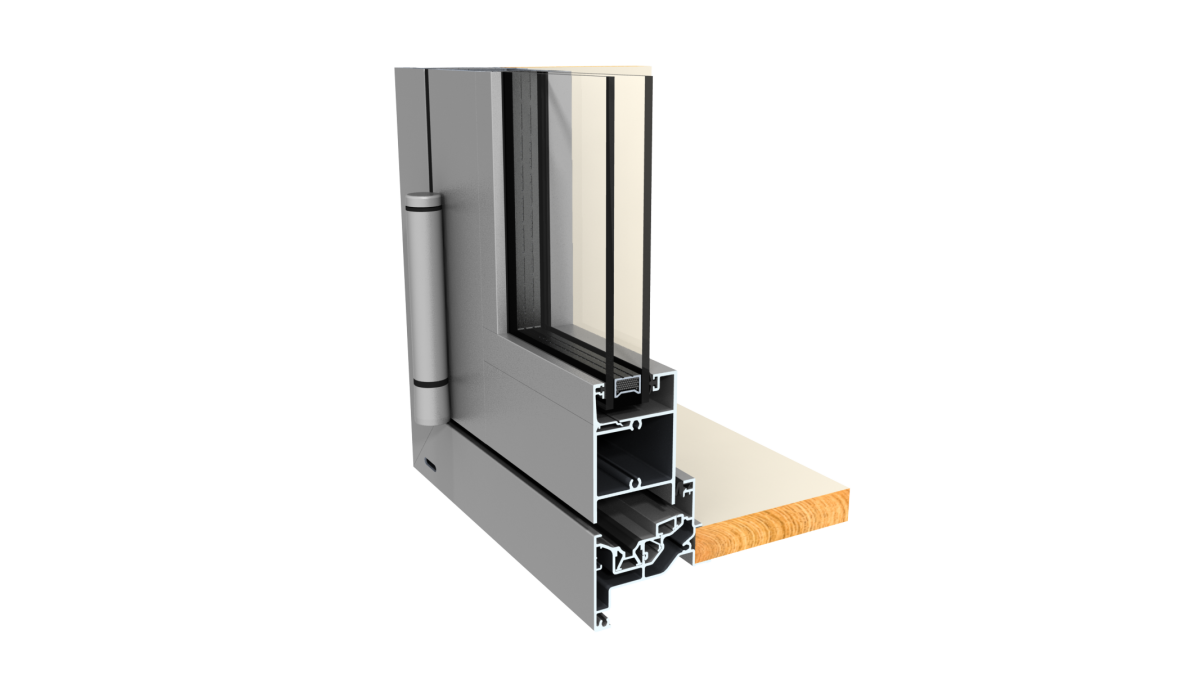

117 Metro BW Corner
Sill frame and panel section

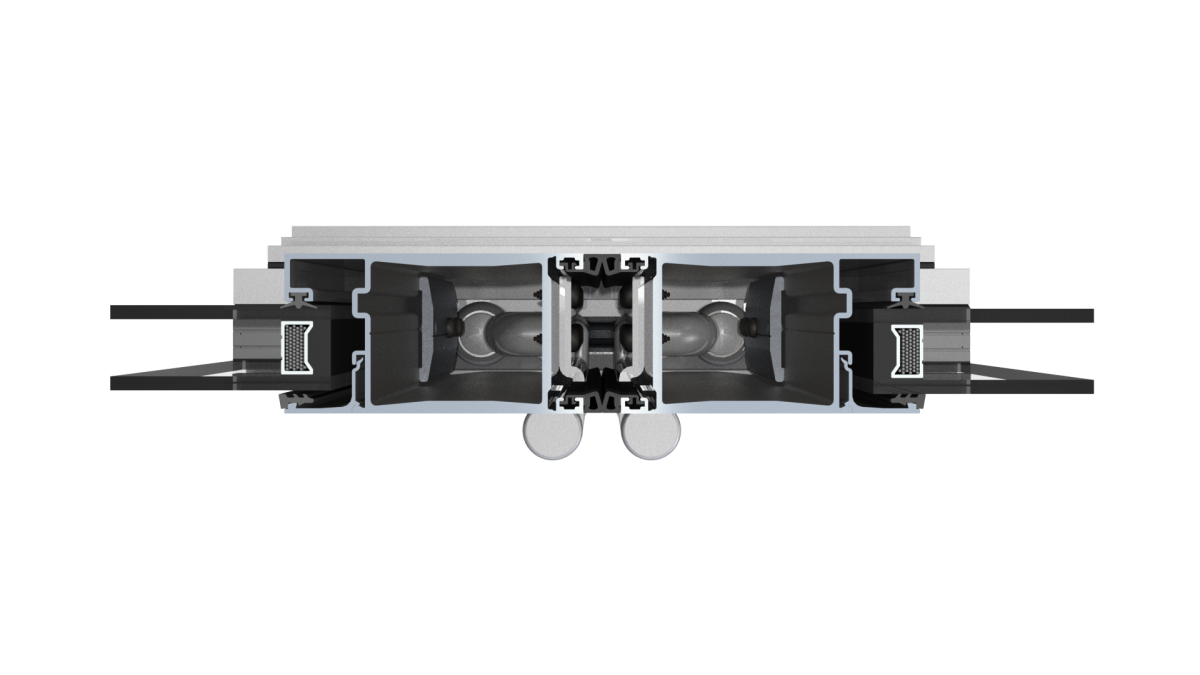

121 Metro BW Meeting Stiles copy
Bi-fold window meeting stiles

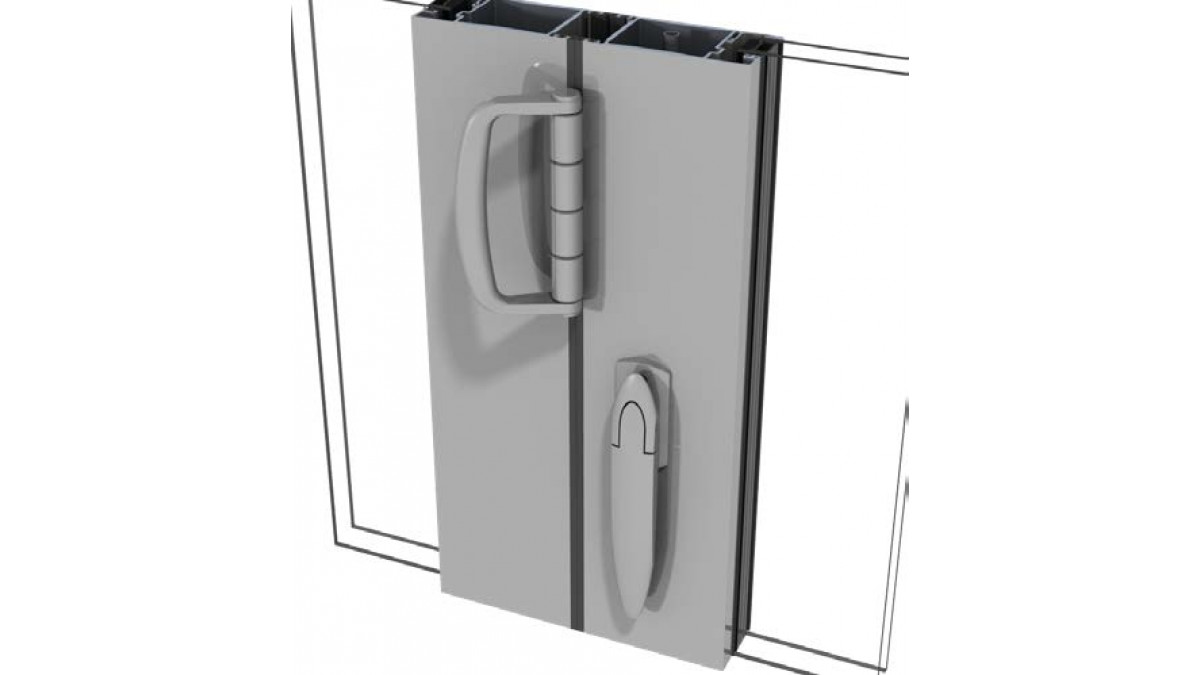

Bi fold hinged stiles and Miro handle
Bi-fold hinged stiles and Miro handle with hinge/handle

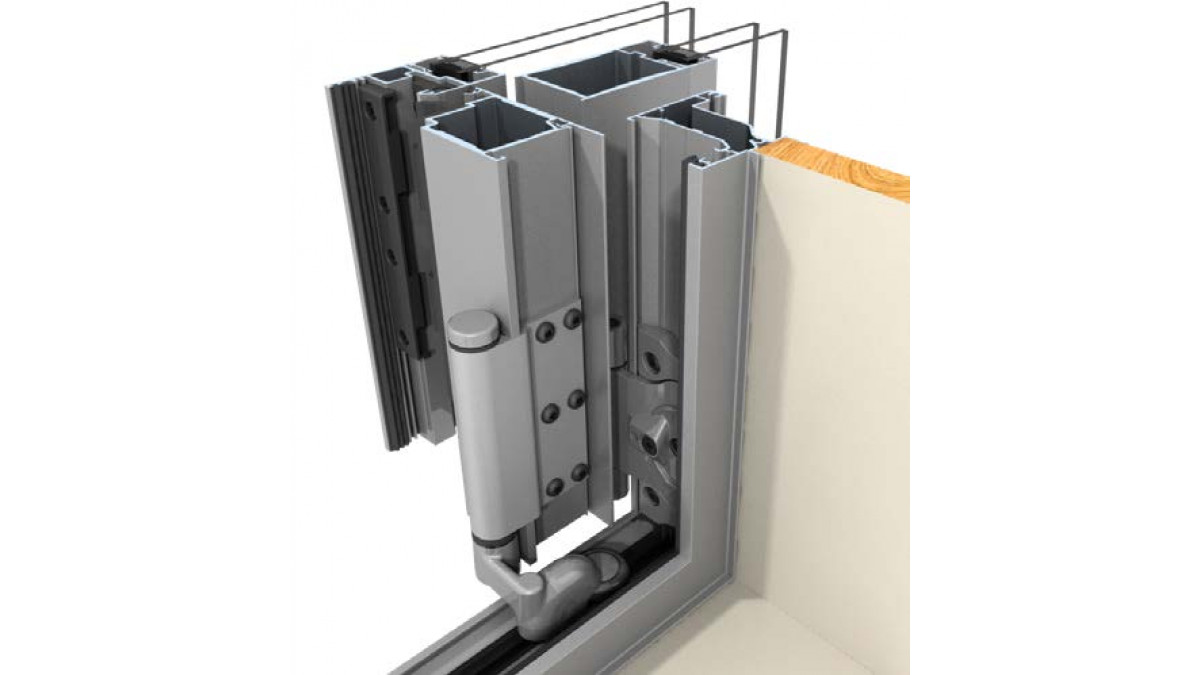

Lay back fully open
Lay-back fully open

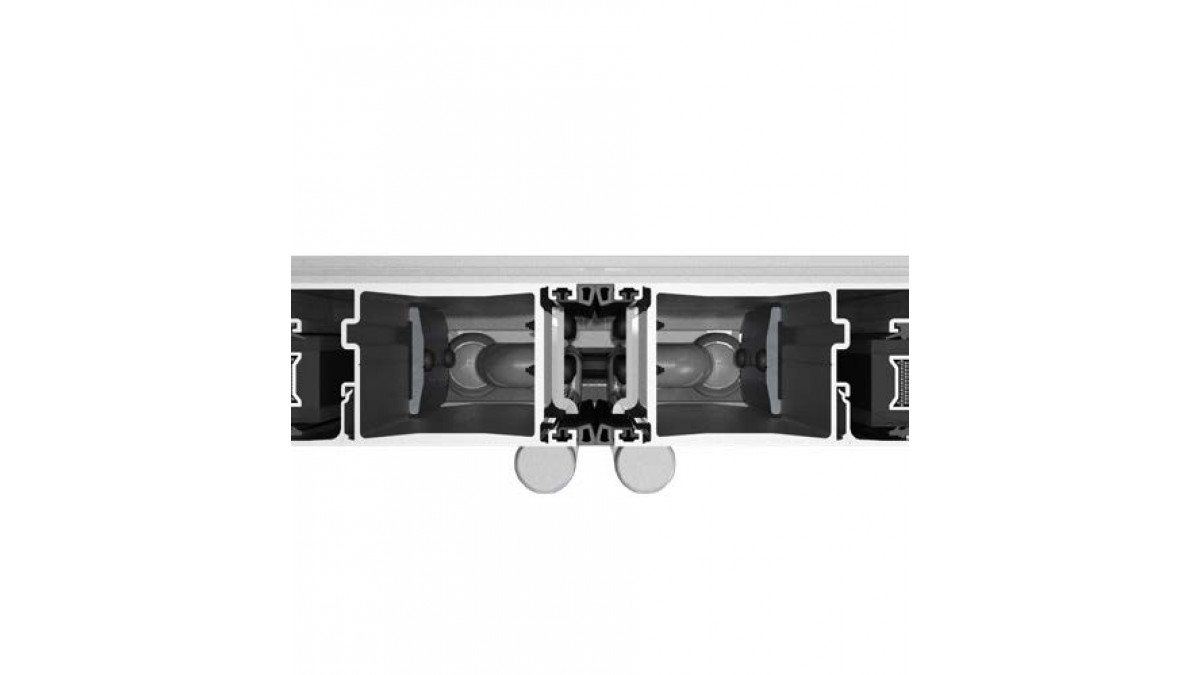

Bi fold door meeting stiles
Bi-fold door meeting stiles
Description

Both doors and windows use the same system, which is bottom-rolling with an in-frame track.

A lay-back option is available for certain configurations — 2-panel, 2+2 and 2+1, where the open panels fold back against an adjoining wall for an unobstructed deck.

Key Features
  • Maximum 2400mm high doors in very high wind zones — for larger sizes consider using the APL Architectural Series
  • Maximum glass panel thickness of 27mm
  • Corner bi-folds are available that do not require a corner post
  • The efficient bottom roller system allows optimum load capacity and increased panel width
  • Single panel access door can be used in conjunction with bi-fold doors
  • Lay-back panels require the facing to be within 15mm of final finished cladding line in order to achieve 180° opening
  • A wide range of configurations available
  • A rebated sill track option is available in sheltered locations
  • Overlights possible
  • Open-in frame available.
Categories
Bifold Doors
Ranges
Metro Series
Scope of Use
  • Suitable for broad residential use
  • Maximise views and ventilation but need to be monitored if windy conditions occur
  • Available in defined maximum sizes
Limitations on Use
  • Maximum 2100mm high doors in very high wind zones — For larger sizes consider using the Metro ThermalHEART Series
  • Careful consideration of bi-fold use is required when projecting on to decks or pedestrian areas
  • In closed position bi-fold window and door stiles impact views
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2006
  • Design upgrades regularly released
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • News
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2025

pdf
Specifier Guide: Doors
pdf
Specifier Guide: Windows
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Vantage Brochure
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
CAD/PDF Details
View full
VMBD02 0
Full Set of Drawings
pdf
VMBD02 0

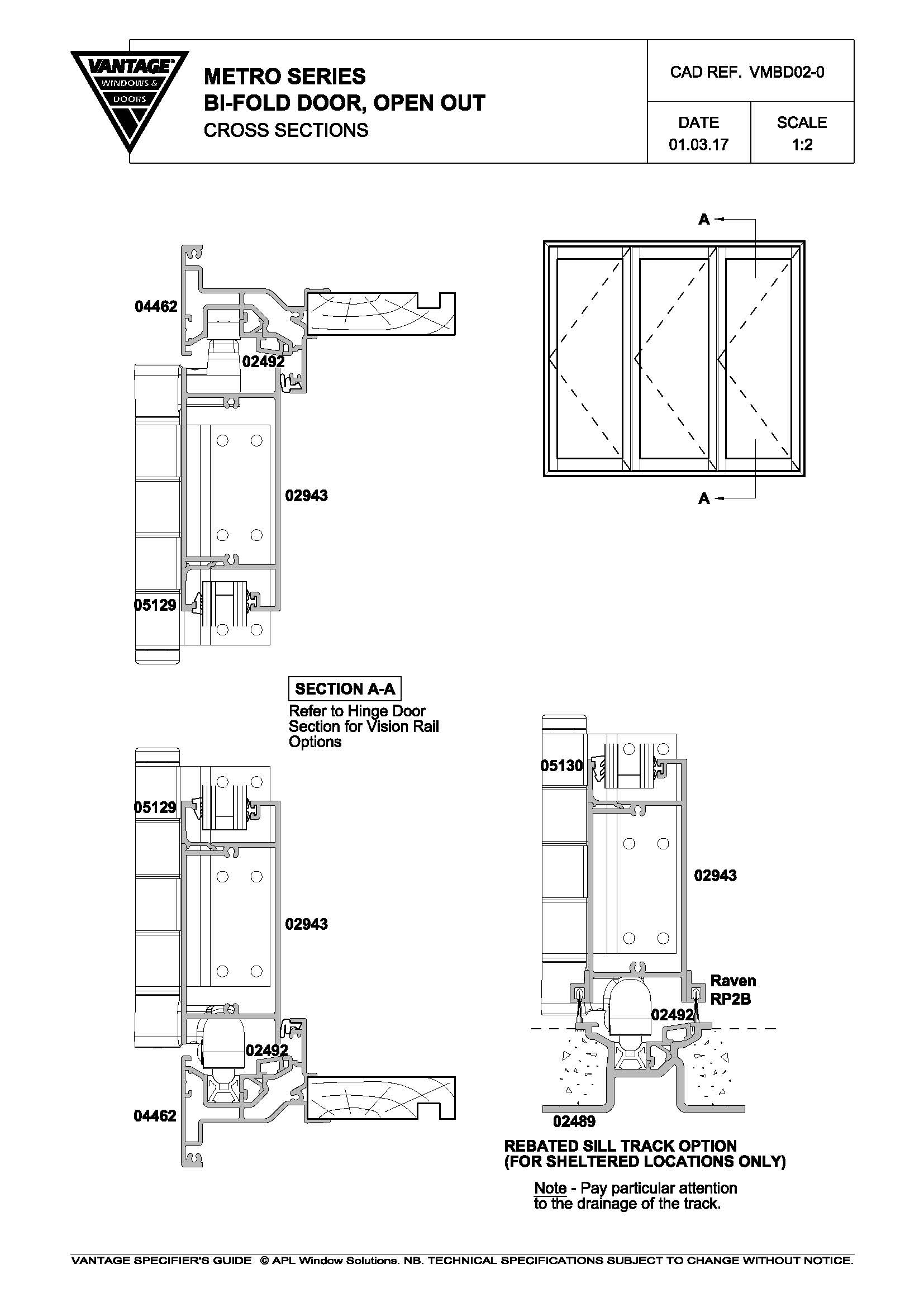

Vantage Metro Series Bi-Fold Door, Open Out

VMBD02-0

dwf
dwg
dxf
pdf
VMBD03 0

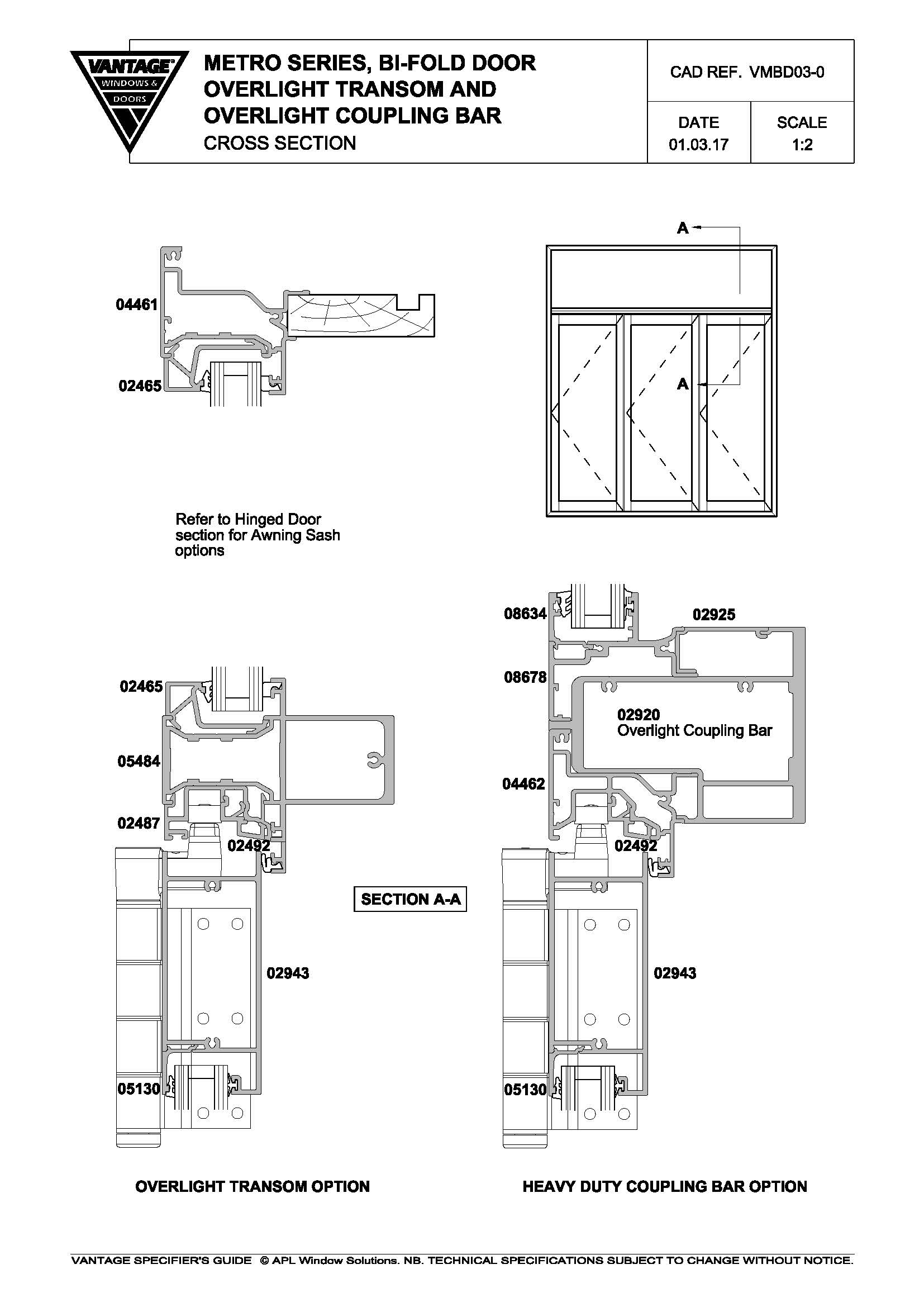

Vantage Metro Series, Bi-Fold Door Overlight Transom and Overlight Coupling Bar

VMBD03-0

dwf
dwg
dxf
pdf
VMBD04 0

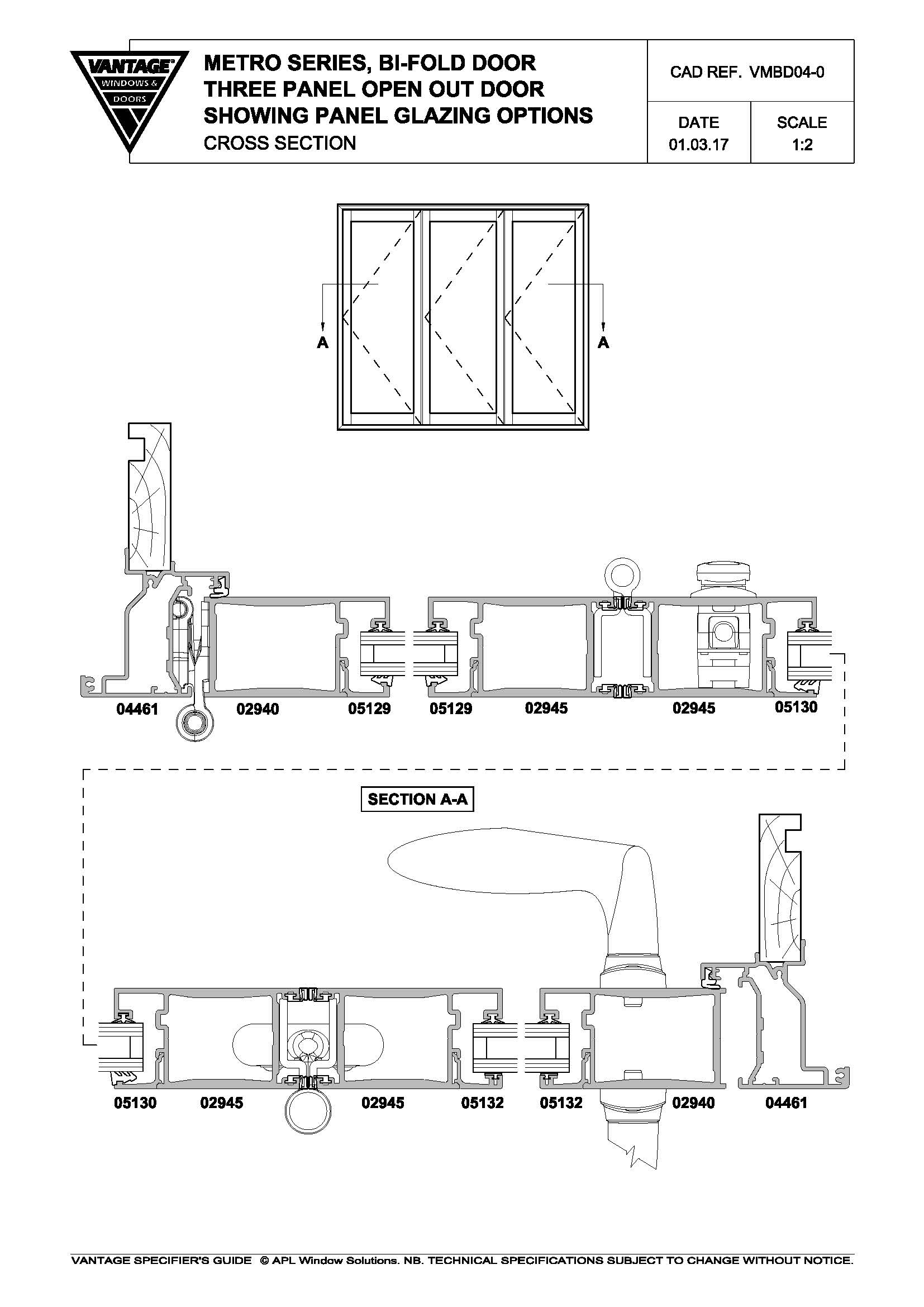

Vantage Metro Series, Bi-Fold Door Three Panel Open Out Door Showing Panel Glazing Options

VMBD04-0

dwf
dwg
dxf
pdf
VMBD05 0

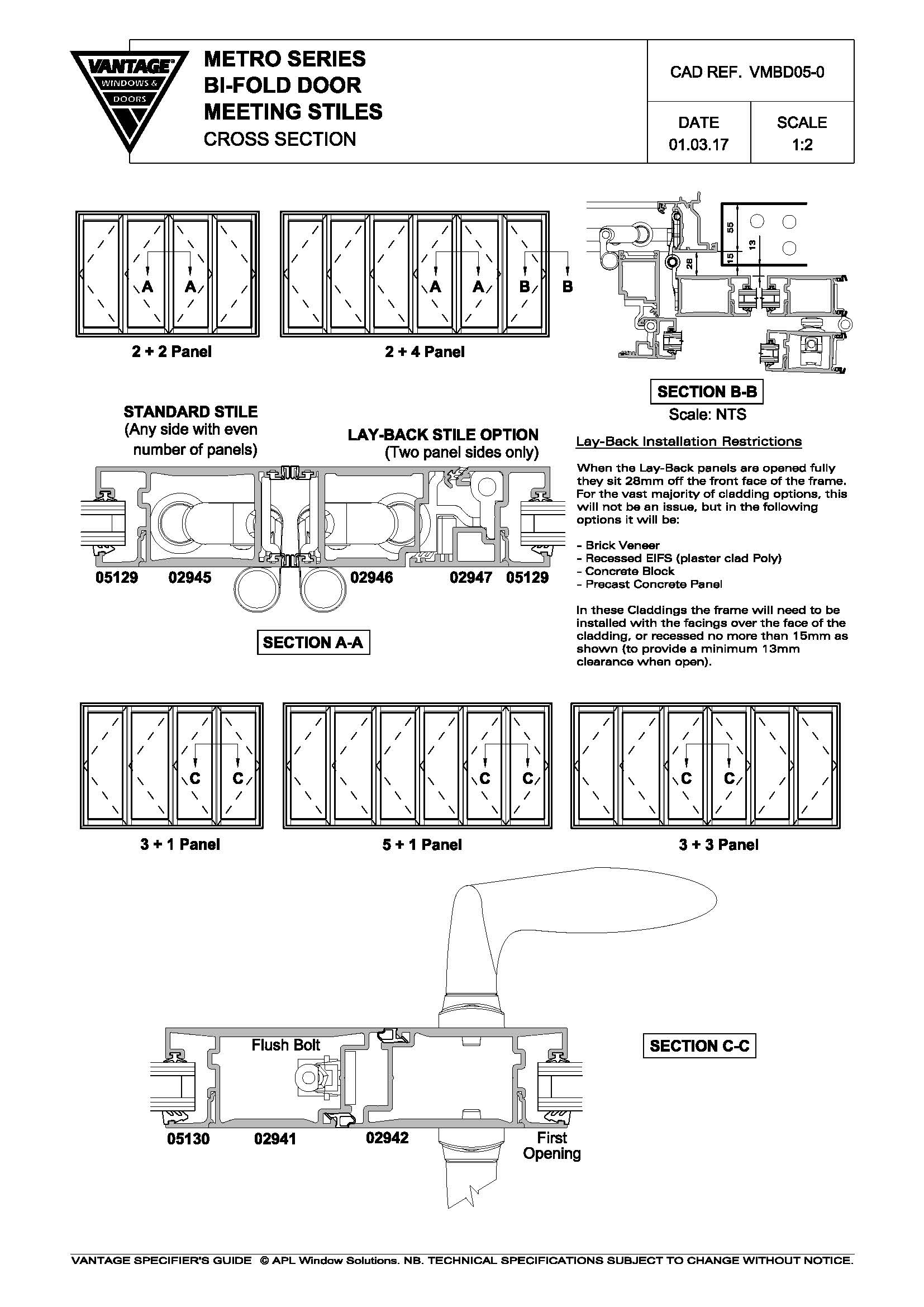

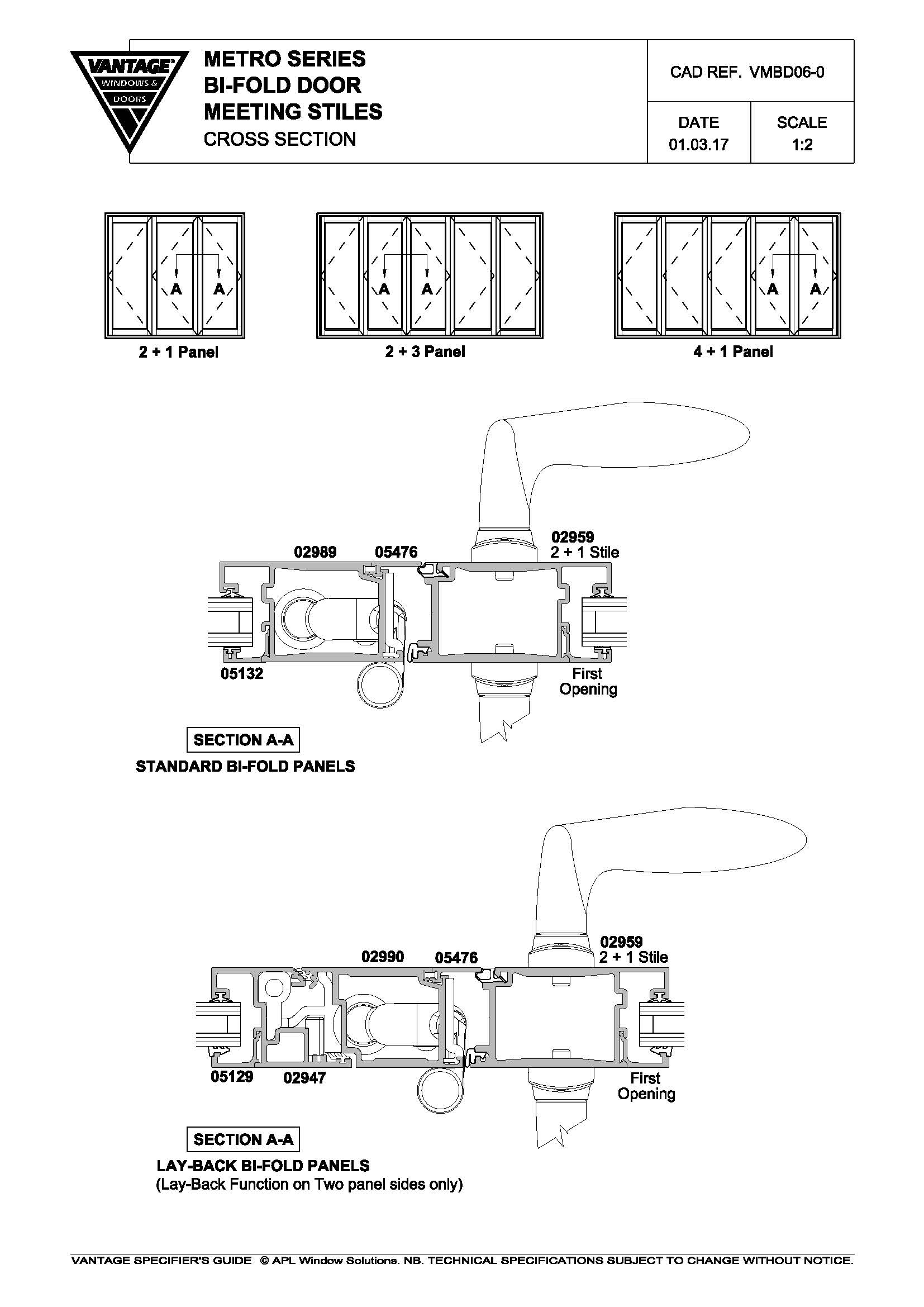

Vantage Metro Series Bi-Fold Door Meeting Stiles

VMBD05-0

dwf
dwg
dxf
pdf
VMBD06 0
Vantage Metro Series Bi-Fold Door Meeting Stiles

VMBD06-0

dwf
dwg
dxf
pdf
VMBD07 0

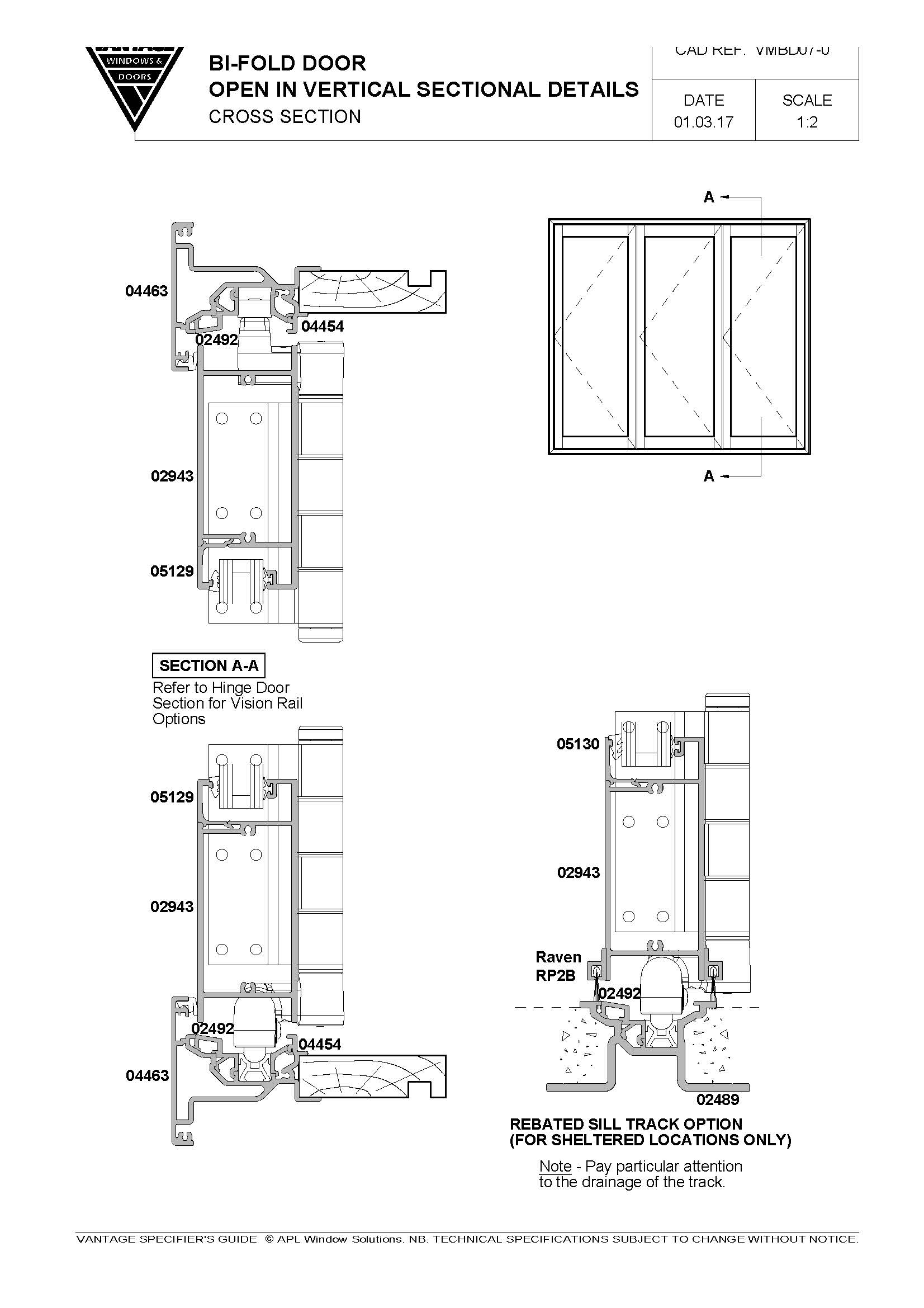

Vantage Metro Series Bi-Fold Door Open In Vertical Sectional Details

VMBD07-0

dwf
dwg
dxf
pdf

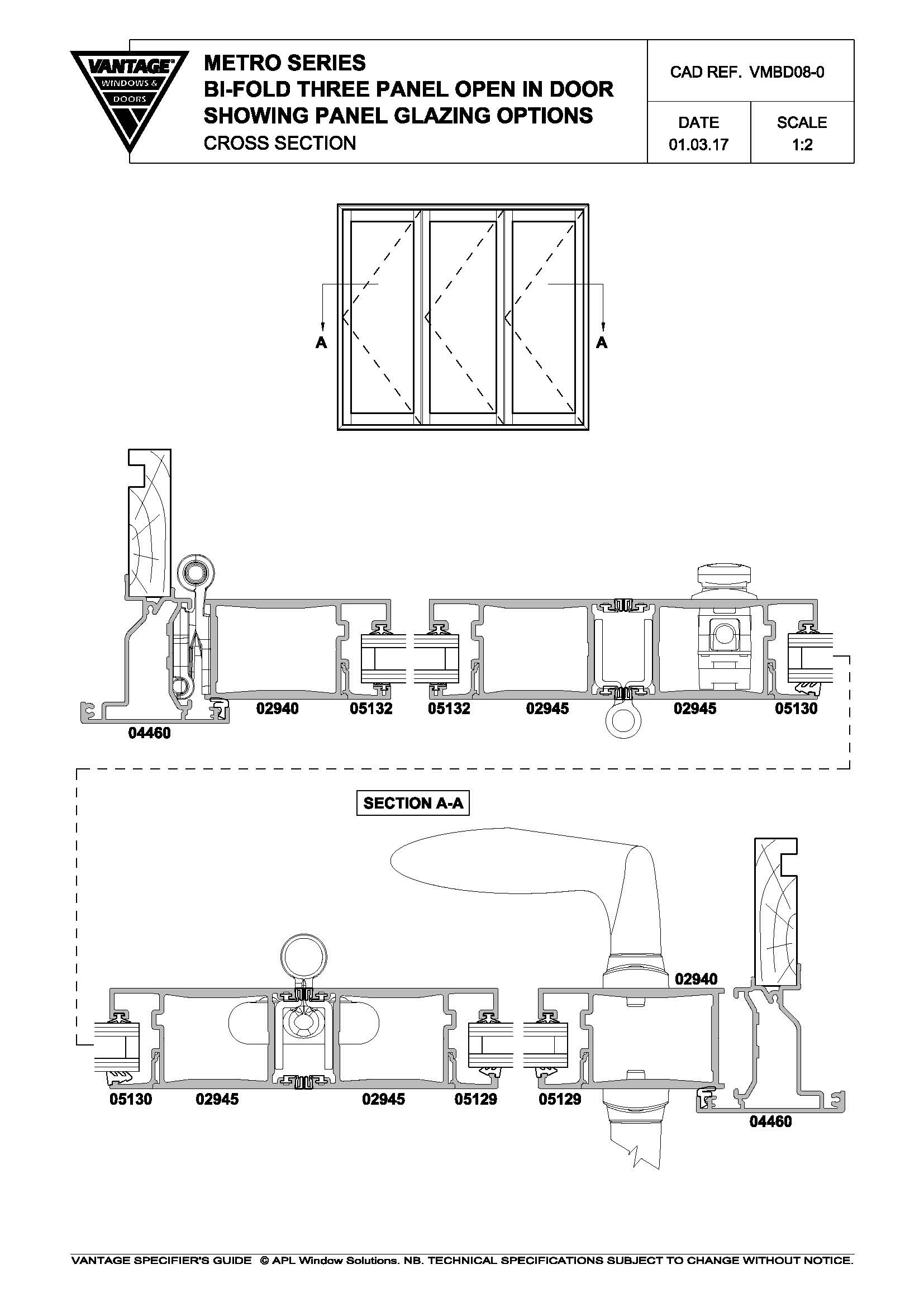

VMBD08 0
Vantage Metro Series Bi-Fold Three Panel Open In Door Showing Panel Glazing Options

VMBD08-0

dwf
dwg
dxf
pdf
Installation Details
View full

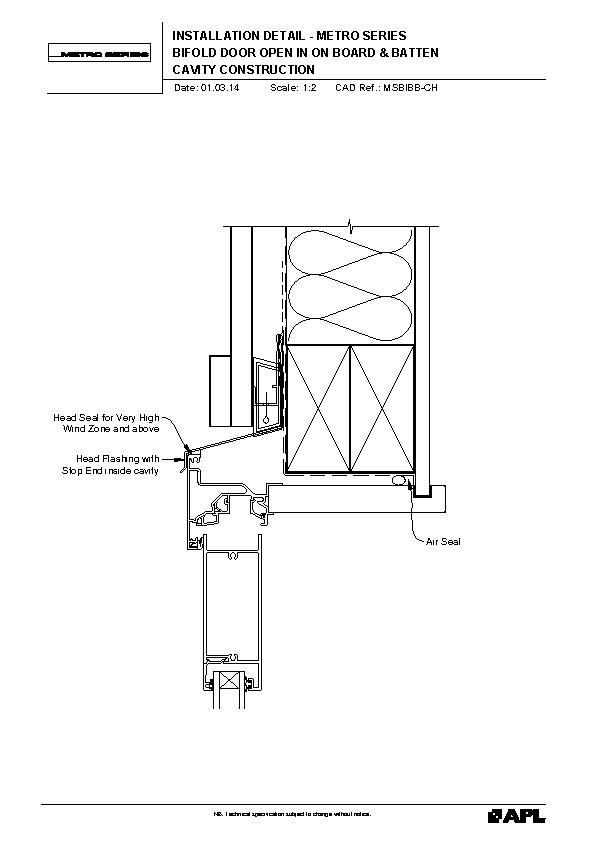

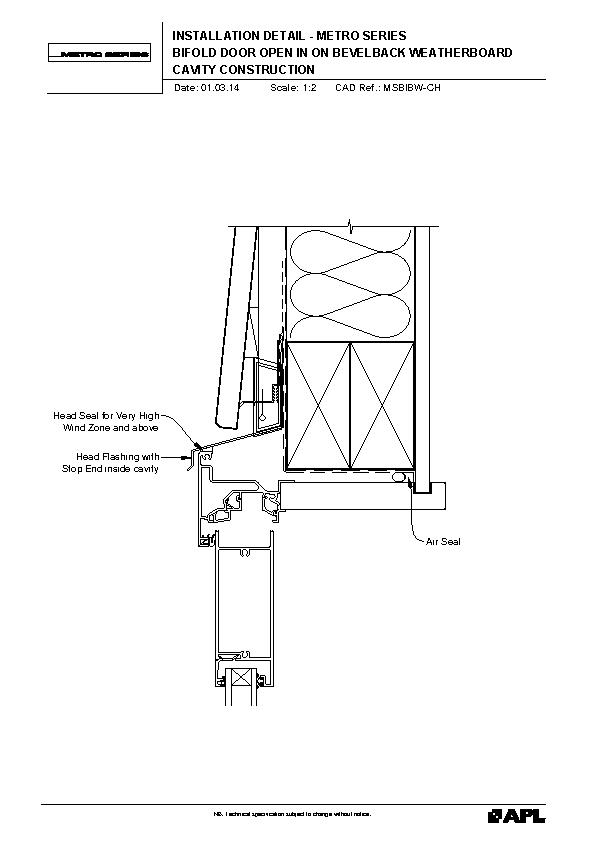

Vantage Metro Series Bifold Door Open In on Board and Batten

MSBIBB

dwg
pdf

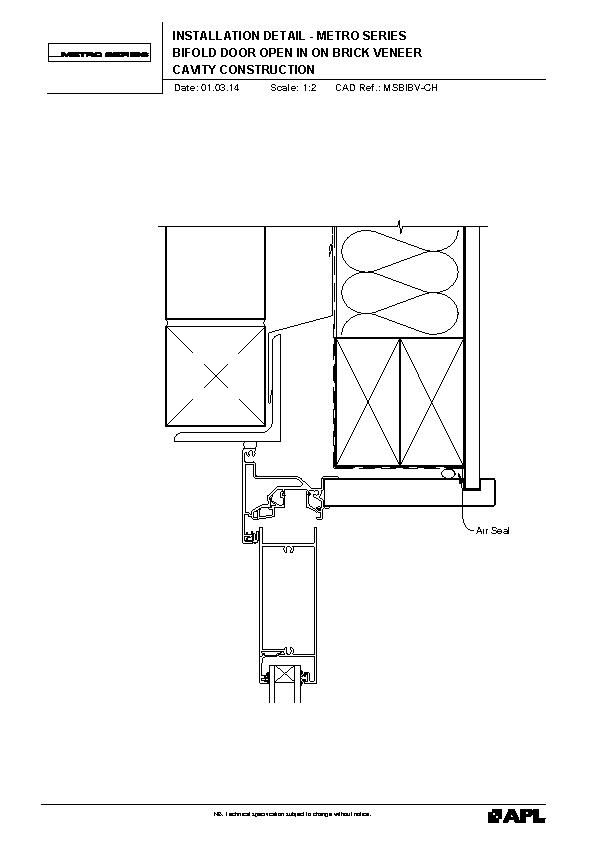

Vantage Metro Series Bifold Door Open In on Brick Veneer

MSBIBV

dwg
pdf
Vantage Metro Series Bifold Door Open In on Bevelback Weatherboard

MSBIBW

dwg
pdf

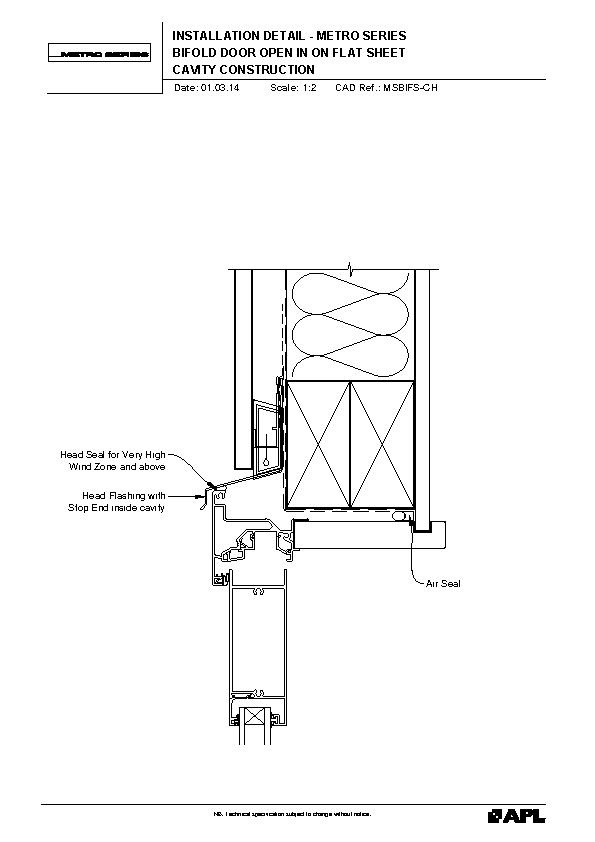

Vantage Metro Series Bifold Door Open In on Flat Sheet

MSBIFS

dwg
pdf

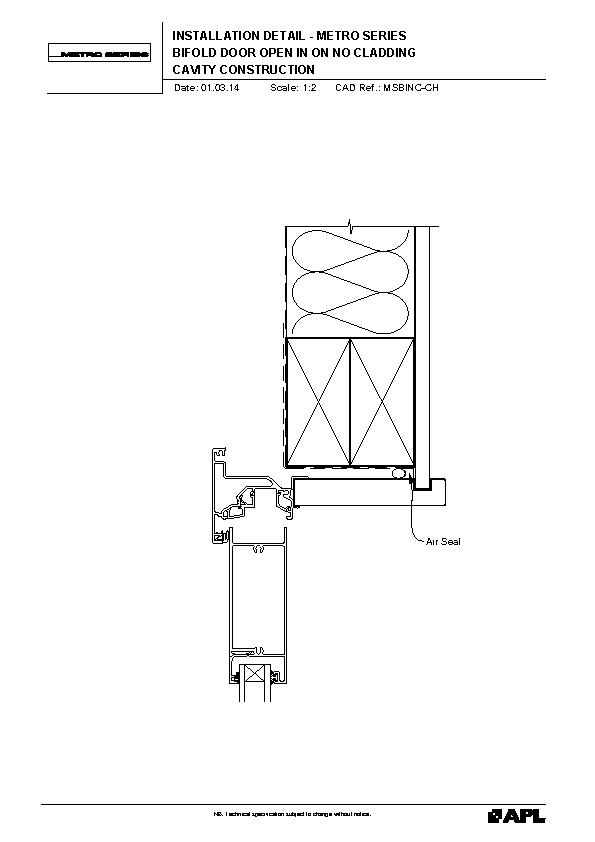

Vantage Metro Series Bifold Door Open In on No Cladding

MSBINC

dwg
pdf

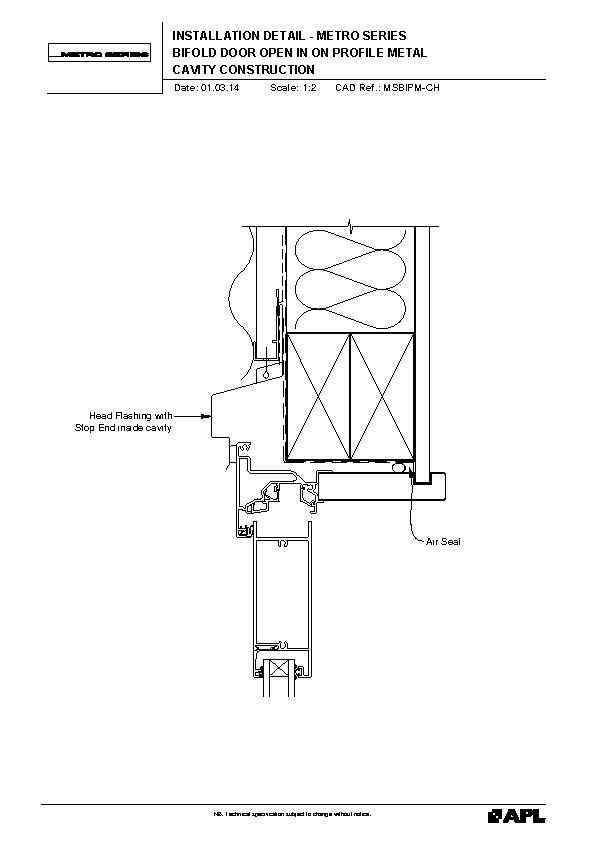

Vantage Metro Series Bifold Door Open In on Profile Metal

MSBIPM

dwg
pdf

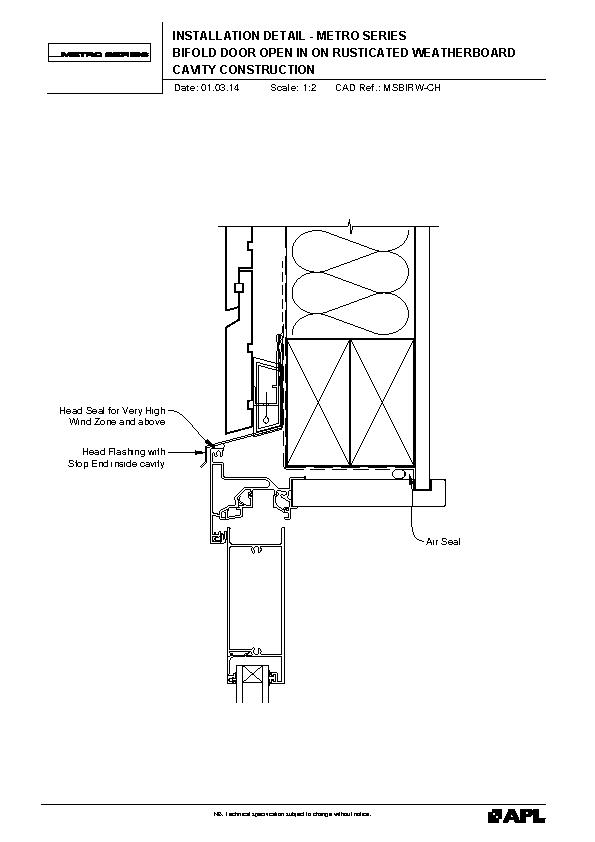

Vantage Metro Series Bifold Door Open In on Rusticated Weatherboard

MSBIRW

dwg
pdf

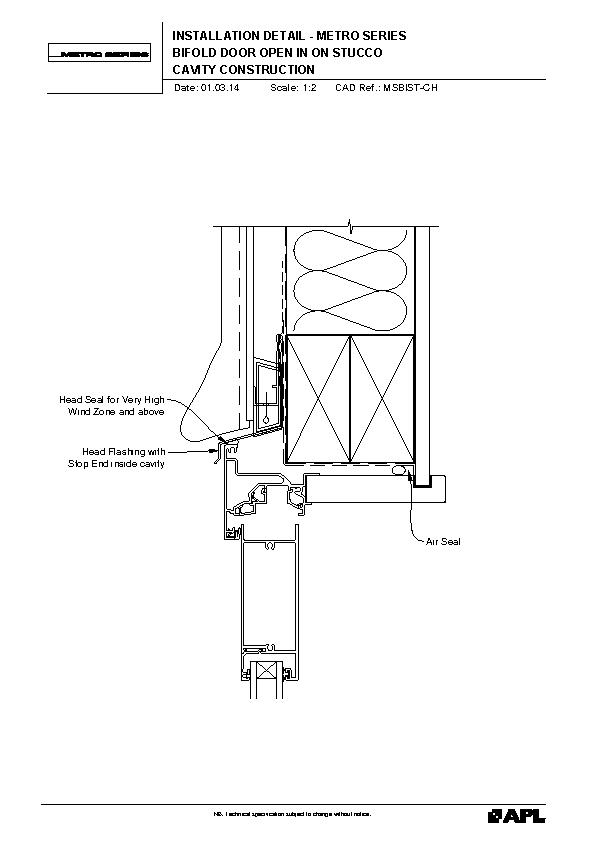

Vantage Metro Series Bifold Door Open In on Stucco

MSBIST

dwg
pdf

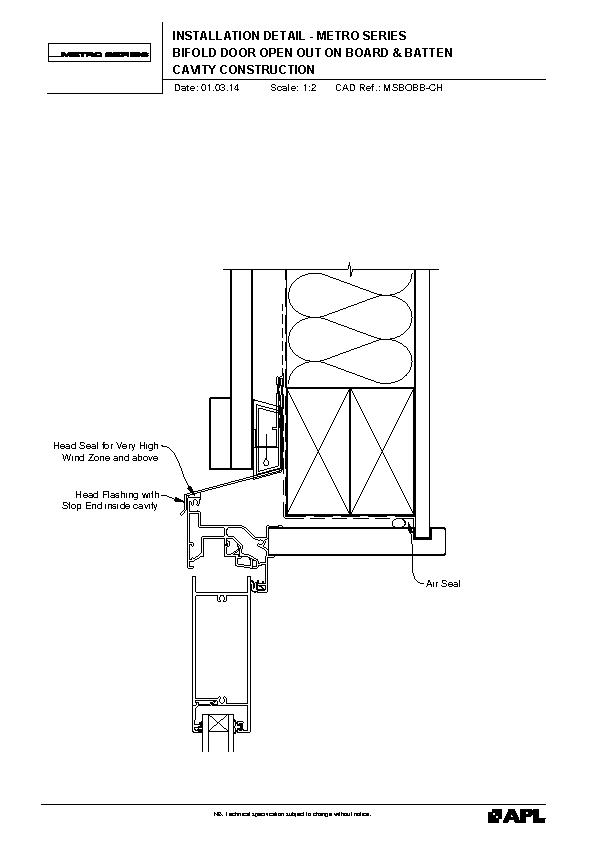

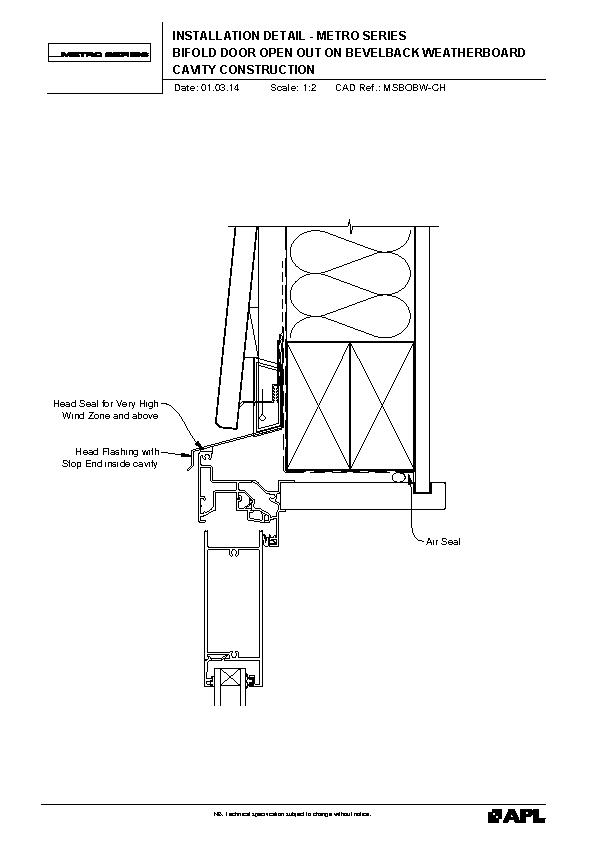

Vantage Metro Series Bifold Door Open Out on Board and Batten

MSBOBB

dwg
pdf

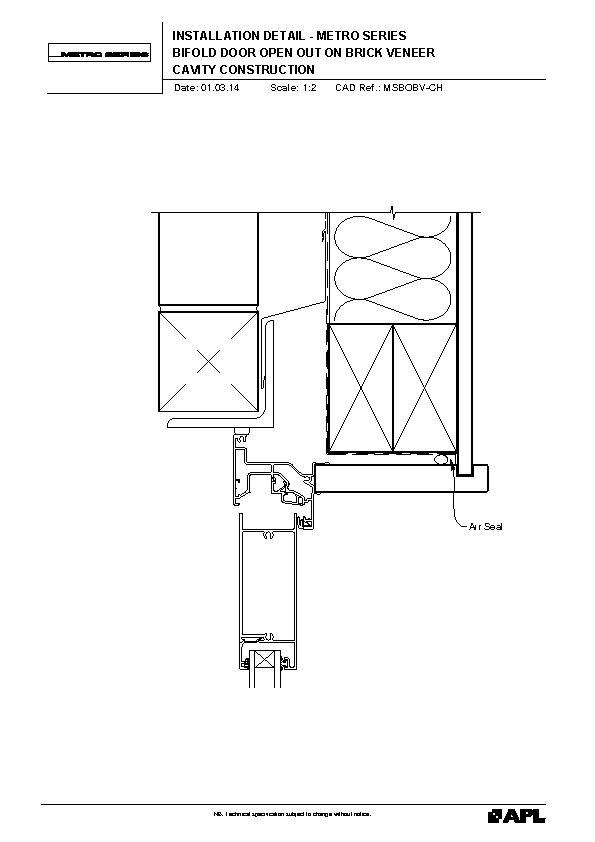

Vantage Metro Series Bifold Door Open Out on Brick Veneer

MSBOBV

dwg
pdf
Vantage Metro Series Bifold Door Open Out on Bevelback Weatherboard

MSBOBW

dwg
pdf

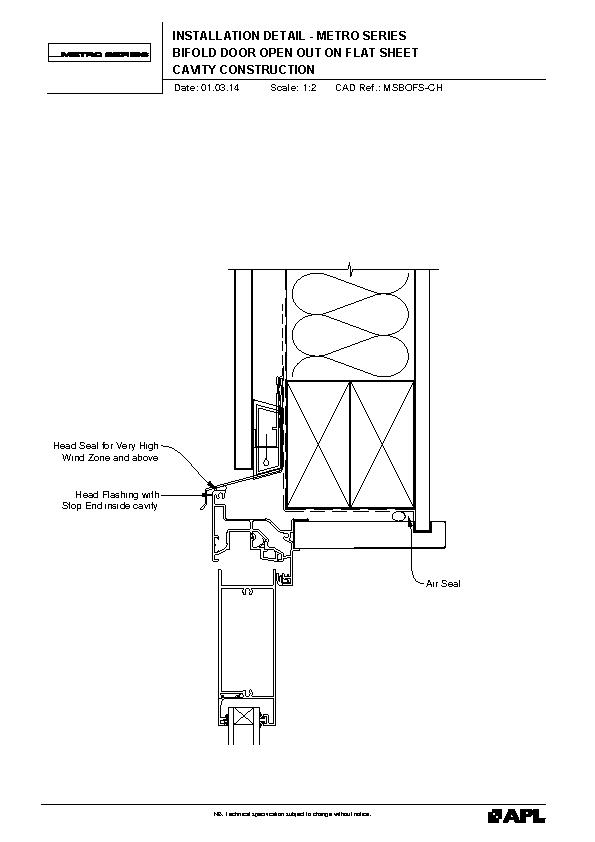

Vantage Metro Series Bifold Door Open Out on Flat Sheet

MSBOFS

dwg
pdf

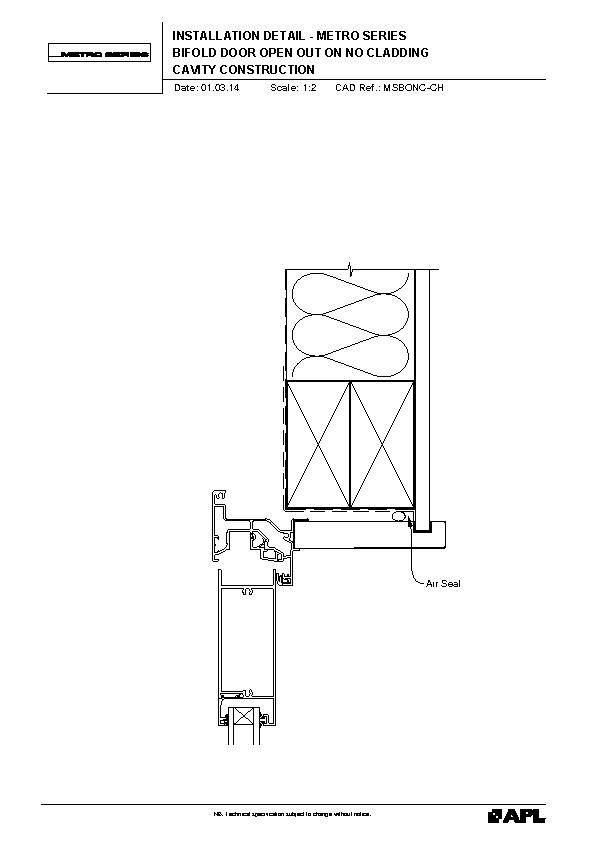

Vantage Metro Series Bifold Door Open Out on No Cladding

MSBONC

dwg
pdf

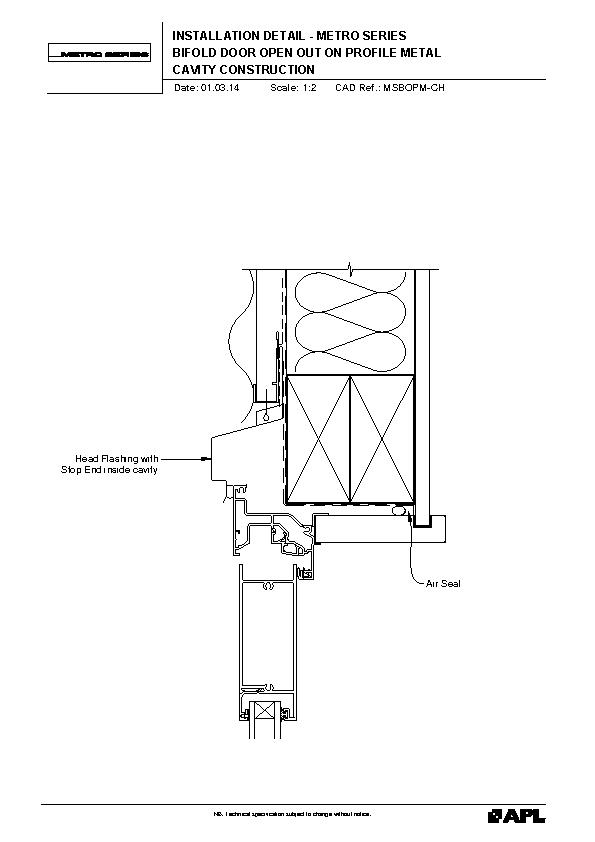

Vantage Metro Series Bifold Door Open Out on Profile Metal

MSBOPM

dwg
pdf

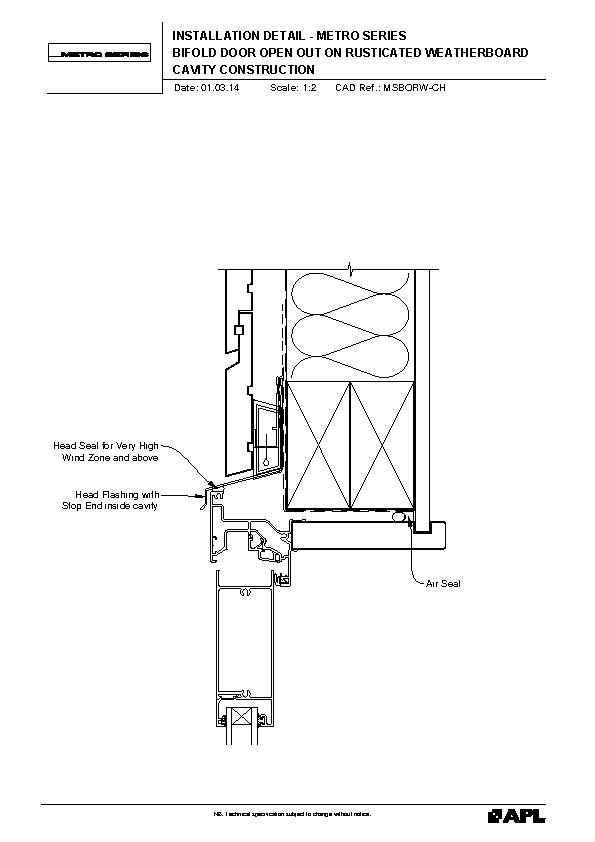

Vantage Metro Series Bifold Door Open Out on Rusticated Weatherboard

MSBORW

dwg
pdf

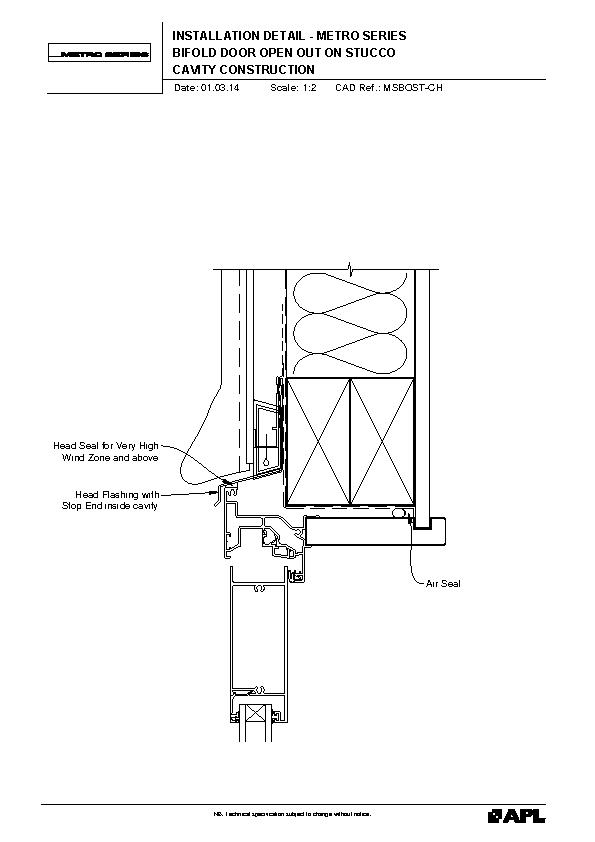

Vantage Metro Series Bifold Door Open Out on Stucco

MSBOST

dwg
pdf

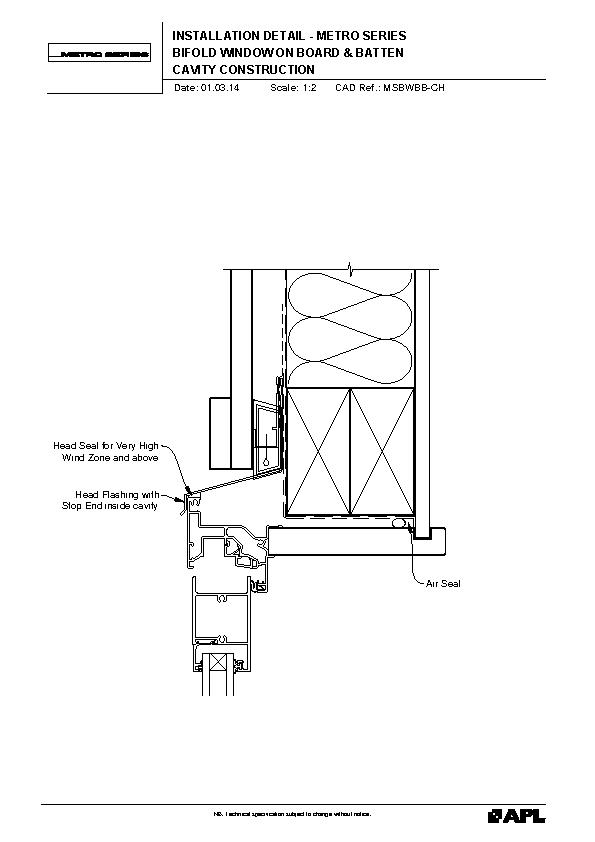

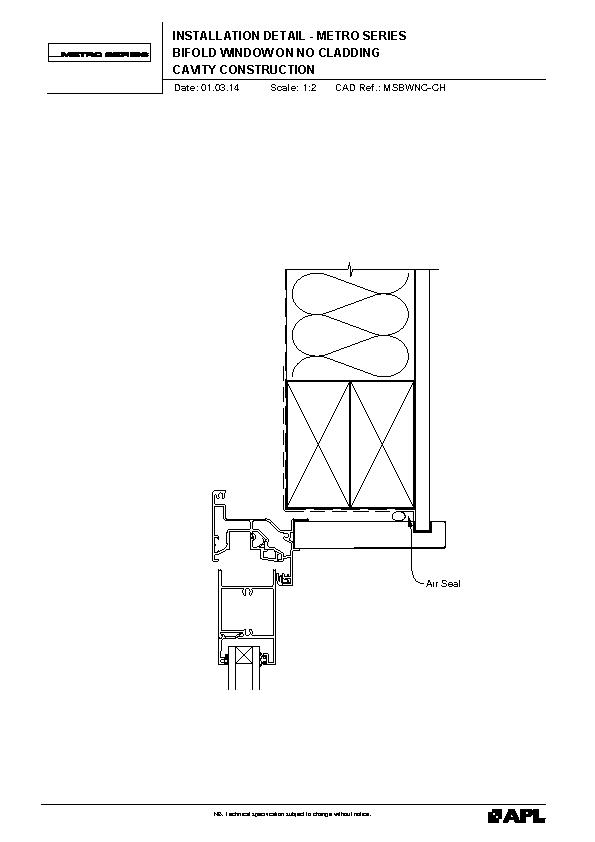

Vantage Metro Series Bifold Window on Board and Batten

MSBWBB

dwg
pdf

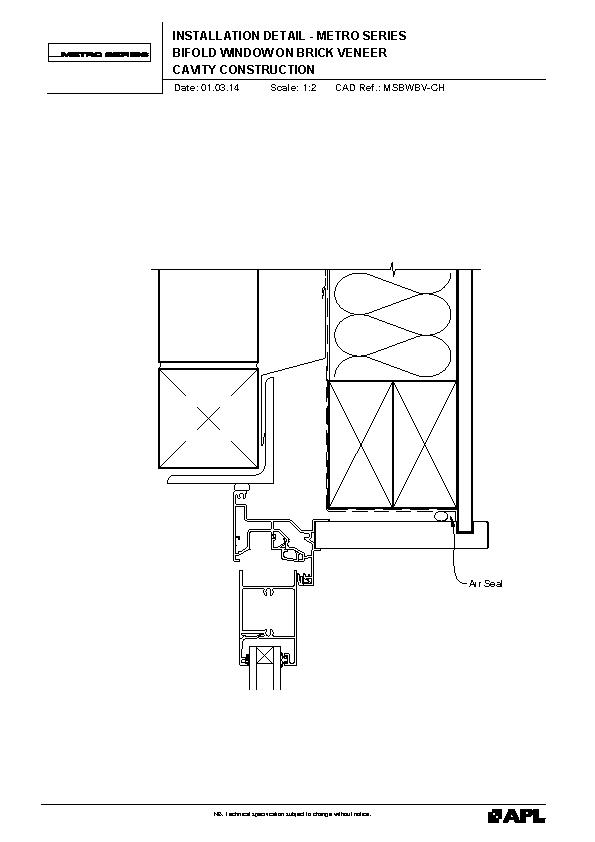

Vantage Metro Series Bifold Window on Brick Veneer

MSBWBV

dwg
pdf
Vantage Metro Series Bifold Window on Bevelback Weatherboard

MSBWBW

dwg
pdf

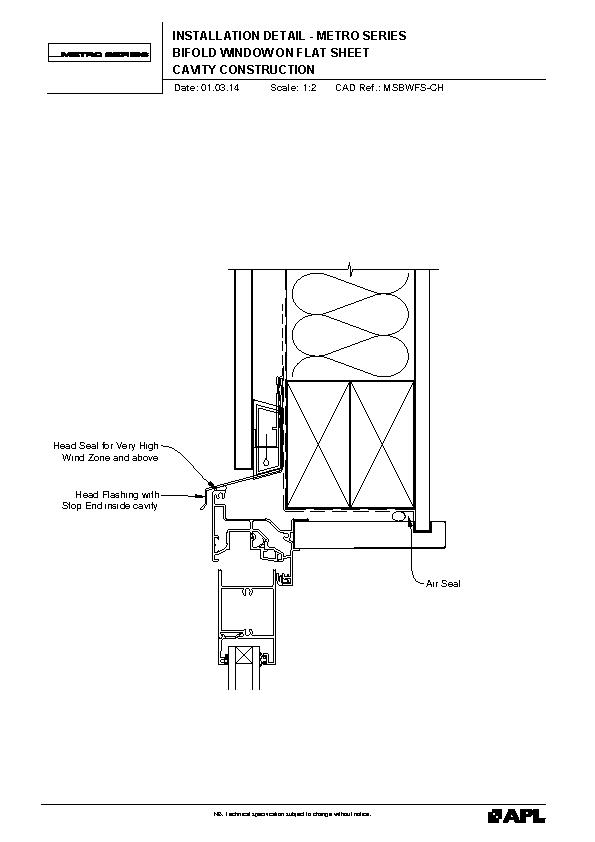

Vantage Metro Series Bifold Window on Flat Sheet

MSBWFS

dwg
pdf
Vantage Metro Series Bifold Window on No Cladding

MSBWNC

dwg
pdf

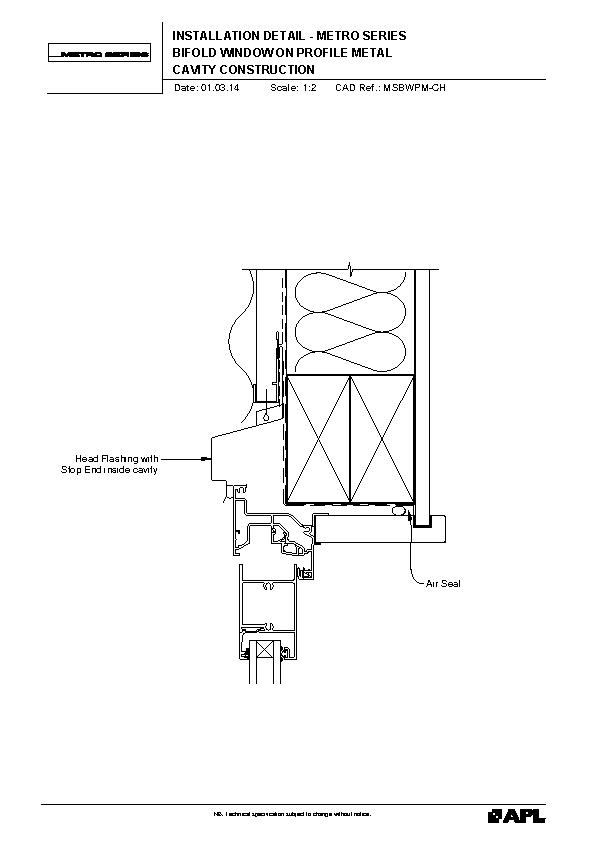

Vantage Metro Series Bifold Window on Profile Metal

MSBWPM

dwg
pdf

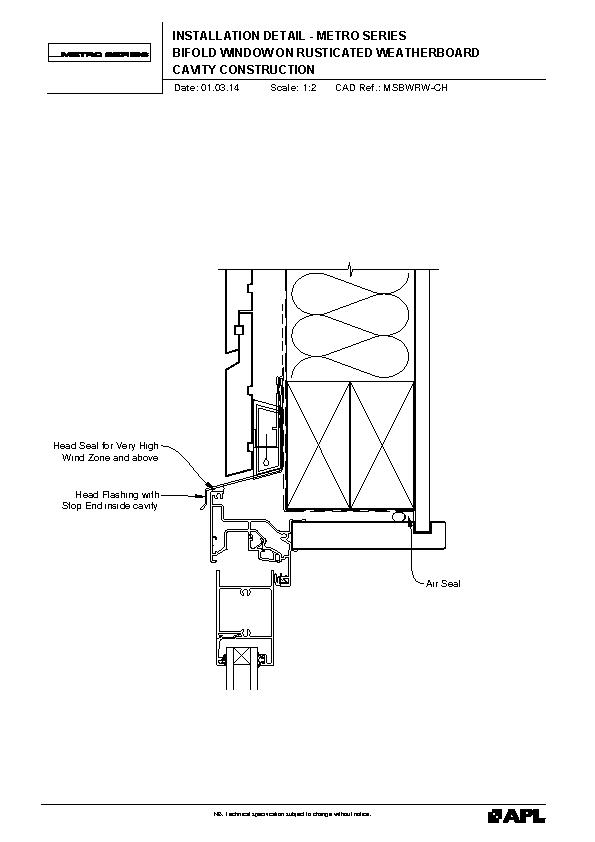

Vantage Metro Series Bifold Window on Rusticated Weatherboard

MSBWRW

dwg
pdf

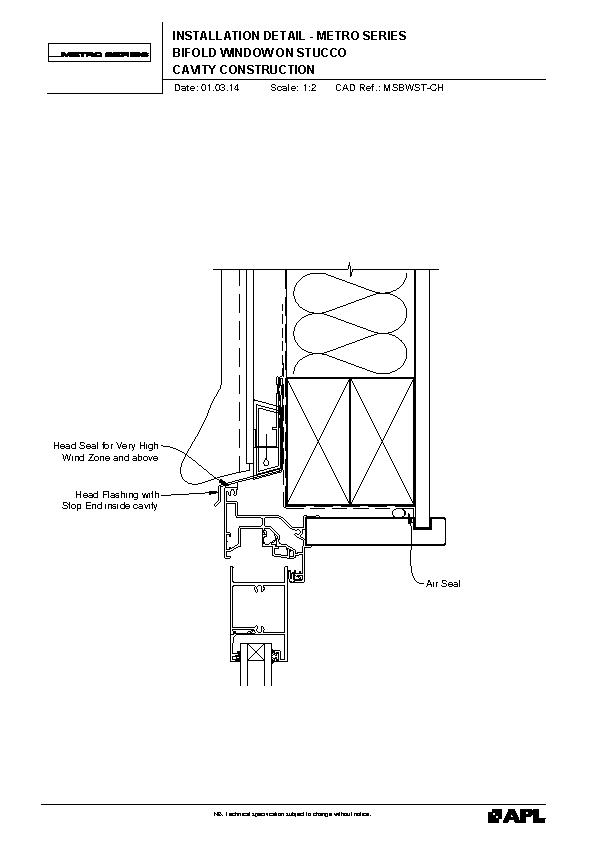

Vantage Metro Series Bifold Window on Stucco

MSBWST

dwg
pdf
BIM
View full
Capture
APL Metro Series Bifold Door 4 Panel Open Out

Revit LT 2020

zip
33

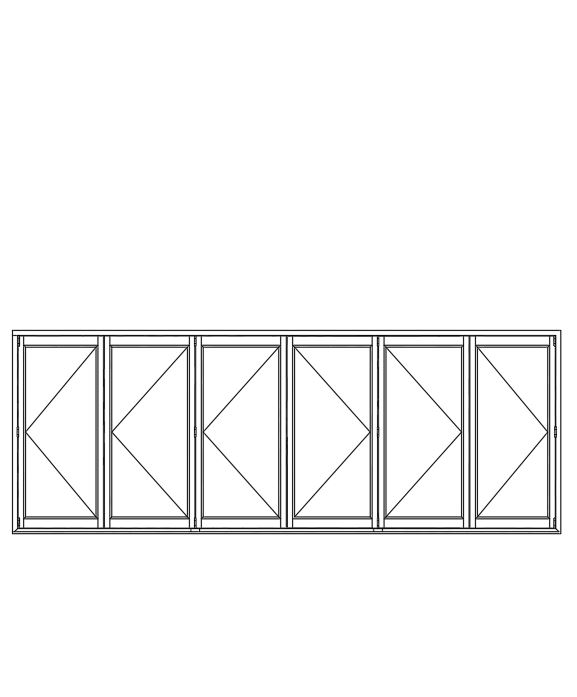

Metro Series Bifold Door Open Out 3+3

Revit LT 2020

rfa
3+1 panel
Vantage Metro Series Bi-Fold Door 3+1 Panel Open Out
zip
2+1 panel
Vantage Metro Series Bi-Fold Door 2+1 Panel Open Out
zip
2+2 panel
Vantage Metro Series Bi-Fold Door 2+2 Panel Open Out
zip
open in
Vantage Metro Series Bi-Fold Door Open In
zip
2 panel
Vantage Metro Series Bi-Fold Door Open Out (Layback, Rebated, Standard options)
zip

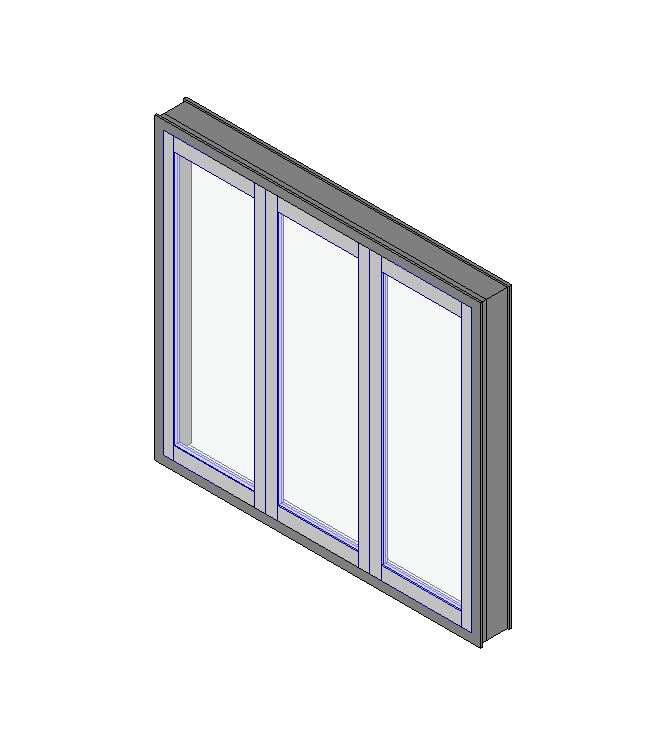

3 panel
Vantage Metro Series Bi-Fold Door Three Panel Open Out
zip
window
Vantage Metro Series Bi-Fold Window Open Out
zip
