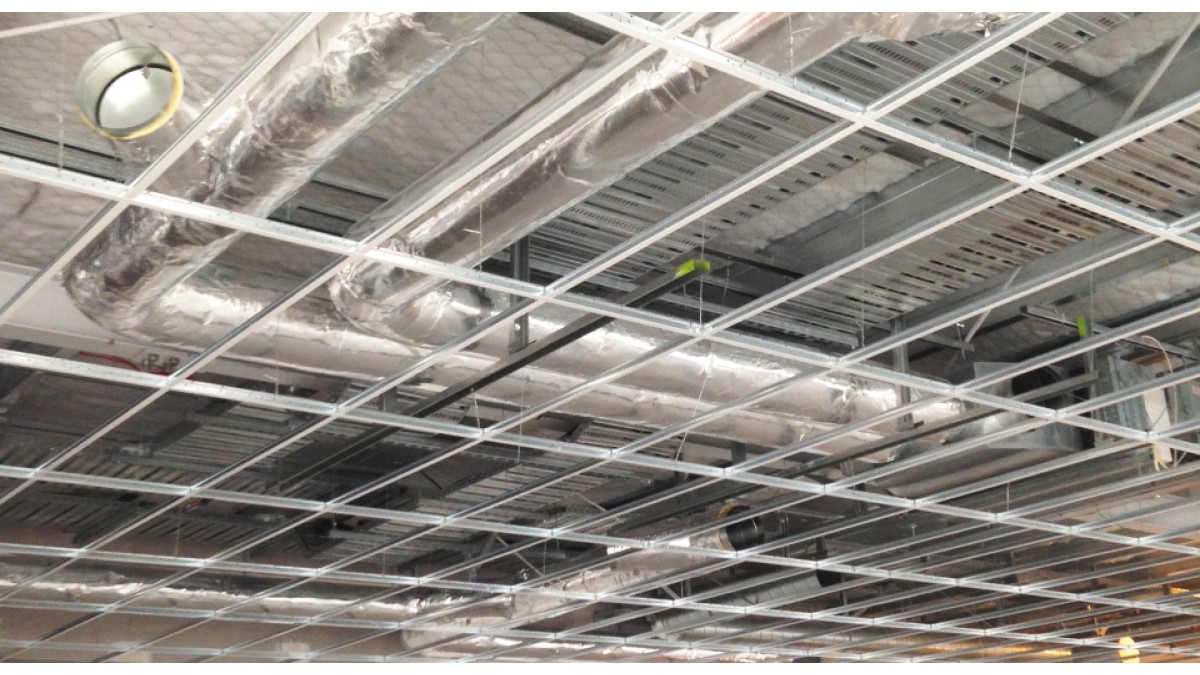

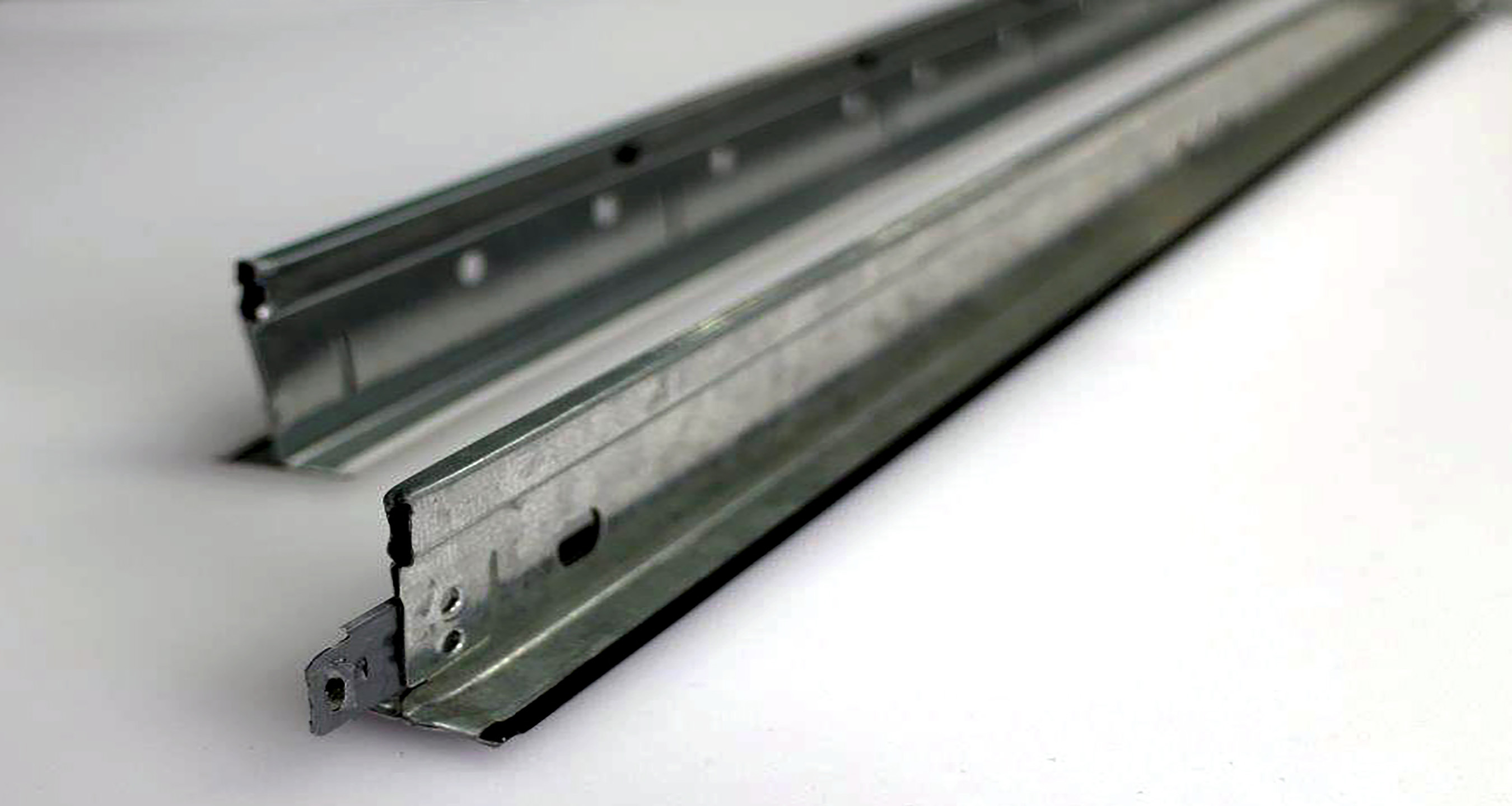

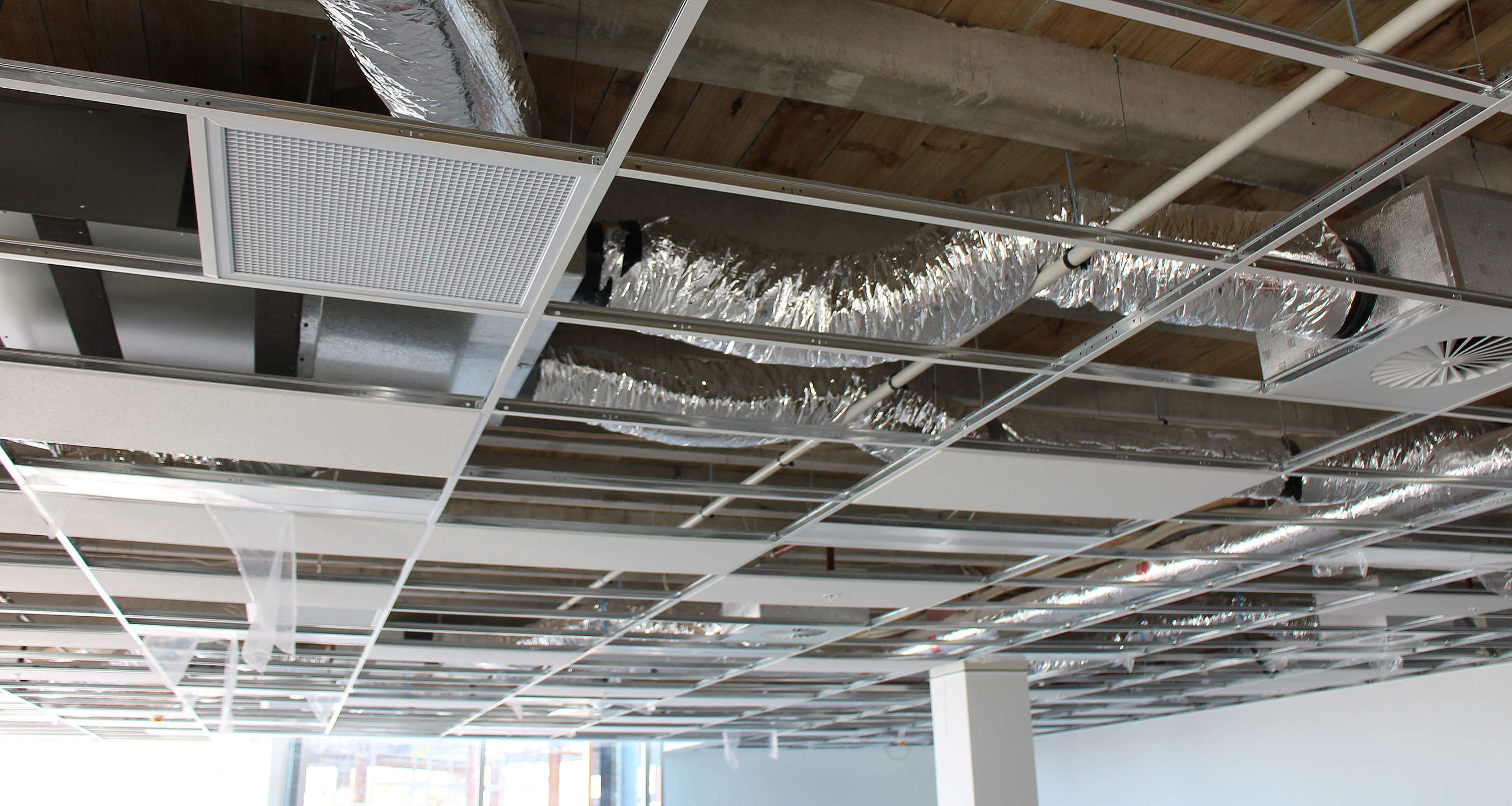

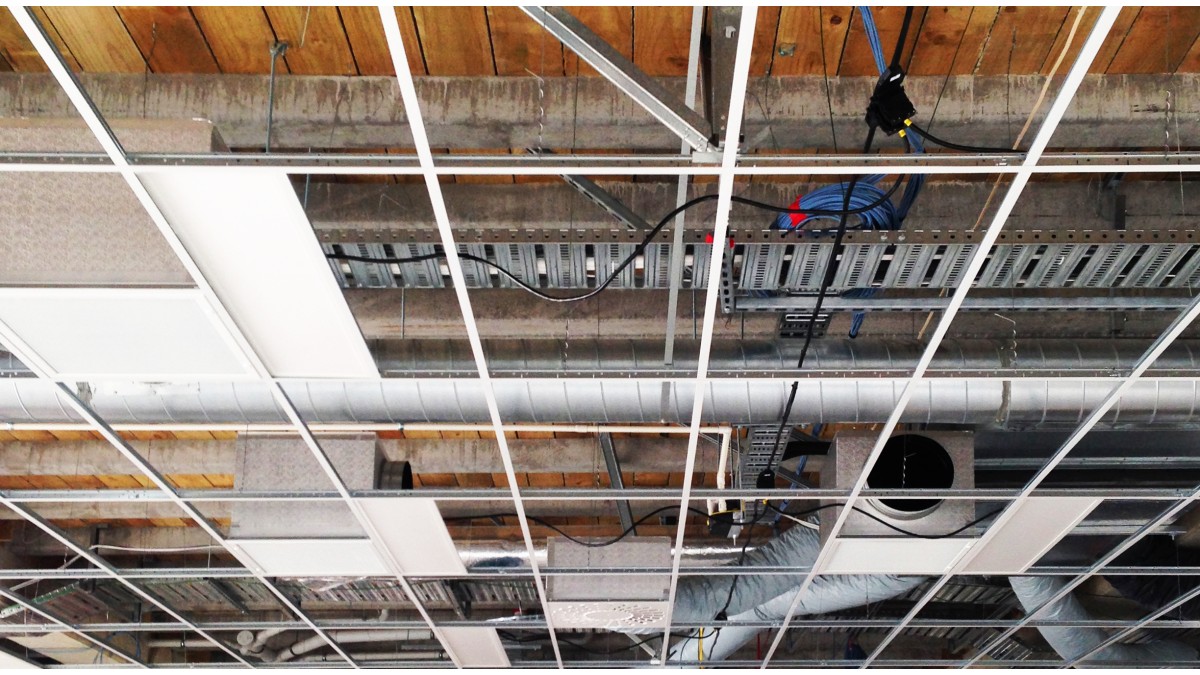

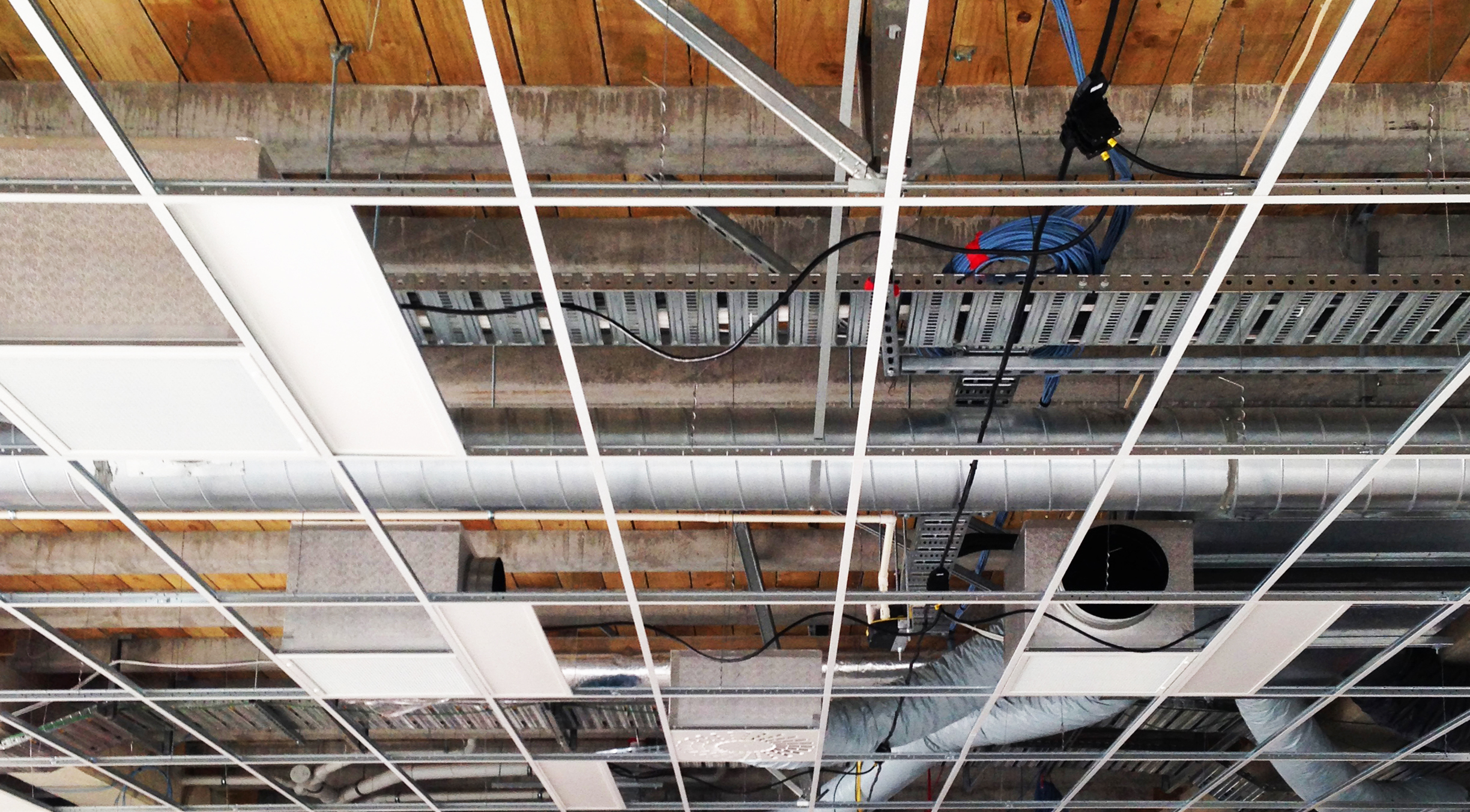

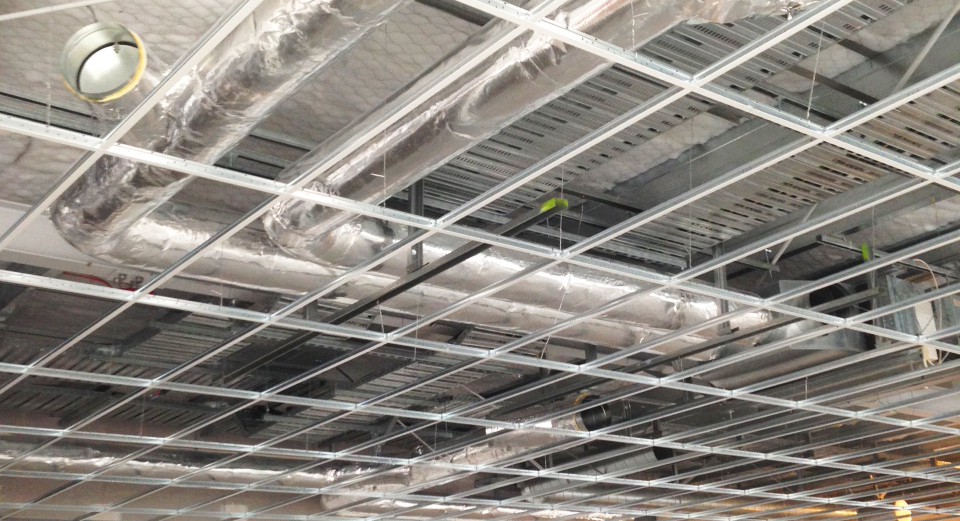

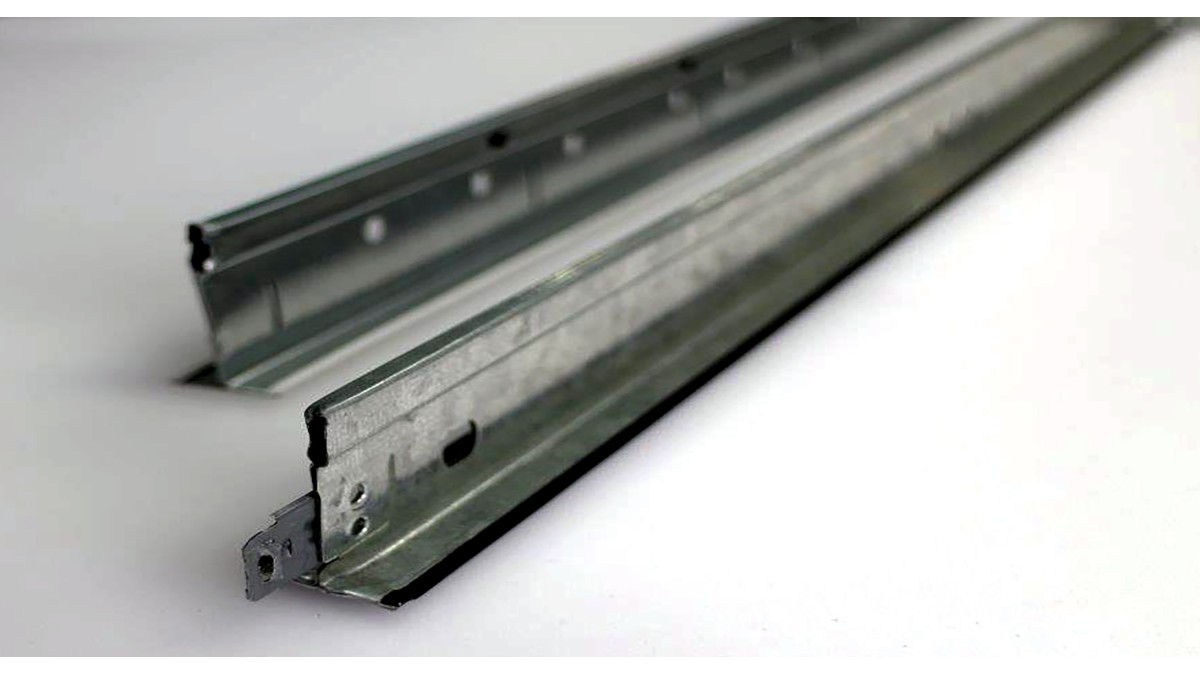

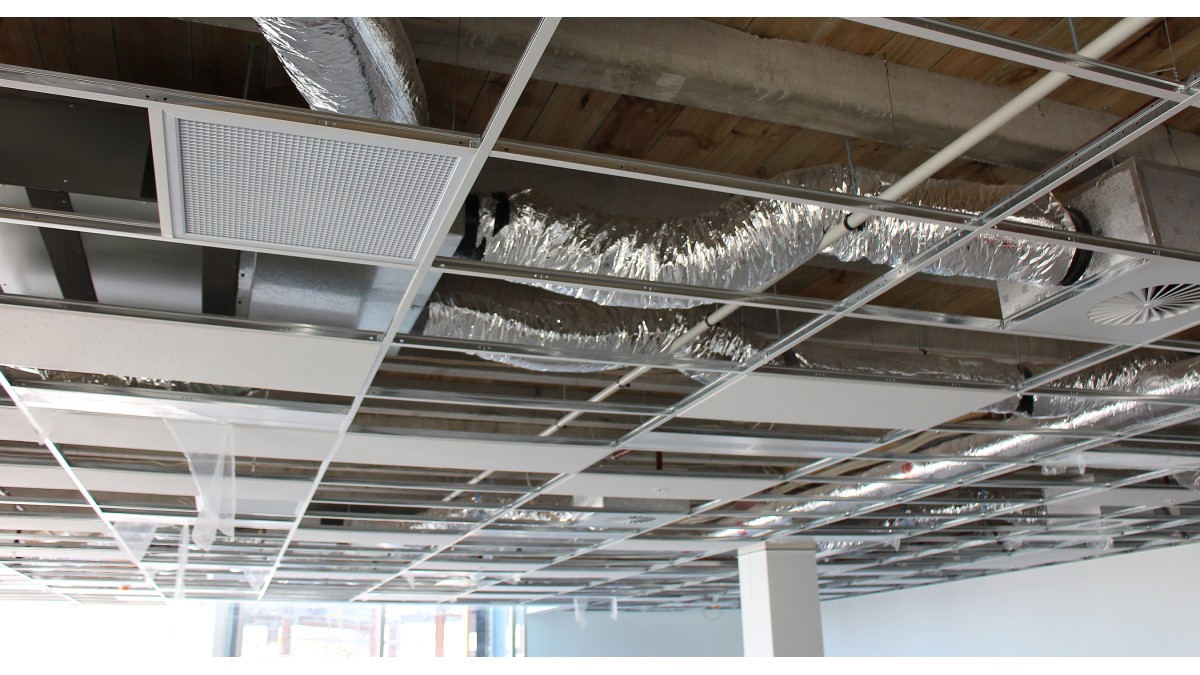

CBI Grid 15mm and 24mm Two Way Exposed System provides the framework for a choice of T&R ceiling tiles. The T&R Main Tee is manufactured from hot dipped galvanised steel in a double web, balanced tee design, in 3700mm lengths.  It is finished with a pre-painted steel cap. The Main Tee is conveniently punched at 100mm centres and includes suspension points in both the bulb and web. Hold down clips are available as required.

The Cross Tees are manufactured in the same configuration in 1200mm and 600mm lengths.  Lay on edge detail for neatness of installation coupled with resistance to twist. The high tensile clips ensure a positive locking system for quick installation.

• Wall Angle — L shaped pieces that fasten to the wall and support ends of the main runners and cross tees

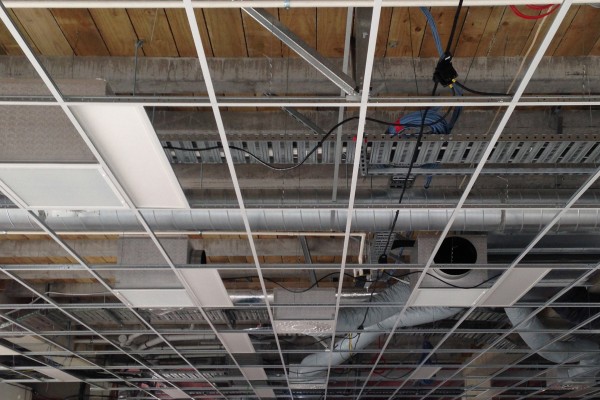

• Z Rail — a seismic support that suspends the edge of the grid without relying on the perimeter
• Border — cut panels around the perimeter of the room. They should be greater than half of a tile to maintain balance and add visual appeal
• Clips — hold down clips are available as required
