Sylomer
Description

Sylomer is a special PUR elastomer manufactured by Getzner, which features a cellular, compact form and is used in a wide range of applications in the construction and mechanical engineering industries.

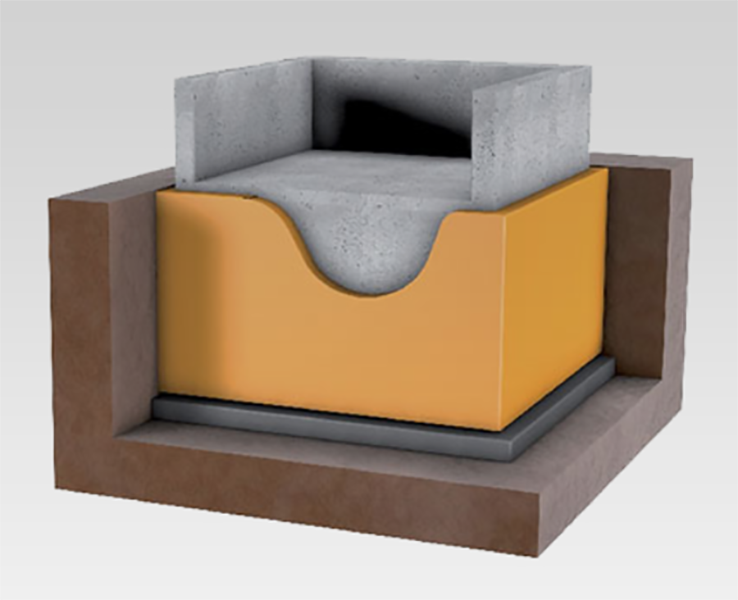

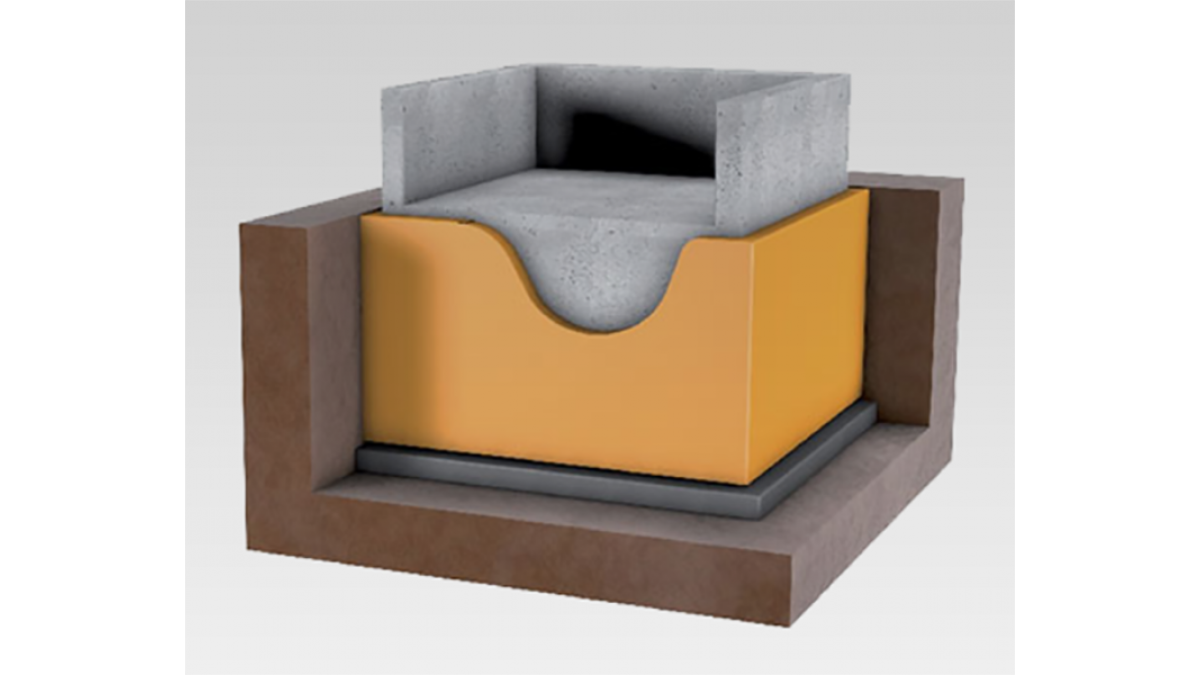

In most cases, Sylomer is used as a compression-loaded elastic support element. The characteristics of the elastic support can be adjusted to the structure, construction method and load requirements by selecting the specific type of Sylomer, the load-bearing area and the thickness.

Key Features
  • High elasticity, long service life
  • Static range of use of 0.011 N/mm² to 1.2 N/mm²
  • Load peaks up to 6.0 N/mm²
  • Very low amplitude dependence
  • Proven long-term behaviour
  • High fatigue strength
  • Finely graded range (10 standard types) for optimum system design
  • Ability to provide customer-specific modification
Scope of Use
  • Railway — to reduce the life cycle cost of railway lines

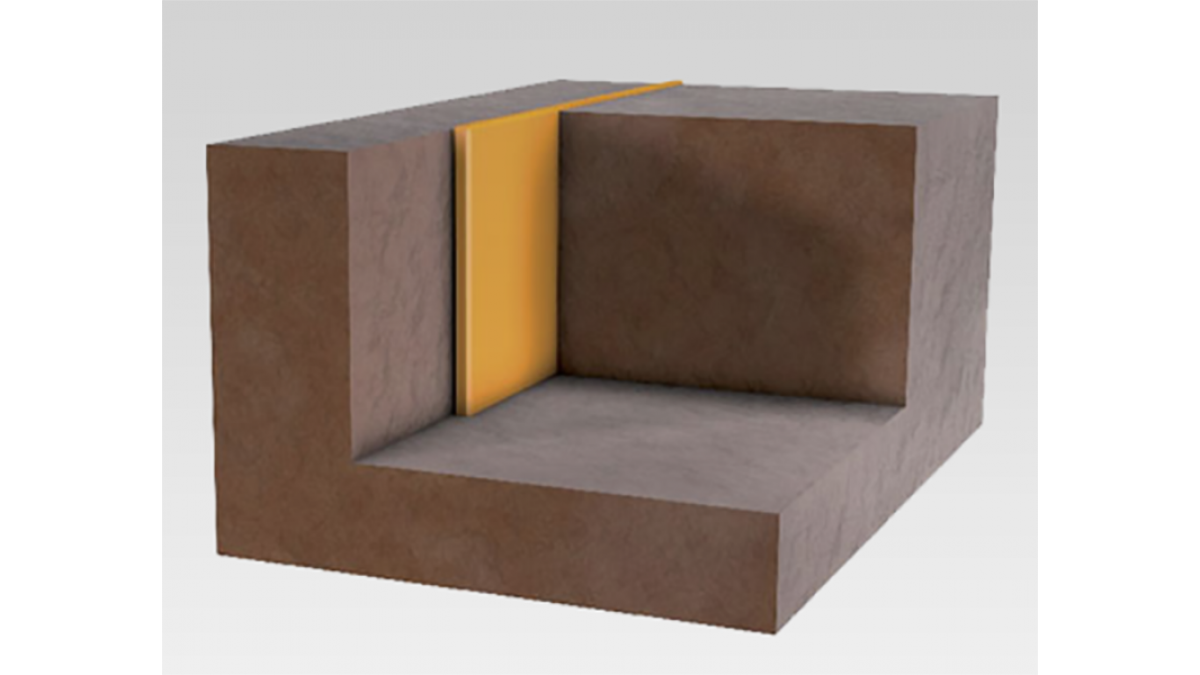

  • Construction — for vibration protection and sound control

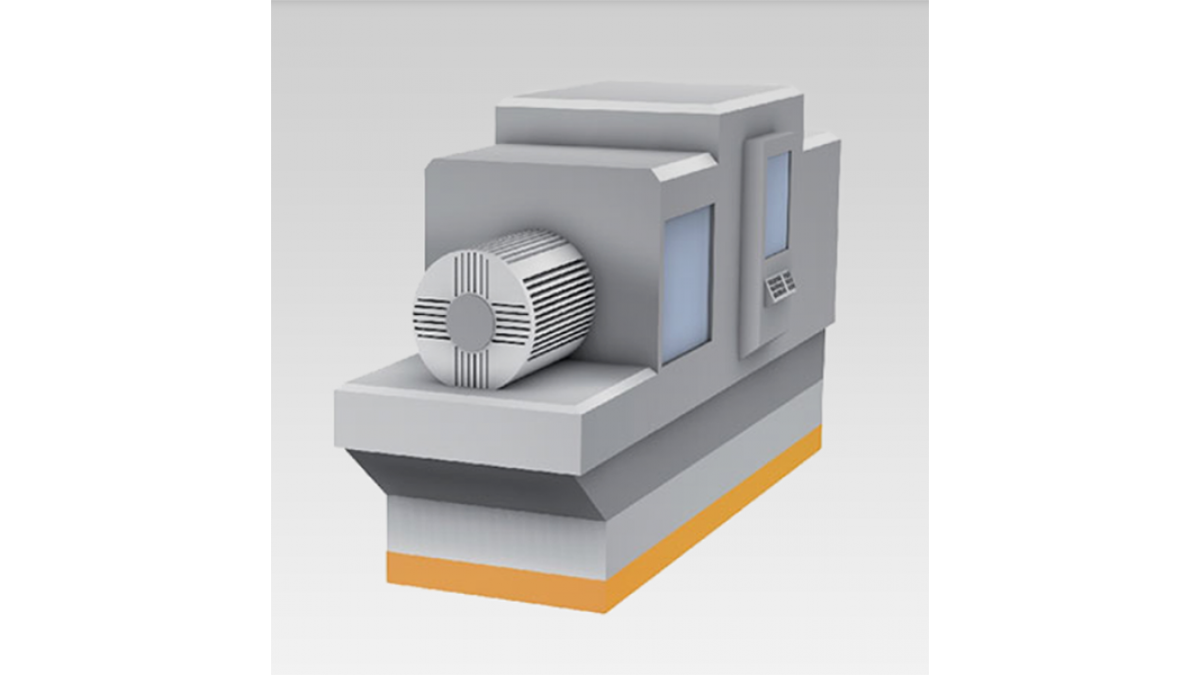

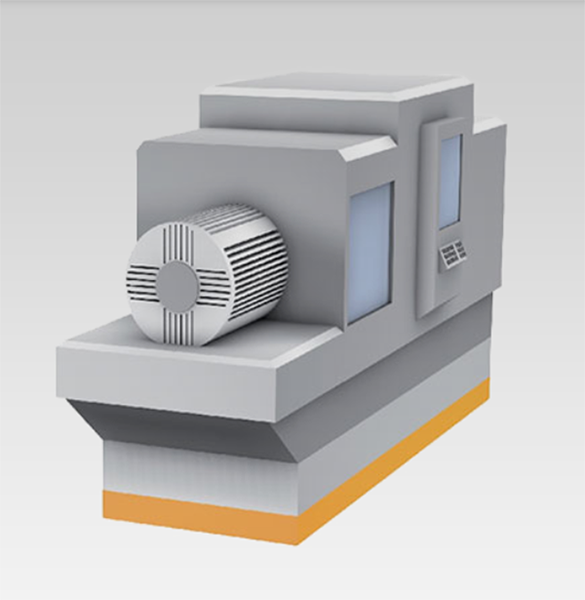

  • Industry — controlling oscillations and vibrations
  • Under ballast mats, machine bearings, sleeper pads, bearings of HVAC units
  • Getzner offers comprehensive and bespoke project solutions in cooperation with regional partners



In-Service History
  • Used at Auckland War Memorial Museum to protect exhibits from vibration during construction
Other Performance Attributes
  • High elasticity, long service life
  • Static range of use of 0.011 N/mm² to 1.2 N/mm²
  • Load peaks up to 6.0 N/mm²
Documents
Data Sheet: Sylomer L
Data Sheet: Sylomer P12 Red
Data Sheet: Sylomer R12 Blue
Technical Information
Installation and Operation
Additional Information
