FIREMASTER FASTWRAP XL
Description

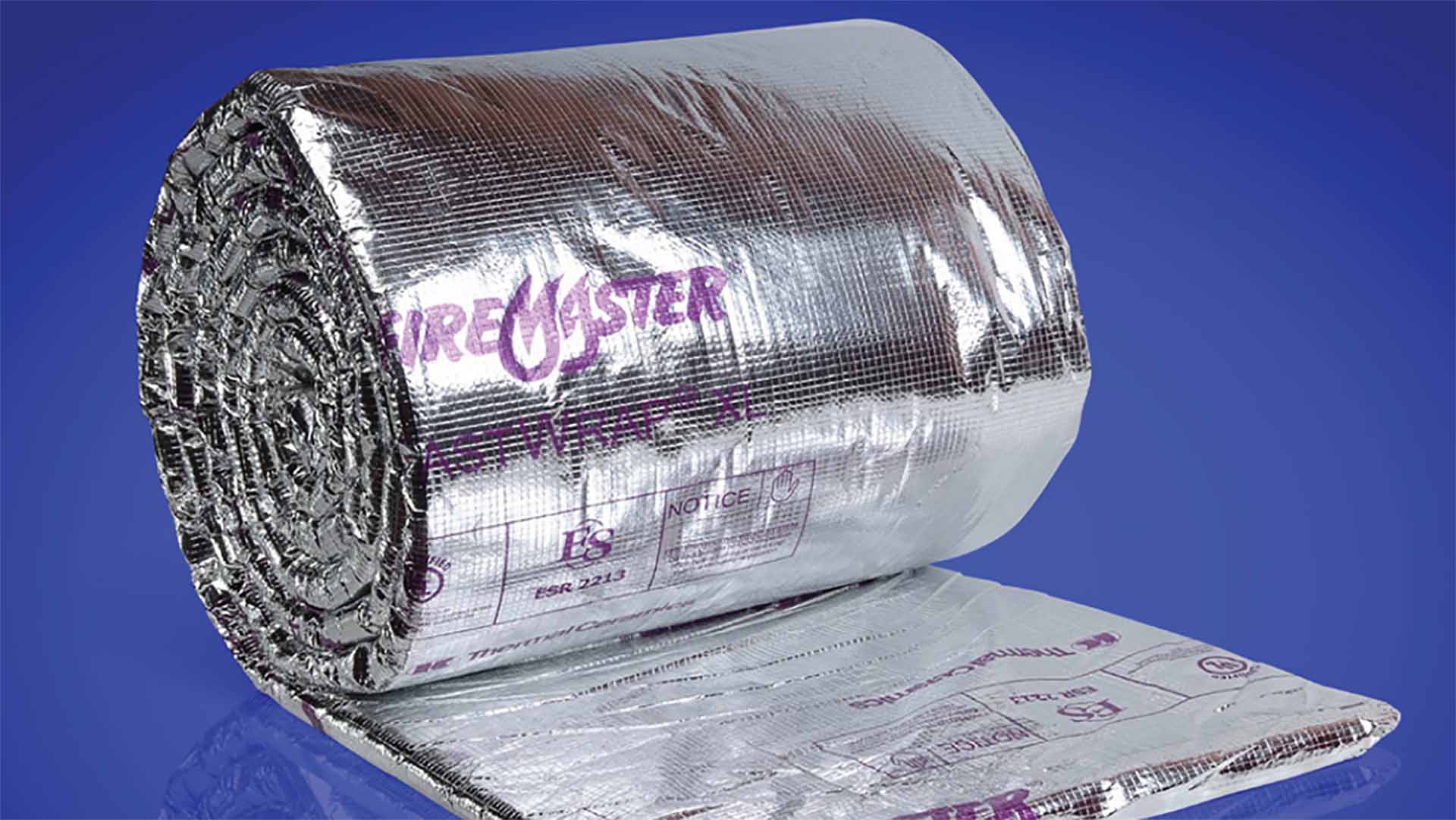

Thermal Ceramics FireMaster FastWrap XL is a flexible blanket composed of high temperature fibres classified for applications to 1200°C (2192°F) and fully encapsulated in a durable glass fibre reinforced foil facing for easy handling and installation.



Key Features
  • Thin and Lightweight at 38mm (1½") thick, 6 pcf (96 kg/m3) density
  • Contours easily to complex duct designs
  • Grease duct installation UL and ULC Listed with butt joints at all seams on both layers
  • Fully foil encapsulated for fast and clean installation
  • Contains (1200°C) (2192°F) rated fibres
  • Microbial Resistance validated by UL Environment
  • Good sound absorption
  • Compliant to IMC, NFPA 96, UMC, CMC, CNBC
Scope of Use

Thermal Ceramics FireMaster FastWrap XL is a flexible high temperature insulation rated to 1200°C (2192°F) that is fully encapsulated in FSP facing. The duct enclosure system shall be listed by UL and /or ULC per ASTM E 2336, CAN/ULC S144 and ISO 6944 for 1-, 2- and 3-hour rating and zero clearance to combustibles, and tested per ASTM E84 for a flame/smoke rating less than 25/50. Insulation shall have a R-Value of 7.3 at 75°F (23.9°C).

Limitations on Use
  • 2 hour enclosure and firestop system for kitchen exhaust duct
  • Zero clearance to combustibles
  • 1, 2 and 3 hour enclosure and firestop system for hazardous exhaust ducts, pressurization ducts, clothes dryer exhaust ducts, trash and linen chutes, and other fire rated HVAC ducts
  • 1 hour electrical circuit integrity protection
  • Engineered and tested solutions for fire protection of structural steel and storage vessels per ASTM E119, ISO 834, and UL1709

Installation shall be in strict accordance to manufacturers published installation instructions, UL or ULC Listings, and shop drawings. FastDoor XL shall be used for duct access where specified or as required.

Statement of Building Code Compliance

Compliant to IMC, NFPA 96, UMC, CMC, CNBC

Documents
Data Sheet
CAD/PDF Details

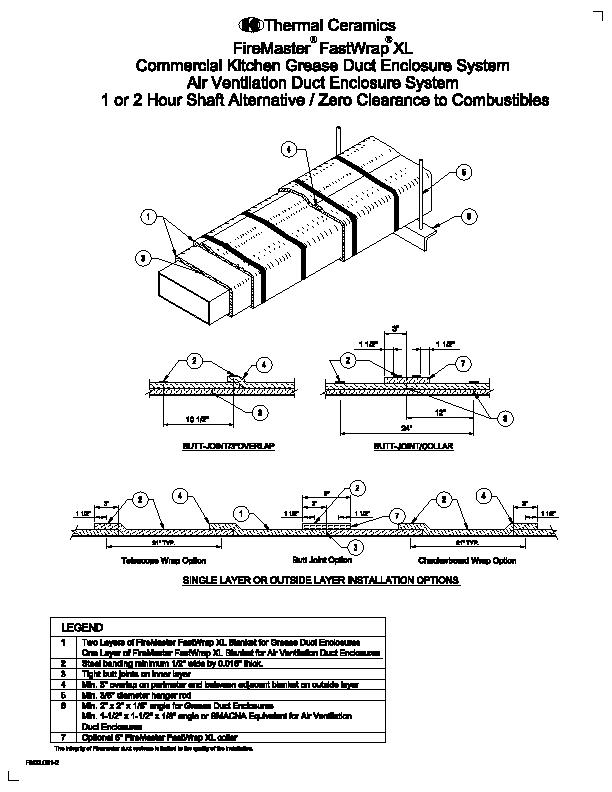

Air Ventilation Duct

FMXL001-2

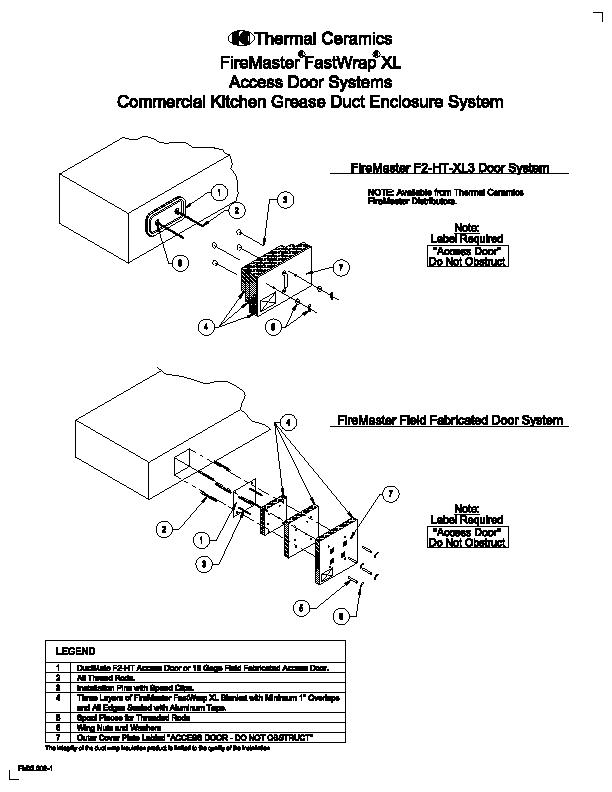

Access Door Systems

FMXL002-1

Access Door Systems

FMXL003-1

System Details

FMXL027-0
