C Series 45 — Aluminium Partition System
Potter Interior Systems
All products

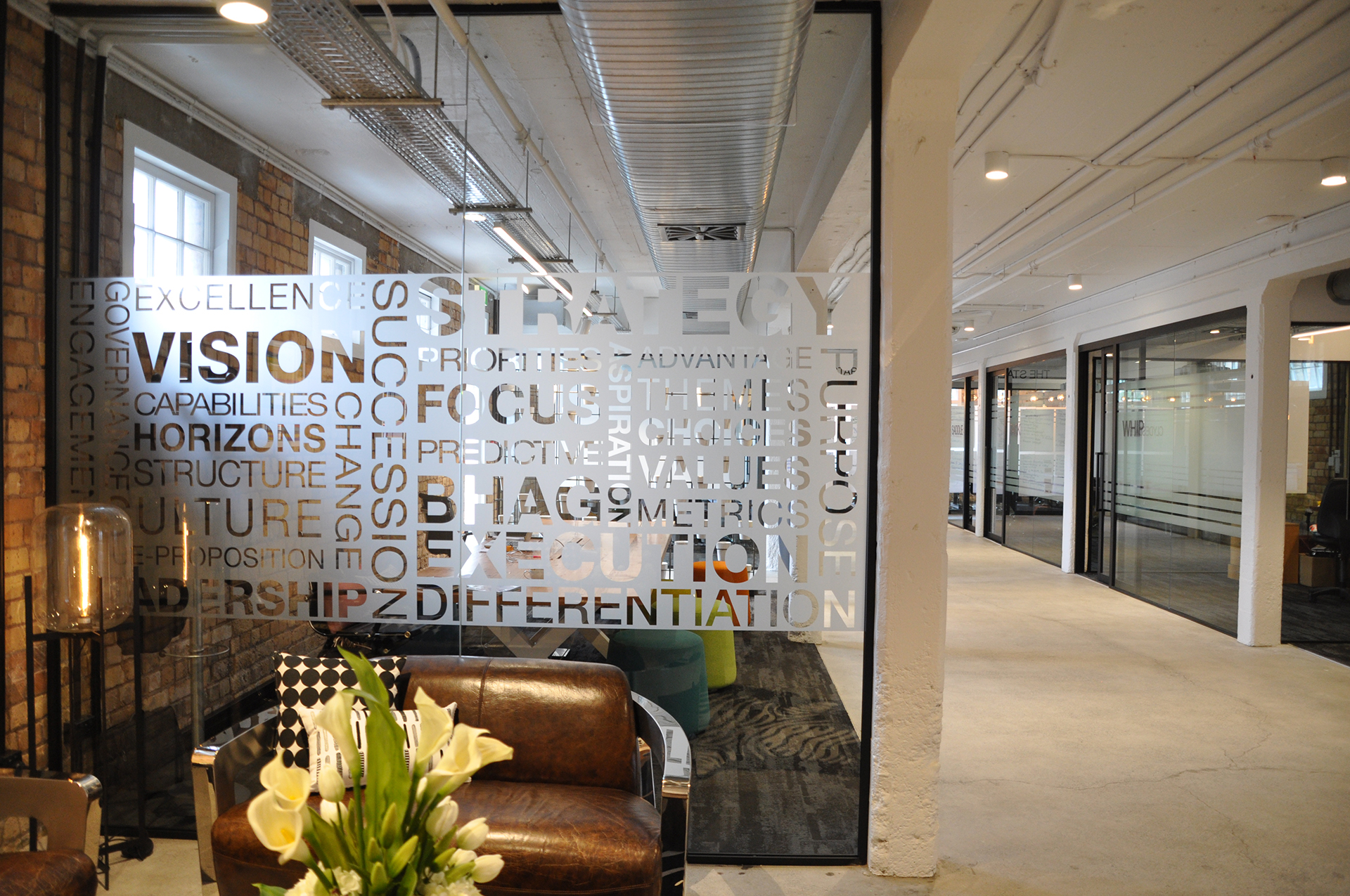

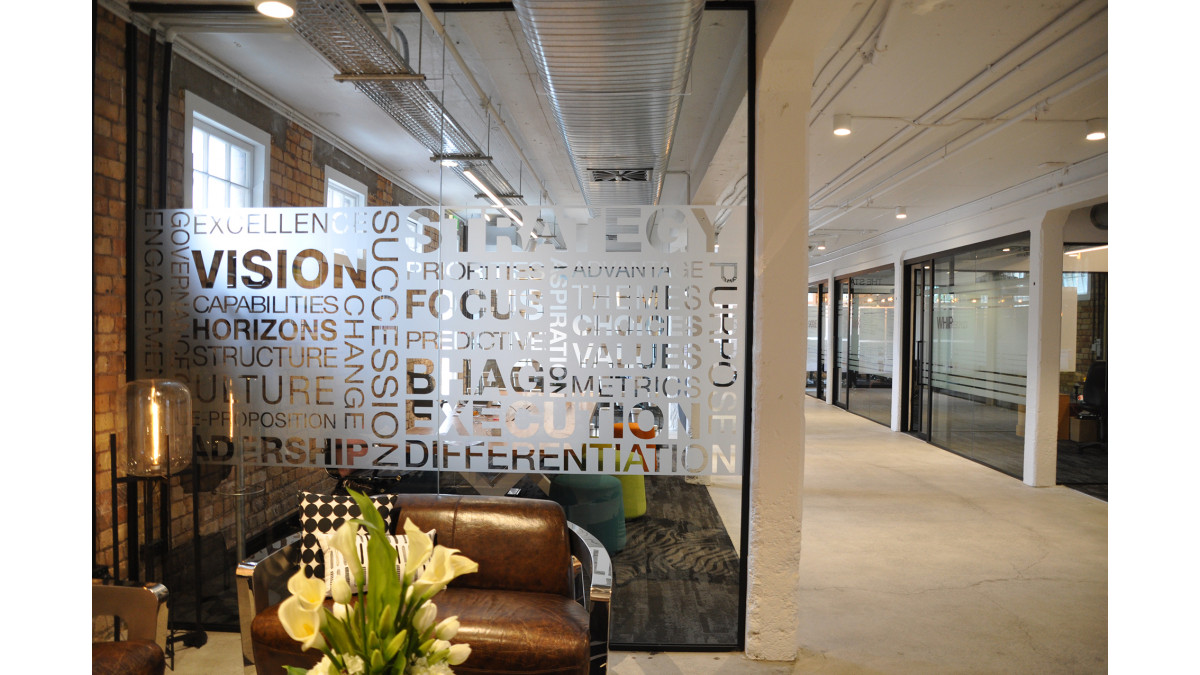

DSC 0348eboss2

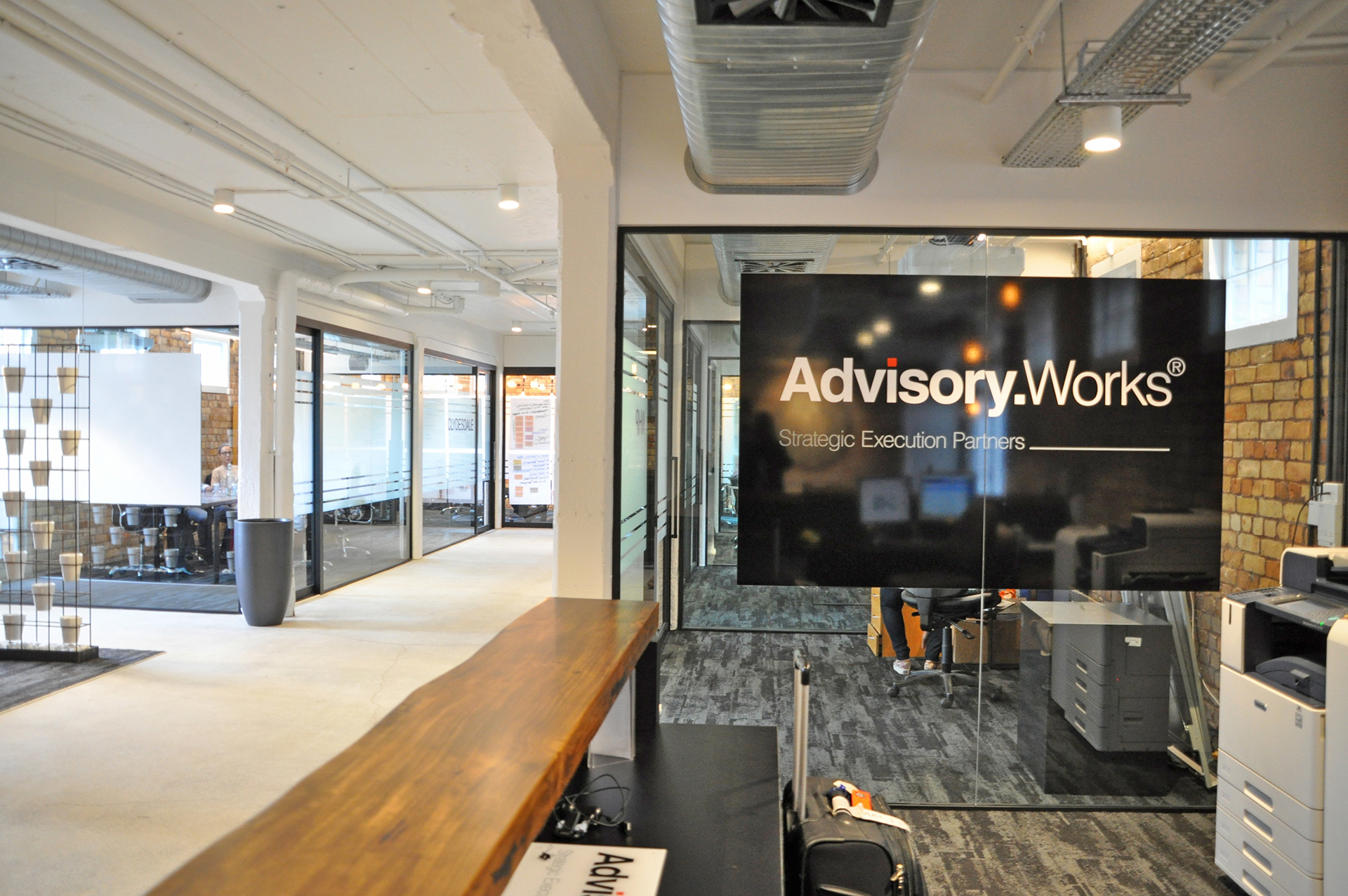

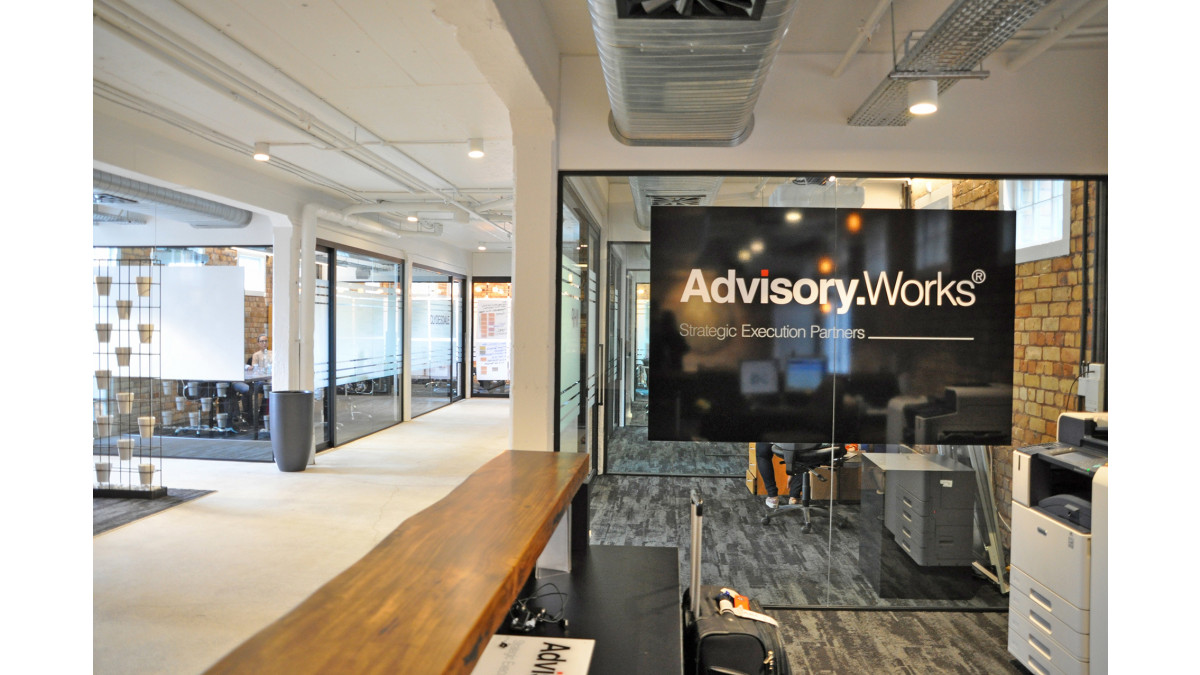

DSC 0404eboss

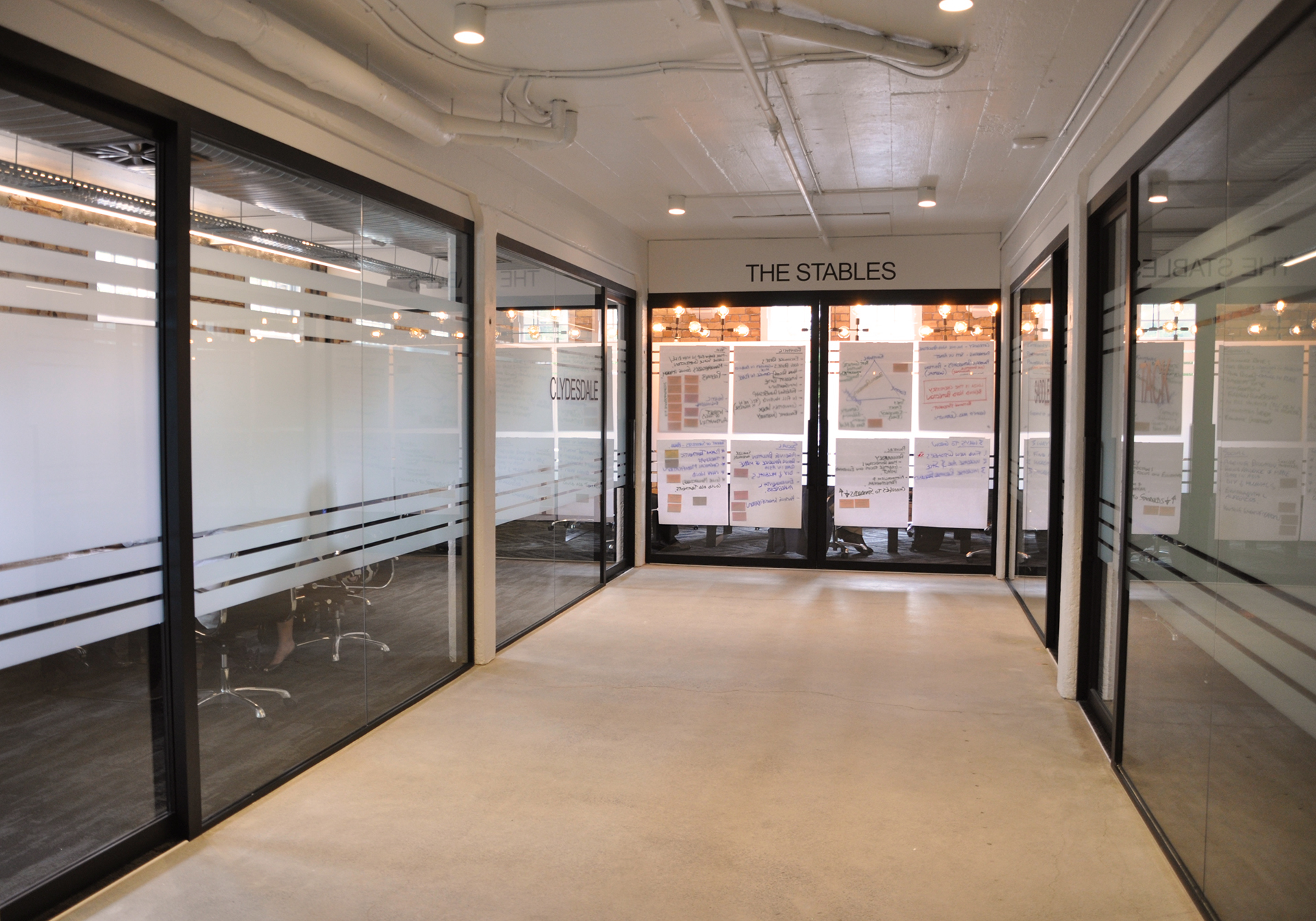

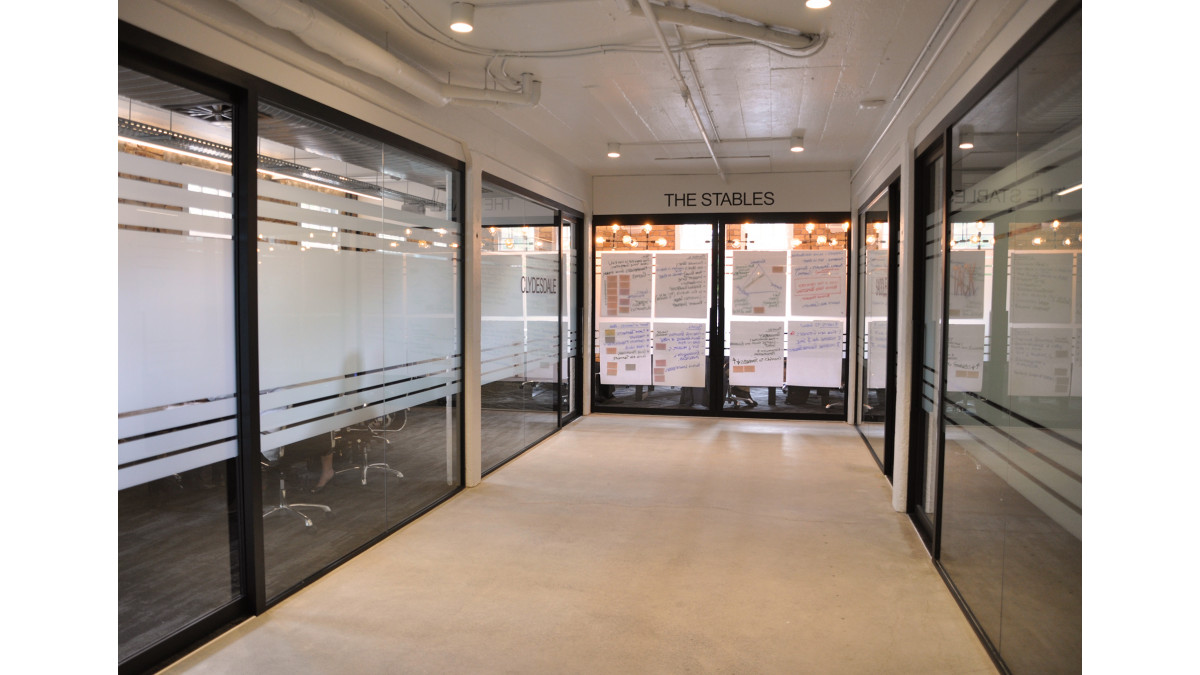

DSC 0391eboss

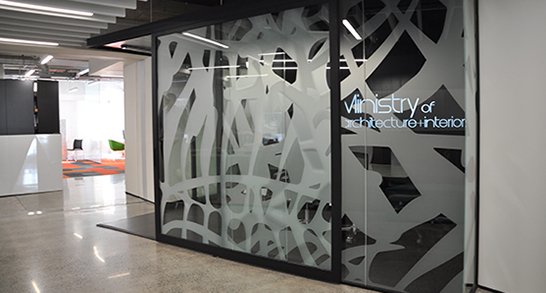

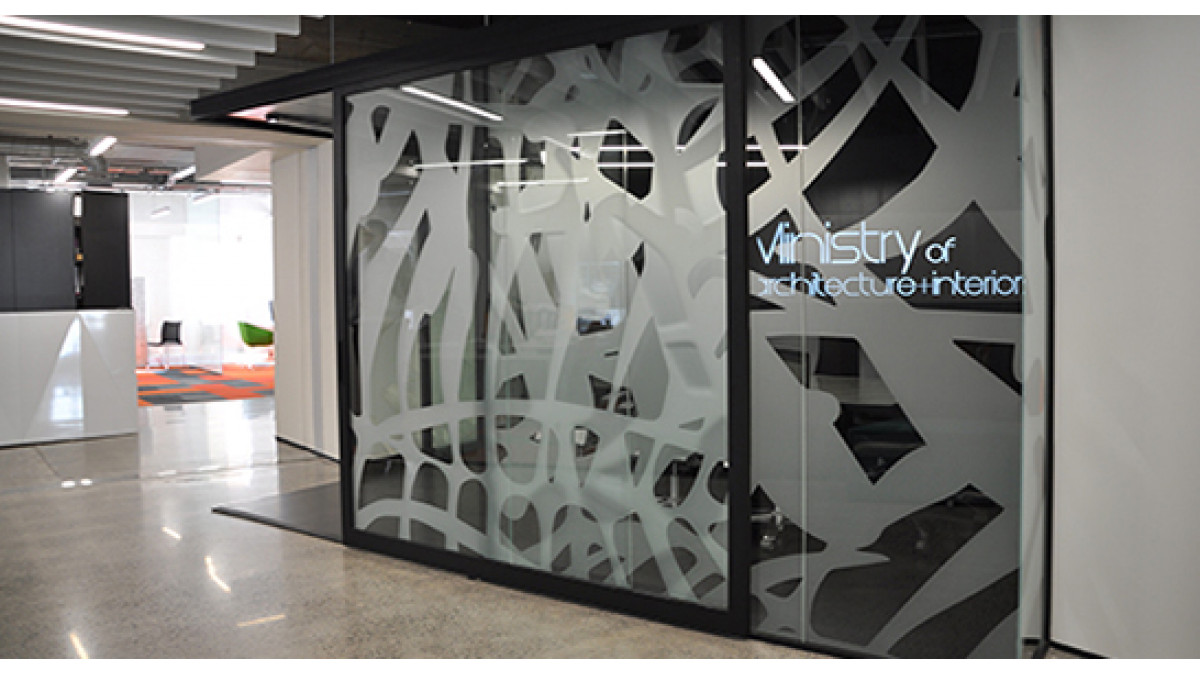

C Series 01

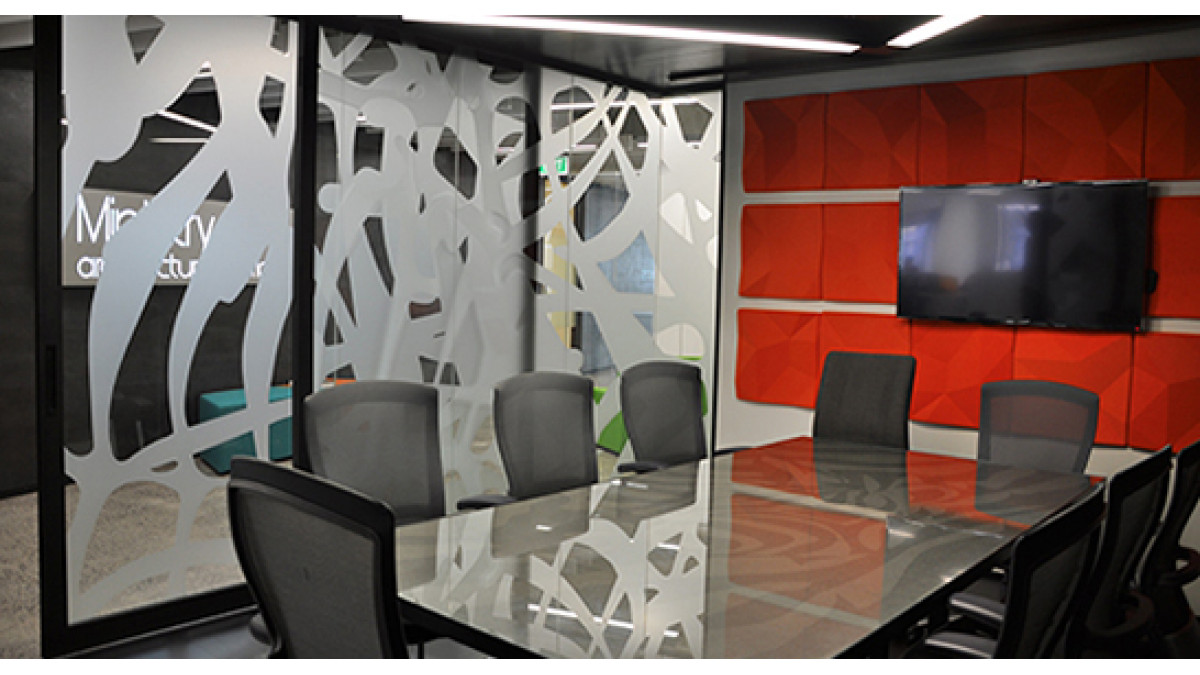

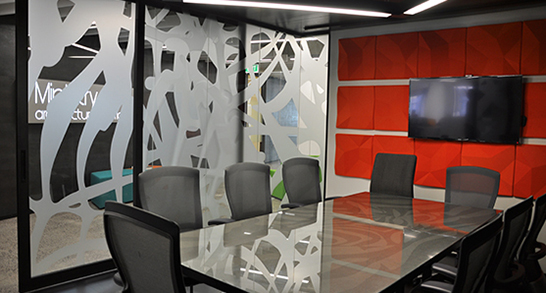

C Series 02
Aluminium June 2021
Description

C Series 45 is used as a commodity system when the budget is a factor. It can be designed into the A Series for a slimmer look.

Key Features
  • Standard glazing profile of 45mm wide x 25mm high
  • Standard wall size based on 64mm steel stud with either a single or double layer of 13mm plaster board on each side
  • Can accommodate glass thicknesses between 6mm and 13mm
  • Door thicknesses between 35mm and 50mm can be used
  • Can be fixed to standard openings or fixed to 105 or 132 series head/sill track
Categories
Partitions
Ranges
Aluminium Systems
Declare LBC Red List Free
Declare LBC Red List Free
NZ Made
NZ Made
Statement of Building Code Compliance

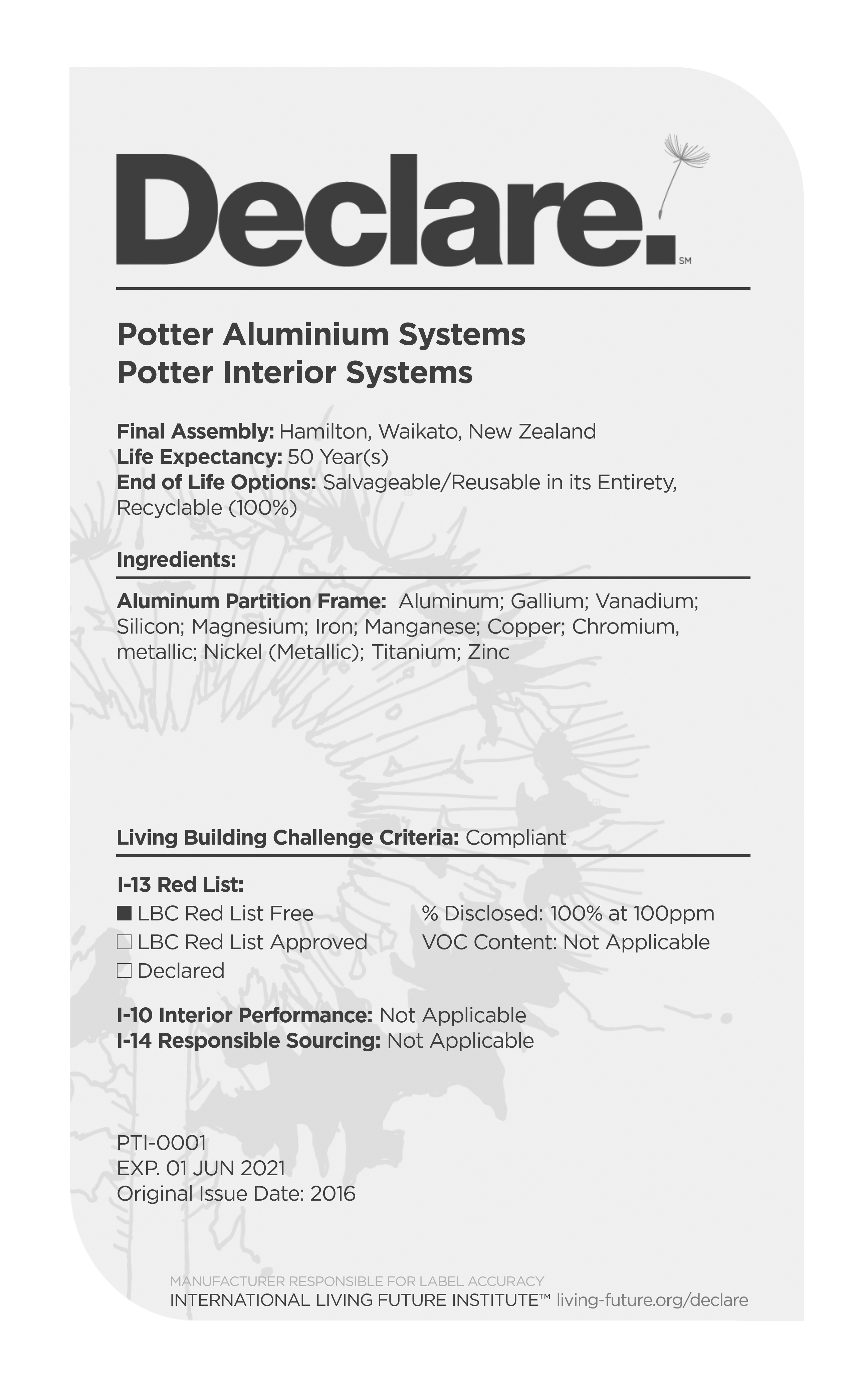

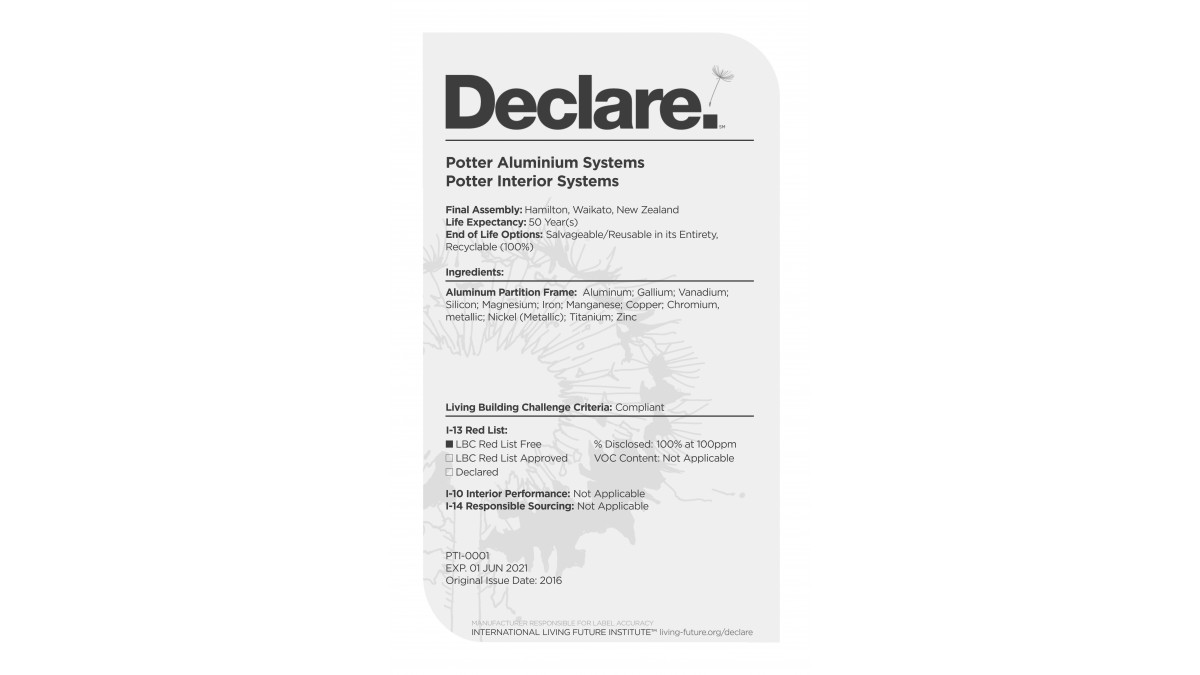

All our aluminium partition suites carry the Declare label.
Final Assembly: New Zealand. Life Expectancy: 50+ years.
End of of Life Options: 100% Reusable/Recyclable.

  • Case Studies
  • News
  • Technical Advice
Josh Hepi

Design Guidelines for Glazed Internal Partitions

Potter’s Aluminium Partitions Specifiers’ Manual contains some useful technical information relating to glass, with references to the glazing code and GANZ. It also provides some important design guidelines for glazed internal partitions.
Documents
Data Sheet
pdf
Glazed Internal Partition: Glass Guidelines
pdf
Declare Accreditation
pdf
Specification Clause (Masterspec)
pdf
Maintenance Instructions
pdf
CAD/PDF Details
View full

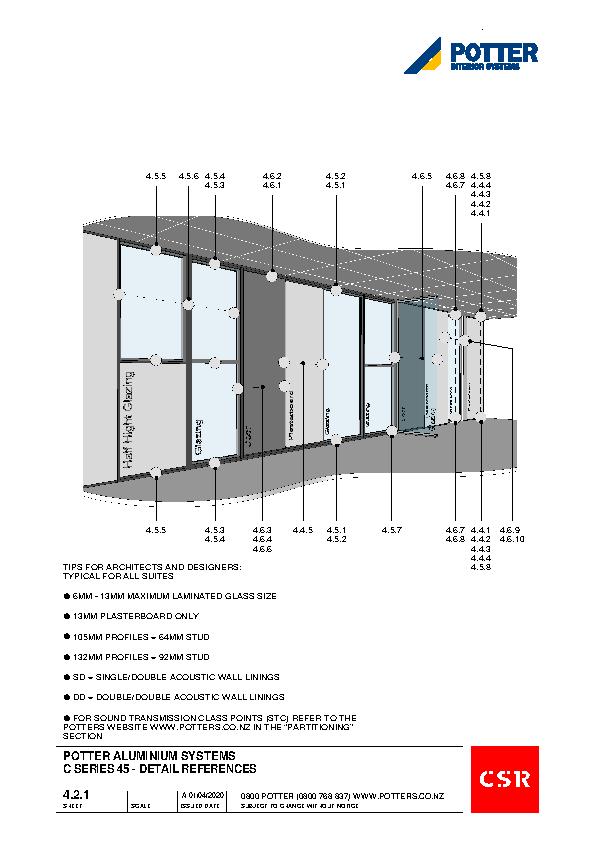

4.2.1 Detail References
dwg
dxf
pdf

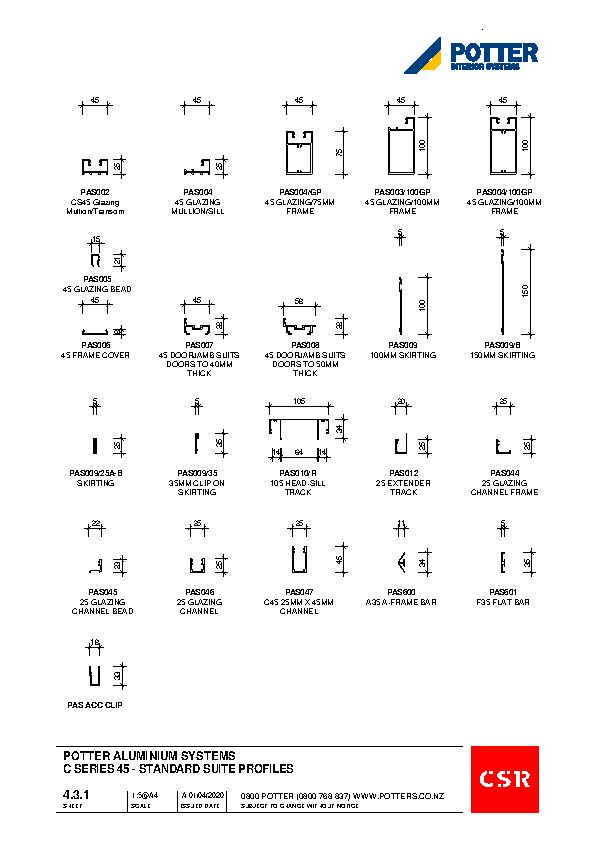

4.3.1 Standard Suite Profiles
dwg
dxf
pdf

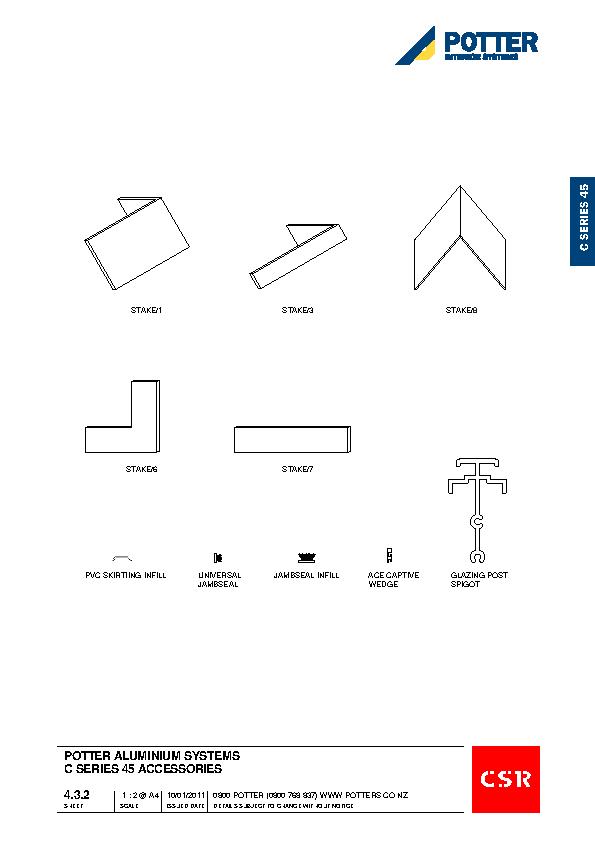

4.3.2 Accessories
dwf
dwg
DXF
pdf

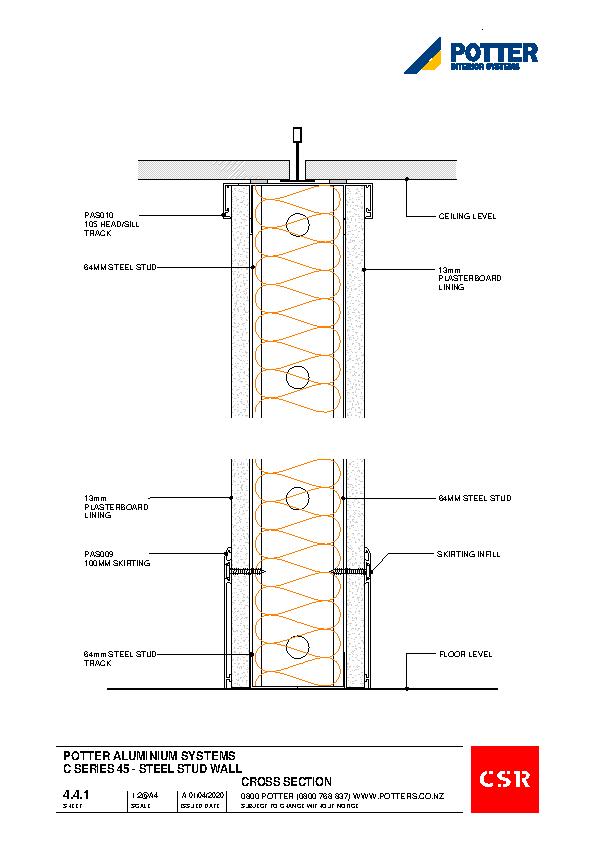

4.4.1 Steel Stud Wall
dwg
dxf
pdf

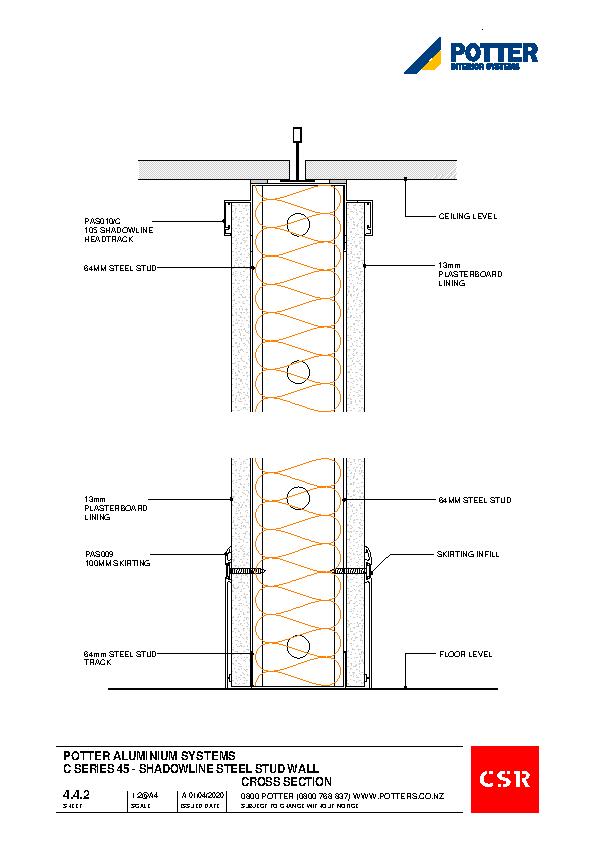

4.4.2 Shadowline Steel Stud Wall
dwg
dxf
pdf

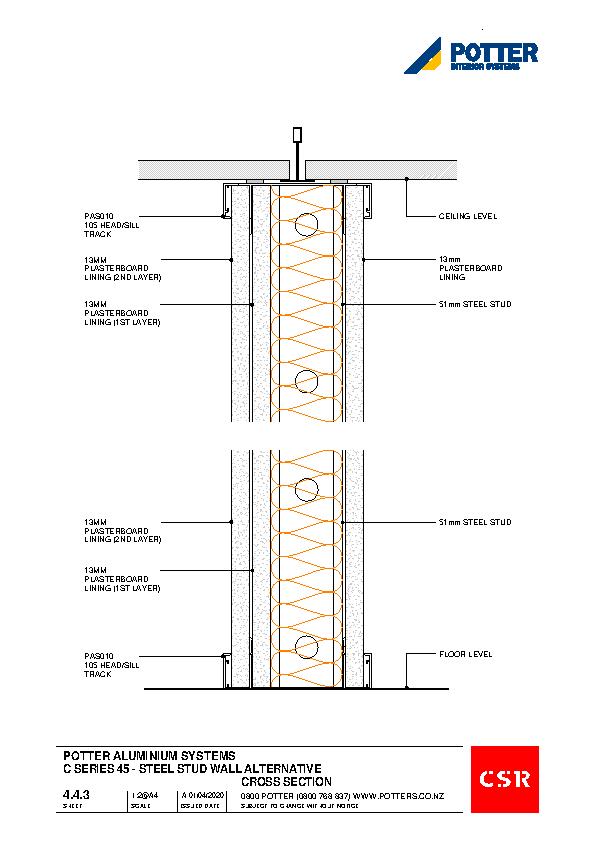

4.4.3 Steel Stud Wall Alternative
dwg
dxf
pdf

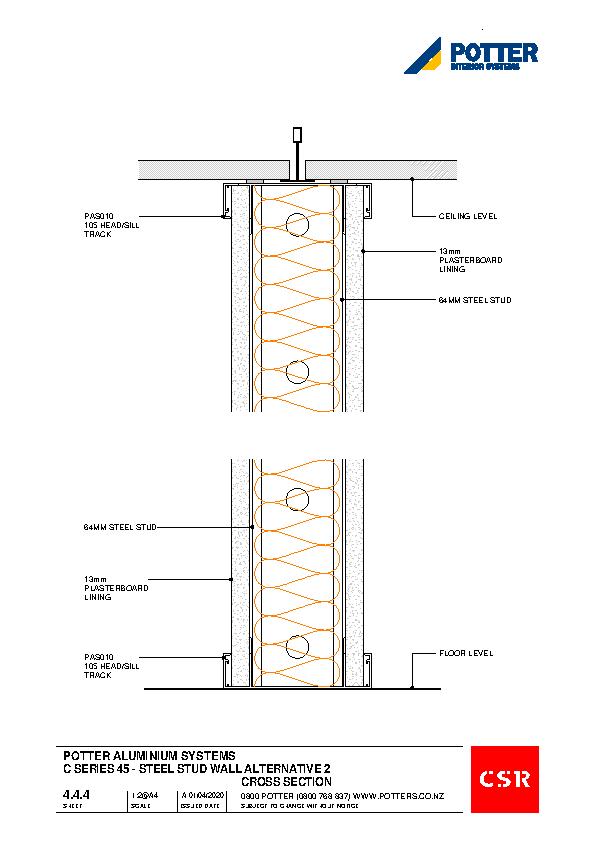

4.4.4 Steel Stud Wall Alternative 2
dwg
dxf
pdf

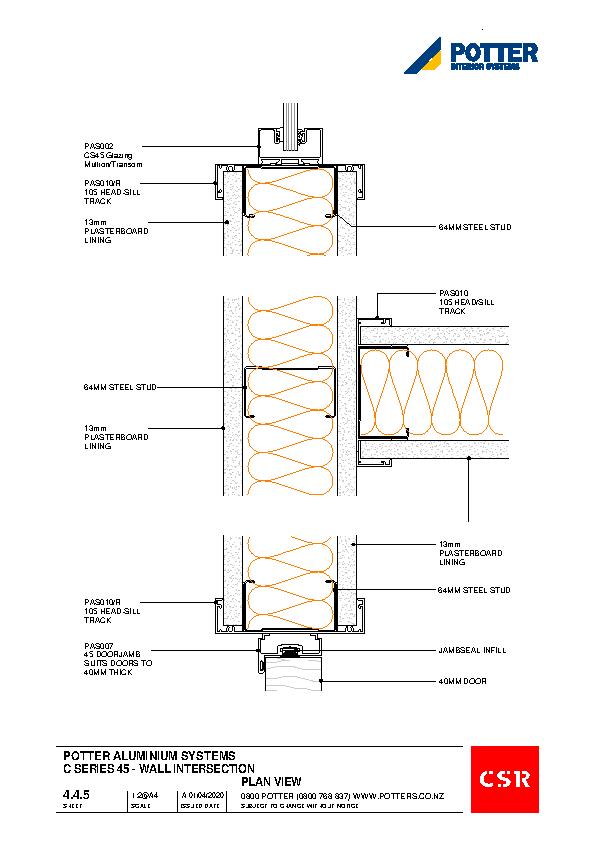

4.4.5 Wall Intersection
dwg
dxf
pdf

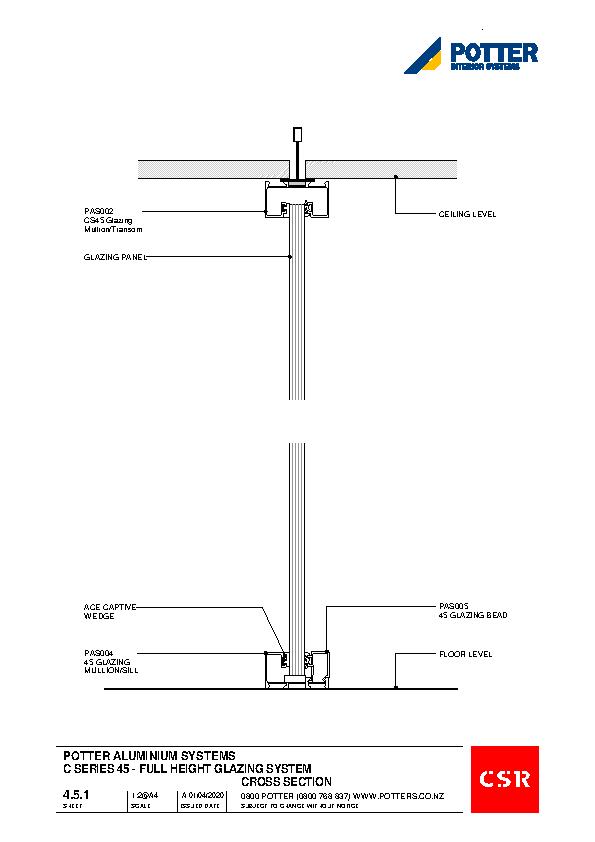

4.5.1 Full Height Glazing System
dwg
dxf
pdf

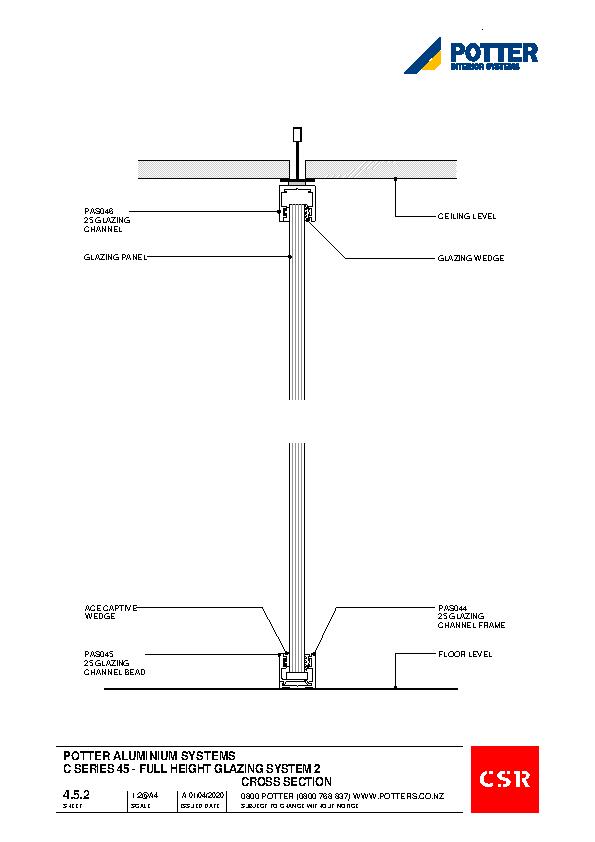

4.5.2 Full Height Glazing System 2
dwg
dxf
pdf

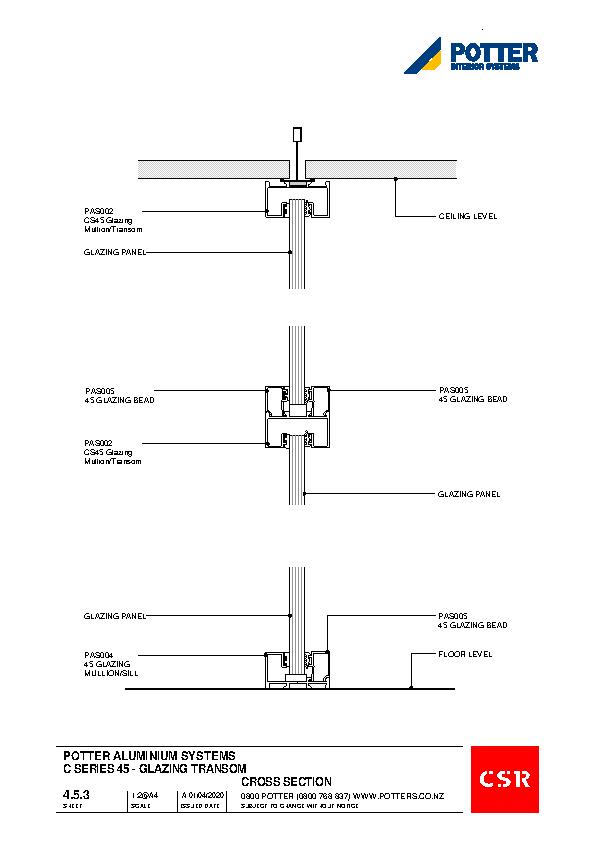

4.5.3 Glazing Transom
dwg
dxf
pdf

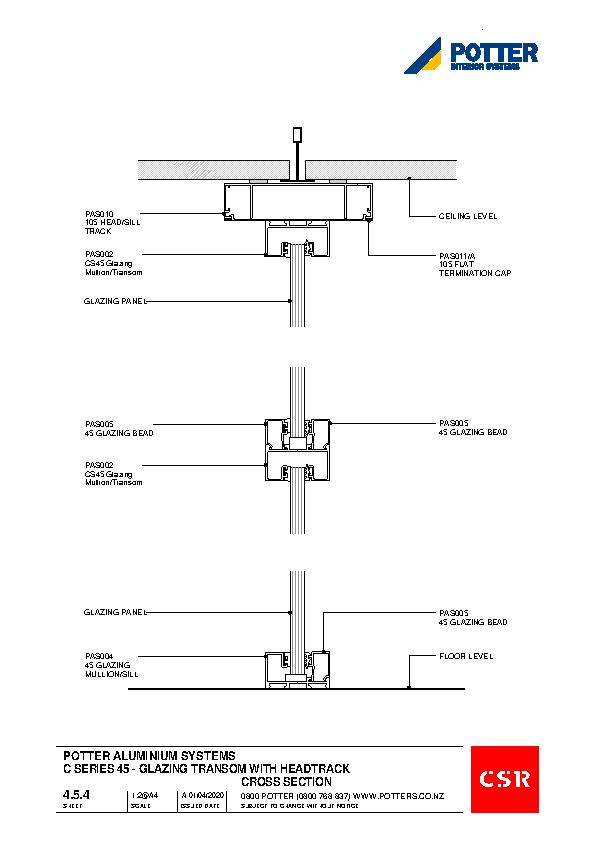

4.5.4 Glazing Transom With Headtrack
dwg
dxf
pdf

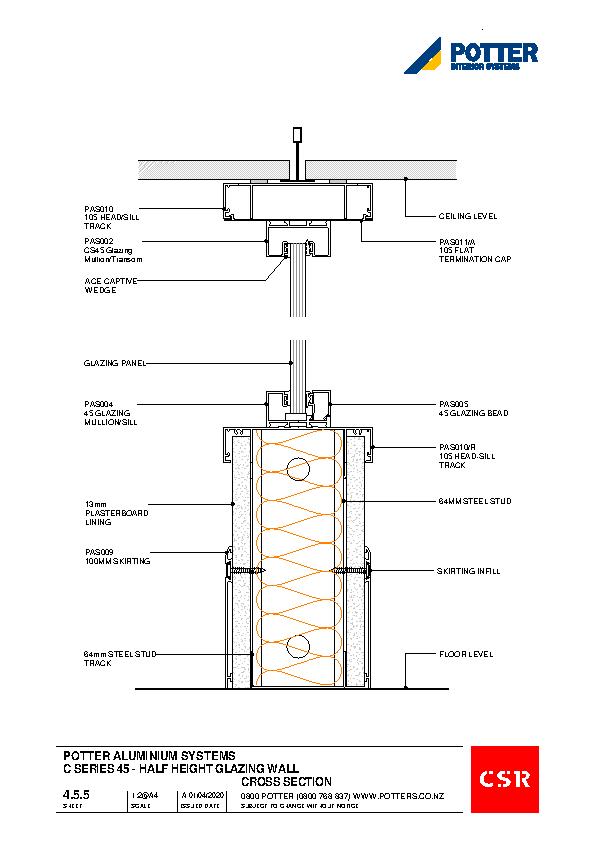

4.5.5 Half Height Glazing Wall
dwg
dxf
pdf

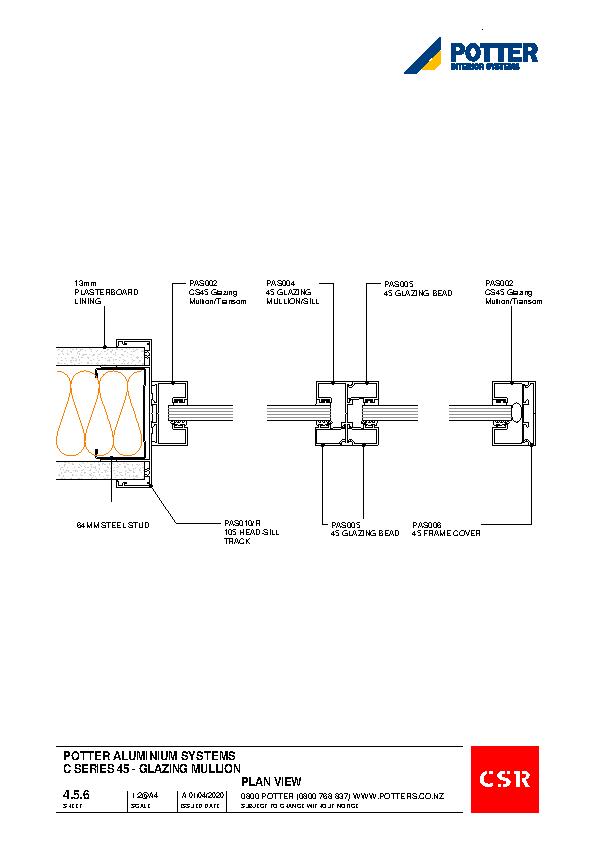

4.5.6 Glazing Mullion
dwg
dxf
pdf

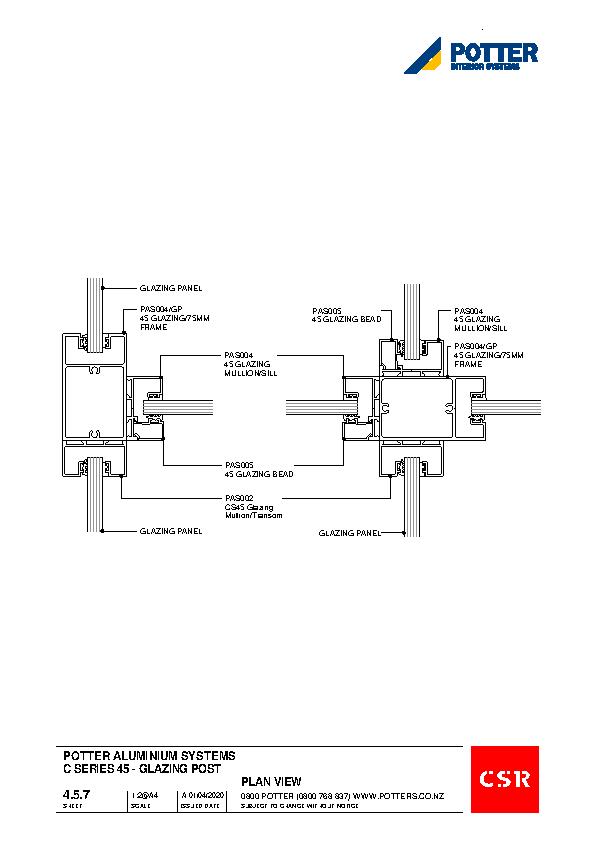

4.5.7 Glazing Post
dwg
dxf
pdf

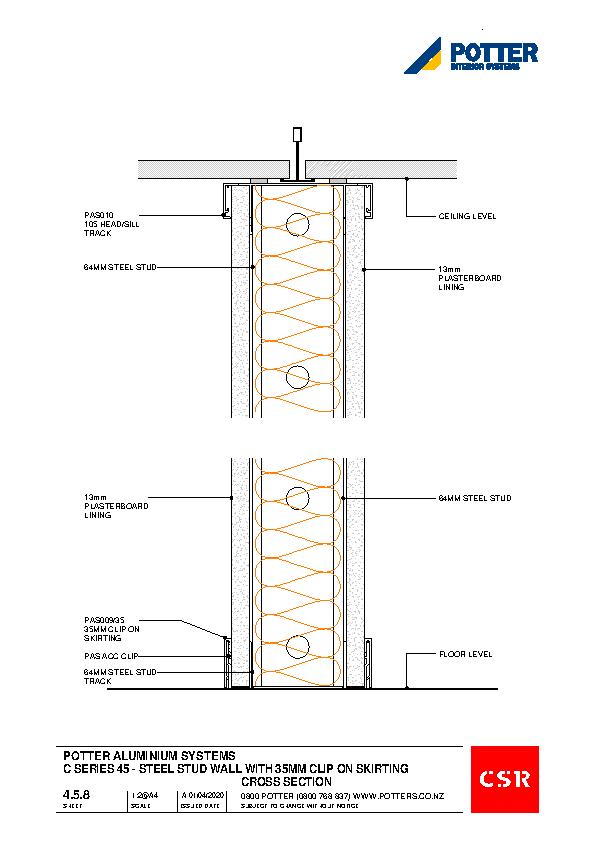

4.5.8 C Series – Steel Stud Wall
dwg
dxf
pdf

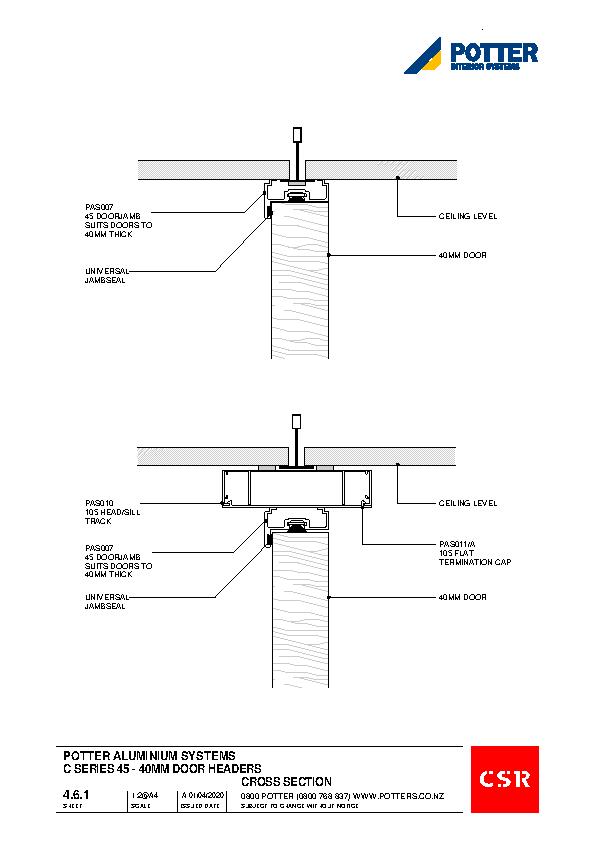

4.6.1 40mm Door Headers
dwg
dxf
pdf

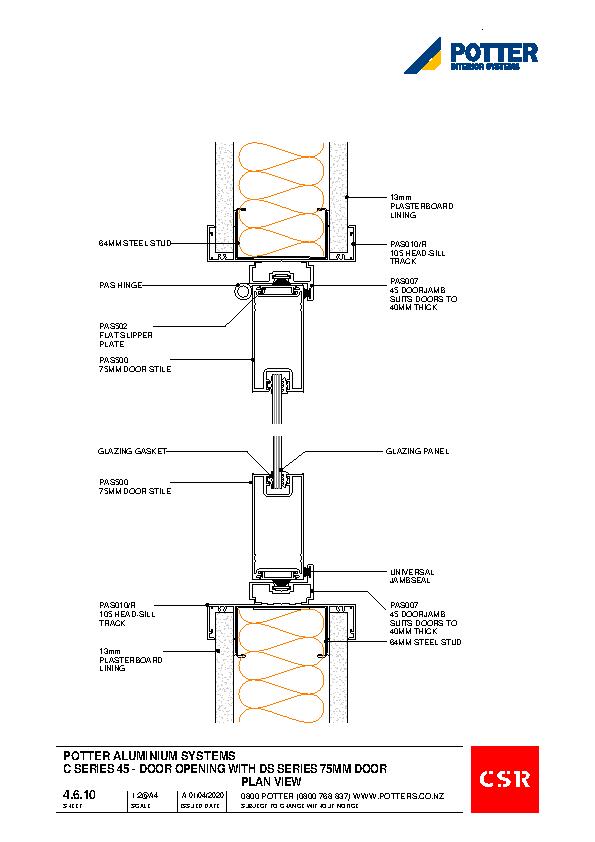

4.6.10 Door Opening With DS Series 75mm Door
dwg
dxf
pdf

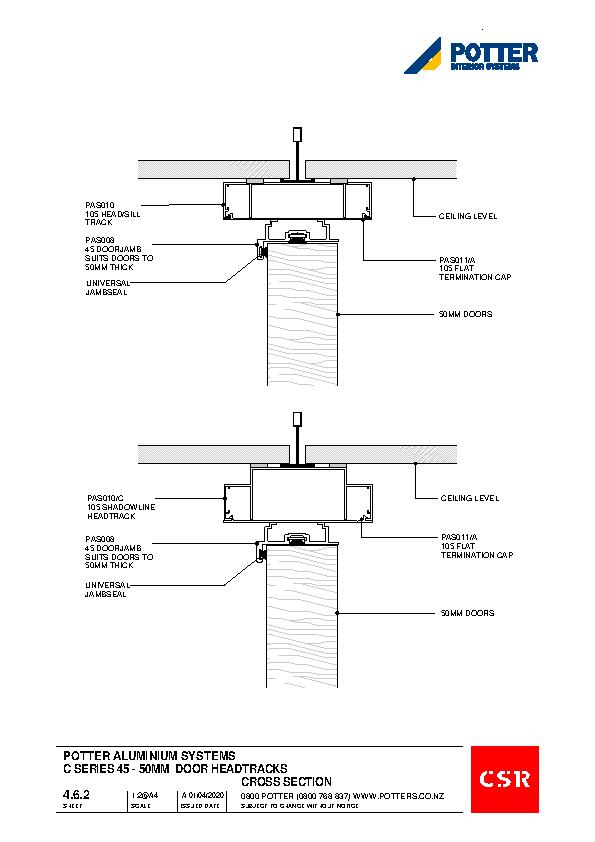

4.6.2 50mm Door Headtracks
dwg
dxf
pdf

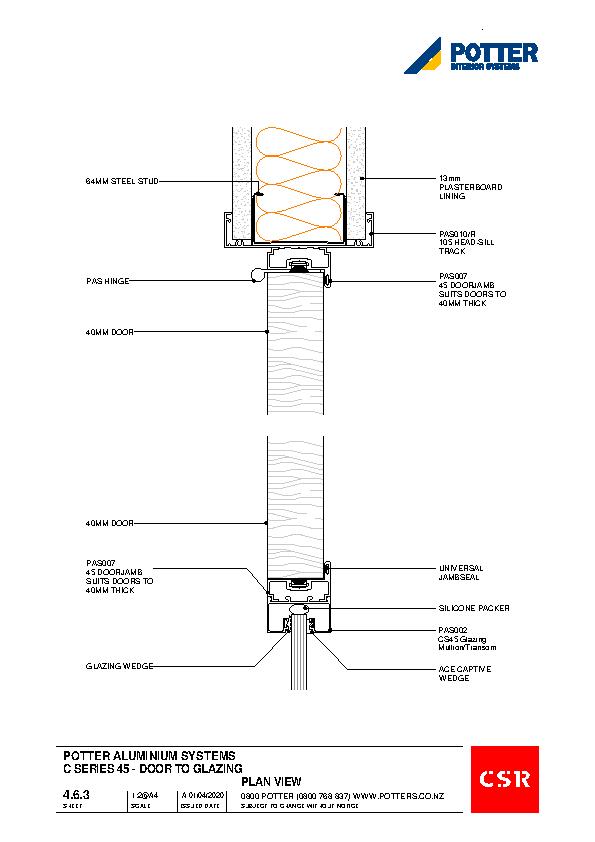

4.6.3 Door To Glazing
dwg
dxf
pdf

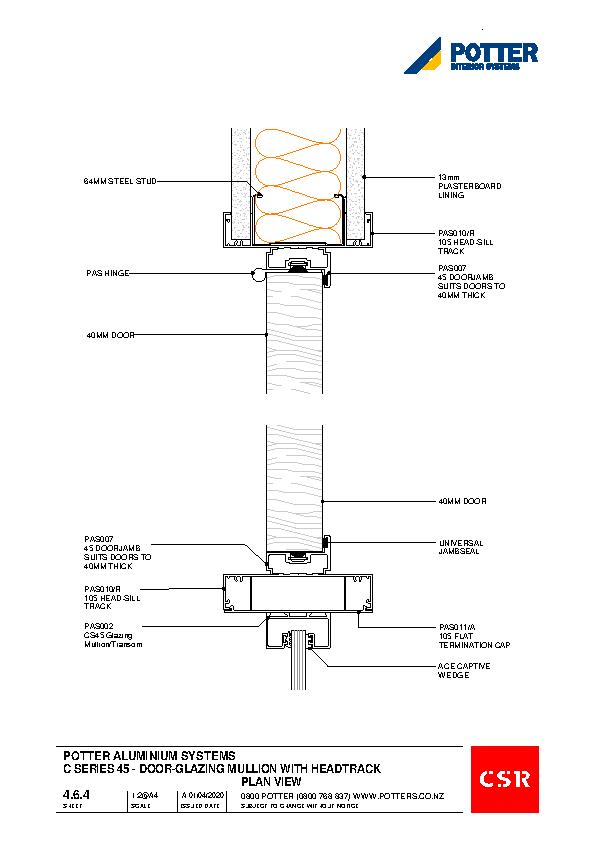

4.6.4 Door/Glazing Mullion With Headtrack
dwg
dxf
pdf

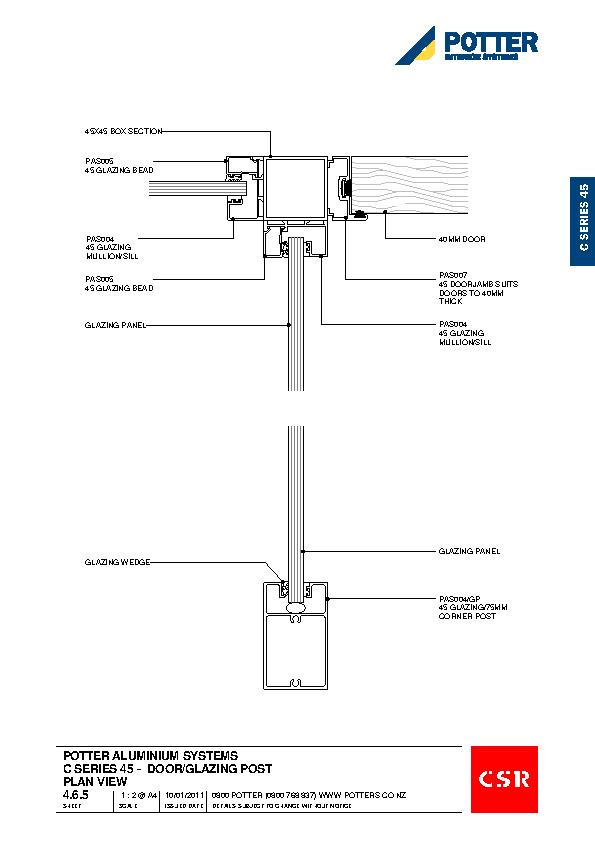

4.6.5 Door/Glazing Post
dwf
dwg
DXF
pdf

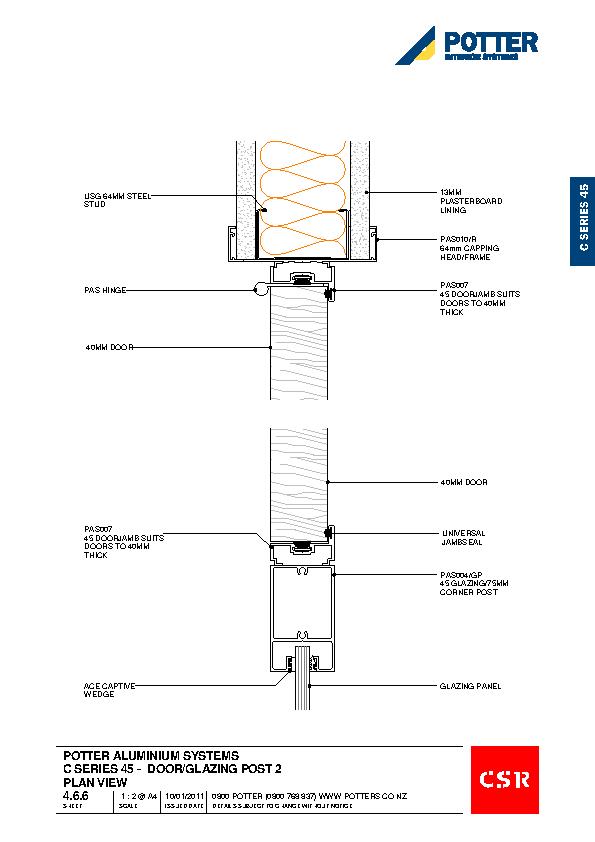

4.6.6 Door/Glazing Post 2
dwf
dwg
DXF
pdf

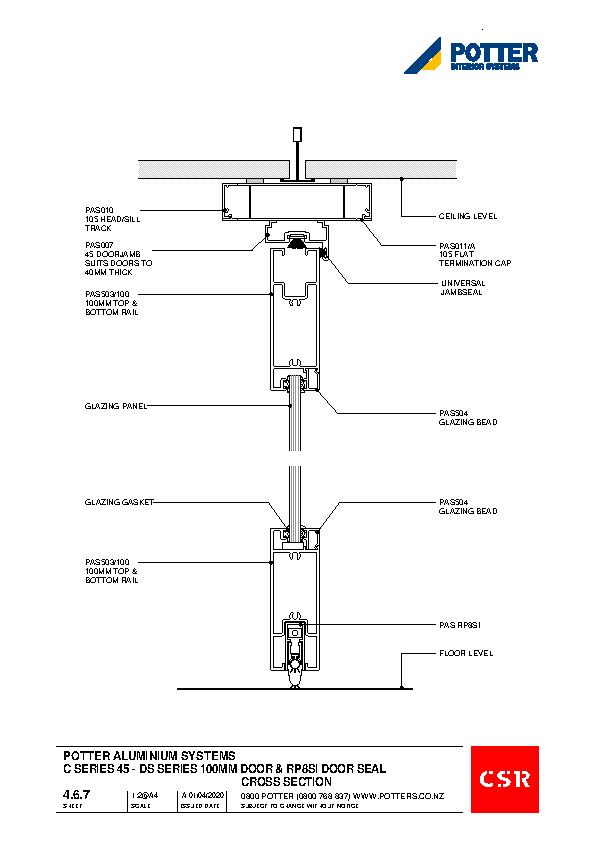

4.6.7 With DS Series 100mm Door And RP8SI Door Seal
dwg
dxf
pdf

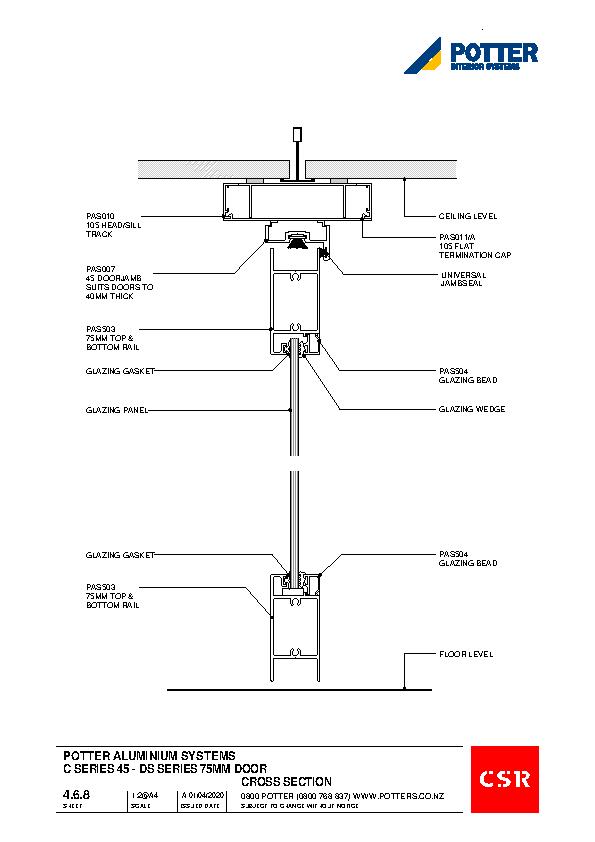

4.6.8 With DS Series 75mm Door
dxf
pdf

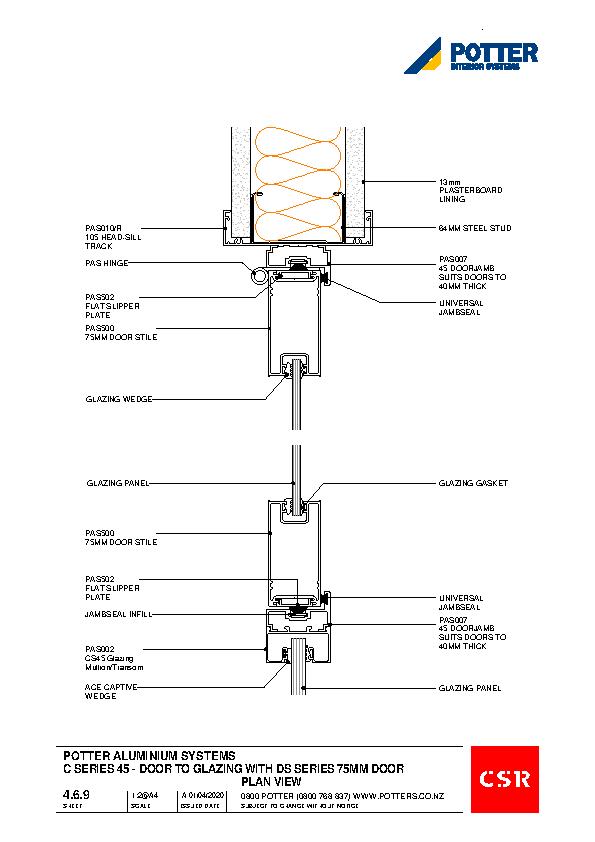

4.6.9 Door To Glazing With DS Series 75mm Door
dwg
dxf
pdf

A leading supplier of building materials to the commercial industry-including ceiling panels, aluminium partitioning, acoustic and thermal insulation, whiteboards and passive fire solutions.

Product Enquiries

News from Potter Interior Systems

Enhance Commercial Kitchens with Freshtone Hygiene Ceiling Tiles
Enhance Commercial Kitchens with Freshtone Hygiene Ceiling Tiles
Potter Interior Systems
February 2024 Product News
Potters Proudly Launch Their New DS Series Smoke Control Door NEW
Potters Proudly Launch Their New DS Series Smoke Control Door
Potter Interior Systems
January 2024 New Products

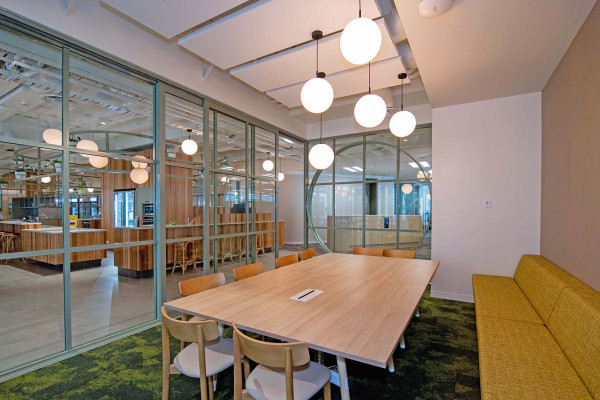

Potters Aluminium Partitions In Swire Shippings New Sustainable Workspace
