BOSS Fire Rated Bulkhead Batt
Description

BOSS Fire's Bulkhead Batt is designed to provide simple and effective compartmentalisation and fire stopping in walls and floors.

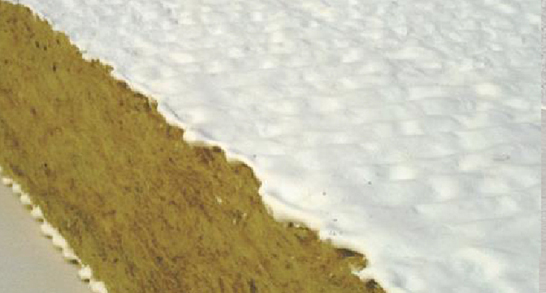

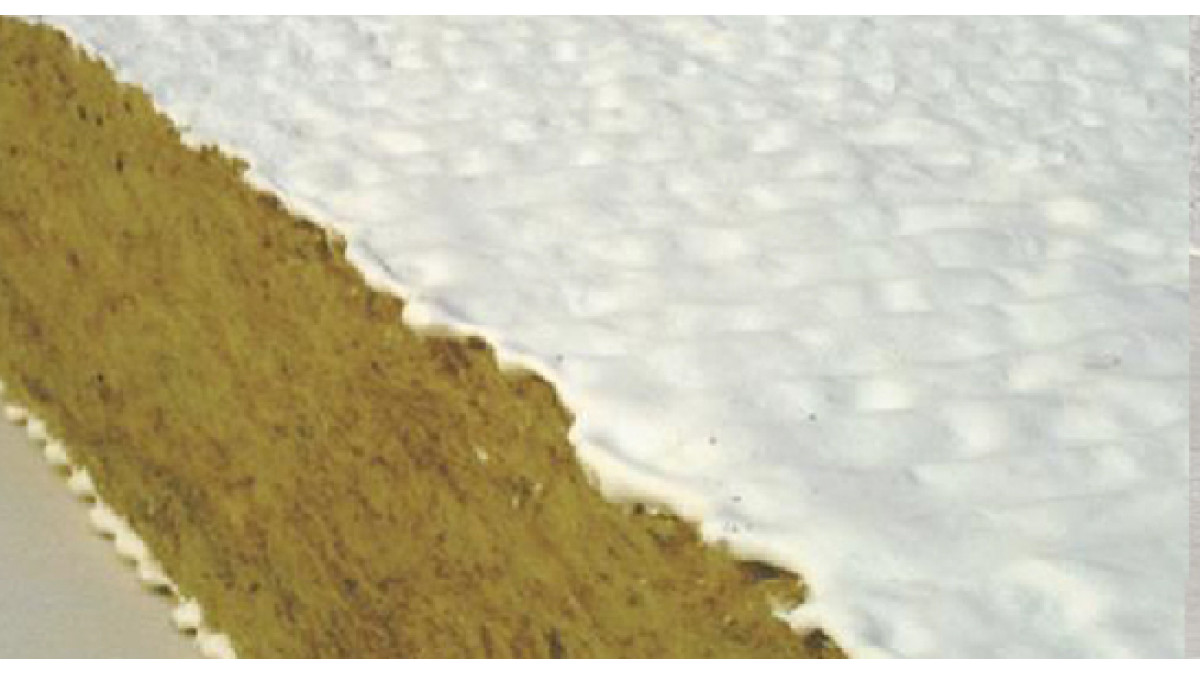

It consists of high-density mineral fibre batt with an ablative fire resistant coating which can be used in conjunction with other high performance BOSS fire protection products to provide excellent thermal and acoustic insulation.

Key Features
  • Up to 56.1dB sound reduction
  • Low cost and highly efficient method of fire stopping
  • Provides up to 4 hours fire and smoke barrier
  • Long life and easy storage
  • Suitable for large openings in floors and walls
  • One of the most simple and cost effective method of fire stopping
  • Approved to AS1530.4(2005)
Categories
Fire Safety
Ranges
Passive Fire
Scope of Use

BOSS Bulkhead Batts are suitable for use in any building which has single or multiple services penetrating fire rated compartment walls and floors.

Typical installations are:

  • Retail stores and shopping centres
  • Commercial buildings
  • Telecommunications
  • Power stations
  • Factories and industrial applications
  • Office fit-outs

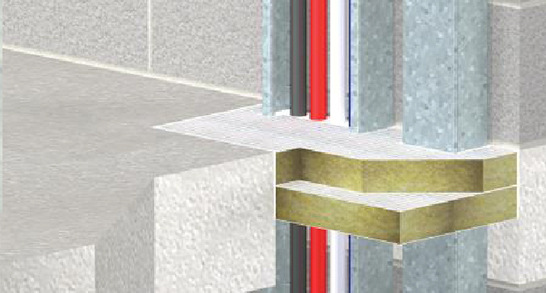

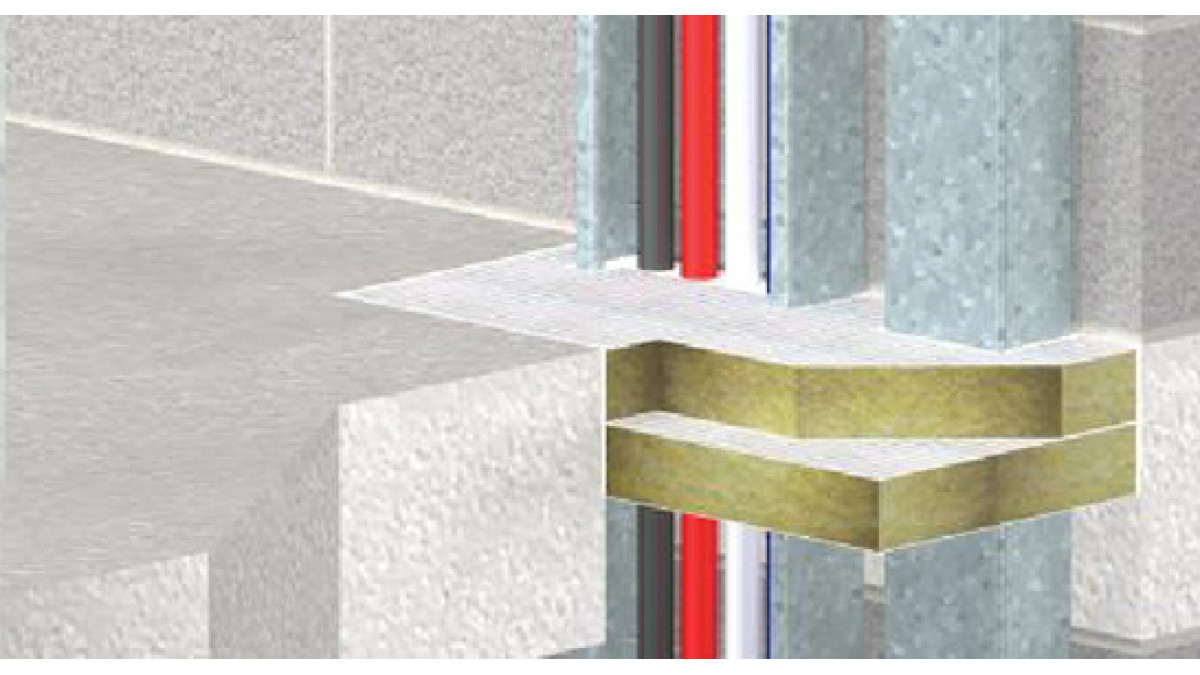

The Bulkhead Batt prevents the passage of fire and smoke between compartment walls and floors whilst still allowing the insulation of services.

At normal temperatures, the Bulkhead Batt installed with FireMastic-300 fire rated sealant remains flexible enough to permit thermal and mechanical movement of services.

Both products are unaffected by oil, fungus, moisture and contain no halogens or asbestos.

Statement of Building Code Compliance
  • Manufactured under ISO9001:2008
  • Approved to AS1530.4:2005 and EN1366.3
Other Performance Attributes
  • BOSS Bulkhead Batts are approved to AS1530.4:2005
  • Report No FAR3823, offering up to -/240/90 FRL; and Report No FAR3921 to -/120/120 FRL
  • They also carry approvals for EN1366 and BS476
  • Bulkhead Batts remain one of the simplest and most cost-effective fire stopping methods available
Documents
Data Sheet
Installation and Operation
