AMF Thermatex Thermofon Ceiling Tile
Description

Thermatex Thermofon provides high sound absorption. The light weight and perforations of the core board has created a Class A sound absorber. With a strong white surface the appearance of Thermatex Thermofon is smooth and elegant. New generation bio-soluble mineral wool, clay and starch contributes to the excellent acoustic performance.

Key Features
  • System: Exposed system, demountable ceiling
  • Dimensions: 1200 x 600mm (15mm), 600 x 600mm, 1200 x 600mm (18mm)
  • Thickness / weight: 15 mm (c. 2.9 kg/m²),

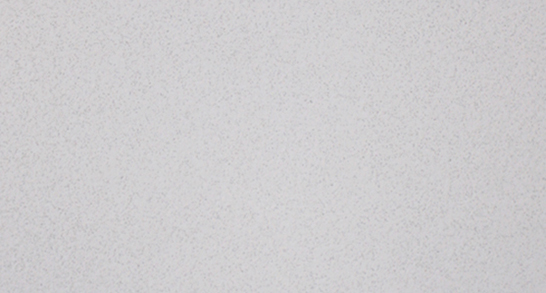

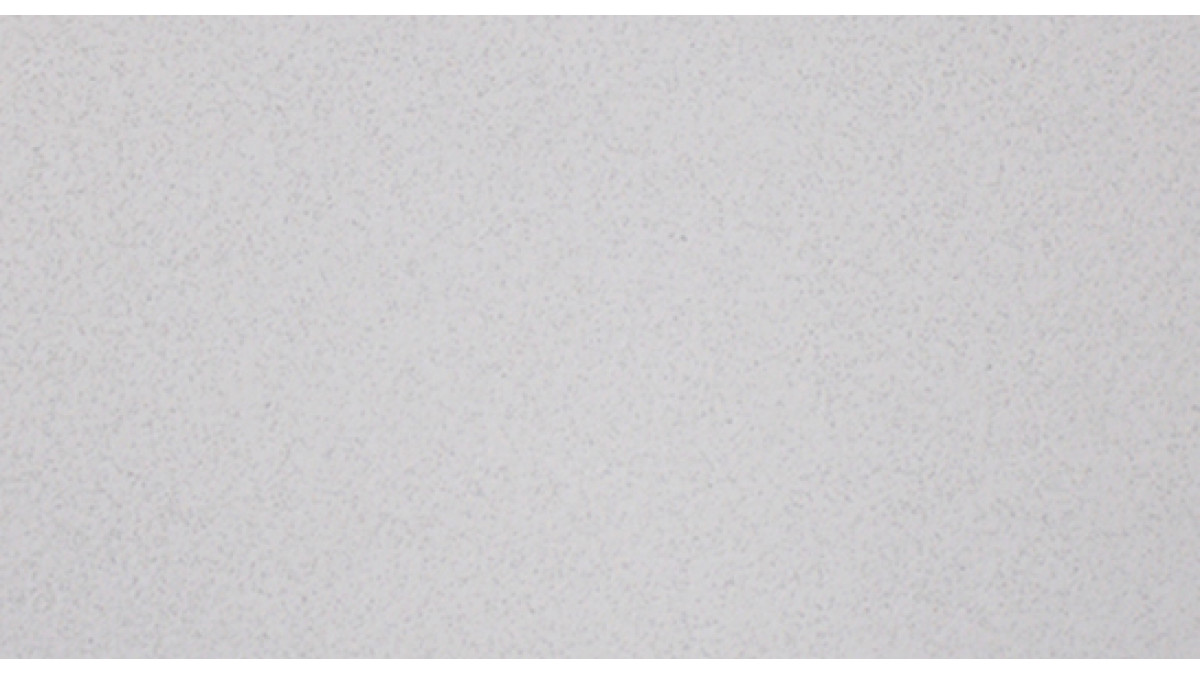

  • Colour: white similar to RAL 9010

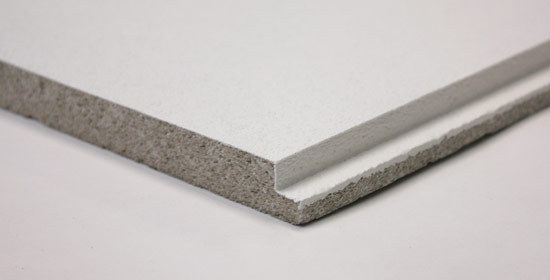

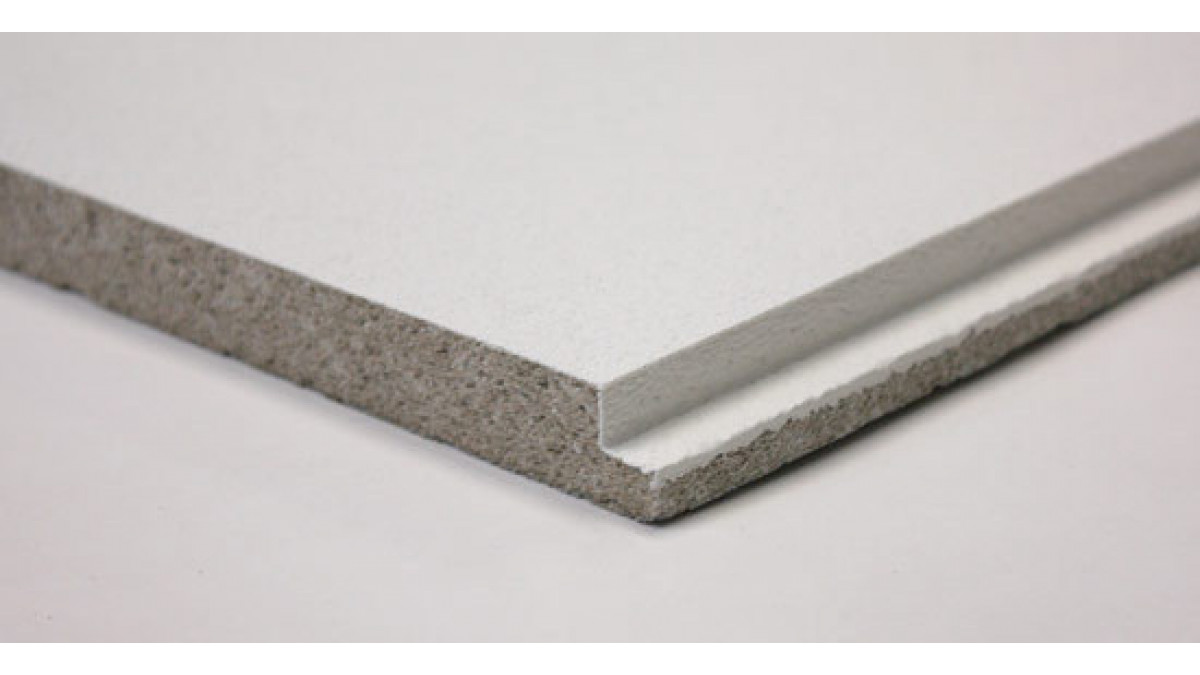

  • Edges details: SK (15mm), VT-S24 (18mm)
Scope of Use
  • System: Exposed system, demountable ceiling
Other Performance Attributes
  • Building material class: A2-s1, d0 as per EN 13501-1
  • Sound absorption: αw = 0.80H as per EN ISO 11654   NRC = 0.85 as per ASTM C 423-02a
  • Sound attenuation: Dn,c,w = 15mm - 28 dB as per EN 20140-9 (according to test report)  //  18mm - 24 dB as per EN 20140-9
  • Light reflectance: Up to 88%
  • Thermal conductivity: λ = 15mm - 0.038 W/mK as per EN 12667  //  18mm - 0.040 W/mK as per EN 12667
  • Humidity: Up 95% RH
Documents
Datasheet
CAD/PDF Details
C.1.1 Ceiling Field Cutting Option

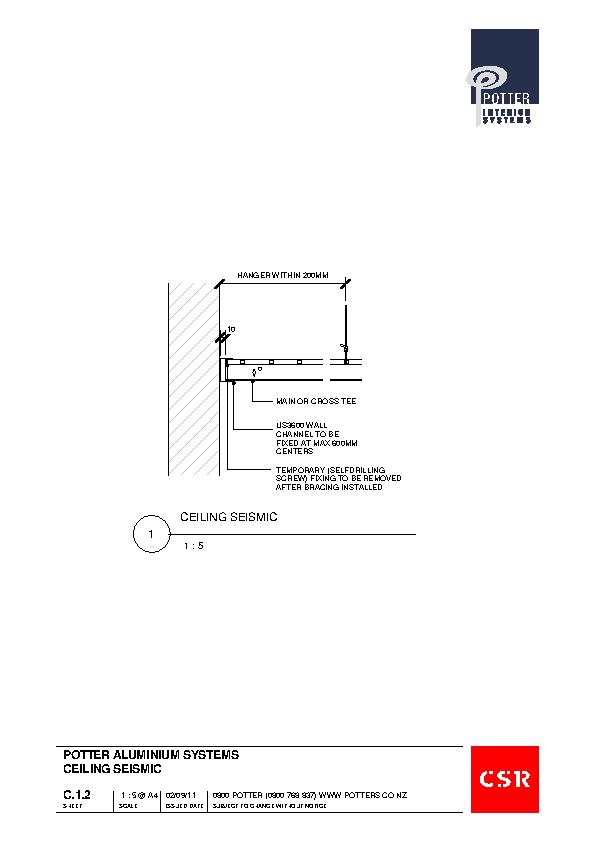

C.1.2 Ceiling Seismic

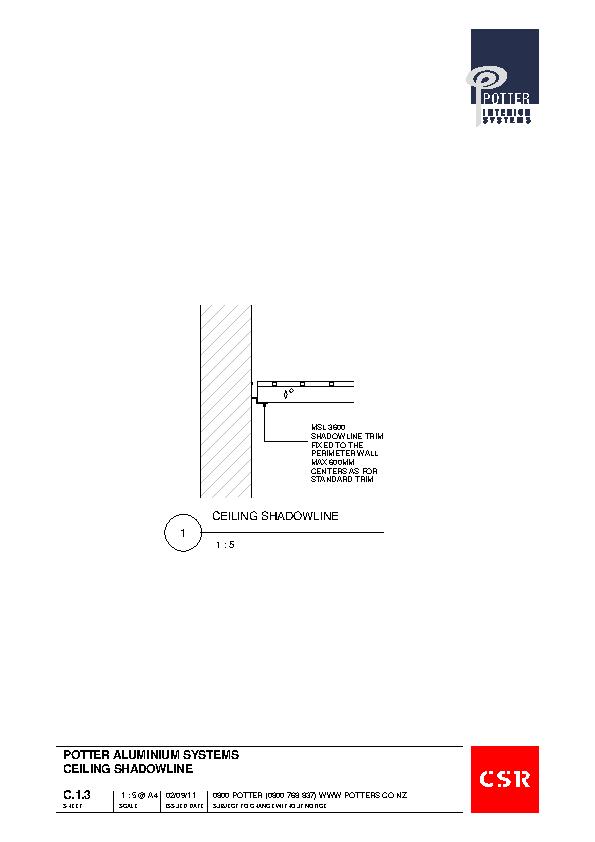

C.1.3 Ceiling Shadowline

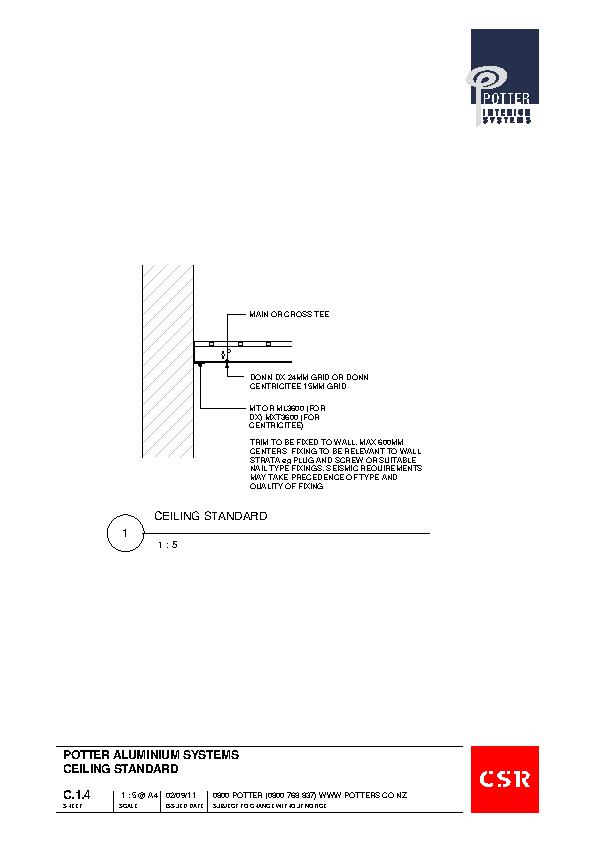

C.1.4 Ceiling Standard

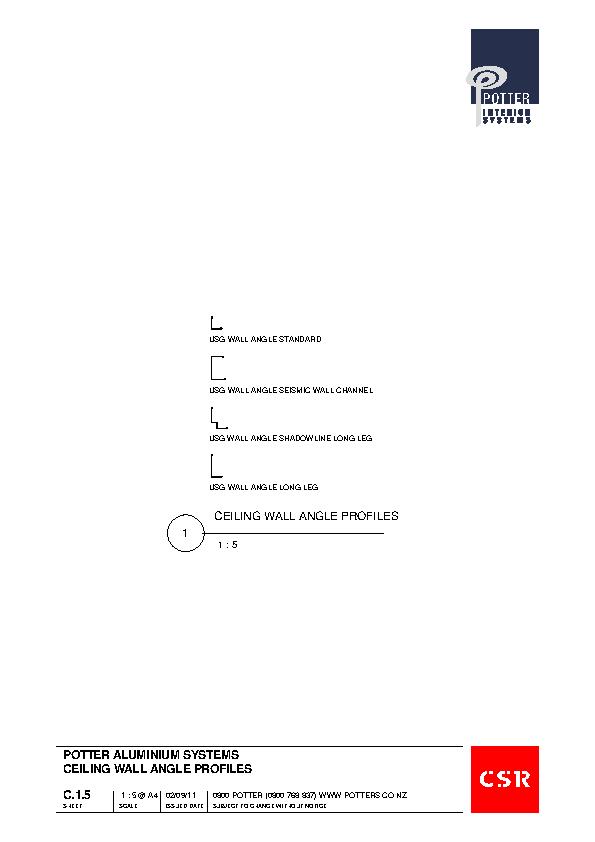

C.1.5 Ceiling Wall Angle Profiles
BIM
AMF Thermatex Thermofon (15mm) Revit
