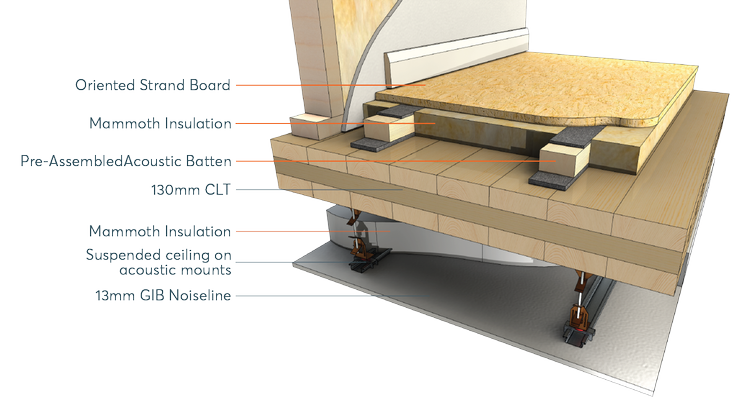

PAB system with OSB

Product Enquiries

Description

SoundDown Pre-Assembled Battens (PAB) are acoustic flooring battens manufactured from LVL timber and recycled rubber isolation strips, and form part of the SoundDown PAB Acoustic Floor System.

The Pre-Assembled Battens eliminate the use of multiple loose items, and allows for a simpler and faster process, minimising the risk of poor installation and ensuring optimal acoustic performance. PAB acoustic battens are available in a variety of configurations, with a range of toppings, making them suitable for a wide range of applications. They are ideal for use in Mass Timber Structures where acoustic performance is paramount. The battens may also be used in other acoustic assemblies.

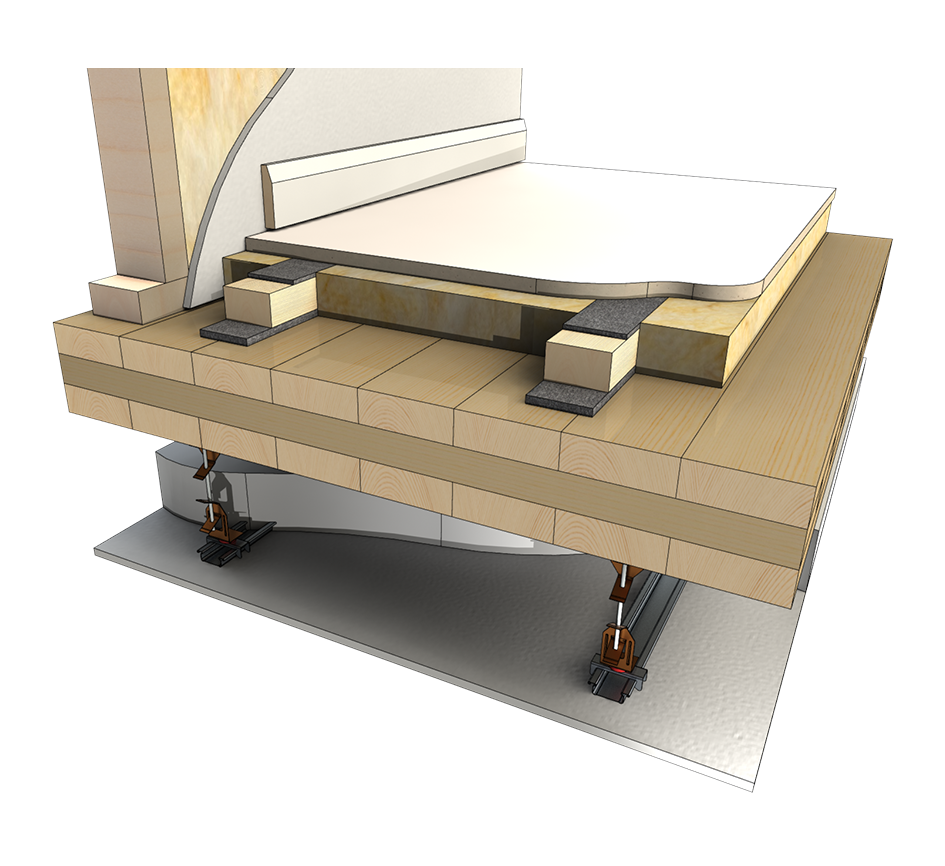

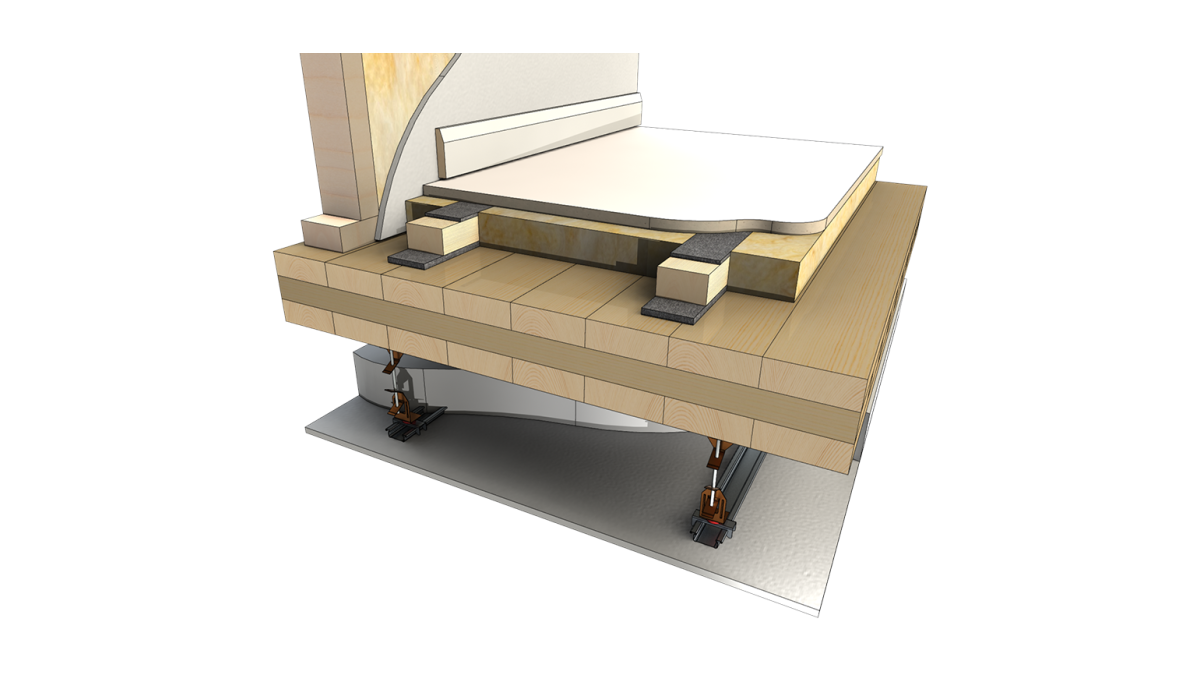

The SoundDown PAB Acoustic Floor System comprises:

Maglok Dragonboard (20mm) or 20mm OSB flooring
Mammoth acoustic 735 insulation
The SoundDown Pre-Assembled Batten (PAB)

Battens are available in 3m lengths.

Key Features

Efficient, and easy to install
Reduces risk of poor installation
No wet trades required
Supply & install options available
Customisable height
Range of toppings available
Airborne noise — STC: 66-76dB
Impact noise — IIC: 57-64dB
Environmentally friendly elements
Non-combustible topping option

Ranges

SoundDown for Mass Timber

Scope of Use

The SoundDown PAB system is an acoustic system mass timber flooring, which reduces noise and vibration for CLT structural floors
Idea for living spaces, modern workspaces, large open areas, high traffic areas

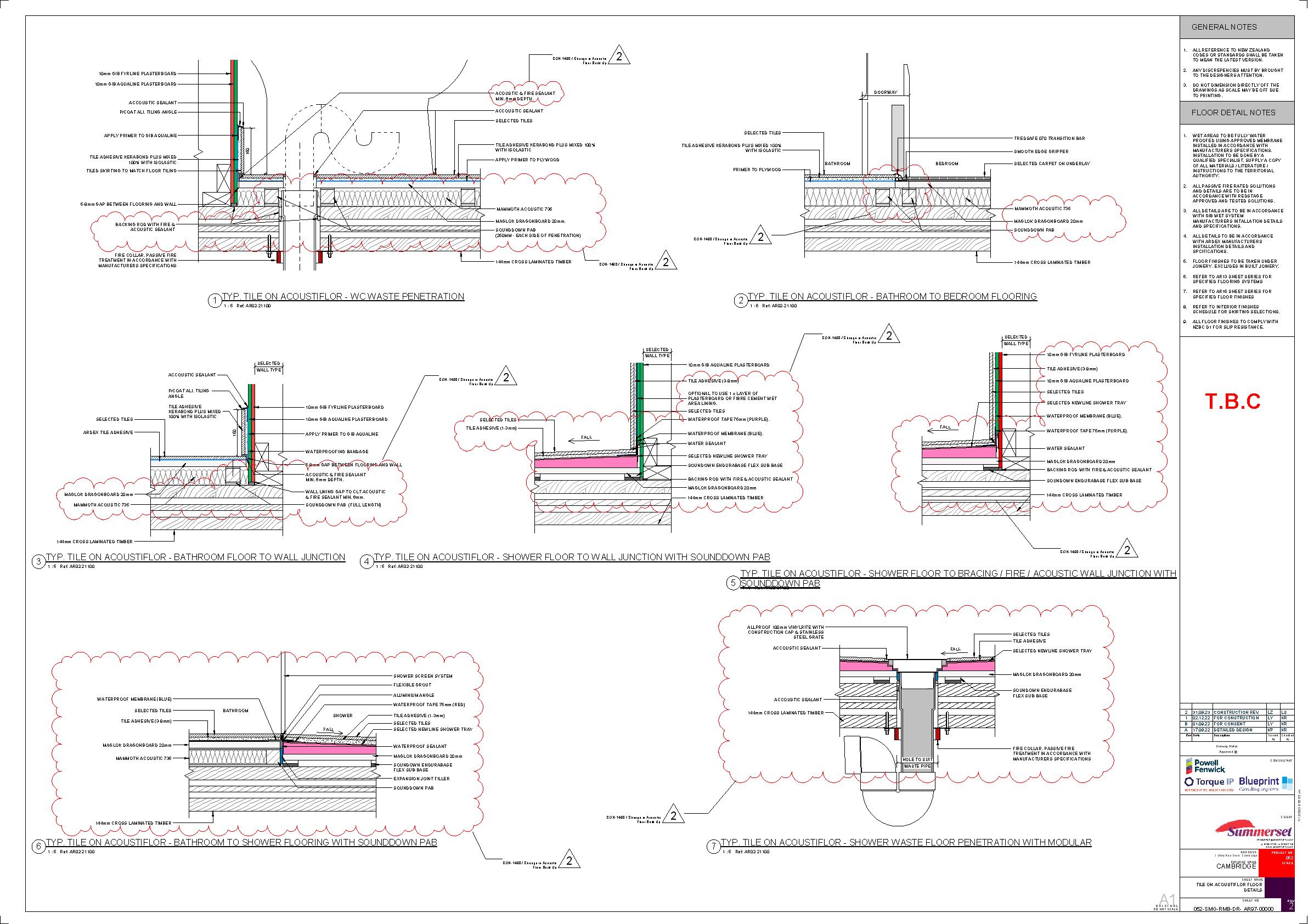

Suitable for wet areas, including tileable shower tray options for a complete acoustic solution
Customisable height
The battens may also be used in other acoustic assemblies
FFL increase: 80mm (standard)

Limitations on Use

The SoundDown PAB acoustic flooring system does not specify flooring requirements other than in wet areas
CLT flooring must comply with NZBC requirements
Must be designed and installed in accordance with the Sounddown technical literature
Where battens are installed in an alternative assembly, acoustic performance must be determined based on the assembly in its entirety

Statement of Building Code Compliance

When used in accordance with the SoundDown technical literature SoundDown PAB Battens will meet or contribute to meeting the following provisions of the NZBC:

B1 Structure: B1.3.1, B1.3.2 B1.3.3 (a, b), B1.3.4
B2 Durability: B2.3.1 (a), B2.3.2 (a)
G6 Airborne and Impact Sound: G6.3.1, G6.3.2
