SoundDown Endurabase Tileable Shower Modules by Build Anatomy

SoundDown Endurabase Tileable Shower Modules

Description

SoundDown Endurabase shower modules are pre-assembled, acoustically isolated shower systems designed for use with SoundDown PAB acoustic flooring for a seamless shower and acoustic floor system. Endurabase removes the need to build up the shower floor with wet screeds, reducing on-site labour and enables a flush shower entry whilst guaranteeing code compliant floor falls.

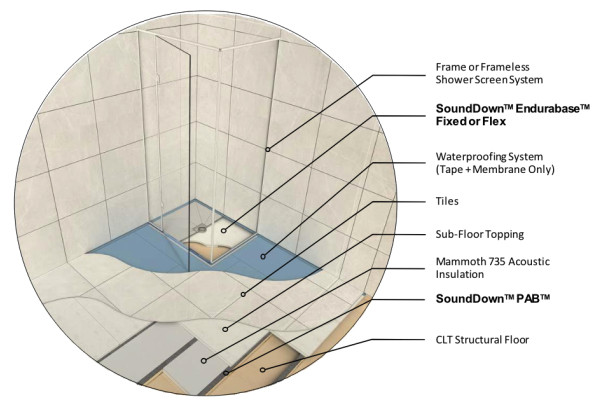

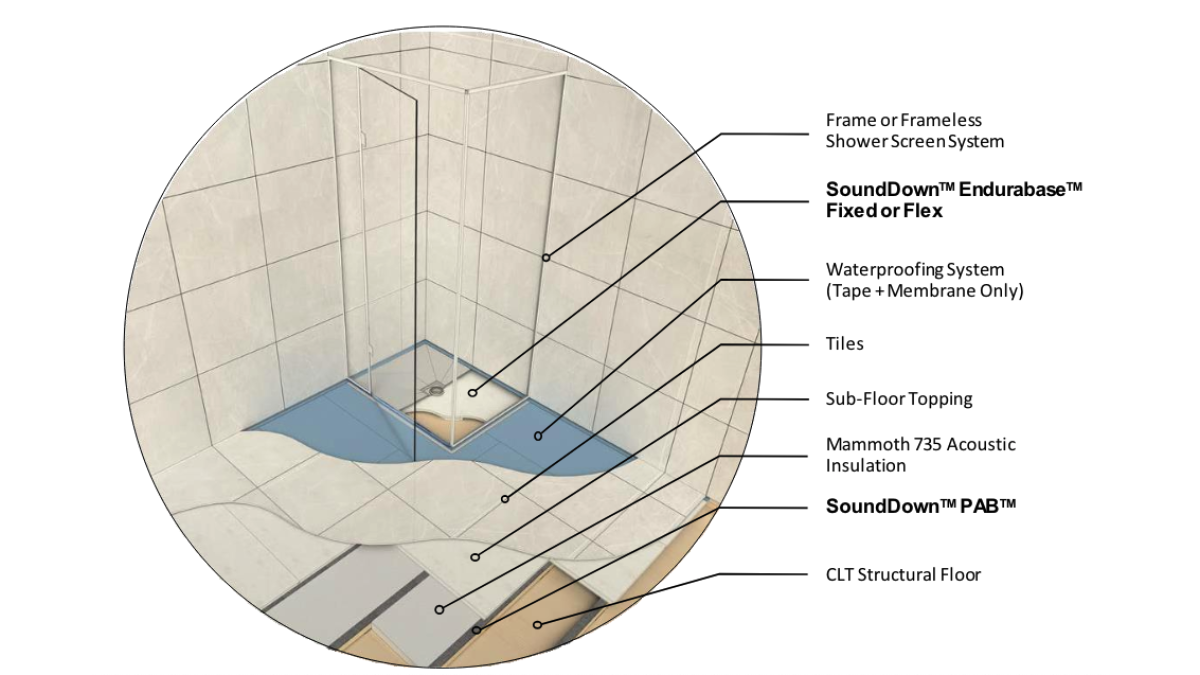

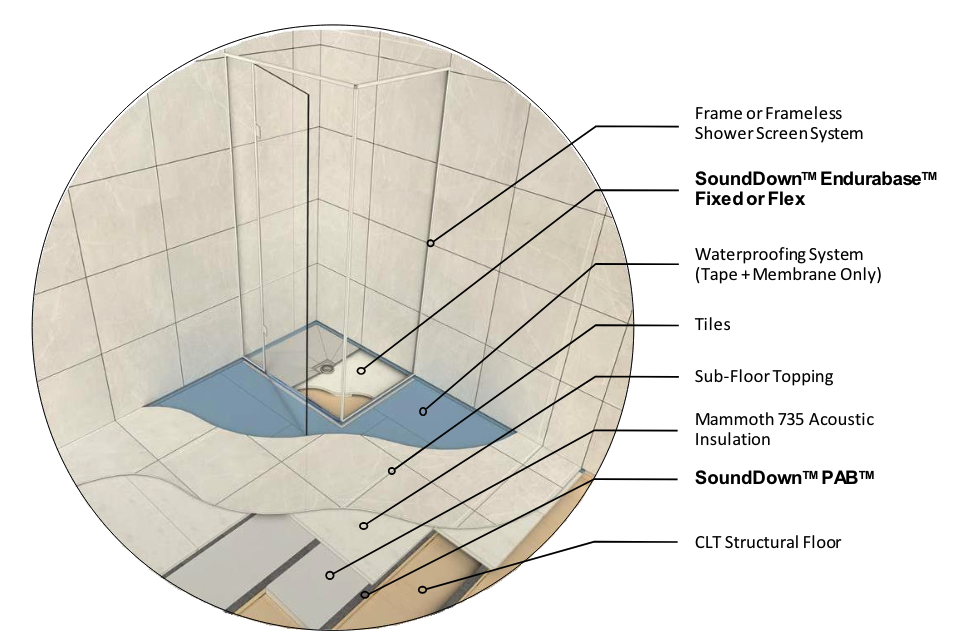

The two part system consists of a customisable sub-base and either a Fixed or Flex preformed tileable shower tray, mounted on moisture-resistant Maglok Dragonboard and ready for waterproofing and tiling.

Endurabase Fixed

A perfect option for a standardised approach to showers
Preformed fibreglass shower tray mounted on a moisture-resistant Maglok Dragonboard 40mm base ready for waterproofing and tiling
Available in 1000x1000mm, 1200x900mm, 1400x900mm, 1600x900mm & 1800x900mm

Endurabase Flex

Preformed polymer cement coated XPS-core shower base mounted on a moisture-resistant Maglok Dragonboard base ready for waterproofing and tiling
Designed for unique shower sizes and shapes, and wetrooms
Trimable on site
Available in custom sizes up to 2400mm long, and 1000x1000mm, 1200x900mm, 1400x900mm, 1600x900mm & 1800x900mm

Key Features

Seamless shower and acoustic floor system
Designed for premium architectural bathrooms with walk in, corner, alcove and truncated layouts
100% waterproof shower base systems
Hobless design; flush, level entry
Standard and custom sizes made to order
High precision manufacture, guarantee perfect fit
Channel drain and centre drain options
Pre-formed code compliant fall guarantees drainage
Easy and fast to waterproof and tile
Removal of wet screeds and mortar bases
Peace of mind, backed by SoundDown warranty

Ranges

SoundDown for Mass Timber

Scope of Use

SoundDown Endurabase is designed to achieve a flush shower entry when used with SoundDown PAB Acoustic Floor System.

Developed to be compatible with raised acoustic floors in apartments and townhouses
Designed for premium architectural bathrooms with walk in, corner, alcove and truncated layouts
Hobless design; flush, level entry, while guaranteeing compliant floor falls
Standard and custom sizes made to order
Channel drain and centre drain options

Options:

For fixed size showers: The SoundDown Endurabase Fixed system comes in a set of standard shower sizes with a Henry Brooks Fibreglass Tray.
For project-specific shapes and sizes: The SoundDown Endurabase Flex system is custom designed for unique shower sizes and shapes, with a pre-formed Oben cement coated XPS-core shower base.
For wet rooms: The SoundDown Endurabase Flex Wet Room system features the same XPS-core shower base as the Flex system, available in any size to meet wet room requirements.

Sizes:

Fixed and Flex options are available in 1000x1000mm, 1200x900mm, 1400x900mm, 1600x900mm & 1800x900mm sizes
Endurabase Flex is also available in custom sizes up to 2400mm long and is trimable on-site
Sub-base is available in heights from 25mm to 40mm to meet height

Limitations on Use

To meet the stringent requirements of E3/AS1, the designer must specify a suitable waterproofing system to be installed on top of this sub base. The surface element must be continuous, impervious and be either covered or have the joints sealed. An integrally waterproof sheet material such as polyvinylchloride will meet the acceptable solutions (E3/AS1).

SoundDown recommends using the ARDEX waterproofing system detailed on page 10 of the SoundDown Design Guide; this system not only meets the requirements of E3/AS1 but provides a warranted solution for wet areas.

Where specifying an alternate waterproofing system, consult the waterproofing manufacturer to confirm suitability of products and warranty terms and conditions.
