Description

SoundDown Duo acoustic floor has been designed and tested to achieve industry-leading performance in both airborne and impact noise, through a range of frequencies and a variety of floor coverings, including tiles.

This two-layer floor/ceiling system achieves an STC rating of 64 dB, an IIC rating of 62 dB and incorporates a 60/60/60 fire rated ceiling. SoundDown Duo is installed in conjunction with a timber or lightweight steel structural frame and timber joists.

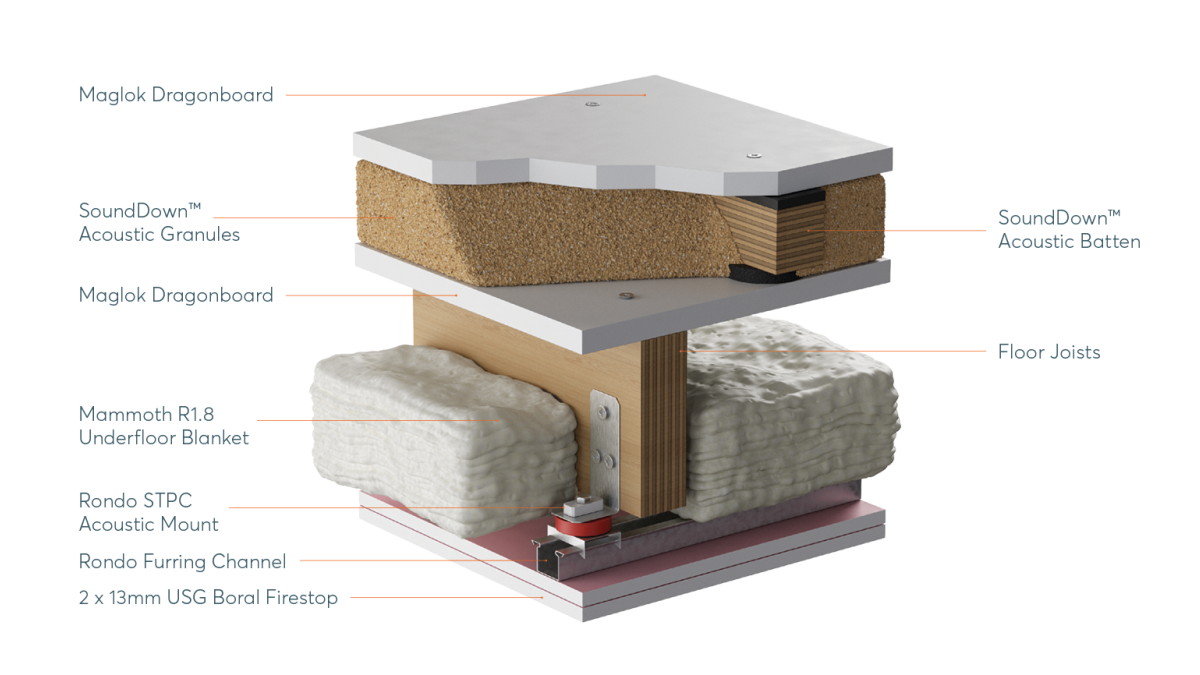

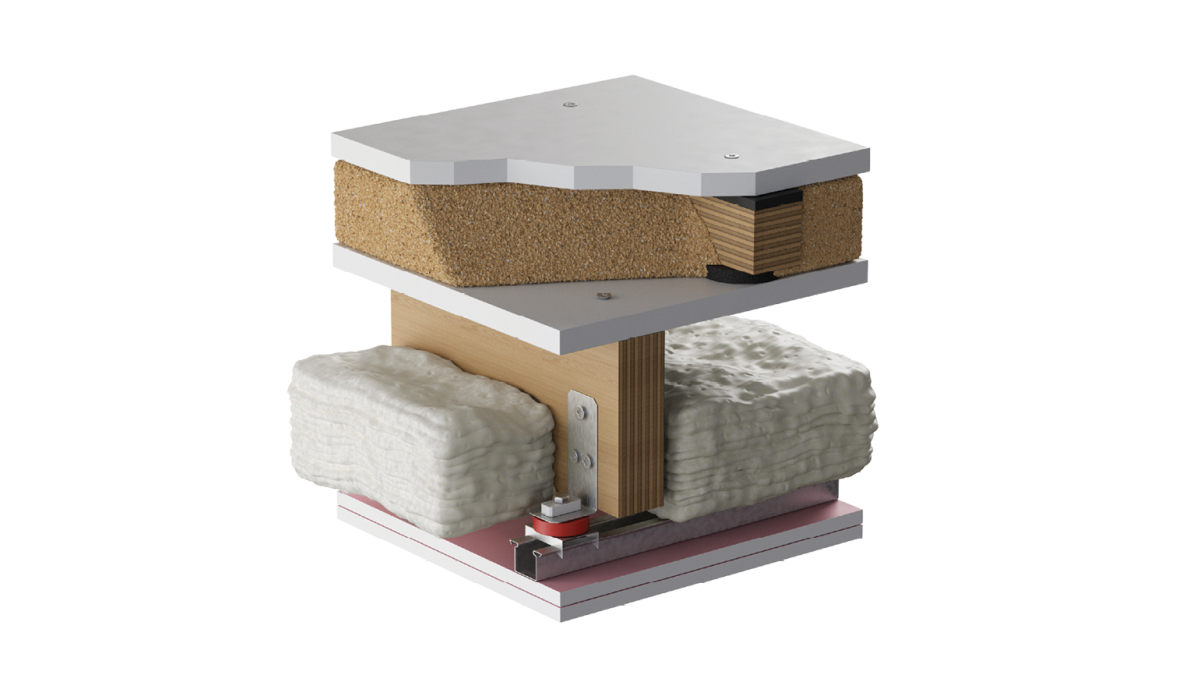

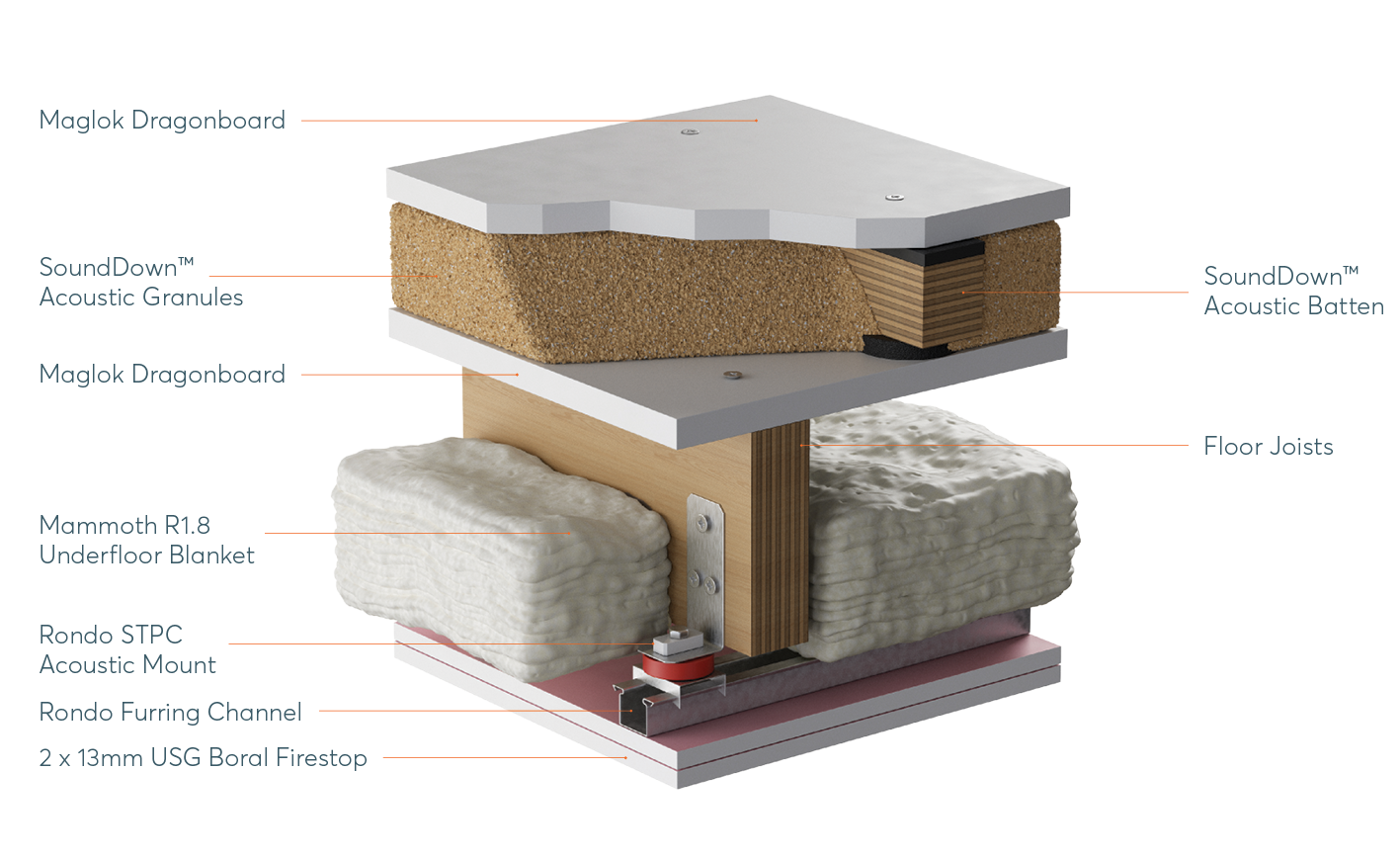

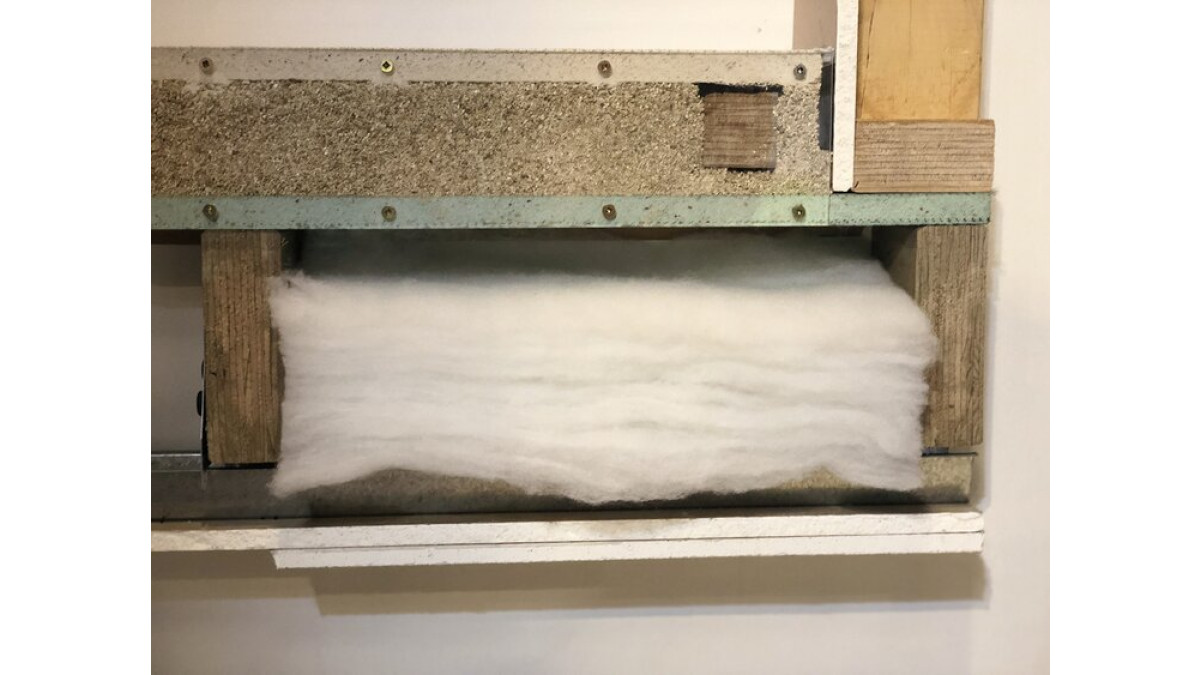

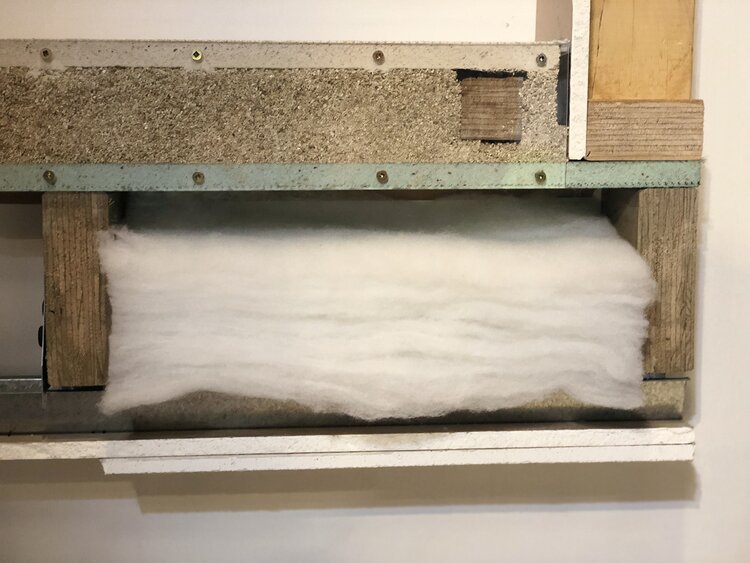

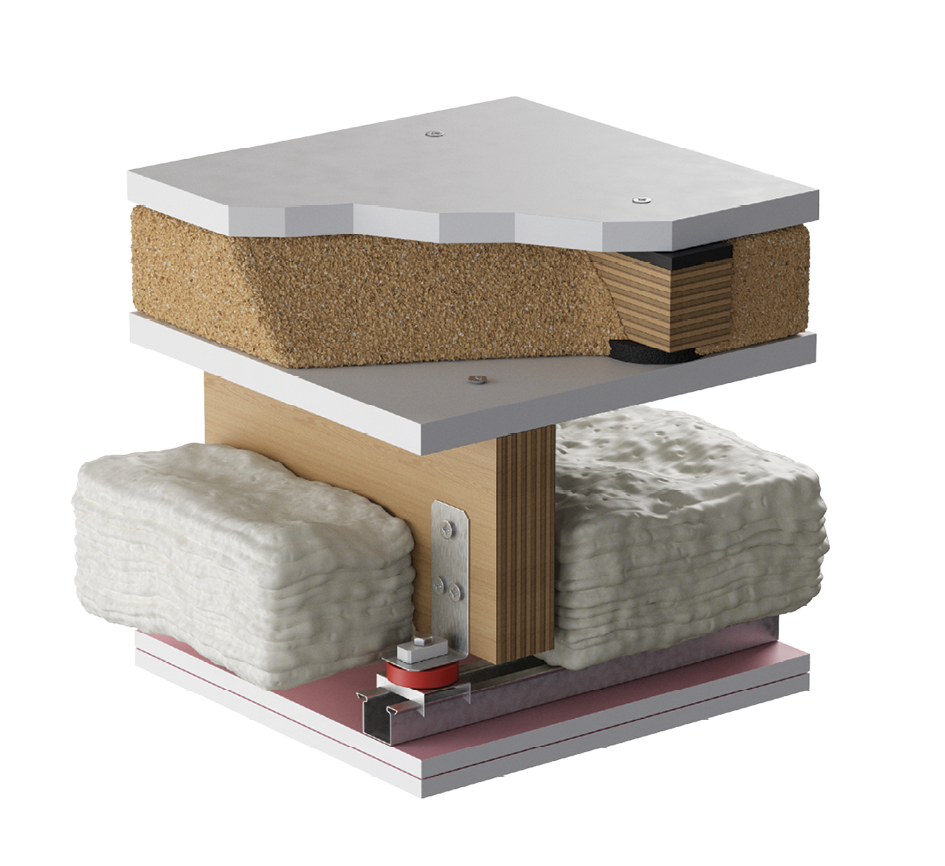

SoundDown Duo comprises:

Maglok 20mm DragonBoard

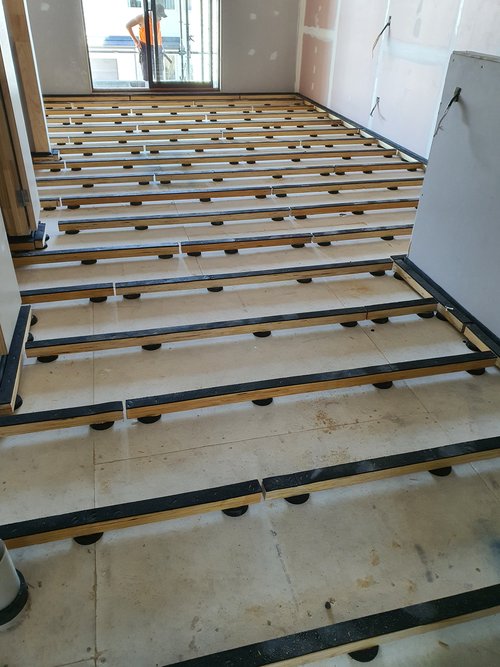

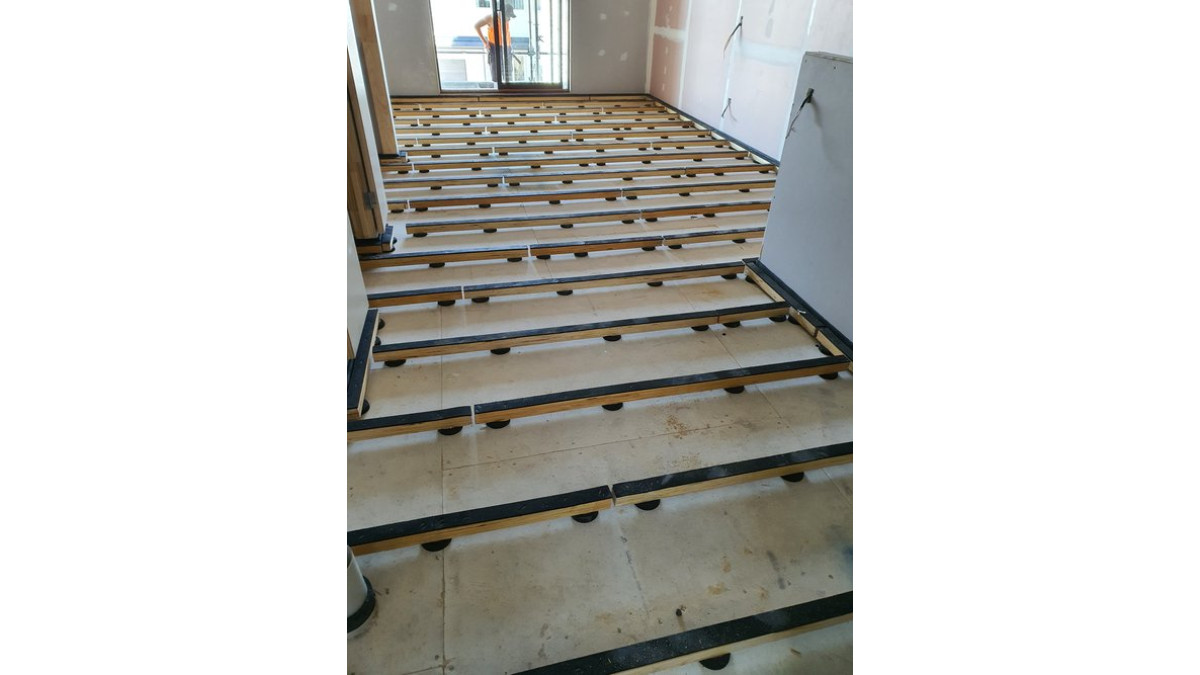

SoundDown acoustic flooring battens

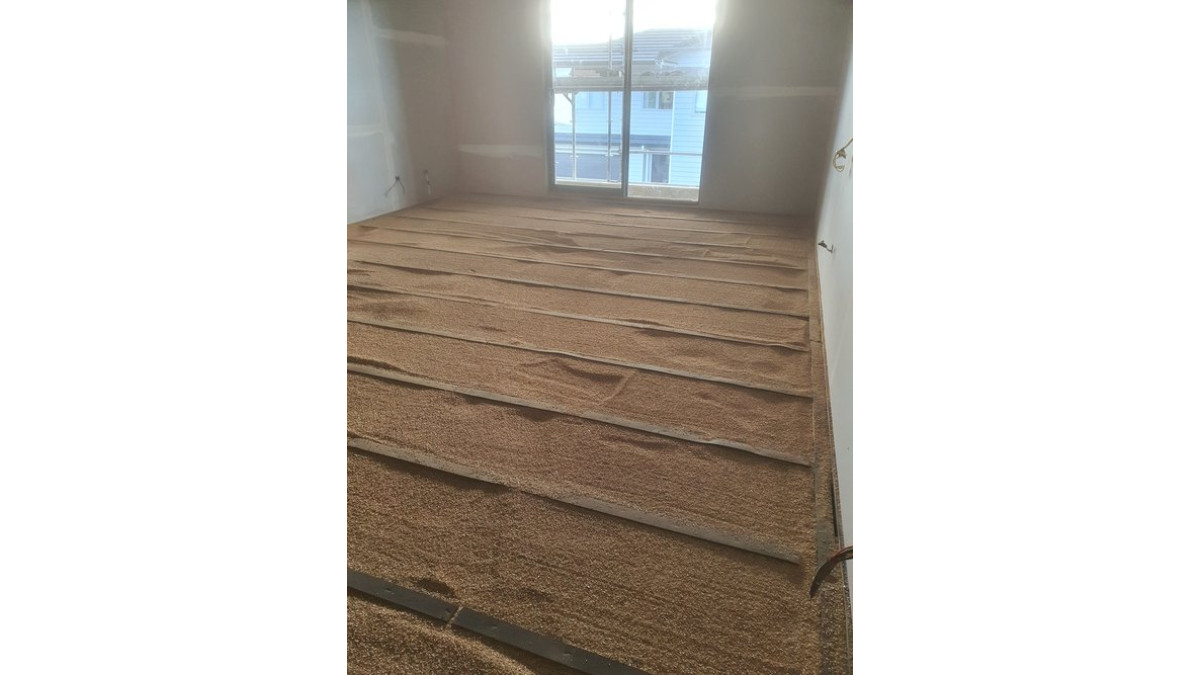

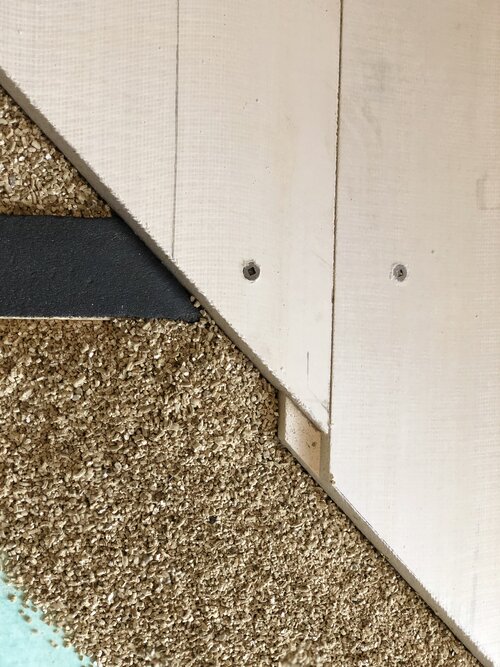

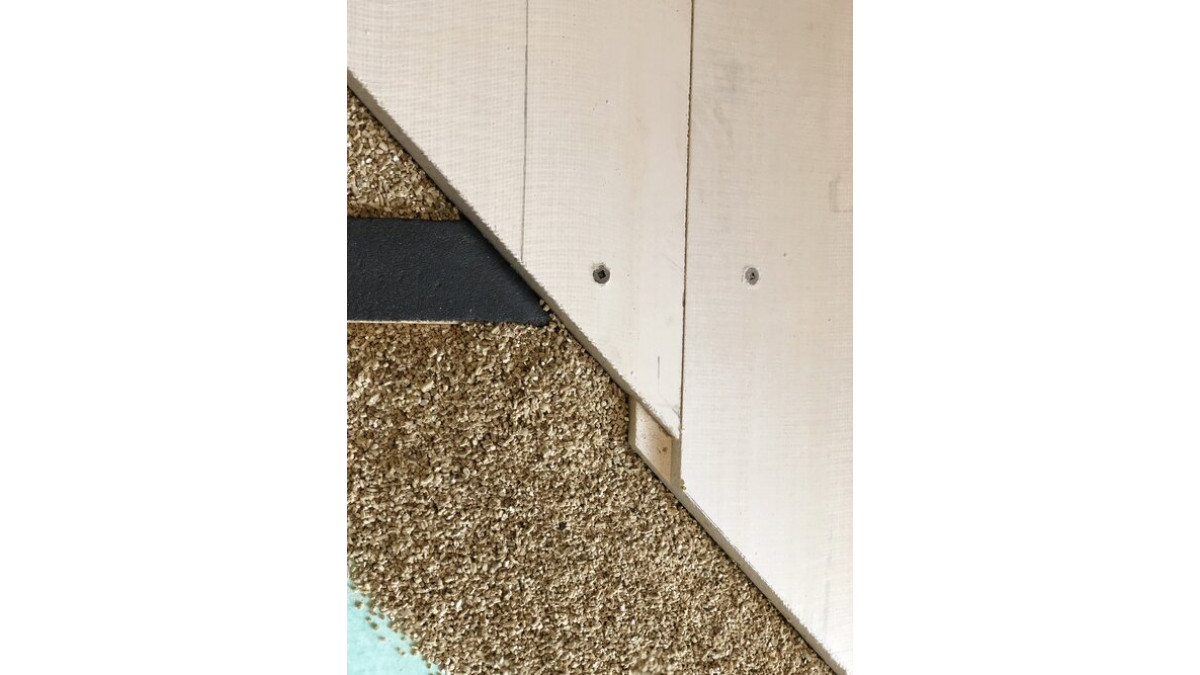

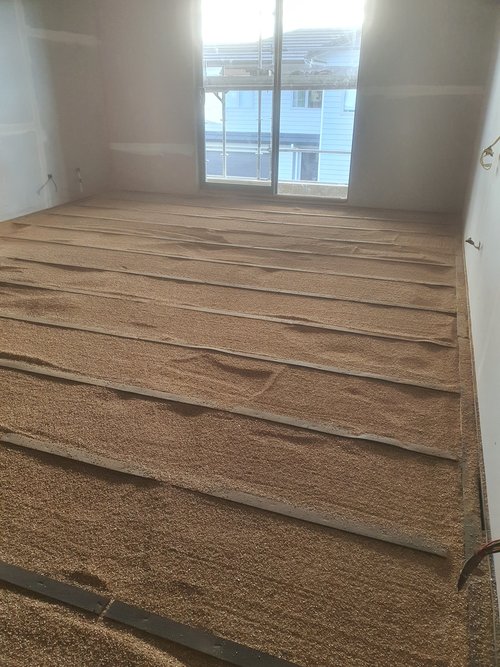

Vermiculite lightweight acoustic granules
Maglok 20mm DragonBoard
SG8 timber joists
Rondo STPC ceiling mounts assembled with acoustic clips
Mammoth R1.8 polyester insulation
Rondo 129 Furring Channel
2 layers of 13mm USG Firestop

Key Features

Exceeds building code for fire and sound
Can be partially constructed as a cassette
Fully compatible with standard lightweight building methods
Unmatched sound attenuation
STC Rating: 64dB
IIC Rating: 62dB

Ranges

SoundDown for Lightweight Structures

Scope of Use

SoundDown Duo is a load-bearing, acoustic and fire rated intertenancy floor/ceiling system:

Used in conjunction with a timber or lightweight steel structural frame
As an acoustic intertenancy midfloor
As a fire rated intertenancy midfloor — achieves a maximum fire resistance rating, from below, of 60/60/60
FFL: 85mm
Suitable for use with any floor covering, including tiles

Limitations on Use

Plasterboard must be manufactured to AS/NZS 2988

As an acoustic intertenancy midfloor:

The selected plasterboard must be installed in accordance with all manufacturer's requirements, including sealing with the recommended sealant

As a fire rated intertenancy midfloor:

Plasterboard must achieve a minimum material group number rating of 1-S and achieve a fire resistance rating of 60/60/60

Statement of Building Code Compliance

If designed, installed and maintained in accordance with all Build Anatomy Limited requirements, SoundDown Solo will comply with or contribute to compliance with the following performance claims:

B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b, c, e, f, i, j, l, m, o, r), B1.3.4 (a, b, c, d, e)
B2 Durability: B2.3.1 (a), B2.3.2 (a)
C3 Fire affecting areas beyond the fire source: C3.4 (a, b)
C6 Structural stability: C6.2 (a, b, c, d)
F2 Hazardous Building Materials: F2.3.1
G6 Airborne and impact sound: G6.3.1
H1 Energy efficiency: H1.3.1 (a), H1.3.2E

See PASS statement for full information.
