The slimline system enables the use of a single plane of fall in a tile floor, providing a subtle and visually appealing finish where the large tiles can be successfully integrated.

Designed for compliance with the scope outlined in building codes listed above and to be installed as per published installation guides. For commercial and/or residential applications.

Compatible with compliant DWV systems, waterproofing membrane systems and flooring systems.

• G1/AS1 Personal hygiene: Allproof floor wastes are designed to provide an appropriate drainage solution for showers and various other sanitary fixtures required for personal hygiene.
• G13/AS1 Foul water: Slimline channel waste systems are compliant with all requirements, specifically 3.4 Floor outlets. Refer to install guides and specifications for further information on compliance.

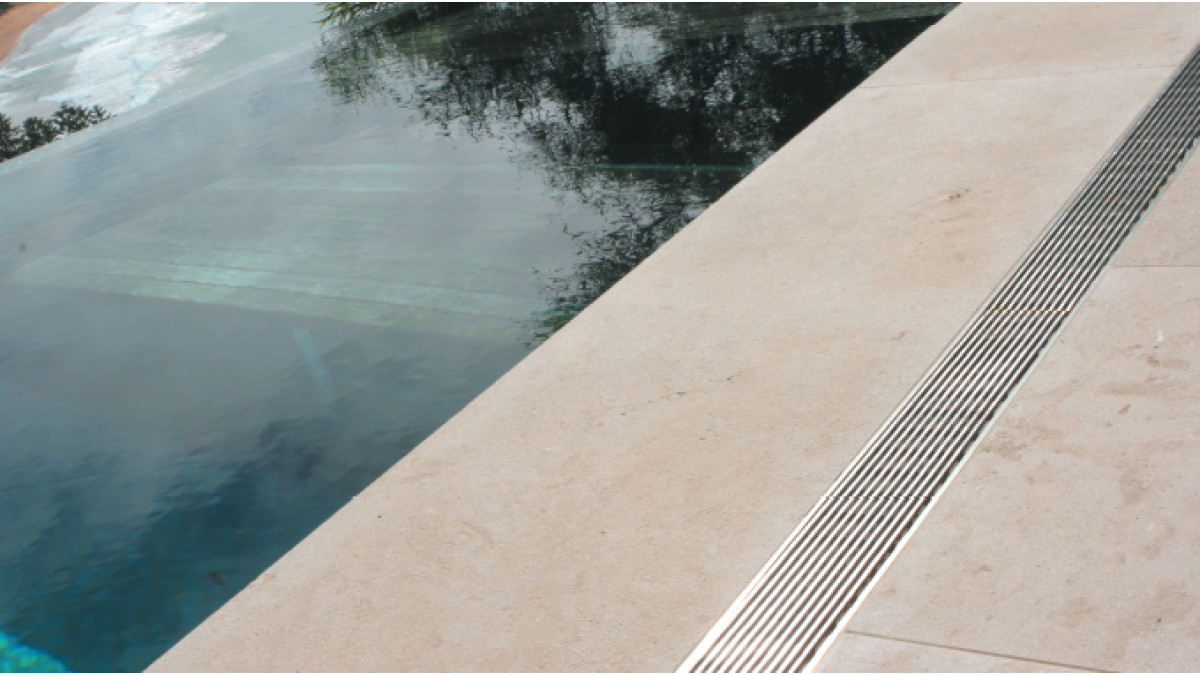

• E1/AS1 Surface Water: Slimline channel waste systems can be used for surface water catchment to convey water to an appropriate outfall / storm water system.
• B2/AS1 Durability: B2.3.1 — Allproof commercial kitchen and floor waste systems meet the requirements of B2.3.1 (b) not less than 15 years and (c) not less than 5 years.

WaterMark Certificate of Conformity has been obtained on all relevant floor waste components for;

• AS1260 (WMKA 21800),
• WMTS-040 (WMKT 21223),
• and AS2887 (WM 74706).
